Model GE ZDT985SIN3II – Common Parts & Diagrams

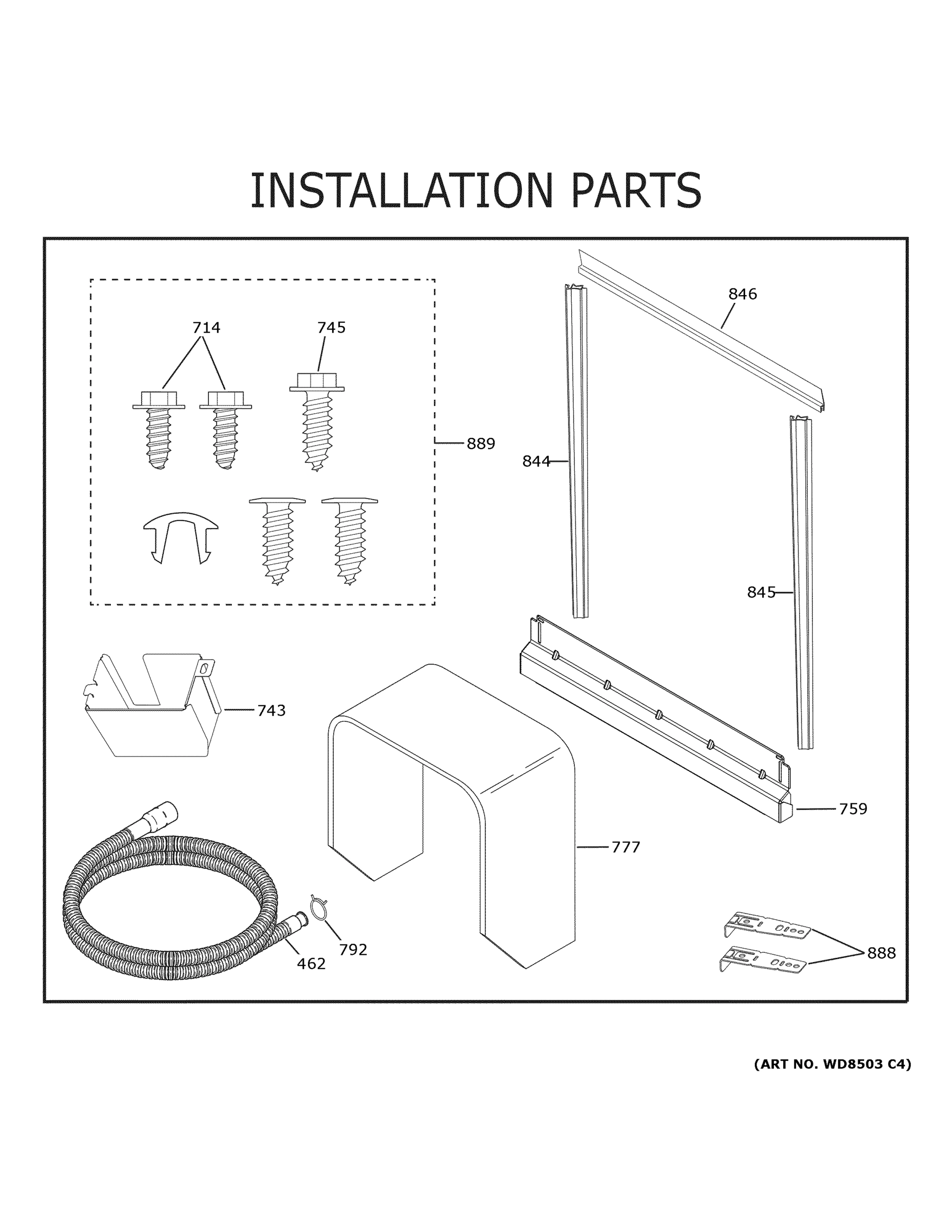

INSTALLATION PARTS

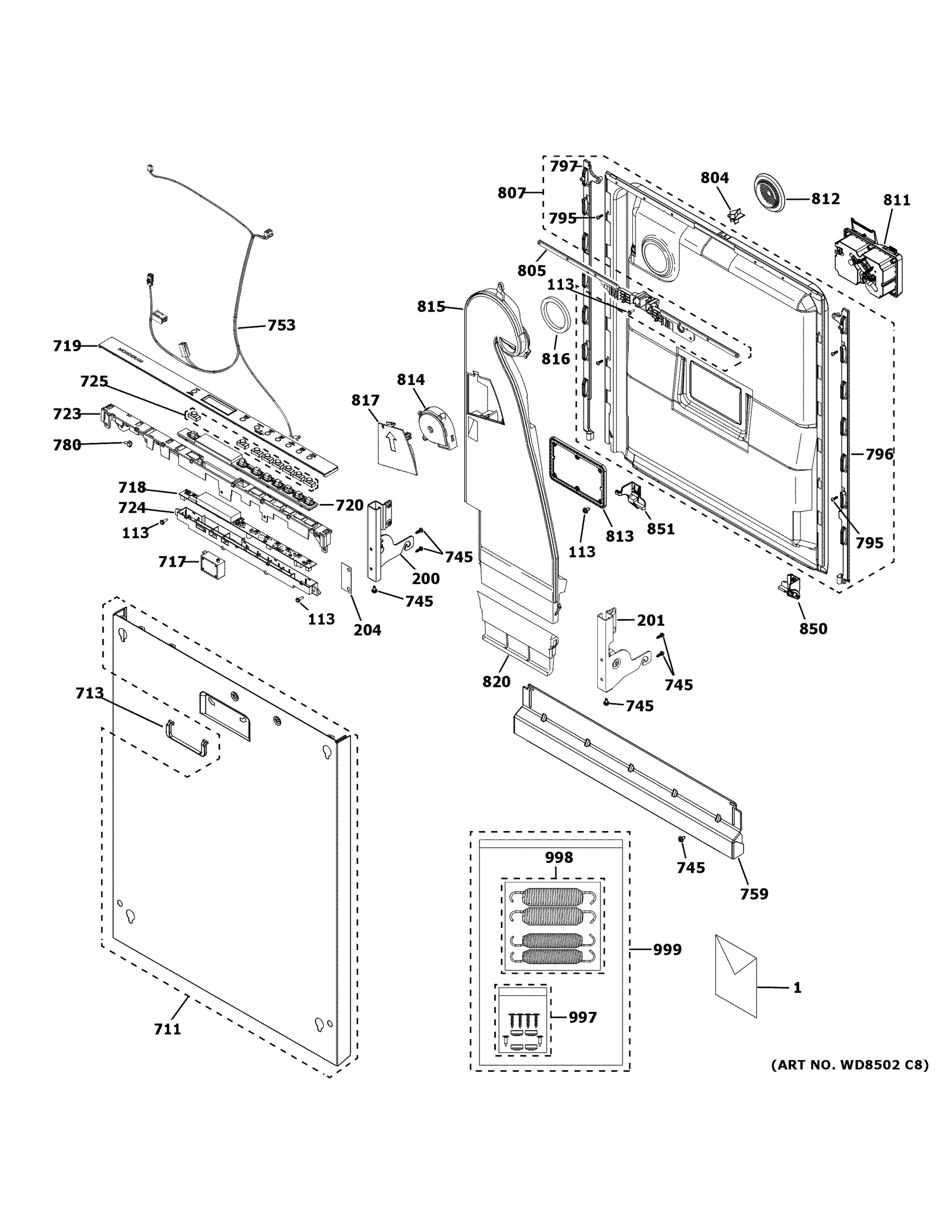

ESCUTCHEON & DOOR ASSEMBLY

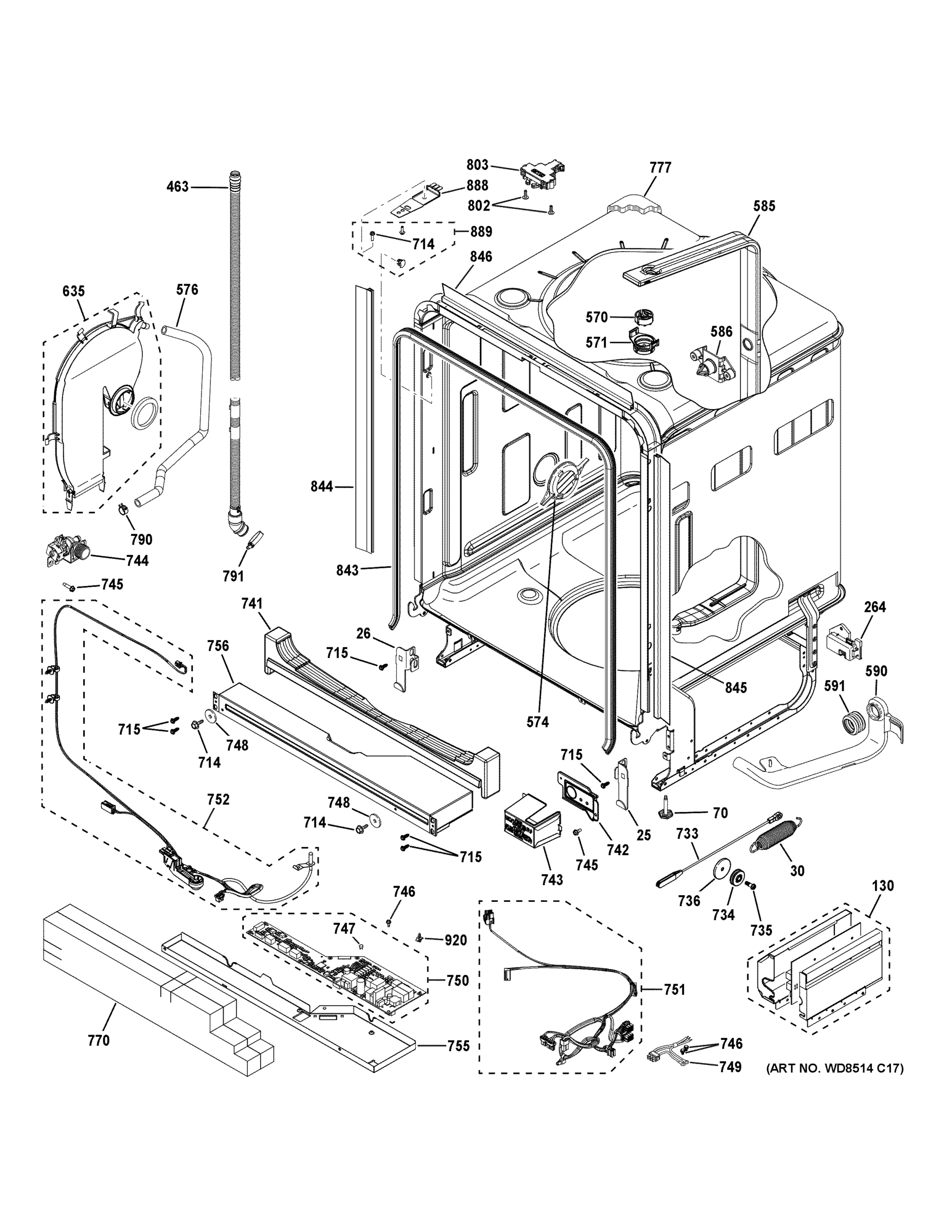

BODY PARTS (1)

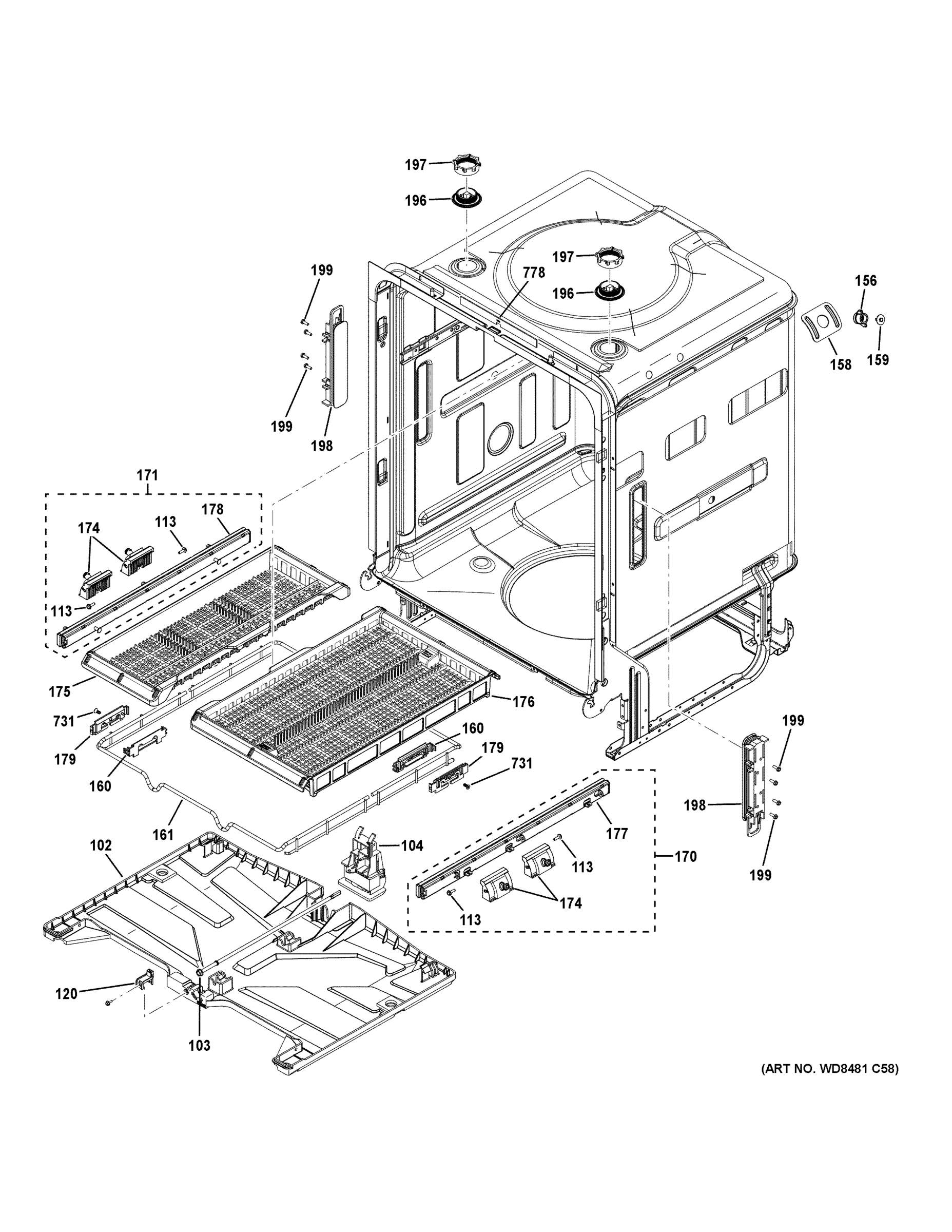

BODY PARTS (2)

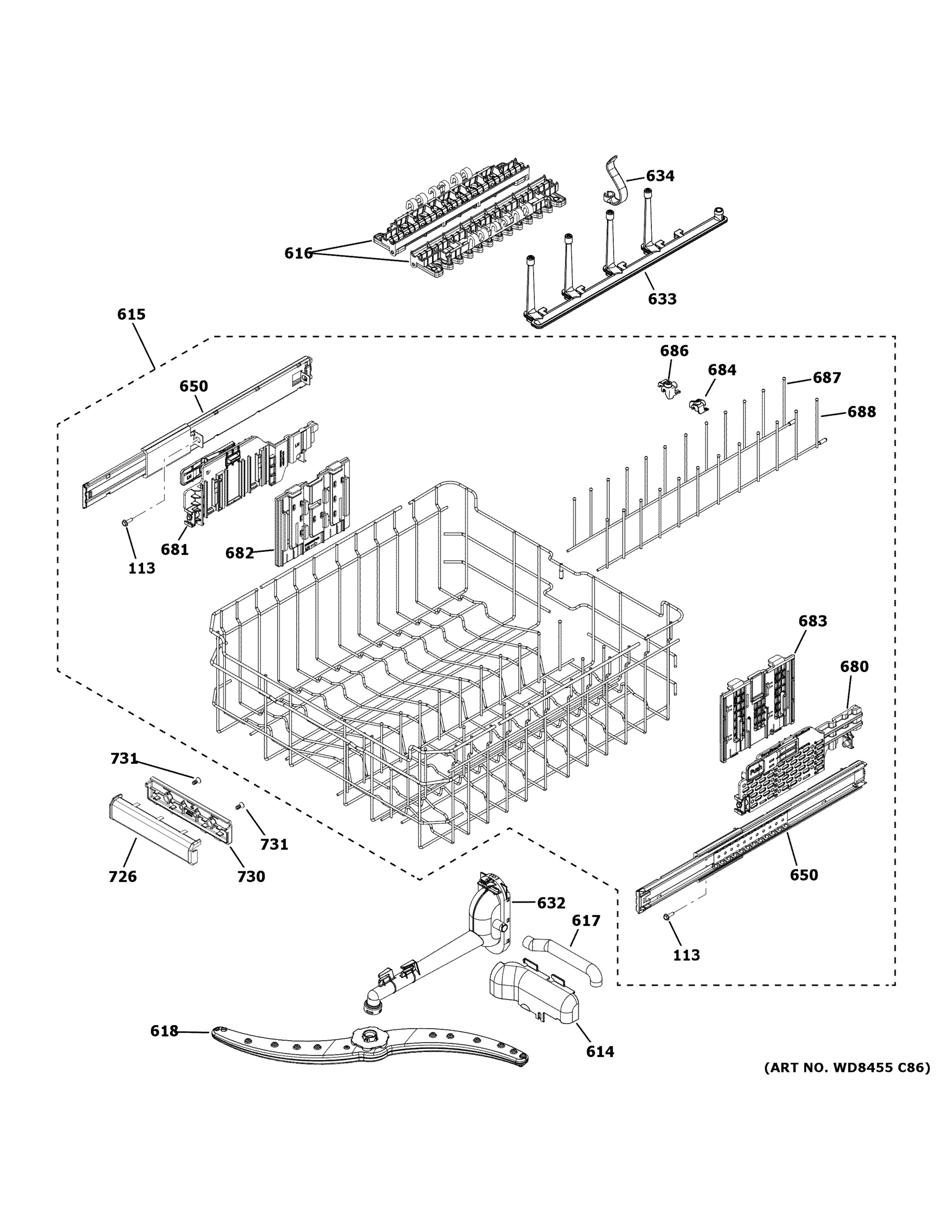

UPPER RACK ASSEMBLY

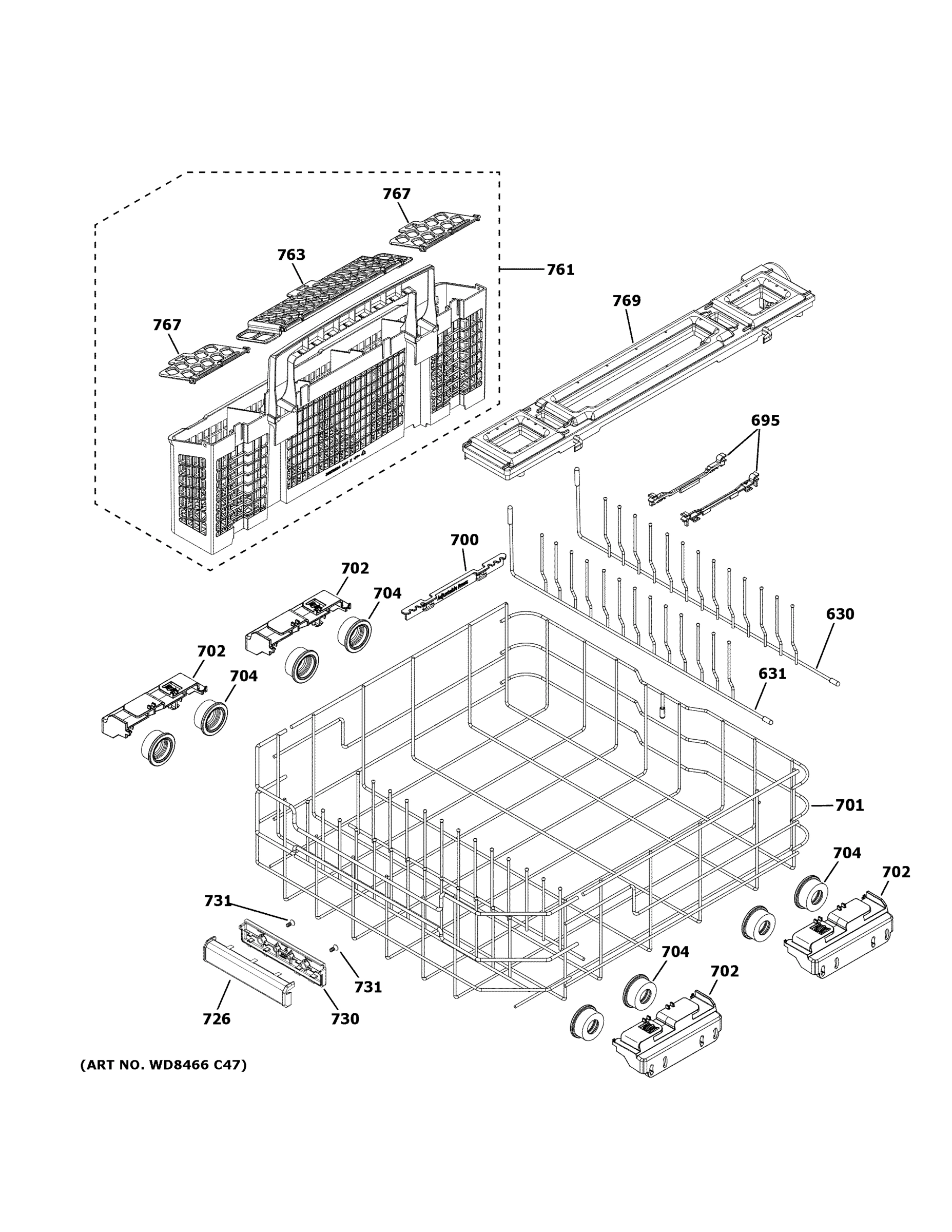

LOWER RACK ASSEMBLY

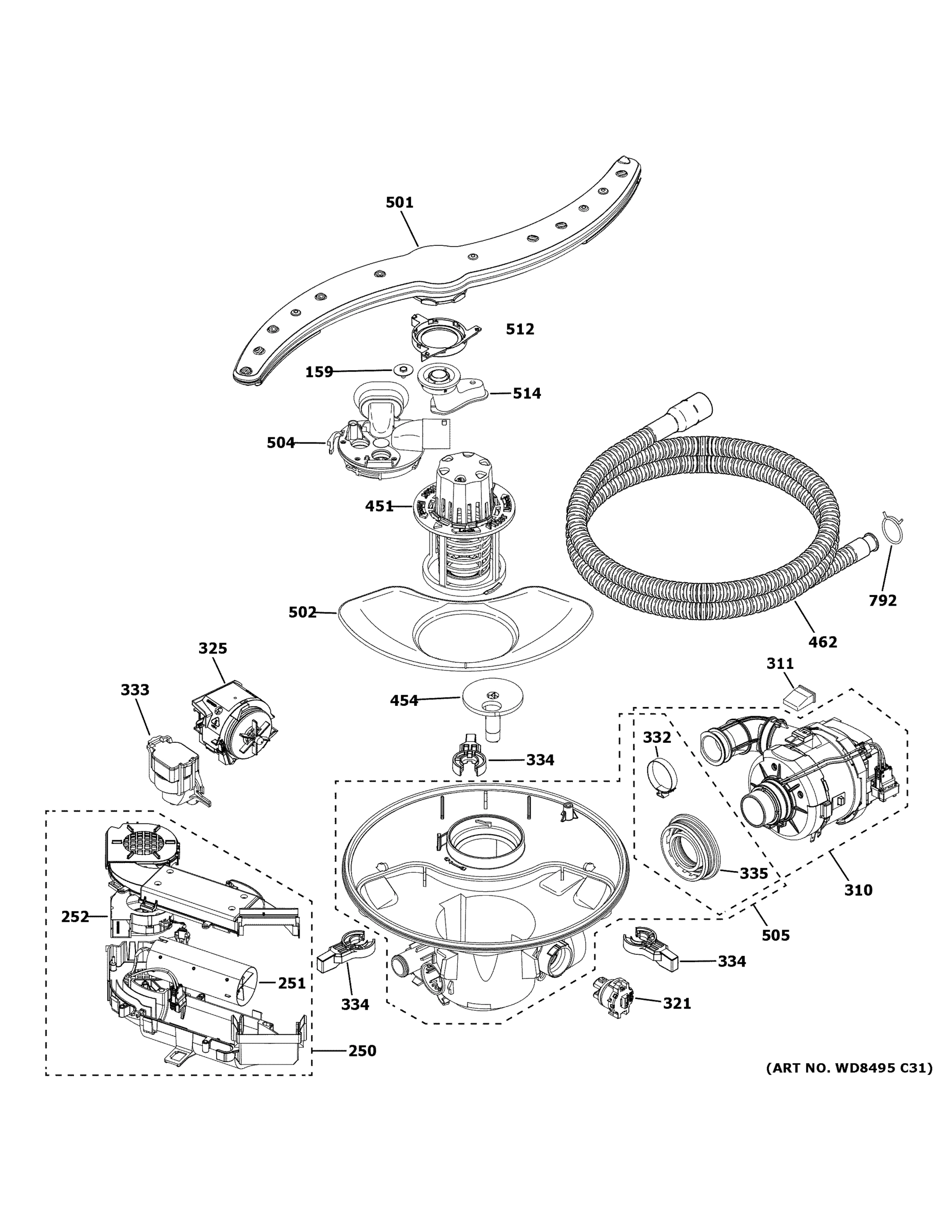

MOTOR, SUMP & FILTER ASSEMBLY
Common parts from model GE ZDT985SIN3II
25
BRACKET CABLE RH GEN WD01X23776 Contact Us For Availability
26
BRACKET CABLE LH GEN WD01X23777 Contact Us For Availability
30
SPRING DOOR GEN WD03X20316 Contact Us For Availability
30
SPRING DOOR GEN WD03X20446 Contact Us For Availability
30
SPRING DOOR GEN WD03X20445 Contact Us For Availability
120
SENSOR LEAK PAN GEN WD21X20552 Contact Us For Availability
156
SLEEVE TUB MOUNT GEN WD02X20685 Contact Us For Availability
158
BRACE TUB MOUNT GEN WD30X22340 Contact Us For Availability
159
SCR B-16 HXW 1/2 SS GEN WD02X10169 Contact Us For Availability
175
UTENSILS TRAY GEN WD28X26008 Contact Us For Availability
178
SLIDE THIRD RACK GEN WD30X21925 Contact Us For Availability
200
ARM HINGE ASM LH GEN WD14X22896 Contact Us For Availability
201
ARM HINGE ASM RH GEN WD14X22895 Contact Us For Availability
321
SENSOR TURBIDITY ASM GEN WD21X22830 Contact Us For Availability
325
VARIABLE SPEED DRAIN PUMP ASM GEN WD19X25622 Contact Us For Availability
333
PRESSURE SENSOR ASM GEN WD21X25468 Contact Us For Availability
451
FINE FILTER AND BASKET ASM GEN WD12X25995 Contact Us For Availability
462
DRAIN TUBE ASM GEN WD24X10062 Contact Us For Availability
463
HIGH LOOP DRAIN HOSE GEN WD24X27778 Contact Us For Availability
512
HUB SPRAY ARM GEN WD12X22852 Contact Us For Availability
514
X ARM ADAPTER GEN WD12X25865 Contact Us For Availability
570
IMPELLER GEN WD22X20689 Contact Us For Availability
571
HUB GEN WD22X20688 Contact Us For Availability
576
HOSE FILL GEN WD24X10064 Contact Us For Availability
614
COVER BOTTLE BLASTER GEN WD24X20263 Contact Us For Availability
616
STEM SAFE SHELF ASM GEN WD12X25961 Contact Us For Availability
617
HOSE BOTTLE BLASTER GEN WD24X20262 Contact Us For Availability
650
INNER RAIL UPR RACK ASM GEN WD30X20110 Contact Us For Availability
680
BRACKET ASM UPPER RACK GEN WD12X20108 Contact Us For Availability
681
BRACKET ASM UPPER RACK GEN WD12X20109 Contact Us For Availability
682
BRACKET FIXED GEN WD12X20112 Contact Us For Availability
683
BRACKET FIXED GEN WD12X20113 Contact Us For Availability
684
FDT CLIP FLAT RACK GEN WD28X20311 Contact Us For Availability
686
FDT CLIP FLAT RACK GEN WD28X20310 Contact Us For Availability
695
CLIP LOWER RACK GEN WD12X20171 Contact Us For Availability
700
INDEXER GEN WD28X20166 Contact Us For Availability
704
ROLLER GEN WD12X26146 Contact Us For Availability
715
SCR 10-32 GX HXW 3/8 GEN WD02X10220 Contact Us For Availability
720
SILICONE LIGHT PIPE GEN WD21X20299 Contact Us For Availability
724
HOUSING BOTTOM GEN WD12X20225 Contact Us For Availability
725
BUTTON GEN WD09X20394 Contact Us For Availability
733
CABLE PULLEY ASM GEN WD01X22892 Contact Us For Availability
734
PULLEY HINGE GEN WD16X20592 Contact Us For Availability
735
SCR 10-32 TT CB 1/4 ZN GEN WD01X21837 Contact Us For Availability
736
FRICTION WASHER GEN WD01X20593 Contact Us For Availability
741
SPACER TUB FRONT GEN WD01X23558 Contact Us For Availability
743
COVER JUNCTION BOX GEN WD12X10412 Contact Us For Availability
744
WATER VALVE ASM GEN WD15X26078 Contact Us For Availability
745
SCR 10-32 GX IHXW 9/16 S GEN WD01X22514 Contact Us For Availability
747
CONTROL BOARD FUSE 4.1 AMP GEN WD21X25696 Contact Us For Availability
749
HARNESS ASM JUMPER GEN WD21X23559 Contact Us For Availability
761
BASKET SILVERWARE ASM GEN WD28X25984 Contact Us For Availability
770
INSULATION BAG GEN WD30X25631 Contact Us For Availability
790
CLAMP HOSE GEN WD01X22786 Contact Us For Availability
791
CLAMP GEN WD01X24246 Contact Us For Availability
795
SCREW T15 8-16 PLASTITE GEN WD02X22628 Contact Us For Availability
796
ATTACH STRIP RH GEN WD01X22836 Contact Us For Availability
802
SCR 8-18 AB TSQ 5/8 SS GEN WR01X10380 Contact Us For Availability
803
LATCH TUB SIDE STANDARD GEN WD21X10490 Contact Us For Availability
804
STRIKER LATCH GEN WD13X10071 Contact Us For Availability
805
ATTACHMENT STRIP TOP GEN WD13X22837 Contact Us For Availability
807
STAINLESS INNER DOOR ASM GEN WD27X25997 Contact Us For Availability
812
VENT COVER GEN WD01X25673 Contact Us For Availability
813
PLATE DETERGENT GEN WD12X10462 Contact Us For Availability
816
DOOR VENT SEAL GEN WD08X10092 Contact Us For Availability
820
DOOR VENT GEN WD24X26142 Contact Us For Availability
888
BRACKET COUNTERTOP GEN WD01X21740 Contact Us For Availability
889
CT SCREW ASM GEN WD35X10383 Contact Us For Availability
920
CLIP CONTROL BOARD GEN WD01X21975 Contact Us For Availability
× ![]()
