Model GE ZDT870SIF7II Dishwasher – Common Parts & Diagrams

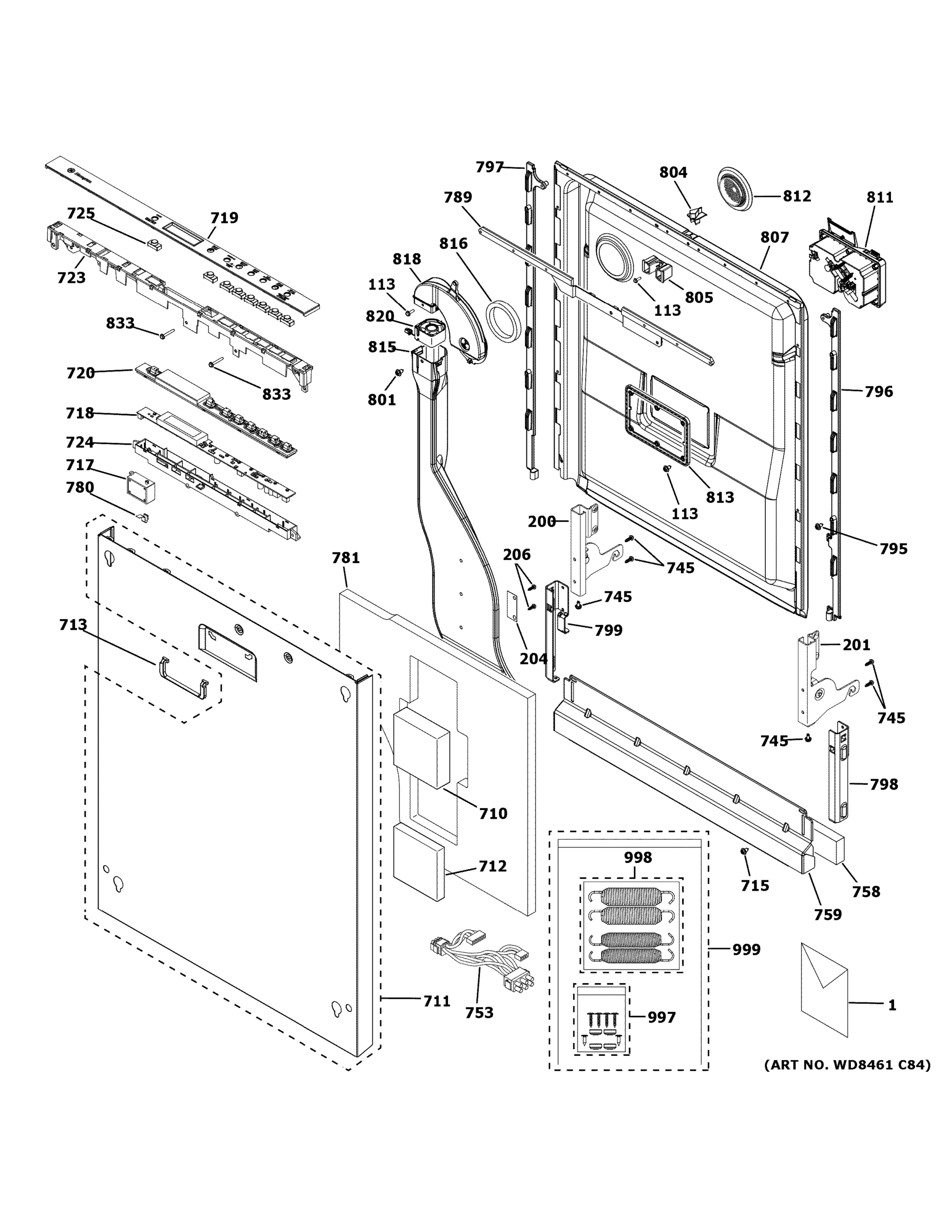

ESCUTCHEON & DOOR ASSEMBLY

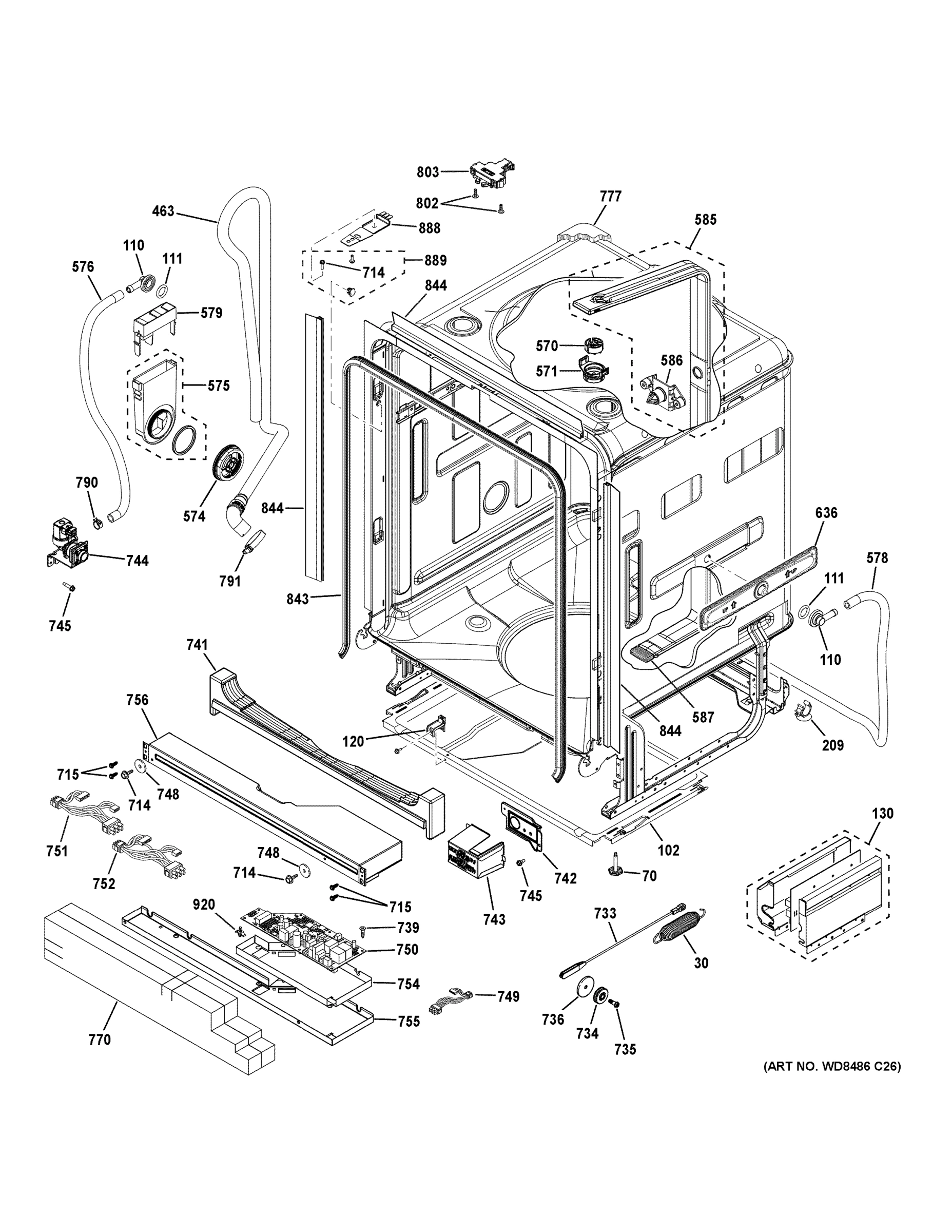

BODY PARTS (1)
BODY PARTS (2)
UPPER RACK ASSEMBLY
LOWER RACK ASSEMBLY
SUMP & FILTER ASSEMBLY
SUMP & MOTOR MECHANISM
Common parts from model GE ZDT870SIF7II Dishwasher
30
SPRING DOOR GEN WD03X20446 Contact Us For Availability
42
SCR10 - 16 AB HXW 3/4 SS GEN WD02X22736 Contact Us For Availability
54
LEVELING NUT GEN WD02X22539 Contact Us For Availability
55
BRACKET LEVELING ARM GEN WD27X20676 Contact Us For Availability
102
PAN LEAK GEN WD18X20461 Contact Us For Availability
113
SCREW 8-16 HXW 1/2 SS GEN WD02X10067 Contact Us For Availability
120
SENSOR LEAK PAN GEN WD21X20552 Contact Us For Availability
156
SLEEVE TUB MOUNT GEN WD02X20685 Contact Us For Availability
159
SCR B-16 HXW 1/2 SS GEN WD02X10169 Contact Us For Availability
178
SLIDE THIRD RACK GEN WD30X21925 Contact Us For Availability
200
PAD FRICTION HINGE ASM GEN WD01X21475 Contact Us For Availability
201
PAD FRICTION HINGE ASM GEN WD01X21435 Contact Us For Availability
209
CLIP HOSE SIDE BLASTER GEN WD01X22855 Contact Us For Availability
308
SWITCH FLOOD ASM GEN WD21X10519 Contact Us For Availability
311
SHIELD PUMP MAIN GEN WD01X20212 Contact Us For Availability
321
SENSOR TURBIDITY ASM GEN WD21X22598 Contact Us For Availability
324
SHIELD WASH PUMP GEN WD01X10580 Contact Us For Availability
326
HOSE ELBOW DRAIN GEN WD24X20305 Contact Us For Availability
333
LATCH CAM GEN WD01X10632 Contact Us For Availability
334
LATCH CAM GEN WD01X10575 Contact Us For Availability
425
GROMMET GEN WD01X10101 Contact Us For Availability
453
VENT FILTER GEN WD24X22945 Contact Us For Availability
454
ADAPTOR FILTER GEN WD12X10419 Contact Us For Availability
455
ADAPTER CONDUIT ASM GEN WD18X21915 Contact Us For Availability
462
DRAIN TUBE ASM GEN WD24X10062 Contact Us For Availability
501
ARM SPRAY LOWER ASM GEN WD22X20336 Contact Us For Availability
502
FILTER COARSE SS GEN WD22X10093 Contact Us For Availability
503
SCR 10-16 AB HXW .532 GEN WB01T10103 Contact Us For Availability
505
SUMP MANIFOLD GEN WD18X10055 Contact Us For Availability
509
PLATE FLOOR MANUAL GEN WD12X10421 Contact Us For Availability
570
IMPELLER GEN WD22X20689 Contact Us For Availability
571
HUB GEN WD22X20688 Contact Us For Availability
576
HOSE FILL GEN WD24X10064 Contact Us For Availability
578
HOSE FILL GEN WD21X20339 Contact Us For Availability
587
SEAL CONDUIT GEN WD08X10098 Contact Us For Availability
617
HOSE BOTTLE BLASTER GEN WD24X20262 Contact Us For Availability
618
ARM SPRAY MIDDLE ASM GEN WD22X20375 Contact Us For Availability
631
FDT COATED LOWER RACK GEN WD28X20381 Contact Us For Availability
632
CONDUIT MID BLASTER ASM GEN WD12X20410 Contact Us For Availability
636
SIDE BLASTER ASM GEN WD22X21034 Contact Us For Availability
650
INNER RAIL UPR RACK ASM GEN WD30X20361 Contact Us For Availability
680
BRACKET ASM UPPER RACK GEN WD12X20360 Contact Us For Availability
681
BRACKET ASM UPPER RACK GEN WD12X20362 Contact Us For Availability
682
BRACKET FIXED GEN WD12X20372 Contact Us For Availability
683
BRACKET FIXED GEN WD12X20373 Contact Us For Availability
684
FDT CLIP FLAT RACK GEN WD28X20406 Contact Us For Availability
686
FDT CLIP FLAT RACK GEN WD28X20407 Contact Us For Availability
687
FDT ASM UPPER COATED GEN WD28X20365 Contact Us For Availability
702
COVER ROLLER GEN WD12X20382 Contact Us For Availability
706
CARRIER ROLLER GEN WD12X20387 Contact Us For Availability
714
SCR 8-18 B HXW .480 S GEN WD02X10160 Contact Us For Availability
715
SCR 10-32 GX HXW 3/8 GEN WD02X10220 Contact Us For Availability
720
SILICONE LIGHT PIPE GEN WD21X20299 Contact Us For Availability
724
HOUSING BOTTOM GEN WD12X20225 Contact Us For Availability
725
BUTTON GEN WD09X20394 Contact Us For Availability
733
CABLE ASM GEN WD01X20332 Contact Us For Availability
734
PULLEY HINGE GEN WD16X20592 Contact Us For Availability
735
SCR 10-32 TT CB 1/4 ZN GEN WD01X21837 Contact Us For Availability
736
FRICTION WASHER GEN WD01X20593 Contact Us For Availability
743
COVER JUNCTION BOX GEN WD12X10412 Contact Us For Availability
744
VALVE WATER ASM GEN WD15X22948 Contact Us For Availability
745
SCR 10-32 GX IHXW 9/16 S GEN WD01X22514 Contact Us For Availability
749
HARNESS ASM JUMPER GEN WD21X22847 Contact Us For Availability
751
HARNESS ASM AC GEN WD21X20588 Contact Us For Availability
752
HARNESS ASM DC GEN WD21X22849 Contact Us For Availability
753
HARNESS ASM DOOR GEN WD21X20149 Contact Us For Availability
754
SHIELD DIELECTRIC GEN WD01X21974 Contact Us For Availability
755
CONTROL BOX BOTTOM GEN WD30X21714 Contact Us For Availability
756
CONTROL BOX TOP GEN WD27X10390 Contact Us For Availability
758
INSULATION TOE KICK GEN WD27X21334 Contact Us For Availability
790
CLAMP HOSE GEN WD01X22786 Contact Us For Availability
792
CLAMP GEN WD01X10104 Contact Us For Availability
795
SCREW T15 8-16 PLASTITE GEN WD02X22628 Contact Us For Availability
798
BRACKET SUPPORT HINGE GEN WD01X22513 Contact Us For Availability
799
BRACKET SUPPORT HINGE GEN WD01X22512 Contact Us For Availability
801
SCR 6-20 GXB IHXW 3/8 NI GEN WB02T10324 Contact Us For Availability
802
SCR 8-18 AB TSQ 5/8 SS GEN WR01X10380 Contact Us For Availability
804
STRIKER LATCH GEN WD13X20245 Contact Us For Availability
805
ATTACHMENT STRIP TOP GEN WD01X20220 Contact Us For Availability
812
COVER VENT GEN WD24X20587 Contact Us For Availability
813
PLATE DETERGENT GEN WD12X10462 Contact Us For Availability
815
VENT CONDUIT ASM GEN WD12X20218 Contact Us For Availability
816
DOOR VENT SEAL GEN WD08X10092 Contact Us For Availability
820
VENT FAN ASM GEN WD24X20390 Contact Us For Availability
844
TUB TRIM KIT GEN WD08X22894 Contact Us For Availability
888
BRACKET COUNTERTOP GEN WD01X21740 Contact Us For Availability
889
CT SCREW ASM GEN WD35X10383 Contact Us For Availability
920
CLIP CONTROL BOARD GEN WD01X21975 Contact Us For Availability
999
TRIM PANEL ACCESSORY KIT GEN WD35X20417 Contact Us For Availability
× ![]()
