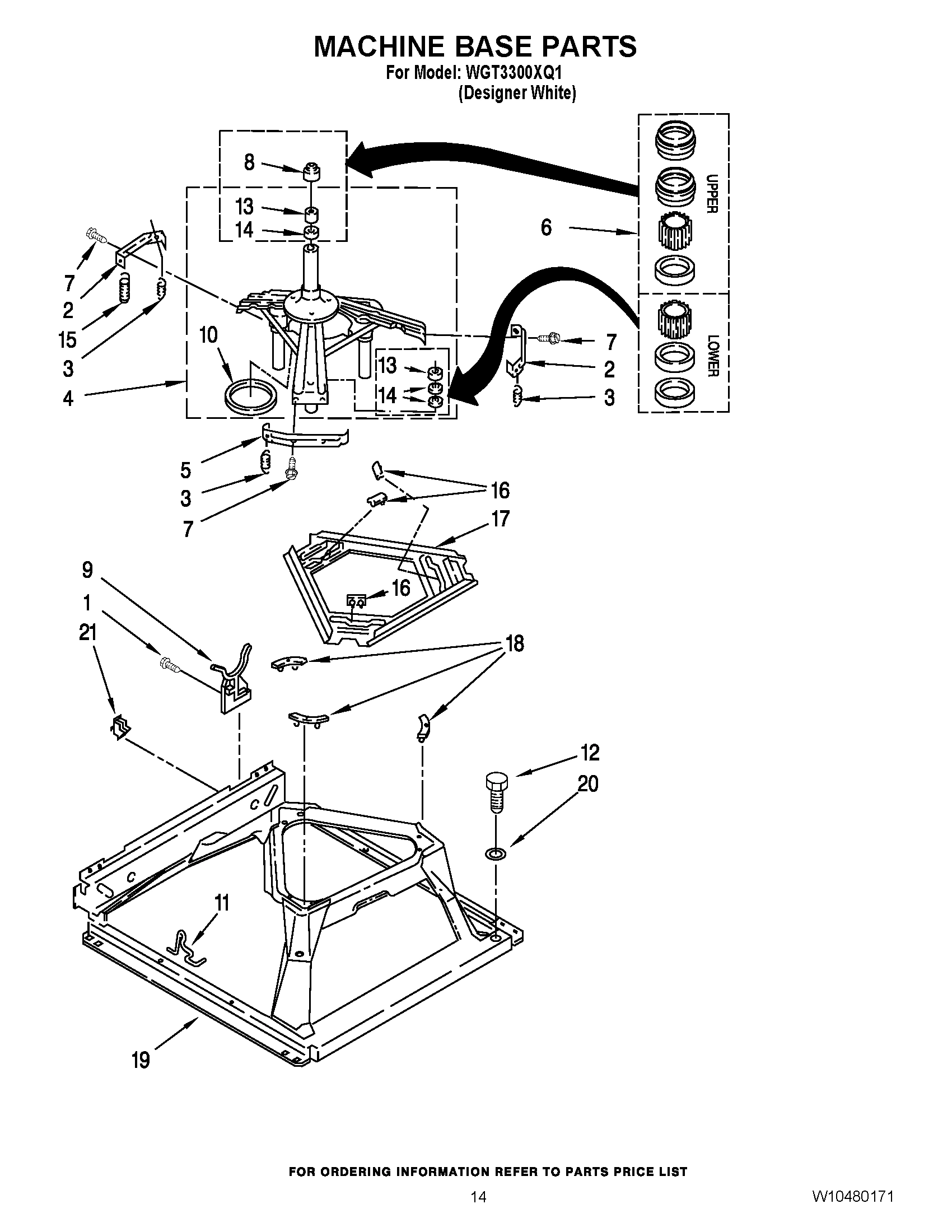

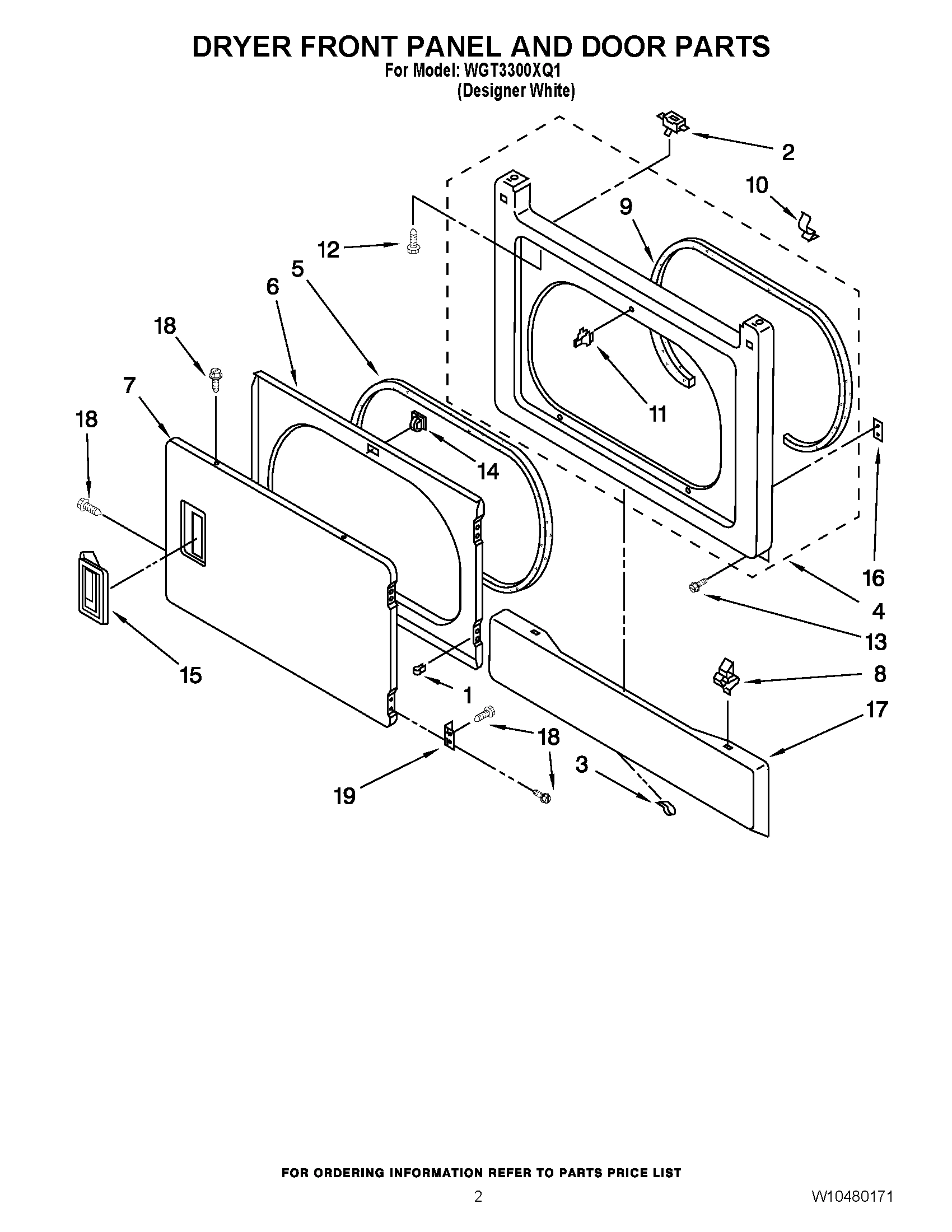

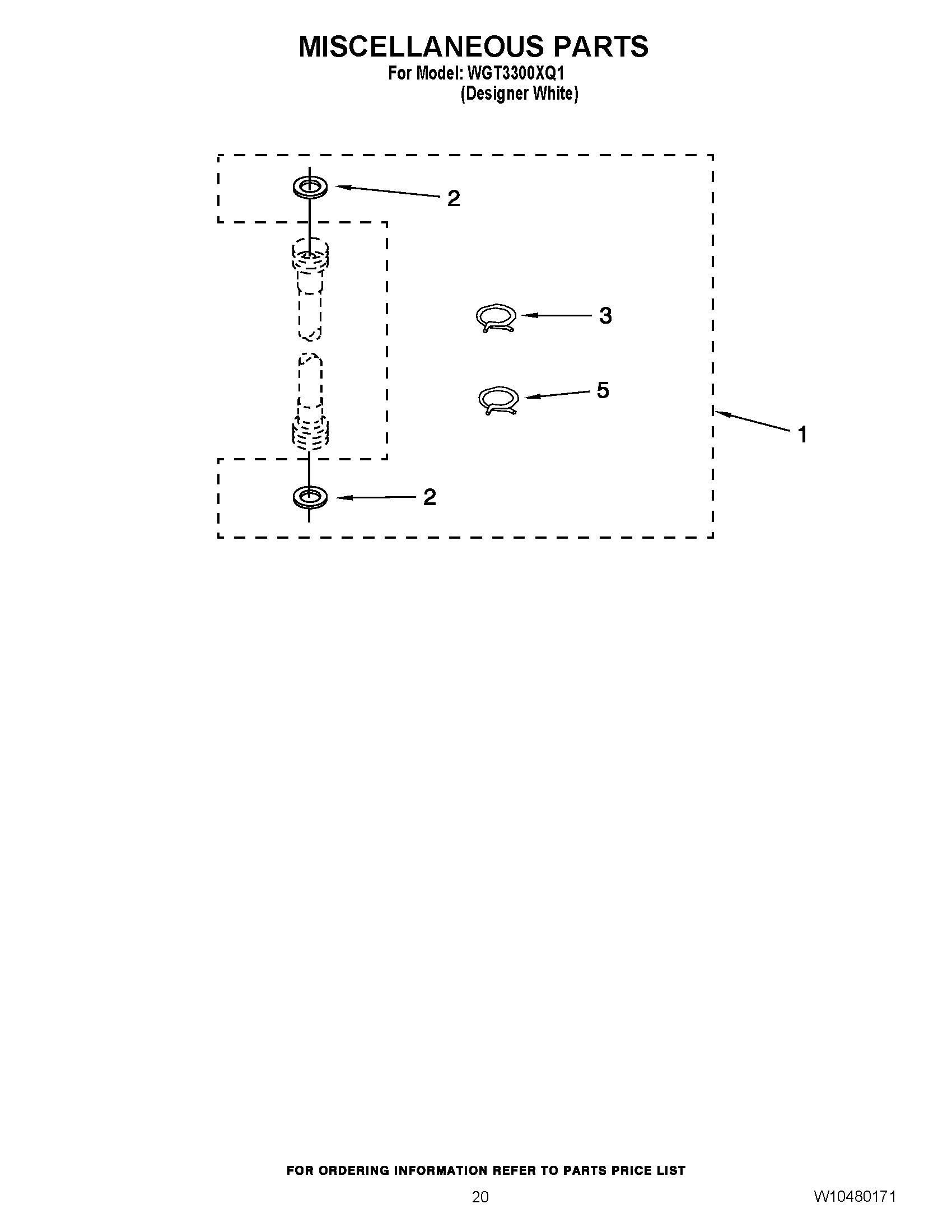

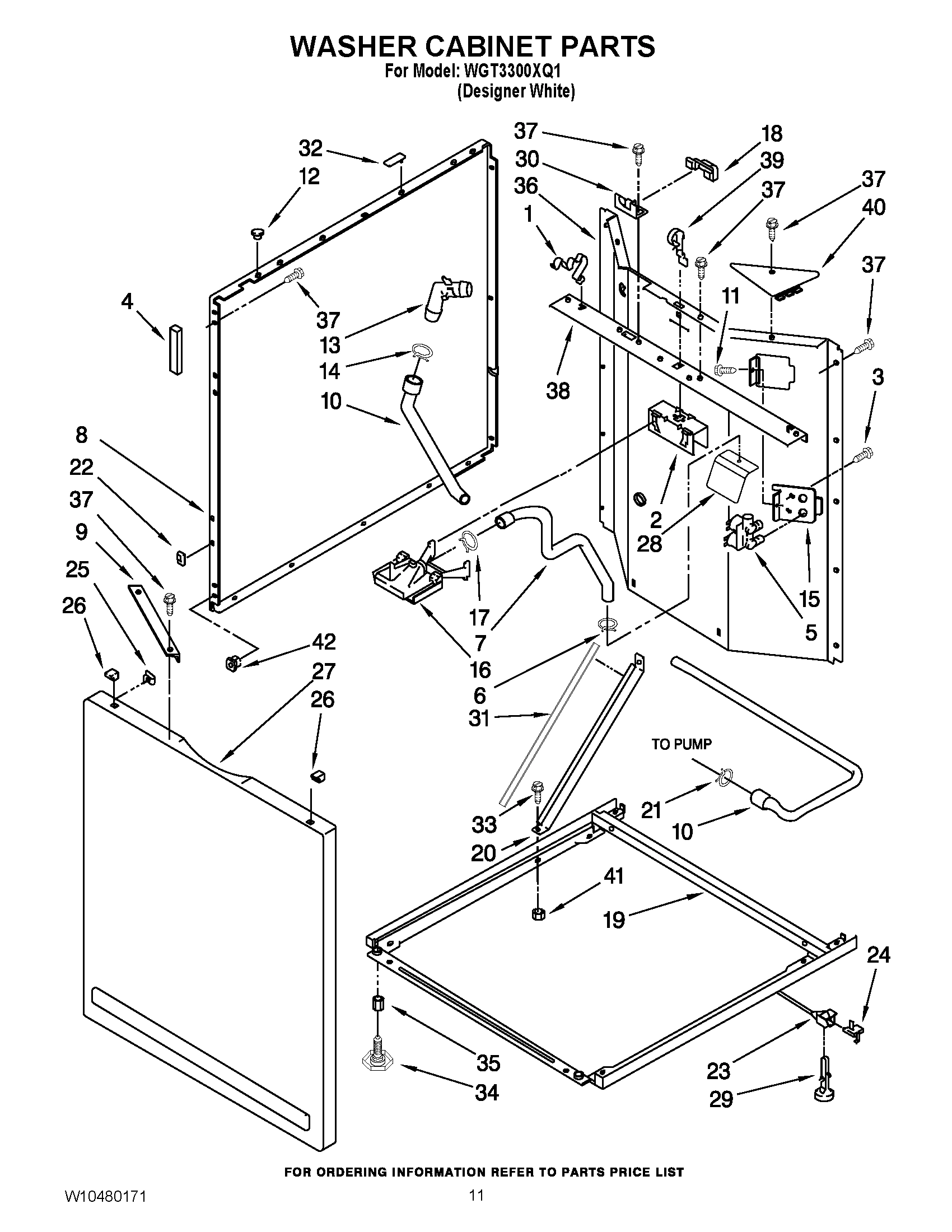

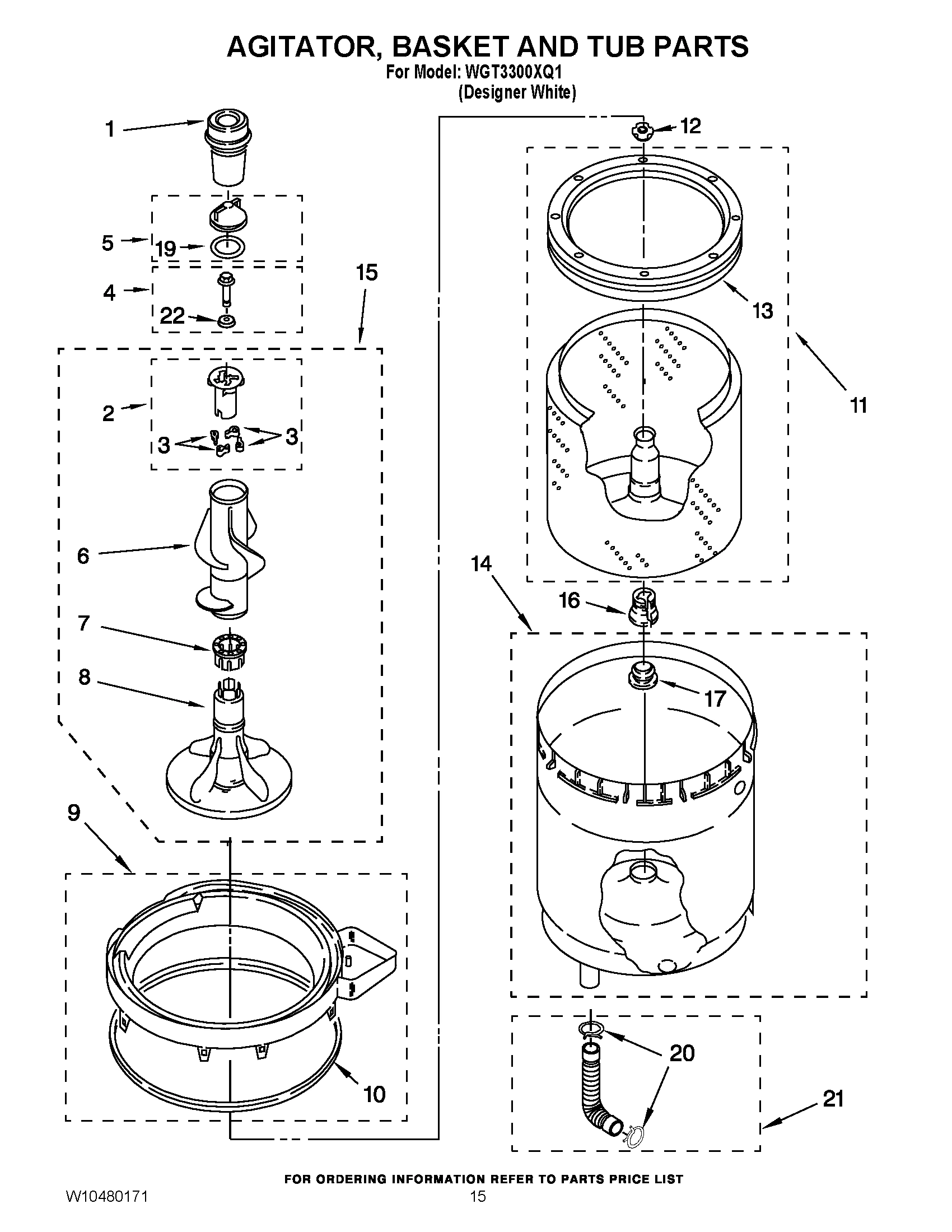

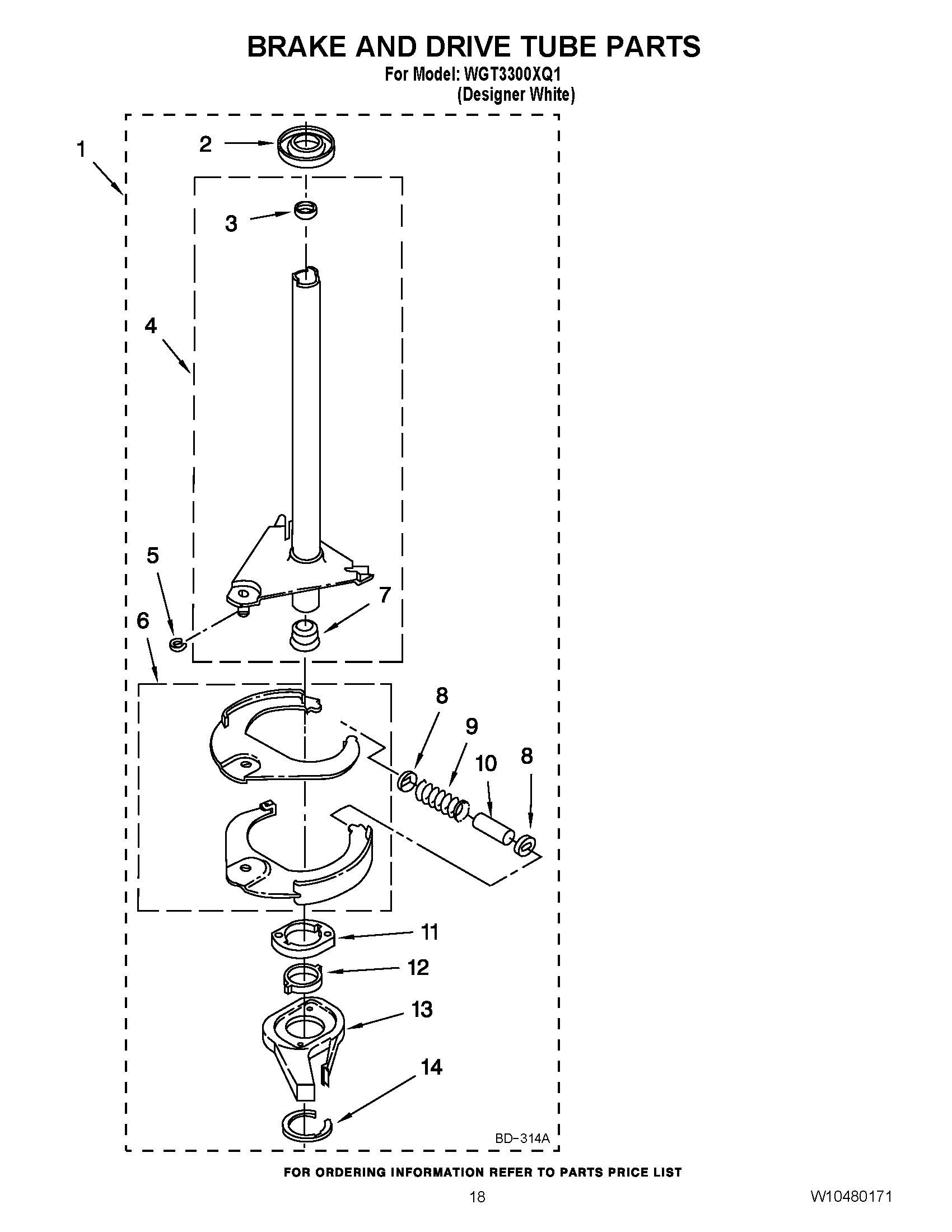

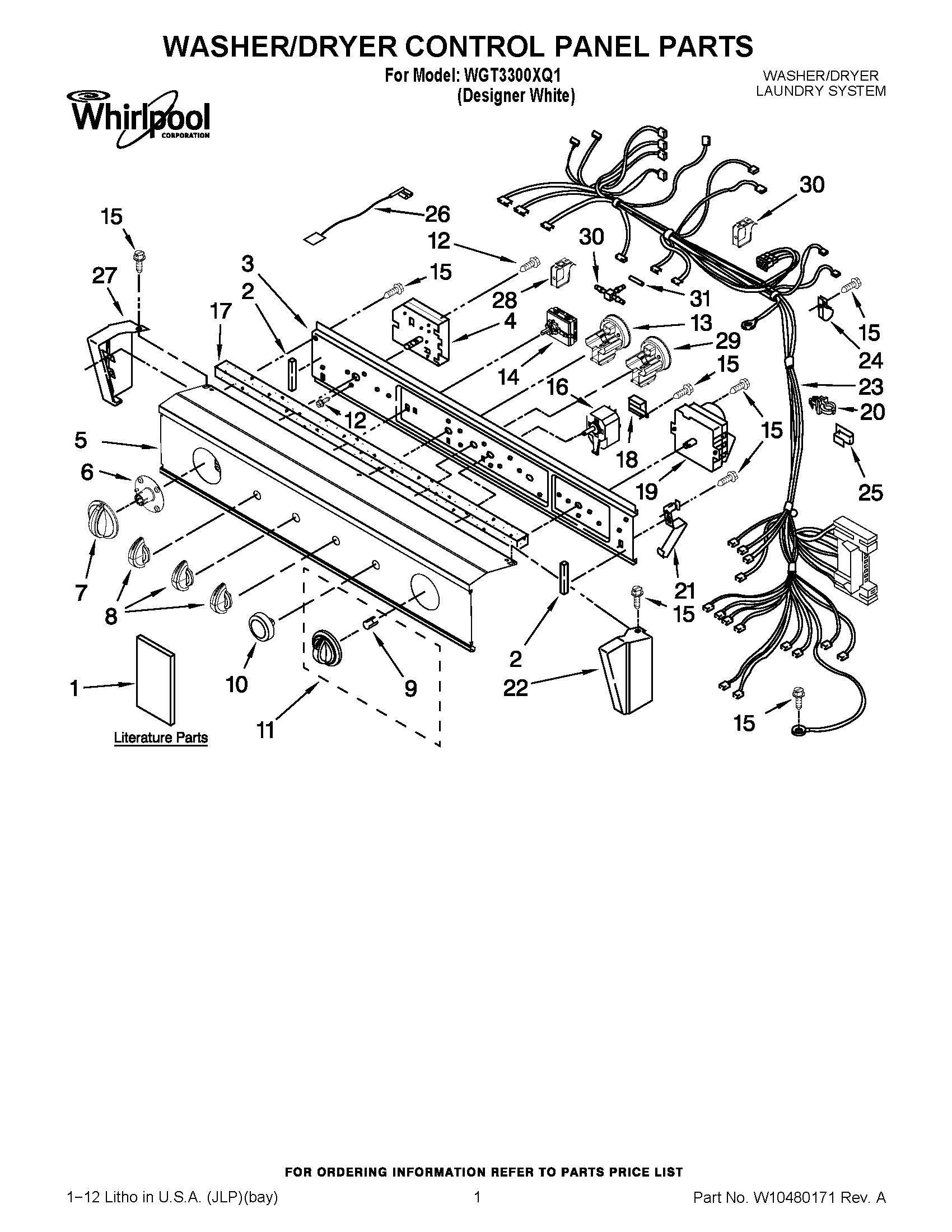

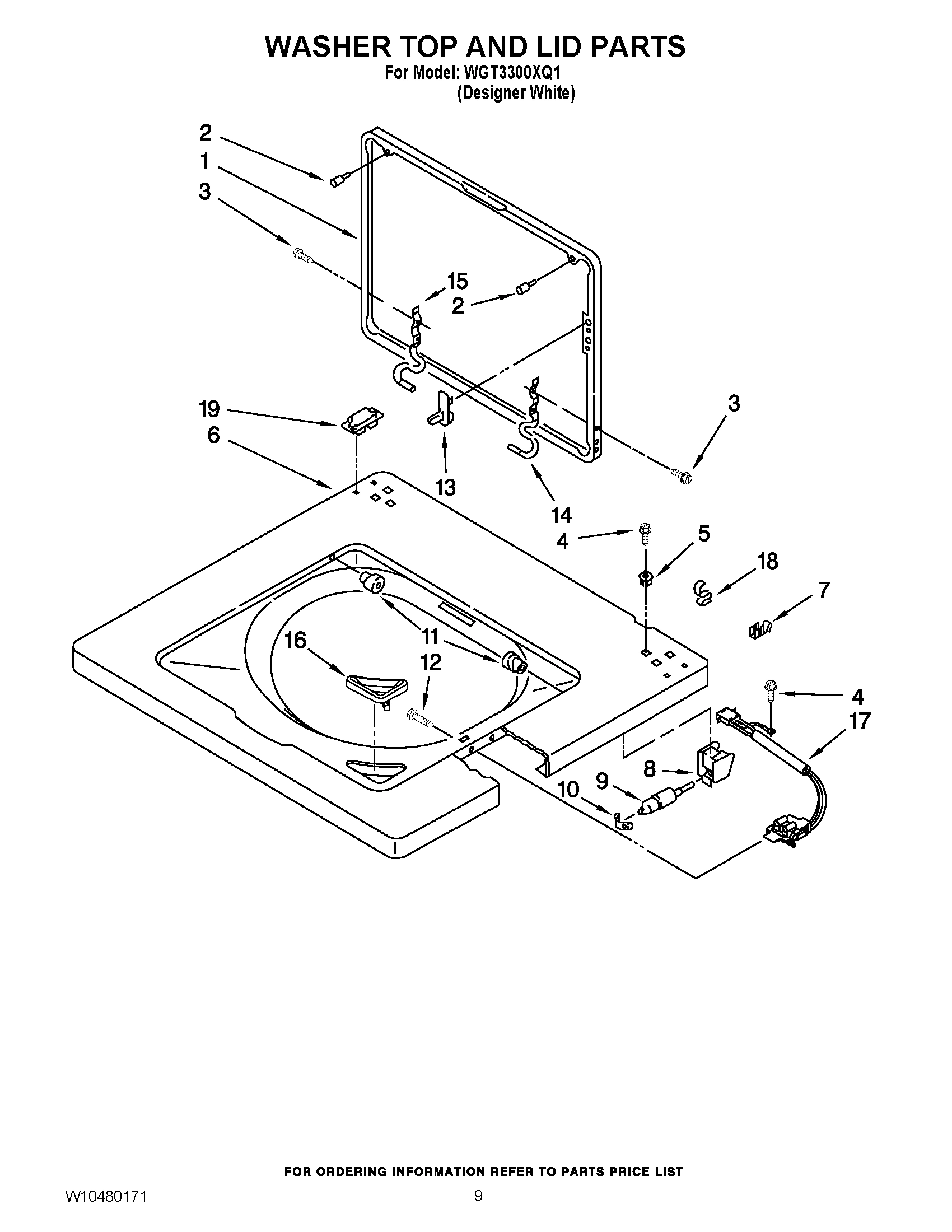

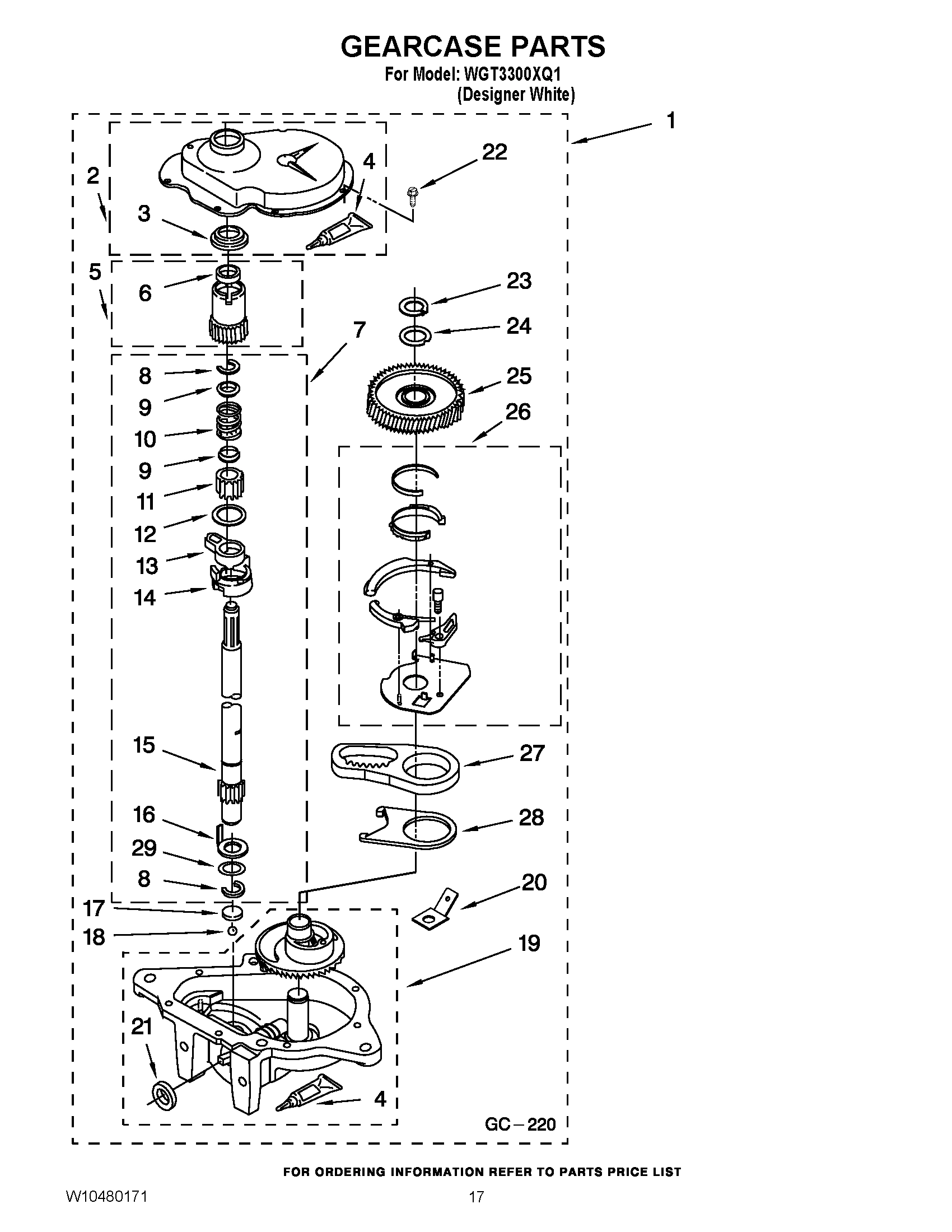

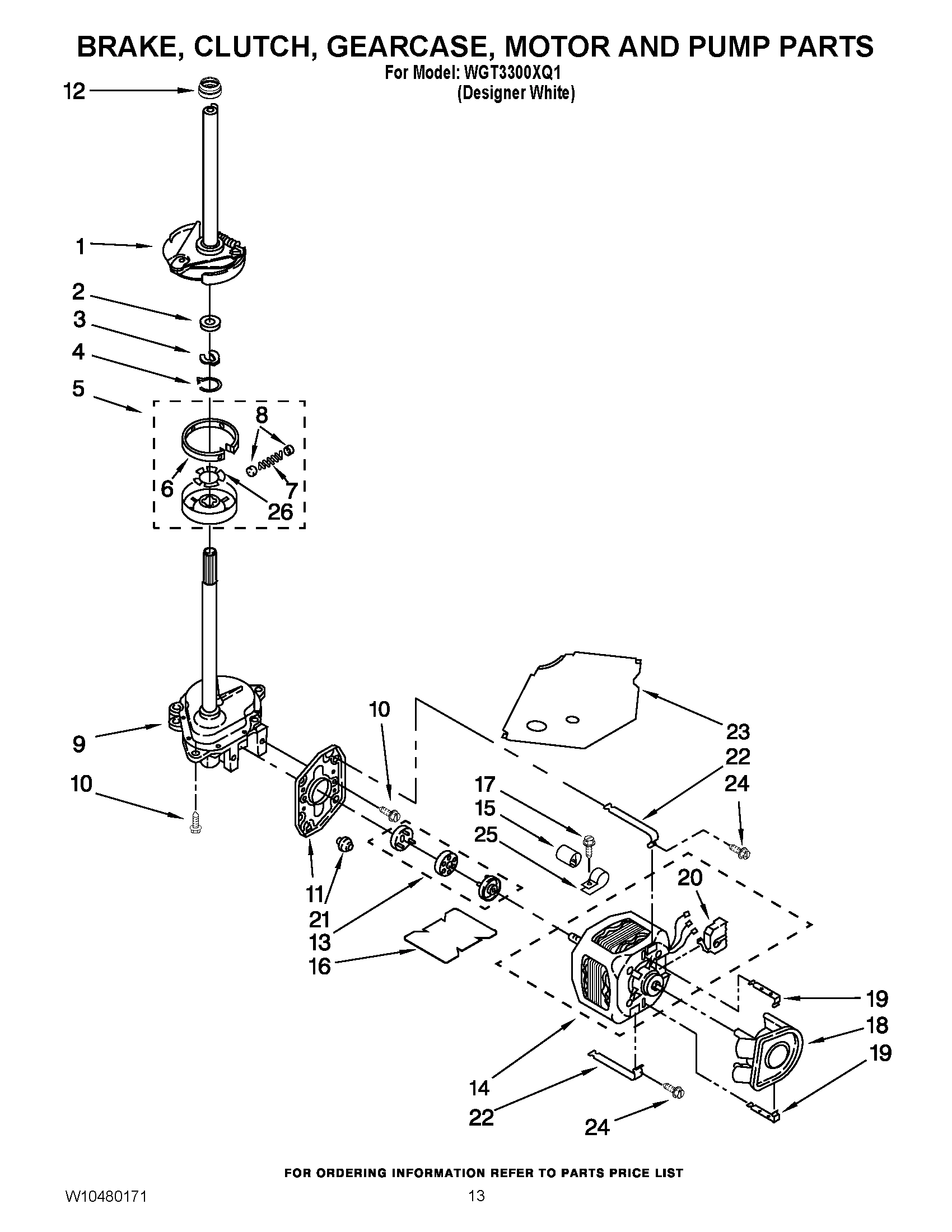

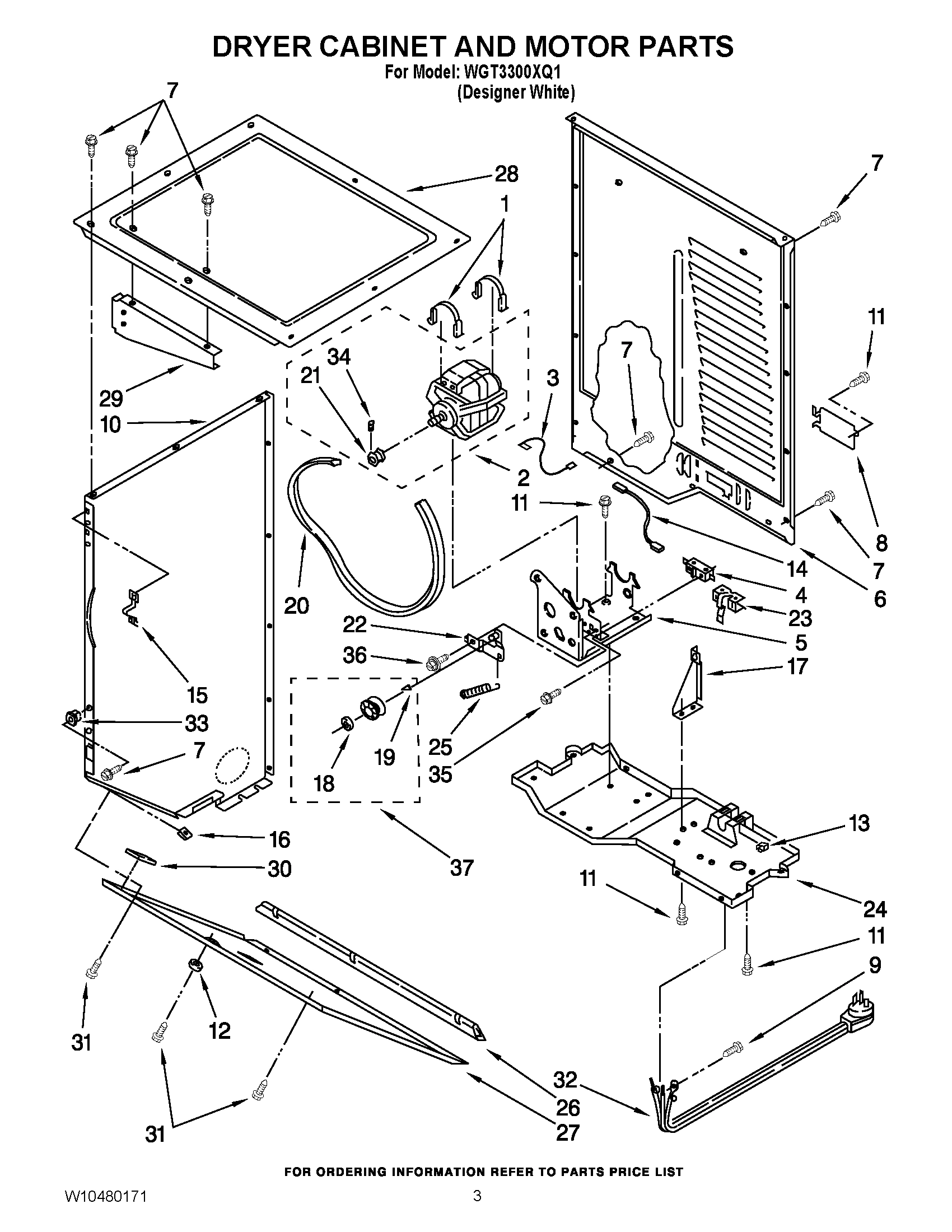

Model Whirlpool WGT3300XQ1 WASHER/DRYER LAUNDRY SYSTEM – Common Parts &amp; Diagrams

1

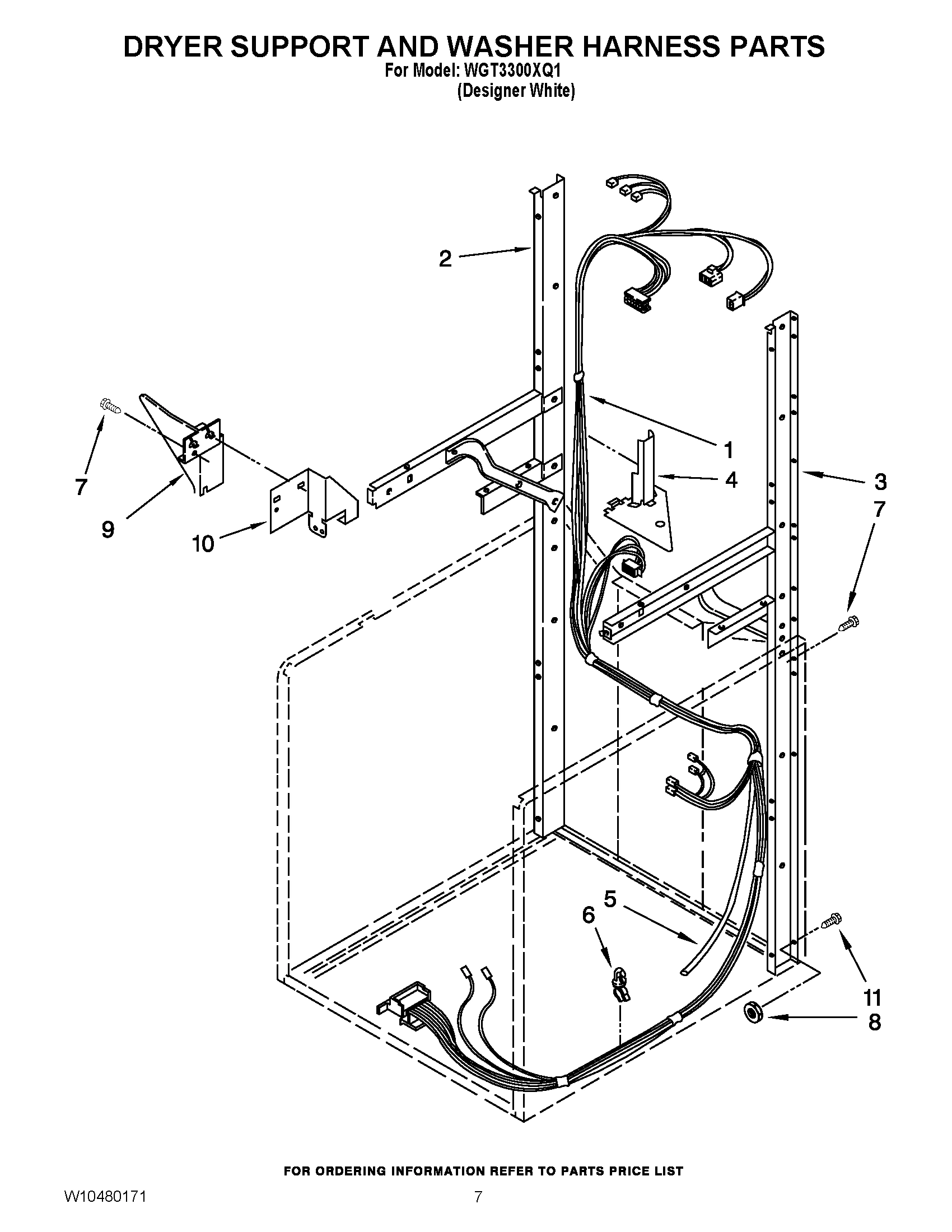

W10415446 Whirlpool Wire Harness Backorder WPL W10415446 $119.21

1

W10864899 Whirlpool Fabric Softener Dispenser In Stock WPL W10864899 $48.31

1

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.70

1

WPW10359271 Whirlpool Drum Roller Shaft In Stock WPL WPW10359271 $30.25

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $78.48

2

3349767 Whirlpool Bracket Assembly Backorder WPL 3349767 $11.38

2

3388851 Whirlpool Support Backorder WPL 3388851 $140.80

2

8066086 Whirlpool Plug Backorder WPL 8066086 $4.76

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.70

2

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.51

3

3388850 Whirlpool Support Backorder WPL 3388850 $141.12

3

3398948 Whirlpool Wire Backorder WPL 3398948 $38.06

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.70

4

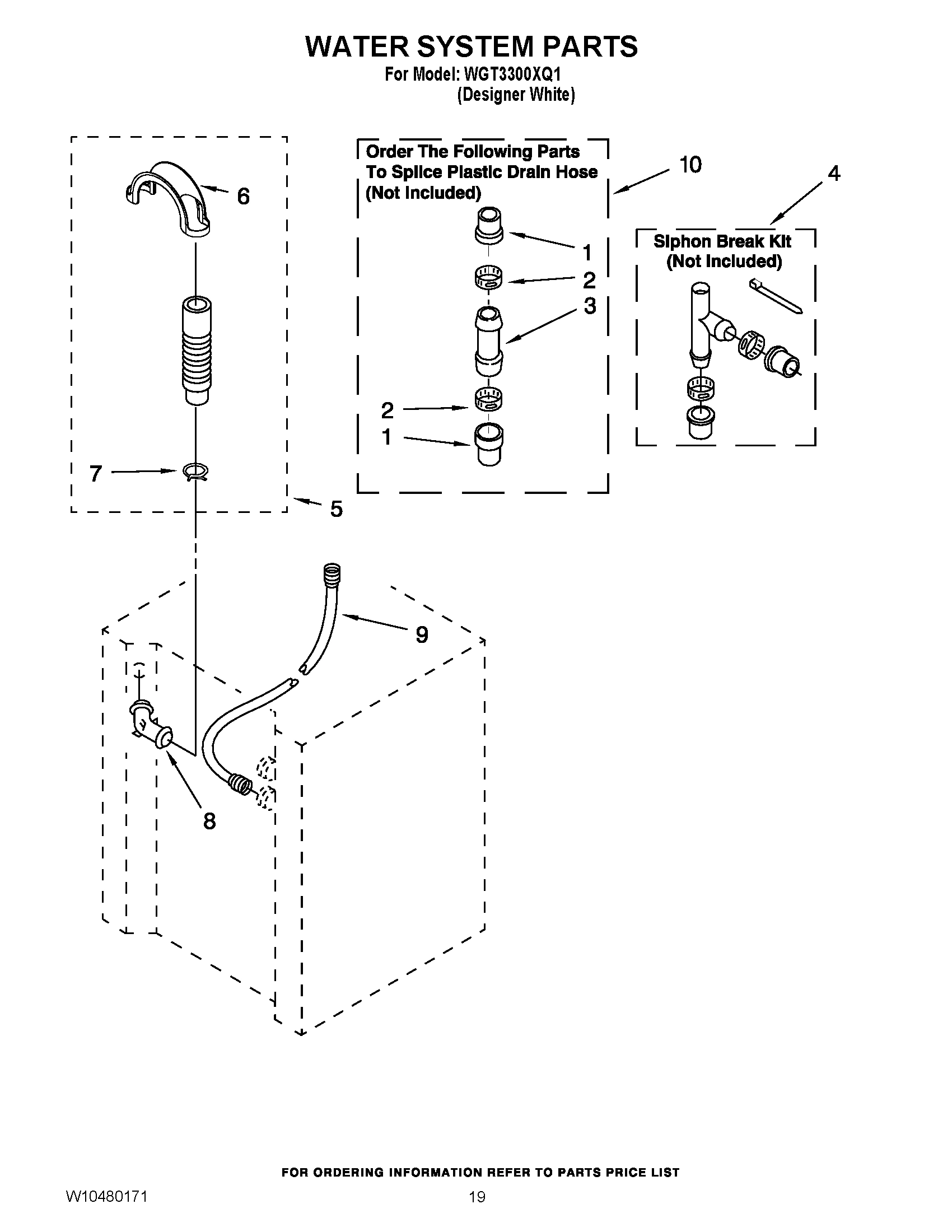

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

4

3350013 Whirlpool Foam Seal Backorder WPL 3350013 $28.80

4

3390609 Whirlpool Shield Backorder WPL 3390609 $26.21

4

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

4

WPW10113761 Whirlpool Timer In Stock WPL WPW10113761 $179.38

5

285664 Whirlpool Drain Hose In Stock WPL 285664 $18.32

5

W10368079 Whirlpool Hose Assembly Backorder WPL W10368079 $13.43

5

WP3390735 Whirlpool Door Seal Backorder WPL WP3390735 $41.23

5

WP3979345 Whirlpool Valve Assembly In Stock WPL WP3979345 $67.21

5

WPW10108350 Whirlpool Hose Backorder WPL WPW10108350 $34.39

5

WPW10368268 Whirlpool Coil Valve In Stock WPL WPW10368268 $74.26

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

285203 Whirlpool CP Bearing In Stock WPL 285203 $71.60

6

326049536 Whirlpool Screw Backorder WPL 326049536 $9.70

6

3349817 Whirlpool Top Assembly Backorder WPL 3349817 $156.71

6

W10210799 Whirlpool Clip Backorder WPL W10210799 $5.78

6

W11676449 Whirlpool Agitator Mover Backorder WPL W11676449 $24.38

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

6

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $3.70

6

WP8566018 Whirlpool Dial Assembly Backorder WPL WP8566018 $28.33

6

WP8577378 Whirlpool Retainer Backorder WPL WP8577378 $3.70

7

8521954 Whirlpool Hose Assembly Backorder WPL 8521954 $29.24

7

W10113937 Whirlpool Clamp Backorder WPL W10113937 $4.78

7

W10295523 Whirlpool Plug Backorder WPL W10295523 $10.76

7

W10846509 Whirlpool Screw Backorder WPL W10846509 $2.51

7

W11663440 Whirlpool Door Backorder WPL W11663440 $130.22

7

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.70

7

Knob, Timer (Washer) WPL 8566022 Contact Us For Availability

8

3354020 Whirlpool Bracket Backorder WPL 3354020 $4.65

8

W11213338 Whirlpool Connector Backorder WPL W11213338 $26.90

8

WP3349098 Whirlpool Agitator Assembly In Stock WPL WP3349098 $67.86

8

WP3349455 Whirlpool Panel Backorder WPL WP3349455 $157.60

8

WP3388229 Whirlpool Dryer Spring Clip In Stock WPL WP3388229 $3.70

8

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.70

8

Knob, Control WPL 8565944 Contact Us For Availability

9

3350744 Whirlpool Brace Assembly Backorder WPL 3350744 $11.35

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

W10880720 Whirlpool Tub Ring Backorder WPL W10880720 $76.64

9

WP3350152 Whirlpool Retainer In Stock WPL WP3350152 $162.71

9

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $9.17

9

WP8536939 Whirlpool Spring Clip In Stock WPL WP8536939 $3.70

9

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $3.62

9

Shield, Thermostat WPL 3390336 Contact Us For Availability

285442 Whirlpool Coupling Backorder WPL 285442 $28.80

3392232 Whirlpool Shield Backorder WPL 3392232 $26.21

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $9.42

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

Clip, Retainer WPL 3350828 Contact Us For Availability

Hose, Drain WPL 3353841 Contact Us For Availability

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.70

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

WP8566061 Whirlpool Knob Backorder WPL WP8566061 $39.67

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $2.21

Basket WPL 3352234 Contact Us For Availability

Bolt, 5/16-18 x 1/2 WPL 3400300 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP3356311 Whirlpool Screw Backorder WPL WP3356311 $2.51

WP3389431 Whirlpool Bumper Assembly Backorder WPL WP3389431 $4.89

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $29.06

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

WP660975 Whirlpool Button Plug Backorder WPL WP660975 $3.70

WP8577374 Whirlpool Seal Shaft In Stock WPL WP8577374 $3.70

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $17.97

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

WP387240 Whirlpool Balance Ring Backorder WPL WP387240 $64.40

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

3350101 Whirlpool Hinge Backorder WPL 3350101 $11.64

3406051 Whirlpool Elbow Backorder WPL 3406051 $37.17

W11103599 Whirlpool Temperature Switch In Stock WPL W11103599 $83.64

WP3349292 Whirlpool Tub Assembly Backorder WPL WP3349292 $110.64

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $138.84

3349673 Whirlpool Bracket Assembly Backorder WPL 3349673 $8.89

3350102 Whirlpool Hinge Assembly Backorder WPL 3350102 $11.90

W10429138 Whirlpool Agitator Backorder WPL W10429138 $82.37

W10877261 Whirlpool Handle Assembly Backorder WPL W10877261 $51.20

WP389387 Whirlpool Agitator Shaft In Stock WPL WP389387 $103.30

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $42.80

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.29

WP3360977 Whirlpool Washer Tub Fill Nozzle In Stock WPL WP3360977 $26.24

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.02

WP3404233 Whirlpool Dryer Starter Switch In Stock WPL WP3404233 $37.17

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

Nut WPL 233076 Contact Us For Availability

3388958 Whirlpool Panel Backorder WPL 3388958 $55.11

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

WP3355458 Whirlpool Lid Switch In Stock WPL WP3355458 $30.10

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $76.80

3350145 Whirlpool Shield Assembly Backorder WPL 3350145 $8.00

WP3363892 Whirlpool Water Pump In Stock WPL WP3363892 $41.25

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $49.52

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

W11116924 Whirlpool Locator Backorder WPL W11116924 $10.76

W11175815 Whirlpool Hinge Backorder WPL W11175815 $31.27

WP3402724 Whirlpool Washer Base Backorder WPL WP3402724 $117.98

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.70

WPW10072840 Whirlpool Seal Assembly In Stock WPL WPW10072840 $3.70

WPW10113804 Whirlpool Timer Assembly In Stock WPL WPW10113804 $176.95

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $2.51

WPW10359272 Whirlpool Dryer Drum Support Roll In Stock WPL WPW10359272 $29.96

Base Assembly (Includes Illus. 11 & 18) WPL 3349343 Contact Us For Availability

20

3388857 Whirlpool Bracket Backorder WPL 3388857 $26.55

20

WASHER WPL 3349340 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $29.23

3349749 Whirlpool Restrainer Backorder WPL 3349749 $7.69

3389453 Whirlpool Hinge Assembly Backorder WPL 3389453 $28.80

WP371502 Whirlpool Clamp Backorder WPL WP371502 $4.78

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WPW10314173 Whirlpool Dryer Drum Support Whee In Stock WPL WPW10314173 $7.12

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $6.19

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.51

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $4.72

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $3.70

23

WP3349311 Whirlpool Link In Stock WPL WP3349311 $33.65

23

WP8066120 Whirlpool Lever Assembly Backorder WPL WP8066120 $11.73

24

WP359364 Whirlpool Clip In Stock WPL WP359364 $3.70

25

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

3389683 Whirlpool Cover Assembly Backorder WPL 3389683 $41.30

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $29.41

W10853898 Whirlpool Screw In Stock WPL W10853898 $2.51

WP345670 Whirlpool Lock In Stock WPL WP345670 $3.70

27

3389272 Whirlpool Panel Backorder WPL 3389272 $100.04

27

WP3349499 Whirlpool Panel Backorder WPL WP3349499 $176.00

27

End Cap (LH) WPL 3389464 Contact Us For Availability

28

3979552 Whirlpool Shield Backorder WPL 3979552 $70.52

28

WP697557 Whirlpool Bulkhead Assembly Backorder WPL WP697557 $85.65

29

WP358594 Whirlpool Leveling Feet In Stock WPL WP358594 $7.27

30

3350144 Whirlpool Bracket Backorder WPL 3350144 $37.57

30

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $13.56

31

WP693304 Whirlpool Screw Backorder WPL WP693304 $2.51

31

Edge Protector WPL 303294 Contact Us For Availability

32

WP3389644 Whirlpool Screen Assembly In Stock WPL WP3389644 $56.38

32

WPW10581952 Whirlpool Power Cord Backorder WPL WPW10581952 $71.75

33

WP692400 Whirlpool Nut In Stock WPL WP692400 $3.70

33

WP8566209 Whirlpool Seal Backorder WPL WP8566209 $28.80

33

Screw, 5/16-18 x 1/2 WPL 3400502 Contact Us For Availability

34

WP3403607 Whirlpool Thermoprotector In Stock WPL WP3403607 $19.43

34

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

35

3390935 Whirlpool Clip In Stock WPL 3390935 $7.32

35

3400917 Whirlpool Nut Backorder WPL 3400917 $5.65

36

8564987 Whirlpool Panel Backorder WPL 8564987 $177.20

36

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $2.51

37

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $29.83

38

3349697 Whirlpool Back Rail Backorder WPL 3349697 $33.51

39

3350135 Whirlpool Lever Spring Backorder WPL 3350135 $8.09

40

3390608 Whirlpool Shield Assembly Backorder WPL 3390608 $7.81

41

WP8533952 Whirlpool Refrigerator Nut Backorder WPL WP8533952 $29.43

42

WP3387134 Whirlpool Dryer Cycling Thermostat In Stock WPL WP3387134 $10.97

42

NUT, PUSH IN WPL 352292 Contact Us For Availability

44

WP8544363 Whirlpool Housing Backorder WPL WP8544363 $56.42

46

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $28.37

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $31.00

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $44.98
