Model Speed Queen STGNXASG115TW01 Stacked Washer and Dryer – Common Parts & Diagrams

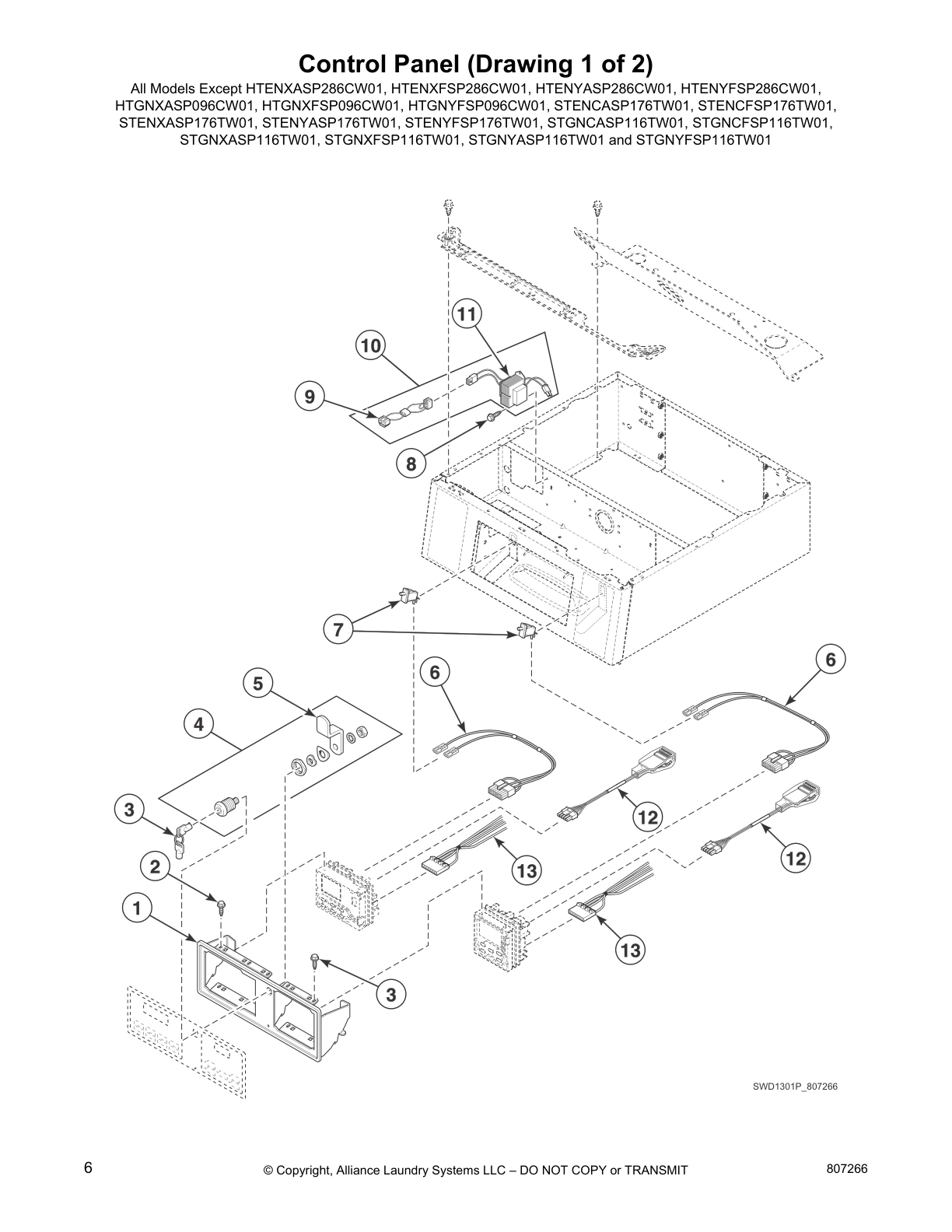

Control Panel (Drawing 1 of 2)

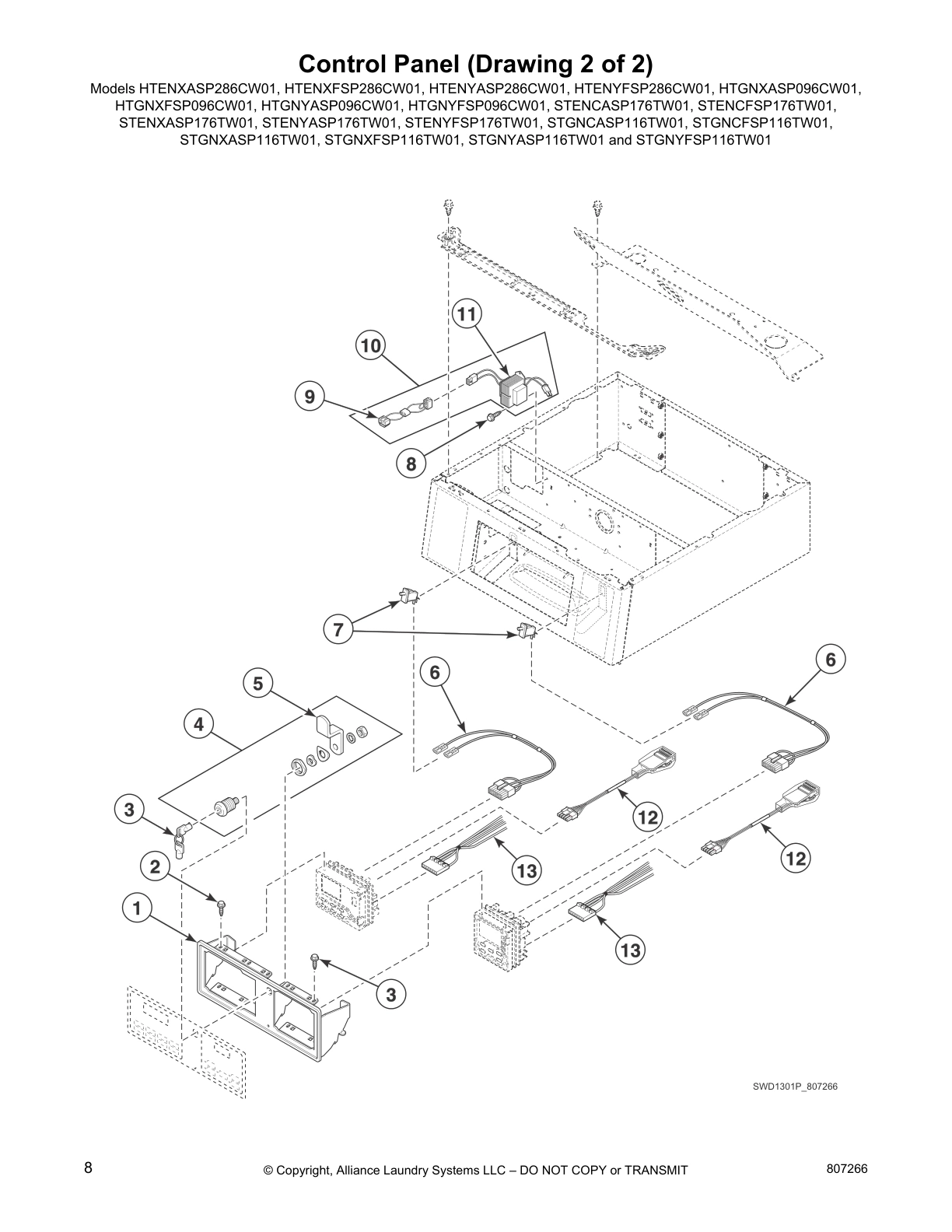

Control Panel (Drawing 2 of 2)

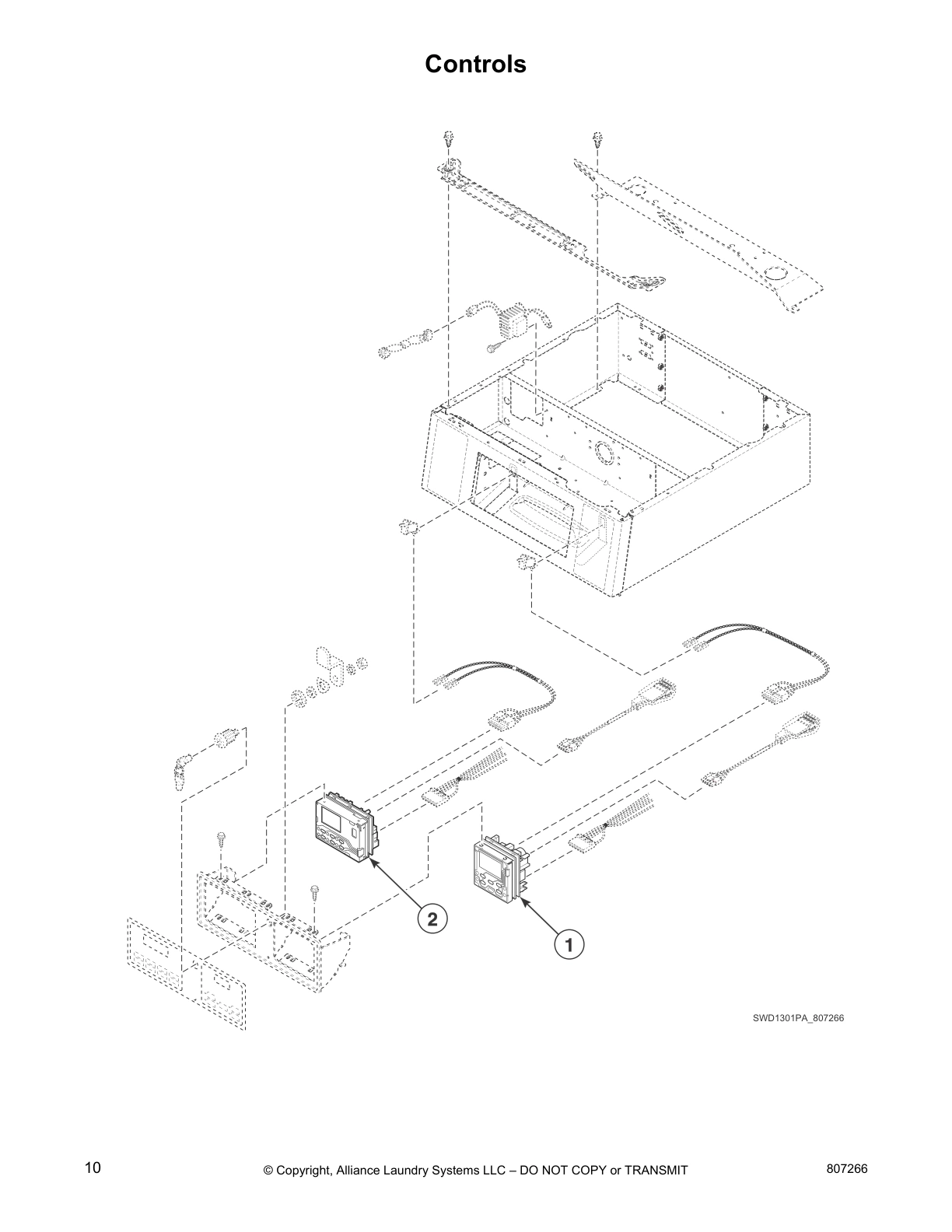

Controls

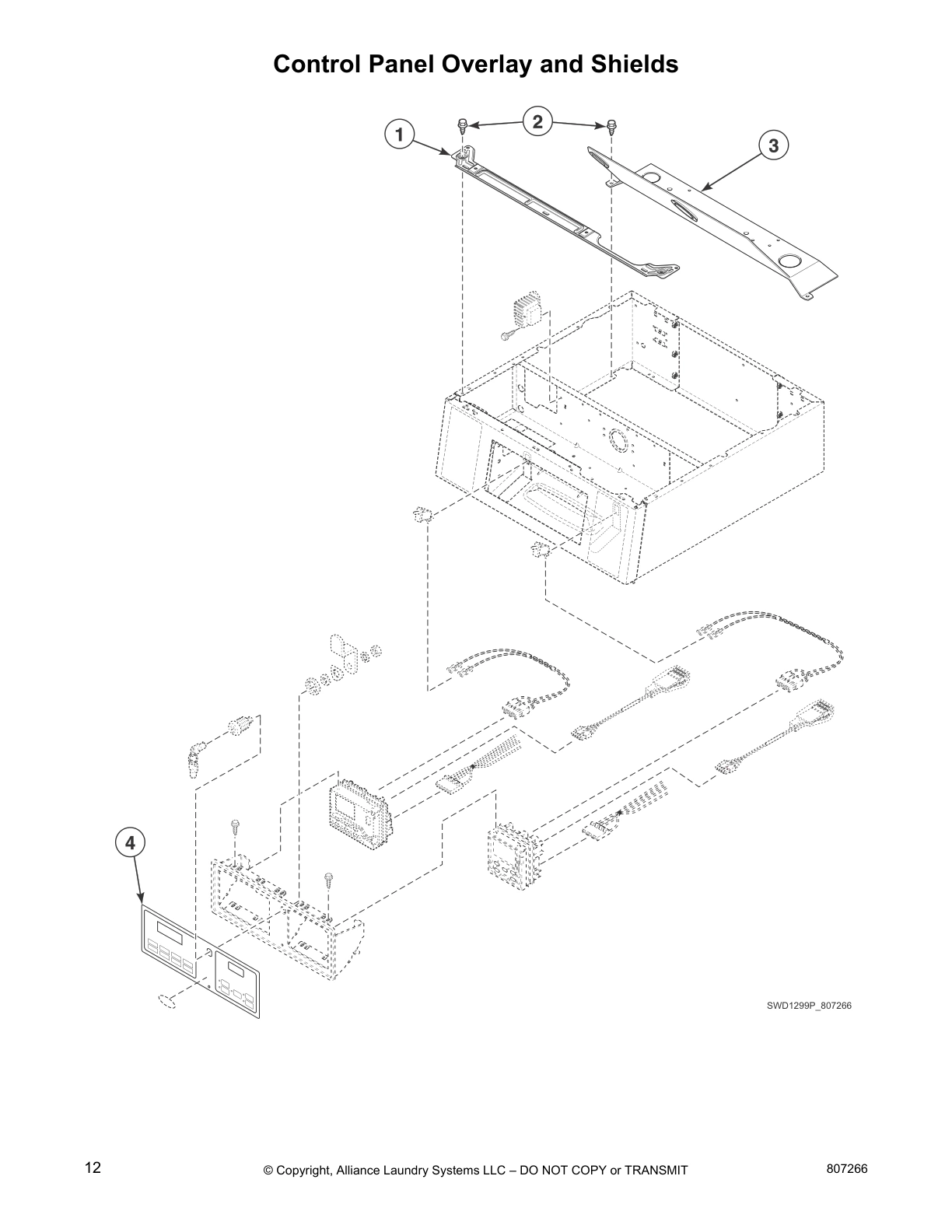

Control Panel Overlay and Shields

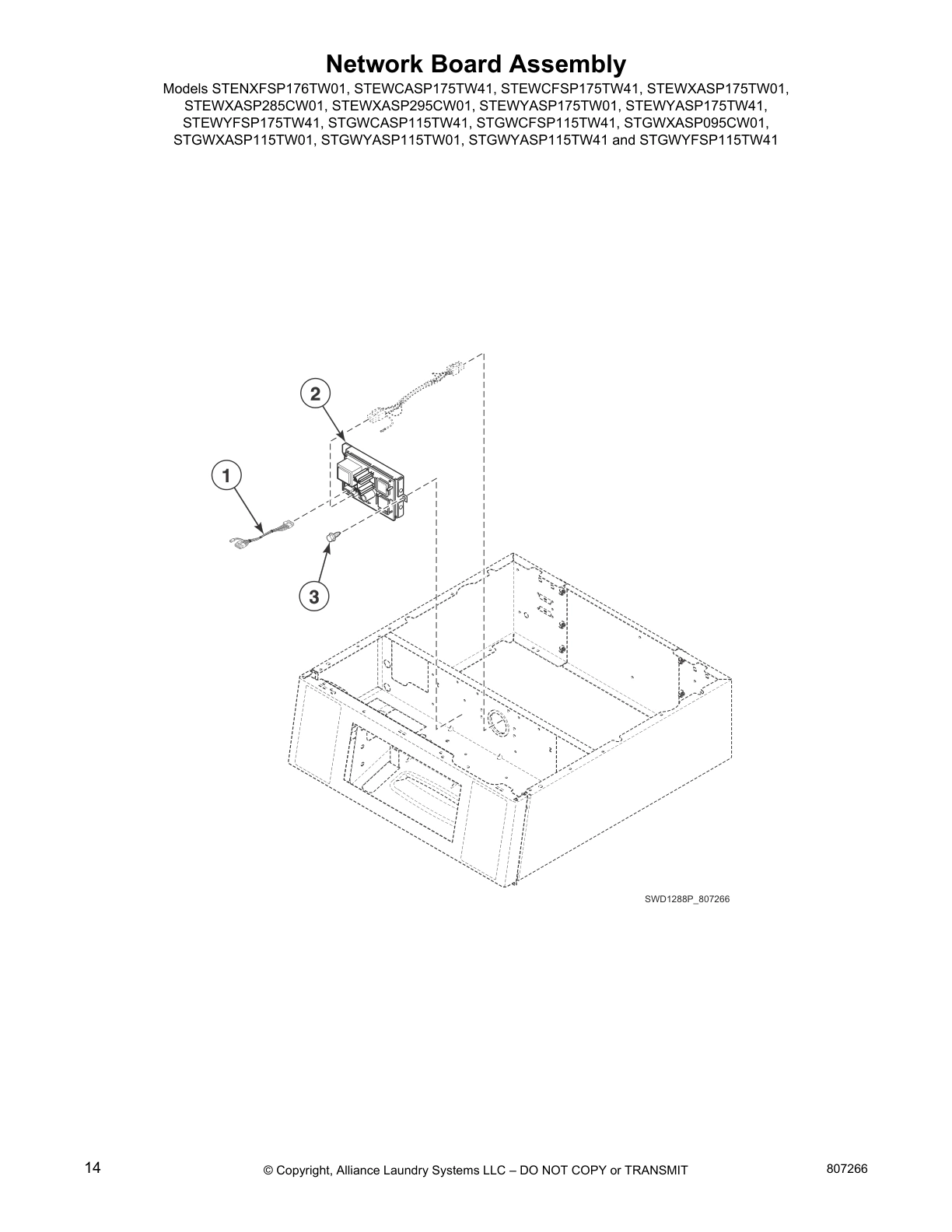

Network Board Assembly

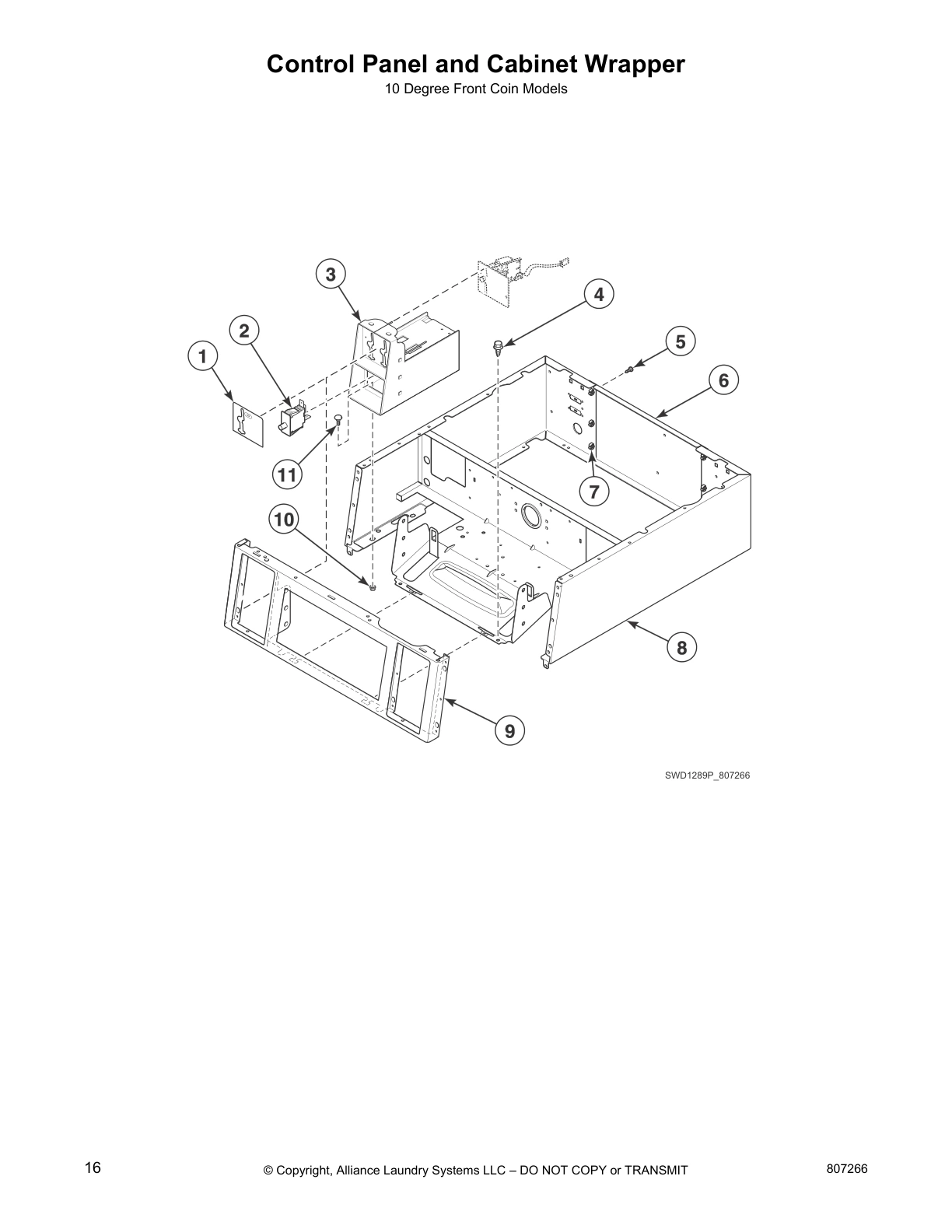

Control Panel and Cabinet Wrapper
Non-Electronic Coin Drop

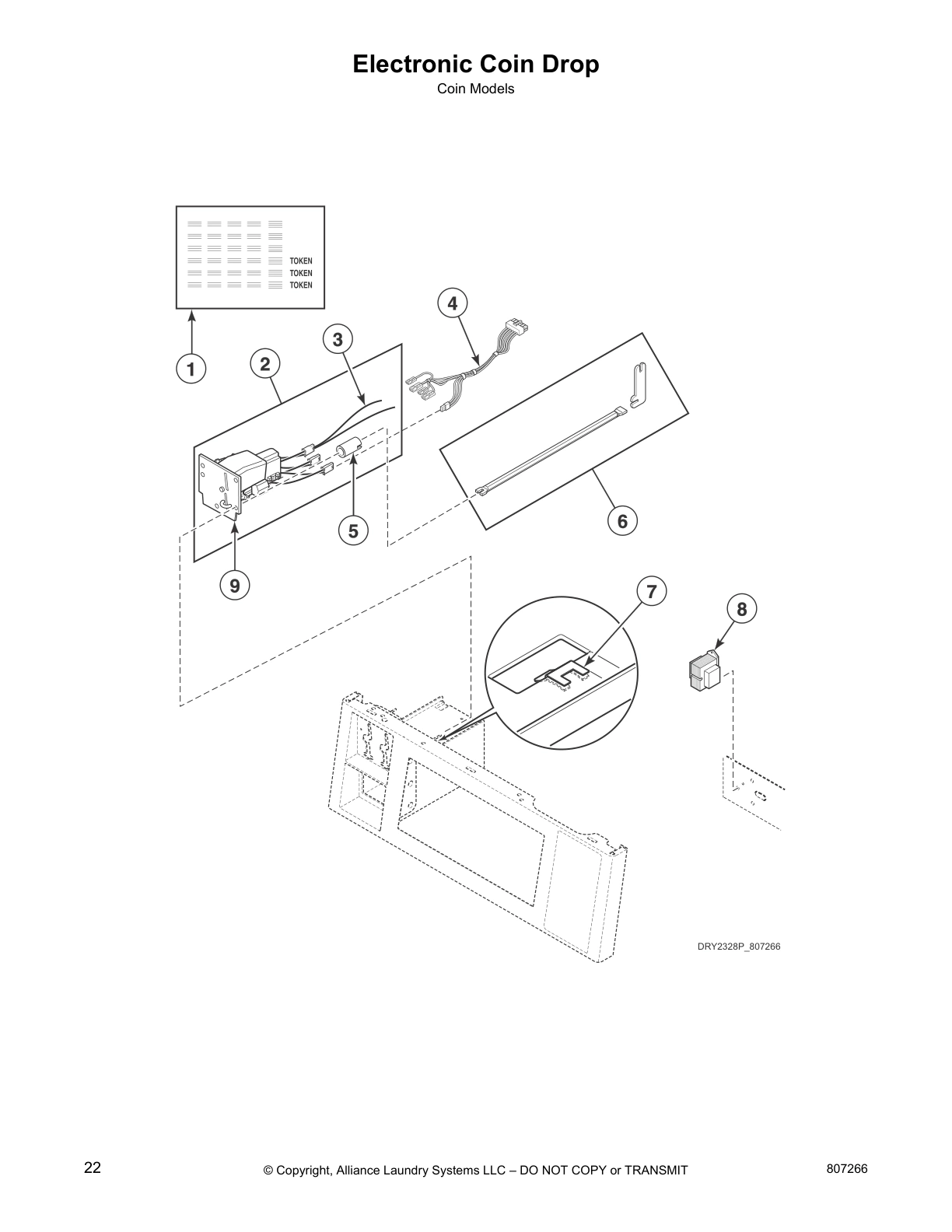

Electronic Coin Drop

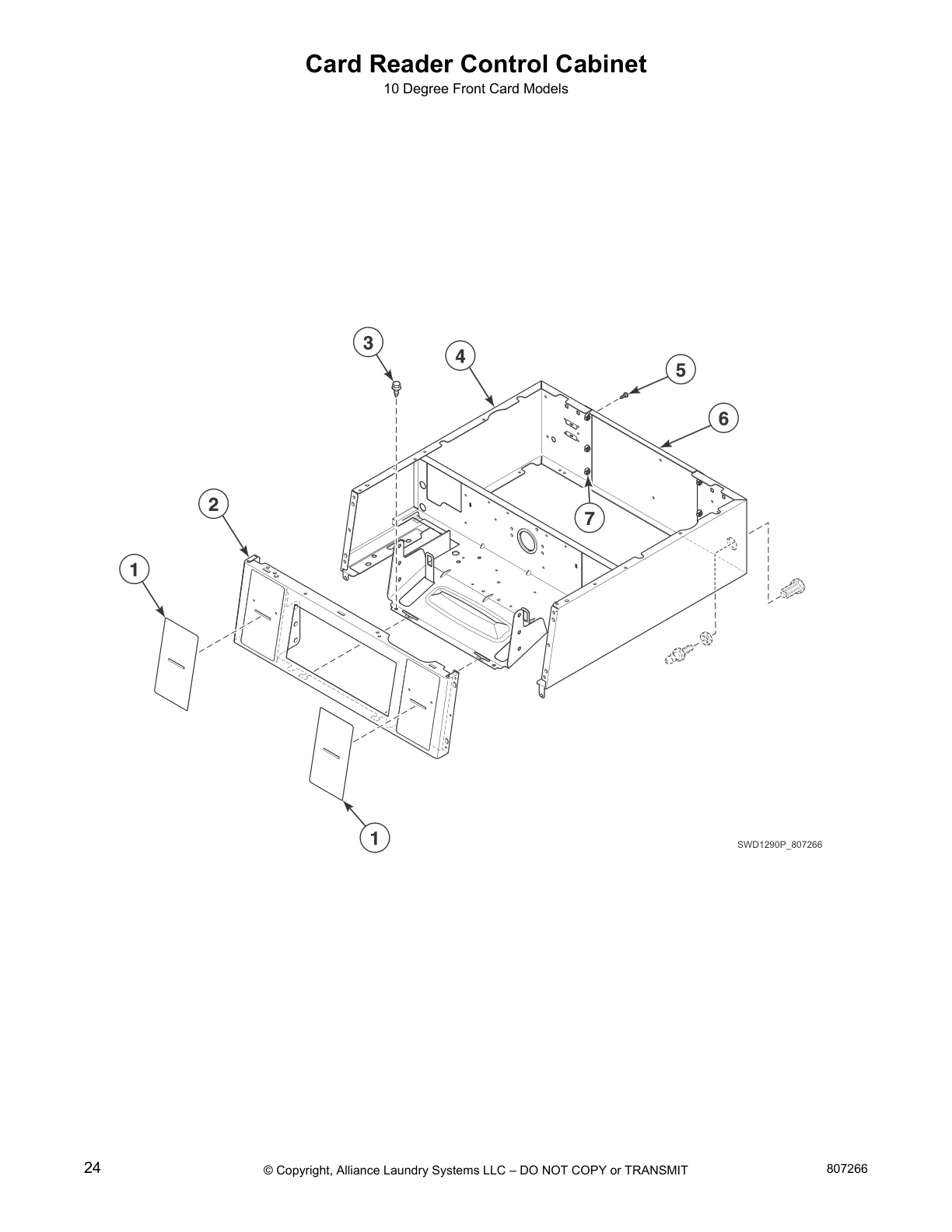

Card Reader Control Cabinet
Front Panel, Door Assembly and Door Seal

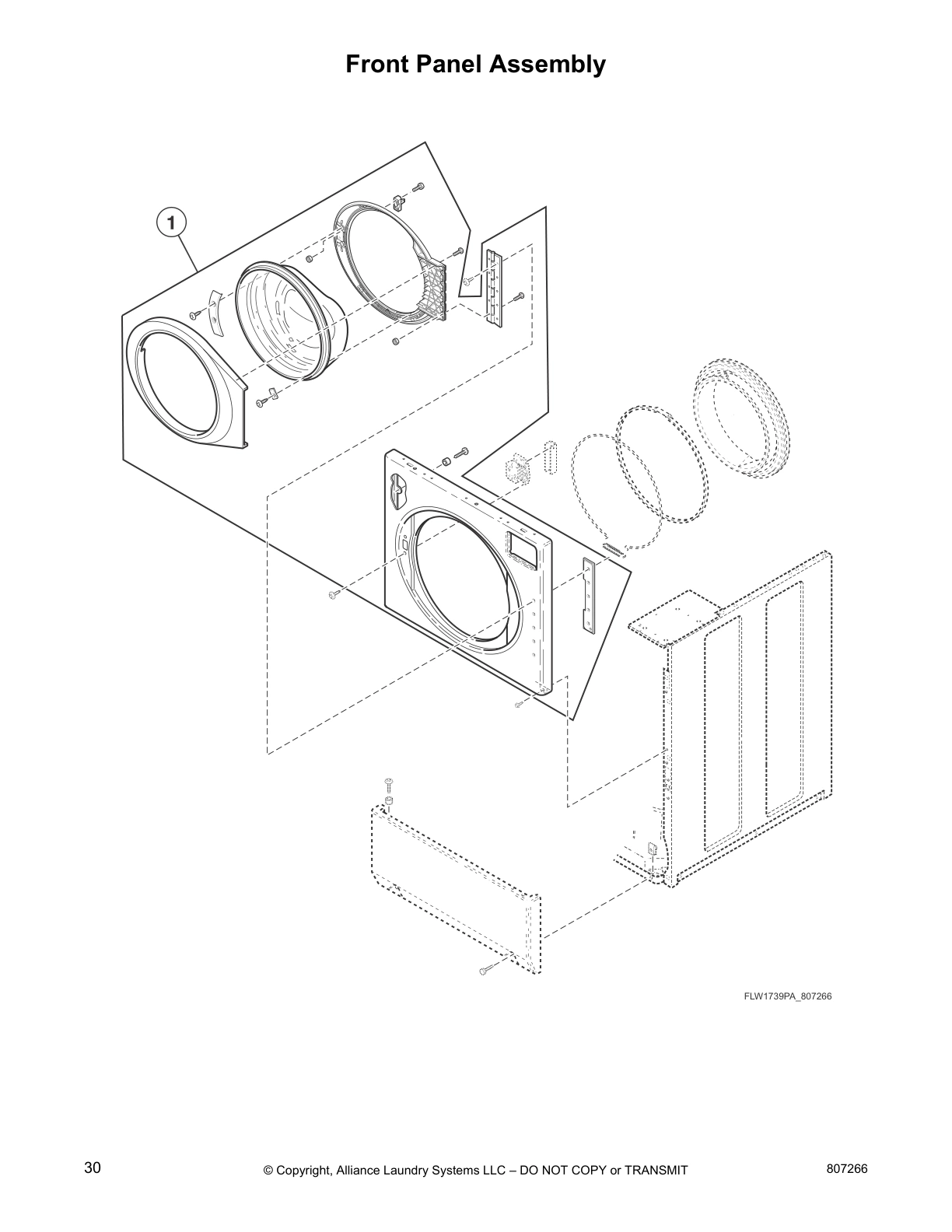

Front Panel Assembly
Dispenser Assembly

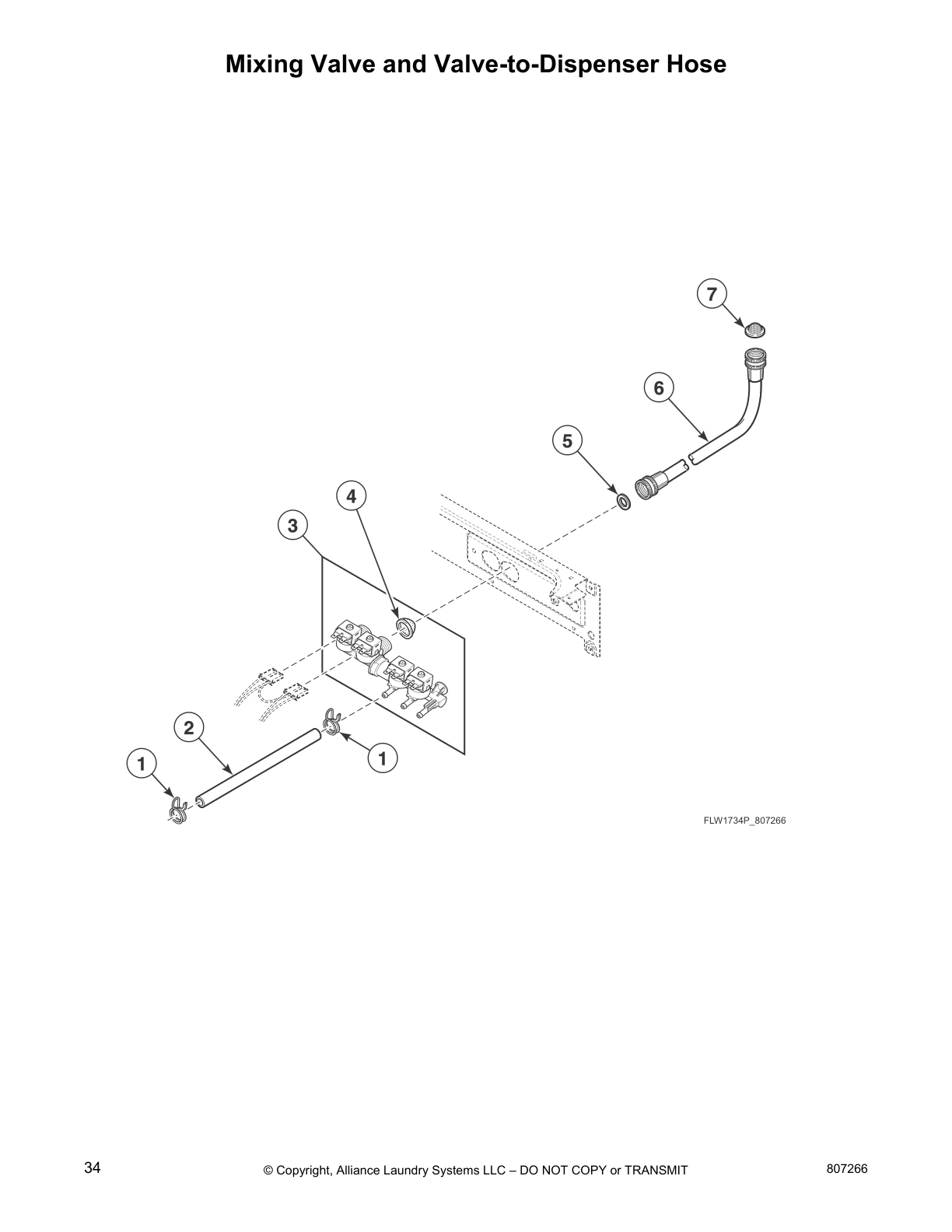

Mixing Valve and Valve-to-Dispenser Hose

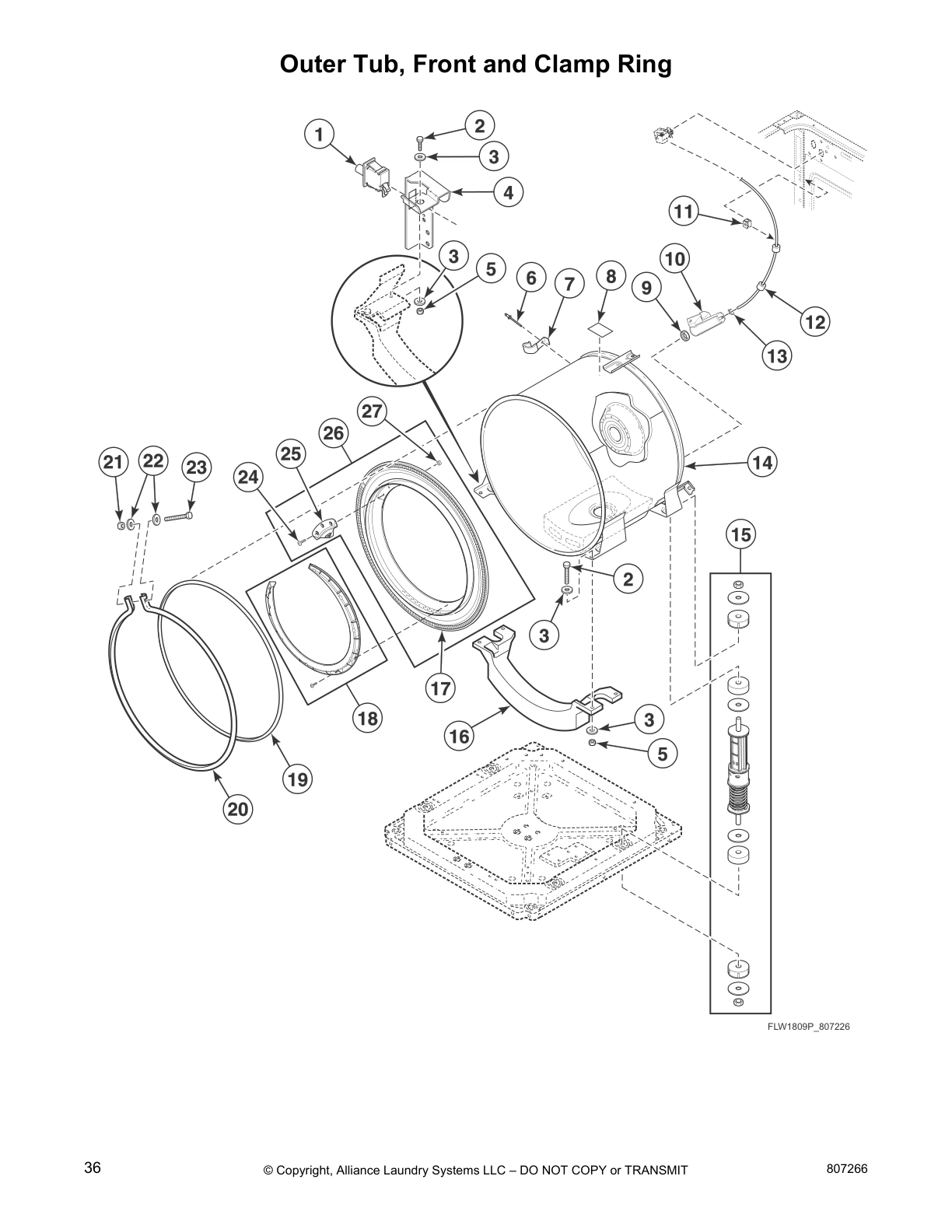

Outer Tub, Front and Clamp Ring

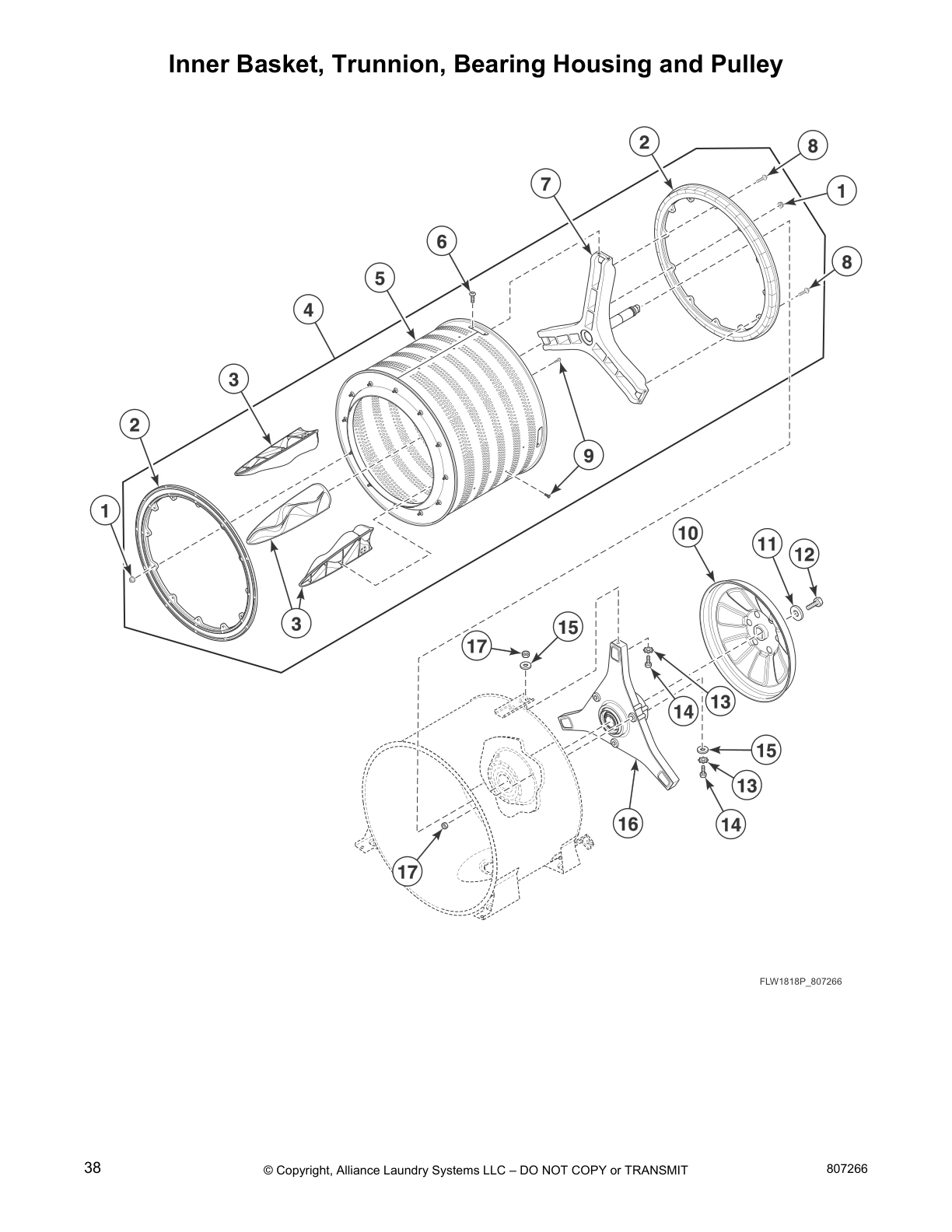

Inner Basket, Trunnion, Bearing Housing and Pulley
Motor and Belt

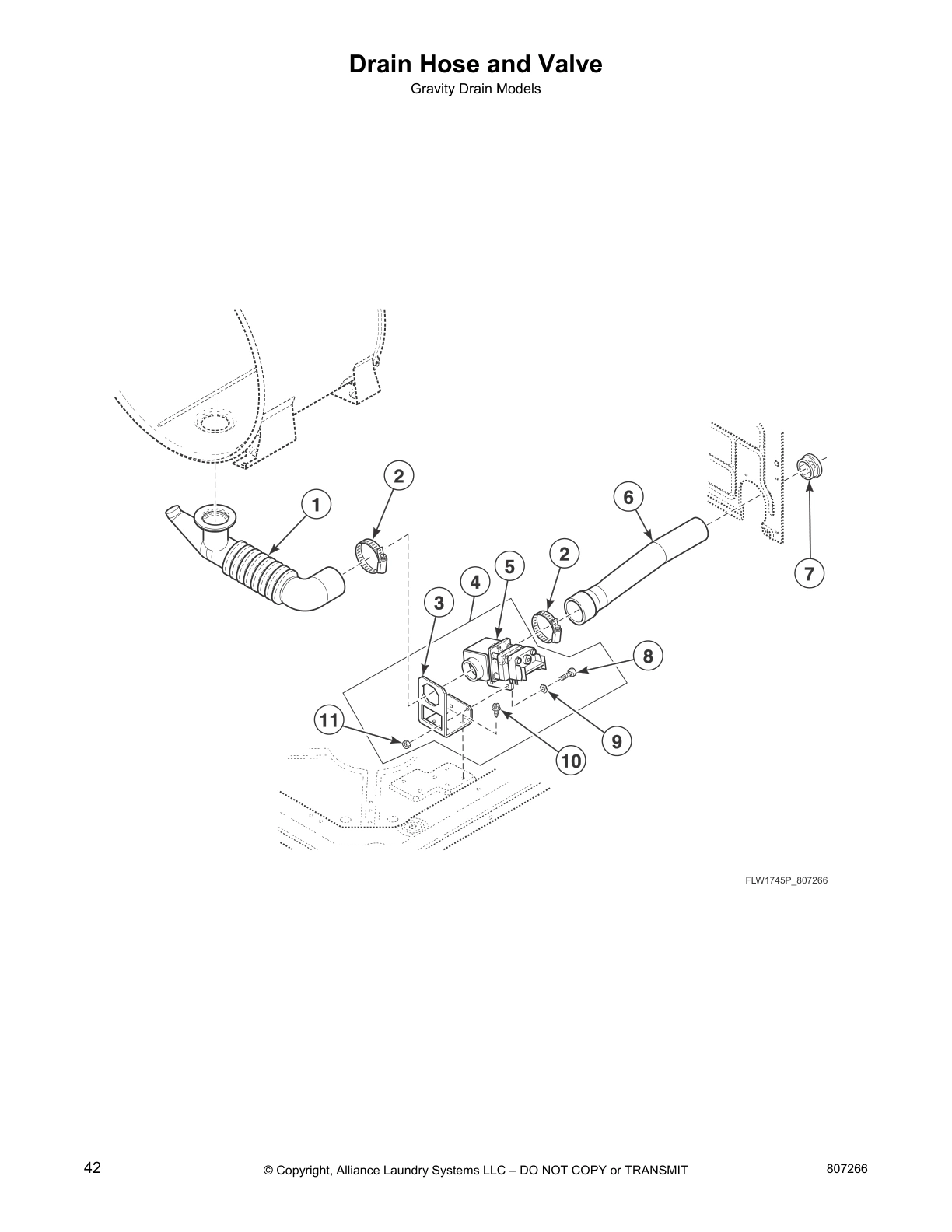

Drain Hose and Valve
Drain Hose and Pump
Washer Base, Side Panels and Rear Panel

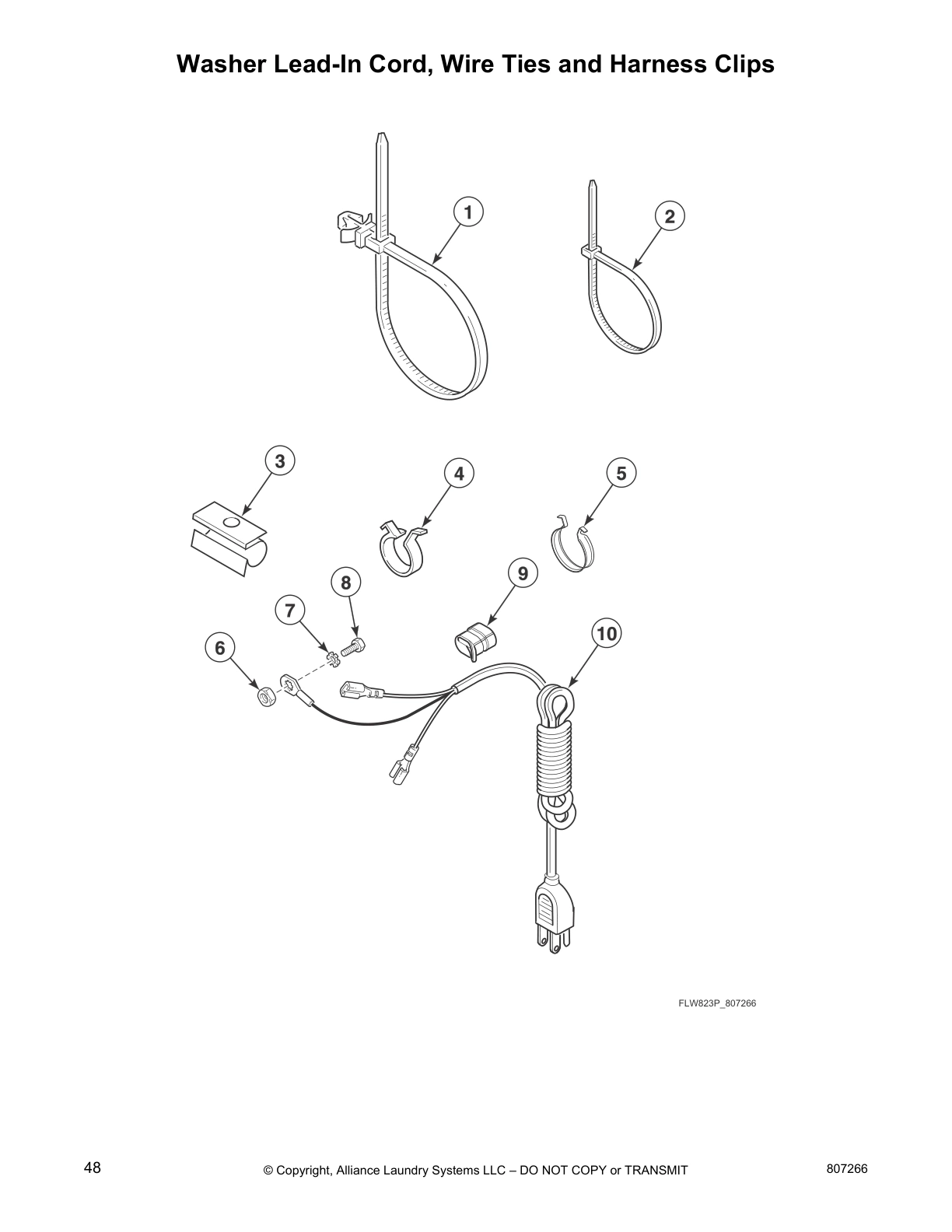

Washer Lead-In Cord, Wire Ties and Harness Clips

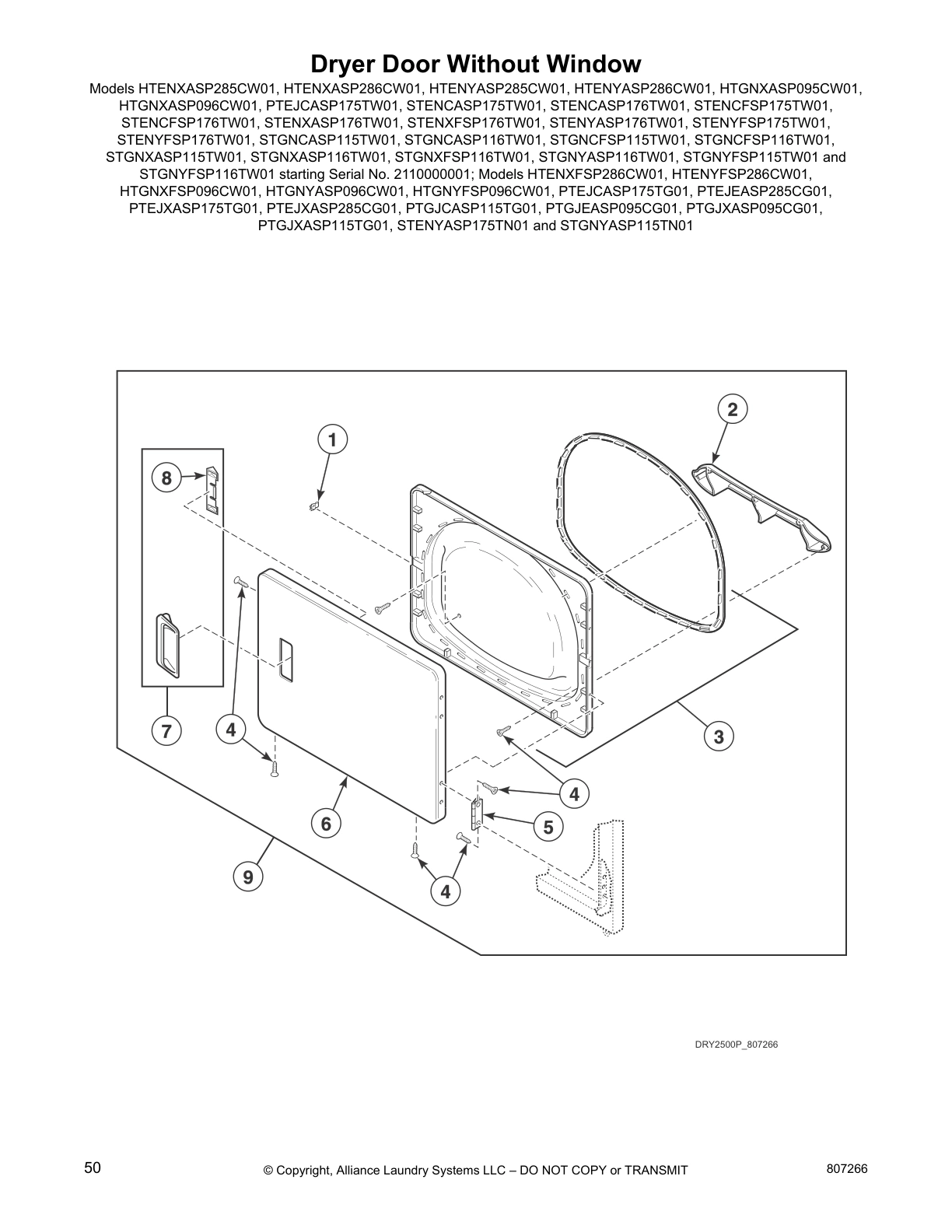

Dryer Door Without Window

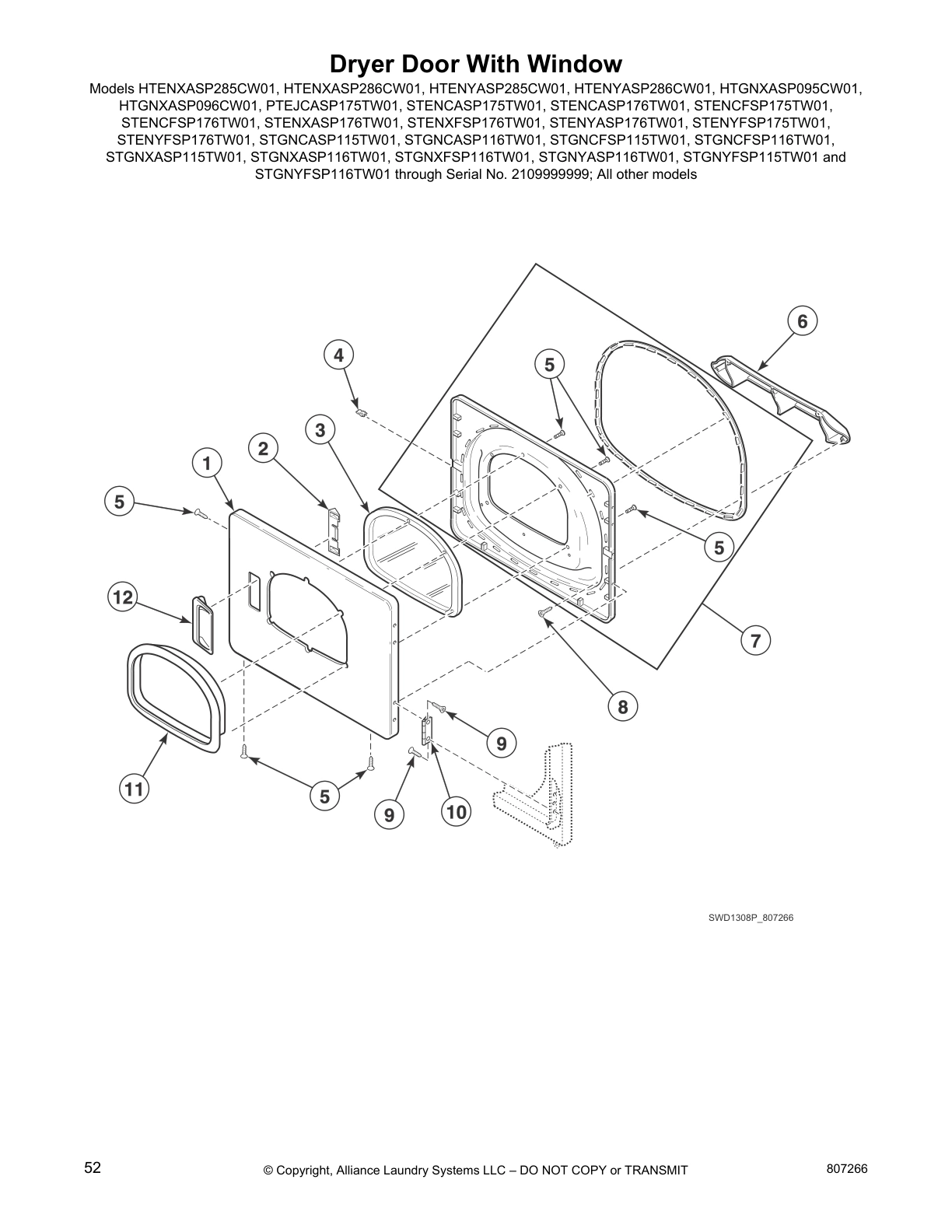

Dryer Door With Window

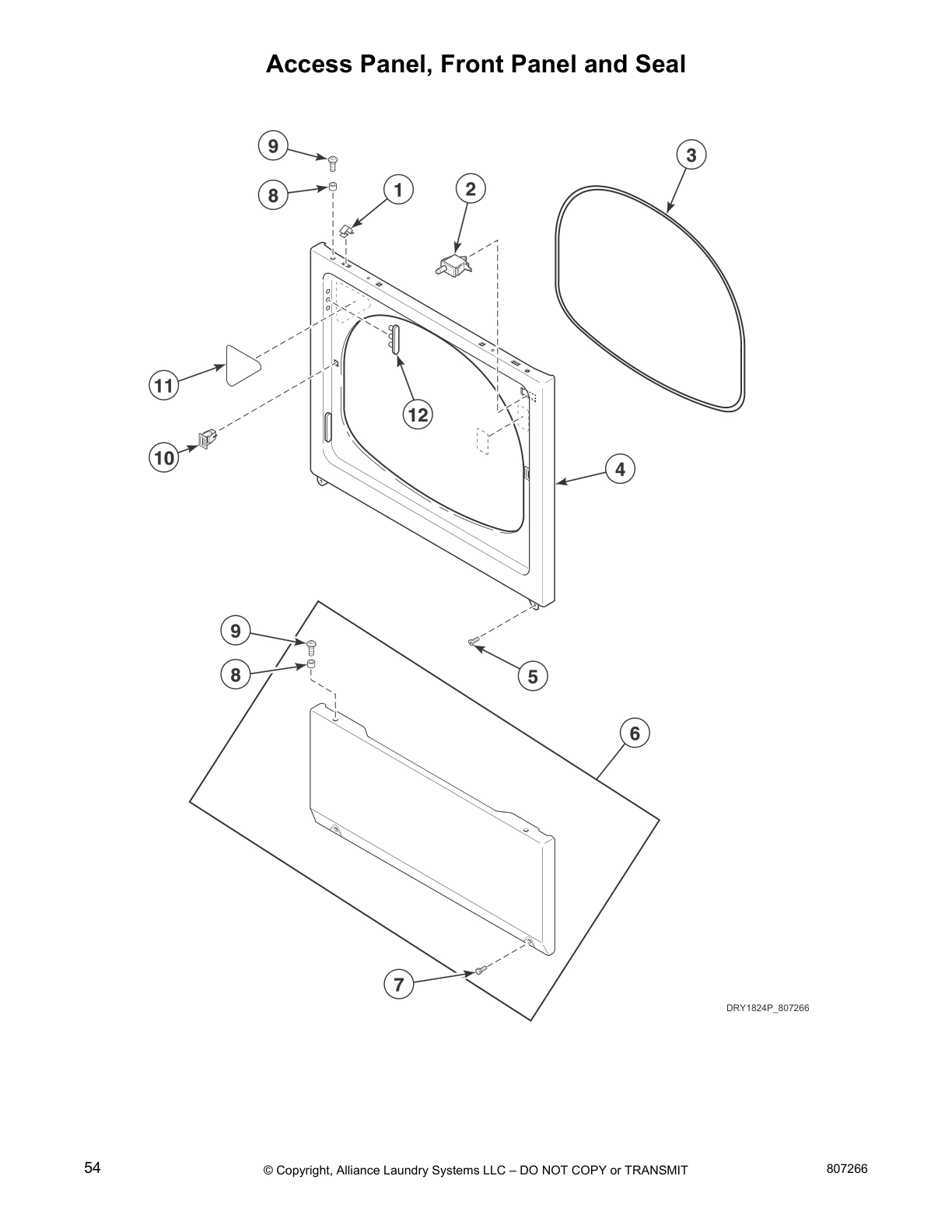

Access Panel, Front Panel and Seal

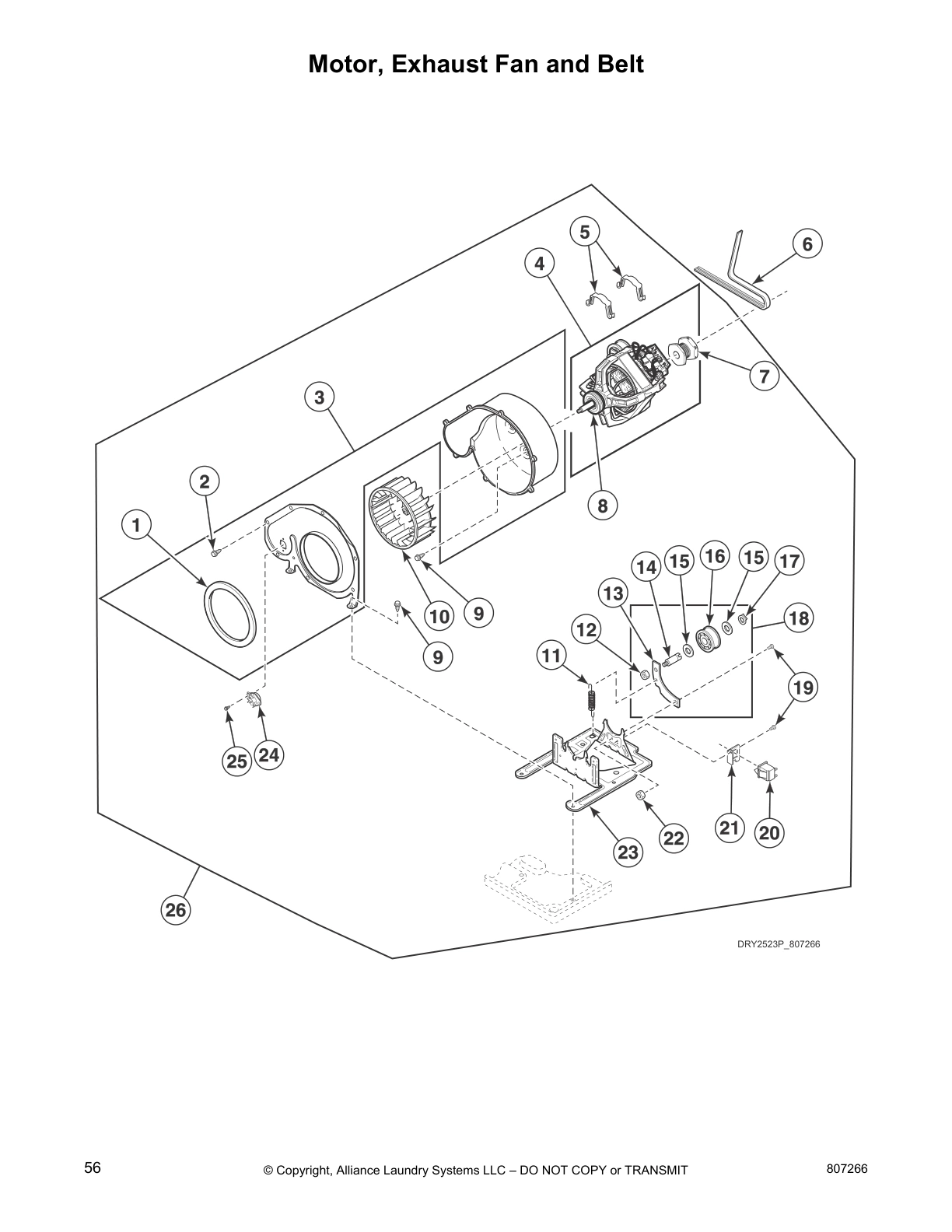

Motor, Exhaust Fan and Belt

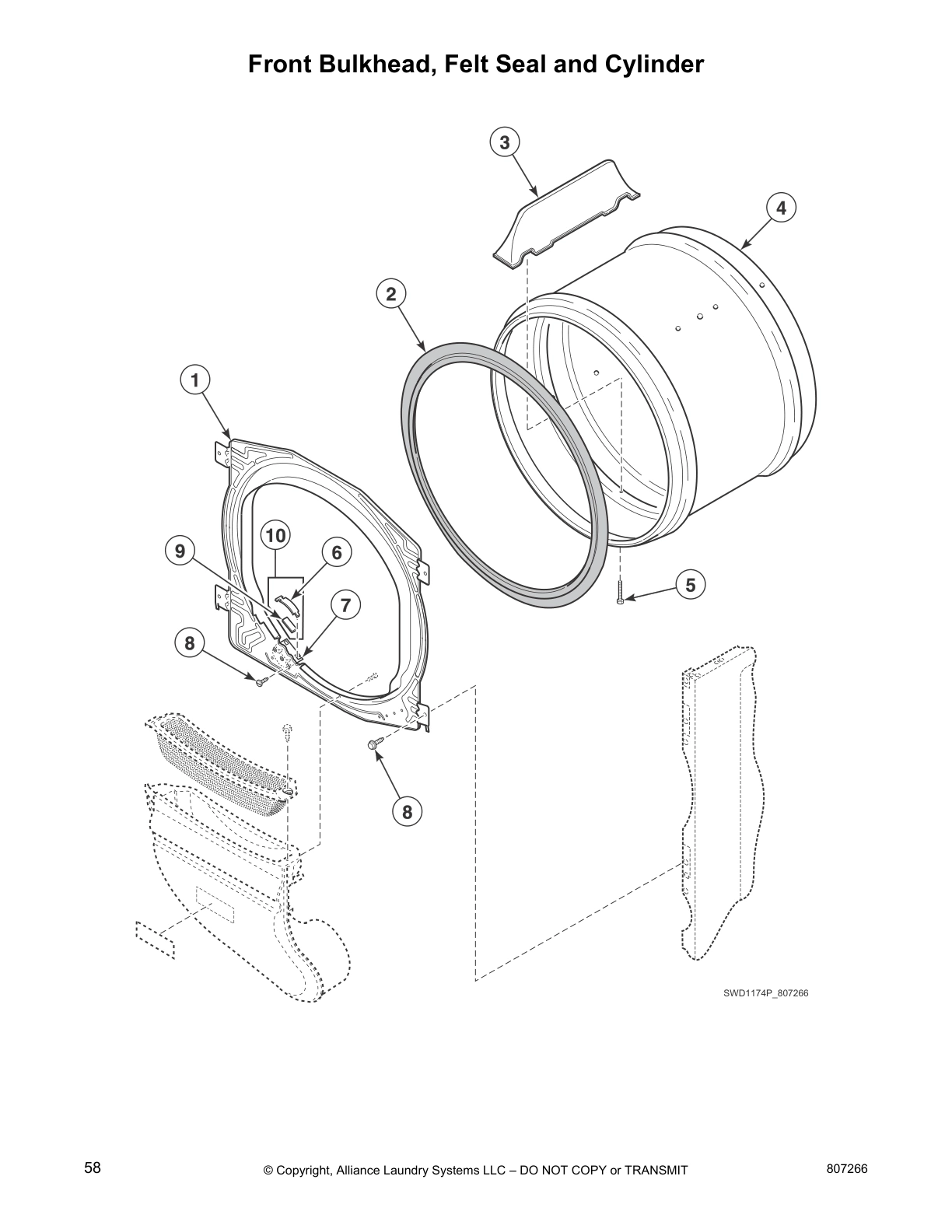

Front Bulkhead, Felt Seal and Cylinder

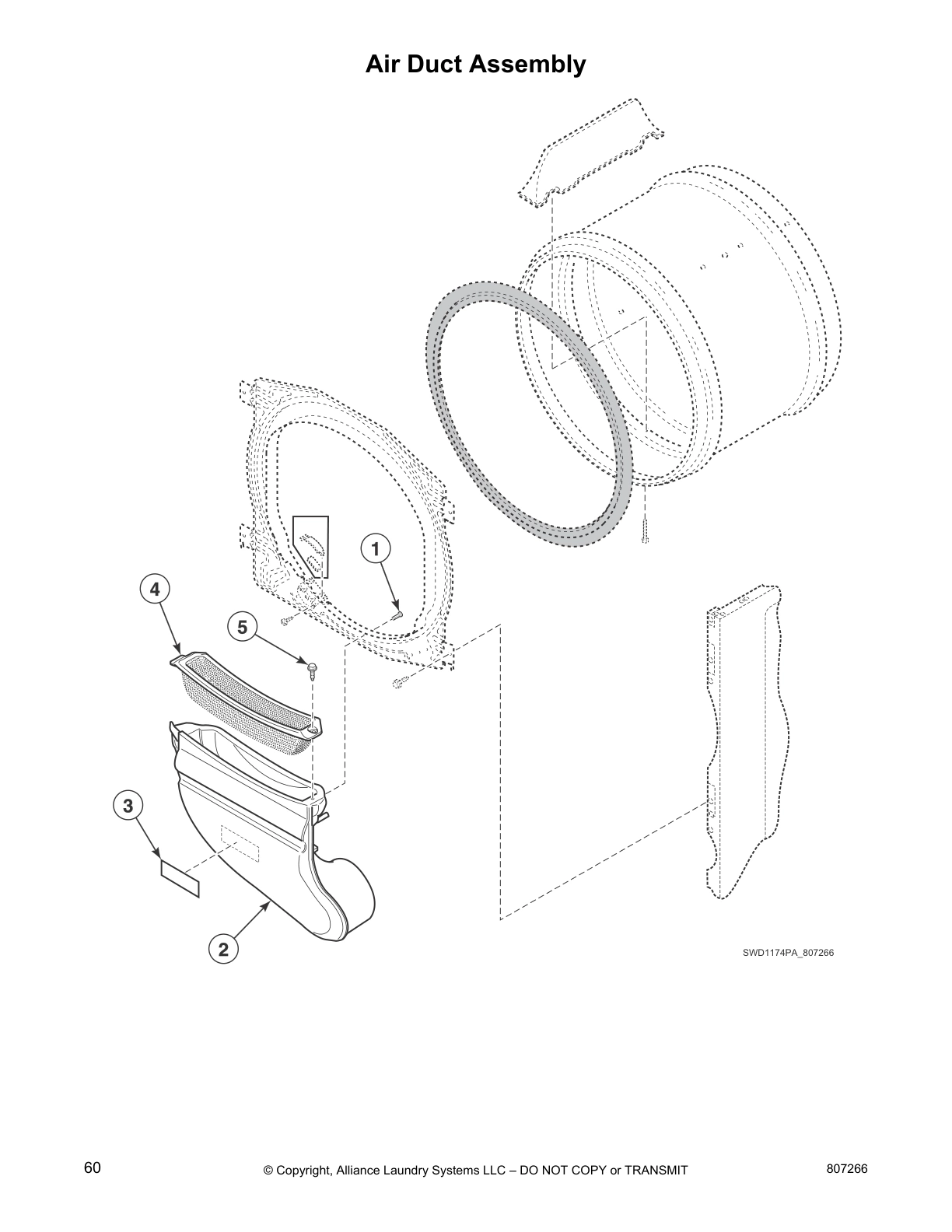

Air Duct Assembly

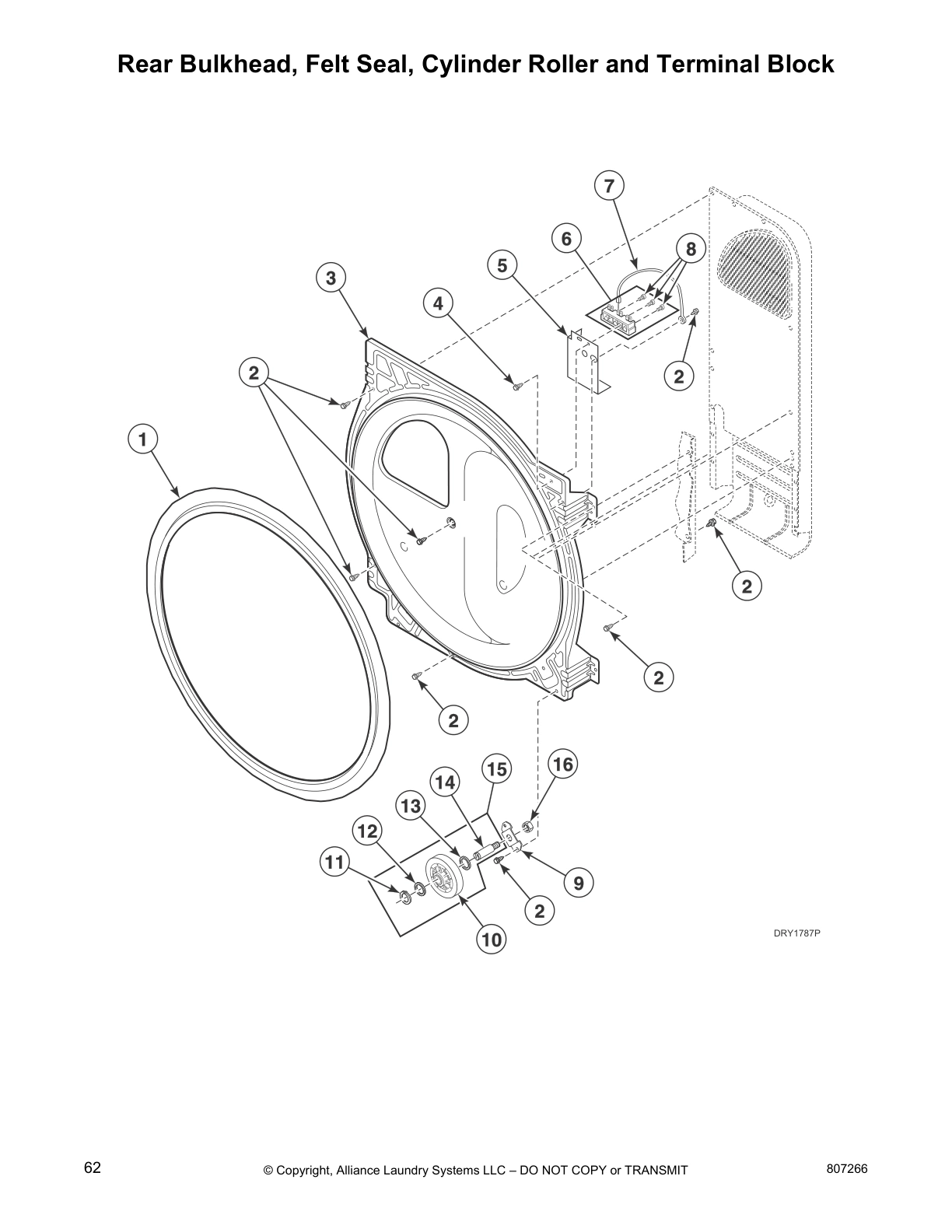

Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block

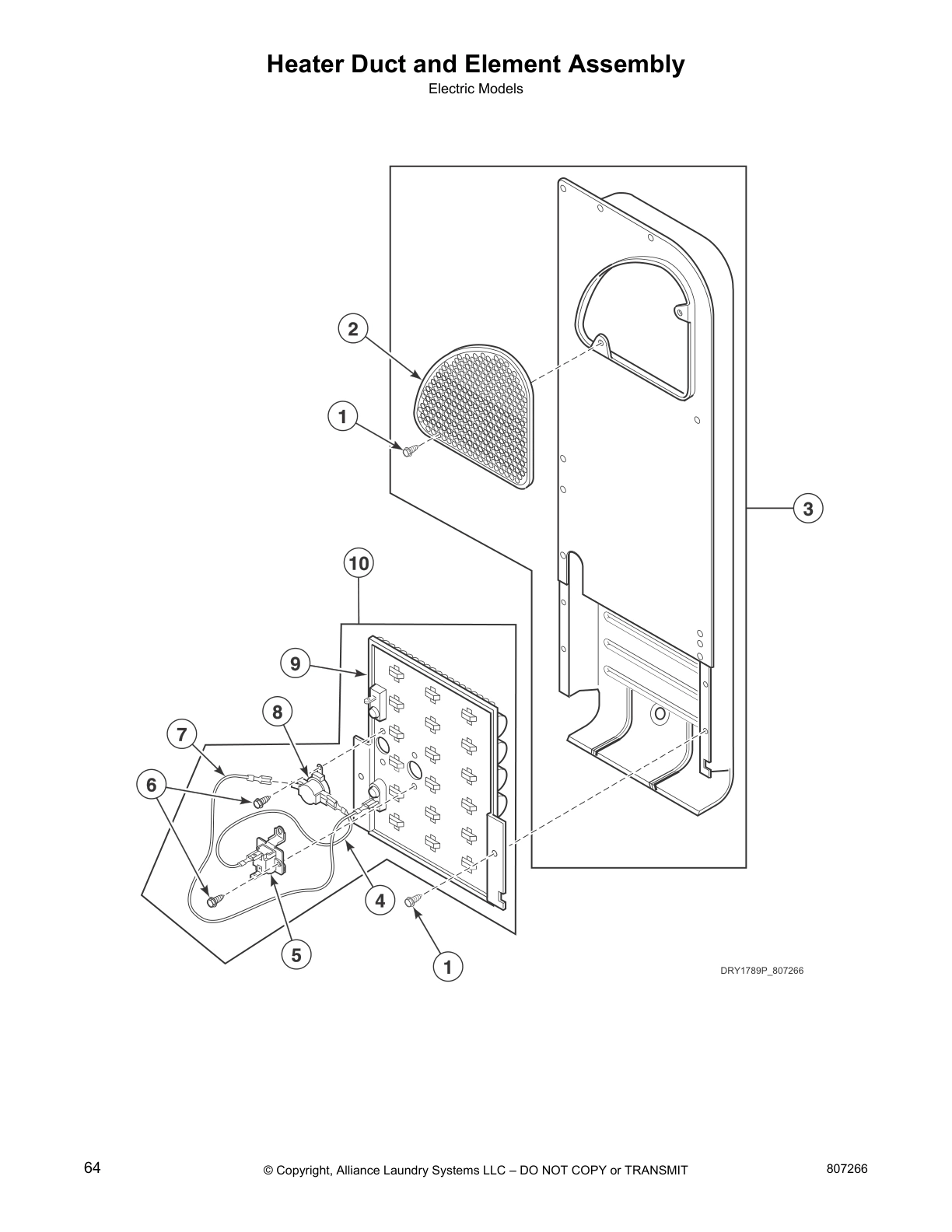

Heater Duct and Element Assembly

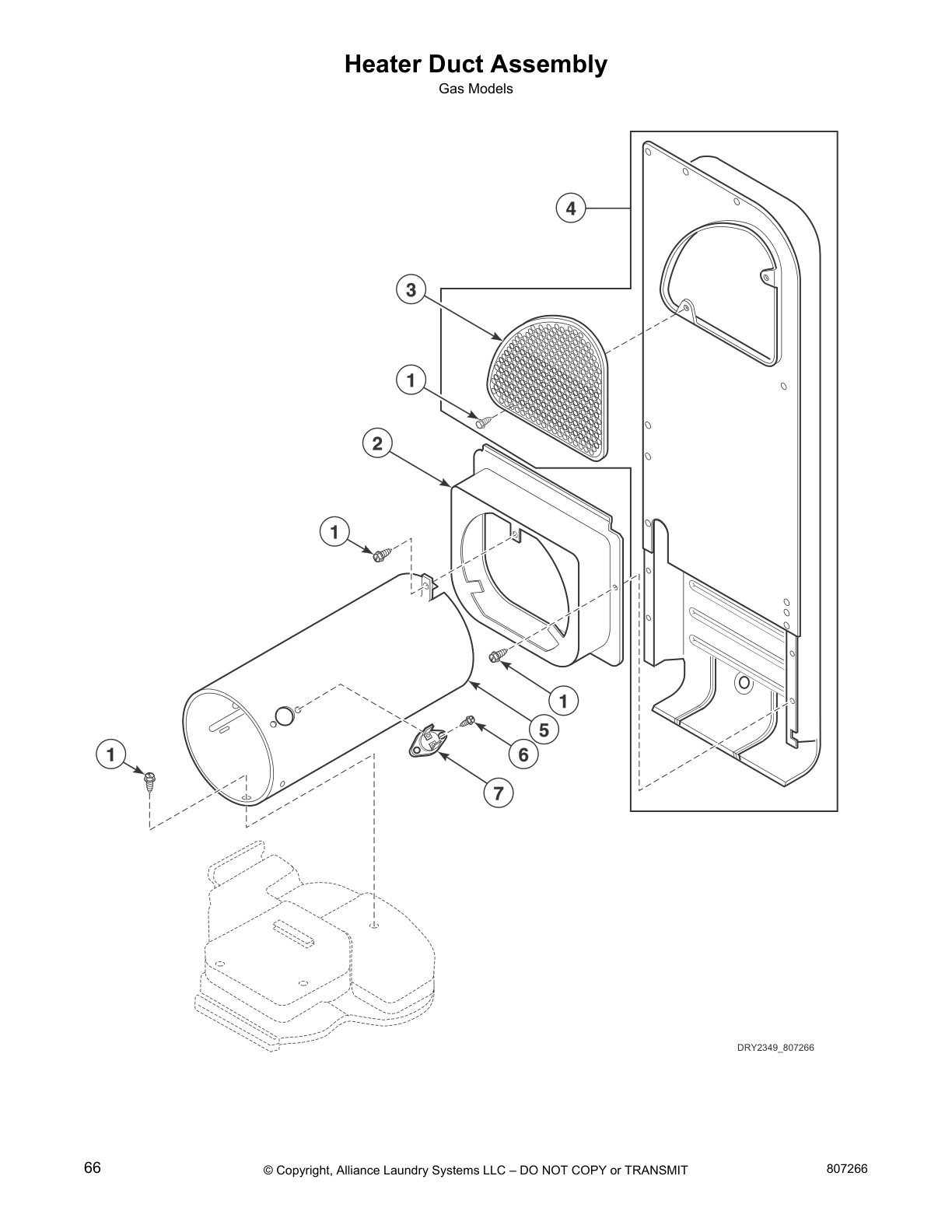

Heater Duct Assembly

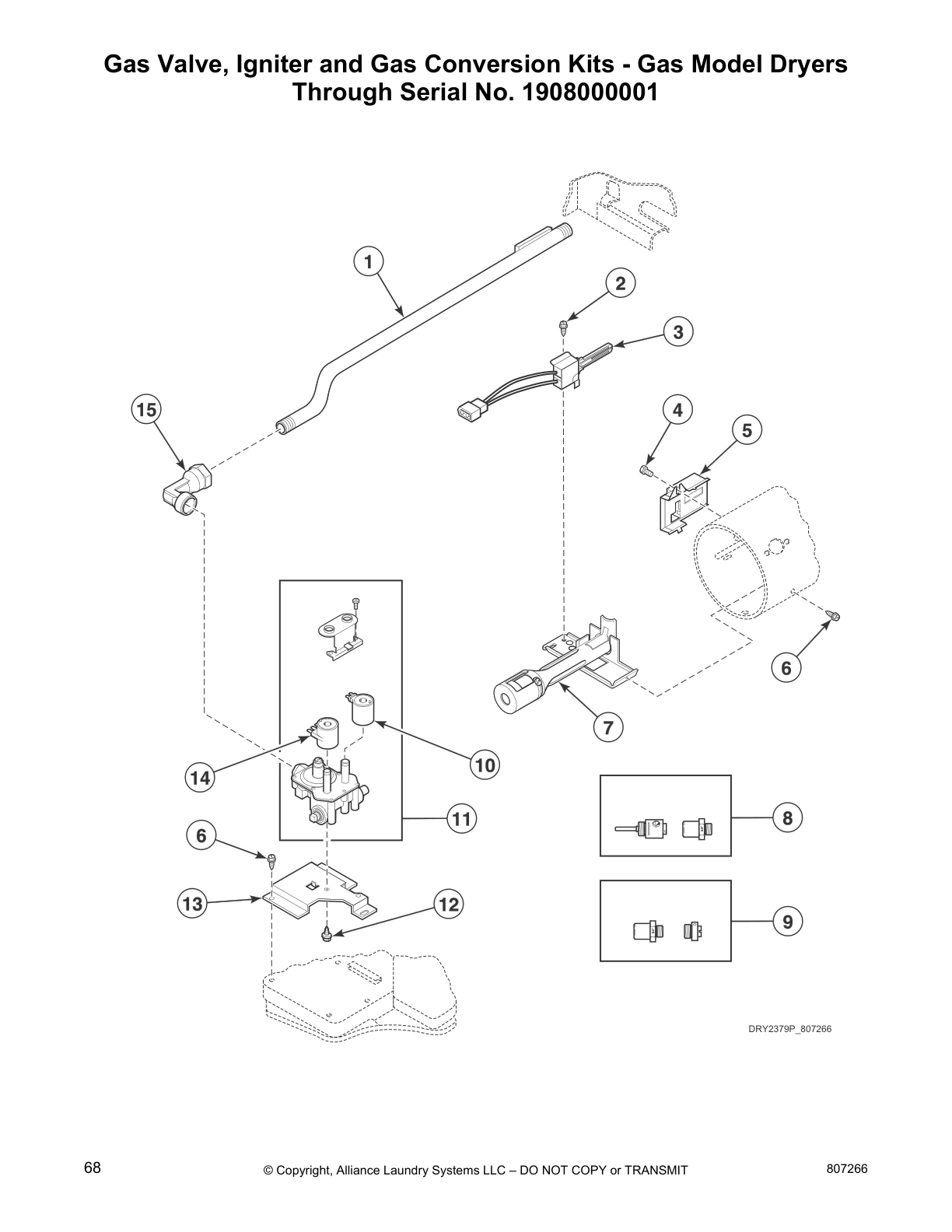

Gas Valve, Igniter and Gas Conversion Kits - Gas Model Dryers
Through Serial No. 1908000001

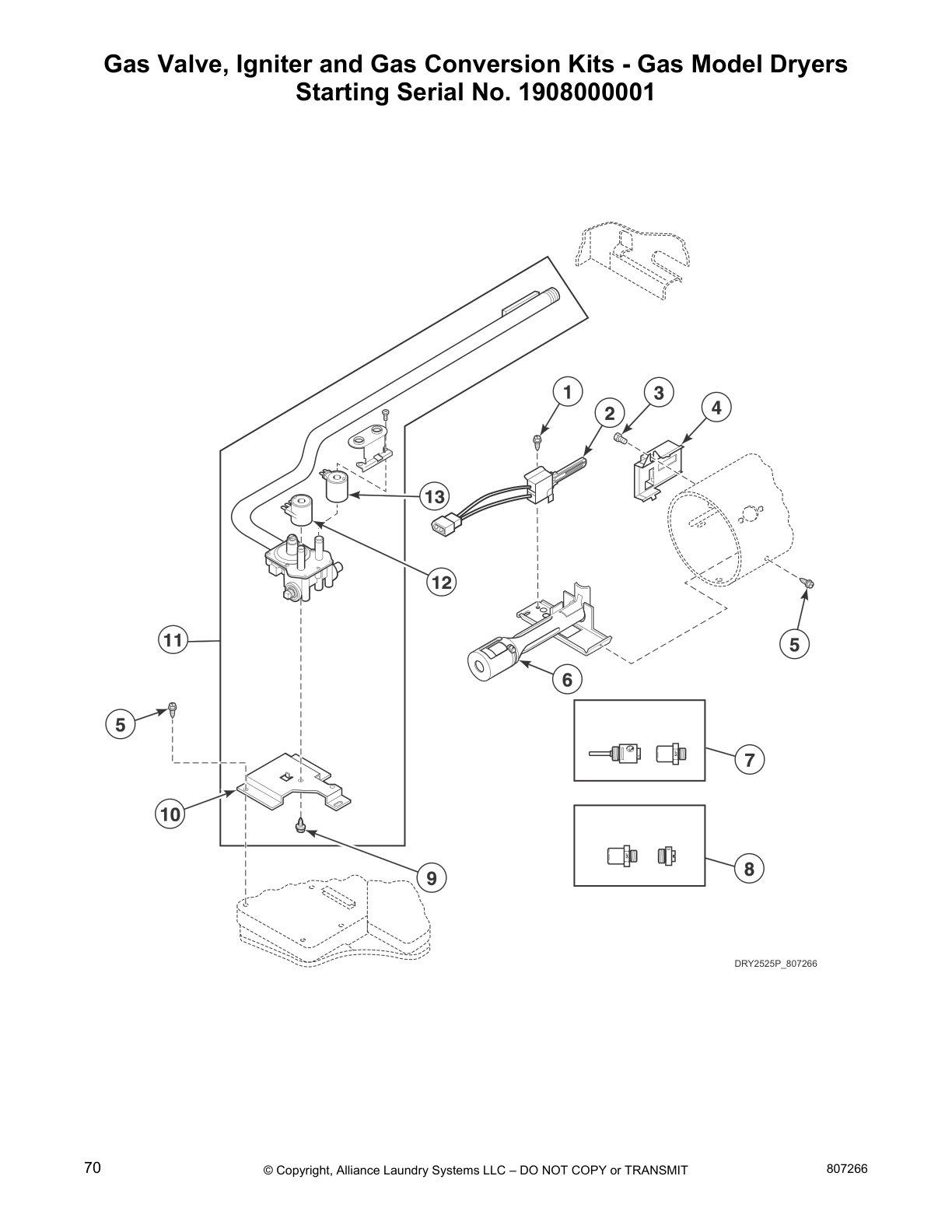

Gas Valve, Igniter and Gas Conversion Kits - Gas Model Dryers
Starting Serial No. 1908000001

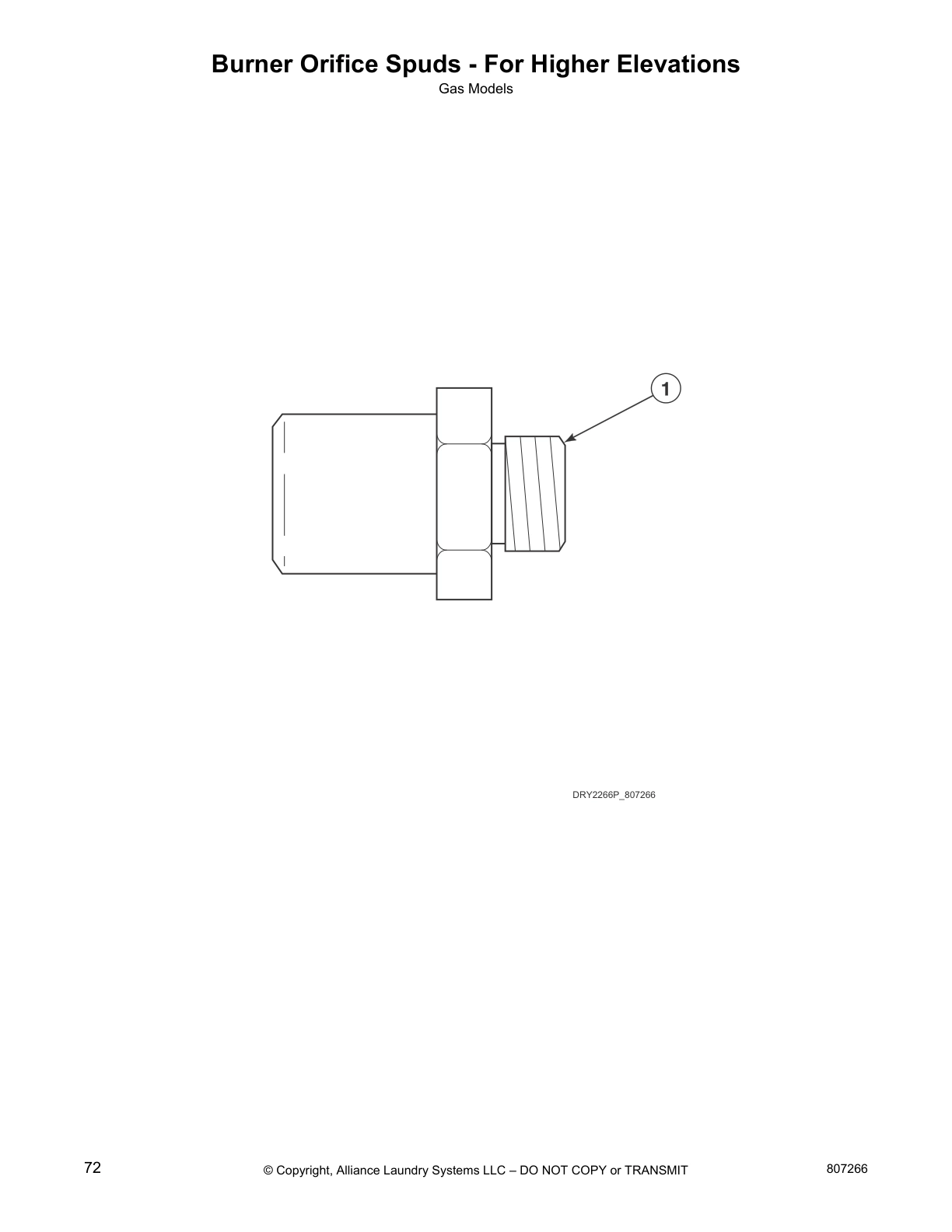

Burner Orifice Spuds - For Higher Elevations

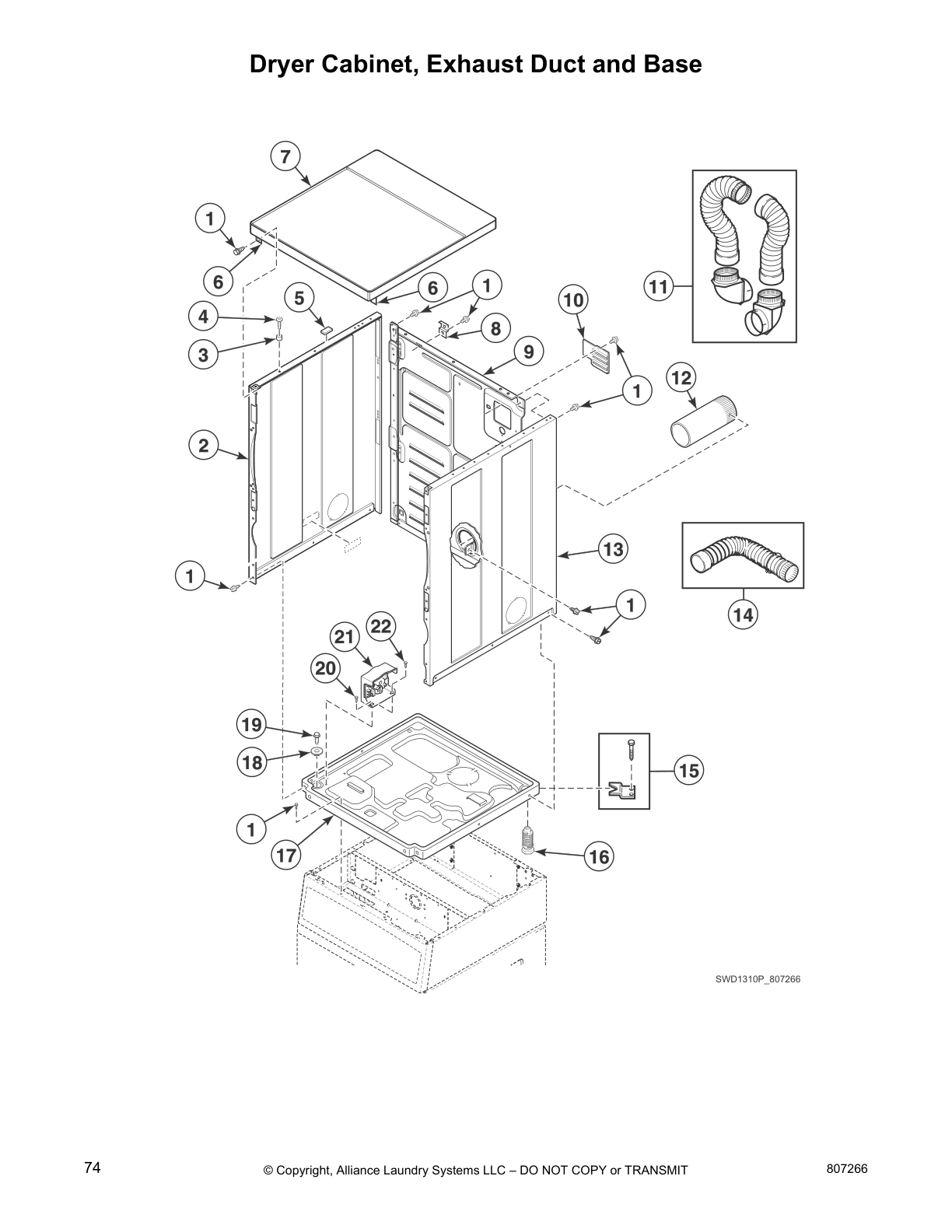

Dryer Cabinet, Exhaust Duct and Base

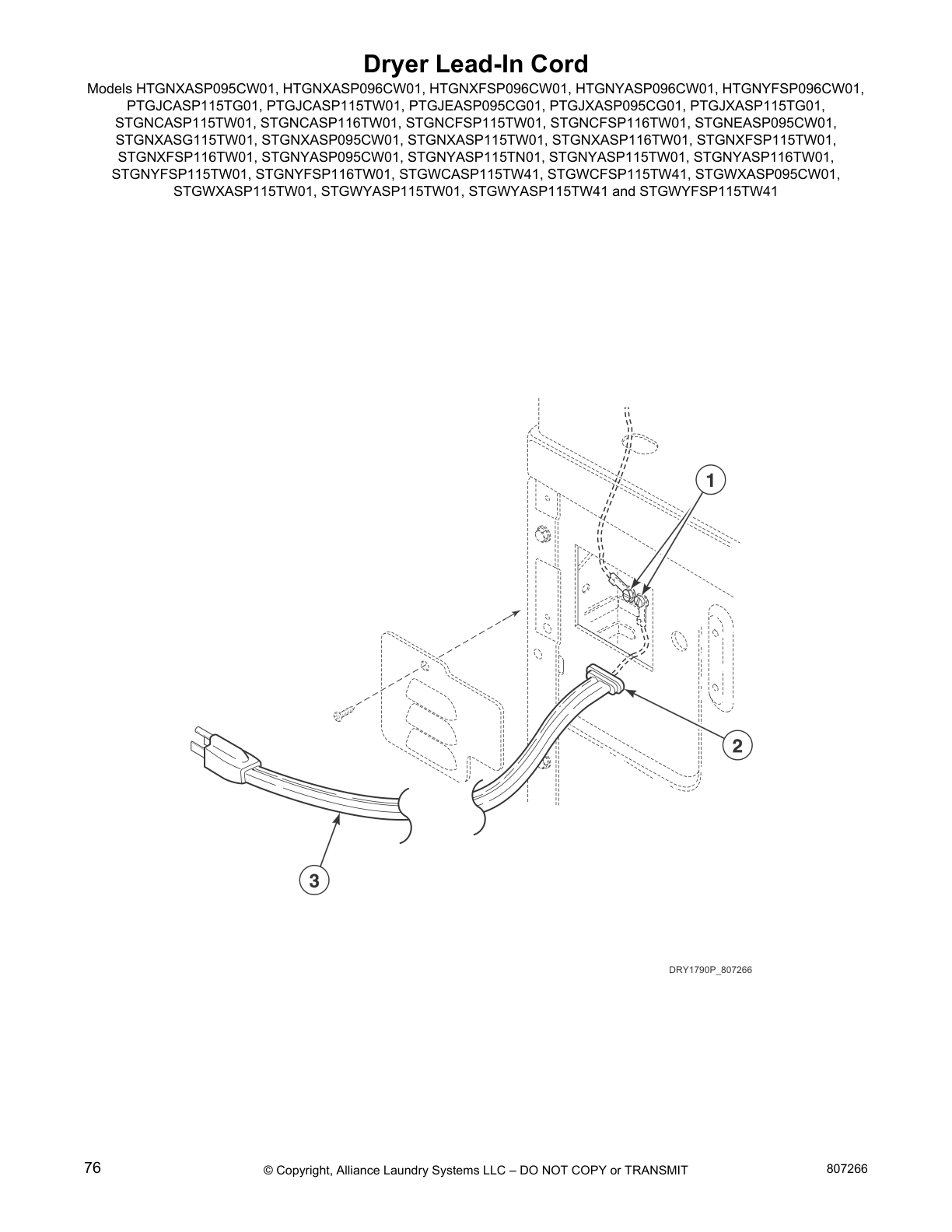

Dryer Lead-In Cord
Dryer Terminals and Terminal Extractor Tools

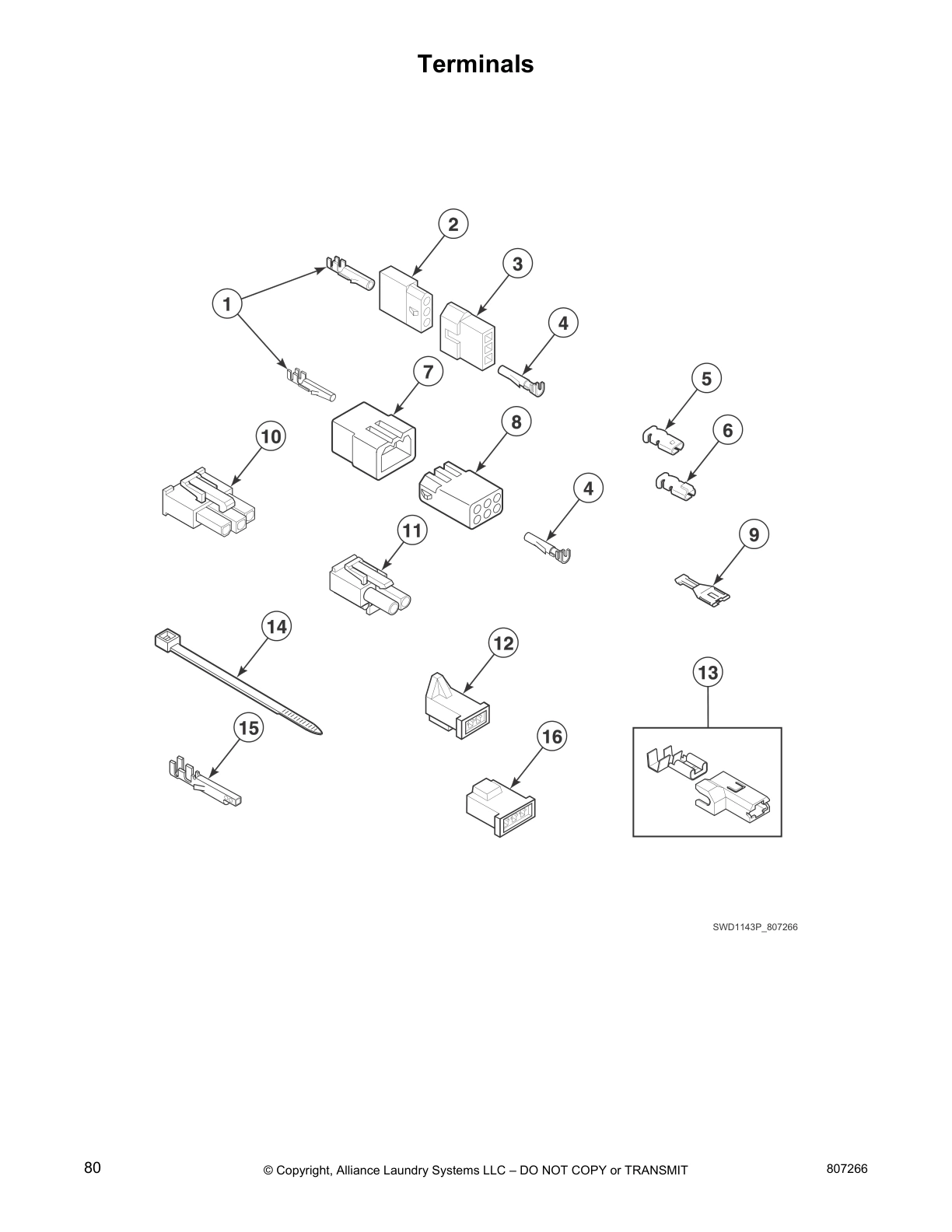

Terminals
Dryer Labels

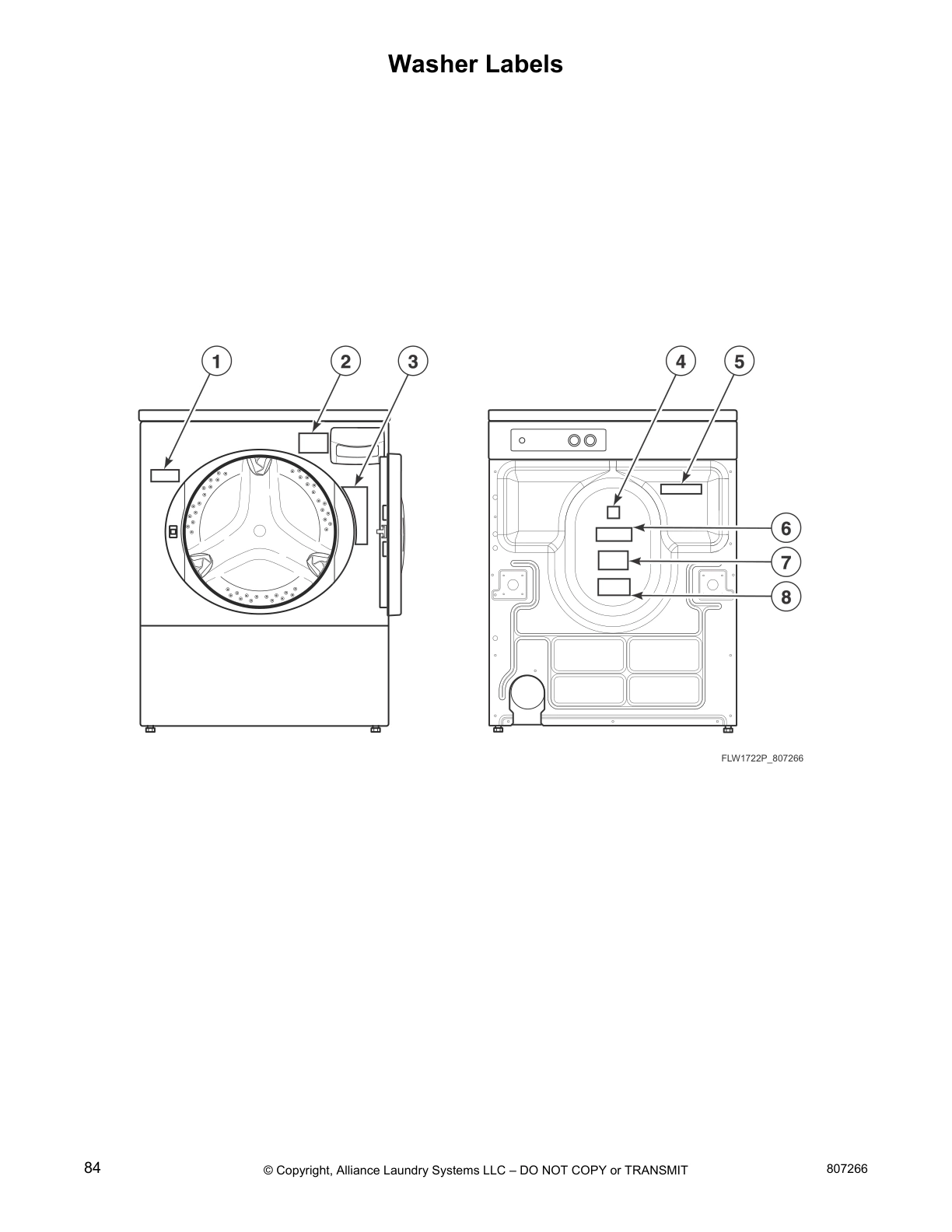

Washer Labels
Shipping Materials
Special Tools

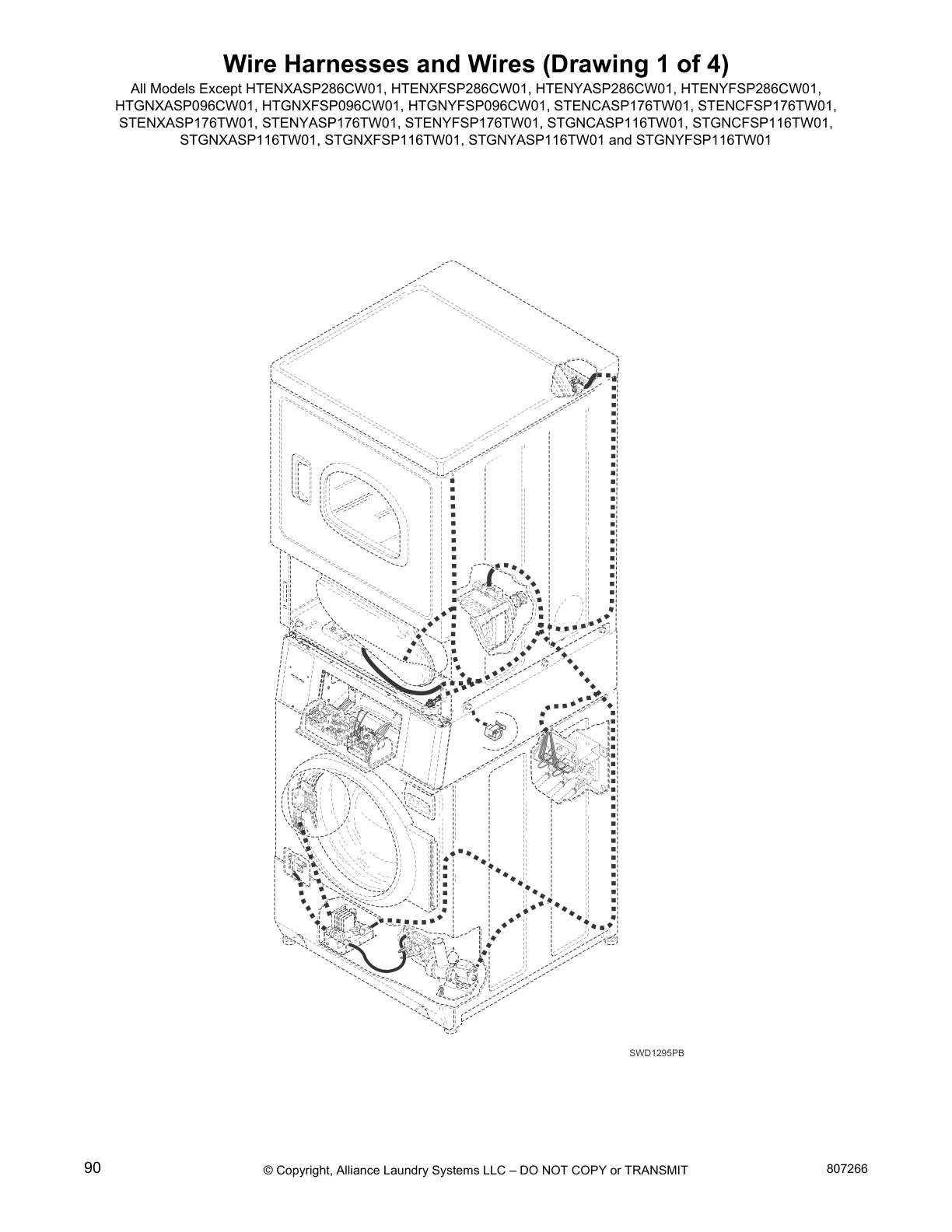

Wire Harnesses and Wires (Drawing 1 of 4)

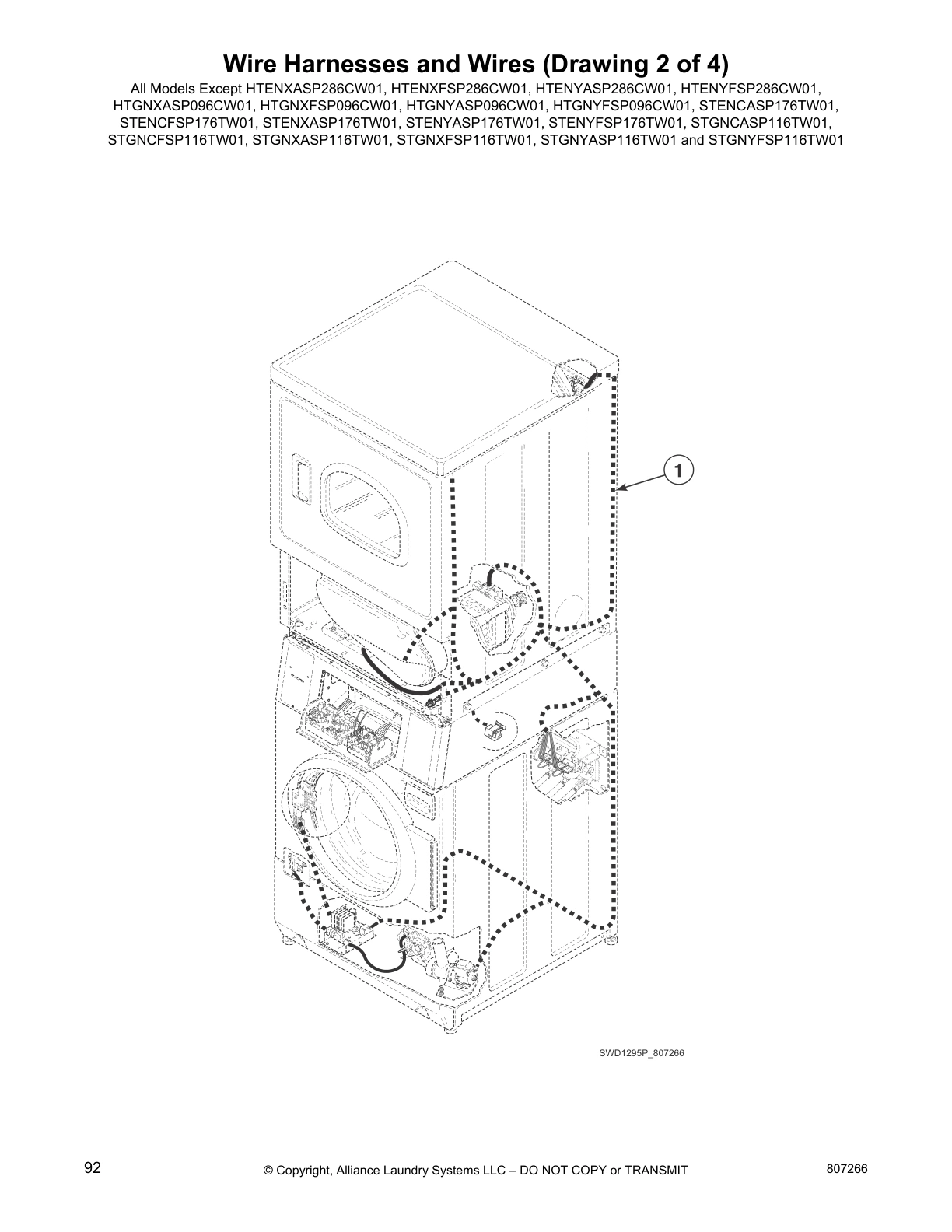

Wire Harnesses and Wires (Drawing 2 of 4)
Wire Harnesses and Wires (Drawing 3 of 4)

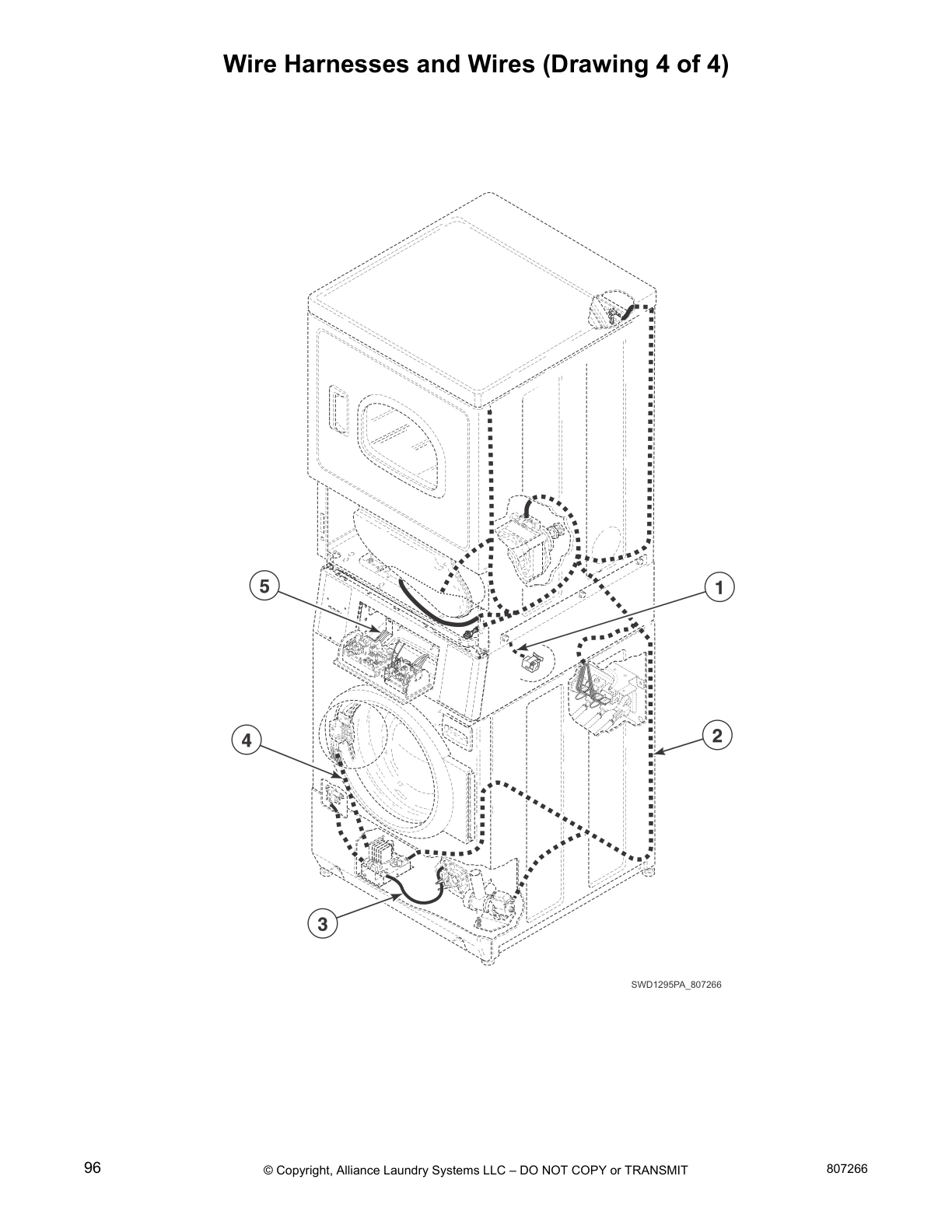

Wire Harnesses and Wires (Drawing 4 of 4)
Common parts from model Speed Queen STGNXASG115TW01 Stacked Washer and Dryer
5
Lock Assembly SPQ 54612 No Longer Available
NI
SPQ 70441601P No Longer Available
× ![]()
