Model Speed Queen STE717*H Stacked Washer and Dryer – Common Parts & Diagrams

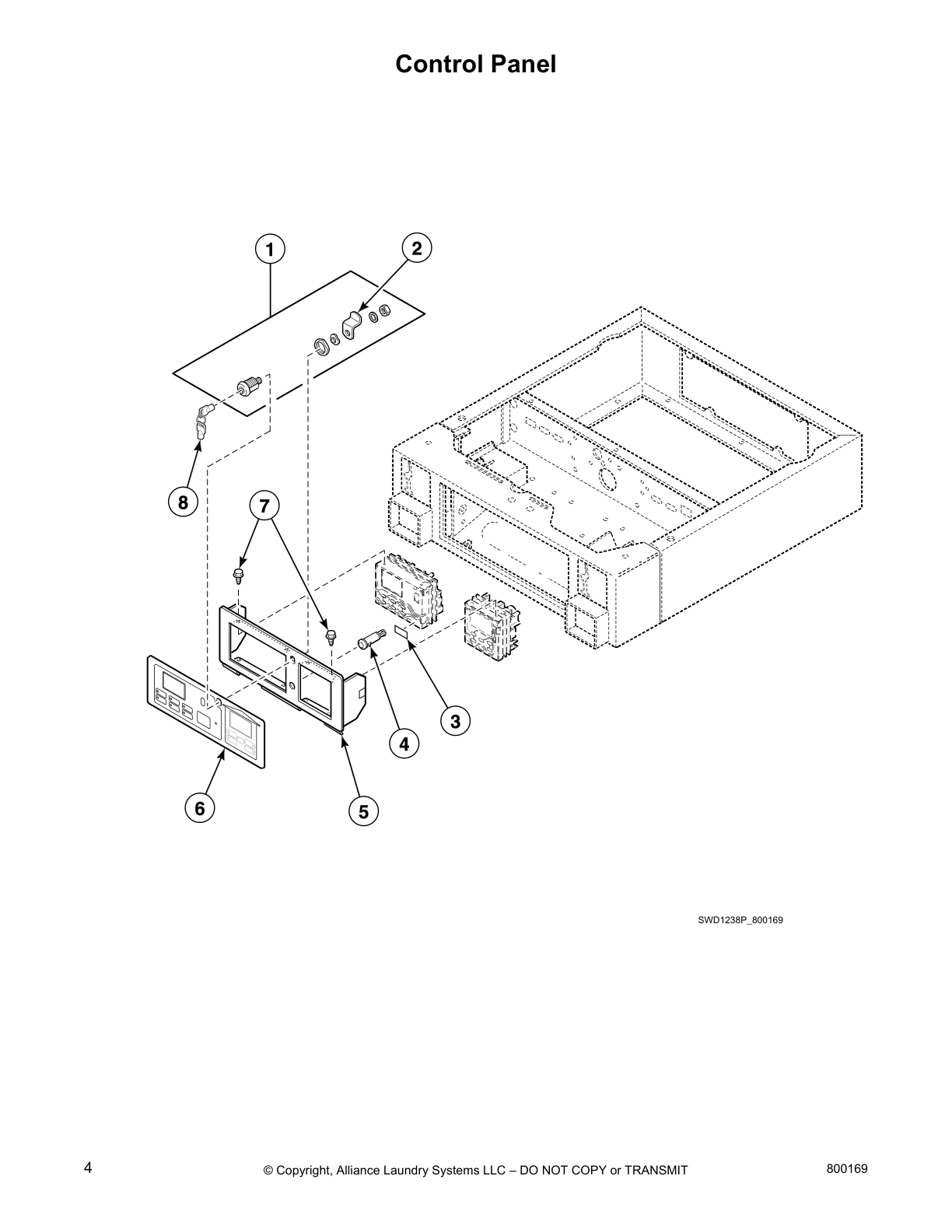

Control Panel

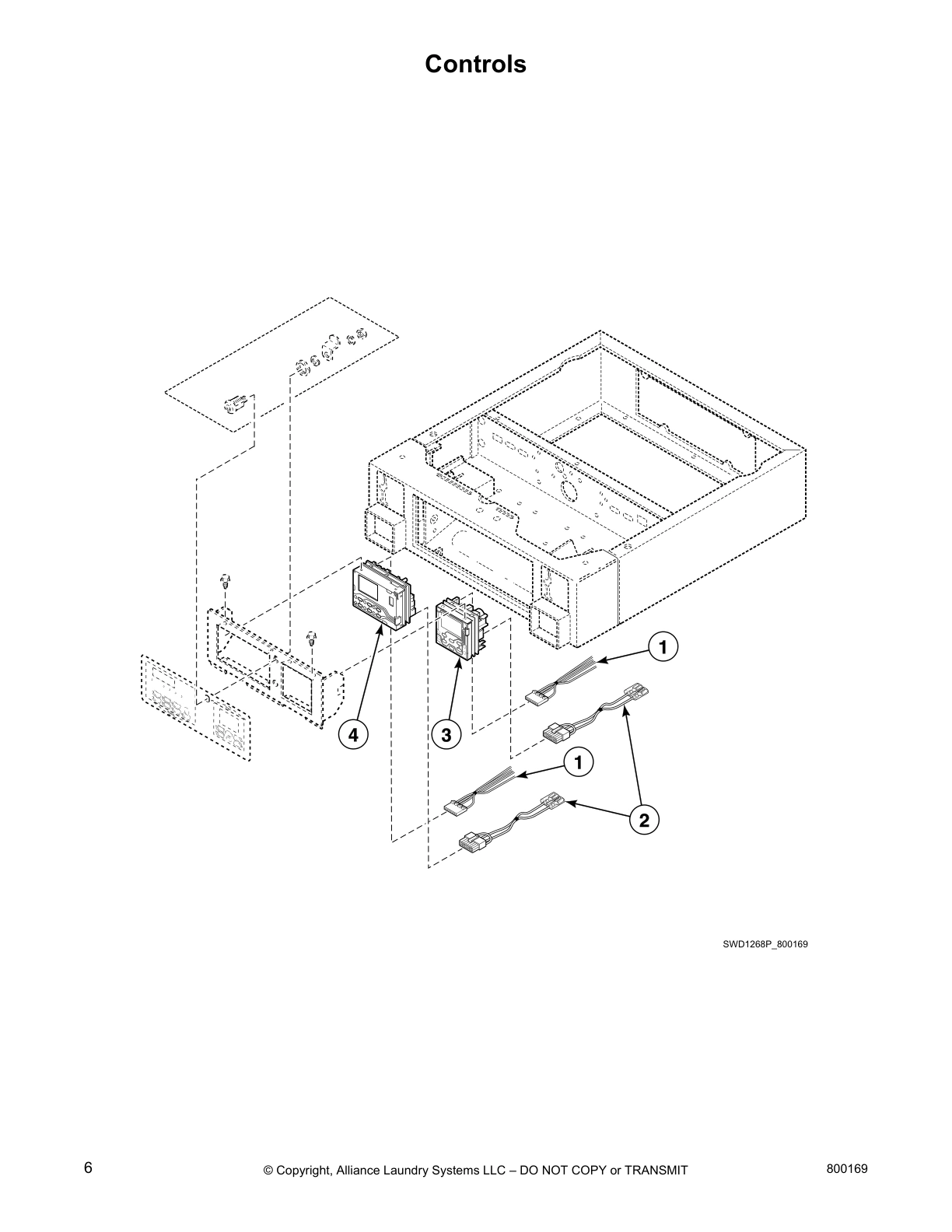

Controls

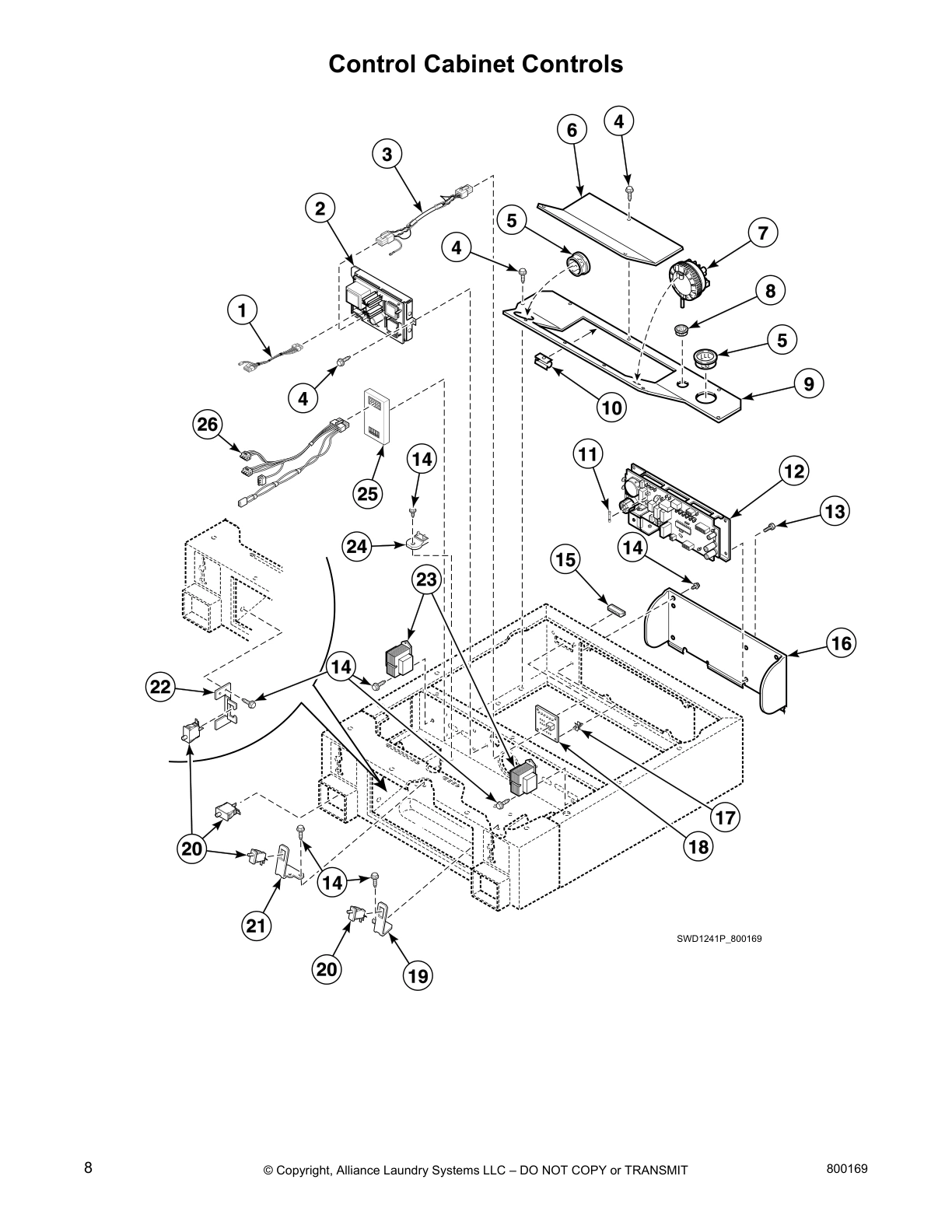

Control Cabinet Controls

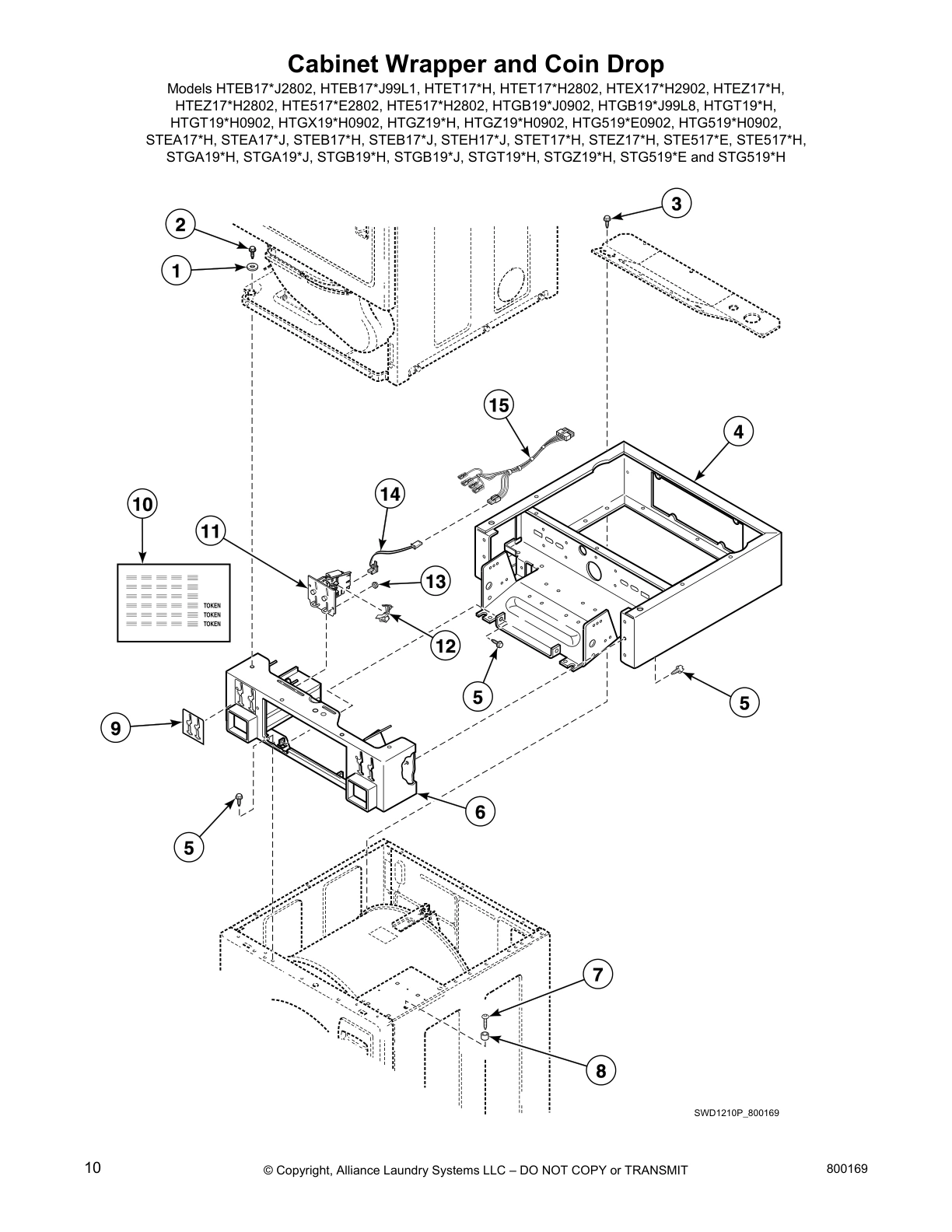

Cabinet Wrapper and Coin Drop

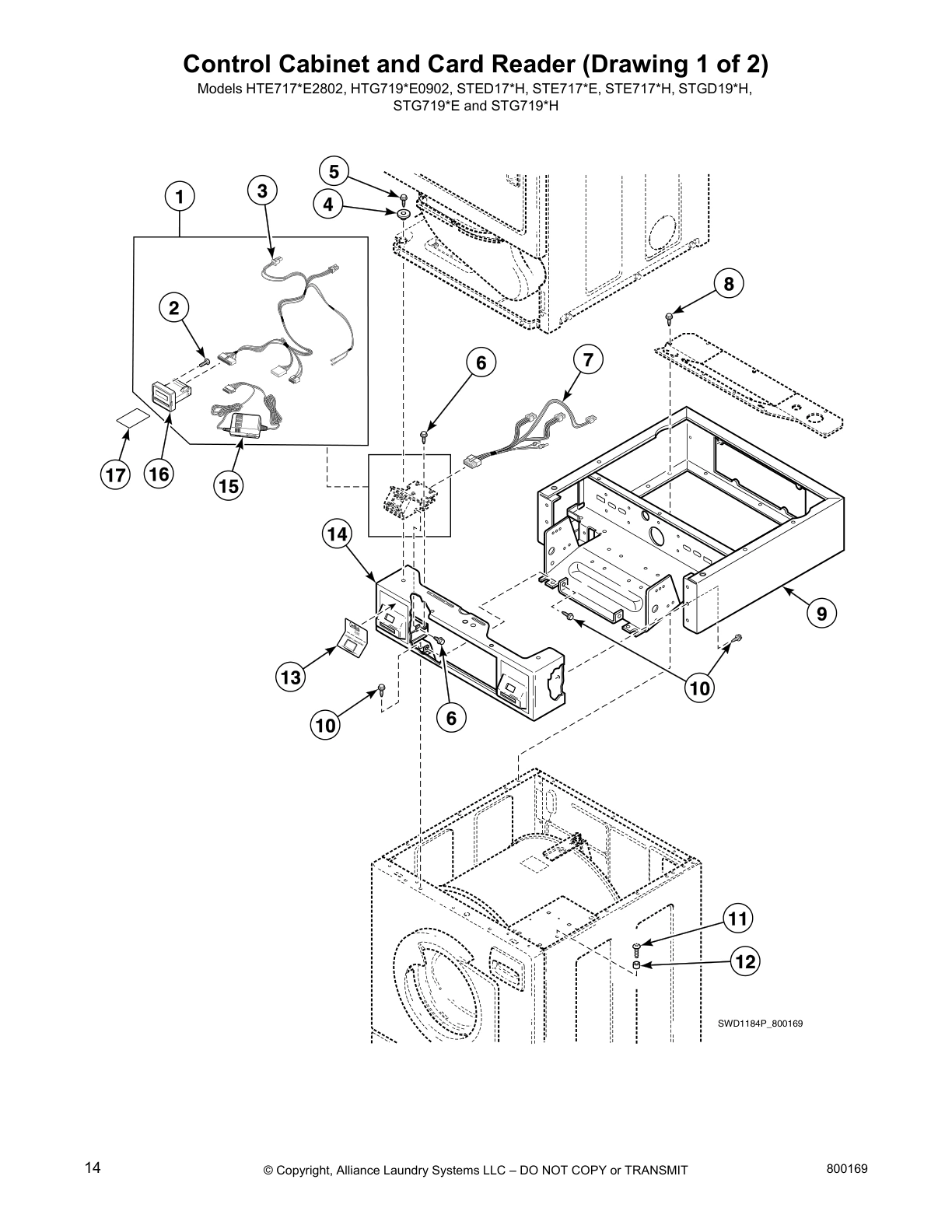

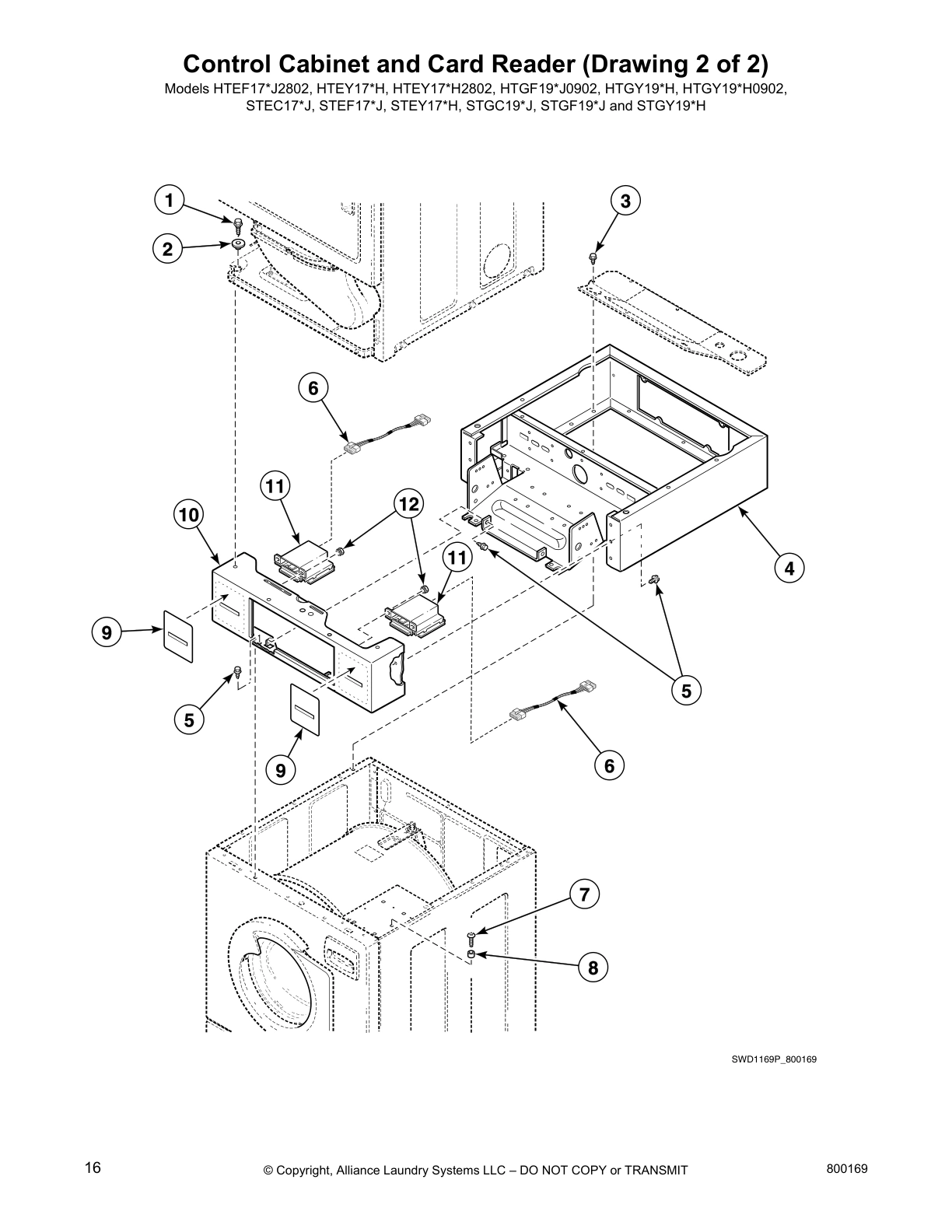

Control Cabinet and Card Reader (Drawing 1 of 2)
Control Cabinet and Card Reader (Drawing 2 of 2)

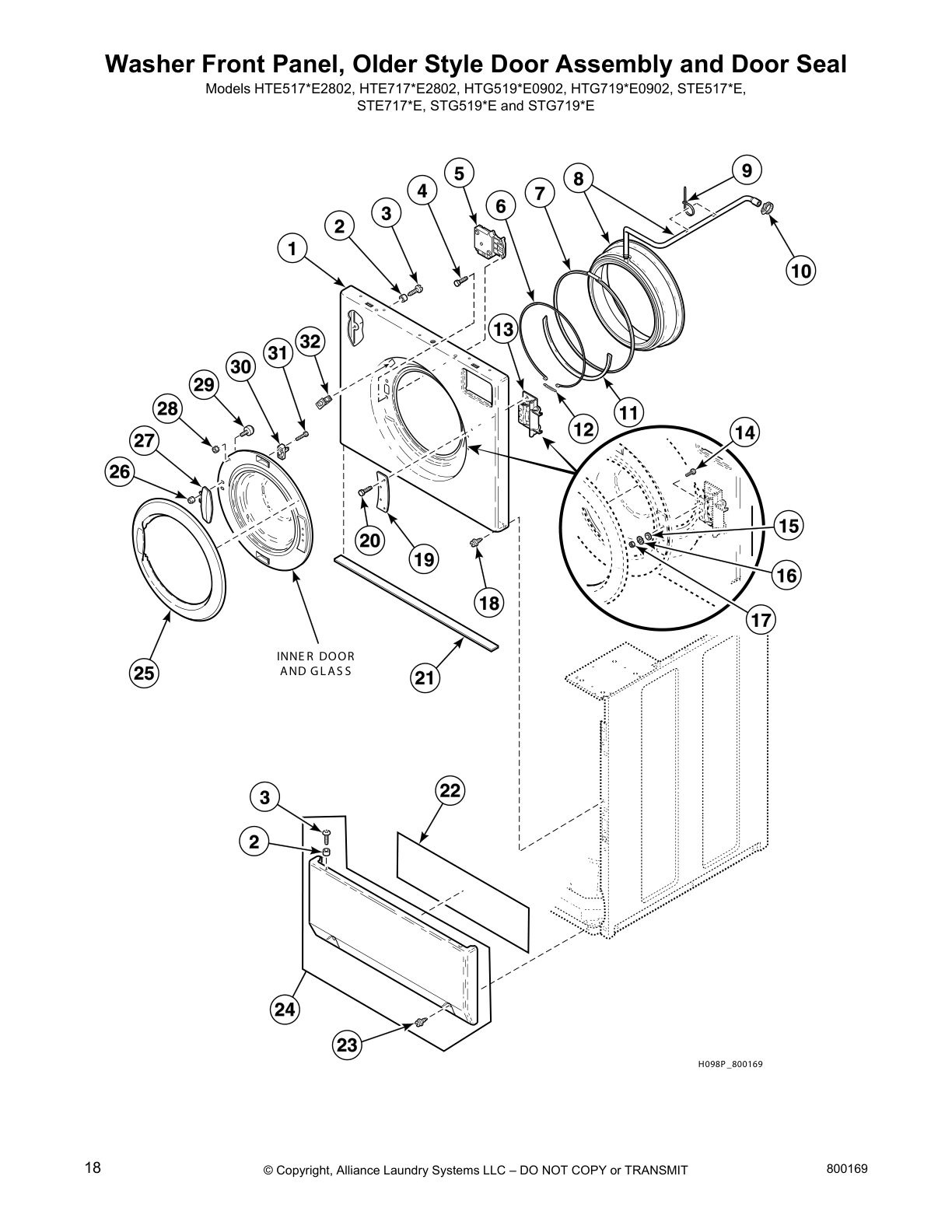

Washer Front Panel, Older Style Door Assembly and Door Seal

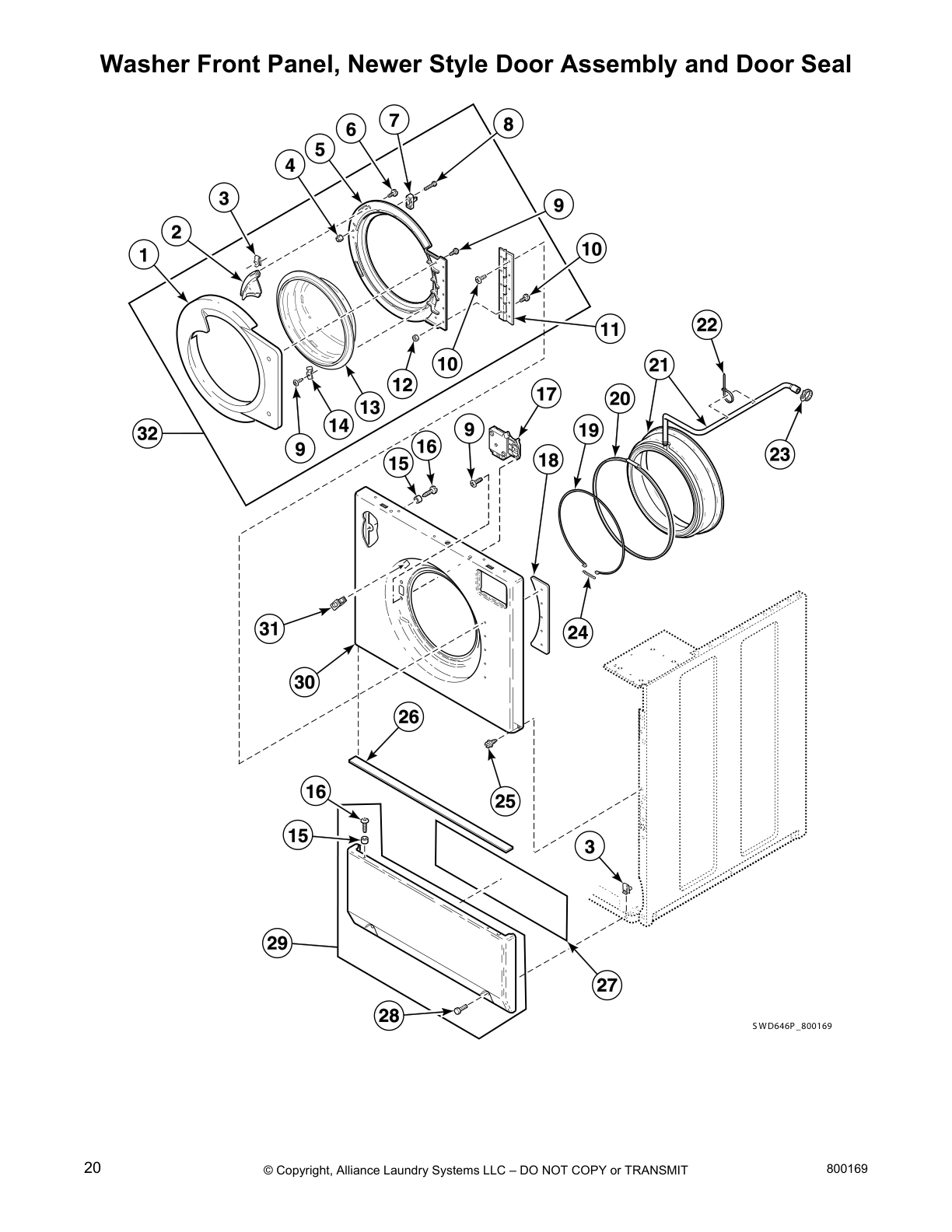

Washer Front Panel, Newer Style Door Assembly and Door Seal
Dispenser Assembly

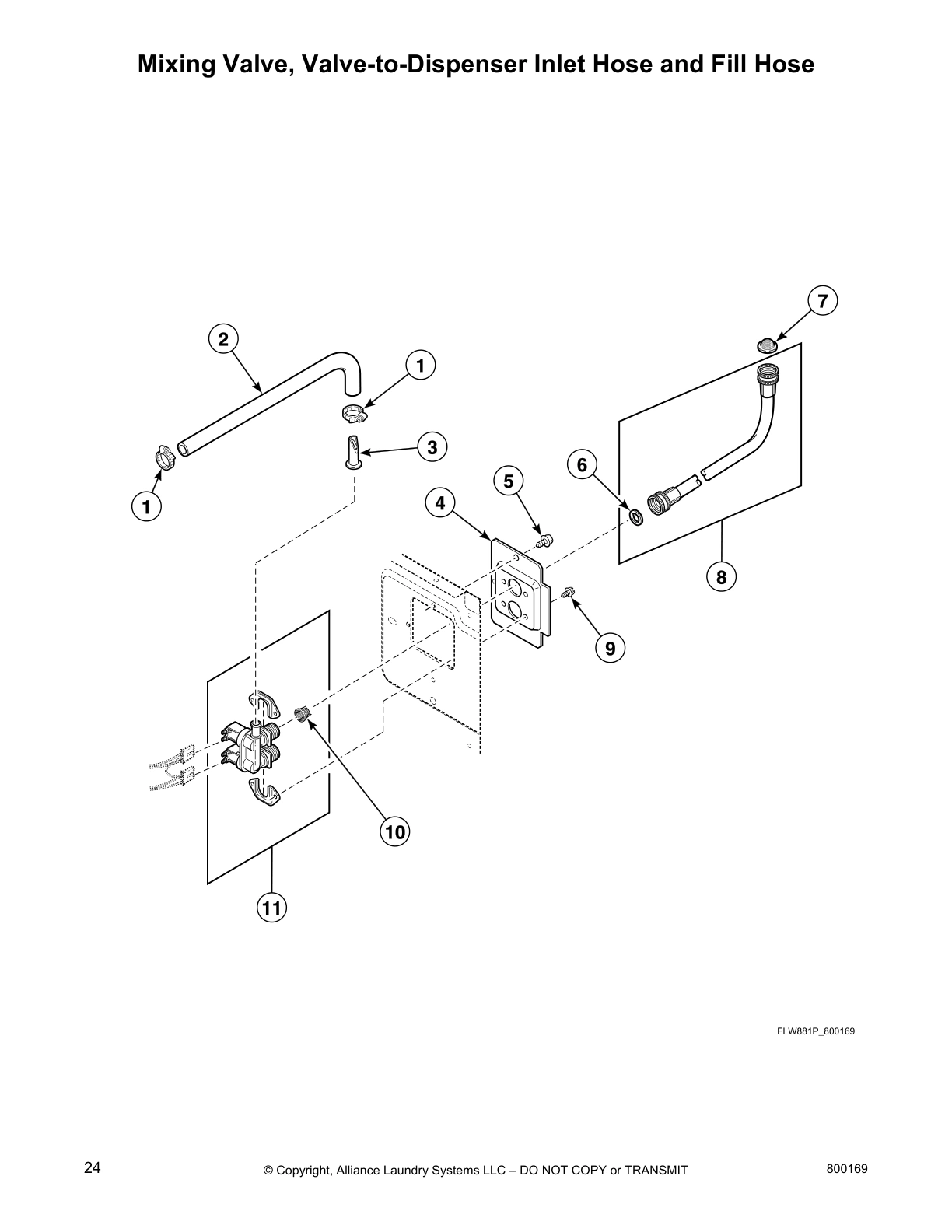

Mixing Valve, Valve-to-Dispenser Inlet Hose and Fill Hose

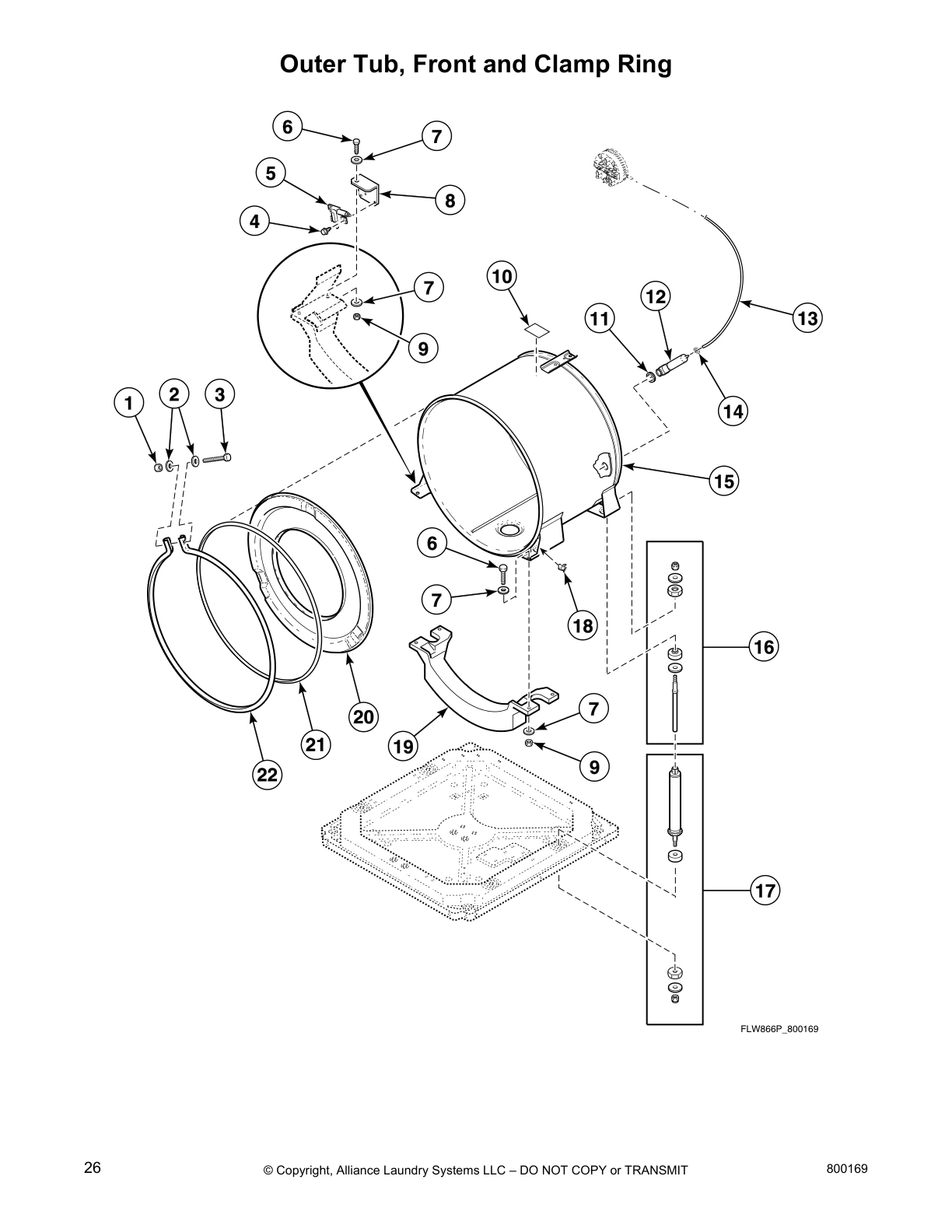

Outer Tub, Front and Clamp Ring
Inner Basket, Trunnion, Bearing Housing and Pulley

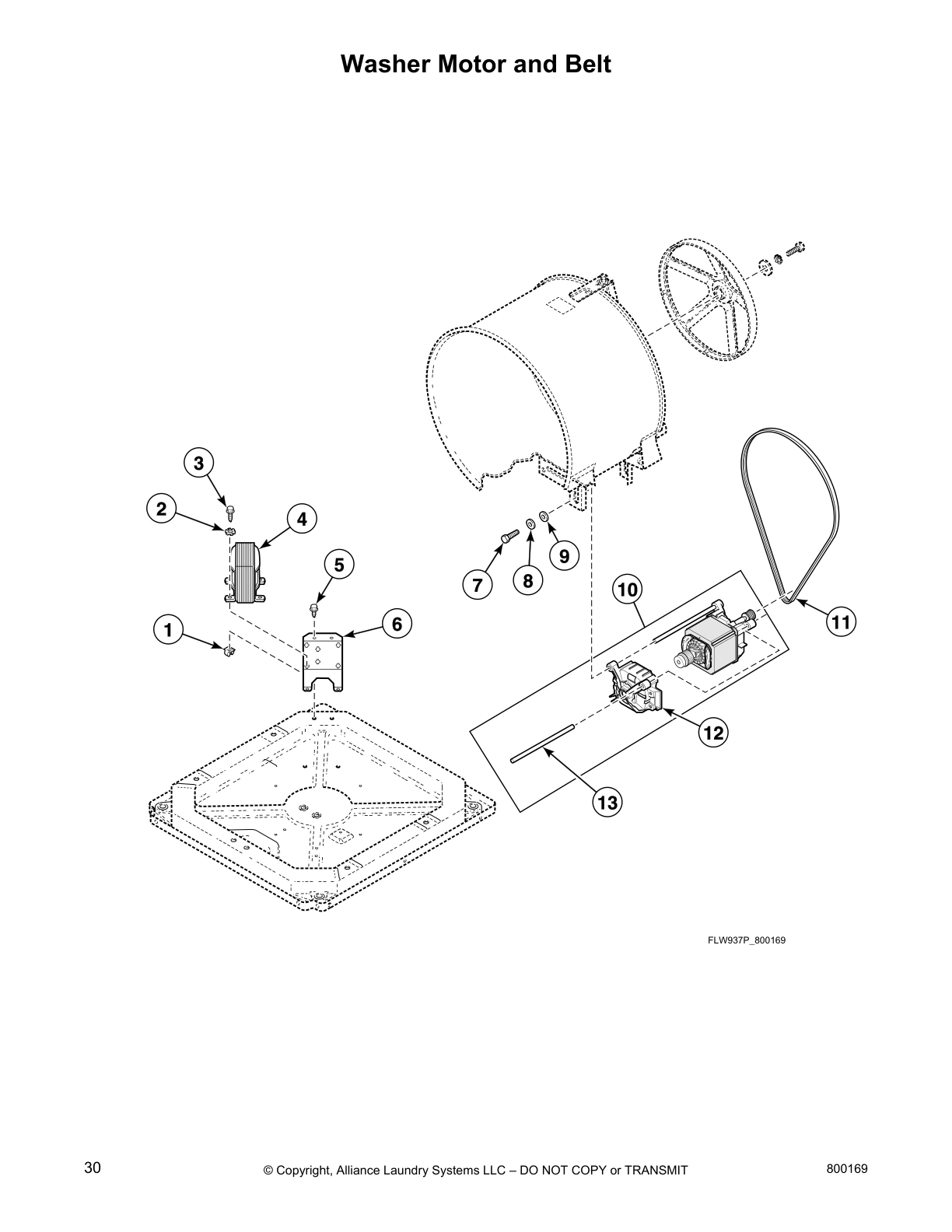

Washer Motor and Belt

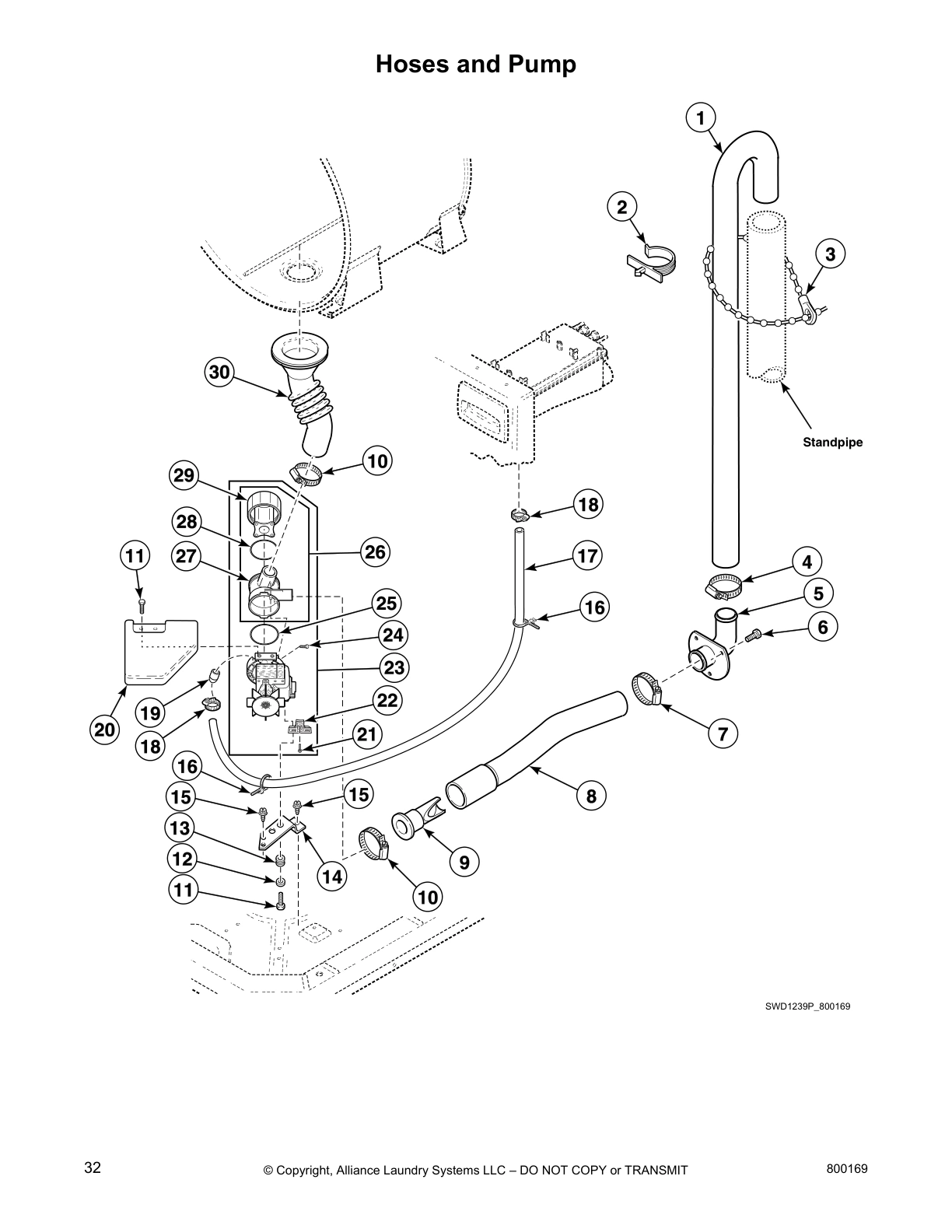

Hoses and Pump

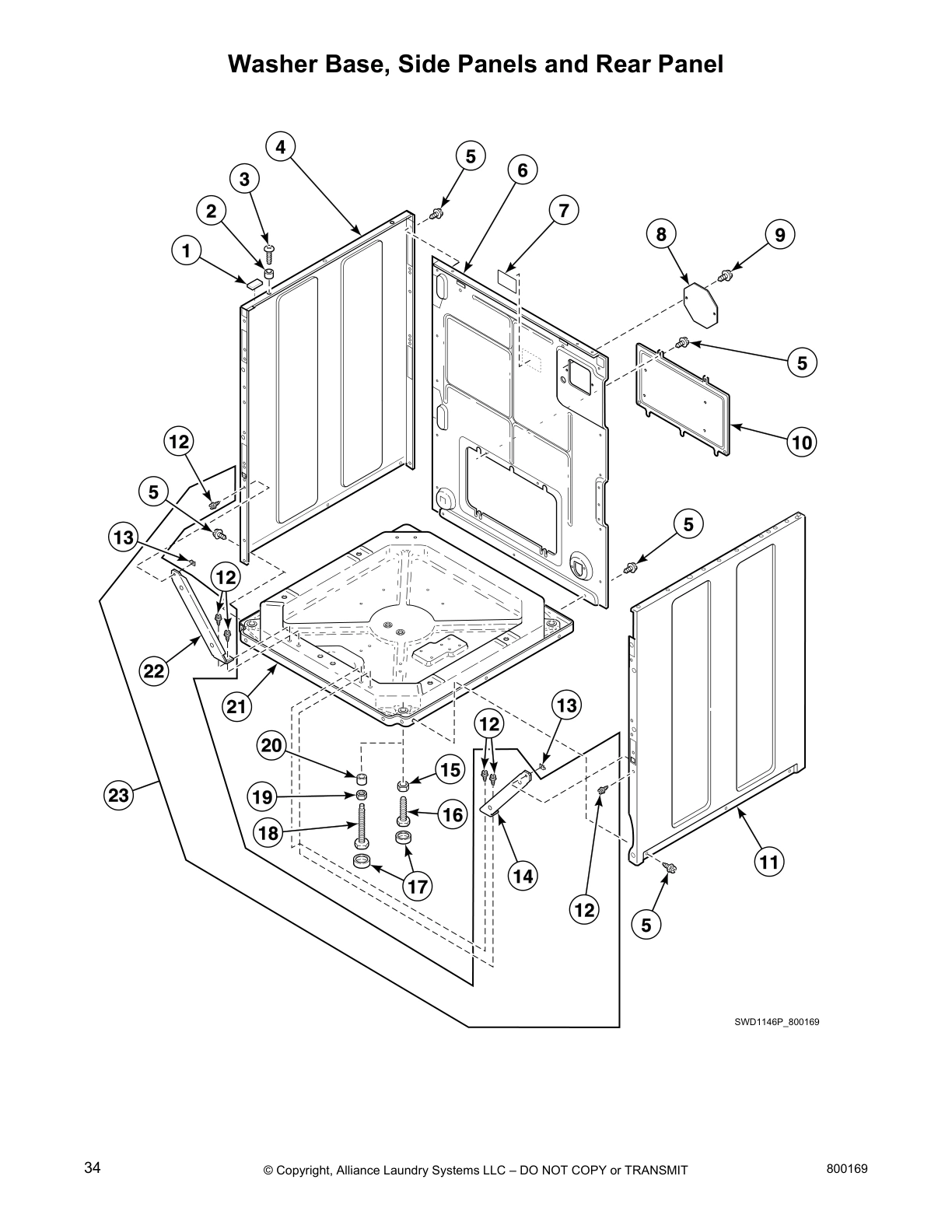

Washer Base, Side Panels and Rear Panel

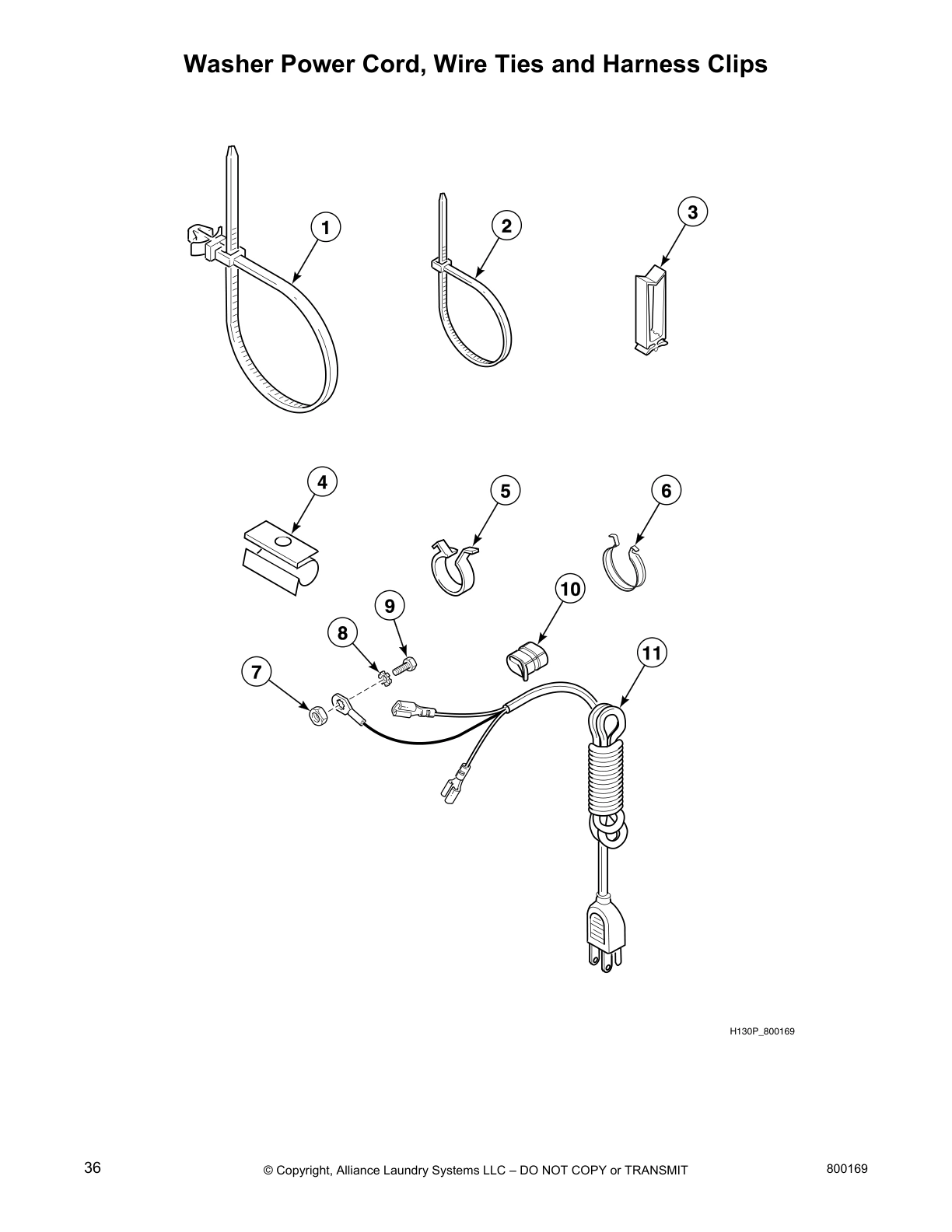

Washer Power Cord, Wire Ties and Harness Clips

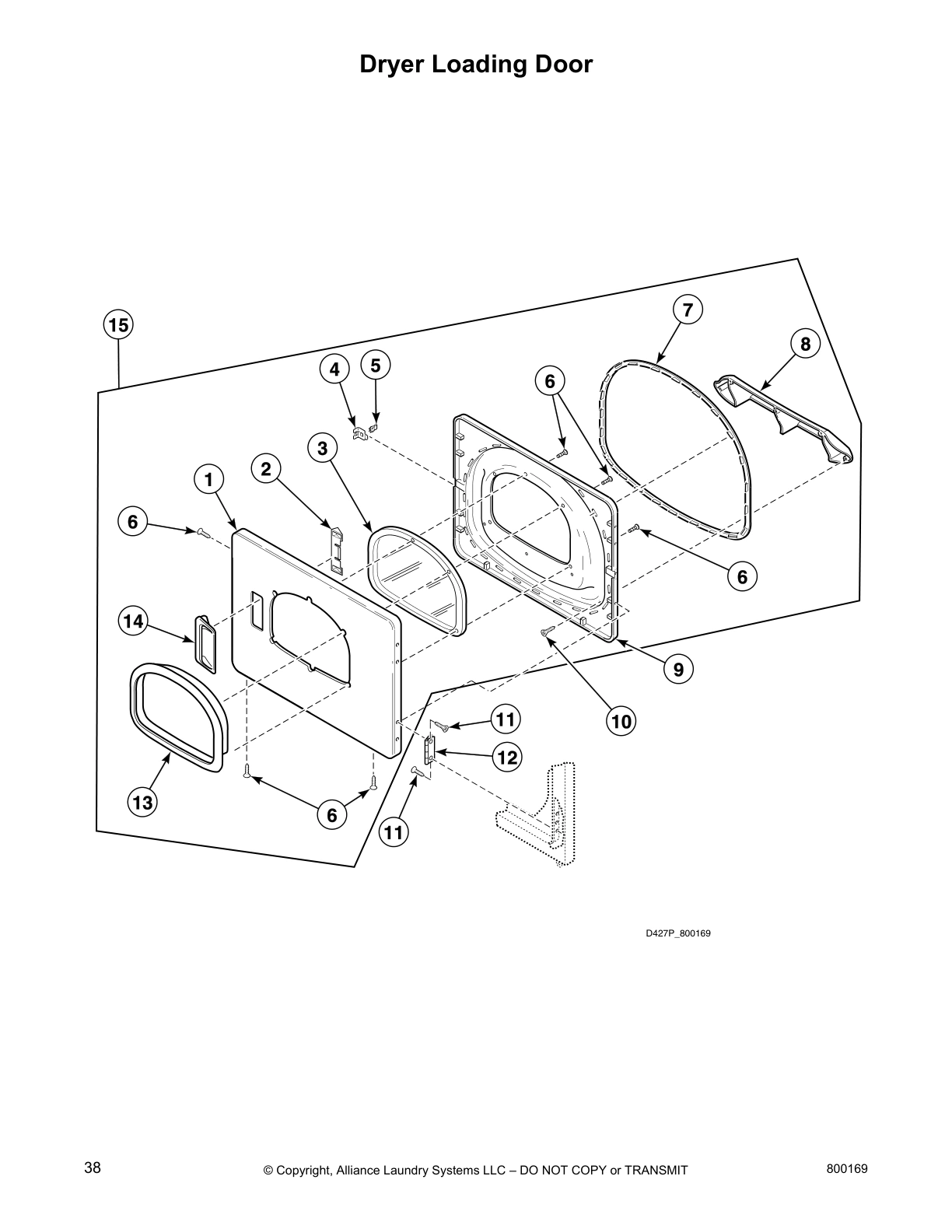

Dryer Loading Door

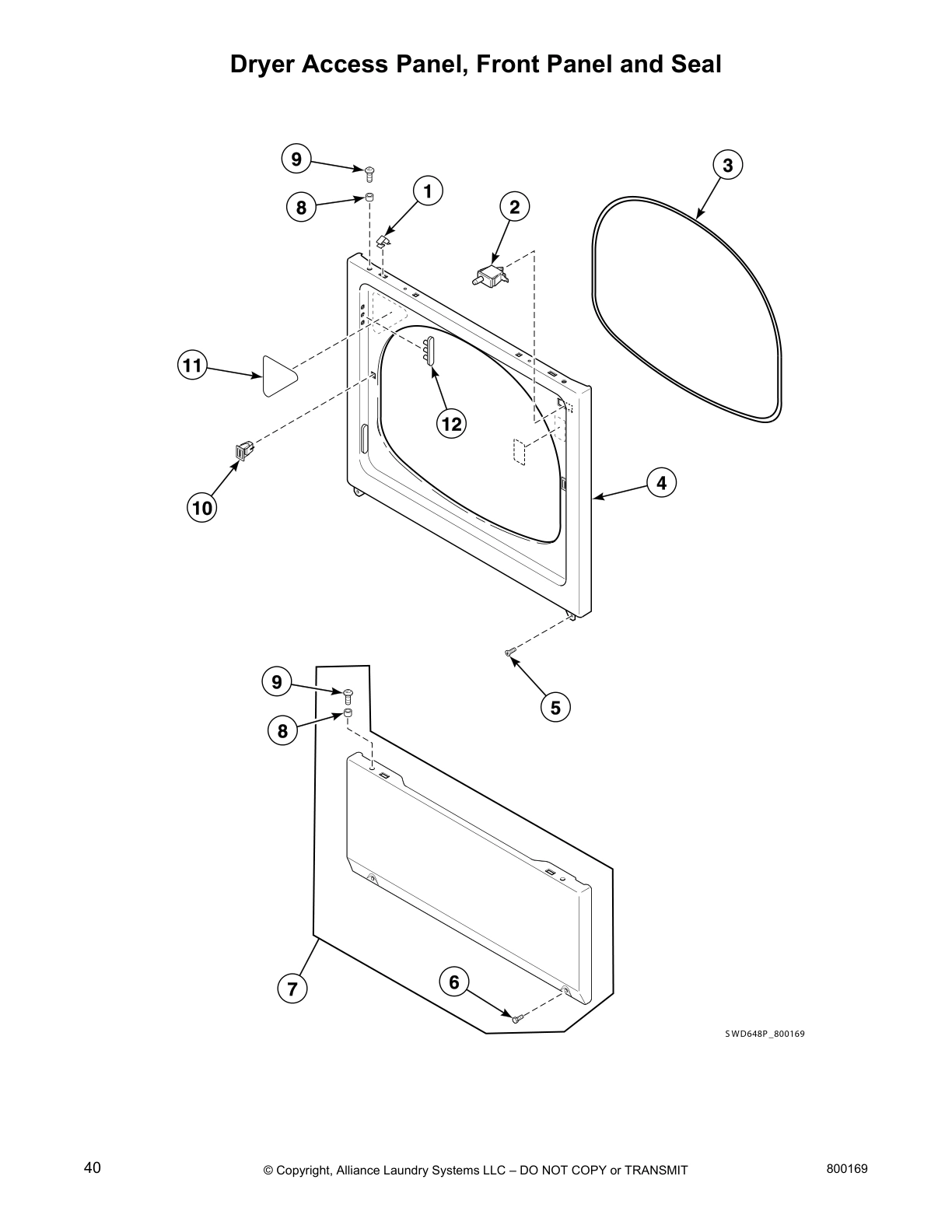

Dryer Access Panel, Front Panel and Seal

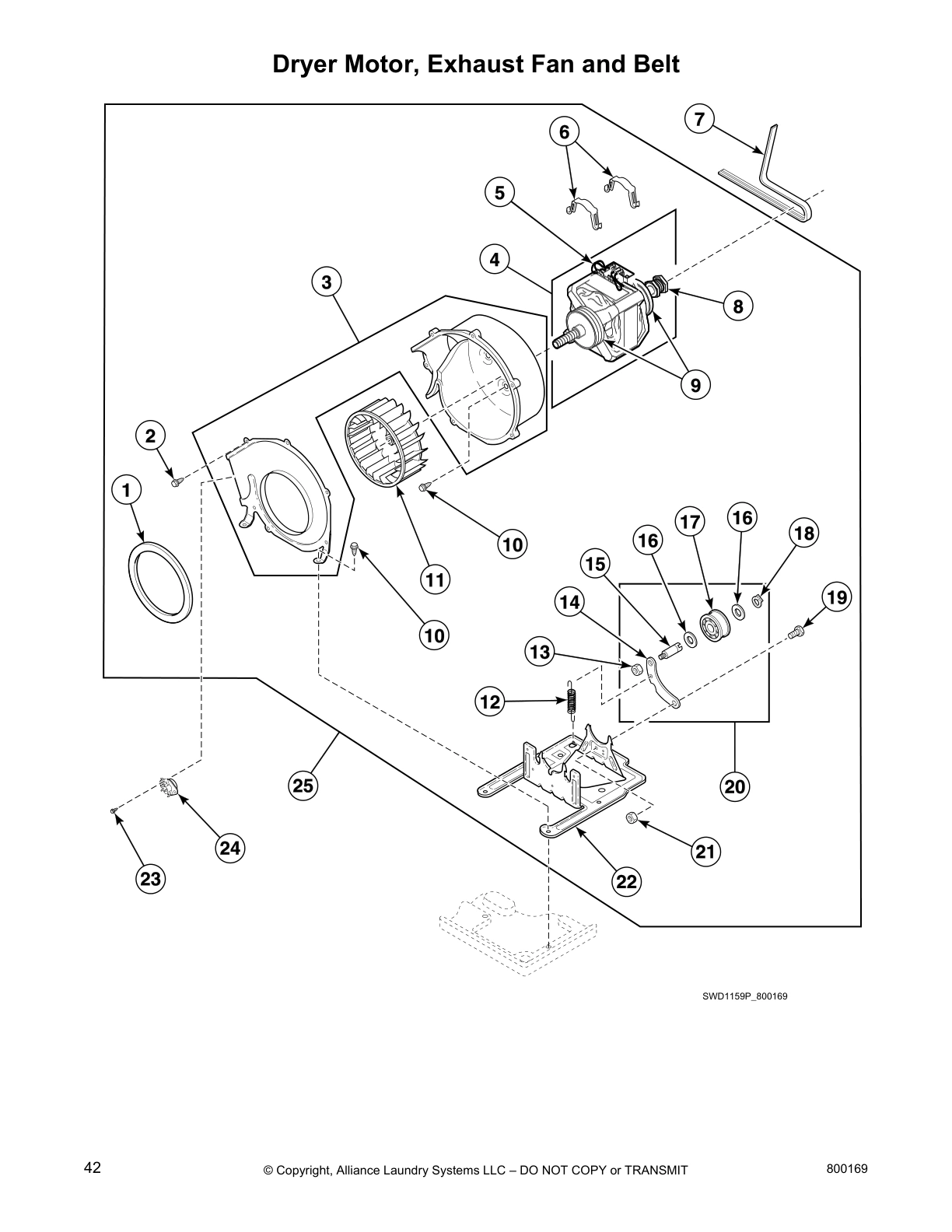

Dryer Motor, Exhaust Fan and Belt

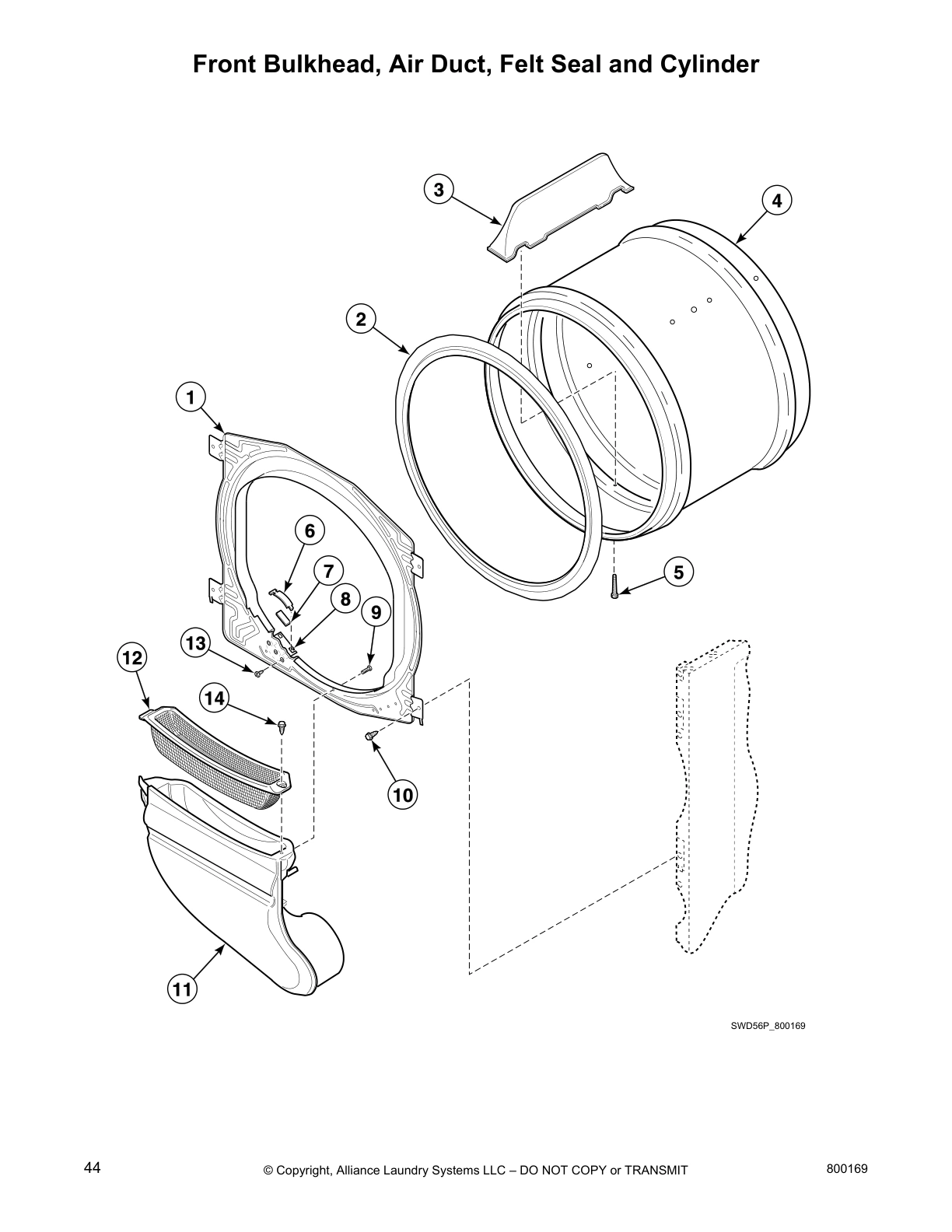

Front Bulkhead, Air Duct, Felt Seal and Cylinder

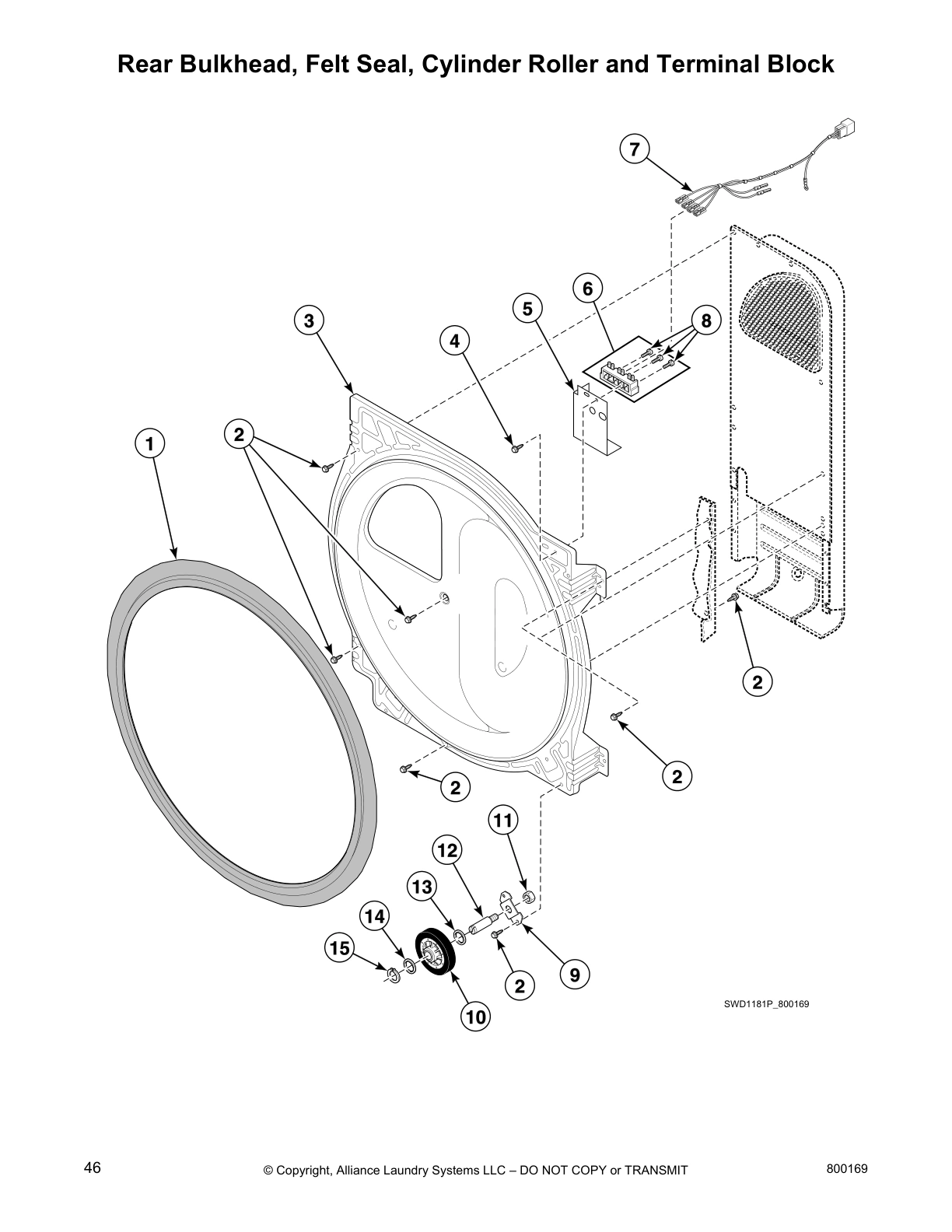

Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block

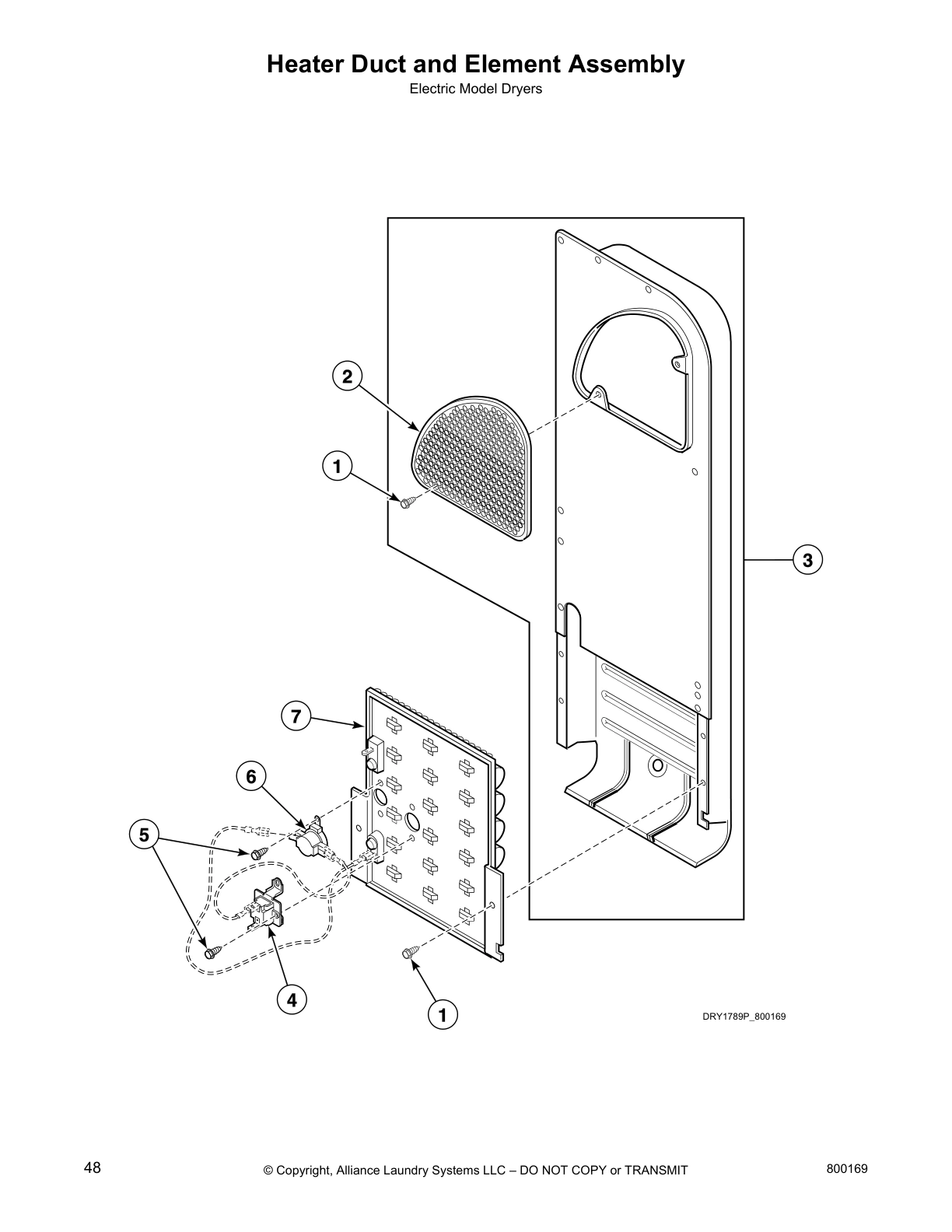

Heater Duct and Element Assembly

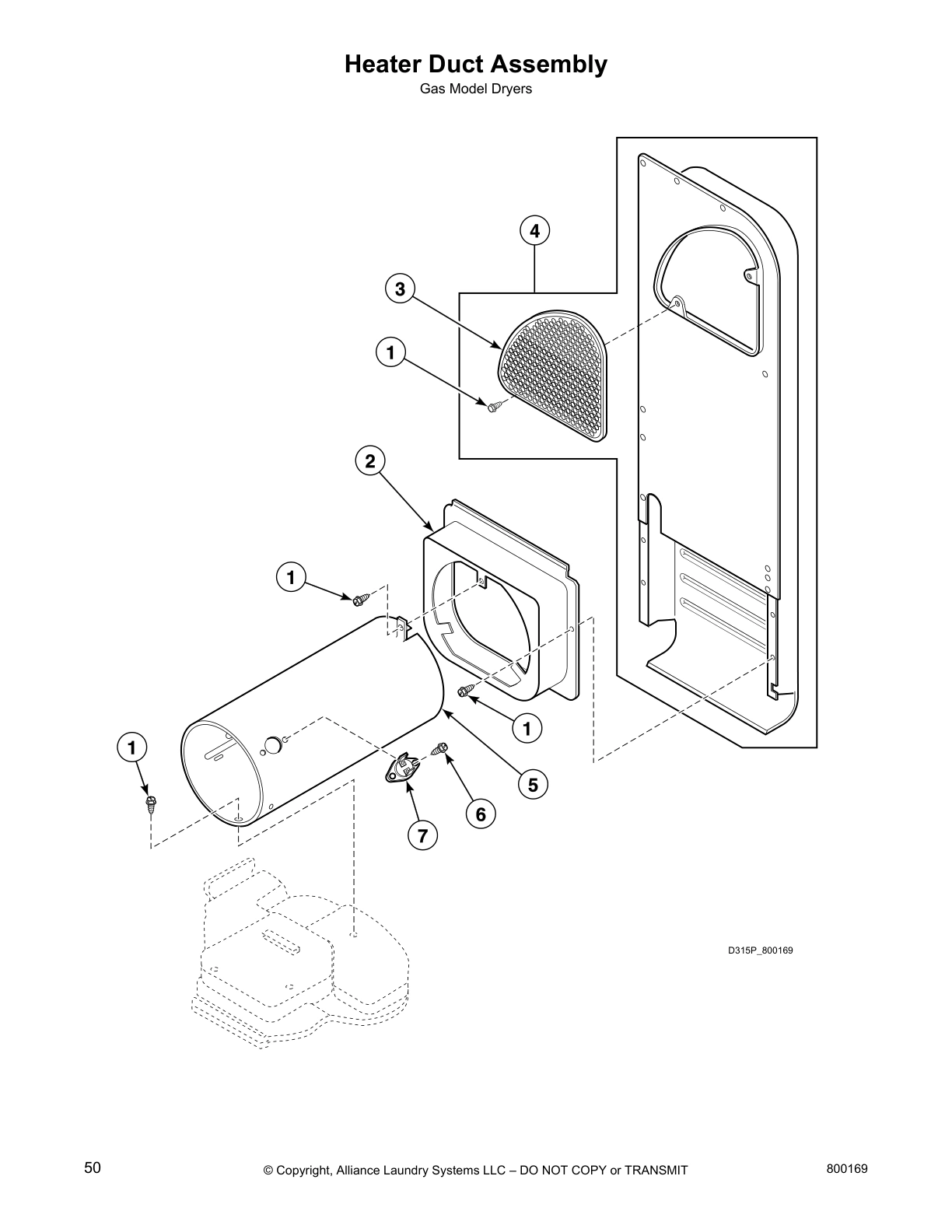

Heater Duct Assembly

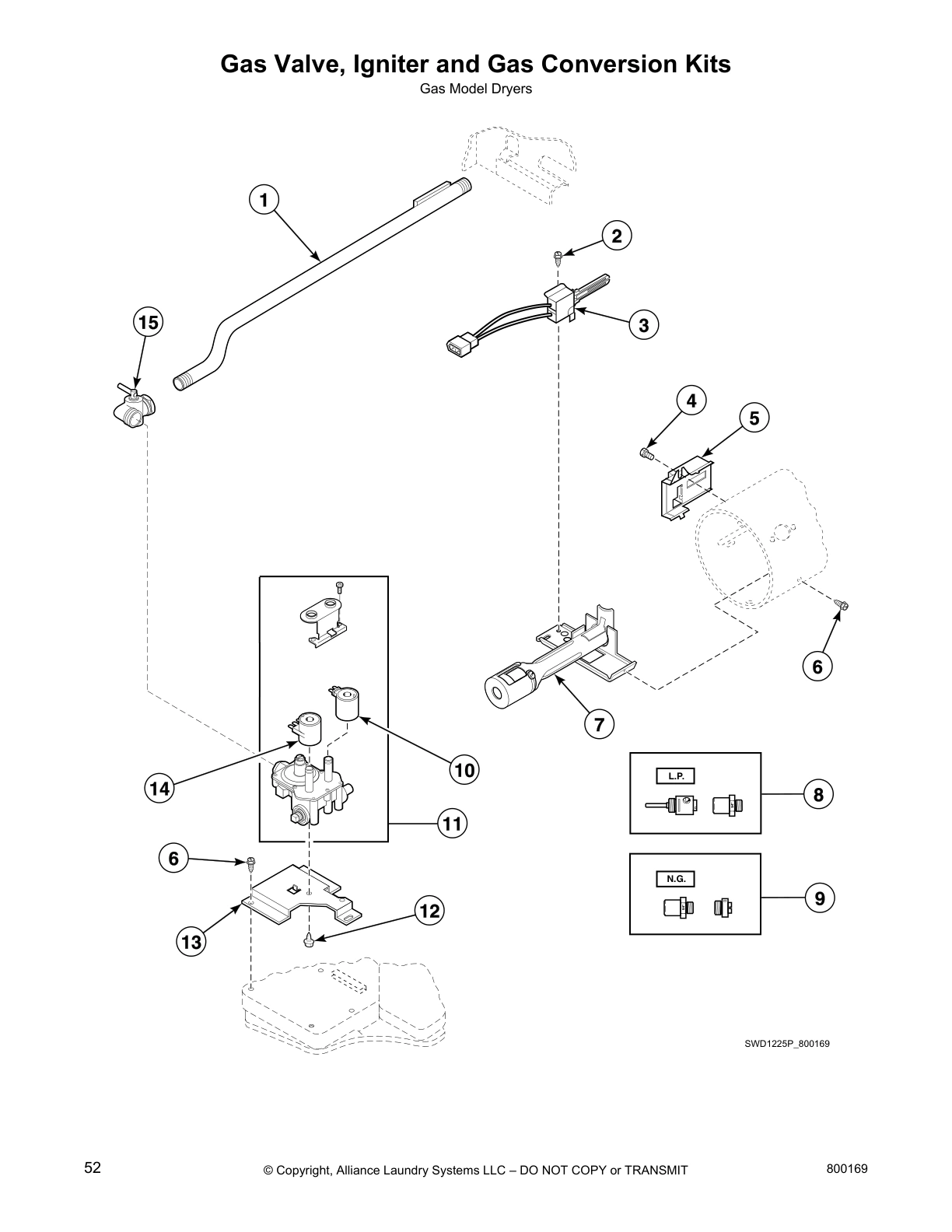

Gas Valve, Igniter and Gas Conversion Kits

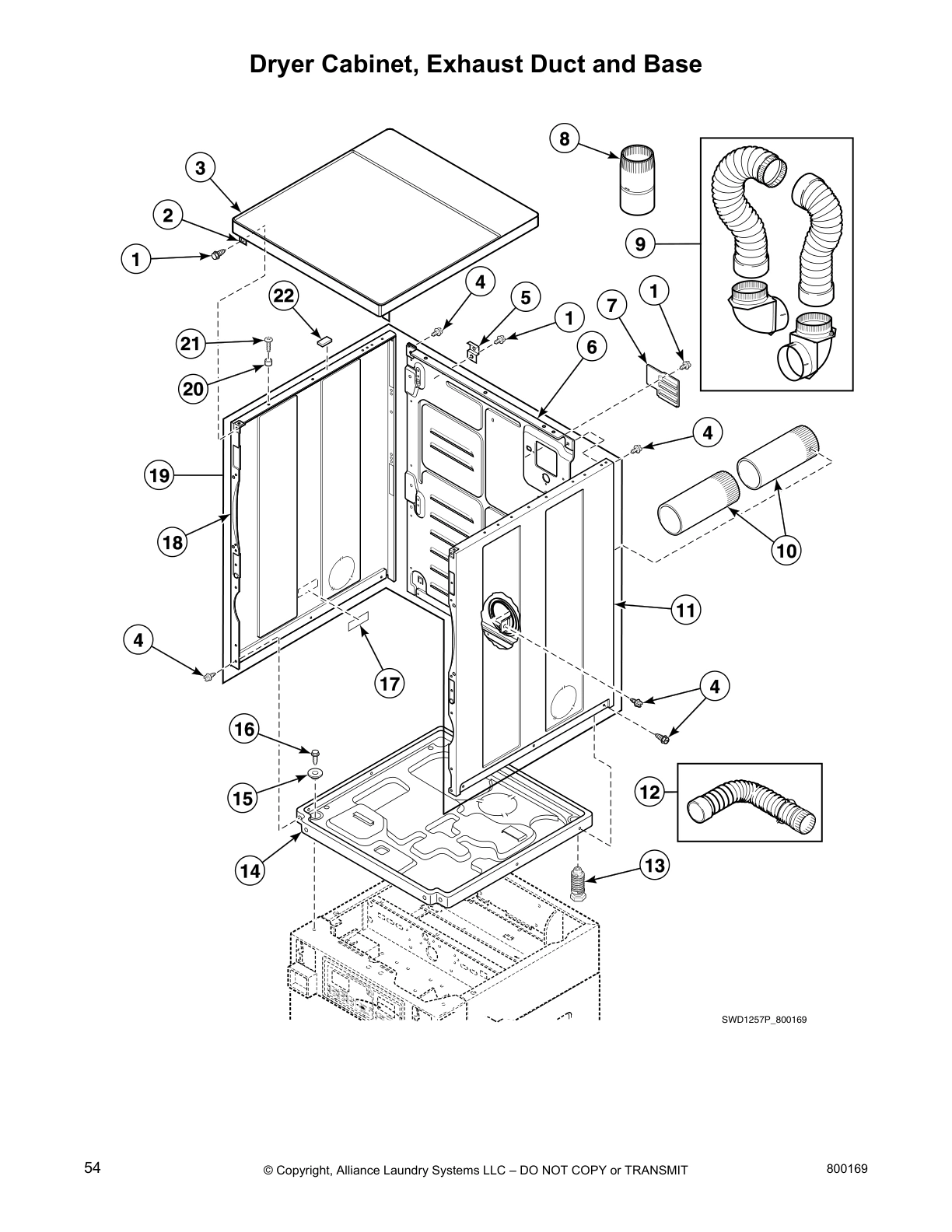

Dryer Cabinet, Exhaust Duct and Base

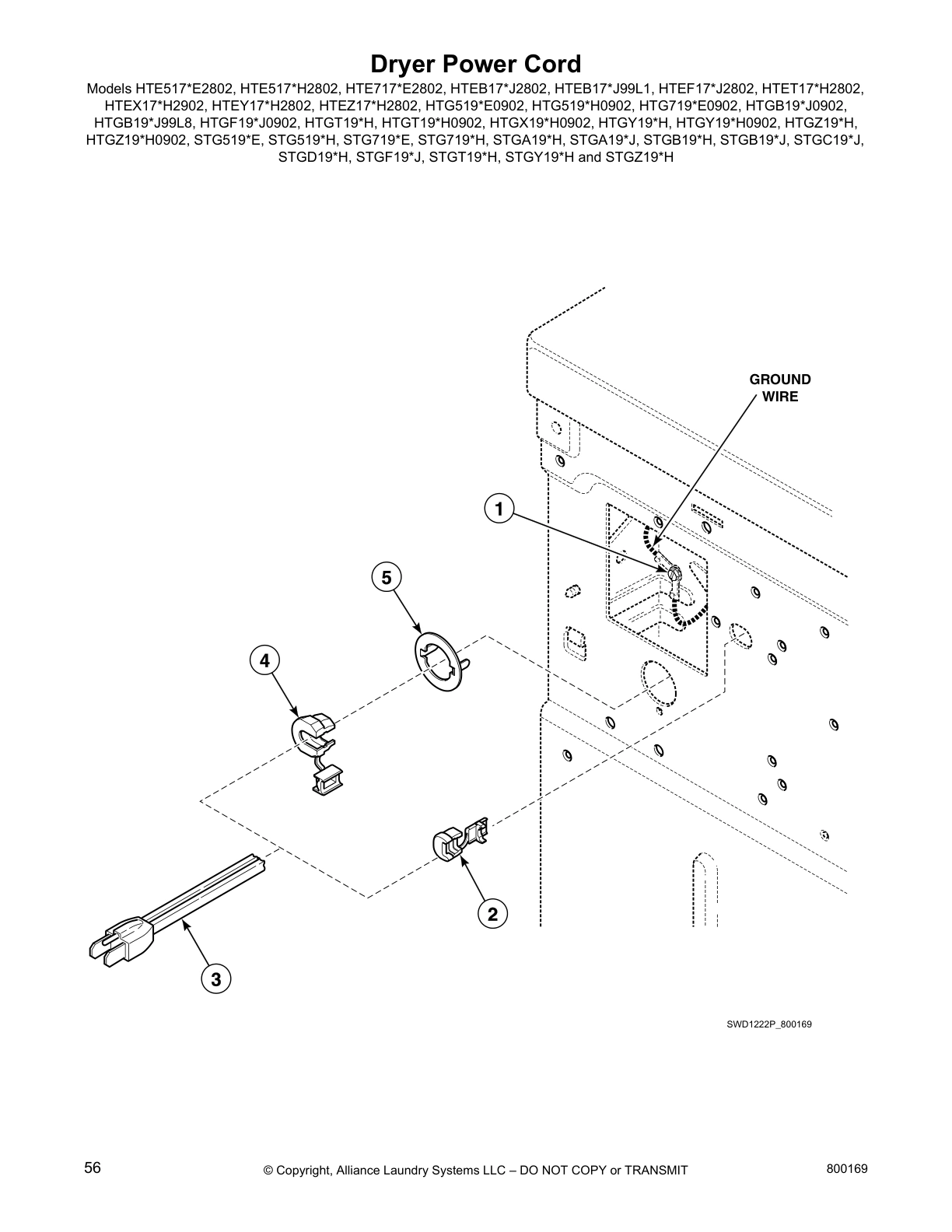

Dryer Power Cord

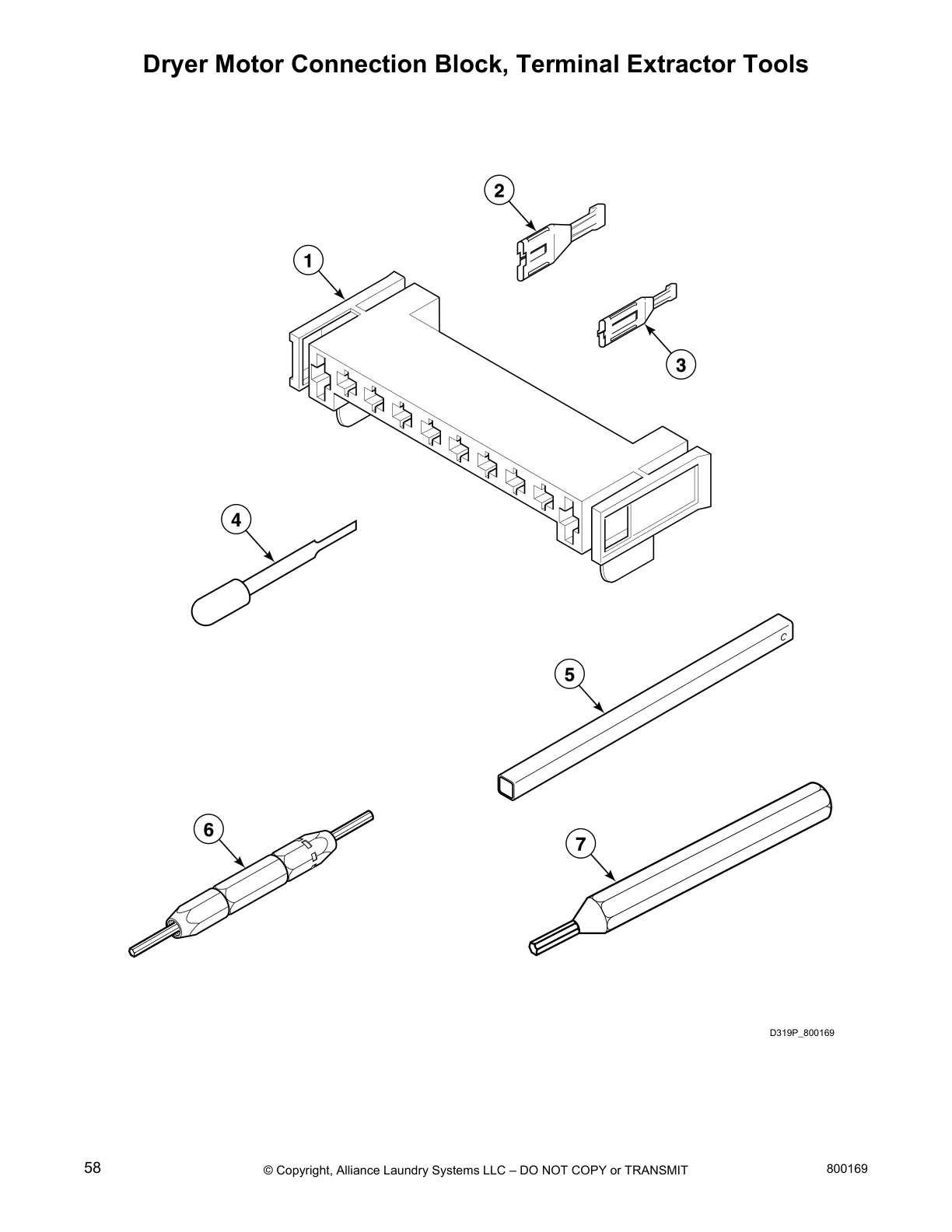

Dryer Motor Connection Block, Terminal Extractor Tools

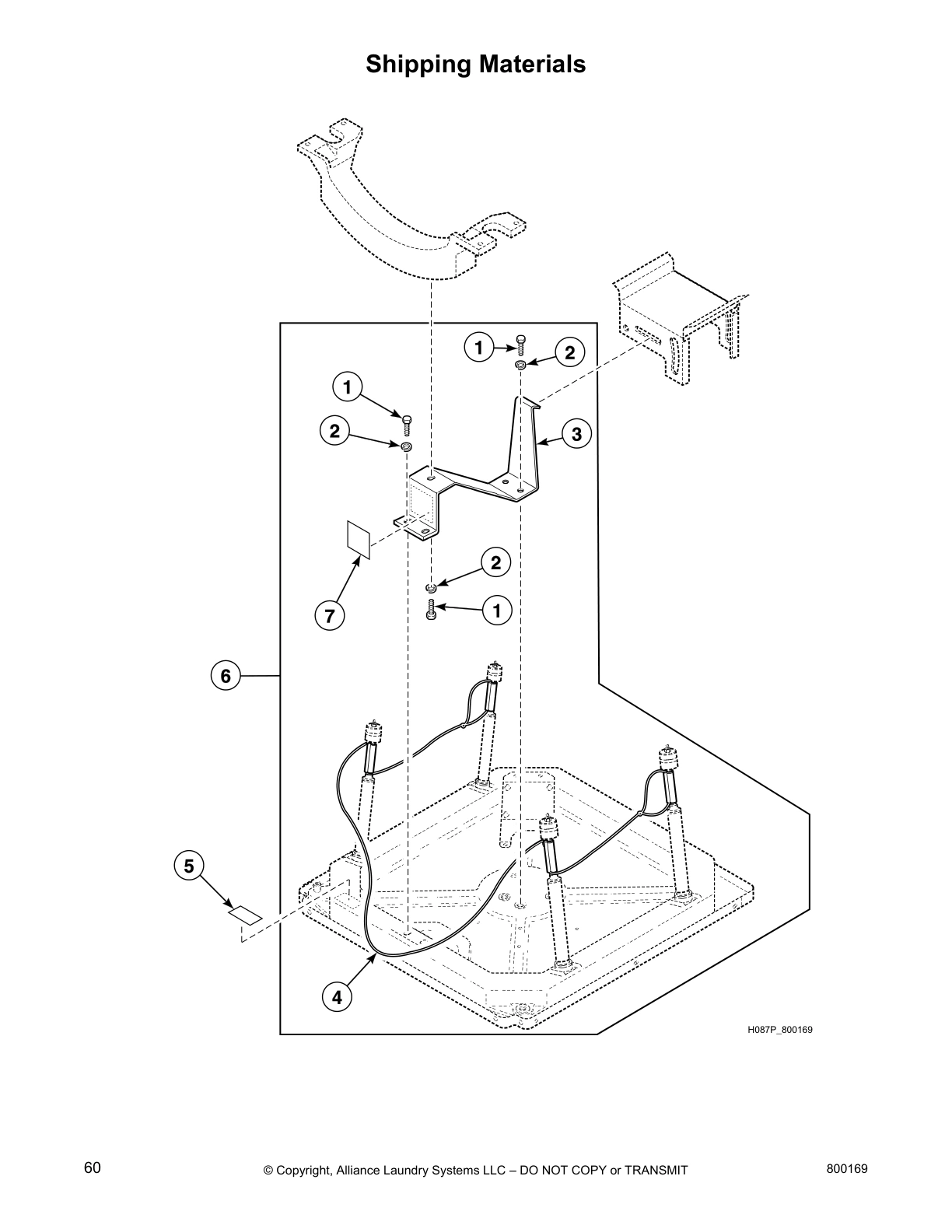

Shipping Materials

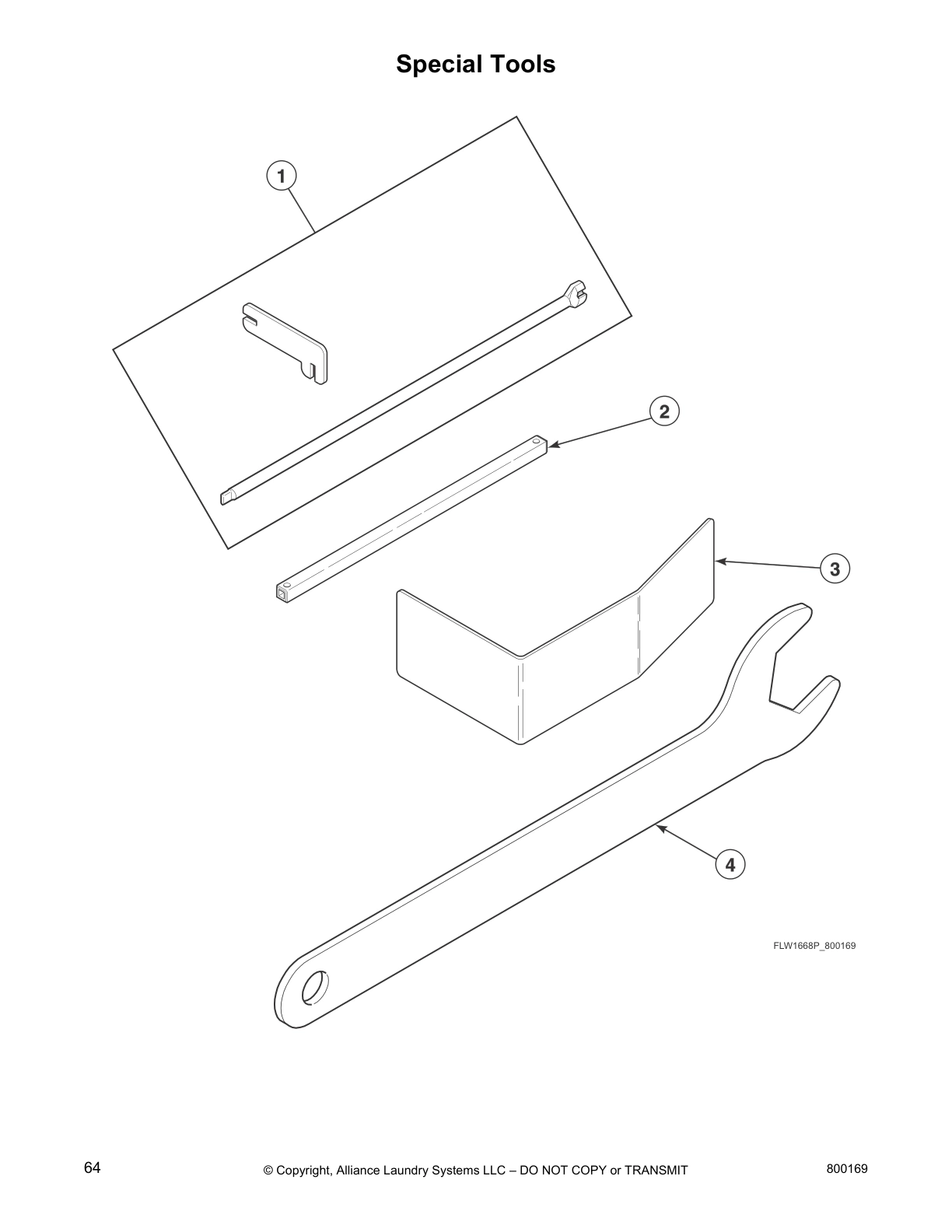

Special Tools

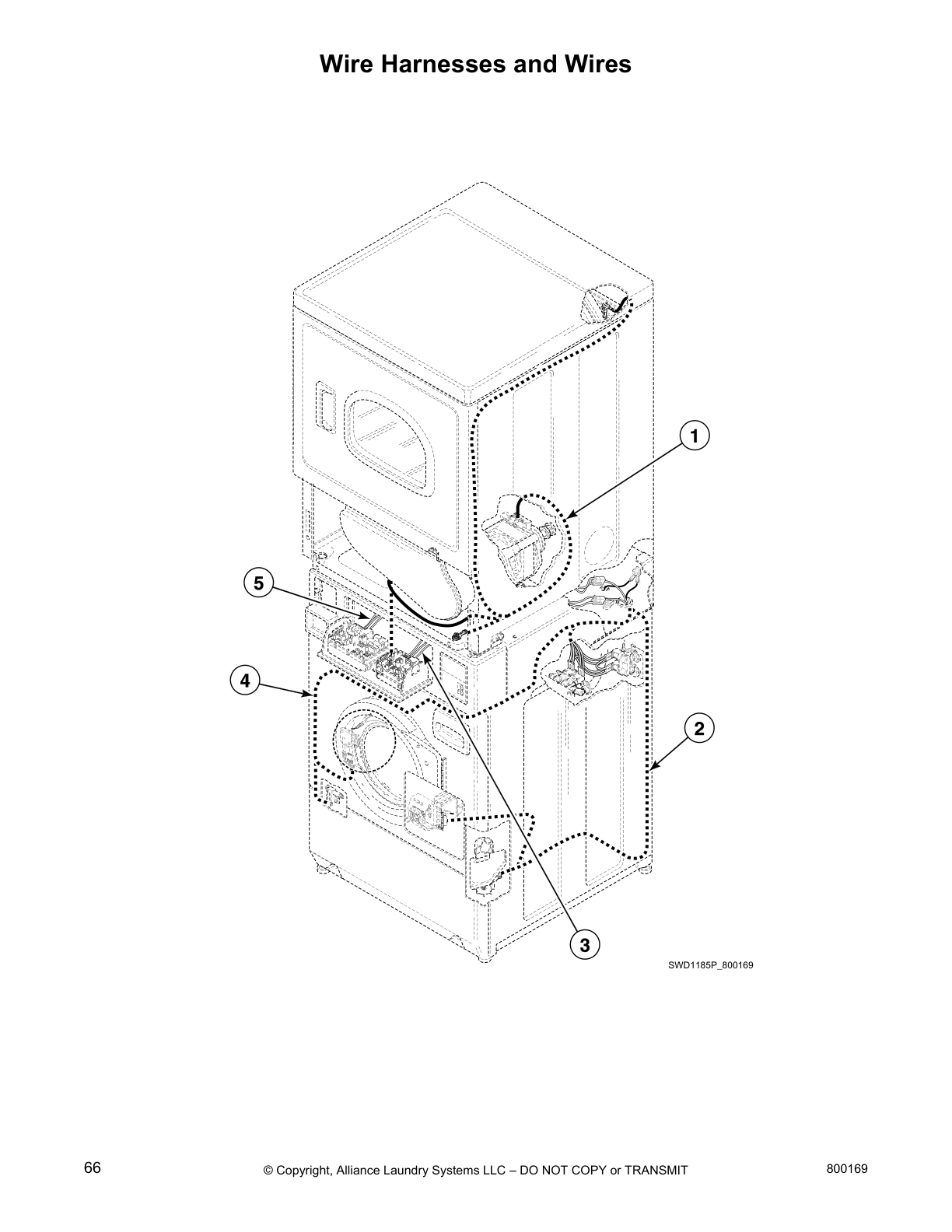

Wire Harnesses and Wires
Common parts from model Speed Queen STE717*H Stacked Washer and Dryer
SPQ 62853 SPQ 62853 Contact Us For Availability
1
Door Seal and Hose Assembly Kit SPQ 801784P Contact Us For Availability
3
Sealant SPQ 802434P Contact Us For Availability
4
Harness Strap SPQ 800211 Contact Us For Availability
10
Hose Clamp SPQ 800232P Contact Us For Availability
15
Screw SPQ 801476P Contact Us For Availability
16
Inner Basket Assembly SPQ 800428P Contact Us For Availability
× ![]()
