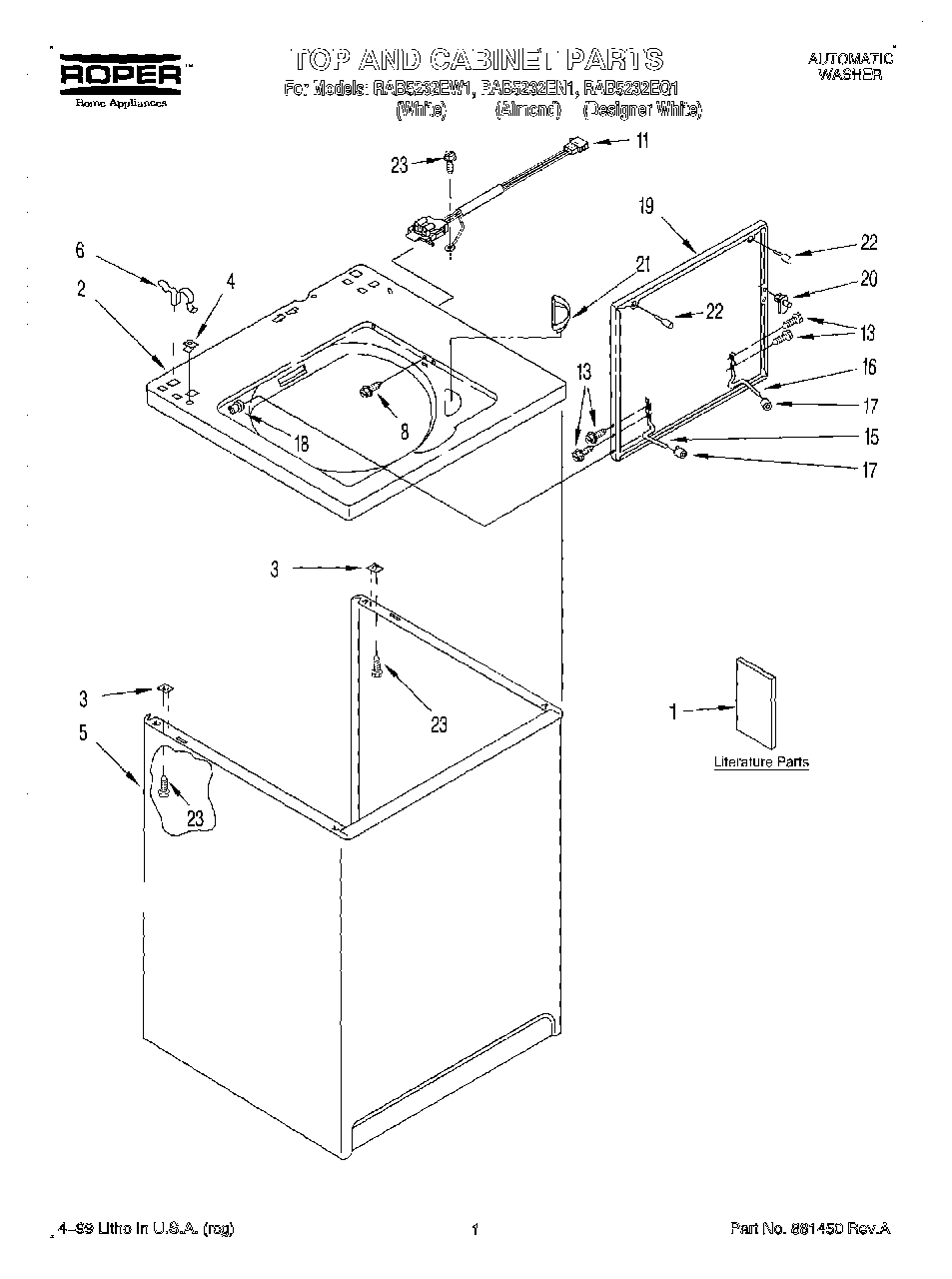

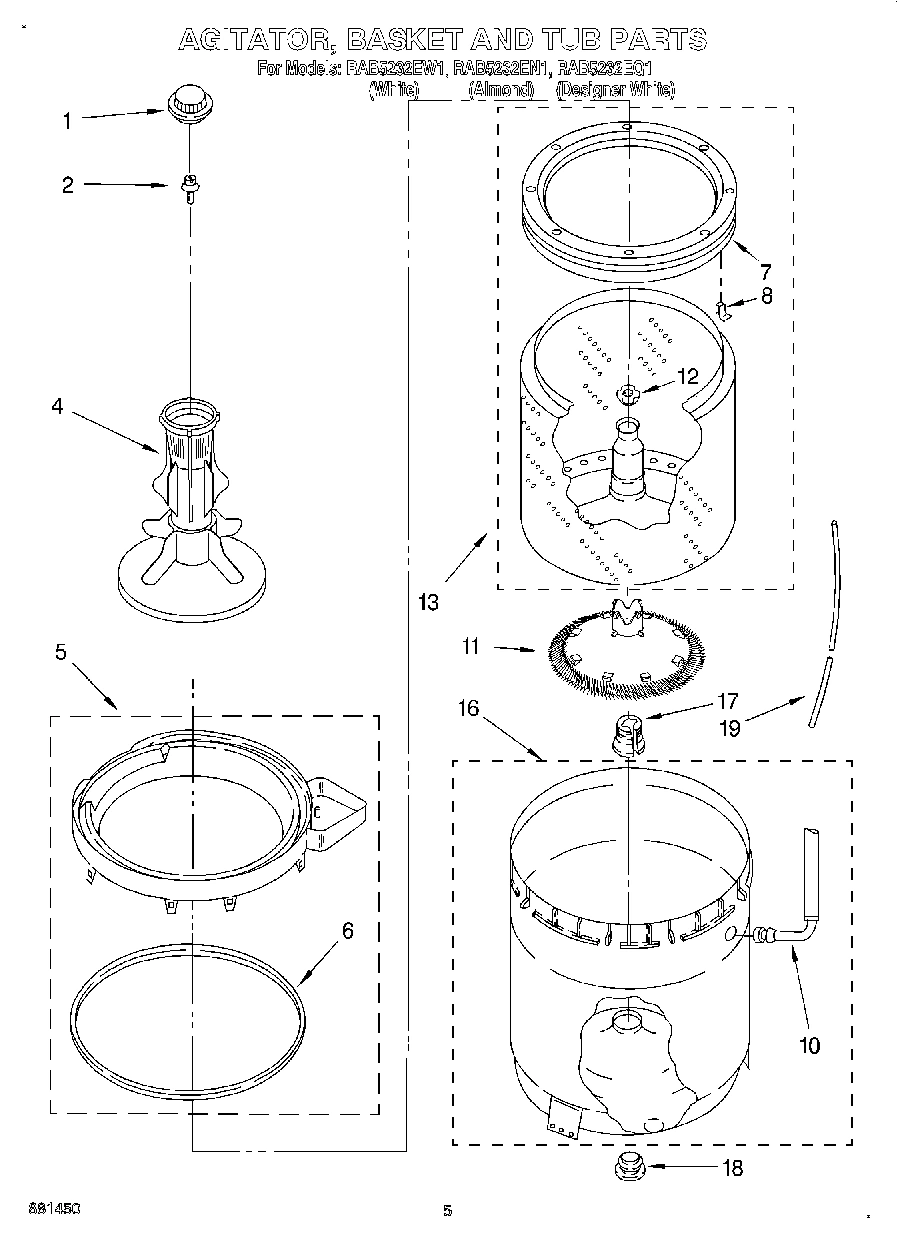

Model Whirlpool RAB5232EN1 – Common Parts &amp; Diagrams

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

1

WP3355758 Whirlpool Agitator Cap In Stock WPL WP3355758 $8.06

1

Clip, Harness WPL 3349557 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $82.41

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $5.27

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.88

2

WPW10168256 Whirlpool Temperature Switch Backorder WPL WPW10168256 $49.92

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.88

3

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $4.47

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.07

3

WPW10080230 Whirlpool Ring Backorder WPL WPW10080230 $4.98

4

285353 Whirlpool Ring Backorder WPL 285353 $3.70

4

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $30.25

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

4

WP63235 Whirlpool Agitator Assembly Backorder WPL WP63235 $107.25

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $31.44

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

5

Hinge, Console (2) WPL 387402 Contact Us For Availability

5

Tub Ring & Gasket WPL 3360611 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Spacer, Drive Tube WPL 356937 Contact Us For Availability

6

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $29.92

6

WP3359586 Whirlpool Tub Seal In Stock WPL WP3359586 $30.25

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.88

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.88

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $133.70

6

Link, Leveling Mechanism (2) WPL 63138 Contact Us For Availability

6

Panel, Rear WPL 3357976 Contact Us For Availability

7

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

7

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $32.56

7

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

7

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

7

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

7

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

7

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $4.94

7

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $47.23

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $2.51

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

7

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

8

285438 Whirlpool Brake Shoe In Stock WPL 285438 $78.79

8

285664 Whirlpool Drain Hose In Stock WPL 285664 $18.32

8

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $29.79

8

285702 Whirlpool Extensions Backorder WPL 285702 $37.95

8

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $2.51

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

Spring, Clutch (Not Serviced) WPL ARI159638A Contact Us For Availability

9

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $195.01

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $3.88

9

Timer, Control (60 Hz.) (Motor Not A Service WPL 3949620 Contact Us For Availability

10

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.44

10

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

10

Hose, Bleach WPL 3948705 Contact Us For Availability

353424 Whirlpool Connector Backorder WPL 353424 $10.76

WP62611 Whirlpool Plate In Stock WPL WP62611 $39.14

WP62647 Whirlpool Spring Pressure In Stock WPL WP62647 $3.51

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

62619 Whirlpool Washer Backorder WPL 62619 $9.59

W10339228 Whirlpool Washer Water Level Switch Backorder WPL W10339228 $121.13

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

13

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $9.63

13

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $2.51

13

Bracket, Control WPL 3948814 Contact Us For Availability

14

W10820044 Whirlpool Power Cord In Stock WPL W10820044 $59.06

14

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

14

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $117.58

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $11.77

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

Strain Relief, Power Cord WPL 3949468 Contact Us For Availability

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $2.51

WP54583 Whirlpool Hinge Backorder WPL WP54583 $9.37

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

Cap, End (L.H.) (Black) WPL 3358013 Contact Us For Availability

Cap, End (L.H.) (White) WPL 3358015 Contact Us For Availability

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $80.64

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $3.70

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $31.31

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $14.57

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $6.91

19

285459 Whirlpool Washer Base Backorder WPL 285459 $202.38

19

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $145.78

19

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

20

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

20

Switch, Main Drive Motor WPL 62851 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $30.69

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.02

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.07

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $8.22

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $35.58

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.64

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

23

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.88

23

Clip, Anti-Rattle WPL 3355454 Contact Us For Availability

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $75.19

24

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $35.35

24

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

25

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $7.96

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $39.42

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $44.94

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $2.21

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $14.40

27

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

27

Connector (T.P.A) (3-Circuit) (Pressure Switc WPL 3360056 Contact Us For Availability

30

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

31

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $7.92

36

WP356418 Whirlpool Screw In Stock WPL WP356418 $2.51

37

Knob, Control (Black) WPL 3398393 Contact Us For Availability

37

Knob, Control (White) WPL 3398390 Contact Us For Availability

39

Panel, Console (Black) WPL 3949718 Contact Us For Availability

39

Panel, Console (White) WPL 3953660 Contact Us For Availability

44

WP3362625 Whirlpool Timer Knob In Stock WPL WP3362625 $34.61

45

Dial, Timer (White) WPL 3946477 Contact Us For Availability

45

Dial, Timer (Black) WPL 3946479 Contact Us For Availability

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

51

Cap, End (R.H.) (Black) WPL 3357995 Contact Us For Availability

51

Cap, End (R.H.) (White) WPL 3357997 Contact Us For Availability

55

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

56

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.70

57

WPL 3952567 WPL 3952567 Contact Us For Availability
