Model Maytag MFF2258DEH01 REFRIGERATOR – Common Parts & Diagrams
01 - COVER SHEET

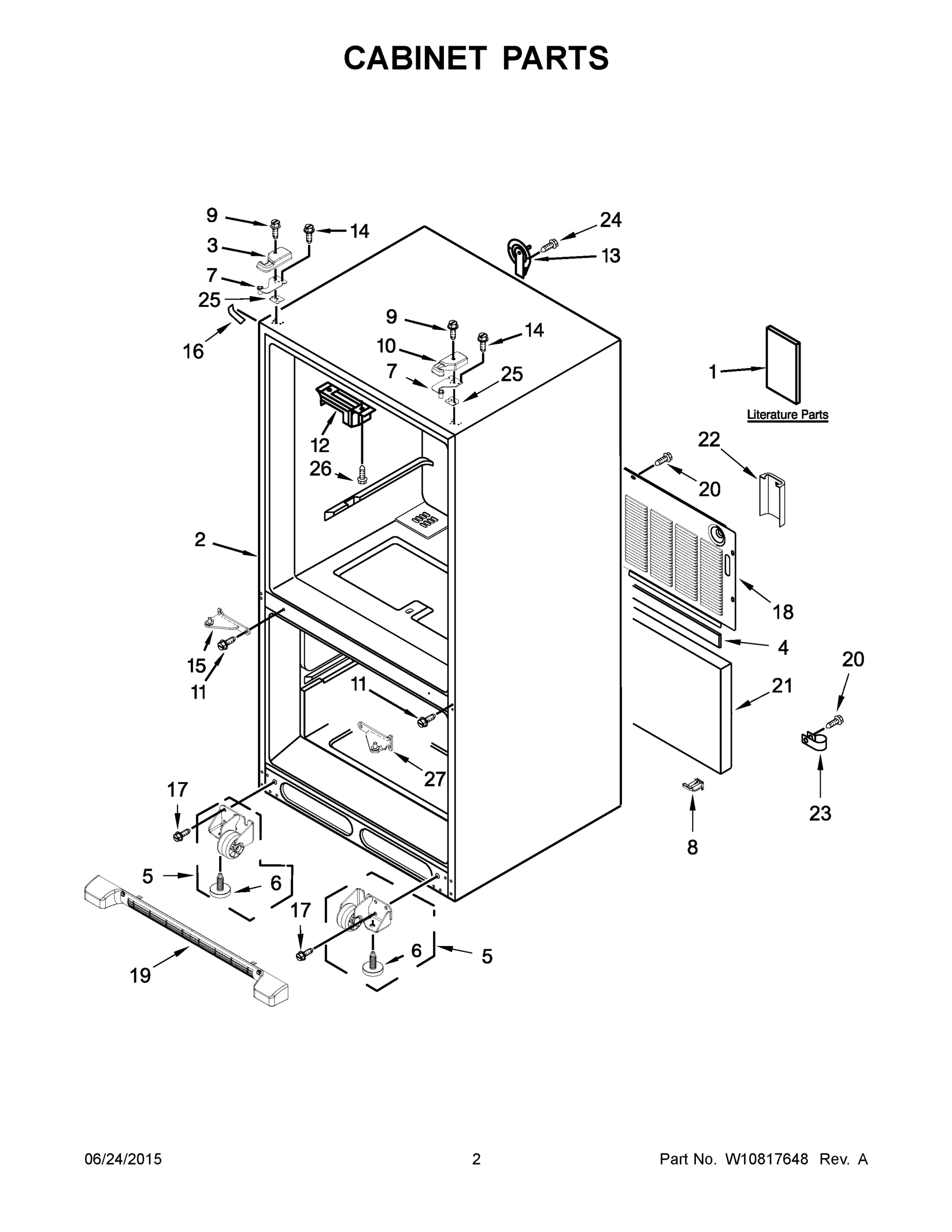

02 - CABINET PARTS

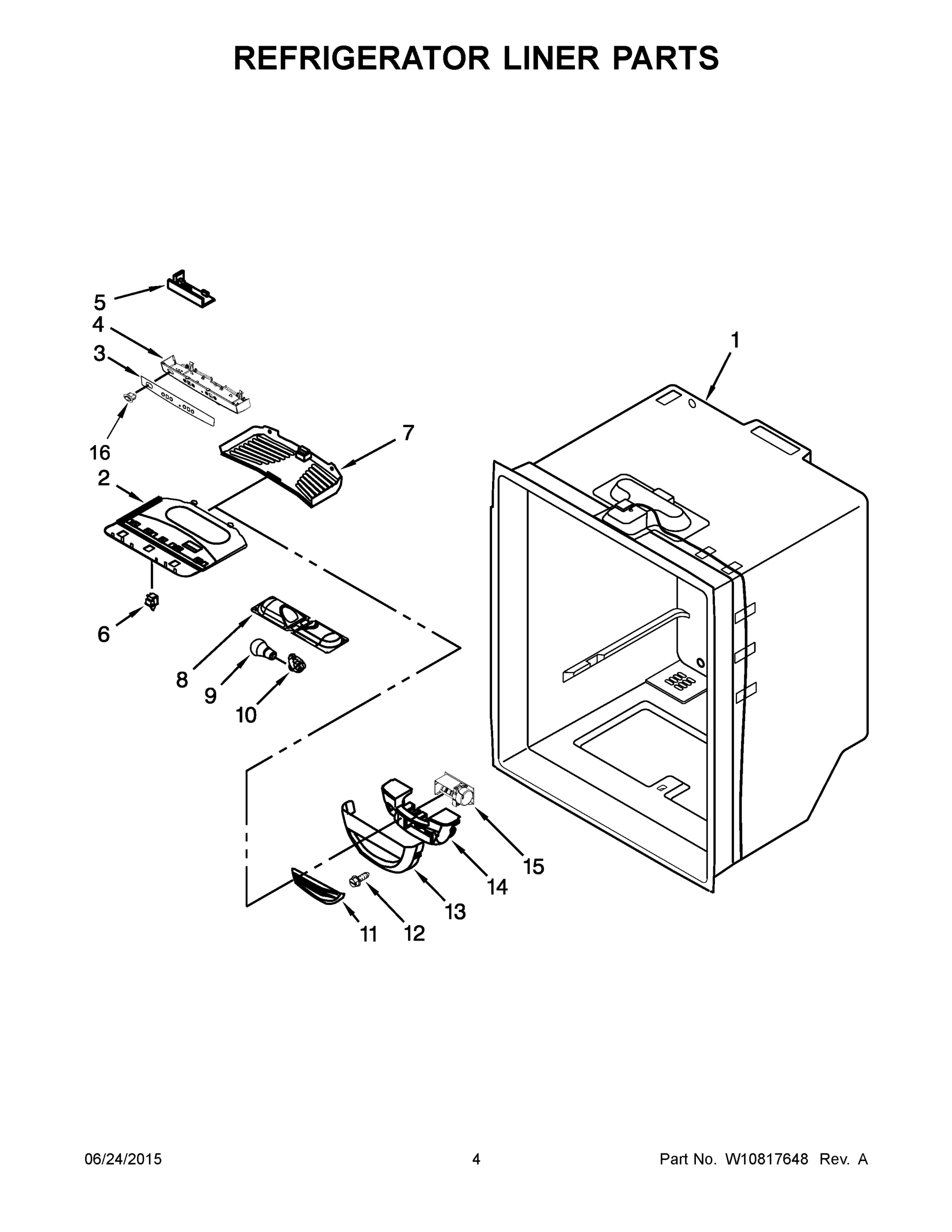

03 - REFRIGERATOR LINER PARTS

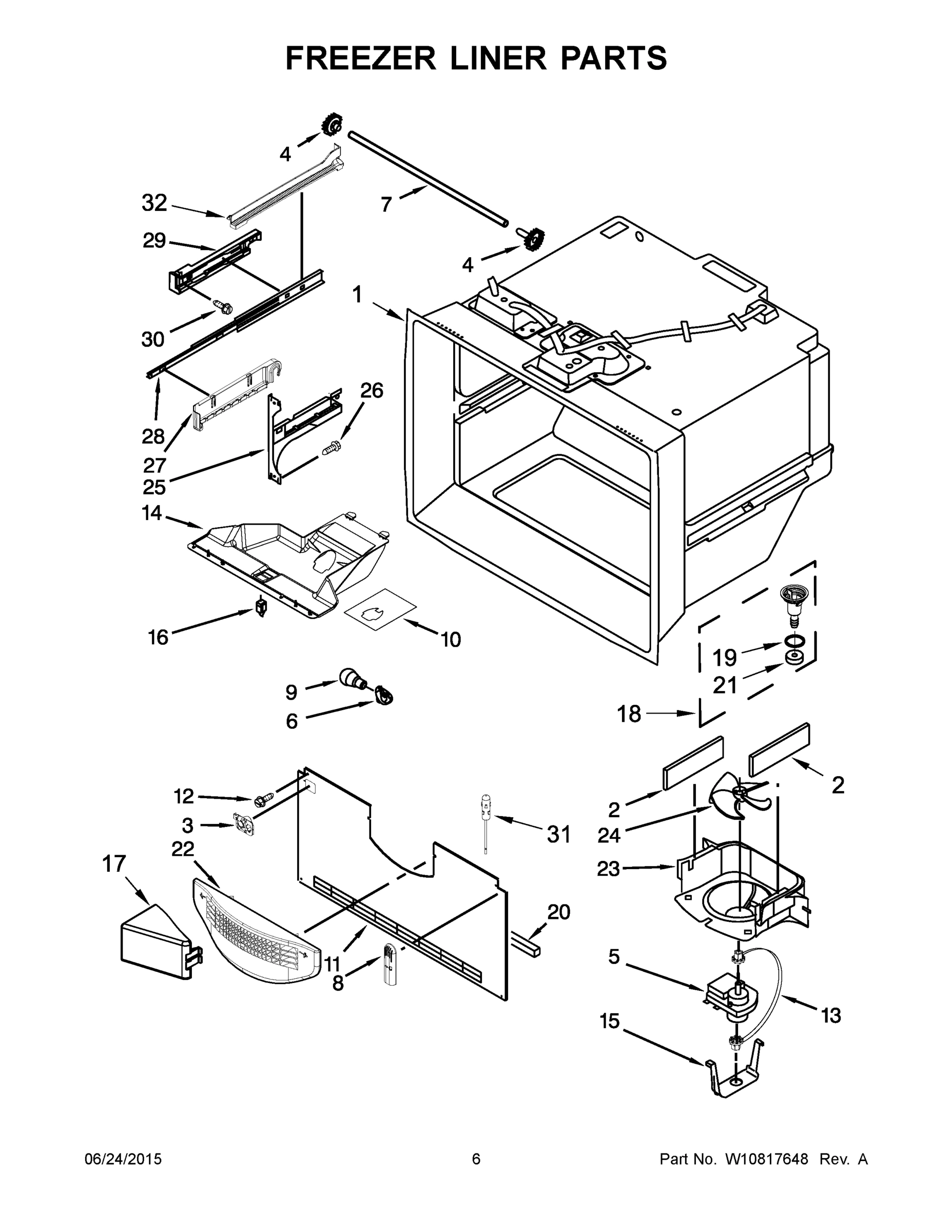

04 - FREEZER LINER PARTS

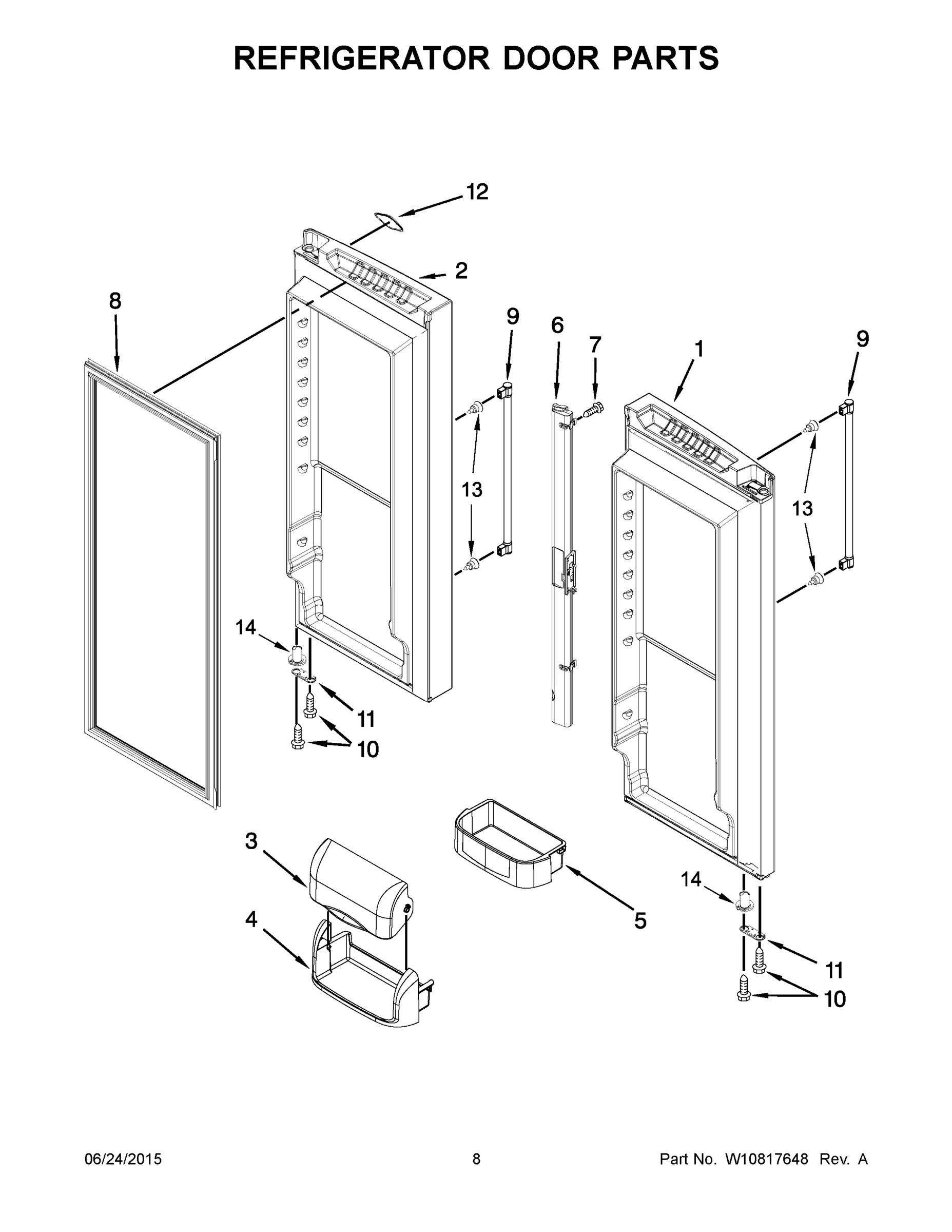

05 - REFRIGERATOR DOOR PARTS

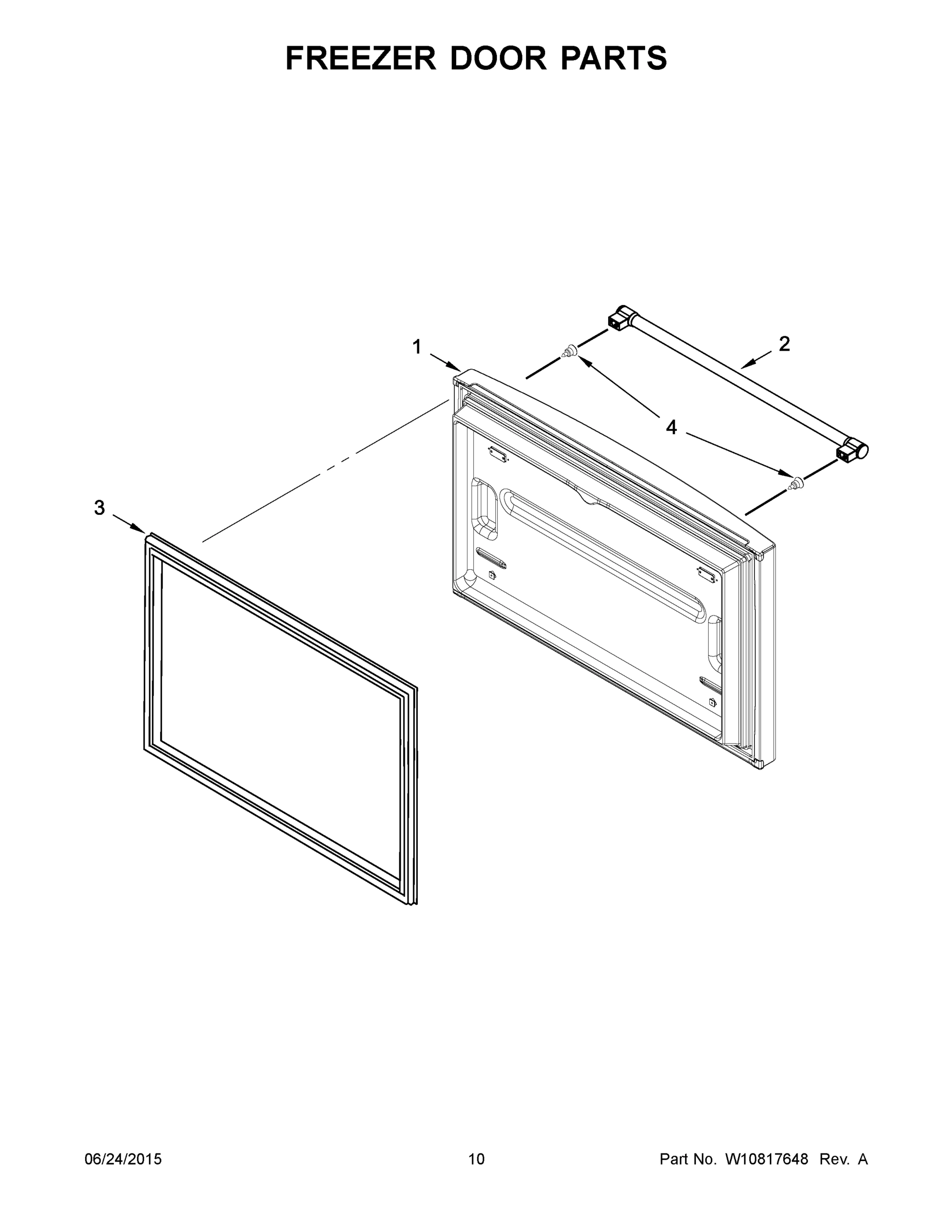

06 - FREEZER DOOR PARTS

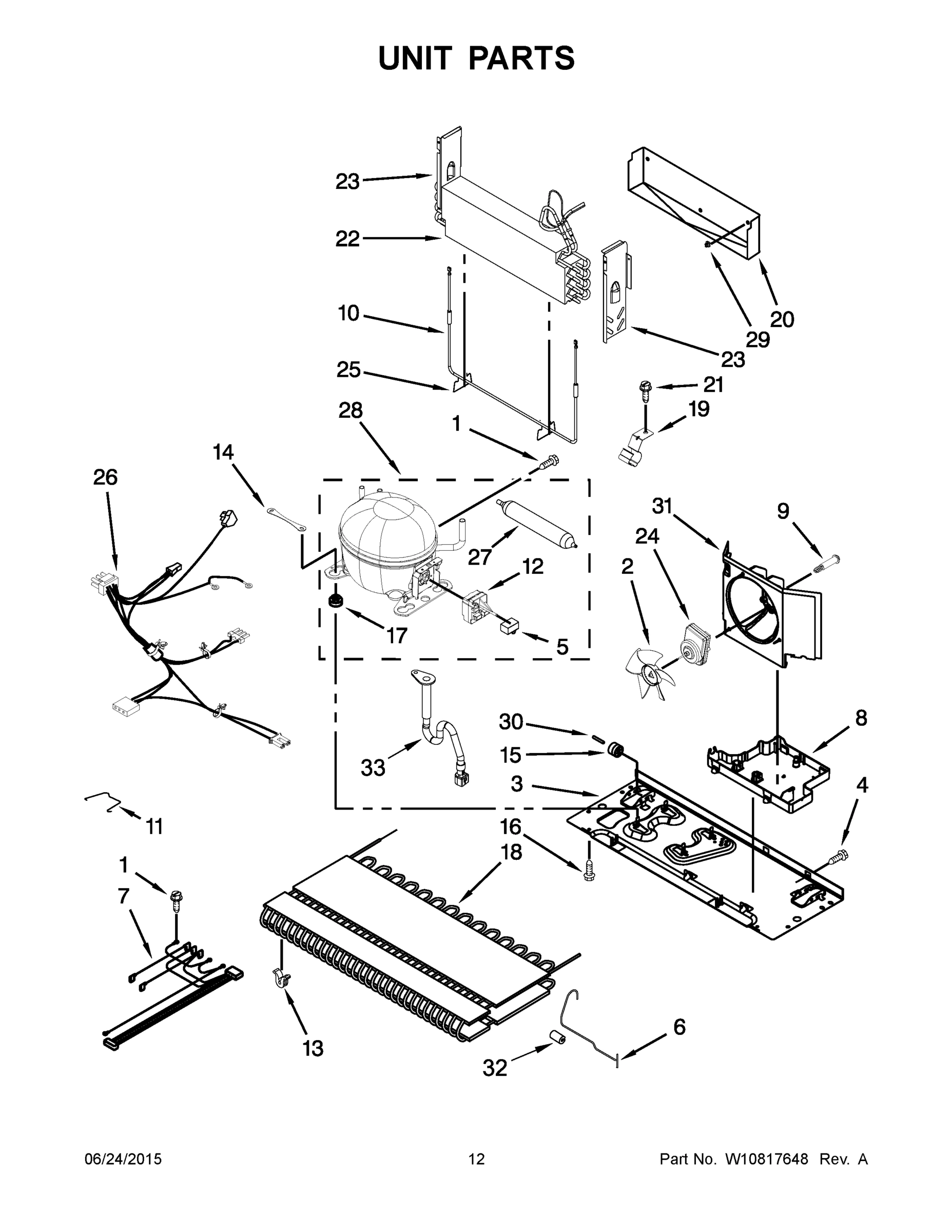

07 - UNIT PARTS

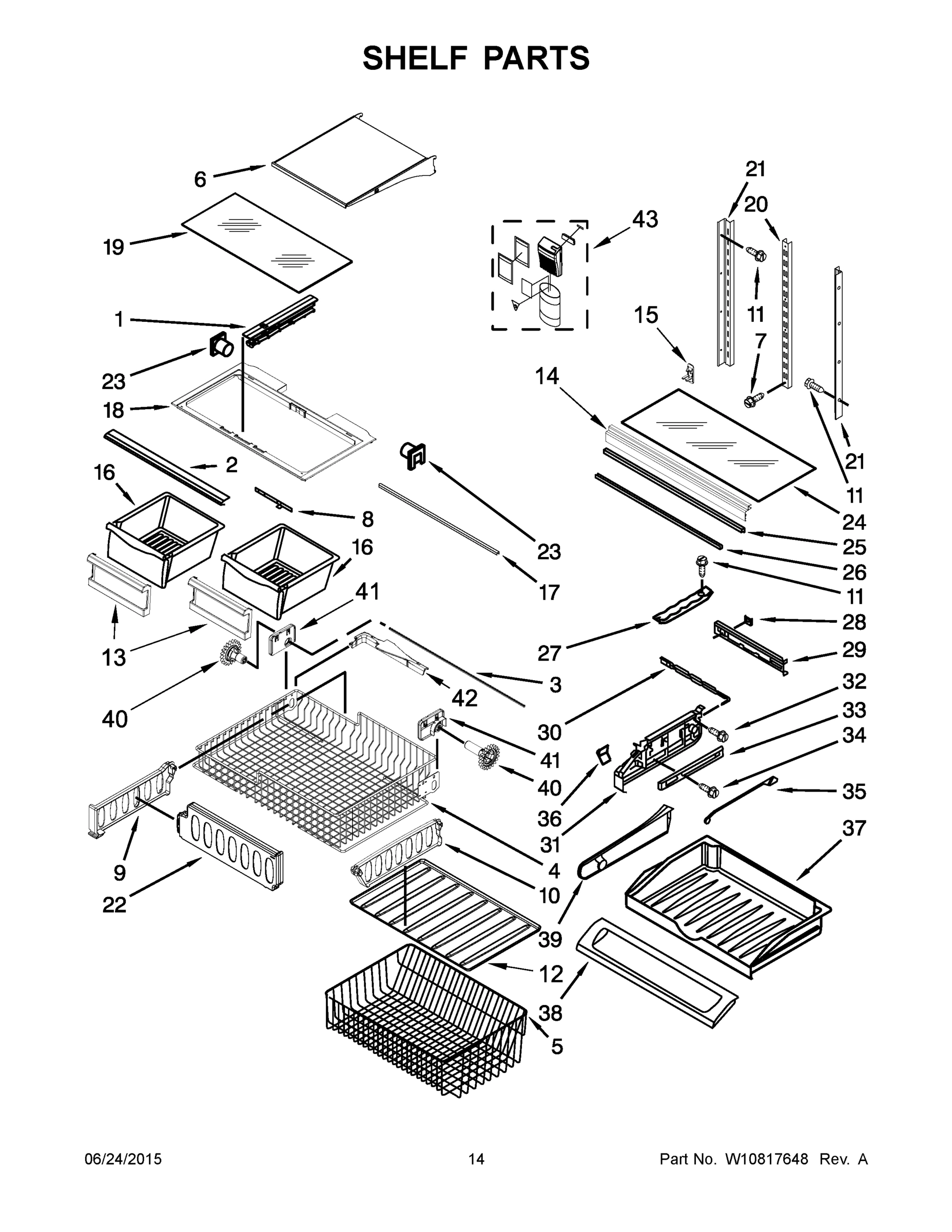

08 - SHELF PARTS

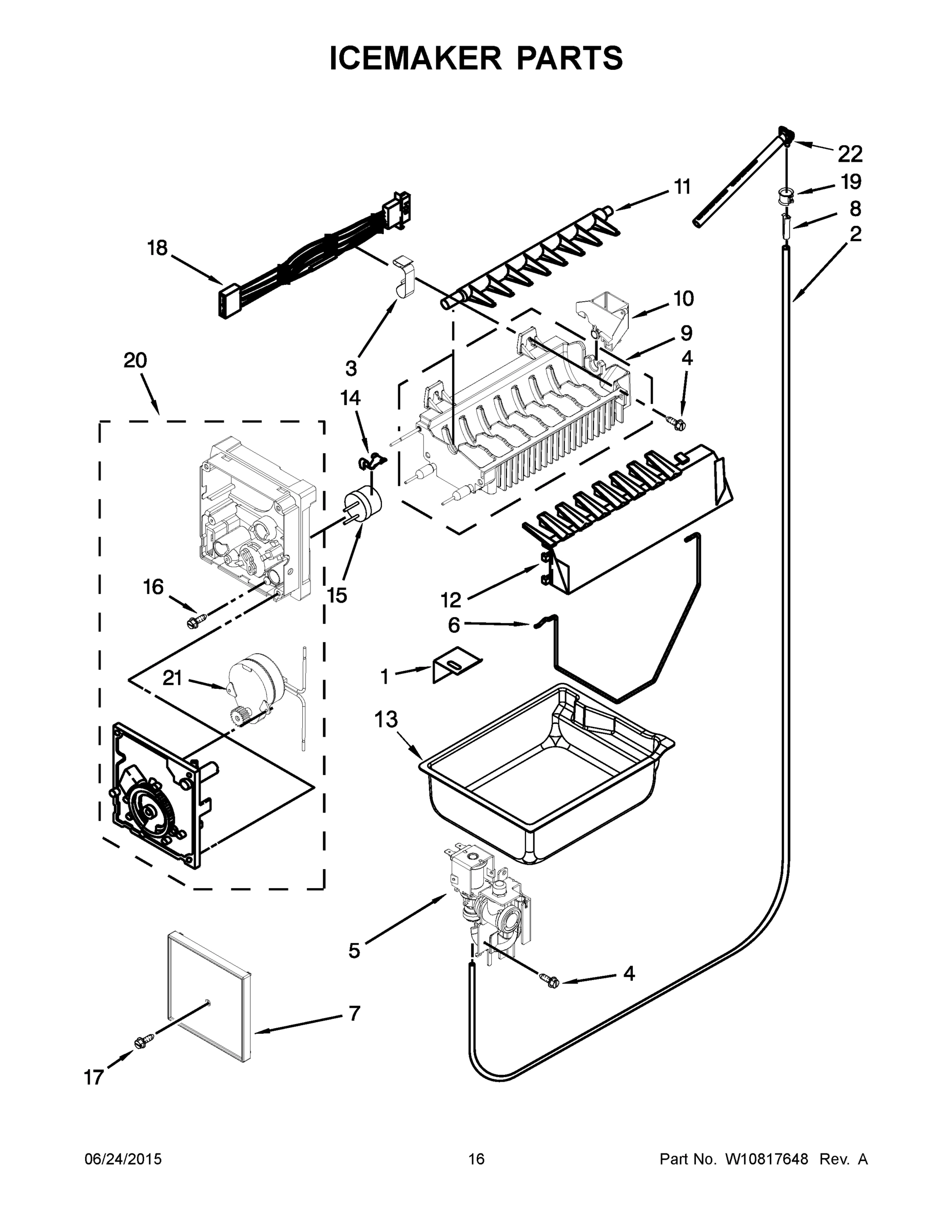

09 - ICEMAKER PARTS
10 - OPTIONAL PARTS
Common parts from model Maytag MFF2258DEH01 REFRIGERATOR
1
DOOR, LEFT (WHITE) MAY 13107885W Contact Us For Availability
1
MAY 12977877W MAY 12977877W Contact Us For Availability
1
MAY 12992301 MAY 12992301 Contact Us For Availability
1
MAY W10671238 MAY W10671238 Contact Us For Availability
1
MAY 2256086 MAY 2256086 Contact Us For Availability
1A
MAY 13107886B MAY 13107886B Contact Us For Availability
1A
MAY 12977877B MAY 12977877B Contact Us For Availability
1B
MAY 13107886S MAY 13107886S Contact Us For Availability
1B
MAY 12977877S MAY 12977877S Contact Us For Availability
2
MAY W10464766 MAY W10464766 Contact Us For Availability
2
MAY A3189392 MAY A3189392 Contact Us For Availability
2
DOOR, RIGHT (WHITE) MAY 13107886W Contact Us For Availability
2
MAY W10697035 MAY W10697035 Contact Us For Availability
2
MAY 12825803 MAY 12825803 Contact Us For Availability
2
MAY W10231343 MAY W10231343 Contact Us For Availability
2
MAY B5705333 MAY B5705333 Contact Us For Availability
2A
MAY 13107885B MAY 13107885B Contact Us For Availability
2B
MAY 13107885S MAY 13107885S Contact Us For Availability
3
COVER, LEFT HINGE (WHITE) MAY W10337634 Contact Us For Availability
3
MAY W10613576 MAY W10613576 Contact Us For Availability
3
MAY 12932103 MAY 12932103 Contact Us For Availability
3
MAY 12804701SP MAY 12804701SP Contact Us For Availability
3
MAY W10571962 MAY W10571962 Contact Us For Availability
3
MAY W10480110 MAY W10480110 Contact Us For Availability
3
MAY 12812905WD MAY 12812905WD Contact Us For Availability
3
CLAMP, WIRE MAY 10526702 Contact Us For Availability
3A
COVER, LEFT HINGE (BLACK) MAY W10337647 Contact Us For Availability
3A
MAY W10436250 MAY W10436250 Contact Us For Availability
3B
COVER, LEFT HINGE (GREY) MAY W10337648 Contact Us For Availability
3B
MAY W10571961 MAY W10571961 Contact Us For Availability
4
MAY B5759655 MAY B5759655 Contact Us For Availability
4
MAY 12990511 MAY 12990511 Contact Us For Availability
4
MAY W10464775 MAY W10464775 Contact Us For Availability
4
MAY 12369502SP MAY 12369502SP Contact Us For Availability
4
MAY W10460893 MAY W10460893 Contact Us For Availability
4
MAY W10348238 MAY W10348238 Contact Us For Availability
4
MAY W10001240 MAY W10001240 Contact Us For Availability
5
MAY W10515763 MAY W10515763 Contact Us For Availability
5
MAY W10637328 MAY W10637328 Contact Us For Availability
5
MAY 13062901 MAY 13062901 Contact Us For Availability
5
MAY W10351081 MAY W10351081 Contact Us For Availability
5
MAY W10350564 MAY W10350564 Contact Us For Availability
5
MAY W10503183 MAY W10503183 Contact Us For Availability
5
MAY W10498976 MAY W10498976 Contact Us For Availability
5A
MAY W10515762 MAY W10515762 Contact Us For Availability
5A
MAY W10371194 MAY W10371194 Contact Us For Availability
5B
BUCKET, GALLON (CLEAR) MAY 12918704 Contact Us For Availability
5C
MAY W10289497 MAY W10289497 Contact Us For Availability
6
BRAKE, ROLLER MAY W10141622 Contact Us For Availability
6
MAY 12722803W MAY 12722803W Contact Us For Availability
6
MAY W10233570 MAY W10233570 Contact Us For Availability
6
MAY W10743546 MAY W10743546 Contact Us For Availability
6
MAY W10512602 MAY W10512602 Contact Us For Availability
6A
MAY 12722803BN MAY 12722803BN Contact Us For Availability
6B
MULLION, DOOR (GREY) MAY 12722803APN Contact Us For Availability
7
MAY 12963204EDN MAY 12963204EDN Contact Us For Availability
7
MAY 12806501 MAY 12806501 Contact Us For Availability
7
MAY 12812902WD MAY 12812902WD Contact Us For Availability
7
MAY 12990204 MAY 12990204 Contact Us For Availability
7
HARNESS, EVAPORATOR (INCLUDES HEATER) MAY W10290745 Contact Us For Availability
7
MAY W10215666 MAY W10215666 Contact Us For Availability
7
MAY W10377174 MAY W10377174 Contact Us For Availability
7A
MAY 12963205EDN MAY 12963205EDN Contact Us For Availability
8
MAY W10485986 MAY W10485986 Contact Us For Availability
8
MAY W10443023 MAY W10443023 Contact Us For Availability
8
MAY 12815301 MAY 12815301 Contact Us For Availability
8
MAY W10443259 MAY W10443259 Contact Us For Availability
8
MAY W10655367 MAY W10655367 Contact Us For Availability
8
MAY 12530805SP MAY 12530805SP Contact Us For Availability
8
MAY A3223101 MAY A3223101 Contact Us For Availability
8A
GASKET, DOOR LEFT HAND (BLACK) MAY W10435972 Contact Us For Availability
8B
GASKET, DOOR LEFT HAND (GREY) MAY W10443269 Contact Us For Availability
8C
MAY W10443221 MAY W10443221 Contact Us For Availability
8D
GASKET, DOOR RIGHT HAND (BLACK) MAY W10435968 Contact Us For Availability
8E
GASKET, DOOR RIGHT HAND (GREY) MAY W10443225 Contact Us For Availability
9
MAY 12992602 MAY 12992602 Contact Us For Availability
9
MAY W10745744 MAY W10745744 Contact Us For Availability
9
MAY W10643725 MAY W10643725 Contact Us For Availability
9
MAY W10622701 MAY W10622701 Contact Us For Availability
9
MAY W10241046 MAY W10241046 Contact Us For Availability
9
ASSEMBLY, MOLD AND HEATER MAY W10300025 Contact Us For Availability
10
COVER, RIGHT HINGE (WHITE) MAY 12962302W Contact Us For Availability
10
SOCKET, LIGHT MAY 12570701V Contact Us For Availability
10
MAY W10277466 MAY W10277466 Contact Us For Availability
10
MAY 12729128 MAY 12729128 Contact Us For Availability
10
MAY W10146440 MAY W10146440 Contact Us For Availability
10
MAY W10410073 MAY W10410073 Contact Us For Availability
10A
COVER, RIGHT HINGE (BLACK) MAY 12962302B Contact Us For Availability
10B
COVER, RIGHT HINGE (GREY) MAY 12962302APN Contact Us For Availability
11
MAY 12990101 MAY 12990101 Contact Us For Availability
11
MAY 12806801 MAY 12806801 Contact Us For Availability
11
MAY W10308415 MAY W10308415 Contact Us For Availability
11
MAY 12968202W MAY 12968202W Contact Us For Availability
11
MAY W10216075 MAY W10216075 Contact Us For Availability
11
MAY 12990513 MAY 12990513 Contact Us For Availability
11
MAY W10318914 MAY W10318914 Contact Us For Availability
11A
MAY 12968202B MAY 12968202B Contact Us For Availability
11B
MAY 12968202AP MAY 12968202AP Contact Us For Availability
12
MAY 12698403 MAY 12698403 Contact Us For Availability
12
MAY 12990604 MAY 12990604 Contact Us For Availability
12
BADGE (GREY) MAY W10612926 Contact Us For Availability
12
MAY W10330834 MAY W10330834 Contact Us For Availability
12
MAY W10316995 MAY W10316995 Contact Us For Availability
12
MAY W10699925 MAY W10699925 Contact Us For Availability
13
MAY 12726003 MAY 12726003 Contact Us For Availability
13
MAY 12806701 MAY 12806701 Contact Us For Availability
13
MAY W10150583 MAY W10150583 Contact Us For Availability
13
MAY W10137529 MAY W10137529 Contact Us For Availability
13
FRONT, CRISPER MAY 12802302SP Contact Us For Availability
13
MAY W10171529N MAY W10171529N Contact Us For Availability
14
MAY 12992403 MAY 12992403 Contact Us For Availability
14
MAY 13012402 MAY 13012402 Contact Us For Availability
14
MAY W10277025 MAY W10277025 Contact Us For Availability
14
MAY 12028505W MAY 12028505W Contact Us For Availability
14
MAY W10236396 MAY W10236396 Contact Us For Availability
14
MAY 13048801 MAY 13048801 Contact Us For Availability
14
CLIP, THERMAL FUSE MAY 628379 Contact Us For Availability
14A
MAY 12028505B MAY 12028505B Contact Us For Availability
14B
MAY 12028505AP MAY 12028505AP Contact Us For Availability
15
HINGE, CENTER LEFT HAND (WHITE) MAY 13000001WD Contact Us For Availability
15
MAY W10594330 MAY W10594330 Contact Us For Availability
15
MAY 13058002 MAY 13058002 Contact Us For Availability
15
ROLLER MAY 12477102 Contact Us For Availability
15
MAY 12531802 MAY 12531802 Contact Us For Availability
15
THERMOSTAT MAY 627985 Contact Us For Availability
15A
HINGE, CENTER LEFT HAND (BLACK) MAY 13000007ED Contact Us For Availability
15B
HINGE, CENTER LEFT HAND (GREY) MAY 13000001AP Contact Us For Availability
16
COVER, CORNER (WHITE) MAY 12587703W Contact Us For Availability
16
MAY 12861601 MAY 12861601 Contact Us For Availability
16
MAY 12466105 MAY 12466105 Contact Us For Availability
16
MAY 12992101 MAY 12992101 Contact Us For Availability
16
PAN, CRISPER MAY 12530505SP Contact Us For Availability
16
MAY 8533917 MAY 8533917 Contact Us For Availability
16A
COVER, CORNER (BLACK) MAY 12587703B Contact Us For Availability
16B
COVER, CORNER (GREY) MAY 12587703AP Contact Us For Availability
17
MAY 12991302 MAY 12991302 Contact Us For Availability
17
MAY W10157765 MAY W10157765 Contact Us For Availability
17
MAY 10835903SP MAY 10835903SP Contact Us For Availability
17
MAY 12227303WD MAY 12227303WD Contact Us For Availability
17
SCREW MAY 697773 Contact Us For Availability
18
MAY W10210979 MAY W10210979 Contact Us For Availability
18
MAY W10662407 MAY W10662407 Contact Us For Availability
18
MAY W10346420 MAY W10346420 Contact Us For Availability
18
MAY W10671241 MAY W10671241 Contact Us For Availability
18
MAY W10458985 MAY W10458985 Contact Us For Availability
19
MAY W10534161 MAY W10534161 Contact Us For Availability
19
MAY M0500703 MAY M0500703 Contact Us For Availability
19
MAY W10281329 MAY W10281329 Contact Us For Availability
19
MAY 12204822 MAY 12204822 Contact Us For Availability
19
MAY M0114003 MAY M0114003 Contact Us For Availability
19A
MAY W10534162 MAY W10534162 Contact Us For Availability
19B
GRILLE, TOE (GREY) MAY W10534160 Contact Us For Availability
20
GASKET, FOAM MAY A3189395 Contact Us For Availability
20
MAY W10292802 MAY W10292802 Contact Us For Availability
20
MAY W10273463 MAY W10273463 Contact Us For Availability
20
ASSEMBLY, MODULE AND MOTOR MAY W10281342 Contact Us For Availability
21
MAY 12820505 MAY 12820505 Contact Us For Availability
21
MAY B8381501 MAY B8381501 Contact Us For Availability
21
MAY 12990701 MAY 12990701 Contact Us For Availability
21
MAY W10251969 MAY W10251969 Contact Us For Availability
22
MAY W10208592 MAY W10208592 Contact Us For Availability
22
MAY 13024803 MAY 13024803 Contact Us For Availability
22
MAY W10317013 MAY W10317013 Contact Us For Availability
22
MAY W10311695 MAY W10311695 Contact Us For Availability
22
MAY 10463203 MAY 10463203 Contact Us For Availability
23
CLAMP, TUBE MAY M0108107 Contact Us For Availability
23
MAY 13057901 MAY 13057901 Contact Us For Availability
23
DAM (LEFT HAND) MAY 12225602 Contact Us For Availability
23
SUPPORT, CRISPER FRAME (LEFT HAND) MAY 12531001 Contact Us For Availability
23A
DAM (RIGHT HAND) MAY 12225702 Contact Us For Availability
23A
SUPPORT, CRISPER FRAME (RIGHT HAND) MAY 12531002 Contact Us For Availability
24
MAY 2169142 MAY 2169142 Contact Us For Availability
24
MAY W10609117 MAY W10609117 Contact Us For Availability
24
MAY 12204820 MAY 12204820 Contact Us For Availability
25
SHIM, TOP HINGE (RIGHT HAND) MAY 12999502 Contact Us For Availability
25
MAY W10330991 MAY W10330991 Contact Us For Availability
25
MAY W10528936 MAY W10528936 Contact Us For Availability
25A
MAY W10330993 MAY W10330993 Contact Us For Availability
26
MAY 12990302 MAY 12990302 Contact Us For Availability
26
MAY 12990521 MAY 12990521 Contact Us For Availability
26
MAY W10679216 MAY W10679216 Contact Us For Availability
26
MAY 12227302WD MAY 12227302WD Contact Us For Availability
27
HINGE, CENTER RIGHT HAND (WHITE) MAY 13000002WD Contact Us For Availability
27
MAY W10280608 MAY W10280608 Contact Us For Availability
27
DRIER MAY W10177049 Contact Us For Availability
27
MAY 12531901 MAY 12531901 Contact Us For Availability
27A
HINGE, CENTER RIGHT HAND (BLACK) MAY 13000008ED Contact Us For Availability
27A
MAY W10280613 MAY W10280613 Contact Us For Availability
27B
HINGE, CENTER RIGHT HAND (GREY) MAY 13000002AP Contact Us For Availability
28
MAY W10120018 MAY W10120018 Contact Us For Availability
28
MAY W10445423 MAY W10445423 Contact Us For Availability
28
MAY 12656902 MAY 12656902 Contact Us For Availability
29
ADAPTER, SLIDE (LEFT HAND) MAY W10284684 Contact Us For Availability
29
MAY 10623002 MAY 10623002 Contact Us For Availability
29
MAY 13048301 MAY 13048301 Contact Us For Availability
29A
ADAPTER, SLIDE (RIGHT HAND) MAY W10284685 Contact Us For Availability
30
MAY 12990501 MAY 12990501 Contact Us For Availability
30
MAY 12477202 MAY 12477202 Contact Us For Availability
30
MAY 13048401 MAY 13048401 Contact Us For Availability
31
MAY 12791406SP MAY 12791406SP Contact Us For Availability
31
MAY W10189184 MAY W10189184 Contact Us For Availability
31
MAY 13047801 MAY 13047801 Contact Us For Availability
31A
MAY 13047701 MAY 13047701 Contact Us For Availability
32
MAY 12990504 MAY 12990504 Contact Us For Availability
32
RAIL, SIDE (LEFT HAND) MAY W10516603 Contact Us For Availability
32
GROMMET, CONDENSER MAY 2319835 Contact Us For Availability
32A
RAIL, SIDE (RIGHT HAND) MAY W10516602 Contact Us For Availability
33
MAY W10622099 MAY W10622099 Contact Us For Availability
33
MAY W10235370 MAY W10235370 Contact Us For Availability
34
MAY 12990512 MAY 12990512 Contact Us For Availability
35
MAY 13048201 MAY 13048201 Contact Us For Availability
36
MAY 12655204 MAY 12655204 Contact Us For Availability
37
MAY 13048501SP MAY 13048501SP Contact Us For Availability
38
MAY 12656823 MAY 12656823 Contact Us For Availability
39
MAY 13048601SP MAY 13048601SP Contact Us For Availability
40
GEAR, SPUR (LEFT HAND) MAY W10474716 Contact Us For Availability
40A
GEAR, SPUR (RIGHT HAND) MAY W10474715 Contact Us For Availability
41
MAY W10348259 MAY W10348259 Contact Us For Availability
41A
MAY W10348260 MAY W10348260 Contact Us For Availability
42
MAY W10149389N MAY W10149389N Contact Us For Availability
43
MAY W10596756 MAY W10596756 Contact Us For Availability
100
ASSEMBLY, ICEMAKER (COMPLETE) MAY W10469286 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
MAY W10216622 MAY W10216622 Contact Us For Availability
NI
VALVE, ACCESS MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS MAY 978028 Contact Us For Availability
NI
VALVE, ACCESS MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS MAY 978030 Contact Us For Availability
NI
MAY 8003RP MAY 8003RP Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MAY 20000008 MAY 20000008 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) MAY 285006 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. ENAMEL, BLAC MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQ MAY 4392901 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108") MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. MAY 542639 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
MAY 72032 MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
MISCELLANEOUS, KIT, FOAM SLAB (30" X 32 1/2" MAY 876029 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION KIT (14 PIECES, 3" MAY 876305 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION (2 PIECES, 3" X 24" MAY 876370 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION, FIBERGLASS (63 1/2 MAY 978941 Contact Us For Availability
× ![]()
