Model Maytag MFD2562KES10 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET PARTS

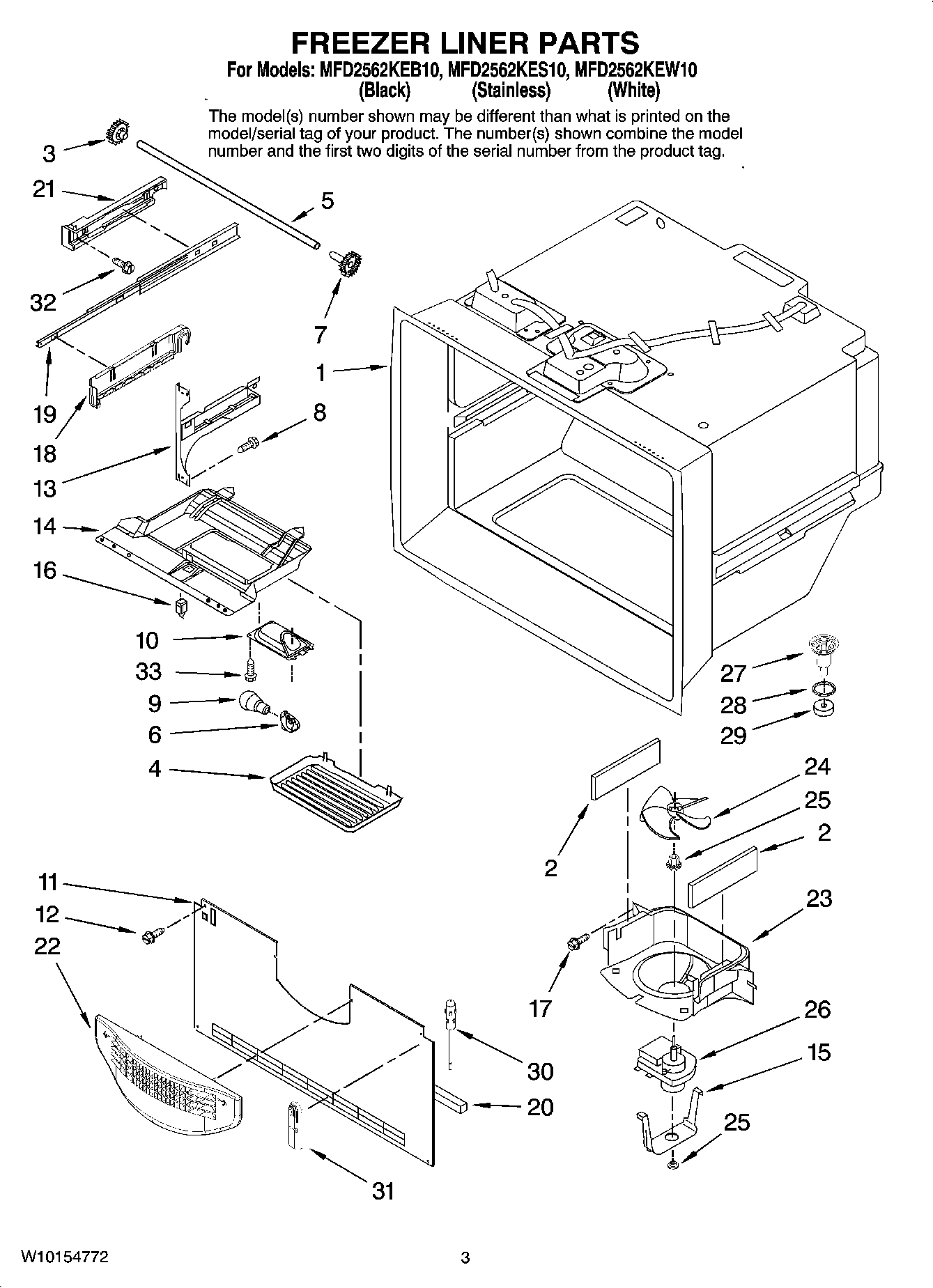

02 - FREEZER LINER PARTS
03 - REFRIGERATOR LINER PARTS
04 - REFRIGERATOR DOOR PARTS
05 - UNIT PARTS
06 - SHELF PARTS
07 - FREEZER DOOR PARTS
08 - ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MFD2562KES10 REFRIGERATOR
1
MAY 67002761 MAY 67002761 Contact Us For Availability
1
MAY 13024022B MAY 13024022B Contact Us For Availability
1
MAY 13024022W MAY 13024022W Contact Us For Availability
1
Door, Left (Stainless Steel) MAY W10131746 Contact Us For Availability
1
MAY 67006433 MAY 67006433 Contact Us For Availability
1
MAY 13024210B MAY 13024210B Contact Us For Availability
1
MAY 13024210W MAY 13024210W Contact Us For Availability
1
Freezer Door (Stainless Steel) MAY W10131753 Contact Us For Availability
1
Mold & Heater Assembly MAY 628228 Contact Us For Availability
2
MAY 13024021B MAY 13024021B Contact Us For Availability
2
MAY 13024021W MAY 13024021W Contact Us For Availability
2
Door, Right (Stainless Steel) MAY W10131751 Contact Us For Availability
2
MAY 67006115 MAY 67006115 Contact Us For Availability
2
Frame, Shelf (3) MAY 61005966 Contact Us For Availability
3
MAY Y67005640 MAY Y67005640 Contact Us For Availability
3
MAY 67005889 MAY 67005889 Contact Us For Availability
3
MAY 67006608 MAY 67006608 Contact Us For Availability
3
Bearing & Inlet MAY 628515 Contact Us For Availability
4
Screw (2) MAY 67006425 Contact Us For Availability
4
MAY W10131754 MAY W10131754 Contact Us For Availability
4
MAY W10133249 MAY W10133249 Contact Us For Availability
6
MAY 67006786 MAY 67006786 Contact Us For Availability
6
MAY 2194712 MAY 2194712 Contact Us For Availability
7
MAY 67005574 MAY 67005574 Contact Us For Availability
8
MAY 12723206B MAY 12723206B Contact Us For Availability
8
Gasket, Door (2) (White) MAY W10137006 Contact Us For Availability
8
Divider, Upper Basket MAY 67004127 Contact Us For Availability
9
MAY 61004743 MAY 61004743 Contact Us For Availability
9
Screw (3) MAY 95106-1 Contact Us For Availability
10
MAY 67001035 MAY 67001035 Contact Us For Availability
10
MAY 67005625 MAY 67005625 Contact Us For Availability
11
Capacitor MAY 67005562 Contact Us For Availability
11
Shelf, Slide (3) MAY 61002917 Contact Us For Availability
11
Screw (2) MAY 8533917 Contact Us For Availability
12
Bin, Shelf (2) (Gallon) MAY 67004641 Contact Us For Availability
12
MAY 67003793 MAY 67003793 Contact Us For Availability
13
Gasket MAY 61003810 Contact Us For Availability
13
Frame Assy., Adj. MAY Y61006052 Contact Us For Availability
13
MAY A3223101 MAY A3223101 Contact Us For Availability
14
Tubing, Plastic MAY 67003729 Contact Us For Availability
15
MAY 67215-2 MAY 67215-2 Contact Us For Availability
15
INSULATION MAY W10160806 Contact Us For Availability
15
HARNESS, ICEMAKER MAY W10146389 Contact Us For Availability
16
MAY W10158508 MAY W10158508 Contact Us For Availability
17
MAY 67007052 MAY 67007052 Contact Us For Availability
17
MAY 67006662 MAY 67006662 Contact Us For Availability
19
MAY 12395501B MAY 12395501B Contact Us For Availability
19
BUSHING, DOOR UPPER LEFT (WHITE) MAY 12395501W Contact Us For Availability
19
MAY 67004700 MAY 67004700 Contact Us For Availability
20
MAY 67002490 MAY 67002490 Contact Us For Availability
21
MAY 10623002 MAY 10623002 Contact Us For Availability
22
Clip, Facade (2) MAY B8390302 Contact Us For Availability
22
MAY 67004644 MAY 67004644 Contact Us For Availability
22
MAY 67005603 MAY 67005603 Contact Us For Availability
23
Facade, Dispenser MAY W10158503 Contact Us For Availability
23
MAY 67001083 MAY 67001083 Contact Us For Availability
23
MAY 67001084 MAY 67001084 Contact Us For Availability
23
Ladder, Side MAY 67004645 Contact Us For Availability
24
Screw (6) MAY 67006400 Contact Us For Availability
24
MAY 67004432 MAY 67004432 Contact Us For Availability
26
MAY 67003728 MAY 67003728 Contact Us For Availability
26
HARNESS, MC MAY 67005435 Contact Us For Availability
26
Screw (4) MAY 67006415 Contact Us For Availability
27
Drier (Service) MAY B2150504 Contact Us For Availability
27
MAY 67005864 MAY 67005864 Contact Us For Availability
28
MAY 10547003 MAY 10547003 Contact Us For Availability
29
MAY 67004953 MAY 67004953 Contact Us For Availability
31
MAY 67003146 MAY 67003146 Contact Us For Availability
31
MAY 67006432 MAY 67006432 Contact Us For Availability
32
Screw (4) MAY 67006573 Contact Us For Availability
33
Insulation, Tank MAY W10117358 Contact Us For Availability
33
MAY 67005421 MAY 67005421 Contact Us For Availability
34
MAY 67005417 MAY 67005417 Contact Us For Availability
34
MAY W10130483 MAY W10130483 Contact Us For Availability
34
MAY 12782025 MAY 12782025 Contact Us For Availability
35
MAY 67005418 MAY 67005418 Contact Us For Availability
35
Adapter, Center Ladder MAY 67003721 Contact Us For Availability
36
MAY 67004969 MAY 67004969 Contact Us For Availability
37
MAY 67001066 MAY 67001066 Contact Us For Availability
37
MAY 67006550 MAY 67006550 Contact Us For Availability
39
MAY 67006615 MAY 67006615 Contact Us For Availability
41
MAY 876764 MAY 876764 Contact Us For Availability
41
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
41
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
41
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
41
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
41
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
41
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
100
Icemaker Assembly MAY 4317943 Contact Us For Availability
NI
MAY 10244904 MAY 10244904 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
Cleaner, Stnls Steel Magic MAY 20000008 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
Customer Touch-Up Material (Enamel, White (13 MAY 350930 Contact Us For Availability
NI
Customer Touch-Up Material (Enamel, Black (13 MAY 350939 Contact Us For Availability
NI
Customer Touch-Up Material (Primer, White (13 MAY 350942 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
MAY 606755 MAY 606755 Contact Us For Availability
NI
MAY 70061-2 MAY 70061-2 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 72017 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 72032 Contact Us For Availability
NI
MAY 799340 MAY 799340 Contact Us For Availability
NI
Enamel, White (1 Qt. Uncut) MAY 799344 Contact Us For Availability
NI
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
NI
MAY 876029 MAY 876029 Contact Us For Availability
NI
MAY YCH527 MAY YCH527 Contact Us For Availability
× ![]()
