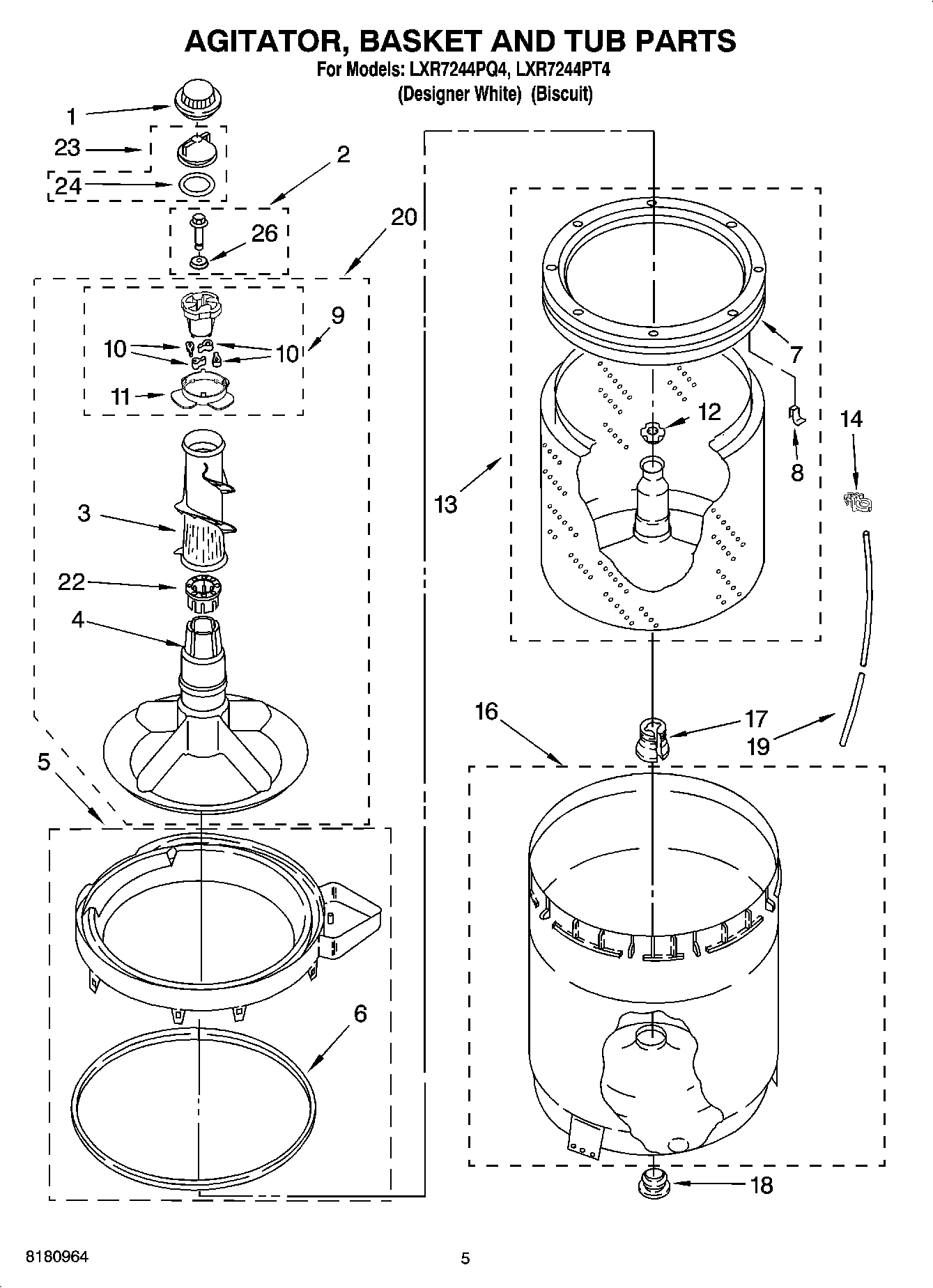

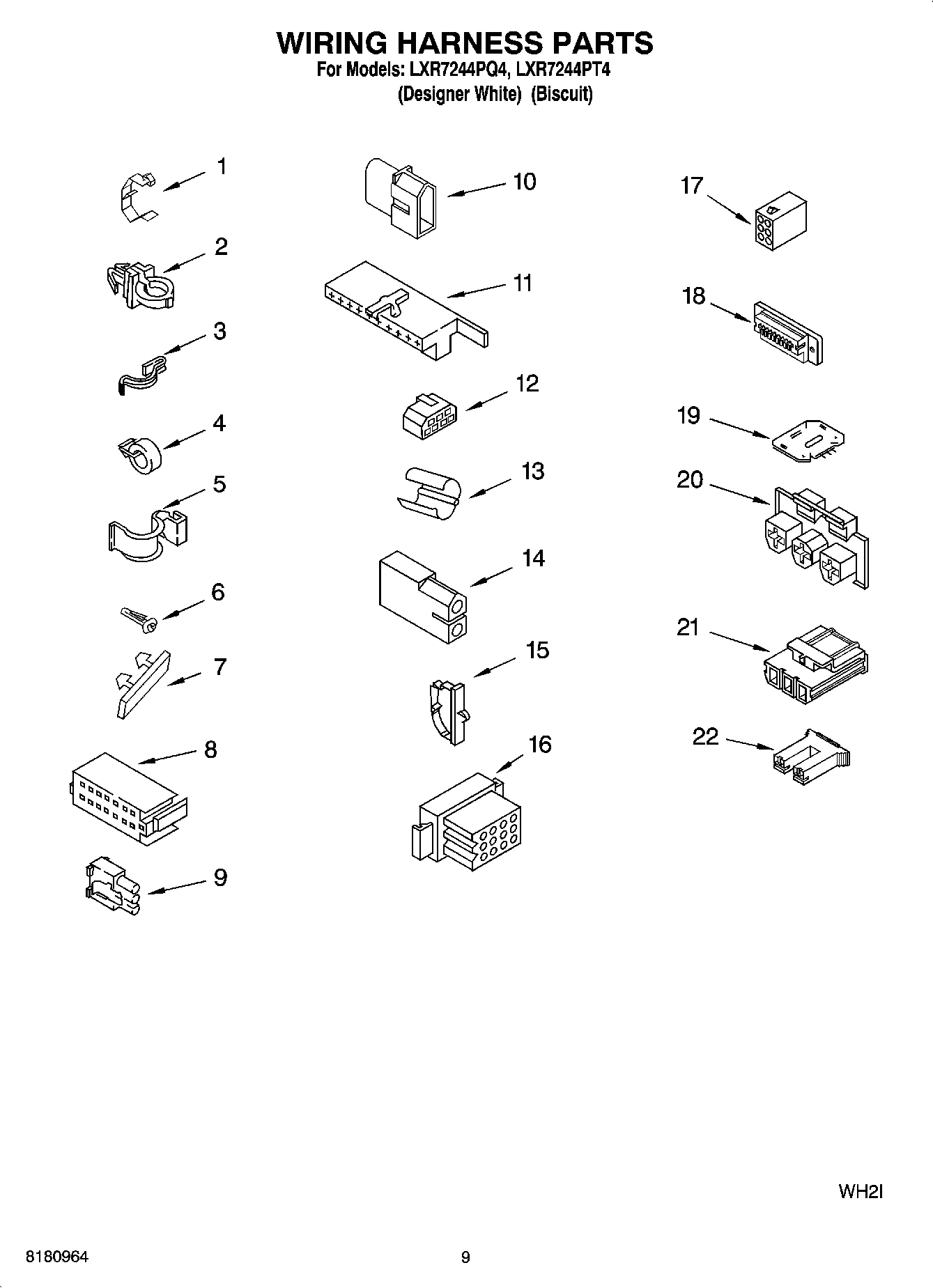

Model Whirlpool LXR7244PQ4 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $8.03

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $28.40

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $11.31

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $47.23

PAIN WPL 799344 Contact Us For Availability

Drain Protector WPL 367031 Contact Us For Availability

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

WPL ARI159141A WPL ARI159141A Contact Us For Availability

WPL ARI159142A WPL ARI159142A Contact Us For Availability

WPL ARI159143A WPL ARI159143A Contact Us For Availability

WPL ARI159144A WPL ARI159144A Contact Us For Availability

1

285442 Whirlpool Coupling Backorder WPL 285442 $30.25

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $2.51

1

WP3355758 Whirlpool Agitator Cap In Stock WPL WP3355758 $8.06

1

Manual, Washer WPL 4313896 Contact Us For Availability

1

Clip, Harness WPL 3349557 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $82.41

2

285321 Whirlpool Sleeve Backorder WPL 285321 $28.09

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $3.11

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $4.52

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $4.70

3

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.52

3

WP3349019 Whirlpool Upper Agitator Backorder WPL WP3349019 $81.67

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $10.17

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $4.52

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.70

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.51

4

WP3350830 Whirlpool Agitator Assembly In Stock WPL WP3350830 $70.46

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

5

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $244.07

5

WP8568314 Whirlpool Strap Backorder WPL WP8568314 $3.70

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

5

Tub Ring & Gasket WPL 3360611 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

WP3359586 Whirlpool Tub Seal In Stock WPL WP3359586 $30.25

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.70

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $4.70

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

Balance Ring WPL 3956205 Contact Us For Availability

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

WP8519815 Whirlpool Washer Balance Ring Clip In Stock WPL WP8519815 $3.33

8

Timer, Block Disconnect (White) WPL 3948614 Contact Us For Availability

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

9

WP8541939 Whirlpool Timer Assembly In Stock WPL WP8541939 $181.12

10

353424 Whirlpool Connector Backorder WPL 353424 $10.76

10

Spring, Agitate WPL 62676 Contact Us For Availability

WP3363661 Whirlpool Bearing Cam Backorder WPL WP3363661 $3.70

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP8318084 Whirlpool Washer Lid Switch Assembl In Stock WPL WP8318084 $30.56

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.52

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

13

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $10.45

13

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $10.28

14

WP8577374 Whirlpool Seal Shaft In Stock WPL WP8577374 $4.70

15

8318088 Whirlpool Hinge Assembly Backorder WPL 8318088 $12.08

15

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $117.58

16

WP54583 Whirlpool Hinge Backorder WPL WP54583 $9.37

16

Tub WPL 63125 Contact Us For Availability

16

Washer, Cam Thrust WPL 62618 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $9.26

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $80.64

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

18

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $3.40

18

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $6.91

19

8541668 Whirlpool Washer Clamp Backorder WPL 8541668 $10.76

19

Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability

20

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $3.46

20

Switch, Main Drive Motor WPL 3952056 Contact Us For Availability

20

Clip, Capacitor WPL 8318046 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $31.51

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $3.33

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.07

Connector (T.P.A.) (3-Circuit) (Pressure Swit WPL 3360056 Contact Us For Availability

22

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

22

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $35.58

23

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $4.70

23

Ring, Retaining WPL 3362552 Contact Us For Availability

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $76.00

24

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $35.35

24

Washer Kit, Thrust WPL 285735 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $39.42

26

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $5.78

26

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $7.96

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $195.01

28

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $45.77

29

8559320 Whirlpool Clip Backorder WPL 8559320 $13.91

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $2.51

30

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $8.75

33

Clip, Harness & Pressure Hose WPL 8055003 Contact Us For Availability

35

Switch, Water Temperature WPL 661614 Contact Us For Availability

36

WP3400818 Whirlpool Screw Backorder WPL WP3400818 $2.51

37

(Left Half) WPL ARI159137A Contact Us For Availability

38

WPW10096921 Whirlpool Hose In Stock WPL WPW10096921 $39.93

38

(Right Half) WPL ARI159138A Contact Us For Availability

39

Panel, Console (White) WPL 3956567 Contact Us For Availability

39

Panel, Console (Biscuit) WPL 3956568 Contact Us For Availability

40

Retainer, Harness WPL 8317975 Contact Us For Availability

44

Knob, Timer (White) WPL 8544943 Contact Us For Availability

44

Knob, Timer (Biscuit) WPL 8544944 Contact Us For Availability

45

WP8544947 Whirlpool Dial Backorder WPL WP8544947 $27.18

45

Dial, Timer (Bisc WPL 8544948 Contact Us For Availability

47

WPL 8544935 WPL 8544935 Contact Us For Availability

47

WPL 8544936 WPL 8544936 Contact Us For Availability

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

51

WPL 8271359 WPL 8271359 Contact Us For Availability

51

WPL 8271362 WPL 8271362 Contact Us For Availability

52

WP8536939 Whirlpool Spring Clip In Stock WPL WP8536939 $4.97

53

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $3.33

54

WPL 3956951 WPL 3956951 Contact Us For Availability

54

WPL 3957361 WPL 3957361 Contact Us For Availability

54

WPL ARI159139A WPL ARI159139A Contact Us For Availability
