Model Whirlpool LXR6432JQ3 AUTOMATIC WASHER – Common Parts &amp; Diagrams

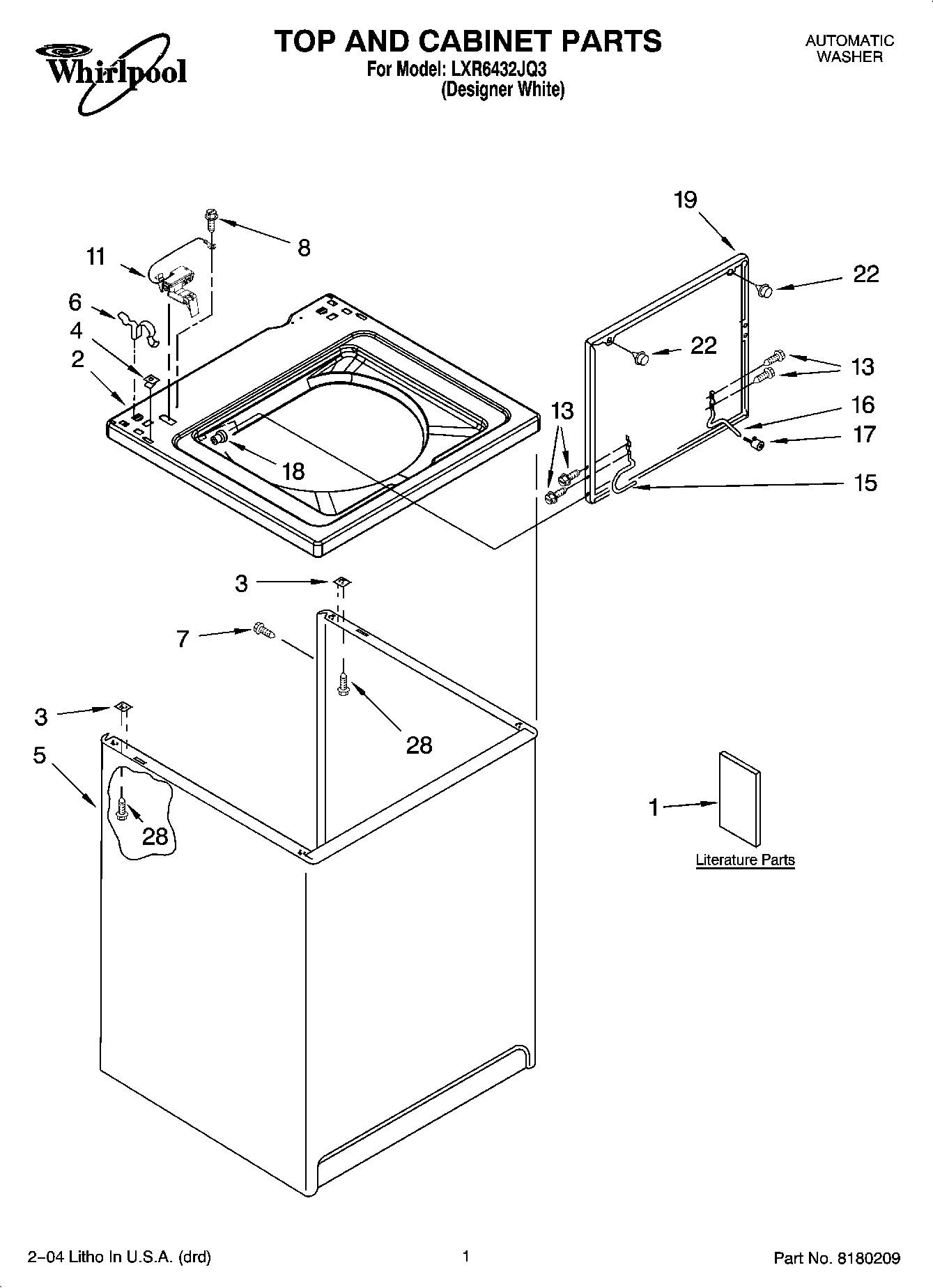

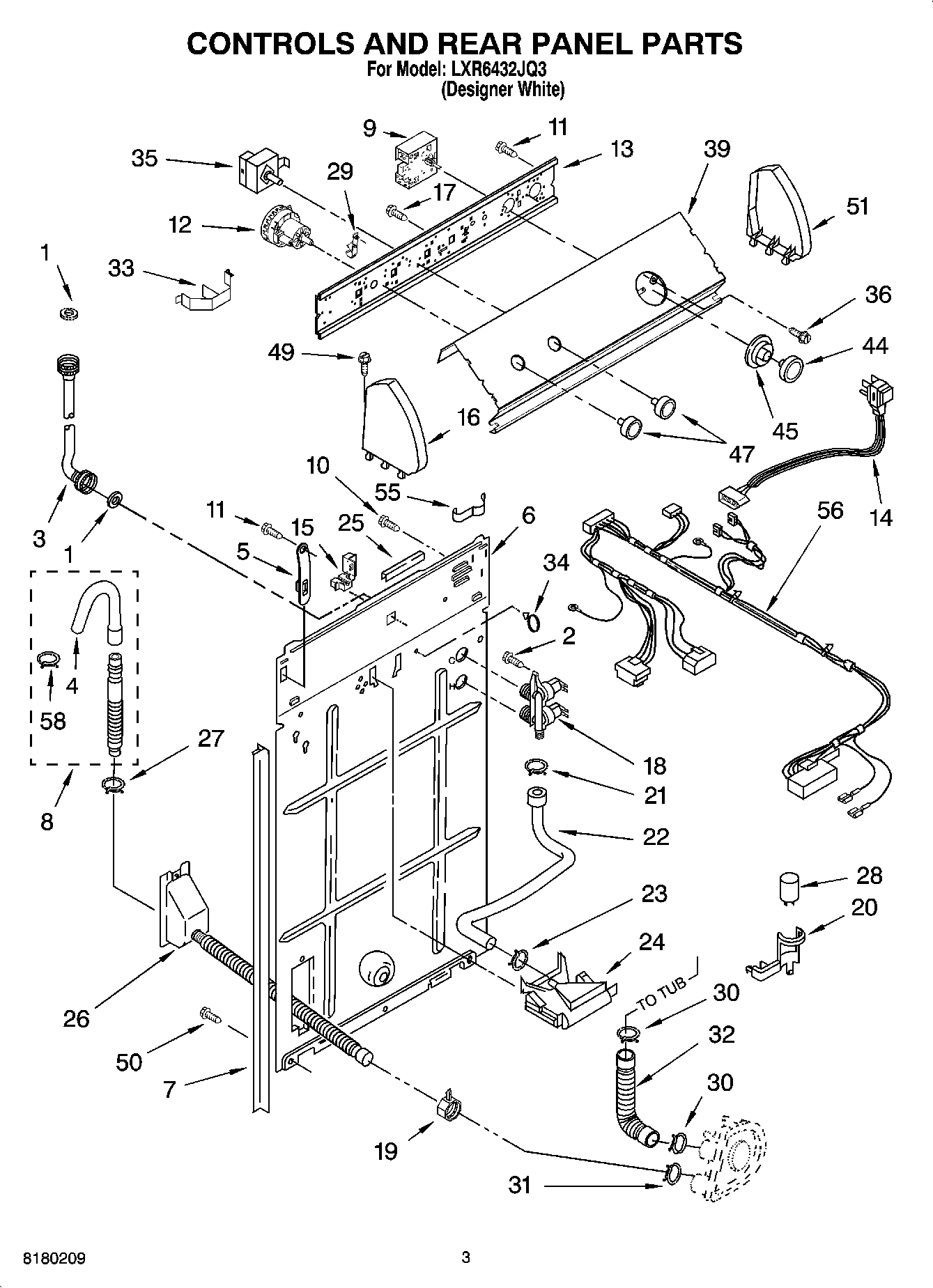

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $2.51

1

WP3352483 Whirlpool Cap Backorder WPL WP3352483 $34.35

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

Following May Be Purchased DO-IT-YOURSELF REP WPL ARI159084A Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT3955869 Contact Us For Availability

1

Literature Parts (Feature Sheet) WPL LIT3955901 Contact Us For Availability

1

Literature Parts (Installation Instructions) WPL LIT3956025 Contact Us For Availability

1

Literature Parts (Energy Guide) WPL LIT3956355 Contact Us For Availability

1

Literature Parts (Manual, Washer) WPL LIT4313896 Contact Us For Availability

1

Literature Parts (Wiring Diagram) WPL LIT8542052 Contact Us For Availability

1

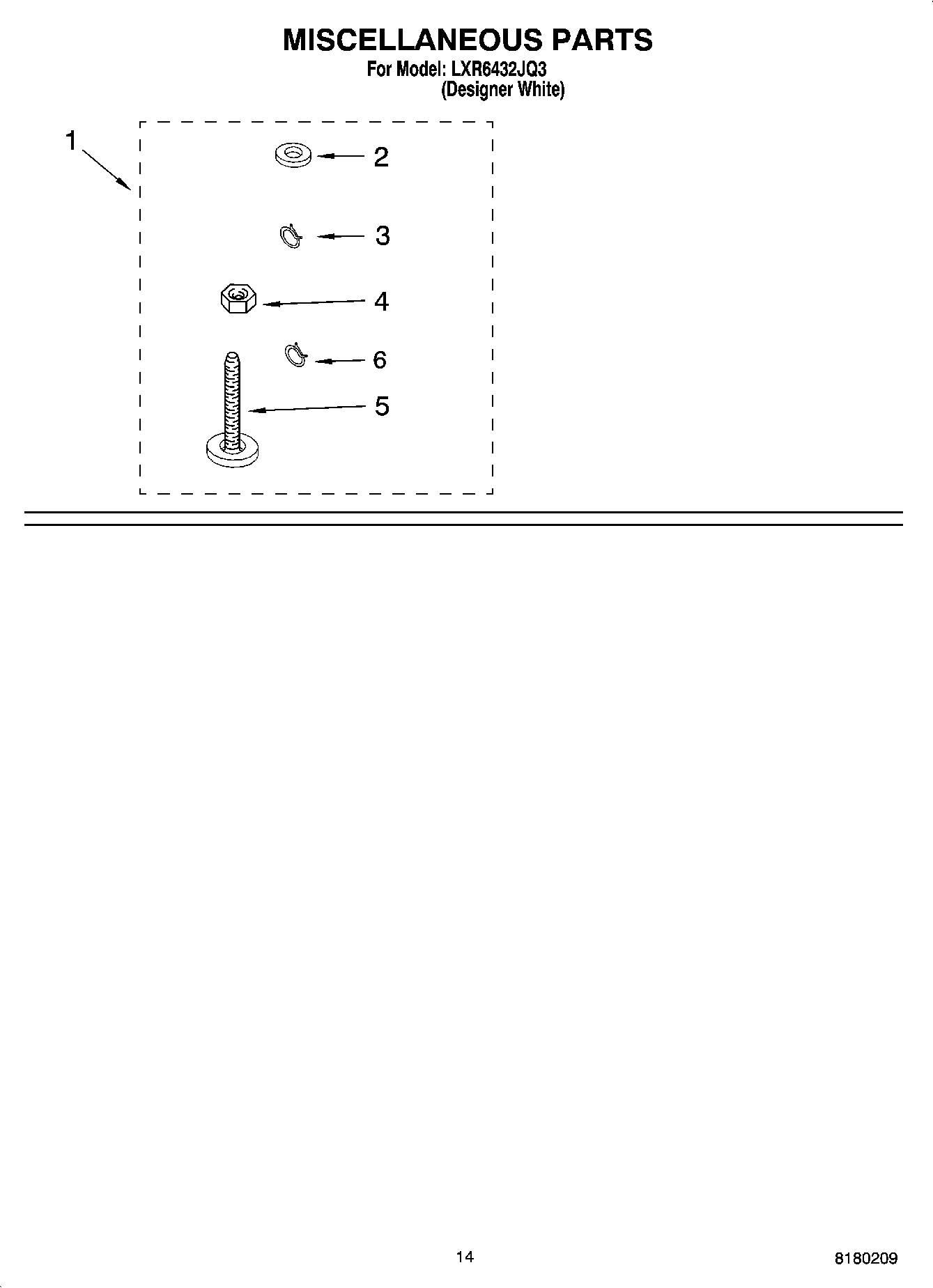

Miscellaneous Parts Bag WPL 3976263 Contact Us For Availability

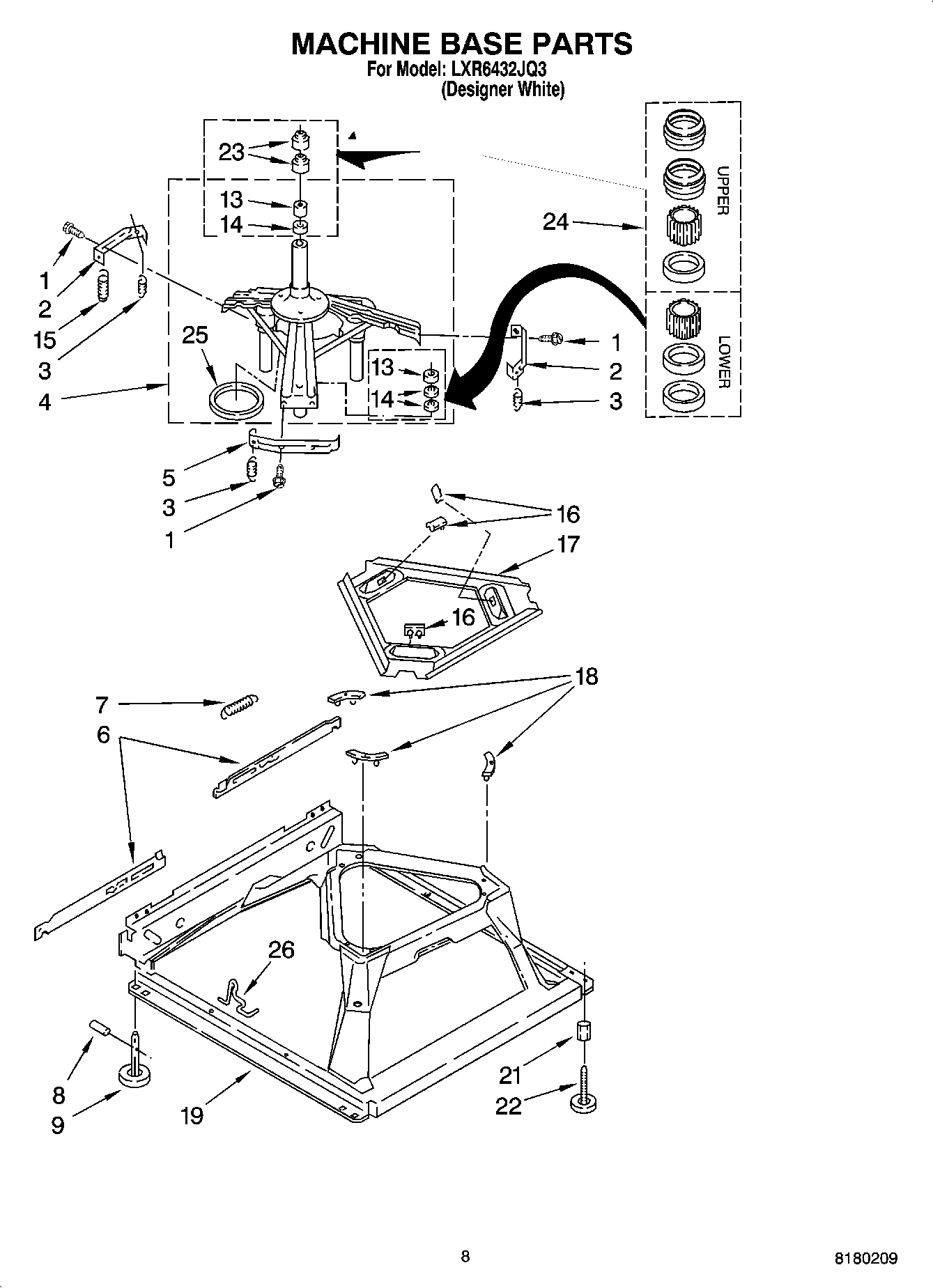

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $78.48

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.70

2

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

2

Clip, Harness WPL 388498 Contact Us For Availability

2

TOP WPL 8318068 Contact Us For Availability

3

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

3

WP62750 Whirlpool Spacer Backorder WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.70

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.70

4

8559320 Whirlpool Clip Backorder WPL 8559320 $13.91

4

WP3357027 Whirlpool Nozzle Assembly Backorder WPL WP3357027 $28.80

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

4

Support & Brake, Tub WPL 3362087 Contact Us For Availability

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $255.69

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

5

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

5

Tub Ring & Gasket WPL 3360611 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

6

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $31.00

6

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

6

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

6

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $9.99

6

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

6

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

6

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $44.98

6

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.70

6

WP3359586 Whirlpool Tub Seal Backorder WPL WP3359586 $28.80

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.70

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

6

Clip, Harness WPL 3390496 Contact Us For Availability

6

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

6

Drain Protector WPL 367031 Contact Us For Availability

6

OIL WPL ARI159086A Contact Us For Availability

6

LUBRICANT WPL ARI159087A Contact Us For Availability

6

SEALER WPL ARI159088A Contact Us For Availability

6

ACCESSORY PARTS WPL ARI159089A Contact Us For Availability

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $3.70

7

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

7

WP389379 Whirlpool Retainer Backorder WPL WP389379 $3.70

7

WP3956205 Whirlpool Balance Ring Backorder WPL WP3956205 $71.69

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

WP8519815 Whirlpool Washer Balance Ring Clip In Stock WPL WP8519815 $2.51

8

Timer, Block Disconnect (White) WPL 3948614 Contact Us For Availability

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $10.82

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

W10876590 Whirlpool Connector Backorder WPL W10876590 $4.94

9

WP8542050 Whirlpool Timer In Stock WPL WP8542050 $171.61

10

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

11

353424 Whirlpool Connector Backorder WPL 353424 $10.76

11

WP8318084 Whirlpool Washer Lid Switch Assembl In Stock WPL WP8318084 $16.93

11

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $9.63

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.51

Block, Disconnect (Use Term. 352088) WPL 3347243 Contact Us For Availability

Basket & Balance Ring WPL 3956206 Contact Us For Availability

14

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

14

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

14

Protector WPL 63523 Contact Us For Availability

8318088 Whirlpool Hinge Assembly Backorder WPL 8318088 $12.08

WP389387 Whirlpool Agitator Shaft In Stock WPL WP389387 $103.30

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.29

Connector (2-Way) (Use Term. 94614) WPL 717252 Contact Us For Availability

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $10.60

WP54583 Whirlpool Hinge Backorder WPL WP54583 $9.37

Tub WPL 63125 Contact Us For Availability

Clip, Harness WPL 3352944 Contact Us For Availability

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $76.80

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Block, Disconnect (12-Way) (Timer) (Use Term. WPL 3390423 Contact Us For Availability

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $5.82

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.70

Receptacle, (6-Way) (Use Term. 94613) WPL 3347730 Contact Us For Availability

Clamp, Hose WPL 3976395 No Longer Available

WP353244 Whirlpool Hose In Stock WPL WP353244 $30.63

WPW10193857 Whirlpool Lid Assembly Backorder WPL WPW10193857 $188.00

Base Assembly (Includes Illus, 6, 7, 8, 9, 18 WPL 3946512 Contact Us For Availability

Connector, Etc WPL 3349494 Contact Us For Availability

20

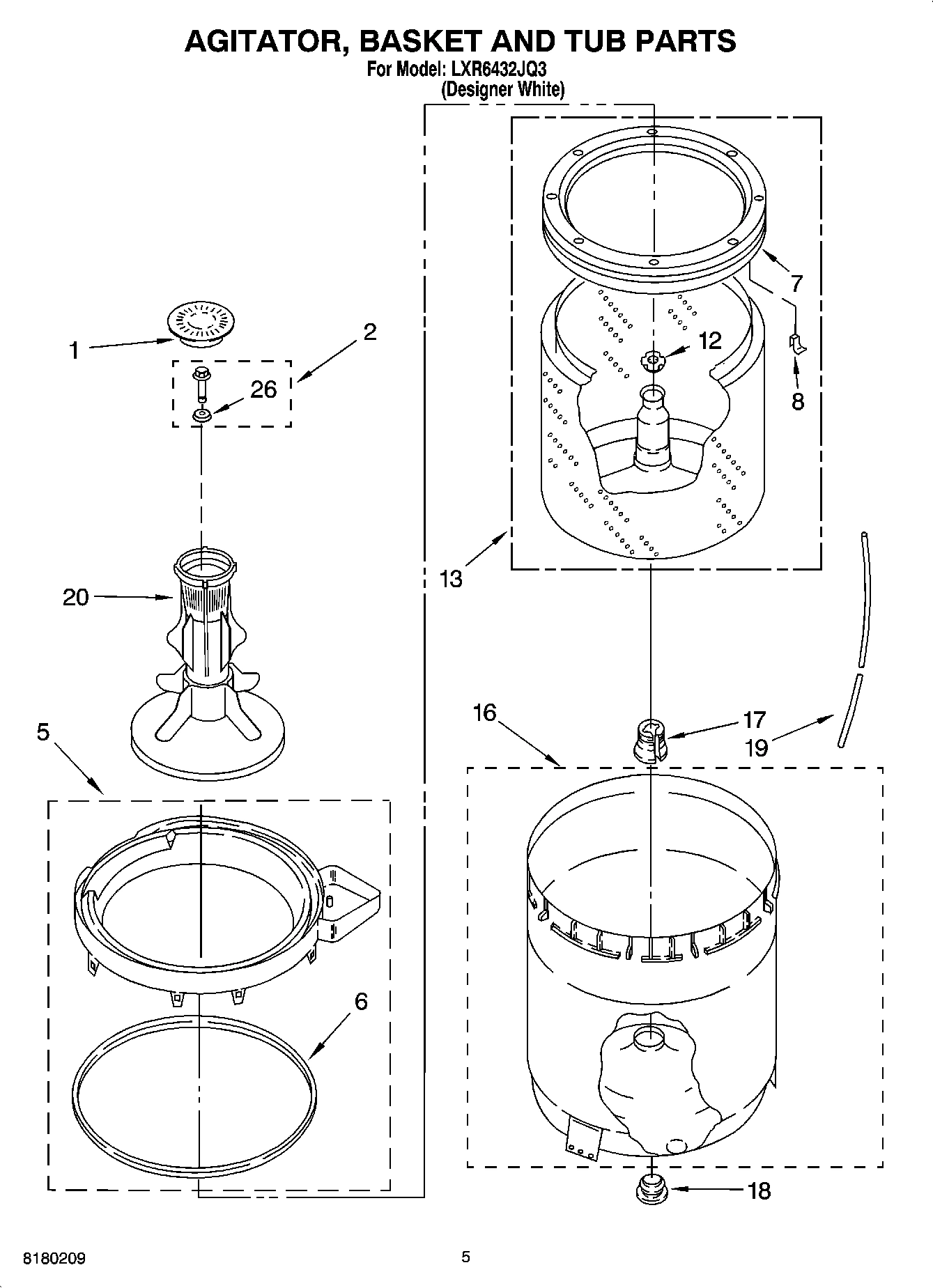

WPW10131112 Whirlpool Agitator In Stock WPL WPW10131112 $71.30

20

Switch, Main Drive Motor WPL 3952056 Contact Us For Availability

20

E.T.C. Control WPL 3407125 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $29.23

WP2172937 Whirlpool Connector Backorder WPL WP2172937 $8.66

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $2.51

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.70

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3360056 Whirlpool Connector Backorder WPL WP3360056 $8.69

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $20.87

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.51

23

3354925 Whirlpool Connector Backorder WPL 3354925 $10.76

23

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.70

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $71.60

24

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $28.69

24

Block, Connector (Hot Valve) WPL 3354926 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $29.41

26

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $4.72

26

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $2.21

28

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51
