Model Speed Queen LTGE5ASP125MW01 Stacked Washer and Dryer – Common Parts & Diagrams
Control Cabinet
Control Cabinet Line Filter (Drawing 1 of 2)
Control Cabinet Line Filter (Drawing 2 of 2)

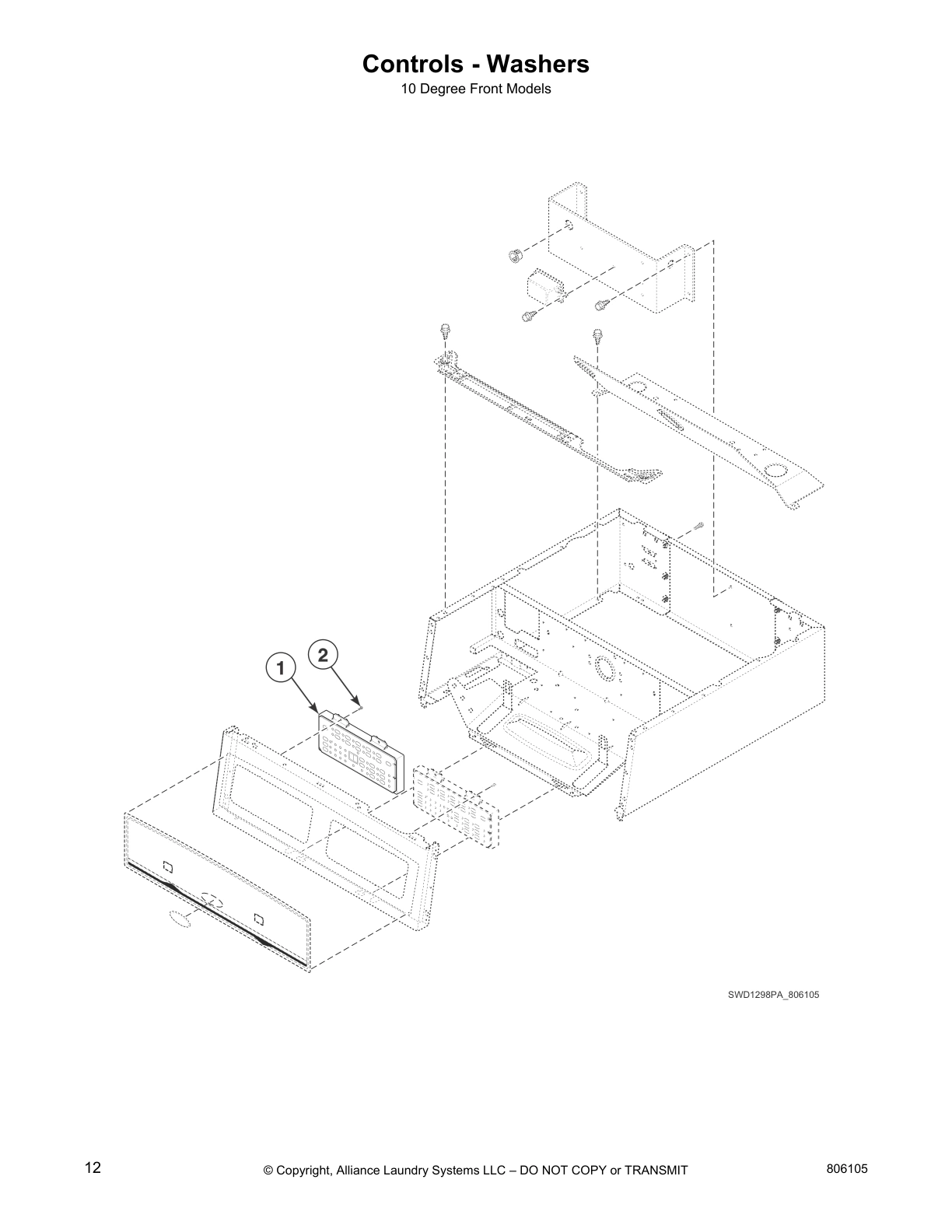

Controls - Washers

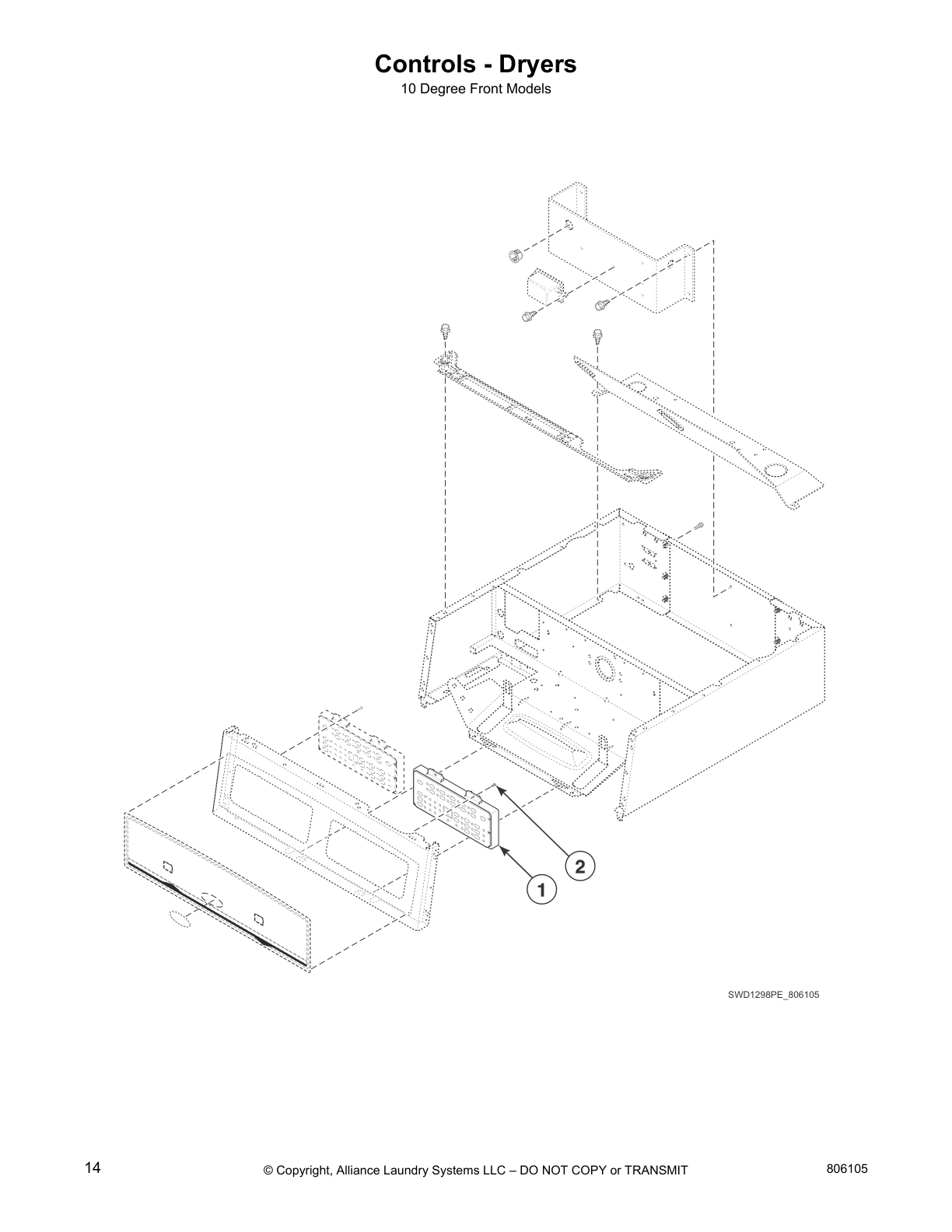

Controls - Dryers

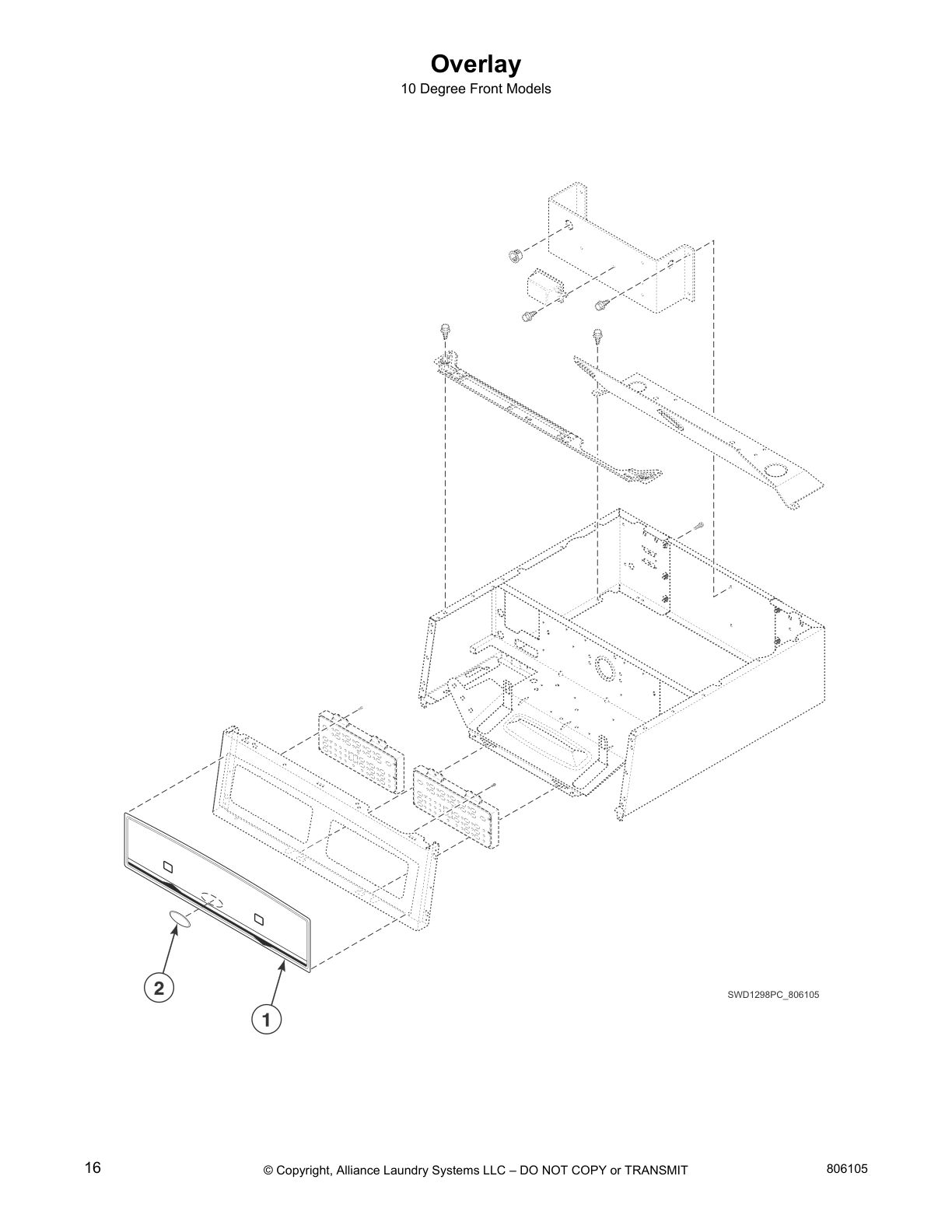

Overlay

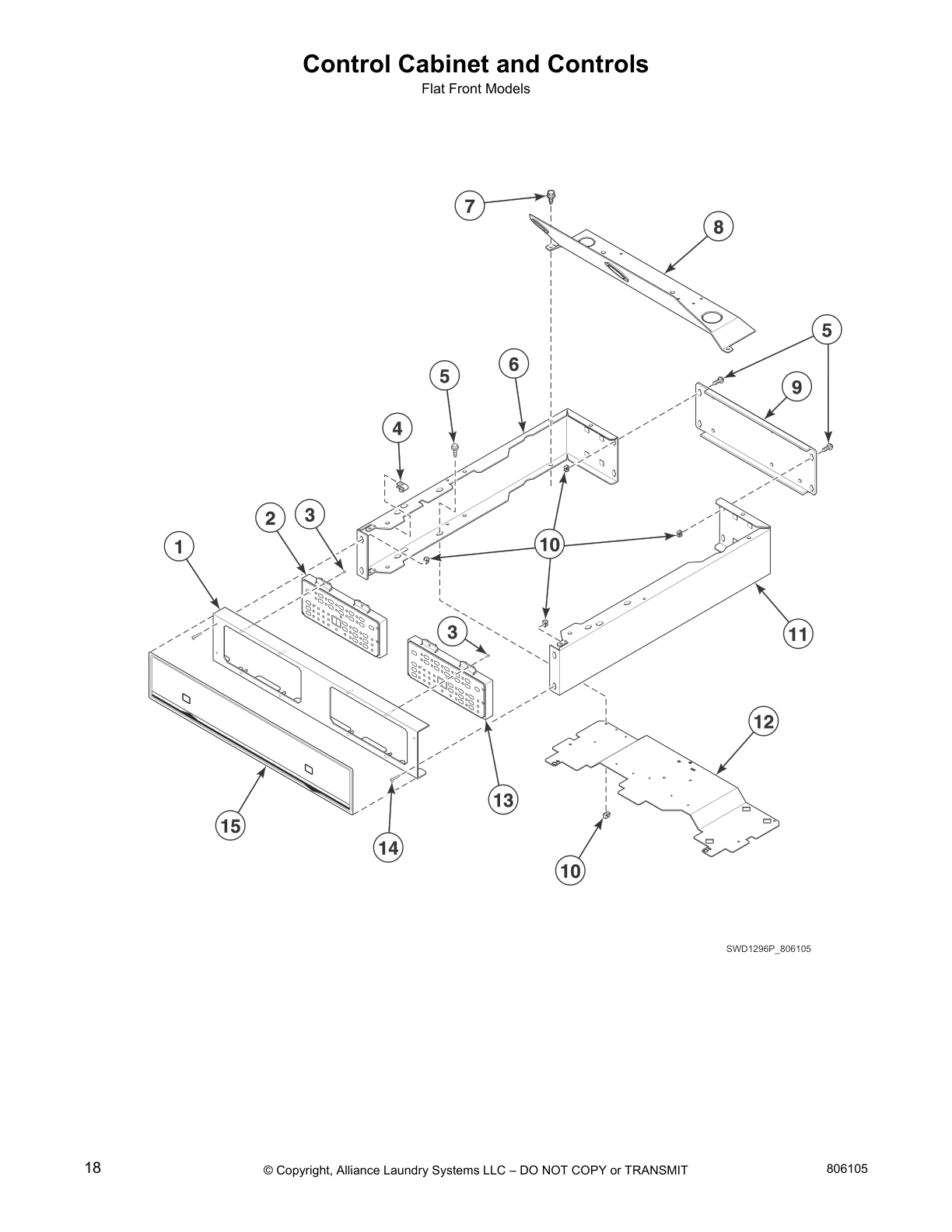

Control Cabinet and Controls
Electrical Access Panel, Filters and Terminal Block

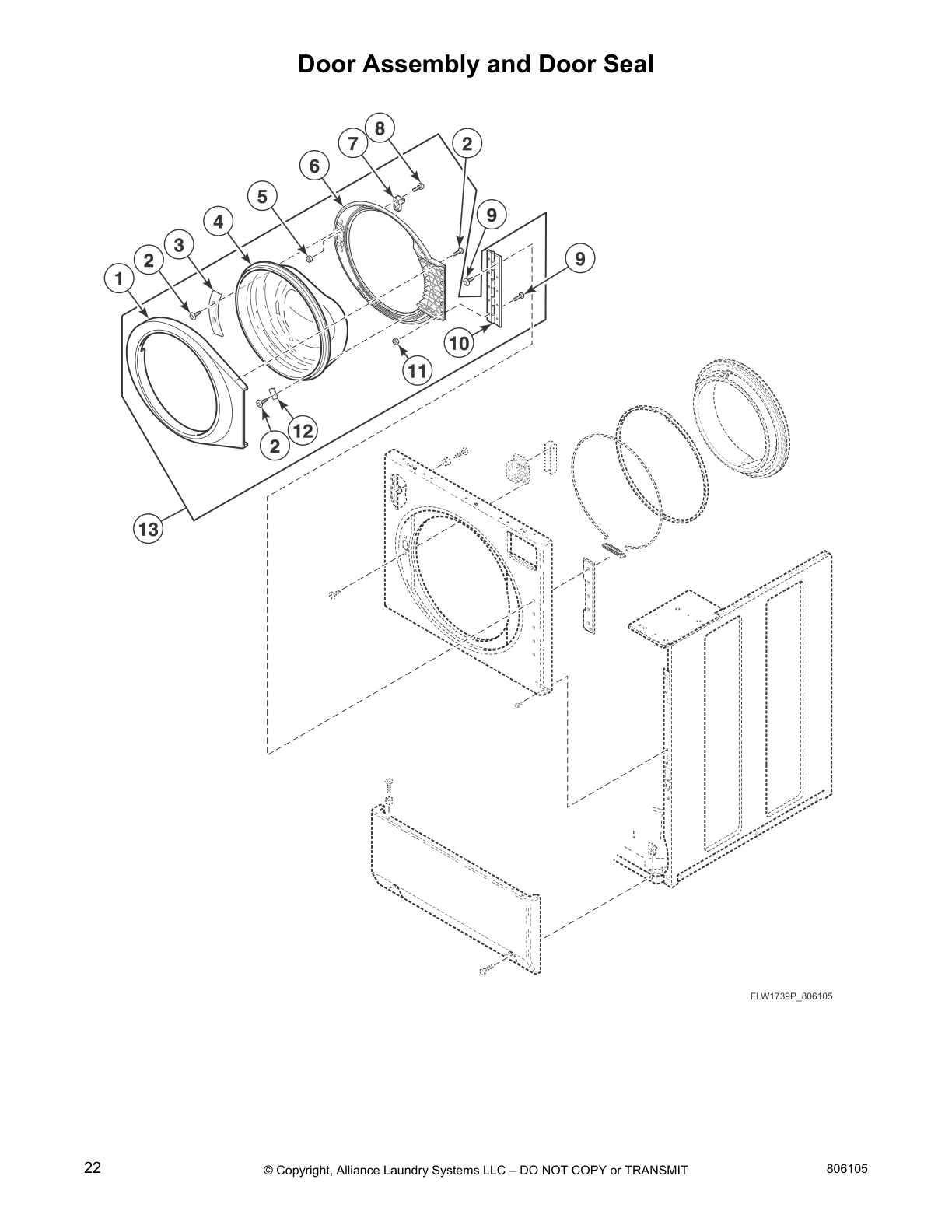

Door Assembly and Door Seal

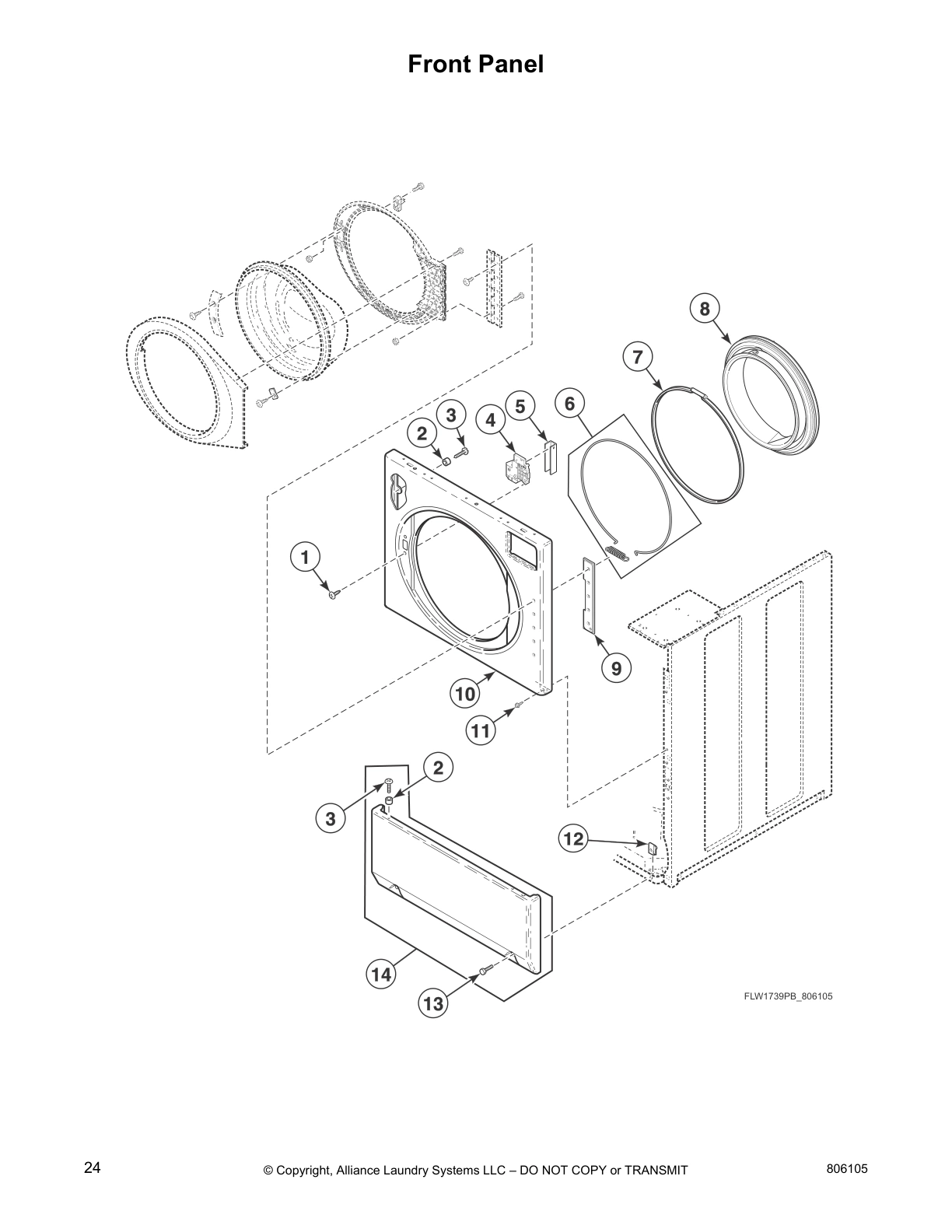

Front Panel
Front Panel Assembly
Dispenser Assembly
Mixing Valve

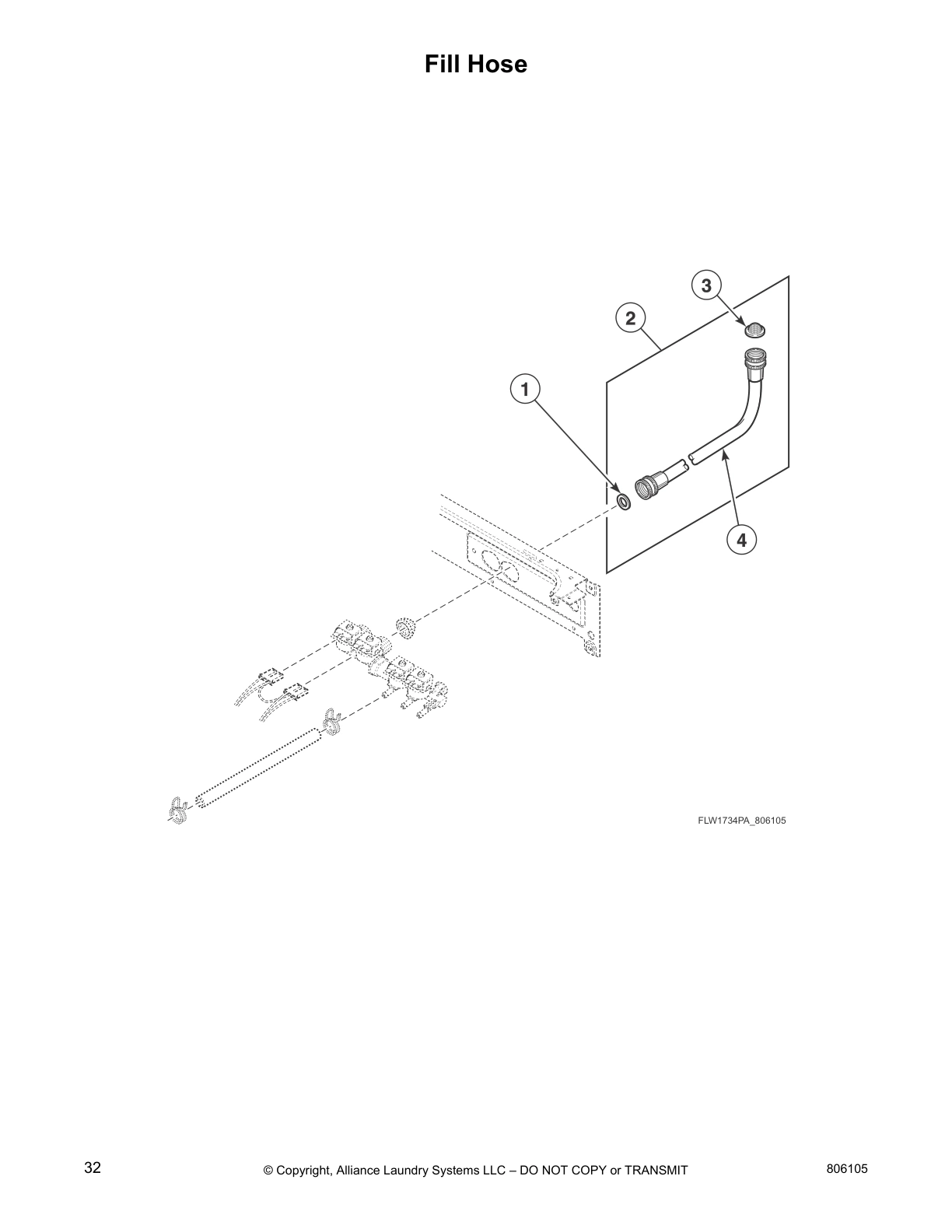

Fill Hose

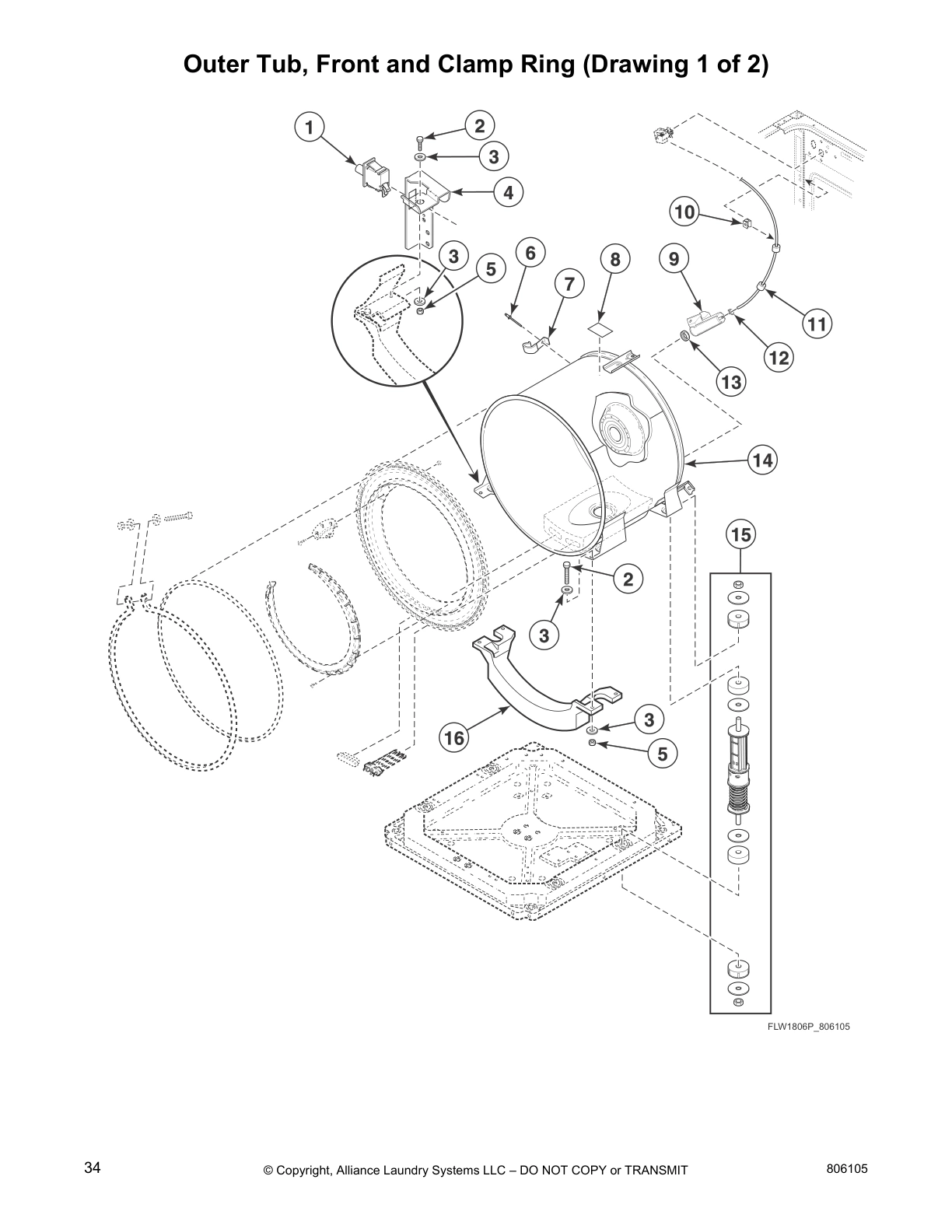

Outer Tub, Front and Clamp Ring (Drawing 1 of 2)

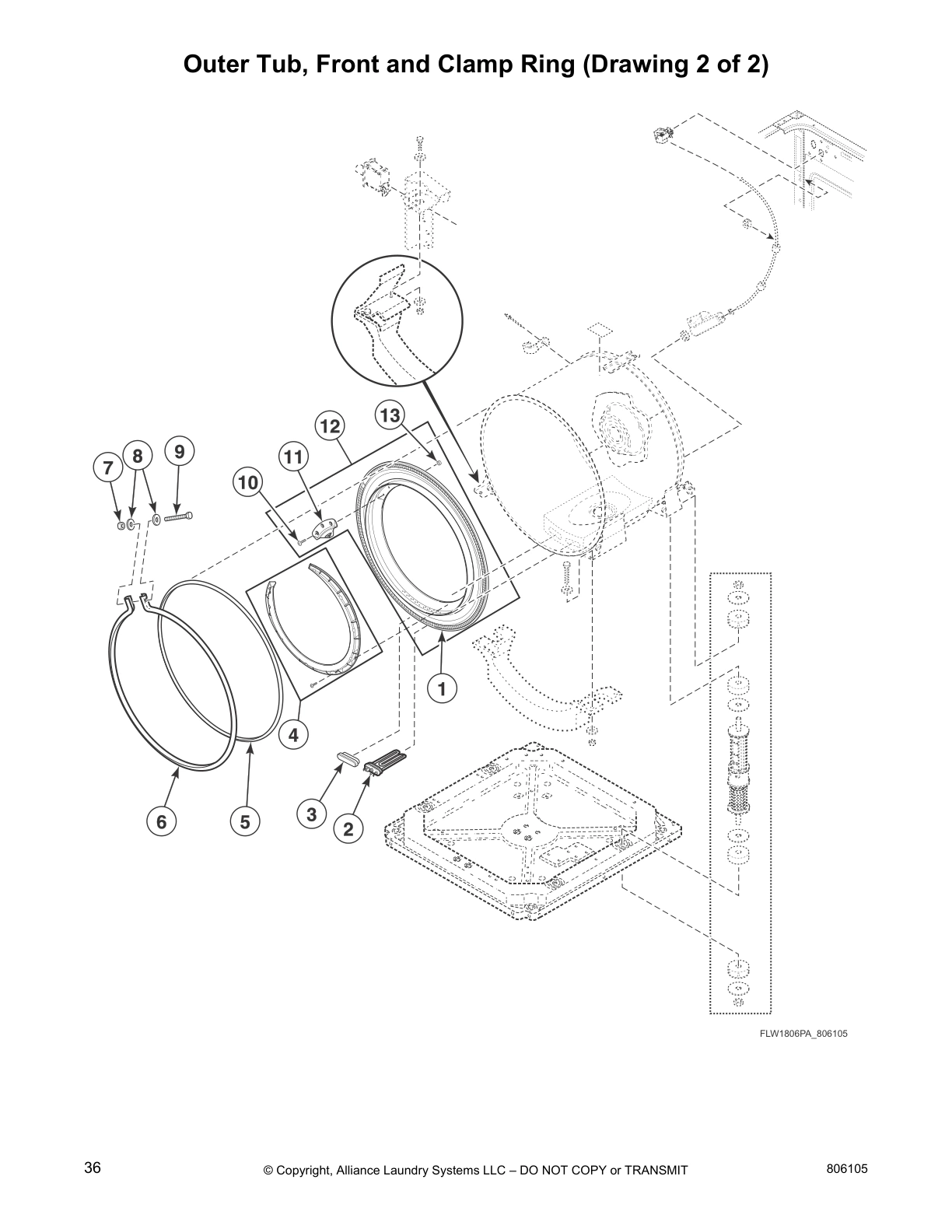

Outer Tub, Front and Clamp Ring (Drawing 2 of 2)

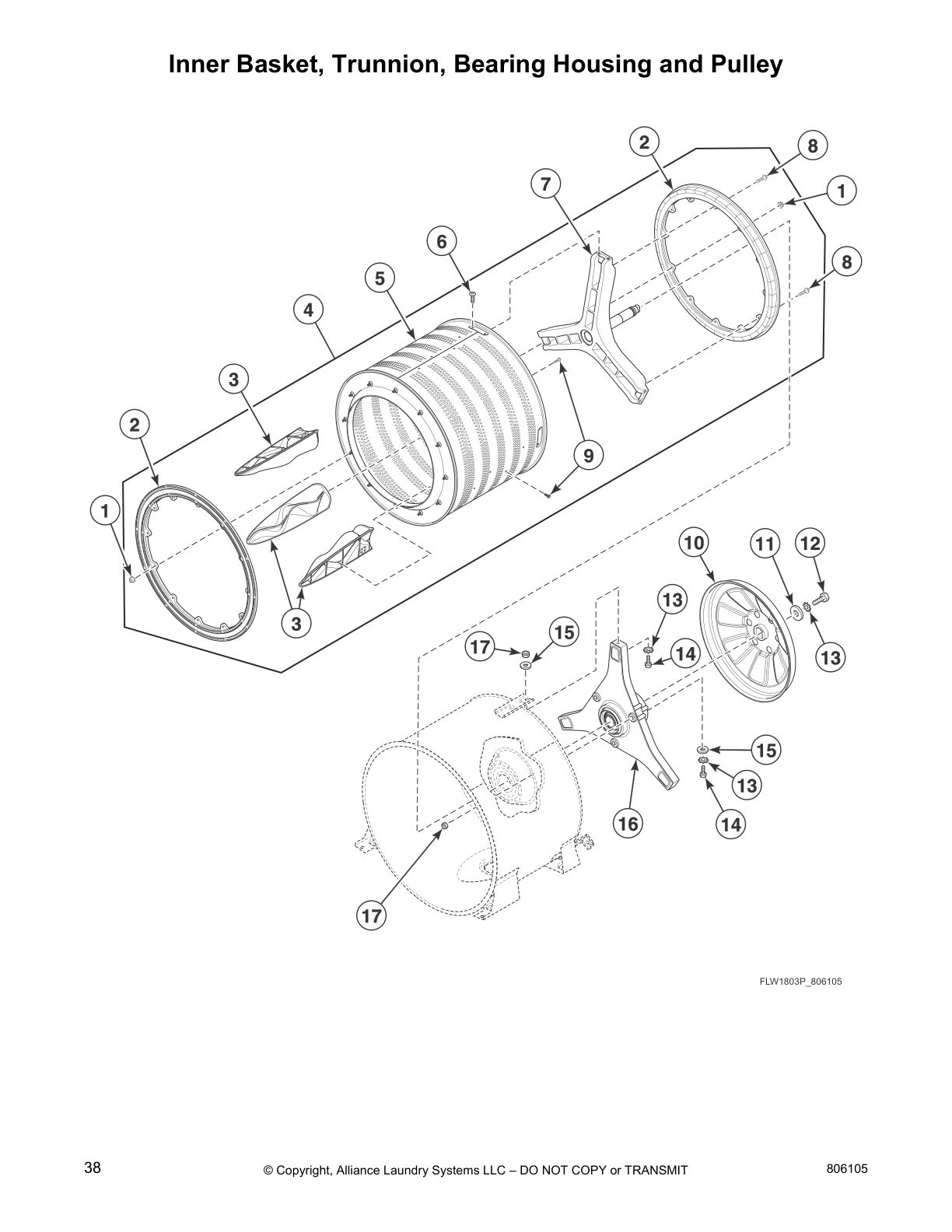

Inner Basket, Trunnion, Bearing Housing and Pulley

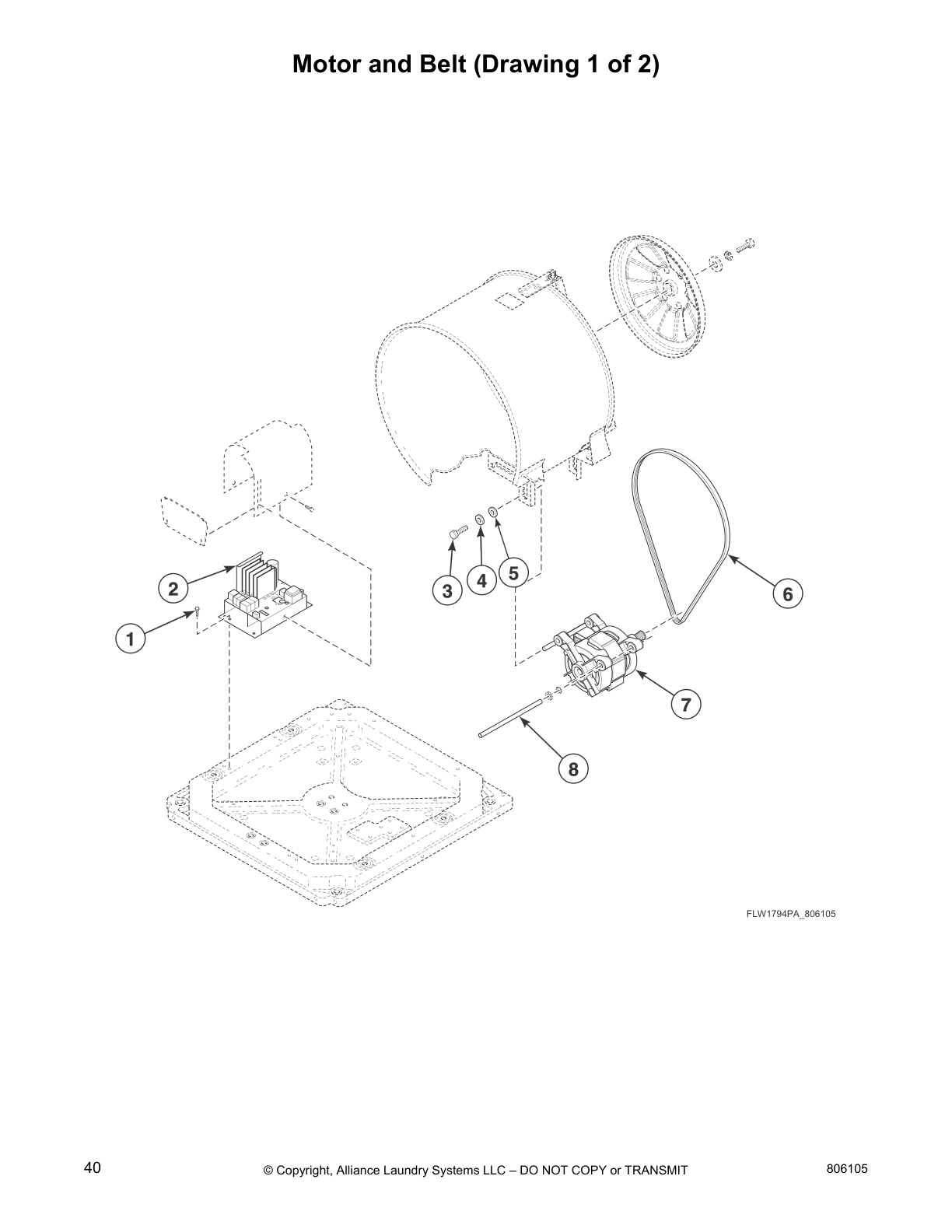

Motor and Belt (Drawing 1 of 2)
Motor and Belt (Drawing 2 of 2)

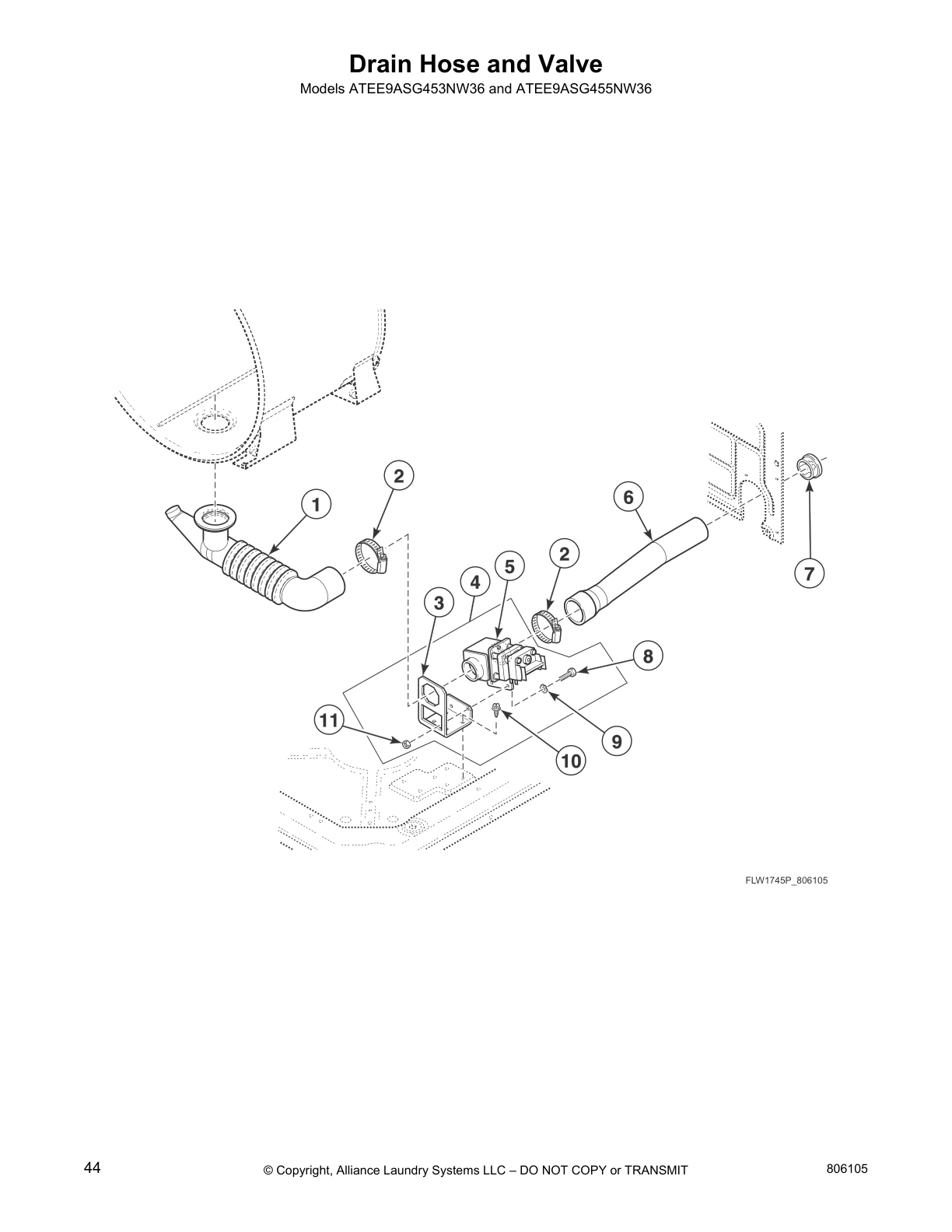

Drain Hose and Valve

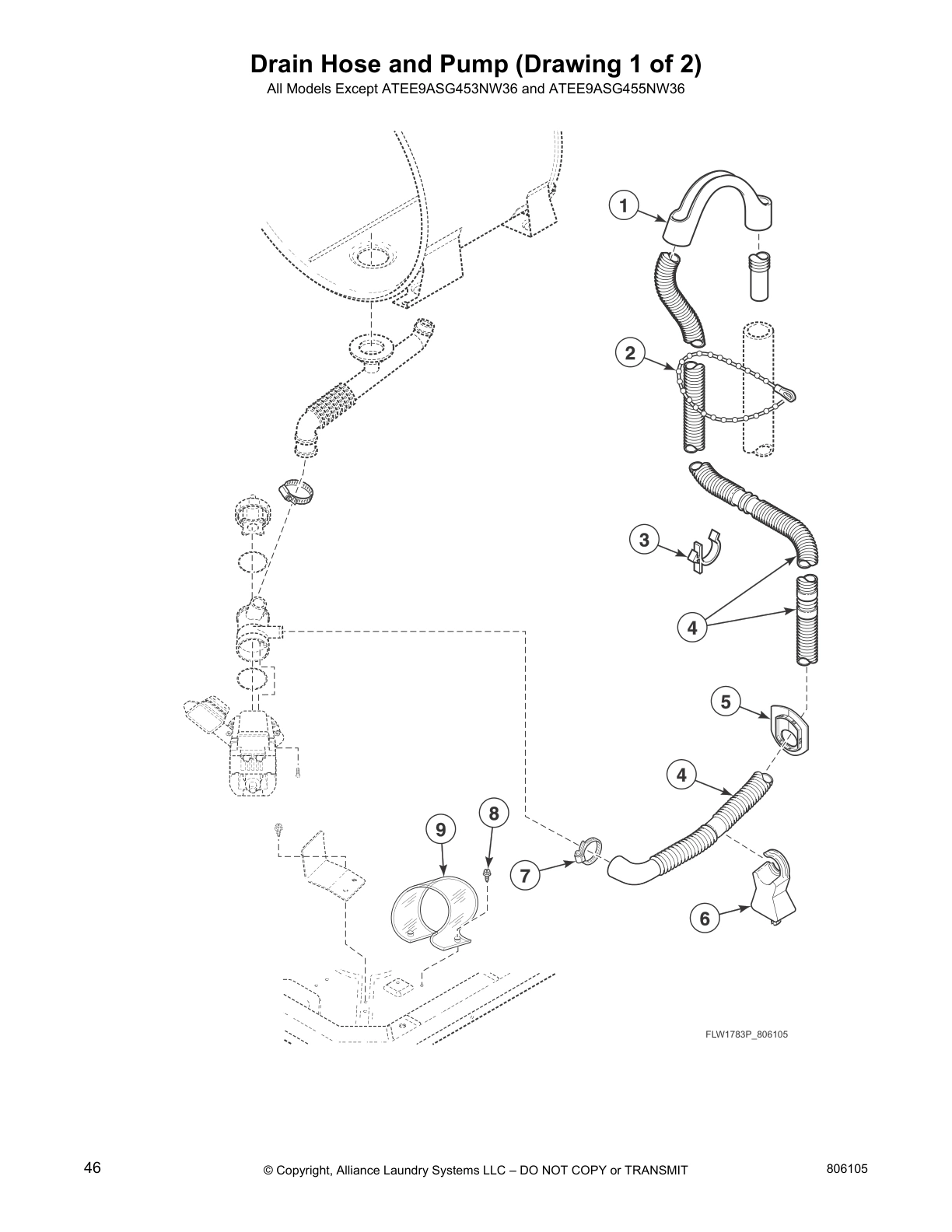

Drain Hose and Pump (Drawing 1 of 2)

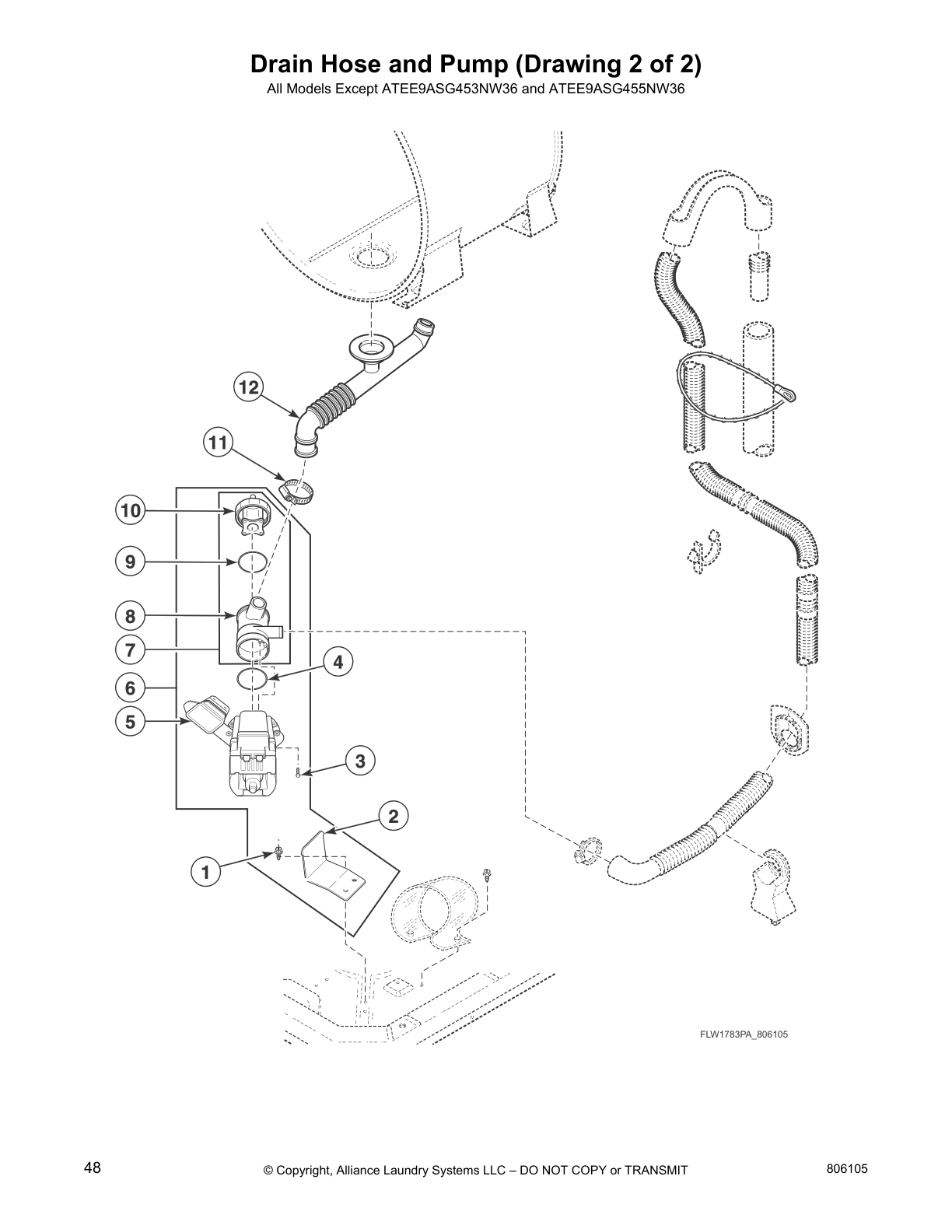

Drain Hose and Pump (Drawing 2 of 2)

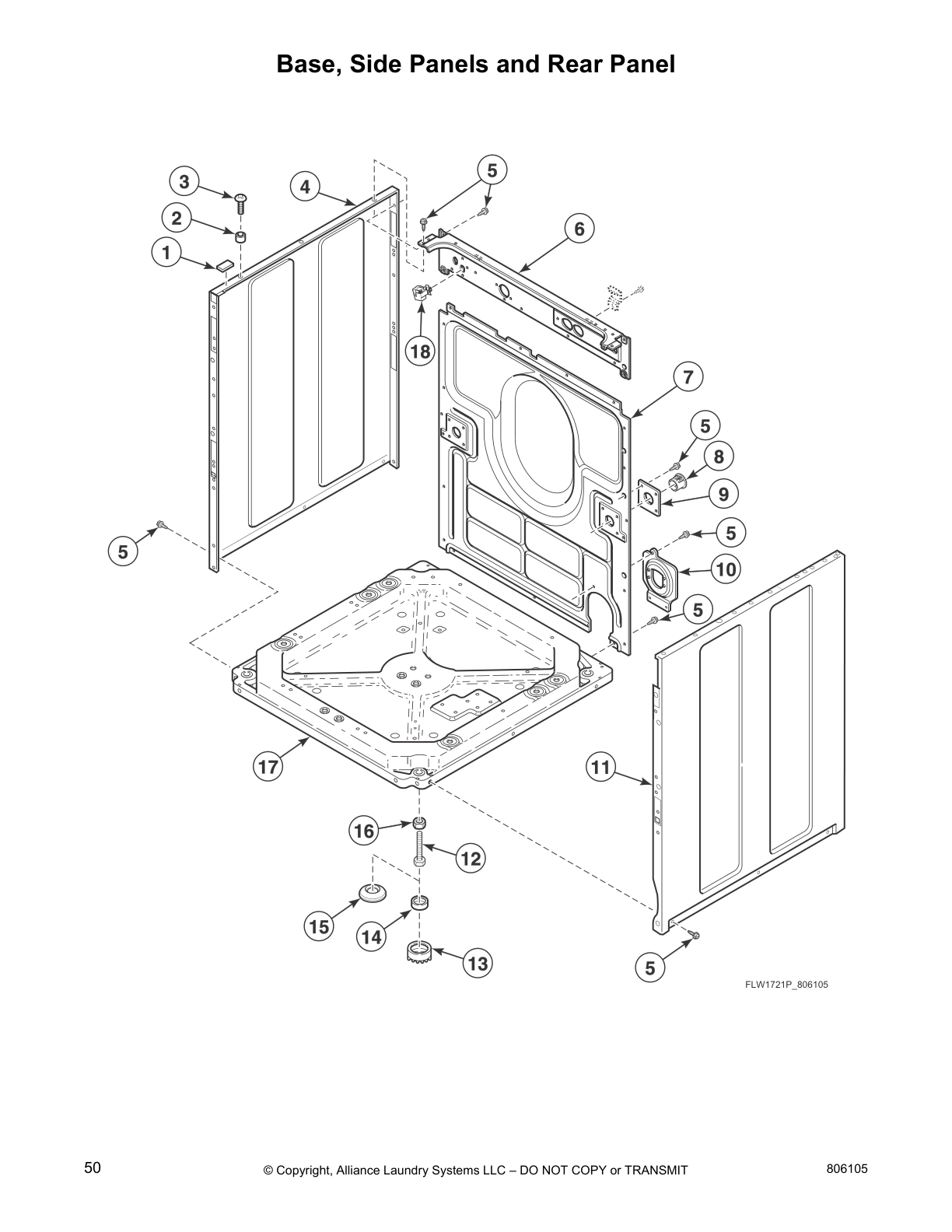

Base, Side Panels and Rear Panel

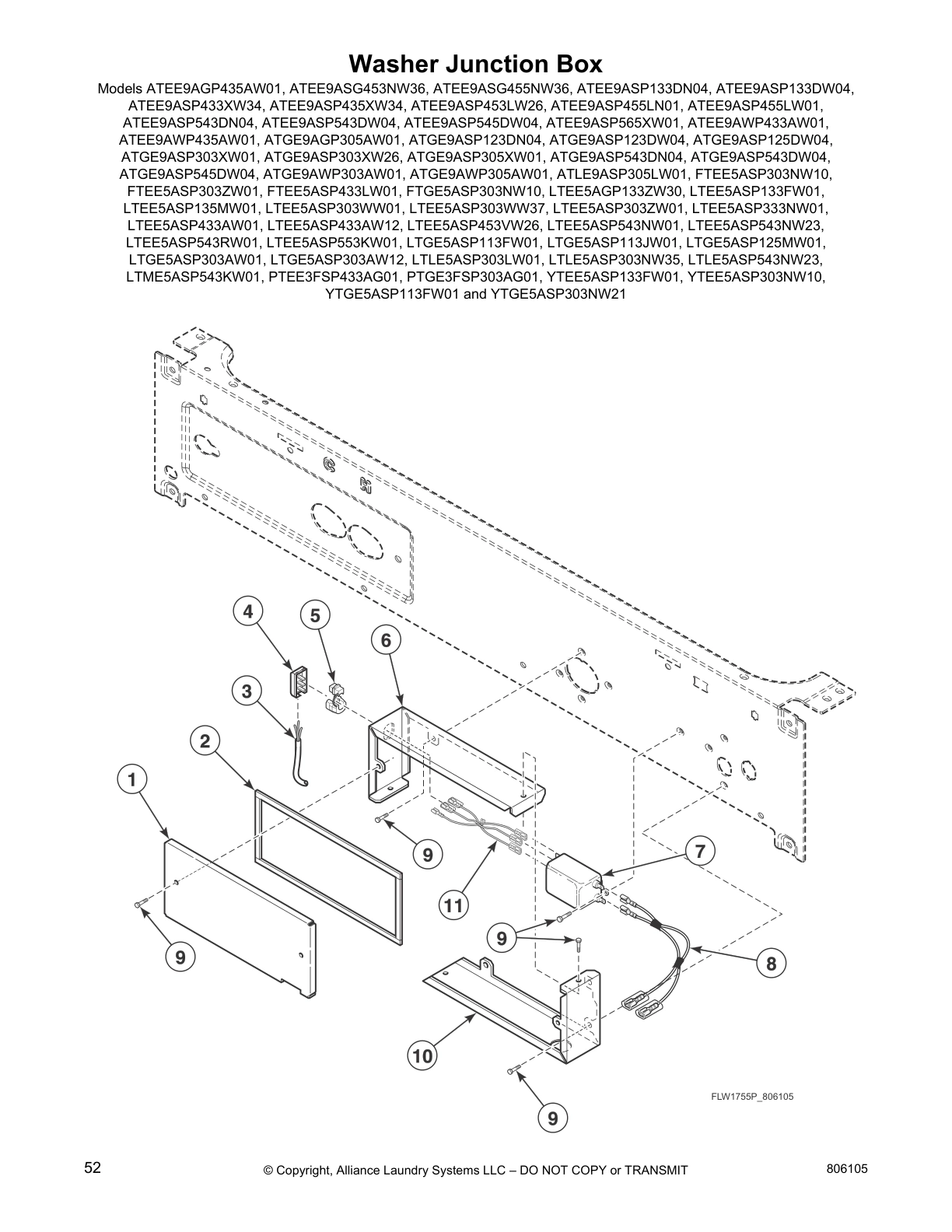

Washer Junction Box
Special Tools
Washer Lead-In Cord, Wire Ties and Harness Clips

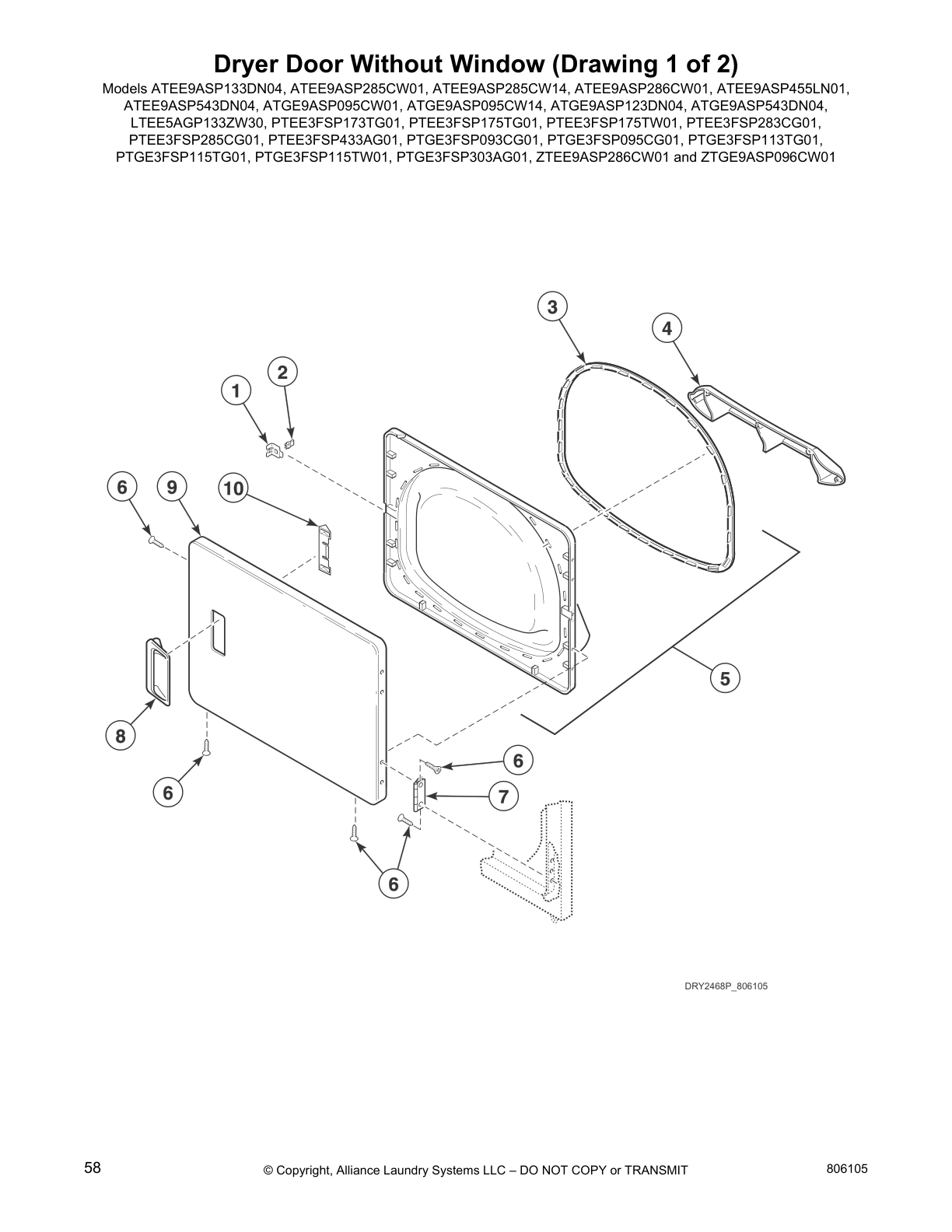

Dryer Door Without Window (Drawing 1 of 2)
Dryer Door Without Window (Drawing 2 of 2)

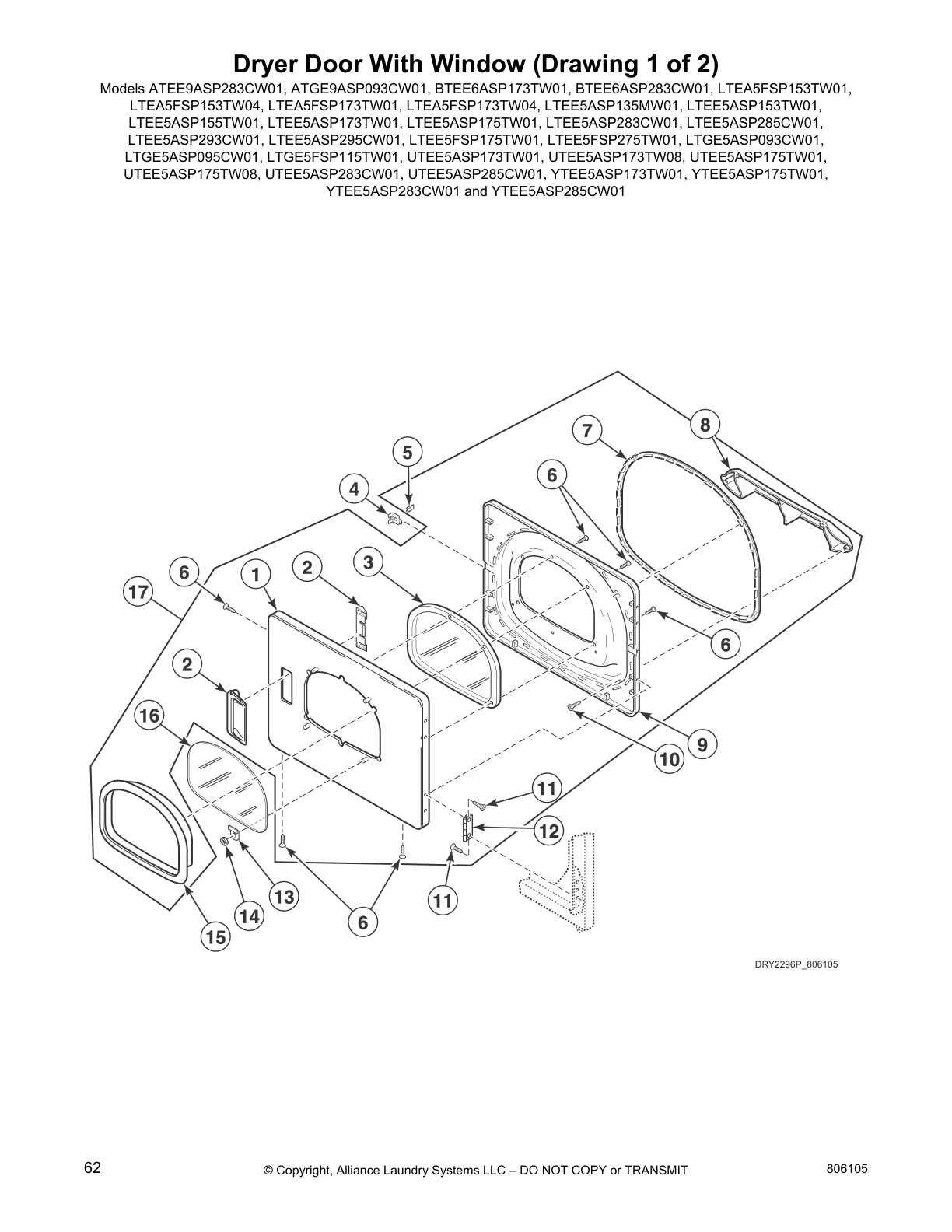

Dryer Door With Window (Drawing 1 of 2)
Dryer Door With Window (Drawing 2 of 2)
Dryer Door With Window - Through Serial Nos. Beginning 1707

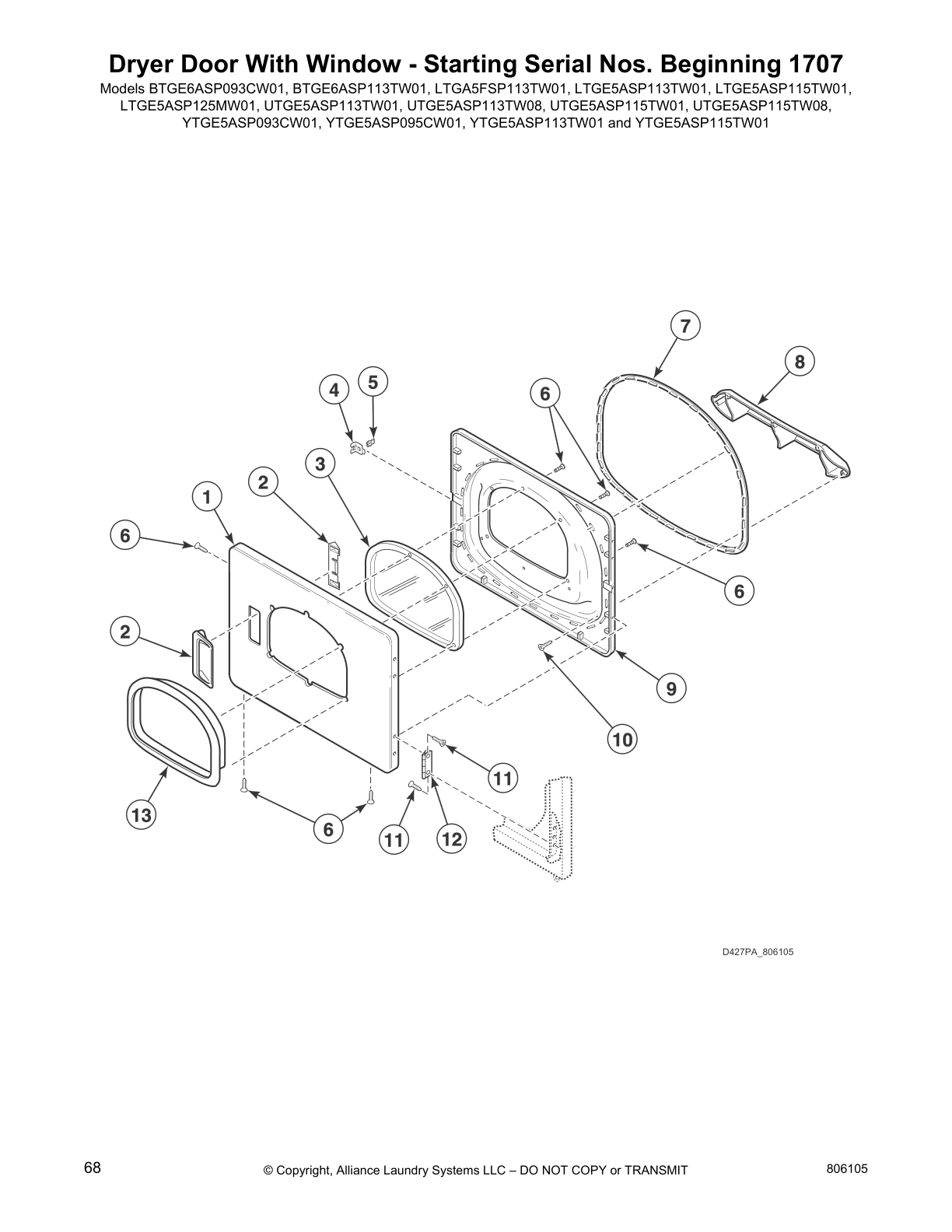

Dryer Door With Window - Starting Serial Nos. Beginning 1707

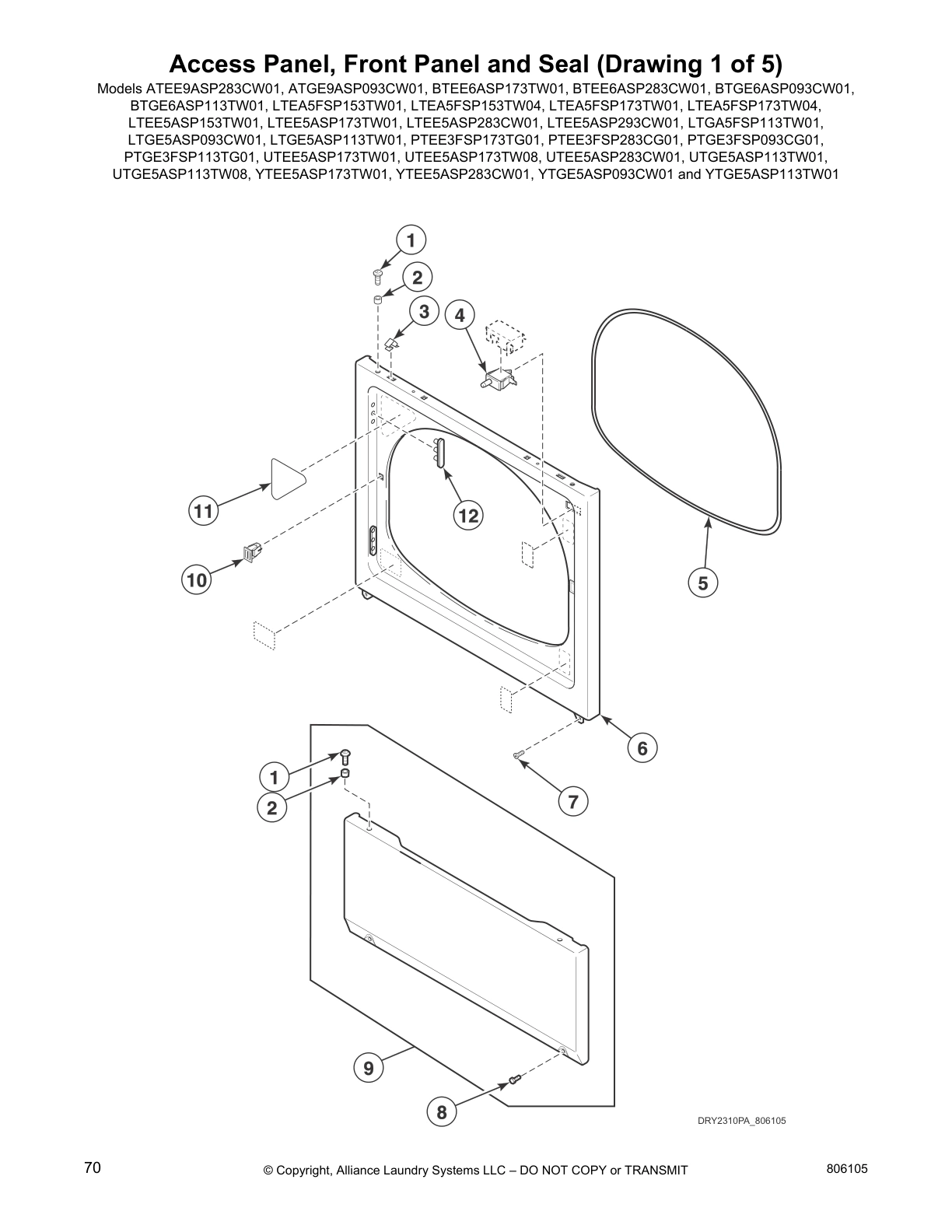

Access Panel, Front Panel and Seal (Drawing 1 of 5)

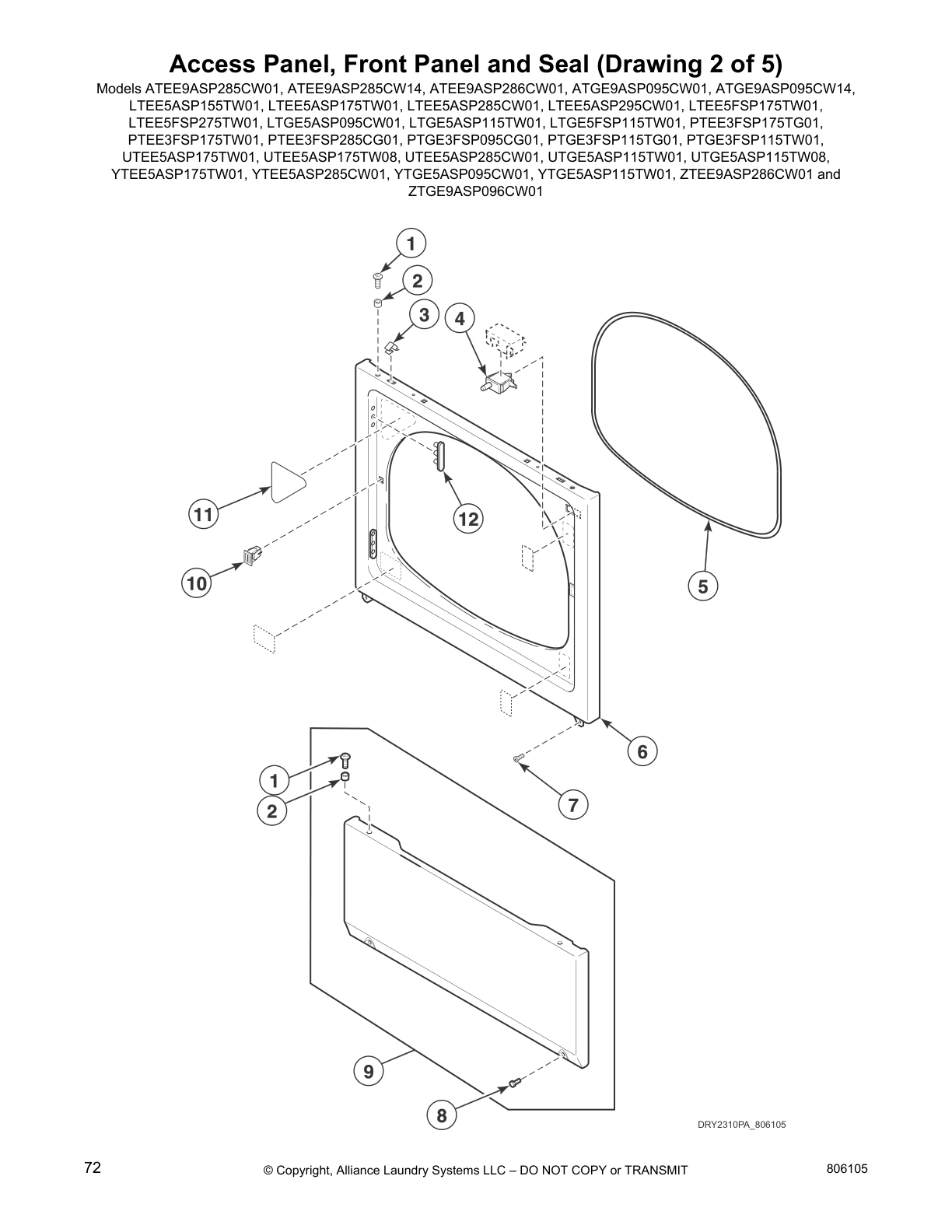

Access Panel, Front Panel and Seal (Drawing 2 of 5)

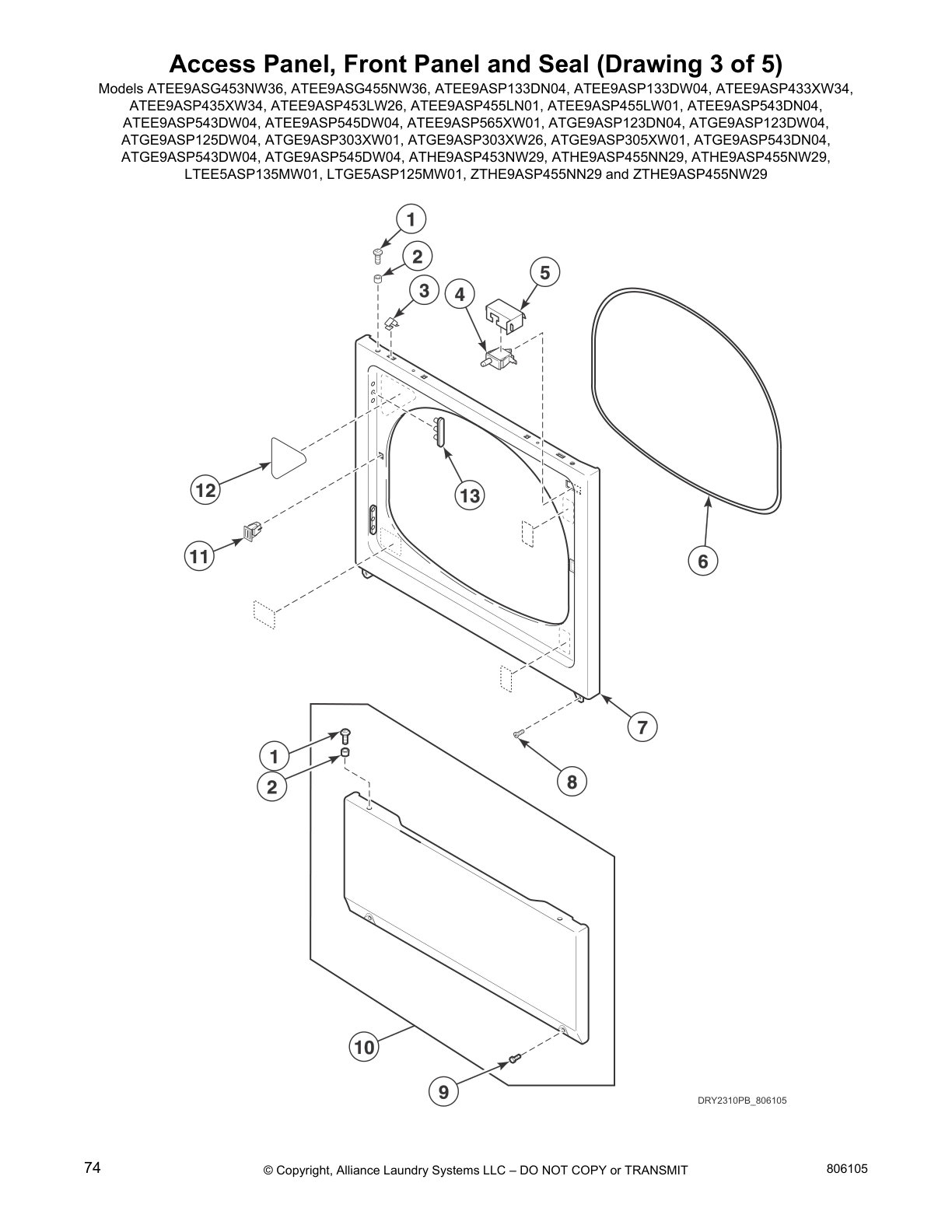

Access Panel, Front Panel and Seal (Drawing 3 of 5)
Access Panel, Front Panel and Seal (Drawing 4 of 5)

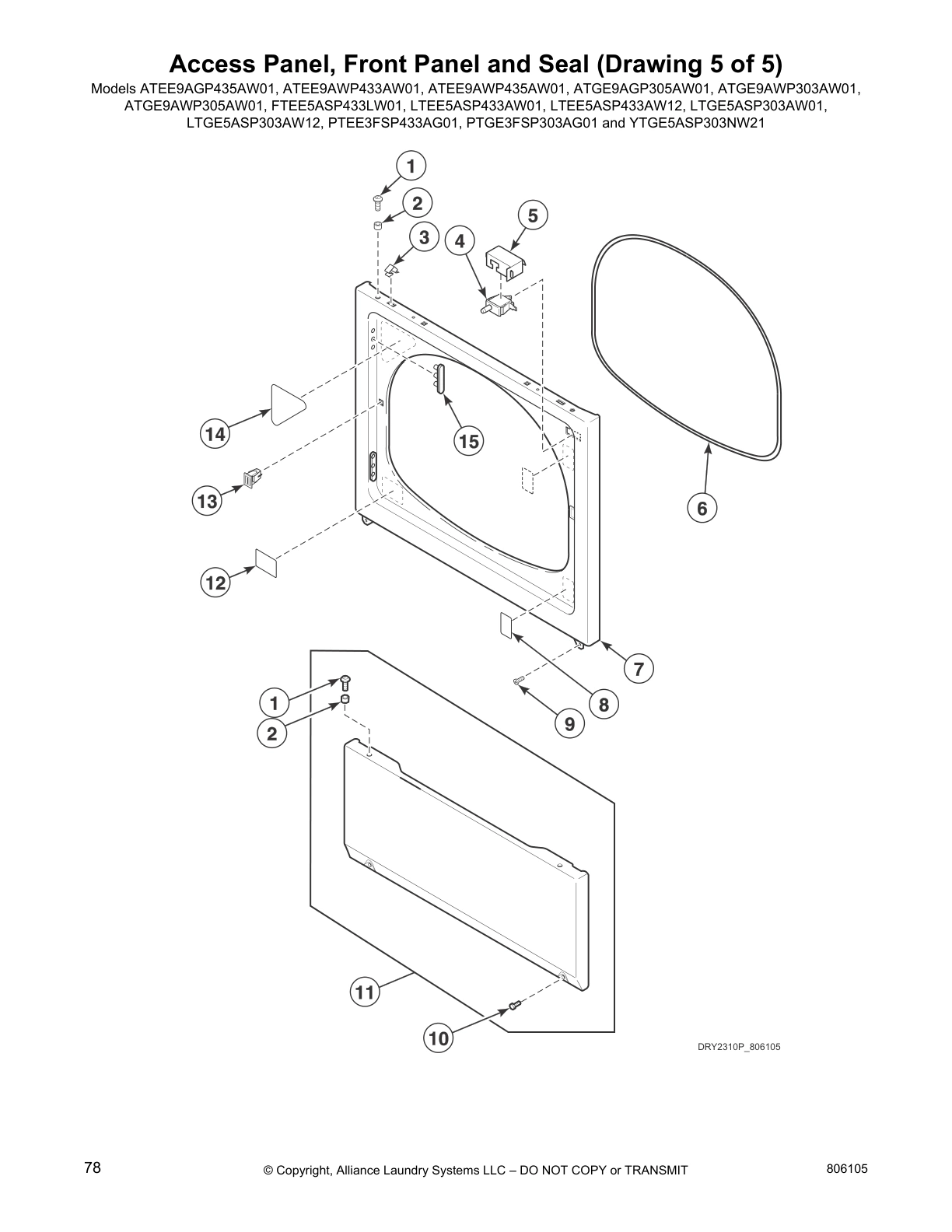

Access Panel, Front Panel and Seal (Drawing 5 of 5)

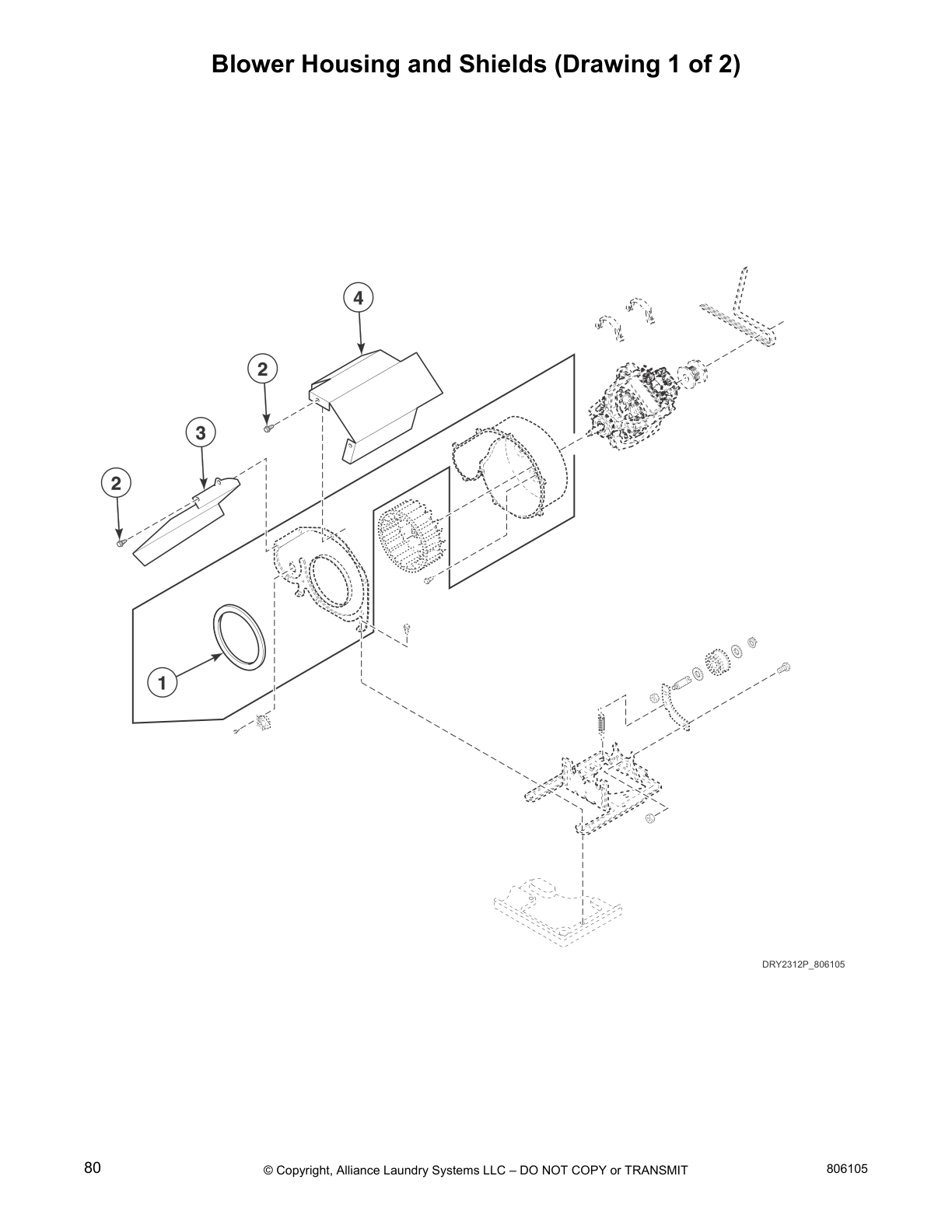

Blower Housing and Shields (Drawing 1 of 2)

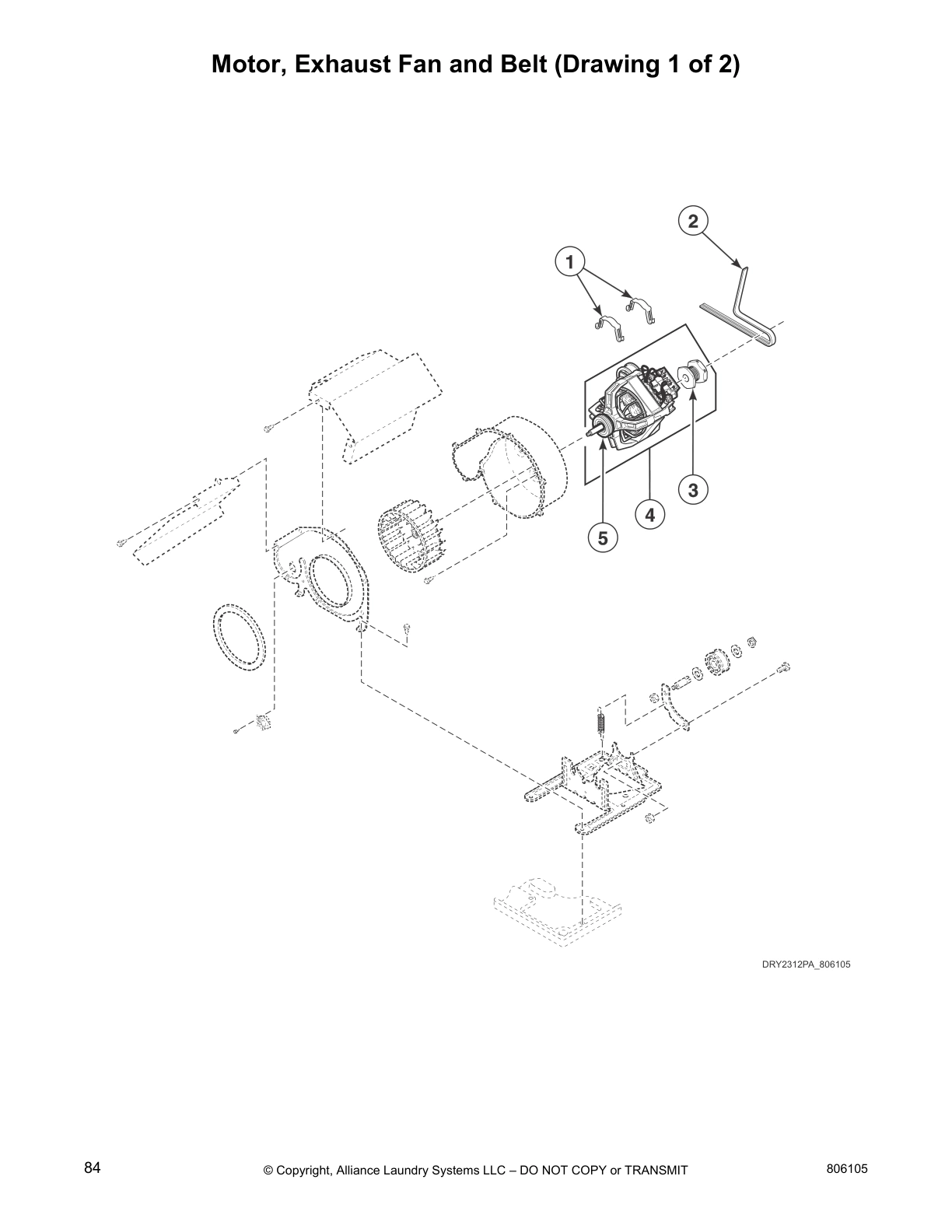

Motor, Exhaust Fan and Belt (Drawing 1 of 2)

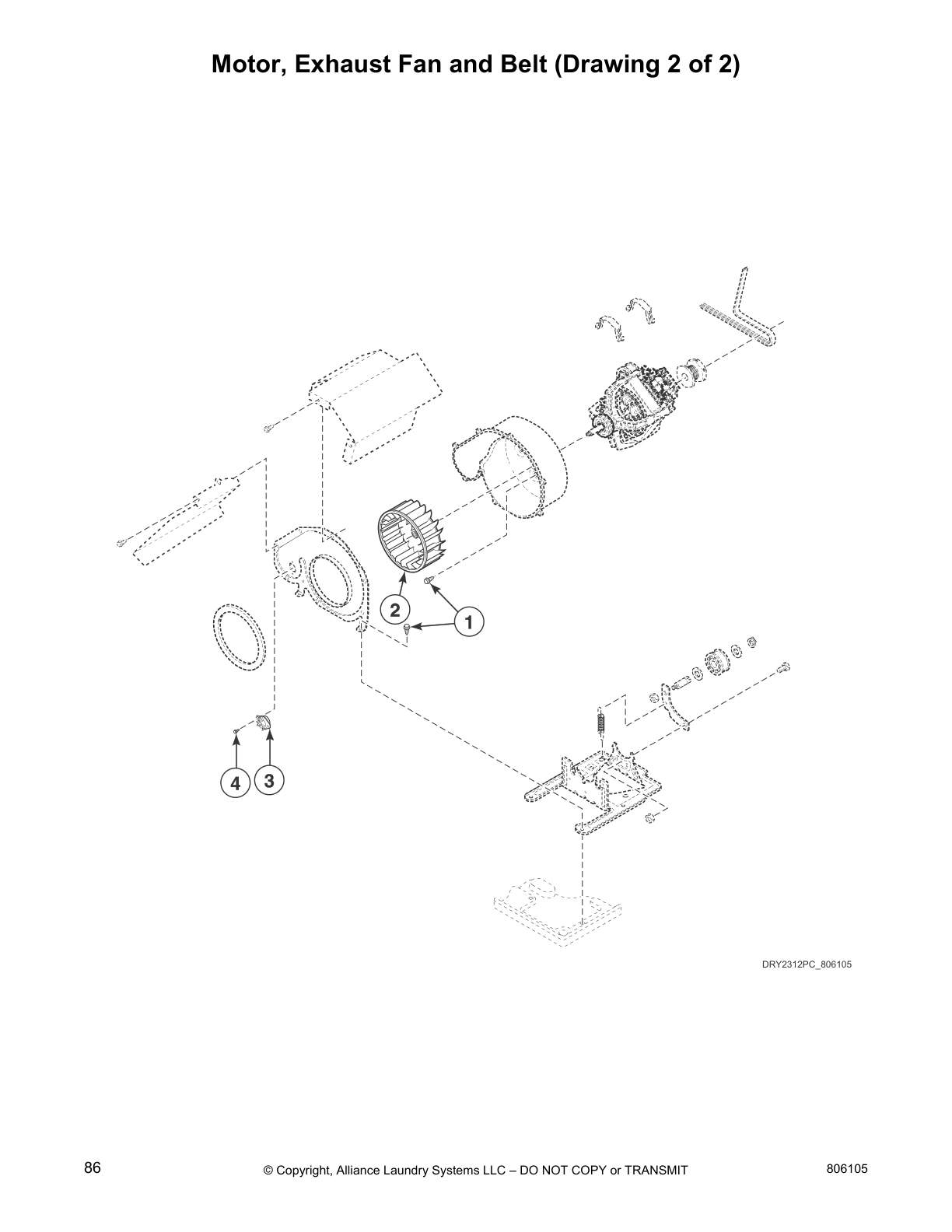

Motor, Exhaust Fan and Belt (Drawing 2 of 2)
Idler Assembly

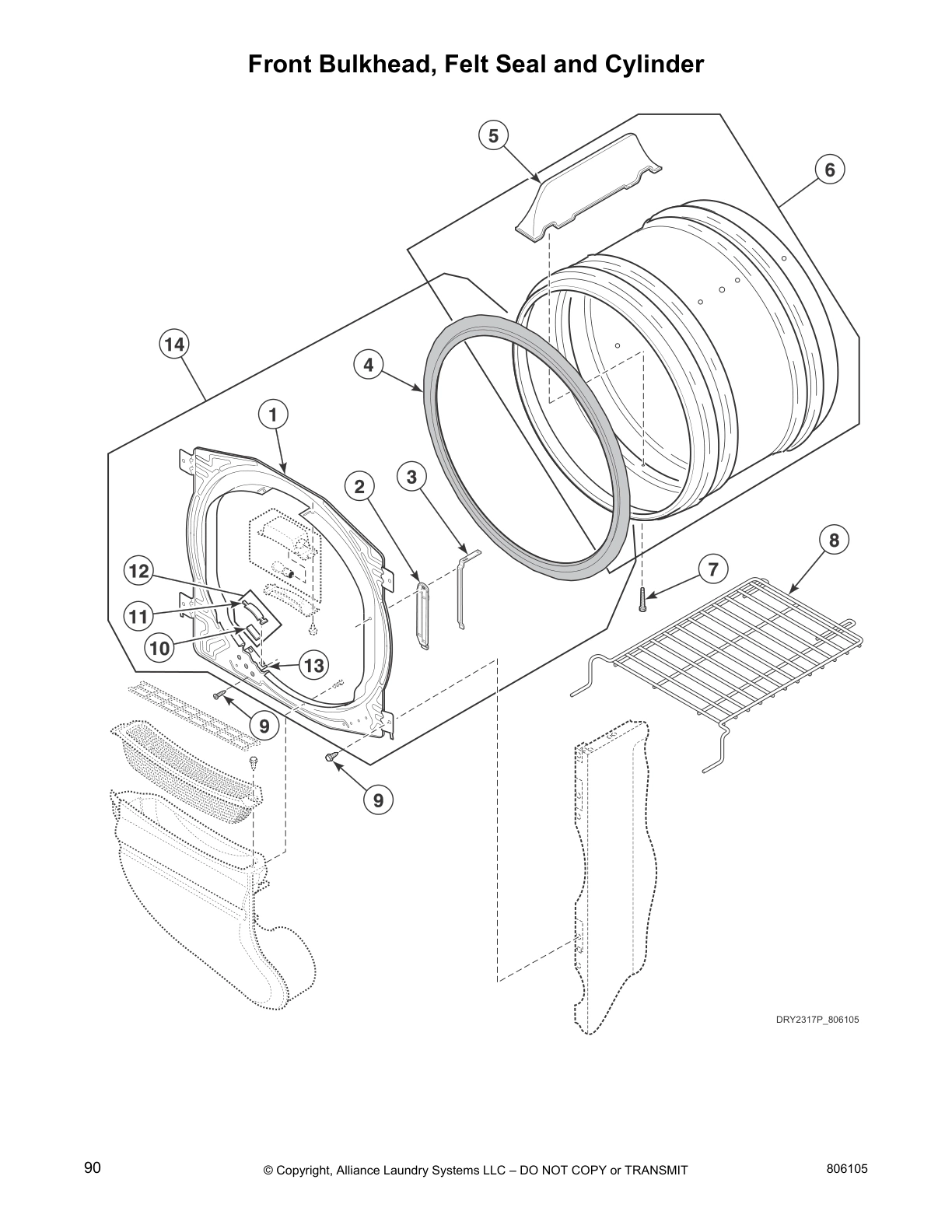

Front Bulkhead, Felt Seal and Cylinder

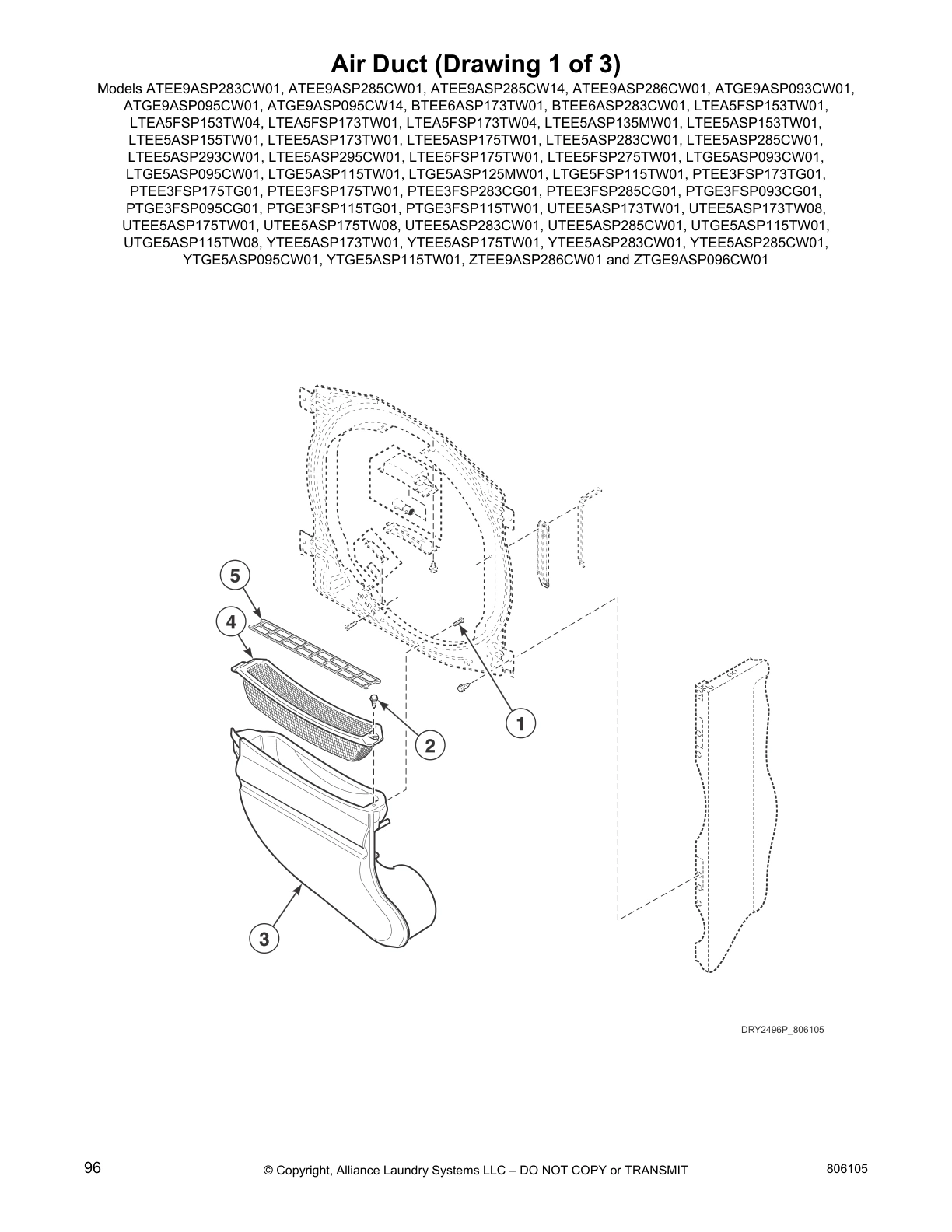

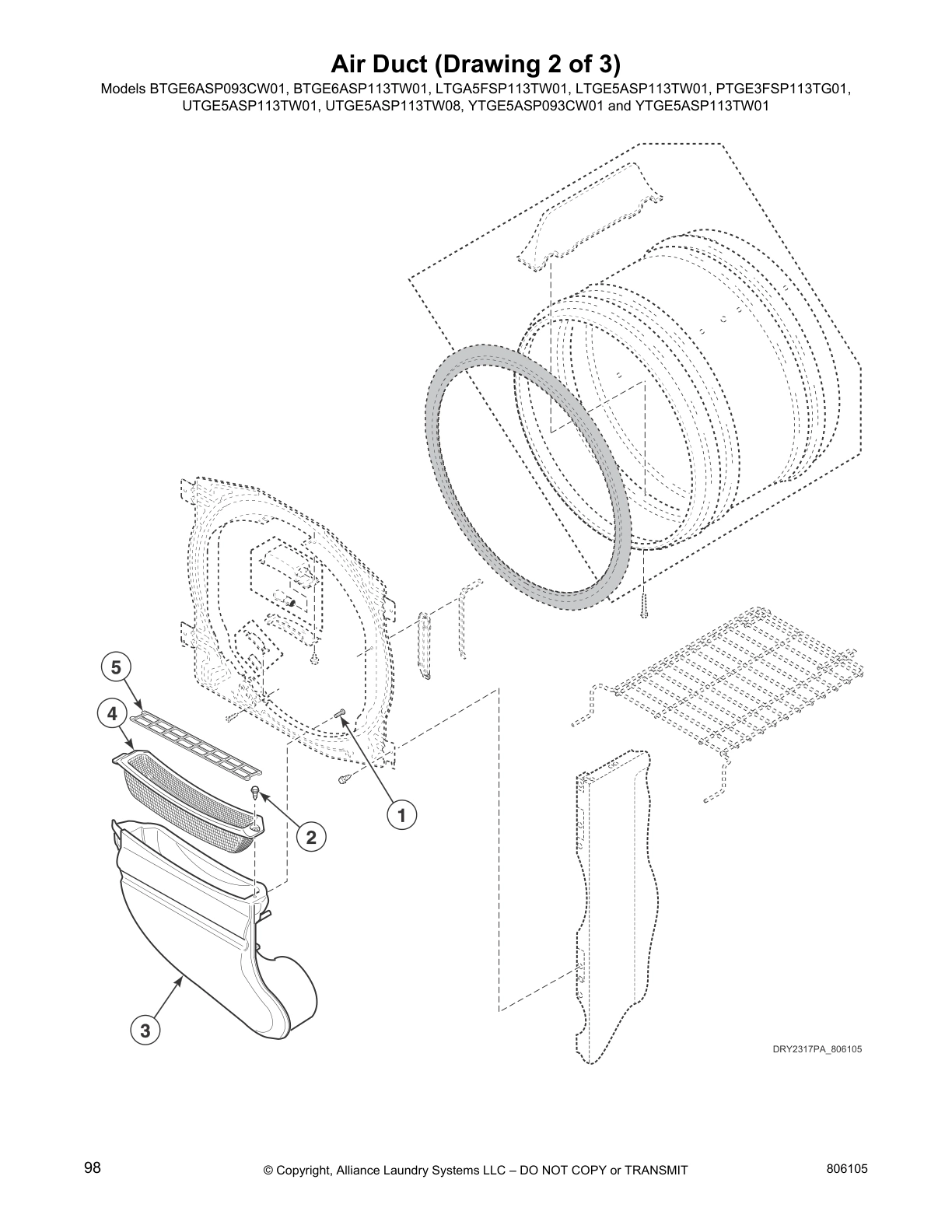

Air Duct (Drawing 1 of 3)
Air Duct (Drawing 2 of 3)

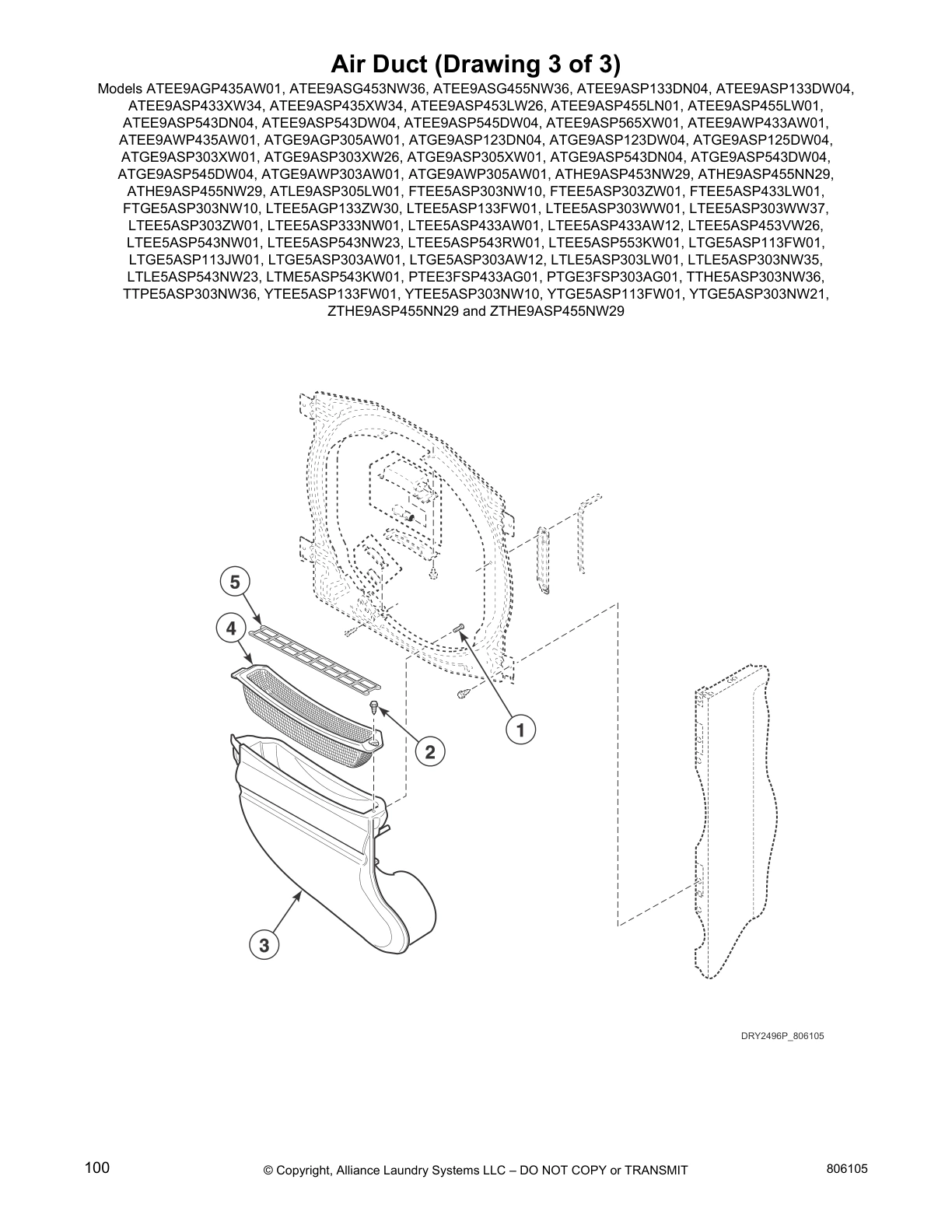

Air Duct (Drawing 3 of 3)
Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block

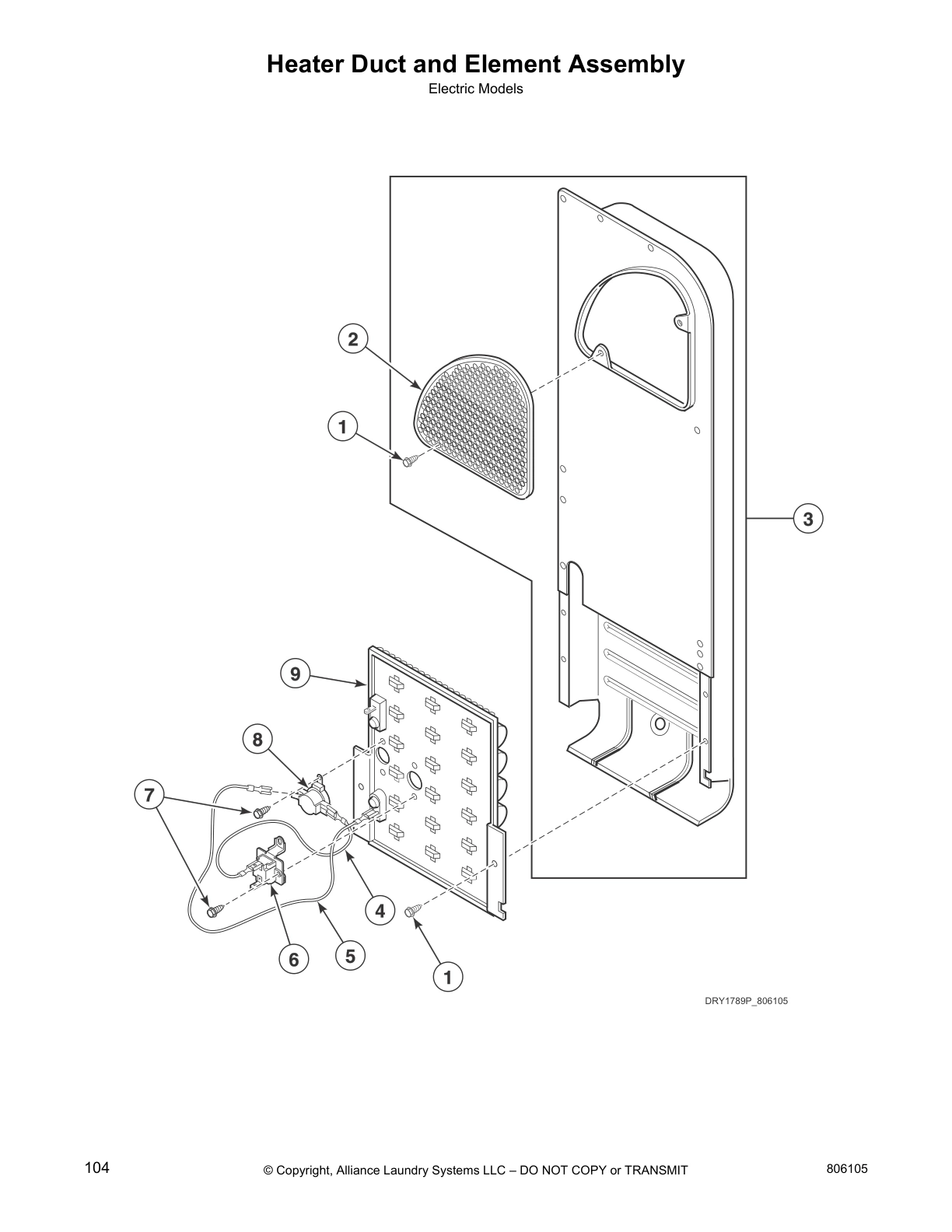

Heater Duct and Element Assembly
Heater Duct Assembly

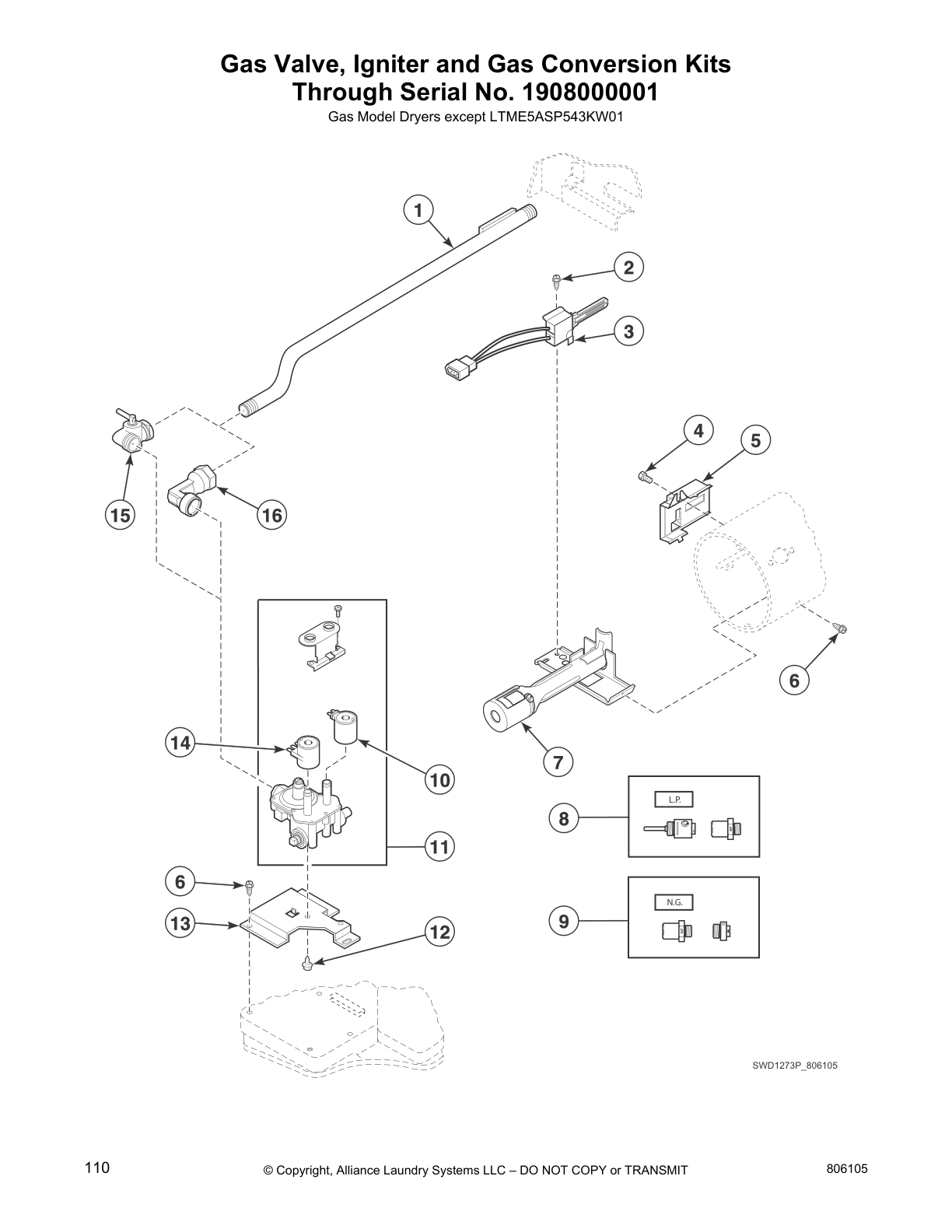

Gas Valve, Igniter and Gas Conversion Kits
Through Serial No. 1908000001
Gas Valve, Igniter and Gas Conversion Kits
Starting Serial No. 1908000001

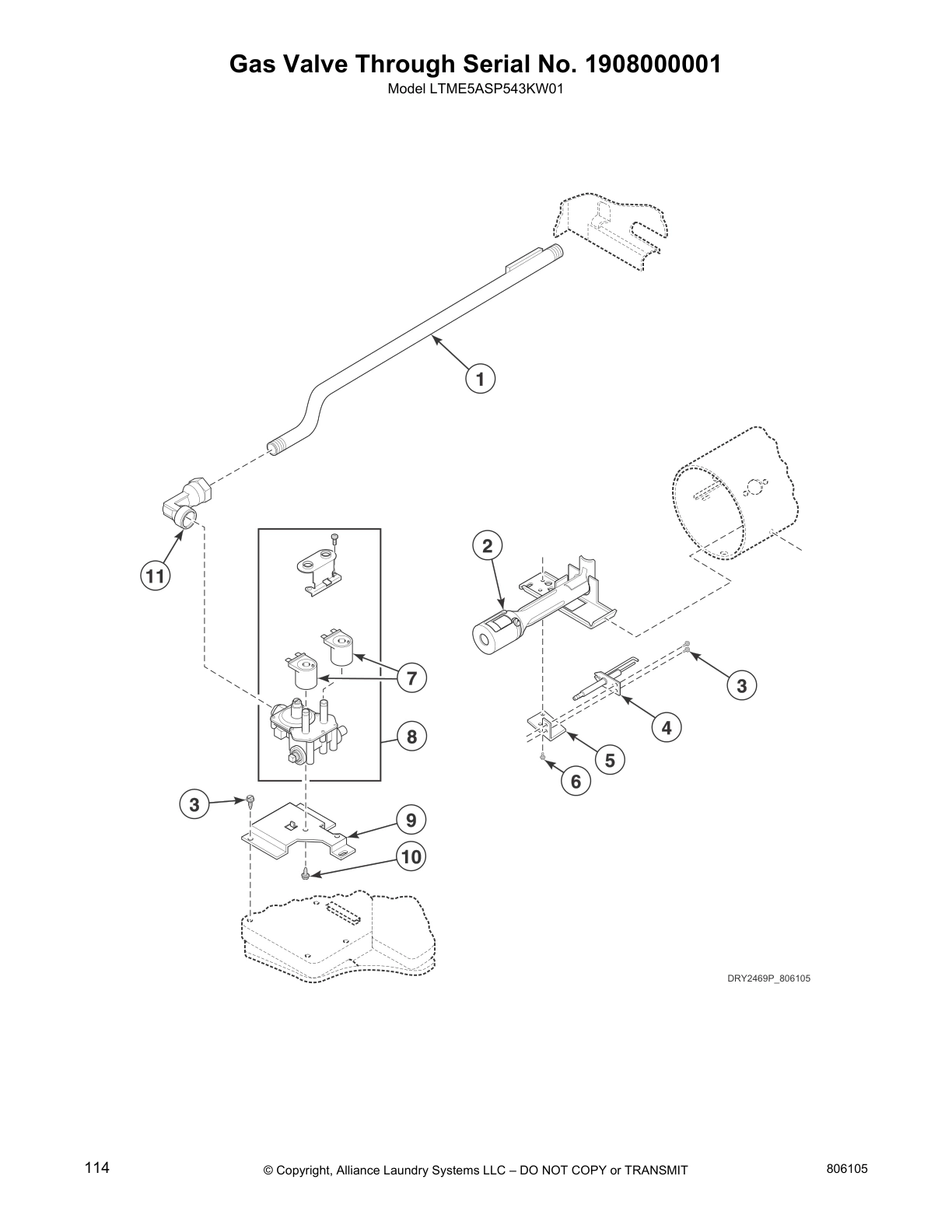

Gas Valve Through Serial No. 1908000001
Gas Valve Starting Serial No. 1908000001
Burner Orifice Spuds - For Higher Elevations

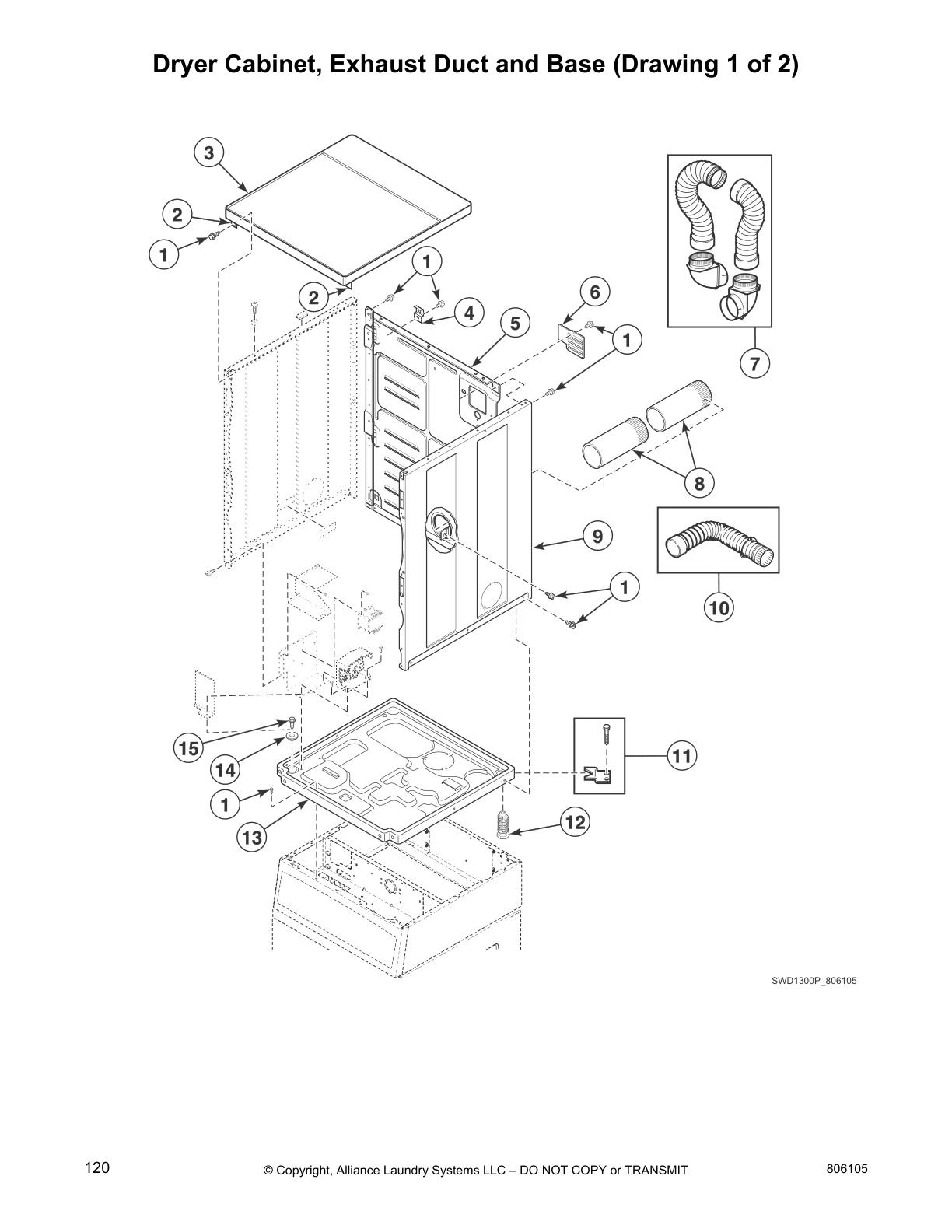

Dryer Cabinet, Exhaust Duct and Base (Drawing 1 of 2)

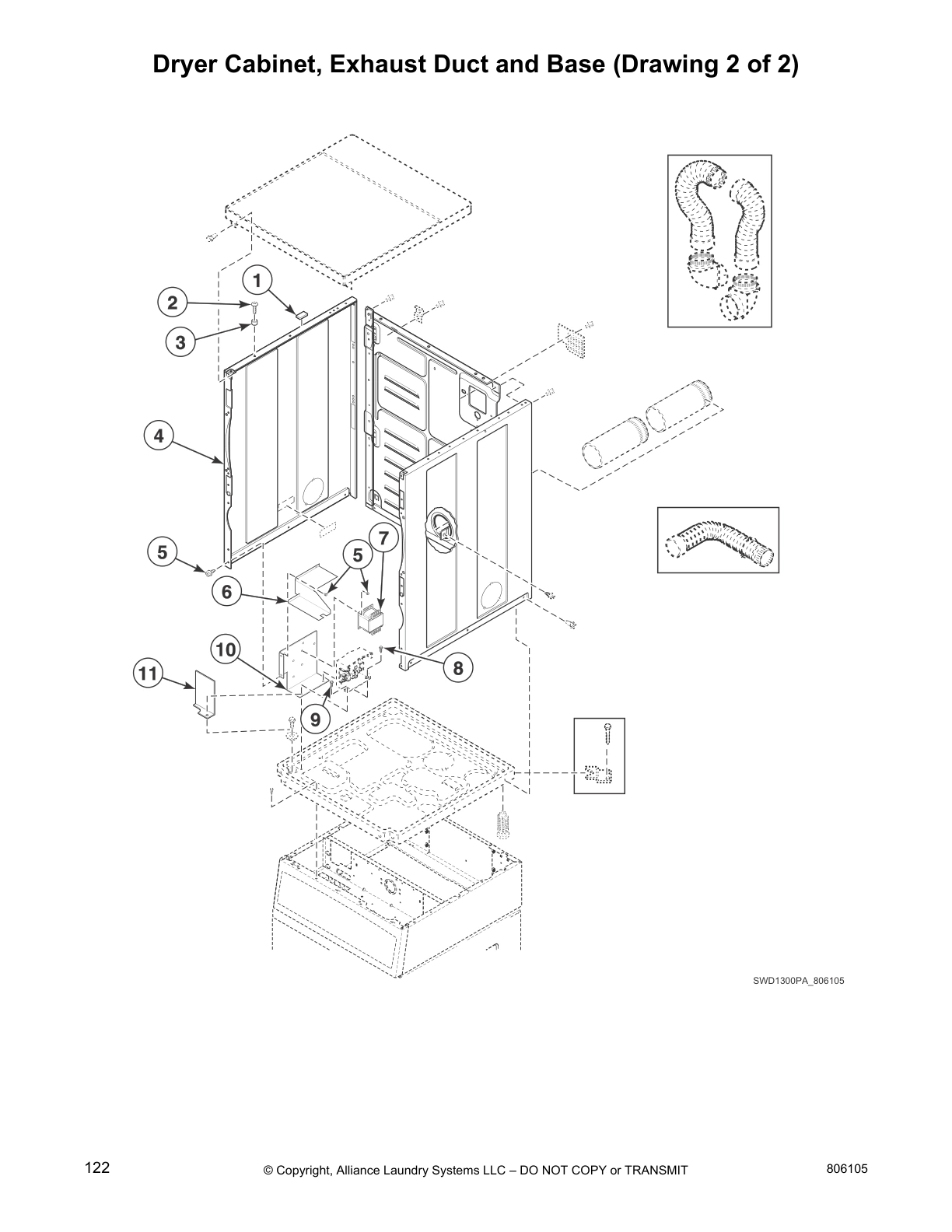

Dryer Cabinet, Exhaust Duct and Base (Drawing 2 of 2)

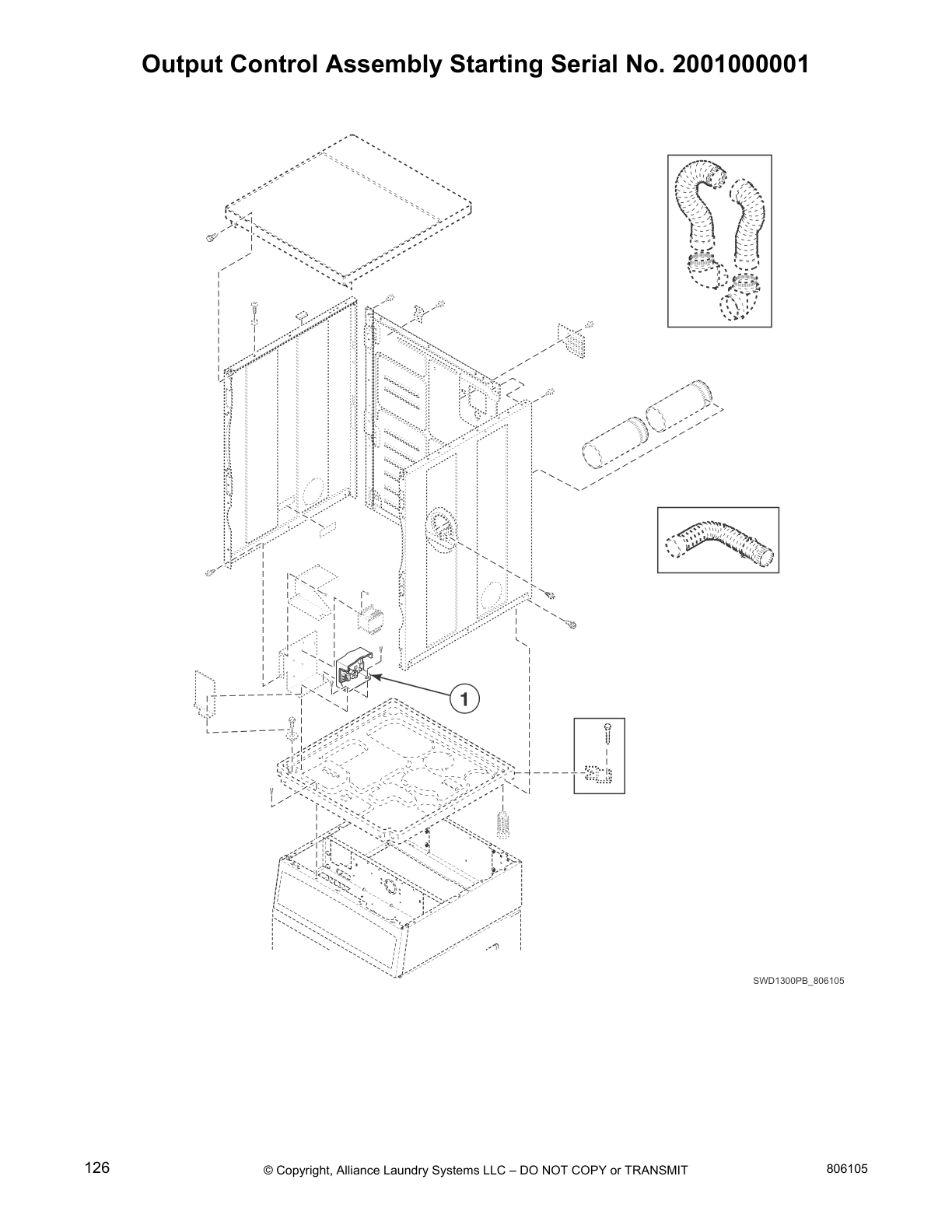

Output Control Assembly Starting Serial No. 2001000001

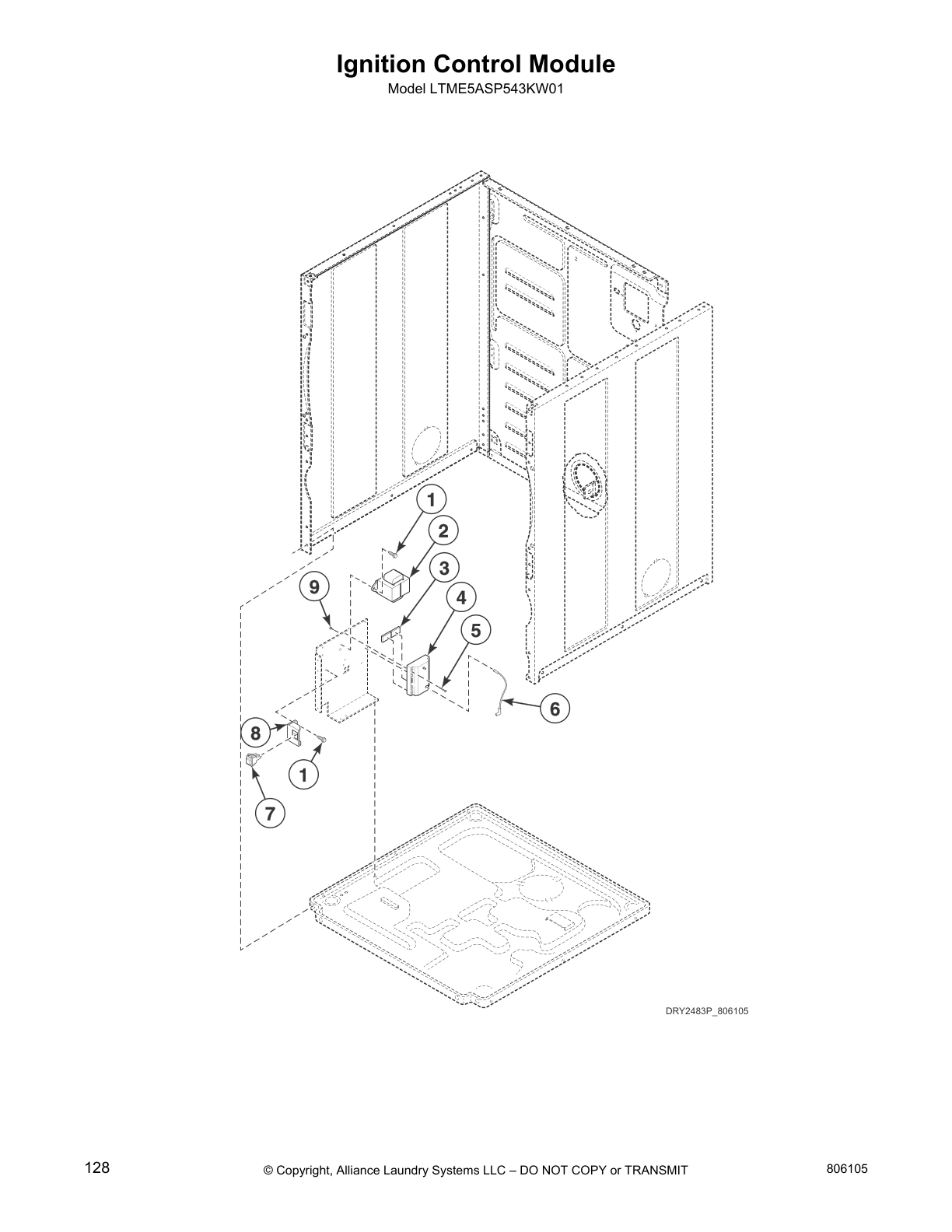

Ignition Control Module

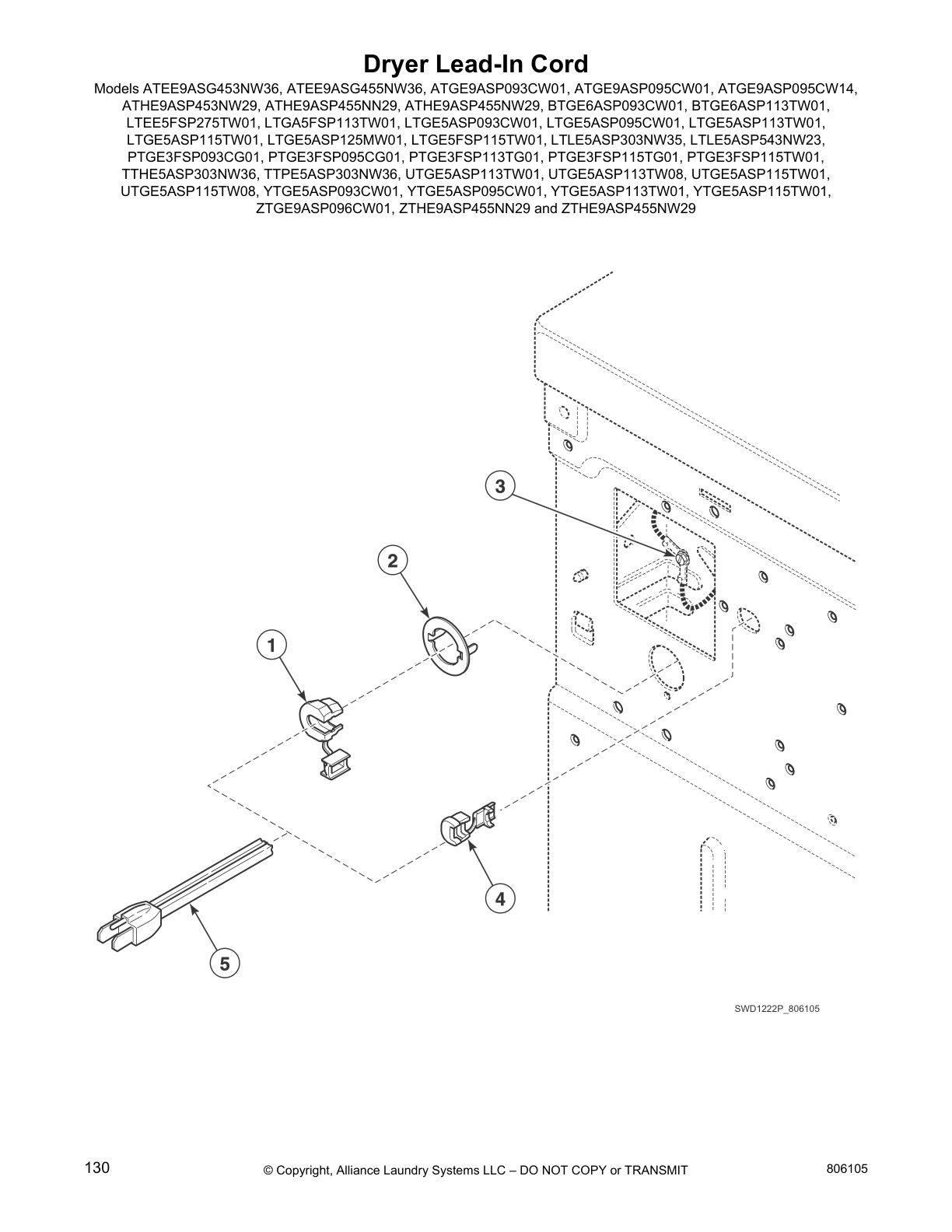

Dryer Lead-In Cord

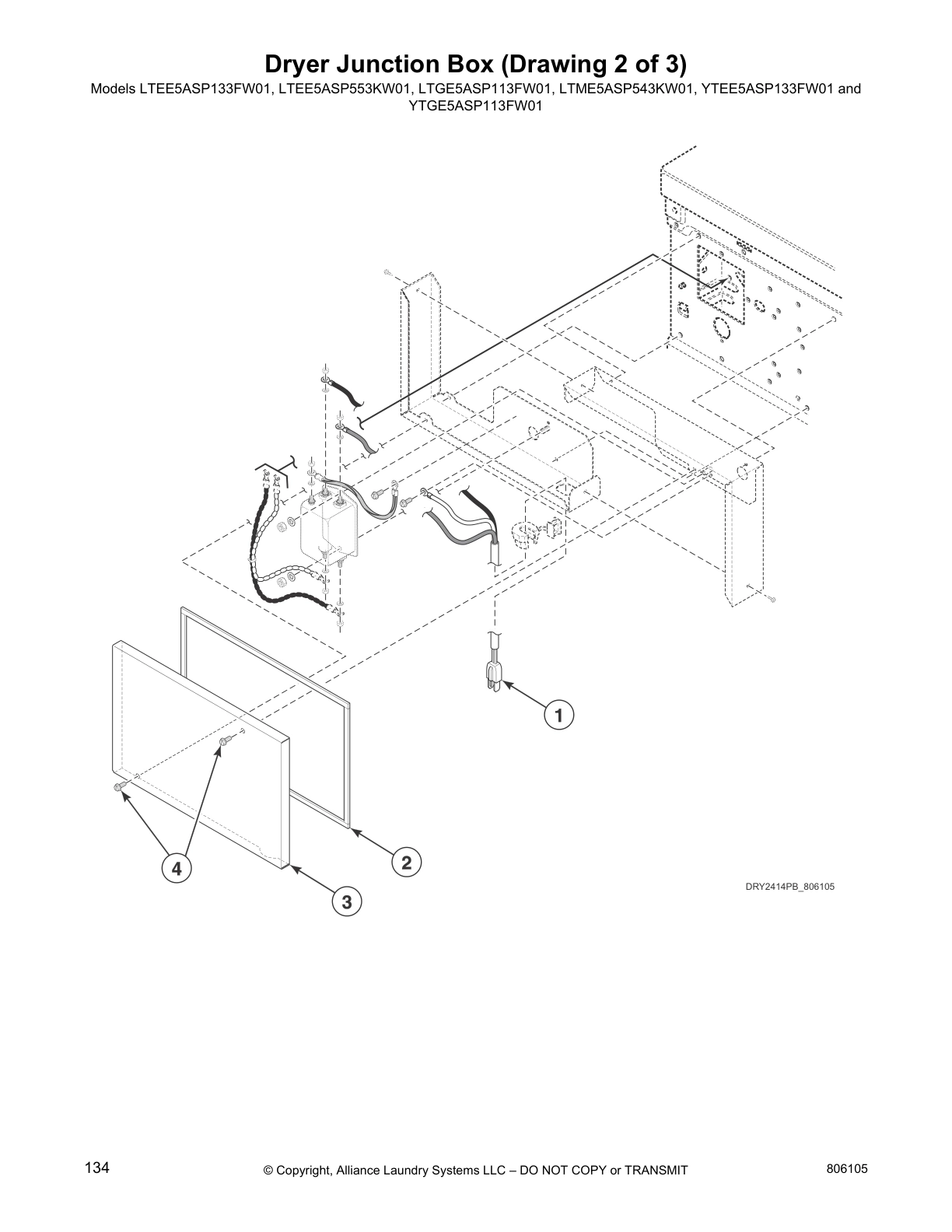

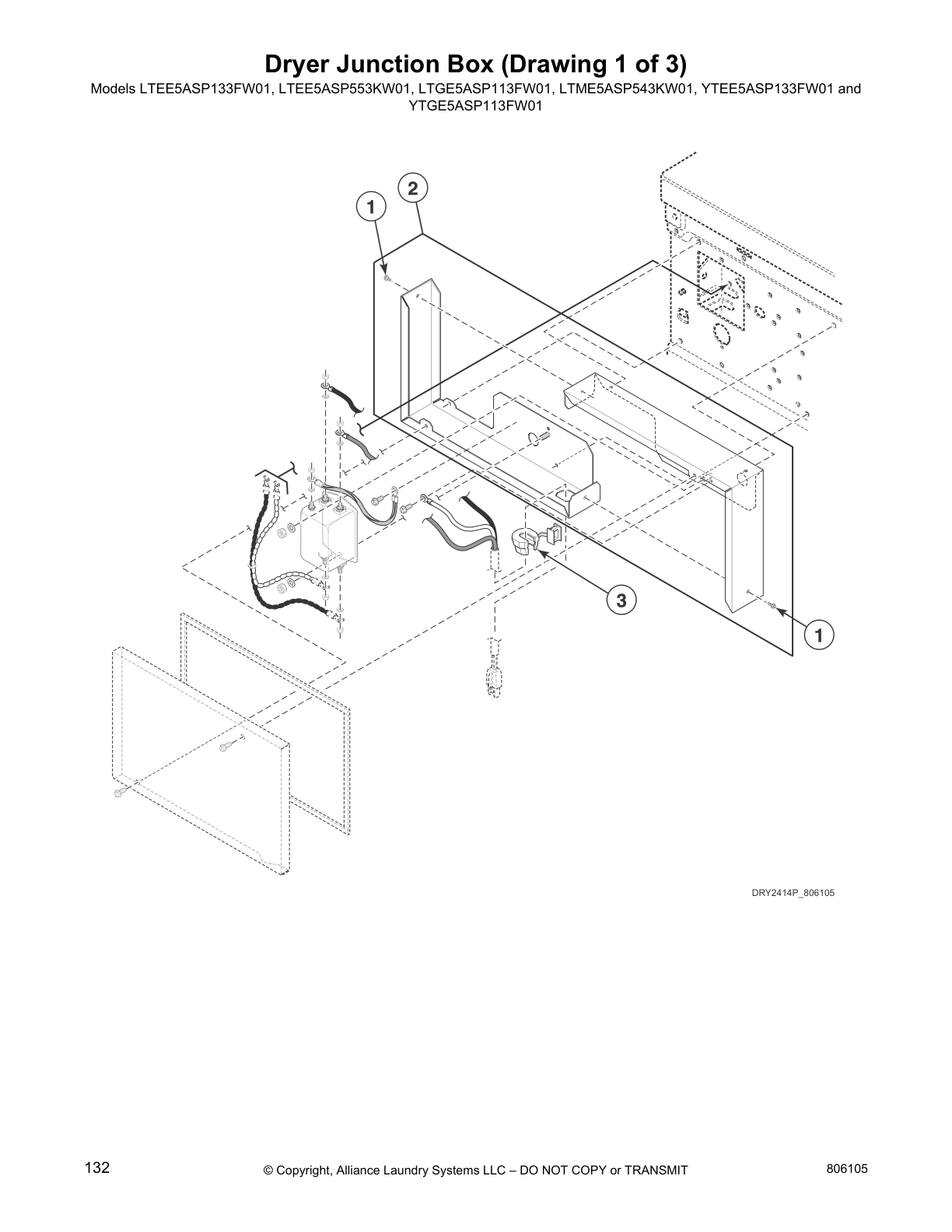

Dryer Junction Box (Drawing 1 of 3)
Dryer Junction Box (Drawing 2 of 3)

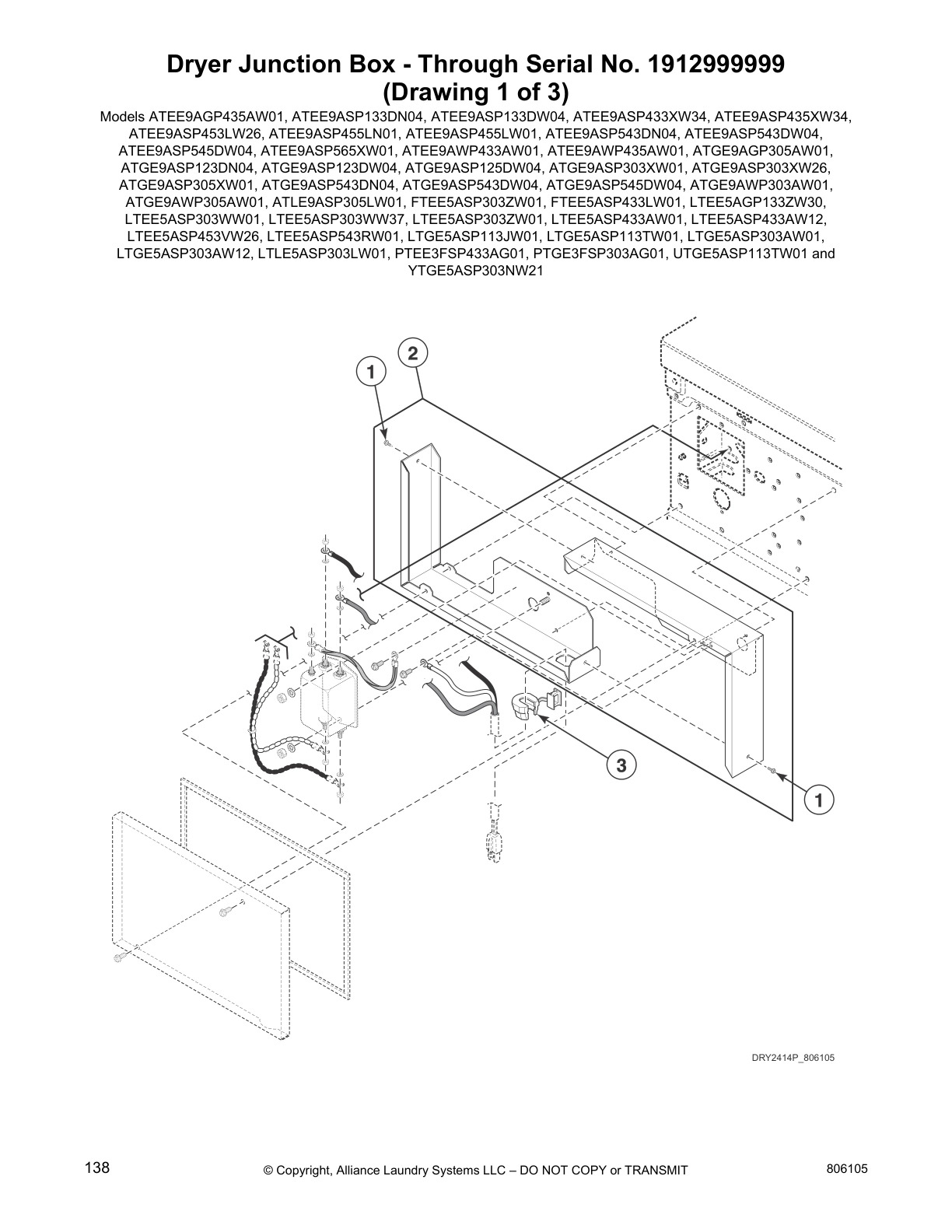

Dryer Junction Box - Through Serial No. 1912999999
(Drawing 1 of 3)
Dryer Junction Box - Through Serial No. 1912999999
(Drawing 2 of 3)

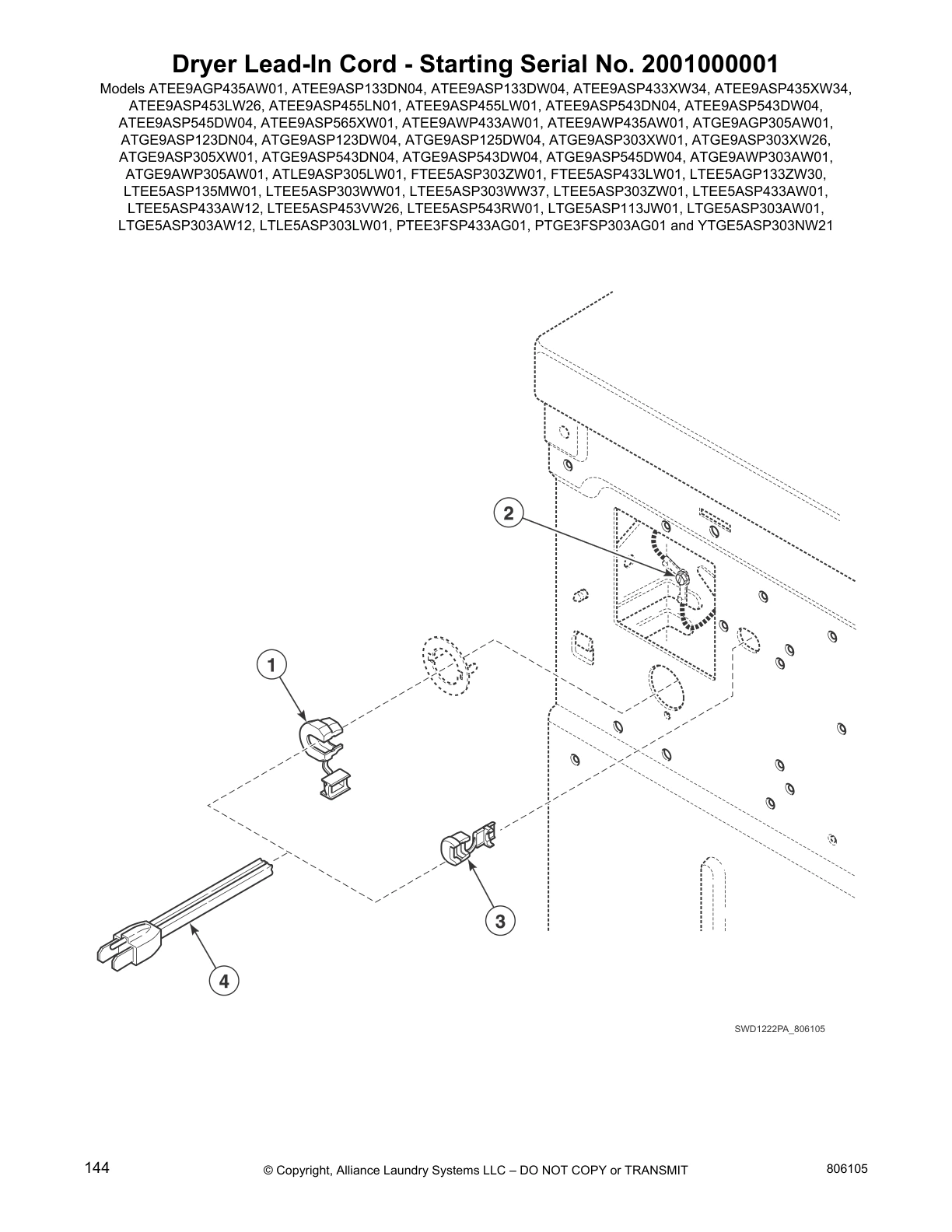

Dryer Lead-In Cord - Starting Serial No. 2001000001
Dryer Labels

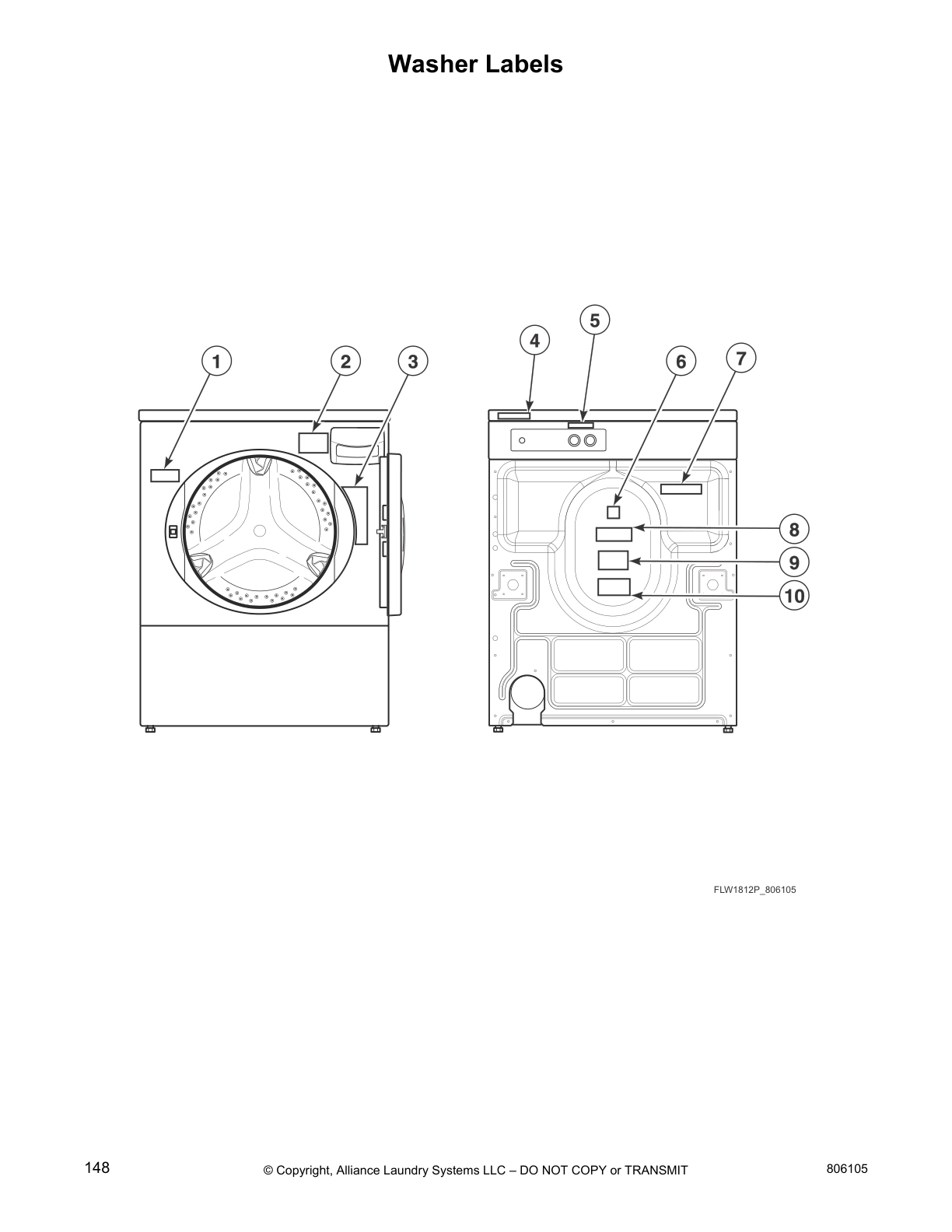

Washer Labels
Shipping Materials

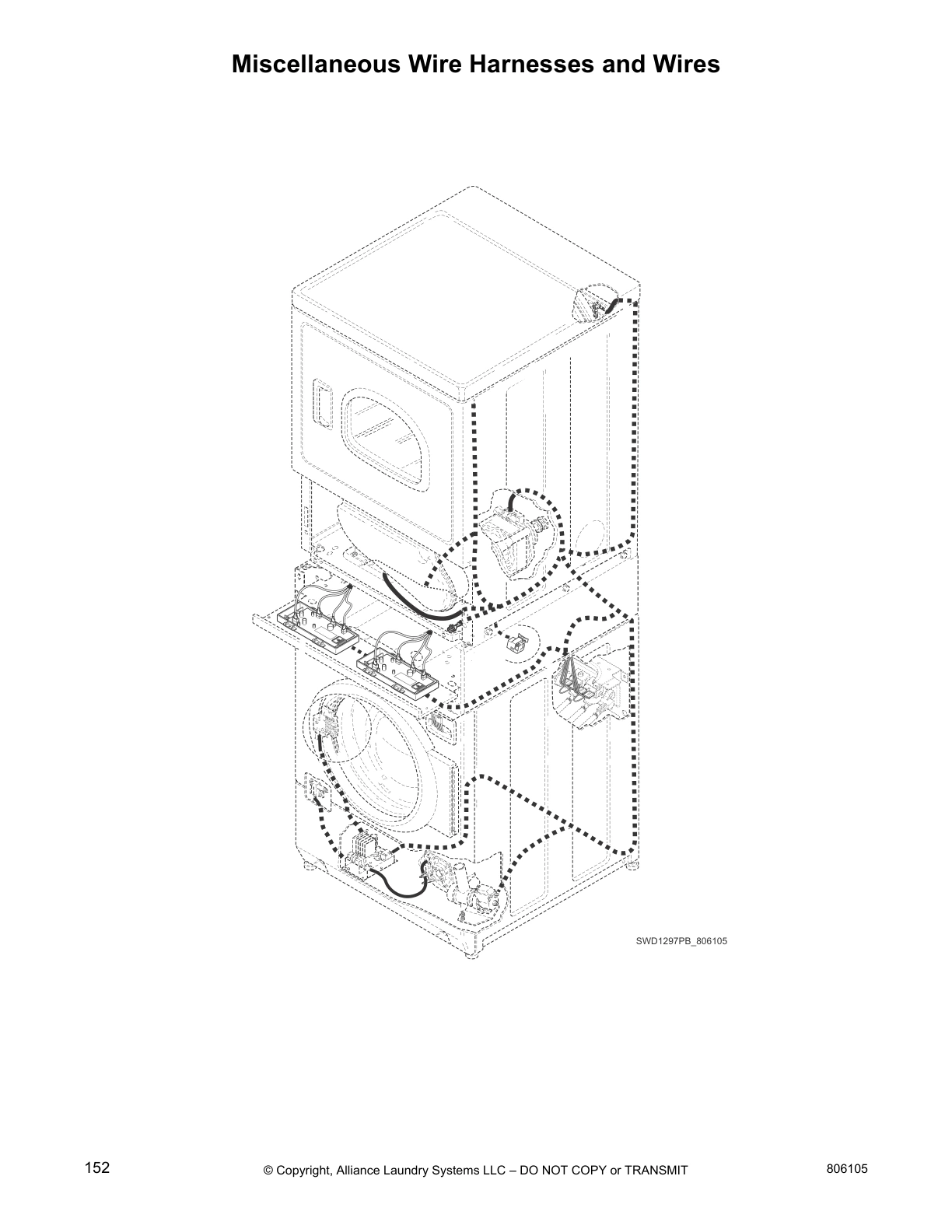

Miscellaneous Wire Harnesses and Wires

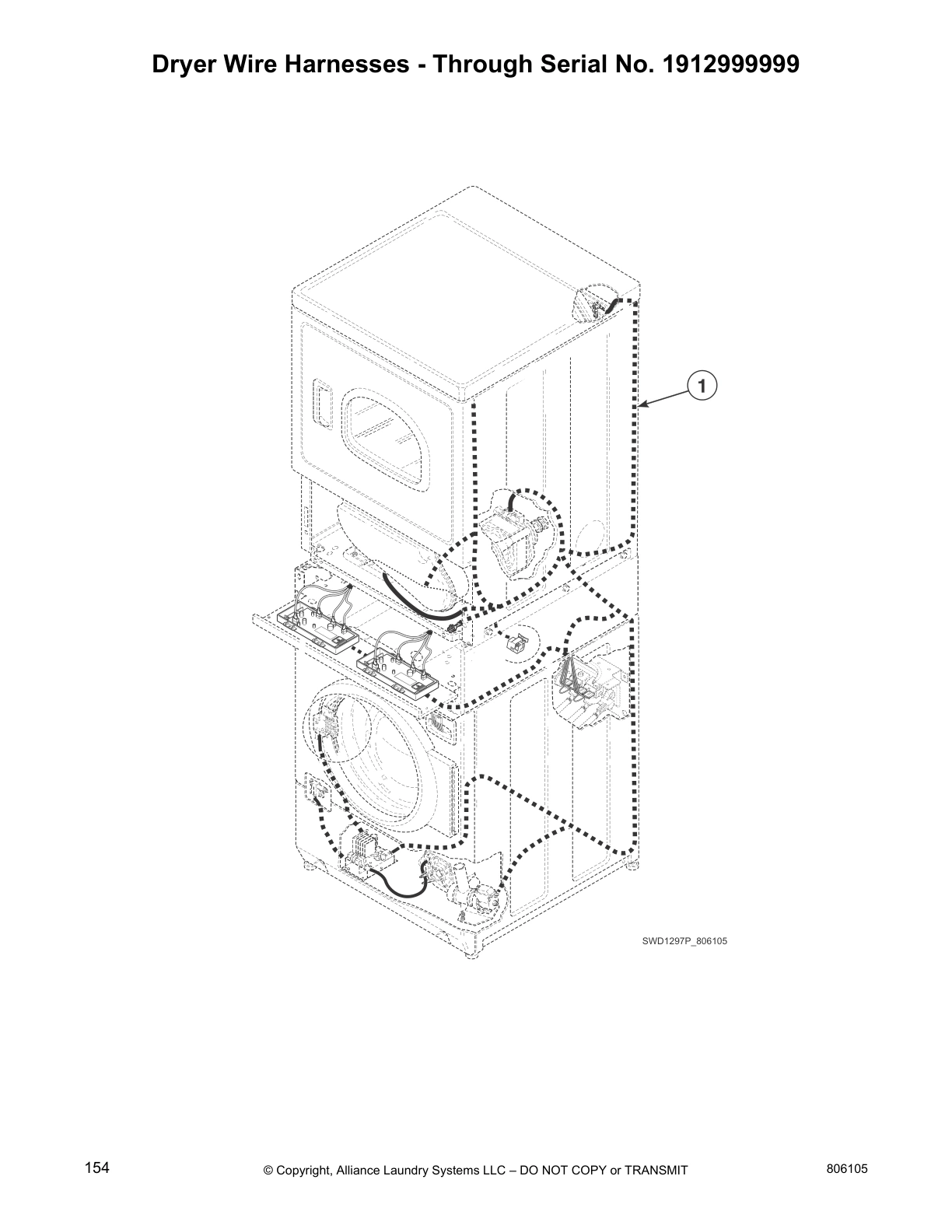

Dryer Wire Harnesses - Through Serial No. 1912999999

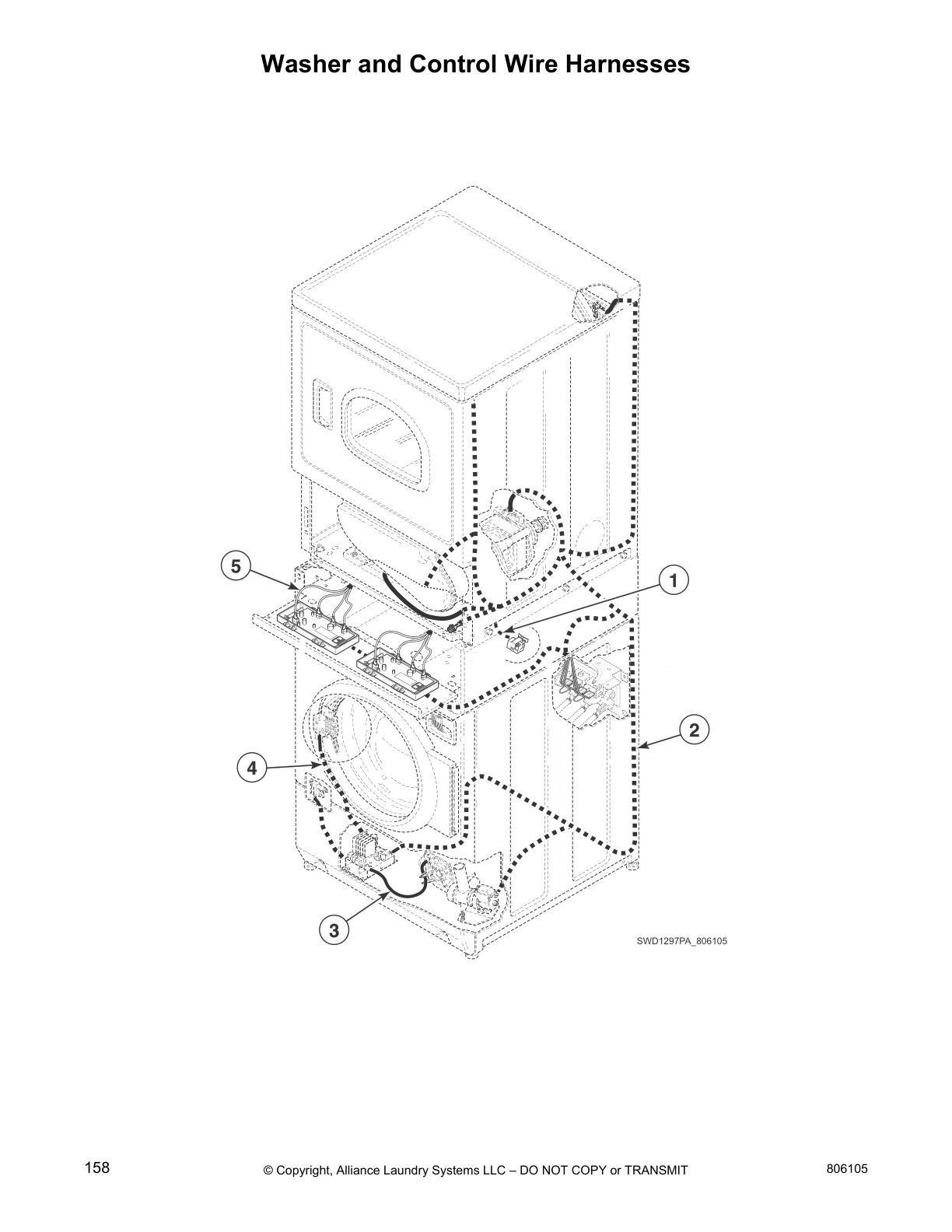

Washer and Control Wire Harnesses
Common parts from model Speed Queen LTGE5ASP125MW01 Stacked Washer and Dryer
8
Pump Housing SPQ 802434P Contact Us For Availability
9
Gasket SPQ 802428 Contact Us For Availability
× ![]()
