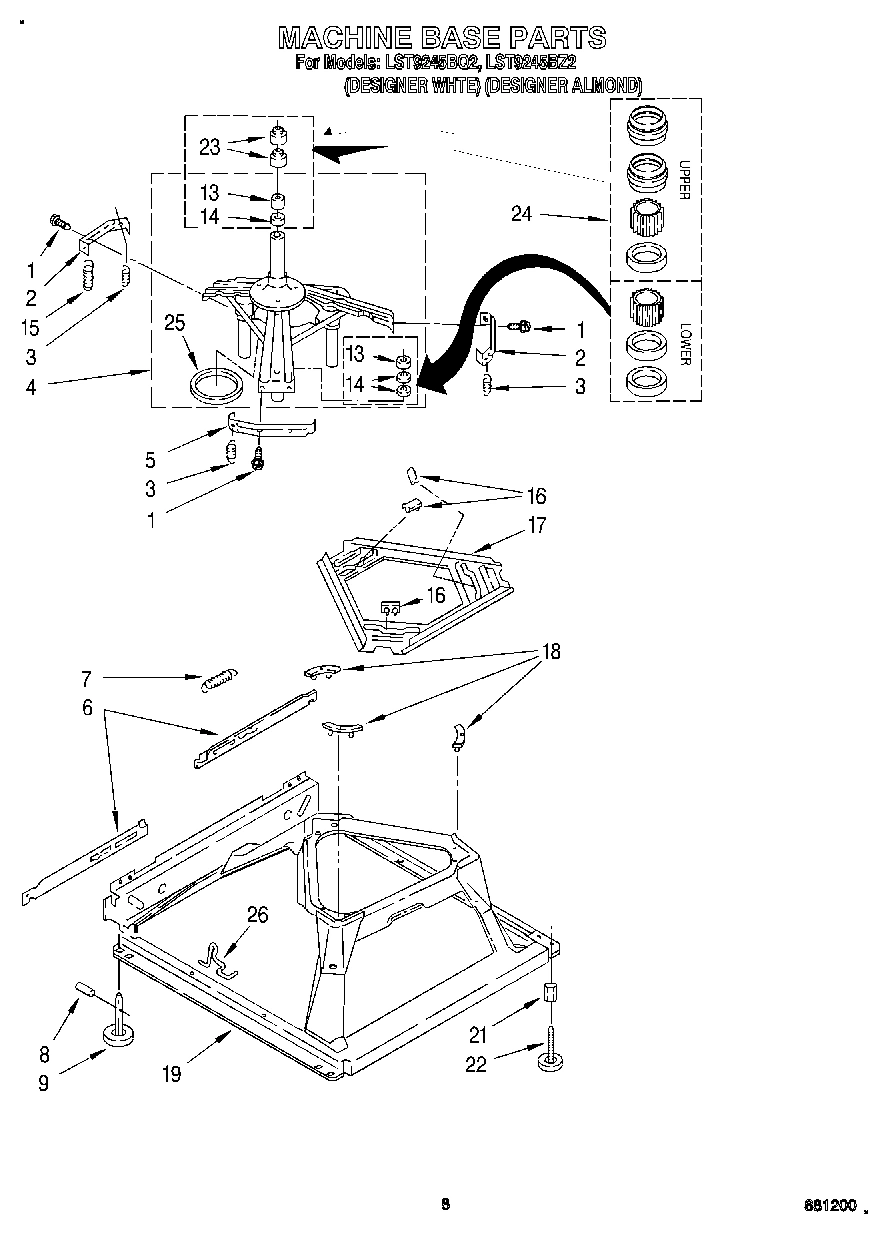

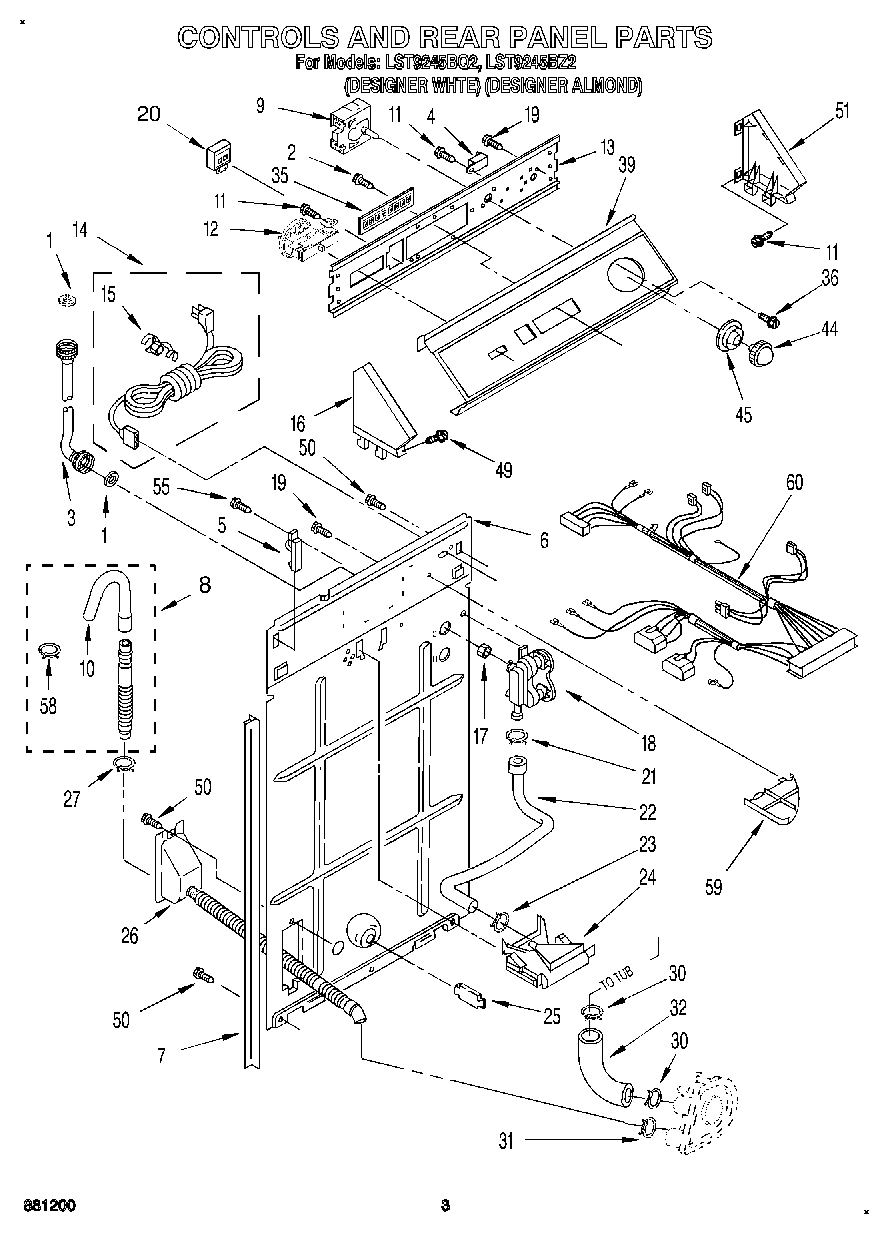

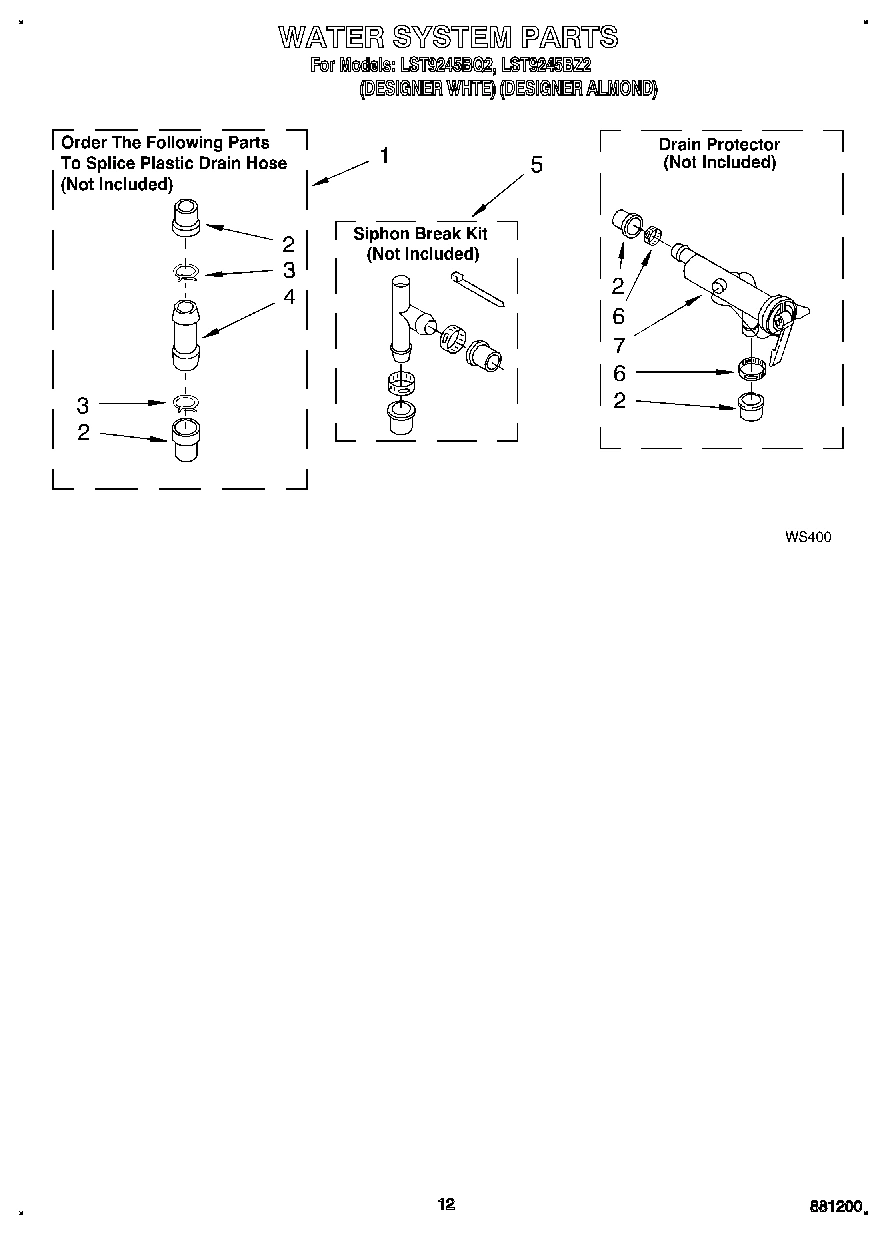

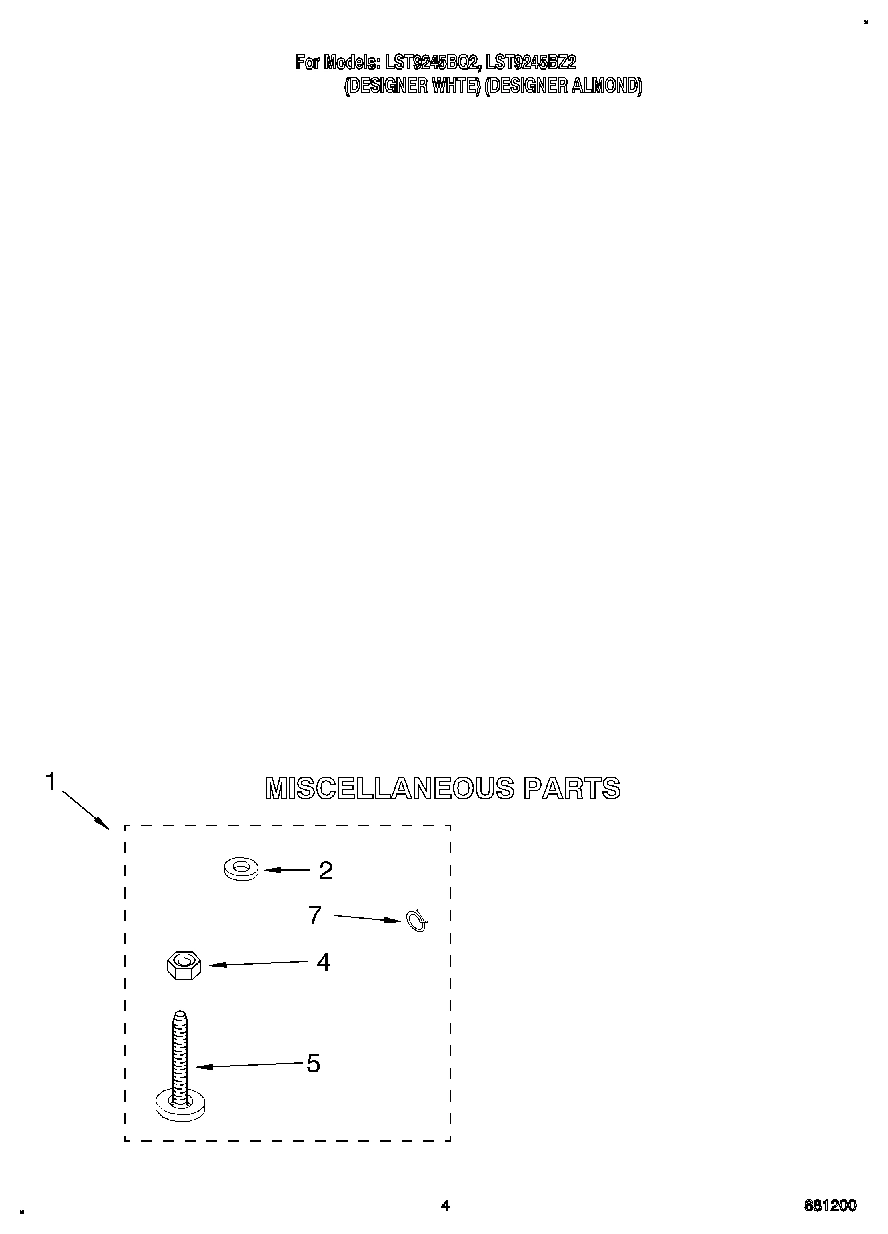

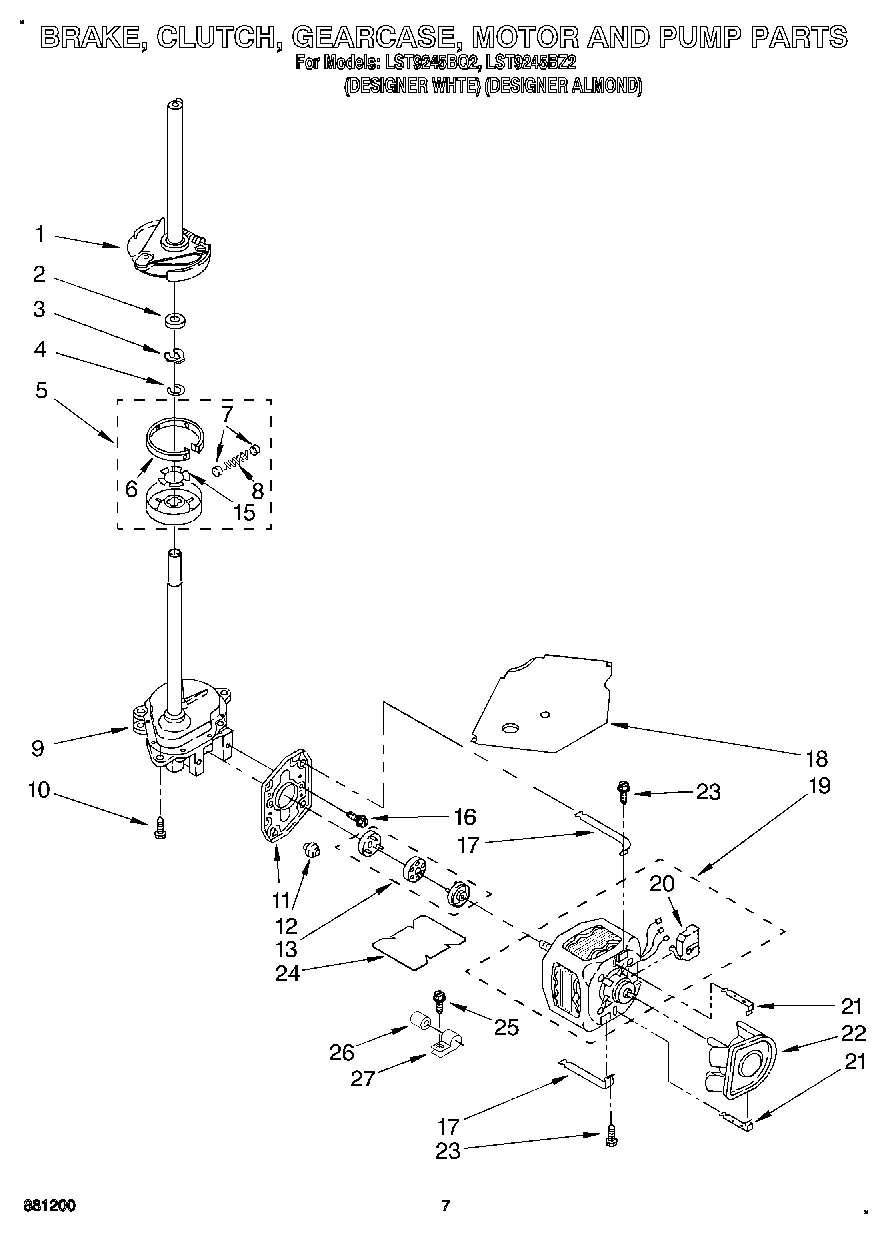

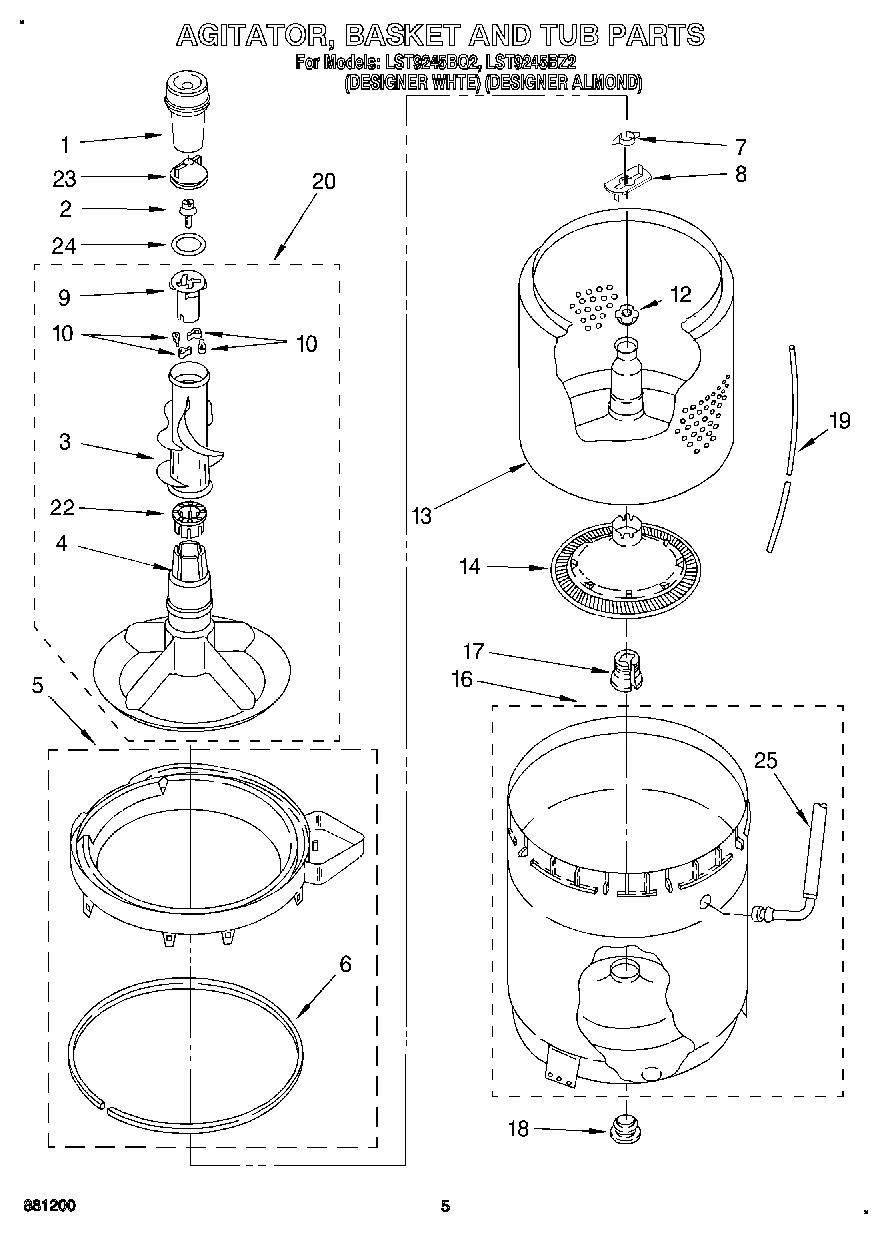

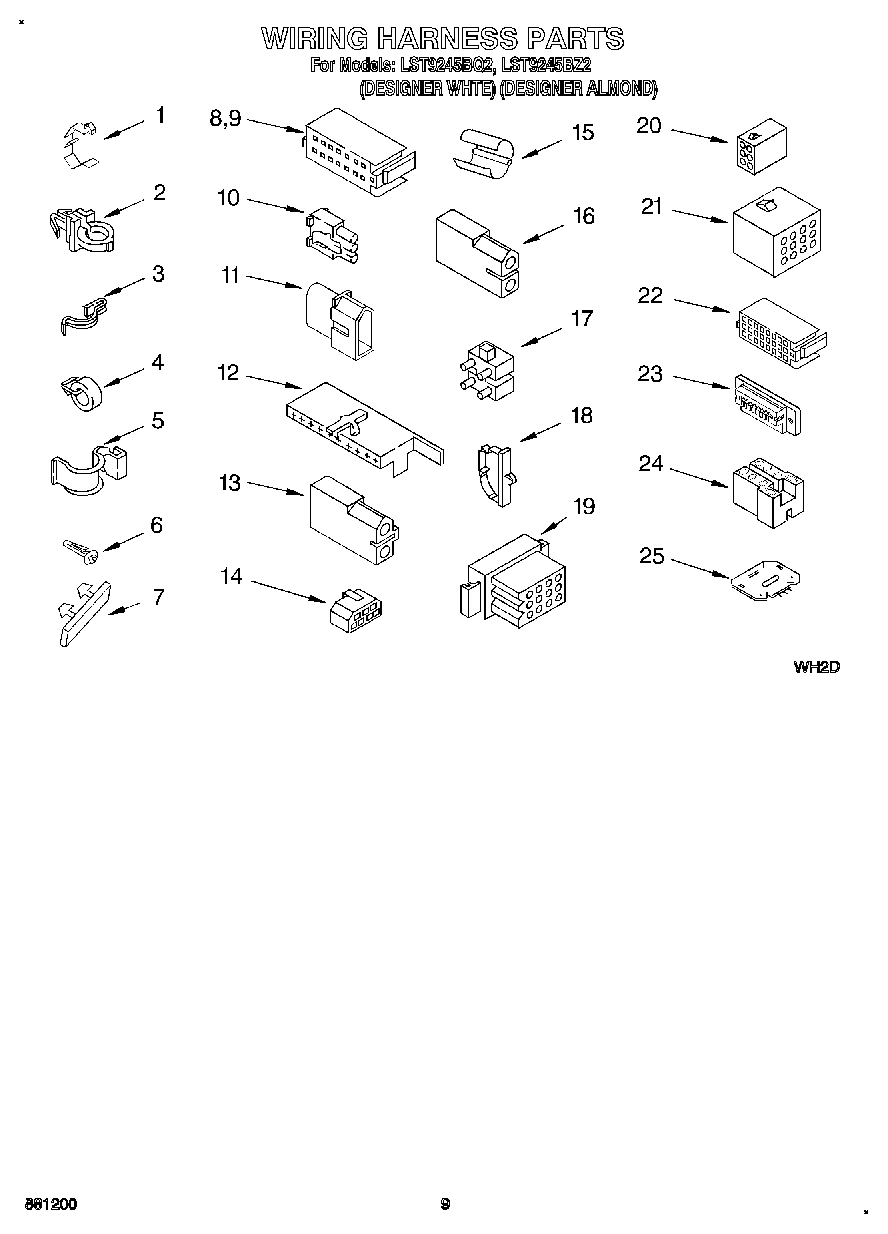

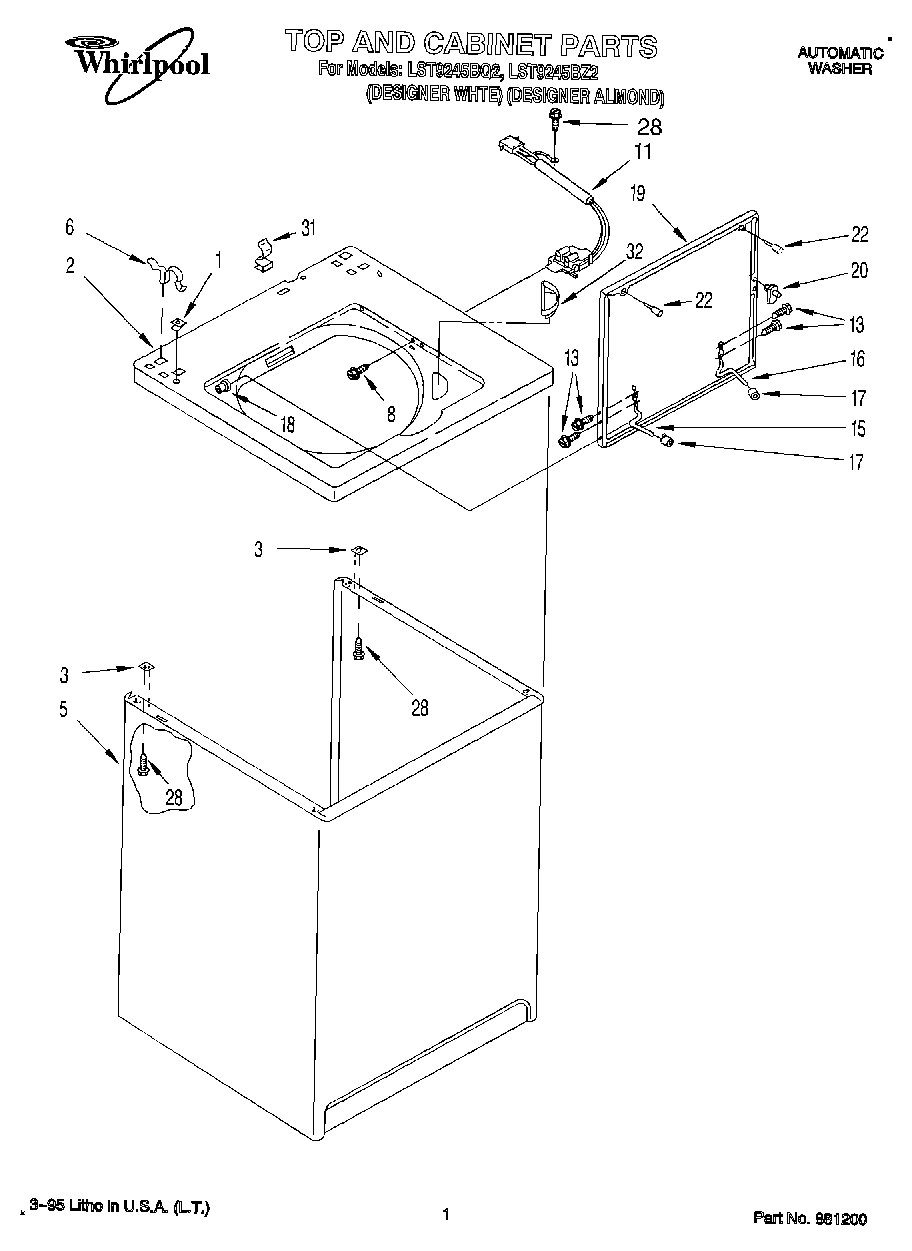

Model Whirlpool LST9245BZ2 – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

1

285442 Whirlpool Coupling Backorder WPL 285442 $28.80

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $9.99

1

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

Miscellaneous Parts Bag WPL 3359460 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $78.48

2

285321 Whirlpool Sleeve Backorder WPL 285321 $26.75

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.70

2

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

3

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

3

WP3348752 Whirlpool Agitator Mover Backorder WPL WP3348752 $85.90

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP62750 Whirlpool Spacer Backorder WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.70

3

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $3.62

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.70

4

8559320 Whirlpool Clip Backorder WPL 8559320 $13.91

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.51

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $44.98

4

WP3347288 Whirlpool Washer Agitator Base In Stock WPL WP3347288 $73.90

4

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $49.52

5

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $255.69

5

W10880720 Whirlpool Tub Ring Backorder WPL W10880720 $76.64

5

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

5

Hinge, Console (2) WPL 387402 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

WP3357978 Whirlpool Rear Panel Backorder WPL WP3357978 $152.90

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

6

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $9.42

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.70

6

Clip, Harness WPL 3390496 Contact Us For Availability

7

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $10.30

7

WP389379 Whirlpool Retainer Backorder WPL WP389379 $3.70

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

Drain Protector (Not Included) WPL 367031 Contact Us For Availability

8

285664 Whirlpool Drain Hose In Stock WPL 285664 $18.32

8

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $28.37

8

285702 Whirlpool Extensions Backorder WPL 285702 $37.95

8

WP3356311 Whirlpool Screw Backorder WPL WP3356311 $2.51

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

WP8543666 Whirlpool Washer In Stock WPL WP8543666 $5.27

8

Timer, Block Disconnect (White) WPL 352090 Contact Us For Availability

9

285811 Whirlpool Washer Agitator Repair Kit In Stock WPL 285811 $8.76

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

W10876590 Whirlpool Connector Backorder WPL W10876590 $4.94

9

Timer, Control (60 Hz.) (Motor Not A Service WPL 3946449 Contact Us For Availability

10

80040 Whirlpool Washer Agitator Dog Kit In Stock WPL 80040 $1.10

10

WP3357027 Whirlpool Nozzle Assembly Backorder WPL WP3357027 $28.80

10

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

11

353424 Whirlpool Connector Backorder WPL 353424 $10.76

11

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $2.51

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

Switch, Water Level (White) WPL 3357481 Contact Us For Availability

Switch, Water Level (Almond) WPL 3357480 Contact Us For Availability

13

W10389328 Whirlpool Basket Backorder WPL W10389328 $190.38

13

Block, Disconnect (Motor 3 Speed) (Use Term. WPL 3348075 Contact Us For Availability

13

Bracket, Control WPL 3361233 Contact Us For Availability

285868 Whirlpool Washer Filter Plug Kit In Stock WPL 285868 $9.92

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

Block, Disconnect (Use Term. 352088) WPL 3347243 Contact Us For Availability

Cord, Power WPL 3360514 Contact Us For Availability

WP389387 Whirlpool Agitator Shaft In Stock WPL WP389387 $103.30

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

Protector WPL 63523 Contact Us For Availability

Strain Relief, Power Cord WPL 63848 Contact Us For Availability

3361596 Whirlpool Outer Tub Primary Backorder WPL 3361596 $180.24

WP54583 Whirlpool Hinge Backorder WPL WP54583 $9.37

Connector (2-Way) (Use Term. 94614) WPL 717252 Contact Us For Availability

Cap, End (L.H.) (White/Chrome) WPL 3358531 Contact Us For Availability

Cap, End (L.H.) (Almond/Chrome) WPL 3358532 Contact Us For Availability

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $76.80

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $4.76

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Plug, Terminal (4-Way) (Power Cord) (Use M3 S WPL 387566 Contact Us For Availability

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $13.91

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.70

Clip, Harness WPL 3352944 Contact Us For Availability

19

WP353244 Whirlpool Hose In Stock WPL WP353244 $30.63

19

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $138.84

19

Block, Disconnect (12-Way) (Timer) (Use Term. WPL 3390423 Contact Us For Availability

285565 Whirlpool Agitator Assembly In Stock WPL 285565 $136.35

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

Receptacle, (6-Way) (Use Term. 94613) WPL 3347730 Contact Us For Availability

Switch, Touch-Pad (2) (White) WPL 3360449 Contact Us For Availability

Switch, Touch-Pad (2) (For Almond Model) WPL 3360450 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $29.23

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $2.51

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

Plug, Terminal (12-Way) (Use Term. 94613 Or 9 WPL 388818 Contact Us For Availability

285587 Whirlpool Thrust Washer In Stock WPL 285587 $1.43

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $7.83

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $20.87

Timer, Block Disconnect (Black) (Amp) (Use Te WPL 3369366 Contact Us For Availability

23

WPW10074580 Whirlpool Agitator Inner Cap and In Stock WPL WPW10074580 $7.47

23

Connector, Etc WPL 3349494 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $71.60

WP3360977 Whirlpool Washer Tub Fill Nozzle In Stock WPL WP3360977 $26.24

WPW10072840 Whirlpool Seal Assembly In Stock WPL WPW10072840 $3.70

Connector, Relay (Use Term. 308569 Or 338664) WPL 60687 Contact Us For Availability

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $7.96

Control, ETC WPL 3407125 Contact Us For Availability

Hose, Bleach WPL 3358198 Contact Us For Availability

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $29.41

26

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $14.40

27

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

27

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

30

WP371502 Whirlpool Clamp Backorder WPL WP371502 $4.78

31

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $7.92

32

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.02

35

Switch, Touch-Pad (8) (White) WPL 3363667 Contact Us For Availability

35

Switch, Touch-Pad (8) (Almond) WPL 3363668 Contact Us For Availability

36

WP356418 Whirlpool Screw Backorder WPL WP356418 $2.51

39

Panel, Console (For White Model) WPL 3364056 Contact Us For Availability

39

Panel, Console (For Almond Model) WPL 3364057 Contact Us For Availability

44

WP3364293 Whirlpool Timer Knob Backorder WPL WP3364293 $30.07

45

280193 Whirlpool Timer Knob Backorder WPL 280193 $33.31

45

WPL 3946261 WPL 3946261 Contact Us For Availability

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

50

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

51

WPL 3358516 WPL 3358516 Contact Us For Availability

51

WPL 3358517 WPL 3358517 Contact Us For Availability

55

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

58

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.70

59

WPL 3348424 WPL 3348424 Contact Us For Availability

60

WPL 3361432 WPL 3361432 Contact Us For Availability
