Model Whirlpool LLR8233EZ1 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $10.49

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.41

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.13

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

1

285442 Whirlpool Coupling Backorder WPL 285442 $30.25

1

WP3355758 Whirlpool Agitator Cap In Stock WPL WP3355758 $3.88

1

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

1

Clip, Harness WPL 3349557 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $82.41

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.88

2

Top (For Designer White Model) WPL 3949476 Contact Us For Availability

2

Top (For Designer Almond Model) WPL 3949477 Contact Us For Availability

3

WP3349019 Whirlpool Upper Agitator Backorder WPL WP3349019 $81.67

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.88

3

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $8.29

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.88

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $47.23

4

WP3350830 Whirlpool Agitator Assembly Backorder WPL WP3350830 $70.46

4

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $30.25

5

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $244.07

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

5

Hinge, Console (2) WPL 387402 Contact Us For Availability

5

Tub Ring & Gasket WPL 3360611 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Cabinet (For Designer Almond Model) WPL 63425 Contact Us For Availability

6

WP3357978 Whirlpool Rear Panel Backorder WPL WP3357978 $152.90

6

WP3359586 Whirlpool Tub Seal In Stock WPL WP3359586 $30.25

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.88

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.88

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

WP8519815 Whirlpool Washer Balance Ring Clip In Stock WPL WP8519815 $2.51

8

285664 Whirlpool Drain Hose In Stock WPL 285664 $18.32

8

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $29.79

8

285702 Whirlpool Extensions Backorder WPL 285702 $37.95

8

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $2.51

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

8

Balance Ring WPL 387868 Contact Us For Availability

9

285811 Whirlpool Washer Agitator Repair Kit In Stock WPL 285811 $8.76

9

3949247V Whirlpool Washer Lid Switch Assembly In Stock WPL 3949247V $21.88

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

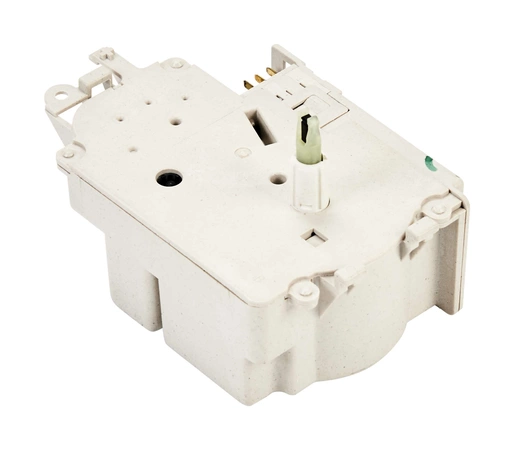

WP3948852 Whirlpool Timer Assembly Backorder WPL WP3948852 $188.87

10

80040 Whirlpool Washer Agitator Dog Kit In Stock WPL 80040 $1.15

10

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

10

Spring, Agitator WPL 62676 Contact Us For Availability

11

353424 Whirlpool Connector Backorder WPL 353424 $10.76

11

WP3363661 Whirlpool Bearing Cam Backorder WPL WP3363661 $3.70

11

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

62619 Whirlpool Washer Backorder WPL 62619 $9.59

W10820051 Whirlpool Washer Pressure Switch In Stock WPL W10820051 $80.00

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

13

WP3948608 Whirlpool Bracket Backorder WPL WP3948608 $43.90

13

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.64

13

Basket & Balance Ring WPL 387713 Contact Us For Availability

14

285868 Whirlpool Washer Filter Plug Kit In Stock WPL 285868 $14.59

14

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

14

Cord, Power (Power Cord Only, Without Harness WPL 3949248 Contact Us For Availability

15

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $117.58

15

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

15

Strain Relief, Power Cord WPL 3949468 Contact Us For Availability

WP54583 Whirlpool Hinge Backorder WPL WP54583 $9.37

Washer, Cam Thrust WPL 62618 Contact Us For Availability

Cap, End (L.H.) (For Designer White Model) WPL 3358528 Contact Us For Availability

Cap, End (L.H.) (For Designer Almond Model) WPL 3358529 Contact Us For Availability

Tub WPL 63039 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $80.64

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

18

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $14.60

18

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

18

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.88

WP353244 Whirlpool Hose In Stock WPL WP353244 $32.17

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $145.78

Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability

Lid (For Designer White Model) WPL 3352718 Contact Us For Availability

Lid (For Designer Almond Model) WPL 3352719 Contact Us For Availability

20

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

20

Receptacle, (6-Way) (Use Term. 94613) WPL 3347730 Contact Us For Availability

20

Agitator (Complete Asy.) WPL 3350829 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $30.69

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

Hose, Bleach WPL 3948705 Contact Us For Availability

Plug, Terminal (12-Way) (Use Term. 94613 Or 9 WPL 388818 Contact Us For Availability

285587 Whirlpool Thrust Washer In Stock WPL 285587 $1.43

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $8.22

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $21.92

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.64

Timer, Block Disconnect (Black) (Amp) (Use Te WPL 3369366 Contact Us For Availability

23

WPW10074580 Whirlpool Agitator Inner Cap and In Stock WPL WPW10074580 $7.83

23

Connector, Etc WPL 3349494 Contact Us For Availability

23

Ring, Retaining WPL 3362552 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $75.19

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $30.12

WPW10072840 Whirlpool Seal Assembly In Stock WPL WPW10072840 $3.88

Connector, Relay (Use Term. 308569 Or 338664) WPL 60687 Contact Us For Availability

Washer Kit, Thrust WPL 285735 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $7.96

25

Control, ETC WPL 3407125 Contact Us For Availability

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $30.87

26

WP2172937 Whirlpool Connector In Stock WPL WP2172937 $8.66

26

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $14.40

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $195.01

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

Connector (T.P.A) (3-Circuit) (Pressure Switc WPL 3360056 Contact Us For Availability

28

3354925 Whirlpool Connector Backorder WPL 3354925 $10.76

28

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $2.51

29

WPL 3354926 WPL 3354926 Contact Us For Availability

30

WP371502 Whirlpool Clamp Backorder WPL WP371502 $4.78

30

WPL 3948615 WPL 3948615 Contact Us For Availability

31

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $7.92

32

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.02

35

WPW10168256 Whirlpool Temperature Switch Backorder WPL WPW10168256 $49.92

36

W10915367 Whirlpool Screw Assembly Backorder WPL W10915367 $2.95

39

Panel, Console (For Designer White Model) WPL 3948259 Contact Us For Availability

39

Panel, Console (For Designer Almond Model) WPL 3948260 Contact Us For Availability

44

W10807860 Whirlpool White Control Knob In Stock WPL W10807860 $31.53

44

WP3957823 Whirlpool Knob Backorder WPL WP3957823 $31.66

45

WP3957841 Whirlpool Dial Backorder WPL WP3957841 $27.12

45

WPL 3948588 WPL 3948588 Contact Us For Availability

47

3957797 Whirlpool Knob In Stock WPL 3957797 $30.89

47

WP3957796 Whirlpool Knob In Stock WPL WP3957796 $32.48

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

50

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

51

WPL 3358513 WPL 3358513 Contact Us For Availability

51

WPL 3358514 WPL 3358514 Contact Us For Availability

55

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

56

WPL 3950999 WPL 3950999 Contact Us For Availability

58

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.70
