Model Whirlpool KSRS27QGAL00 REFRIGERATOR – Common Parts & Diagrams

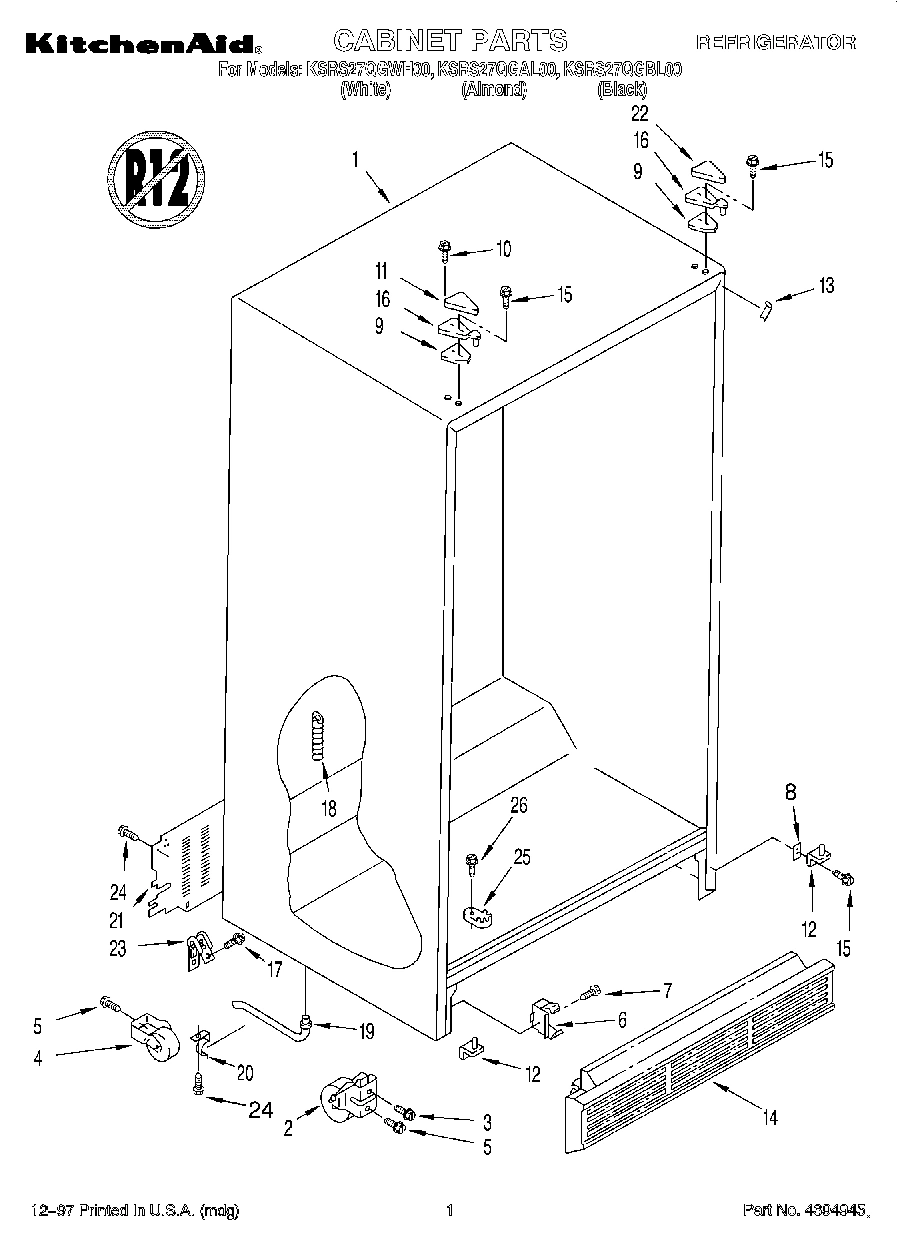

01 - CABINET

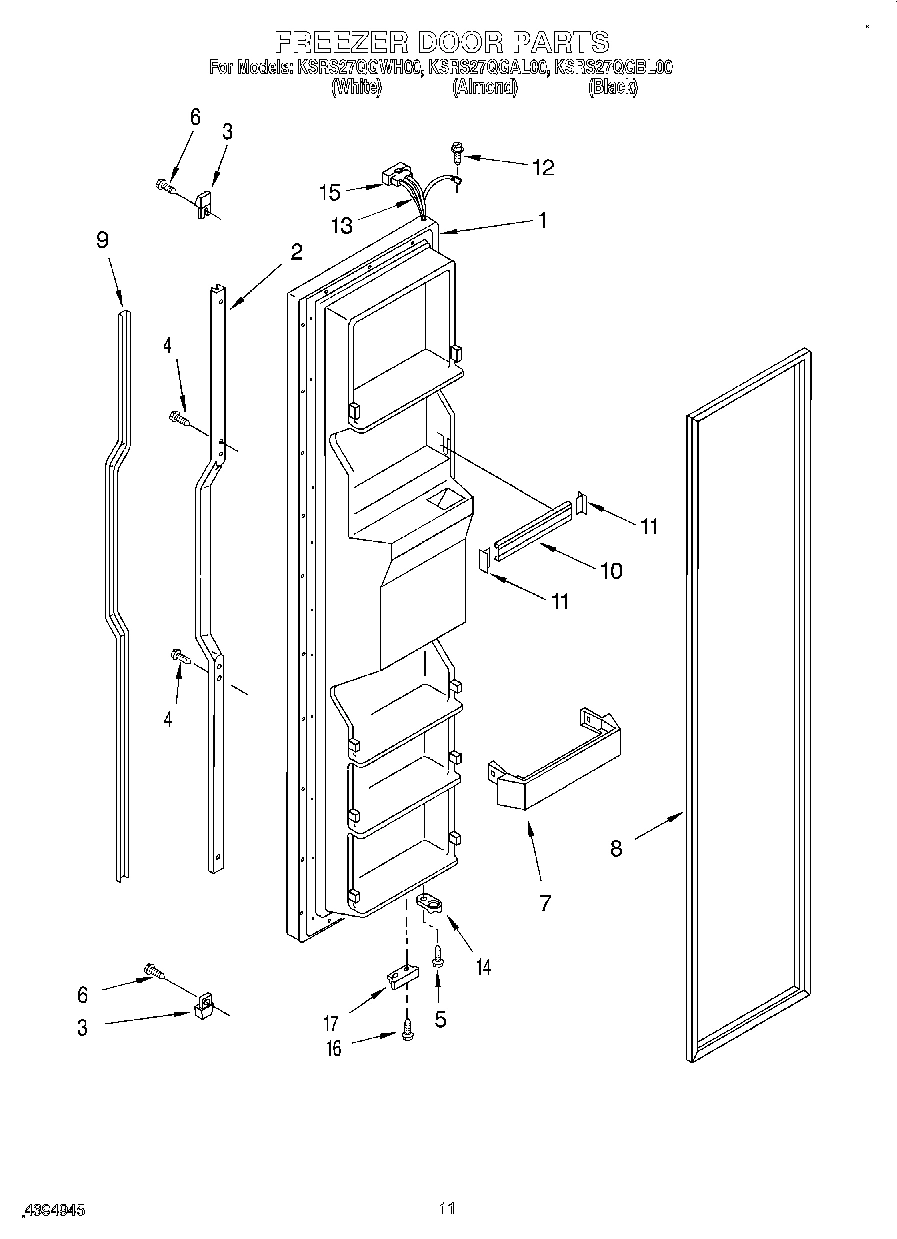

07 - FREEZER DOOR
08 - DISPENSER FRONT
04 - FREEZER LINER

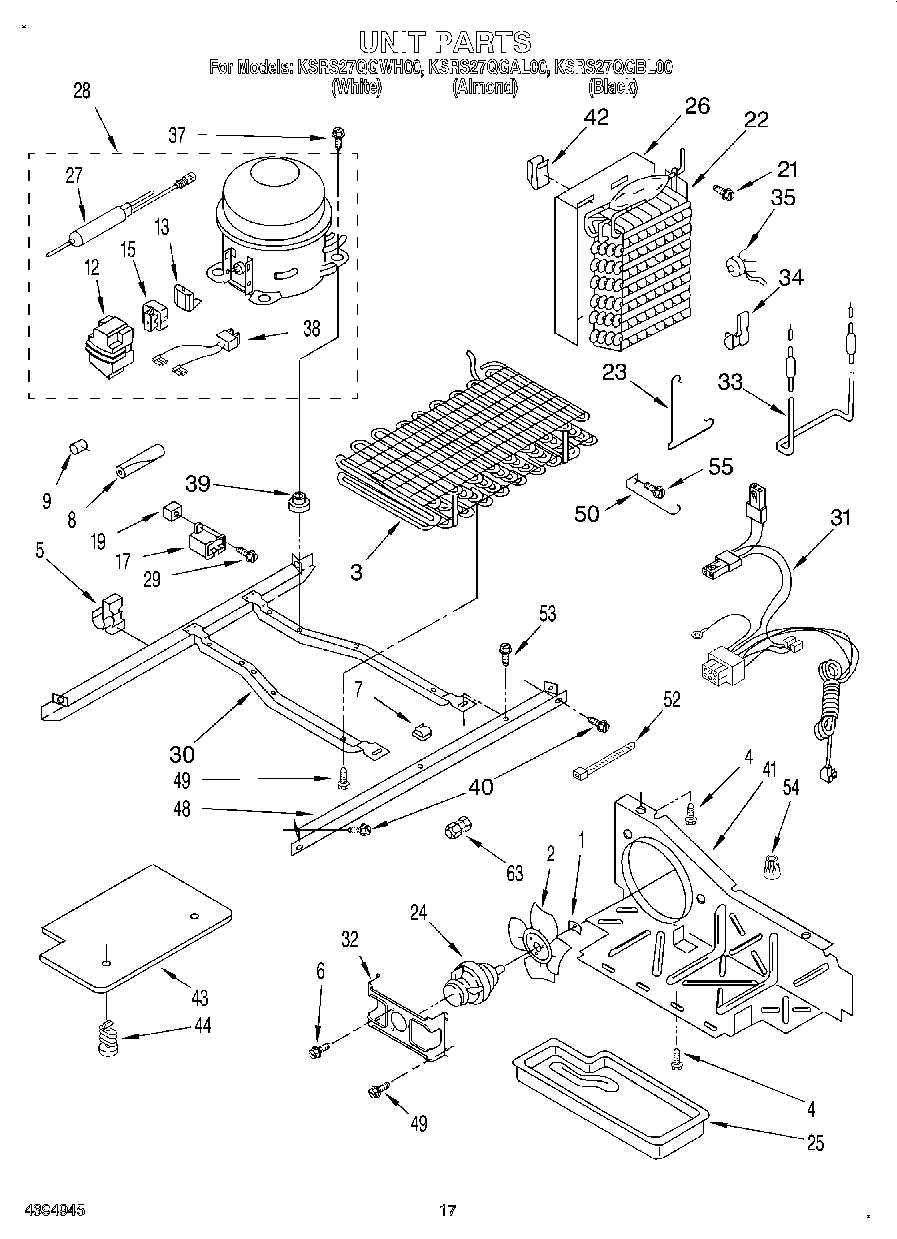

11 - UNIT
09 - AIR FLOW

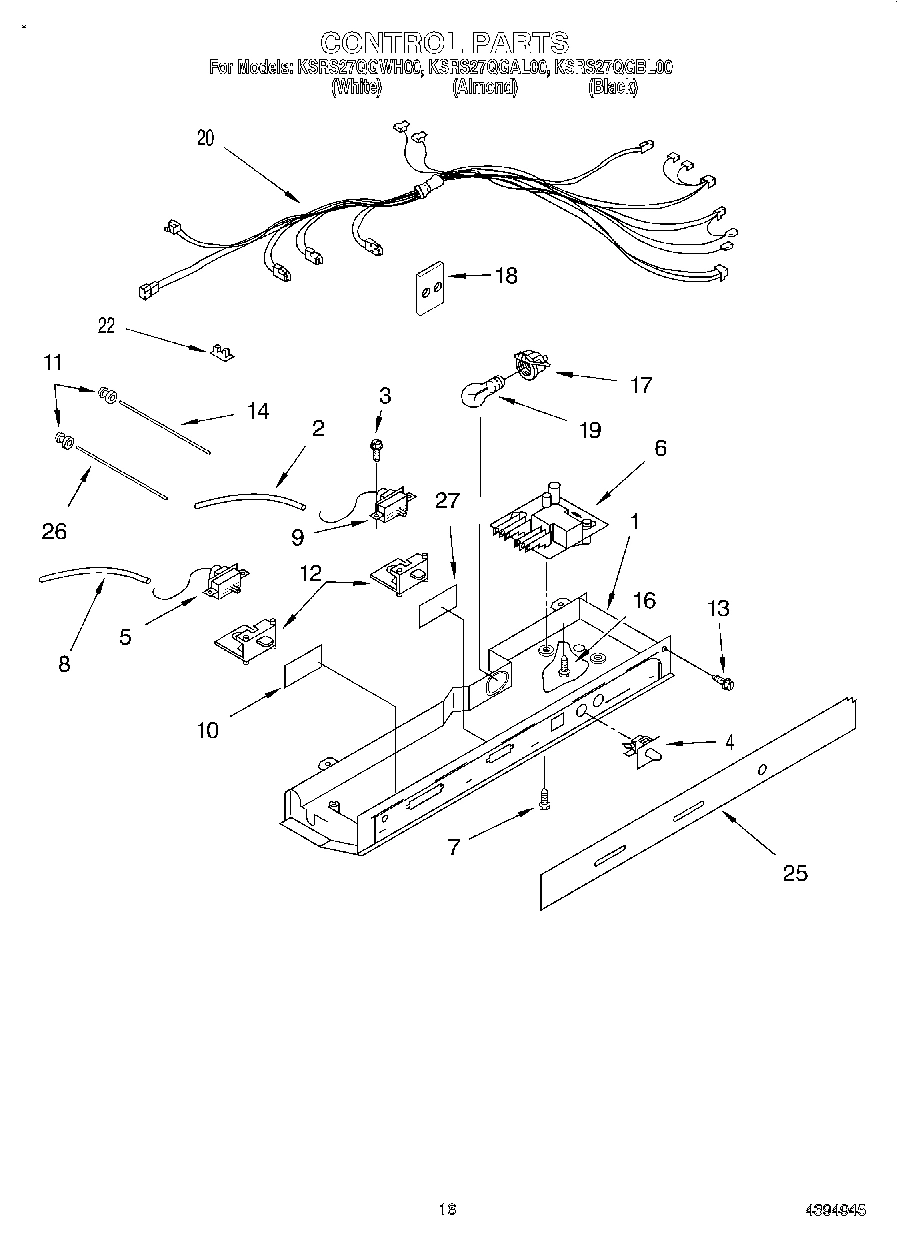

10 - CONTROL

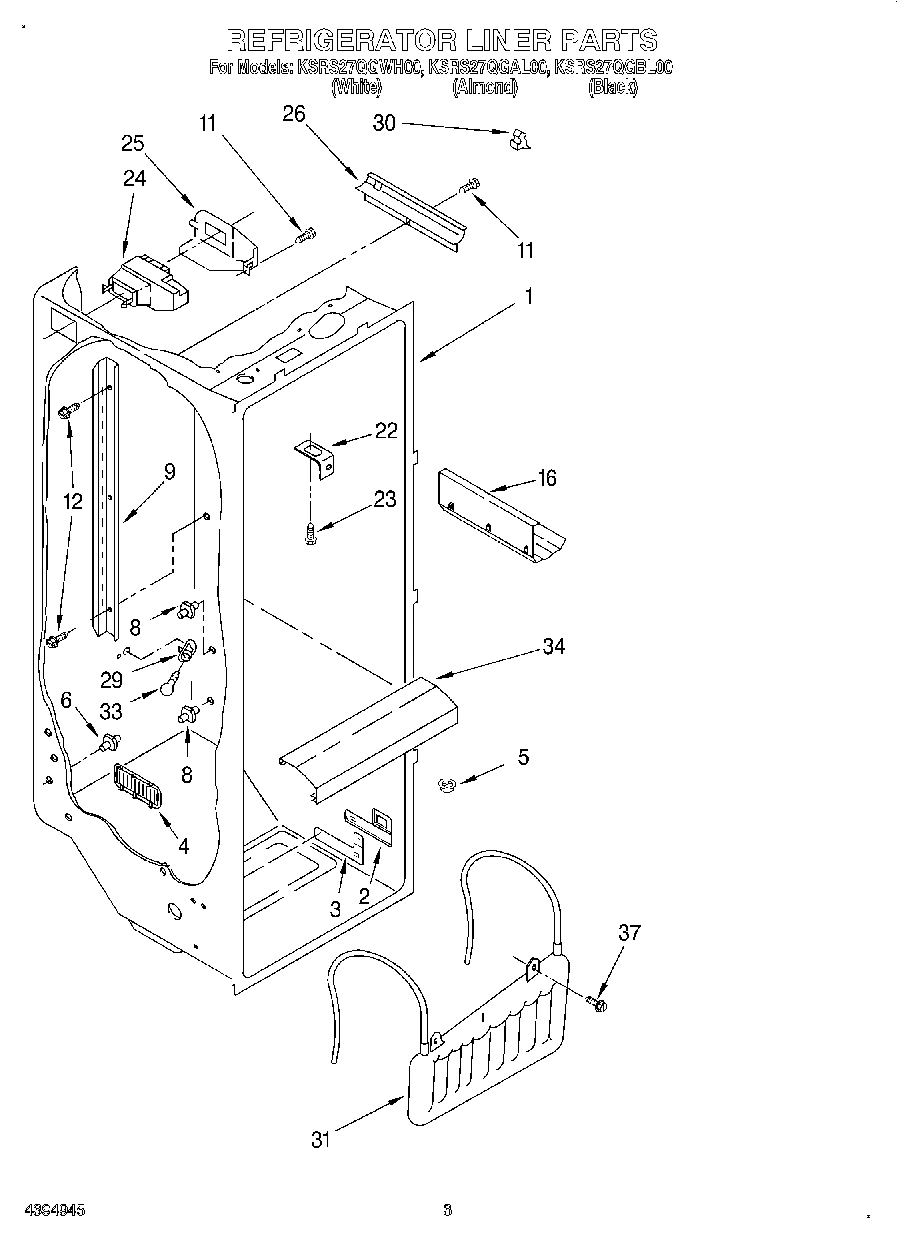

02 - REFRIGERATOR LINER
06 - REFRIGERATOR DOOR
03 - REFRIGERATOR SHELF

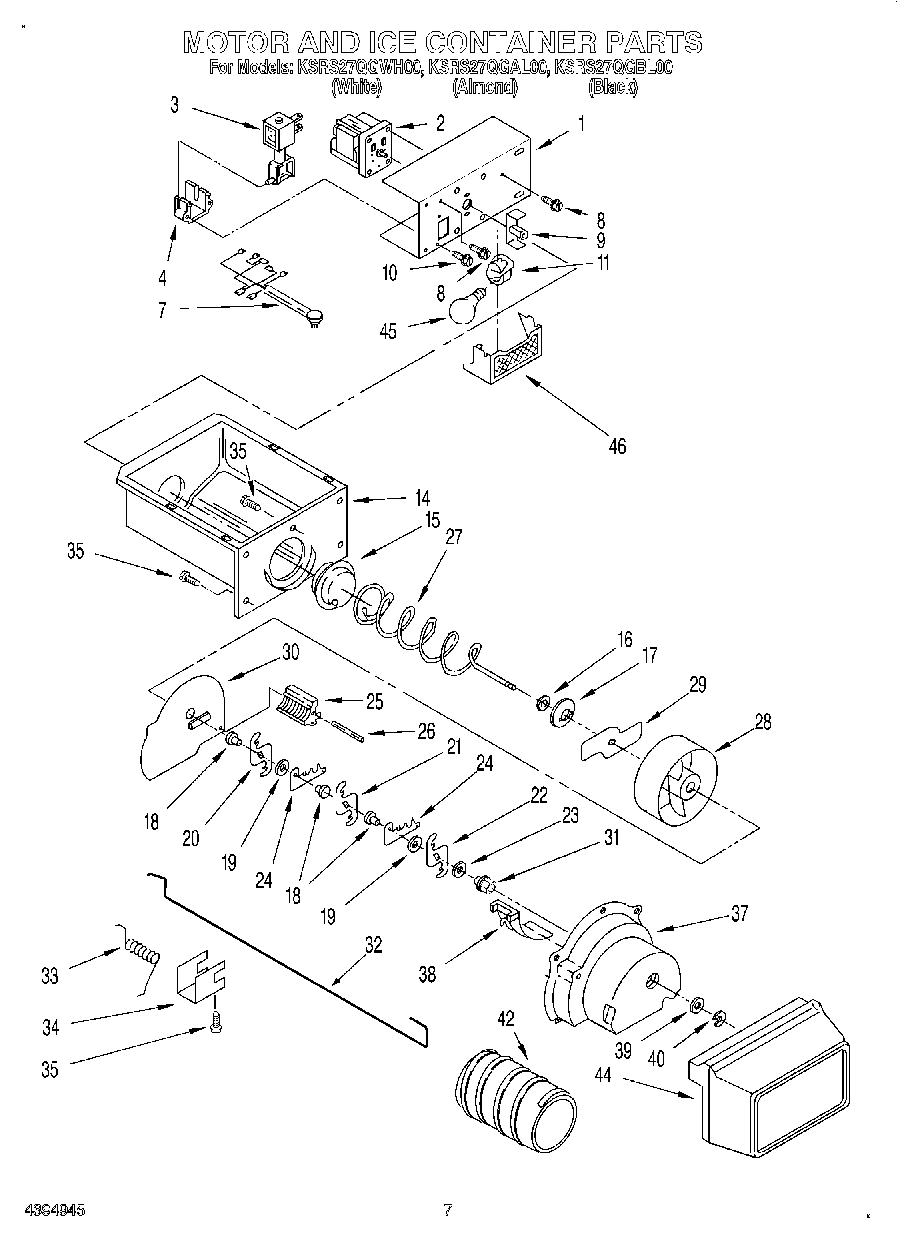

05 - MOTOR AND ICE CONTAINER

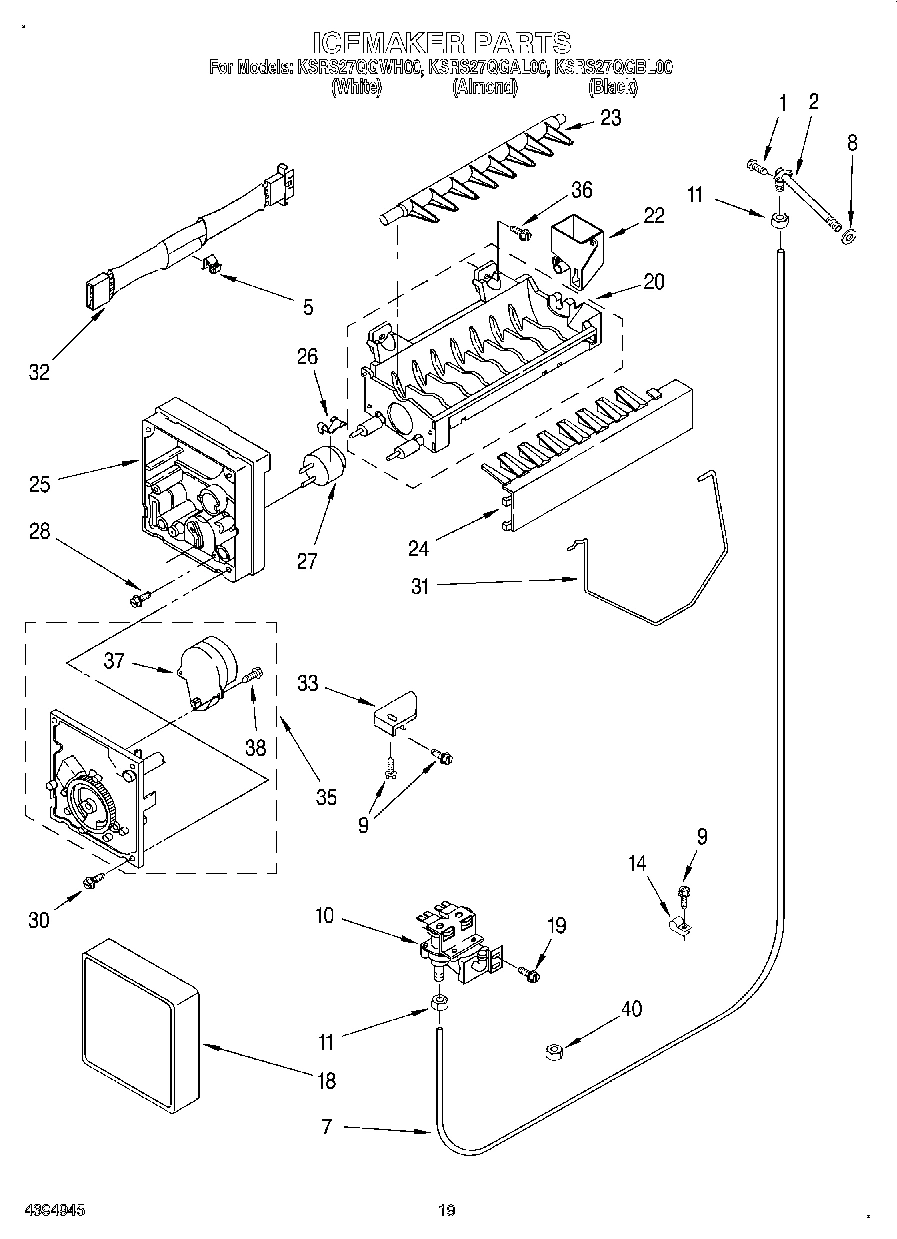

12 - ICEMAKER, LIT/OPTIONAL
Common parts from model Whirlpool KSRS27QGAL00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2186464 WPL LIT2186464 Contact Us For Availability
WPL LIT2186479 WPL LIT2186479 Contact Us For Availability
WPL LIT2186928 WPL LIT2186928 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI103751A Contact Us For Availability
1
Refrigerator Door (Includes No.7) (Black) WPL 2194236B Contact Us For Availability
1
Refrigerator Door (Includes No.7) (Almond) WPL 2194236N Contact Us For Availability
1
Refrigerator Door (Includes No.7) (White) WPL 2194236W Contact Us For Availability
1
Shelf Assembly, Cantilever (3) WPL 2174023 Contact Us For Availability
1
Bracket, Motor WPL 2183726 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Load Lock WPL 2195497 Contact Us For Availability
2
Button, Humidity WPL 2174253 Contact Us For Availability
4
Louver WPL 2182147 Contact Us For Availability
4
Beverage Holder WPL 2193409 Contact Us For Availability
4
Gasket, Side (2) WPL 2174273 Contact Us For Availability
5
Tray, Butter WPL 2165792 Contact Us For Availability
6
Insert, Handle (White) WPL 2173825 Contact Us For Availability
6
Insert, Handle (Almond) WPL 2173828 Contact Us For Availability
6
Insert, Handle (Black) WPL 2173829 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
8
End Cap, Handle (Black) WPL 2194778B Contact Us For Availability
8
End Cap, Handle (Almond) WPL 2194778N Contact Us For Availability
8
End Cap, Handle (White) WPL 2194778W Contact Us For Availability
8
Glass, Cover WPL 2189526 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Grommet (2) WPL 2176134 Contact Us For Availability
9
Grille, Overflow (White) WPL 2180323 Contact Us For Availability
9
Ladder, Shelf (2) WPL 2181796 Contact Us For Availability
10
Retainer, Insert (Black) WPL 2194777B Contact Us For Availability
10
Retainer, Insert (Almomd) WPL 2194777N Contact Us For Availability
10
Retainer, Insert (White) WPL 2194777W Contact Us For Availability
10
Shelf, Snack Pan WPL 2198277 Contact Us For Availability
11
Lever, Ice Dispenser (White) WPL 2180259 Contact Us For Availability
11
Grommet, Light Bar WPL 2172906 Contact Us For Availability
12
Gasket, (Rear) WPL 2174274 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Gasket WPL 2159124 Contact Us For Availability
14
Grille (Black) WPL 2155485 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Roller WPL 2174388 Contact Us For Availability
15
Bracket, Door Stop WPL 2155331 Contact Us For Availability
16
Shelf Bin (4) WPL 2171062 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
17
Meat Pan (Includes 13, 14, 19, & 22) WPL 2179231 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
20
Control Box Harness WPL 2172953 Contact Us For Availability
21
Cap, Crisper Pan (Left Side) WPL 2174258 Contact Us For Availability
21
Cap, Crisper Pan (Right Side) WPL 2174259 Contact Us For Availability
22
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Window, Meat Pan WPL 2174362 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
24
Shelf & Roller Assembly WPL 2174021 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Escutcheon, Control Box WPL 2161486 Contact Us For Availability
25
Screw WPL 489439 Contact Us For Availability
26
Light Bar (FC) WPL 2179921 Contact Us For Availability
26
Glass, Cover WPL 2174148 Contact Us For Availability
27
Window WPL 2172941 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171708 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
100
KIT, WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
