Model Whirlpool KSRS25IHBL02 REFRIGERATOR – Common Parts & Diagrams

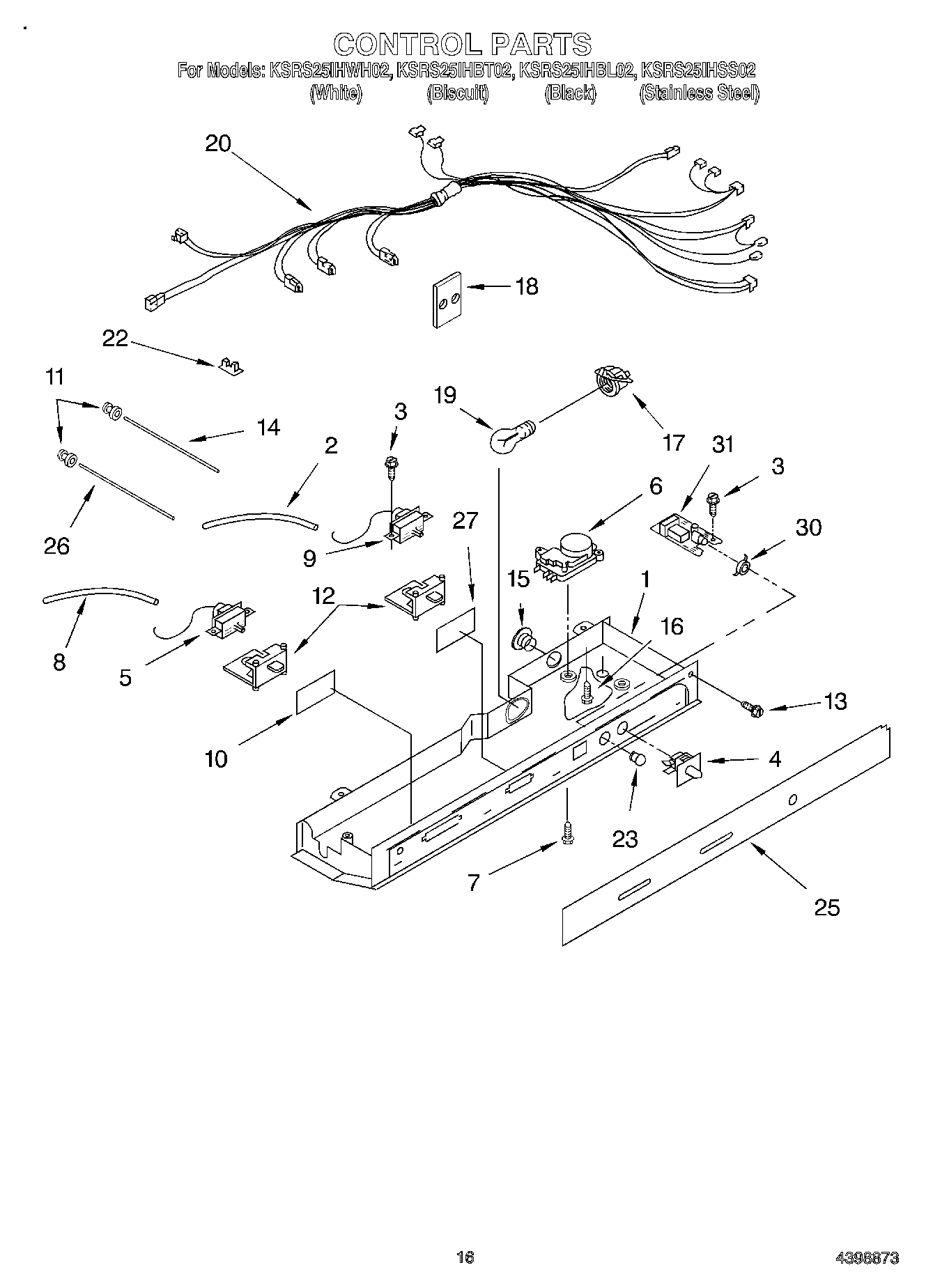

10 - CONTROL

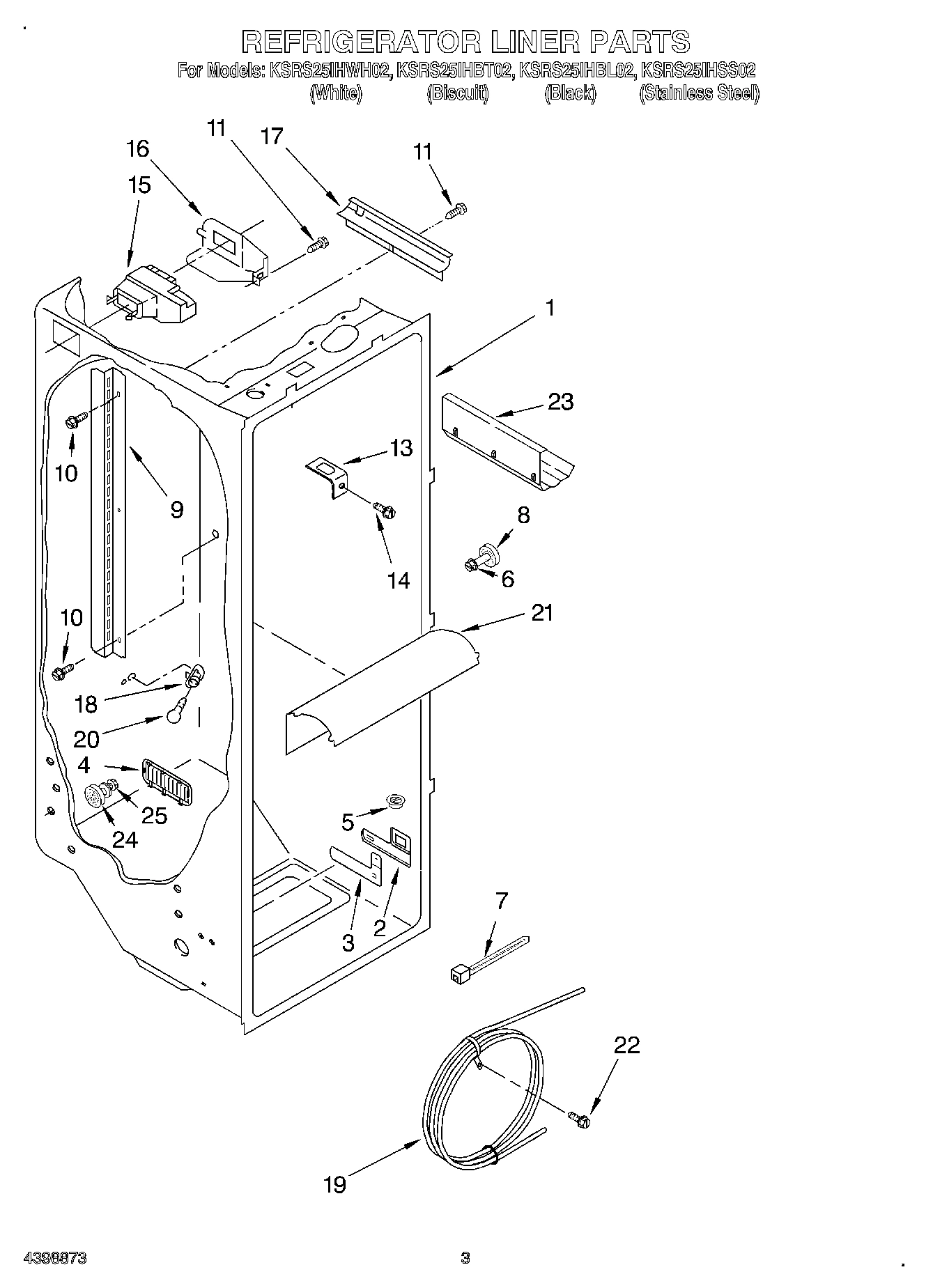

02 - REFRIGERATOR LINER
04 - FREEZER LINER
07 - FREEZER DOOR
09 - AIR FLOW
06 - REFRIGERATOR DOOR
11 - UNIT
12 - ICEMAKER, OPTIONAL
08 - DISPENSER FRONT
01 - CABINET, LITERATURE
03 - REFRIGERATOR SHELF
05 - MOTOR AND ICE CONTAINER
Common parts from model Whirlpool KSRS25IHBL02 REFRIGERATOR
Icemaker WPL LIT787316 Contact Us For Availability
Refrigerator WPL LIT787808 Contact Us For Availability
1
Housing, Dispenser (Not a Serviceable Part) WPL ARI101888A Contact Us For Availability
1
LITERATURE PARTS (Service & Wiring Sheet) WPL LIT2198683 Contact Us For Availability
1
LITERATURE PARTS (Owner`s Manual) WPL LIT2206106 Contact Us For Availability
1
LITERATURE PARTS (Energy Guide) WPL LIT2211899 Contact Us For Availability
1
Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability
1
Shelf Assembly, Cantilever (2) WPL 2195978 Contact Us For Availability
2
Blade, Fan WPL 2190685 Contact Us For Availability
2
Crusher Bin WPL 2212367 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Button, Humidity WPL 2174253 Contact Us For Availability
4
Gasket, Side (2) WPL 2174273 Contact Us For Availability
4
Blade, Stirring WPL 2198603 Contact Us For Availability
5
Dispenser Harness WPL 2206178 Contact Us For Availability
6
Nut, Compression WPL 2200083 Contact Us For Availability
6
Glass, Cover WPL 2174148 Contact Us For Availability
6
Cover, Crusher WPL 2198591 Contact Us For Availability
7
Door Mechanism Assembly WPL 2206423 Contact Us For Availability
8
Delay Mechanism WPL 2205686 Contact Us For Availability
8
Glass, Cover WPL 2189526 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Grille, Overflow (Biscuit) WPL 2207109T Contact Us For Availability
9
Grille, Overflow (White) WPL 2207109W Contact Us For Availability
9
Blade, Fixed WPL 2198601 Contact Us For Availability
11
Lever, Ice Dispenser (White (White Shadow Pad WPL 2180259 Contact Us For Availability
11
Block, Blade WPL 2198602 Contact Us For Availability
11
Lever, Ice Dispenser (Black (Storm Grey Pad)) WPL 2180261 Contact Us For Availability
11
Lever, Ice Dispenser (Biscuit (Almond Shadow WPL 2186850 Contact Us For Availability
12
Gasket, (Rear) WPL 2174274 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Filler, Wrapper (White) WPL 2196094 Contact Us For Availability
14
Filler, Wrapper (Black) WPL 2196097 Contact Us For Availability
14
Filler, Wrapper (Biscuit) WPL 2196150 Contact Us For Availability
14
Roller WPL 2188212 Contact Us For Availability
15
Grille (Biscuit) WPL 2186881T Contact Us For Availability
17
Meat Pan (Includes 13, 14, 19, & 22) WPL 2179231 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
19
Overlay, Front Cover (Black) WPL 2207154B Contact Us For Availability
19
Overlay, Front Cover (Biscuit) WPL 2207154T Contact Us For Availability
19
Overlay, Front Cover (White) WPL 2207154W Contact Us For Availability
20
Latch, Bin WPL 2212371 Contact Us For Availability
21
Front Cover, Housing (Not Available, Order No WPL ARI101889A Contact Us For Availability
21
Cap, Crisper Pan (Left Side) WPL 2174258 Contact Us For Availability
21
Cap, Crisper Pan (Right Side) WPL 2174259 Contact Us For Availability
22
Cabinet (Not A Serviceable Part) WPL ARI101885A Contact Us For Availability
22
Window, Meat Pan WPL 2174362 Contact Us For Availability
23
COVER, LIGHT LENS WPL 2200096 Contact Us For Availability
23
Clip WPL 2161324 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2207153B Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2207153T Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2207153W Contact Us For Availability
23
Hinge Cover (Biscuit) WPL 2203408T Contact Us For Availability
24
Holder WPL 2212369 Contact Us For Availability
24
Shelf & Roller Assembly WPL 2174021 Contact Us For Availability
25
Screw WPL 489439 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability
28
Pin WPL 2198666 Contact Us For Availability
31
Bracket, Motor WPL 2198655 Contact Us For Availability
32
Dispenser, Motor WPL 2198594 Contact Us For Availability
33
Cover WPL 2198626 Contact Us For Availability
34
Shelf, Snack Pan WPL 2206346 Contact Us For Availability
34
Screw WPL 8281162 Contact Us For Availability
40
WPL 80051 WPL 80051 Contact Us For Availability
40
WPL 876029 WPL 876029 Contact Us For Availability
40
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
40
Torx Key WPL 1117510 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
40
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
40
Enamel, WPL 799340 Contact Us For Availability
40
WPL 799833 WPL 799833 Contact Us For Availability
40
WPL 8171358 WPL 8171358 Contact Us For Availability
59
Clip, Wire & Tube WPL 2208280 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
