Model Whirlpool KSRS25FGWH00 REFRIGERATOR – Common Parts & Diagrams

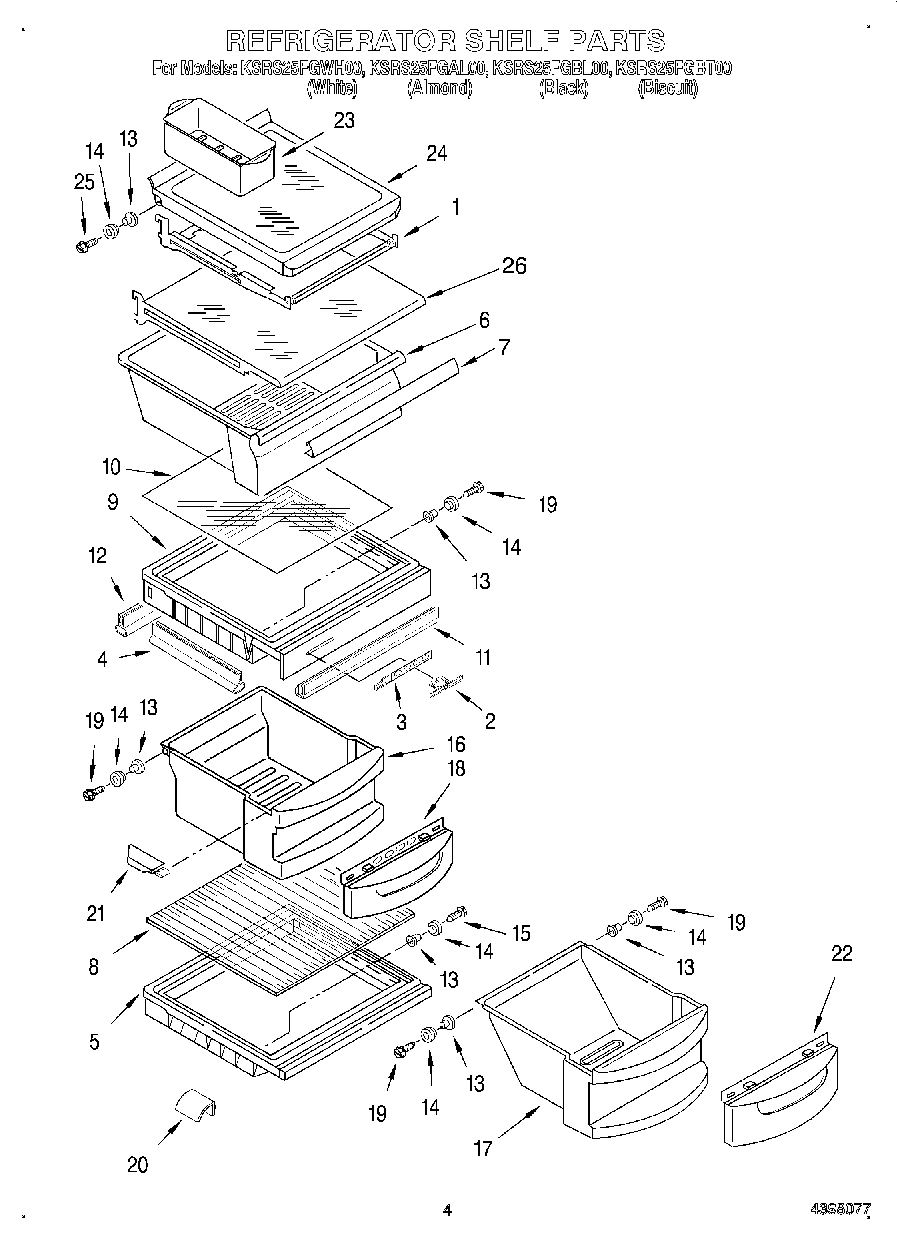

03 - REFRIGERATOR SHELF
04 - FREEZER LINER
10 - CONTROL
12 - ICEMAKER, LIT/OPTIONAL
07 - FREEZER DOOR
02 - REFRIGERATOR LINER
05 - MOTOR AND ICE CONTAINER
09 - AIR FLOW
11 - UNIT
01 - CABINET
06 - REFRIGERATOR DOOR
08 - DISPENSER FRONT
Common parts from model Whirlpool KSRS25FGWH00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI101648A Contact Us For Availability
1
Refrigerator Door (Includes No.7) (Black) WPL 2194233B Contact Us For Availability
1
Refrigerator Door (Includes No.7) (Almond) WPL 2194233N Contact Us For Availability
1
Refrigerator Door (Includes No.7) (Biscuit) WPL 2194233T Contact Us For Availability
1
Refrigerator Door (Includes No.7) (White) WPL 2194233W Contact Us For Availability
1
Housing, Dispenser (Not a Serviceable Part) WPL ARI101651A Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Load Lock WPL 2195497 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Condenser Assembly WPL 2198175 Contact Us For Availability
4
Beverage Holder WPL 2193409 Contact Us For Availability
5
Air Duct Freezer WPL 2196122 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
5
Tray, Butter WPL 2165792 Contact Us For Availability
6
Insert, Handle (White) WPL 2173825 Contact Us For Availability
6
Insert, Handle (Almond) WPL 2173828 Contact Us For Availability
6
Insert, Handle (Black) WPL 2173829 Contact Us For Availability
6
Insert, Handle (Biscuit) WPL 2186863T Contact Us For Availability
6
Door, Ice WPL 2180205 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
7
Clip, Tube WPL 2200079 Contact Us For Availability
7
Door Mechanism Assembly WPL 2180208 Contact Us For Availability
8
End Cap, Handle (Black) WPL 2194778B Contact Us For Availability
8
End Cap, Handle (Almond) WPL 2194778N Contact Us For Availability
8
End Cap, Handle (Biscuit) WPL 2194778T Contact Us For Availability
8
End Cap, Handle (White) WPL 2194778W Contact Us For Availability
8
Delay Mechanism WPL 2180223 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Grommet (2) WPL 2176134 Contact Us For Availability
9
Grille, Overflow (White) WPL 2180323 Contact Us For Availability
9
Shim, Hinge Top WPL 2196048 Contact Us For Availability
9
Grille, Overflow (Almond) WPL 2180324 Contact Us For Availability
9
Grille, Overflow (Biscuit) WPL 2186860 Contact Us For Availability
10
Screw WPL 489284 Contact Us For Availability
10
Retainer, Insert (Black) WPL 2194777B Contact Us For Availability
10
Retainer, Insert (Almond) WPL 2194777N Contact Us For Availability
10
Retainer, Insert (Biscuit) WPL 2194777T Contact Us For Availability
10
Retainer, Insert (White) WPL 2194777W Contact Us For Availability
11
Lever, Ice Dispenser (White (White Shadow Pad WPL 2180259 Contact Us For Availability
11
Lever, Ice Dispenser (Almond (Almond Shadow P WPL 2180260 Contact Us For Availability
11
Lever, Ice Dispenser (Black (Storm Grey Pad)) WPL 2180261 Contact Us For Availability
11
Lever, Ice Dispenser (Biscuit (Almond Shadow WPL 2186850 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161478 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
13
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
13
Filler, Wrapper (Black) WPL 1127272 Contact Us For Availability
13
Filler, Wrapper (Biscuit) WPL 2186846 Contact Us For Availability
13
Gasket WPL 2159124 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Grille (Biscuit) WPL 2198468T Contact Us For Availability
14
Grille (Almond) WPL 2198468N Contact Us For Availability
15
COVER, LIGHT LENS WPL 2200096 Contact Us For Availability
15
Bracket, Door Stop (Black) WPL 2195952 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Shelf Bin (4) WPL 2171063 Contact Us For Availability
17
Bracket, Door Stop (Black) WPL 2195950 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Cover, Evaporator WPL 2196144 Contact Us For Availability
17
Lever, Water Dispenser (Almond (Almond Shadow WPL 2180269 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Overlay, Front Cover (Black) WPL 2186515B Contact Us For Availability
19
Overlay, Front Cover (Almond) WPL 2186515N Contact Us For Availability
19
Overlay, Front Cover (Biscuit) WPL 2186515T Contact Us For Availability
19
Overlay, Front Cover (White) WPL 2186515W Contact Us For Availability
21
Front Cover, Housing (Not Available, Order No WPL ARI101652A Contact Us For Availability
22
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
22
Evaporator WPL 2164519 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2186511B Contact Us For Availability
23
WPL 2186511N WPL 2186511N Contact Us For Availability
23
WPL 2186511T WPL 2186511T Contact Us For Availability
23
WPL 2186511W WPL 2186511W Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
30
Cap, Water Filter (Almond) WPL 2186884N Contact Us For Availability
31
Unit, Harness WPL 2194749 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Unit Cover, Bottom WPL 2182058 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171708 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Guard, Fan WPL 2186495 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
× ![]()
