Model Whirlpool KSRB27FHBL04 – Common Parts & Diagrams

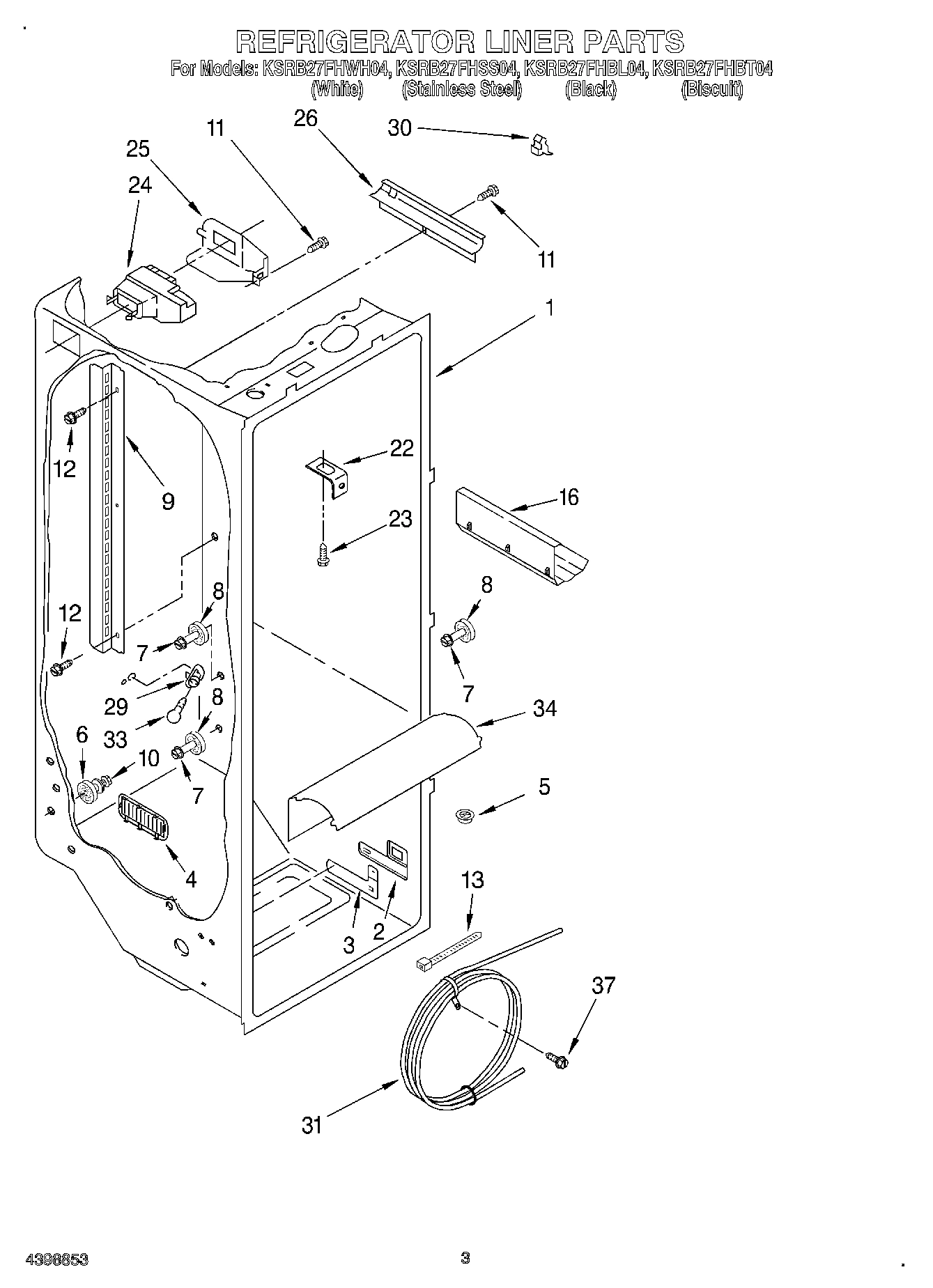

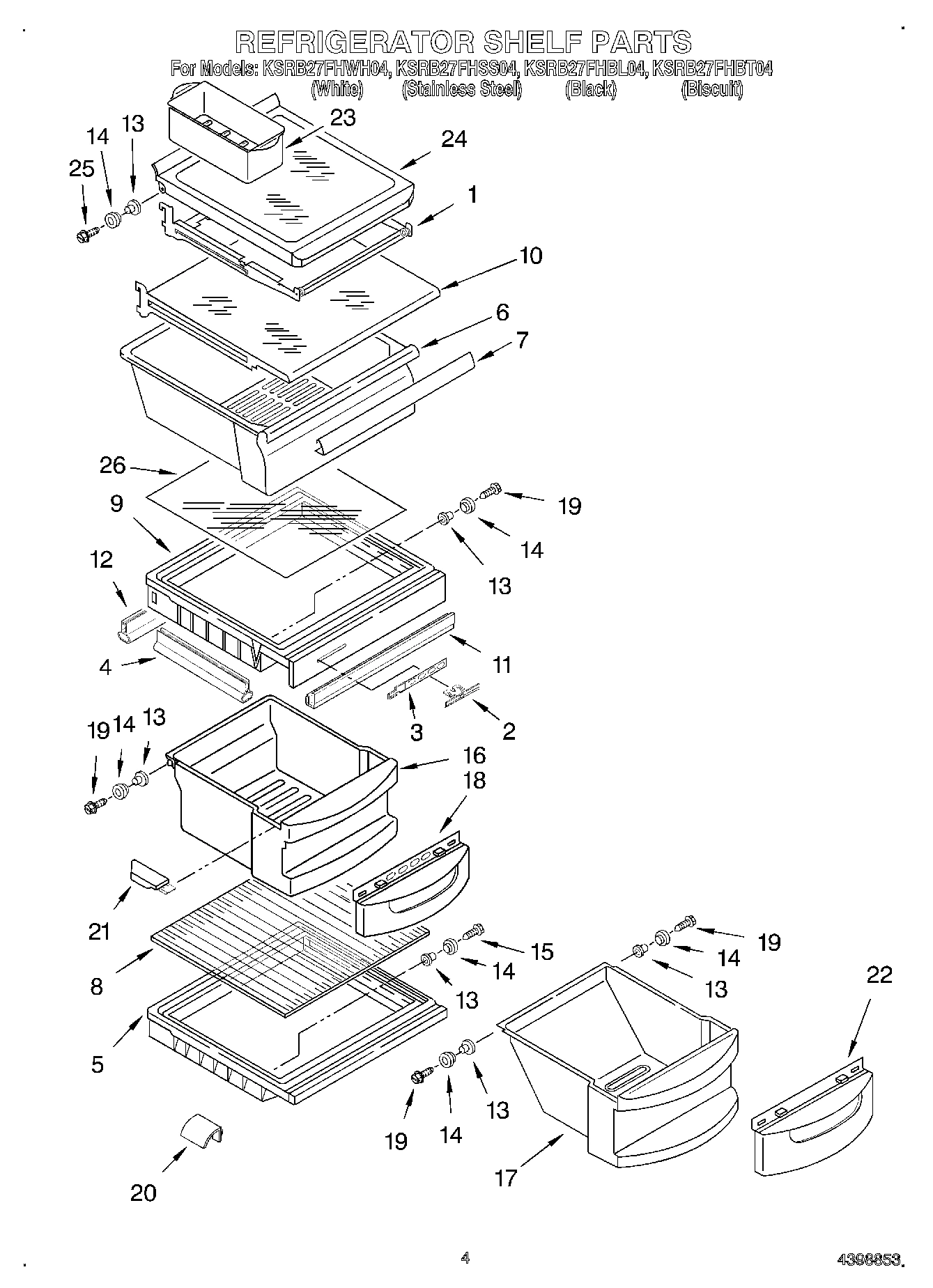

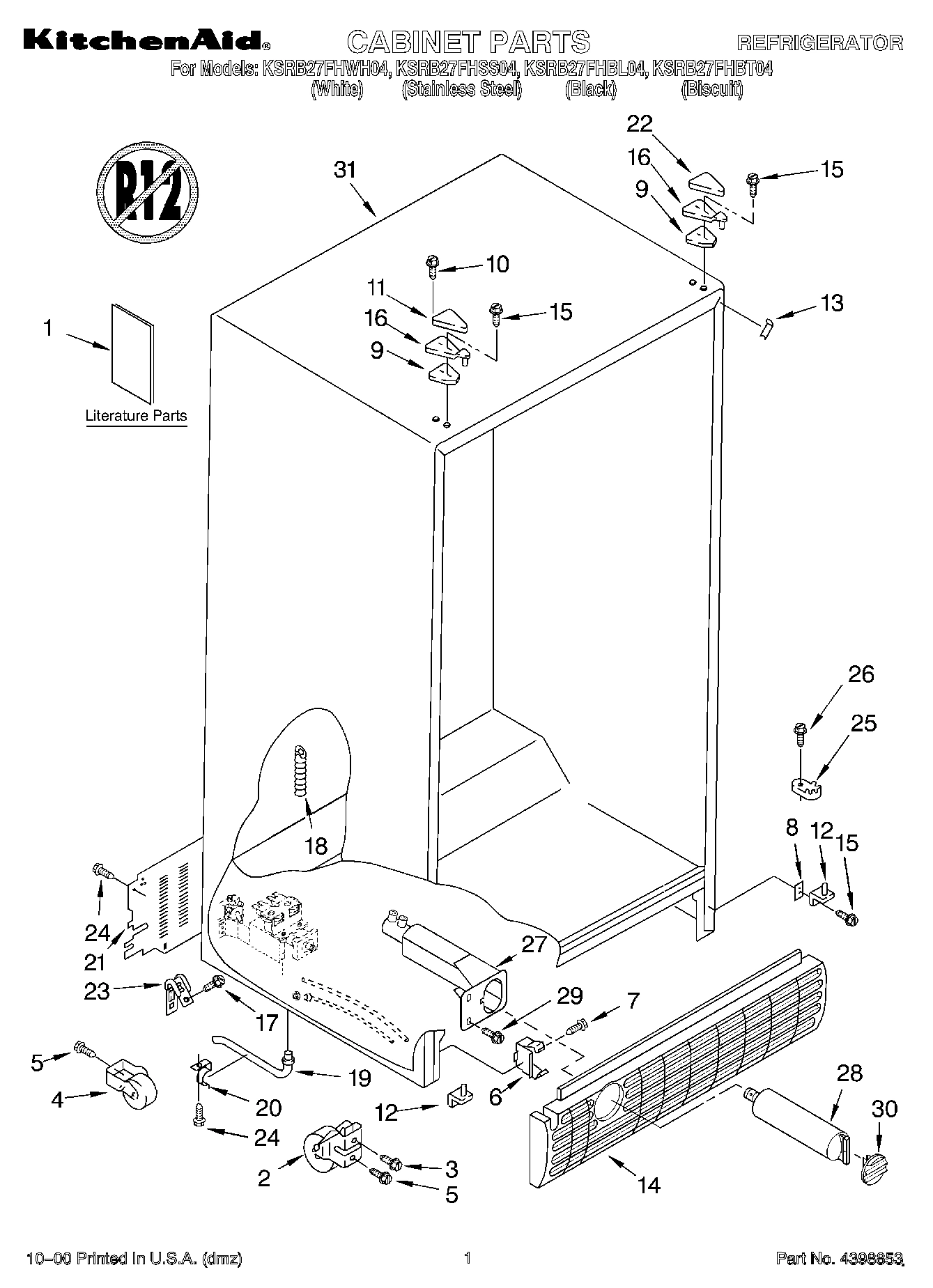

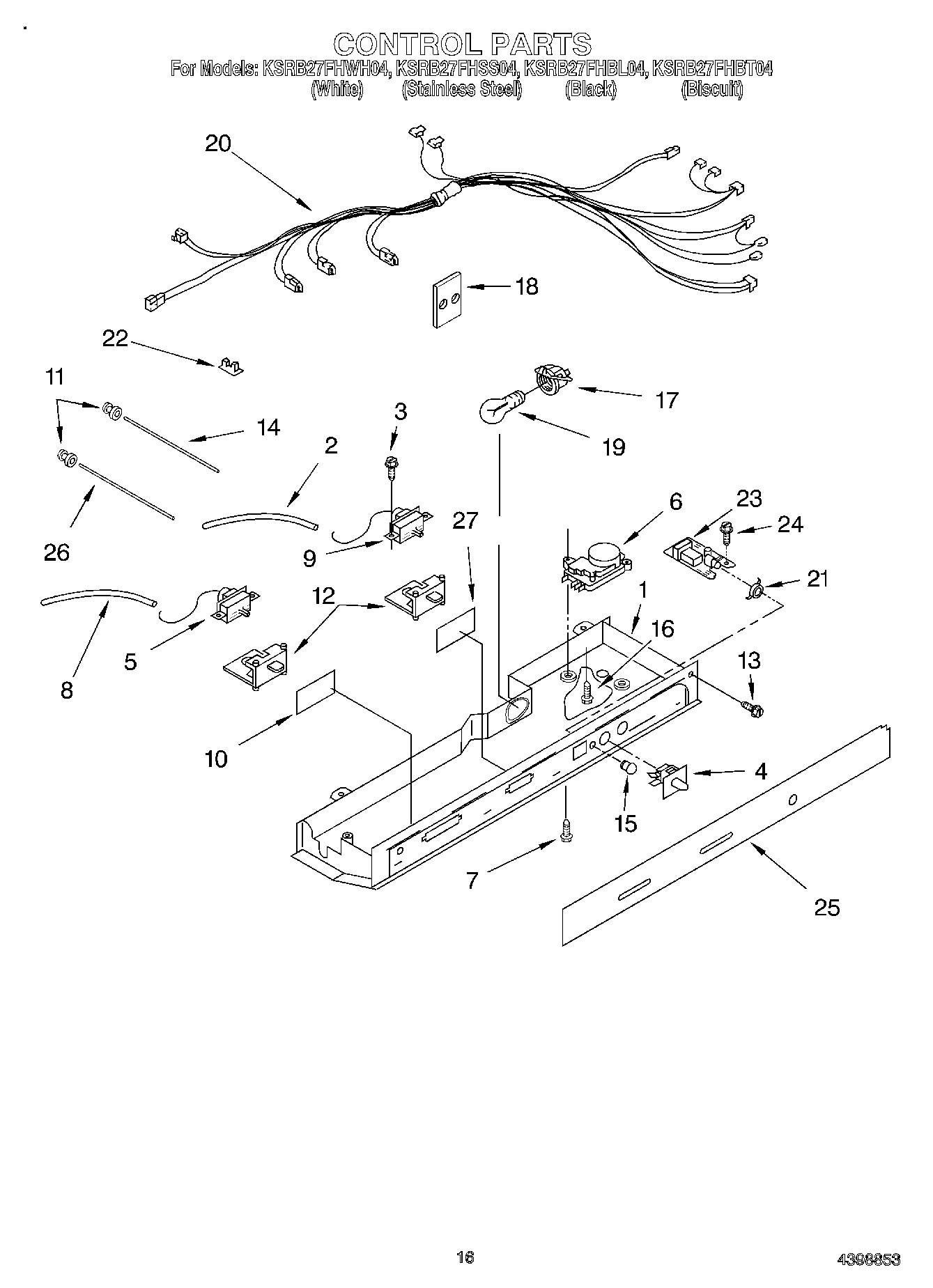

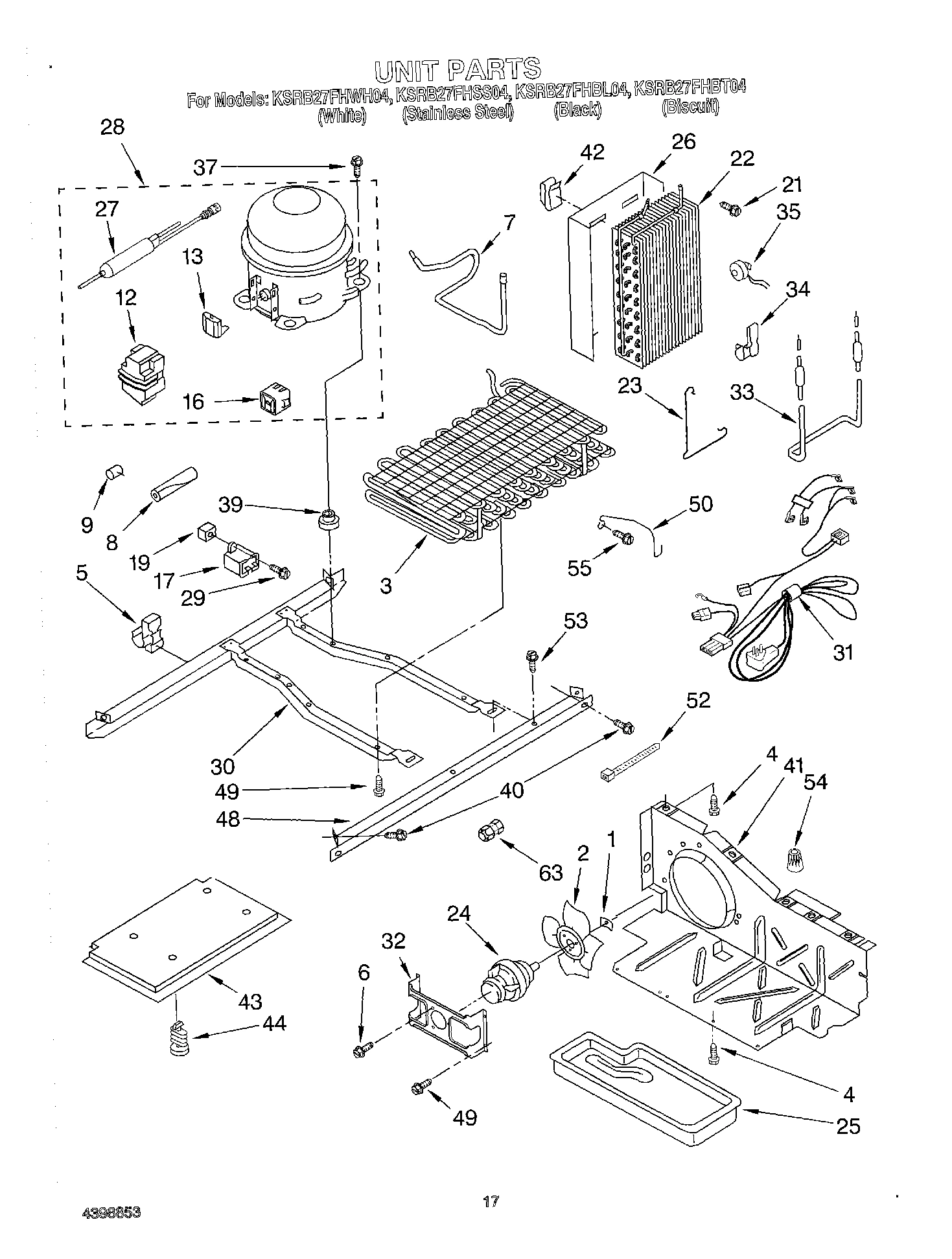

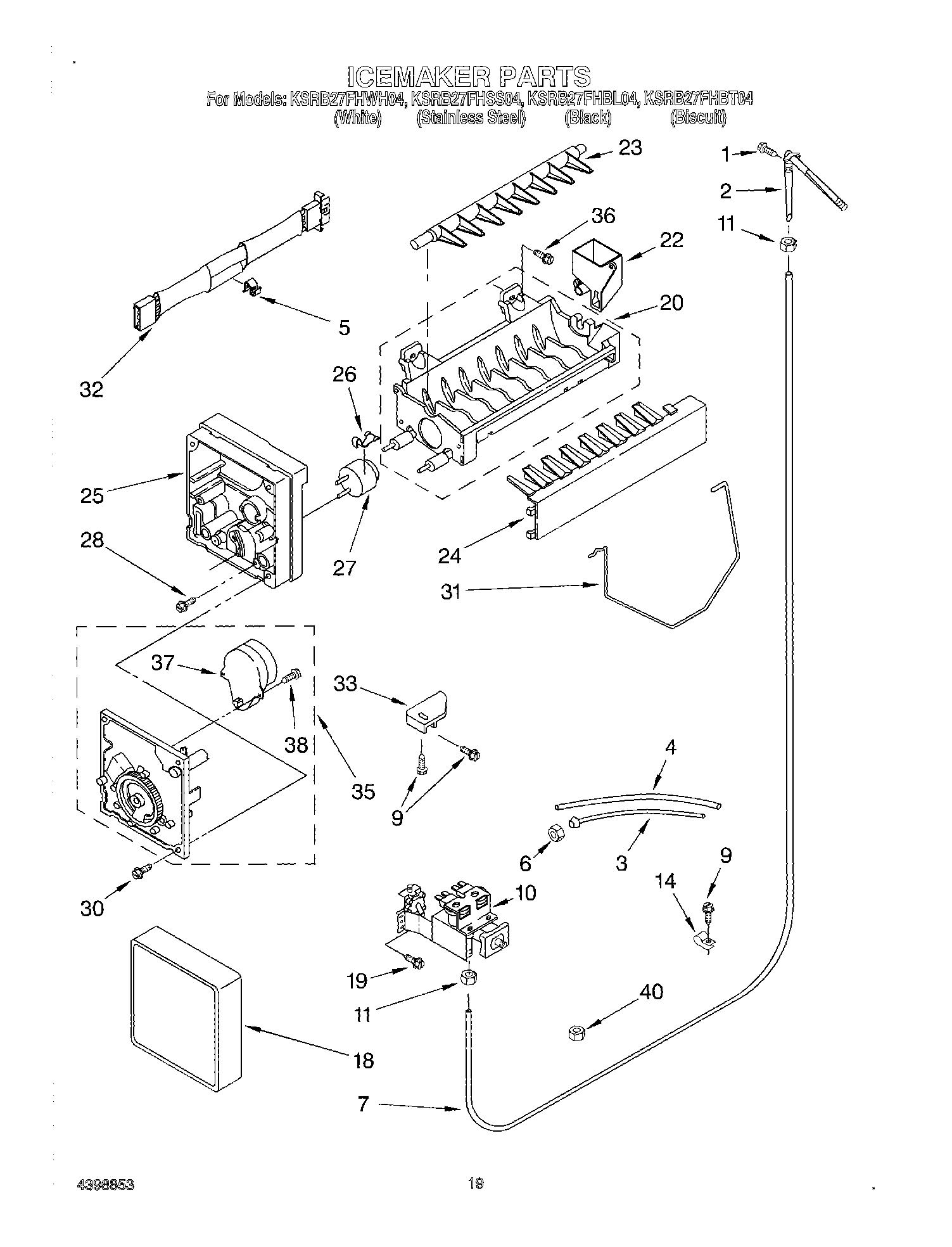

Common parts from model Whirlpool KSRB27FHBL04
1

Bracket, Motor WPL 2183726 Contact Us For Availability
1

Liner (Not A Serviceable Part) WPL ARI94972A8 Contact Us For Availability
1

LITERATURE PARTS (Service & Wiring Sheet) WPL LIT2200279 Contact Us For Availability
1

Literature Parts (Use & Care Guide) WPL LIT2206106 Contact Us For Availability
1

Energy Label WPL LIT2211862 Contact Us For Availability
1

Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability
1

Housing, Dispenser (Not a Serviceable Part) WPL ARI94974A3 Contact Us For Availability
1

Shelf Assembly, Cantilever (2) WPL 2195978 Contact Us For Availability
2

Blade, Fan WPL 2190685 Contact Us For Availability
2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2

Front Roller (2) WPL 2174748 Contact Us For Availability
2

Button, Humidity WPL 2174253 Contact Us For Availability
3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3

Air Scoop WPL 2161231 Contact Us For Availability
4

Louver WPL 2182147 Contact Us For Availability
4

Gasket, Side (2) WPL 2174273 Contact Us For Availability
5

Air Duct Freezer WPL 2203593 Contact Us For Availability
6

Adaptive Defrost Control WPL 2162046 Contact Us For Availability
6

Nut, Compression WPL 2200083 Contact Us For Availability
7

Door Mechanism Assembly WPL 2206423 Contact Us For Availability
8

Delay Mechanism WPL 2205686 Contact Us For Availability
8

Glass, Cover WPL 2189526 Contact Us For Availability
9

Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9

Grommet (2) WPL 2176134 Contact Us For Availability
9

Screw (Black) WPL 3400899 Contact Us For Availability
9

Grille, Overflow (White) WPL 2180323 Contact Us For Availability
9

Ladder, Shelf (2) WPL 2206273 Contact Us For Availability
9

Shim, Hinge Top WPL 2196049 Contact Us For Availability
9

Grille, Overflow (Biscuit) WPL 2186860 Contact Us For Availability
10

Screw WPL 489284 Contact Us For Availability
10

Shelf, Snack Pan WPL 2206346 Contact Us For Availability
11

Lever, Ice Dispenser (White (White Shadow Pad WPL 2180259 Contact Us For Availability
11

Grommet, Light Bar WPL 2172906 Contact Us For Availability
11

Hinge Cover (Black) WPL 2171947 Contact Us For Availability
11

Hinge Cover (Biscuit) WPL 2171947T Contact Us For Availability
11

Hinge Cover (White) WPL 2171947W Contact Us For Availability
11

Lever, Ice Dispenser (Black (Storm Grey Pad)) WPL 2180261 Contact Us For Availability
11

Lever, Ice Dispenser (Biscuit (Almond Shadow WPL 2186850 Contact Us For Availability
12

Gasket, (Rear) WPL 2174274 Contact Us For Availability
13

Eyelet, Roller WPL 2174478 Contact Us For Availability
13

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability
13

Filler, Wrapper (Black) WPL 2196097 Contact Us For Availability
13

Filler, Wrapper (Biscuit) WPL 2196150 Contact Us For Availability
14

Light Bar (RC) WPL 2179920 Contact Us For Availability
14

Grille (Biscuit) WPL 2198468T Contact Us For Availability
14

Roller WPL 2188212 Contact Us For Availability
15

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability
15

Bracket, Control WPL 2180227 Contact Us For Availability
16

Shelf Bin (4) WPL 2171062 Contact Us For Availability
17

Cover, Evaporator WPL 2203841 Contact Us For Availability
17

Meat Pan (Includes 13, 14, 19, & 22) WPL 2179231 Contact Us For Availability
18

Window, Crisper WPL 2174076 Contact Us For Availability
19

Overlay, Front Cover (Black) WPL 2186718B Contact Us For Availability
19

Overlay, Front Cover (Biscuit) WPL 2186718T Contact Us For Availability
19

Overlay, Front Cover (White) WPL 2186718W Contact Us For Availability
20

Control Box Harness WPL 2206516 Contact Us For Availability
21

Retainer, Light Lens WPL 2200097 Contact Us For Availability
21

Front Cover, Housing (Not Available, Order No WPL ARI94975A1 Contact Us For Availability
21

Cap, Crisper Pan (Left Side) WPL 2174258 Contact Us For Availability
21

Cap, Crisper Pan (Right Side) WPL 2174259 Contact Us For Availability
22

Hinge Cover (Black) WPL 2155938 Contact Us For Availability
22

CLIP, WIRING WPL 1115375 Contact Us For Availability
22

Window, Meat Pan WPL 2174362 Contact Us For Availability
23

Clamp WPL 2161324 Contact Us For Availability
23

WPL 2203290S WPL 2203290S Contact Us For Availability
23

P.C. Board Filter Indicator WPL 2203384 Contact Us For Availability
23

Front Cover Assembly (Includes Items 18, 19, WPL 2186714B Contact Us For Availability
23

Front Cover Assembly (Includes Items 18, 19, WPL 2186714T Contact Us For Availability
23

Front Cover Assembly (Includes Items 18, 19, WPL 2186714W Contact Us For Availability
24

WPL 2208277 WPL 2208277 Contact Us For Availability
24

Blade, Fixed (2) WPL 1119009 Contact Us For Availability
24

Shelf & Roller Assembly WPL 2174021 Contact Us For Availability
25

WPL 2203286B WPL 2203286B Contact Us For Availability
25

WPL 2203286T WPL 2203286T Contact Us For Availability
25

WPL 2203286W WPL 2203286W Contact Us For Availability
25

WPL 2203292S WPL 2203292S Contact Us For Availability
25

Escutcheon, Control Box WPL 2200099 Contact Us For Availability
25

Screw WPL 489439 Contact Us For Availability
26

WPL 2208278 WPL 2208278 Contact Us For Availability
26

Light Bar (FC) WPL 2179921 Contact Us For Availability
26

Glass, Cover WPL 2174148 Contact Us For Availability
27

Window WPL 2172941 Contact Us For Availability
27

Cement Alumilastic) WPL 542369 Contact Us For Availability
30

Stud, Rear WPL 2196207 Contact Us For Availability
31

Cabinet (Not A Serviceable Part) WPL ARI94971A6 Contact Us For Availability
34

Light Lens WPL 2206269 Contact Us For Availability
37

Screw WPL 488280 Contact Us For Availability
40

Nut, Compression WPL 1129179 Contact Us For Availability
44

Front Cover, Ice Container WPL 2204321 Contact Us For Availability
63

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
100

WPL 876029 WPL 876029 Contact Us For Availability
100

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100

WPL 799344 WPL 799344 Contact Us For Availability
100

Torx Key WPL 1117510 Contact Us For Availability
100

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100

Enamel, Black (1 Qt. Uncu WPL 799340 Contact Us For Availability
100

WPL 799833 WPL 799833 Contact Us For Availability
100

WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
