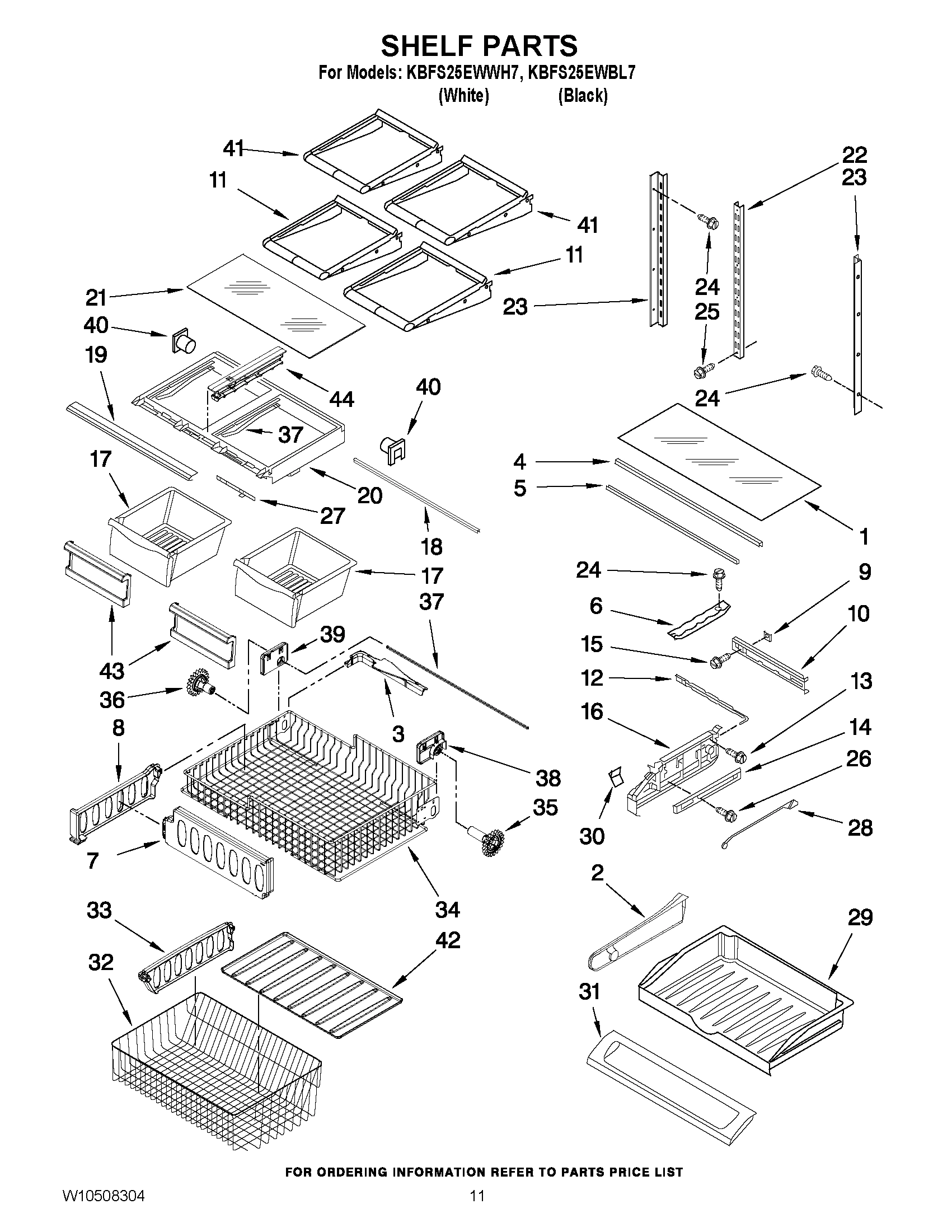

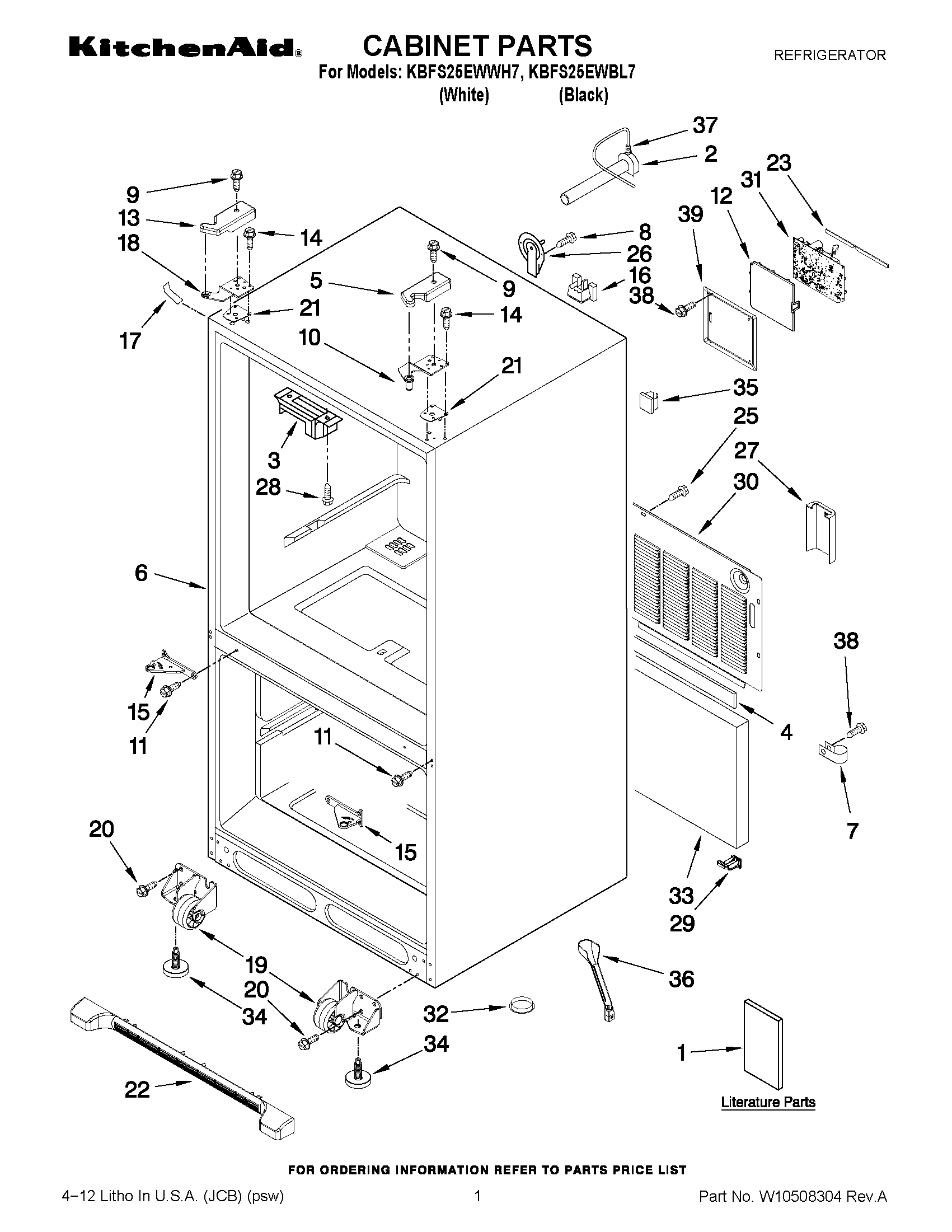

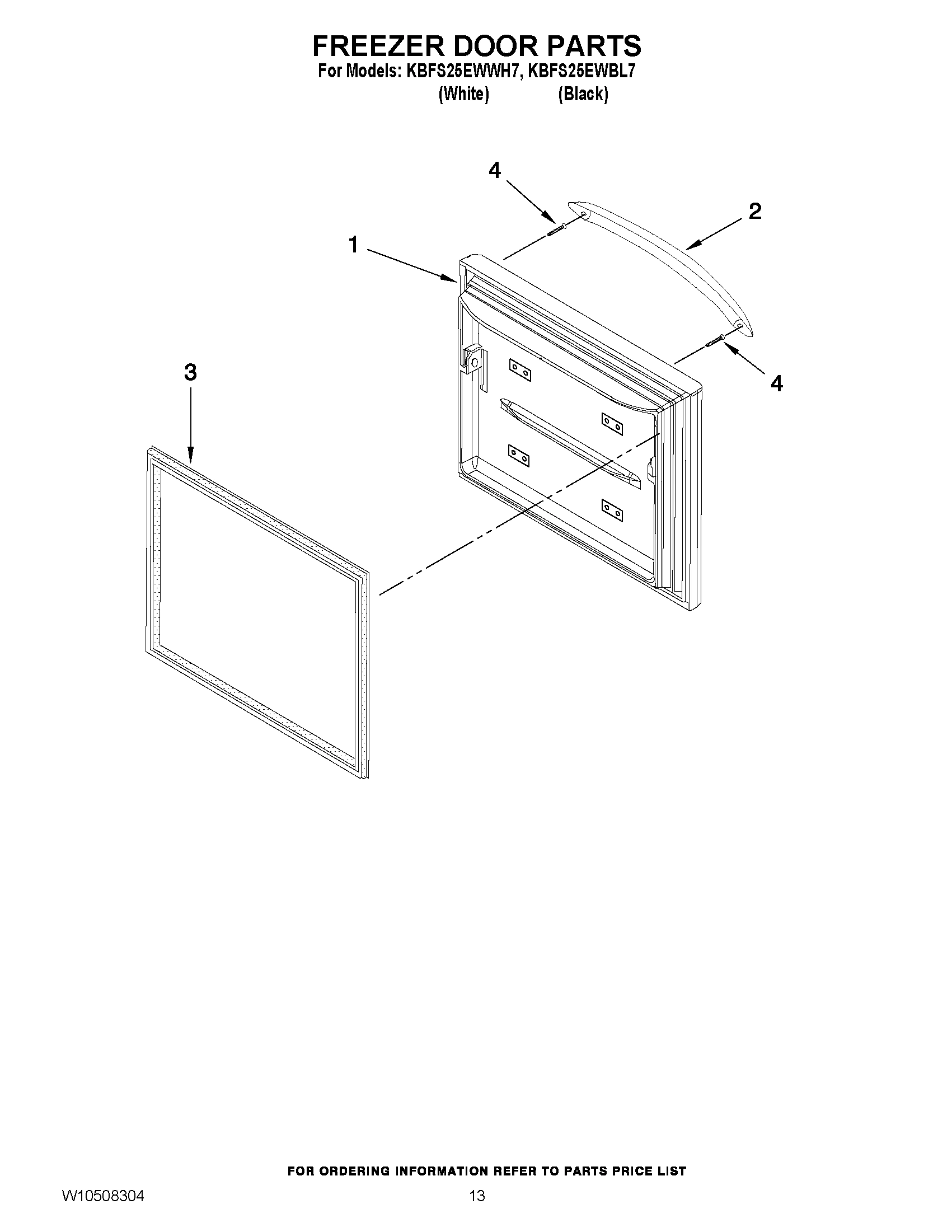

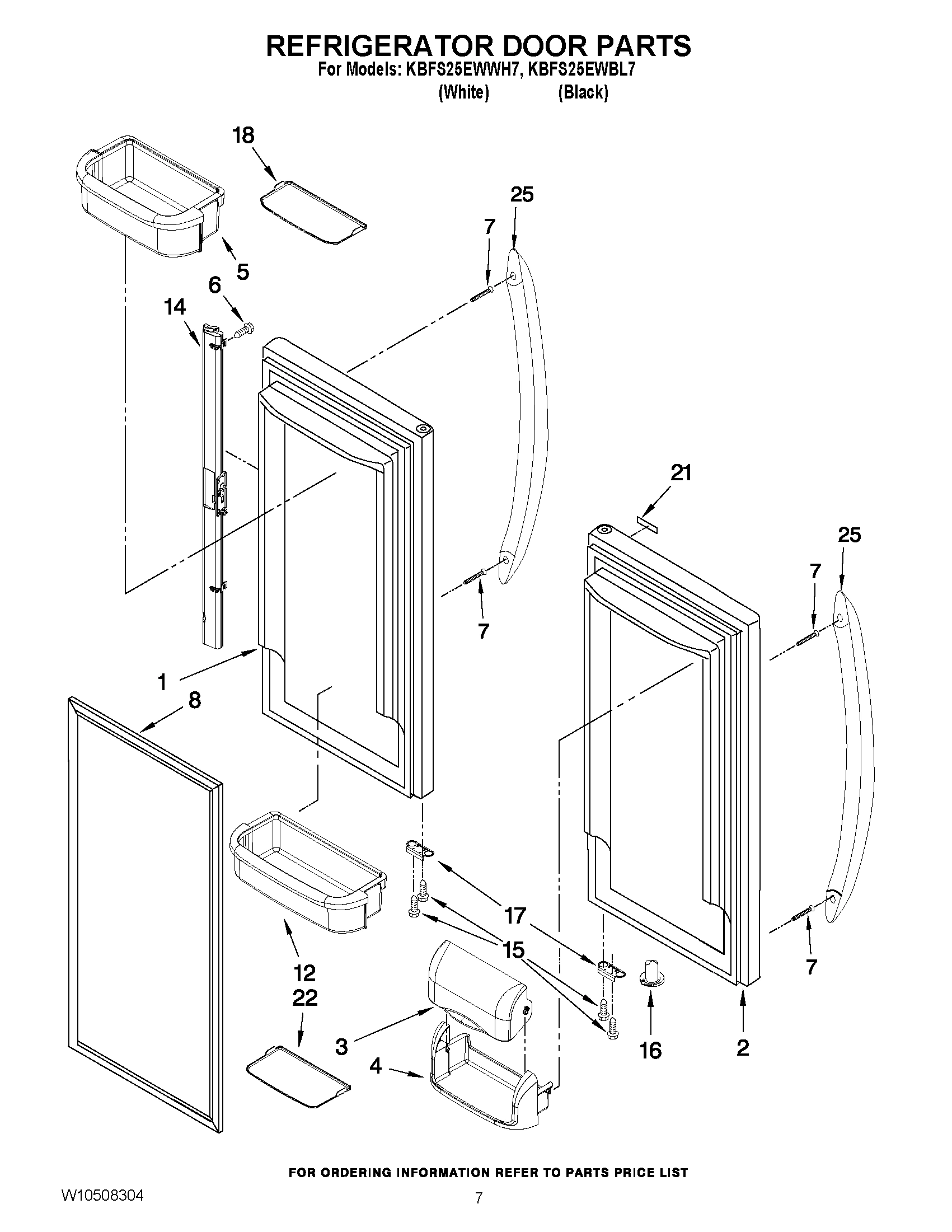

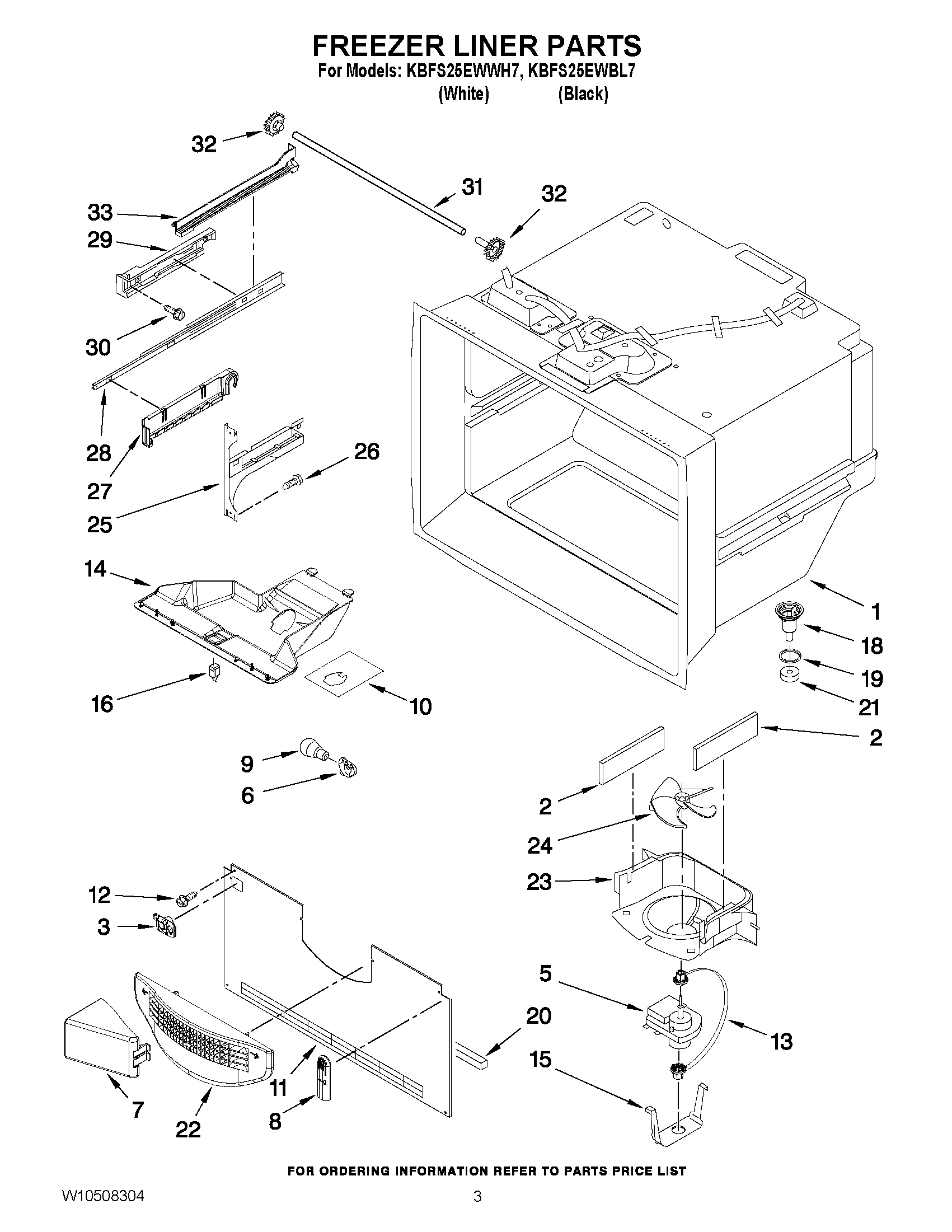

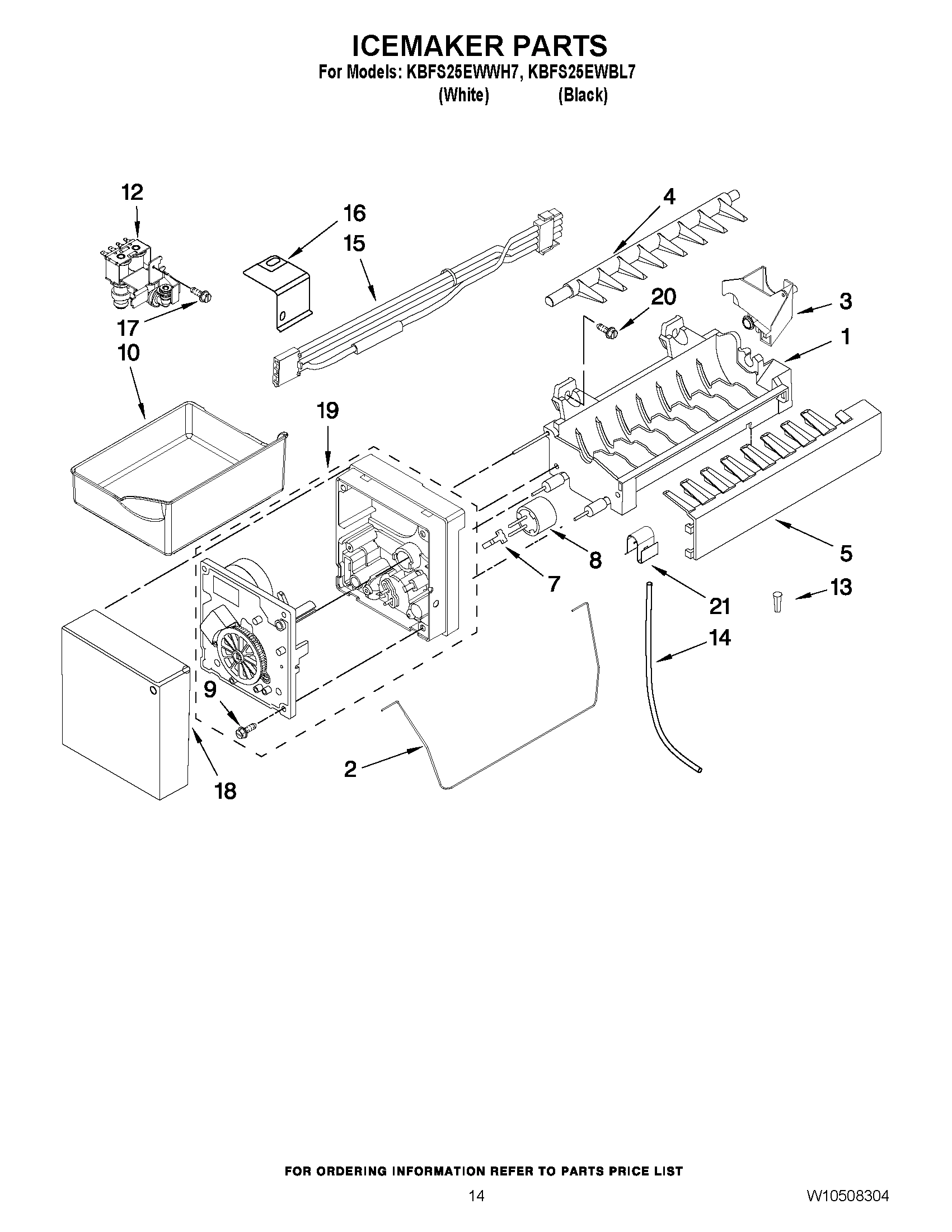

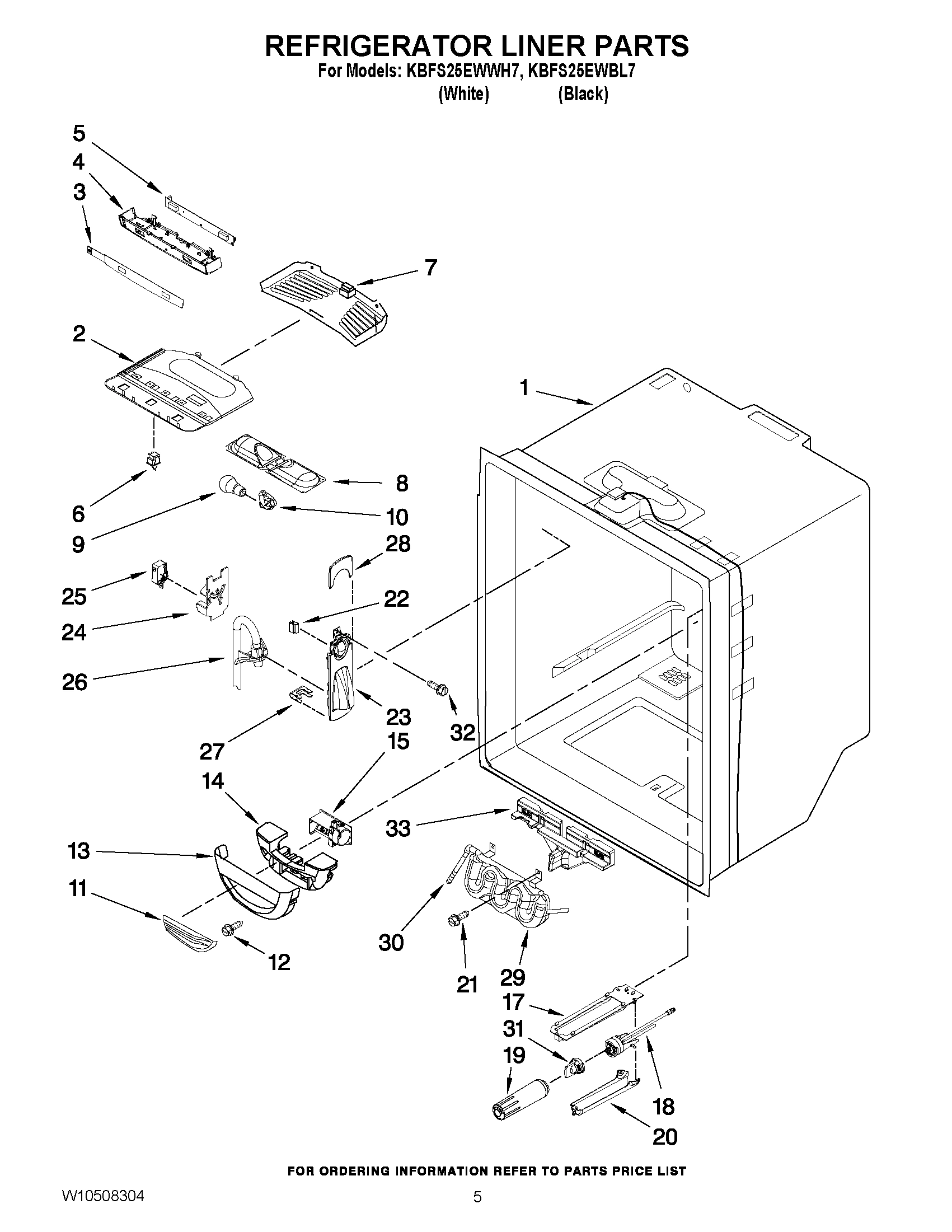

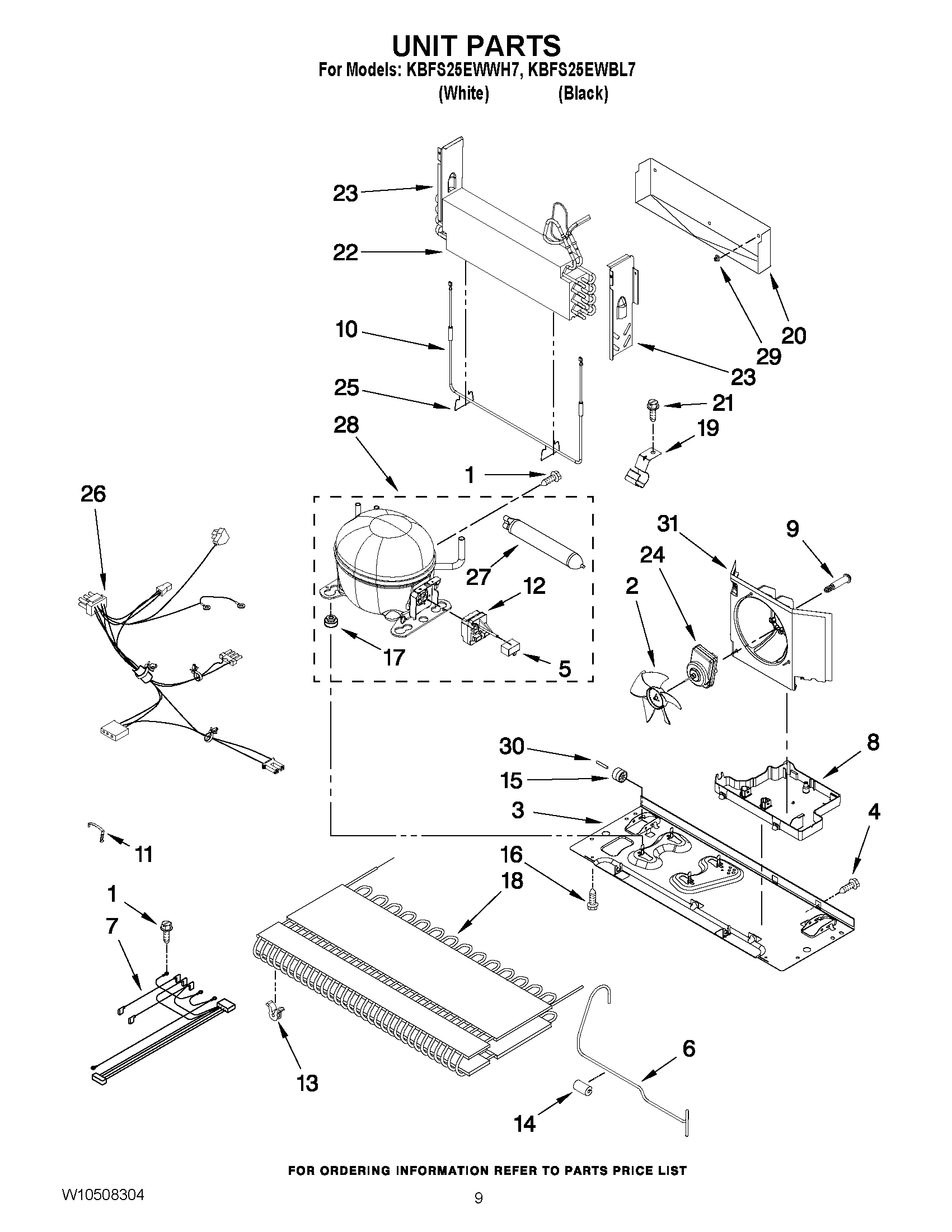

Model Whirlpool KBFS25EWWH7 REFRIGERATOR – Common Parts &amp; Diagrams

1

W11033333 Whirlpool Glass Shelf Backorder WPL W11033333 $133.54

1

WPW10300025 Whirlpool Refrigerator Ice Mold Backorder WPL WPW10300025 $95.41

1

DOOR, LEFT (BLACK) WPL 13107852B Contact Us For Availability

1

DOOR, LEFT (WHITE) WPL 13107852W Contact Us For Availability

2

13107855BQ Whirlpool Refrigerator Black Foam Backorder WPL 13107855BQ $479.16

2

13107855WQ Whirlpool Refrigerator White FIP D Backorder WPL 13107855WQ $468.20

2

WP12825803 Whirlpool Refrigerator Fan Blade In Stock WPL WP12825803 $52.96

2

WPW10378255 Whirlpool Refrigerator Shut Off A Backorder WPL WPW10378255 $30.85

3

W10410073 Whirlpool Fill Cup Assembly Backorder WPL W10410073 $27.12

3

W10436252 Whirlpool Door Gasket In Stock WPL W10436252 $129.24

3

W10443319 Whirlpool Door Gasket In Stock WPL W10443319 $192.65

3

W11727651 Whirlpool Plate Assembly Backorder WPL W11727651 $41.52

3

WP67003637 Whirlpool Dairy Door In Stock WPL WP67003637 $44.73

3

WPW10317125 Whirlpool Refrigerator Overlay Backorder WPL WPW10317125 $151.35

4

B5759655 Whirlpool Refrigerator Gasket In Stock WPL B5759655 $7.69

4

W10318914 Whirlpool Refrigerator Ejector Arm Backorder WPL W10318914 $13.89

4

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $48.97

5

WPW10122563 Whirlpool Refrigerator Stripper A Backorder WPL WPW10122563 $34.31

5

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $44.47

5

WPW10371193 Whirlpool Refrigerator Door Bin In Stock WPL WPW10371193 $50.86

5

WPW10428901-includeCORE Whirlpool WPW10428901 Backorder WPL WPW10428901-includeCORE $194.71

6

W11311945 Whirlpool Refrigerator Screw Backorder WPL W11311945 $9.59

6

WPW10233569 Whirlpool Refrigerator Tube Backorder WPL WPW10233569 $45.35

7

W10157765 Whirlpool Refrigerator Deflector Backorder WPL W10157765 $30.25

7

W10171558 Whirlpool Refrigerator Divider Backorder WPL W10171558 $29.12

7

W10292242 Whirlpool Refrigerator Wire Harness Backorder WPL W10292242 $86.50

7

WPW10661886 Whirlpool Refrigerator Door Handl In Stock WPL WPW10661886 $5.09

8

W10241046 Whirlpool Refrigerator Divider Backorder WPL W10241046 $12.44

8

W10443023 Whirlpool Refrigerator Housing Backorder WPL W10443023 $39.71

8

W10830189 Whirlpool Refrigerator Door Gasket In Stock WPL W10830189 $137.01

8

W11368721 Whirlpool Refrigerator French Door In Stock WPL W11368721 $116.56

9

W10829281 Whirlpool Refrigerator Screw In Stock WPL W10829281 $5.01

9

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.52

12656202 Whirlpool Refrigerator Housing Backorder WPL 12656202 $54.81

W10825088 Whirlpool Refrigerator Defrost Heat In Stock WPL W10825088 $81.12

W11469652 Whirlpool Refrigerator Shield Backorder WPL W11469652 $10.76

W11592374 Whirlpool Refrigerator Top Door Hin In Stock WPL W11592374 $10.89

11

W11727809 Whirlpool Evaporator Cover Backorder WPL W11727809 $34.44

12

W11226688 Whirlpool Refrigerator Cover Backorder WPL W11226688 $31.81

12

WPW10420083 Whirlpool Refrigerator Water Inle In Stock WPL WPW10420083 $98.88

12

BUCKET, GALLON WPL W10289496 Contact Us For Availability

13

W10121318 Whirlpool Refrigerator Grommet In Stock WPL W10121318 $28.66

13

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $39.73

W10852725 Whirlpool Refrigerator Grommet In Stock WPL W10852725 $4.52

Backorder WPL W11750607 $19.22

WP12722803B Whirlpool Door Guide In Stock WPL WP12722803B $143.65

WP12722803W Whirlpool Door Support In Stock WPL WP12722803W $141.12

WPW10235370 Whirlpool Refrigerator Glide Backorder WPL WPW10235370 $114.56

WPW10277025 Whirlpool Refrigerator Housing Backorder WPL WPW10277025 $54.90

13000002WD Whirlpool Refrigerator Door Hinge Backorder WPL 13000002WD $55.95

W10918113 Whirlpool Refrigerator Door Hinge Backorder WPL W10918113 $41.43

W10918164 Whirlpool Refrigerator Door Hinge Backorder WPL W10918164 $49.19

W10918168 Whirlpool Refrigerator Door Hinge Backorder WPL W10918168 $28.99

WP98165 Whirlpool Screw In Stock WPL WP98165 $2.51

WPW10458985 Whirlpool Wire Harness In Stock WPL WPW10458985 $42.18

WPW10594329 Whirlpool Control Damper In Stock WPL WPW10594329 $97.22

CLIP, EVAP. MOTOR WPL 13058002 Contact Us For Availability

W10874836 Whirlpool Endcap Assembly Left Hand In Stock WPL W10874836 $18.54

WP12777701 Whirlpool Refrigerator Filler Bloc Backorder WPL WP12777701 $4.15

WP67003638 Whirlpool Closing Cam In Stock WPL WP67003638 $4.52

WP67003639 Whirlpool Refrigerator Closer In Stock WPL WP67003639 $42.09

17

12587703W Whirlpool Refrigerator Cover Backorder WPL 12587703W $10.76

17

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $29.10

17

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $5.07

W10377174 Whirlpool Refrigerator Front Cover Backorder WPL W10377174 $29.66

W11592375 Whirlpool Door Hinge Backorder WPL W11592375 $10.07

WP12642303WD Whirlpool Refrigerator Drawer Su Backorder WPL WP12642303WD $45.27

WPW10346415 Whirlpool Refrigerator Condenser Backorder WPL WPW10346415 $152.87

WPW10450021 Whirlpool Refrigerator Mat Backorder WPL WPW10450021 $32.34

19

EDR4RXD1 Whirlpool EveryDrop® Refrigerator W In Stock WPL EDR4RXD1 $56.07

19

WPW10281342 Whirlpool Refrigerator Motor Modu Backorder WPL WPW10281342 $114.06

W10001240 Whirlpool Refrigerator Screw Backorder WPL W10001240 $5.65

W11159728 Whirlpool Refrigerator Gasket In Stock WPL W11159728 $10.93

W11547653 Whirlpool Refrigerator Drip Tray Backorder WPL W11547653 $30.85

WPW10329866 Whirlpool Frame In Stock WPL WPW10329866 $122.69

12999501 Whirlpool Refrigerator Hinge Shim Backorder WPL 12999501 $35.59

12999502 Whirlpool Refrigerator Hinge Shim Backorder WPL 12999502 $36.00

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

WPW10243392 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243392 $34.73

WPW10243393 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243393 $37.53

22

W10273463 Whirlpool Refrigerator Ladder Backorder WPL W10273463 $11.38

22

W11256565 Whirlpool Refrigerator Evaporator In Stock WPL W11256565 $150.13

22

W11402028 Whirlpool Refrigerator Mat Backorder WPL W11402028 $32.90

23

Dam (Left Side) WPL 12225602 Contact Us For Availability

24

W11613295 Whirlpool Condenser Motor In Stock WPL W11613295 $50.82

24

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

W10215666 Whirlpool Refrigerator Screw Backorder WPL W10215666 $5.65

W11673433 Whirlpool Clip Backorder WPL W11673433 $62.75

WPW10314515 Whirlpool Refrigerator Handle Backorder WPL WPW10314515 $122.50

WPW10330994 Whirlpool Refrigerator Bracket Backorder WPL WPW10330994 $56.22

WPW10330995 Whirlpool Refrigerator Bracket Backorder WPL WPW10330995 $108.21

HANDLE, DOOR (BLACK) WPL W10314516N Contact Us For Availability

26

12726003 Whirlpool Refrigerator Water Cover Backorder WPL 12726003 $7.16

W10208593 Whirlpool Refrigerator Valve Cover In Stock WPL W10208593 $9.24

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $15.50

WPW10280608 Whirlpool Refrigerator Bracket Backorder WPL WPW10280608 $36.87

WPW10280613 Whirlpool Refrigerator Bracket Backorder WPL WPW10280613 $36.87

28

W11658402 Whirlpool Drawer Slide Rail In Stock WPL W11658402 $75.69

12831101 Whirlpool Refrigerator Tube Clamp Backorder WPL 12831101 $7.69

W11229977 Whirlpool Refrigerator Reservoir In Stock WPL W11229977 $73.16

WPW10284684 Whirlpool Refrigerator Bracket In Stock WPL WPW10284684 $15.24

WPW10284685 Whirlpool Refrigerator Bracket In Stock WPL WPW10284685 $15.34

30

WPW10211855 Whirlpool Refrigerator Back Cover Backorder WPL WPW10211855 $80.65

W11028221 Whirlpool Refrigerator Shaft In Stock WPL W11028221 $12.13

W11395888 Whirlpool Refrigerator Bypass Filte In Stock WPL W11395888 $42.05

W11556315 Whirlpool Shroud In Stock WPL W11556315 $30.01

WPW10317076-includeCORE Whirlpool WPW10317076 Backorder WPL WPW10317076-includeCORE $280.30

32

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $9.68

33

W11714300 Whirlpool Insulation In Stock WPL W11714300 $22.22

33

INSULATION, SOUND WPL 12820505 Contact Us For Availability

34

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $4.70

35

WPW10474715 Whirlpool Refrigerator Gear Backorder WPL WPW10474715 $10.96

36

WPW10474716 Whirlpool Refrigerator Gear Backorder WPL WPW10474716 $10.87

37

W11173556 Whirlpool Refrigerator Shaft Backorder WPL W11173556 $10.87

38

W10348260 Whirlpool Refrigerator Bracket Backorder WPL W10348260 $31.90

38

W11686675 Whirlpool Screw Backorder WPL W11686675 $8.11

39

12961602 Whirlpool Refrigerator Wire Cover Backorder WPL 12961602 $41.10

39

W10348259 Whirlpool Refrigerator Bracket Asse Backorder WPL W10348259 $31.90

40

WP13062602 Whirlpool Refrigerator Support Backorder WPL WP13062602 $30.25

100

W10884390 Whirlpool Refrigerator Ice Maker As In Stock WPL W10884390 $55.50

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $29.35

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.99

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

WPW10224292 Whirlpool Refrigerator Wire Harne In Stock WPL WPW10224292 $57.00

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

CLEANER, 10 OZ. STAINLESS STEEL WPL 31462 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
