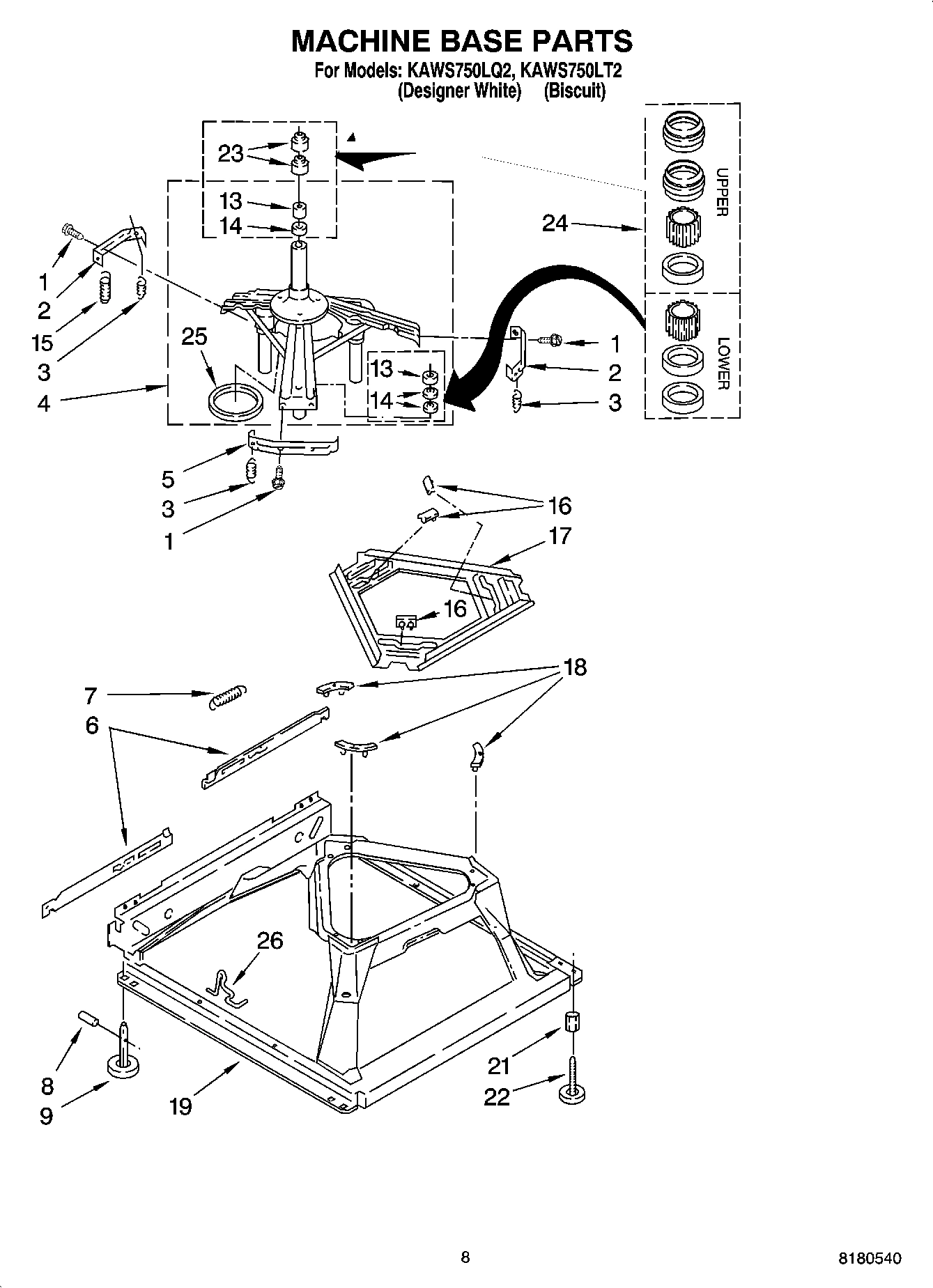

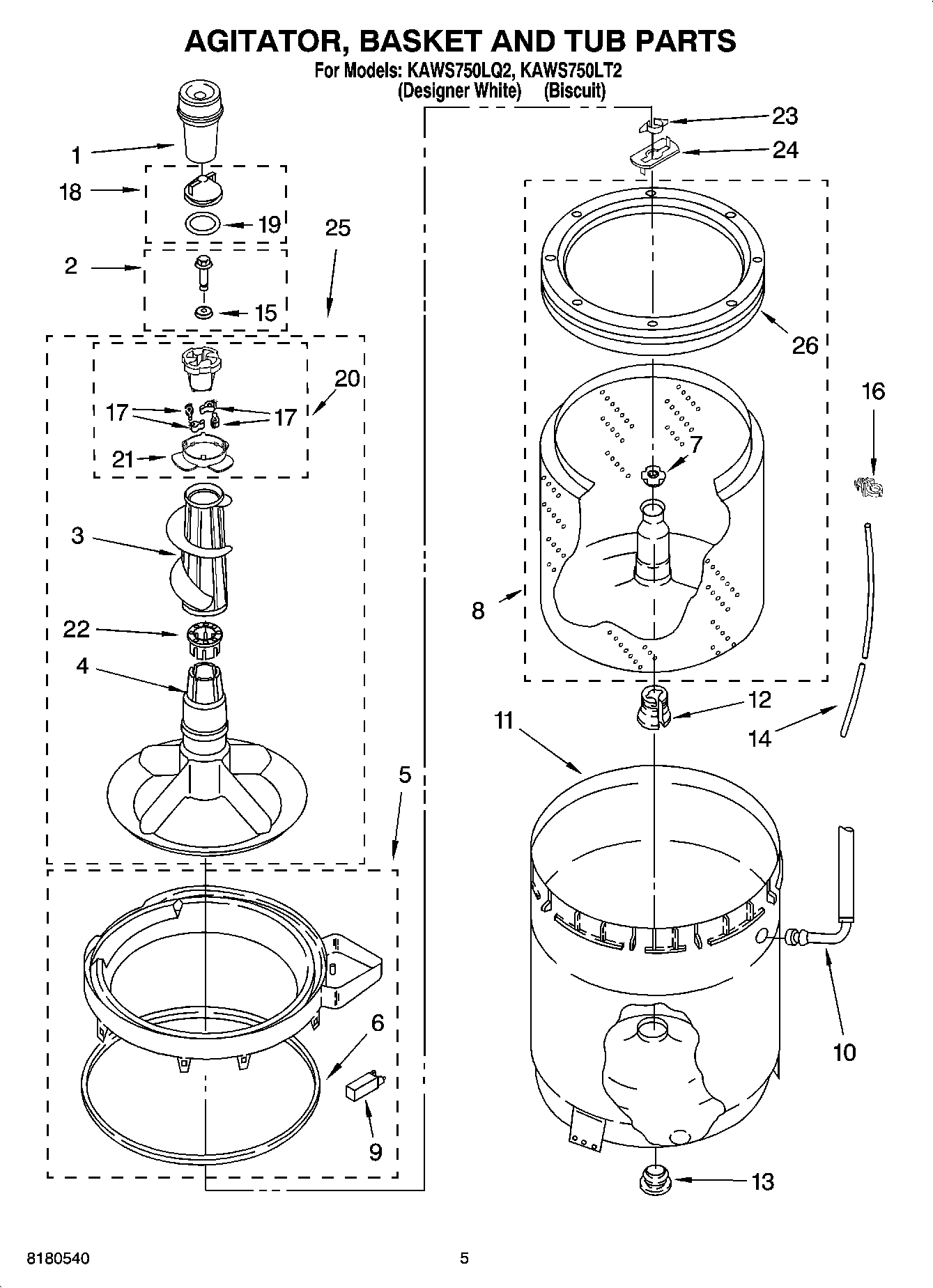

Model Whirlpool KAWS750LQ2 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $30.85

1

285442 Whirlpool Coupling Backorder WPL 285442 $28.80

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $9.99

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $2.51

1

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

1

Timer, Control (60 Hz.) (Motor Not Serviced) WPL 8563594 Contact Us For Availability

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

Energy Guide WPL 3955581 Contact Us For Availability

1

Use & Care Guide WPL 3955871 Contact Us For Availability

1

Feature Sheet WPL 3955912 Contact Us For Availability

1

Installation Instructions WPL 3956025 Contact Us For Availability

1

Wiring Diagram WPL 8563596 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $78.48

2

285321 Whirlpool Sleeve Backorder WPL 285321 $26.75

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $5.27

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.70

2

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

2

Top (White) WPL 8543447 Contact Us For Availability

2

Top (Biscuit) WPL 8543448 Contact Us For Availability

3

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP62750 Whirlpool Spacer Backorder WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.70

3

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $3.62

3

Clothes Mover WPL 3950581 Contact Us For Availability

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.51

4

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $44.98

4

WP3357027 Whirlpool Nozzle Assembly Backorder WPL WP3357027 $28.80

4

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $127.32

5

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $255.69

5

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $4.94

5

WP8568314 Whirlpool Strap In Stock WPL WP8568314 $3.70

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Cabinet (Biscuit) WPL 3954357 Contact Us For Availability

6

285438 Whirlpool Brake Shoe In Stock WPL 285438 $75.04

6

WP3357978 Whirlpool Rear Panel Backorder WPL WP3357978 $152.90

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.70

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

7

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

7

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $3.70

7

Switch, Water Temperature WPL 661614 Contact Us For Availability

7

Drain Protector (Not Included) WPL 367031 Contact Us For Availability

8

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.44

8

285664 Whirlpool Drain Hose In Stock WPL 285664 $18.32

8

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $28.37

8

285702 Whirlpool Extensions Backorder WPL 285702 $37.95

8

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

Timer, Block Disconnect (White) WPL 3948614 Contact Us For Availability

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

9

Spring, Brake WPL 387806 Contact Us For Availability

353424 Whirlpool Connector Backorder WPL 353424 $10.76

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

Hose, Bleach WPL 3948705 Contact Us For Availability

Spring, Agitate WPL 62676 Contact Us For Availability

Clip, Harness & Pressure Hose WPL 8055003 Contact Us For Availability

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP8318084 Whirlpool Washer Lid Switch Assembl In Stock WPL WP8318084 $16.93

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $2.51

Tub WPL 8283125 Contact Us For Availability

Edge Protector WPL 303294 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

Cord, Power (Includes Item 15) WPL 661661 Contact Us For Availability

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $9.63

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $28.49

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.51

14

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

14

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

14

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI153162A Contact Us For Availability

WP389387 Whirlpool Agitator Shaft In Stock WPL WP389387 $103.30

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $4.72

Hinge, Lid (L.H.) WPL 8559336 Contact Us For Availability

Strain Relief, Power Cord WPL 3952821 Contact Us For Availability

WP54583 Whirlpool Hinge Backorder WPL WP54583 $9.37

WP8572720 Whirlpool Capacitor In Stock WPL WP8572720 $35.57

Knob, Control (Includes 19) (Biscuit) WPL 3956183 Contact Us For Availability

Washer, Cam Thrust WPL 62618 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $76.80

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Clip, Capacitor WPL 8318046 Contact Us For Availability

Fuse (In Harness) WPL 8317387 Contact Us For Availability

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $13.91

Bearing, Lid Hinge (2) WPL 8319539 Contact Us For Availability

Dial, Timer (White) WPL 3956230 Contact Us For Availability

Dial, Timer (Biscuit) WPL 3956231 Contact Us For Availability

WP8536939 Whirlpool Spring Clip In Stock WPL WP8536939 $3.70

Motor, Main Drive WPL 8529936 Contact Us For Availability

Lid (White) WPL 3956149 Contact Us For Availability

Lid (Biscuit) WPL 3956150 Contact Us For Availability

Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability

20

Seal, Lid WPL 8054939 Contact Us For Availability

20

Switch, Main Drive Motor WPL 8529896 Contact Us For Availability

20

Harness, Wire (For Detail See Pages 13 & 14) WPL 3957251 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $29.23

3400073 Whirlpool Screw Backorder WPL 3400073 $5.65

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $2.51

WP3360056 Whirlpool Connector Backorder WPL WP3360056 $8.69

WP3363661 Whirlpool Bearing Cam Backorder WPL WP3363661 $3.70

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.70

22

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

22

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $7.83

22

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $20.87

23

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $10.30

23

Ring, Retaining WPL 3362552 Contact Us For Availability

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $71.60

24

WP3360977 Whirlpool Washer Tub Fill Nozzle In Stock WPL WP3360977 $26.24

24

Washer Kit, Thrust WPL 285735 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

Agitator (Complete) WPL 3950579 Contact Us For Availability

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $29.41

26

WPW10358151 Whirlpool Hose Backorder WPL WPW10358151 $38.47

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $177.07

27

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

28

Clamp, Hose WPL 3976395 No Longer Available

28

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $2.51

30

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

31

Cover, Dispenser WPL 8055325 Contact Us For Availability

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $7.92

34

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

34

Dispenser, Bleach WPL 8519517 Contact Us For Availability

35

Shield, Suds WPL 8539874 Contact Us For Availability

36

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.70

36

Sound-Damper (3) (Cabinet) WPL 3976348 Contact Us For Availability
