Model Maytag JFX2897DRP02 REFRIGERATOR – Common Parts & Diagrams

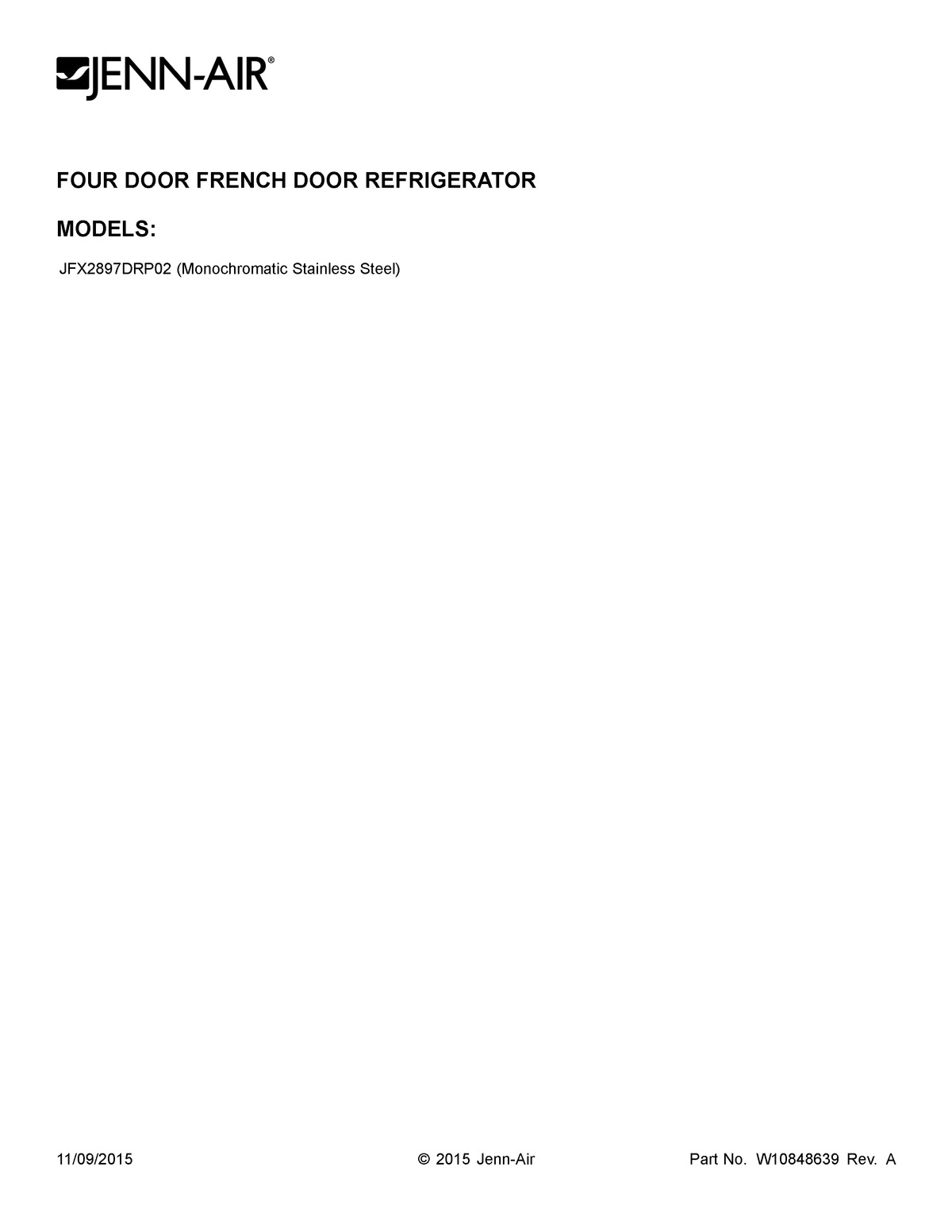

01 - COVER SHEET

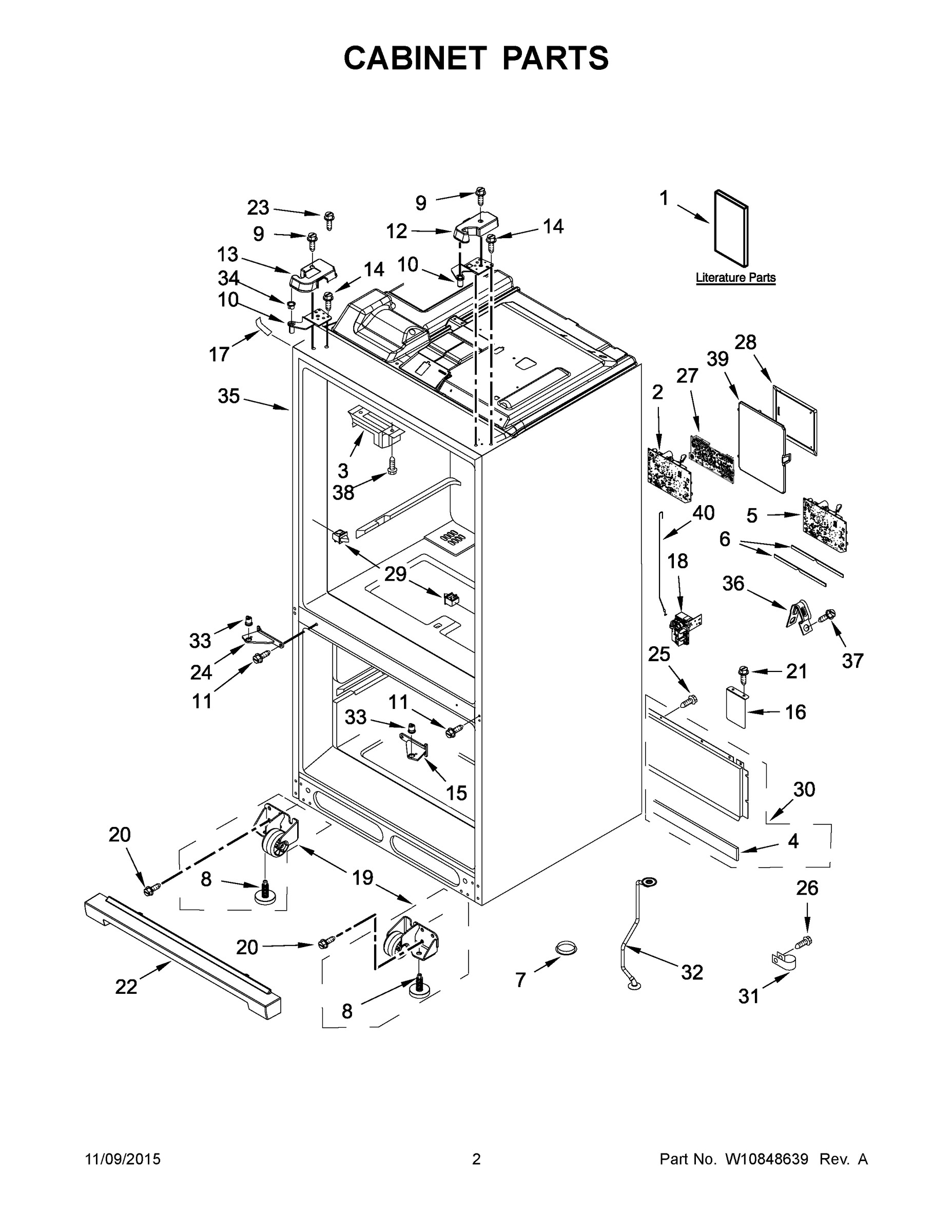

02 - CABINET PARTS

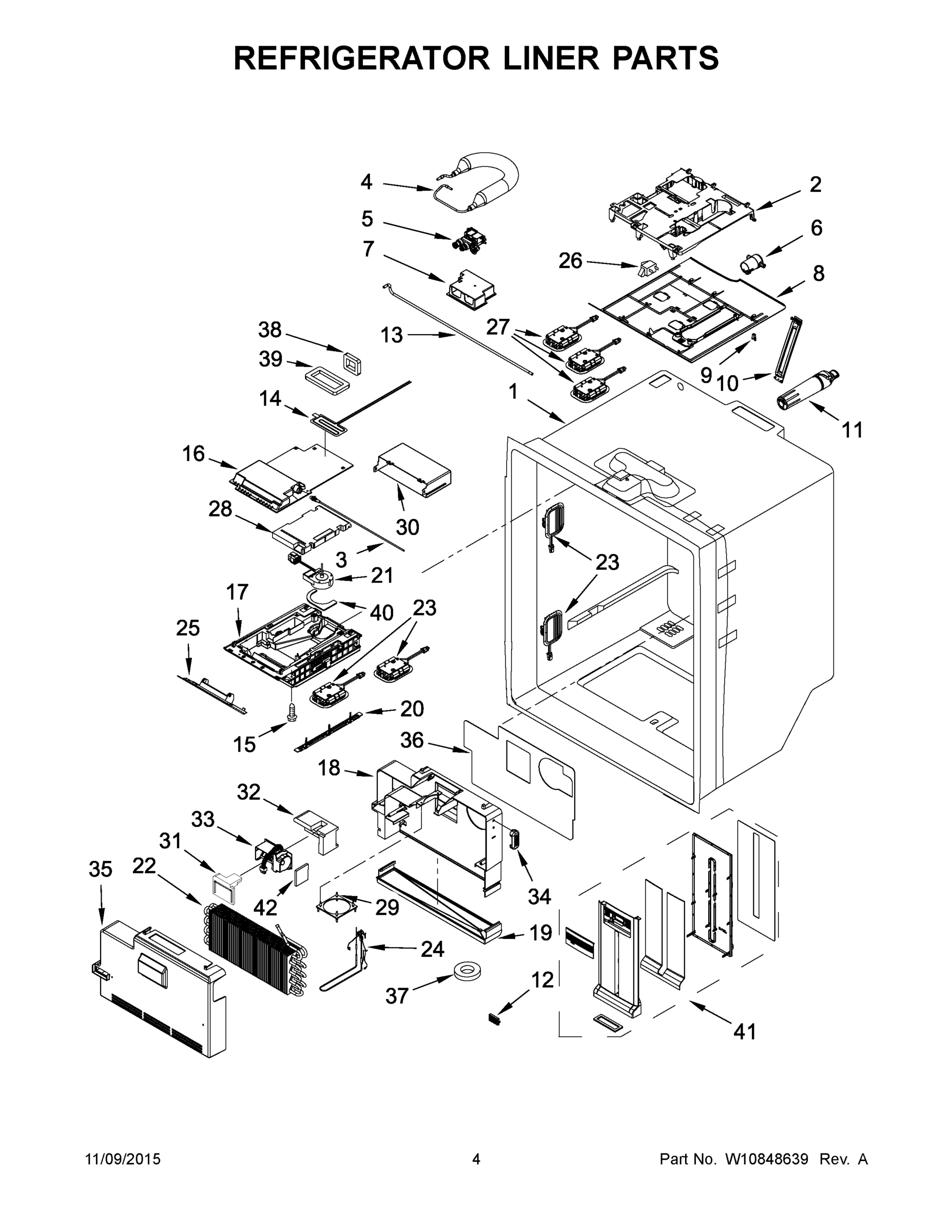

03 - REFRIGERATOR LINER PARTS

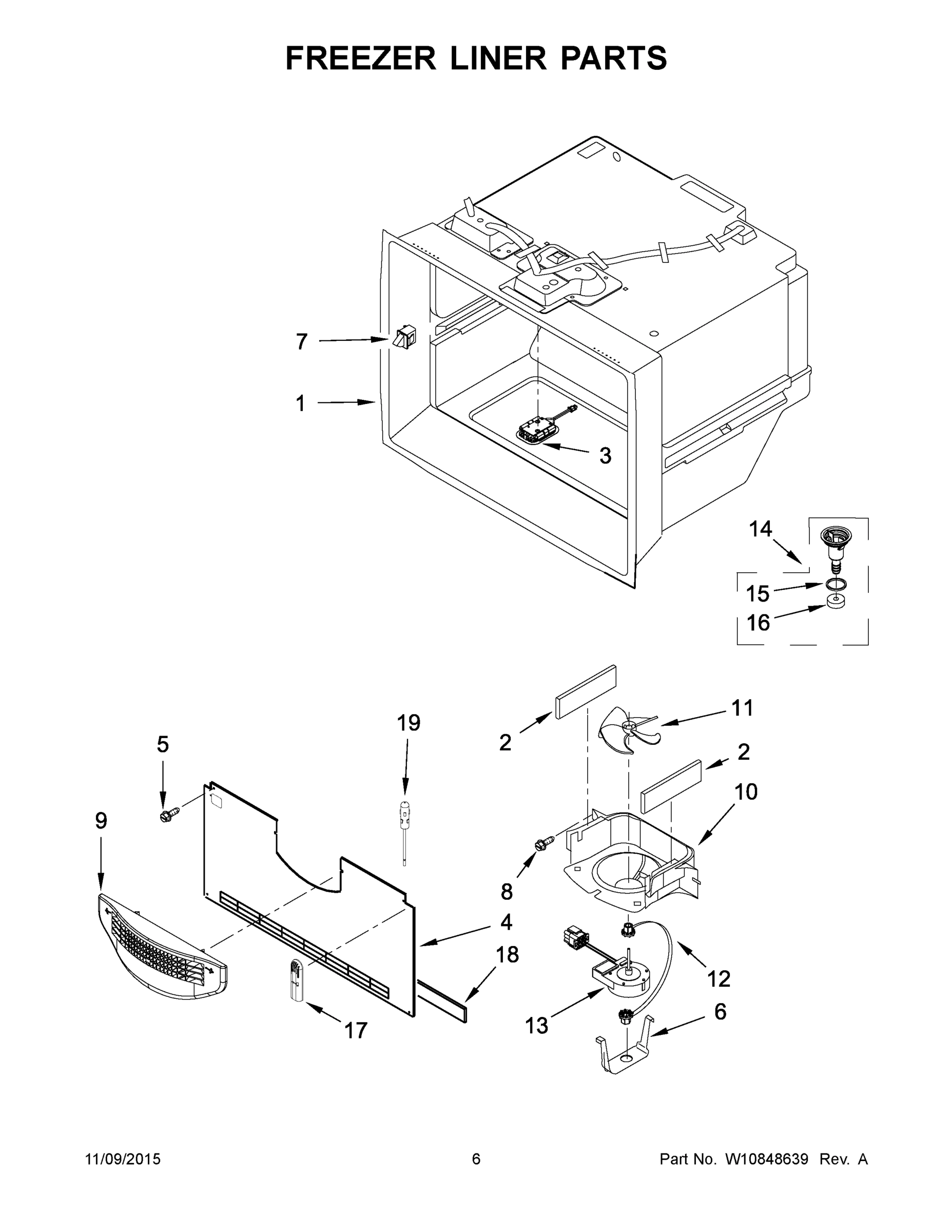

04 - FREEZER LINER PARTS

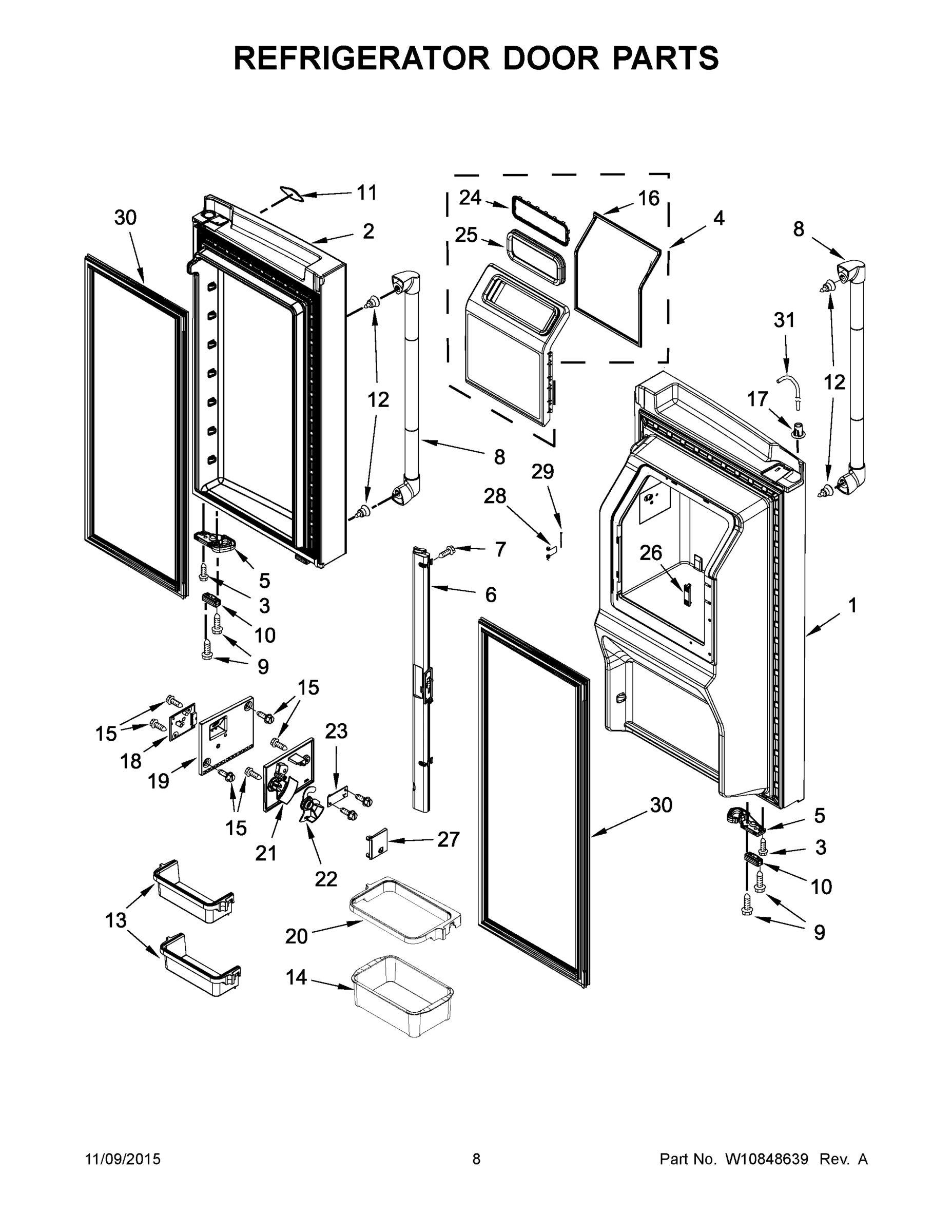

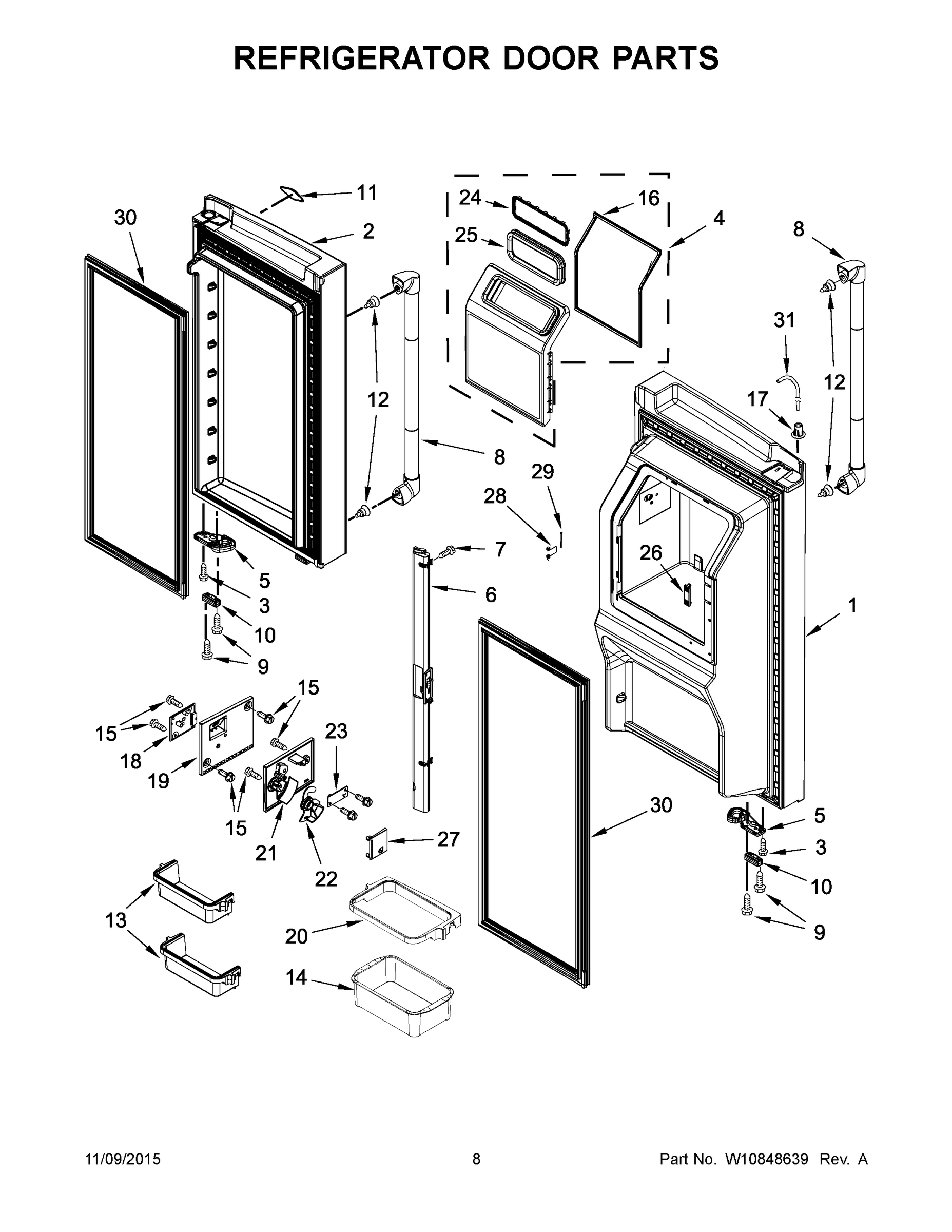

05 - REFRIGERATOR DOOR PARTS

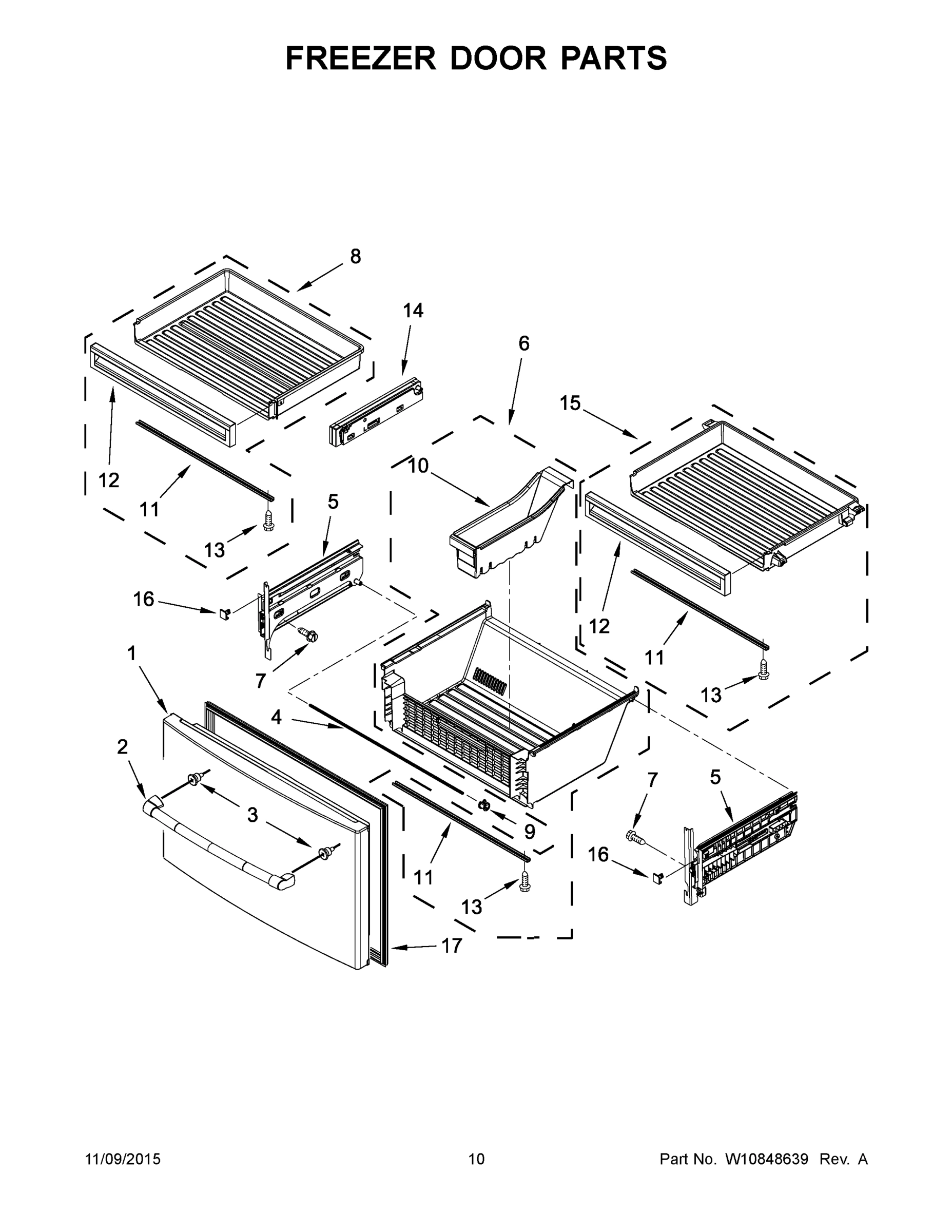

06 - FREEZER DOOR PARTS

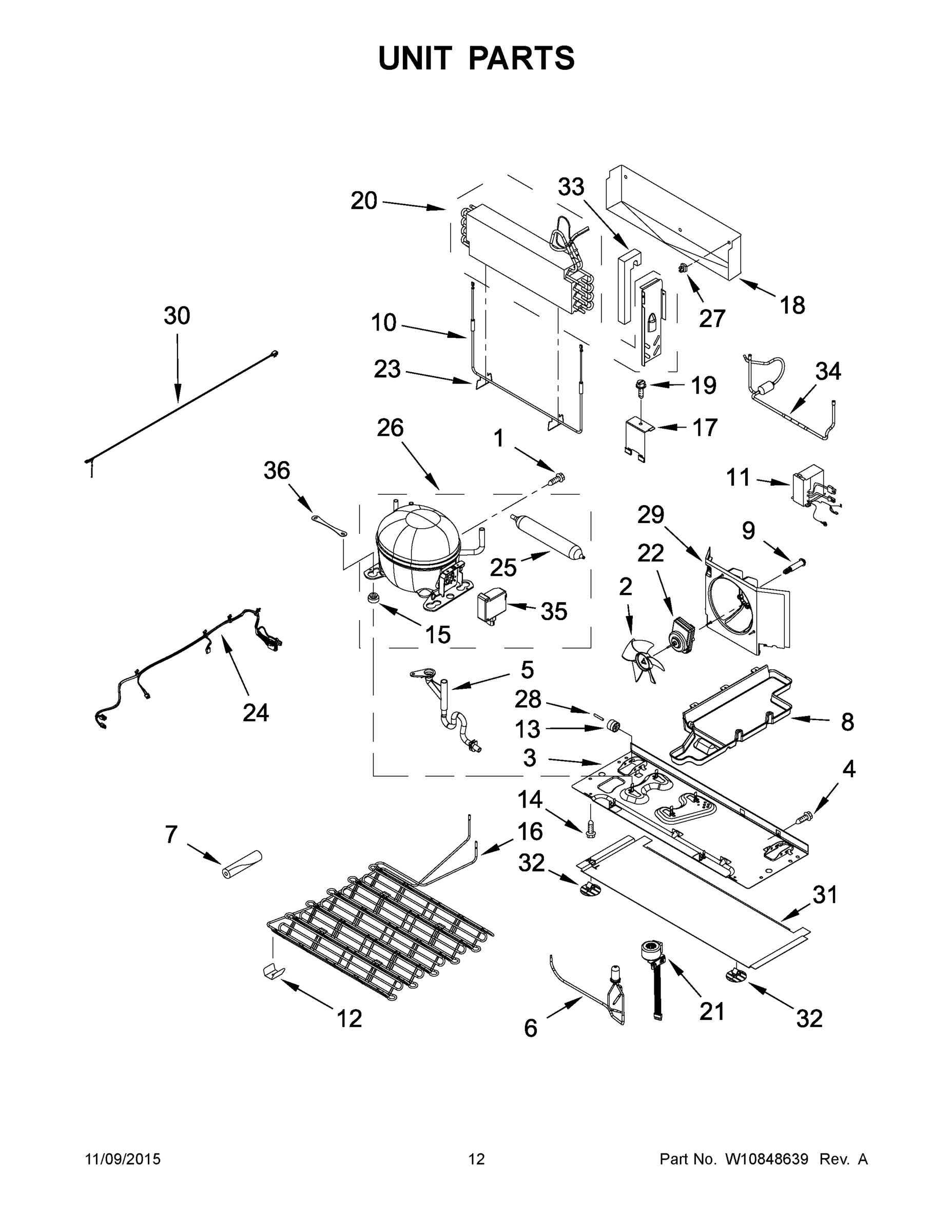

07 - UNIT PARTS

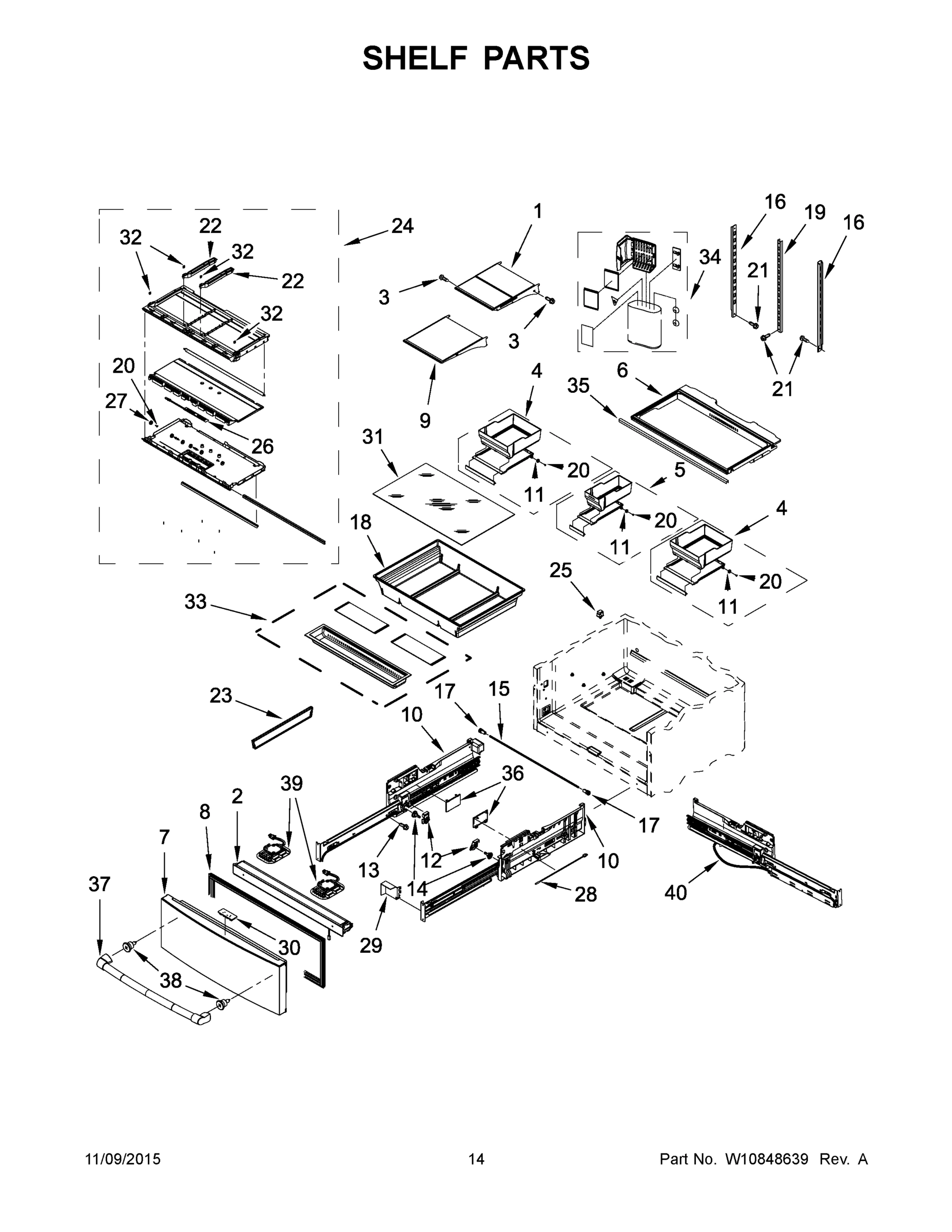

08 - SHELF PARTS

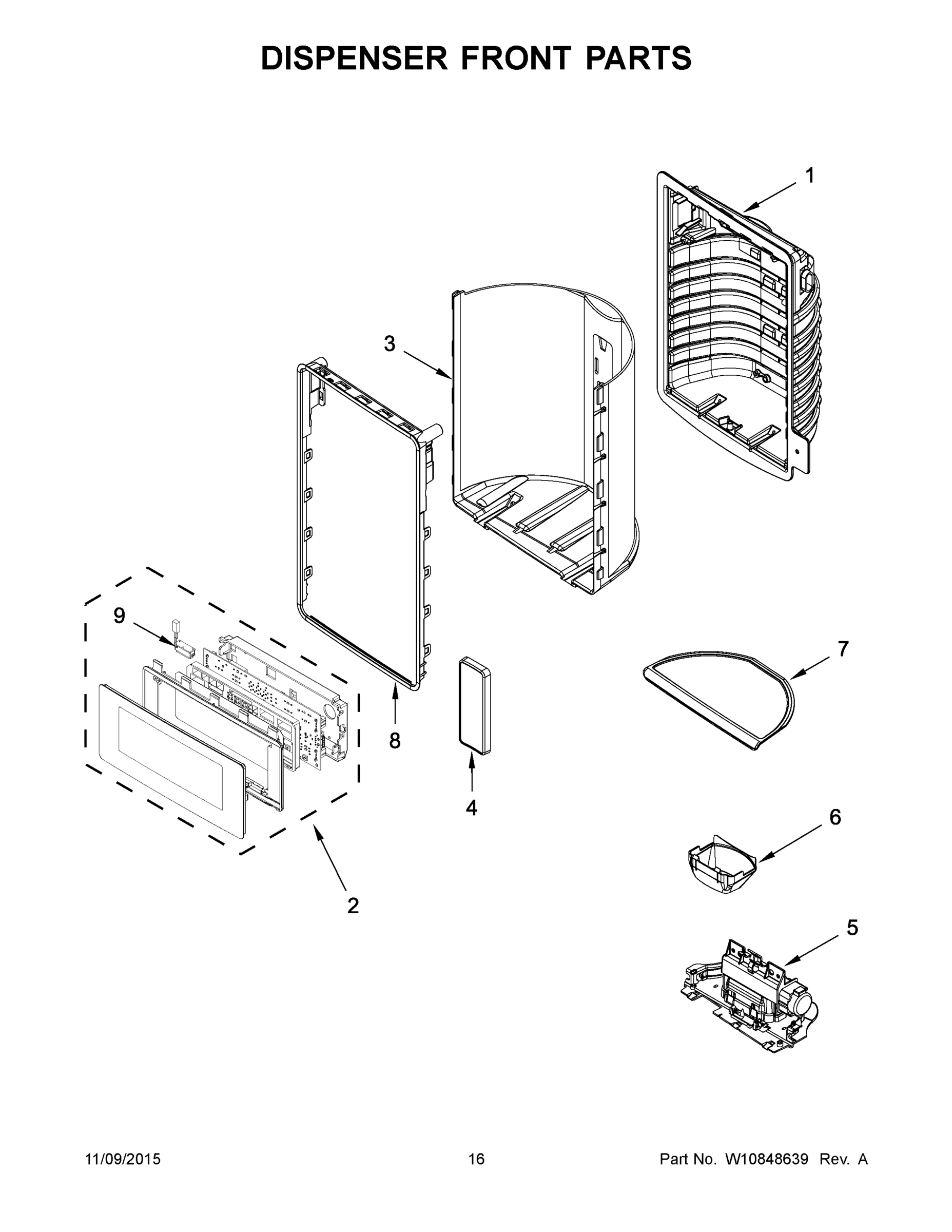

09 - DISPENSER FRONT PARTS

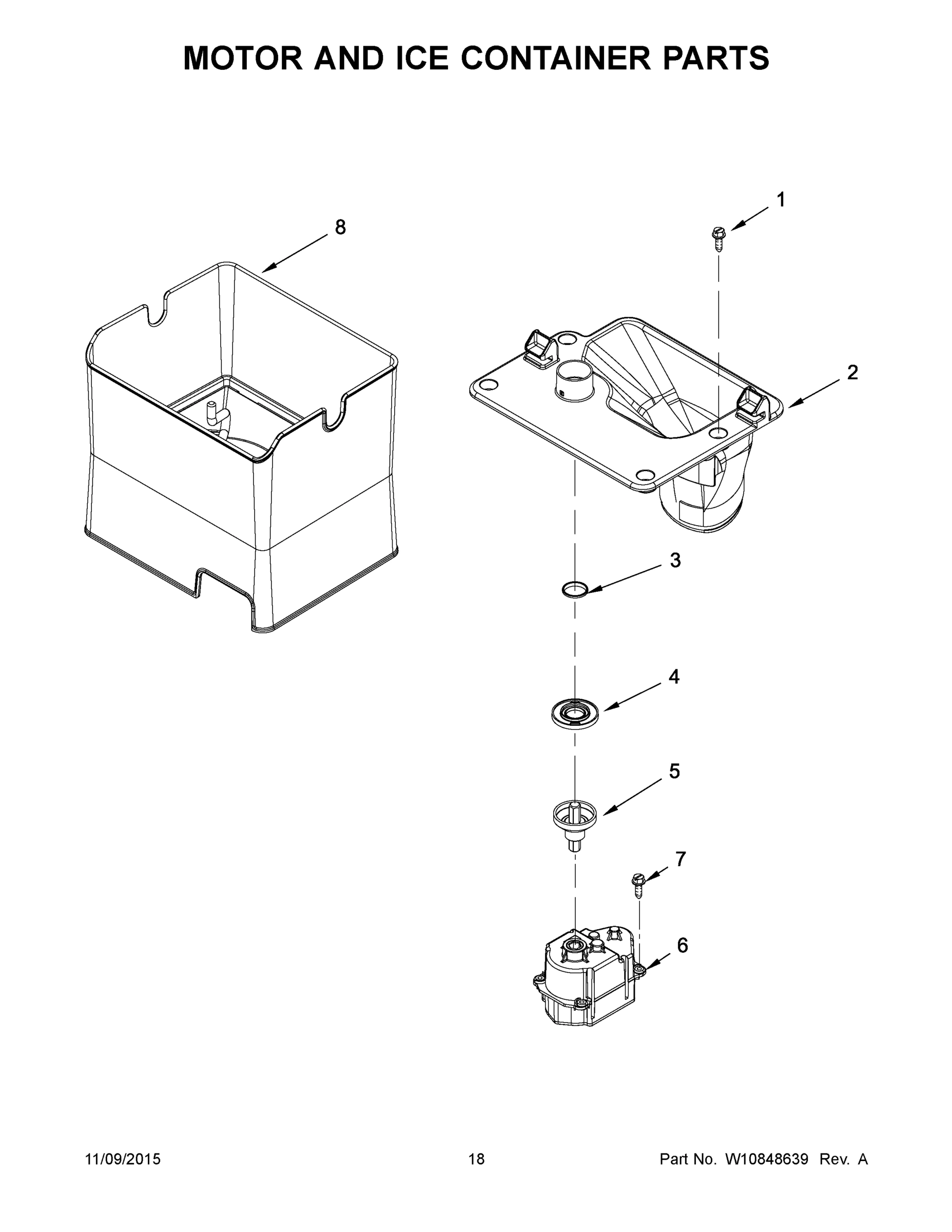

10 - MOTOR AND ICE CONTAINER PARTS

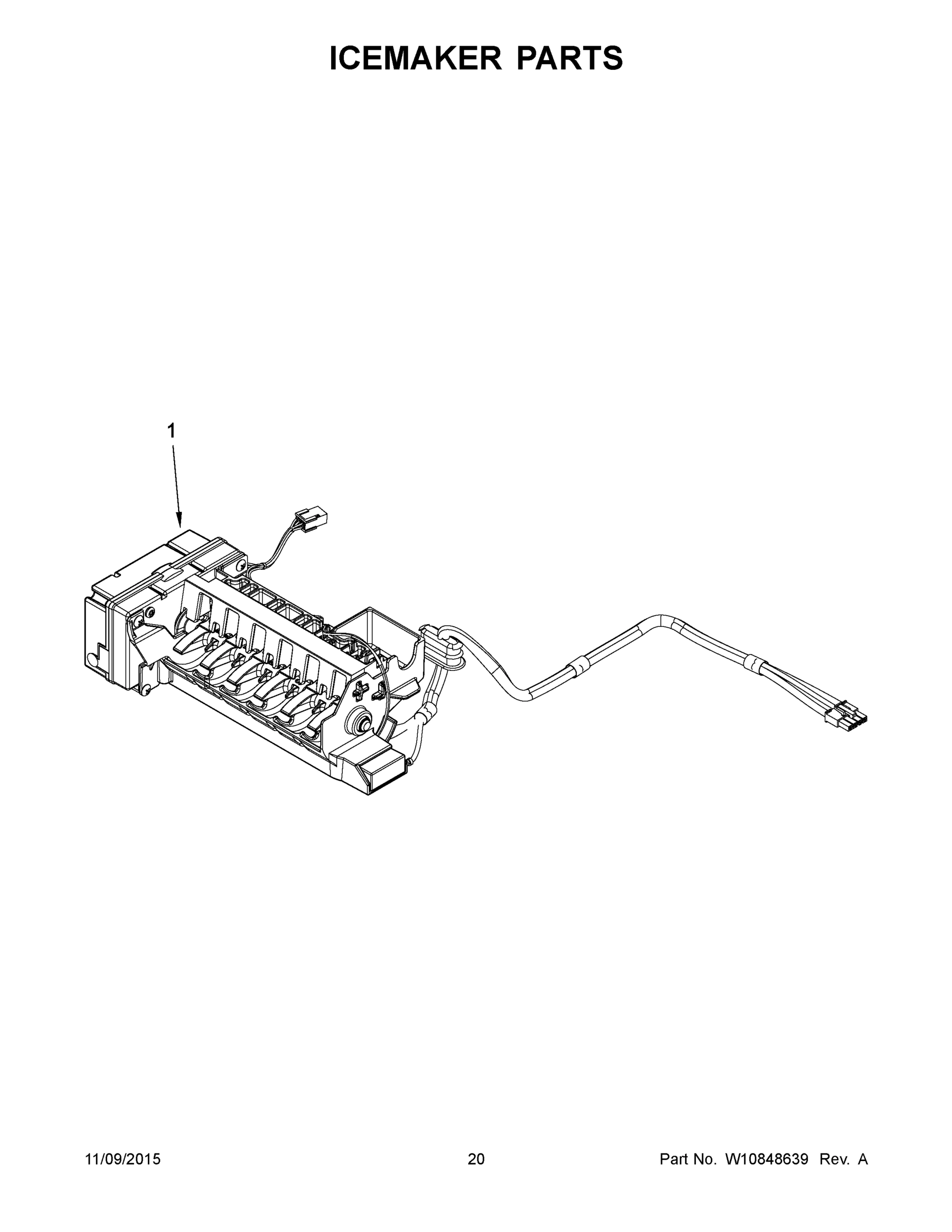

11 - ICEMAKER PARTS
12 - OPTIONAL PARTS
Common parts from model Maytag JFX2897DRP02 REFRIGERATOR
1
HOUSING, DISPENSER (NOT SERVICED) MAY N/P Contact Us For Availability
1
DOOR, LEFT (INCLUDES ITEM 30) (STAINLESS) MAY W10503829 Contact Us For Availability
1
DOOR, FREEZER (INCLUDES ITEM 17) (STAINLESS) MAY W10547320 Contact Us For Availability
1
MAY W10141625 MAY W10141625 Contact Us For Availability
1
MAY W10753038 MAY W10753038 Contact Us For Availability
1
MAY W10272364 MAY W10272364 Contact Us For Availability
1
MAY W10746960 MAY W10746960 Contact Us For Availability
1B
TECH SHEET, USE AND CARE GUIDE MAY W10630291 Contact Us For Availability
1C
TECH SHEET, ENERGY GUIDE MAY W10630555 Contact Us For Availability
2
MAY W10665178 MAY W10665178 Contact Us For Availability
2
MAY W10705147 MAY W10705147 Contact Us For Availability
2
MAY A3189392 MAY A3189392 Contact Us For Availability
2
DOOR, RIGHT (INCLUDES ITEM 30) (STAINLESS) MAY W10550669 Contact Us For Availability
2
MAY 2188935 MAY 2188935 Contact Us For Availability
2
MAY W10610301 MAY W10610301 Contact Us For Availability
2
MAY W10752728 MAY W10752728 Contact Us For Availability
2
MAY W10347051 MAY W10347051 Contact Us For Availability
3
MAY W10344432 MAY W10344432 Contact Us For Availability
3
MAY W10736144 MAY W10736144 Contact Us For Availability
3
MAY W10464016 MAY W10464016 Contact Us For Availability
3
MAY W10570074 MAY W10570074 Contact Us For Availability
3
MAY W10325002 MAY W10325002 Contact Us For Availability
3
WALL, DISPENSER FALSE (CHROMIUM FROST) MAY W10606653 Contact Us For Availability
3
MAY 2198628 MAY 2198628 Contact Us For Availability
4
MAY W10505487 MAY W10505487 Contact Us For Availability
4
MAY 12990511 MAY 12990511 Contact Us For Availability
4
MAY W10711460 MAY W10711460 Contact Us For Availability
4
MAY W10513424 MAY W10513424 Contact Us For Availability
4
MAY W10549590 MAY W10549590 Contact Us For Availability
4
MAY W10503522 MAY W10503522 Contact Us For Availability
4
MAY W10509272 MAY W10509272 Contact Us For Availability
4
ASSEMBLY, PAD (CAST GREY) MAY W10420671 Contact Us For Availability
4
MAY W10347120 MAY W10347120 Contact Us For Availability
5
MAY W10811364 MAY W10811364 Contact Us For Availability
5
MAY W10341329 MAY W10341329 Contact Us For Availability
5
MAY W10712952 MAY W10712952 Contact Us For Availability
5
MAY W10795770 MAY W10795770 Contact Us For Availability
5
MAY W10776916 MAY W10776916 Contact Us For Availability
5
MAY W10509275 MAY W10509275 Contact Us For Availability
5
MAY W10577864 MAY W10577864 Contact Us For Availability
5
MAY W10347114 MAY W10347114 Contact Us For Availability
5A
MAY W10712953 MAY W10712953 Contact Us For Availability
5A
MAY W10795768 MAY W10795768 Contact Us For Availability
6
MAY W10415341 MAY W10415341 Contact Us For Availability
6
MAY W10238156 MAY W10238156 Contact Us For Availability
6
MAY 12956601 MAY 12956601 Contact Us For Availability
6
MAY W10698204 MAY W10698204 Contact Us For Availability
6
MAY W10650427 MAY W10650427 Contact Us For Availability
6
MAY W10391081 MAY W10391081 Contact Us For Availability
6
MAY W10788103 MAY W10788103 Contact Us For Availability
6
MAY W10435760 MAY W10435760 Contact Us For Availability
6
MAY W10215646 MAY W10215646 Contact Us For Availability
7
MAY W10279854 MAY W10279854 Contact Us For Availability
7
MAY 12990518 MAY 12990518 Contact Us For Availability
7
MAY C3680310V MAY C3680310V Contact Us For Availability
7
MAY 12990204 MAY 12990204 Contact Us For Availability
7
MAY W10303521 MAY W10303521 Contact Us For Availability
7
DOOR, PANTRY (INCLUDES ITEM 8) (STAINLESS) MAY W10550670 Contact Us For Availability
7
MAY W10606641 MAY W10606641 Contact Us For Availability
7
SCREW (STAINLESS) MAY 8281163 Contact Us For Availability
8
BRAKE, ROLLER MAY W10141622 Contact Us For Availability
8
MAY W10669663 MAY W10669663 Contact Us For Availability
8
HANDLE, DOOR (PRO STYLE) MAY W10605387 Contact Us For Availability
8
MAY W10493169 MAY W10493169 Contact Us For Availability
8
MAY W10660727 MAY W10660727 Contact Us For Availability
8
MAY W10518365 MAY W10518365 Contact Us For Availability
8
MAY W10402180 MAY W10402180 Contact Us For Availability
8
MAY W10347093 MAY W10347093 Contact Us For Availability
9
MAY 12992602 MAY 12992602 Contact Us For Availability
9
MAY 2223877 MAY 2223877 Contact Us For Availability
9
MAY 12990504 MAY 12990504 Contact Us For Availability
9
GRILLE, AIR (FREEZER) MAY W10496613 Contact Us For Availability
9
MAY W10709748 MAY W10709748 Contact Us For Availability
9
MAY W10622701 MAY W10622701 Contact Us For Availability
9
MAY W10753040 MAY W10753040 Contact Us For Availability
9
ASSEMBLY, LED MAY W10470750 Contact Us For Availability
10
HINGE, TOP (LEFT HAND) MAY W10248410 Contact Us For Availability
10
MAY W10277949 MAY W10277949 Contact Us For Availability
10
SHROUD, EVAPORATOR FAN MAY W10363507 Contact Us For Availability
10
MAY W10407188 MAY W10407188 Contact Us For Availability
10
MAY W10507444 MAY W10507444 Contact Us For Availability
10
MAY 12729128 MAY 12729128 Contact Us For Availability
10
MAY W10667416 MAY W10667416 Contact Us For Availability
10A
HINGE, TOP (RIGHT HAND) MAY W10248409 Contact Us For Availability
10A
MAY W10750817 MAY W10750817 Contact Us For Availability
11
SCREW MAY W10403212 Contact Us For Availability
11
MAY W10680605 MAY W10680605 Contact Us For Availability
11
MAY 12986101 MAY 12986101 Contact Us For Availability
11
MAY W10420623 MAY W10420623 Contact Us For Availability
11
MAY W10469177 MAY W10469177 Contact Us For Availability
11
ASSEMBLY, INVERTER BOX MAY W10154805 Contact Us For Availability
12
MAY W10407158 MAY W10407158 Contact Us For Availability
12
FILTER, AIR MAY W10315189 Contact Us For Availability
12
MAY 12951101 MAY 12951101 Contact Us For Availability
12
MAY W10488124 MAY W10488124 Contact Us For Availability
12
CLIP, CONDENSER MAY W10248621 Contact Us For Availability
12
COVER, GEAR (LEFT HAND) MAY W10284709 Contact Us For Availability
12A
COVER, GEAR (RIGHT HAND) MAY W10294414 Contact Us For Availability
13
MAY W10471618 MAY W10471618 Contact Us For Availability
13
MAY W10674102 MAY W10674102 Contact Us For Availability
13
MAY W10728094 MAY W10728094 Contact Us For Availability
13
MAY W10640341 MAY W10640341 Contact Us For Availability
13
SCREW (STAINLESS) MAY 489443 Contact Us For Availability
13
ROLLER MAY 12477102 Contact Us For Availability
13
MAY 12991702 MAY 12991702 Contact Us For Availability
14
SCREW (BLACK) MAY W10308751 Contact Us For Availability
14
MAY W10706850 MAY W10706850 Contact Us For Availability
14
ASSEMBLY, DRAIN FUNNEL MAY W10503218 Contact Us For Availability
14
MAY W10248856 MAY W10248856 Contact Us For Availability
14
ADAPTER, UPPER PAN (LEFT HAND) MAY W10619219 Contact Us For Availability
14
MAY 12992101 MAY 12992101 Contact Us For Availability
14
GEAR, SPUR MAY W10277360 Contact Us For Availability
14A
ADAPTER, UPPER PAN (RIGHT HAND) MAY W10619218 Contact Us For Availability
15
HINGE, CENTER (RIGHT) (GREY) MAY W10248703 Contact Us For Availability
15
MAY M0500703 MAY M0500703 Contact Us For Availability
15
SCREW MAY 489214 Contact Us For Availability
15
MAY W10704091 MAY W10704091 Contact Us For Availability
15
GROMMET MAY 10835903 Contact Us For Availability
15
MAY W10802341 MAY W10802341 Contact Us For Availability
16
MAY W10336736 MAY W10336736 Contact Us For Availability
16
MAY W10598013 MAY W10598013 Contact Us For Availability
16
MAY B8381501 MAY B8381501 Contact Us For Availability
16
MAY W10347085 MAY W10347085 Contact Us For Availability
16
MAY W10485096 MAY W10485096 Contact Us For Availability
16
MAY W10559262 MAY W10559262 Contact Us For Availability
16
MAY W10719660 MAY W10719660 Contact Us For Availability
16A
MAY W10485089 MAY W10485089 Contact Us For Availability
17
COVER, CORNER (GREY) MAY 12587703AP Contact Us For Availability
17
MAY W10811686 MAY W10811686 Contact Us For Availability
17
MAY W10405166 MAY W10405166 Contact Us For Availability
17
CLIP, TUBE MAY W10245516 Contact Us For Availability
17
MAY W10248749 MAY W10248749 Contact Us For Availability
17
MAY W10391376 MAY W10391376 Contact Us For Availability
17
COLLAR, GEAR MAY W10277361 Contact Us For Availability
18
VALVE, WATER MAY W10394076 Contact Us For Availability
18
MAY W10503486 MAY W10503486 Contact Us For Availability
18
MAY W10668165 MAY W10668165 Contact Us For Availability
18
MAY W10518658 MAY W10518658 Contact Us For Availability
18
MAY W10342573 MAY W10342573 Contact Us For Availability
18
MAY W10530656 MAY W10530656 Contact Us For Availability
19
MAY W10515763 MAY W10515763 Contact Us For Availability
19
MAY W10141645 MAY W10141645 Contact Us For Availability
19
MAY W10525237 MAY W10525237 Contact Us For Availability
19
MAY W10280385 MAY W10280385 Contact Us For Availability
19
MAY W10258510 MAY W10258510 Contact Us For Availability
19
MAY W10719661 MAY W10719661 Contact Us For Availability
19A
MAY W10515762 MAY W10515762 Contact Us For Availability
20
MAY 12991302 MAY 12991302 Contact Us For Availability
20
MAY W10505516 MAY W10505516 Contact Us For Availability
20
MAY W10630303 MAY W10630303 Contact Us For Availability
20
ASSEMBLY, EVAPORATOR MAY W10248589 Contact Us For Availability
20
MAY 12991401 MAY 12991401 Contact Us For Availability
21
MAY 12990701 MAY 12990701 Contact Us For Availability
21
FAN, ICEBOX MAY W10460280 Contact Us For Availability
21
MAY W10258502 MAY W10258502 Contact Us For Availability
21
MAY W10709318 MAY W10709318 Contact Us For Availability
21
MAY W10666373 MAY W10666373 Contact Us For Availability
22
MAY W10637671 MAY W10637671 Contact Us For Availability
22
MAY W10630535 MAY W10630535 Contact Us For Availability
22
MAY W10258540 MAY W10258540 Contact Us For Availability
22
MAY W10527155 MAY W10527155 Contact Us For Availability
22
MAY W10530296 MAY W10530296 Contact Us For Availability
23
SCREW MAY 12992601 Contact Us For Availability
23
MAY W10518659 MAY W10518659 Contact Us For Availability
23
DIVIDER, LARGE PANTRY MAY W10328402 Contact Us For Availability
24
HINGE, CENTER (LEFT) (GREY) MAY W10248706 Contact Us For Availability
24
MAY W10727641 MAY W10727641 Contact Us For Availability
24
RETAINER, ICE CHUTE MAY W10400825 Contact Us For Availability
24
MAY W10746598 MAY W10746598 Contact Us For Availability
24
MAY W10782690 MAY W10782690 Contact Us For Availability
25
ASSEMBLY, FASCIA MAY W10553630 Contact Us For Availability
25
MAY W10347087 MAY W10347087 Contact Us For Availability
25
DRIER MAY W10286069 Contact Us For Availability
25
MAY W10656773 MAY W10656773 Contact Us For Availability
26
MAY W10646855 MAY W10646855 Contact Us For Availability
26
MAY W10183959 MAY W10183959 Contact Us For Availability
26
MAY W10537691 MAY W10537691 Contact Us For Availability
27
MAY W10790783 MAY W10790783 Contact Us For Availability
27
MAY W10610289 MAY W10610289 Contact Us For Availability
27
DOOR, EMITTER MAY W10258520 Contact Us For Availability
27
MAY W10142294 MAY W10142294 Contact Us For Availability
27
MAY W10530295 MAY W10530295 Contact Us For Availability
28
MAY W10754591 MAY W10754591 Contact Us For Availability
28
MAY W10280983 MAY W10280983 Contact Us For Availability
28
SPRING, DOOR MAY 2198635 Contact Us For Availability
28
MAY 12477202 MAY 12477202 Contact Us For Availability
28
MAY W10549991 MAY W10549991 Contact Us For Availability
29
MAY 12466105 MAY 12466105 Contact Us For Availability
29
MAY W10389152 MAY W10389152 Contact Us For Availability
29
PIN, DOOR MAY 2198634 Contact Us For Availability
29
MAY W10406719 MAY W10406719 Contact Us For Availability
29
MAY W10518378 MAY W10518378 Contact Us For Availability
30
MAY W10577369 MAY W10577369 Contact Us For Availability
30
MAY W10635022 MAY W10635022 Contact Us For Availability
30
MAY W10503817 MAY W10503817 Contact Us For Availability
30
MAY W10630315 MAY W10630315 Contact Us For Availability
30
MAY W10736627 MAY W10736627 Contact Us For Availability
31
CLAMP, TUBE MAY M0108107 Contact Us For Availability
31
MAY W10503491 MAY W10503491 Contact Us For Availability
31
MAY W10499015 MAY W10499015 Contact Us For Availability
31
MAY W10278140 MAY W10278140 Contact Us For Availability
31
MAY W10493549 MAY W10493549 Contact Us For Availability
32
MAY W10503562 MAY W10503562 Contact Us For Availability
32
MAY W10503492 MAY W10503492 Contact Us For Availability
32
CLIP, BOTTOM COVER MAY W10296661 Contact Us For Availability
32
MAY 12702901 MAY 12702901 Contact Us For Availability
33
MAY W10505294 MAY W10505294 Contact Us For Availability
33
MAY W10248595 MAY W10248595 Contact Us For Availability
33
MAY W10491355 MAY W10491355 Contact Us For Availability
33
MAY W10780178 MAY W10780178 Contact Us For Availability
34
MAY W10212137 MAY W10212137 Contact Us For Availability
34
MAY W10438957 MAY W10438957 Contact Us For Availability
34
MAY W10626970 MAY W10626970 Contact Us For Availability
34
MAY W10593207 MAY W10593207 Contact Us For Availability
35
MAY W10503500 MAY W10503500 Contact Us For Availability
35
MAY 2215676 MAY 2215676 Contact Us For Availability
35
MAY W10530297 MAY W10530297 Contact Us For Availability
36
CLAMP, POWER CORD MAY 549193 Contact Us For Availability
36
MAY W10465948 MAY W10465948 Contact Us For Availability
36
MAY W10236396 MAY W10236396 Contact Us For Availability
36
MAY W10518036 MAY W10518036 Contact Us For Availability
37
MAY W10510863 MAY W10510863 Contact Us For Availability
37
HANDLE, DOOR (PRO STYLE) MAY W10605389 Contact Us For Availability
38
MAY 12990302 MAY 12990302 Contact Us For Availability
38
MAY W10320706 MAY W10320706 Contact Us For Availability
38
MAY W10460893 MAY W10460893 Contact Us For Availability
39
MAY W10277839 MAY W10277839 Contact Us For Availability
39
MAY W10660728 MAY W10660728 Contact Us For Availability
39
MAY W10280988 MAY W10280988 Contact Us For Availability
40
MAY W10678711 MAY W10678711 Contact Us For Availability
40
MAY W10392172 MAY W10392172 Contact Us For Availability
40
MAY W10512203 MAY W10512203 Contact Us For Availability
41
MAY W10630762 MAY W10630762 Contact Us For Availability
42
MAY W10470981 MAY W10470981 Contact Us For Availability
NI
MAY W10570599 MAY W10570599 Contact Us For Availability
NI
MAY W10761050 MAY W10761050 Contact Us For Availability
NI
VALVE, ACCESS MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS MAY 978028 Contact Us For Availability
NI
VALVE, ACCESS MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MAY 20000008 MAY 20000008 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) MAY 285006 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. ENAMEL, BLAC MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQ MAY 4392901 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108") MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. MAY 542639 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
MAY 72032 MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
MAY 8003RP MAY 8003RP Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
MISCELLANEOUS, KIT, FOAM SLAB (30" X 32 1/2" MAY 876029 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION KIT (14 PIECES, 3" MAY 876305 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION (2 PIECES, 3" X 24" MAY 876370 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION, FIBERGLASS (63 1/2 MAY 978941 Contact Us For Availability
× ![]()
