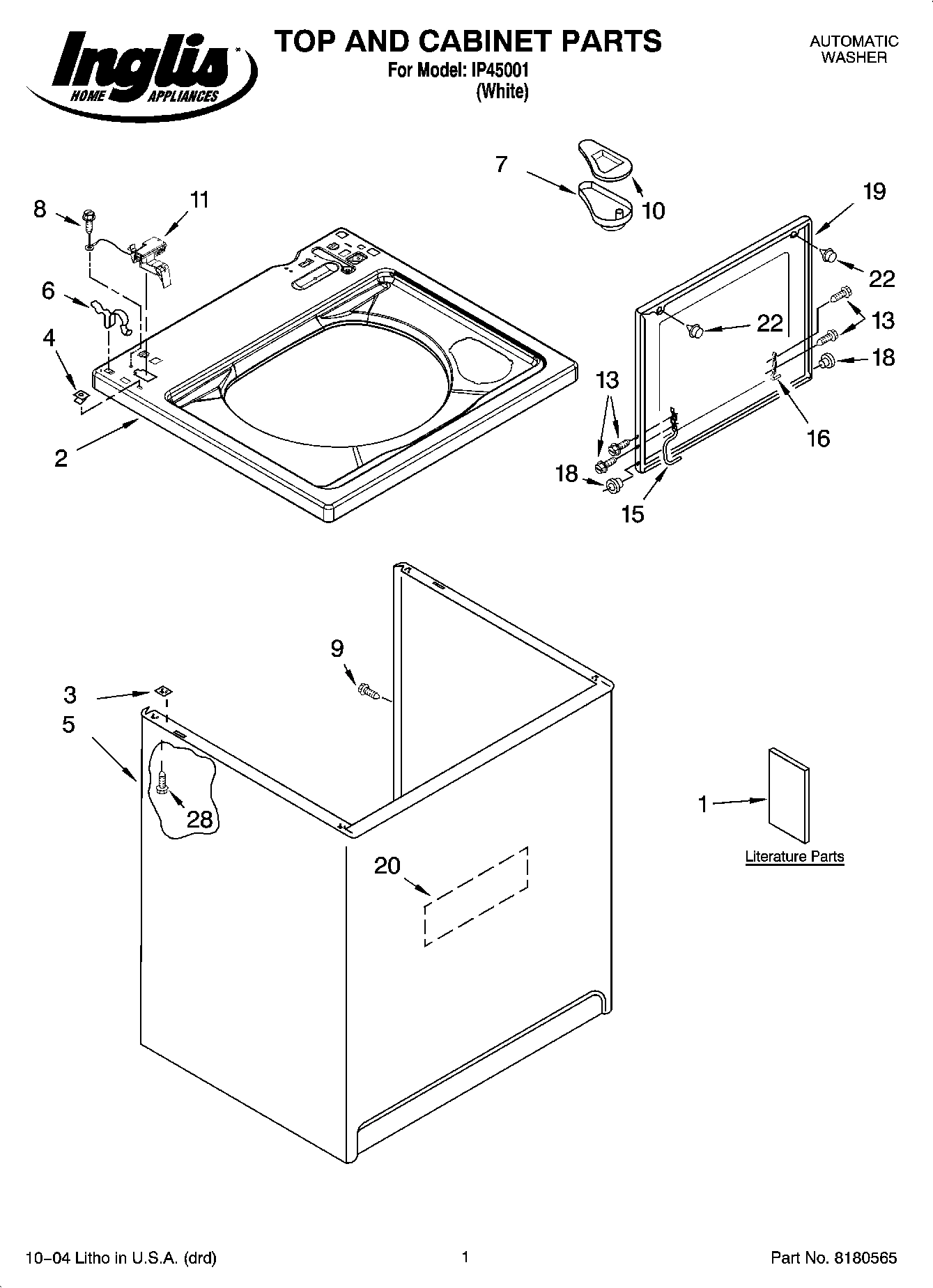

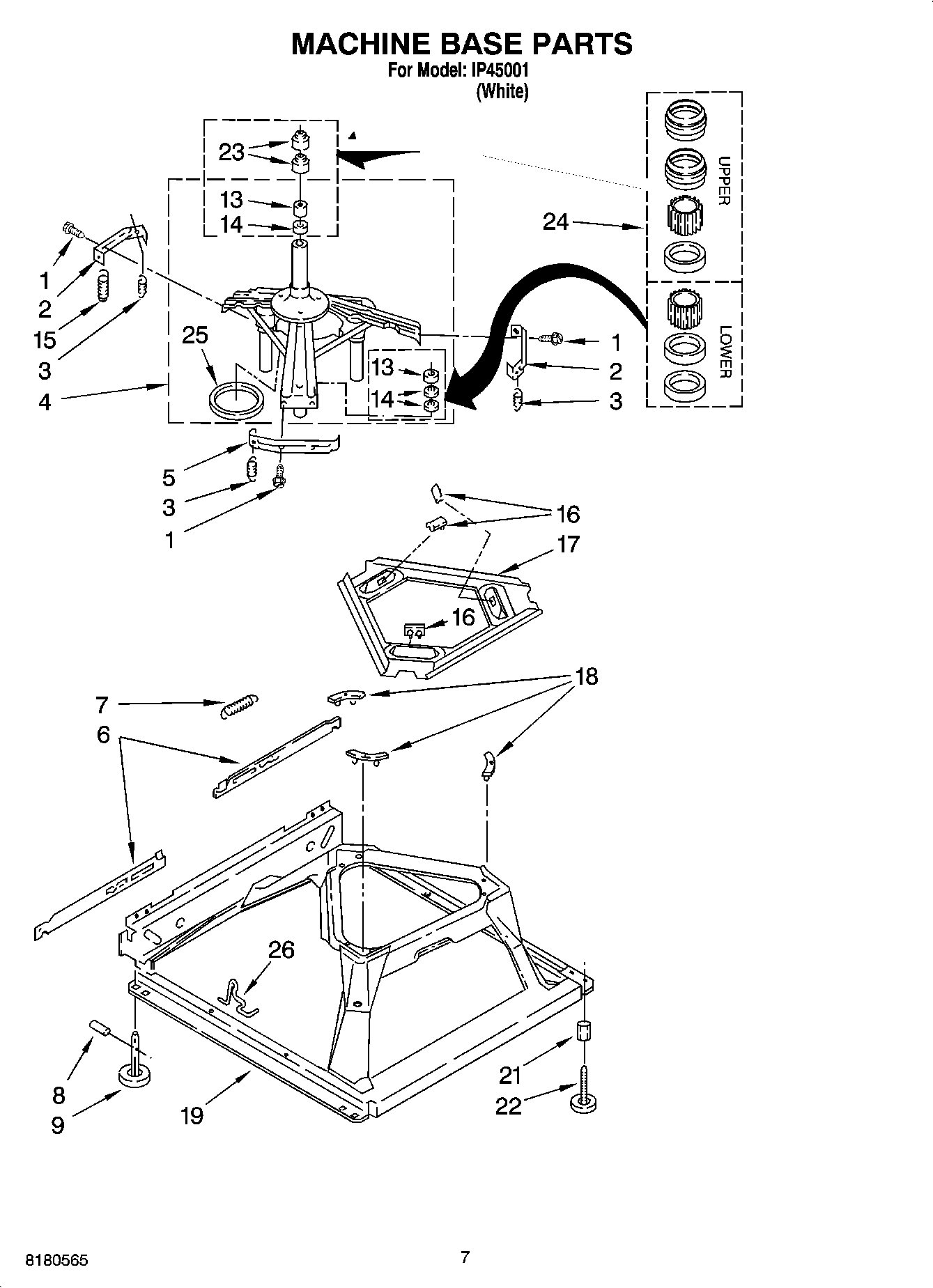

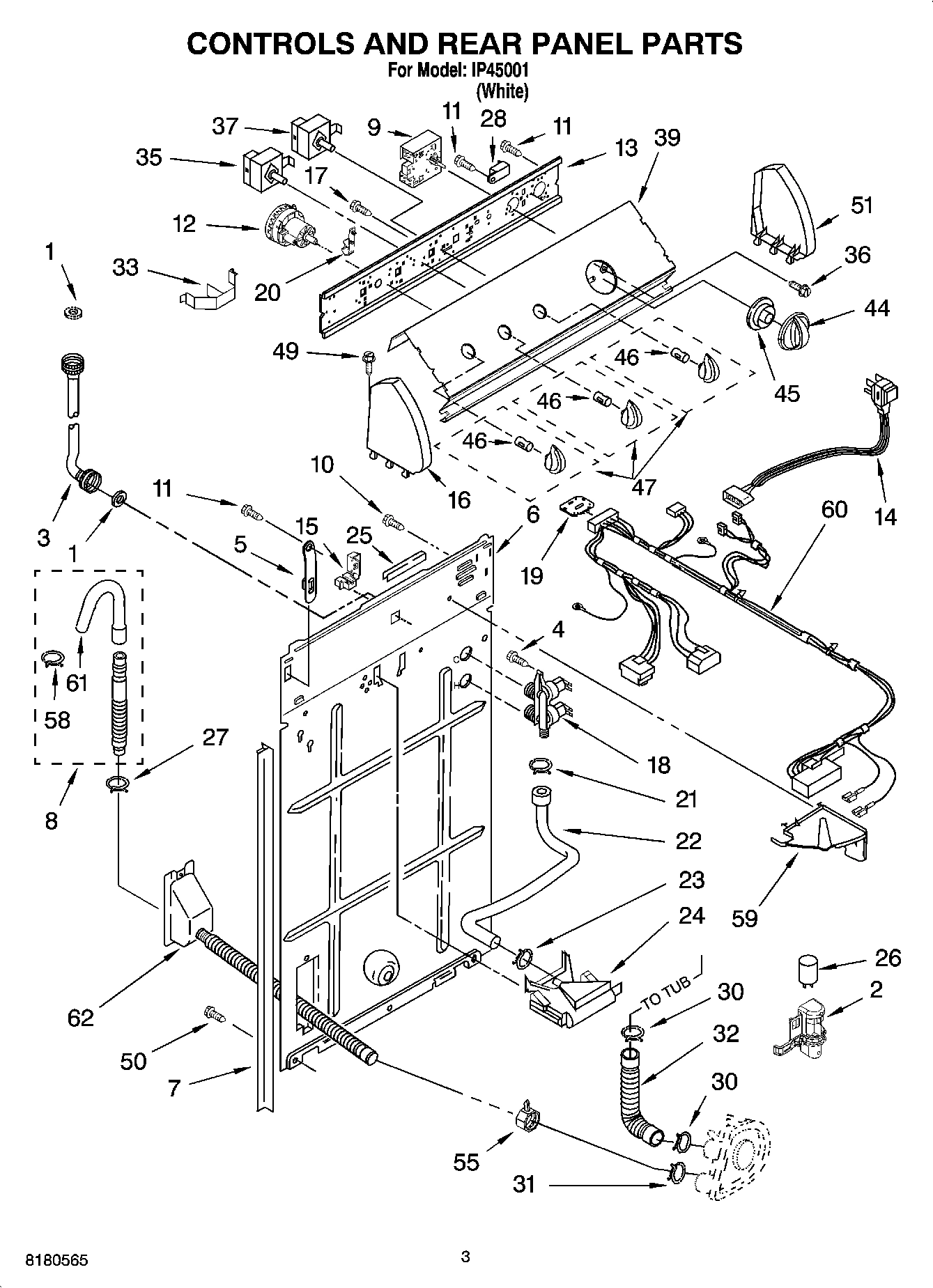

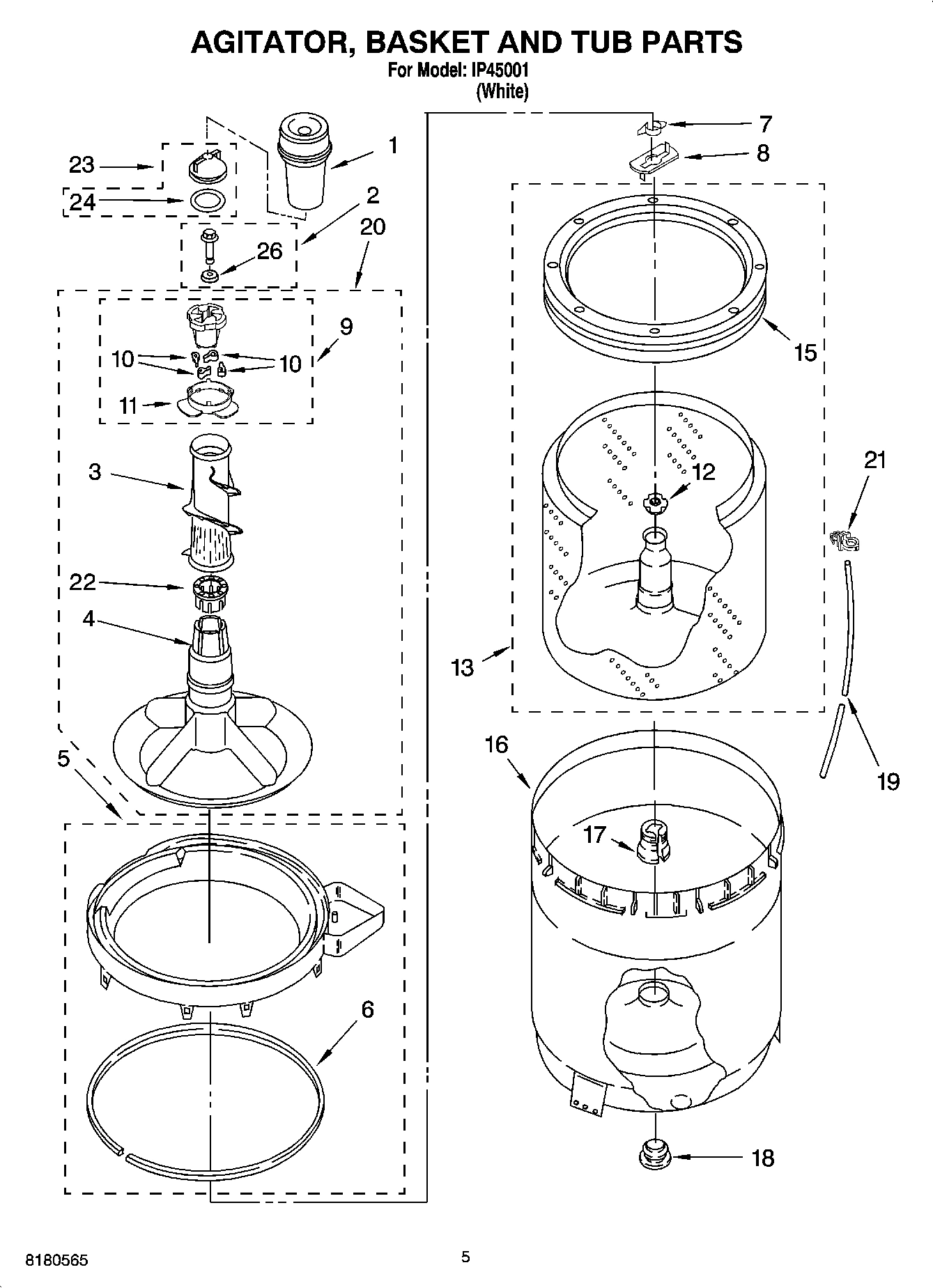

Model Whirlpool IP45001 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

Drain Protector WPL 367031 Contact Us For Availability

OIL WPL ARI152886A Contact Us For Availability

LUBRICANT WPL ARI152887A Contact Us For Availability

SEALER WPL ARI152888A Contact Us For Availability

ACCESSORY PARTS WPL ARI152889A Contact Us For Availability

1

285442 Whirlpool Coupling Backorder WPL 285442 $28.80

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $9.99

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $2.51

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

Energy Guide WPL 3955538 Contact Us For Availability

1

Use & Care Guide WPL 3955877 Contact Us For Availability

1

Feature Sheet WPL 3955923 Contact Us For Availability

1

Installation Instructions WPL 3956025 Contact Us For Availability

1

Wiring Diagram WPL 8563611 Contact Us For Availability

1

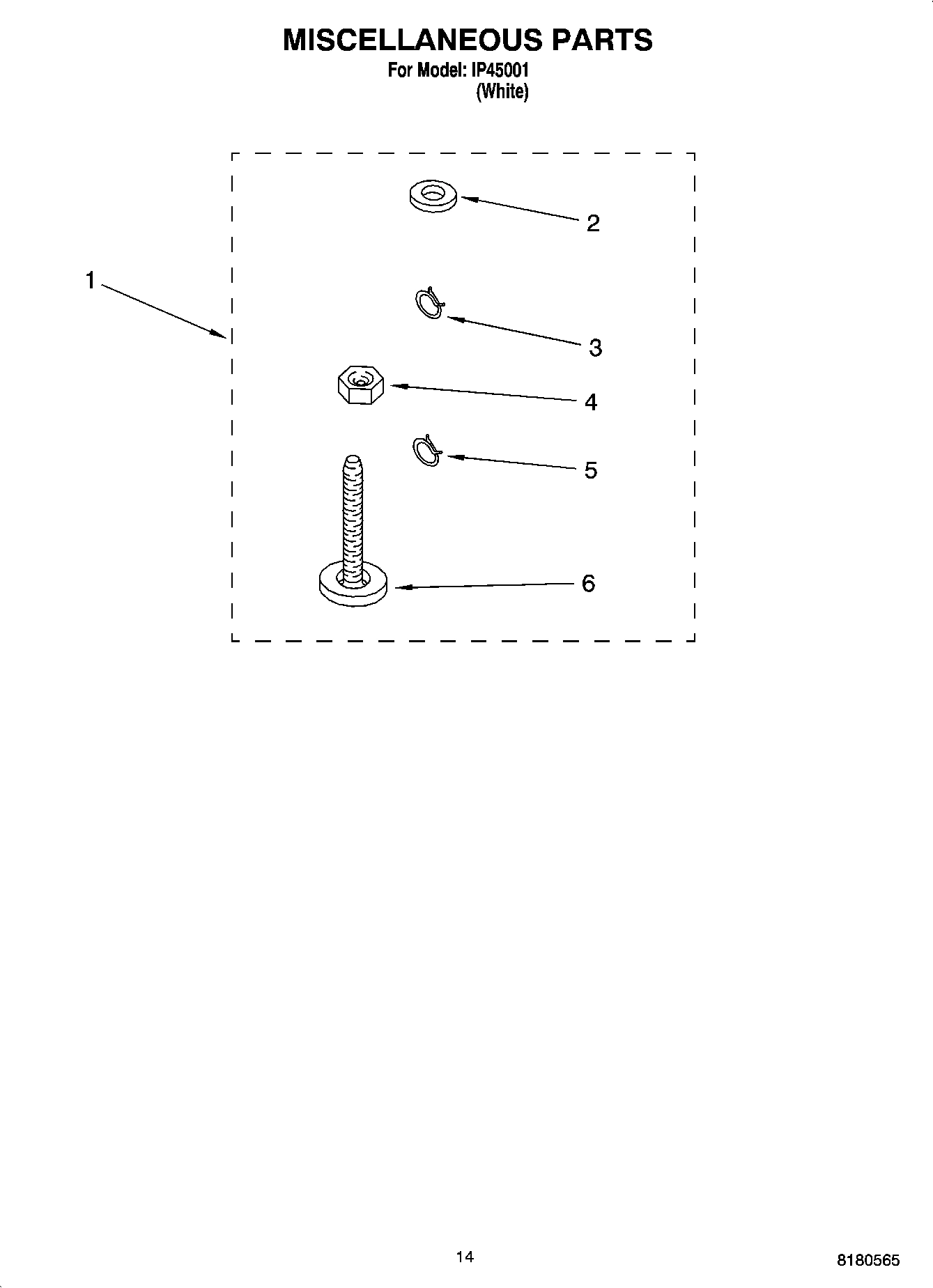

Miscellaneous Parts Bag WPL 3976263 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $78.48

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.70

2

Clip, Capacitor WPL 8318046 Contact Us For Availability

2

Top WPL 8543451 Contact Us For Availability

2

Clip, Harness WPL 388498 Contact Us For Availability

3

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP3363003 Whirlpool Agitator Mover Backorder WPL WP3363003 $89.14

3

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

3

WP62750 Whirlpool Spacer Backorder WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.70

4

8559320 Whirlpool Clip Backorder WPL 8559320 $13.91

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $44.98

4

WP3347288 Whirlpool Washer Agitator Base In Stock WPL WP3347288 $73.90

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

4

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

5

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $255.69

5

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.70

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

6

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $9.42

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.70

6

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

6

Clip, Harness WPL 3390496 Contact Us For Availability

7

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $10.30

7

WP389379 Whirlpool Retainer Backorder WPL WP389379 $3.70

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

Dispenser, Bleach WPL 8519517 Contact Us For Availability

8

W10876590 Whirlpool Connector Backorder WPL W10876590 $4.94

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

Timer, Block Disconnect (White) WPL 3948614 Contact Us For Availability

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

9

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

9

WP8541270 Whirlpool Timer Backorder WPL WP8541270 $176.90

10

353424 Whirlpool Connector Backorder WPL 353424 $10.76

10

Cover, Dispenser WPL 3955788 Contact Us For Availability

10

Spring, Agitate WPL 62676 Contact Us For Availability

WP3363661 Whirlpool Bearing Cam Backorder WPL WP3363661 $3.70

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP8318084 Whirlpool Washer Lid Switch Assembl In Stock WPL WP8318084 $16.93

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

Block, Disconnect (Use Term. 352088) WPL 3347243 Contact Us For Availability

13

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $9.63

13

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.51

13

Protector WPL 63523 Contact Us For Availability

14

Connector (2-Way) (Use Term. 94614) WPL 717252 Contact Us For Availability

15

WP389387 Whirlpool Agitator Shaft In Stock WPL WP389387 $103.30

15

Hinge, Lid (L.H.) WPL 8559336 Contact Us For Availability

15

Clip, Harness WPL 3352944 Contact Us For Availability

63849 Whirlpool Outer Tub Primary Assembly Backorder WPL 63849 $126.36

WP91770 Whirlpool Hinge Backorder WPL WP91770 $8.80

Block, Disconnect (12-Way) (Timer) (Use Term. WPL 3390423 Contact Us For Availability

Washer, Cam Thrust WPL 62618 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $76.80

Receptacle, (6-Way) (Use Term. 94613) WPL 3347730 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $14.57

Bearing, Lid Hinge (2) WPL 8319539 Contact Us For Availability

Connector, Etc WPL 3349494 Contact Us For Availability

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $138.84

Lid WPL 8558398 Contact Us For Availability

E.T.C. Control WPL 3407125 Contact Us For Availability

Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability

WP2172937 Whirlpool Connector In Stock WPL WP2172937 $8.66

Cabinet- Sound Dampener WPL 3976348 Contact Us For Availability

Agitator, Asy (Complete) WPL 3946501 Contact Us For Availability

Switch, Main Drive Motor WPL 3952056 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $29.23

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $2.51

WP3360056 Whirlpool Connector Backorder WPL WP3360056 $8.69

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.70

3354925 Whirlpool Connector Backorder WPL 3354925 $10.76

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $20.87

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.51

Block, Connector (Hot Valve) WPL 3354926 Contact Us For Availability

23

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

23

Ring, Retaining WPL 3362552 Contact Us For Availability

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $71.60

24

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $11.77

24

Washer Kit, Thrust WPL 285735 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $29.41

26

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $4.72

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $177.07

28

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

28

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $49.52

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $2.51

35

Switch, Water Temperature WPL 8557892 Contact Us For Availability

37

W10168264 Whirlpool Cycle Switch Backorder WPL W10168264 $47.51

45

WP8544947 Whirlpool Dial Backorder WPL WP8544947 $27.18

46

WP8536939 Whirlpool Spring Clip In Stock WPL WP8536939 $3.70

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

55

Clamp, Hose WPL 3976395 No Longer Available

59

Shield, S WPL 8539874 Contact Us For Availability

61

WP3357027 Whirlpool Nozzle Assembly Backorder WPL WP3357027 $28.80
