Model Whirlpool IP44004 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $44.98

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

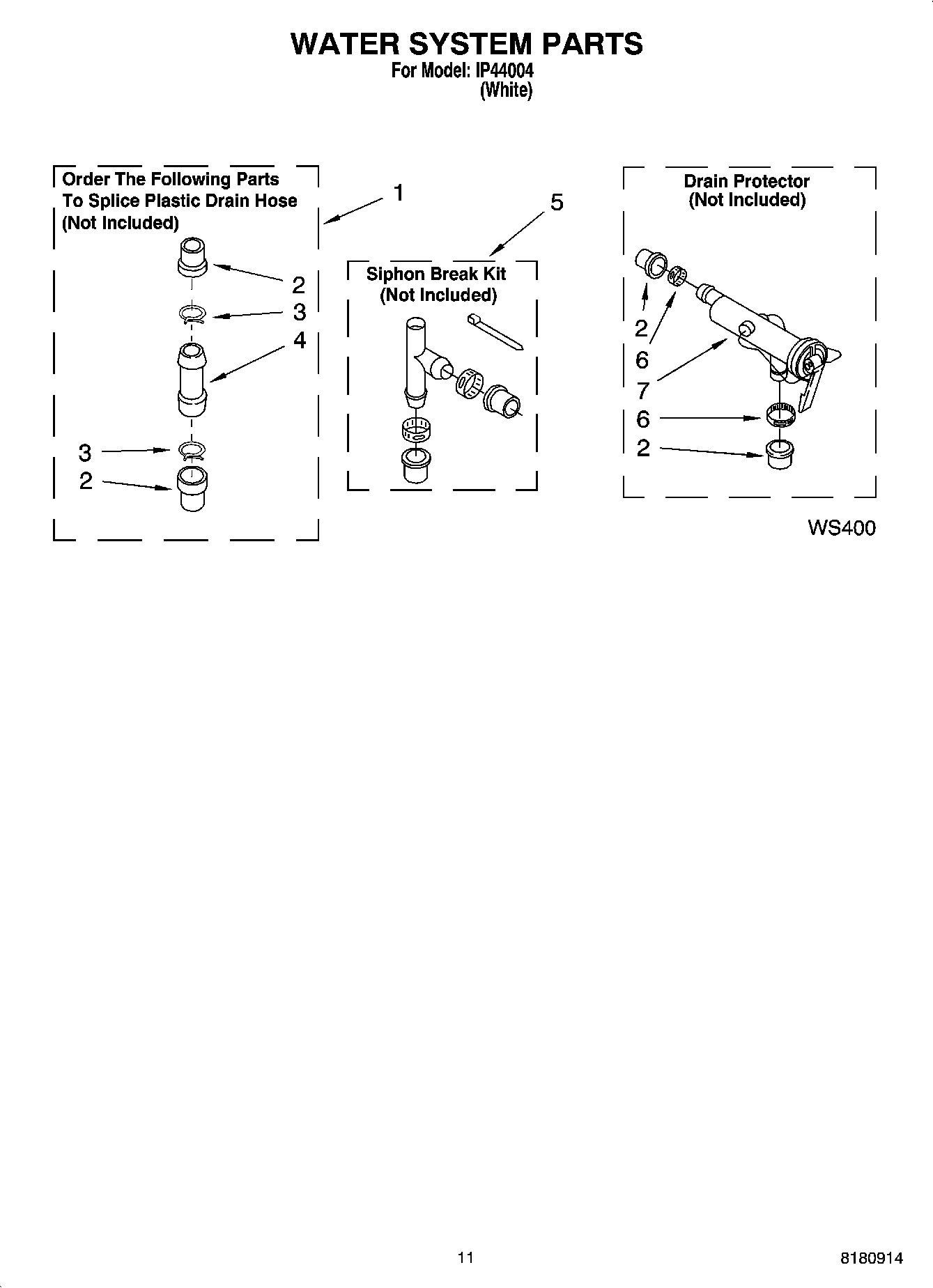

Drain Protector WPL 367031 Contact Us For Availability

OIL WPL ARI152876A Contact Us For Availability

LUBRICANT WPL ARI152877A Contact Us For Availability

SEALER WPL ARI152878A Contact Us For Availability

ACCESSORY PARTS WPL ARI152879A Contact Us For Availability

1

285442 Whirlpool Coupling Backorder WPL 285442 $28.80

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $9.99

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $2.51

1

Clip, Harness WPL 3349557 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $78.48

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.70

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP3363003 Whirlpool Agitator Mover Backorder WPL WP3363003 $89.14

3

WP62750 Whirlpool Spacer Backorder WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.70

3

WPW10080230 Whirlpool Ring In Stock WPL WPW10080230 $4.98

4

285353 Whirlpool Ring Backorder WPL 285353 $3.70

4

WP3347288 Whirlpool Washer Agitator Base In Stock WPL WP3347288 $73.90

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

5

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $18.42

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $255.69

5

WP8568314 Whirlpool Strap In Stock WPL WP8568314 $3.70

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $28.49

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

6

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $9.42

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.70

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

7

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $10.30

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $2.51

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

8

WP3946792 Whirlpool Spring Backorder WPL WP3946792 $3.70

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

WP8543666 Whirlpool Washer In Stock WPL WP8543666 $5.27

8

Timer, Block Disconnect (White) WPL 3948614 Contact Us For Availability

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

9

WP8557301 Whirlpool Timer In Stock WPL WP8557301 $180.45

9

Cabinet - Sound Damper WPL 3976348 Contact Us For Availability

10

353424 Whirlpool Connector Backorder WPL 353424 $10.76

10

WP3400516 Whirlpool Screw Backorder WPL WP3400516 $2.51

10

Spring, Agitate WPL 62676 Contact Us For Availability

WP3363661 Whirlpool Bearing Cam Backorder WPL WP3363661 $3.70

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP62611 Whirlpool Plate Backorder WPL WP62611 $37.28

WP8318084 Whirlpool Washer Lid Switch Assembl In Stock WPL WP8318084 $16.93

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

13

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $9.63

14

WP8577374 Whirlpool Seal Shaft In Stock WPL WP8577374 $3.70

15

WP389387 Whirlpool Agitator Shaft In Stock WPL WP389387 $103.30

15

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $4.72

15

Clip, Anti-Rattle WPL 3355454 Contact Us For Availability

16

63849 Whirlpool Outer Tub Primary Assembly Backorder WPL 63849 $126.36

16

WP91770 Whirlpool Hinge Backorder WPL WP91770 $8.80

16

Washer, Cam Thrust WPL 62618 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $76.80

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $3.70

18

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

18

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $14.57

18

Bearing, Lid Hinge (2) WPL 8319539 Contact Us For Availability

19

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $138.84

19

Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.51

Agitator, Asy (Complete) WPL 3946501 Contact Us For Availability

Switch, Main Drive Motor WPL 3952056 Contact Us For Availability

Clip, Capacitor WPL 8318046 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $29.23

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $2.51

WP3360056 Whirlpool Connector Backorder WPL WP3360056 $8.69

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.70

Dispenser, Bleach WPL 8519517 Contact Us For Availability

22

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

22

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $20.87

22

Cover, Dispenser WPL 3955788 Contact Us For Availability

23

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

23

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.70

23

Ring, Retaining WPL 3362552 Contact Us For Availability

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $71.60

24

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $11.77

24

Washer Kit, Thrust WPL 285735 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $29.41

26

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $7.96

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $177.07

28

8541668 Whirlpool Washer Clamp Backorder WPL 8541668 $10.76

28

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $2.51

34

WPW10096921 Whirlpool Hose In Stock WPL WPW10096921 $37.24

35

Switch, Water Temperature WPL 8557872 Contact Us For Availability

37

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $42.80

42

WP8536939 Whirlpool Spring Clip In Stock WPL WP8536939 $3.70

45

WP8544947 Whirlpool Dial Backorder WPL WP8544947 $27.18

46

Knob, Control WPL 8543270 Contact Us For Availability

47

Clamp, Hose WPL 8541667 Contact Us For Availability

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

51

W10820038 Whirlpool Endcap In Stock WPL W10820038 $49.21

52

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

53

WP8577378 Whirlpool Retainer Backorder WPL WP8577378 $3.70

55

Shield, Suds WPL 8539874 Contact Us For Availability

56

Harness, Wir WPL 3957258 Contact Us For Availability

58

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

58

WPL 3957361 WPL 3957361 Contact Us For Availability

58

WPL ARI152874A WPL ARI152874A Contact Us For Availability
