Model GE GSH25JGCCWW Refrigerator – Common Parts & Diagrams

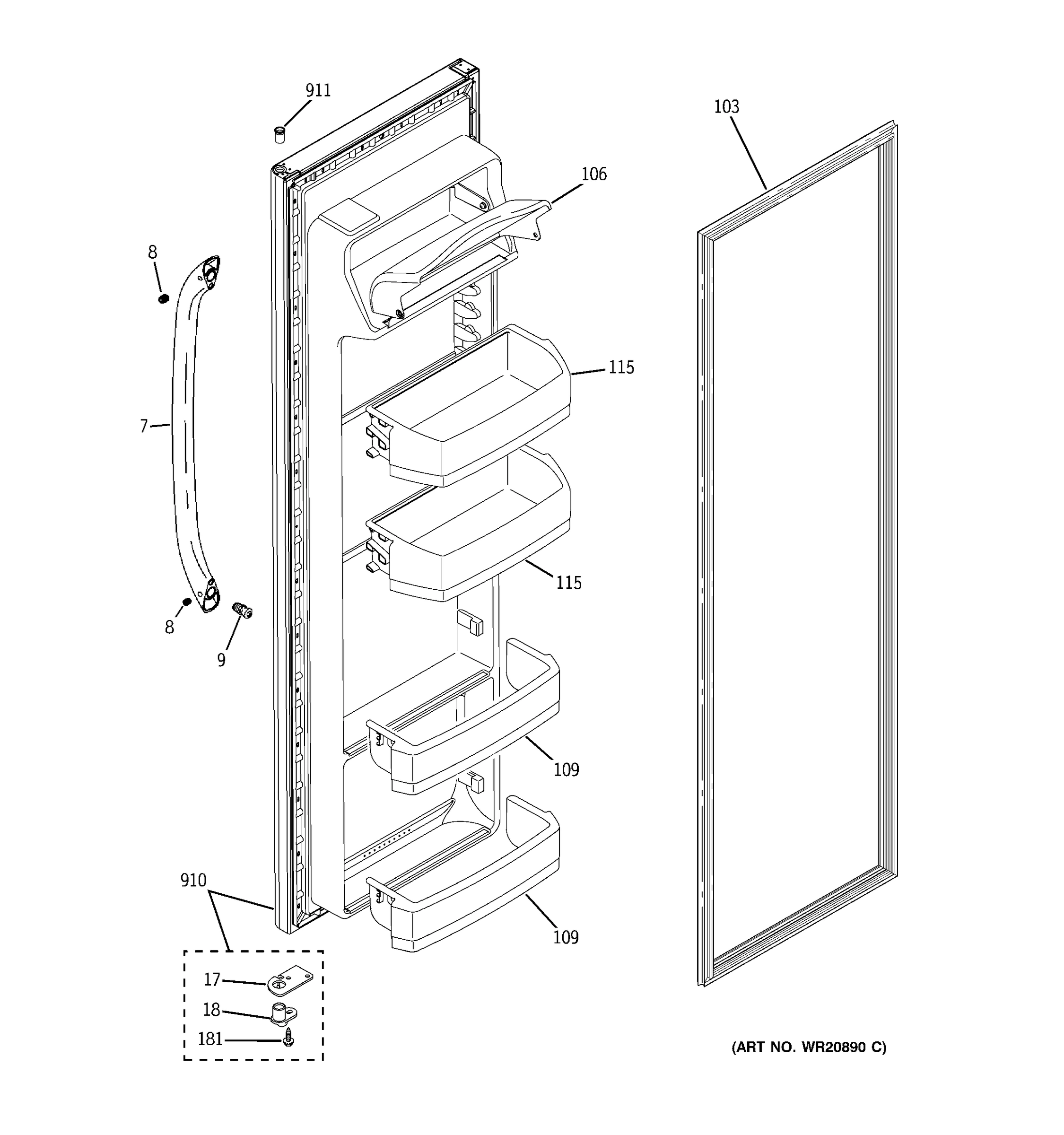

FREEZER DOOR

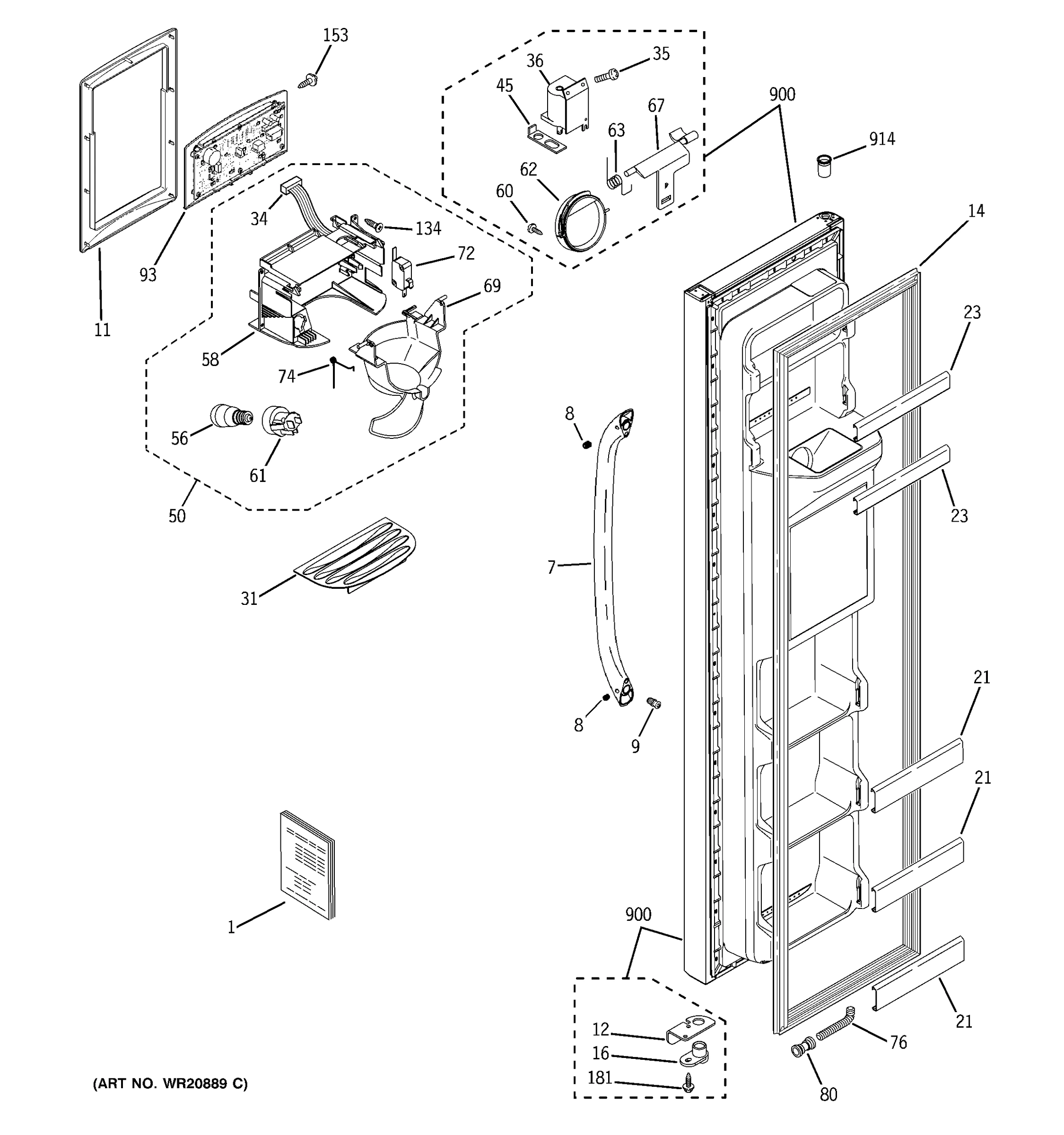

FRESH FOOD DOOR
FREEZER SECTION
FREEZER SHELVES
ICE MAKER & DISPENSER
FRESH FOOD SECTION
FRESH FOOD SHELVES
MACHINE COMPARTMENT
Common parts from model GE GSH25JGCCWW Refrigerator
7
TUBULAR HANDLE ASM GEN WR12X10978 Contact Us For Availability
9
FASTENER HANDLE SS GEN WR02X12800 Contact Us For Availability
11
RECESS TRIM GEN WR38X10301 Contact Us For Availability
16
CAM & THIMBLE FZ GEN WR02X11478 Contact Us For Availability
18
CAM & THIMBLE FF GEN WR02X11479 Contact Us For Availability
21
FRONT DOOR SHELF FZ GEN WR17X12070 Contact Us For Availability
23
FRONT DOOR SHELF FZ GEN WR17X12076 Contact Us For Availability
31
GRILL RECESS WHITE GEN WR17X10712 Contact Us For Availability
34
HARNESS RECESS DISP GEN WR23X10525 Contact Us For Availability
35
SCR 8-10 PL PNP 1/2 S GEN WR01X10649 Contact Us For Availability
50
HSG RECS ASM DISP WW GEN WR49X10132 Contact Us For Availability
60
SCR 4-10 PL PNP 5/16 S5H GEN WR01X10656 Contact Us For Availability
62
DOOR RECESS ASM GEN WR17X11653 Contact Us For Availability
63
SPRING RECESS DOOR GEN WR02X10585 Contact Us For Availability
67
CRANK DOOR RECESS GEN WR17X10706 Contact Us For Availability
69
FUNNEL ICE DISPLAY GEN WR17X11264 Contact Us For Availability
109
SHELF MODULE FIXED FF GEN WR71X11000 Contact Us For Availability
115
SHELF MODULE FF GEN WR71X10959 Contact Us For Availability
134
SCR 6-10 PL FLP 1/2 S GEN WR01X10616 Contact Us For Availability
167
DUCT AIR FZ GEN WR17X12081 Contact Us For Availability
172
SCR 8-18 AB TSQ 5/8 SS GEN WR01X10380 Contact Us For Availability
175
SCR 8-18 AB IHW 5/8 S GEN WR01X10652 Contact Us For Availability
177
SCR 8-18 CA HX 1/2 S GEN WR01X10606 Contact Us For Availability
178
SUPPORT SLIDE BASKET ASM GEN WR72X10134 Contact Us For Availability
179
SUPPORT SLIDE BASKET RH GEN WR72X10097 Contact Us For Availability
181
SCR 10-32 F HXW 3/4 S GEN WR01X10655 Contact Us For Availability
208
SUPPORT FZ GEN WR02X11561 Contact Us For Availability
211
BASKET SLIDEOUT FZ WHITE GEN WR21X10016 Contact Us For Availability
213
GASKET COVER EVAP GEN WR14X10045 Contact Us For Availability
214
COVER EVAP GEN WR17X11144 Contact Us For Availability
225
TUBE DRAIN GEN WR02X11476 Contact Us For Availability
229
CLIP EVAP THERMISTOR GEN WR02X10552 Contact Us For Availability
230
HEATER & BRACKET ASSY GEN WR51X10055 Contact Us For Availability
240
THERMOSTAT DEF GEN WR50X10065 Contact Us For Availability
247
ORIFICE EVAP FAN GEN WR17X12080 Contact Us For Availability
248
GASKET FOAM GEN WR14X10050 Contact Us For Availability
257
FASTENER BOARD GEN WR02X12209 Contact Us For Availability
258
SHIELD LIGHT FZ GEN WR17X10724 Contact Us For Availability
262
HINGE CAM RISER GEN WR02X11743 Contact Us For Availability
265
AXLE WHEEL GEN WR01X10604 Contact Us For Availability
267
HARNESS FZ FAN HTR GEN WR23X10476 Contact Us For Availability
268
SCREW MOBILITY GEN WR01X10199 Contact Us For Availability
278
MOBILITY FRONT ASM GEN WR02X12454 Contact Us For Availability
279
PIN PIVOT ASM GEN WR02X12254 Contact Us For Availability
288
GRILLE BASE ASM WH GEN WR74X10145 Contact Us For Availability
289
CLIP GRILLE GEN WR02X10560 Contact Us For Availability
290
BAR CURB HANDLING GEN WR17X11428 Contact Us For Availability
320
COARSE THREAD AUGER NUT GEN WR01X10315 Contact Us For Availability
322
SPACER CRUSHER MIDDLE GEN WR02X11266 Contact Us For Availability
325
HOUSING CRUSHER DISP GEN WR17X11505 Contact Us For Availability
328
DEFLECTOR ICE DISPLAY GEN WR17X10703 Contact Us For Availability
329
WIRE ACTUATOR DISP GEN WR17X11403 Contact Us For Availability
331
RETAINER SPRING GEN WR02X10580 Contact Us For Availability
333
BLADES MOVING DISP GEN WR17X11240 Contact Us For Availability
345
COVER CRUSHER HSG DISP GEN WR17X11497 Contact Us For Availability
358
GLIDE BUCKET LH DISP GEN WR72X10233 Contact Us For Availability
360
DIVERTER OVERFLOW GEN WR17X11449 Contact Us For Availability
363
COVER, AUGER MOTOR REAR GEN WR17X12735 Contact Us For Availability
365
DRIVE AUGER DISP GEN WR02X11941 Contact Us For Availability
369
MOTOR CRUSHER DISP GEN WR60X10258 Contact Us For Availability
371
SCR 10-18 HI/LO HXW 1/2 GEN WR01X10619 Contact Us For Availability
375
HARNESS MOTOR DISP GEN WR23X10551 Contact Us For Availability
387
COVER BUCKET DISPLAY GEN WR17X10779 Contact Us For Availability
407
PAN VEG CLEAR GEN WR32X10834 Contact Us For Availability
408
PAN MEAT CLEAR GEN WR32X10835 Contact Us For Availability
409
COVER PAN GLASS GEN WR32X10594 Contact Us For Availability
410
HANDLE PAN VEG GEN WR17X11139 Contact Us For Availability
411
HANDLE PAN MEAT GEN WR17X11250 Contact Us For Availability
413
BUTTON SLIDE GEN WR02X11174 Contact Us For Availability
414
GASKET PAN COVER FRT GEN WR14X10084 Contact Us For Availability
415
COVER PAN GLASS GEN WR32X10595 Contact Us For Availability
416
SHELF CHILLER GEN WR17X12911 Contact Us For Availability
417
GASKET SHIELD LOWER GEN WR14X10052 Contact Us For Availability
419
GASKET SHIELD LOWER GEN WR14X10253 Contact Us For Availability
426
COVER DAMPER GEN WR02X12261 Contact Us For Availability
437
SOCKET & TERMINAL GEN WR02X13515 Contact Us For Availability
442
CONTROL MEAT PAN ASSY GEN WR02X10042 Contact Us For Availability
446
HINGE TOP & PIN ASM LH GEN WR13X10712 Contact Us For Availability
447
CVR HNG WHT GEN WR02X11623 Contact Us For Availability
448
HINGE TOP & PIN ASM RH GEN WR13X10711 Contact Us For Availability
455
COVER SENSOR FF GEN WR02X12258 Contact Us For Availability
471
PAN SNACK LOWER GEN WR32X10836 Contact Us For Availability
472
HANDLE PAN SNACK GEN WR17X12492 Contact Us For Availability
510
SHELF SLIDEOUT ASM GEN WR32X10381 Contact Us For Availability
551
SCR 8-18 AB RNDW 5/8 SS GEN WR01X10789 Contact Us For Availability
552
SCR 12-24 TT HX .811 S Z GEN WR01X10600 Contact Us For Availability
560
SCR 12-24 CA HX 7/8 S GEN WR01X10650 Contact Us For Availability
578
SCREW HINGE COVER GEN WR01X10379 Contact Us For Availability
607
CAP DUST GEN WR02X10322 Contact Us For Availability
609
SWITCH LIGHT GEN WR23X10481 Contact Us For Availability
611
BRACKET EVAP FAN BTM GEN WR02X11622 Contact Us For Availability
612
BRACKET EVAP FAN TOP GEN WR02X11124 Contact Us For Availability
614
BUMPER GEN WR02X10540 Contact Us For Availability
615
GROMMET EVAP FAN GEN WR02X11331 Contact Us For Availability
618
GROMMET FAN MOTOR GEN WR02X10520 Contact Us For Availability
626
POWER CORD GEN WR23X10300 Contact Us For Availability
652
RING COMPRESSION GEN WR02X12149 Contact Us For Availability
730
PROD SERV CONDENSER GEN WR84X10022 Contact Us For Availability
753
BRACKET COND FAN (MTG) GEN WR02X11863 Contact Us For Availability
757
SCR 10-32 TT HXW 5/16 S GEN WR01X10654 Contact Us For Availability
762
FOAM STRIP SE ADH GEN WR14X10053 Contact Us For Availability
765
BRACKET CONDENSER BAR GEN WR17X10695 Contact Us For Availability
779
COVER WATER FILTER GEN WR02X10621 Contact Us For Availability
801
BOARD ASM MAIN CONTROL GEN WR55X10968 Contact Us For Availability
804
IM GUARDRAIL GEN WR29X10054 Contact Us For Availability
806
TUBE PLASTIC GEN WR17X11625 Contact Us For Availability
810
WATER STORAGE COIL GEN WR17X11324 Contact Us For Availability
811
WIRE TIE GEN WR02X11607 Contact Us For Availability
820
KIT RPLCMT WR30X10093 GEN WR30X10093 Contact Us For Availability
900
DOOR ASM FOAM FZ WH 25 GEN WR78X12786 Contact Us For Availability
911
THIMBLE TOP CLOSED GEN WR01X10201 Contact Us For Availability
914
THIMBLE DOOR TOP GEN WR01X10200 Contact Us For Availability
× ![]()
