Model GE GDF510PSJ0SS Dishwasher – Common Parts & Diagrams

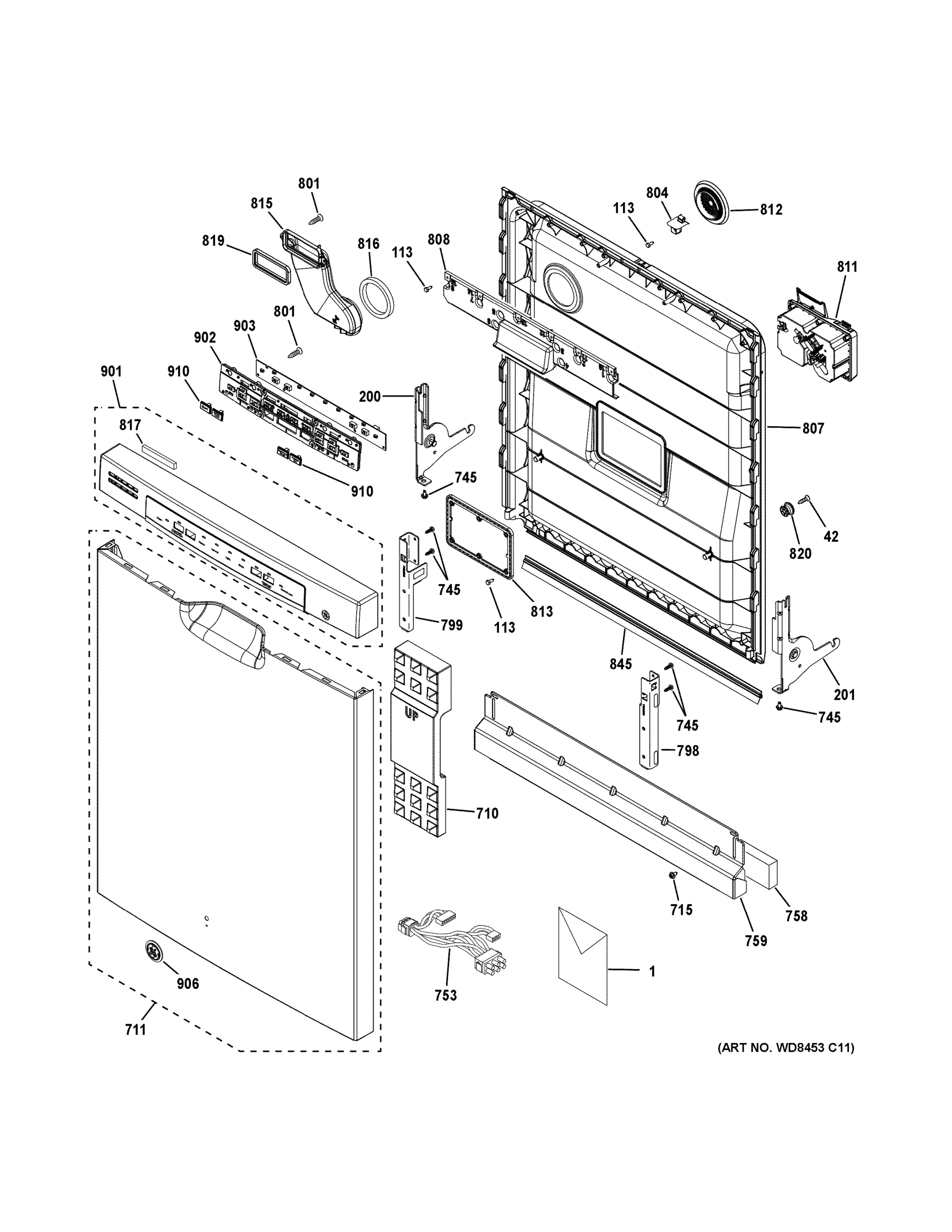

ESCUTCHEON & DOOR ASSEMBLY

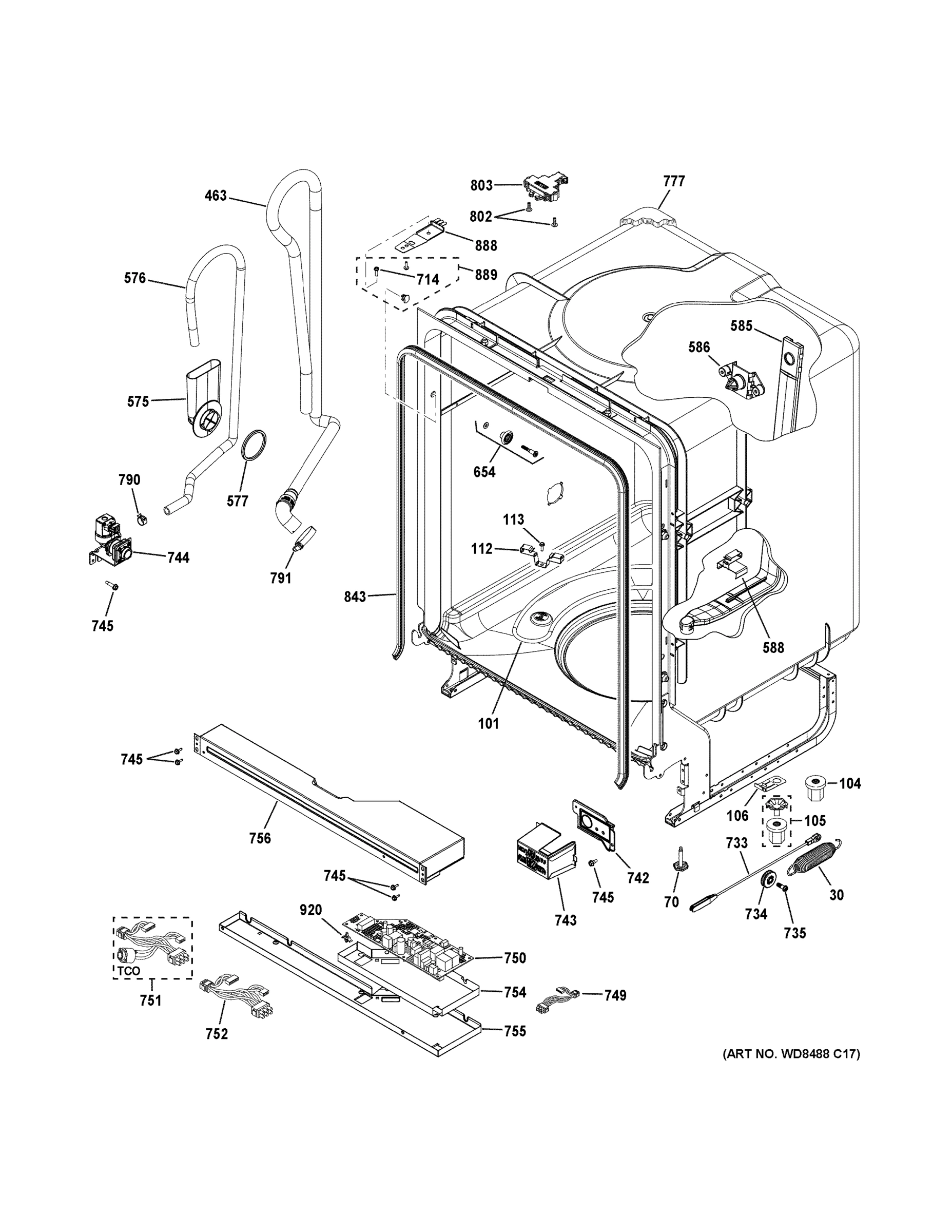

BODY PARTS
UPPER RACK ASSEMBLY
LOWER RACK ASSEMBLY
SUMP & FILTER ASSEMBLY
SUMP & MOTOR MECHANISM
Common parts from model GE GDF510PSJ0SS Dishwasher
30
SPRING DOOR GEN WD03X20445 Contact Us For Availability
104
NUT TOWER HEATER GEN WD01X10070 Contact Us For Availability
112
SUPPORT HEATER GEN WD01X22507 Contact Us For Availability
113
SCREW 8-16 HXW 1/2 SS GEN WD02X10067 Contact Us For Availability
200
ARM HINGE ASM GEN WD14X20128 Contact Us For Availability
201
ARM HINGE ASM GEN WD14X20129 Contact Us For Availability
308
SWITCH FLOOD ASM GEN WD21X10519 Contact Us For Availability
333
LATCH CAM GEN WD01X10632 Contact Us For Availability
334
LATCH CAM GEN WD01X10575 Contact Us For Availability
425
GROMMET GEN WD01X10101 Contact Us For Availability
453
VENT FILTER GEN WD24X10057 Contact Us For Availability
454
ADAPTOR FILTER GEN WD12X10419 Contact Us For Availability
462
DRAIN TUBE ASM GEN WD24X10062 Contact Us For Availability
502
FILTER COARSE PLASTIC GEN WD22X10092 Contact Us For Availability
503
SCR 10-16 AB HXW .532 GEN WB01T10103 Contact Us For Availability
509
PLATE FLOOR MANUAL GEN WD12X21677 Contact Us For Availability
632
MID CONDUIT ASM GEN WD22X10090 Contact Us For Availability
652
END CAP GEN WD12X10426 Contact Us For Availability
654
TUB ROLLER AND STUD ASM GEN WD12X10433 Contact Us For Availability
680
RACK BRACKET - 2 WHEELS GEN WD12X22802 Contact Us For Availability
685
CLIP BRACKET GEN WD12X10430 Contact Us For Availability
707
COVER ROLLER RH GEN WD12X10438 Contact Us For Availability
710
BLOCK FOAM DOOR GEN WD01X10578 Contact Us For Availability
715
SCR 10-32 GX HXW 3/8 GEN WD02X10220 Contact Us For Availability
733
CABLE ASM PULLEY GEN WD01X10569 Contact Us For Availability
734
PULLEY HINGE GEN WD16X21836 Contact Us For Availability
735
SCR 10-32 TT CB 1/4 ZN GEN WD01X21837 Contact Us For Availability
743
COVER JUNCTION BOX GEN WD12X10412 Contact Us For Availability
745
SCR 10-32 GX IHXW 9/16 S GEN WD01X22514 Contact Us For Availability
751
HARNESS ASM AC GEN WD21X21690 Contact Us For Availability
752
HARNESS ASM DC GEN WD21X20023 Contact Us For Availability
753
HARNESS ASM DOOR GEN WD21X20715 Contact Us For Availability
754
SHIELD DIELECTRIC GEN WD01X21974 Contact Us For Availability
755
CONTROL BOX BOTTOM GEN WD30X21714 Contact Us For Availability
756
CONTROL BOX TOP GEN WD27X10390 Contact Us For Availability
758
INSULATION TOE KICK GEN WD27X21334 Contact Us For Availability
761
SILVERWARE BASKET ASM GEN WD28X22621 Contact Us For Availability
790
CLAMP HOSE GEN WD01X22786 Contact Us For Availability
792
CLAMP GEN WD01X10104 Contact Us For Availability
798
BRACKET SUPPORT HINGE GEN WD01X22512 Contact Us For Availability
799
BRACKET SUPPORT HINGE GEN WD01X22513 Contact Us For Availability
801
SCR 6-20 GXB IHXW 3/8 NI GEN WB02T10324 Contact Us For Availability
802
SCR 8-18 AB TSQ 5/8 SS GEN WR01X10380 Contact Us For Availability
804
STRIKER LATCH GEN WD13X10071 Contact Us For Availability
808
POCKET HANDLE GEN WD12X22787 Contact Us For Availability
812
VENT - GREY/ HYBRID GEN WD12X10471 Contact Us For Availability
813
PLATE DETERGENT GEN WD12X10420 Contact Us For Availability
816
DOOR VENT SEAL GEN WD08X10092 Contact Us For Availability
817
FOAM VENT INSERT GEN WD08X21954 Contact Us For Availability
819
GASKET VENT GEN WD08X22476 Contact Us For Availability
820
MOUNTING BASKET DOOR GEN WD01X21977 Contact Us For Availability
845
GASKET BEACH PLASTIC GEN WD08X21894 Contact Us For Availability
888
BRACKET COUNTERTOP GEN WD01X21740 Contact Us For Availability
889
CT SCREW ASM GEN WD35X10383 Contact Us For Availability
901
PANEL CONTROL ASM GEN WD34X22254 Contact Us For Availability
902
SILICONE LIGHT PIPE GEN WD12X10441 Contact Us For Availability
903
INTERFACE USER FRONT GEN WD21X10488 Contact Us For Availability
906
BADGE GE ASM GEN WR04X10181 Contact Us For Availability
910
BUTTON TREE GEN WD09X10082 Contact Us For Availability
920
CLIP CONTROL BOARD GEN WD01X21975 Contact Us For Availability
× ![]()
