Model Whirlpool GD25DIXHS00 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
12 - ICE MAKER, OPTIONAL
01 - CABINET, LITERATURE

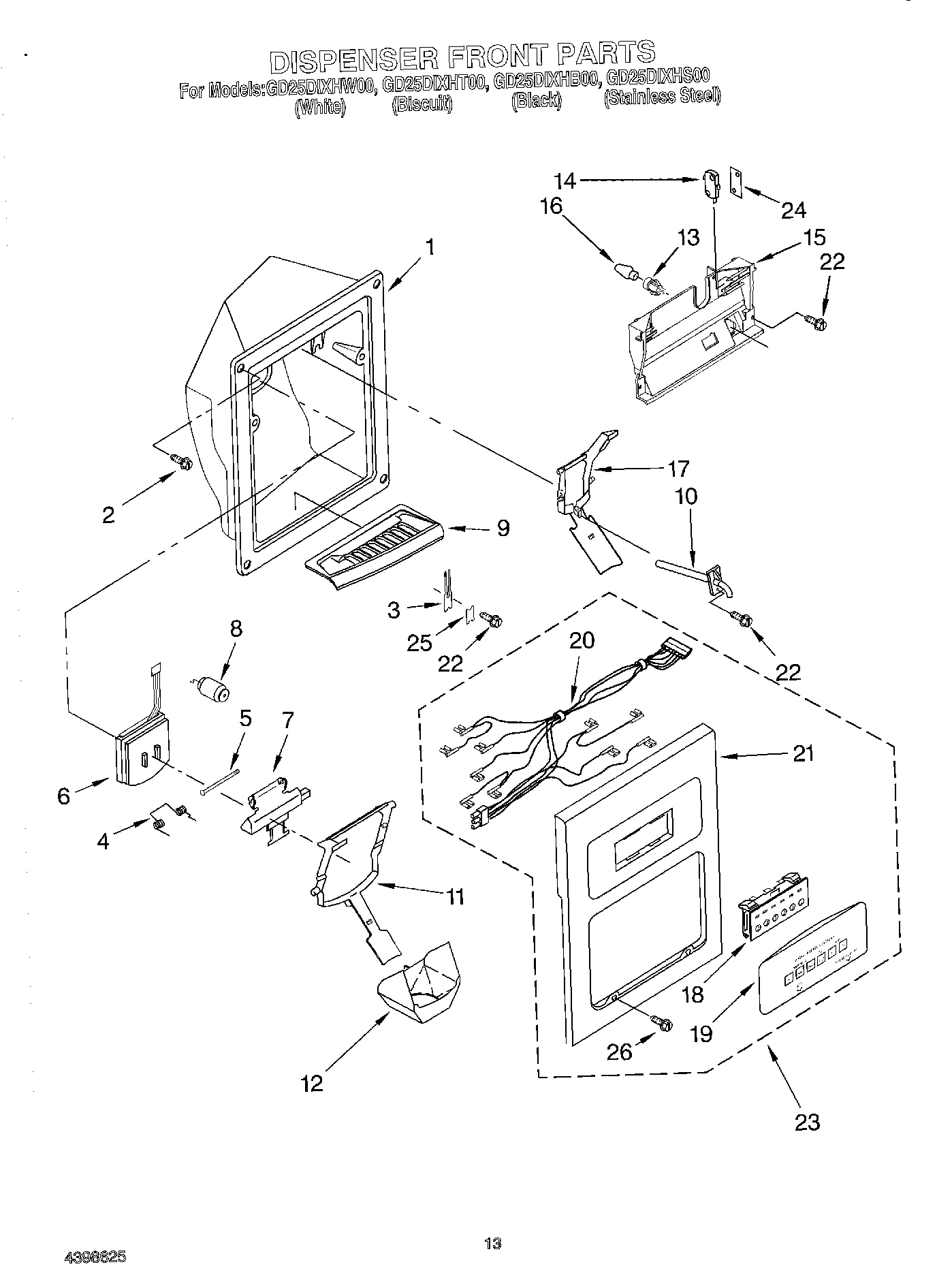

08 - DISPENSER FRONT

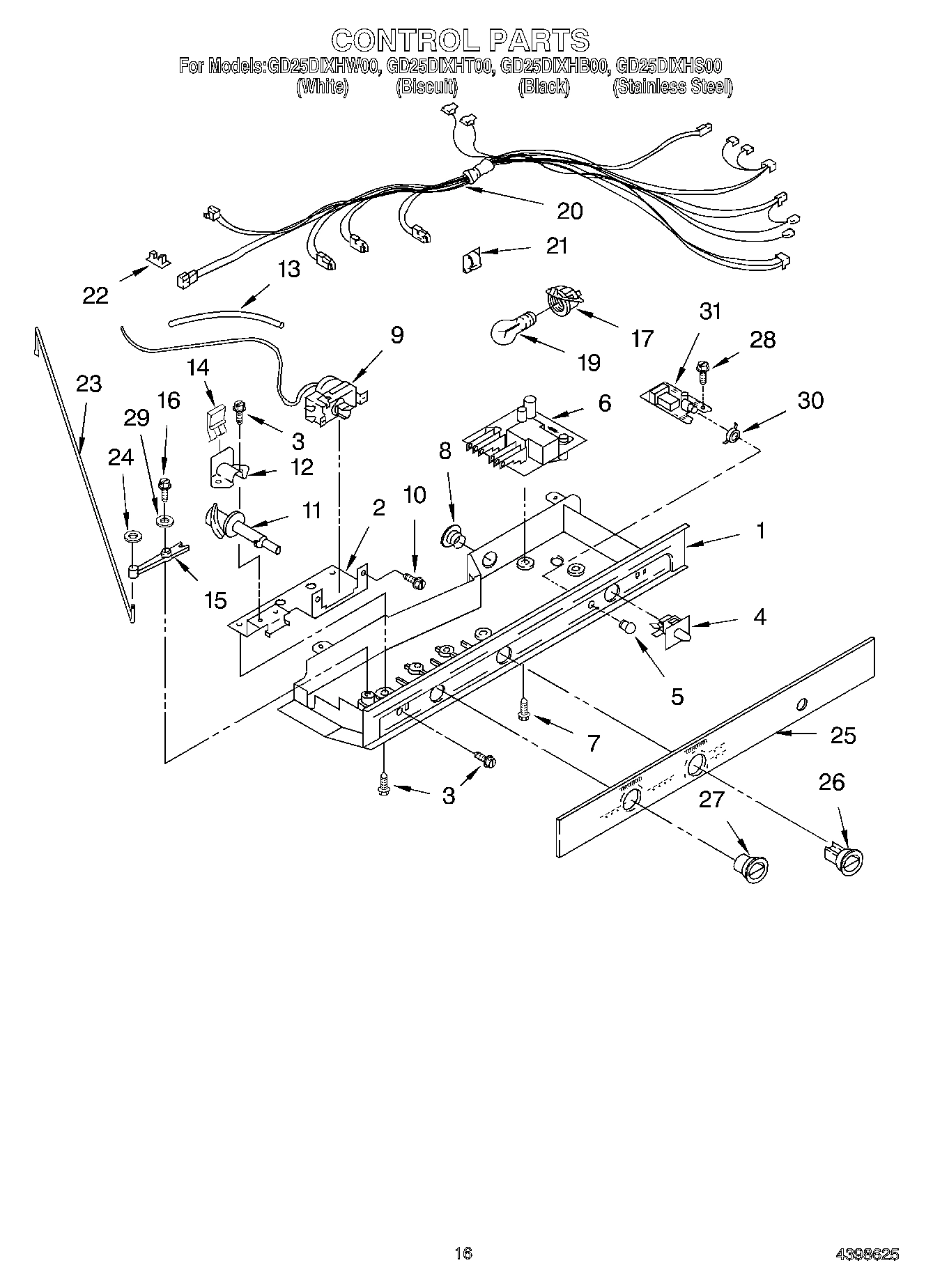

10 - CONTROL

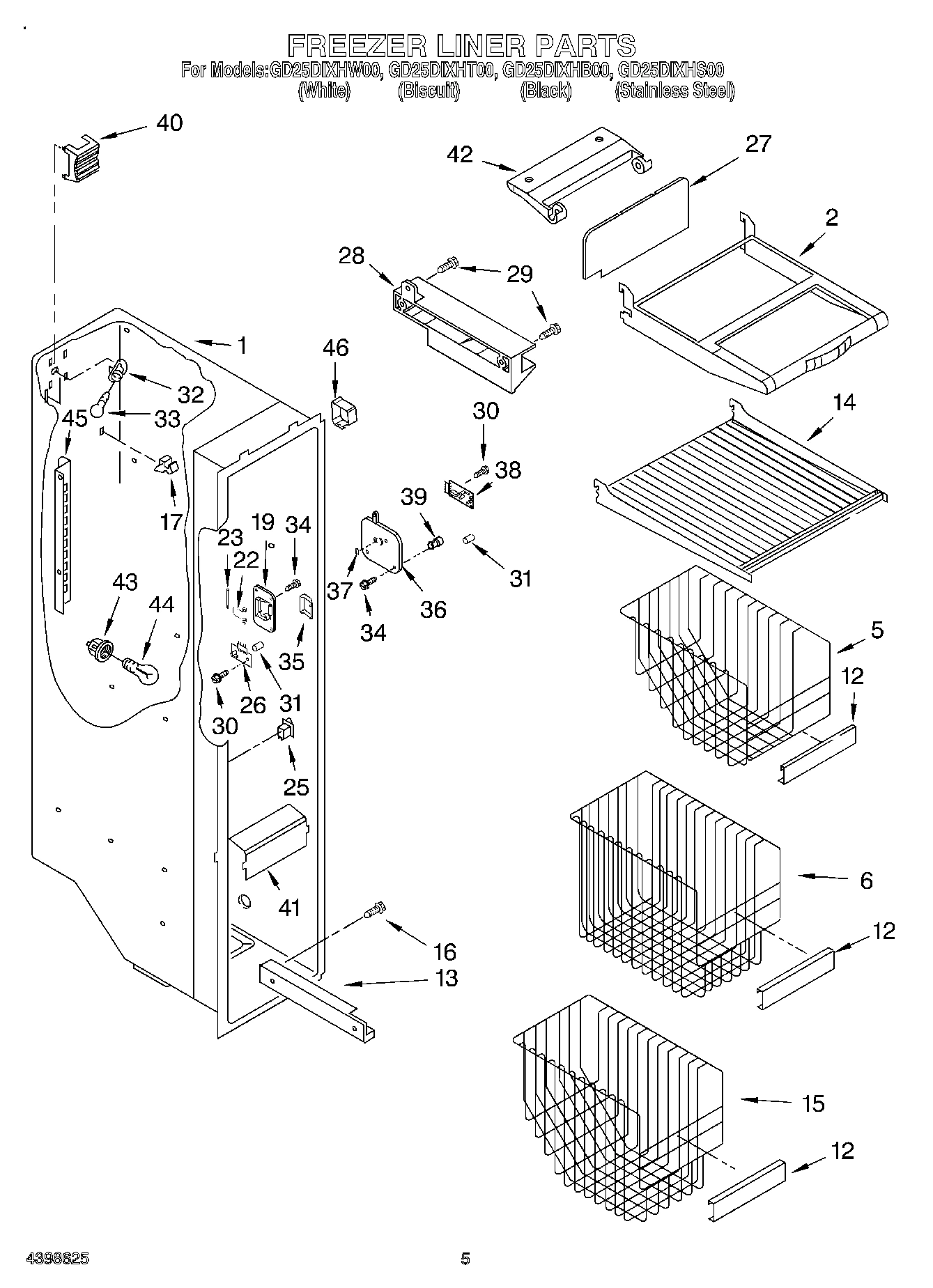

04 - FREEZER LINER

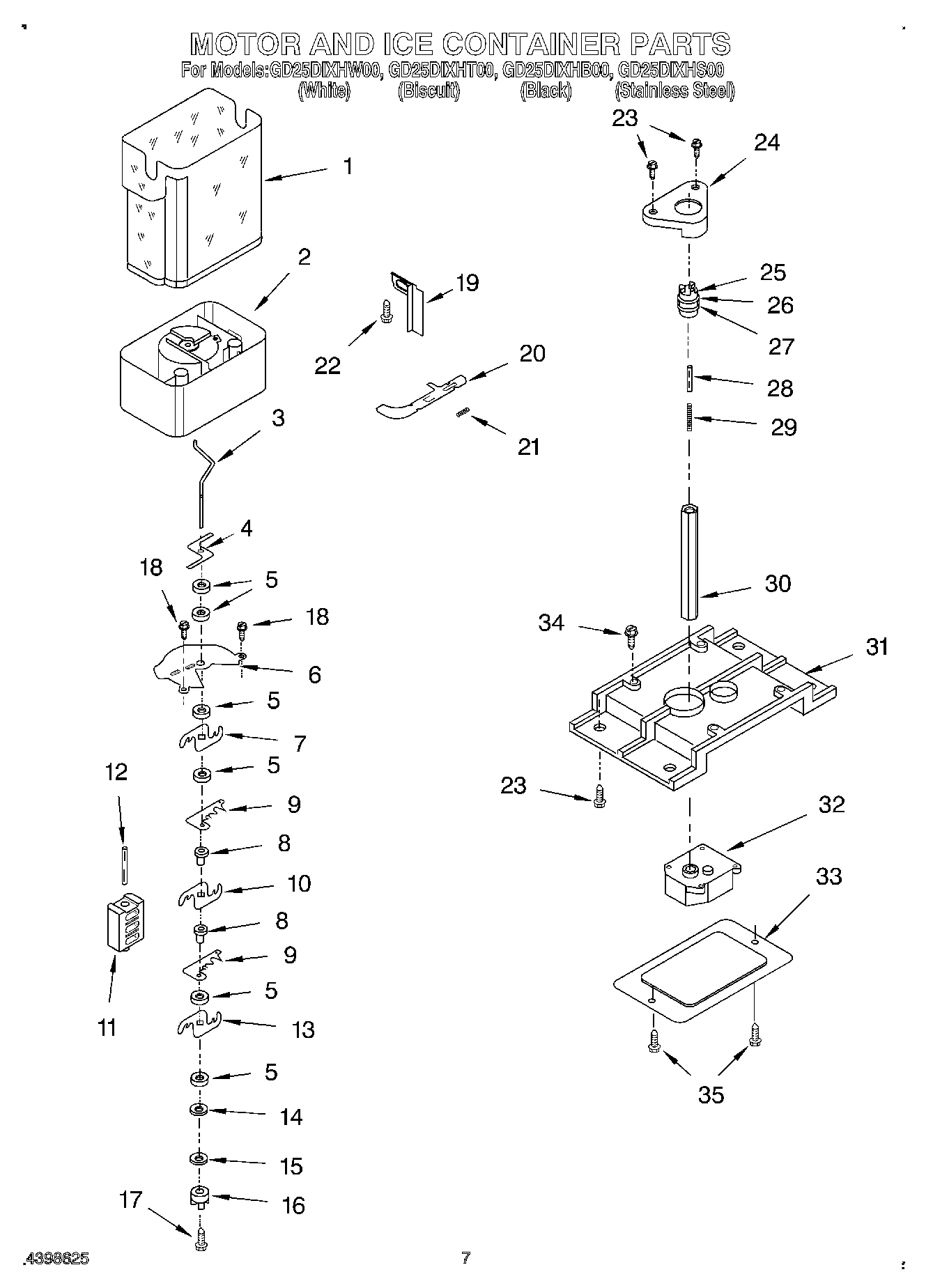

05 - MOTOR AND ICE CONTAINER

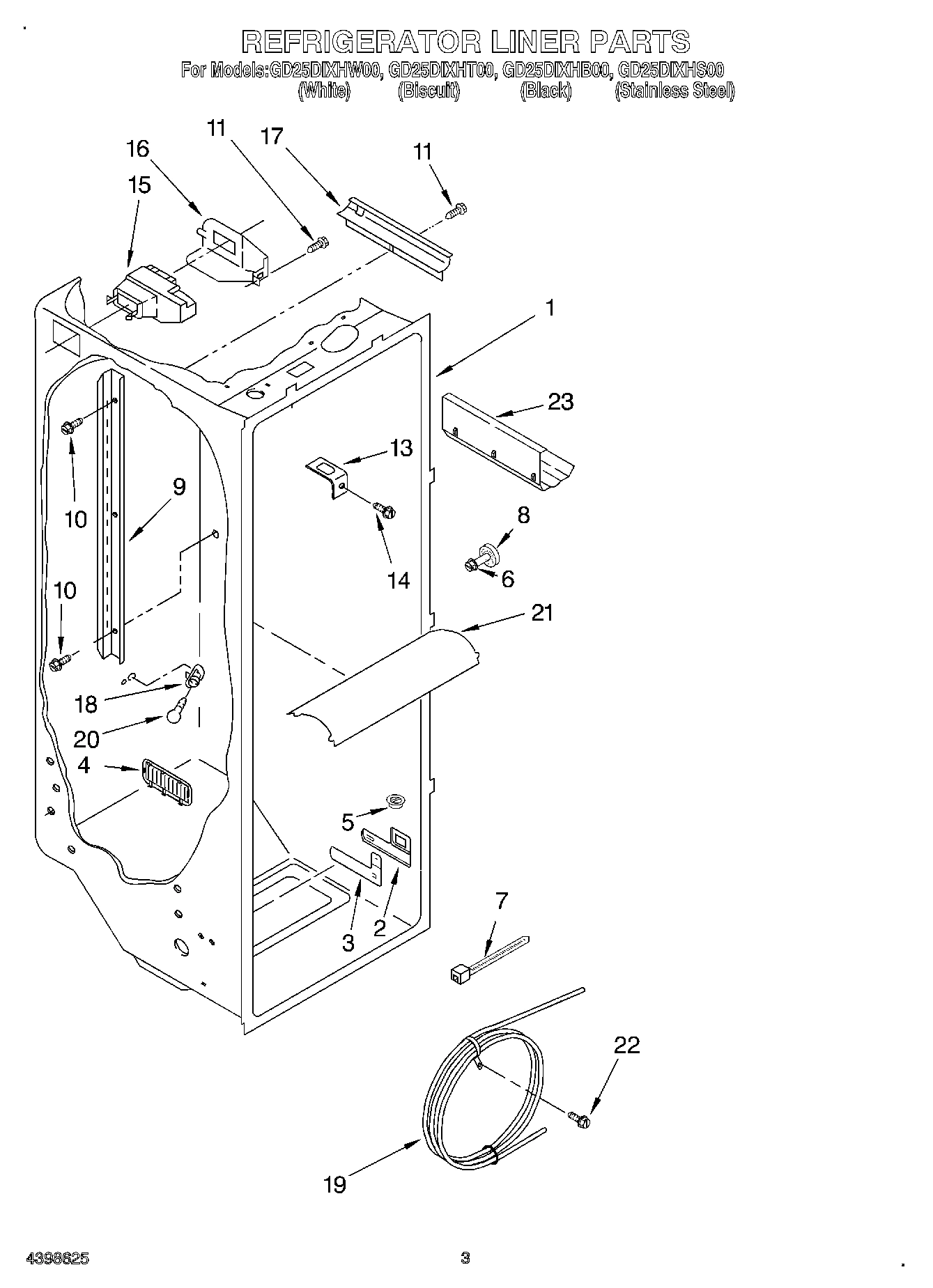

02 - REFRIGERATOR LINER

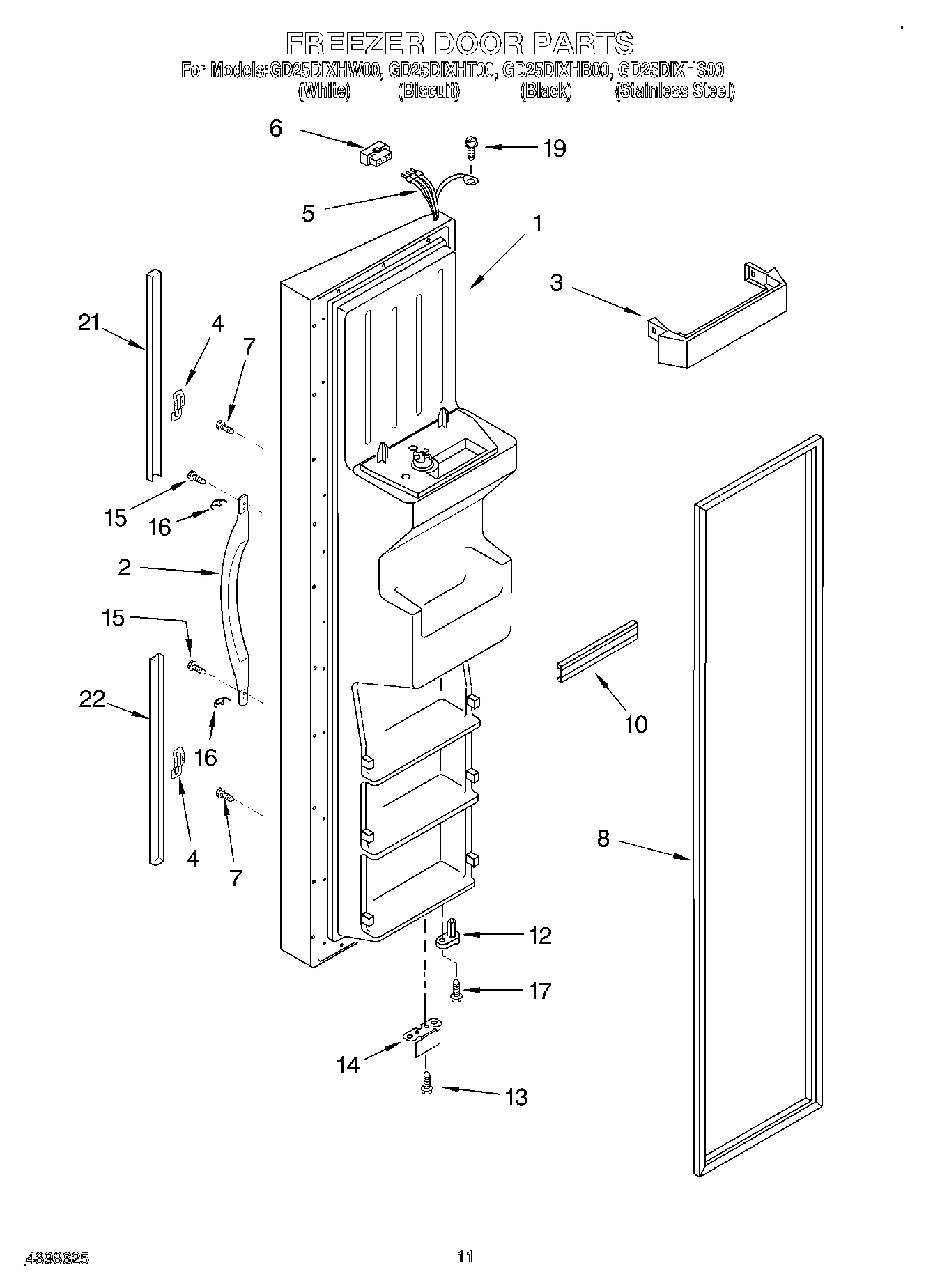

07 - FREEZER DOOR

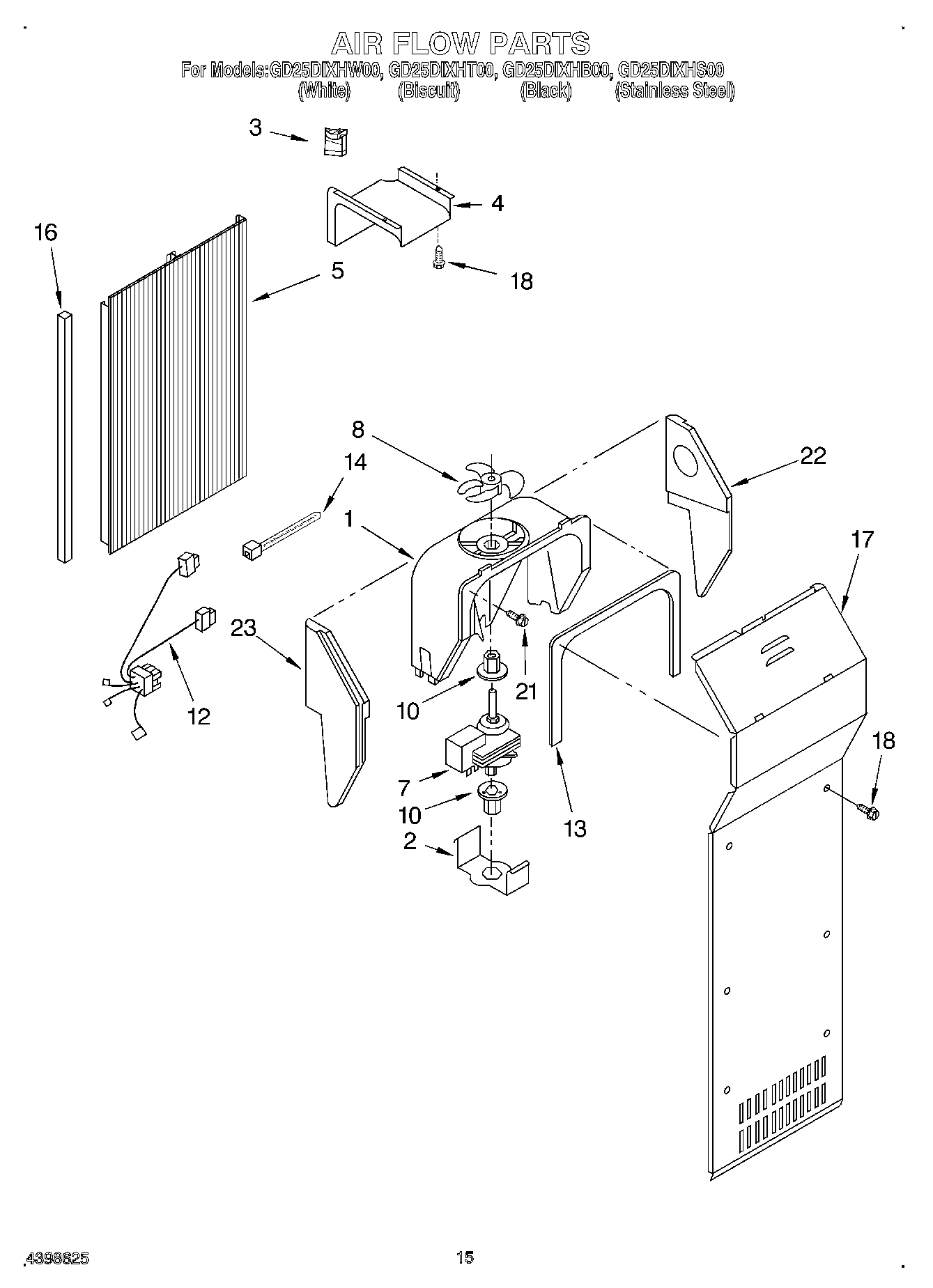

09 - AIR FLOW

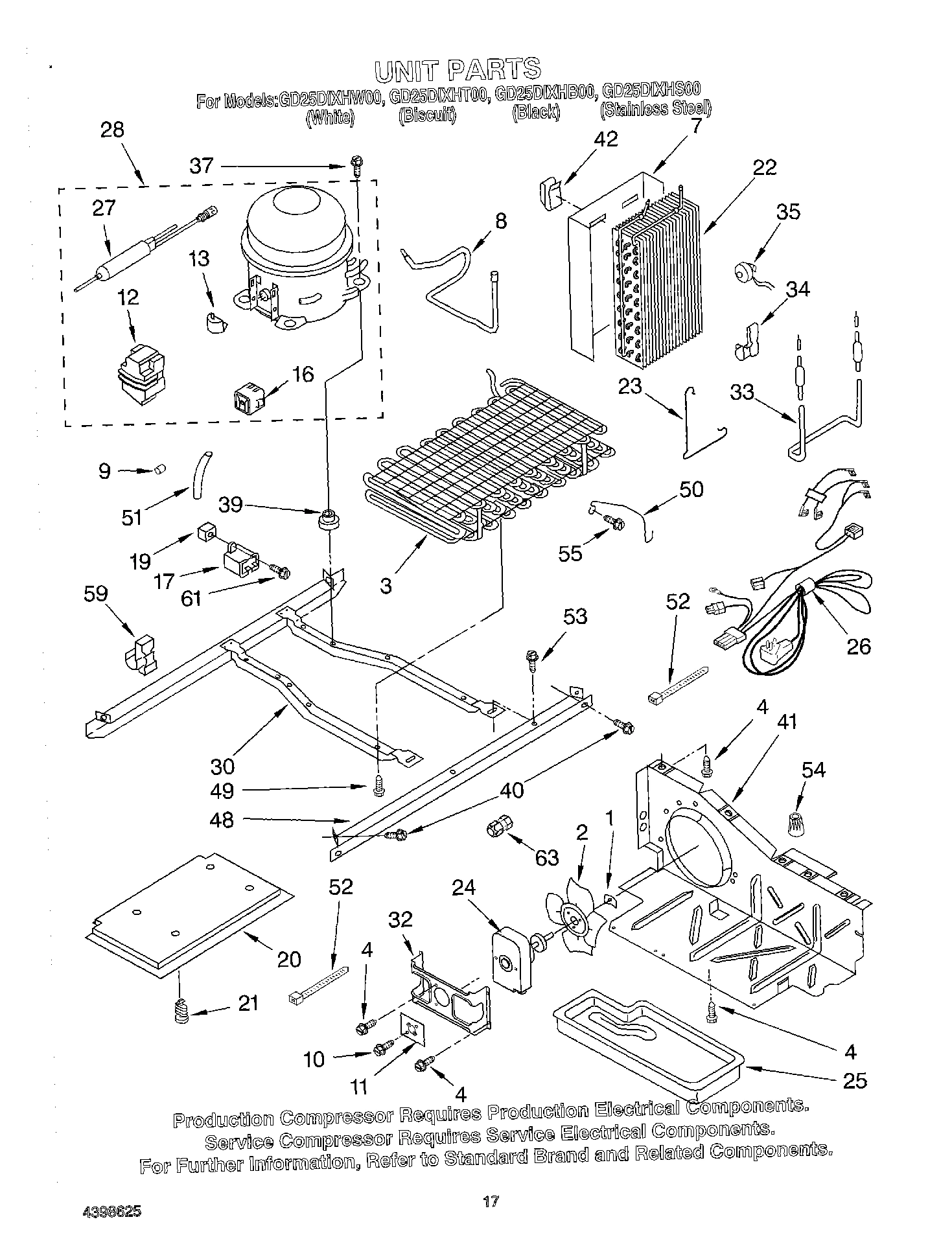

11 - UNIT

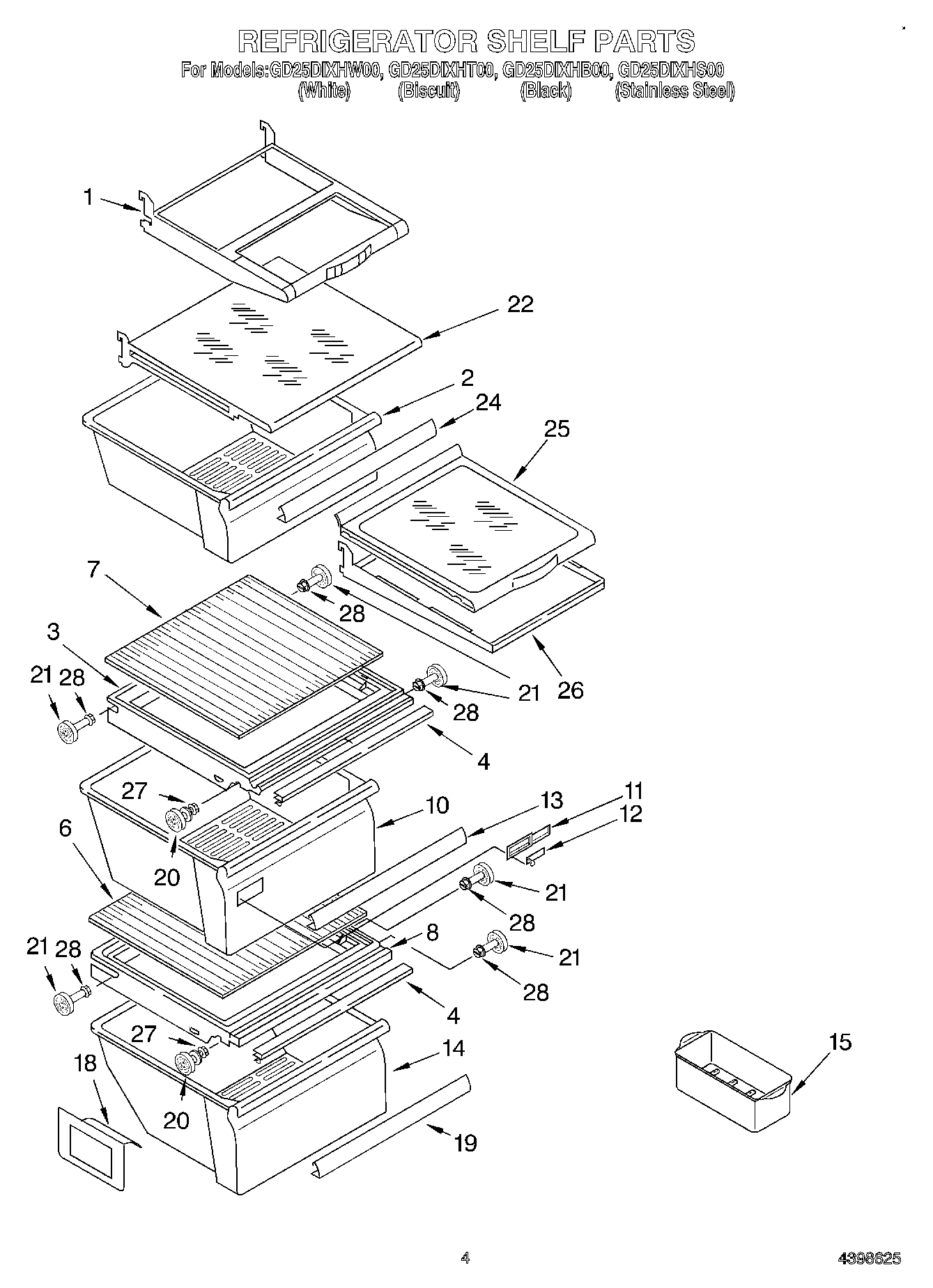

03 - REFRIGERATOR SHELF

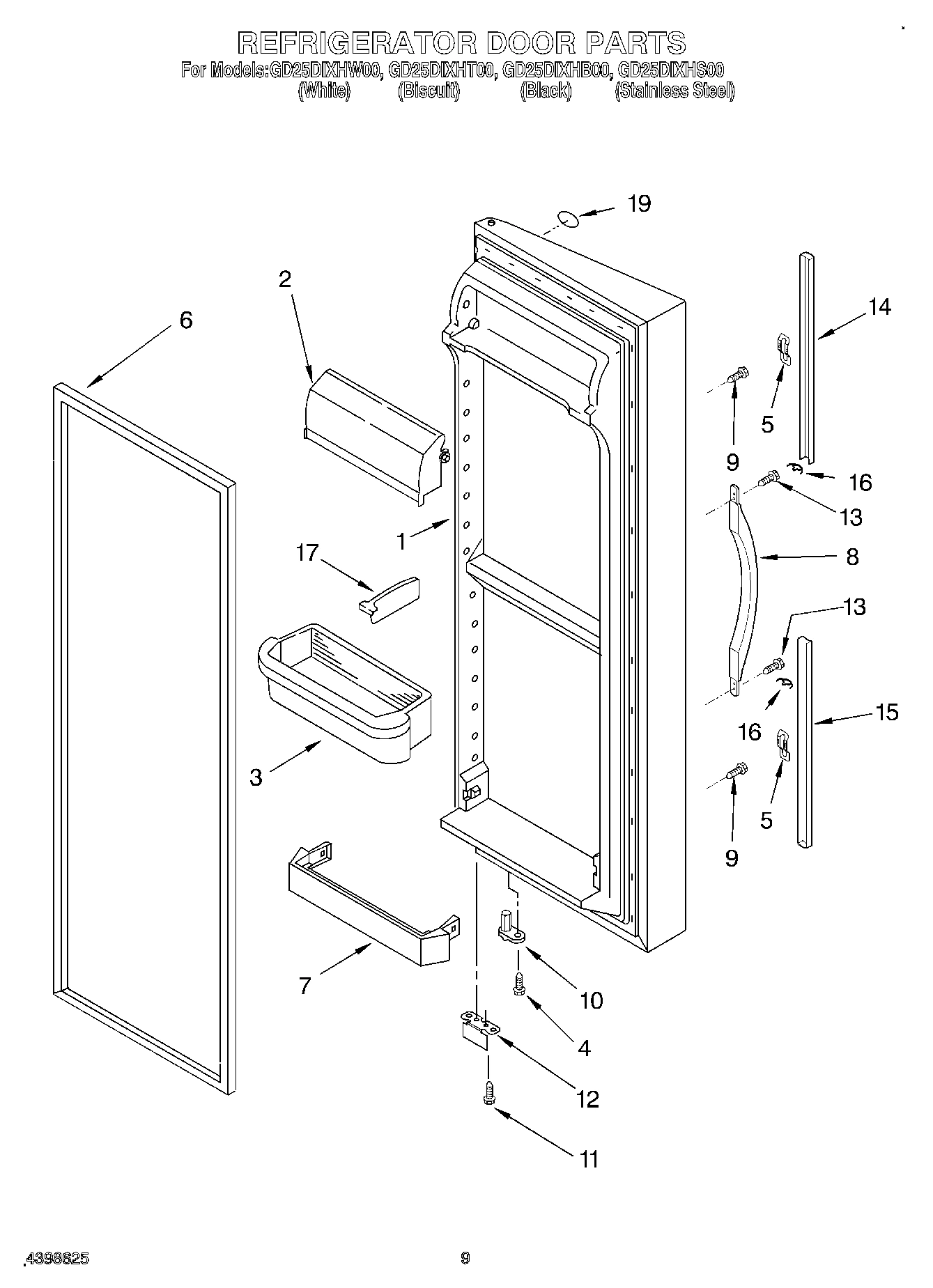

06 - REFRIGERATOR DOOR
Common parts from model Whirlpool GD25DIXHS00 SIDE BY SIDE REFRIGERATOR
1
Liner (Not A Serviceable Part) WPL ARI61889A4 Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2198611B Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2198611S Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2198611T Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2198611W Contact Us For Availability
1
Shelf, Flip-Up WPL 2204485 Contact Us For Availability
1
Refrigerator Door (Includes Item No.6) (Black WPL 2207026B Contact Us For Availability
1
Refrigerator Door (Includes Item No.6) (Stain WPL 2207026S Contact Us For Availability
1
Refrigerator Door (Includes Item No.6) (Biscu WPL 2207026T Contact Us For Availability
1
Refrigerator Door (Includes Item No.6) (White WPL 2207026W Contact Us For Availability
2
Blade, Fan WPL 2190685 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 2194744 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Crusher Bin WPL 2198572 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Air Scoop WPL 2198595 Contact Us For Availability
3
Condenser Assembly WPL 2204242B Contact Us For Availability
4
Blade, Stirring WPL 2198603 Contact Us For Availability
4
Louver WPL 2182147 Contact Us For Availability
4
Air Duct, Upper WPL 2198581 Contact Us For Availability
4
Gasket, Cover (Front) WPL 2174442 Contact Us For Availability
5
Release Valve WPL 2171846 Contact Us For Availability
5
COVER, LIGHT LENS WPL 2200096 Contact Us For Availability
5
Dispenser Harness WPL 2198619 Contact Us For Availability
5
Air Duct Freezer WPL 2198580 Contact Us For Availability
6
Door Gasket, Magnetic (Service) (Mist Beige) WPL 2159075 Contact Us For Availability
6
Door Gasket, Magnetic (Service) (Black) WPL 2159083 Contact Us For Availability
6
Cover, Crusher WPL 2198591 Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149294 Contact Us For Availability
8
Door Gasket, Magnetic (Service) (Black) WPL 2159082 Contact Us For Availability
8
Door Gasket, Magnetic (Service) (Mist Beige) WPL 2159074 Contact Us For Availability
8
Handle (Black) WPL 2207003B Contact Us For Availability
8
Handle (Biscuit) WPL 2207003T Contact Us For Availability
8
Handle (Tempest Gray) WPL 2207003TG Contact Us For Availability
8
Handle (White) WPL 2207003W Contact Us For Availability
9
Grille, Overflow (White) WPL 2207007W Contact Us For Availability
9
Grille, Overflow (Biscuit) WPL 2207007T Contact Us For Availability
9
Blade, Fixed WPL 2198601 Contact Us For Availability
9
Shelf Ladder WPL 2181796 Contact Us For Availability
10
Screw WPL 8281160 Contact Us For Availability
11
Lever, Ice Dispenser (Black (Storm Grey Pad)) WPL 2203562B Contact Us For Availability
11
Block, Blade WPL 2198602 Contact Us For Availability
11
Lever, Ice Dispenser (Biscuit (Almond Shadow WPL 2203562T Contact Us For Availability
11
Bracket, Insert WPL 2206006 Contact Us For Availability
12
Roll Pin WPL 489229 Contact Us For Availability
12
Bracket, Door Stop WPL 2200082 Contact Us For Availability
12
Harness, Fan, Evaporator, And Heater WPL 2186800 Contact Us For Availability
13
Lamp Holder WPL 2180200 Contact Us For Availability
14
Filler, Wrapper (White) WPL 2196094 Contact Us For Availability
14
Trim, Door-Top (Black) WPL 2207037B Contact Us For Availability
14
Trim, Door-Top (Biscuit) WPL 2207037T Contact Us For Availability
14
Trim, Door-Top (Tempest Gray) WPL 2207037TG Contact Us For Availability
14
Trim, Door-Top (White) WPL 2207037W Contact Us For Availability
15
Grille (Biscuit) WPL 2198468T Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Trim, Door-Bottom (Black) WPL 2207038B Contact Us For Availability
15
Trim, Door-Bottom (Biscuit) WPL 2207038T Contact Us For Availability
15
Trim, Door-Bottom (Tempest Gray) WPL 2207038TG Contact Us For Availability
15
Trim, Door-Bottom (White) WPL 2207038W Contact Us For Availability
16
Cover, Air Diffuser WPL 2152019 Contact Us For Availability
16
Jewelry, Handle (Gold) WPL 2207010G Contact Us For Availability
16
Jewelry, Handle (Satin Nickel) WPL 2207010SN Contact Us For Availability
16
Jewelry, Handle (Satin Nickel) WPL 2207010S Contact Us For Availability
17
Lever, Water Dispenser (Black (Storm Grey Pad WPL 2203561B Contact Us For Availability
17
Lever, Water Dispenser (Biscuit (Almond Shado WPL 2203561T Contact Us For Availability
17
Lever, Water Dispenser (White (White Shadow P WPL 2203561W Contact Us For Availability
17
Cover, Evaporator WPL 2206314 Contact Us For Availability
17
Divider WPL 2195496 Contact Us For Availability
18
Switch Assembly (Also Order Item No.19) WPL 2198621 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Latch, Bin WPL 2198606 Contact Us For Availability
20
Unit Cover, Bottom WPL 2206281 Contact Us For Availability
21
Light Lens WPL 2203266 Contact Us For Availability
22
Screw WPL 488280 Contact Us For Availability
22
Shelf, Snack Bin WPL 2209601 Contact Us For Availability
23
Clip WPL 2161324 Contact Us For Availability
24
WPL 625834 WPL 625834 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Holder WPL 2198625 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
26
Knob, Thermostat WPL 2182111 Contact Us For Availability
26
Harness, Unit WPL 2206007 Contact Us For Availability
26
Frame, Shelf WPL 2195975 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
28
Tube Kit WPL 876765 Contact Us For Availability
28
Pin WPL 2198666 Contact Us For Availability
31
Bracket, Motor WPL 2198655 Contact Us For Availability
32
Dispenser, Motor WPL 2198594 Contact Us For Availability
33
Cover WPL 2198626 Contact Us For Availability
34
Screw WPL 8281162 Contact Us For Availability
34
Clip, Heater WPL 2161330 Contact Us For Availability
37
Screw WPL 489387 Contact Us For Availability
38
SCREW WPL 489136 Contact Us For Availability
40
PAINT, TOUCH-UP (1/2OZ. WHITE) WPL 72017 Contact Us For Availability
40
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
40
PAINT, TOUCH-UP (1/2OZ. BLACK) WPL 72032 Contact Us For Availability
40
Brush Touch-Up Kit (Biscuit WPL 4392899 Contact Us For Availability
40
SEALER, GUM (4 FEET) WPL 212643 Contact Us For Availability
40
PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT) WPL 4392901 Contact Us For Availability
40
Paint, Touch-Up 1/2 Oz. (White Porcelain) WPL 511873 Contact Us For Availability
40
WPL 876370 WPL 876370 Contact Us For Availability
40
WPL 80051 WPL 80051 Contact Us For Availability
40
WPL 8171357 WPL 8171357 Contact Us For Availability
40
WPL 876029 WPL 876029 Contact Us For Availability
40
WPL 833938 WPL 833938 Contact Us For Availability
40
Primer White (13 Oz. Spray Can) WPL 350942 Contact Us For Availability
40
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
40
WPL 799344 WPL 799344 Contact Us For Availability
40
Torx Key WPL 1117510 Contact Us For Availability
40
Screw WPL 489340 Contact Us For Availability
41
Light Lens WPL 2211506 Contact Us For Availability
42
Clip, Heat WPL 2155547 Contact Us For Availability
45
Ladder (Left Side) WPL 2198609 Contact Us For Availability
45
Ladder (Right Side) WPL 2198610 Contact Us For Availability
46
Shield, Wiring WPL 2198639 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Guard, Fan WPL 2186495 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
59
Clip, Wire & Tube WPL 2208280 Contact Us For Availability
63
VALVE, ACCESS (3/16``) WPL 876764 Contact Us For Availability
63
Valve, Access (5/16``) WPL 978026 Contact Us For Availability
63
Valve, Access (3/8``) WPL 978027 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (3/4``) WPL 978030 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
