Model Whirlpool GD25DIXHB02 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
07 - FREEZER DOOR
09 - AIR FLOW

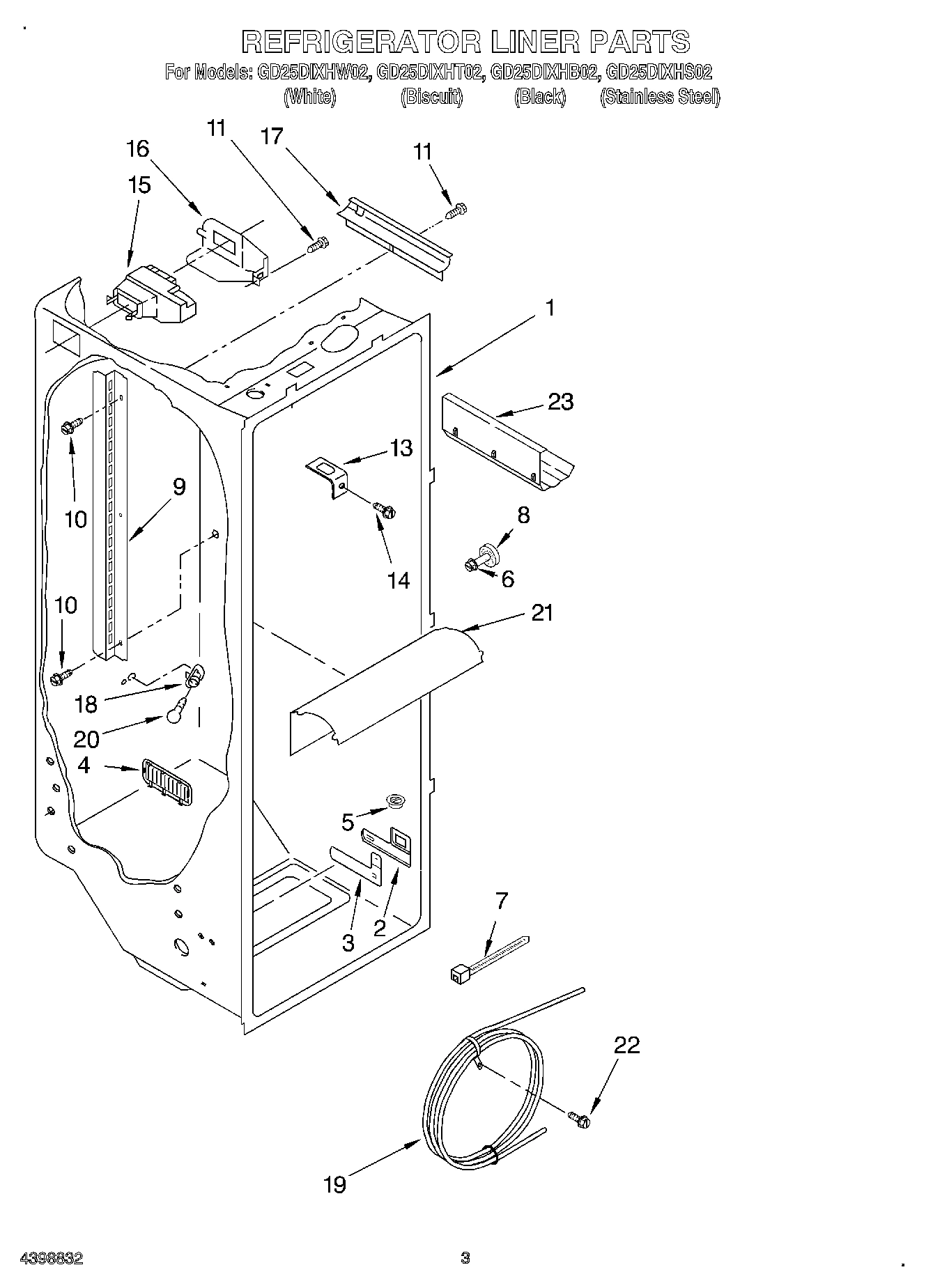

02 - REFRIGERATOR LINER

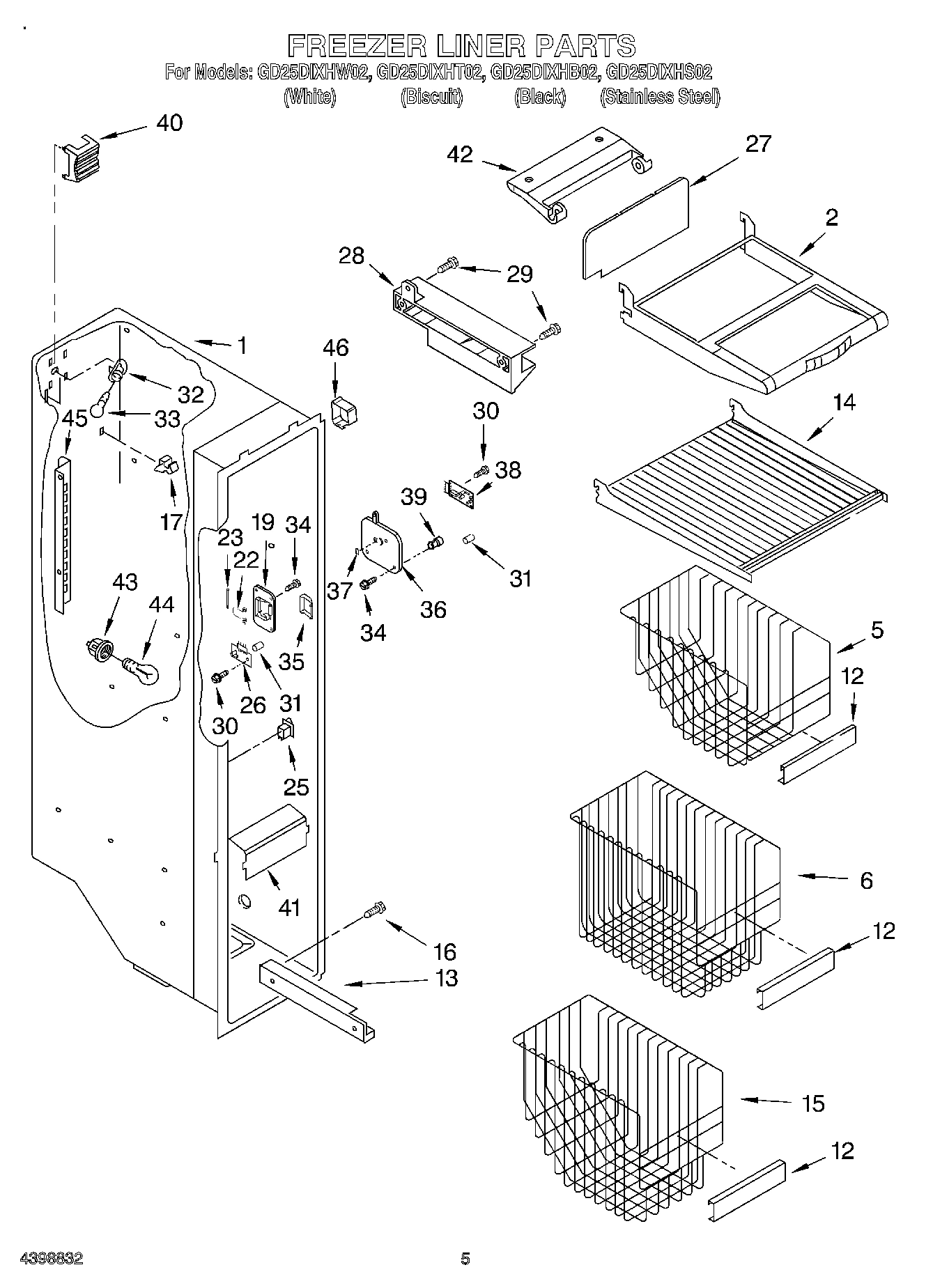

04 - FREEZER LINER

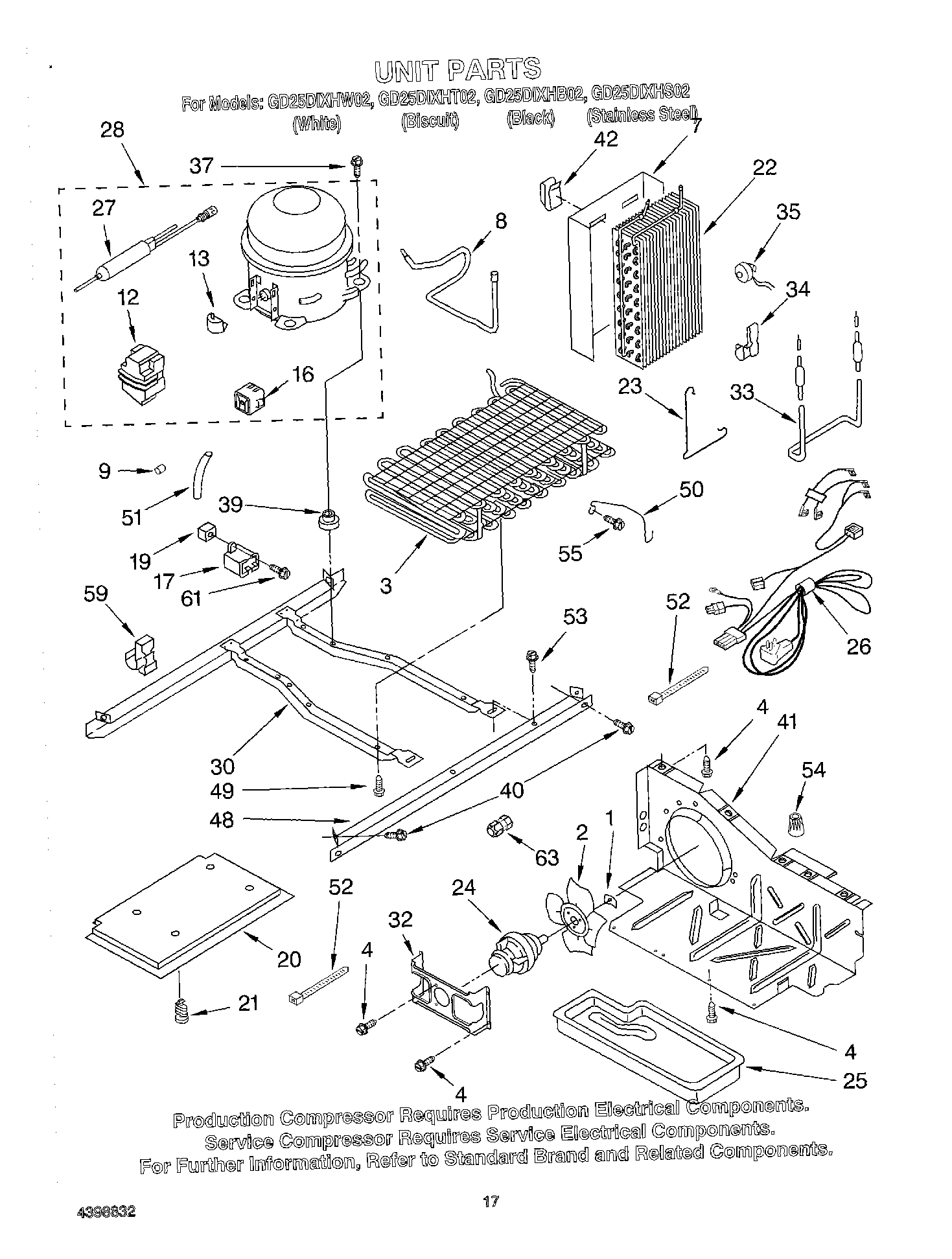

11 - UNIT

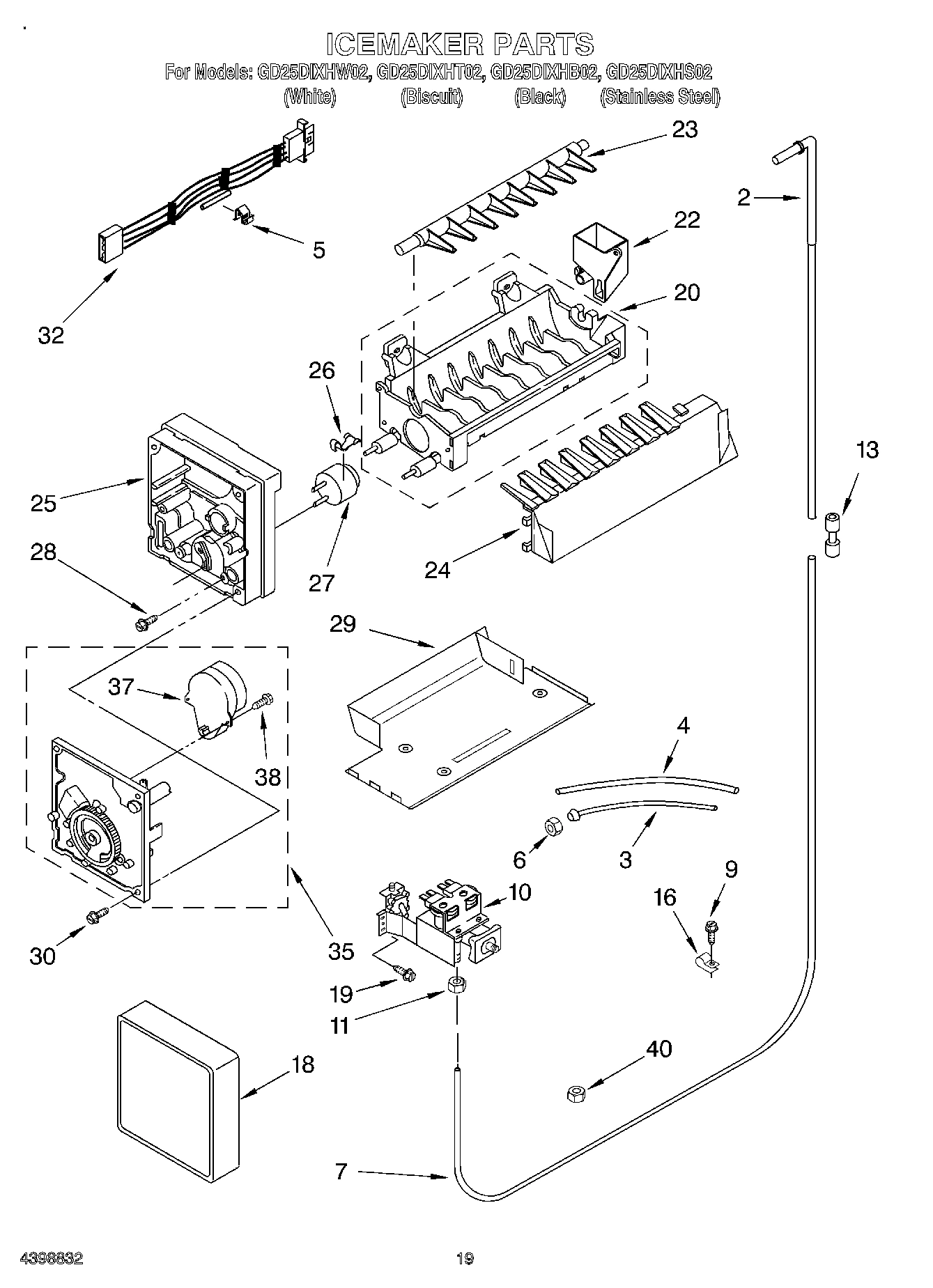

12 - ICE MAKER, OPTIONAL

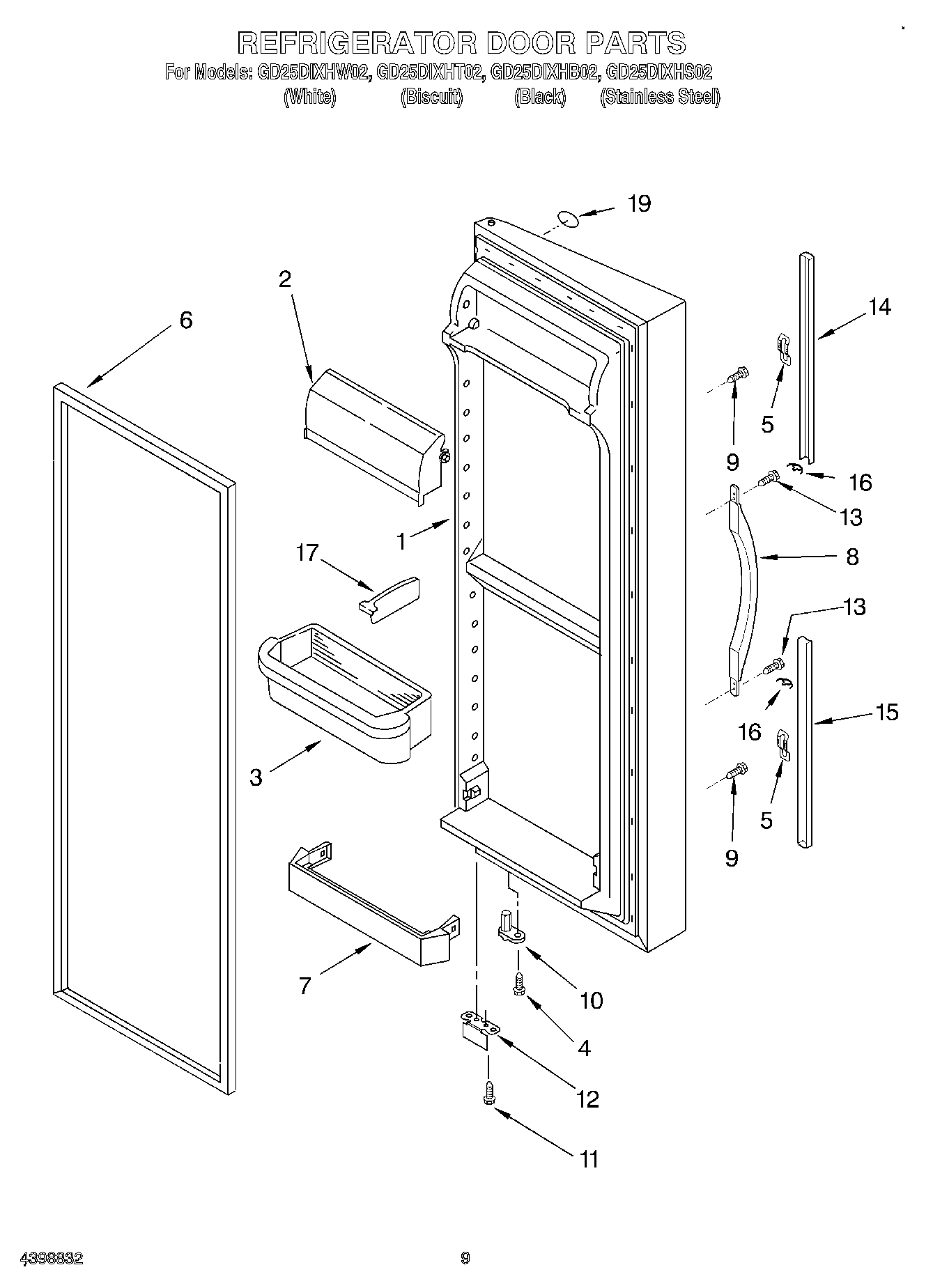

06 - REFRIGERATOR DOOR

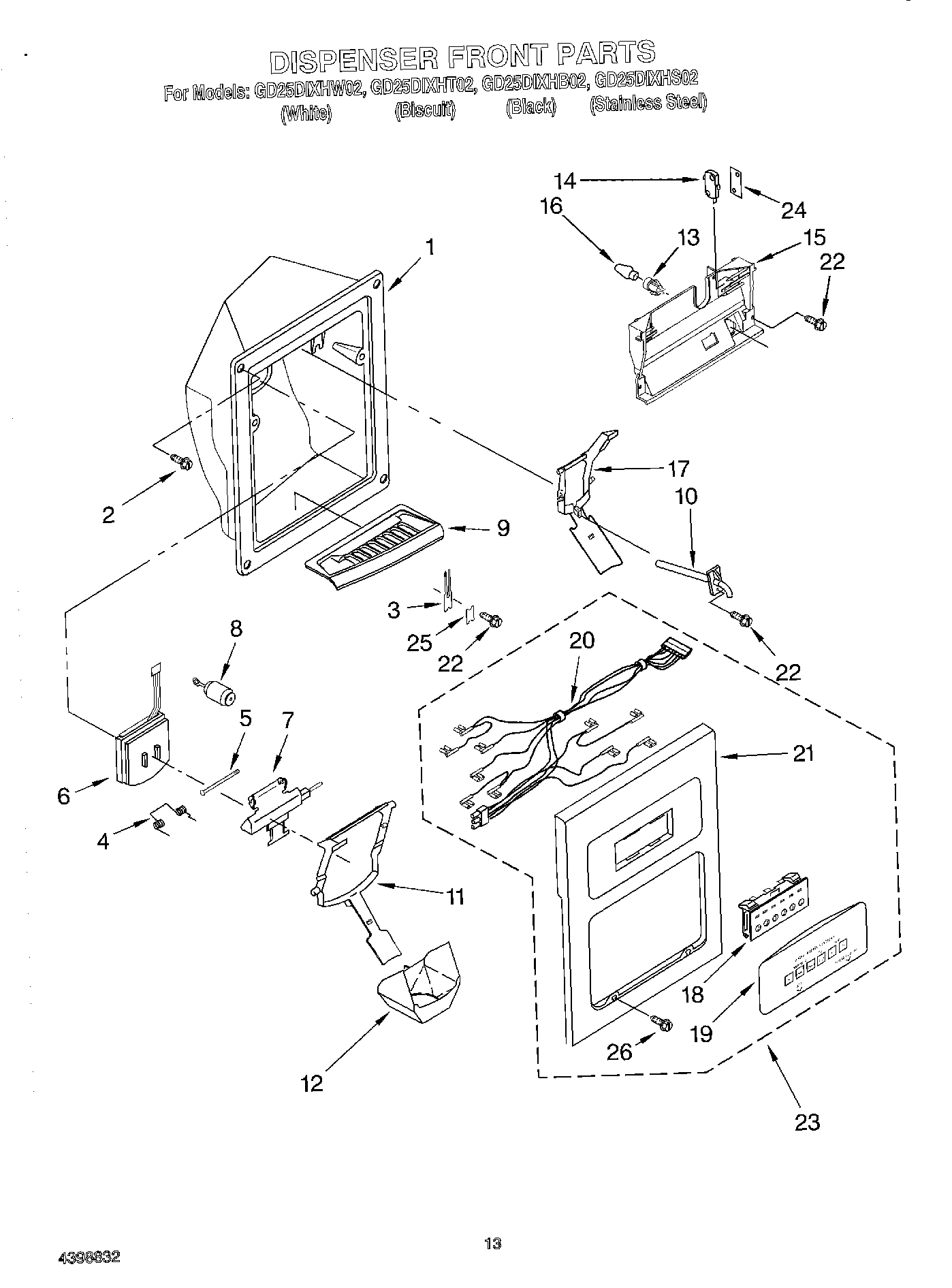

08 - DISPENSER FRONT

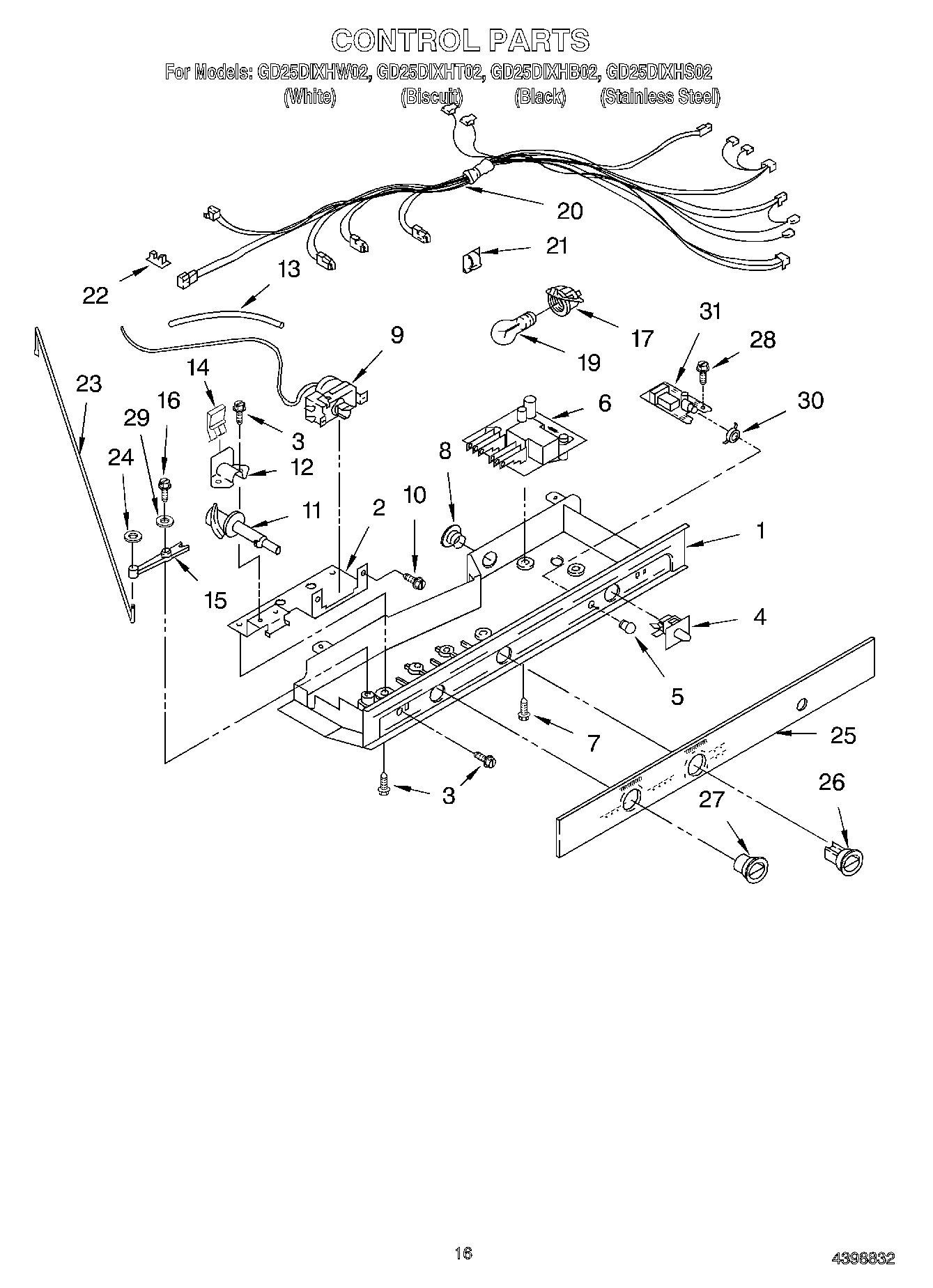

10 - CONTROL

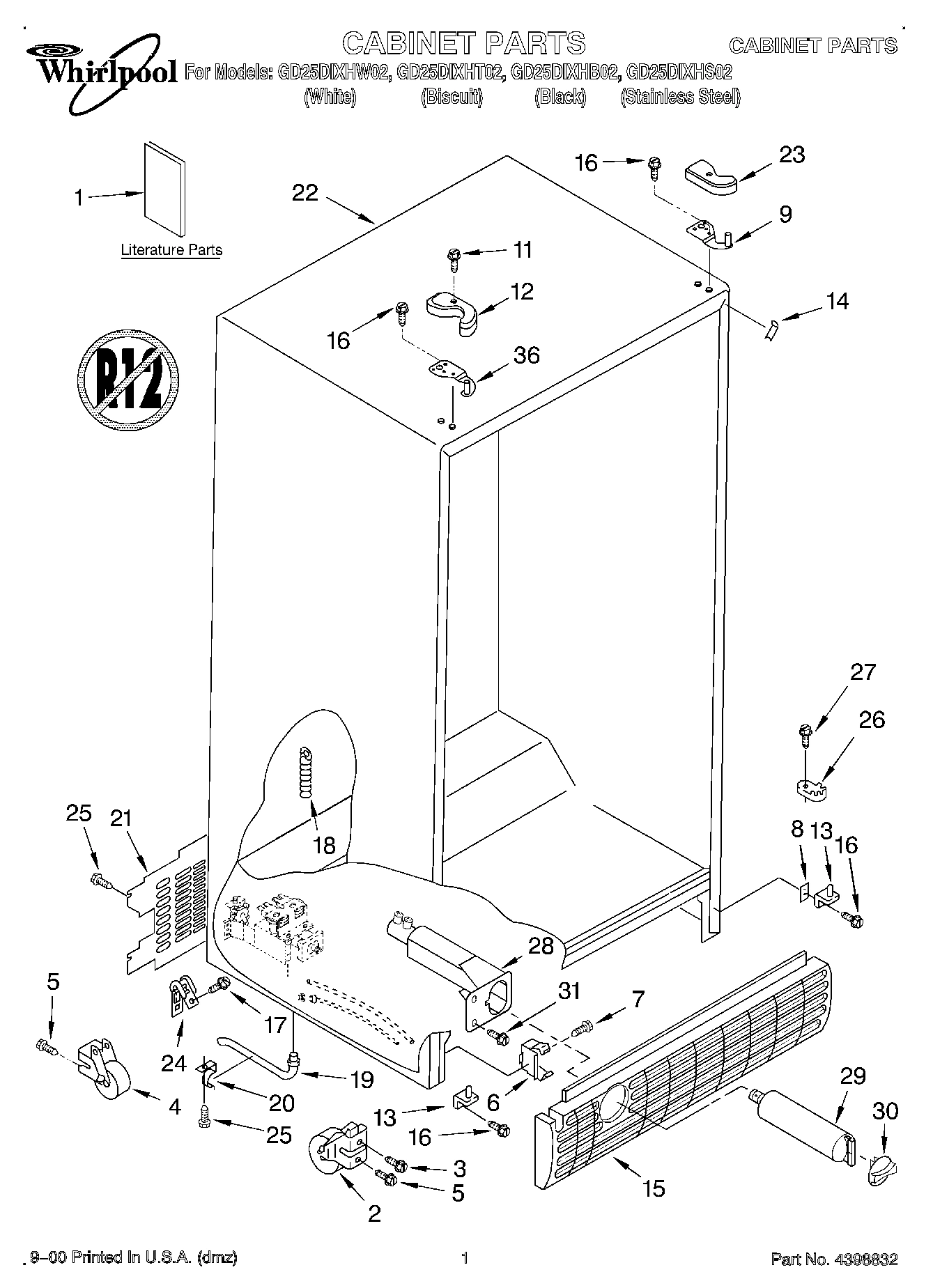

01 - CABINET, LITERATURE

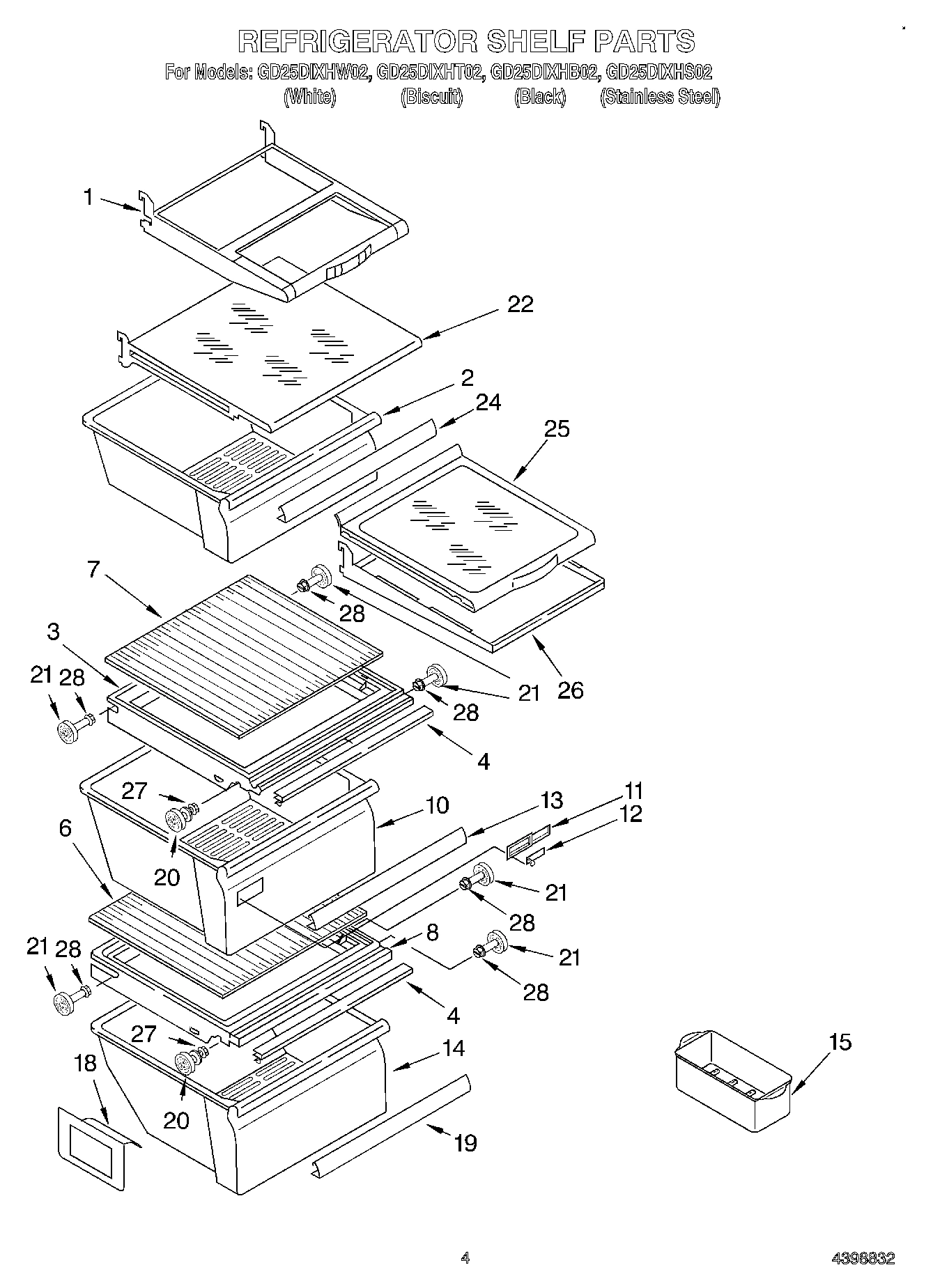

03 - REFRIGERATOR SHELF

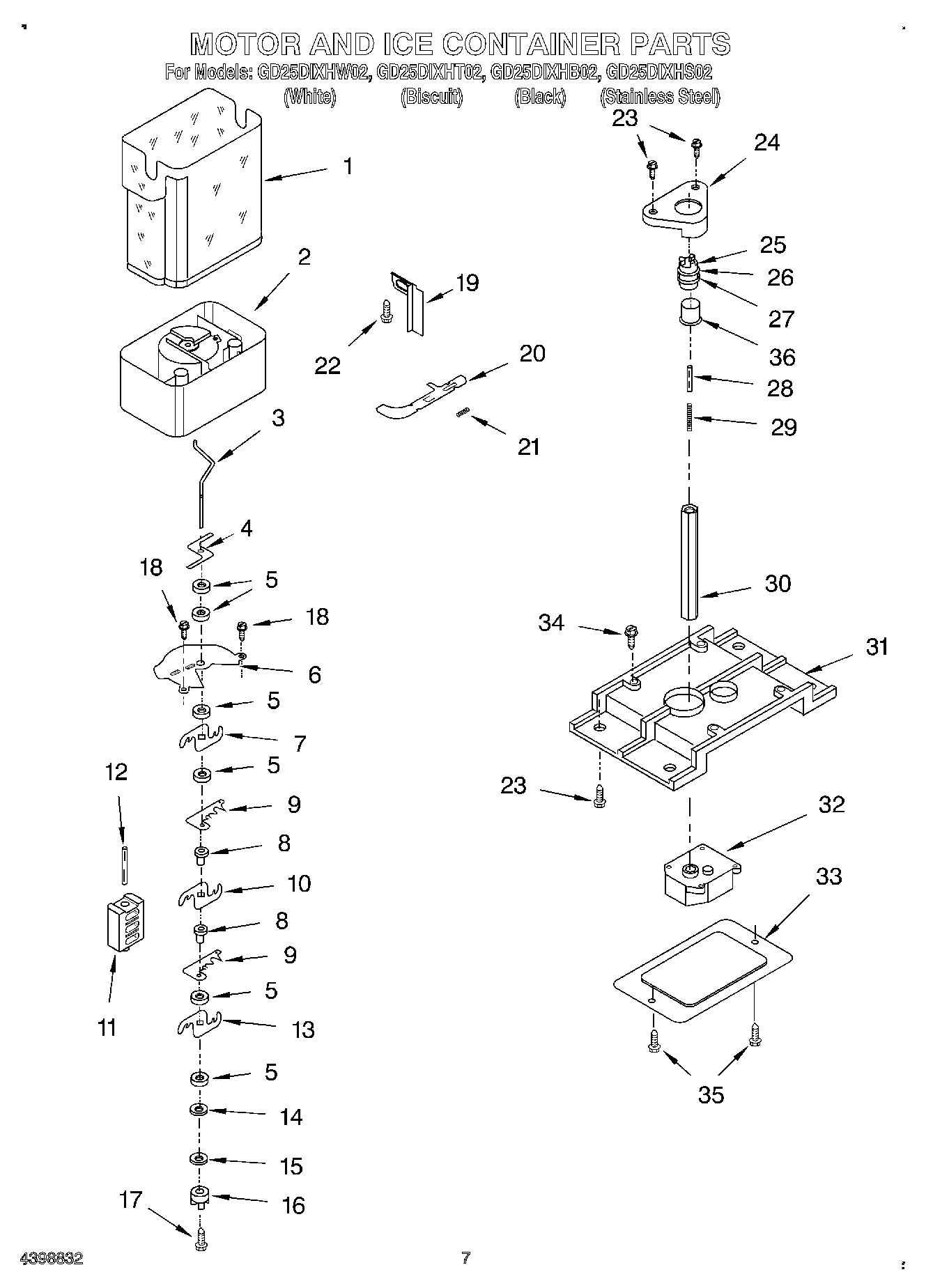

05 - MOTOR AND ICE CONTAINER
Common parts from model Whirlpool GD25DIXHB02 SIDE BY SIDE REFRIGERATOR
Icemaker WPL LIT787316 Contact Us For Availability
Refrigerator WPL LIT787808 Contact Us For Availability
1
Housing, Dispenser (Not a Serviceable Part) WPL ARI61886A5 Contact Us For Availability
1
Control Box WPL 2200136 Contact Us For Availability
1
LITERATURE PARTS (Service & Wiring Sheet) WPL LIT2198693 Contact Us For Availability
1
LITERATURE PARTS (Owner`s Manual) WPL LIT2205958 Contact Us For Availability
1
LITERATURE PARTS (Energy Guide) WPL LIT2211859 Contact Us For Availability
1
Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability
1
Shelf, Flip-Up WPL 2204485 Contact Us For Availability
2
Blade, Fan WPL 2190685 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Crusher Bin WPL 2212367 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
4
Gasket, Cover (Front) WPL 2174442 Contact Us For Availability
4
Blade, Stirring WPL 2198603 Contact Us For Availability
5
COVER, LIGHT LENS WPL 2200096 Contact Us For Availability
6
Cover, Crusher WPL 2198591 Contact Us For Availability
7
Door Mechanism Assembly WPL 2206423 Contact Us For Availability
8
Shim (1) WPL 2209697 Contact Us For Availability
8
Delay Mechanism WPL 2205686 Contact Us For Availability
9
Grille, Overflow (White) WPL 2207007W Contact Us For Availability
9
Grille, Overflow (Biscuit) WPL 2207007T Contact Us For Availability
9
Grille, Overflow (Tempest Gray) WPL 2207007TG Contact Us For Availability
9
Blade, Fixed WPL 2198601 Contact Us For Availability
11
Lever, Ice Dispenser (Black (Storm Grey Pad)) WPL 2203562B Contact Us For Availability
11
Block, Blade WPL 2198602 Contact Us For Availability
11
Lever, Ice Dispenser (Biscuit (Almond Shadow WPL 2203562T Contact Us For Availability
11
Lever, Ice Dispenser (Tempest Gray (Storm Gre WPL 2203562TG Contact Us For Availability
14
Filler, Wrapper (White) WPL 2196094 Contact Us For Availability
14
Filler, Wrapper (Black) WPL 2196097 Contact Us For Availability
14
Filler, Wrapper (Biscuit) WPL 2196150 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Grille (Biscuit) WPL 2198468T Contact Us For Availability
15
Trim, Door-Bottom (Black) WPL 2207038B Contact Us For Availability
15
Trim, Door-Bottom (Biscuit) WPL 2207038T Contact Us For Availability
15
Trim, Door-Bottom (Tempest Gray) WPL 2207038TG Contact Us For Availability
15
Trim, Door-Bottom (White) WPL 2207038W Contact Us For Availability
16
Jewelry, Handle (Gold) WPL 2207010G Contact Us For Availability
16
Jewelry, Handle (Satin Nickel) WPL 2207010SN Contact Us For Availability
17
Lever, Water Dispenser (Black (Storm Grey Pad WPL 2203561B Contact Us For Availability
17
Lever, Water Dispenser (Biscuit (Almond Shado WPL 2203561T Contact Us For Availability
17
Divider WPL 2195496 Contact Us For Availability
17
Lever, Water Dispenser (Tempest Gray (Storm G WPL 2203561TG Contact Us For Availability
19
Overlay, Front Cover (Black) WPL 2198623B Contact Us For Availability
19
Overlay, Front Cover (Biscuit) WPL 2198623T Contact Us For Availability
19
Overlay, Front Cover (Tempest Gray) WPL 2198623TG Contact Us For Availability
19
Overlay, Front Cover (White) WPL 2198623W Contact Us For Availability
20
Harness, Control Box WPL 2211318 Contact Us For Availability
20
Latch, Bin WPL 2212371 Contact Us For Availability
21
Front Cover, Housing (Not Available, Order No WPL ARI61887A9 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Cabinet (Not A Serviceable Part) WPL ARI61883A2 Contact Us For Availability
22
Shelf, Snack Bin WPL 2206347 Contact Us For Availability
23
Clip WPL 2161324 Contact Us For Availability
23
Front Cover Assembly (Includes Items WPL 2198631B Contact Us For Availability
23
WPL 2198631T WPL 2198631T Contact Us For Availability
23
WPL 2198631TG WPL 2198631TG Contact Us For Availability
23
WPL 2198631W WPL 2198631W Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
23
Hinge Cover (Biscuit) WPL 2203408T Contact Us For Availability
24
WPL 625834 WPL 625834 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Holder WPL 2212369 Contact Us For Availability
25
Escutcheon, Control Box WPL 2200100 Contact Us For Availability
26
Frame, Shelf WPL 2195975 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
28
Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability
28
Pin WPL 2198666 Contact Us For Availability
30
Retainer, Light Lens WPL 2200097 Contact Us For Availability
31
P.C. Board Filter Indicator WPL 2203384 Contact Us For Availability
31
Bracket, Motor WPL 2198655 Contact Us For Availability
32
Dispenser, Motor WPL 2198594 Contact Us For Availability
33
Cover WPL 2198626 Contact Us For Availability
34
Screw WPL 8281162 Contact Us For Availability
40
WPL 80051 WPL 80051 Contact Us For Availability
40
WPL 876029 WPL 876029 Contact Us For Availability
40
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
40
WPL 799344 WPL 799344 Contact Us For Availability
40
Torx Key WPL 1117510 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
