Model Maytag ADB1500ADW4 DISHWASHER, UNDERCOUNTER – Common Parts & Diagrams
01 - COVER SHEET
02 - DOOR AND PANEL PARTS

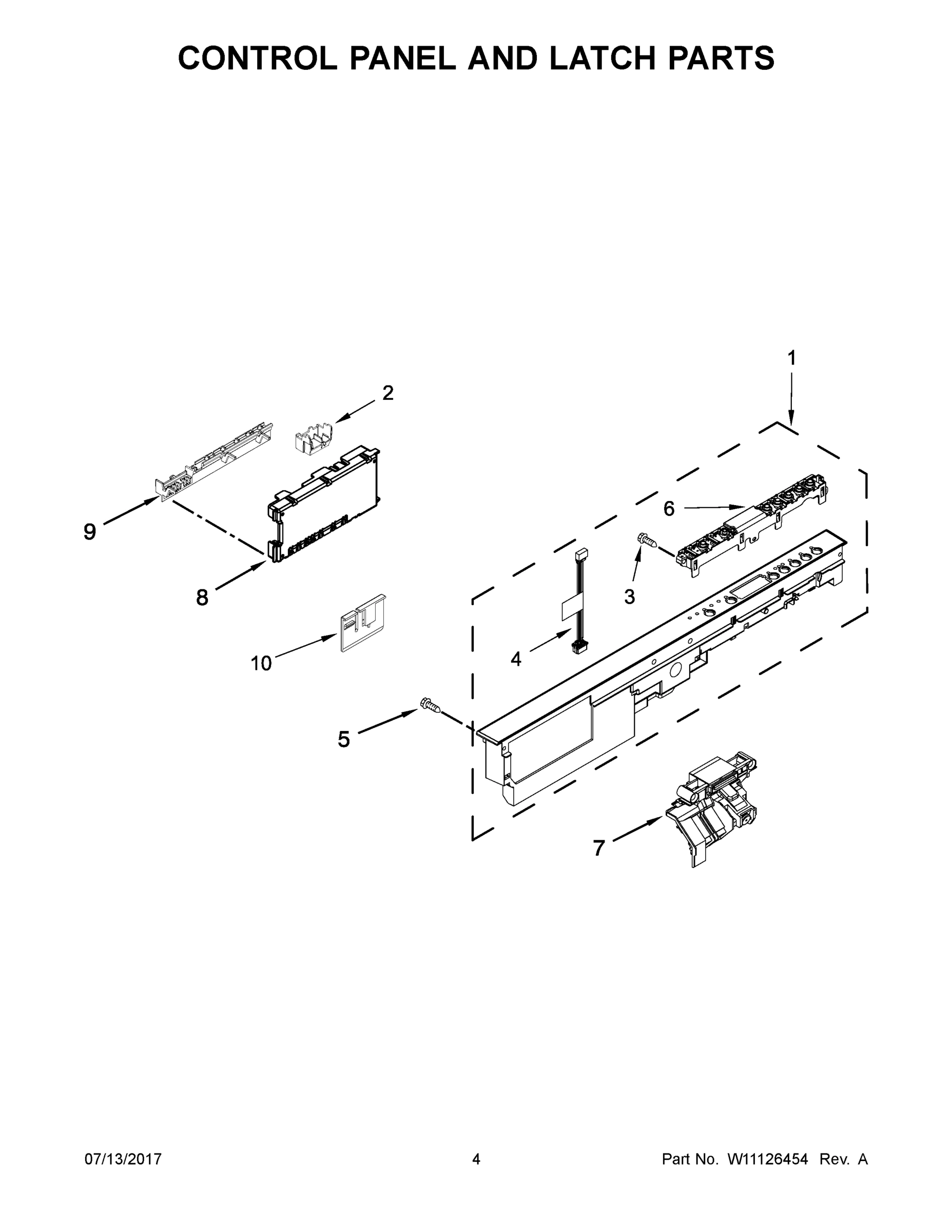

03 - CONTROL PANEL AND LATCH PARTS

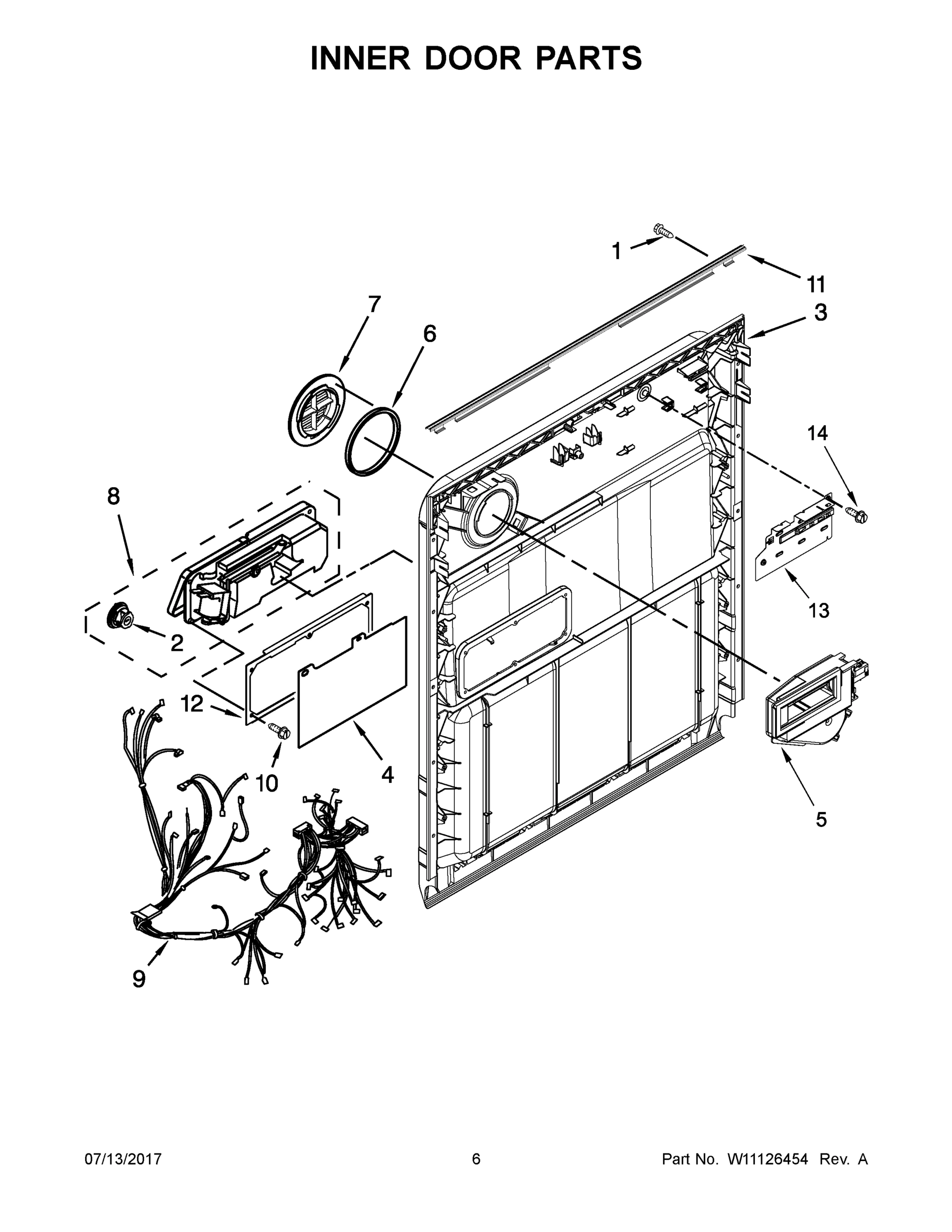

04 - INNER DOOR PARTS

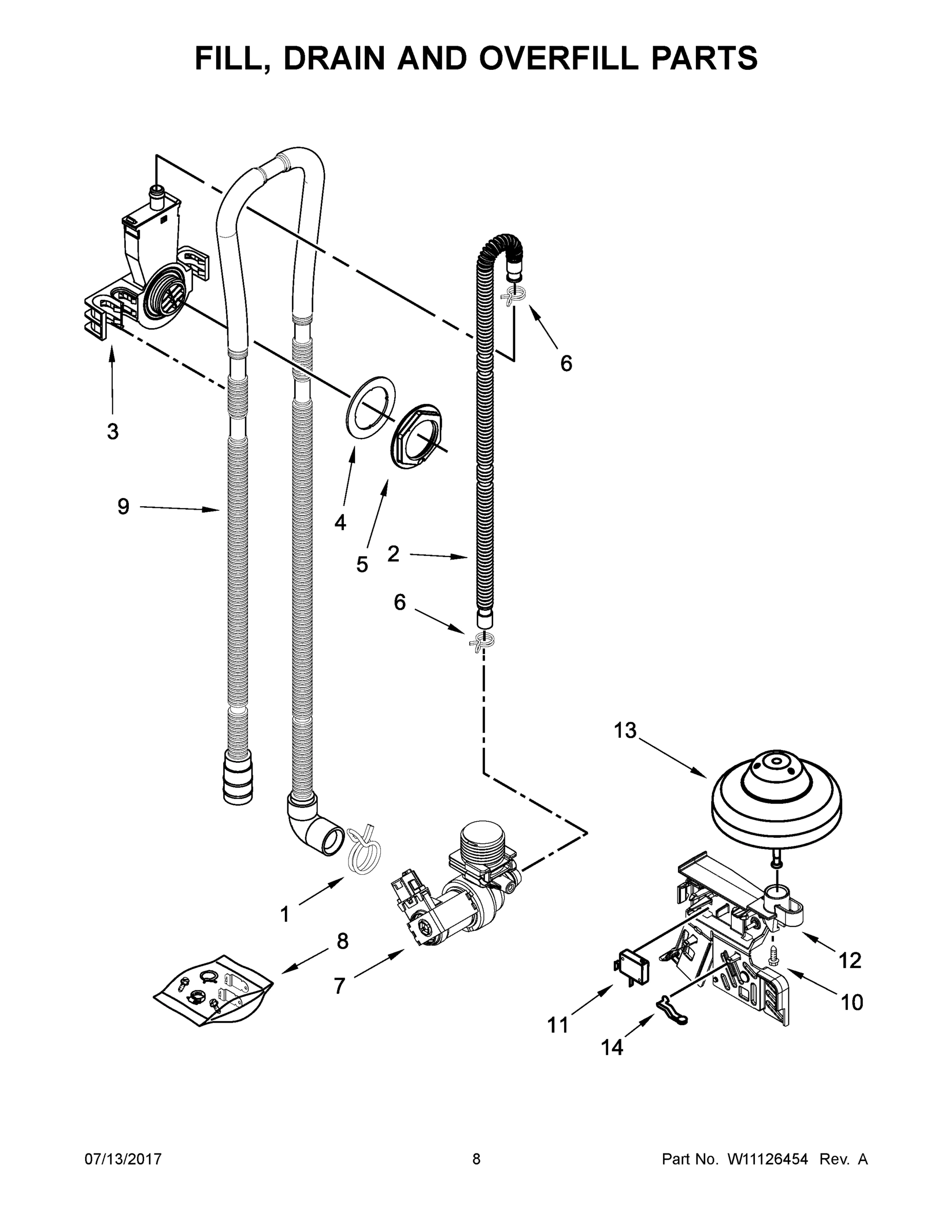

05 - FILL, DRAIN AND OVERFILL PARTS

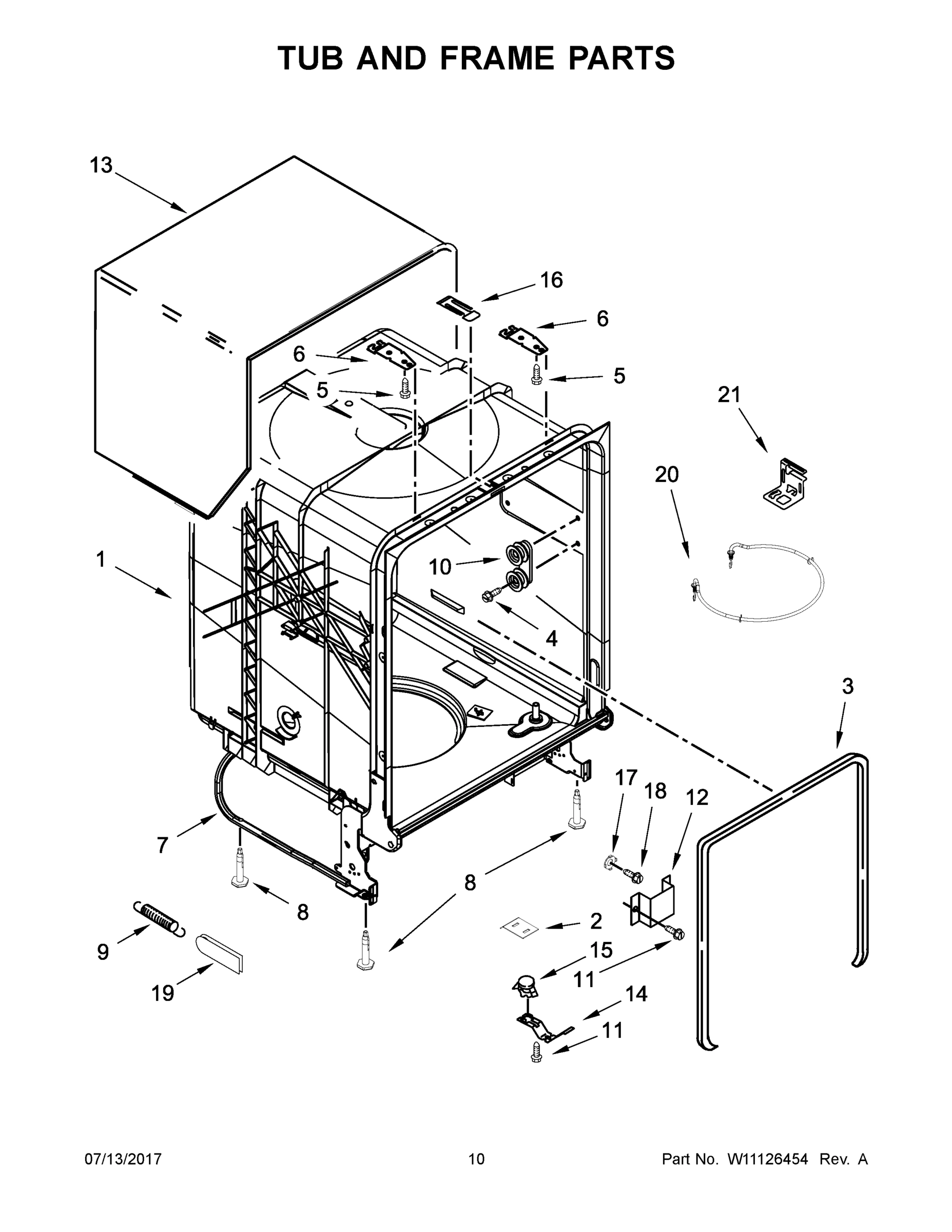

06 - TUB AND FRAME PARTS

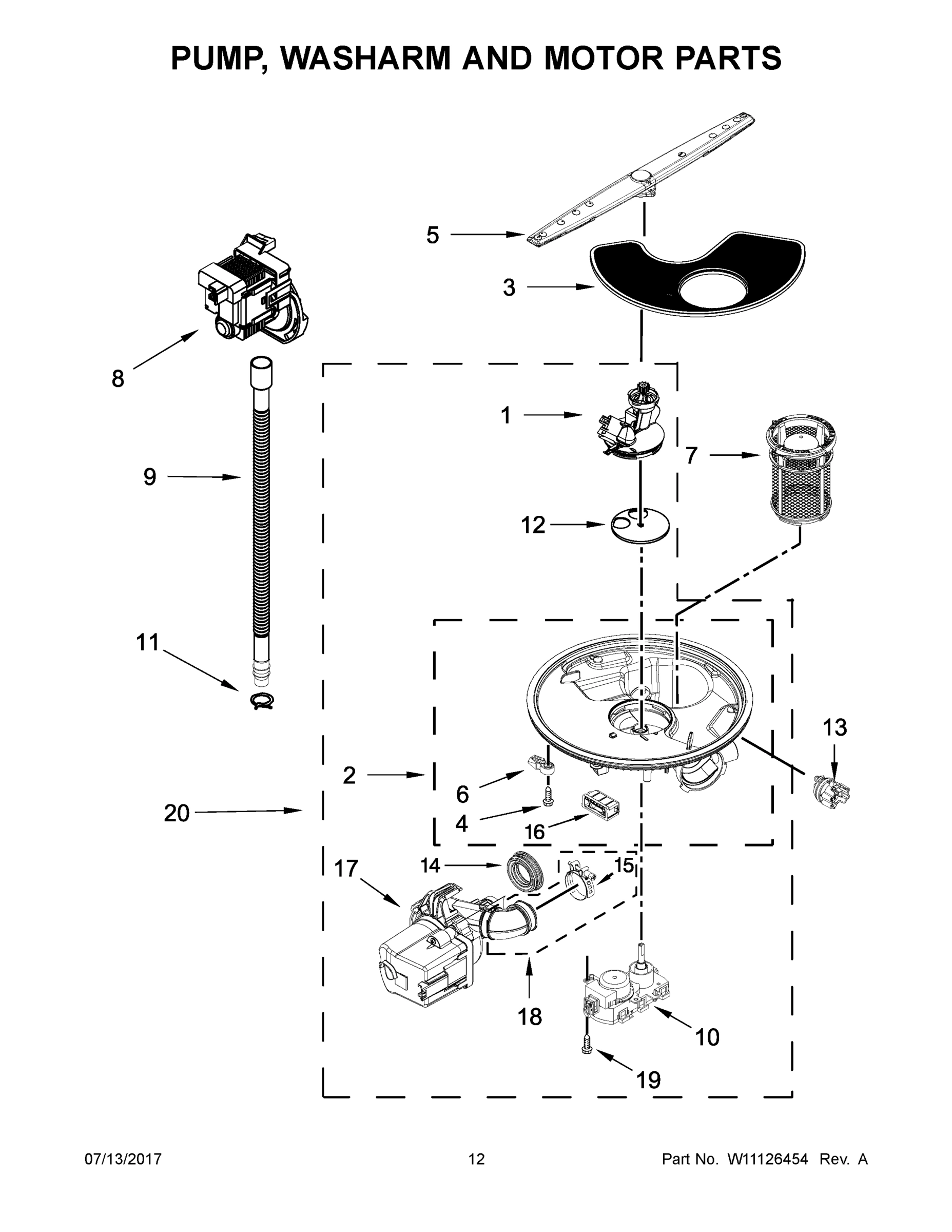

07 - PUMP, WASHARM AND MOTOR PARTS

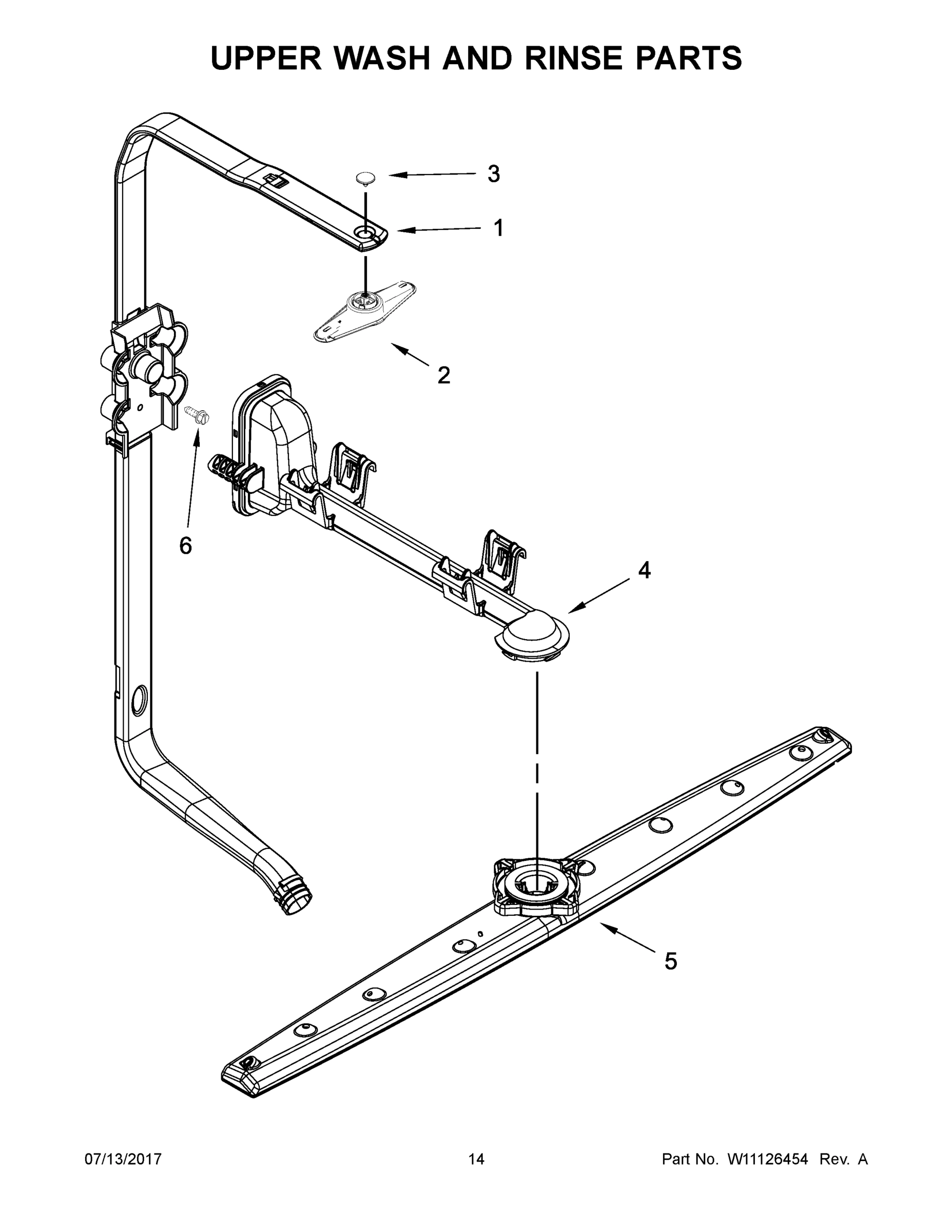

08 - UPPER WASH AND RINSE PARTS

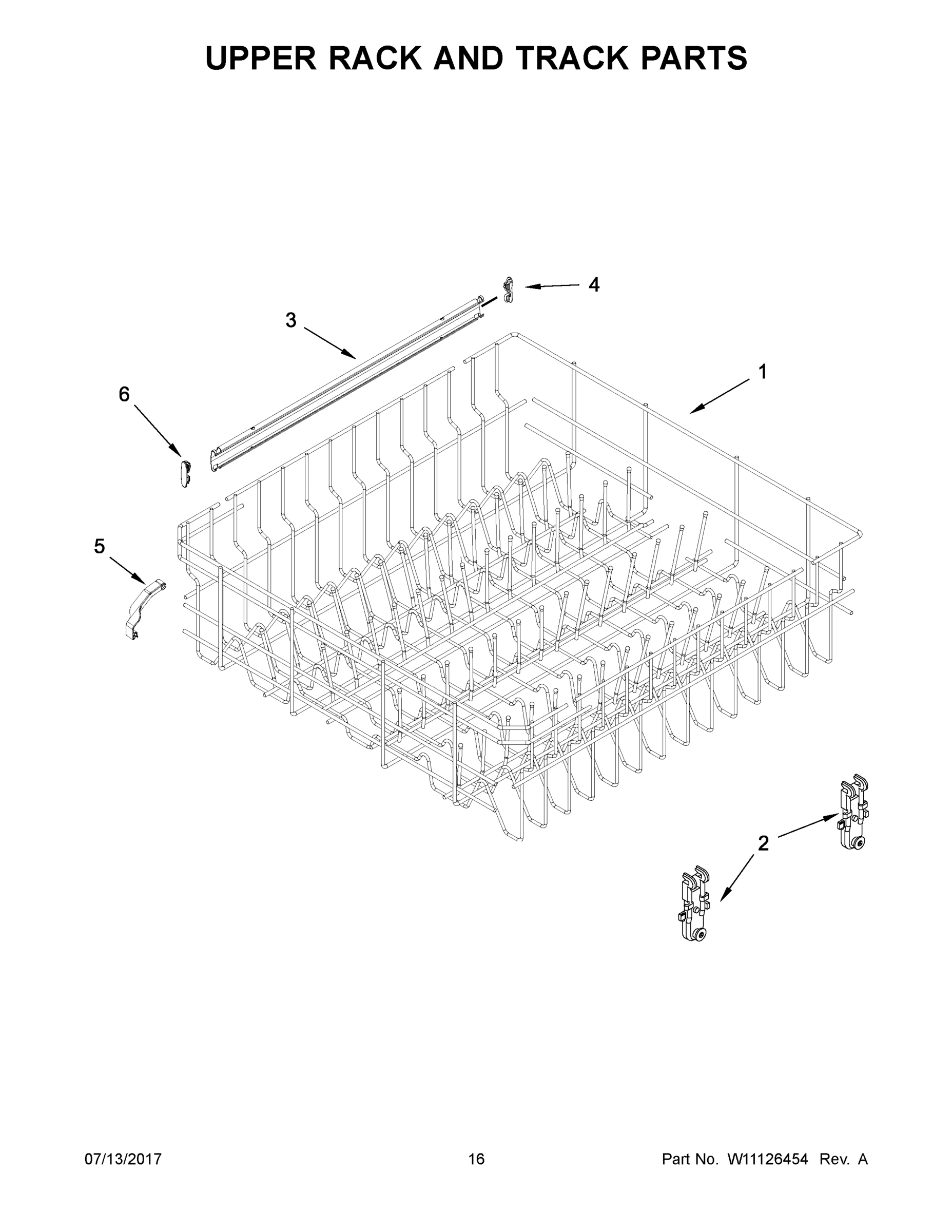

09 - UPPER RACK AND TRACK PARTS

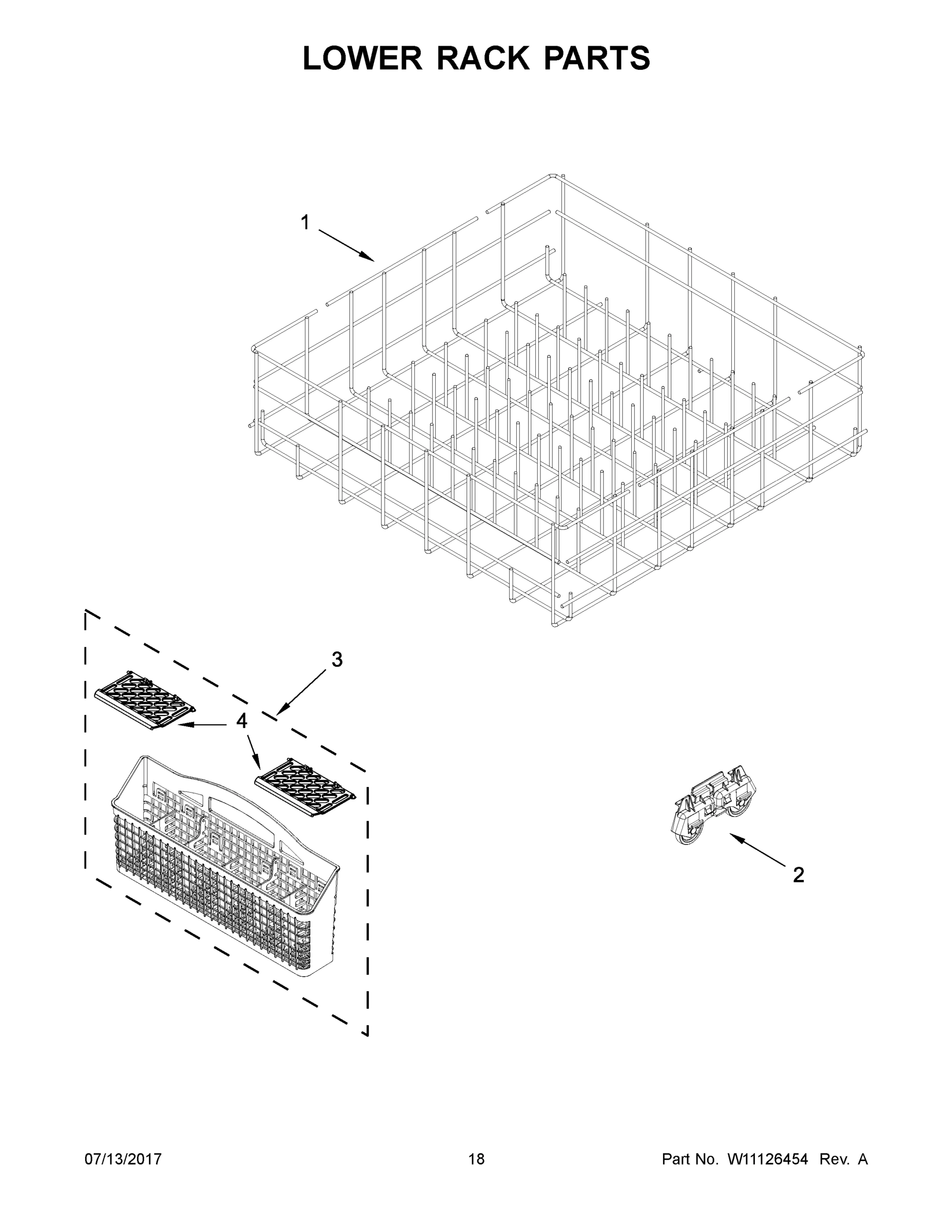

10 - LOWER RACK PARTS
11 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag ADB1500ADW4 DISHWASHER, UNDERCOUNTER
1
INSTALLATION INSTRUCTIONS MAY W10788856 Contact Us For Availability
1
MAY W11082332 MAY W11082332 Contact Us For Availability
1
SCREW MAY W10348413 Contact Us For Availability
1
TUB ASSEMBLY (INCLUDES HEATER ASSEMBLY) MAY W10349289 Contact Us For Availability
1
COVER, OUTLET MAY W10455271 Contact Us For Availability
1
FEED TUBE ASSEMBLY (INCLUDES ITEMS 2 & 3) MAY W10340745 Contact Us For Availability
1
DISHRACK, UPPER MAY 8539214 Contact Us For Availability
1
DISHRACK, LOWER MAY W10525643 Contact Us For Availability
1A
ENERGY GUIDE MAY W10921050 Contact Us For Availability
1A
MAY W11082333 MAY W11082333 Contact Us For Availability
1B
MAY W10747869 MAY W10747869 Contact Us For Availability
1C
TECH SHEET MAY W10904612 Contact Us For Availability
2
ARM, HINGE (LEFT HAND) MAY W10274922 Contact Us For Availability
2
BOX, CONNECTOR MAY W10825638 Contact Us For Availability
2
CAP, RINSE AID MAY W10524922 Contact Us For Availability
2
HOSE MAY W10769066 Contact Us For Availability
2
SHIELD, THERMOSTAT MAY W10321574 Contact Us For Availability
2
SUMP WITH SEAL (ALSO ORDER ITEMS 14 & 18) MAY W10455268 Contact Us For Availability
2
SPRAYARM, THIRD LEVEL MAY W10327455 Contact Us For Availability
2
MOUNT, WHEEL ASSEMBLY MAY 8268655 Contact Us For Availability
2
WHEEL & TRANSPORT ASSEMBLY MAY 8268645 Contact Us For Availability
2A
ARM, HINGE (RIGHT HAND) MAY W10274921 Contact Us For Availability
3
STIFFENER, DOOR MAY W10803537 Contact Us For Availability
3
INNER DOOR (ALSO ORDER ITEM 6) MAY W10214176 Contact Us For Availability
3
INLET, WATER (ALSO ORDER ITEM 4) MAY W10195536 Contact Us For Availability
3
SEAL, TUB MAY W10524469 Contact Us For Availability
3
SCREEN MAY W10463906 Contact Us For Availability
3
RETAINER MAY 3400918 Contact Us For Availability
3
TRACK, DISHRACK MAY 3385089 Contact Us For Availability
3
SILVERWARE BASKET ASSEMBLY MAY W10193652 Contact Us For Availability
4
PANEL, FRONT (INCLUDES 12, 13, 14 & 16) (BLAC MAY W10577291 Contact Us For Availability
4
JUMPER, 4-WIRE MAY W10566903 Contact Us For Availability
4
COVER, DISPENSER MAY W10482094 Contact Us For Availability
4
GASKET MAY 8531323 Contact Us For Availability
4
SCREW MAY W10341745 Contact Us For Availability
4
SCREW MAY W10348407 Contact Us For Availability
4
MANIFOLD MAY W10340594 Contact Us For Availability
4
STOP, TRACK (NON-REMOVABLE) MAY 8565925 Contact Us For Availability
4
LID, SIDE MAY W10193647 Contact Us For Availability
4A
PANEL, FRONT (INCLUDES 12, 13, 14 & 16) (WHIT MAY W10577292 Contact Us For Availability
4B
PANEL, FRONT (INCLUDES 12, 13, 14 & 16) (STAI MAY W10577294 Contact Us For Availability
5
ACCESS PANEL (BLACK) MAY W10799402 Contact Us For Availability
5
SCREW MAY W10648588 Contact Us For Availability
5
VENT ASSEMBLY (INCLUDES ITEM 6) MAY W10428211 Contact Us For Availability
5
NUT, INLET (ALSO ORDER ITEM 4) MAY W10508676 Contact Us For Availability
5
SCREW MAY 3367670 Contact Us For Availability
5
SPRAYARM MAY W10491331 Contact Us For Availability
5
SPRAYARM, UPPER MAY W10448645 Contact Us For Availability
5
CLIP, DISPENSER GUARD MAY W10254690 Contact Us For Availability
5A
ACCESS PANEL (WHITE) MAY W10799403 Contact Us For Availability
6
SET SCREW MAY W10223573 Contact Us For Availability
6
MAY W10918487 MAY W10918487 Contact Us For Availability
6
GASKET, VENT MAY 8269259 Contact Us For Availability
6
CLAMP, HOSE MAY 371505 Contact Us For Availability
6
BRACKET, UNDERCOUNTER MAY 8269145 Contact Us For Availability
6
TAB, SUMP MAY W10372113 Contact Us For Availability
6
SCREW MAY W10165274 Contact Us For Availability
6
STOP, TRACK (REMOVABLE) MAY W10082861 Contact Us For Availability
7
HANDLE ASSEMBLY (BLACK) MAY W10671799 Contact Us For Availability
7
LATCH ASSEMBLY (INCLUDES SWITCH) MAY W10574864 Contact Us For Availability
7
MAY W11112070 MAY W11112070 Contact Us For Availability
7
FILL VALVE ASSEMBLY MAY W10327250 Contact Us For Availability
7
SUPPORT, BOTTOM MAY W10304231 Contact Us For Availability
7
FILTER CUP ASSEMBLY MAY W10789806 Contact Us For Availability
7A
MAY W10786154 MAY W10786154 Contact Us For Availability
7B
MAY W10788019 MAY W10788019 Contact Us For Availability
8
FASTENER (BLACK) MAY W10503548 Contact Us For Availability
8
MAY W10913611 MAY W10913611 Contact Us For Availability
8
DISPENSER, ASSEMBLY MAY W10428217 Contact Us For Availability
8
MISCELLANEOUS PARTS BAG (CONTAINS 2 SCREWS, 2 MAY W10786175 Contact Us For Availability
8
LEVELER, LEG MAY W10619352 Contact Us For Availability
8
PUMP, DRAIN MAY W10724439 Contact Us For Availability
8A
FASTENER (WHITE) MAY W10503549 Contact Us For Availability
9
INSULATION, TOE PANEL MAY W10519755 Contact Us For Availability
9
BRACE, CONNECTOR MAY W10825369 Contact Us For Availability
9
MAY W10834761 MAY W10834761 Contact Us For Availability
9
DRAIN LOOP WITH CHECK VALVE ASEMBLY MAY W10545278 Contact Us For Availability
9
SPRING, DOOR BALANCE MAY W10337934 Contact Us For Availability
9
HOSE, DRAIN MAY 8269144 Contact Us For Availability
10
SCREW MAY 489470 Contact Us For Availability
10
SCREW MAY W10177098 Contact Us For Availability
10
CLIP, CONTROL MAY W10195237 Contact Us For Availability
10
SCREW MAY 304231 Contact Us For Availability
10
WHEEL ASSEMBLY MAY 8575897 Contact Us For Availability
10
MOTOR, DIVERTER MAY W10849439 Contact Us For Availability
11
INSULATION, DOOR MAY W10254613 Contact Us For Availability
11
SEAL, CONSOLE/DOOR MAY W10274923 Contact Us For Availability
11
CLAMP, HOSE MAY 370445 Contact Us For Availability
11
SWITCH, OVERFILL CONTROL MAY W10195039 Contact Us For Availability
11
SCREW MAY 3400892 Contact Us For Availability
12
STUD, MOUNTING MAY W10195726 Contact Us For Availability
12
BRACKET, DISPENSER MAY W10462232 Contact Us For Availability
12
STANDPIPE, OVERFILL MAY W10316267 Contact Us For Availability
12
COVER, TERMINAL BOX MAY 8268991 Contact Us For Availability
12
DISC, DIVERTER MAY W10476221 Contact Us For Availability
13
SCREW MAY W10316572 Contact Us For Availability
13
BRACKET, CONTROL MAY W10863679 Contact Us For Availability
13
FLOAT & RETAINER ASSEMBLY MAY W10346525 Contact Us For Availability
13
SHIELD, TUB SOUND MAY W10866978 Contact Us For Availability
13
INDICATOR, OPTICAL WASH MAY W10723295 Contact Us For Availability
14
GRILL, VENT ASSEMBLY (BLACK) MAY W10620288 Contact Us For Availability
14
SCREW MAY 8281217 Contact Us For Availability
14
LEVER, OVERFILL SWITCH MAY W10195037 Contact Us For Availability
14
CLIP, THERMOSTAT MAY W10539489 Contact Us For Availability
14
GROMMET MAY W10538166 Contact Us For Availability
14A
GRILL, VENT ASSEMBLY (WHITE) MAY W10620289 Contact Us For Availability
14B
GRILL, VENT ASSEMBLY (SILVER) MAY W10620291 Contact Us For Availability
15
SLEEVE, FRICTION MAY 8268961 Contact Us For Availability
15
THERMOSTAT MAY 3371618 Contact Us For Availability
15
CLAMP, HOSE MAY W10169167 Contact Us For Availability
16
LIGHT, PIPE MAY W10500331 Contact Us For Availability
16
STRIKE, LATCH MAY W10544004 Contact Us For Availability
16
MOTOR, ISOLATOR MAY W10195086 Contact Us For Availability
17
WASHER, PRONGED CUP MAY 3378128 Contact Us For Availability
17
MOTOR (ALSO ORDER ITEMS 14 & 18) MAY W10854710 Contact Us For Availability
18
SCREW, GROUNDING MAY 3400014 Contact Us For Availability
18
HOSE ASSEMBLY (INCLUDES 2 CLAMPS) MAY W10445975 Contact Us For Availability
19
BUSHING, DOOR SPRING MAY 8268990 Contact Us For Availability
19
SCREW MAY 9741232 Contact Us For Availability
20
HEATER ELEMENT ASSEMBLY (INCLUDES HEATER WASH MAY W10441445 Contact Us For Availability
20
SUMP & MOTOR ASSEMBLY MAY W10917110 Contact Us For Availability
21
BRACKET, HEATER SUPPORT MAY W10732961 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
ACCESSORIES, DRAIN HOSE 12 FT. MAY 3385556 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE) MAY 350930 Contact Us For Availability
NI
POWER CORD KIT (INCLUDED CORD & MISC. HARDWAR MAY 4317824 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQU MAY 4392901 Contact Us For Availability
NI
ACCESSORIES, MOISTURE BARRIER KIT MAY 4396277 Contact Us For Availability
NI
DISHRACK REPAIR TINE TIP REPAIR KIT (ENOUGH F MAY 4396838 Contact Us For Availability
NI
DISHRACK REPAIR TINE TIP REPAIR KIT (ENOUGH F MAY 4396840 Contact Us For Availability
NI
DISHRACK REPAIR TINE VINYL TOUCH-UP (4OZ SILV MAY 4396853 Contact Us For Availability
NI
DISHRACK REPAIR TINE TIP REPAIR KIT (ENOUGH F MAY 4396854 Contact Us For Availability
NI
DISHRACK REPAIR TINE VINYL TOUCH-UP (4OZ WHIT MAY 676453 Contact Us For Availability
NI
DISHRACK REPAIR TINE VINYL TOUCH-UP (4OZ GREY MAY 676455 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ANTI-TIP KIT, FLOOR MOUNT KIT MAY 8171477 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (WHITE) MAY 8171656 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (BLACK) MAY 8171657 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (BISCUIT/BISQUE) MAY 8171658 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (STAINLESS STEEL MAY 8171659 Contact Us For Availability
NI
ANTI-TIP KIT, SIDE MOUNT KI MAY 8212560 Contact Us For Availability
NI
MAY W10702080 MAY W10702080 Contact Us For Availability
NI
MAY W10702081 MAY W10702081 Contact Us For Availability
× ![]()
