Model Whirlpool 7MWT96500ST2 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $8.03

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $28.40

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $47.23

WPL 799344 WPL 799344 Contact Us For Availability

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $2.51

1

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

1

WP3355758 Whirlpool Agitator Cap In Stock WPL WP3355758 $8.06

1

Retainer, Harness WPL 3349557 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $82.41

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $3.11

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $4.52

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $4.70

2

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $10.17

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.70

3

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $5.29

3

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $3.46

4

WP8577378 Whirlpool Retainer Backorder WPL WP8577378 $3.70

4

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $3.46

5

WP8568314 Whirlpool Strap Backorder WPL WP8568314 $3.70

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.70

6

WP54583 Whirlpool Hinge Backorder WPL WP54583 $9.37

6

WPW10194450 Whirlpool Rear Panel Backorder WPL WPW10194450 $201.52

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

7

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $11.67

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

8

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.52

8

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $4.70

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

WPW10189267 Whirlpool Drain Hose In Stock WPL WPW10189267 $35.95

8

Timer, Block Disconnect (Natural) WPL 3948614 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.84

9

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

9

Spring, Brake WPL 387806 Contact Us For Availability

9

Timer, Control (60 Hz.) (Motor Not A Service WPL W10185789 Contact Us For Availability

10

353424 Whirlpool Connector Backorder WPL 353424 $10.76

10

WP387240 Whirlpool Balance Ring Backorder WPL WP387240 $79.32

10

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $10.28

63849 Whirlpool Outer Tub Primary Assembly Backorder WPL 63849 $133.48

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP8318084 Whirlpool Washer Lid Switch Assembl In Stock WPL WP8318084 $30.56

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $2.51

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

62619 Whirlpool Washer Backorder WPL 62619 $9.59

W10339334 Whirlpool Washer Water Level Contro In Stock WPL W10339334 $110.36

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

13

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $30.74

13

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $9.26

13

Bracket, Control WPL 8544893 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $3.40

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $6.91

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $80.64

WP8577374 Whirlpool Seal Shaft In Stock WPL WP8577374 $4.70

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $5.78

Cord, Power (Includes Item 15) WPL W10115689 Contact Us For Availability

15

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $117.58

15

Strain Relief, Power Cord WPL 3952821 Contact Us For Availability

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $5.78

WP62750 Whirlpool Spacer In Stock WPL WP62750 $4.52

Cap, End (L.H.) (White) WPL 8271365 Contact Us For Availability

Cap, End (L.H.) (BIscuit) WPL 8271368 Contact Us For Availability

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $244.07

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $3.70

Cap, End (R.H.) (White) WPL 8271359 Contact Us For Availability

Cap, End (R.H.) (Biscuit) WPL 8271362 Contact Us For Availability

18

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $3.33

18

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $3.11

18

VALVE, WATER INLET W/VACUUM BREAK (SNGL PORT) WPL W10279103 Contact Us For Availability

19

8541668 Whirlpool Washer Clamp Backorder WPL 8541668 $10.76

19

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $4.70

19

Plug (T.P.A) (3-Circuit) (Pressure Switch) WPL 3360056 Contact Us For Availability

20

285203 Whirlpool CP Bearing In Stock WPL 285203 $76.00

20

Switch, Main Drive Motor WPL 3952056 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $31.51

W10034740 Whirlpool Knob Assembly Backorder WPL W10034740 $30.25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.07

Knob, Timer (White) WPL 8566022 Contact Us For Availability

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $35.58

WP8566018 Whirlpool Dial Assembly Backorder WPL WP8566018 $29.74

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $3.04

23

Knob, Control (White) WPL 8565944 Contact Us For Availability

23

Knob, Control (Biscuit) WPL 8565947 Contact Us For Availability

24

WP8536939 Whirlpool Spring Clip In Stock WPL WP8536939 $4.97

25

Clip, Capacitor WPL 8318046 Contact Us For Availability

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $39.42

26

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $7.96

27

Clip, Push-In Retainer WPL W10000080 Contact Us For Availability

28

Clip, Harness & Pressure Hose WPL 8055003 Contact Us For Availability

29

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $45.77

30

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

31

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.52

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $8.75

33

3400073 Whirlpool Screw Backorder WPL 3400073 $5.65

34

Medallion WPL 3400985 Contact Us For Availability

35

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

36

WP3400818 Whirlpool Screw Backorder WPL WP3400818 $2.51

37

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $3.33

38

Panel, Console (Includes Item 34) (White) WPL W10222540 Contact Us For Availability

38

Panel, Console (Includes Item 34) (Biscuit) WPL W10222541 Contact Us For Availability

39

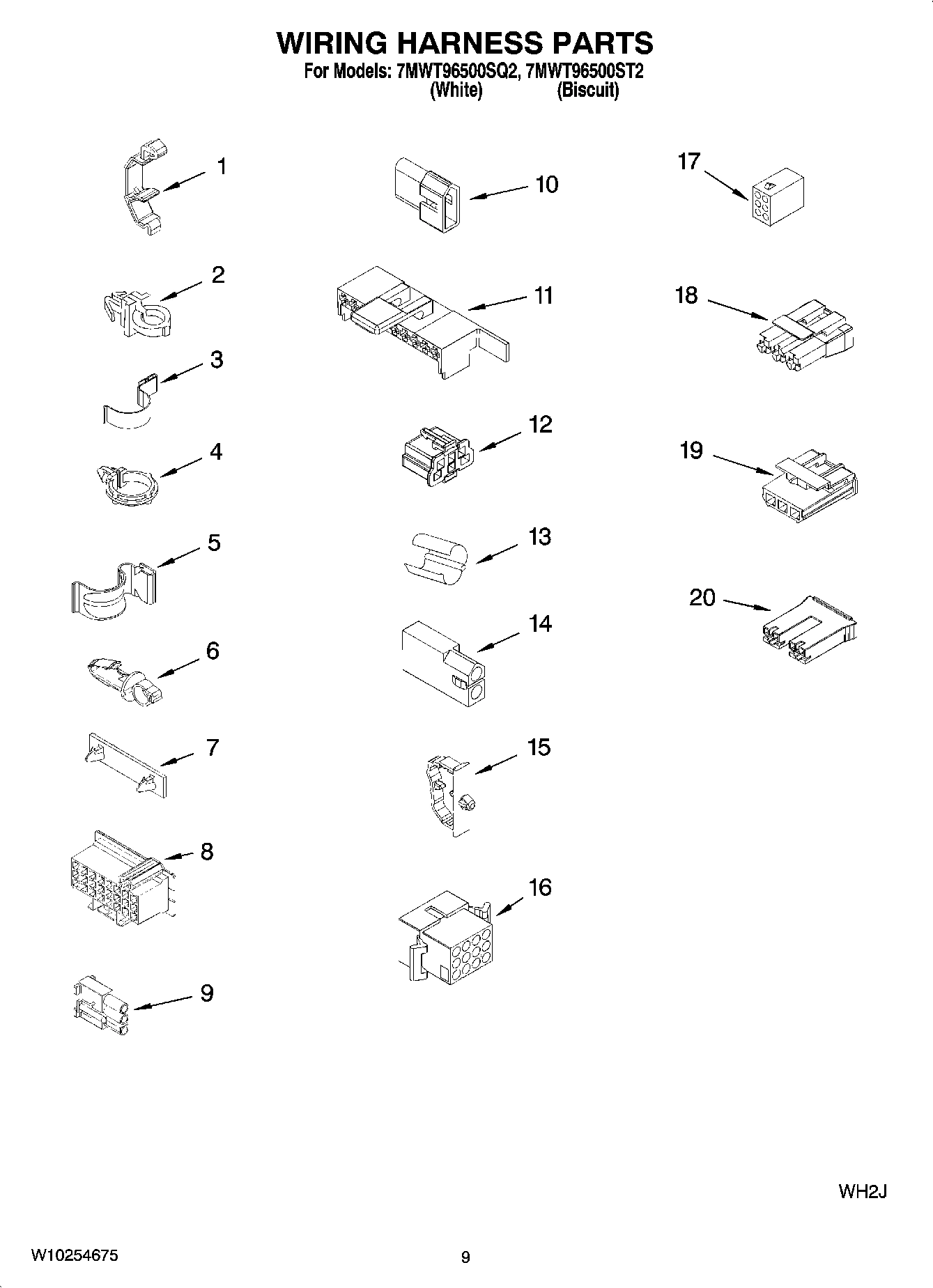

Harness, Wiring (For Detail See Page 9 & WPL W10243990 Contact Us For Availability
