Model Whirlpool 7GS6SHAXKB00 REFRIGERATOR – Common Parts & Diagrams

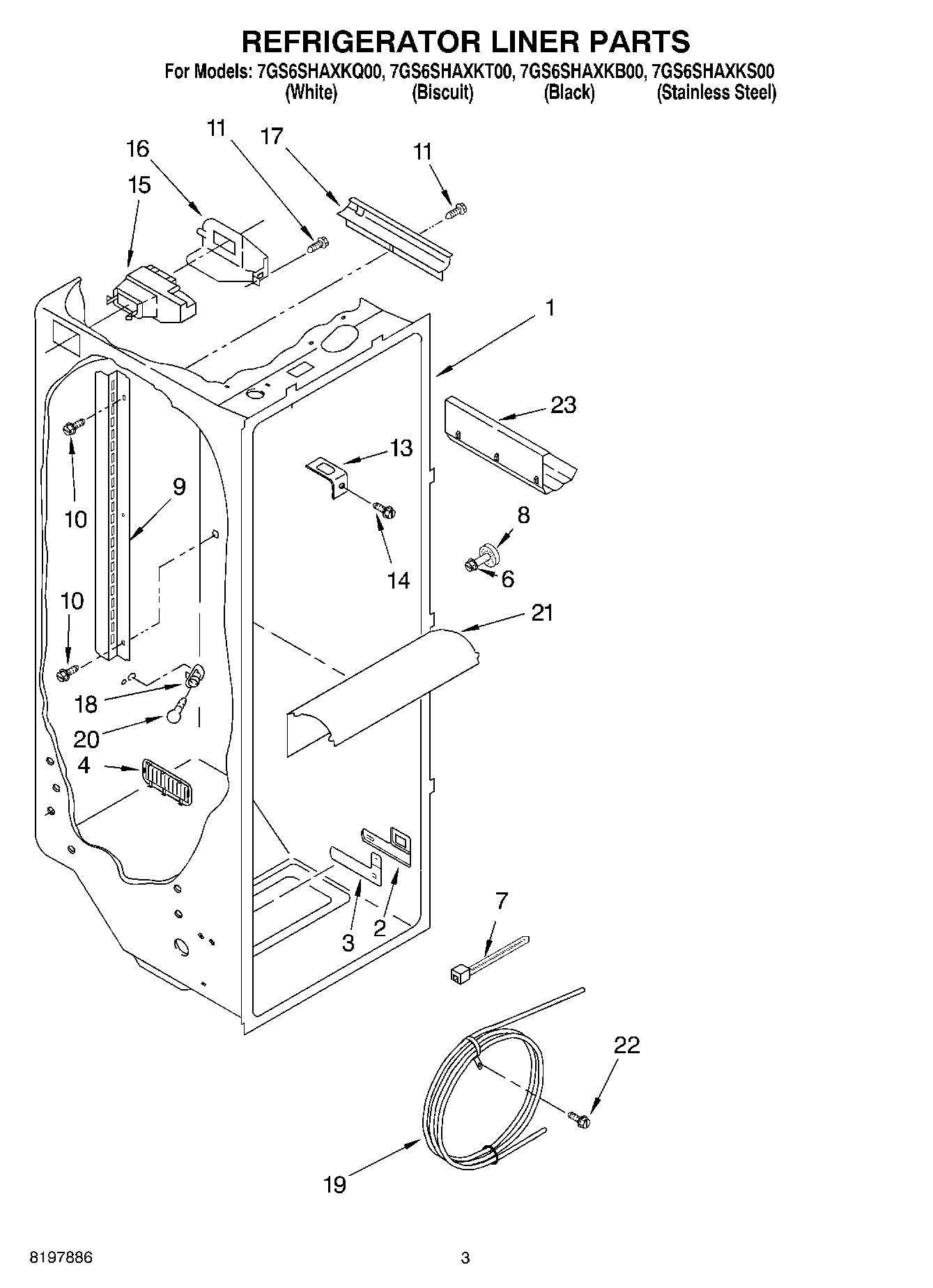

02 - REFRIGERATOR LINER

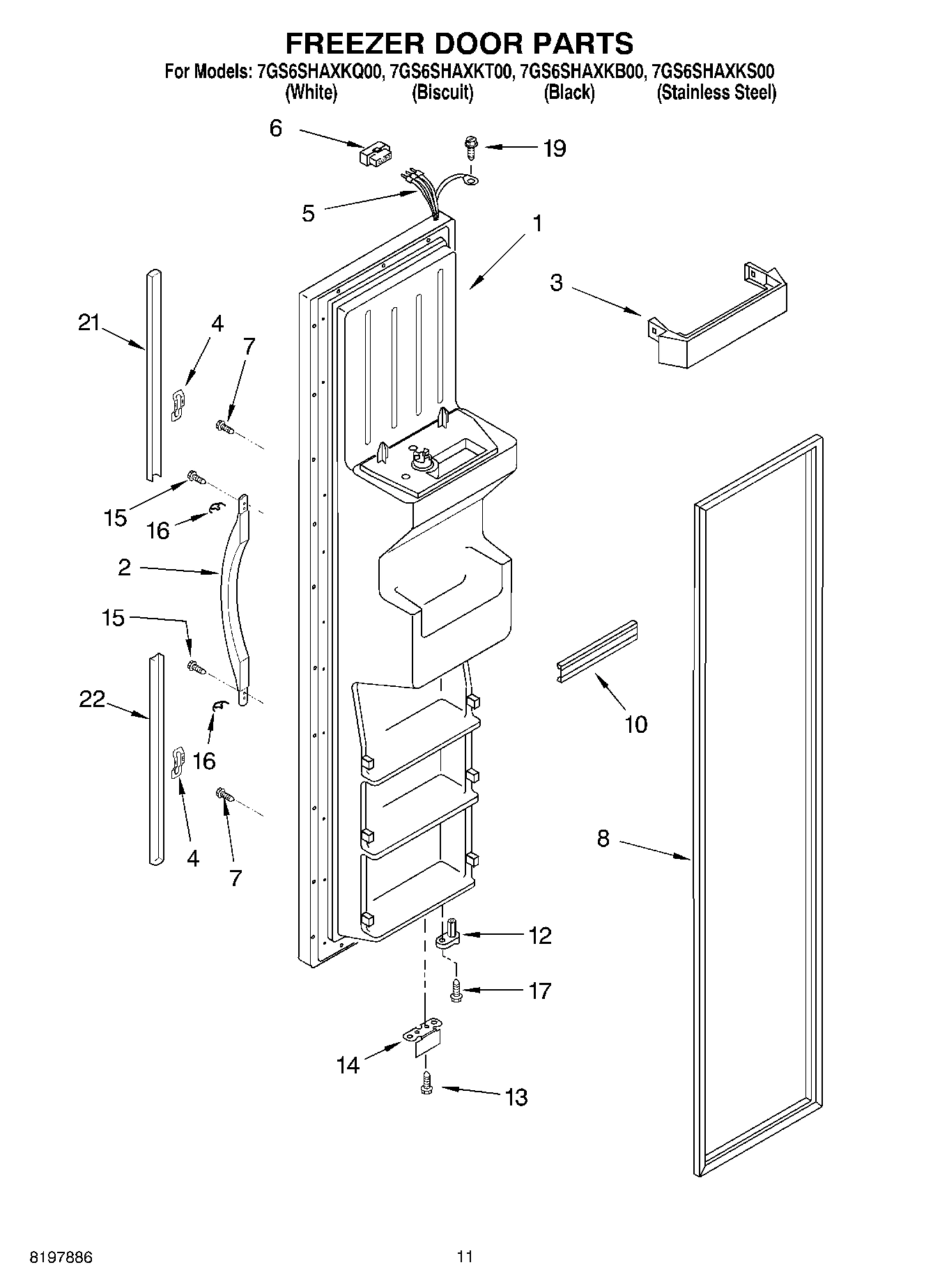

07 - FREEZER DOOR
09 - AIR FLOW
11 - UNIT
04 - FREEZER LINER
05 - MOTOR AND ICE CONTAINER
10 - CONTROL
01 - CABINET, LITERATURE
08 - DISPENSER FRONT
03 - REFRIGERATOR SHELF
06 - REFRIGERATOR DOOR
12 - ICE MAKER, OPTIONAL
Common parts from model Whirlpool 7GS6SHAXKB00 REFRIGERATOR
Icemaker WPL LIT787316 Contact Us For Availability
Refrigerator WPL LIT787808 Contact Us For Availability
1
Literature Parts (Service & Wiring Sheet) WPL LIT2216656 Contact Us For Availability
1
LITERATURE PARTS (Owner`s Manual) WPL LIT2220113 Contact Us For Availability
1
LITERATURE PARTS (Energy Guide) WPL LIT2220777 Contact Us For Availability
1
Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability
1
Housing, Dispenser (Not Serviced) WPL ARI17351A3 Contact Us For Availability
1
Shelf, Flip-Up WPL 2204485 Contact Us For Availability
1
Refrigerator Door (Includes Item No.6) (Black WPL 2207026B Contact Us For Availability
1
Refrigerator Door (Includes Item No.6) (Stain WPL 2207026SB Contact Us For Availability
1
Refrigerator Door (Includes Item No.6) (Biscu WPL 2207026T Contact Us For Availability
1
Refrigerator Door (Includes Item No.6) (White WPL 2207026W Contact Us For Availability
2
Fan, Blade WPL 2190685 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Crusher Bin WPL 2212367 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
5
COVER, LIGHT LENS WPL 2200096 Contact Us For Availability
6
Tube, Condenser to Heat Loop WPL 2211760 Contact Us For Availability
7
Door Mechanism Assembly WPL 2206423 Contact Us For Availability
8
Shim (1) WPL 2209697 Contact Us For Availability
8
Mechanism Delay WPL 2205686 Contact Us For Availability
8
Cover, Meat Pan WPL 2217039 Contact Us For Availability
8
Handle (Biscuit) WPL 2217185T Contact Us For Availability
8
Handle (Tempest Grey) WPL 2217185TG Contact Us For Availability
8
Handle (White) WPL 2217185W Contact Us For Availability
9
Grille, Overflow (White) WPL 2207007W Contact Us For Availability
9
Grille, Overflow (Biscuit) WPL 2207007T Contact Us For Availability
11
Lever, Ice Dispenser (Black (Storm Grey Pad)) WPL 2203562B Contact Us For Availability
11
Block, Blade WPL 2198602 Contact Us For Availability
11
Lever, Ice Dispenser (Biscuit (Almond Shadow WPL 2203562T Contact Us For Availability
12
Bracket, Door Stop (Chrome) WPL 2200082 Contact Us For Availability
12
Bracket, Door Stop (Black) WPL 2200082B Contact Us For Availability
14
Filler, Wrapper (White) WPL 2196094 Contact Us For Availability
14
Filler, Wrapper (Black) WPL 2196097 Contact Us For Availability
14
Filler, Wrapper (Biscuit) WPL 2196150 Contact Us For Availability
14
Trim, Door-Top (Black) WPL 2217187B Contact Us For Availability
14
Trim, Door-Top (Biscuit) WPL 2217187T Contact Us For Availability
14
Trim, Door-Top (Tempest Grey) WPL 2217187TG Contact Us For Availability
14
Trim, Door-Top (White) WPL 2217187W Contact Us For Availability
15
Grille (Biscuit) WPL 2198468T Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Trim, Door-Bottom (Black) WPL 2217186B Contact Us For Availability
15
Trim, Door-Bottom (Biscuit) WPL 2217186T Contact Us For Availability
15
Trim, Door-Bottom (Tempest Grey) WPL 2217186TG Contact Us For Availability
15
Trim, Door-Bottom (White) WPL 2217186W Contact Us For Availability
16
Jewelry, Handle (Gold) WPL 2207010G Contact Us For Availability
16
Jewelry, Handle (Satin Nickel) WPL 2207010SN Contact Us For Availability
17
Lever, Water Dispenser (Black (Storm Grey Pad WPL 2203561B Contact Us For Availability
17
Lever, Water Dispenser (Biscuit (Almond Shado WPL 2203561T Contact Us For Availability
18
Switch Assembly (Not Available, Order No.23) WPL ARI17352A6 Contact Us For Availability
19
Extension Tube WPL 2172932 Contact Us For Availability
19
Overlay, Front Cover (Not Available, Order No WPL ARI17353A4 Contact Us For Availability
20
Control Box Harness WPL 2211318 Contact Us For Availability
21
Front Cover, Housing (Not Available, Order No WPL ARI17354A4 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Cabinet (Not A Serviceable Part) WPL ARI17348A8 Contact Us For Availability
22
Shelf, Snack Bin WPL 2206347 Contact Us For Availability
23
Clip WPL 2161324 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
23
Hinge Cover (Biscuit) WPL 2203408T Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2220044B Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2220044SB Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2220044T Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2220044W Contact Us For Availability
24
WPL 625834 WPL 625834 Contact Us For Availability
24
Holder WPL 2212369 Contact Us For Availability
24
Fastner, Push-On WPL 489285 Contact Us For Availability
25
Escutcheon, Control Box WPL 2212073 Contact Us For Availability
26
Frame, Shelf WPL 2195975 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability
30
Retainer, Light Lens WPL 2200097 Contact Us For Availability
31
P.C. Board Filter Indicator WPL 2203384 Contact Us For Availability
32
Flapper, Drain Extension WPL 2172957 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
