Model Whirlpool 7GD27DIXHB00 REFRIGERATOR – Common Parts & Diagrams

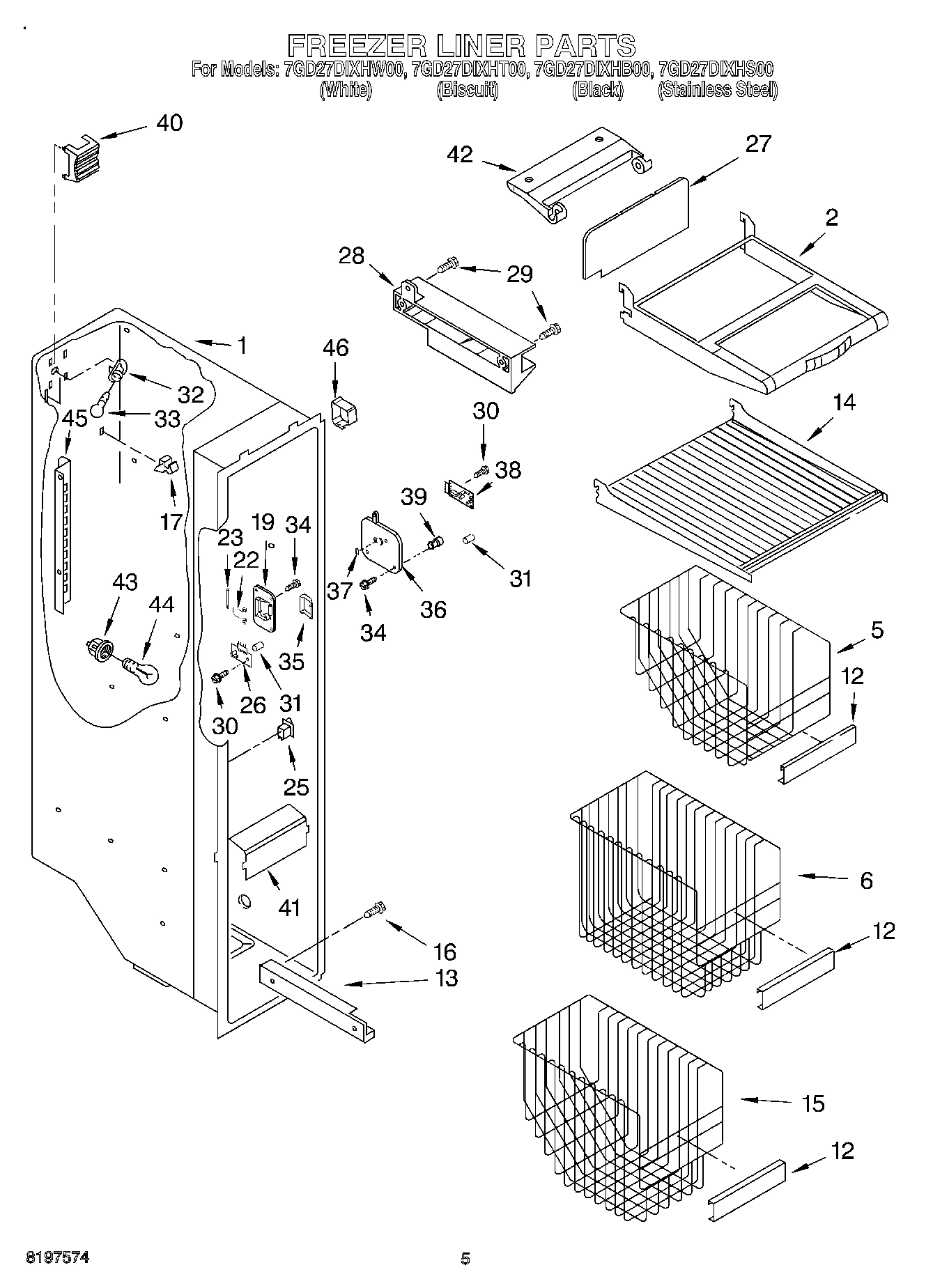

04 - FREEZER LINER

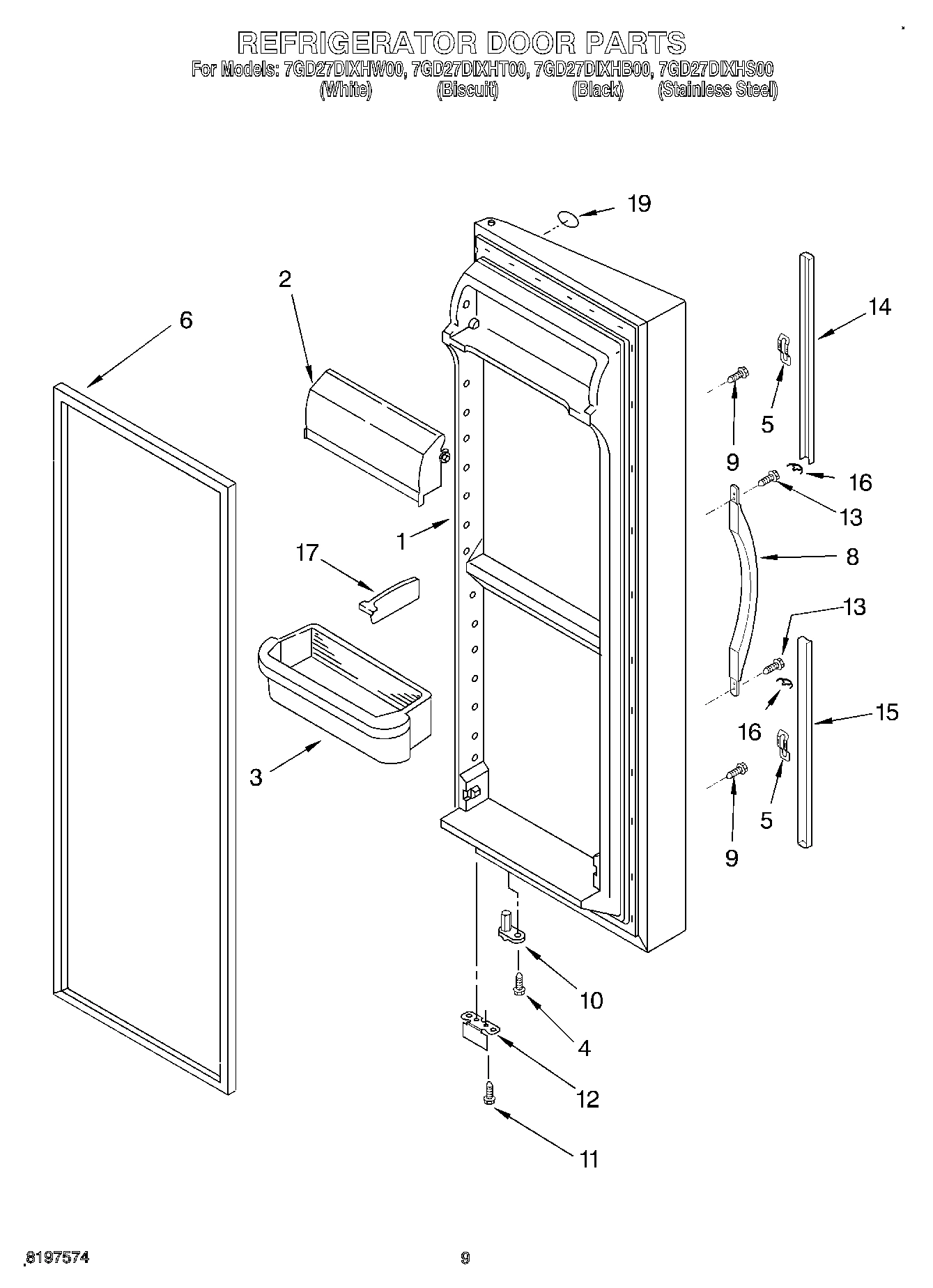

06 - REFRIGERATOR DOOR
05 - MOTOR AND ICE CONTAINER
12 - ICE MAKER, OPTIONAL
02 - REFRIGERATOR LINER
08 - DISPENSER FRONT
09 - AIR FLOW
10 - CONTROL
11 - UNIT
01 - CABINET, LITERATURE
03 - REFRIGERATOR SHELF
07 - FREEZER DOOR
Common parts from model Whirlpool 7GD27DIXHB00 REFRIGERATOR
Icemaker WPL LIT787316 Contact Us For Availability
Refrigerator WPL LIT787808 Contact Us For Availability
1
Control Box WPL 2200136 Contact Us For Availability
1
LITERATURE PARTS (Service & Wiring Sheet) WPL LIT2198693 Contact Us For Availability
1
LITERATURE PARTS (Owner`s Manual) WPL LIT2214377 Contact Us For Availability
1
LITERATURE PARTS (Energy Guide) WPL LIT2214384 Contact Us For Availability
1
Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability
1
Shelf, Flip-Up WPL 2204485 Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2216059B Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2216059S Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2216059T Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2216059W Contact Us For Availability
2
Blade, Fan WPL 2190685 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Handle (Black) WPL 2207003B Contact Us For Availability
2
Handle (Biscuit) WPL 2207003T Contact Us For Availability
2
Handle (Tempest Gray) WPL 2207003TG Contact Us For Availability
2
Handle (White) WPL 2207003W Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Condenser Assembly WPL 2204242B Contact Us For Availability
4
Gasket, Cover (Front) WPL 2174442 Contact Us For Availability
5
COVER, LIGHT LENS WPL 2200096 Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149294 Contact Us For Availability
8
Cover, Meat Pan WPL 2217039 Contact Us For Availability
9
Grille, Overflow (White) WPL 2207007W Contact Us For Availability
9
Grille, Overflow (Biscuit) WPL 2207007T Contact Us For Availability
11
Lever, Ice Dispenser (Black (Storm Grey Pad)) WPL 2203562B Contact Us For Availability
11
Block, Blade WPL 2198602 Contact Us For Availability
11
Lever, Ice Dispenser (Biscuit (Almond Shadow WPL 2203562T Contact Us For Availability
11
Bracket, Insert WPL 2206006 Contact Us For Availability
14
Filler, Wrapper (White) WPL 2196094 Contact Us For Availability
14
Filler, Wrapper (Black) WPL 2196097 Contact Us For Availability
14
Filler, Wrapper (Biscuit) WPL 2196150 Contact Us For Availability
14
Bracket, Door Stop WPL 2206910 Contact Us For Availability
15
Grille (Biscuit) WPL 2198468T Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
16
Start Device, Combination (Start Relay and Ov WPL 2188506 Contact Us For Availability
16
Jewelry, Handle (Gold) WPL 2207010G Contact Us For Availability
16
Jewelry, Handle (Satin Nickel) WPL 2207010SN Contact Us For Availability
17
Lever, Water Dispenser (Black (Storm Grey Pad WPL 2203561B Contact Us For Availability
17
Lever, Water Dispenser (Biscuit (Almond Shado WPL 2203561T Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Harness, Control Box WPL 2211318 Contact Us For Availability
20
Unit Cover, Bottom WPL 2206281 Contact Us For Availability
21
Trim, Door-Top (Black) WPL 2207037B Contact Us For Availability
21
Trim, Door-Top (Biscuit) WPL 2207037T Contact Us For Availability
21
Trim, Door-Top (Tempest Gray) WPL 2207037TG Contact Us For Availability
21
Trim, Door-Top (White) WPL 2207037W Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Cabinet (Not A Serviceable Part) WPL ARI17014A9 Contact Us For Availability
22
Shelf, Snack Bin WPL 2206347 Contact Us For Availability
22
Trim, Door-Bottom (Black) WPL 2207038B Contact Us For Availability
22
Trim, Door-Bottom (Biscuit) WPL 2207038T Contact Us For Availability
22
Trim, Door-Bottom (Tempest Gray) WPL 2207038TG Contact Us For Availability
22
Trim, Door-Bottom (White) WPL 2207038W Contact Us For Availability
23
Clip WPL 2161324 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
23
Hinge Cover (Biscuit) WPL 2203408T Contact Us For Availability
24
WPL 625834 WPL 625834 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
25
Escutcheon, Control Box WPL 2200100 Contact Us For Availability
26
Harness, Unit WPL 2211338 Contact Us For Availability
26
Frame, Shelf WPL 2195975 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
28
Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability
30
Retainer, Light Lens WPL 2200097 Contact Us For Availability
31
P.C. Board Filter Indicator WPL 2203384 Contact Us For Availability
34
Clip, Heater WPL 2161330 Contact Us For Availability
37
Screw WPL 489473 Contact Us For Availability
40
WPL 80051 WPL 80051 Contact Us For Availability
40
WPL 876029 WPL 876029 Contact Us For Availability
40
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
40
WPL 799344 WPL 799344 Contact Us For Availability
40
Torx Key WPL 1117510 Contact Us For Availability
42
Clip, Heat WPL 2155547 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Guard, Fan WPL 2186495 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
59
Clip, Wire & Tube WPL 2208280 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
