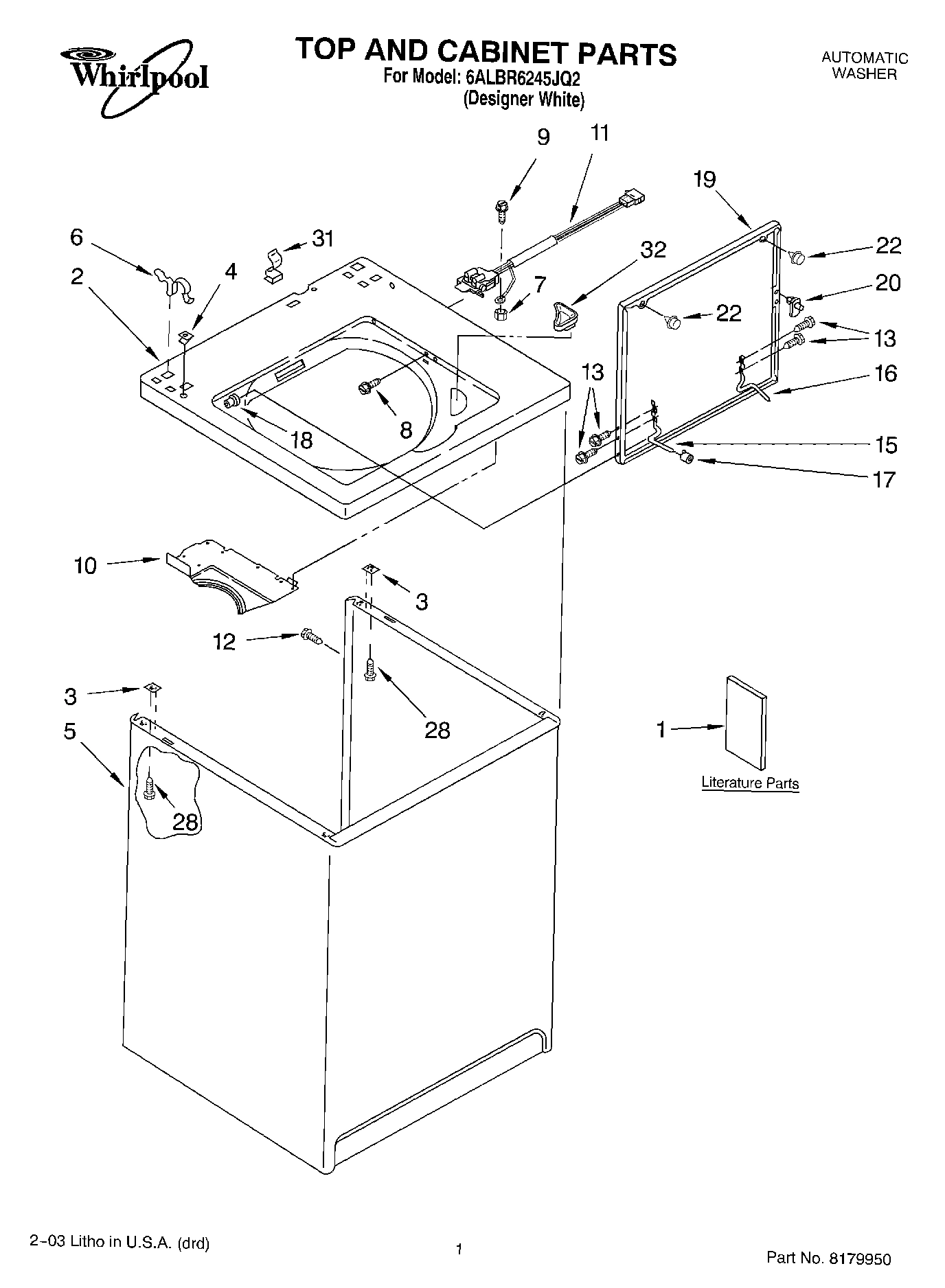

Model Whirlpool 6ALBR6245JQ2 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $9.99

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $2.51

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

Hose, Sensor (Lower) WPL 3363509 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $78.48

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.70

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $10.30

3

WP62750 Whirlpool Spacer Backorder WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.70

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.70

3

WPW10080230 Whirlpool Ring Backorder WPL WPW10080230 $4.98

4

285353 Whirlpool Ring Backorder WPL 285353 $3.70

4

WP3350830 Whirlpool Agitator Assembly Backorder WPL WP3350830 $67.11

4

WP3357027 Whirlpool Nozzle Assembly Backorder WPL WP3357027 $28.80

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

4

Support & Brake, Tub WPL 3362087 Contact Us For Availability

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $18.42

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Tub Ring & Gasket WPL 3950568 Contact Us For Availability

6

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $28.49

6

WP3359586 Whirlpool Tub Seal Backorder WPL WP3359586 $28.80

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.70

6

Link, Leveling Mechanism (2) WPL 63138 Contact Us For Availability

6

Panel, Rear WPL 8318407 Contact Us For Availability

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $3.70

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $2.51

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

WP8519815 Whirlpool Washer Balance Ring Clip In Stock WPL WP8519815 $2.51

8

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

8

285664 Whirlpool Drain Hose In Stock WPL 285664 $18.32

8

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $28.37

8

285702 Whirlpool Extensions Backorder WPL 285702 $37.95

8

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $31.00

8

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

8

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

8

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

8

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $44.98

8

WP3356311 Whirlpool Screw Backorder WPL WP3356311 $2.51

8

WP3946792 Whirlpool Spring Backorder WPL WP3946792 $3.70

8

WP3956205 Whirlpool Balance Ring Backorder WPL WP3956205 $71.69

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $10.82

9

3363395 Whirlpool Gearcase Backorder WPL 3363395 $242.05

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

Timer, Control (60 Hz.) (Motor Not A Service WPL 3954170 Contact Us For Availability

WP3400516 Whirlpool Screw Backorder WPL WP3400516 $2.51

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

WP8543666 Whirlpool Washer In Stock WPL WP8543666 $5.27

(Kit-Adapter) (Includes. Item) (20. And 27.) WPL 285750 Contact Us For Availability

353424 Whirlpool Connector Backorder WPL 353424 $10.76

WP3363661 Whirlpool Bearing Cam Backorder WPL WP3363661 $3.70

WP62611 Whirlpool Plate Backorder WPL WP62611 $37.28

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

62619 Whirlpool Washer Backorder WPL 62619 $9.59

W10335056 Whirlpool Washer Water Level Pressu In Stock WPL W10335056 $43.32

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

285852A Whirlpool Washer Direct Drive Heavy D In Stock WPL 285852A $15.99

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

Bracket, Control WPL 3948814 Contact Us For Availability

BASKET WPL 8312681 Contact Us For Availability

8316060 Whirlpool Shield Backorder WPL 8316060 $26.21

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

Tub WPL 63125 Contact Us For Availability

Cord, Power WPL 8541694 Contact Us For Availability

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP389387 Whirlpool Agitator Shaft In Stock WPL WP389387 $103.30

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.29

Strain Relief, Power Cord WPL 3949468 Contact Us For Availability

16

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $10.60

16

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

16

WP91770 Whirlpool Hinge Backorder WPL WP91770 $8.80

WP353244 Whirlpool Hose In Stock WPL WP353244 $30.63

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $76.80

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $3.70

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $5.82

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $14.57

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.70

WP3360397 Whirlpool Valve Backorder WPL WP3360397 $151.58

285459 Whirlpool Washer Base Backorder WPL 285459 $202.38

285811 Whirlpool Washer Agitator Repair Kit In Stock WPL 285811 $8.76

WP3363190 Whirlpool Drive Motor Backorder WPL WP3363190 $279.52

WPW10111181 Whirlpool Fuse Assembly Backorder WPL WPW10111181 $10.47

20

3363920A Whirlpool Adapter Assembly Backorder WPL 3363920A $2.73

20

80040 Whirlpool Washer Agitator Dog Kit In Stock WPL 80040 $1.10

20

Switch, Main Drive Motor WPL 8529896 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $29.23

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

WP62739 Whirlpool Nut Backorder WPL WP62739 $2.51

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.70

285587 Whirlpool Thrust Washer In Stock WPL 285587 $1.43

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3363892 Whirlpool Water Pump In Stock WPL WP3363892 $41.25

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.51

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

Hose, Sensor (Upper) WPL 3363516 Contact Us For Availability

23

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.70

23

WPW10074580 Whirlpool Agitator Inner Cap and In Stock WPL WPW10074580 $7.47

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $71.60

24

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $28.69

24

WPW10072840 Whirlpool Seal Assembly In Stock WPL WPW10072840 $3.70

25

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

Edge Protector WPL 303294 Contact Us For Availability

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $29.41

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $4.72

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $2.21

Assembly, Drain Hose WPL 8317941 Contact Us For Availability

Clip, Anti-Rattle WPL 3355454 Contact Us For Availability

27

WP3360056 Whirlpool Connector Backorder WPL WP3360056 $8.69

27

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

27

Agitator, Asy (Complete) WPL 3350829 Contact Us For Availability

Clamp, Hose WPL 3976395 No Longer Available

WP3349019 Whirlpool Upper Agitator Backorder WPL WP3349019 $77.78

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

WP482156 Whirlpool Refrigerator Capacitor In Stock WPL WP482156 $38.92

29

Sensor, Inline WPL 3352282 Contact Us For Availability

29

Clamp, Capacitor WPL 3949496 Contact Us For Availability

30

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

31

WP371502 Whirlpool Clamp Backorder WPL WP371502 $4.78

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $7.92

32

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.02

33

Shield, ATC WPL 8316039 Contact Us For Availability

34

WPW10110247 Whirlpool Electronic Control Boar Backorder WPL WPW10110247 $46.26

35

W10851055 Whirlpool Cycle Switch Backorder WPL W10851055 $59.35

36

WP3400818 Whirlpool Screw Backorder WPL WP3400818 $2.51

37

Screw, Ground WPL 3179795 Contact Us For Availability

38

3407160 Whirlpool Transformer Backorder WPL 3407160 $108.55

39

Panel, Console WPL 8314873 Contact Us For Availability

41

W10113937 Whirlpool Clamp Backorder WPL W10113937 $4.78

42

Wire, Ground WPL 3398893 Contact Us For Availability

44

W10807860 Whirlpool White Control Knob In Stock WPL W10807860 $30.03

45

WP3957849 Whirlpool Timer Dial Backorder WPL WP3957849 $26.75

47

WP3957799 Whirlpool Knob Backorder WPL WP3957799 $29.88

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

51

W10820038 Whirlpool Endcap In Stock WPL W10820038 $49.21

52

Switch, Rotary WPL 3950353 Contact Us For Availability

55

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.70

58

Shield, Inlet Valve WPL 8314879 Contact Us For Availability

60

Harness, Wiring (For Detail See Pages 9 & WPL 3956192 Contact Us For Availability
