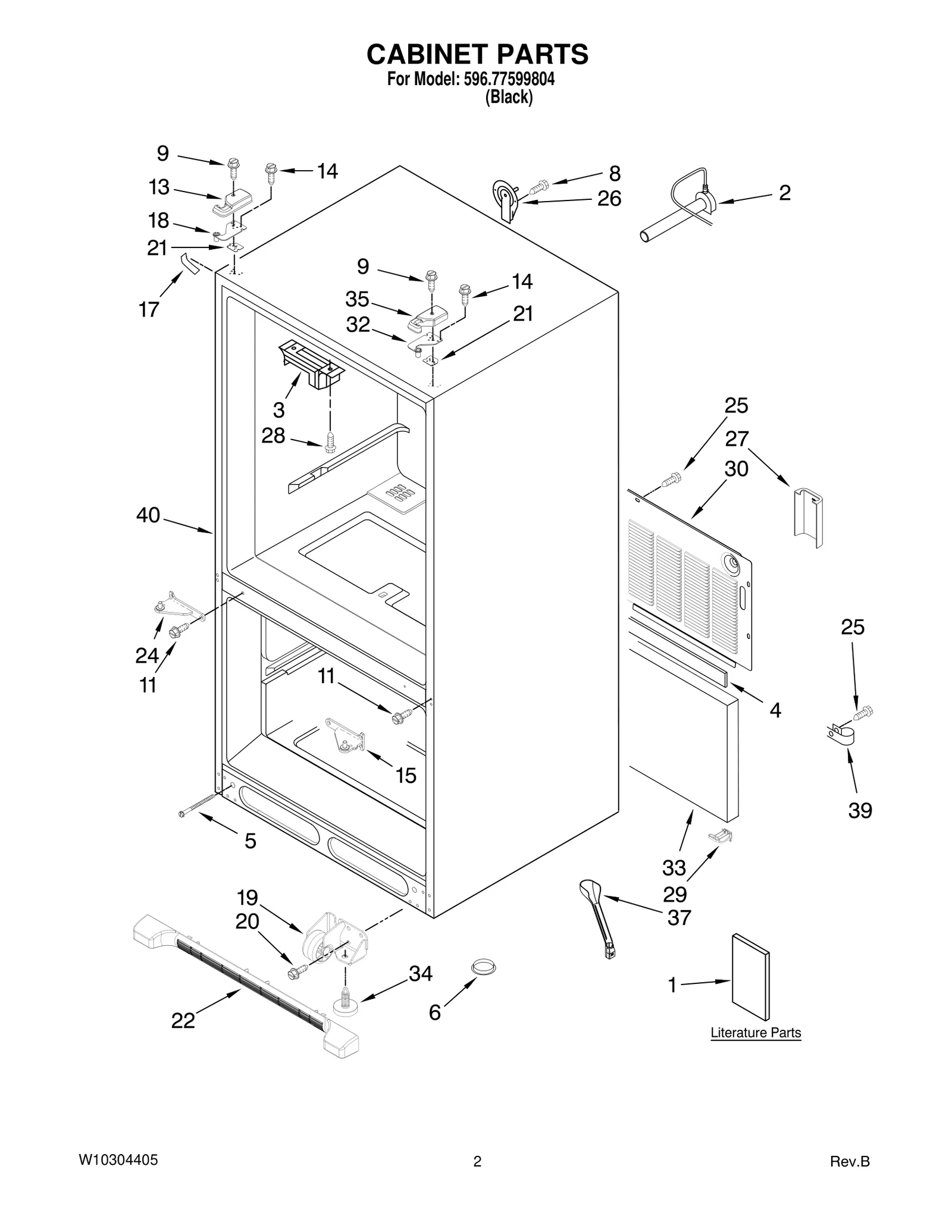

Model Whirlpool 596.77599804 Refrigerator – Common Parts &amp; Diagrams

1

12992301 Whirlpool Refrigerator Screw Backorder WPL 12992301 $13.89

1

W11033333 Whirlpool Glass Shelf Backorder WPL W11033333 $141.55

1

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $153.49

2

W11285509 Whirlpool Refrigerator Shut-Off Arm In Stock WPL W11285509 $55.10

2

WP12825803 Whirlpool Refrigerator Fan Blade In Stock WPL WP12825803 $39.44

2

Door, Right — Black WPL 12978075BQ Contact Us For Availability

2

Shelf, Glide Out (4) WPL 12654605 Contact Us For Availability

2

Handle — Black WPL W10169583 Contact Us For Availability

3

W10122561 Whirlpool Refrigerator Cup Fill In Stock WPL W10122561 $10.21

3

W11727651 Whirlpool Plate Assembly Backorder WPL W11727651 $44.01

3

WP13062602 Whirlpool Refrigerator Support Backorder WPL WP13062602 $32.06

3

WP67006113 Whirlpool Stud Bolt In Stock WPL WP67006113 $5.00

4

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $2.51

4

W10436252 Whirlpool Door Gasket In Stock WPL W10436252 $136.60

4

SUPPORT Backorder WPL W11812285 $21.92

4

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $32.06

5

67006901 Whirlpool Refrigerator Screw In Stock WPL 67006901 $2.51

5

W10829281 Whirlpool Refrigerator Screw Backorder WPL W10829281 $5.01

5

WP12227305WD Whirlpool Drawer Support Backorder WPL WP12227305WD $47.65

5

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $29.83

6

W10233960 Whirlpool Refrigerator Compressor In Stock WPL W10233960 $303.59

6

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $41.30

6

WP67001719 Whirlpool Refrigerator Track Backorder WPL WP67001719 $2.51

7

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $8.86

7

67001656 Whirlpool Refrigerator Bottle Trivet Backorder WPL 67001656 $33.71

7

W10911102 Whirlpool Refrigerator Wire Harness Backorder WPL W10911102 $42.75

7

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

8

W11368721 Whirlpool Refrigerator French Door In Stock WPL W11368721 $115.29

8

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $46.67

8

WPW10655368 Whirlpool Refrigerator Drip Pan In Stock WPL WPW10655368 $47.05

9

67002329 Whirlpool Refrigerator Pantry Gasket Backorder WPL 67002329 $10.76

9

Grommet (3) WPL 61004743 Contact Us For Availability

12656202 Whirlpool Refrigerator Housing Backorder WPL 12656202 $58.10

W10825088 Whirlpool Refrigerator Defrost Heat In Stock WPL W10825088 $85.12

W11469652 Whirlpool Refrigerator Shield Backorder WPL W11469652 $10.76

WPW10171529 Whirlpool Refrigerator Ice Pan In Stock WPL WPW10171529 $63.24

11

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

11

WP67006104 Whirlpool Refrigerator Tray Backorder WPL WP67006104 $54.13

11

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $25.41

12

WP12544124 Whirlpool Refrigerator Valve In Stock WPL WP12544124 $121.77

12

WP67003793 Whirlpool Refrigerator Temperature Backorder WPL WP67003793 $30.01

12

WPW10194431 Whirlpool Start Device In Stock WPL WPW10194431 $64.87

13

W11173556 Whirlpool Refrigerator Shaft Backorder WPL W11173556 $10.87

13

WPA3223101 Whirlpool Refrigerator Insert PL Backorder WPL WPA3223101 $3.70

W11120581 Whirlpool Refrigerator Water Tube Backorder WPL W11120581 $48.46

Backorder WPL W11750607 $20.37

WP12722803B Whirlpool Door Guide In Stock WPL WP12722803B $139.09

WP12722803W Whirlpool Door Support In Stock WPL WP12722803W $148.74

WPW10165425 Whirlpool Bimetal Defrost Thermos In Stock WPL WPW10165425 $35.21

WPW10235370 Whirlpool Refrigerator Glide Backorder WPL WPW10235370 $120.58

WPW10277025 Whirlpool Refrigerator Housing In Stock WPL WPW10277025 $58.19

W10918168 Whirlpool Refrigerator Door Hinge In Stock WPL W10918168 $30.73

WPD7813010 Whirlpool Refrigerator Wire Harnes In Stock WPL WPD7813010 $23.36

WPW10137529 Whirlpool Refrigerator Grommet Backorder WPL WPW10137529 $3.70

WPW10326469 Whirlpool Drawer Slide Rail In Stock WPL WPW10326469 $12.04

WPW10594329 Whirlpool Control Damper In Stock WPL WPW10594329 $102.19

Clip, Evap Motor WPL 13058002 Contact Us For Availability

16

W10874836 Whirlpool Endcap Assembly Left Hand In Stock WPL W10874836 $18.78

16

W11556315 Whirlpool Shroud In Stock WPL W11556315 $30.95

16

WP2256087 Whirlpool Refrigerator Bracket Backorder WPL WP2256087 $32.06

17

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

17

Pan, Crisper (2) WPL 12724130 Contact Us For Availability

W11592375 Whirlpool Door Hinge Backorder WPL W11592375 $10.07

WP12642303WD Whirlpool Refrigerator Drawer Su Backorder WPL WP12642303WD $47.98

WPW10280608 Whirlpool Refrigerator Bracket Backorder WPL WPW10280608 $39.09

WPW10280613 Whirlpool Refrigerator Bracket Backorder WPL WPW10280613 $39.09

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

WPW10346415 Whirlpool Refrigerator Condenser Backorder WPL WPW10346415 $162.03

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $67.68

W11658402 Whirlpool Drawer Slide Rail In Stock WPL W11658402 $79.37

WPW10233569 Whirlpool Refrigerator Tube Backorder WPL WPW10233569 $48.07

Trim, Crisper WPL W10231509 Contact Us For Availability

W11159728 Whirlpool Refrigerator Gasket In Stock WPL W11159728 $10.10

W11547653 Whirlpool Refrigerator Drip Tray Backorder WPL W11547653 $32.70

WP67003854 Whirlpool Shelf Frame In Stock WPL WP67003854 $148.89

WP98165 Whirlpool Screw Backorder WPL WP98165 $2.51

12999501 Whirlpool Refrigerator Hinge Shim Backorder WPL 12999501 $37.73

12999502 Whirlpool Refrigerator Hinge Shim Backorder WPL 12999502 $38.16

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

WP67006704 Whirlpool Glass Crisper Cover In Stock WPL WP67006704 $133.07

Gripper−Bucket — Gallon WPL 12567315SP Contact Us For Availability

Clip, Evaporator WPL 10623002 Contact Us For Availability

12002041 Whirlpool Refrigerator Evaporator Re In Stock WPL 12002041 $193.61

12918001 Whirlpool Refrigerator Funnel Backorder WPL 12918001 $7.69

W10127505 Whirlpool Refrigerator Bin Backorder WPL W10127505 $43.08

W10273463 Whirlpool Refrigerator Ladder Backorder WPL W10273463 $11.38

W10251971 Whirlpool Ladder Assembly Backorder WPL W10251971 $37.44

Dam — Left WPL 12225602 Contact Us For Availability

Fresh & Ready Bin Assembly WPL W10130181 Contact Us For Availability

Dam — Right WPL 12225702 Contact Us For Availability

12707303SP Whirlpool Refrigerator Plate Backorder WPL 12707303SP $32.96

W10918164 Whirlpool Refrigerator Door Hinge Backorder WPL W10918164 $52.14

W11613295 Whirlpool Condenser Motor In Stock WPL W11613295 $53.00

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

25

W10709795 Whirlpool Refrigerator Screw Backorder WPL W10709795 $7.81

25

W11673433 Whirlpool Clip Backorder WPL W11673433 $66.52

25

W11690160 Whirlpool Grommet Backorder WPL W11690160 $2.40

12726003 Whirlpool Refrigerator Water Cover Backorder WPL 12726003 $7.16

W11024089 Whirlpool Refrigerator Evaporator F In Stock WPL W11024089 $30.40

W11224411 Whirlpool Refrigerator Wire Harness Backorder WPL W11224411 $55.01

WP67006415 Whirlpool Refrigerator Screw Backorder WPL WP67006415 $3.70

27

W10208593 Whirlpool Refrigerator Valve Cover In Stock WPL W10208593 $9.24

27

WP67005864 Whirlpool Humidity Control In Stock WPL WP67005864 $3.70

27

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $14.68

28

10547003 Whirlpool Refrigerator Dryer Clip Backorder WPL 10547003 $4.59

28

WP67003795 Whirlpool Refrigerator Temperature In Stock WPL WP67003795 $3.70

29

12831101 Whirlpool Refrigerator Tube Clamp Backorder WPL 12831101 $7.69

29

W11229977 Whirlpool Refrigerator Reservoir In Stock WPL W11229977 $56.06

29

WP67003531 Whirlpool Drawer Assembly In Stock WPL WP67003531 $101.47

30

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $3.70

30

WPW10211855 Whirlpool Refrigerator Back Cover Backorder WPL WPW10211855 $85.49

31

12846902 Whirlpool Refrigerator Screw Backorder WPL 12846902 $9.13

31

W10827015 Whirlpool Refrigerator Pantry Drawe In Stock WPL W10827015 $115.82

31

W11395888 Whirlpool Refrigerator Bypass Filte In Stock WPL W11395888 $27.07

32

W11592374 Whirlpool Refrigerator Top Door Hin In Stock WPL W11592374 $10.07

32

Basket, Freezer WPL W10150039 Contact Us For Availability

32

Screw (4) WPL 12992101 Contact Us For Availability

W10847995 Whirlpool Divider Assembly Backorder WPL W10847995 $32.06

W11226688 Whirlpool Refrigerator Cover Backorder WPL W11226688 $33.71

W11714300 Whirlpool Insulation Backorder WPL W11714300 $22.67

Insulation, Sound WPL 12820505 Contact Us For Availability

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $3.88

WPW10224292 Whirlpool Refrigerator Wire Harne In Stock WPL WPW10224292 $59.55

WPW10317076-includeCORE Whirlpool WPW10317076 Backorder WPL WPW10317076-includeCORE $292.77

WPW10348246 Whirlpool Refrigerator Freezer Ba Backorder WPL WPW10348246 $152.65

35

WP67002759 Whirlpool Refrigerator Divider In Stock WPL WP67002759 $30.16

35

Spacer−HV Box WPL 12889501SP Contact Us For Availability

36

Box, HV WPL W10257665 Contact Us For Availability

37

W10241046 Whirlpool Refrigerator Divider Backorder WPL W10241046 $12.44

38

W10171558 Whirlpool Refrigerator Divider Backorder WPL W10171558 $30.85

39

WPW10474716 Whirlpool Refrigerator Gear In Stock WPL WPW10474716 $10.87

40

WP33001882 Whirlpool Screw Backorder WPL WP33001882 $29.17

40

WPW10474715 Whirlpool Refrigerator Gear In Stock WPL WPW10474715 $10.96

41

W10348260 Whirlpool Refrigerator Bracket Backorder WPL W10348260 $33.82

42

W10348259 Whirlpool Refrigerator Bracket Asse Backorder WPL W10348259 $33.82

43

W10149389 Whirlpool Refrigerator Handle Backorder WPL W10149389 $32.06

43

WP67005149 Whirlpool Roller In Stock WPL WP67005149 $10.76

67006434 Whirlpool Axle Pin In Stock WPL 67006434 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $35.96

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $37.79

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $39.53

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.82

Valve, Access WPL 978029 Contact Us For Availability

Valve, Access WPL 978028 Contact Us For Availability

100

D7824706Q Whirlpool Refrigerator Ice Maker As In Stock WPL D7824706Q $64.55

OPT-1

350942 Whirlpool Spray Paint Backorder WPL 350942 $50.33

OPT-2

285006 Whirlpool Spray In Stock WPL 285006 $44.38

OPT-3

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

OPT-4

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.92

OPT-5

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

OPT-6

Enamel, Black WPL 799340 Contact Us For Availability

OPT-7

Enamel, White WPL 799344 Contact Us For Availability

OPT-8

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $30.25

OPT-9

Tape, Vinyl WPL 479502 Contact Us For Availability

OPT-11

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $106.84

OPT-13

Kit, Foam Slab WPL 876029 Contact Us For Availability

OPT-14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $64.36

OPT-15

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $43.61

OPT-16

Cleaner, WPL 20000008 Contact Us For Availability

OPT-17

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $24.56

OPT-18

Cement, WPL 542639 Contact Us For Availability

OPT-19

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $29.17

OPT-20

Kit, Evaporator WPL 799833 Contact Us For Availability

OPT-21

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

OPT-22

Torx Key WPL 1117510 Contact Us For Availability
