Model Whirlpool 110.29852992 Washer (Kenmore 11029852992) – Common Parts &amp; Diagrams

1

285664 Whirlpool Drain Hose In Stock WPL 285664 $18.32

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

WP3362061 Whirlpool Cap Backorder WPL WP3362061 $46.92

1

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

1

Washer Wire Harness Retainer WPL 3349557 Contact Us For Availability

1A

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $29.79

1B

285702 Whirlpool Extensions Backorder WPL 285702 $37.95

2

W10337780 Whirlpool Pressure Switch In Stock WPL W10337780 $45.48

2

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.70

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.43

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.88

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.88

3

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

3

WPW10080230 Whirlpool Ring Backorder WPL WPW10080230 $4.98

3

WPW10168263 Whirlpool Temperature Switch Backorder WPL WPW10168263 $53.47

4

285353 Whirlpool Ring Backorder WPL 285353 $3.70

4

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $32.06

4

WP3363661 Whirlpool Bearing Cam Backorder WPL WP3363661 $3.70

4

WP3948608 Whirlpool Bracket Backorder WPL WP3948608 $46.54

5

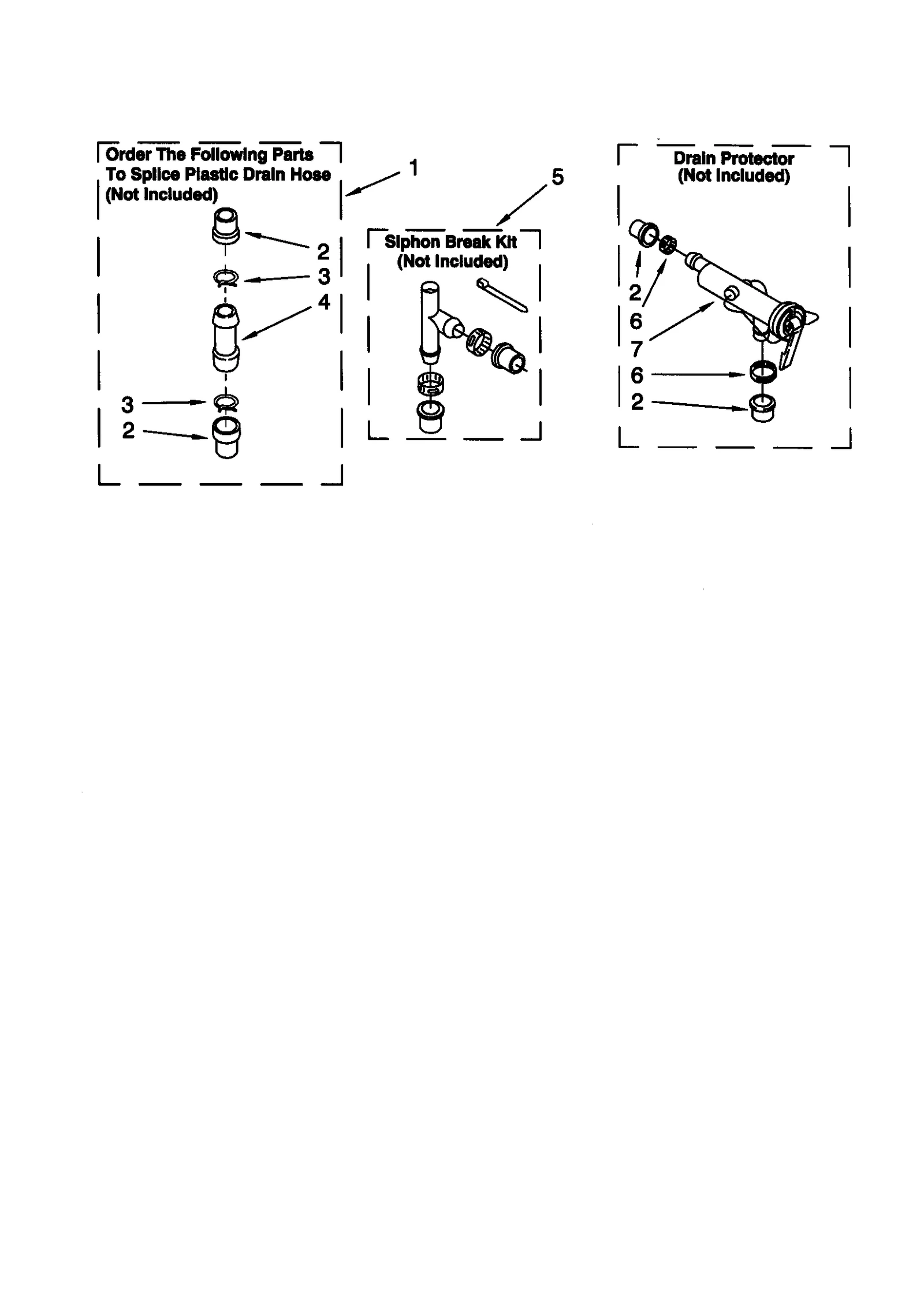

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $21.58

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $258.72

5

WP356138 Whirlpool Hose Clamp Backorder WPL WP356138 $3.70

5

Bracket WPL 64065 Contact Us For Availability

5

Wire Harness WPL 3954035 Contact Us For Availability

6

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $29.92

6

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

6

WP3360824 Whirlpool Agitator Auger In Stock WPL WP3360824 $82.81

6

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.88

7

WP389386 Whirlpool Agitator Assembly Backorder WPL WP389386 $81.90

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $2.51

8

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $2.51

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

Cycle Switch WPL 3952977 Contact Us For Availability

8

(338471) (ALT.) WPL N/P Contact Us For Availability

8

Relief Stirrer WPL 3949468 Contact Us For Availability

9

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $251.09

9

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

9

Washer Control Knob WPL 3402572 Contact Us For Availability

279954 Whirlpool Endcap Kit (Left/Right) Backorder WPL 279954 $73.56

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $2.51

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

Hinge Panel WPL 387402 Contact Us For Availability

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP3949238 Whirlpool Lid Switch Assembly In Stock WPL WP3949238 $19.82

WP62611 Whirlpool Plate In Stock WPL WP62611 $41.49

Washer Terminal Connector WPL 353424 Contact Us For Availability

Rear Panel WPL 3356472 Contact Us For Availability

12

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

12

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

12

Washer Timer Dial WPL 3949428 Contact Us For Availability

13

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $9.63

13

3361596 Whirlpool Outer Tub Primary Backorder WPL 3361596 $180.24

13

Washer Control Knob WPL 3948412 Contact Us For Availability

14

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $11.77

14

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

15

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

15

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

15

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $13.74

16

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.73

16

WP54583 Whirlpool Hinge In Stock WPL WP54583 $9.37

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.25

WP353244 Whirlpool Hose In Stock WPL WP353244 $34.09

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $85.47

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $7.96

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $3.70

18

285587 Whirlpool Thrust Washer In Stock WPL 285587 $1.52

18

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $14.57

18

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

19

WP3352287 Whirlpool Drive Motor Backorder WPL WP3352287 $258.27

19

WP63594 Whirlpool Dispenser In Stock WPL WP63594 $13.73

19

WP661636 Whirlpool Timer In Stock WPL WP661636 $189.95

285727 Whirlpool Agitator Assembly In Stock WPL 285727 $126.97

W10820044 Whirlpool Power Cord In Stock WPL W10820044 $62.61

WP3360977 Whirlpool Washer Tub Fill Nozzle In Stock WPL WP3360977 $22.78

Switch WPL 62850 Contact Us For Availability

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

WP354255 Whirlpool Bumper Assembly In Stock WPL WP354255 $2.51

WP358912 Whirlpool Gasket Backorder WPL WP358912 $3.70

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.07

22

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $24.45

22

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.64

22

Washer Bleach Dispenser Hose WPL 3948705 Contact Us For Availability

23

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $62.63

24

WP356418 Whirlpool Screw In Stock WPL WP356418 $2.51

24

WP8543666 Whirlpool Washer In Stock WPL WP8543666 $5.53

25

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

25

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $10.30

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $17.06

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $4.96

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

Control Panel WPL 3953218 Contact Us For Availability

Clip WPL 3355454 Contact Us For Availability

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $7.40

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.88

Connector WPL 3360056 Contact Us For Availability

Capacitor Clamp WPL 257030 Contact Us For Availability

28

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

28

WP8572720 Whirlpool Capacitor In Stock WPL WP8572720 $35.81

29

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.20

29

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

31

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $8.29

34

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

35

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

36

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $8.40

38

8528351 Whirlpool Clip Backorder WPL 8528351 $29.17

39

Shield-sud WPL 3950830 Contact Us For Availability

40

Extension Shield WPL 3950829 Contact Us For Availability

41

Shield Valve WPL 3348424 Contact Us For Availability

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $34.51

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

350938 Whirlpool Spray Gun Backorder WPL 350938 $50.33

350956 Whirlpool Spray Assembly In Stock WPL 350956 $28.82

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.92

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $34.33

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.13

Paint (White) WPL 799344 Contact Us For Availability
