Model Whirlpool 110.26692501 Automatic Washer – Common Parts &amp; Diagrams

1

W10846509 Whirlpool Screw In Stock WPL W10846509 $2.51

1

WP8533252 Whirlpool Dispenser Assembly Backorder WPL WP8533252 $54.64

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

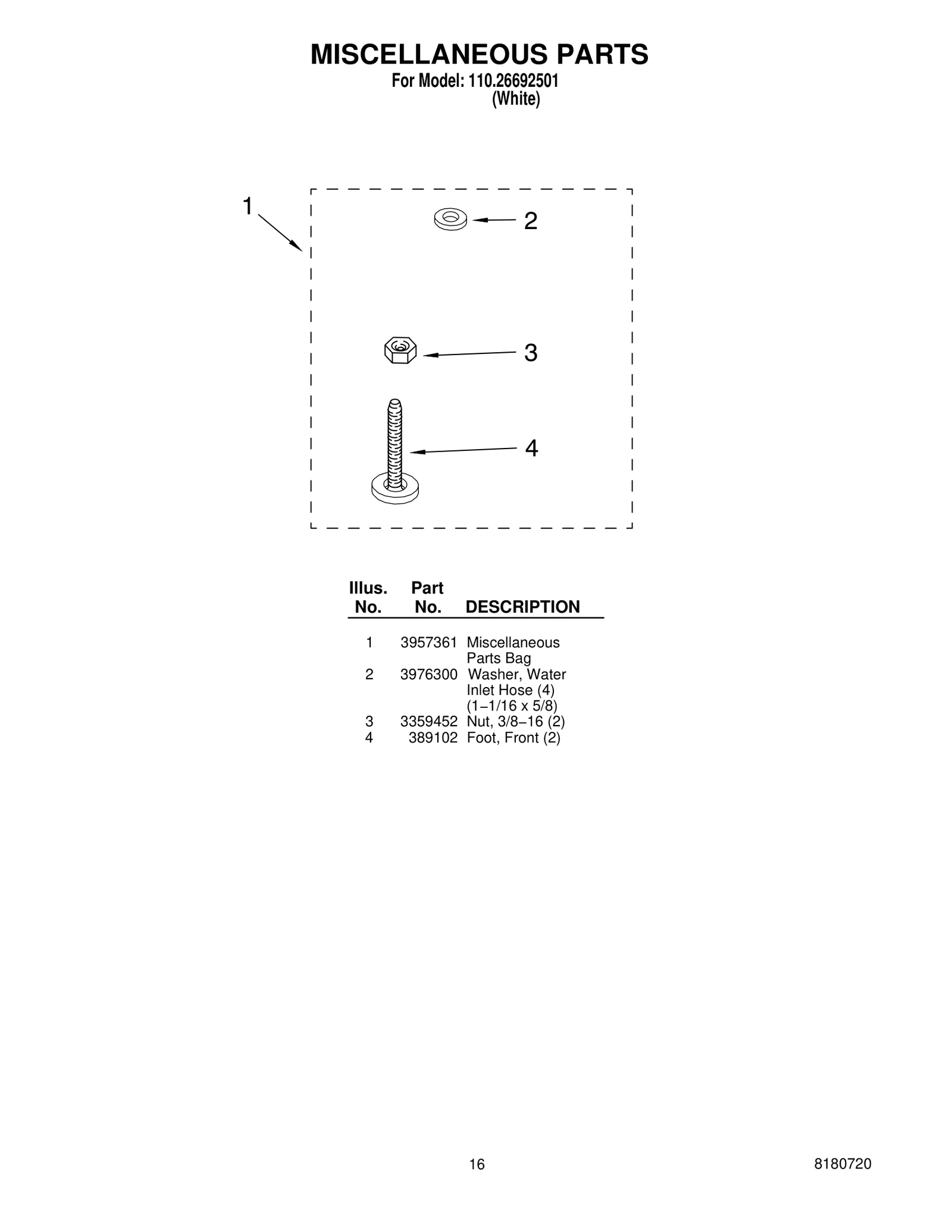

Miscellaneous Parts Bag WPL 3957361 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $87.35

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.43

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $5.27

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.88

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.88

4

WP3363661 Whirlpool Bearing Cam Backorder WPL WP3363661 $3.70

4

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $141.72

4

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.43

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $258.72

5

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $4.94

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Clip, Capacitor WPL 8318046 Contact Us For Availability

6

285438 Whirlpool Brake Shoe In Stock WPL 285438 $83.51

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.88

6

WP389386 Whirlpool Agitator Assembly Backorder WPL WP389386 $81.90

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.88

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

7

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.20

7

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $3.88

7

WP8559502 Whirlpool Endcap Assembly Backorder WPL WP8559502 $42.77

8

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.44

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

WP8312709 Whirlpool Endcap Clip In Stock WPL WP8312709 $8.69

8

Timer, Block Disconnect — White WPL 3948614 Contact Us For Availability

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

W10816321 Whirlpool Knob Backorder WPL W10816321 $35.59

9

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $9.42

9

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

9

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

9

Spring, Brake WPL 387806 Contact Us For Availability

WP8559501 Whirlpool Endcap Backorder WPL WP8559501 $42.62

WP8568314 Whirlpool Strap Backorder WPL WP8568314 $3.70

Plug, Terminal WPL 353424 Contact Us For Availability

Spring, Agitate WPL 62676 Contact Us For Availability

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP8318084 Whirlpool Washer Lid Switch Assembl In Stock WPL WP8318084 $19.84

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $2.51

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

Sound Damper− Cabinet WPL 3976348 Contact Us For Availability

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $9.63

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $29.92

63849 Whirlpool Outer Tub Primary Assembly In Stock WPL 63849 $132.68

Knob, Timer WPL 3956786 Contact Us For Availability

14

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

14

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

8318088 Whirlpool Hinge Assembly Backorder WPL 8318088 $12.08

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $117.58

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $7.96

16

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.73

16

WP54583 Whirlpool Hinge In Stock WPL WP54583 $9.37

16

Washer, Cam Thrust WPL 62618 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

8541668 Whirlpool Washer Clamp Backorder WPL 8541668 $10.76

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $85.47

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

18

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.25

18

Connector, Etc WPL 3349494 Contact Us For Availability

WP8529935 Whirlpool Drive Motor In Stock WPL WP8529935 $250.47

WP8541270 Whirlpool Timer Backorder WPL WP8541270 $185.40

E.T.C. Control WPL 3407125 Contact Us For Availability

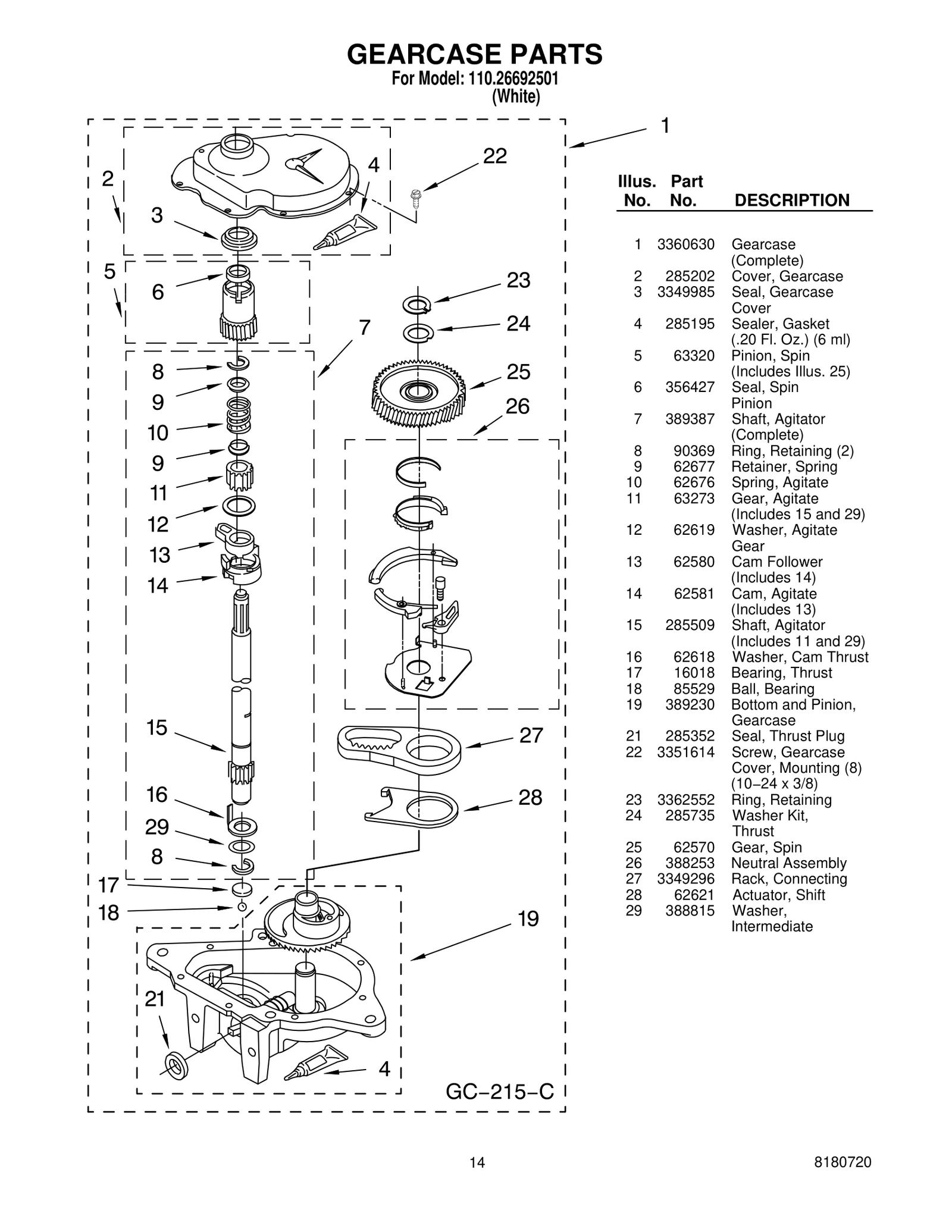

Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability

20

WP2172937 Whirlpool Connector Backorder WPL WP2172937 $8.66

20

Switch, Main Drive Motor WPL 8529896 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $32.54

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $4.96

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.07

Connector (T.P.A) WPL 3360056 Contact Us For Availability

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $10.30

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $24.45

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.64

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

Block, Connector — Cold Valve WPL 3354925 Contact Us For Availability

Block, Connector — Hot Valve WPL 3354926 Contact Us For Availability

23

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

23

WP8543666 Whirlpool Washer In Stock WPL WP8543666 $5.53

23

Ring, Retaining WPL 3362552 Contact Us For Availability

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $62.63

24

Washer Kit, Thrust WPL 285735 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $32.72

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $251.09

27

WP8536939 Whirlpool Spring Clip In Stock WPL WP8536939 $3.88

28

WPW10096921 Whirlpool Hose In Stock WPL WPW10096921 $41.45

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $2.51

39

Shield, Suds WPL 8539874 Contact Us For Availability

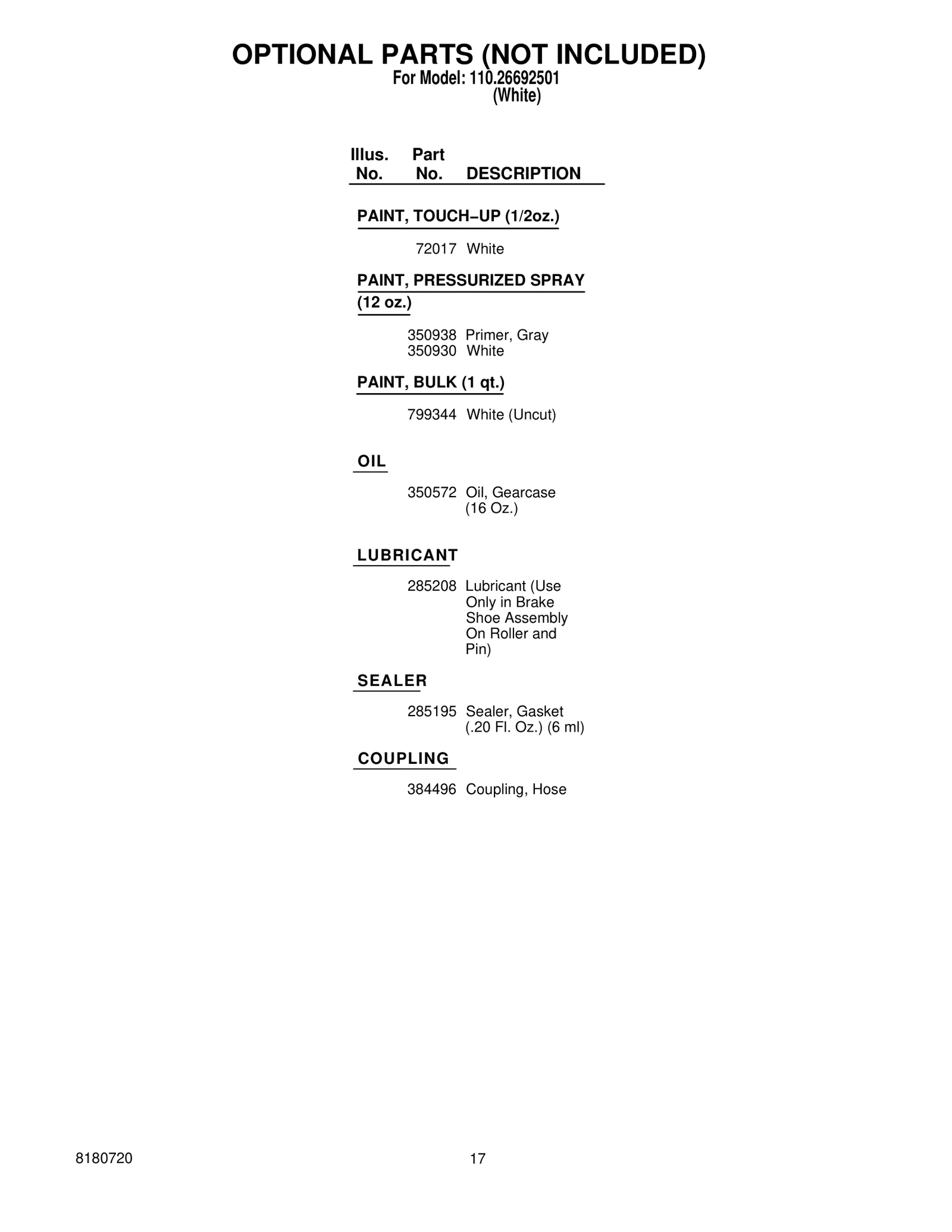

OPT-1

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.92

OPT-2

350938 Whirlpool Spray Gun Backorder WPL 350938 $50.33

OPT-3

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

OPT-4

White (Uncut) WPL 799344 Contact Us For Availability

OPT-5

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $34.51

OPT-6

Lubricant (Use WPL 285208 Contact Us For Availability

OPT-7

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $50.07

OPT-8

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $34.33
