Model GE ZDG41FSS111CN01 General Electric Model ZDG41FSS111CN01 – Common Parts & Diagrams
Access Panel
Air Duct

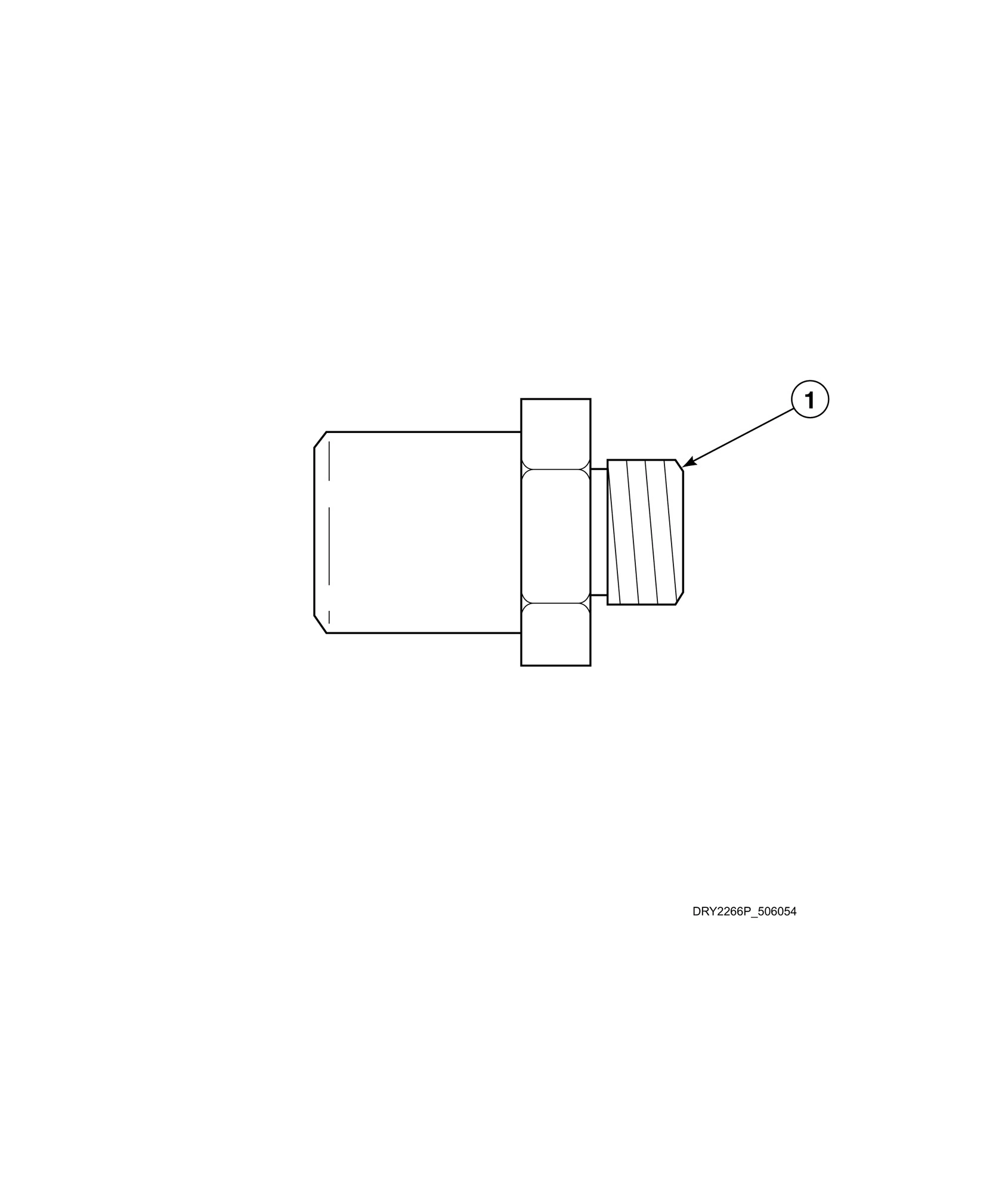

Burner Orifice Spuds - For Higher Elevations (Drawing 1 of 2) (Liquid Petroleum Gas Models)
Burner Orifice Spuds - For Higher Elevations (Drawing 2 of 2) (Natural Gas Models)

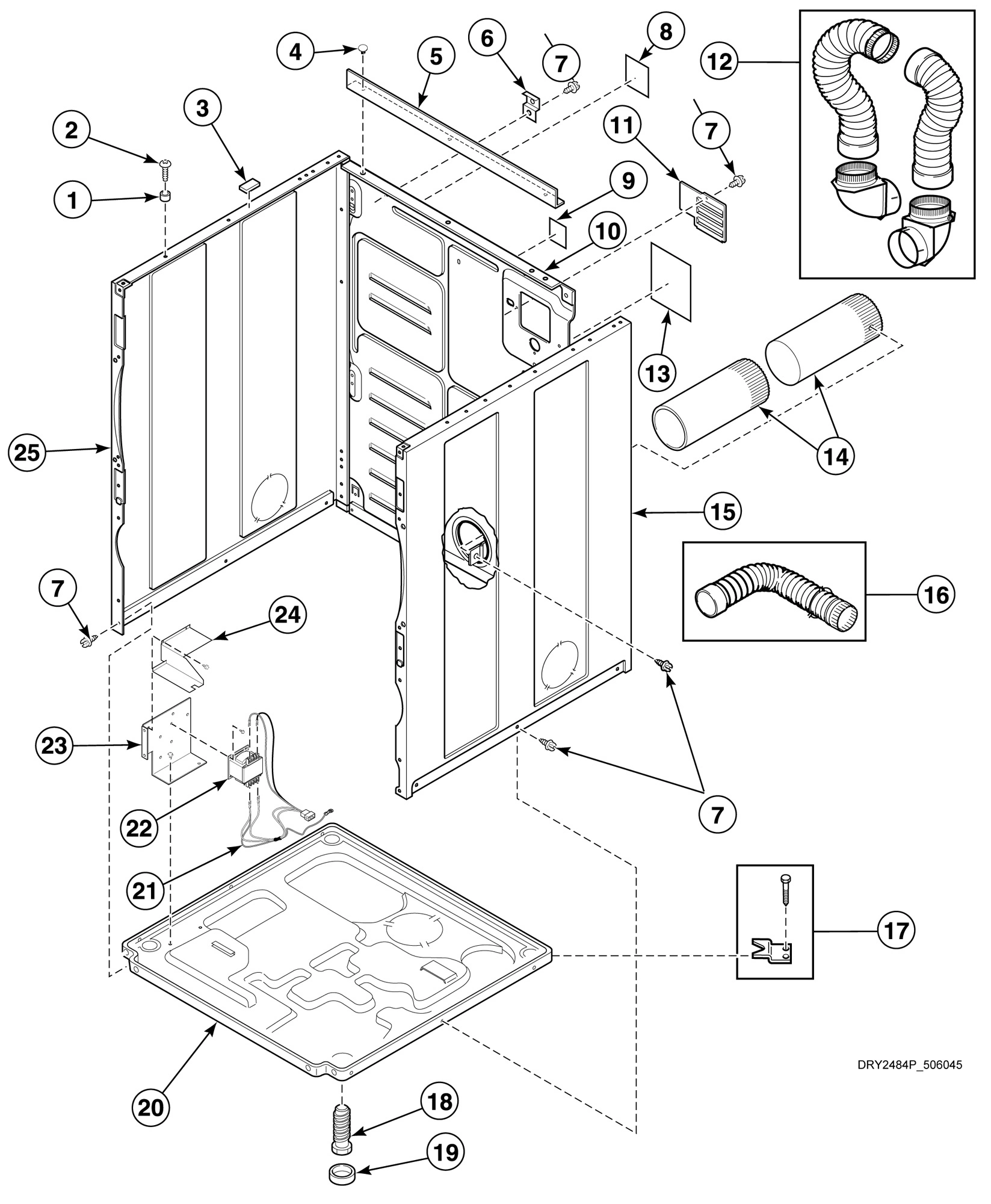

Cabinet, Exhaust Duct and Base

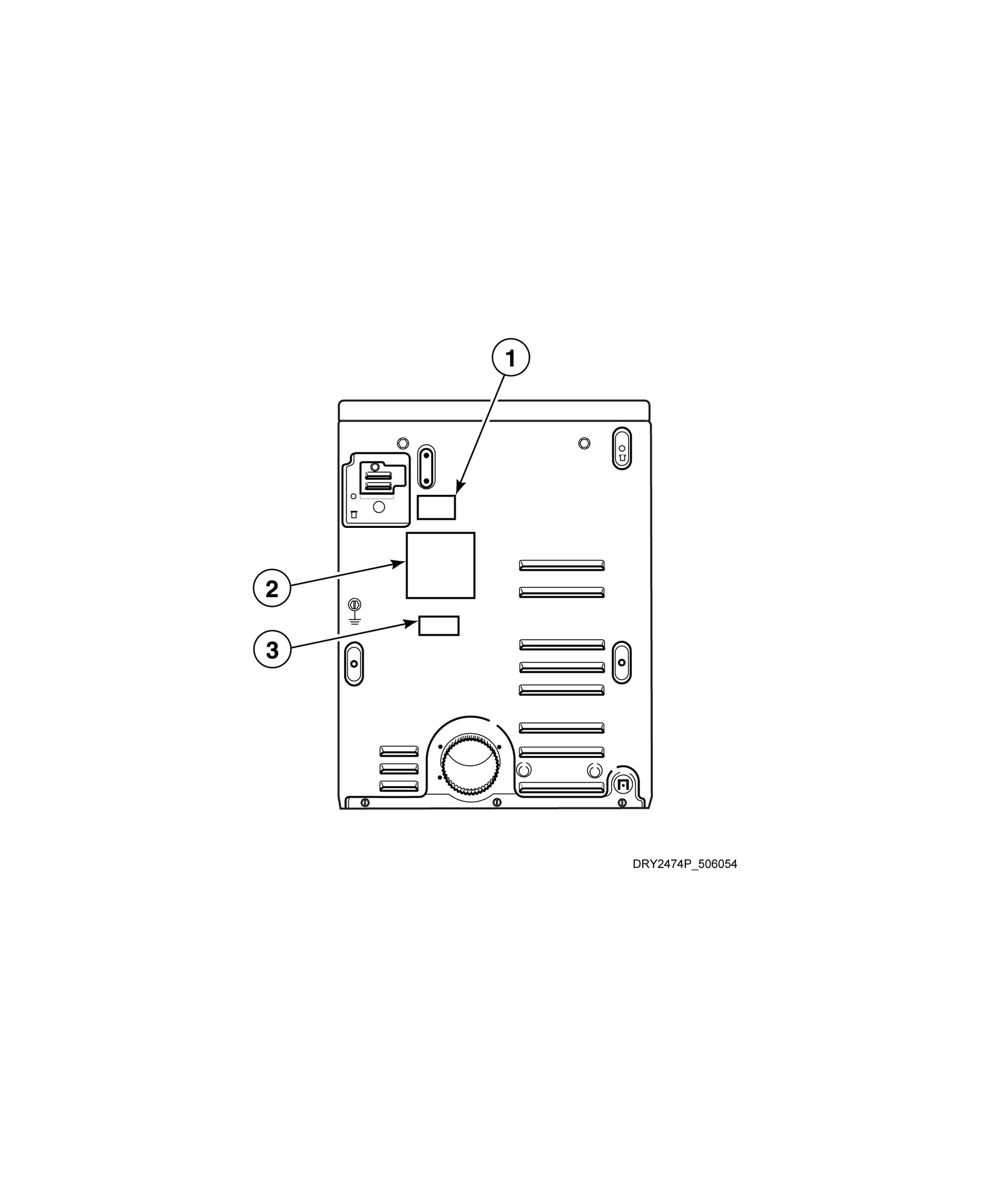

Cabinet Labels

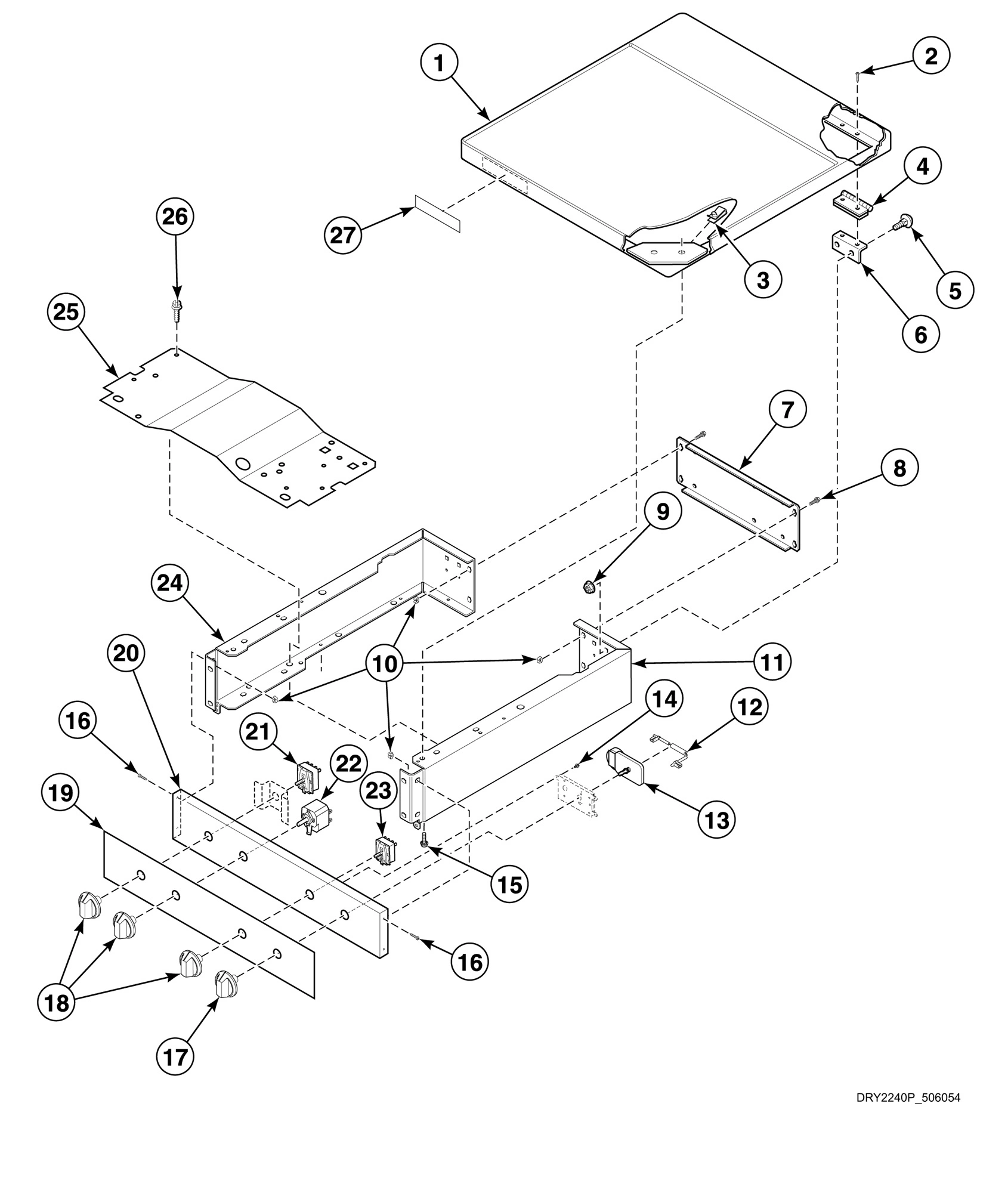

Control Cabinet and Controls

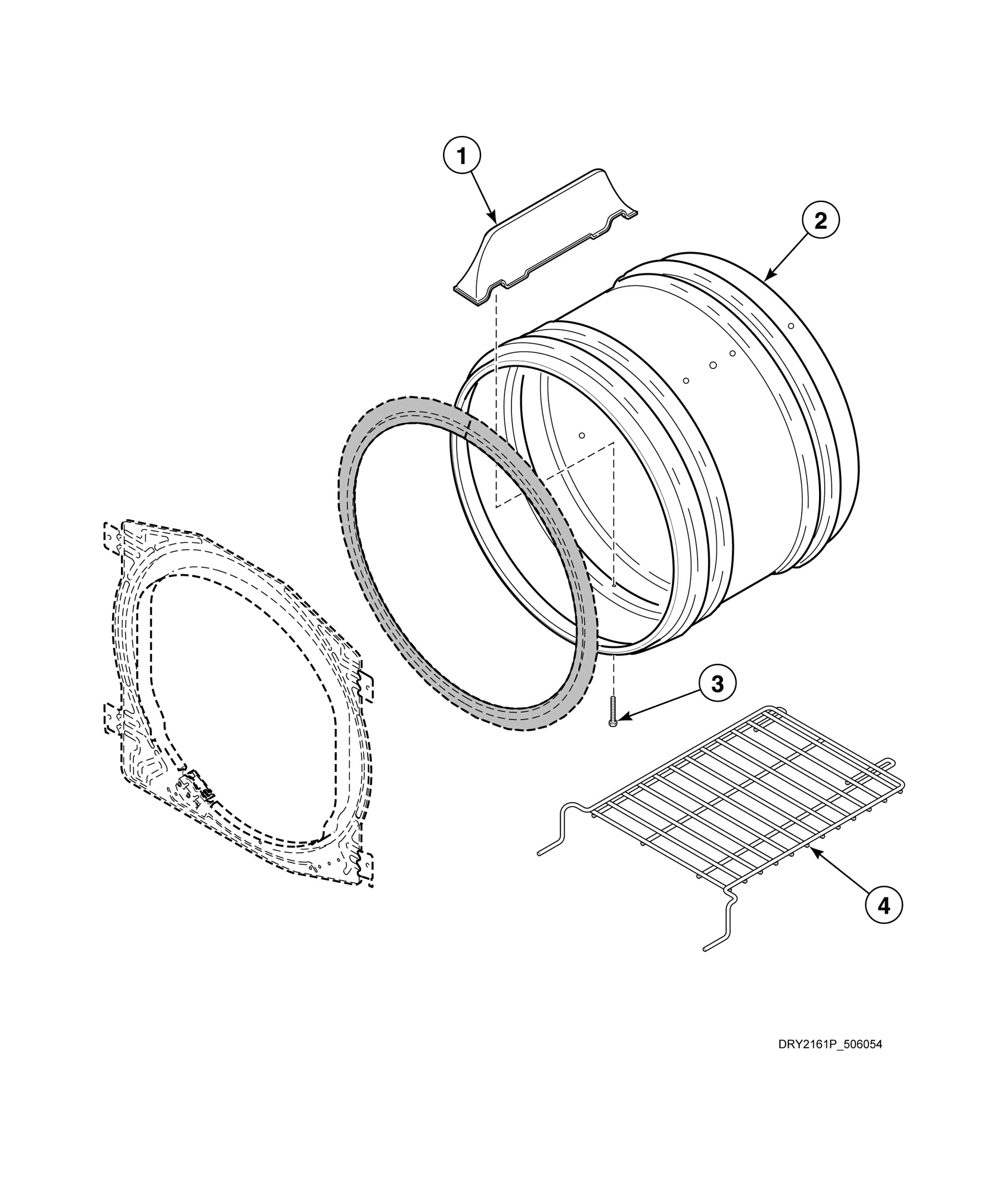

Cylinder, Baffles and Drying Rack
Front Bulkhead and Seal - With Light

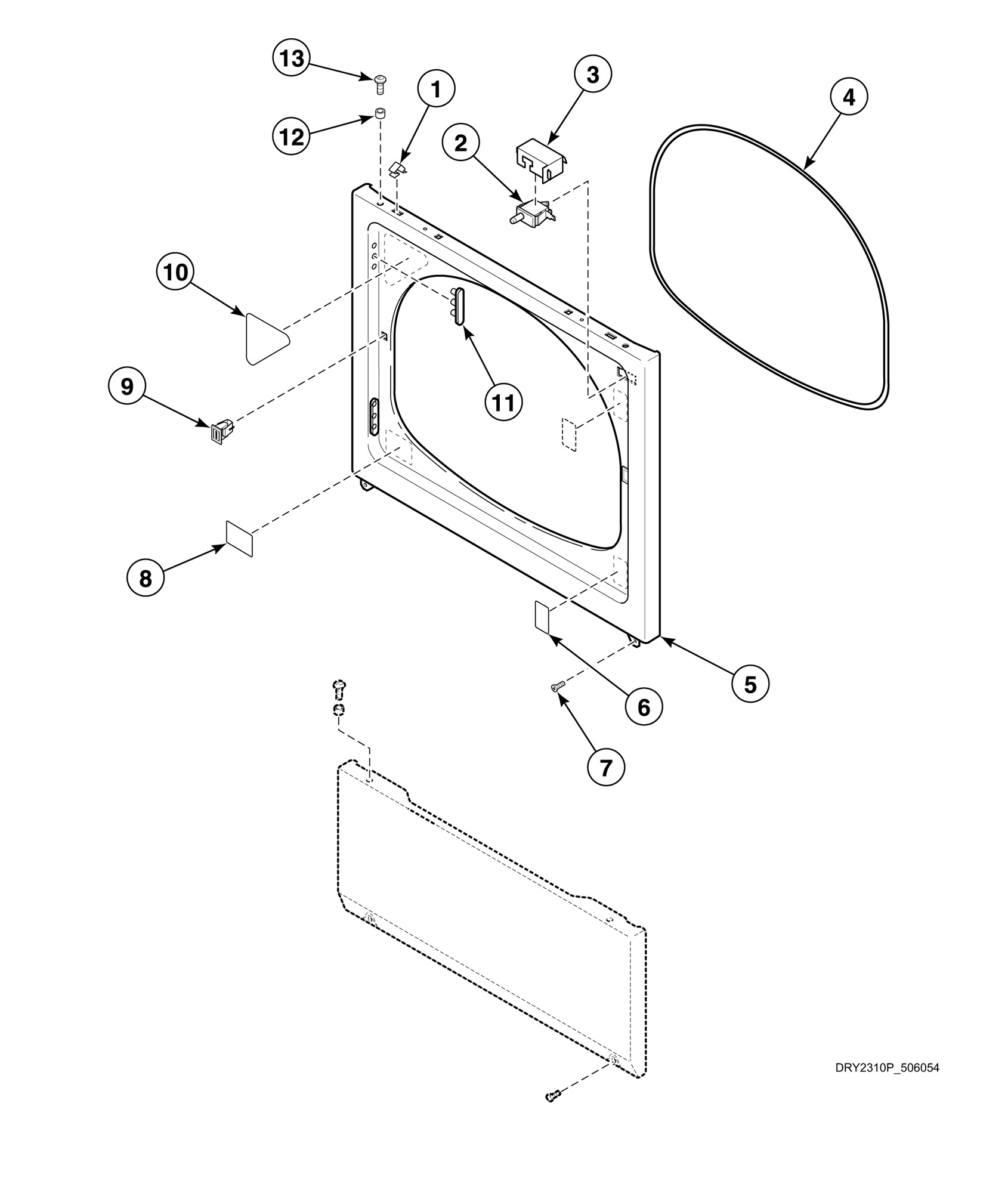

Front Panel and Seal

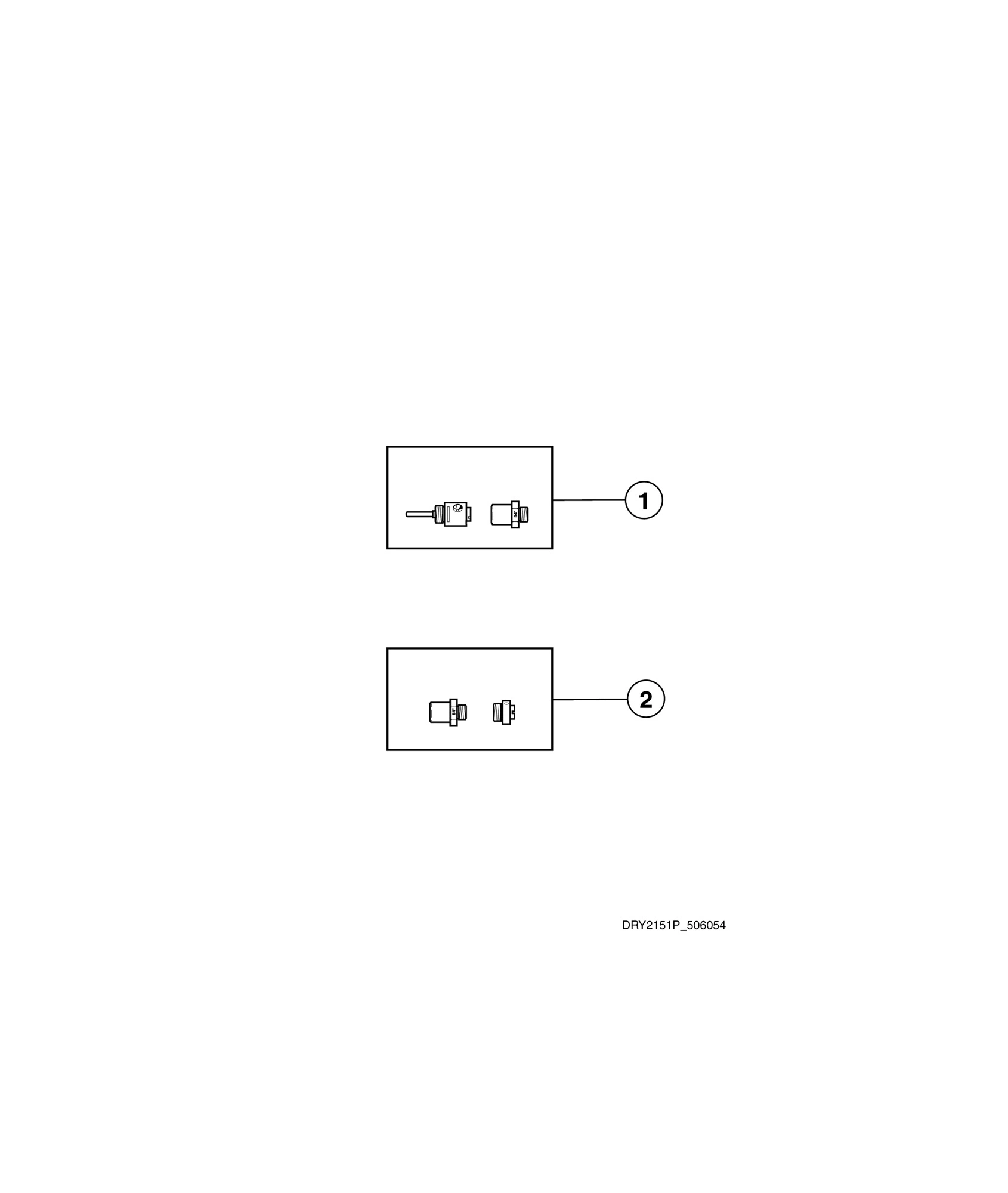

Gas Conversion Kits

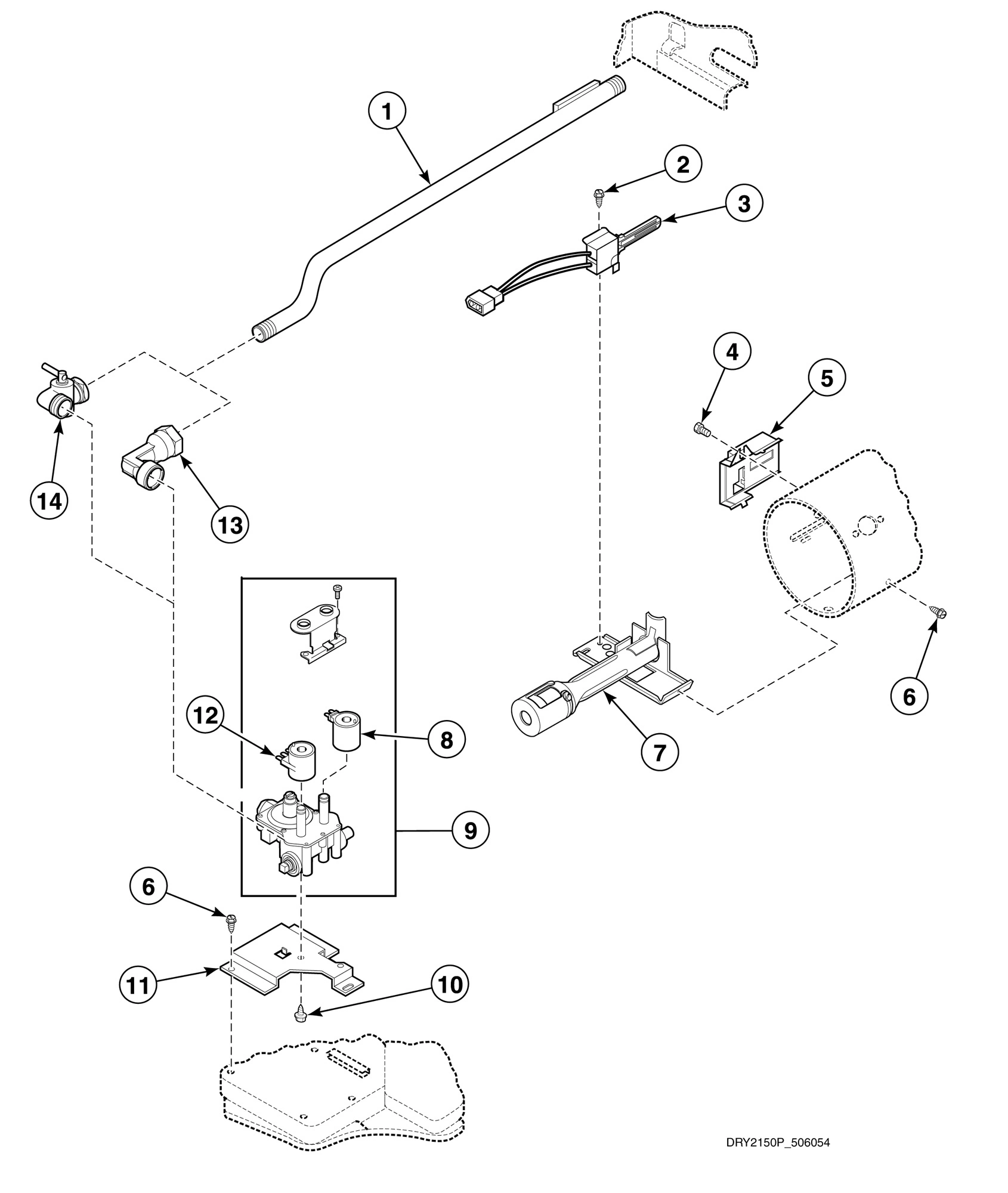

Gas Valve and Igniter

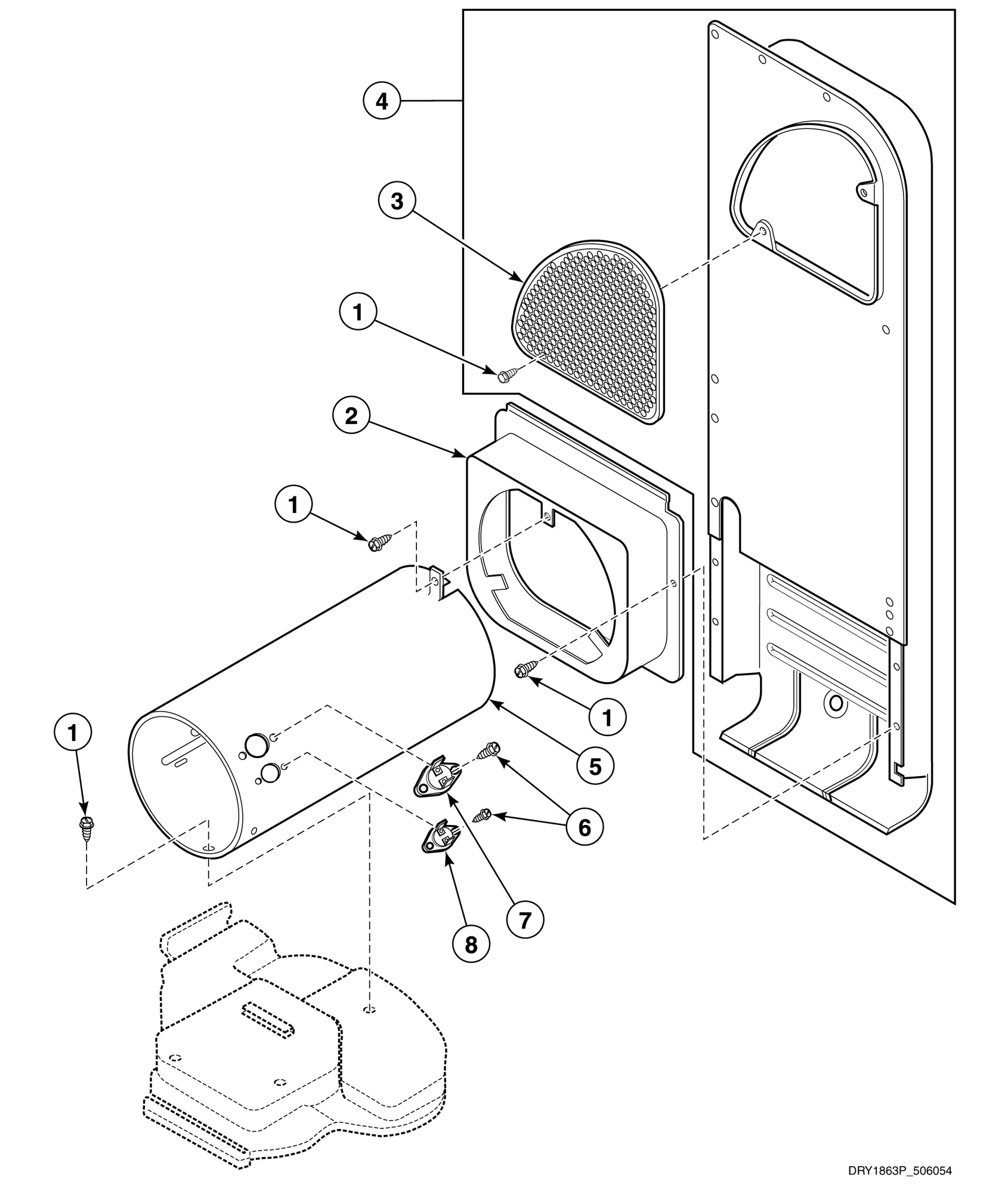

Heater Duct Assembly

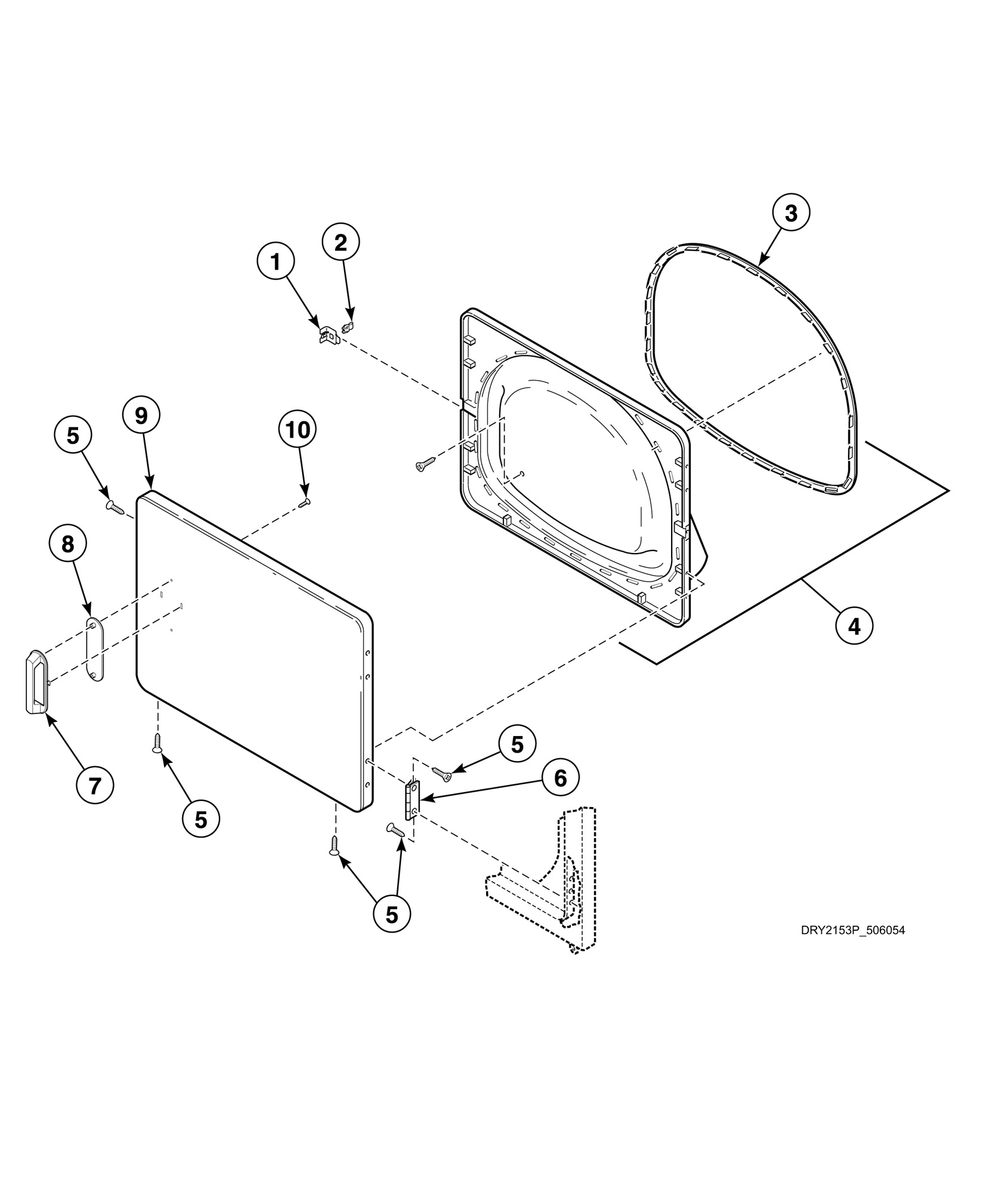

Loading Door (Drawing 1 of 2)

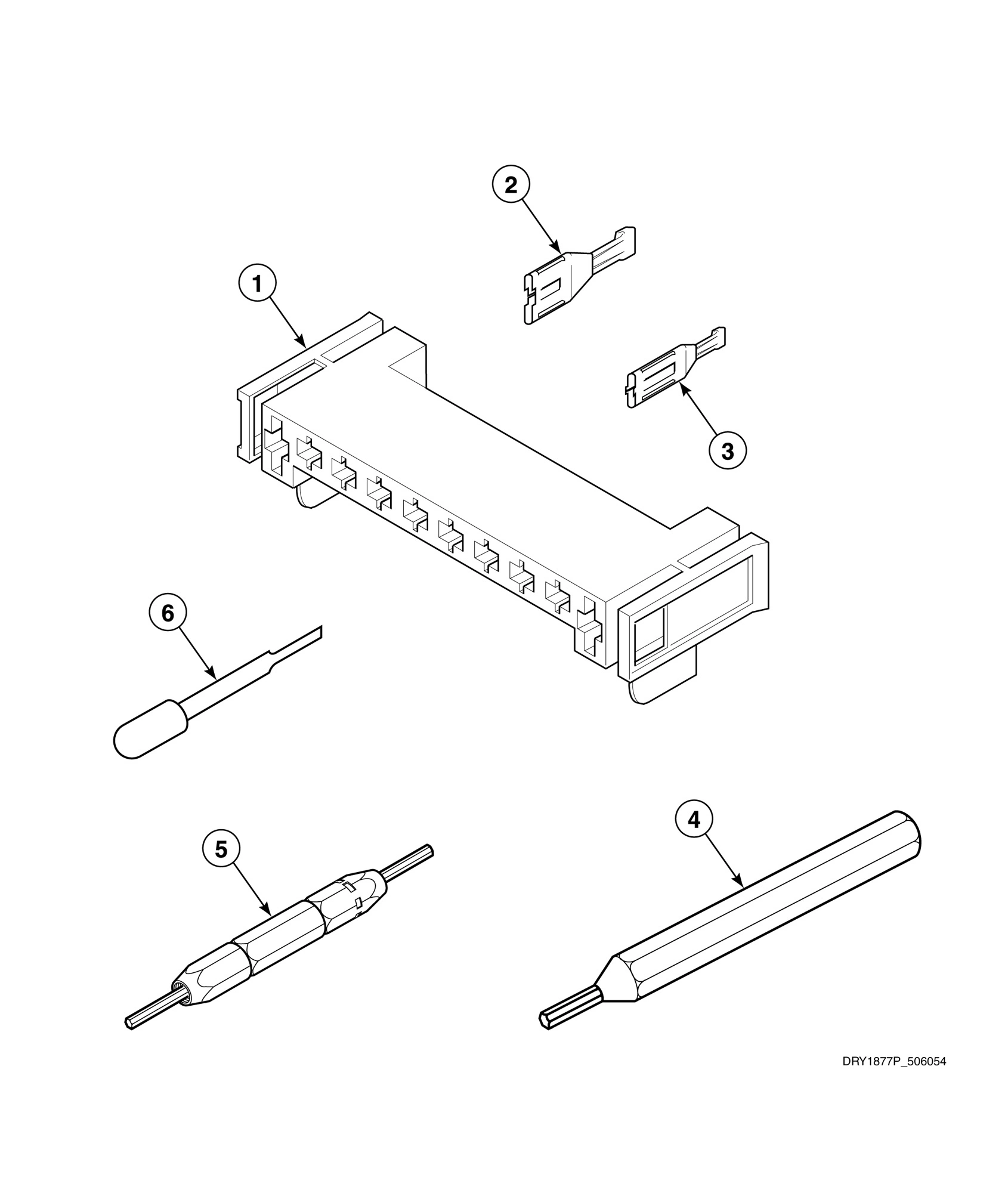

Motor Connection Block, Terminal Extractor Tools

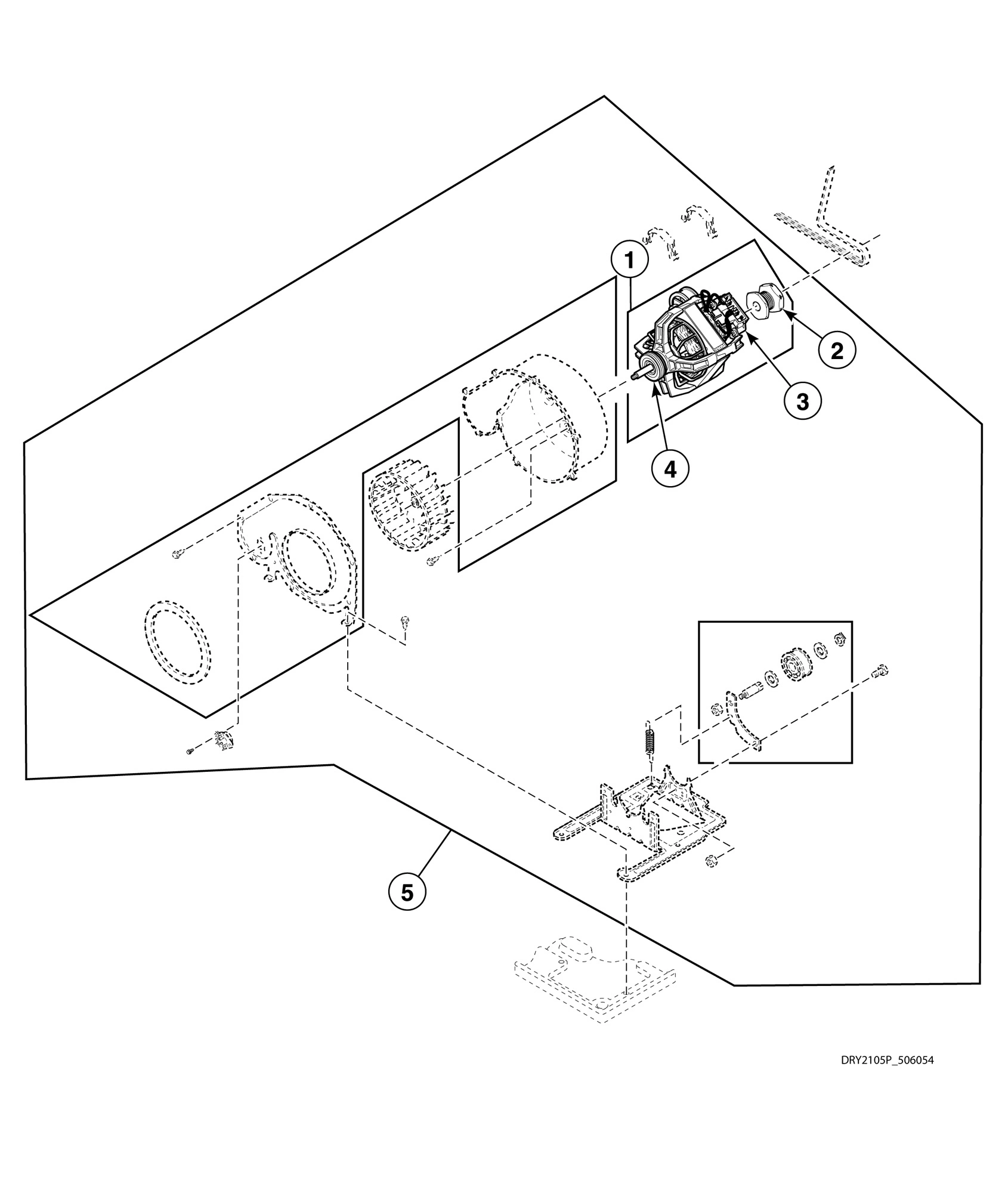

Motor, Exhaust Fan and Belt (Drawing 1 of 2)

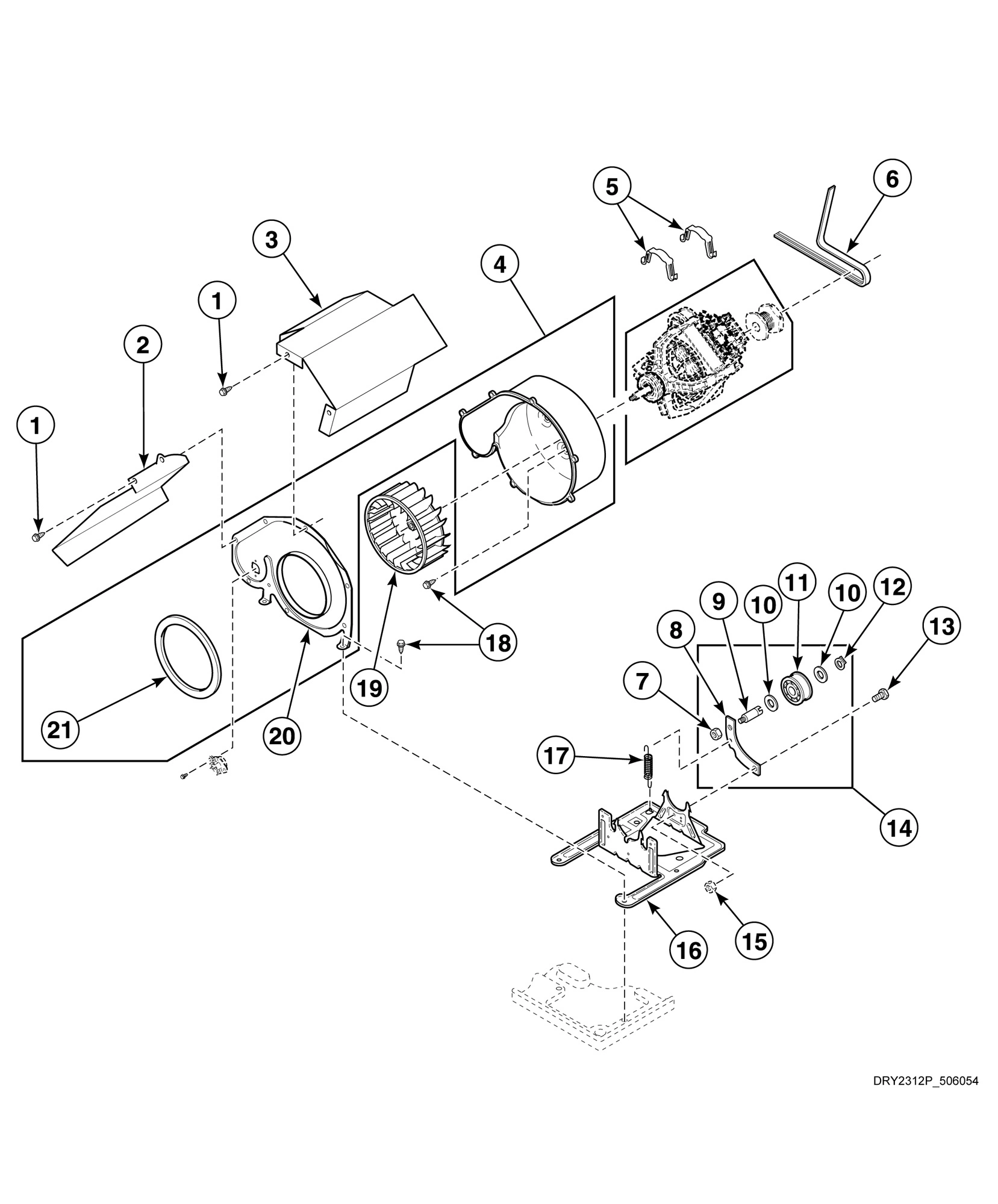

Motor, Exhaust Fan and Belt (Drawing 2 of 2)

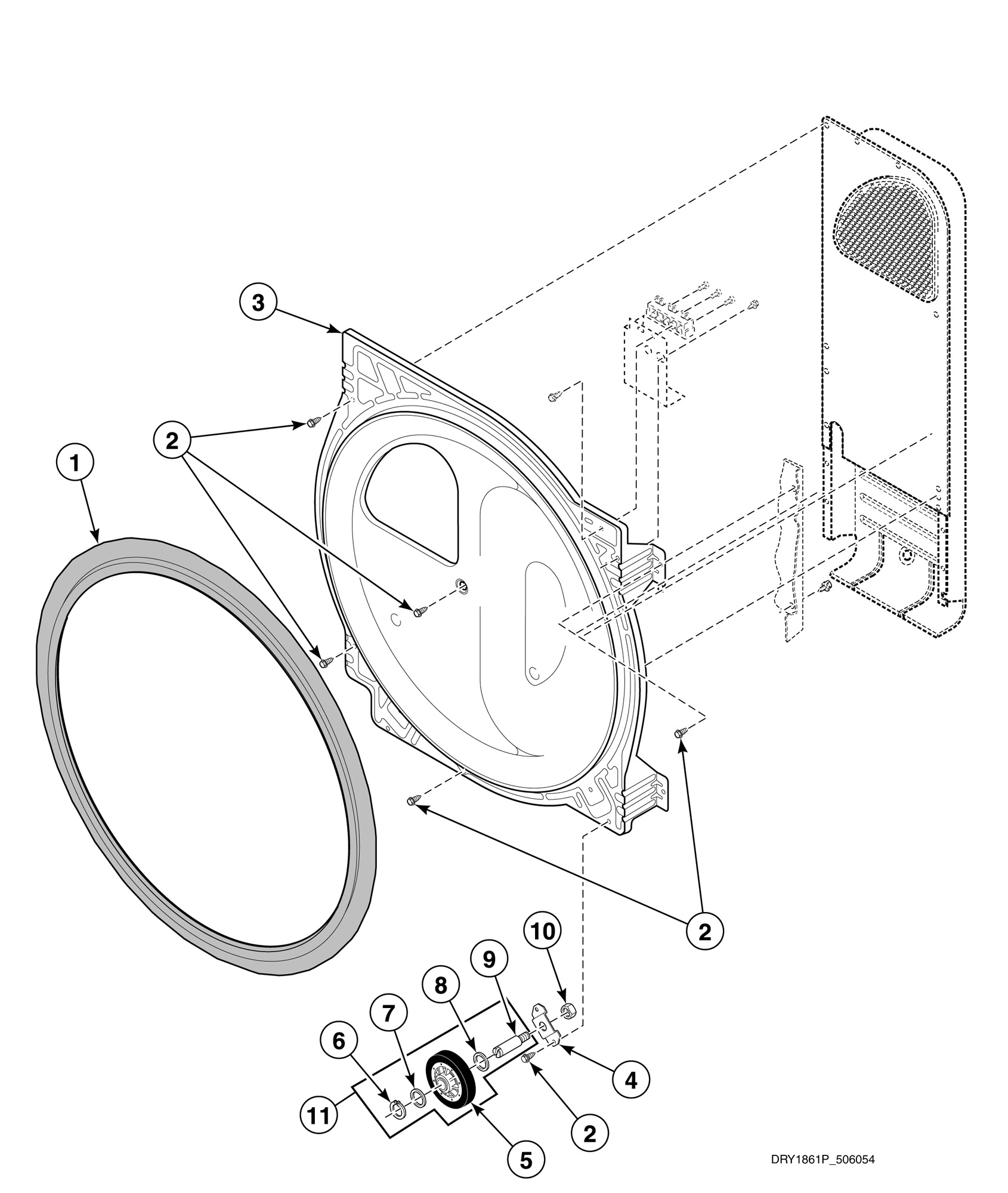

Rear Bulkhead, Felt Seal and Cylinder Roller - 1 Phase Models

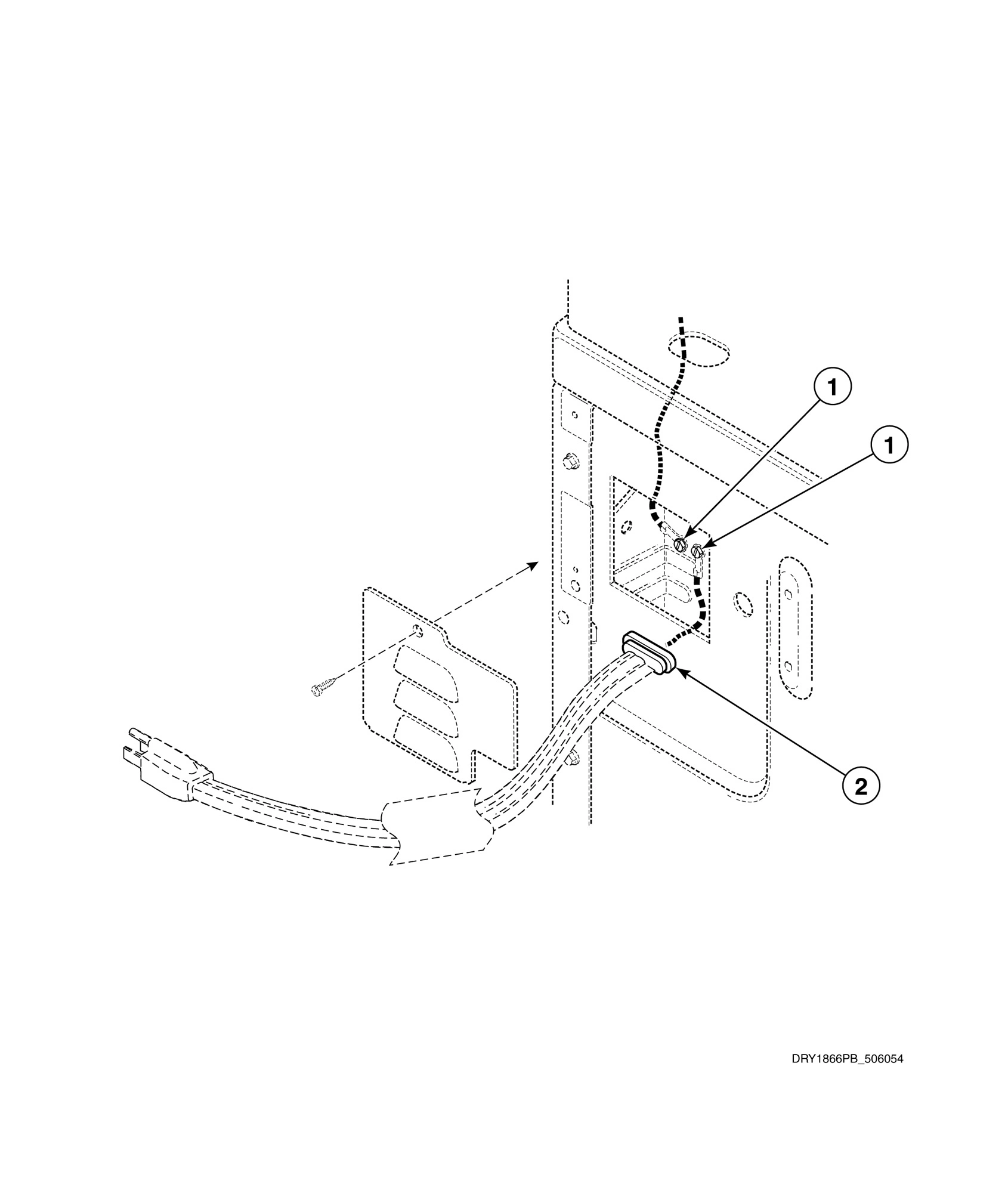

Strain Relief

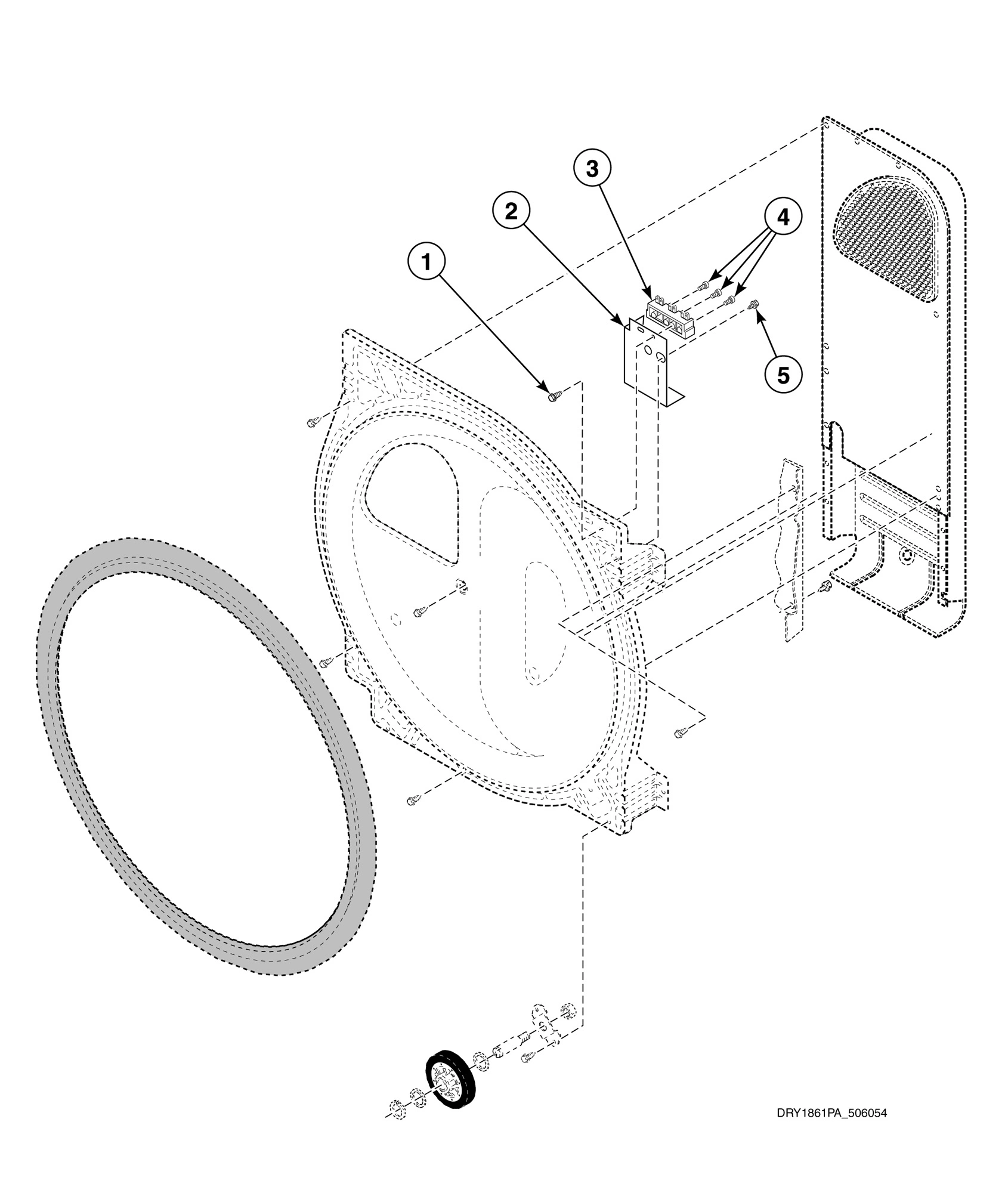

Terminal Block - 1 Phase Models

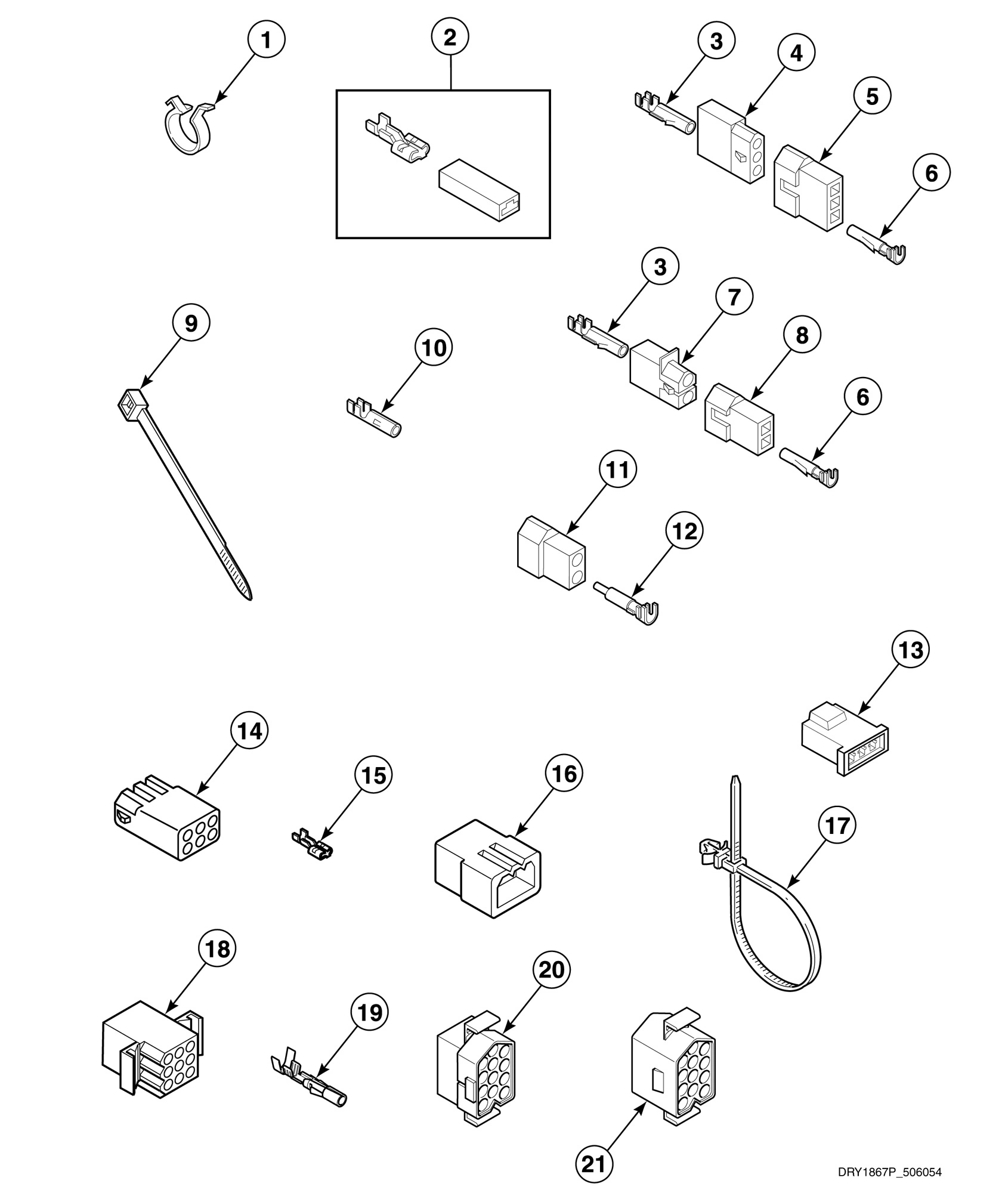

Terminal Block and Terminals

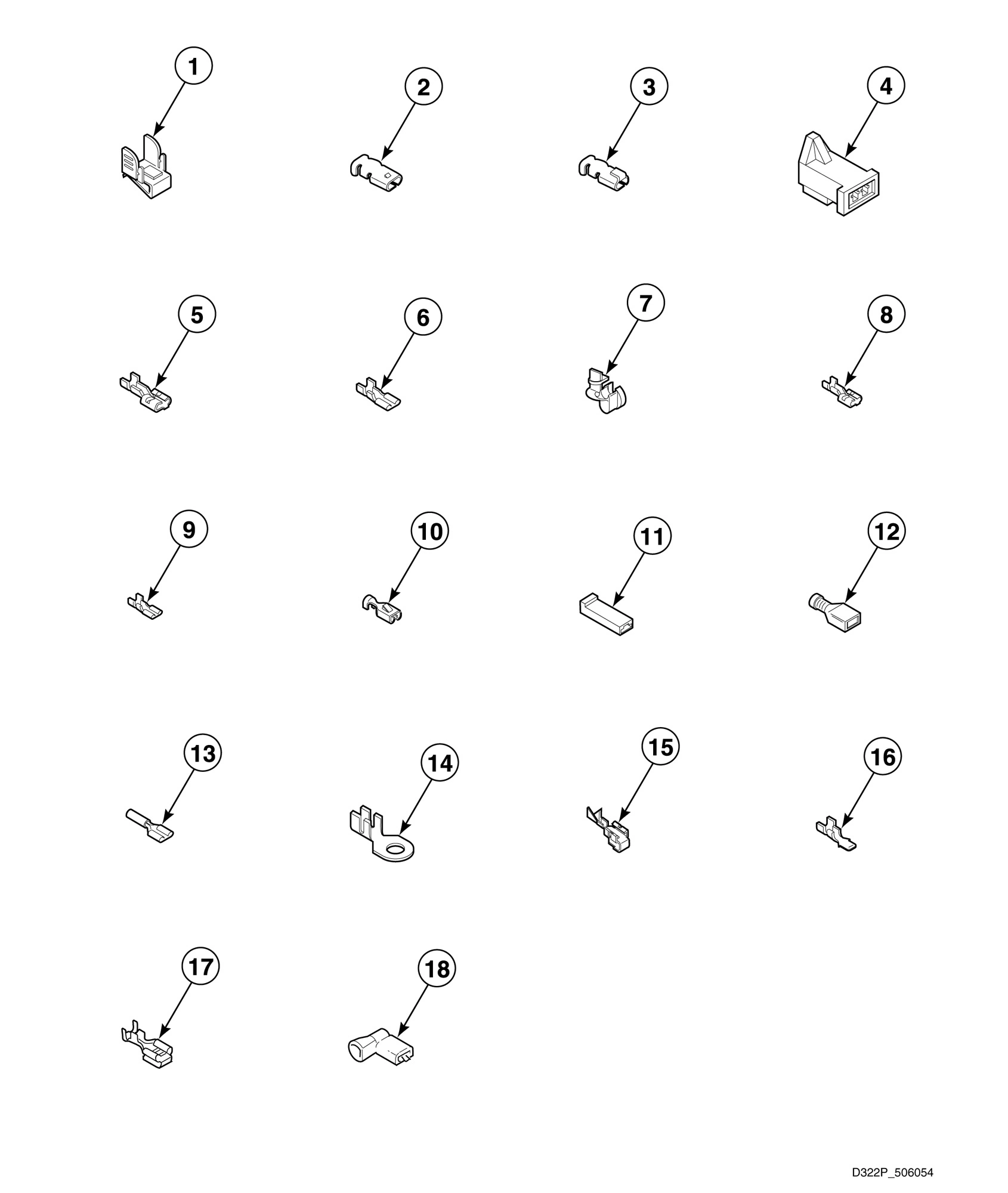

Terminals

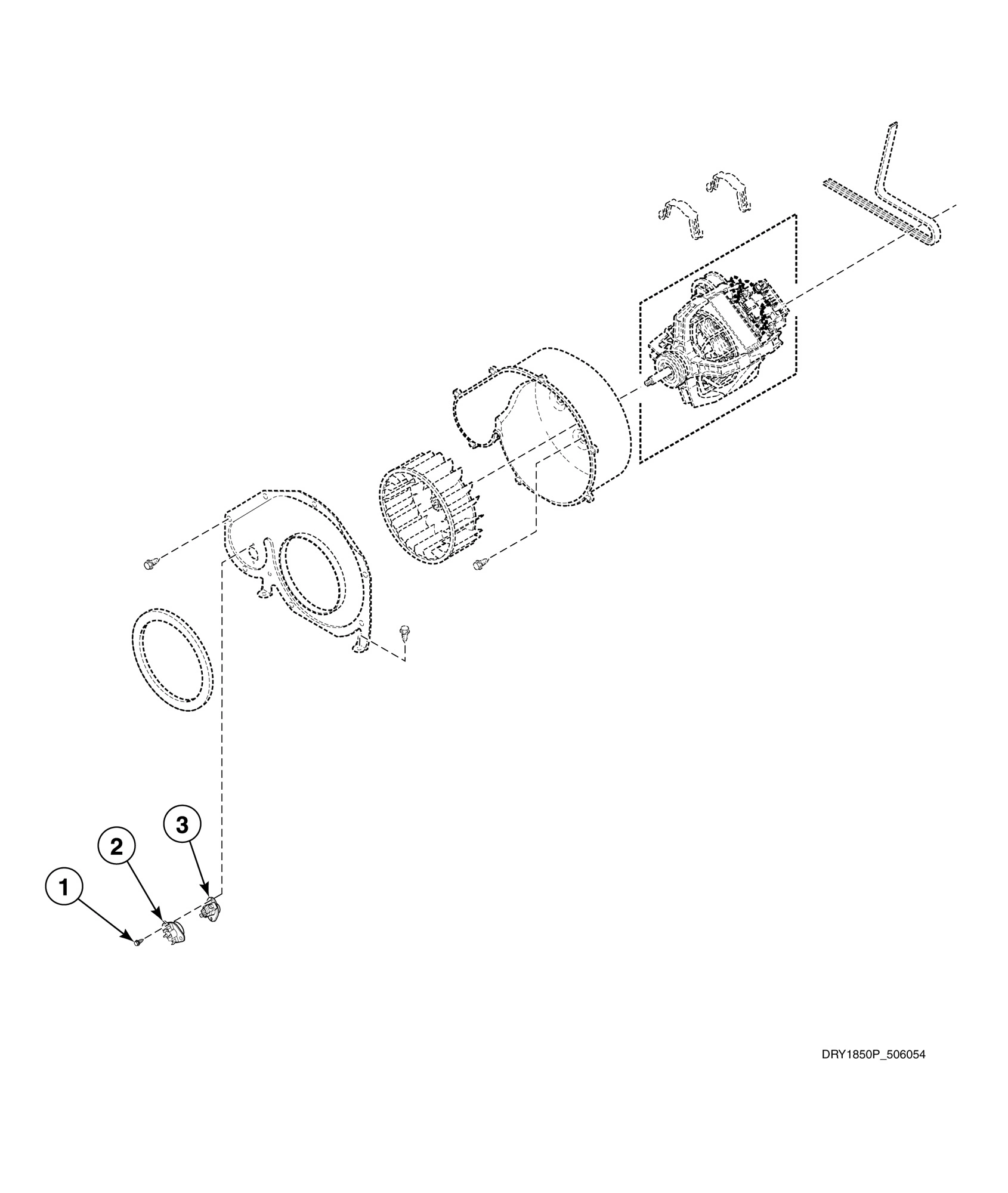

Thermostat
Common parts from model GE ZDG41FSS111CN01 General Electric Model ZDG41FSS111CN01
1
Screw (Comment: Slotted hex head) GEN 33562 Contact Us For Availability
1
Screw GEN D501285 Contact Us For Availability
1
L.P. Orifice (Comment: 22,500 Btu, 3000-7999 GEN 58755 Contact Us For Availability
1
L.P. Orifice (Comment: 22,500 Btu, 8000 feet GEN D503786 Contact Us For Availability
1
Screw Orifice (Comment: 22,500 Btu, 6000-7999 GEN 58719 Contact Us For Availability
1
N.G. Orifice (Comment: 22,500 Btu, 3000-5999 GEN D503778 Contact Us For Availability
1
N.G. Orifice (Comment: 22,500 Btu, 8000-8999 GEN D503779 Contact Us For Availability
1
N.G. Orifice (Comment: 22,500 Btu, 9000-9999 GEN D503780 Contact Us For Availability
1
N.G. Orifice (Comment: 22,500 Btu, 10,000 fee GEN D503781 Contact Us For Availability
1
Top Kit (Comment: Includes items 2, 6, 9 and GEN 803144P Contact Us For Availability
1
Cylinder Baffle (Comment: 3 required, Light g GEN D510102LG Contact Us For Availability
1
Bulkhead Assembly (Comment: Painted, Includes GEN D505899WP Contact Us For Availability
1
Front Bulkhead Assembly (Comment: Galvanized, GEN D512476 Contact Us For Availability
1
Speed Clip GEN 28835 Contact Us For Availability
1
L.P. Conversion Kit (Comment: Used to convert GEN 649P3 Contact Us For Availability
1
Lead-In Pipe Assembly GEN D510204 Contact Us For Availability
1
Door Strike Mount (Comment: Through Serial No GEN D510127 Contact Us For Availability
1
10 Position Housing GEN D500338 Contact Us For Availability
1
Security Cabinet Harness Assembly GEN D511771 Contact Us For Availability
1
Motor and Pulley Assembly (Comment: 120 Volt/ GEN D511629P Contact Us For Availability
1
Screw GEN 31260 Contact Us For Availability
1
Screw GEN 20530 Contact Us For Availability
1
Wire Clip (Comment: 11/16 inch) GEN D504034 Contact Us For Availability
1
Grounding Clip GEN 00161 Contact Us For Availability
1
Screw GEN D502535 Contact Us For Availability
2
Access Panel Assembly (Comment: Stainless ste GEN D514251 Contact Us For Availability
2
Air Duct Assembly GEN D510151LG Contact Us For Availability
2
Screw (Comment: Use with stainless steel pane GEN D512921 Contact Us For Availability
2
Electric Clearance Label GEN D511005 Contact Us For Availability
2
Pop Rivet GEN 685847 Contact Us For Availability
2
Cylinder Assembly (Comment: Stainless steel, GEN D505929LGP Contact Us For Availability
2
Cylinder Assembly (Comment: White, Includes ( GEN D510159WP Contact Us For Availability
2
Cylinder Seal Assembly GEN D510207P Contact Us For Availability
2
Adhesive (Comment: For cylinder seal) GEN D511637P Contact Us For Availability
2
Seal Kit (Comment: Includes 2 cylinder seals, GEN RB170001 Contact Us For Availability
2
Switch GEN D512973 Contact Us For Availability
2
N.G. Conversion Kit (Comment: Used to convert GEN 650P3 Contact Us For Availability
2
Heat Duct Shroud GEN D510101 Contact Us For Availability
2
Door Strike (Comment: Through Serial No. begi GEN D510181 Contact Us For Availability
2
Female Terminal (Comment: 1/4 inch, For (1) 1 GEN 00255 Contact Us For Availability
2
Female Terminal (Comment: 1/4 inch, For (1) o GEN 00256 Contact Us For Availability
2
Wire Harness Assembly GEN D511769P Contact Us For Availability
2
Wire Harness Assembly GEN D513803 Contact Us For Availability
2
Motor Pulley (Comment: 60 Hertz, Use with D51 GEN D500011 Contact Us For Availability
2
Insulated Female Spade Terminal (Comment: (1) GEN 00360 Contact Us For Availability
2
Female Spade Terminal GEN 00189 Contact Us For Availability
2
Thermostat (Comment: Pink/White) GEN D510707P Contact Us For Availability
3
Warning Label GEN D500314 Contact Us For Availability
3
Bumper Pad GEN 56128 Contact Us For Availability
3
NOT ON YOUR MODEL GEN - Contact Us For Availability
3
Nut GEN 36020 Contact Us For Availability
3
Screw GEN 62588 Contact Us For Availability
3
Screw GEN D500227 Contact Us For Availability
3
Igniter and Bracket Assembly GEN D510184P Contact Us For Availability
3
Outlet Cover GEN D500820 Contact Us For Availability
3
Liner Door Seal (Comment: Through Serial No. GEN D510147P Contact Us For Availability
3
Female Terminal (Comment: For 1 or 2 wire app GEN 00188 Contact Us For Availability
3
Rear Bulkhead Assembly (Comment: Stainless st GEN D505246 Contact Us For Availability
3
Rear Bulkhead Assembly (Comment: White, Inclu GEN D510905WP Contact Us For Availability
3
Female Pin Terminal GEN 00117 Contact Us For Availability
3
Female Piggyback Terminal (Comment: Receptacl GEN 00361 Contact Us For Availability
4
Lint Filter (Comment: Light gray) GEN D503980LG Contact Us For Availability
4
Drying Rack GEN D512082P Contact Us For Availability
4
Front Panel Seal GEN D511056 Contact Us For Availability
4
Screw GEN 23222 Contact Us For Availability
4
Heater Duct Assembly (Comment: Includes items GEN D510025P Contact Us For Availability
4
Liner and Seal Assembly (Comment: Gray) GEN D513109P Contact Us For Availability
4
Extractor Tool GEN 128P4 Contact Us For Availability
4
Motor Hub Ring Kit GEN 590P3 Contact Us For Availability
4
Cylinder Roller Bracket GEN D510100 Contact Us For Availability
4
3 Circuit Receptacle GEN 23039 Contact Us For Availability
4
2 Circuit Connector GEN 58799 Contact Us For Availability
5
Screw GEN D503688 Contact Us For Availability
5
Bolt GEN 29651 Contact Us For Availability
5
Screw GEN D514461 Contact Us For Availability
5
Front Panel (Comment: Stainless steel) GEN D512542 Contact Us For Availability
5
Sensor GEN D510213 Contact Us For Availability
5
Combustion Duct GEN D510131 Contact Us For Availability
5
Blower and Fan Kit (Comment: 120 Volt/60 Hert GEN D510717P Contact Us For Availability
5
Cylinder Roller GEN D510708P Contact Us For Availability
5
Plug GEN 23040 Contact Us For Availability
5
Female Spade Terminal (Comment: 1/4 inch, (2) GEN 00121 Contact Us For Availability
5
Spade Terminal (Comment: 1/4 inch, (1) 22 gau GEN 00245 Contact Us For Availability
6
Top Hinge GEN D510136 Contact Us For Availability
6
Hinge GEN D511036 Contact Us For Availability
6
Top Mounting Bracket GEN D504228 Contact Us For Availability
6
Cylinder Glide Bracket GEN D510145 Contact Us For Availability
6
Screw GEN 51782 Contact Us For Availability
6
Terminal Extractor Tool (Comment: For use on GEN 283P4 Contact Us For Availability
6
Retaining Ring GEN 23748 Contact Us For Availability
6
Male Pin Terminal GEN 00116 Contact Us For Availability
6
Female Spade Terminal (Comment: 3/16 inch, (1 GEN 00124 Contact Us For Availability
6
Female Spade Terminal (Comment: 3/16 inch, Th GEN 00156 Contact Us For Availability
7
Rear Control Cabinet GEN 801058 Contact Us For Availability
7
Screw GEN D501086 Contact Us For Availability
7
Burner Assembly GEN D510149P Contact Us For Availability
7
Limit Thermostat (Comment: Auto reset, Black) GEN D510702 Contact Us For Availability
7
Door Handle GEN 803095 Contact Us For Availability
7
Washer GEN 52549 Contact Us For Availability
7
Strain Relief GEN 38384 Contact Us For Availability
7
2 Circuit Receptacle GEN 56451 Contact Us For Availability
8
Gas Clearance Label GEN D511004 Contact Us For Availability
8
Screw GEN 70240301 Contact Us For Availability
8
Felt Pad GEN D510189 Contact Us For Availability
8
Secondary Coil (Comment: 60 Hertz) GEN 58804B Contact Us For Availability
8
Handle Cover GEN 803094P Contact Us For Availability
8
Washer GEN D504082 Contact Us For Availability
8
2 Circuit Plug GEN 56448 Contact Us For Availability
9
Warning Label (Comment: Disconnect power) GEN 803260 Contact Us For Availability
9
Nut GEN 44087201 Contact Us For Availability
9
Cylinder Glide GEN D513710 Contact Us For Availability
9
Door Catch Assembly GEN D510177 Contact Us For Availability
9
Gas Valve Assembly (Comment: 60 Hertz, 22,500 GEN D510506P Contact Us For Availability
9
Dryer Door GEN D513156 Contact Us For Availability
9
Shaft GEN 56461P Contact Us For Availability
9
Harness Strap GEN 55881 Contact Us For Availability
9
Terminal GEN 00347 Contact Us For Availability
10
Cabinet Rear Panel GEN D514632P Contact Us For Availability
10
Expansion Clip GEN 70030501 Contact Us For Availability
10
Cylinder Light Lens GEN D512106 Contact Us For Availability
10
Caution Label (Comment: French) GEN D500253 Contact Us For Availability
10
Screw GEN 56124 Contact Us For Availability
10
Screw GEN 800548 Contact Us For Availability
10
Nut GEN 56156 Contact Us For Availability
10
Female Pin Terminal (Comment: 1/8 inch) GEN 00130 Contact Us For Availability
10
Female Spade Terminal (Comment: 1/4 inch, (1) GEN 00115 Contact Us For Availability
11
Access Panel Plate GEN D510903 Contact Us For Availability
11
Control Cabinet (Comment: Right, Stainless st GEN 803141 Contact Us For Availability
11
Control Cabinet (Comment: Right, Gray) GEN D513701G Contact Us For Availability
11
Drum Light Lamp (Comment: 120 Volt) GEN 60954 Contact Us For Availability
11
Hinge Hole Plug GEN D510186 Contact Us For Availability
11
Gas Valve Mounting Bracket GEN D510128 Contact Us For Availability
11
Idler Wheel and Bearing Assembly GEN D510142P Contact Us For Availability
11
Roller Kit (Comment: Includes items 5-9, (Qua GEN RB170002 Contact Us For Availability
11
2 Circuit Plug GEN 56266 Contact Us For Availability
11
Receptacle Housing GEN 90789 Contact Us For Availability
12
Panel Locator GEN 56079 Contact Us For Availability
12
Flexible Venting Kit GEN 521P3 Contact Us For Availability
12
Light Housing Assembly (Comment: 120 Volt, In GEN D512108 Contact Us For Availability
12
Booster and Holding Coil (Comment: 60 Hertz) GEN 58804A Contact Us For Availability
12
Male Pin Terminal (Comment: 1/8 inch) GEN 00127 Contact Us For Availability
12
Insulated Female Terminal (Comment: 3/16 inch GEN 00165 Contact Us For Availability
13
Screw GEN 39733 Contact Us For Availability
13
Timer GEN D511149P Contact Us For Availability
13
Glide Kit (Comment: Includes items 8 and 9) GEN RB170003 Contact Us For Availability
13
Elbow GEN D513072 Contact Us For Availability
13
Screw GEN D500824 Contact Us For Availability
13
3 Circuit Connector GEN 58800 Contact Us For Availability
14
Exhaust Duct (Comment: Each dryer requires 2 GEN D510137 Contact Us For Availability
14
Elbow Shut-Off Valve GEN D510205 Contact Us For Availability
14
Idler Lever and Wheel Assembly (Comment: Incl GEN D510158 Contact Us For Availability
14
6 Circuit Receptacle GEN 26708 Contact Us For Availability
14
Ring Terminal (Comment: 10 stud, (1) 18 gauge GEN 00110 Contact Us For Availability
14
Ring Terminal (Comment: 10 stud, (2) 18 gauge GEN 00111 Contact Us For Availability
15
Cabinet Side Panel (Comment: Stainless steel, GEN D512539 Contact Us For Availability
15
Screw GEN 23008 Contact Us For Availability
15
Nut GEN 52566 Contact Us For Availability
15
Female Spade Terminal (Comment: 1/4 inch) GEN 00222 Contact Us For Availability
15
Female Spade Terminal (Comment: 1/4 inch, Dou GEN 00114 Contact Us For Availability
16
Directional Exhaust Kit (Comment: Used to ven GEN 528P3 Contact Us For Availability
16
Screw GEN F430956 Contact Us For Availability
16
Motor Mount GEN D510060 Contact Us For Availability
16
9 Circuit Plug GEN 23033 Contact Us For Availability
16
Male Tab Terminal (Comment: 1/4 inch, (2) 18 GEN 00139 Contact Us For Availability
17
Hold Down Kit (Comment: For mobile home insta GEN 526P3 Contact Us For Availability
17
Timer Knob Assembly GEN 803098P Contact Us For Availability
17
Idler Spring GEN D510185 Contact Us For Availability
17
Wire Tie GEN 38663 Contact Us For Availability
17
GEN 00344 GEN 00344 Contact Us For Availability
18
Leveling Leg GEN D510135 Contact Us For Availability
18
Control Knob Assembly GEN 803099P Contact Us For Availability
18
GEN N/A GEN N/A Contact Us For Availability
18
9 Circuit Receptacle GEN 26163 Contact Us For Availability
19
Rubber Foot GEN D501855 Contact Us For Availability
19
Panel GEN D513093 Contact Us For Availability
19
Female Pin Terminal (Comment: 1/8 inch) GEN 00128 Contact Us For Availability
19
Male Pin Terminal (Comment: 1/8 inch) GEN 00129 Contact Us For Availability
20
Dryer Base GEN D513901 Contact Us For Availability
20
Control Panel Assembly GEN D513161 Contact Us For Availability
20
Plug GEN 54522 Contact Us For Availability
21
Fabric Selector Switch GEN D513506 Contact Us For Availability
21
12 Circuit Receptacle GEN 56855 Contact Us For Availability
22
Buzzer GEN D510211 Contact Us For Availability
23
Selector Switch GEN 803568 Contact Us For Availability
24
Control Cabinet (Comment: Left, Stainless ste GEN 803142 Contact Us For Availability
24
Control Cabinet (Comment: Left, Gray) GEN D513702G Contact Us For Availability
25
Cabinet Side Panel (Comment: Stainless steel, GEN D512951 Contact Us For Availability
25
Control Cabinet Bottom GEN 801777 Contact Us For Availability
26
Screw (Comment: Use with stainless steel cabi GEN M405188 Contact Us For Availability
27
Badge GEN 803101 Contact Us For Availability
NA
Porcelain Touch-Up Paint (Comment: White) GEN 122P4P Contact Us For Availability
NA
Porcelain Touch-Up Paint (Comment: Almond) GEN 215P4P Contact Us For Availability
NA
Porcelain Touch-Up Paint (Comment: Bisque) GEN 370P4P Contact Us For Availability
NA
Wire Assembly (Comment: Extra tumble) GEN D513170P Contact Us For Availability
NA
18 Gauge Wire (Comment: Black, Order wire by GEN 45001 Contact Us For Availability
NA
12 Gauge Wire (Comment: Orange, Order wire by GEN 45380 Contact Us For Availability
NA
Anti-Seize Compound (Comment: Apply to motor GEN 27604P Contact Us For Availability
× ![]()
