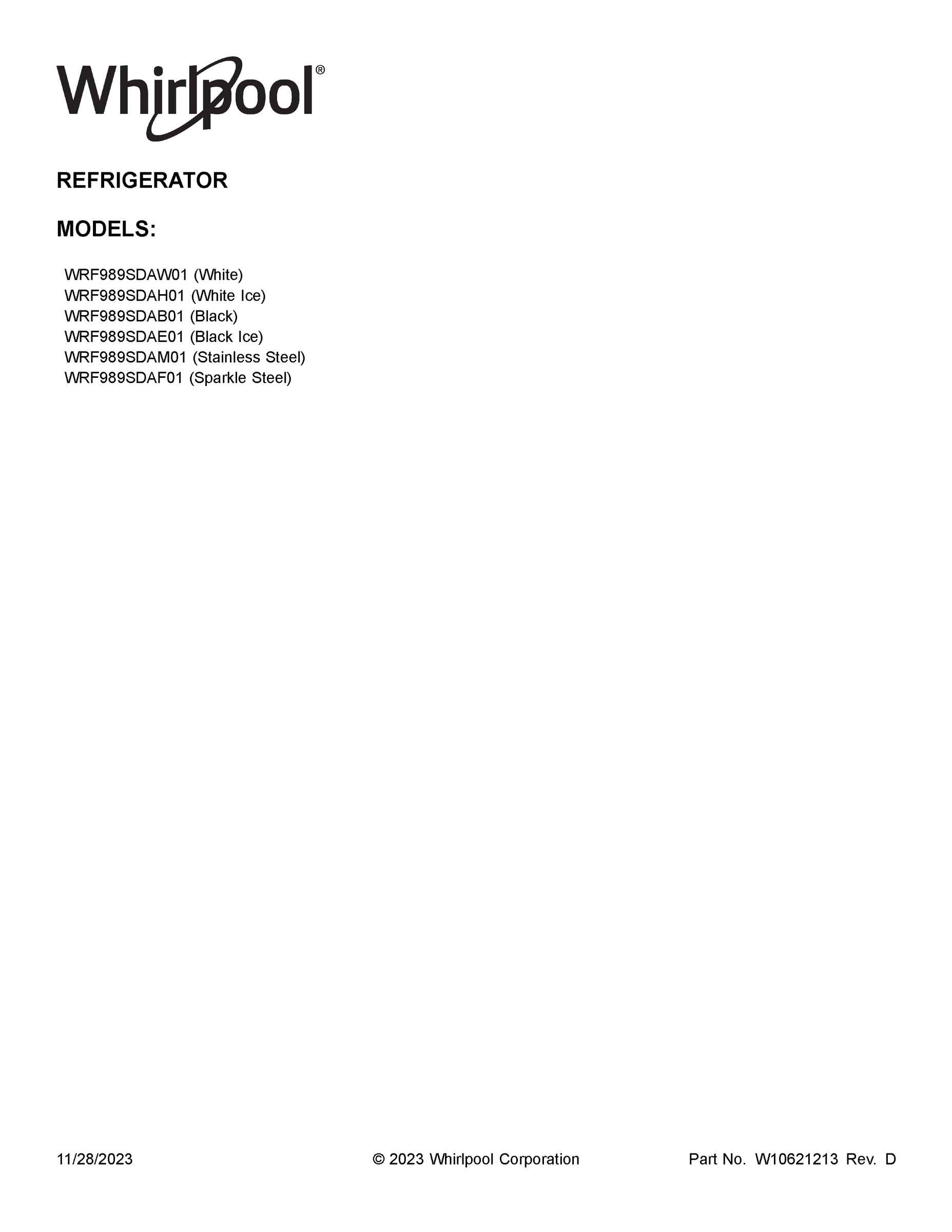

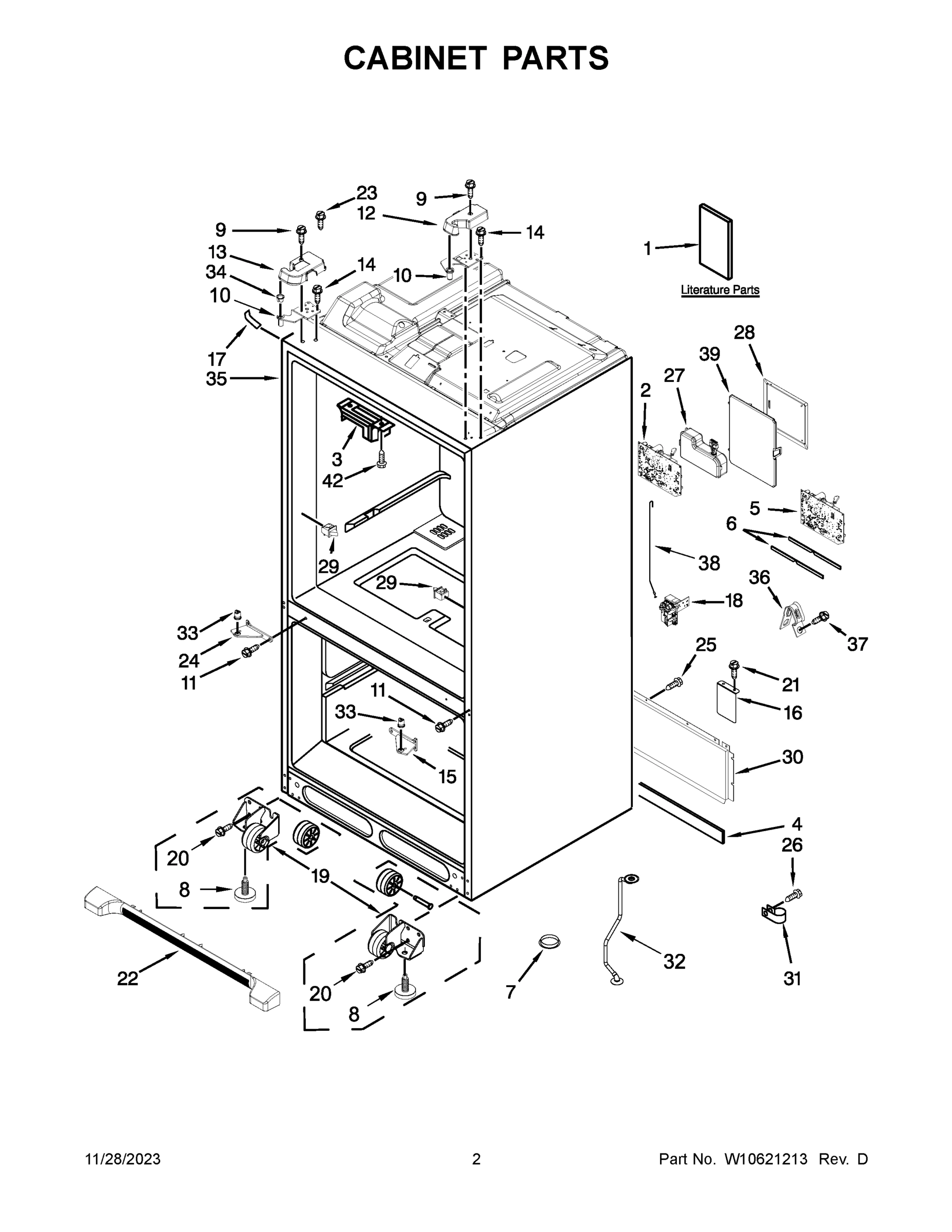

Model Whirlpool WRF989SDAE01 REFRIGERATOR, ALL – Common Parts &amp; Diagrams

1

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $5.38

1

WPW10510417 Whirlpool Refrigerator Front Pan Backorder WPL WPW10510417 $40.50

2

W10248789 Whirlpool Refrigerator Roller Backorder WPL W10248789 $6.57

2

W10548944 Whirlpool Refrigerator Handle Backorder WPL W10548944 $132.31

2

W10837274 Whirlpool Refrigerator Plate Backorder WPL W10837274 $28.91

2

WPW10453401 Whirlpool Refrigerator Electronic In Stock WPL WPW10453401 $117.57

2B

W10827046 Whirlpool Door Handle Backorder WPL W10827046 $133.13

3

W10570074 Whirlpool Refrigerator Plate In Stock WPL W10570074 $57.67

3

W11686799 Whirlpool Refrigerator Water Tube In Stock WPL W11686799 $61.80

3

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.63

3

WPW10344432 Whirlpool Pivot Block In Stock WPL WPW10344432 $6.37

3

WPW10464016 Whirlpool Refrigerator Screw Backorder WPL WPW10464016 $4.65

3

WALL, DISPENSER FALSE (WHITE) WPL W10606658 Contact Us For Availability

3A

W10606657 Whirlpool Refrigerator Shield Backorder WPL W10606657 $51.59

3B

W10606648 Whirlpool Refrigerator Shield Backorder WPL W10606648 $100.26

3C

W10606653 Whirlpool Refrigerator Shield Backorder WPL W10606653 $156.18

4

W10505487 Whirlpool Refrigerator Gasket Backorder WPL W10505487 $9.92

4

W10847834 Whirlpool Clip Backorder WPL W10847834 $6.24

4

W11028219 Whirlpool Refrigerator Pad Backorder WPL W11028219 $31.49

4

W11690163 Whirlpool Refrigerator Evaporator C In Stock WPL W11690163 $82.54

4

W11690685 Whirlpool Ladder Backorder WPL W11690685 $31.26

4

WPW10503522 Whirlpool Refrigerator Shaft Backorder WPL WPW10503522 $33.49

4

WPW10549589 Whirlpool Refrigerator Ice Door Backorder WPL WPW10549589 $178.85

4A

WPW10370592 Whirlpool Refrigerator Pad Backorder WPL WPW10370592 $126.68

4B

W10853387 Whirlpool Refrigerator Pad Backorder WPL W10853387 $111.59

4C

WPW10420671 Whirlpool Refrigerator Pad Backorder WPL WPW10420671 $110.56

5

W10857643 Whirlpool Refrigerator Door Closer In Stock WPL W10857643 $34.73

5

W11509548 Whirlpool Ice Bucket Coupler In Stock WPL W11509548 $11.69

5

WPW10341329 Whirlpool Refrigerator Water Valv In Stock WPL WPW10341329 $49.20

5

WPW10577864 Whirlpool Refrigerator Ice Door In Stock WPL WPW10577864 $61.03

5

WPW10628815 Whirlpool Refrigerator Glass Shel Backorder WPL WPW10628815 $55.02

5A

WPW10372267 Whirlpool Refrigerator Closer Backorder WPL WPW10372267 $4.72

6

W10342618 Whirlpool Refrigerator Heater Backorder WPL W10342618 $31.90

6

W10415341 Whirlpool Refrigerator Gasket Backorder WPL W10415341 $12.92

6

W10594047 Whirlpool Refrigerator Freezer Bin Backorder WPL W10594047 $125.65

6

W11194438 Whirlpool Water Filter Housing In Stock WPL W11194438 $81.02

6

WPW10435760 Whirlpool Refrigerator Ice Guide In Stock WPL WPW10435760 $9.28

7

W10606644 Whirlpool Refrigerator Drip Tray Backorder WPL W10606644 $16.43

7

W10811115 Whirlpool Refrigerator Cover Backorder WPL W10811115 $41.14

7

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

7A

TRAY, DRIP (BLACK) WPL W10606643 Contact Us For Availability

7B

WPW10606639 Whirlpool Refrigerator Drip Tray Backorder WPL WPW10606639 $38.14

7C

W10606641 Whirlpool Refrigerator Drip Tray Backorder WPL W10606641 $44.94

8

W10462438 Whirlpool Refrigerator Ring Connect Backorder WPL W10462438 $12.97

8

W10848410 Whirlpool Refrigerator Handle Backorder WPL W10848410 $110.27

8

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $4.70

8

WPW10347093 Whirlpool Refrigerator Ice Maker In Stock WPL WPW10347093 $191.66

8

COVER, WATER WPL W10488685 Contact Us For Availability

8A

W10462439 Whirlpool Refrigerator Trim Backorder WPL W10462439 $12.94

8A

WPW10548947 Whirlpool Refrigerator Handle Backorder WPL WPW10548947 $140.39

8B

W10899551 Whirlpool Door Handle In Stock WPL W10899551 $53.77

8B

WPW10402180 Whirlpool Refrigerator Trim Backorder WPL WPW10402180 $34.99

9

W10829281 Whirlpool Refrigerator Screw In Stock WPL W10829281 $5.01

9

W10839427 Whirlpool Refrigerator Front Panel Backorder WPL W10839427 $50.76

9

WP2223877 Whirlpool Door Hook In Stock WPL WP2223877 $50.71

W10507444 Whirlpool Refrigerator Divider Backorder WPL W10507444 $31.55

W11592405 Whirlpool Door Hinge Backorder WPL W11592405 $10.07

WP12729128 Whirlpool Defrost Heater In Stock WPL WP12729128 $67.69

WPW10277949 Whirlpool Refrigerator Filter Cov Backorder WPL WPW10277949 $34.97

WPW10363507 Whirlpool Refrigerator Shroud Backorder WPL WPW10363507 $28.09

WPW10654844 Whirlpool Storage Drawer In Stock WPL WPW10654844 $82.61

BUMPER, DOOR (WHITE) WPL W10407175 Contact Us For Availability

10A

W10407187 Whirlpool Refrigerator Door Bumper In Stock WPL W10407187 $27.76

10A

W11592404 Whirlpool Refrigerator Door Hinge Backorder WPL W11592404 $8.55

10B

W11573367 Whirlpool Refrigerator Door Bumper Backorder WPL W11573367 $10.76

11

W11677723 Whirlpool Support Backorder WPL W11677723 $58.97

11

WPW10391355 Whirlpool Refrigerator Nameplate Backorder WPL WPW10391355 $37.44

11A

WPW10393265 Whirlpool Refrigerator Nameplate In Stock WPL WPW10393265 $38.89

11B

WP67006380 Whirlpool Screw Backorder WPL WP67006380 $3.33

12

W10248562 Whirlpool Refrigerator Cover Backorder WPL W10248562 $8.89

12A

COVER, RIGHT HINGE (BLACK) WPL W10407157 Contact Us For Availability

12B

WPW10407158 Whirlpool Refrigerator Cover Asse Backorder WPL WPW10407158 $14.05

W10471615 Whirlpool Refrigerator Cover Backorder WPL W10471615 $14.09

W11686800 Whirlpool Water Tube In Stock WPL W11686800 $33.84

W11690684 Whirlpool Ladder Backorder WPL W11690684 $31.26

TRIVET, 2 LITER WPL W10539117 Contact Us For Availability

13A

W10471617 Whirlpool Refrigerator Cover Backorder WPL W10471617 $13.32

WPW10308751 Whirlpool Screw Backorder WPL WPW10308751 $2.91

WPW10485096 Whirlpool Refrigerator Pan Stop Backorder WPL WPW10485096 $29.26

WPW10554299 Whirlpool Refrigerator Heater In Stock WPL WPW10554299 $47.34

GLASS, CRISPER WPL W10628814 Contact Us For Availability

14A

WPW10485089 Whirlpool Refrigerator Pan Stop Backorder WPL WPW10485089 $29.26

15

W10248433 Whirlpool Refrigerator Door Hinge Backorder WPL W10248433 $29.21

15

WPW10407377 Whirlpool Refrigerator Frame Backorder WPL WPW10407377 $84.31

15A

W10407275 Whirlpool Refrigerator Door Hinge Backorder WPL W10407275 $31.07

15B

W11240748 Whirlpool Refrigerator Door Hinge Backorder WPL W11240748 $27.89

W11624997 Whirlpool Refrigerator Gasket Backorder WPL W11624997 $38.14

CONDENSER In Stock WPL W11760073 $68.62

WPW10248967 Whirlpool Refrigerator Support Backorder WPL WPW10248967 $33.58

WPW10598013 Whirlpool Refrigerator Cover In Stock WPL WPW10598013 $60.96

12587703W Whirlpool Refrigerator Cover Backorder WPL 12587703W $10.76

W10850377 Whirlpool Drawer Crisper In Stock WPL W10850377 $65.87

W11661208 Whirlpool Cover Assembly Backorder WPL W11661208 $10.76

ASSEMBLY, ICEBOX (FOAMED) WPL W10492817 Contact Us For Availability

17B

WP12587703AP Whirlpool Refrigerator Filler Backorder WPL WP12587703AP $3.70

W10865826 Whirlpool Refrigerator Water Inlet In Stock WPL W10865826 $39.10

W10898445-includeCORE Whirlpool W10898445 Ref Backorder WPL W10898445-includeCORE $199.02

WPW10469927 Whirlpool Refrigerator Housing Backorder WPL WPW10469927 $88.29

WPW10498906 Whirlpool Refrigerator Plate Backorder WPL WPW10498906 $44.45

TRAY, DRIP WPL W10342573 Contact Us For Availability

W10499289 Whirlpool Refrigerator Slide Backorder WPL W10499289 $125.05

W11457241 Whirlpool Burner Drip Bowl In Stock WPL W11457241 $51.31

WPW10515763 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10515763 $49.66

COVER, RECEIVER WPL W10258510 Contact Us For Availability

19A

WPW10515762 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10515762 $42.21

19A

SLIDE, PANTRY (RIGHT HAND) WPL W10499294 Contact Us For Availability

20

W10432697 Whirlpool Refrigerator Insulation Backorder WPL W10432697 $8.45

20

W10505516 Whirlpool Refrigerator Trim Backorder WPL W10505516 $12.83

20

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

W10258502 Whirlpool Refrigerator Cover Backorder WPL W10258502 $33.16

W10846539 Whirlpool Fan Motor In Stock WPL W10846539 $123.12

WPW10364560 Whirlpool Refrigerator Solenoid In Stock WPL WPW10364560 $102.36

SIDEPLATE, CRISPER (LEFT HAND) WPL W10549601 Contact Us For Availability

21A

W10549602 Whirlpool Refrigerator Plate Backorder WPL W10549602 $45.18

W10258540 Whirlpool Refrigerator Slide Backorder WPL W10258540 $6.77

W11492867 Whirlpool Evaporator In Stock WPL W11492867 $123.41

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

WPW10248544 Whirlpool Refrigerator Roller Backorder WPL WPW10248544 $3.70

WPW10637668 Whirlpool Refrigerator Front Gril Backorder WPL WPW10637668 $54.50

22A

WPW10637669 Whirlpool Refrigerator Front Gril Backorder WPL WPW10637669 $45.84

22B

WPW10637671 Whirlpool Refrigerator Front Gril In Stock WPL WPW10637671 $57.68

W10467415 Whirlpool Refrigerator Trim Backorder WPL W10467415 $27.60

W10870822 Whirlpool Refrigerator Electronic C In Stock WPL W10870822 $132.75

W11673433 Whirlpool Clip Backorder WPL W11673433 $62.75

W11683241 Whirlpool Module In Stock WPL W11683241 $129.64

W10248434 Whirlpool Refrigerator Door Hinge Backorder WPL W10248434 $29.08

W10530314 Whirlpool Refrigerator Housing Backorder WPL W10530314 $6.08

W11189618 Whirlpool Refrigerator Wire Harness In Stock WPL W11189618 $54.46

WPW10400825 Whirlpool Refrigerator Retainer Backorder WPL WPW10400825 $11.44

24A

W10407279 Whirlpool Refrigerator Door Hinge In Stock WPL W10407279 $31.07

24B

W10878115 Whirlpool Refrigerator Door Hinge Backorder WPL W10878115 $28.64

25

W10662015 Whirlpool Drawer Support Assembly Backorder WPL W10662015 $35.19

25

WPW10347087 Whirlpool Refrigerator Ice Chute In Stock WPL WPW10347087 $20.33

25

FASCIA ASSEMBLY WPL W10460932 Contact Us For Availability

26

WP8281136 Whirlpool Screw Backorder WPL WP8281136 $2.51

27

WPW10236512 Whirlpool Refrigerator Support Backorder WPL WPW10236512 $45.70

27

WPW10258520 Whirlpool Refrigerator Flipper Backorder WPL WPW10258520 $30.34

27

WPW10306786 Whirlpool Refrigerator Inverter B In Stock WPL WPW10306786 $168.74

28

W10423560 Whirlpool Refrigerator Screw Backorder WPL W10423560 $9.59

28

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $28.64

28

WPW10280983 Whirlpool Refrigerator Insulation In Stock WPL WPW10280983 $30.98

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WPW10389152 Whirlpool Support In Stock WPL WPW10389152 $9.13

WPW10406719 Whirlpool Refrigerator Shroud Backorder WPL WPW10406719 $26.19

WPW10408747 Whirlpool Refrigerator Housing Backorder WPL WPW10408747 $19.27

30

W11482027 Whirlpool Refrigerator Back Cover Backorder WPL W11482027 $42.90

30

WPW10494227 Whirlpool Refrigerator Power Cord Backorder WPL WPW10494227 $27.91

30

WPW10635022 Whirlpool Refrigerator Adapter Backorder WPL WPW10635022 $40.02

31

W10278140 Whirlpool Refrigerator Unit Cover Backorder WPL W10278140 $49.50

31

W10389154 Whirlpool Refrigerator Retainer Backorder WPL W10389154 $9.48

31

WPW10499015 Whirlpool Refrigerator Water Tube Backorder WPL WPW10499015 $44.21

32

COVER, TOP WPL W10398004 Contact Us For Availability

32

TUBE, DRAIN WPL W10503562 Contact Us For Availability

32

SUPPORT, DAMPER WPL W10389149 Contact Us For Availability

W10491355 Whirlpool Refrigerator Air Gasket Backorder WPL W10491355 $9.24

WPW10248595 Whirlpool Damper Control Assembly In Stock WPL WPW10248595 $92.63

WPW10565996-includeCORE Whirlpool WPW10565996 Backorder WPL WPW10565996-includeCORE $204.86

COUPLER, DOOR WPL W10505294 Contact Us For Availability

W10212137 Whirlpool Refrigerator Grommet Backorder WPL W10212137 $7.78

W10610324 Whirlpool Refrigerator Wire Harness Backorder WPL W10610324 $49.01

W11190819 Whirlpool Refrigerator Cover Backorder WPL W11190819 $10.76

WPW10626970 Whirlpool Refrigerator Tube Backorder WPL WPW10626970 $72.83

35

W11452196 Whirlpool Refrigerator Evaporator M In Stock WPL W11452196 $79.22

35

WPW10501260 Whirlpool Refrigerator Evaporator In Stock WPL WPW10501260 $92.09

36

W10236396 Whirlpool Refrigerator Strap In Stock WPL W10236396 $7.81

36

W10490266 Whirlpool Refrigerator Cover Backorder WPL W10490266 $31.77

36

WPW10280988 Whirlpool Refrigerator Gasket In Stock WPL WPW10280988 $4.52

37

W10467416 Whirlpool Refrigerator Trim Backorder WPL W10467416 $12.65

37

WPW10320706 Whirlpool Refrigerator Gasket In Stock WPL WPW10320706 $10.58

38

W11209890 Whirlpool Refrigerator Water Tube Backorder WPL W11209890 $42.91

38

WPW10257246 Whirlpool Refrigerator Axle Backorder WPL WPW10257246 $16.38

38

WPW10392172 Whirlpool Refrigerator Gasket Backorder WPL WPW10392172 $9.70

39

W10277839 Whirlpool Refrigerator Cover Backorder WPL W10277839 $31.81

40

W10470981 Whirlpool Refrigerator Gasket Backorder WPL W10470981 $9.66

40

FRONT, CRISPER WPL W10467395 Contact Us For Availability

41

W10467379 Whirlpool Pan Handle Backorder WPL W10467379 $41.32

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $29.35

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $8.03

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $28.40

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8003RP Whirlpool Refrigerator 25' 1/4" Copper In Stock WPL 8003RP $39.63

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

W10134625 Whirlpool Refrigerator Touch-Up Pai In Stock WPL W10134625 $8.67

W10578603 Whirlpool Refrigerator Wire Harness Backorder WPL W10578603 $56.85

W10859326 Whirlpool Refrigerator Wire Harness Backorder WPL W10859326 $44.73

NLA:TOUCH-UP Backorder WPL W10917540 $6.57

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.99

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

WPW10277799 Whirlpool Refrigerator Wire Harne In Stock WPL WPW10277799 $29.17

VALVE, ACCESS (5/8") WPL 978029 Contact Us For Availability

MISCELLANEOUS, KIT, FOAM SLAB (30" X 32 1/2" WPL 876029 Contact Us For Availability

MISCELLANEOUS, TAPE, VINYL (3/4 X 108") WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT. WHITE (UNCUT)) WPL 799344 Contact Us For Availability

TORX SCREW WRENCH, KEY WPL 1117510 Contact Us For Availability
