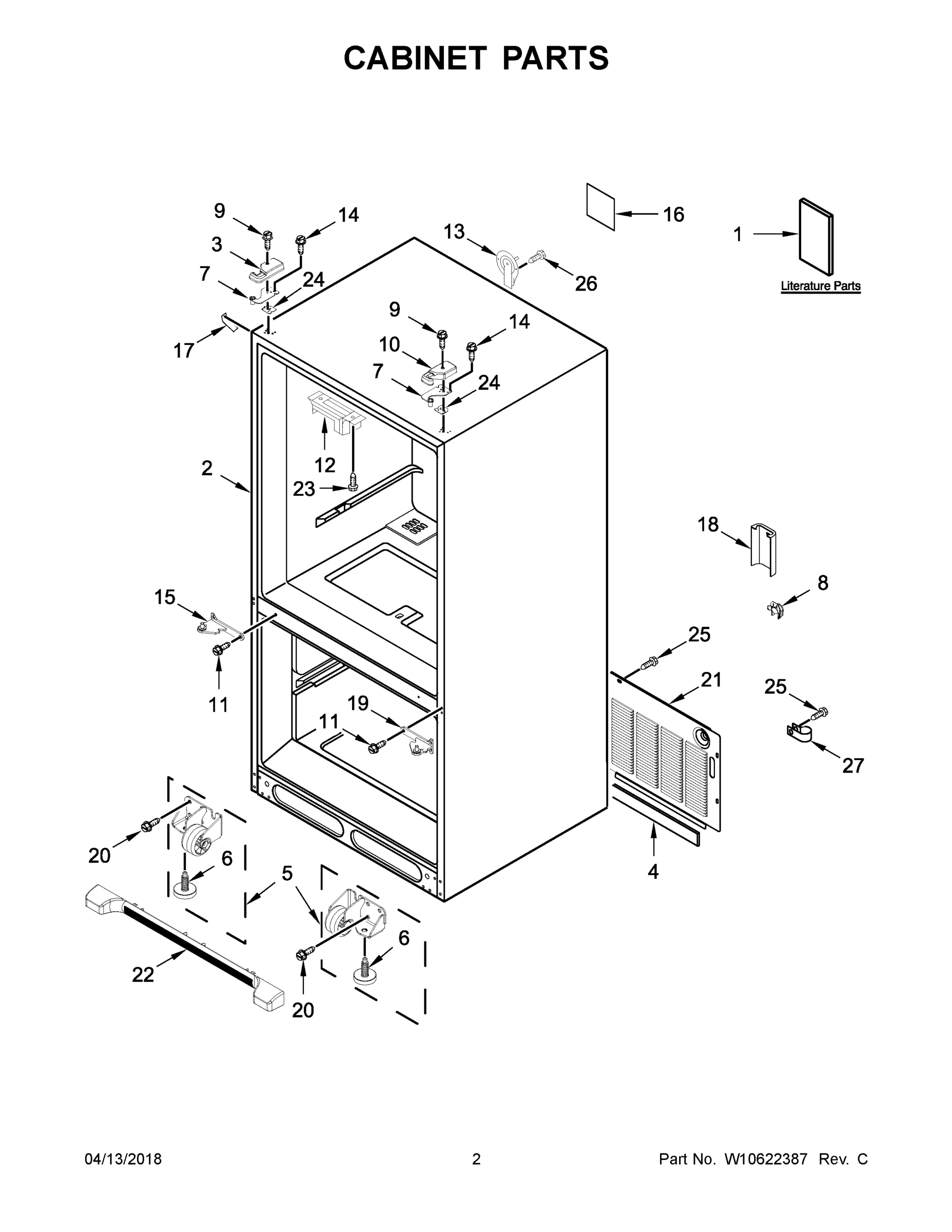

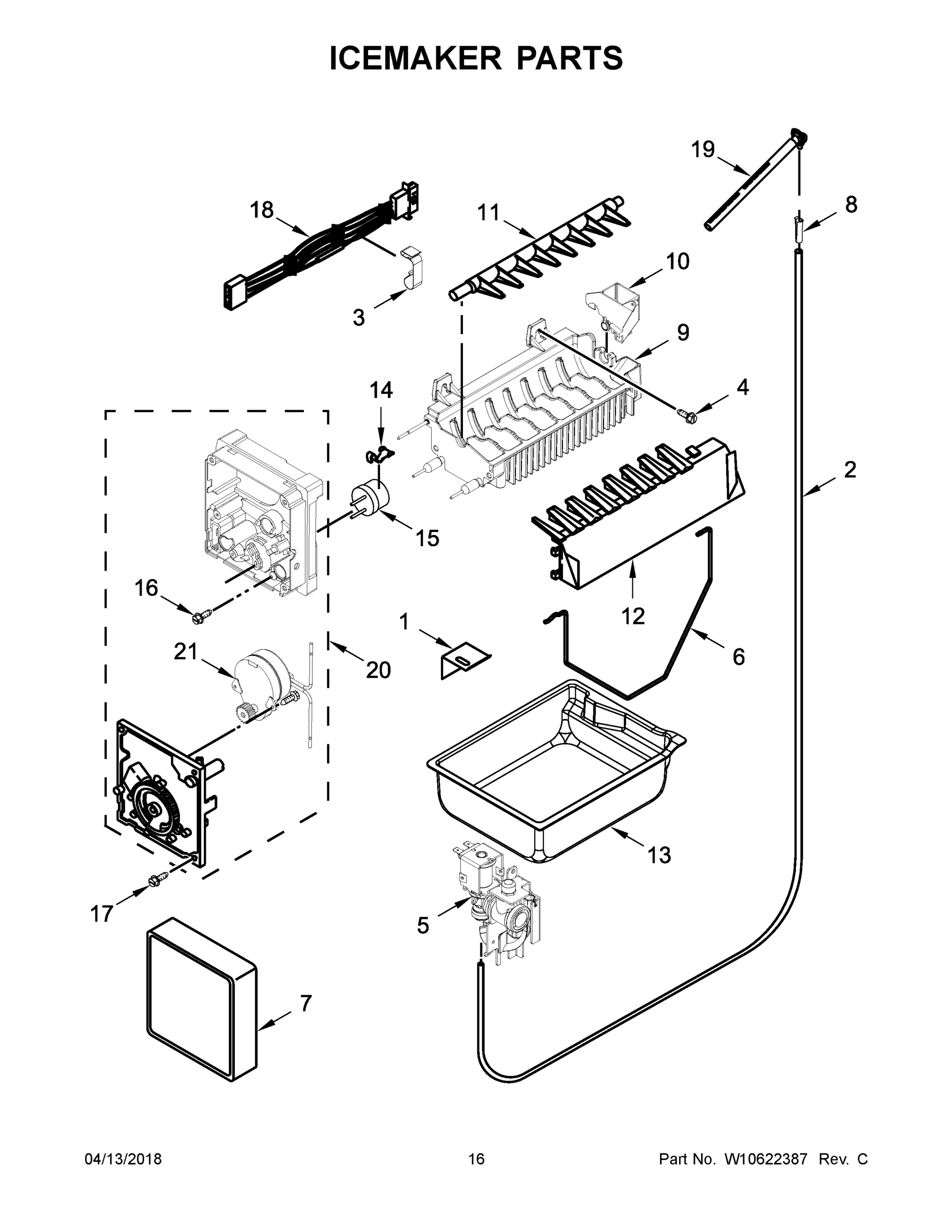

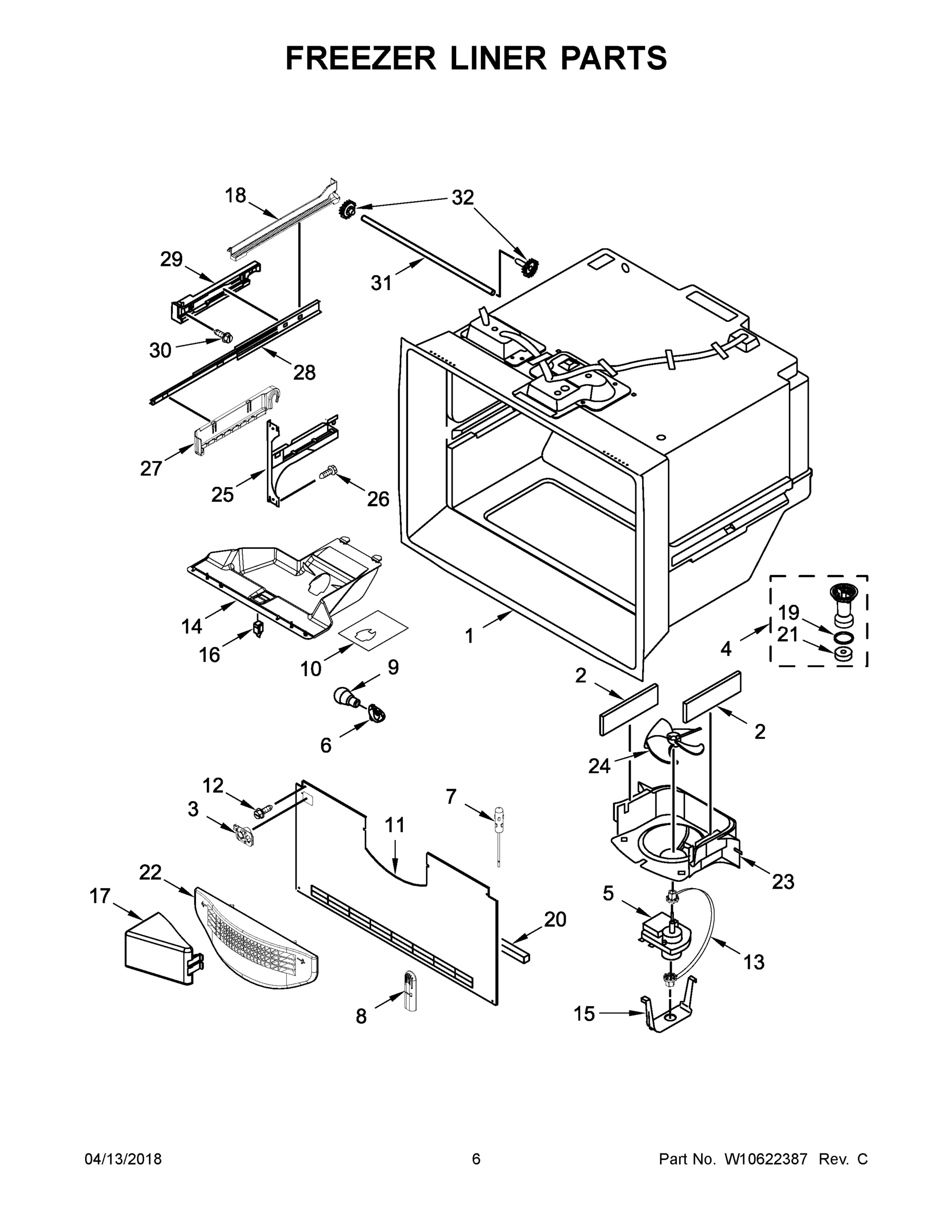

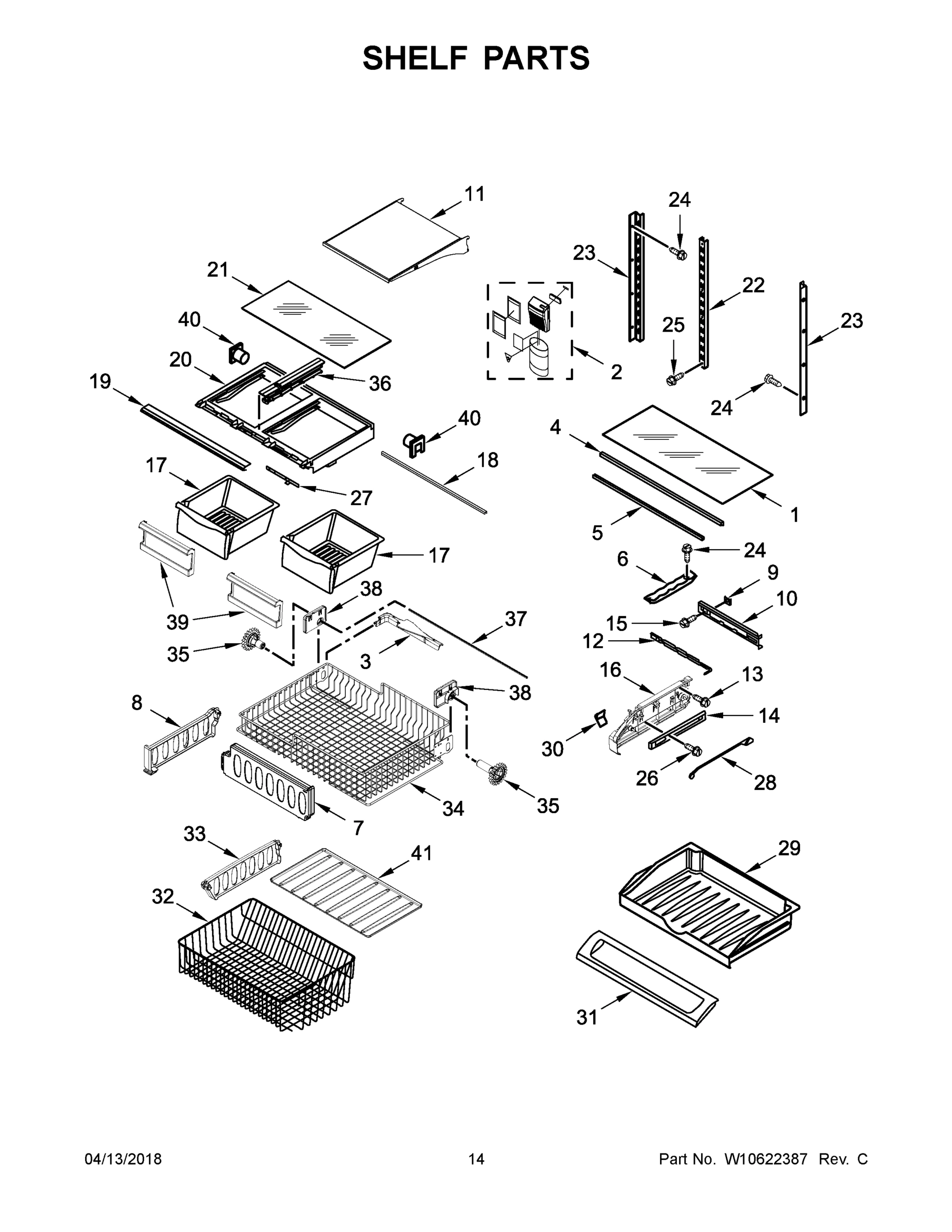

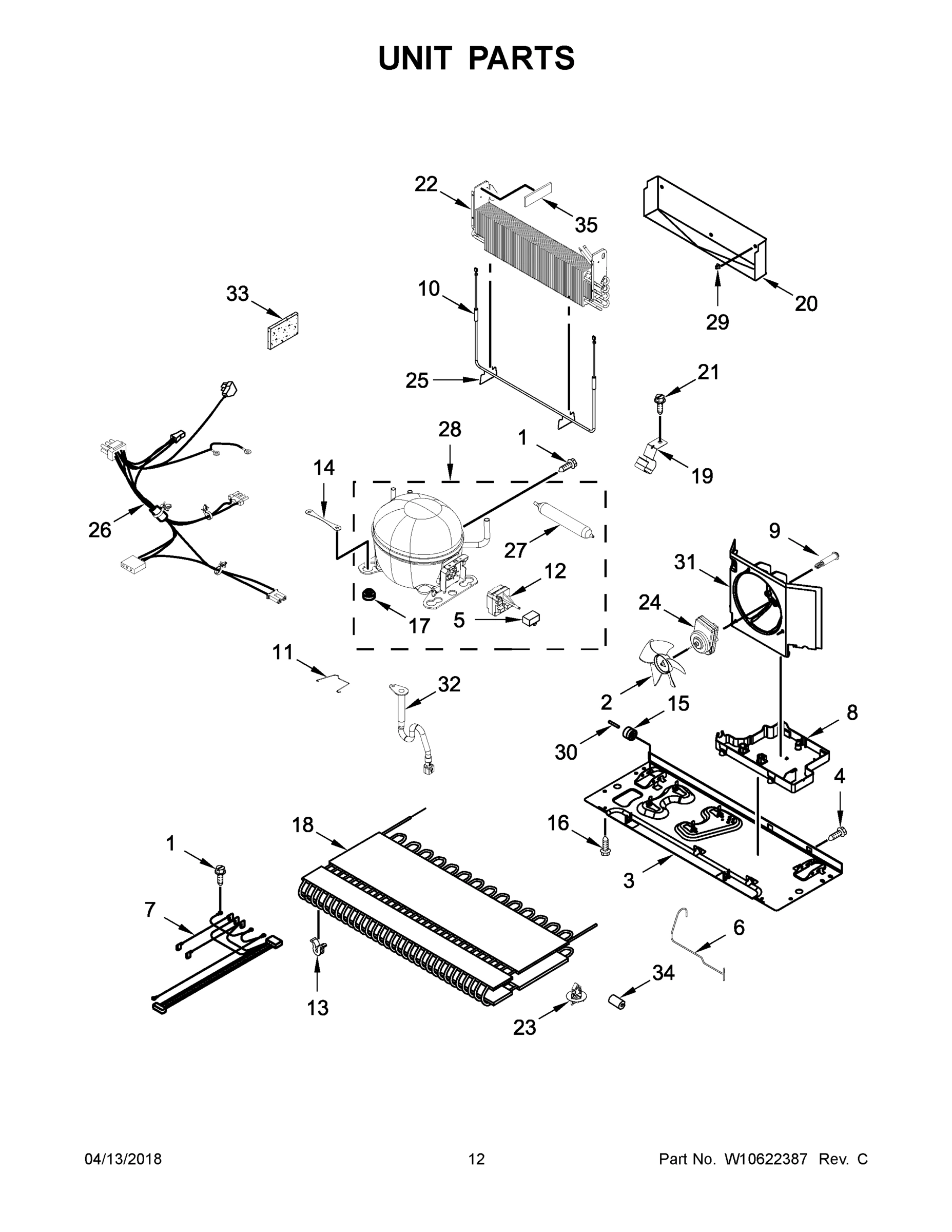

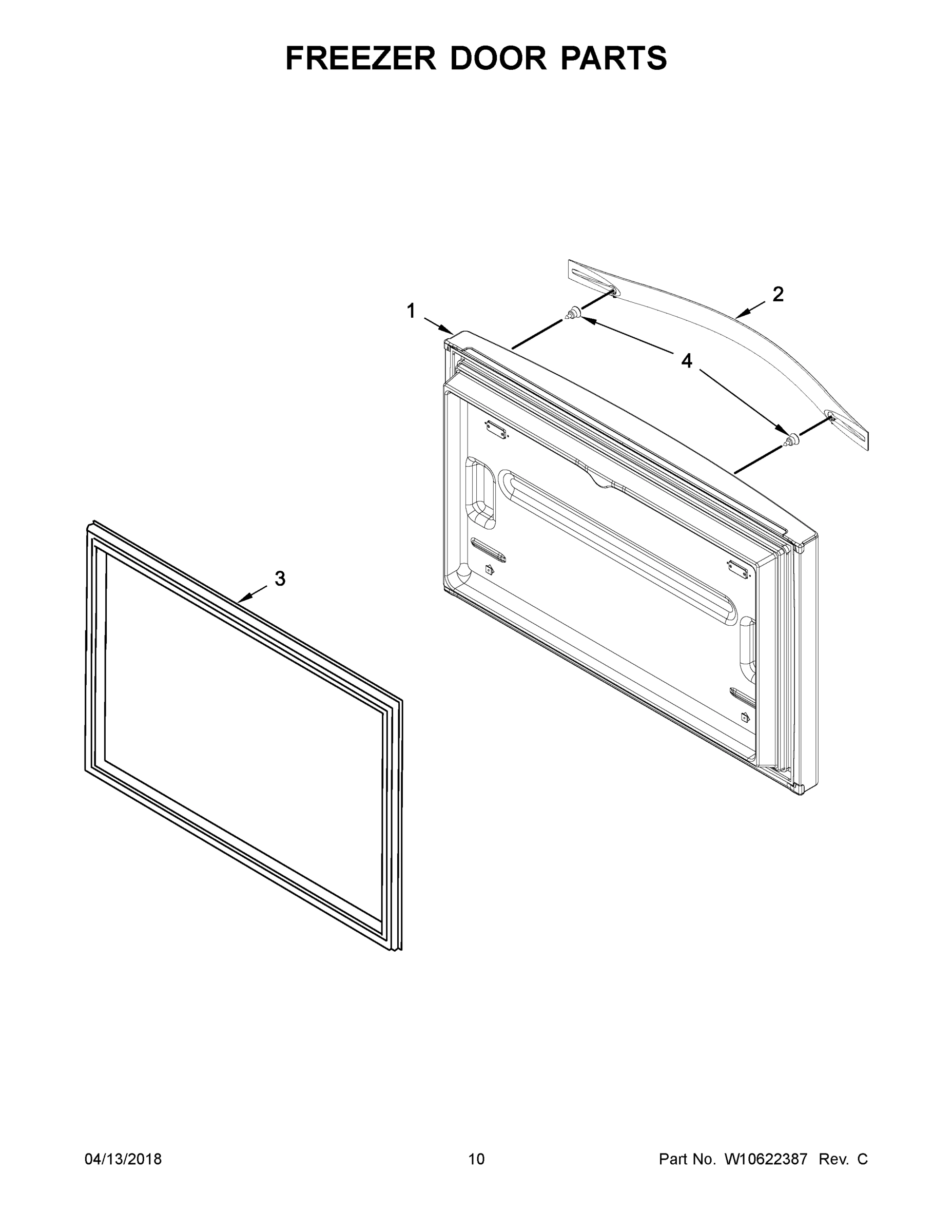

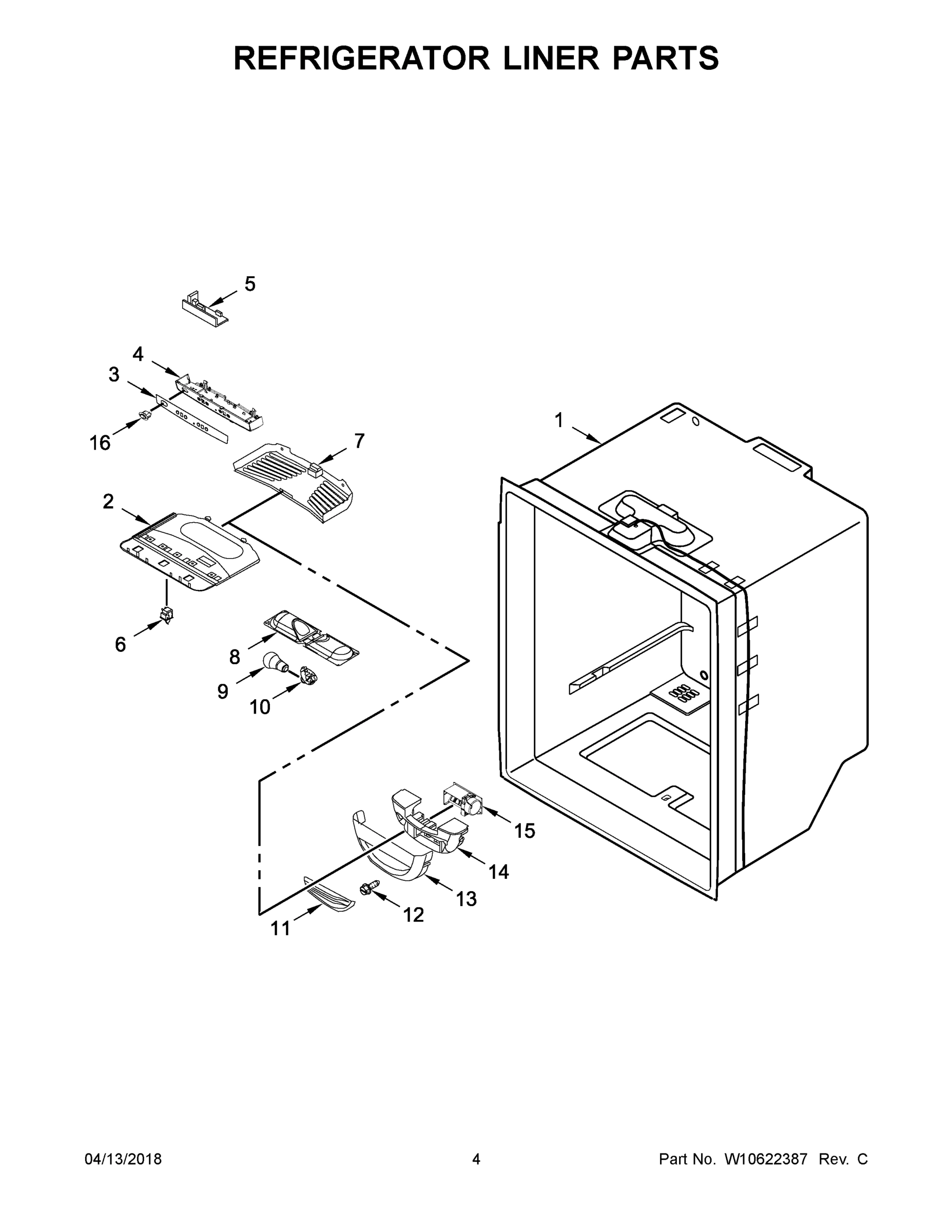

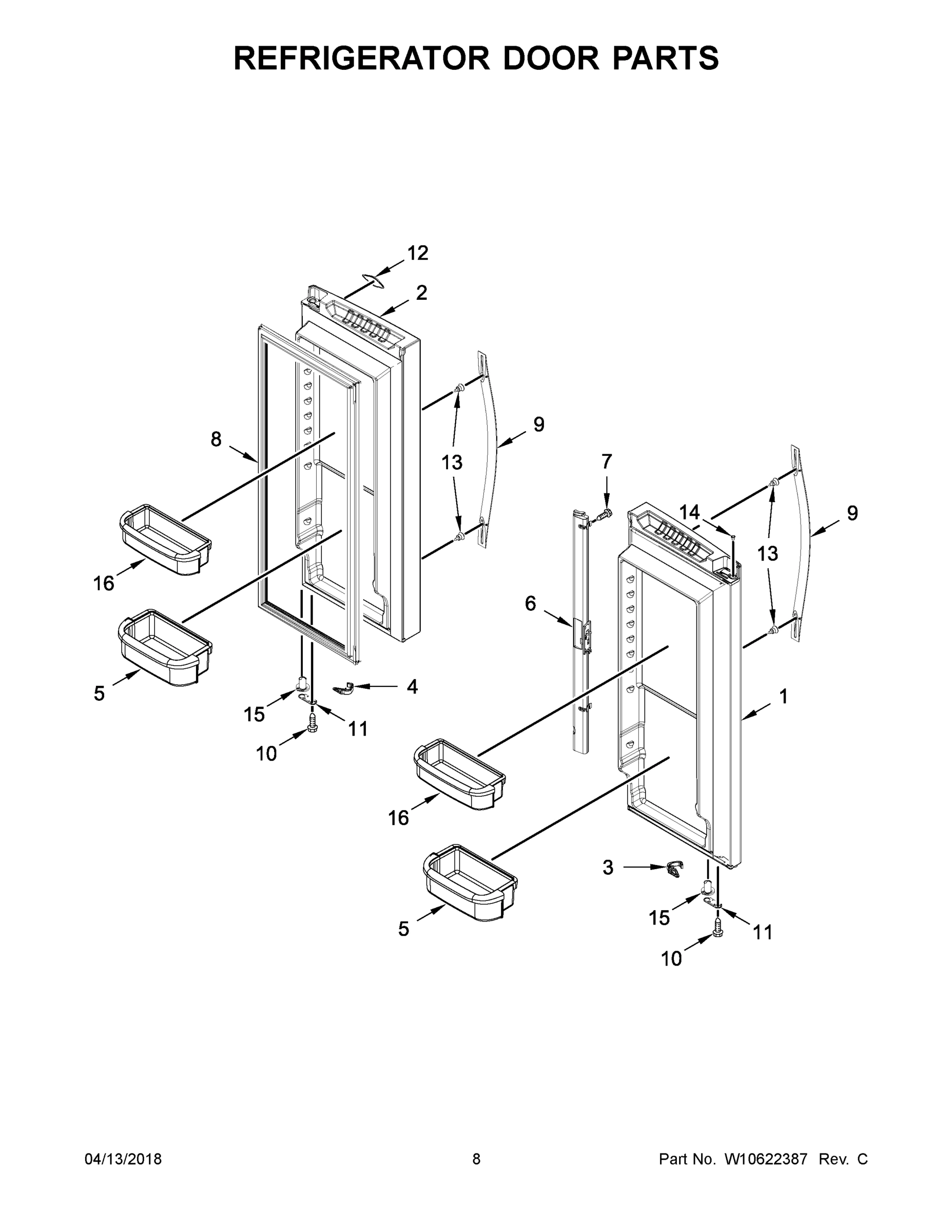

Model Whirlpool WRF535SMBB00 REFRIGERATOR, FRENCH DOOR, BOTTOM MOUNT – Common Parts &amp; Diagrams

2

W10464764 Whirlpool Refrigerator Housing In Stock WPL W10464764 $40.74

2

WP12825803 Whirlpool Refrigerator Fan Blade In Stock WPL WP12825803 $52.96

2A

W10719668 Whirlpool Refrigerator Handle Backorder WPL W10719668 $115.79

3

W10443319 Whirlpool Door Gasket In Stock WPL W10443319 $191.86

3

W11727651 Whirlpool Plate Assembly Backorder WPL W11727651 $41.52

3

WPW10337634 Whirlpool Refrigerator Cover Backorder WPL WPW10337634 $13.74

3

CLAMP, WIRE WPL 10526702 Contact Us For Availability

3A

W10436252 Whirlpool Door Gasket In Stock WPL W10436252 $129.24

4

B5759655 Whirlpool Refrigerator Gasket In Stock WPL B5759655 $7.69

4

W10001240 Whirlpool Refrigerator Screw Backorder WPL W10001240 $5.65

4

W11210956 Whirlpool Refrigerator Shelf Trim Backorder WPL W11210956 $11.42

5

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $43.65

5

WPW10289497 Whirlpool Refrigerator Shelf Bin In Stock WPL WPW10289497 $55.62

5

WPW10350564 Whirlpool Refrigerator Freezer Ca In Stock WPL WPW10350564 $54.11

5

WPW10498976 Whirlpool Refrigerator Inlet Valv In Stock WPL WPW10498976 $78.50

5

WPW10503278 Whirlpool Refrigerator Electronic In Stock WPL WPW10503278 $124.77

5

WPW10515763 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10515763 $49.66

5A

WPW10515762 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10515762 $42.21

6

W11559683 Whirlpool Ice Level Arm In Stock WPL W11559683 $44.27

6

WP12722803W Whirlpool Door Support In Stock WPL WP12722803W $140.32

6

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $3.88

6

WPW10233569 Whirlpool Refrigerator Tube Backorder WPL WPW10233569 $45.35

7

W10171558 Whirlpool Refrigerator Divider Backorder WPL W10171558 $29.12

7

W10377174 Whirlpool Refrigerator Front Cover Backorder WPL W10377174 $29.66

7

W11260592 Whirlpool Refrigerator Wire Harness Backorder WPL W11260592 $43.99

7

W11592375 Whirlpool Door Hinge Backorder WPL W11592375 $10.07

7A

W11592374 Whirlpool Refrigerator Top Door Hin In Stock WPL W11592374 $10.07

8

W10241046 Whirlpool Refrigerator Divider Backorder WPL W10241046 $12.44

8

W10443023 Whirlpool Refrigerator Housing Backorder WPL W10443023 $39.71

8

W10830189 Whirlpool Refrigerator Door Gasket In Stock WPL W10830189 $137.01

8

WPA3223101 Whirlpool Refrigerator Insert PL Backorder WPL WPA3223101 $3.70

8

WPW10655368 Whirlpool Refrigerator Drip Pan In Stock WPL WPW10655368 $68.05

8A

W11368721 Whirlpool Refrigerator French Door In Stock WPL W11368721 $116.56

8B

W10830162 Whirlpool Refrigerator Right Hand D In Stock WPL W10830162 $132.01

9

WPW10300025 Whirlpool Refrigerator Ice Mold Backorder WPL WPW10300025 $95.41

12656202 Whirlpool Refrigerator Housing Backorder WPL 12656202 $54.81

W10410073 Whirlpool Fill Cup Assembly Backorder WPL W10410073 $27.12

W11469652 Whirlpool Refrigerator Shield Backorder WPL W11469652 $10.76

WP12729123 Whirlpool Refrigerator Heater In Stock WPL WP12729123 $82.30

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $29.10

W10318914 Whirlpool Refrigerator Ejector Arm Backorder WPL W10318914 $13.89

W11540779 Whirlpool Glass Shelf In Stock WPL W11540779 $81.18

W11727809 Whirlpool Evaporator Cover Backorder WPL W11727809 $34.44

12

W11223753 Whirlpool Refrigerator Nameplate In Stock WPL W11223753 $39.33

12

WPW10122563 Whirlpool Refrigerator Stripper A Backorder WPL WPW10122563 $34.31

12726003 Whirlpool Refrigerator Water Cover Backorder WPL 12726003 $7.16

W10121318 Whirlpool Refrigerator Grommet In Stock WPL W10121318 $28.66

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $39.73

WPW10171529 Whirlpool Refrigerator Ice Pan In Stock WPL WPW10171529 $63.96

12996601 Whirlpool Refrigerator Bushing Clip Backorder WPL 12996601 $6.92

W10236396 Whirlpool Refrigerator Strap In Stock WPL W10236396 $7.81

Backorder WPL W11750607 $19.22

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

WPW10235370 Whirlpool Refrigerator Glide Backorder WPL WPW10235370 $113.76

WPW10277025 Whirlpool Refrigerator Housing Backorder WPL WPW10277025 $54.90

15

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.03

15

WPW10594330 Whirlpool Refrigerator Control In Stock WPL WPW10594330 $62.76

15

CLIP, EVAPORATOR MOTOR WPL 13058002 Contact Us For Availability

15B

WP12028505AP Whirlpool Closing Cam In Stock WPL WP12028505AP $43.13

16

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

16

WPW10371194 Whirlpool Refrigerator Door Shelf In Stock WPL WPW10371194 $43.30

17

12587703W Whirlpool Refrigerator Cover Backorder WPL 12587703W $10.76

17

W10157765 Whirlpool Refrigerator Deflector Backorder WPL W10157765 $30.25

17

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

17B

WP12587703AP Whirlpool Refrigerator Filler Backorder WPL WP12587703AP $3.70

W10208592 Whirlpool Refrigerator Valve Cover Backorder WPL W10208592 $33.53

W11489993 Whirlpool Refrigerator Rail In Stock WPL W11489993 $8.14

WP12642303WD Whirlpool Refrigerator Drawer Su Backorder WPL WP12642303WD $45.27

WPW10346415 Whirlpool Refrigerator Condenser Backorder WPL WPW10346415 $152.87

WPW10458985 Whirlpool Wire Harness In Stock WPL WPW10458985 $42.18

18A

W11489994 Whirlpool Refrigerator Rail In Stock WPL W11489994 $8.14

19

W11181718 Whirlpool Refrigerator Water Tube Backorder WPL W11181718 $45.71

W11159728 Whirlpool Refrigerator Gasket In Stock WPL W11159728 $10.10

W11547653 Whirlpool Refrigerator Drip Tray Backorder WPL W11547653 $30.85

WPW10281342 Whirlpool Refrigerator Motor Modu Backorder WPL WPW10281342 $114.06

WPW10329866 Whirlpool Frame In Stock WPL WPW10329866 $122.69

21

W10211854 Whirlpool Refrigerator Back Cover Backorder WPL W10211854 $74.17

21

MOTOR (NOT AVAILABLE, ORDER ITEM #20) WPL NP Contact Us For Availability

22

W10273463 Whirlpool Refrigerator Ladder Backorder WPL W10273463 $11.38

22

W11256565 Whirlpool Refrigerator Evaporator In Stock WPL W11256565 $149.32

22

WPW10534154 Whirlpool Refrigerator Front Gril Backorder WPL WPW10534154 $57.79

22A

WPW10534153 Whirlpool Refrigerator Black Kick In Stock WPL WPW10534153 $69.64

22B

WPW10534155 Whirlpool Refrigerator Gray Kickp In Stock WPL WPW10534155 $62.25

23

LADDER, SIDE WPL WPW10569182 No Longer Available

24

12999501 Whirlpool Refrigerator Hinge Shim Backorder WPL 12999501 $35.59

24

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

24A

12999502 Whirlpool Refrigerator Hinge Shim Backorder WPL 12999502 $36.00

25

W10215666 Whirlpool Refrigerator Screw Backorder WPL W10215666 $5.65

25

W11673433 Whirlpool Clip Backorder WPL W11673433 $62.75

25

WPW10330991 Whirlpool Refrigerator Bracket In Stock WPL WPW10330991 $42.30

25A

WPW10330993 Whirlpool Refrigerator Bracket In Stock WPL WPW10330993 $58.93

26

W11218258 Whirlpool Refrigerator Wire Harness Backorder WPL W11218258 $52.47

27

WPW10280608 Whirlpool Refrigerator Bracket Backorder WPL WPW10280608 $36.87

27A

WPW10280613 Whirlpool Refrigerator Bracket Backorder WPL WPW10280613 $36.87

28

W11658402 Whirlpool Drawer Slide Rail In Stock WPL W11658402 $74.88

29

WPW10284684 Whirlpool Refrigerator Bracket In Stock WPL WPW10284684 $14.42

29A

WPW10284685 Whirlpool Refrigerator Bracket In Stock WPL WPW10284685 $14.51

31

W10827015 Whirlpool Refrigerator Pantry Drawe In Stock WPL W10827015 $112.39

31

W11028221 Whirlpool Refrigerator Shaft In Stock WPL W11028221 $11.31

31

W11556315 Whirlpool Shroud In Stock WPL W11556315 $29.19

32

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $8.86

32

W11115781 Whirlpool Refrigerator FZR Basket Backorder WPL W11115781 $101.16

33

W10847995 Whirlpool Divider Assembly Backorder WPL W10847995 $30.25

34

W10852725 Whirlpool Refrigerator Grommet In Stock WPL W10852725 $3.70

35

WPW10474716 Whirlpool Refrigerator Gear Backorder WPL WPW10474716 $10.87

35A

WPW10474715 Whirlpool Refrigerator Gear Backorder WPL WPW10474715 $10.96

38

W10348259 Whirlpool Refrigerator Bracket Asse Backorder WPL W10348259 $31.90

38A

W10348260 Whirlpool Refrigerator Bracket Backorder WPL W10348260 $31.90

40

WP13062602 Whirlpool Refrigerator Support Backorder WPL WP13062602 $30.25

100

W10884390 Whirlpool Refrigerator Ice Maker As In Stock WPL W10884390 $54.77

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8003RP Whirlpool Refrigerator 25' 1/4" Copper In Stock WPL 8003RP $39.63

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

NLA:TOUCH-UP Backorder WPL W10917540 $6.57

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8") WPL 978029 Contact Us For Availability

MISCELLANEOUS, KIT, FOAM SLAB (30" X 32 1/2" WPL 876029 Contact Us For Availability

MISCELLANEOUS, TAPE, VINYL (3/4 X 108") WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT. WHITE (UNCUT)) WPL 799344 Contact Us For Availability

TORX SCREW WRENCH, TORX KEY WPL 1117510 Contact Us For Availability
