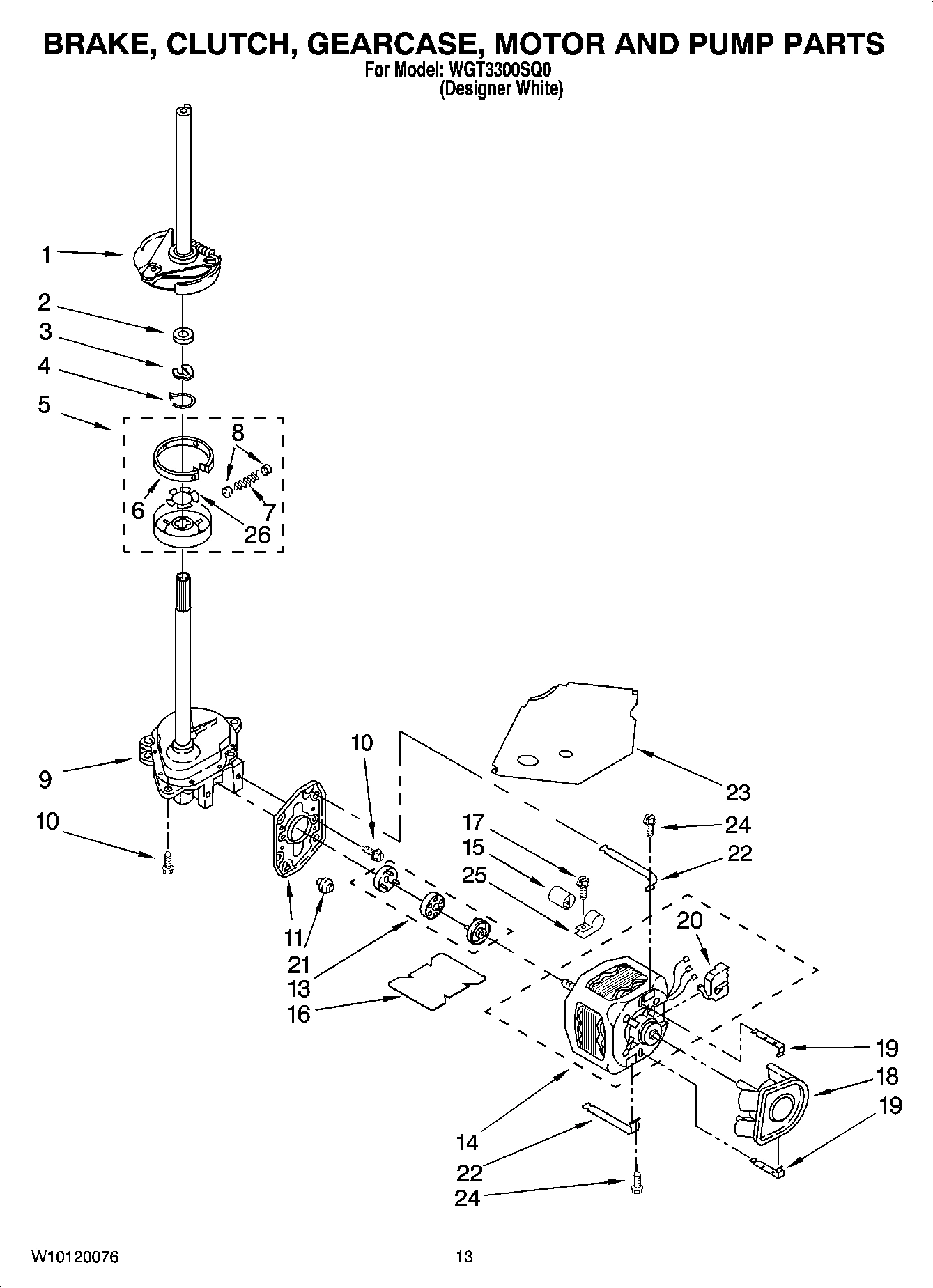

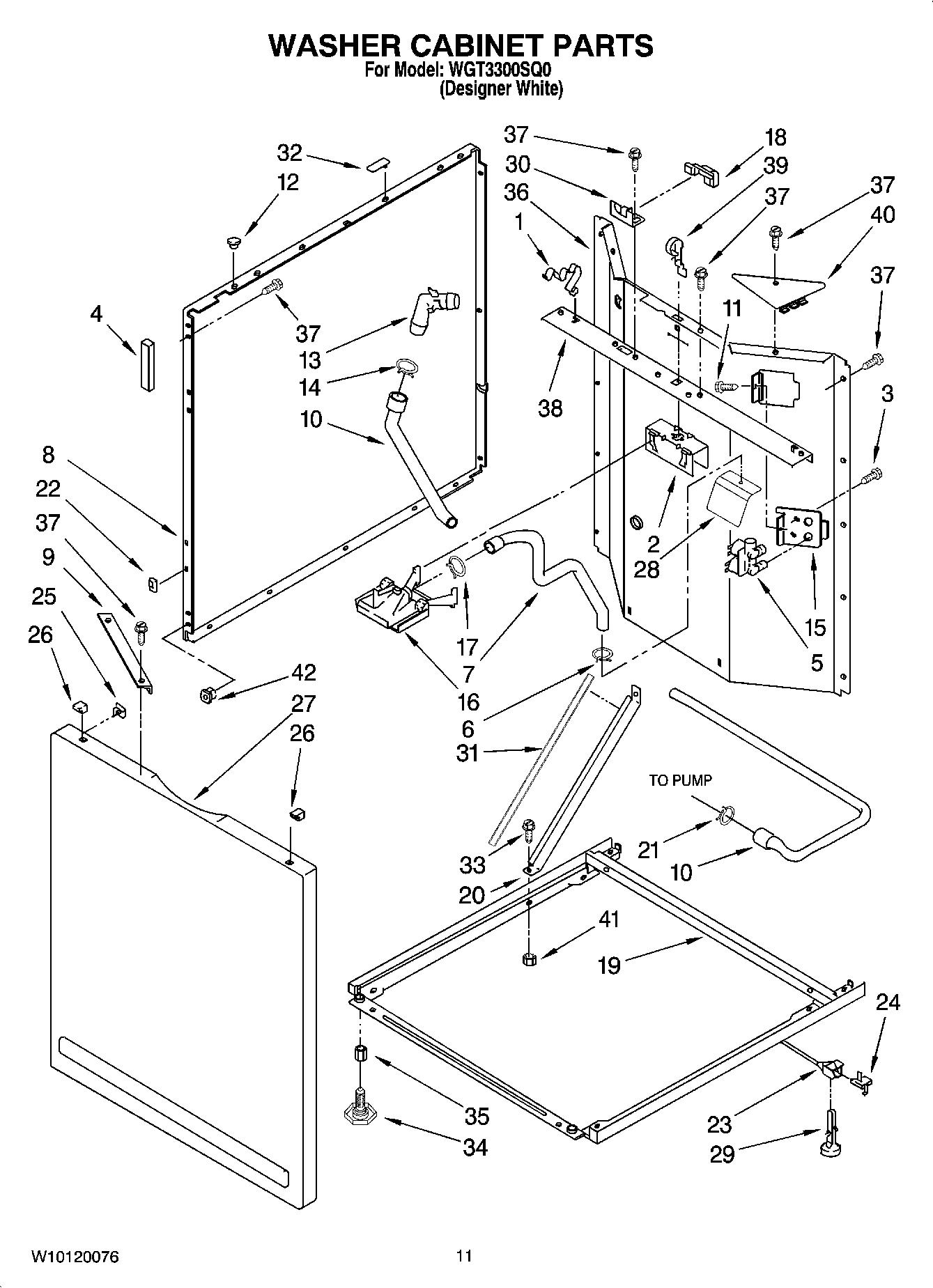

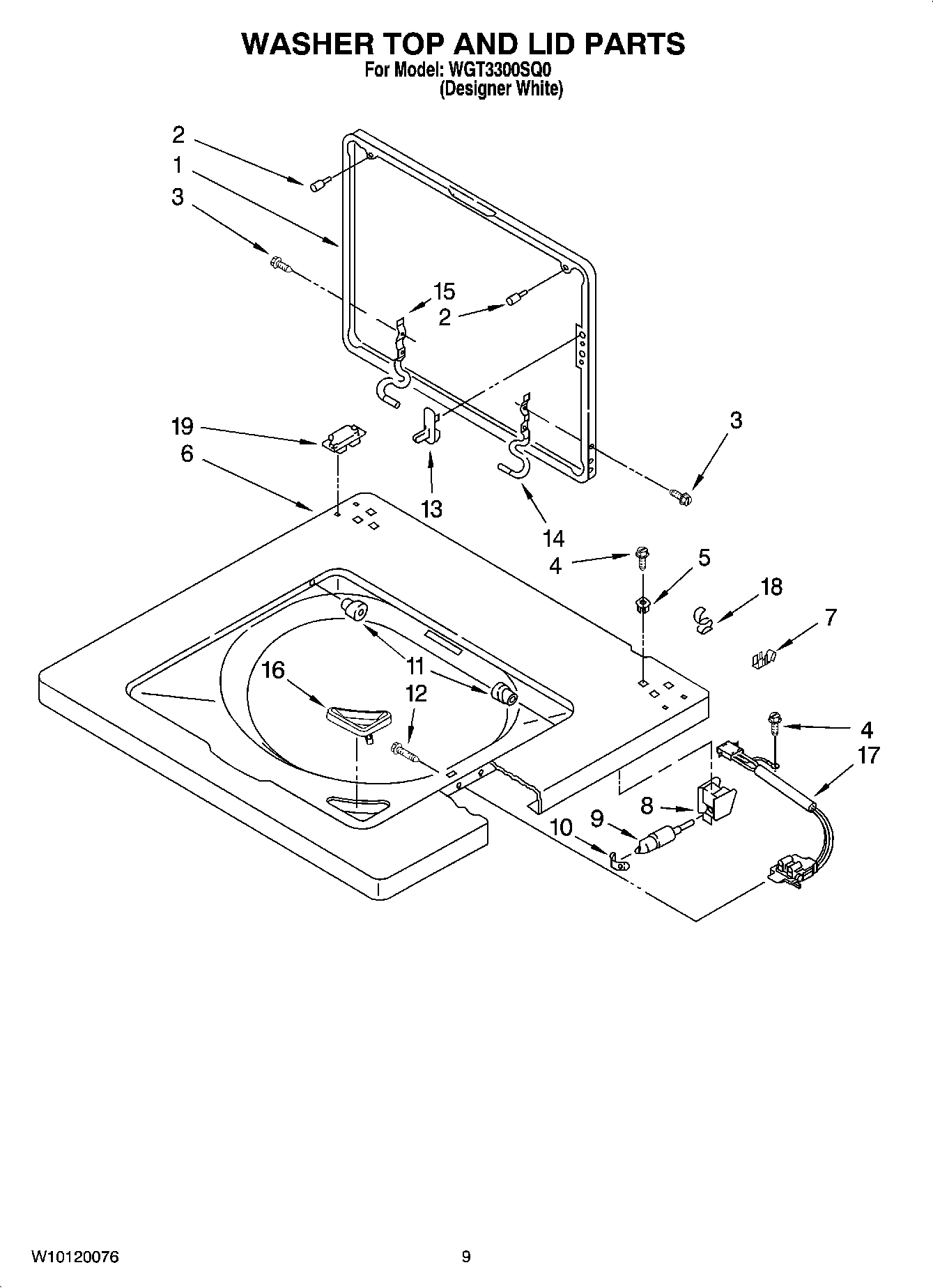

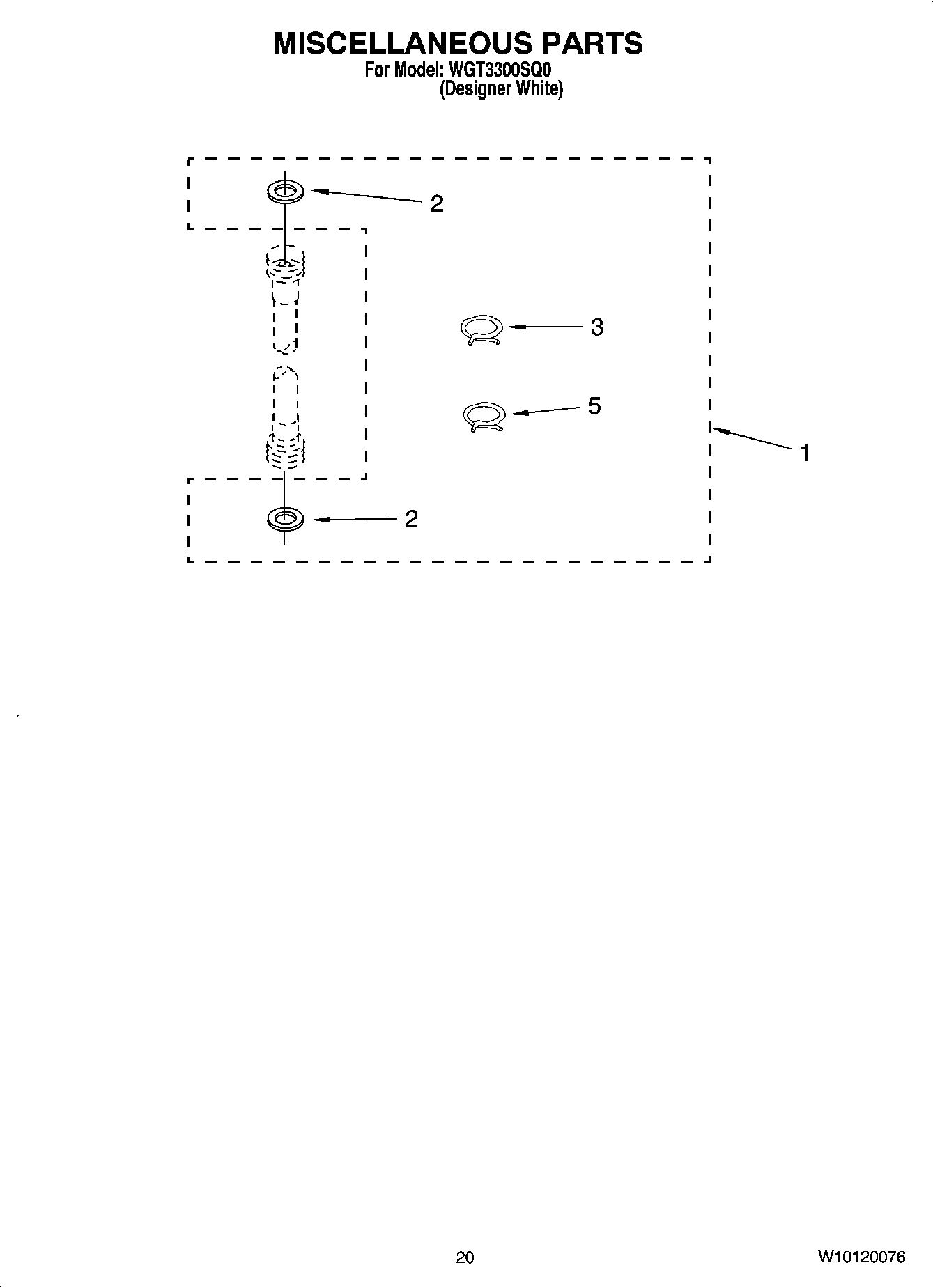

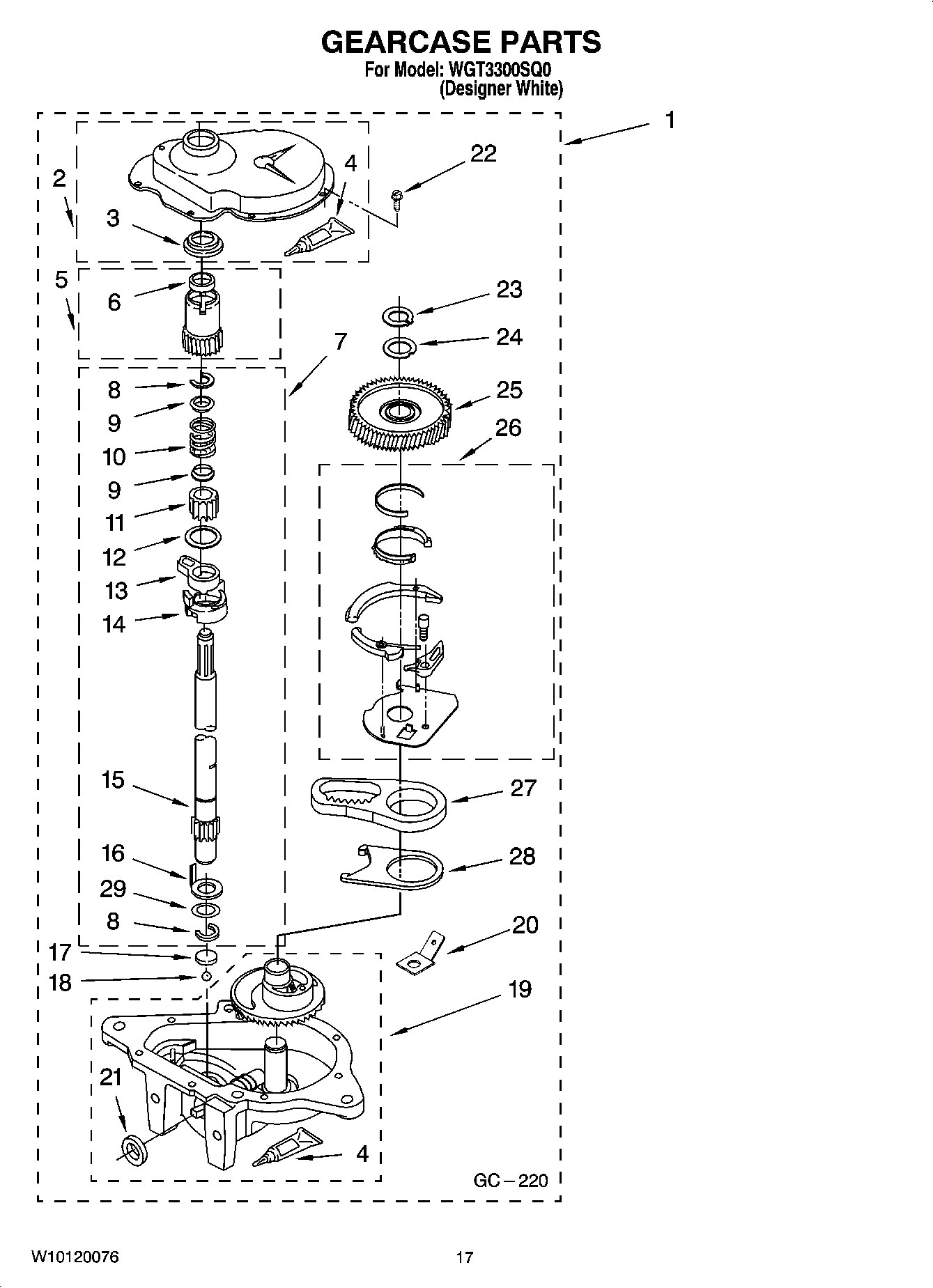

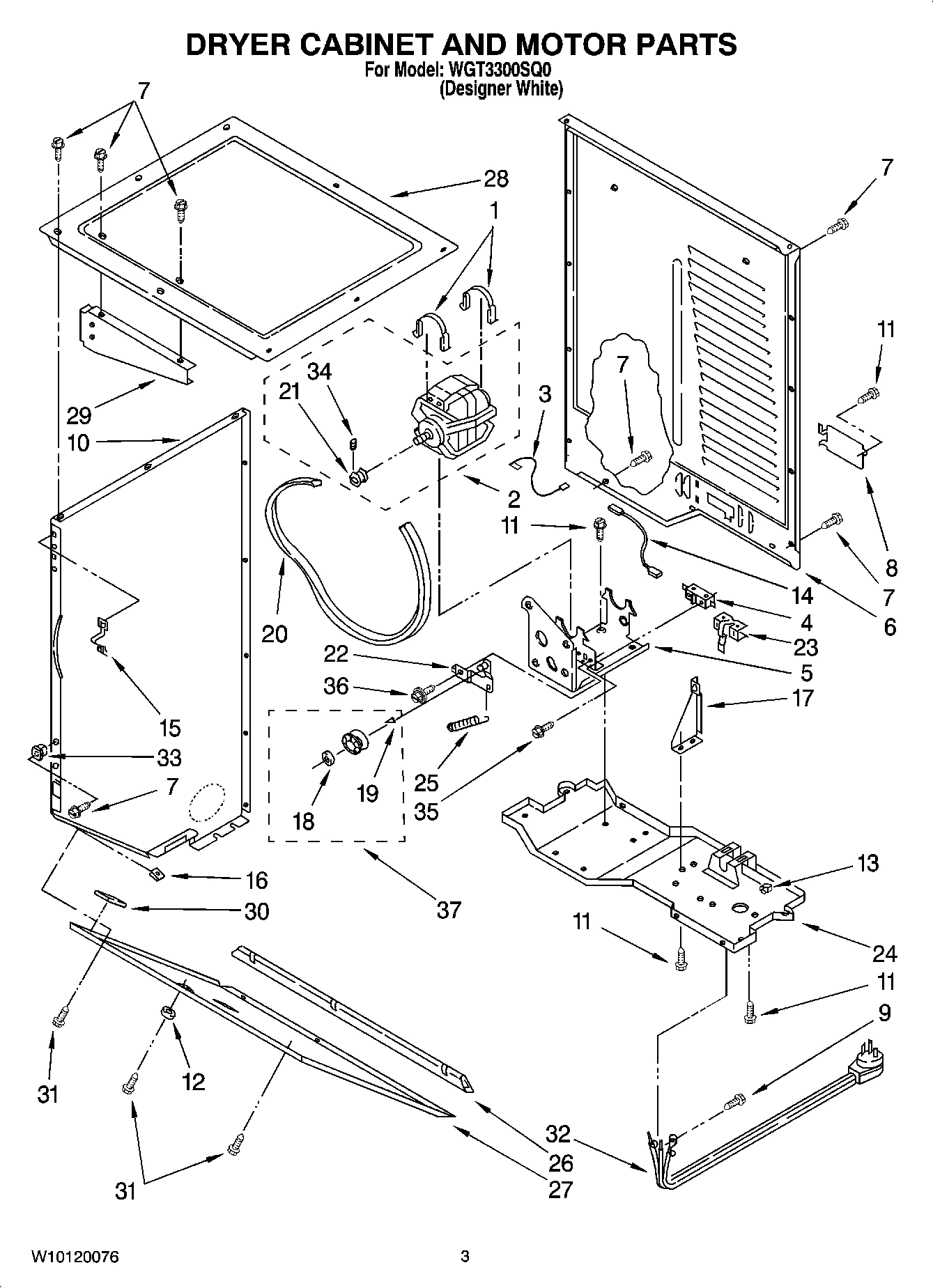

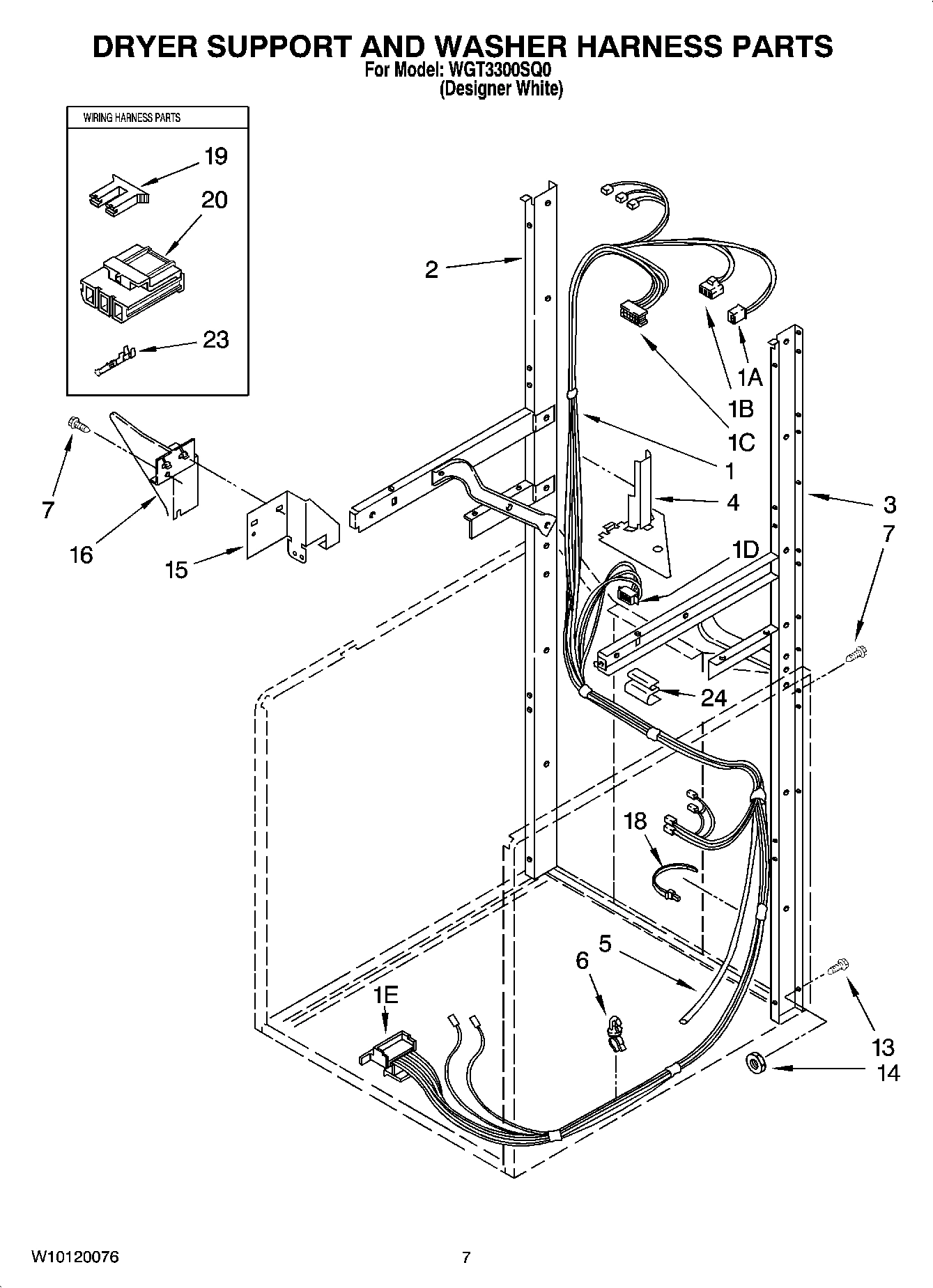

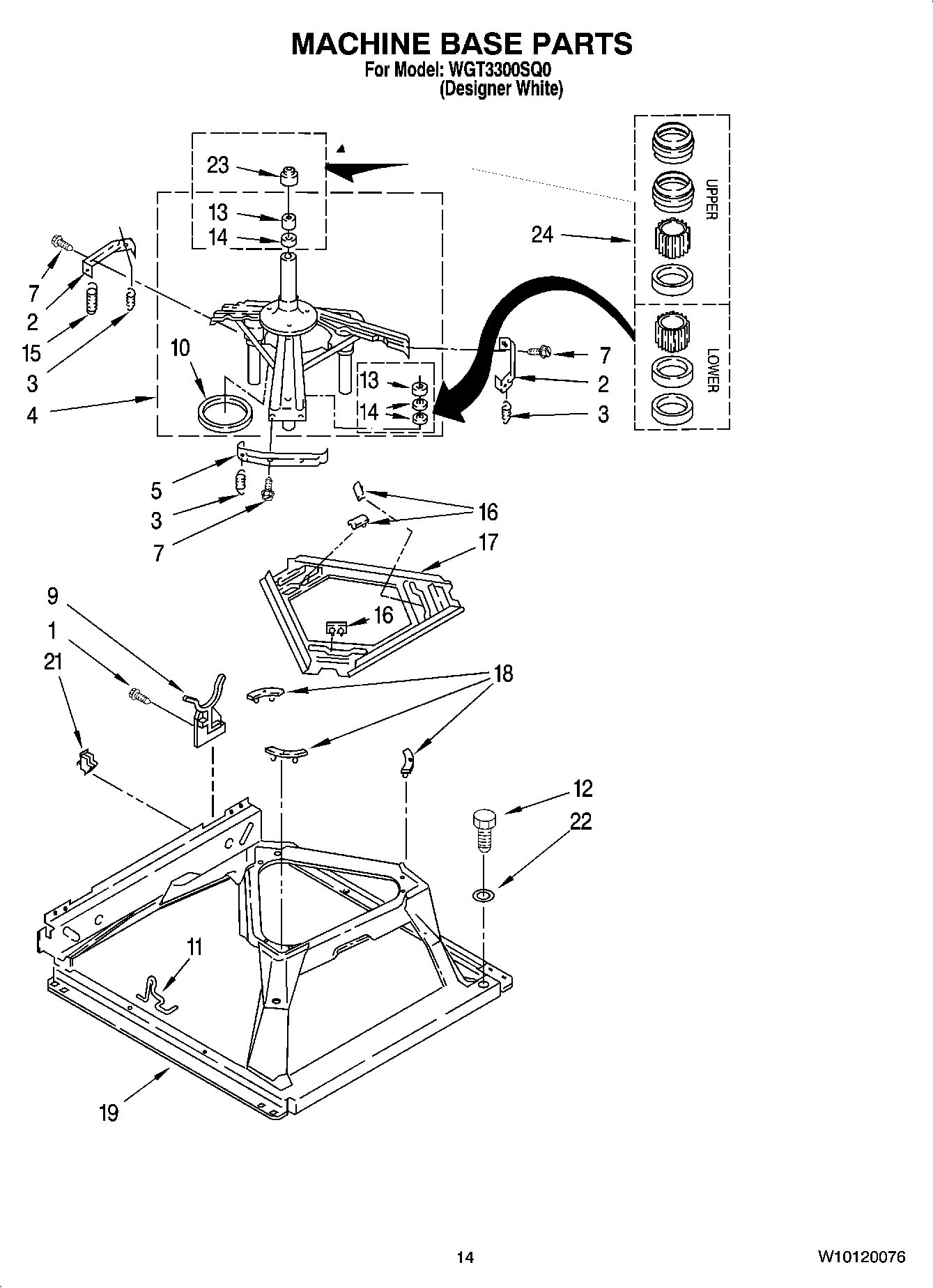

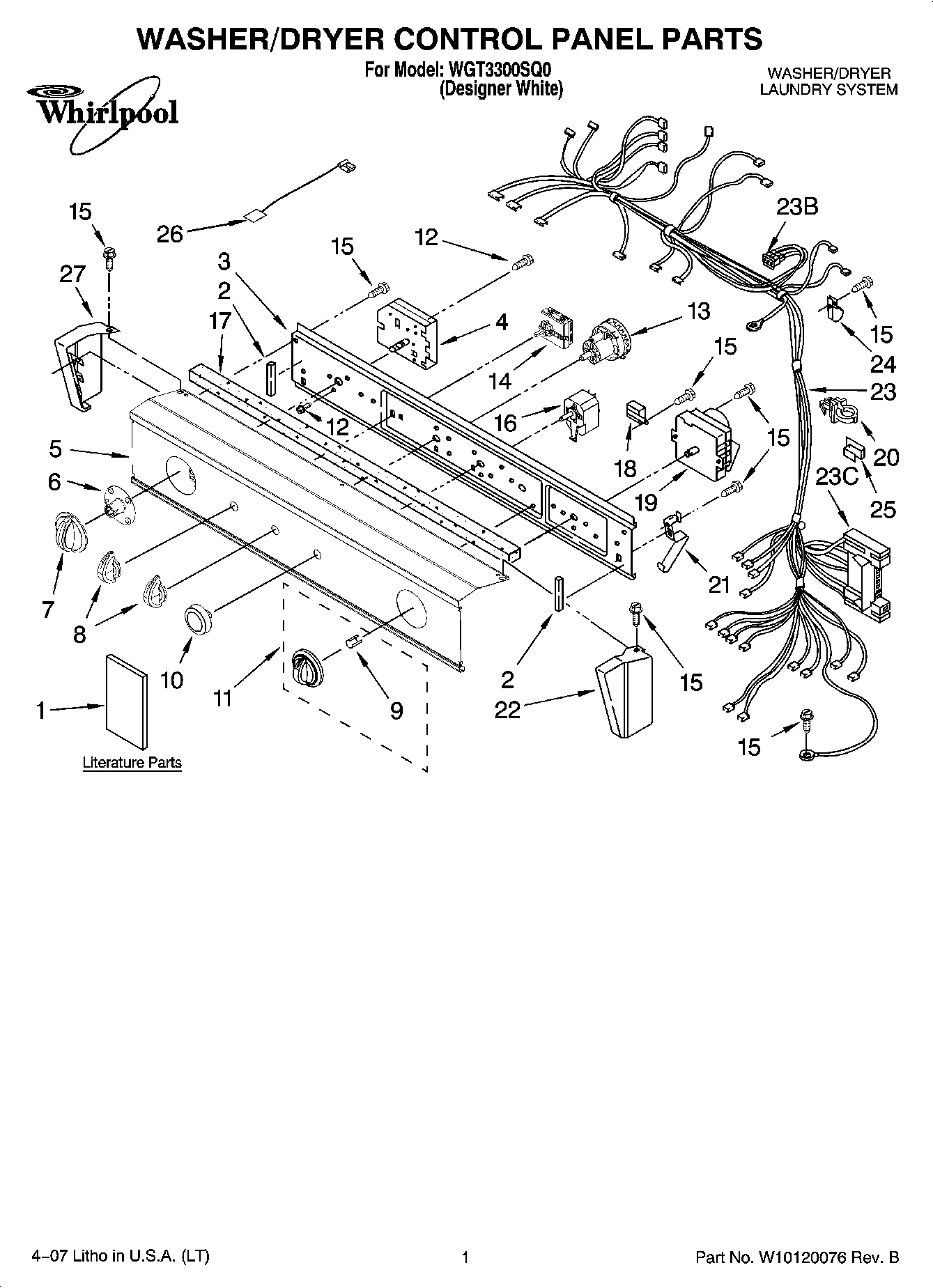

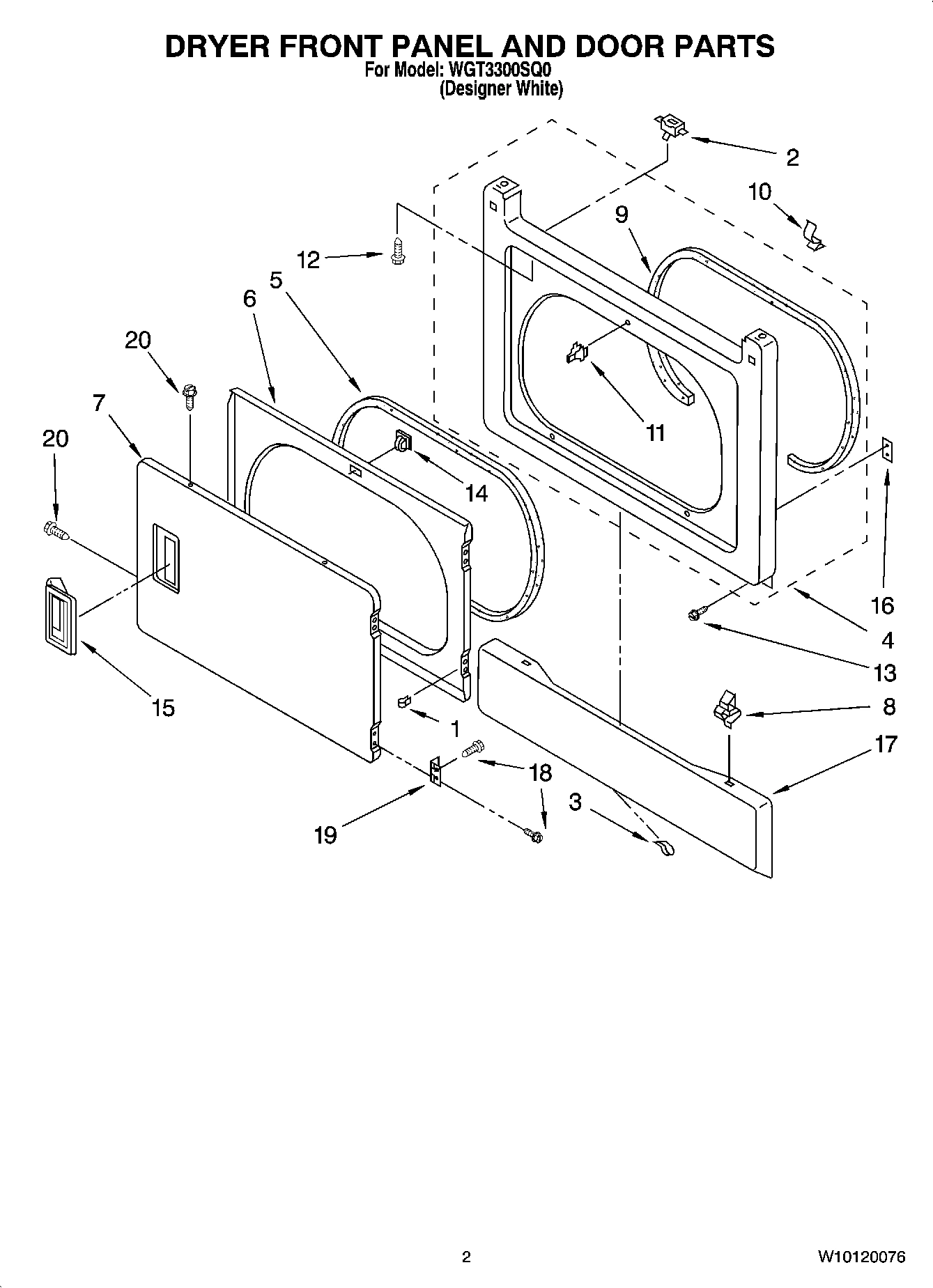

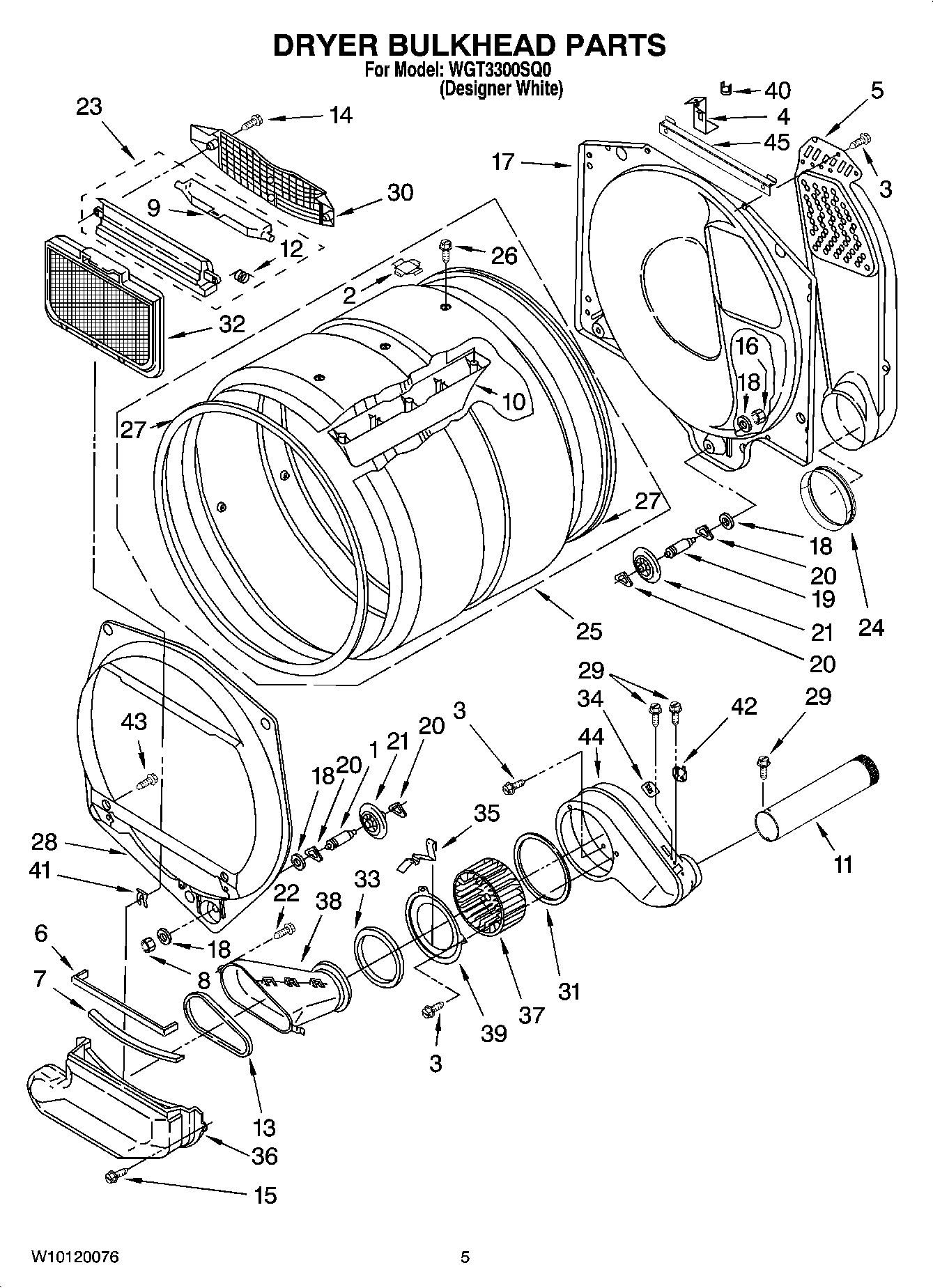

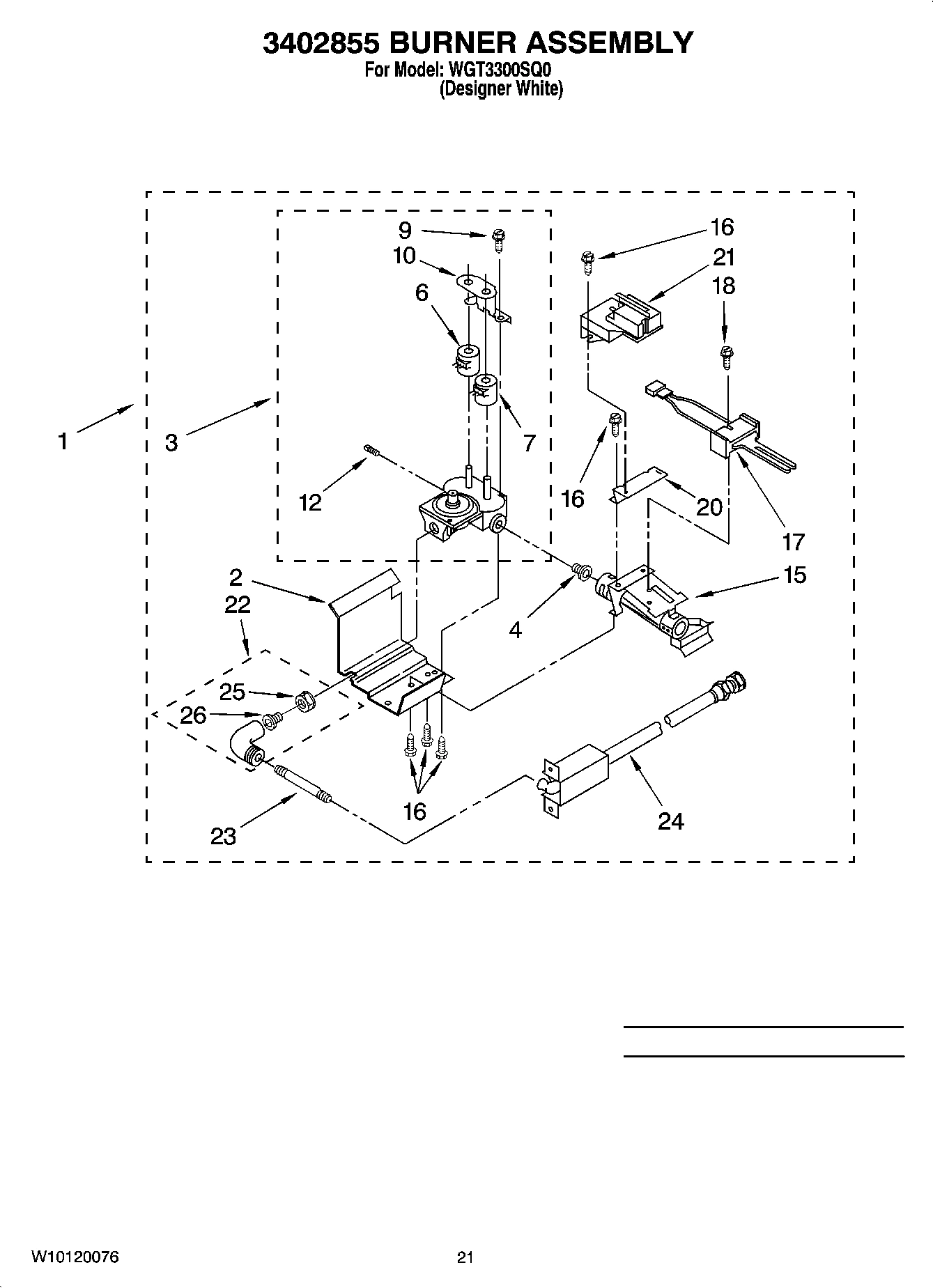

Model Whirlpool WGT3300SQ0 WASHER/DRYER LAUNDRY SYSTEM – Common Parts & Diagrams
Common parts from model Whirlpool WGT3300SQ0 WASHER/DRYER LAUNDRY SYSTEM
1
Harness - Washer WPL W10114956 Contact Us For Availability
1
Miscellaneous Parts Bag WPL W10118295 Contact Us For Availability
1
Use & Care Guide WPL 8578179 Contact Us For Availability
1
Wiring Diagram WPL W10113806 Contact Us For Availability
1
Installation Instructions WPL W10118290 Contact Us For Availability
1
Sheet, Cycle Feature WPL W10118304 Contact Us For Availability
1
Energy Guide WPL W10127620 Contact Us For Availability
1B
Connector, 5 Way WPL 3347243 Contact Us For Availability
1D
Receptacle, 3 Way WPL 3350211 Contact Us For Availability
5
Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability
5
Panel, Control WPL W10114898 Contact Us For Availability
6
Clip, Harness WPL 8281256 Contact Us For Availability
7
Knob, Timer (Washer) WPL 8566022 Contact Us For Availability
8
Knob, Control (2) WPL 8565944 Contact Us For Availability
8
Ring, Retaining (2) WPL 90369 Contact Us For Availability
10
Clip, Retainer WPL 3350828 Contact Us For Availability
10
Hose, Drain WPL 3353841 Contact Us For Availability
10
Spring, Agitate WPL 62676 Contact Us For Availability
13
Bolt, 5/16-18 x 1/2 WPL 3400300 Contact Us For Availability
13
Switch, Pressure WPL W10112533 Contact Us For Availability
14
Wire, Broken Belt Switch WPL 3394081 Contact Us For Availability
16
Shield, Thermostat WPL 3390336 Contact Us For Availability
16
Washer, Cam Thrust WPL 62618 Contact Us For Availability
18
Clip, Harness (2) WPL 3391249 Contact Us For Availability
19
Base Assembly (Includes Illus. 11 & 18) WPL 3349343 Contact Us For Availability
19
Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability
20
BLOCK TAB, TERMINAL WPL 3949116 Contact Us For Availability
22
Washer (2) WPL 3349340 Contact Us For Availability
22
End Cap (RH) WPL 3389456 Contact Us For Availability
23
Ring, Retaining WPL 3362552 Contact Us For Availability
23
Harness - Dryer WPL W10121646 Contact Us For Availability
23B
Receptacle, WPL 2154470 Contact Us For Availability
24
Base, Dryer WPL 3391668 Contact Us For Availability
24
Protector, Harness WPL 63523 Contact Us For Availability
24
Washer Kit, Thrust WPL 285735 Contact Us For Availability
25
Nut WPL 233076 Contact Us For Availability
25
Clip, Harness (2) WPL 3390422 Contact Us For Availability
27
End Cap (LH) WPL 3389464 Contact Us For Availability
28
Top, Dryer WPL 3389537 Contact Us For Availability
31
Edge Protector WPL 303294 Contact Us For Availability
33
Screw, 5/16-18 x 1/2 (2) WPL 3400502 Contact Us For Availability
34
Pin, Roll WPL 3394743 Contact Us For Availability
41
Nut, Hex (2) WPL 3393930 Contact Us For Availability
42
Nut, Push-In (2) WPL 352292 Contact Us For Availability
× ![]()
