Model Speed Queen SWFX64*N98K5 Washer – Common Parts & Diagrams
Control Panel and Controls
Top Assembly

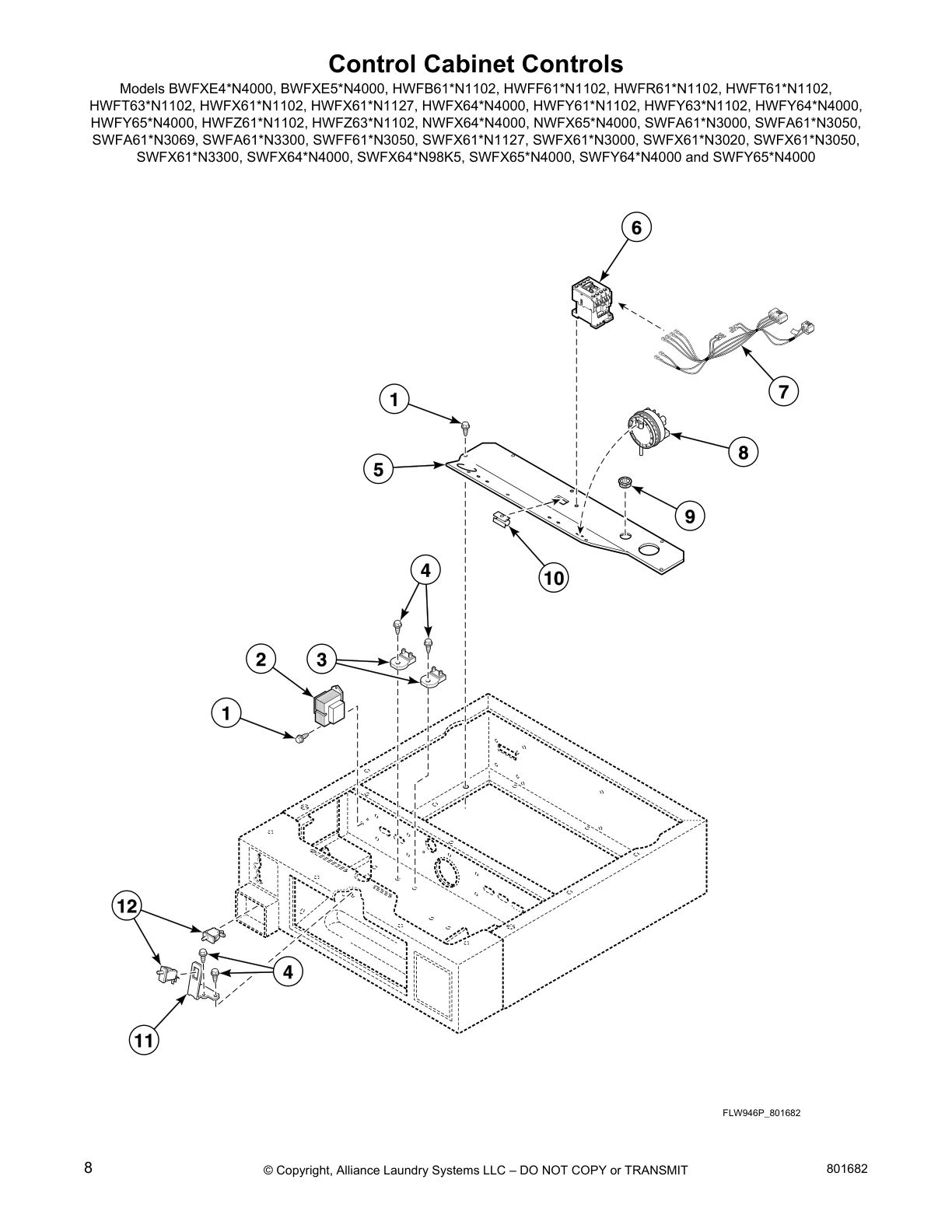

Control Cabinet Controls

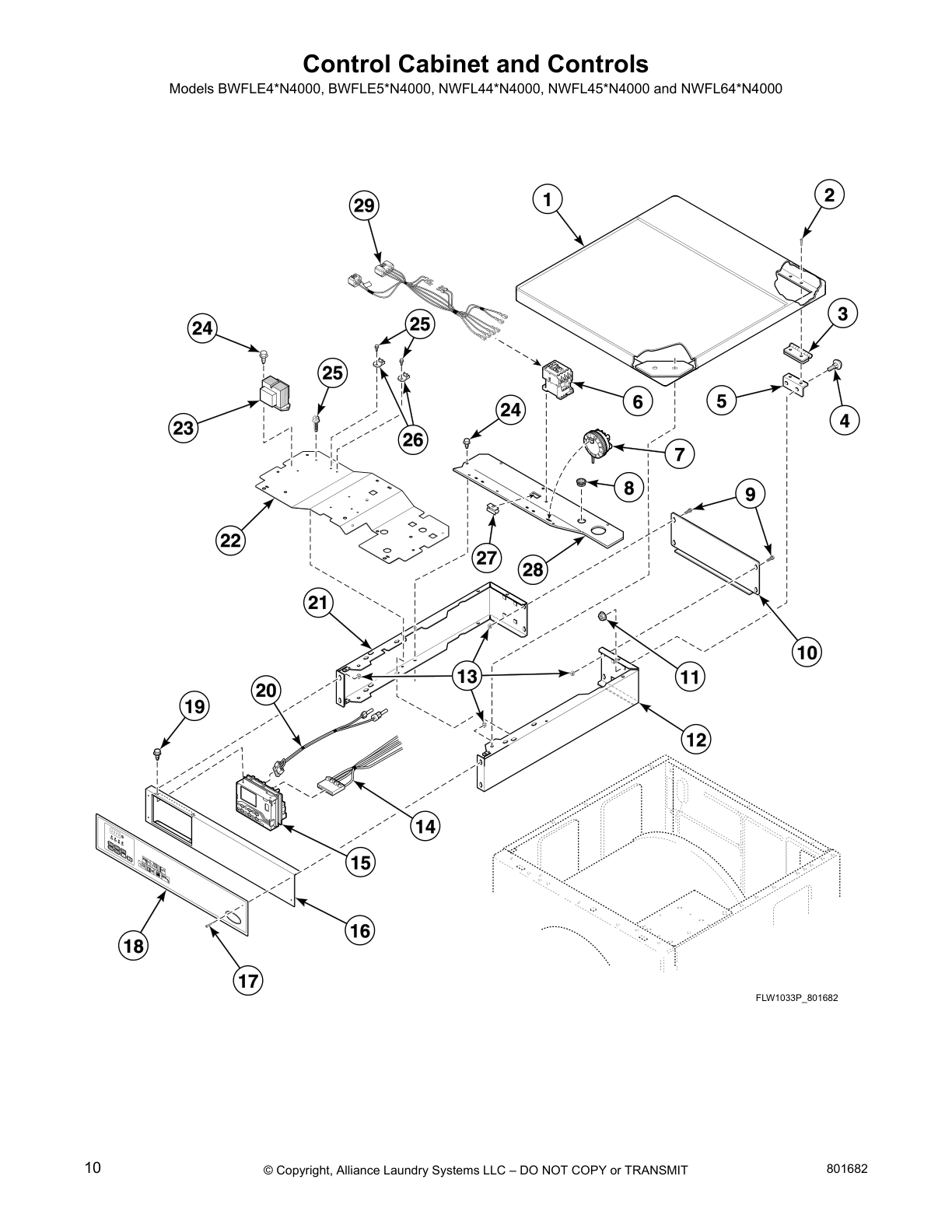

Control Cabinet and Controls

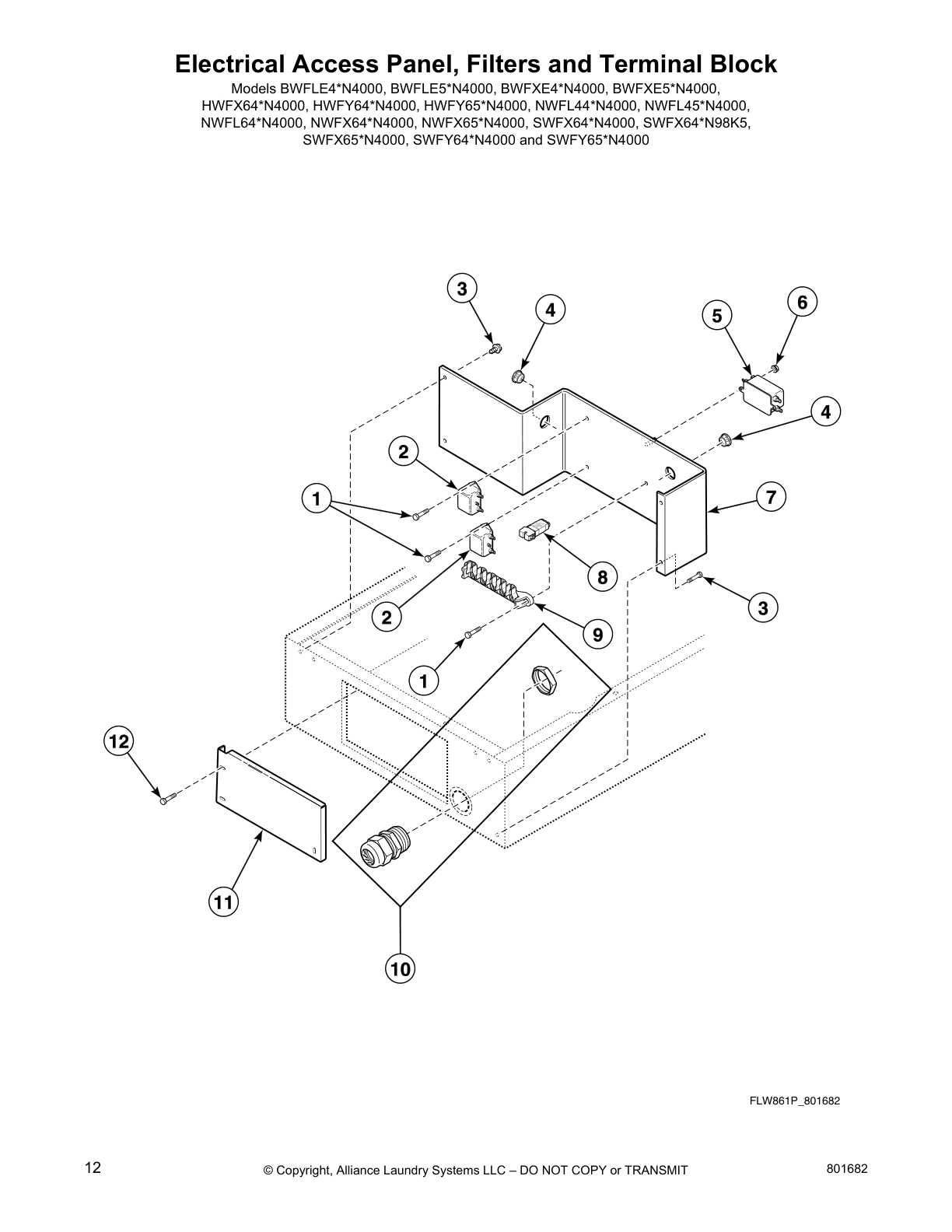

Electrical Access Panel, Filters and Terminal Block

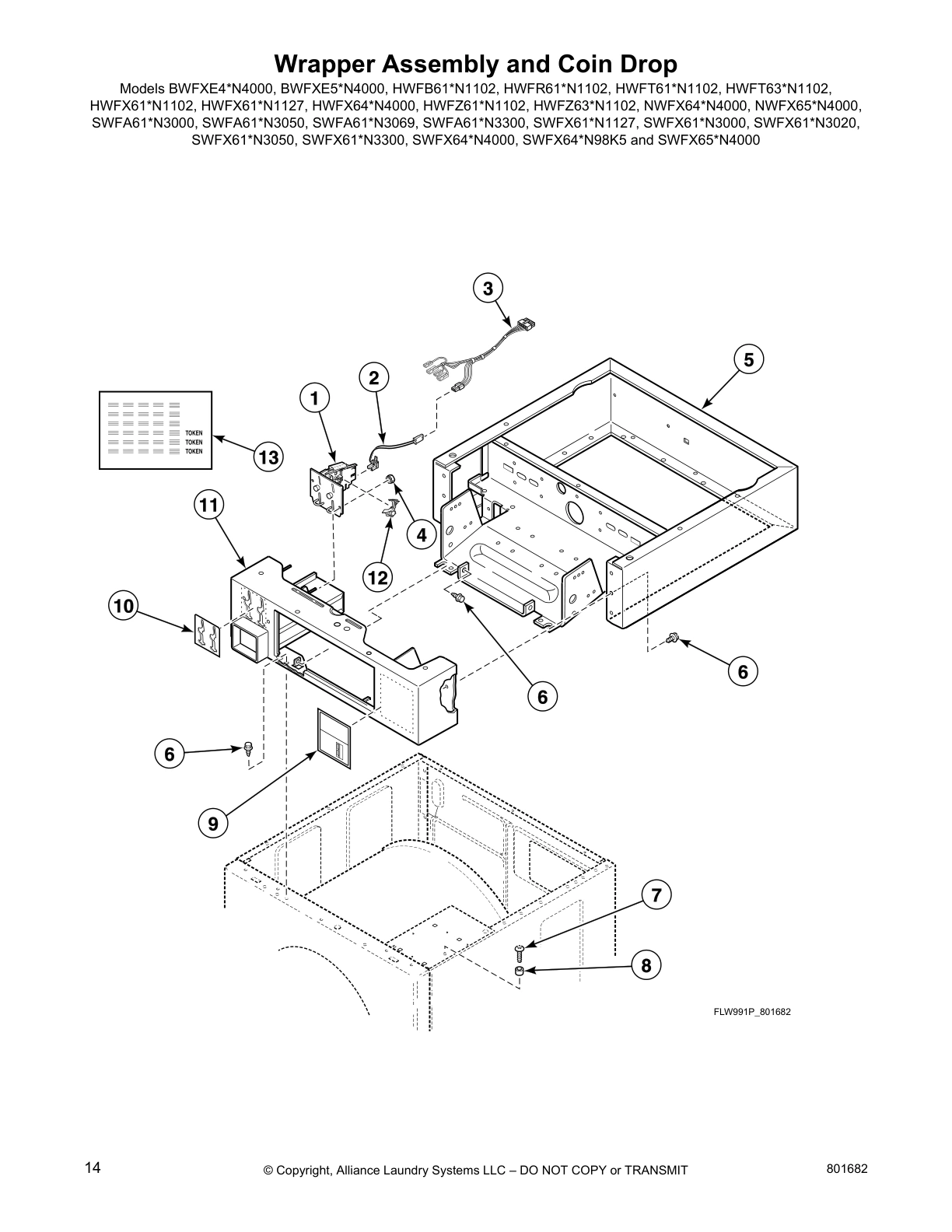

Wrapper Assembly and Coin Drop

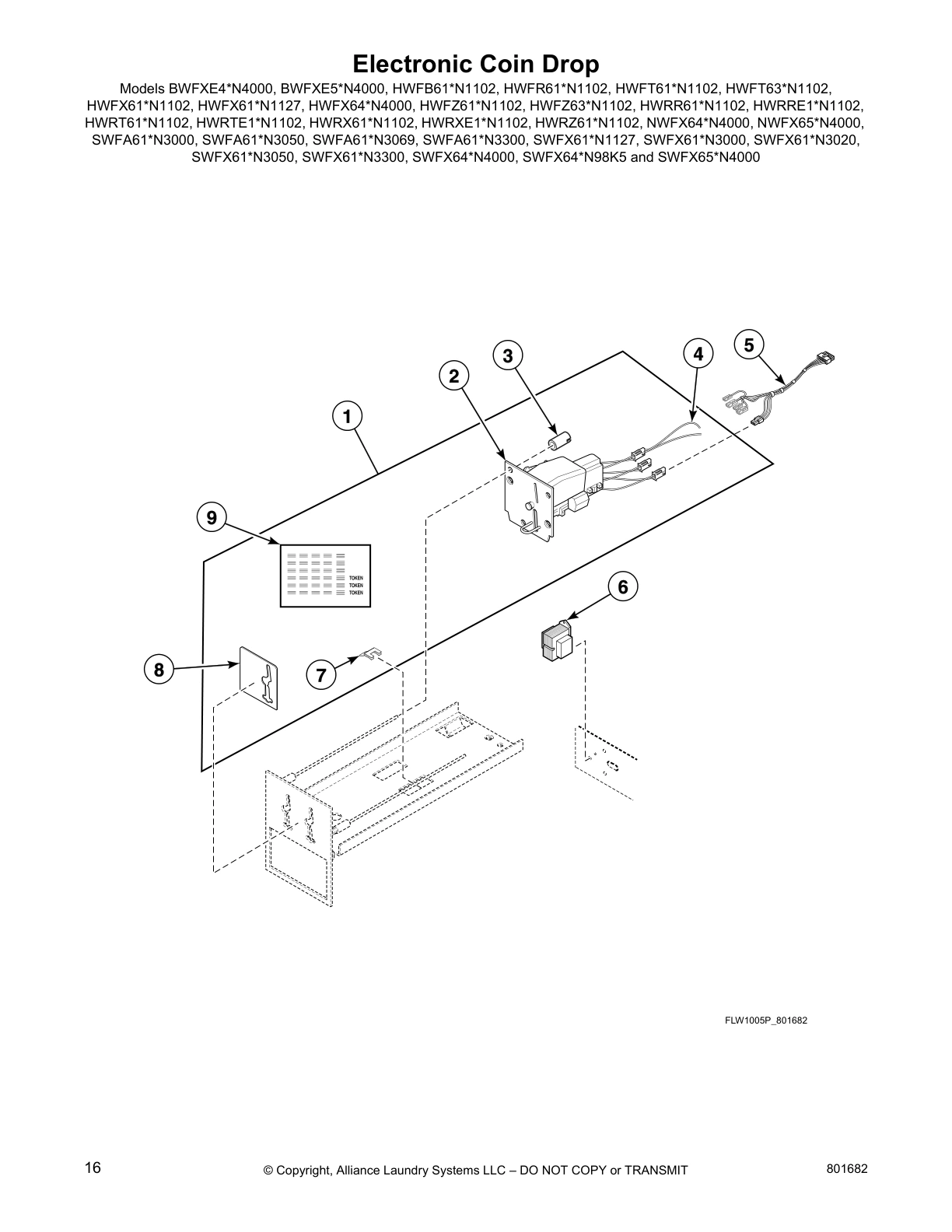

Electronic Coin Drop

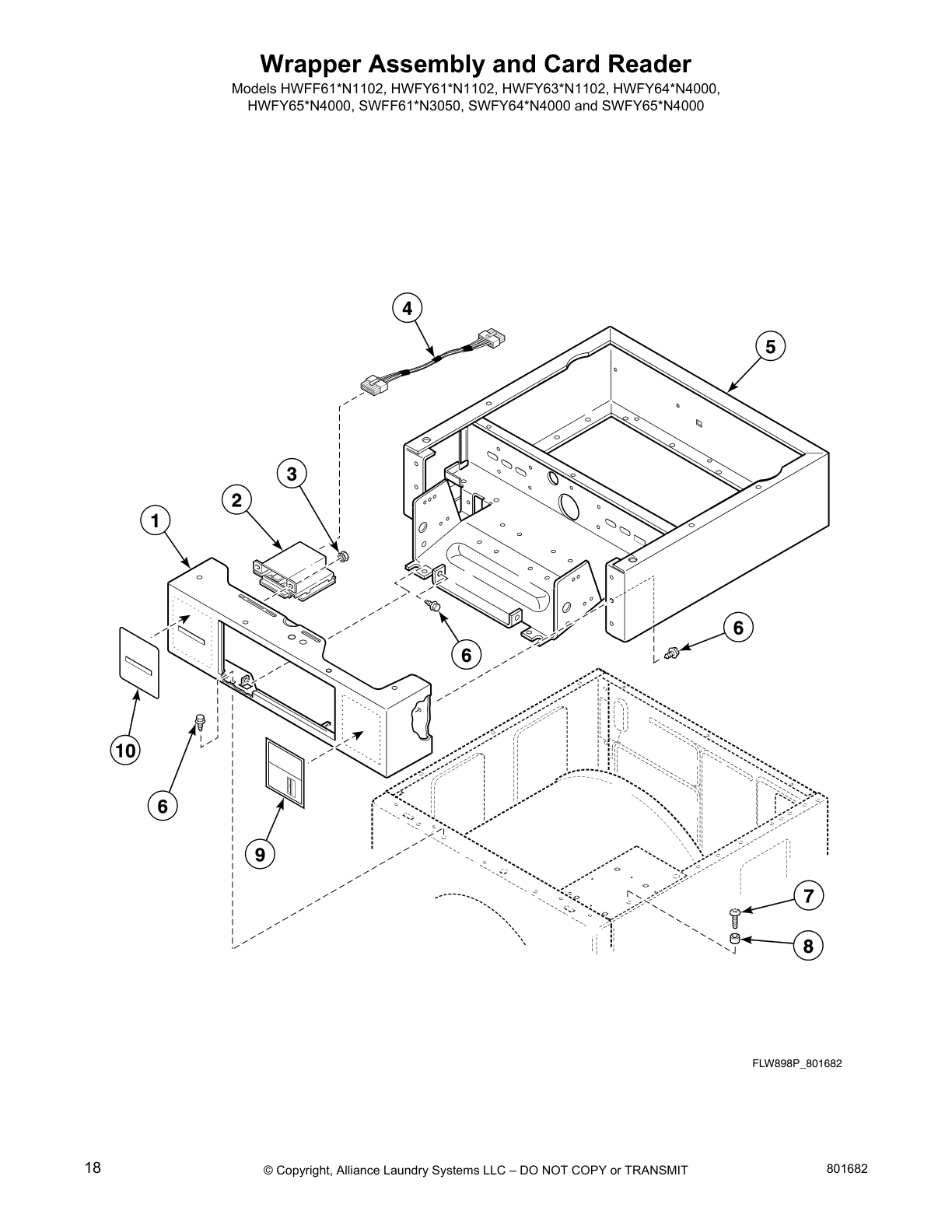

Wrapper Assembly and Card Reader
Coin Drop, Meter Case, Service Door and Cabinet Top

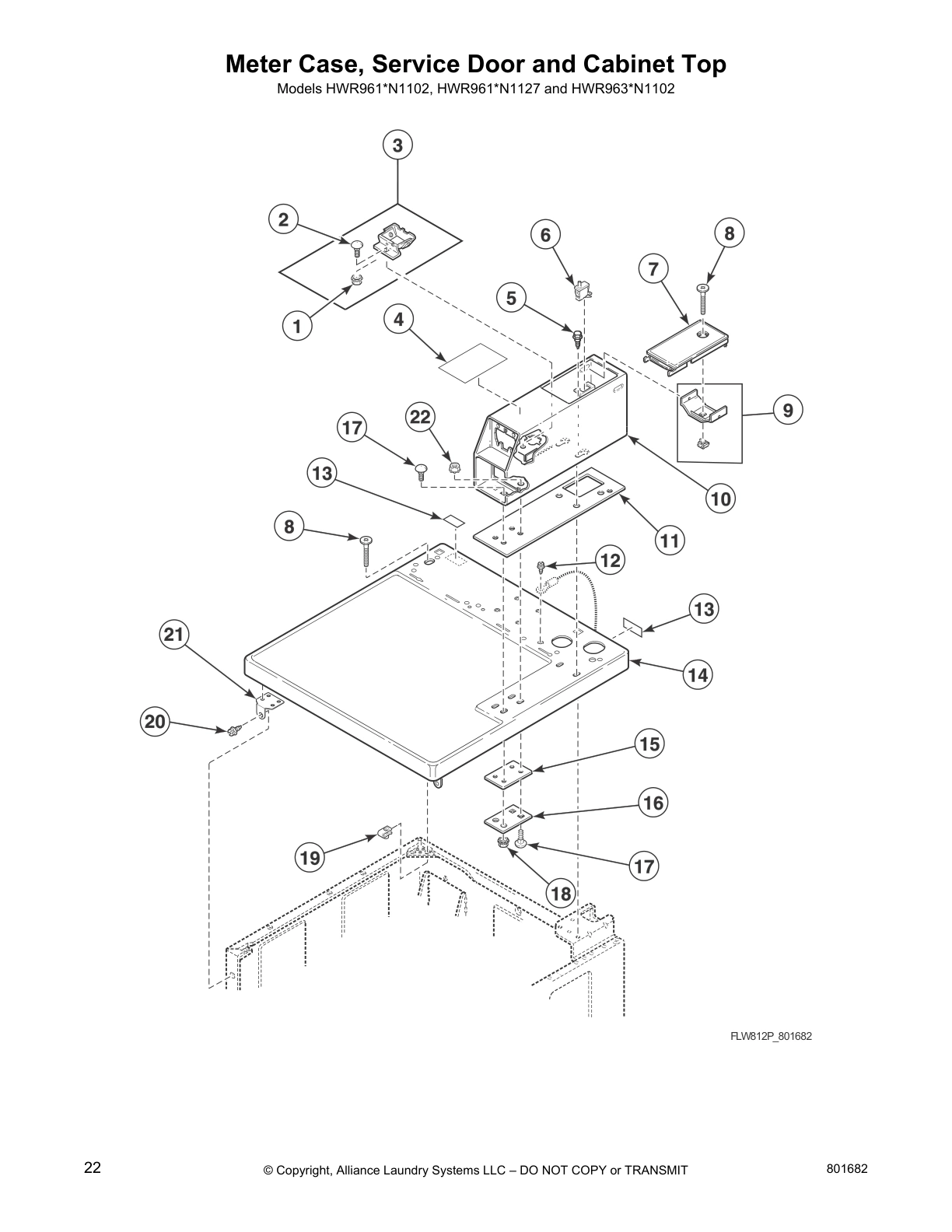

Meter Case, Service Door and Cabinet Top

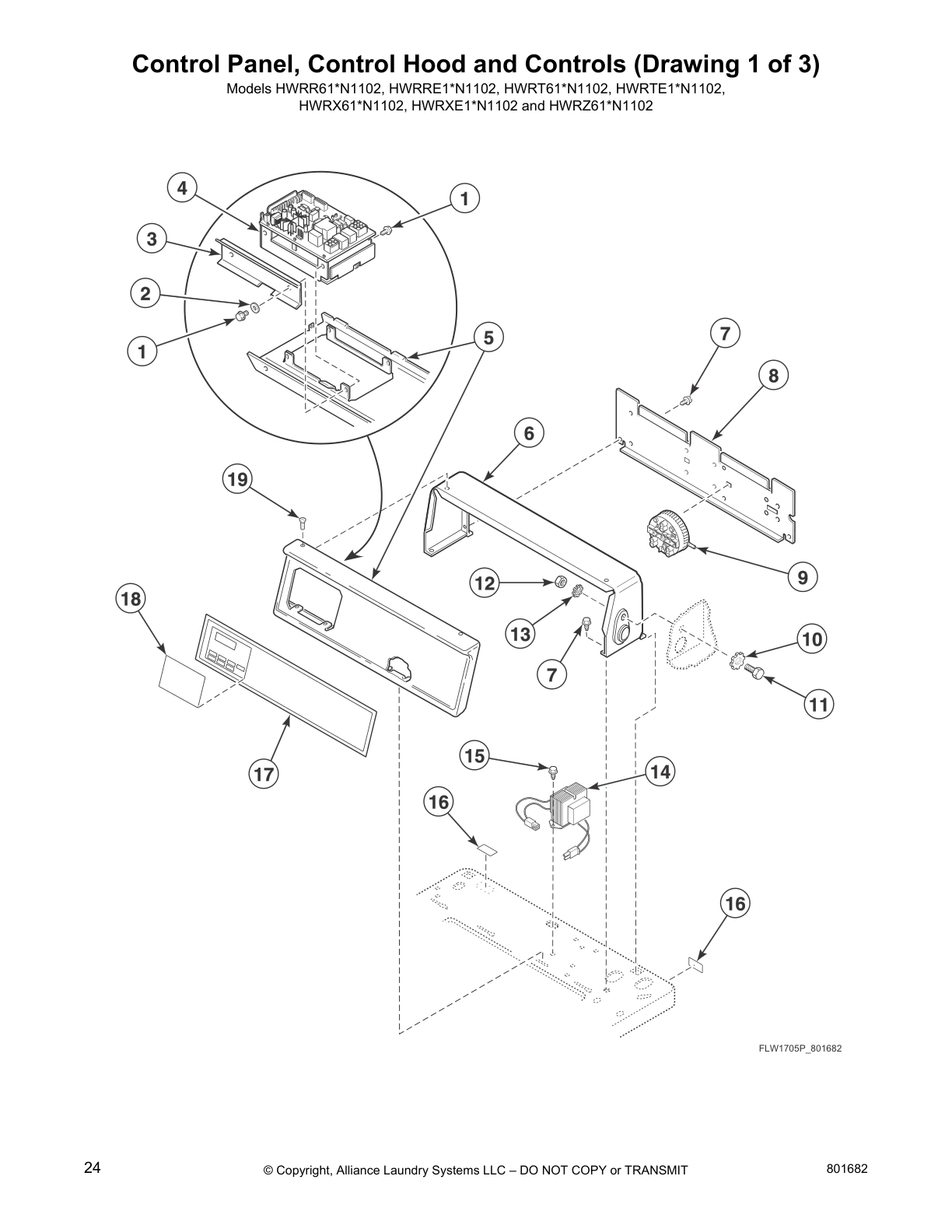

Control Panel, Control Hood and Controls (Drawing 1 of 3)

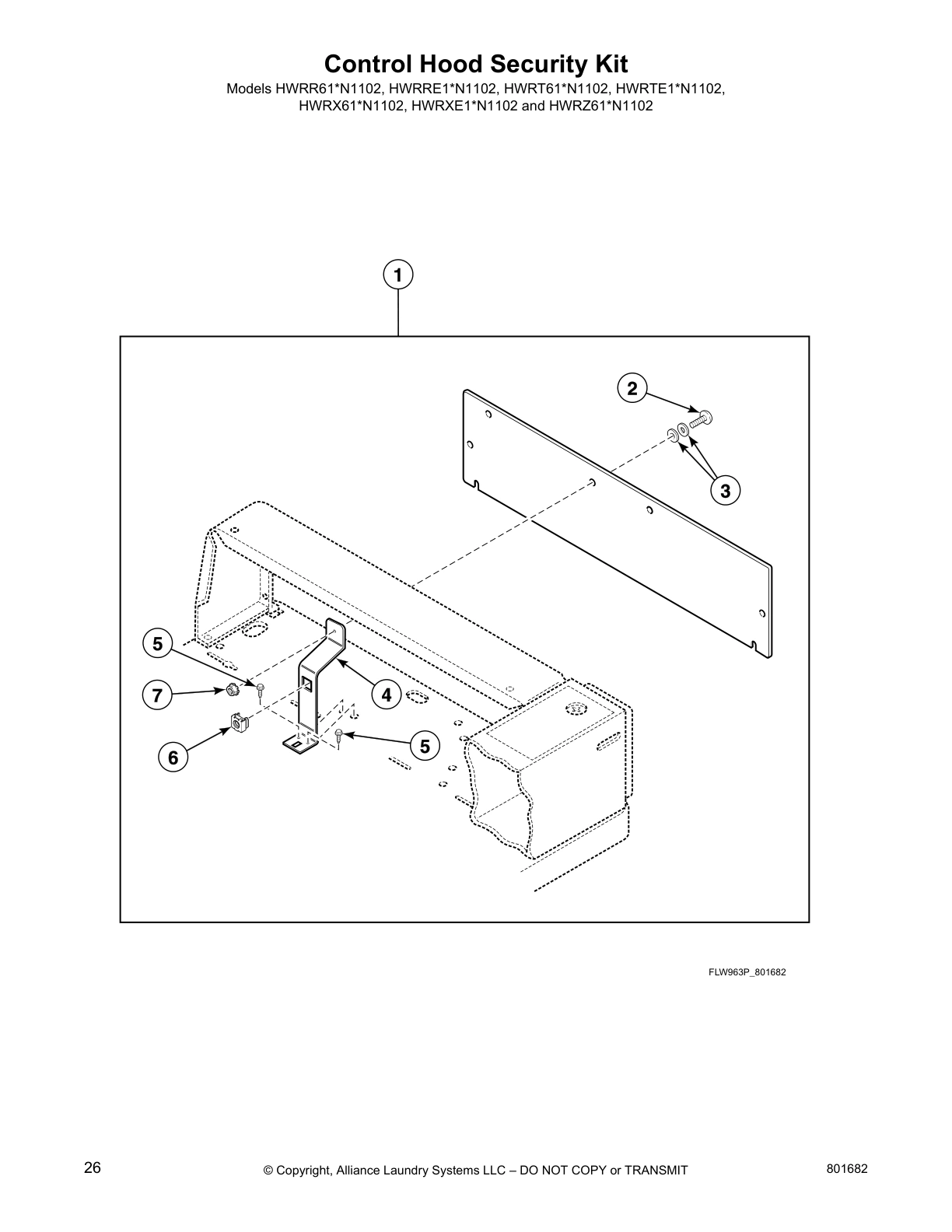

Control Hood Security Kit
Control Panel, Control Hood and Controls (Drawing 2 of 3)
Control Panel, Control Hood and Controls (Drawing 3 of 3)

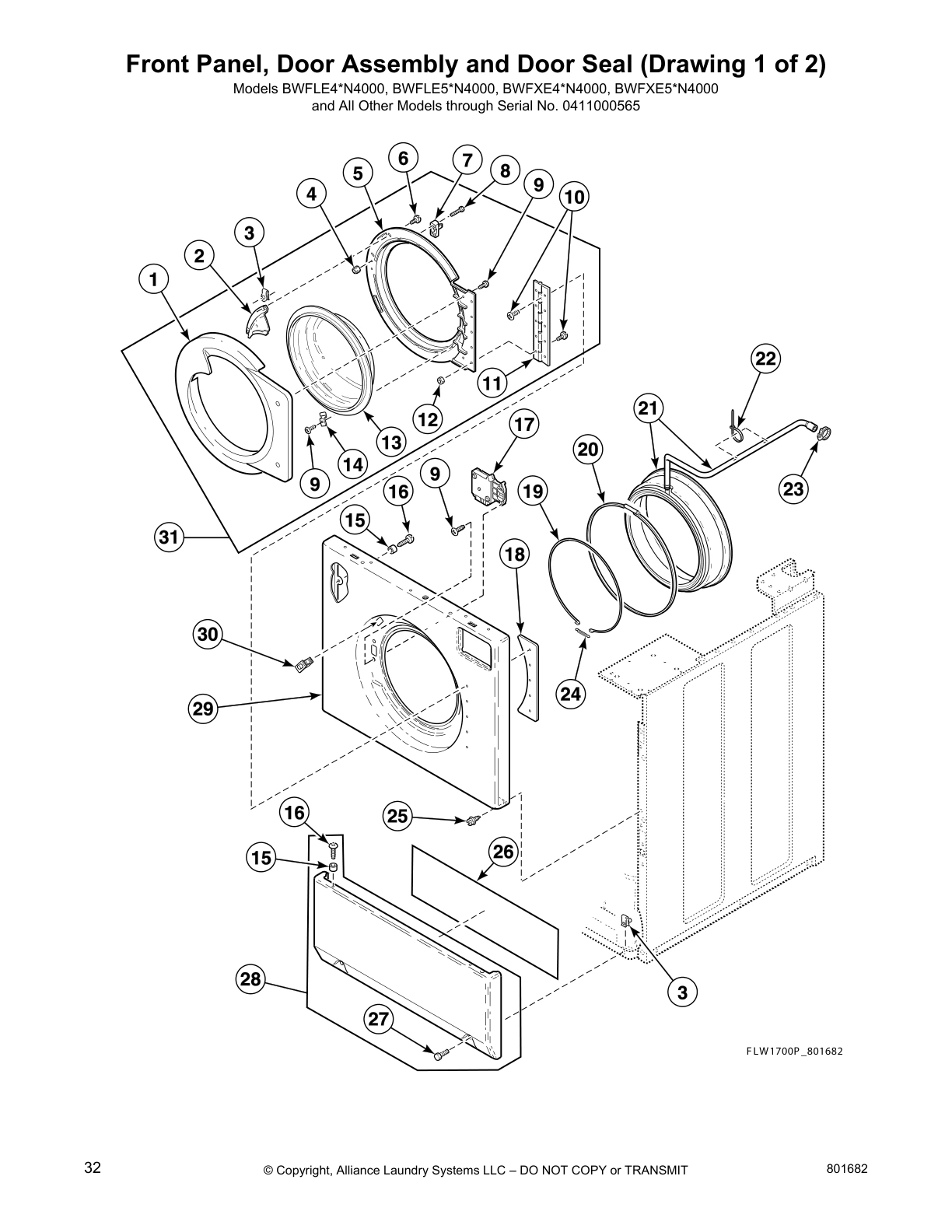

Front Panel, Door Assembly and Door Seal (Drawing 1 of 2)

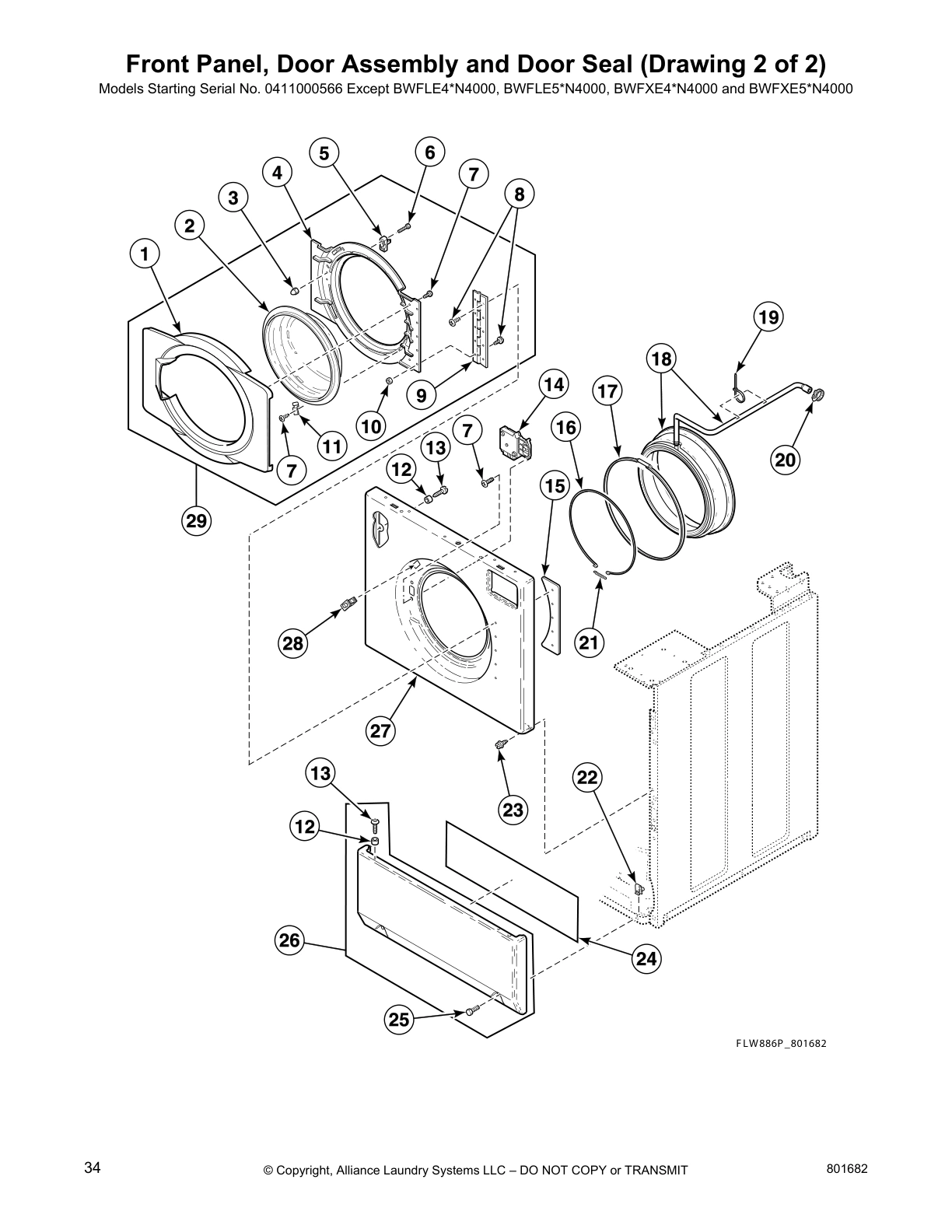

Front Panel, Door Assembly and Door Seal (Drawing 2 of 2)
Dispenser Assembly
Mixing Valve, Inlet Hose and Dispenser Hose

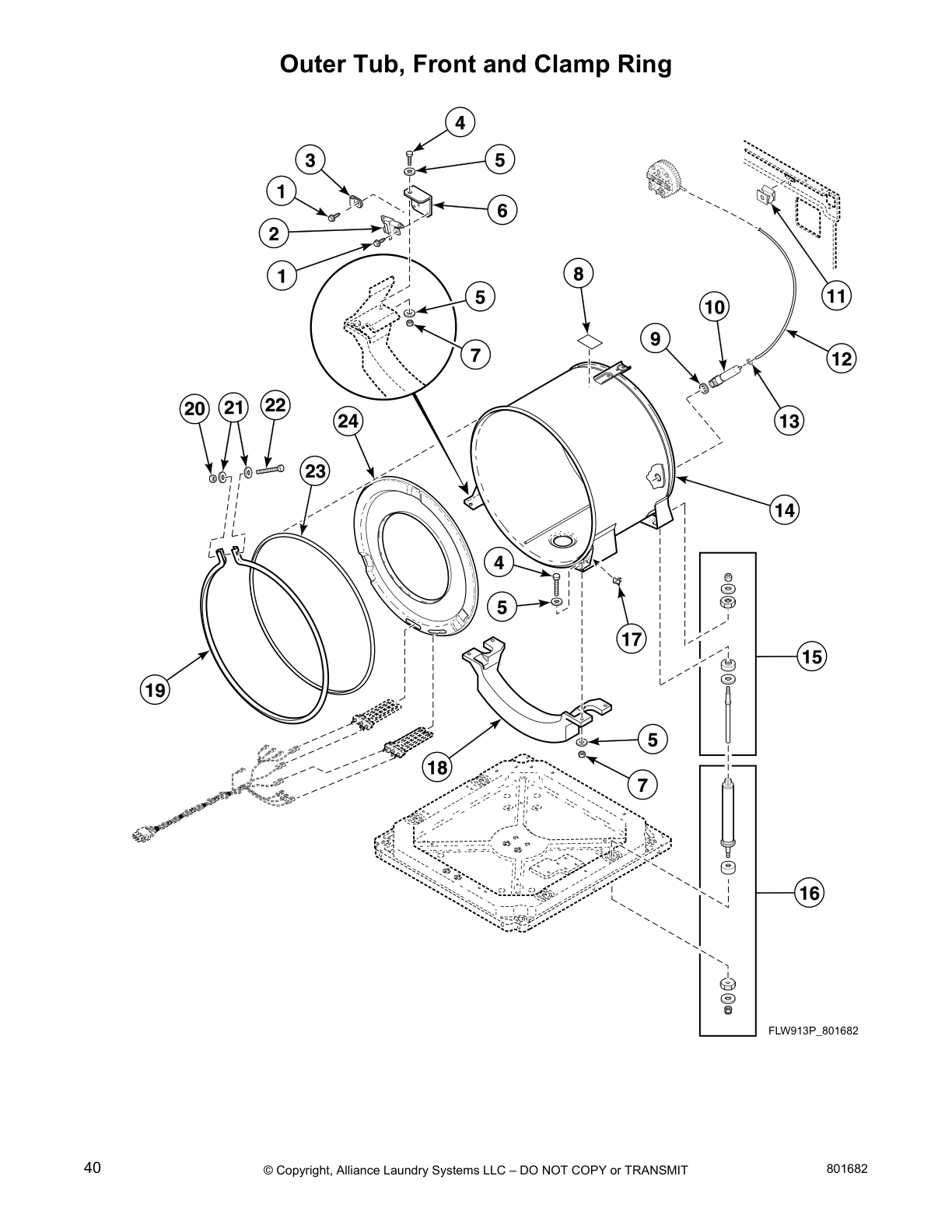

Outer Tub, Front and Clamp Ring

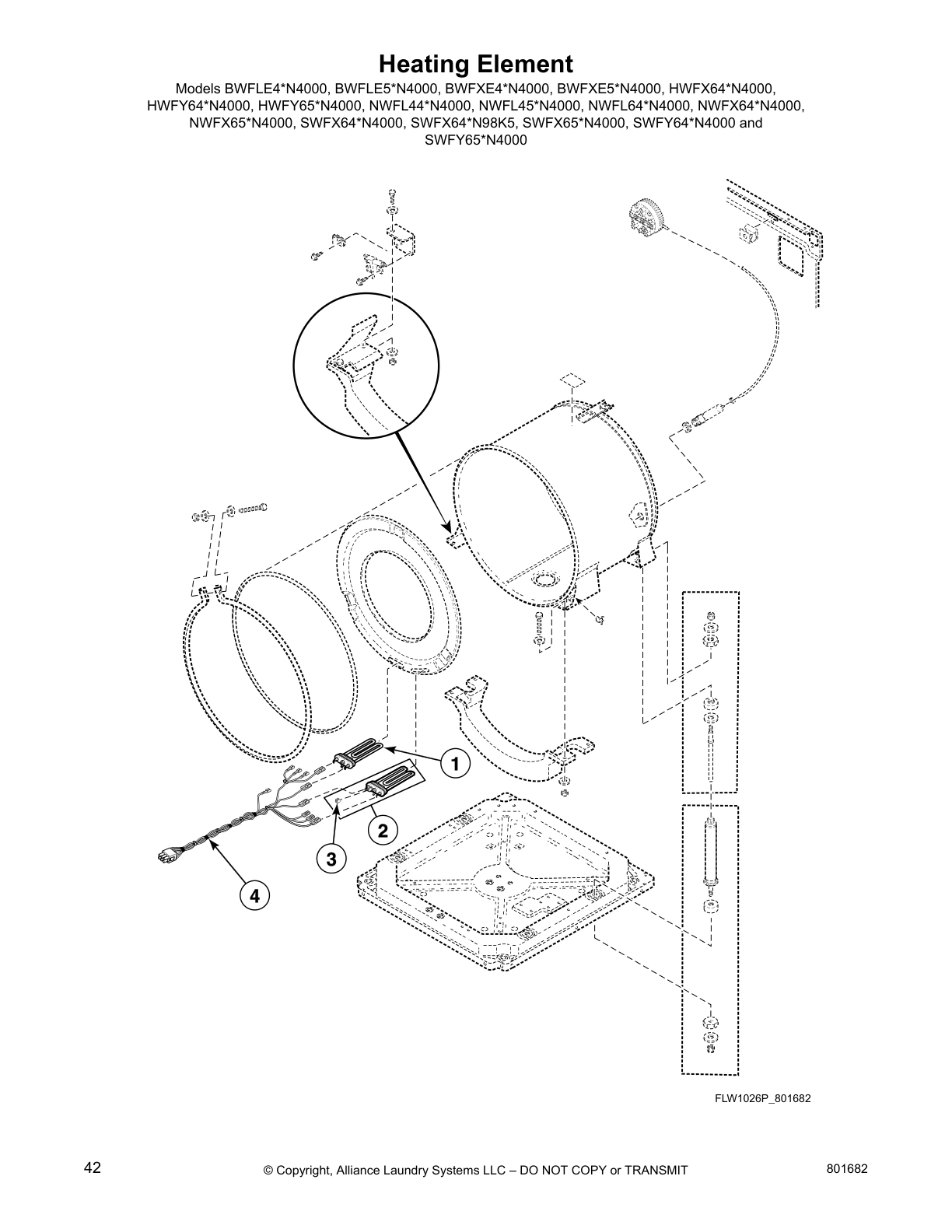

Heating Element
Inner Basket, Trunnion, Bearing Housing and Pulley
Motor and Belt

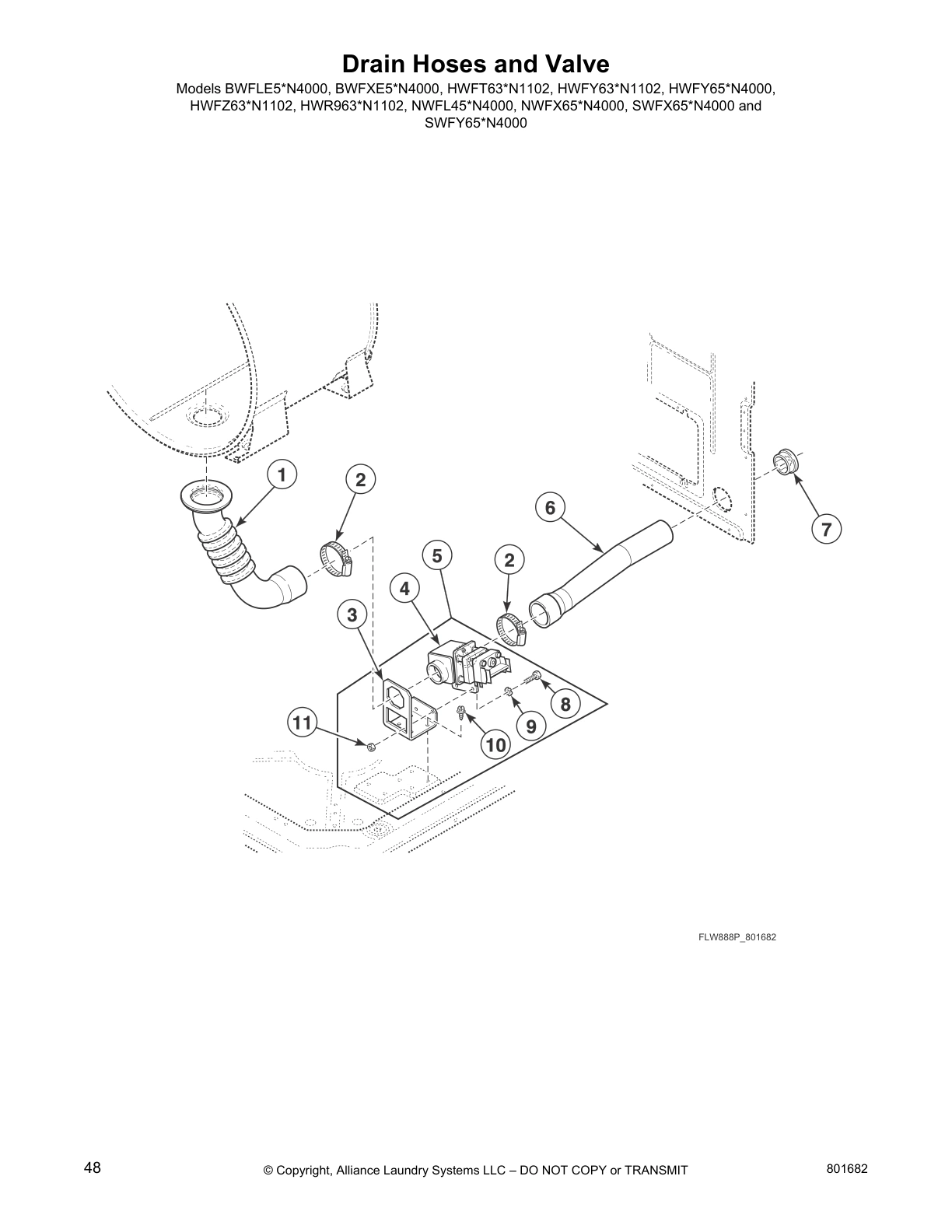

Drain Hoses and Valve

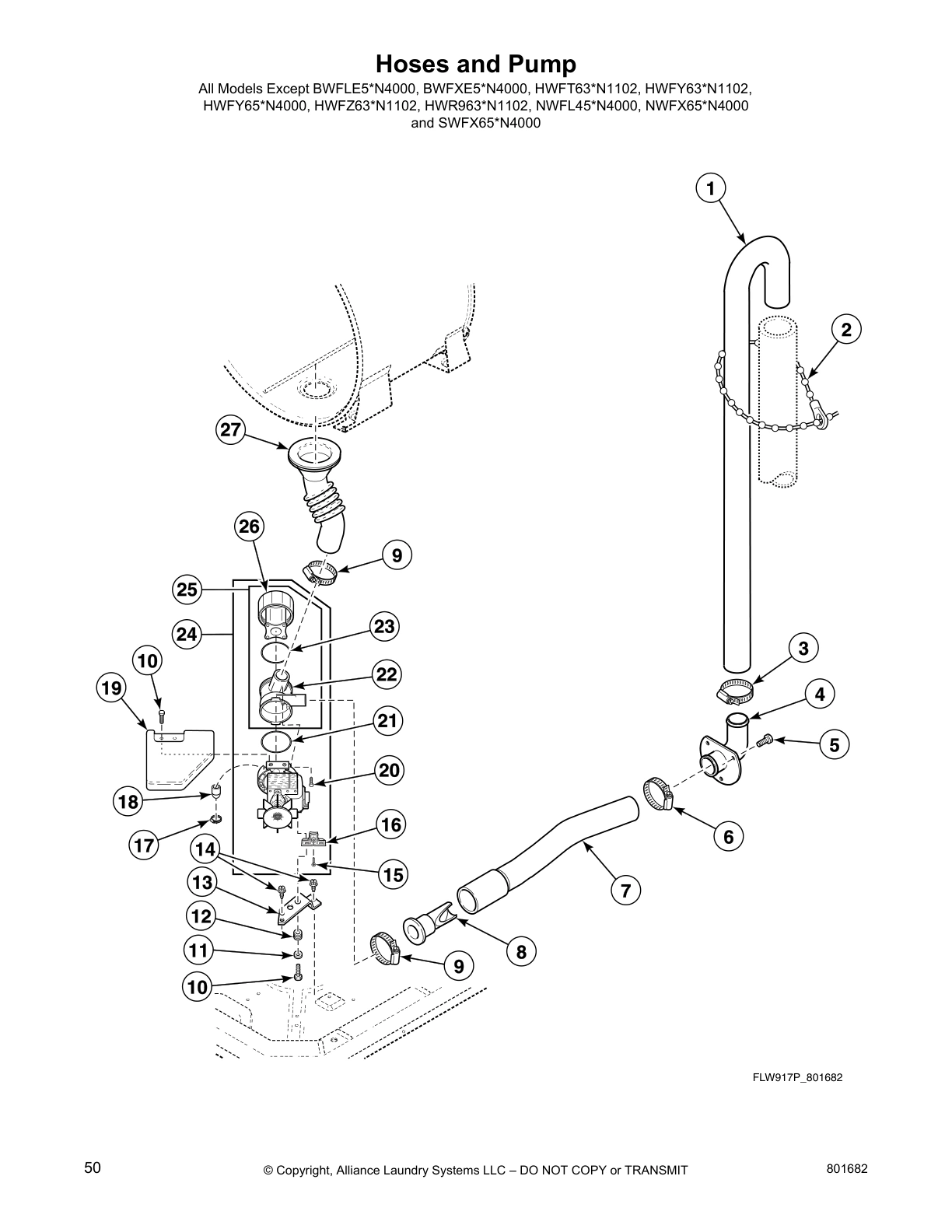

Hoses and Pump
Base, Side Panels and Rear Panel

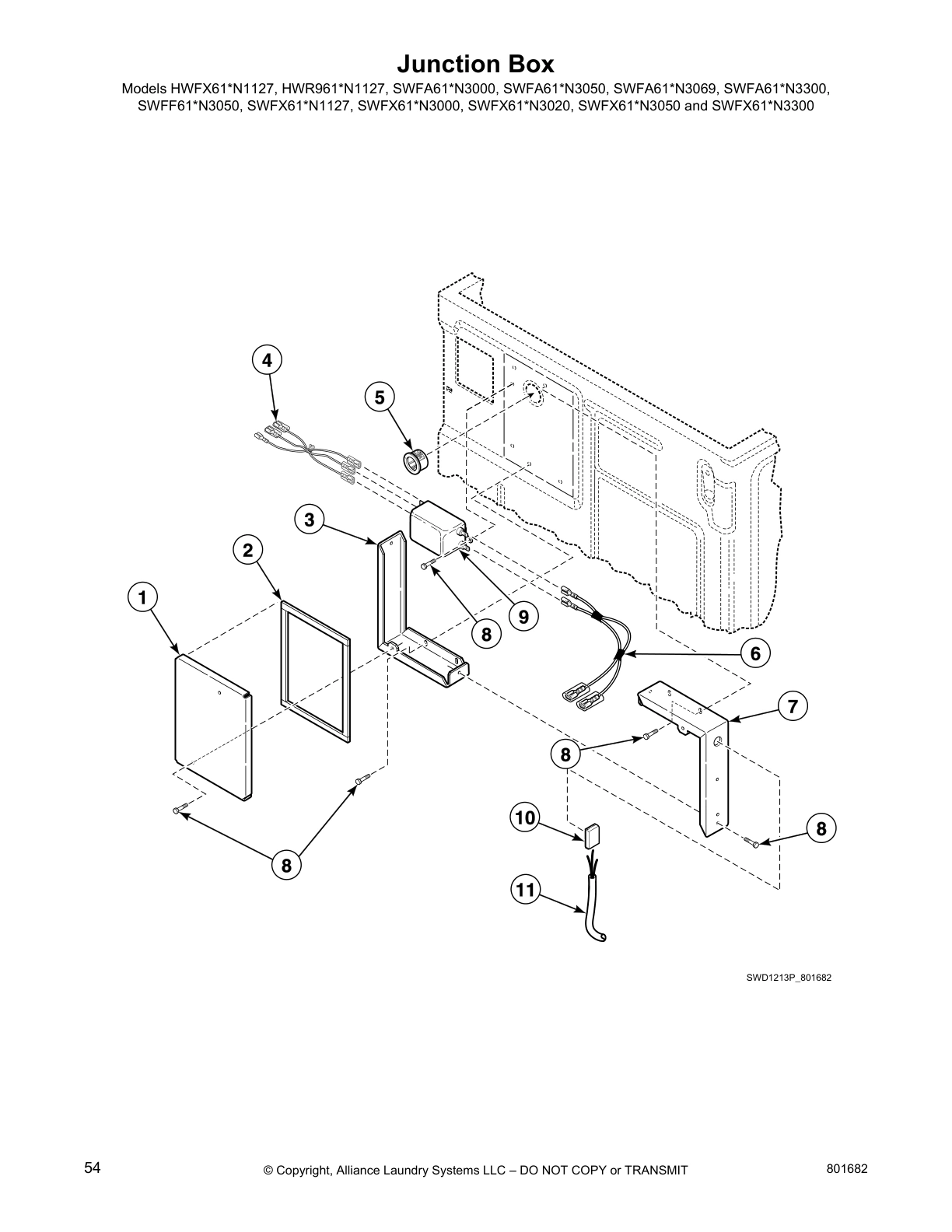

Junction Box

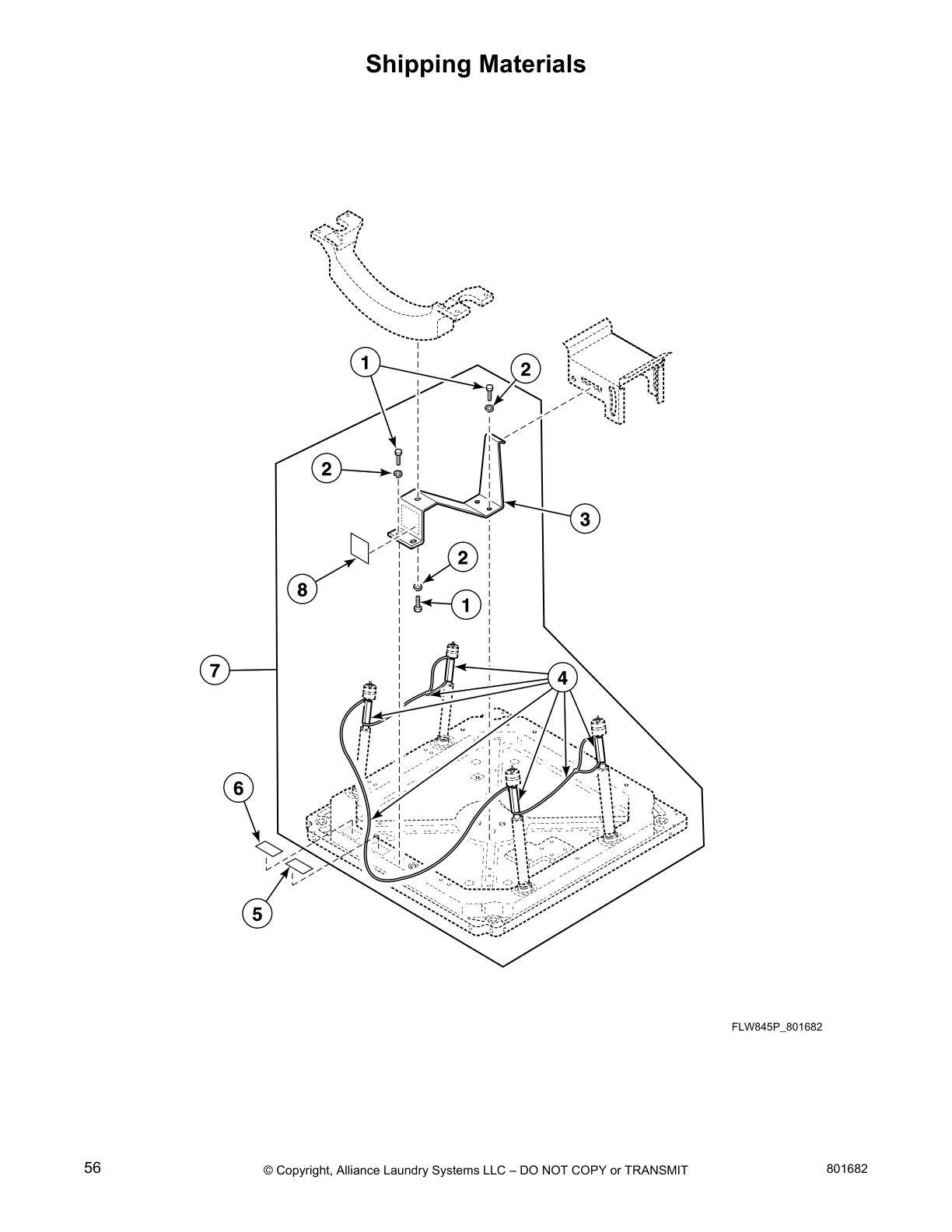

Shipping Materials
Wire Ties, Harness Clips and Lead-In Cord
Special Tools

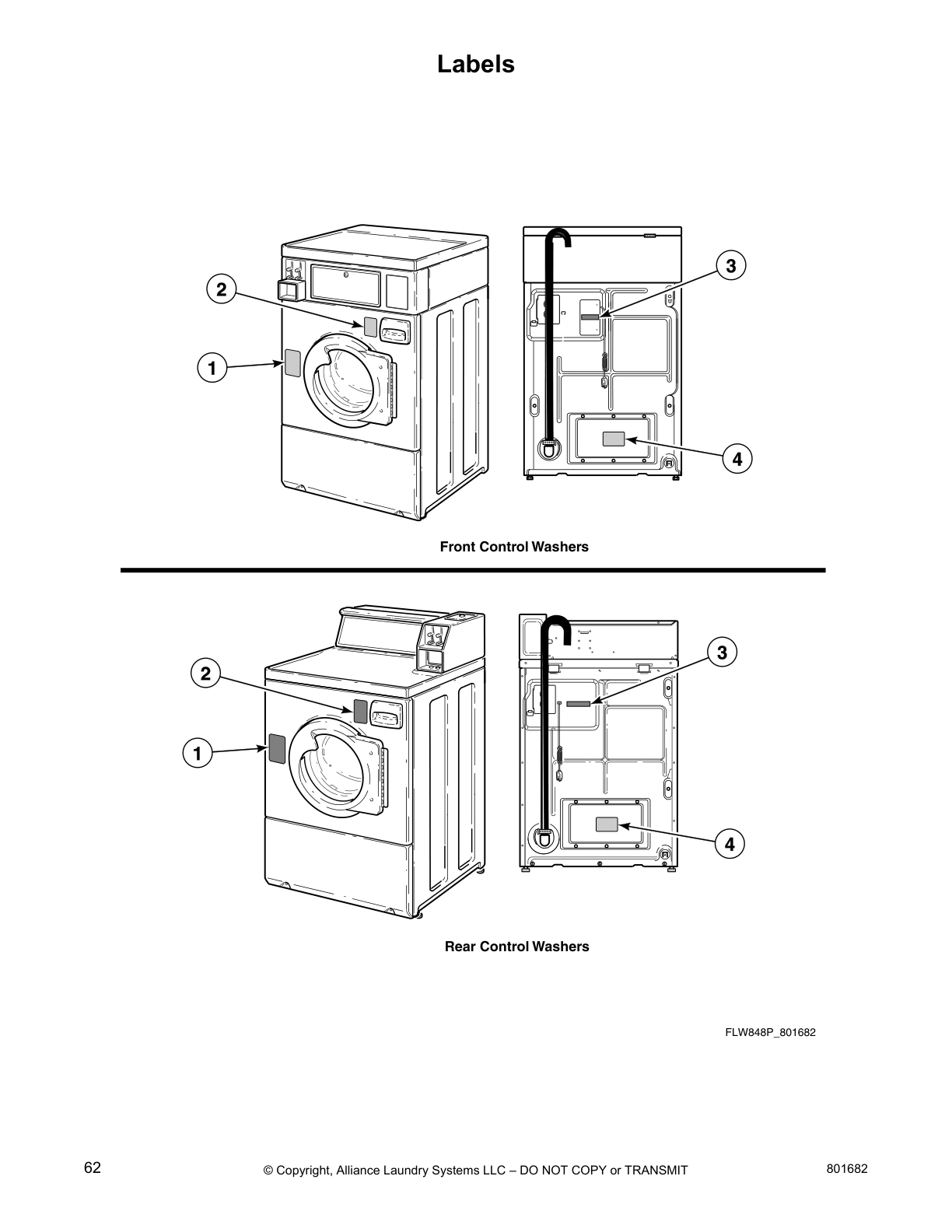

Labels

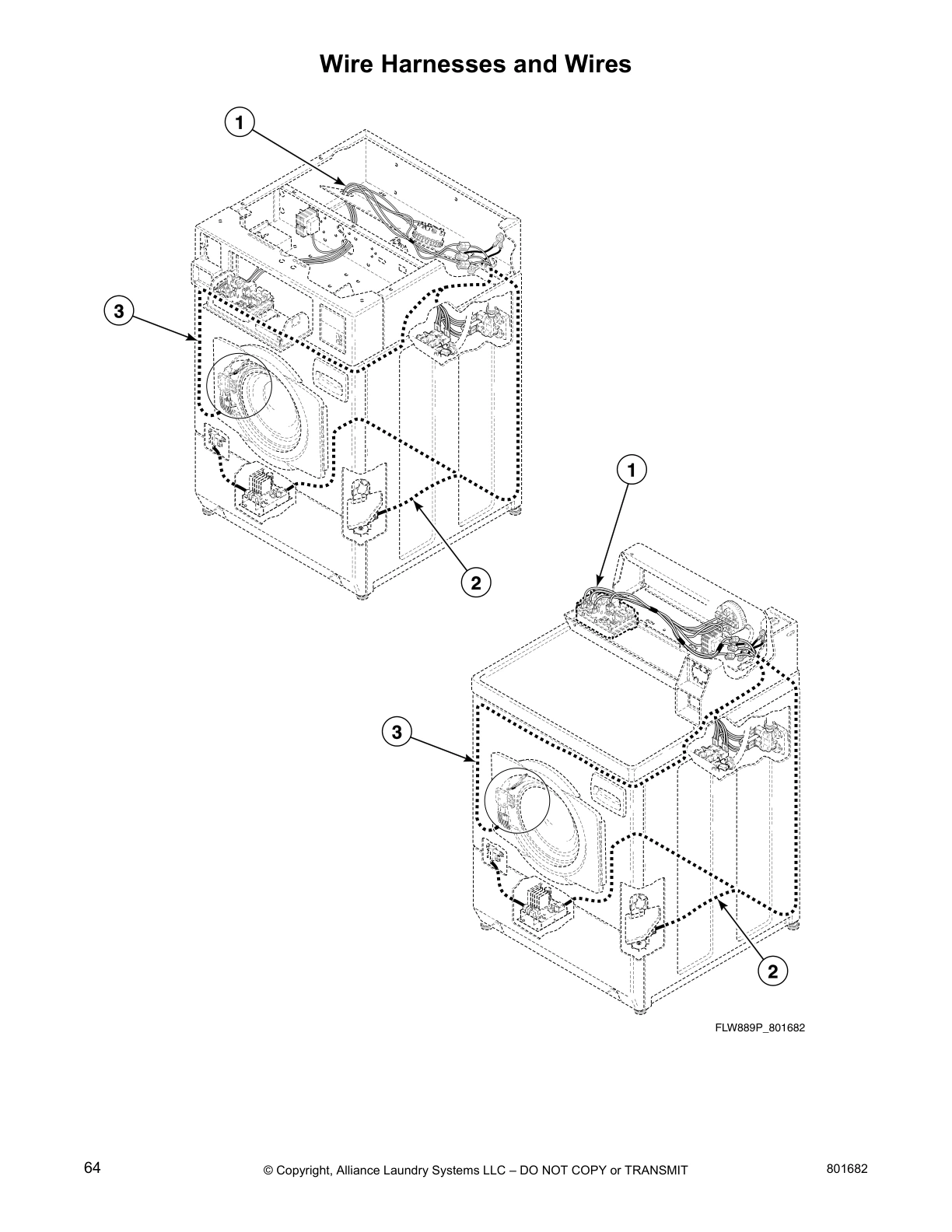

Wire Harnesses and Wires
Common parts from model Speed Queen SWFX64*N98K5 Washer
2
Harness Strap SPQ 800232P Contact Us For Availability
4
Door Hinge SPQ 800211 Contact Us For Availability
6
Drain Hose Elbow SPQ 802434P Contact Us For Availability
15
Dispenser Assembly SPQ 801476P Contact Us For Availability
19
Door Seal and Hose Assembly Kit SPQ 801784P Contact Us For Availability
× ![]()
