Model Speed Queen SF3JXASP403UN01 Washer – Common Parts & Diagrams

Control Panel and Controls (Drawing 1 of 3)

Control Panel and Controls (Drawing 2 of 3)

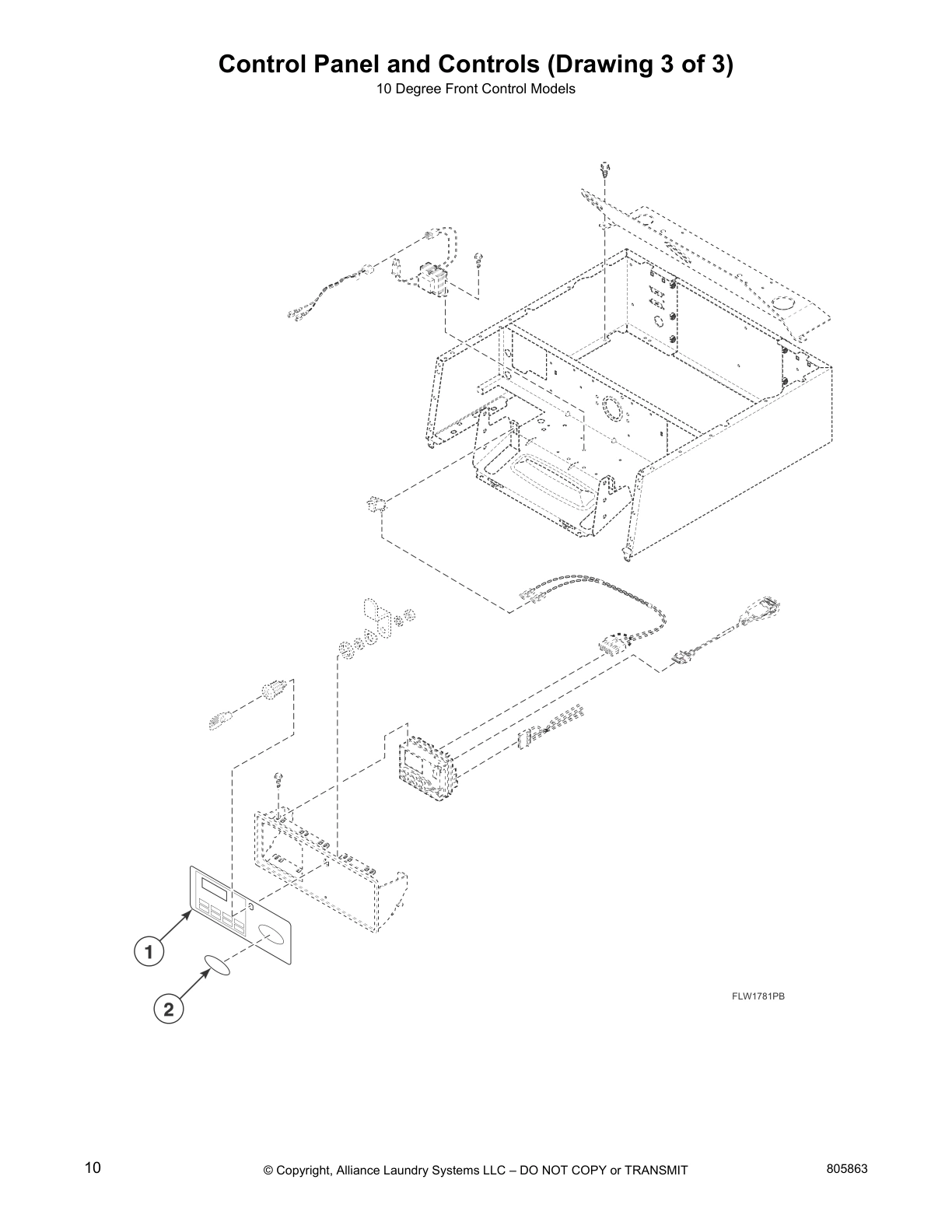

Control Panel and Controls (Drawing 3 of 3)

Top Assembly

Network Board Assembly

Electrical Access Panel, Filters and Terminal Block (Drawing 1 of 4)

Electrical Access Panel, Filters and Terminal Block (Drawing 2 of 4)

Electrical Access Panel, Filters and Terminal Block (Drawing 3 of 4)

Electrical Access Panel, Filters and Terminal Block (Drawing 4 of 4)

Control Cabinet - Front Control Coin Drop Models (Drawing 1 of 2)

Control Cabinet - Front Control Coin Drop Models (Drawing 2 of 2)

Control Cabinet - Front Control Bill Acceptor Models

Non-Electronic Coin Drop, Cabinet Front and Wrapper Assembly

Electronic Coin Drop

Control Cabinet Controls - Front Control Card Reader Ready and OPL Models

Control Cabinet (Drawing 1 of 3)

Control Cabinet (Drawing 2 of 3)

Control Cabinet (Drawing 3 of 3)

Coin Drop, Meter Case and Cabinet Top

Control Panel, Control Hood and Controls

Front Panel, Door Assembly and Door Seal

Dispenser Inlet Hose

Dispenser Assembly (Drawing 1 of 2)

Dispenser Assembly (Drawing 2 of 2)

Mixing Valve

Fill Hose

Outer Tub, Clamp Ring and Shock Absorbers

Inner Basket, Trunnion, Bearing Housing and Pulley

Motor and Belt

Drain Hoses and Valve

Drain Hose and Pump

Side, Base and Rear Panels

Junction Box

Junction Box and Power Cord

Shipping Materials

Wire Ties, Harness Clips and Lead-In Cord

Special Tools

Washer Labels

Wire Harnesses and Wires - Through Serial No. 2012999999

Wire Harnesses and Wires - Starting Serial No. 2101000001
