Model Whirlpool RS25AQXFW01 – Common Parts & Diagrams

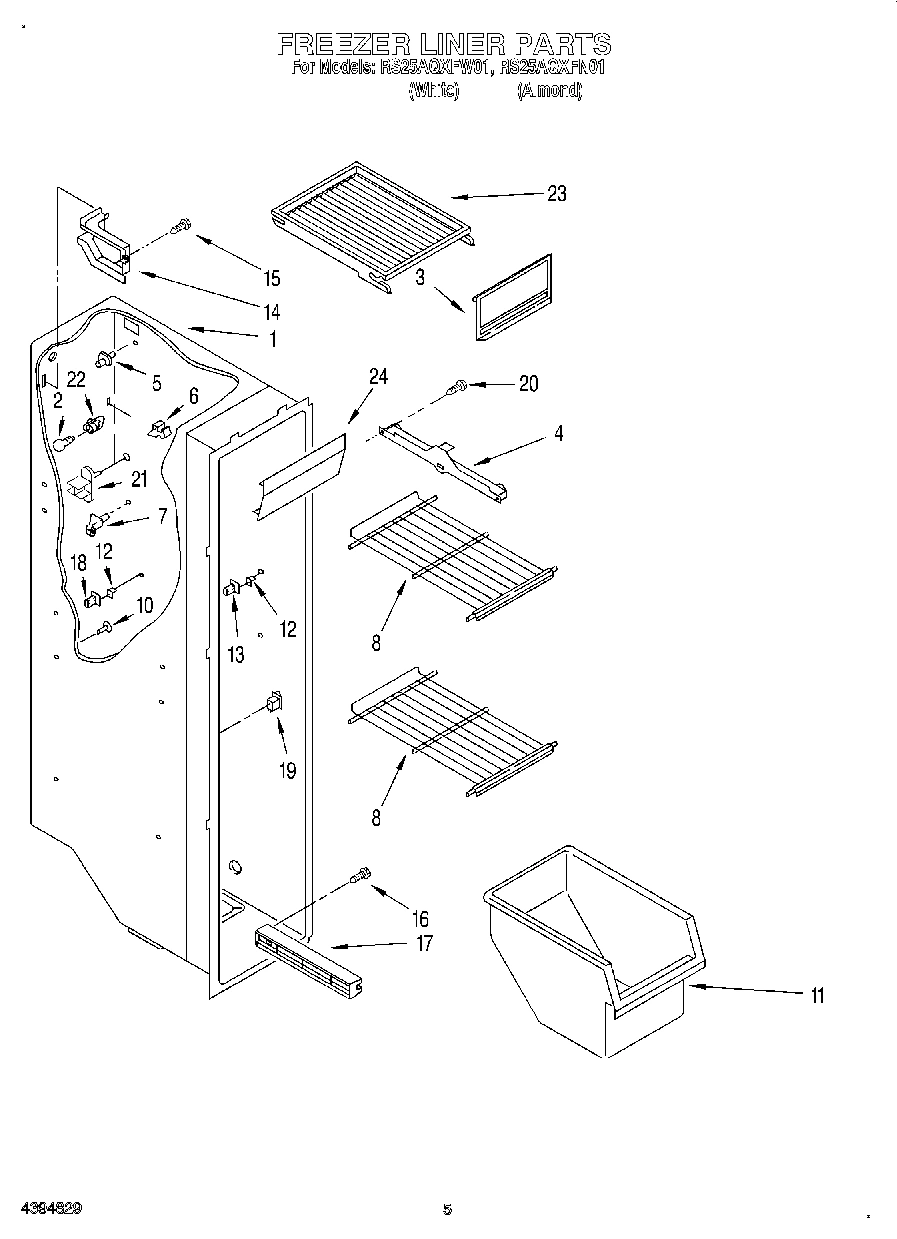

04 - FREEZER LINER

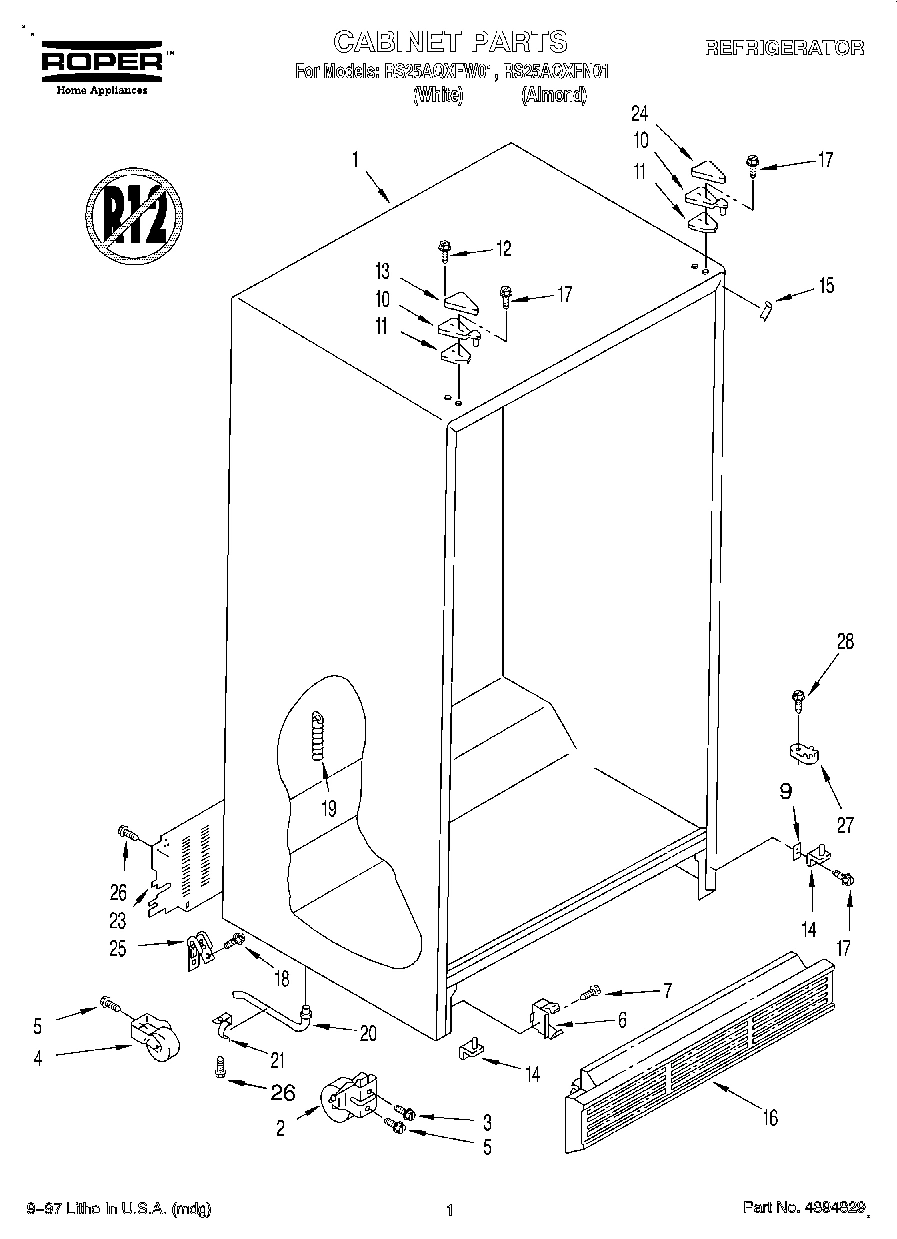

01 - CABINET

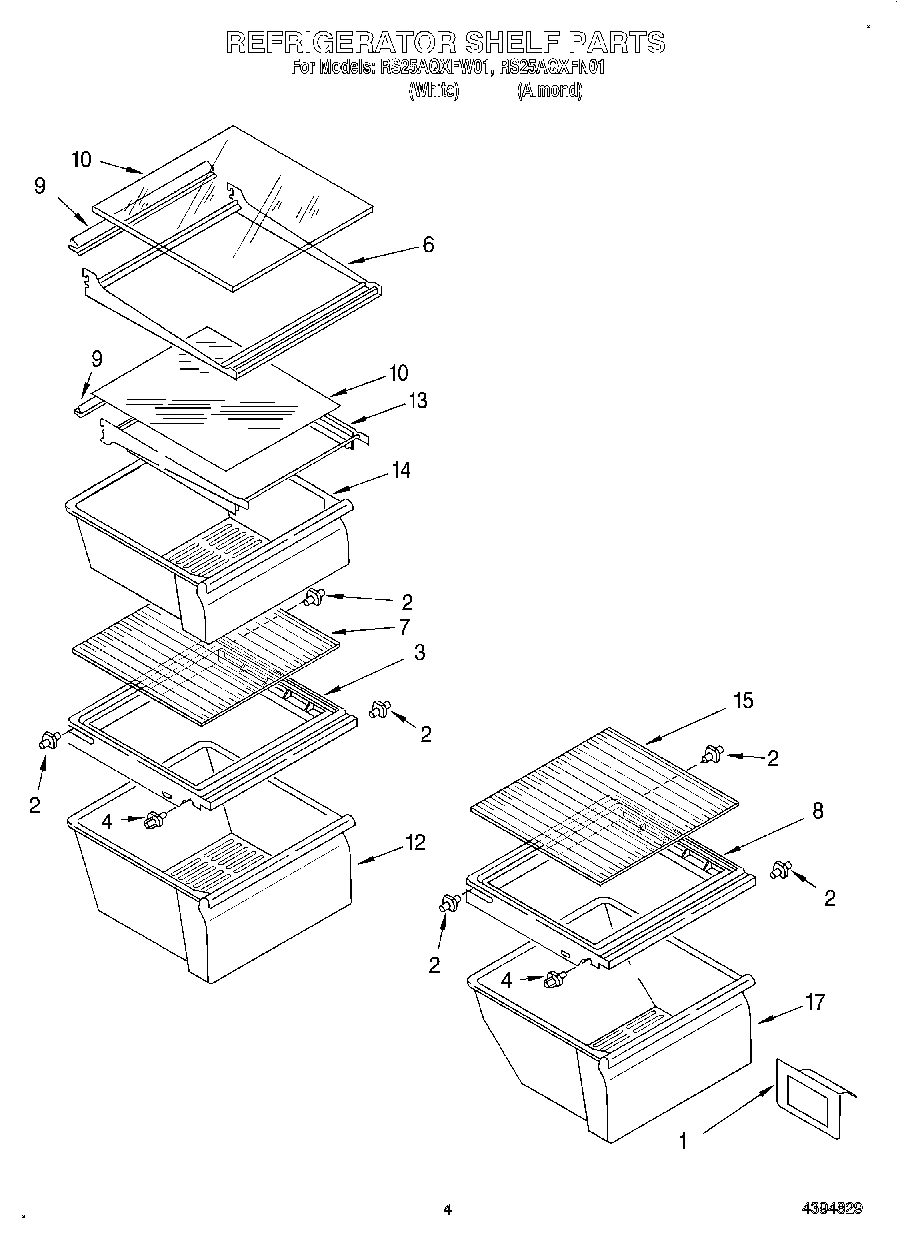

03 - REFRIGERATOR SHELF

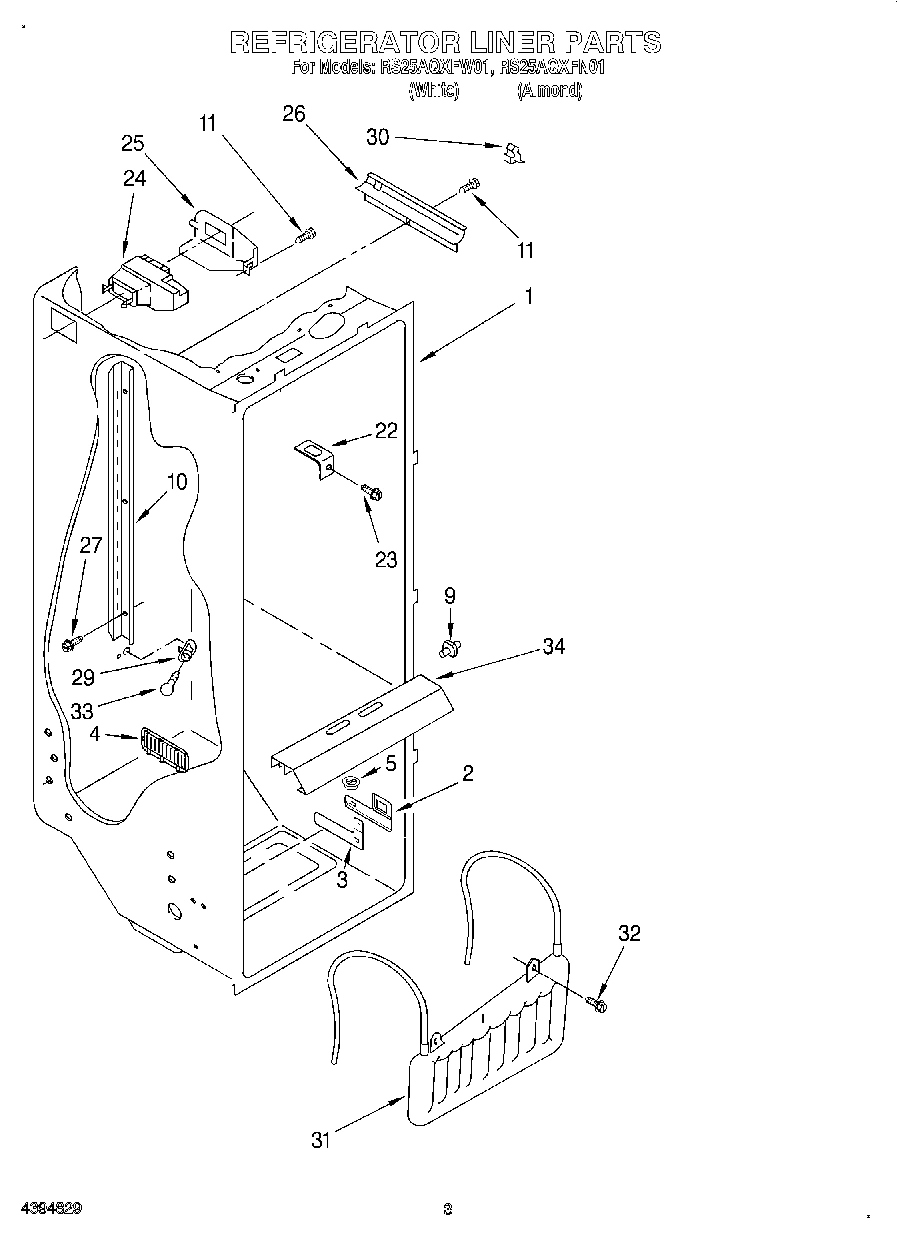

02 - REFRIGERATOR LINER
08 - DISPENSER FRONT

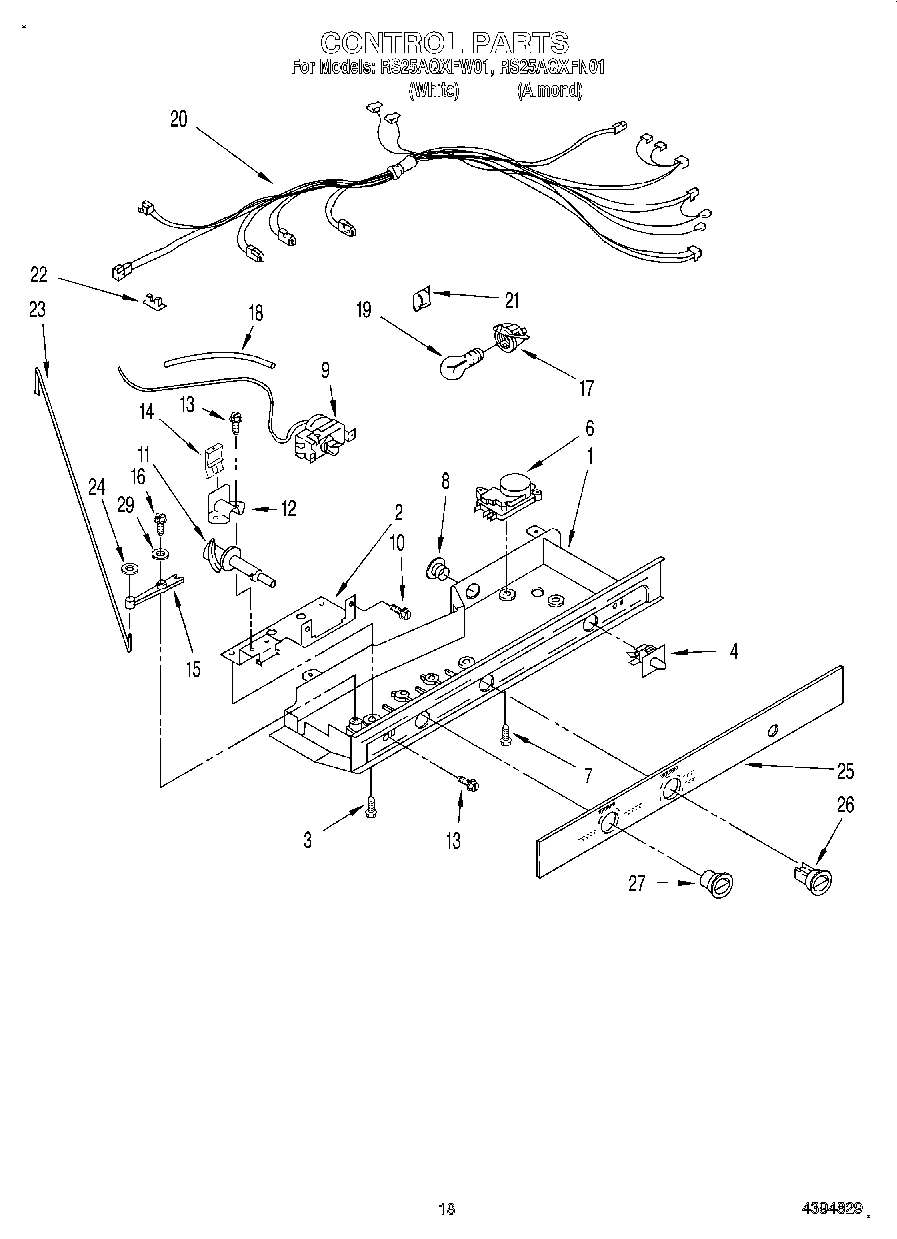

11 - CONTROL
12 - ICEMAKER, LIT/OPTIONAL

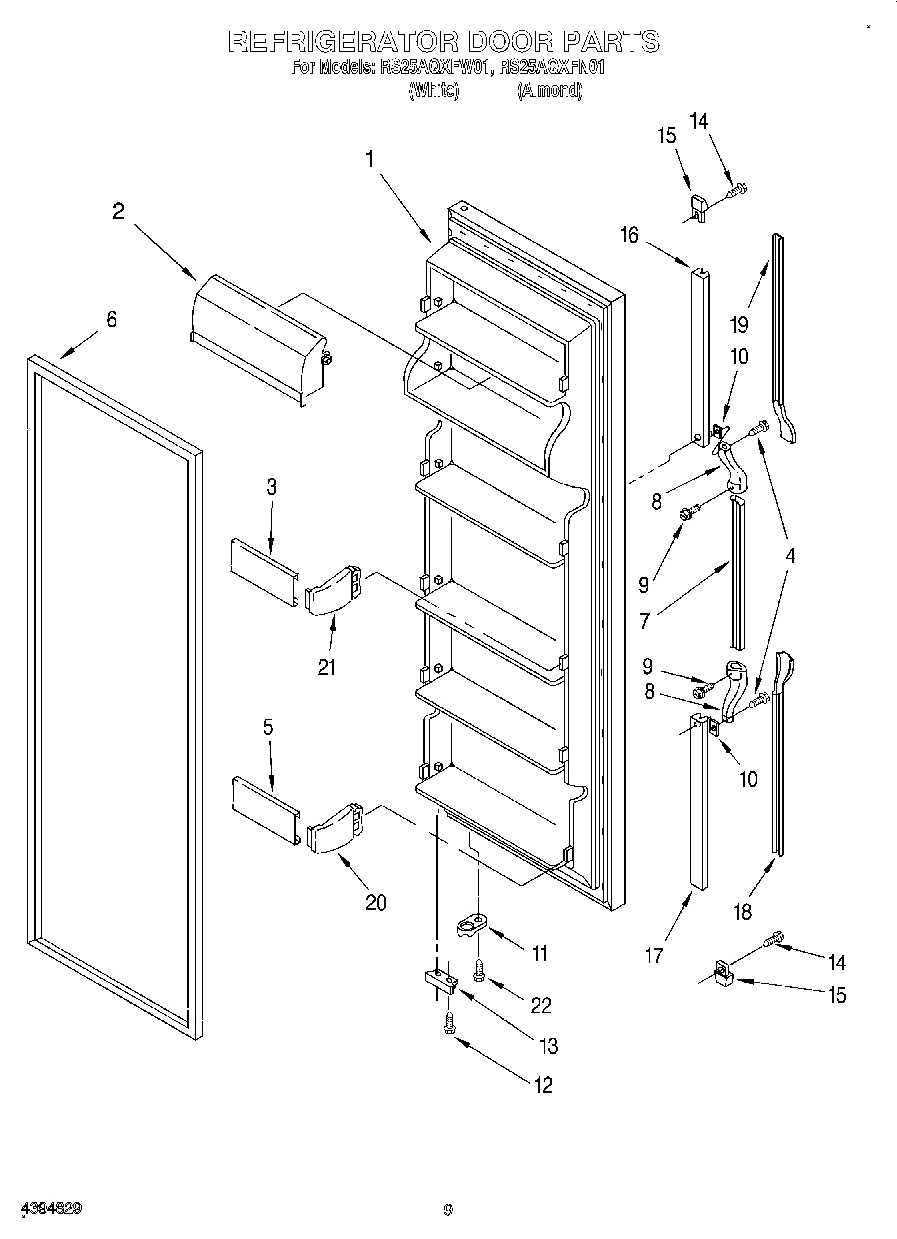

06 - REFRIGERATOR DOOR

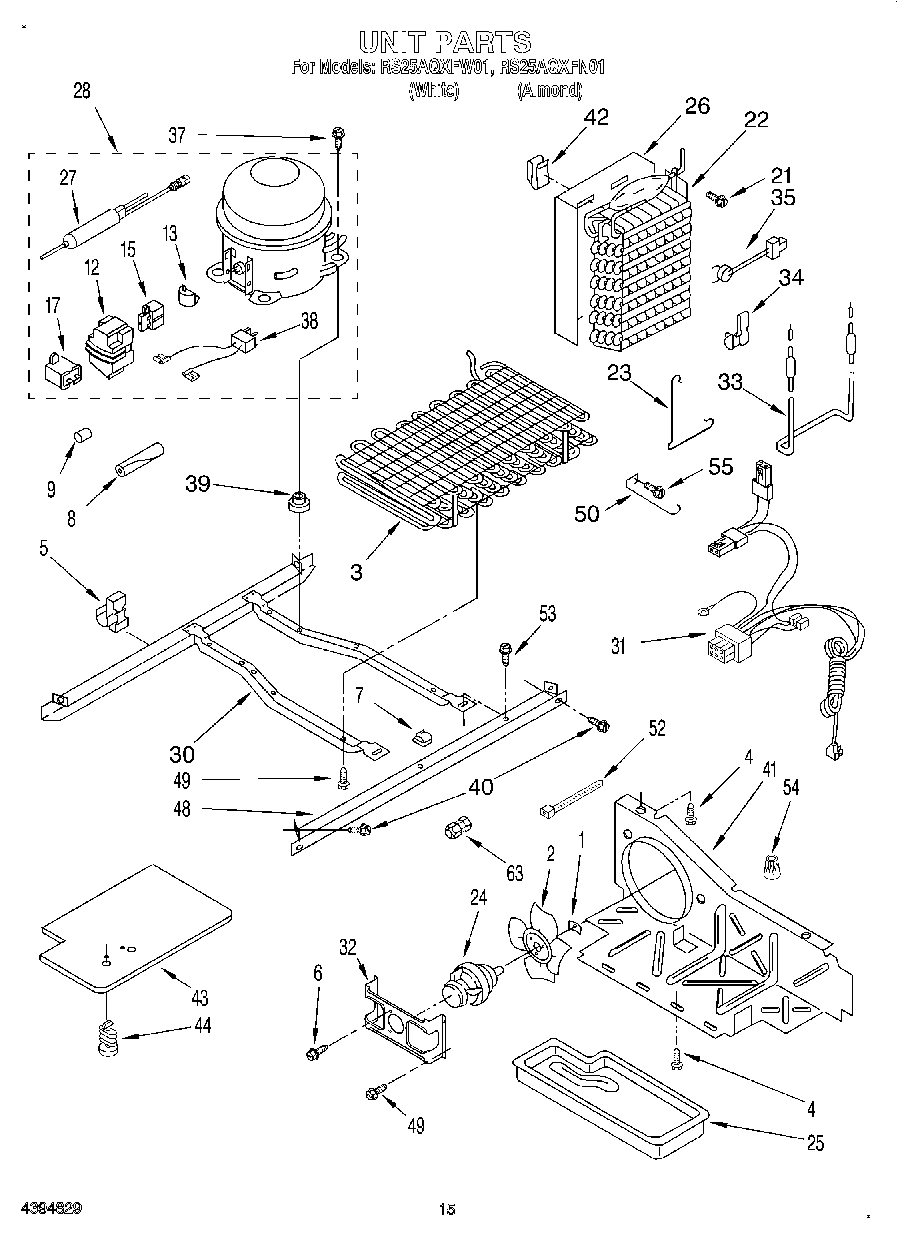

09 - UNIT
10 - AIR FLOW

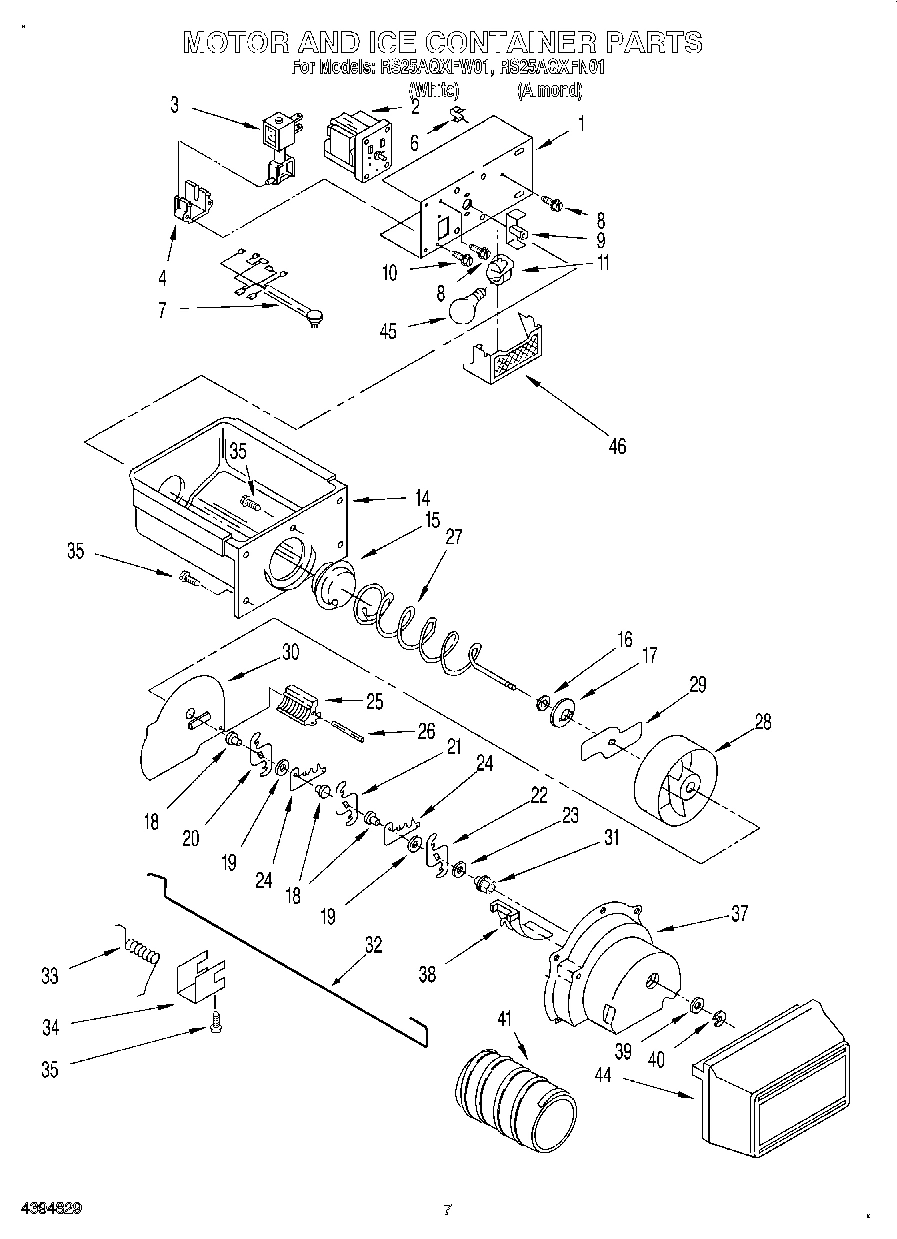

05 - MOTOR AND ICE CONTAINER

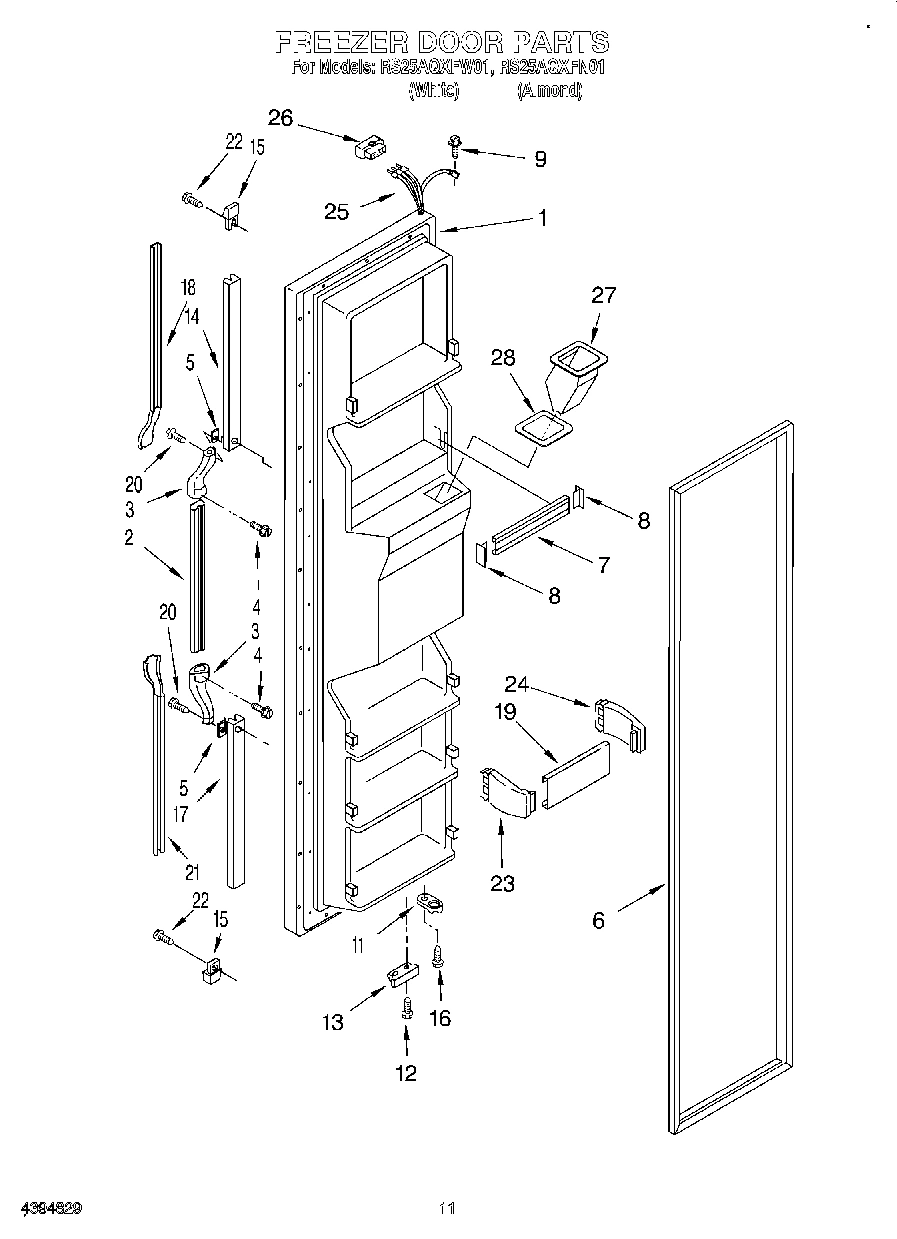

07 - FREEZER DOOR
Common parts from model Whirlpool RS25AQXFW01
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Refrigerator Door (White) WPL 2194811W Contact Us For Availability
1
Bracket, Motor WPL 2183726 Contact Us For Availability
1
Freezer Door (Almond (Includes Item No.6 And WPL 2194567N Contact Us For Availability
1
Freezer Door (White) WPL 2194567W Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Handle, Center (Almond) WPL 2194767N Contact Us For Availability
2
Handle, Center (White) WPL 2194767W Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Trim, Shelf WPL 2195934 Contact Us For Availability
3
End Cap, Center Handle WPL 1119359 Contact Us For Availability
3
Condenser Assembly WPL 2198177 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
4
Screw WPL 489022 Contact Us For Availability
5
Trim, Shelf (4) WPL 2182190 Contact Us For Availability
5
Shim WPL 935075 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
5
Air Duct Freezer WPL 2182063 Contact Us For Availability
7
Clip, Tube (3) WPL 934011 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
8
Shelf, Large (2) WPL 2174268 Contact Us For Availability
9
Grille, Overflow (White) WPL 2183787W Contact Us For Availability
10
Grommet WPL 2176134 Contact Us For Availability
10
Glass (3) WPL 2177986 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161478 Contact Us For Availability
13
Hinge Cover (White) WPL 1129262 Contact Us For Availability
13
Bracket, Door Stop WPL 2195950 Contact Us For Availability
13
Shelf, Cantilever (Snack Bin) WPL 2179443 Contact Us For Availability
14
Retainer, Top WPL 2194772 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
End Cap (2) WPL 2156220 Contact Us For Availability
15
Relay (See Overload) WPL ARI124302A Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
17
Retainer, Bottom WPL 2194770 Contact Us For Availability
17
Capacitor (Service Compressor Only) WPL 2169137 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
18
Extension, Top (Almond) WPL 2194775N Contact Us For Availability
18
Extension, Top (White) WPL 2194775W Contact Us For Availability
19
Door, Shelf (4) WPL 2195927 Contact Us For Availability
21
Extension, Bottom (Almond) WPL 2194773N Contact Us For Availability
21
Extension, Bottom (White) WPL 2194773W Contact Us For Availability
22
Evaporator WPL 2164519 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Endcap (Left) WPL 2195917 Contact Us For Availability
24
Spacer, Switch (2) WPL 625834 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Wire Assembly WPL 2183713 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
27
Chute, Ice WPL 2180204 Contact Us For Availability
28
Seal, Housing WPL 2198249 Contact Us For Availability
31
Unit, Harness WPL 2194746 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Unit Cover, Bottom WPL 2182058 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171708 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
PAINT, BUL WPL 799344 Contact Us For Availability
× ![]()
