Model Whirlpool RS25AQXFW00 – Common Parts & Diagrams

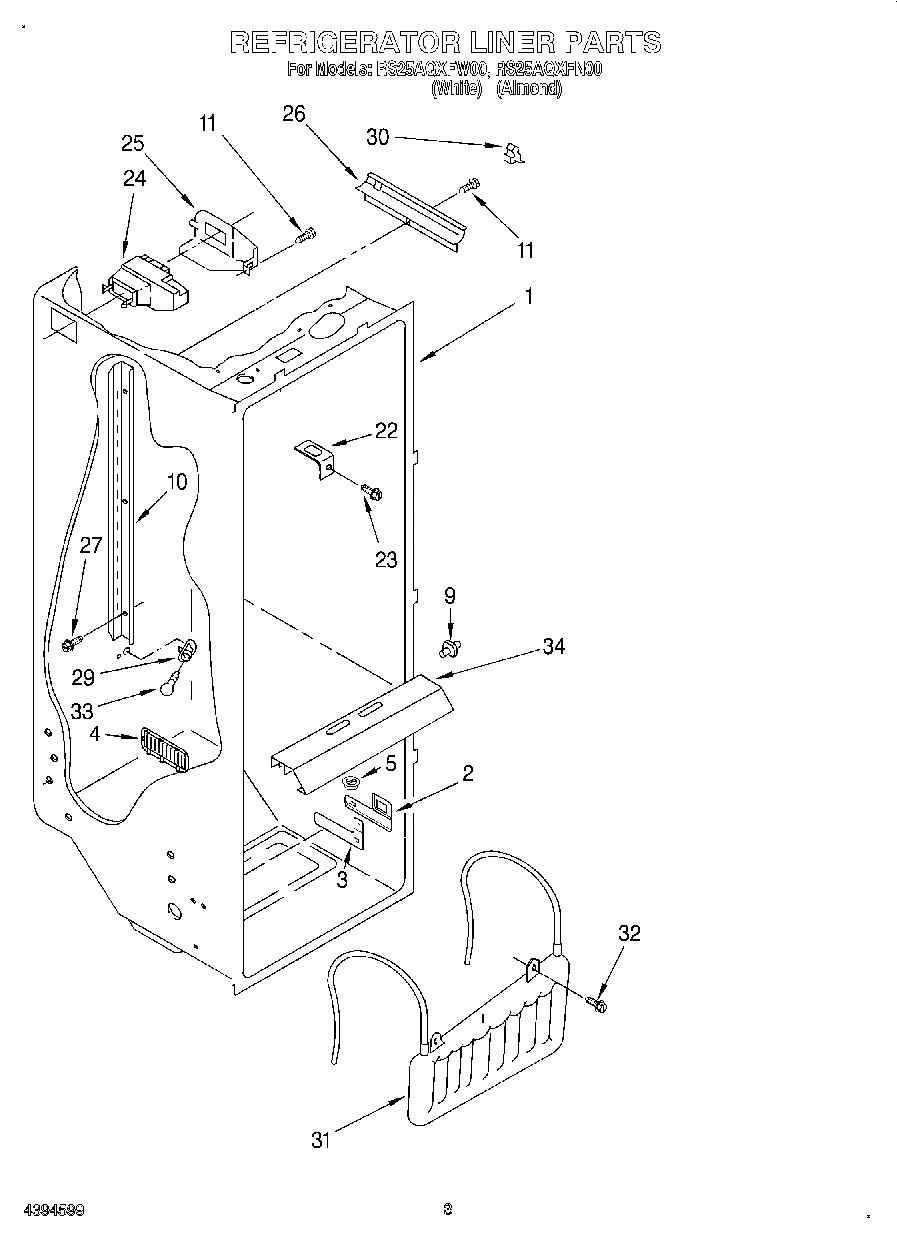

02 - REFRIGERATOR LINER

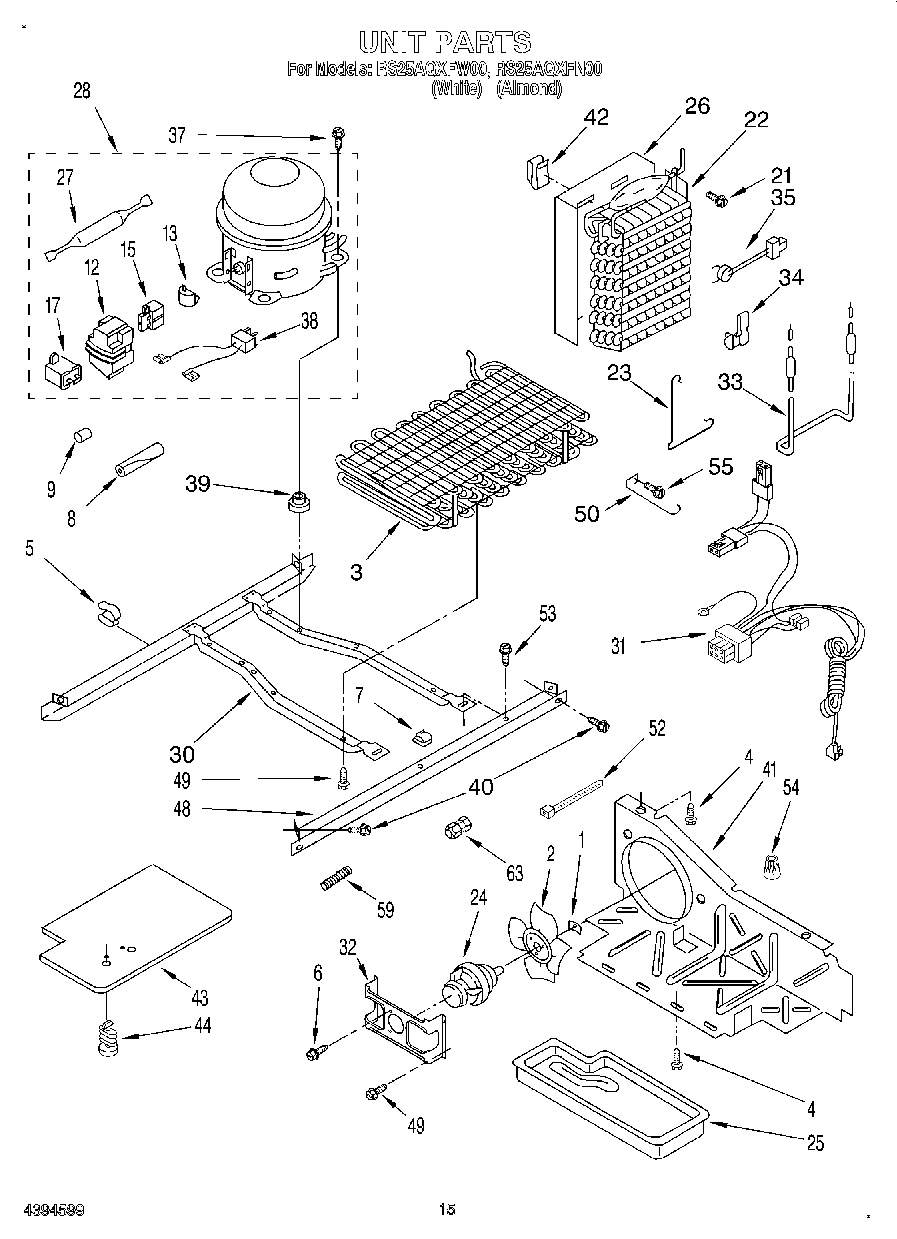

09 - UNIT
12 - ICEMAKER, LIT/OPTIONAL
01 - CABINET
03 - REFRIGERATOR SHELF
08 - DISPENSER FRONT
10 - AIRFLOW
05 - MOTOR AND ICE CONTAINER
06 - REFRIGERATOR DOOR
11 - CONTROL
04 - FREEZER LINER
07 - FREEZER DOOR
Common parts from model Whirlpool RS25AQXFW00
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Bracket, Motor WPL 2183726 Contact Us For Availability
1
Refrigerator Door (Almond (Includes Item No.6 WPL 2194811N Contact Us For Availability
1
Refrigerator Door (White) WPL 2194811W Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI124293A Contact Us For Availability
1
Freezer Door (Almond (Includes Item No.6 And WPL 2194567N Contact Us For Availability
1
Freezer Door (White) WPL 2194567W Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Handle, Center (Almond) WPL 2194767N Contact Us For Availability
2
Handle, Center (White) WPL 2194767W Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Trim, Shelf WPL 2173390 Contact Us For Availability
3
End Cap, Center Handle WPL 1119359 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
4
Screw WPL 489022 Contact Us For Availability
5
Air Duct Freezer WPL 2182063 Contact Us For Availability
5
Shim WPL 935075 Contact Us For Availability
6
Defrost Timer (10 Hr.) WPL 2162046 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
8
Shelf, Large (2) WPL 2174268 Contact Us For Availability
9
Grille, Overflow (White) WPL 2183787W Contact Us For Availability
10
Grommet WPL 2176134 Contact Us For Availability
10
Glass (3) WPL 2177986 Contact Us For Availability
11
Cam Assembly WPL 2182008 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161478 Contact Us For Availability
12
Stud, Support WPL 946355 Contact Us For Availability
13
Hinge Cover (White) WPL 1129262 Contact Us For Availability
13
Shelf, Cantilever (Snack Bin) WPL 2179443 Contact Us For Availability
13
Bracket, Door Stop WPL 2155332 Contact Us For Availability
13
Stud, Front WPL 946356 Contact Us For Availability
14
Retainer, Top WPL 2194772 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
End Cap (2) WPL 2156220 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Retainer, Bottom WPL 2194770 Contact Us For Availability
17
Slide, Freezer Bin (Left Side) WPL 2181759 Contact Us For Availability
17
Slide, Freezer Bin (Right Side) WPL 2181760 Contact Us For Availability
18
Extension, Top (Almond) WPL 2194775N Contact Us For Availability
18
Extension, Top (White) WPL 2194775W Contact Us For Availability
18
Stud, Rear WPL 1106982 Contact Us For Availability
19
Door, Shelf (4) WPL 2182787 Contact Us For Availability
20
Wire Assembly WPL 2180331 Contact Us For Availability
20
Control Box Harness WPL 2189566 Contact Us For Availability
21
Front Cover, Housing (Not Available, Order No WPL ARI124295A Contact Us For Availability
21
Extension, Bottom (Almond) WPL 2194773N Contact Us For Availability
21
Extension, Bottom (White) WPL 2194773W Contact Us For Availability
21
Shelf Stud WPL 1115386 Contact Us For Availability
22
Screw WPL 489075 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2194836N Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2194836W Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
23
Shelf, Top Compartment WPL 2171714 Contact Us For Availability
24
Spacer, Switch (2) WPL 625834 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Escutcheon, Control Box WPL 2194977 Contact Us For Availability
25
Wire Assembly WPL 2183713 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
44
Front Cover, Ice Container WPL 2196004 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
PAINT, BUL WPL 799344 Contact Us For Availability
× ![]()
