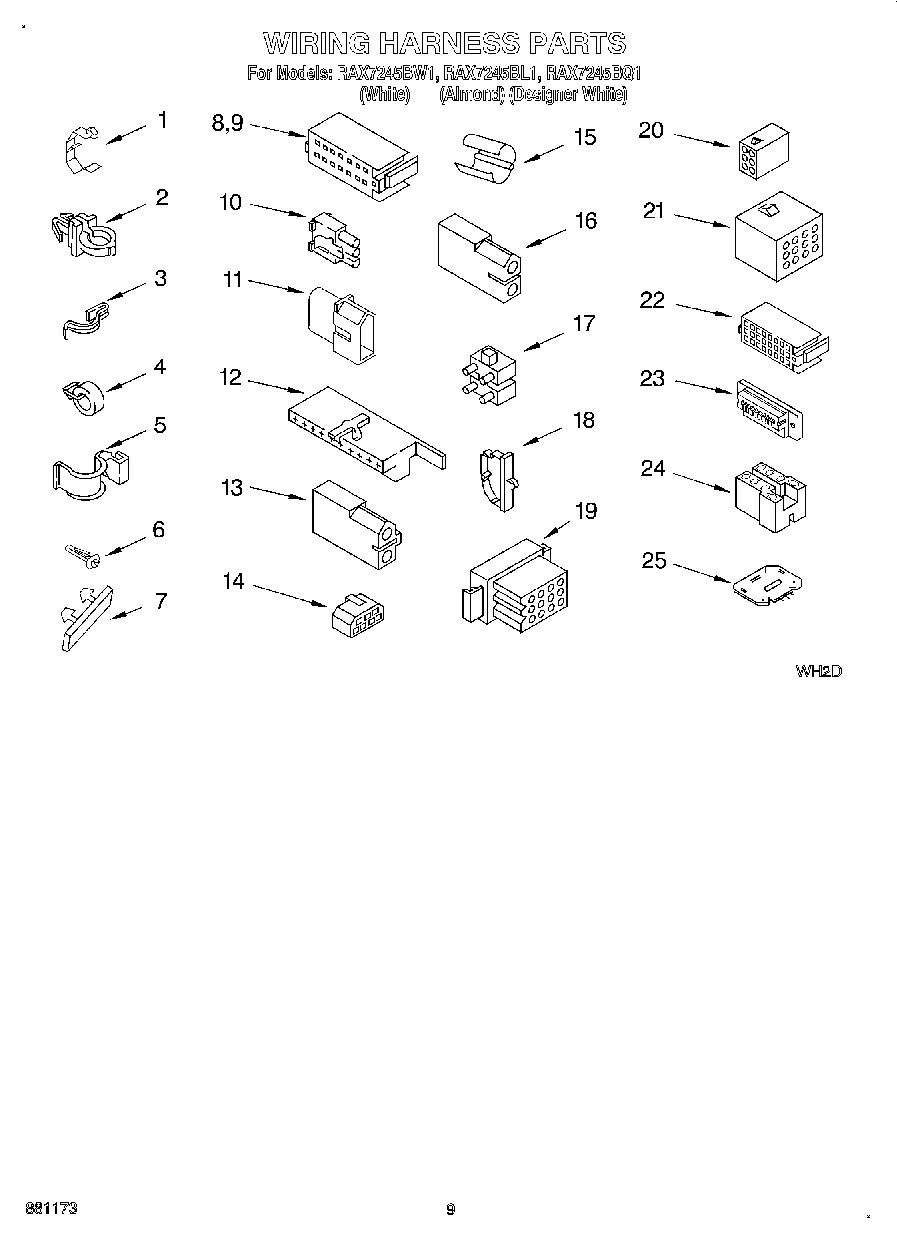

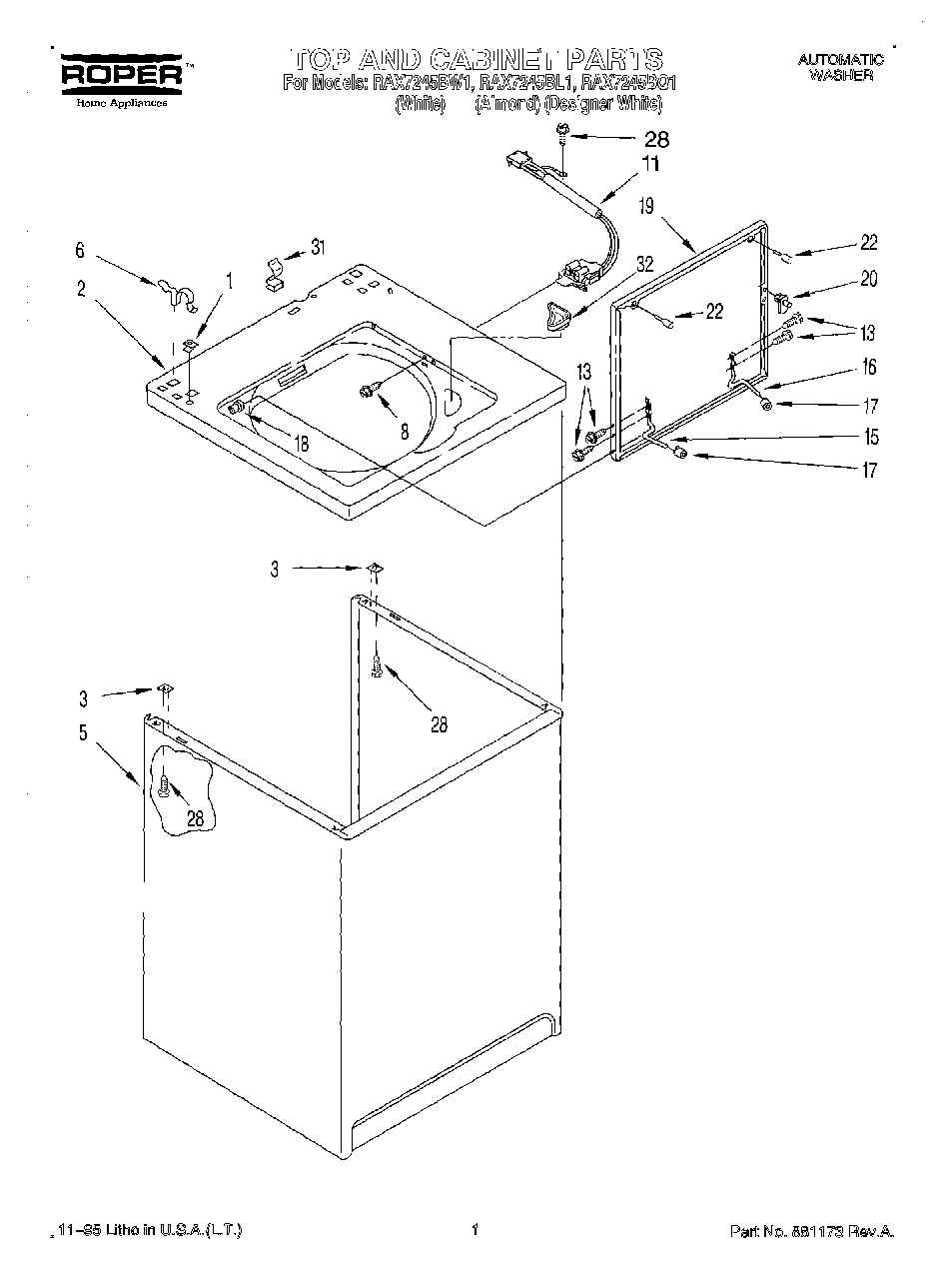

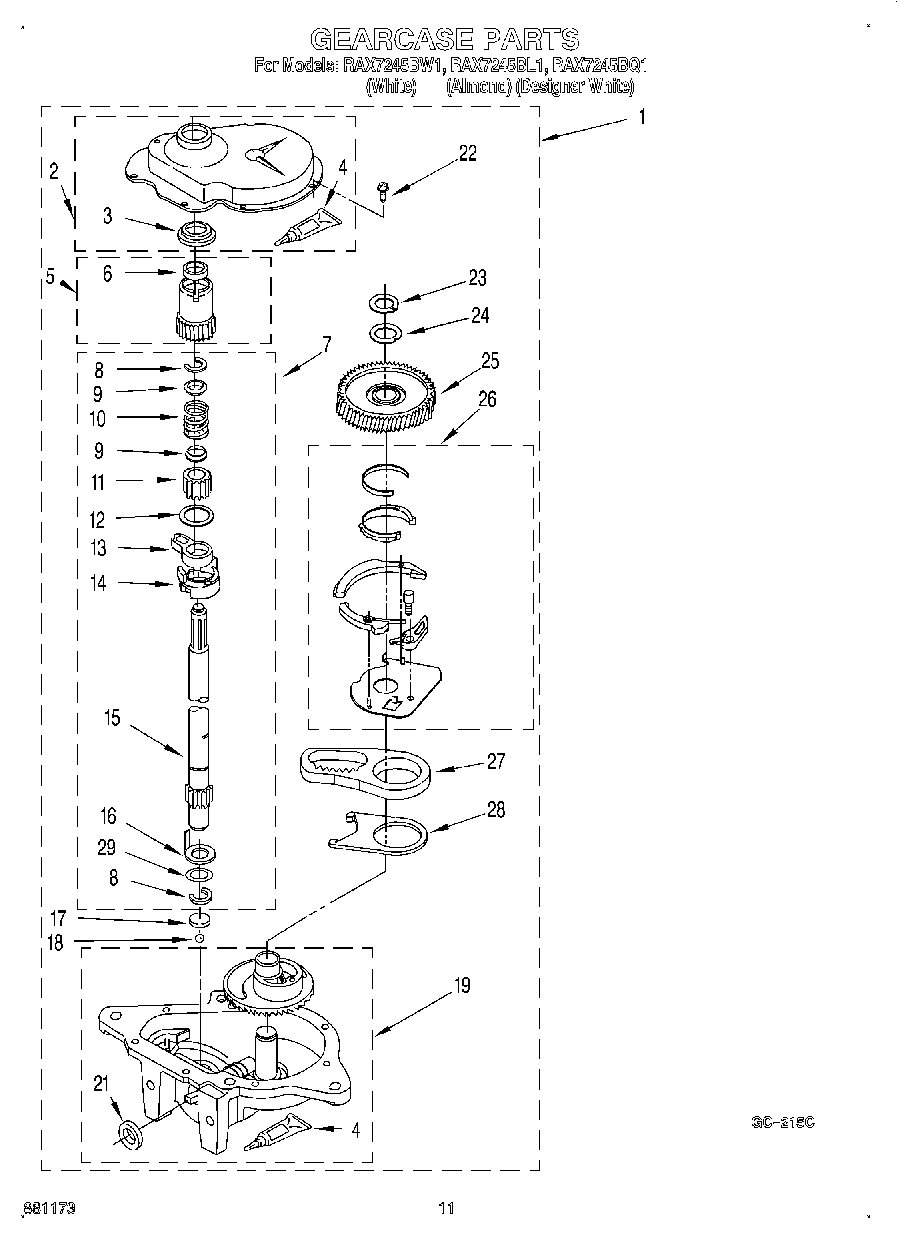

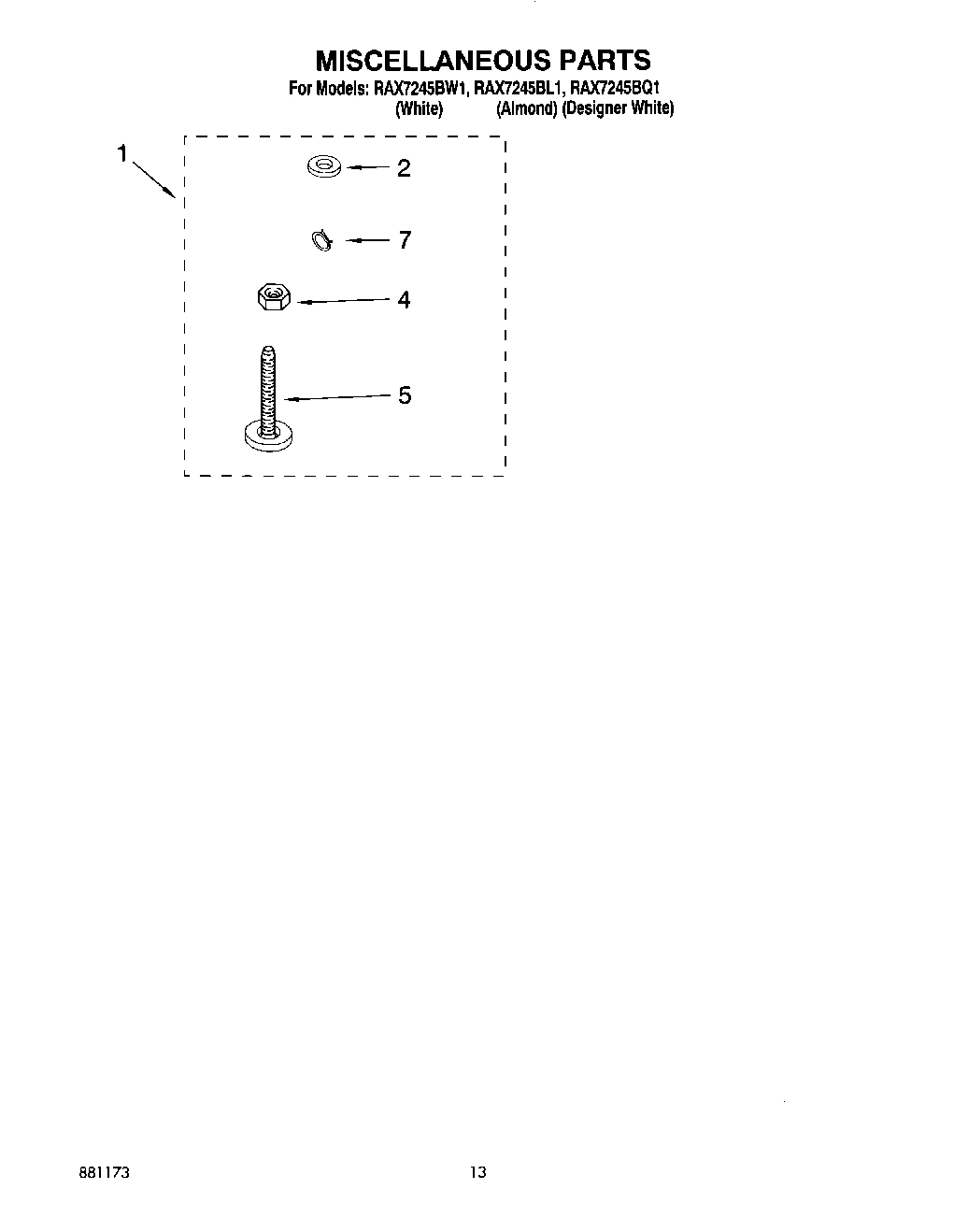

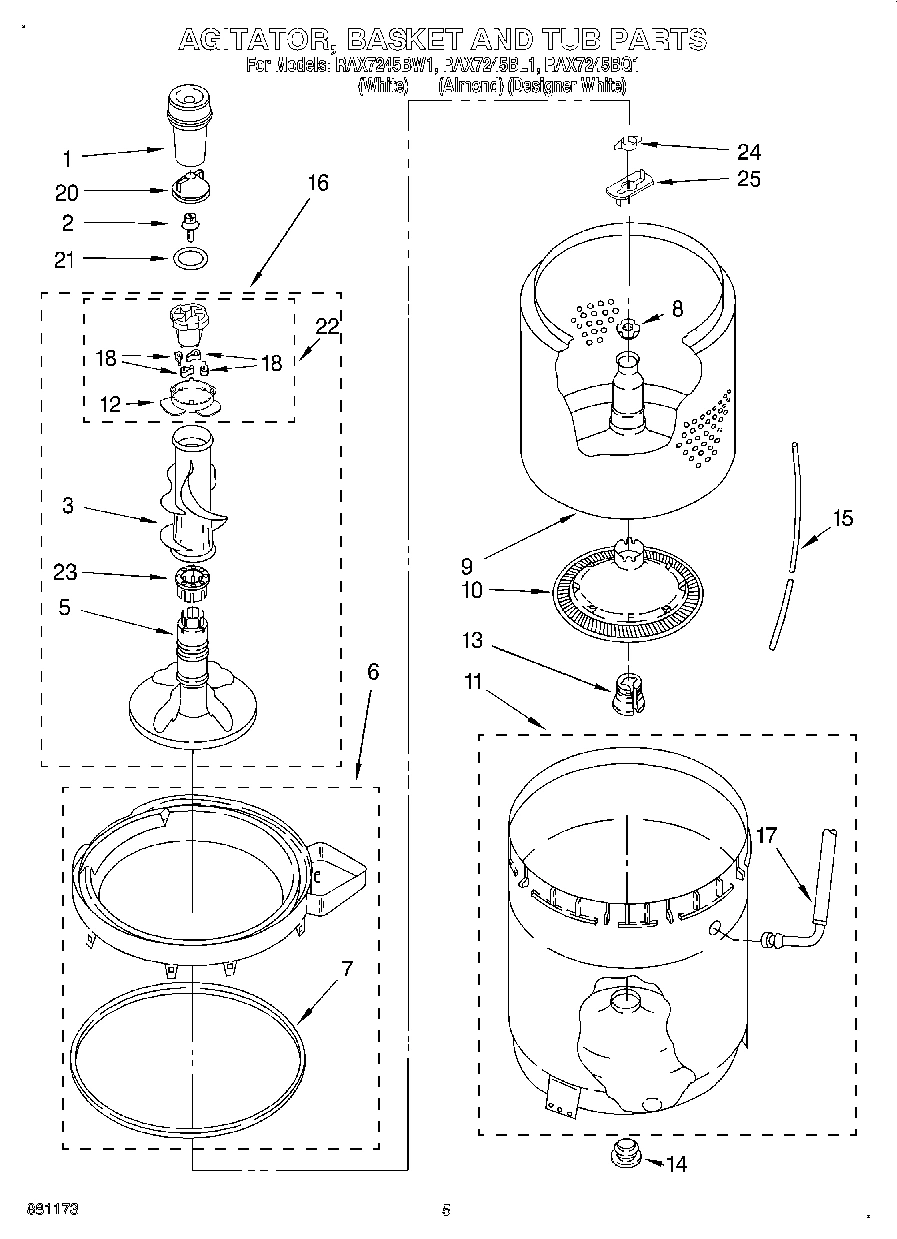

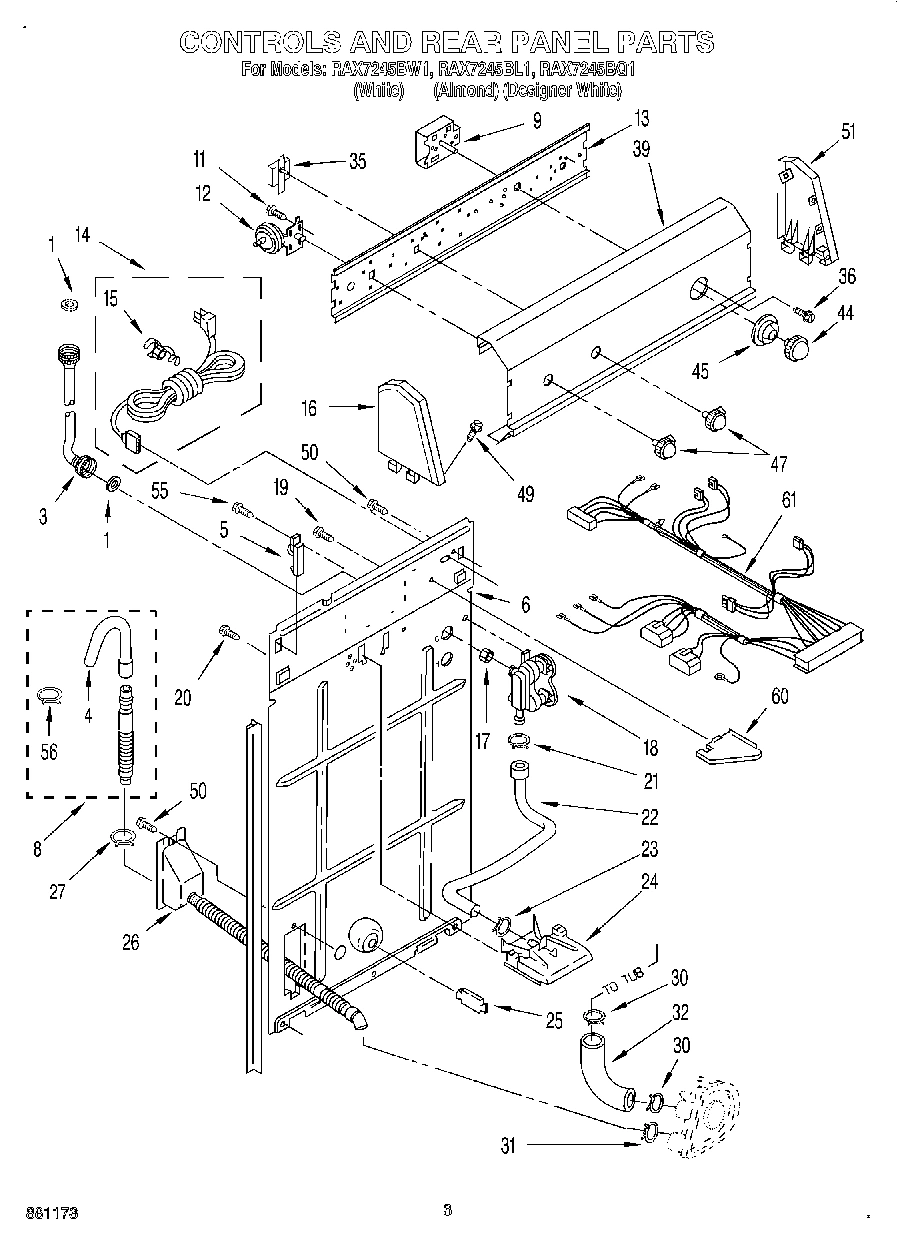

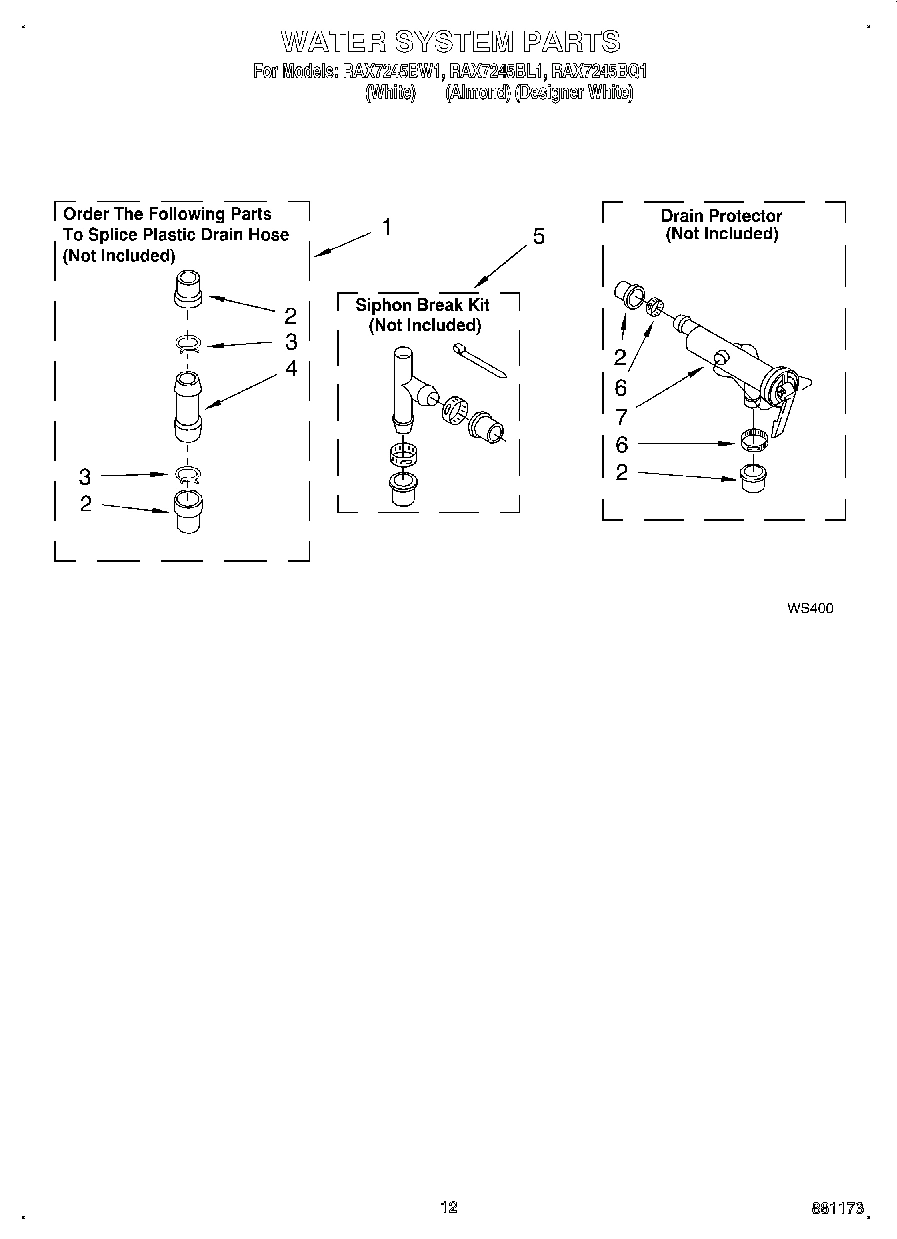

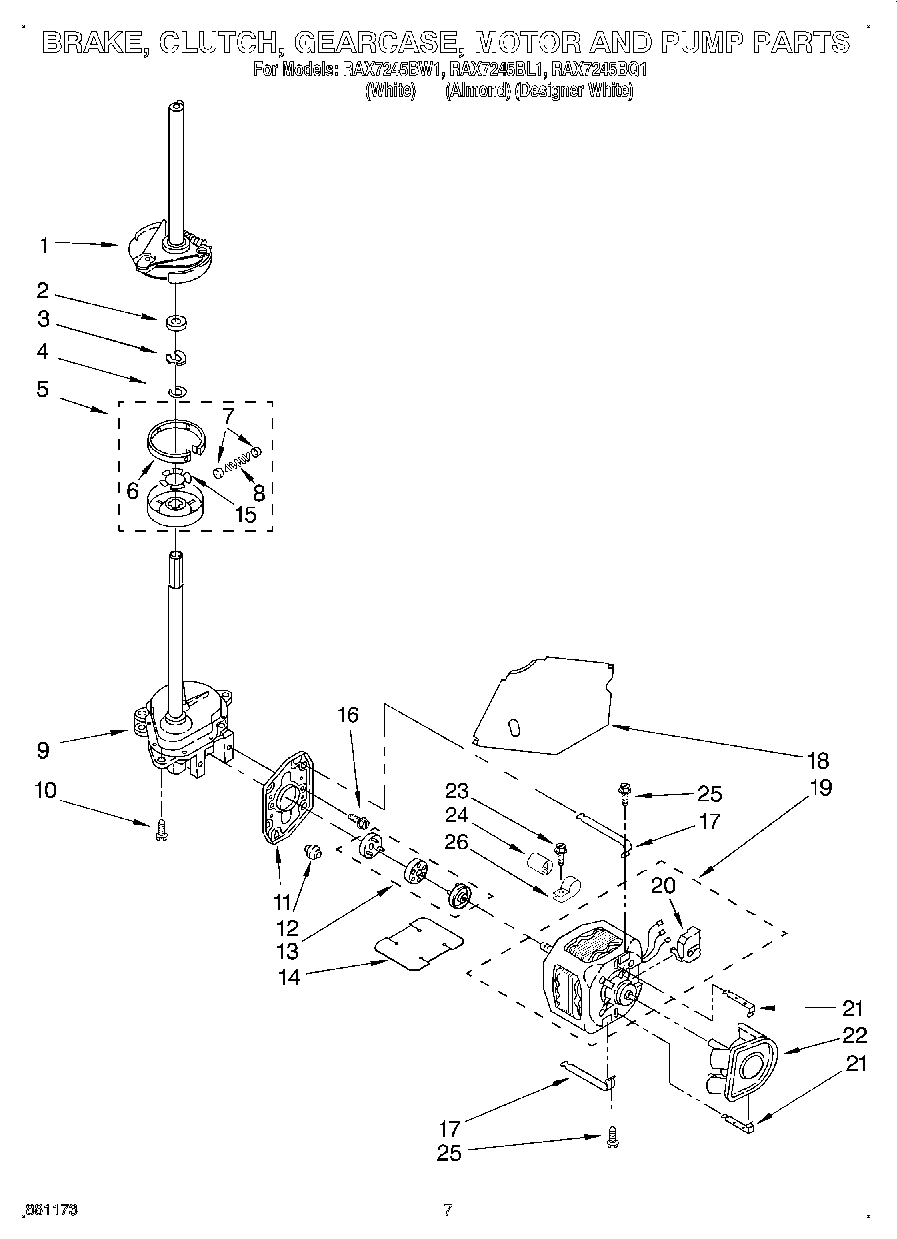

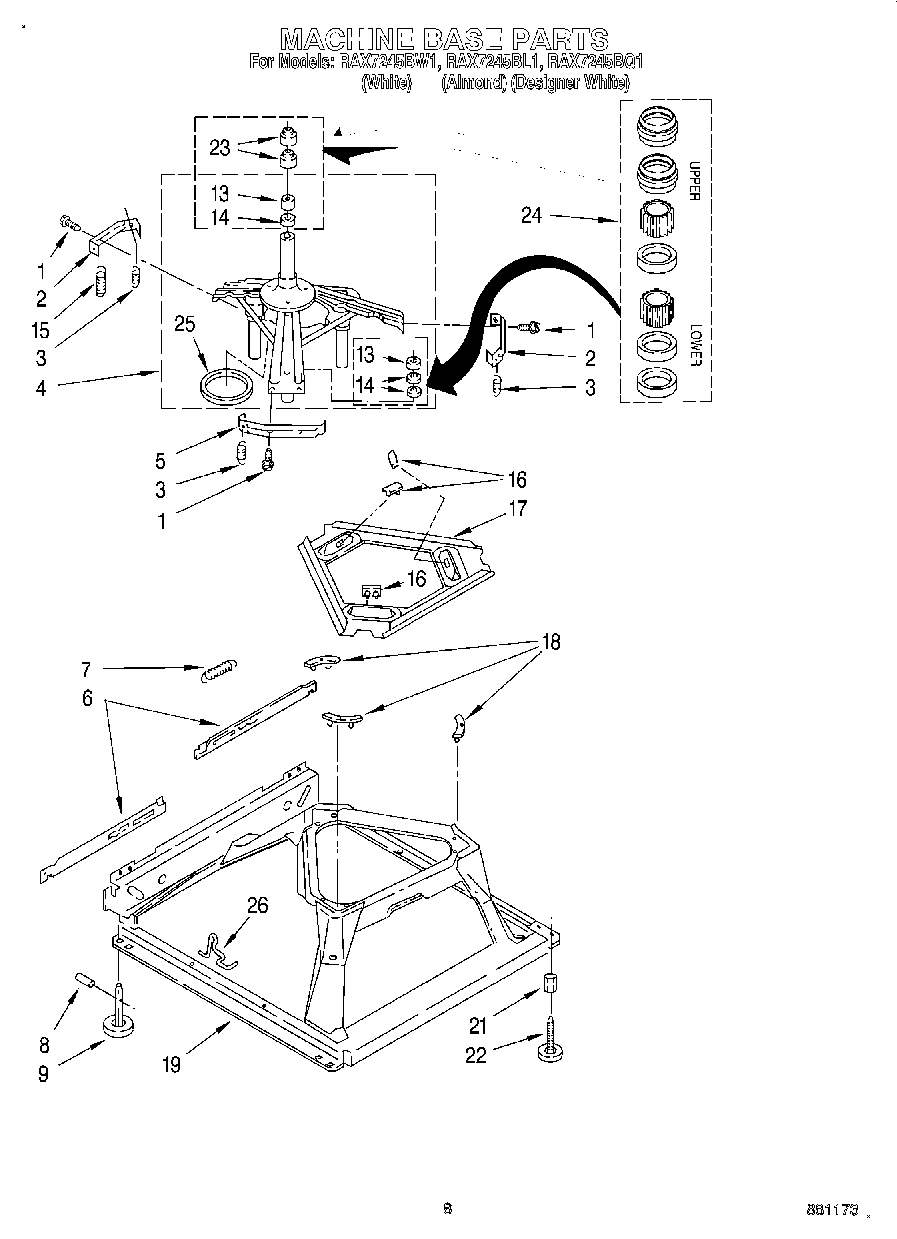

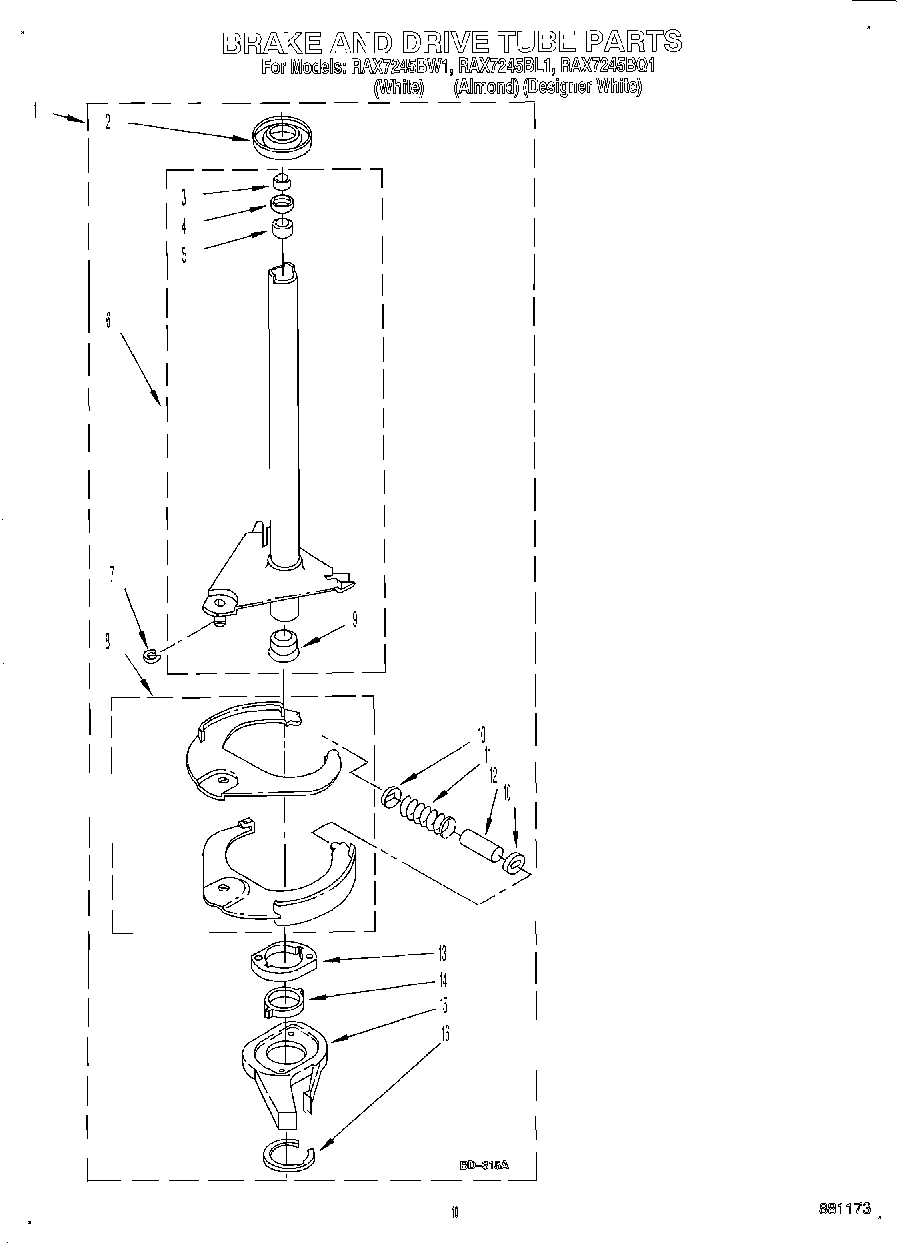

Model Whirlpool RAX7245BL1 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Golden Harvest WPL 261890 Contact Us For Availability

Golden Harvest (Uncut) WPL 261891 Contact Us For Availability

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

Shipping Kit WPL 3348675 Contact Us For Availability

Almond (Uncut) WPL 978883 Contact Us For Availability

Guide, Use and Care WPL LIT3357473 Contact Us For Availability

Sheet, Installation Instructions WPL LIT3360057 Contact Us For Availability

Label, Wiring Diagram WPL LIT3361147 Contact Us For Availability

Energy Guide WPL LIT3948628 Contact Us For Availability

1

285442 Whirlpool Coupling Backorder WPL 285442 $28.80

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $9.99

1

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

Miscellaneous Parts Bag WPL 3359460 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $78.48

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.70

2

Clip, Harness WPL 388498 Contact Us For Availability

2

Top (For White And Designer White Models) WPL 3358200 Contact Us For Availability

2

Top (For Almond Model) WPL 3358201 Contact Us For Availability

3

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

3

WP3348752 Whirlpool Agitator Mover Backorder WPL WP3348752 $85.90

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP62750 Whirlpool Spacer Backorder WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.70

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.70

4

8559320 Whirlpool Clip Backorder WPL 8559320 $13.91

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $44.98

4

WP3357027 Whirlpool Nozzle Assembly Backorder WPL WP3357027 $28.80

5

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $255.69

5

WP3347288 Whirlpool Washer Agitator Base In Stock WPL WP3347288 $73.90

5

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

5

Hinge, Console (2) WPL 387402 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Cabinet (For Almond Model) WPL 63425 Contact Us For Availability

6

W10880720 Whirlpool Tub Ring Backorder WPL W10880720 $76.64

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.70

6

Clip, Harness WPL 3390496 Contact Us For Availability

7

WP389379 Whirlpool Retainer Backorder WPL WP389379 $3.70

7

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $9.42

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

8

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

8

WP3356311 Whirlpool Screw Backorder WPL WP3356311 $2.51

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

Timer, Block Disconnect (White) WPL 352090 Contact Us For Availability

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

W10389328 Whirlpool Basket Backorder WPL W10389328 $190.38

9

W10876590 Whirlpool Connector Backorder WPL W10876590 $4.94

10

285868 Whirlpool Washer Filter Plug Kit In Stock WPL 285868 $9.92

10

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

10

Spring, Agitator WPL 62676 Contact Us For Availability

285671 Whirlpool Lid Switch Assembly In Stock WPL 285671 $23.68

3361596 Whirlpool Outer Tub Primary Backorder WPL 3361596 $180.24

353424 Whirlpool Connector Backorder WPL 353424 $10.76

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

62619 Whirlpool Washer Backorder WPL 62619 $9.59

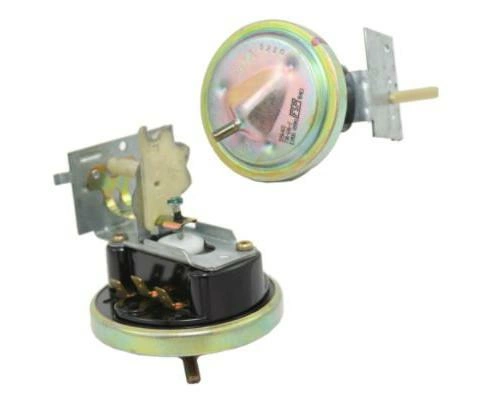

WP3356465 Whirlpool Washer Water Level Switch Backorder WPL WP3356465 $82.84

WP3363661 Whirlpool Bearing Cam Backorder WPL WP3363661 $3.70

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

13

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

13

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.51

13

Block, Disconnect (Motor 3 Speed) (Use Term. WPL 3348075 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

W10820044 Whirlpool Power Cord Backorder WPL W10820044 $56.25

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

Block, Disconnect (Use Term. 352088) WPL 3347243 Contact Us For Availability

WP353244 Whirlpool Hose In Stock WPL WP353244 $30.63

WP389387 Whirlpool Agitator Shaft In Stock WPL WP389387 $103.30

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

Protector WPL 63523 Contact Us For Availability

285565 Whirlpool Agitator Assembly In Stock WPL 285565 $136.35

WP54583 Whirlpool Hinge Backorder WPL WP54583 $9.37

Connector (2-Way) (Use Term. 94614) WPL 717252 Contact Us For Availability

Washer, Cam Thrust WPL 62618 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $76.80

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $4.76

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Plug, Terminal (4-Way) (Power Cord) (Use M3 S WPL 387566 Contact Us For Availability

Hose, Bleach WPL 3358198 Contact Us For Availability

18

80040 Whirlpool Washer Agitator Dog Kit In Stock WPL 80040 $1.10

18

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.70

18

Clip, Harness WPL 3352944 Contact Us For Availability

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $138.84

Block, Disconnect (12-Way) (Timer) (Use Term. WPL 3390423 Contact Us For Availability

Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability

Lid (For White And Designer White Models) WPL 3351652 Contact Us For Availability

Lid (For Almond Model) WPL 3351653 Contact Us For Availability

20

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

20

WPW10074580 Whirlpool Agitator Inner Cap and In Stock WPL WPW10074580 $7.47

20

Receptacle, (6-Way) (Use Term. 94613) WPL 3347730 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $29.23

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $2.51

WPW10072840 Whirlpool Seal Assembly In Stock WPL WPW10072840 $3.70

Plug, Terminal (12-Way) (Use Term. 94613 Or 9 WPL 388818 Contact Us For Availability

285811 Whirlpool Washer Agitator Repair Kit In Stock WPL 285811 $8.76

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $7.83

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $20.87

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.51

Timer, Block Disconnect (Black) (Amp) (Use Te WPL 3369366 Contact Us For Availability

23

285587 Whirlpool Thrust Washer In Stock WPL 285587 $1.43

23

Connector, Etc WPL 3349494 Contact Us For Availability

23

Ring, Retaining WPL 3362552 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $71.60

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $10.30

Connector, Relay (Use Term. 308569 Or 338664) WPL 60687 Contact Us For Availability

Washer Kit, Thrust WPL 285735 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

WP8543666 Whirlpool Washer In Stock WPL WP8543666 $5.27

25

Control, ETC WPL 3407125 Contact Us For Availability

26

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $29.41

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $177.07

27

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

28

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $2.51

30

WP371502 Whirlpool Clamp Backorder WPL WP371502 $4.78

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

32

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.02

45

Dial, Timer (For White And Almond Models) WPL 3946332 Contact Us For Availability

45

Di WPL 3946344 Contact Us For Availability

47

WPL 3352167 WPL 3352167 Contact Us For Availability

47

WPL 3354748 WPL 3354748 Contact Us For Availability

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

50

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

51

WPL 3357998 WPL 3357998 Contact Us For Availability

51

WPL 3358000 WPL 3358000 Contact Us For Availability

55

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

56

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.70

60

WPL 3348424 WPL 3348424 Contact Us For Availability

61

WPL 3359837 WPL 3359837 Contact Us For Availability
