Model Whirlpool RAS8333RQ4 AUTOMATIC WASHER – Common Parts & Diagrams
08 - GEARCASE PARTS
06 - WIRING HARNESS PARTS

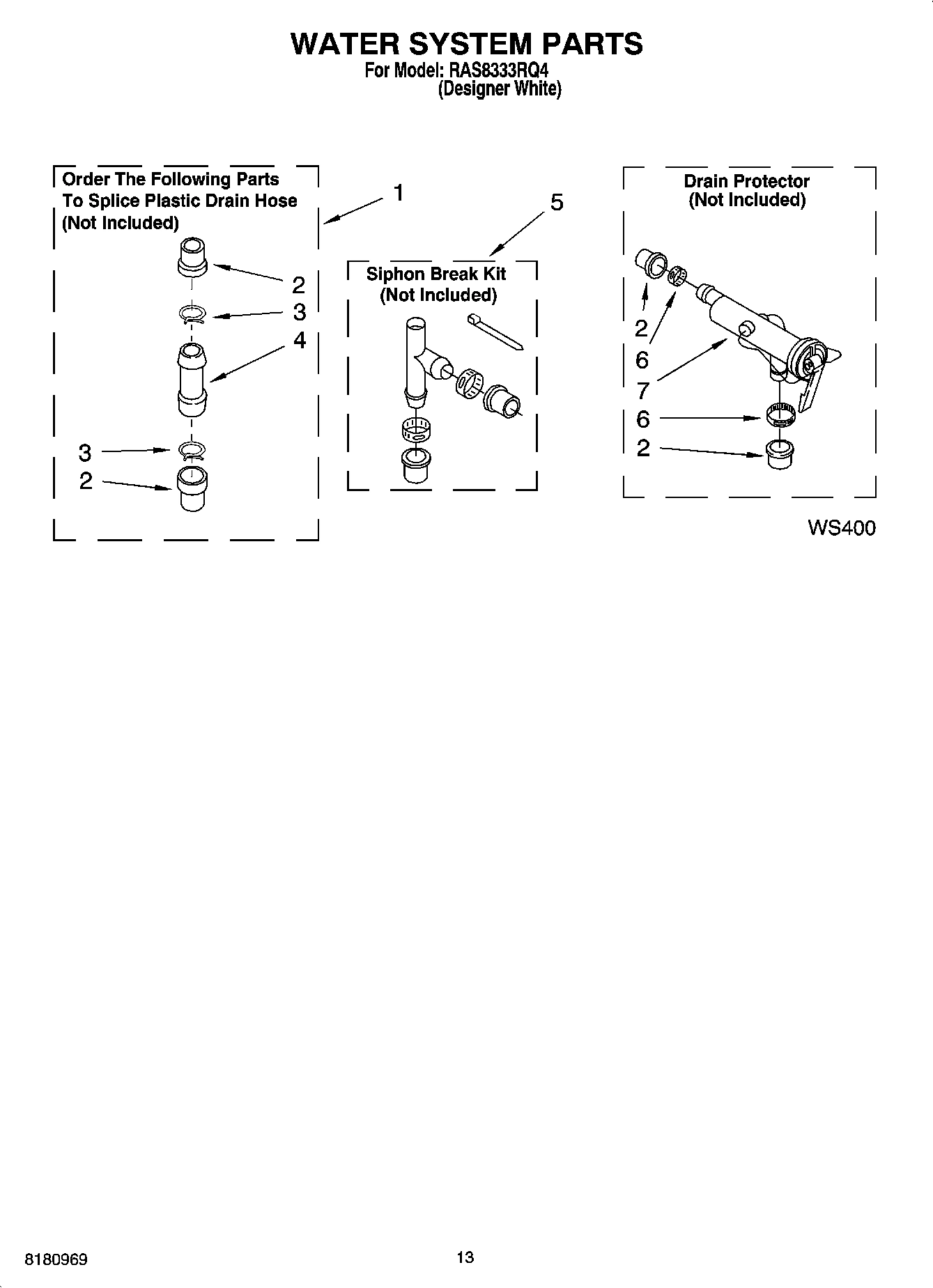

09 - WATER SYSTEM PARTS, OPTIONAL PARTS (NOT INCLUDED)

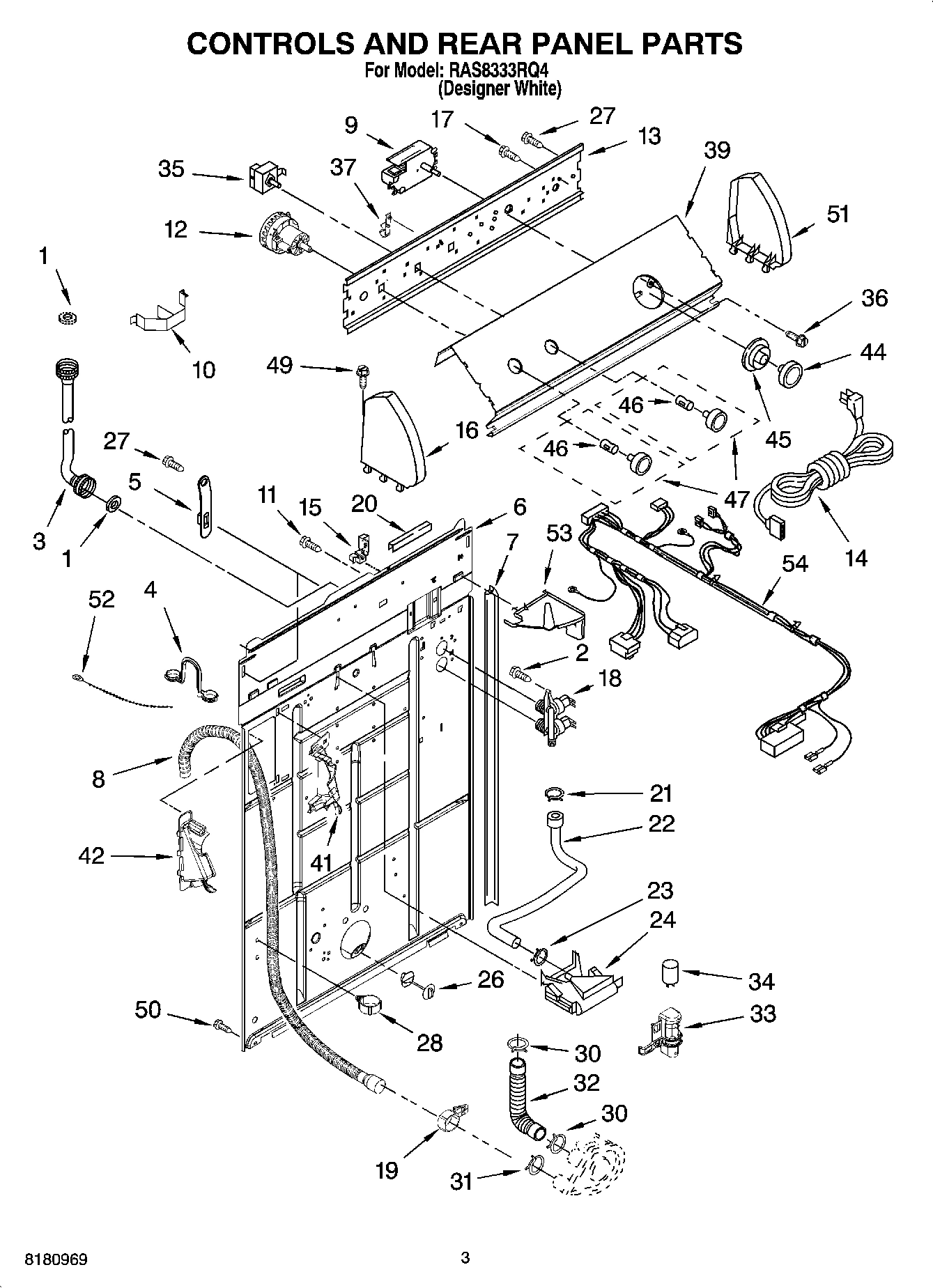

02 - CONTROLS AND REAR PANEL PARTS

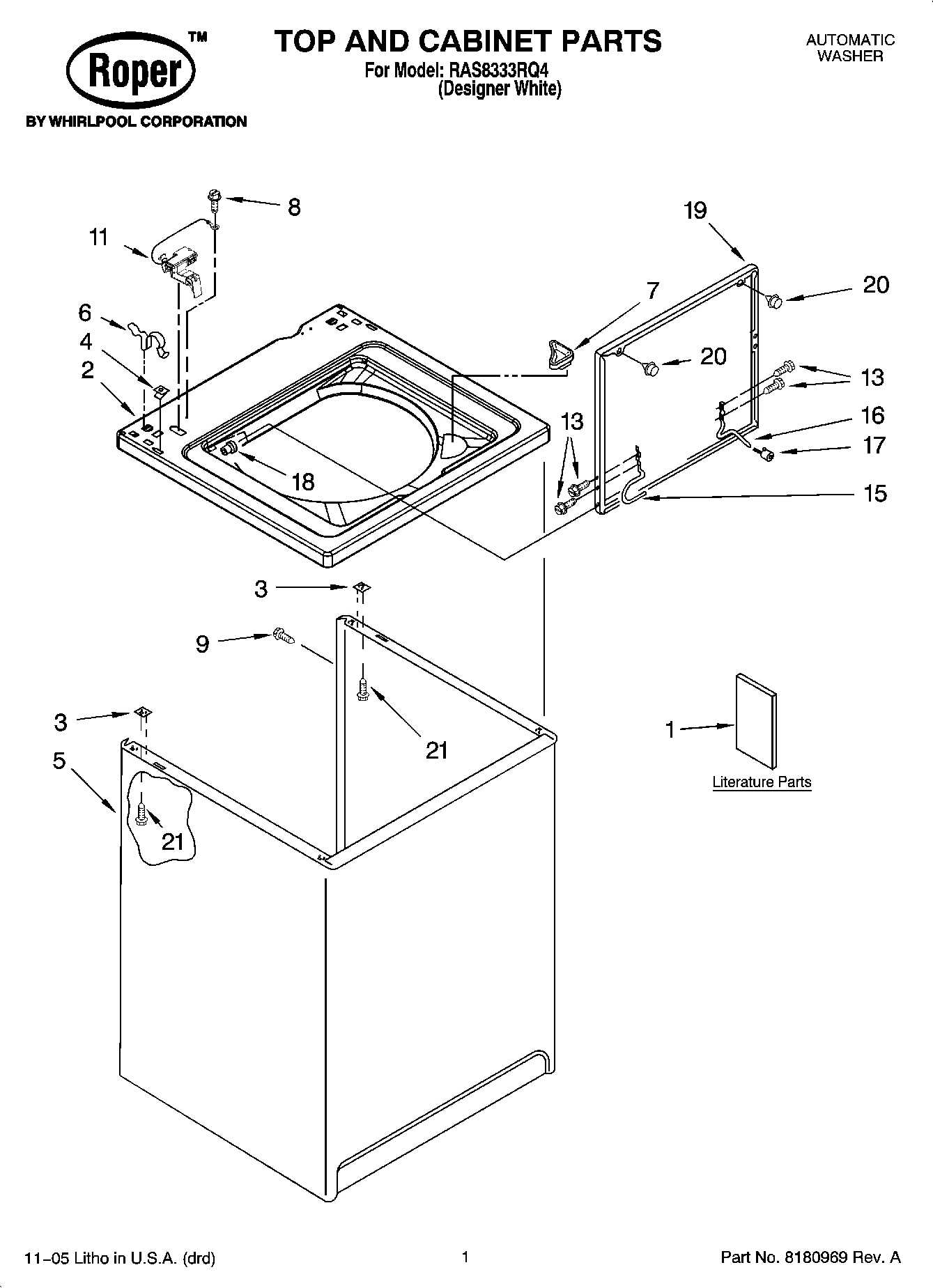

01 - TOP AND CABINET PARTS
04 - BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

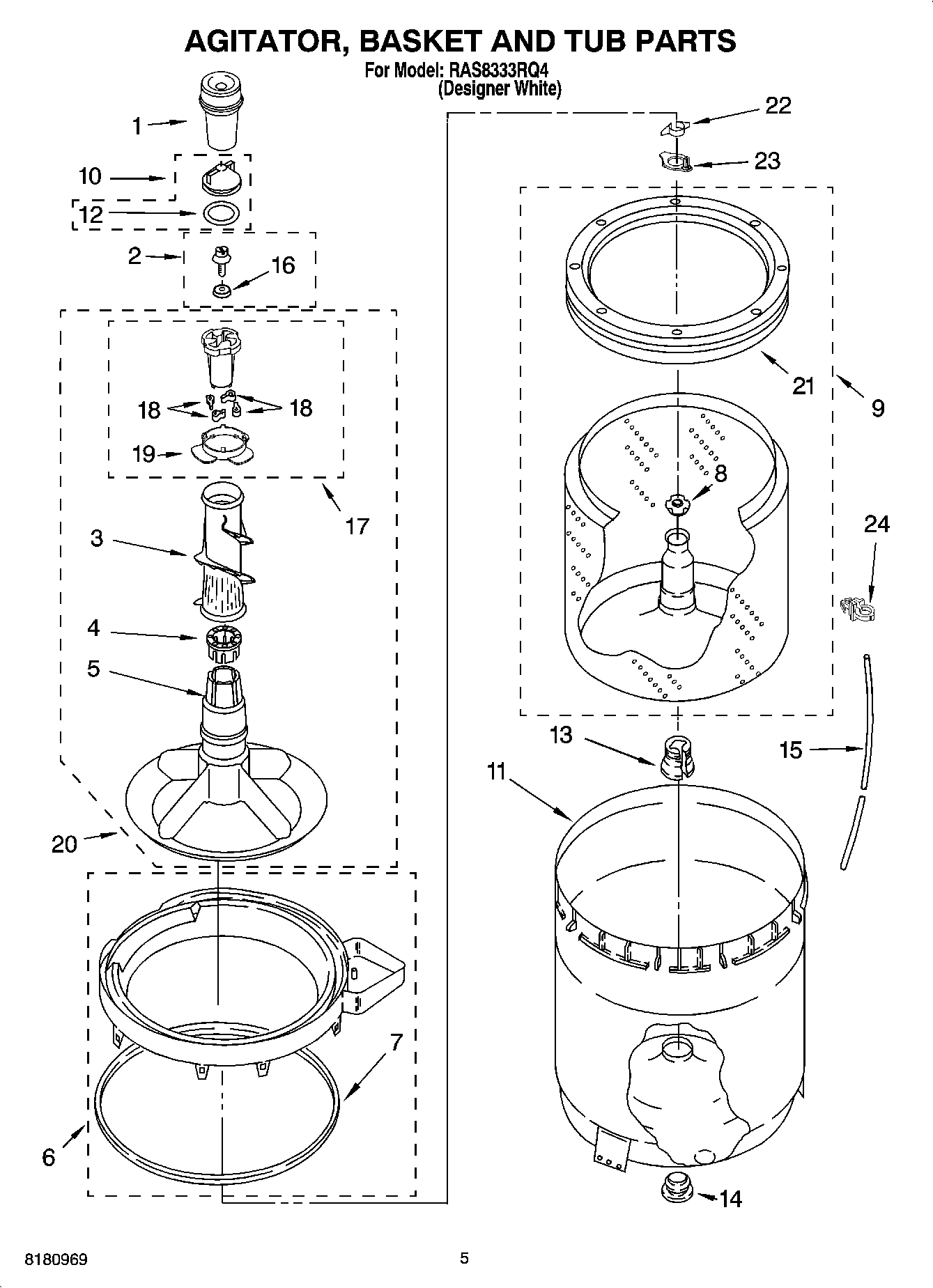

03 - AGITATOR, BASKET AND TUB PARTS

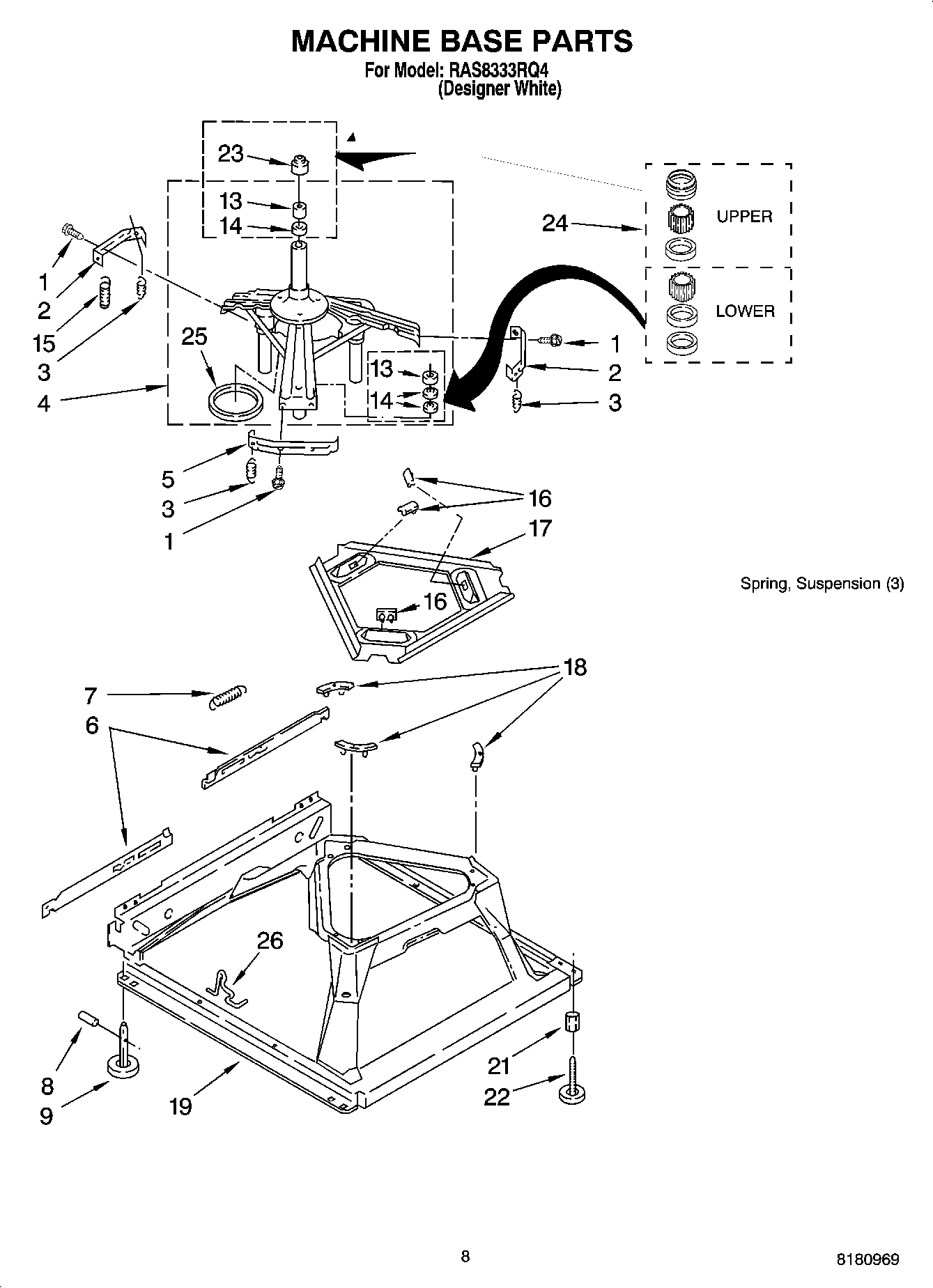

05 - MACHINE BASE PARTS
07 - BRAKE AND DRIVE TUBE PARTS
Common parts from model Whirlpool RAS8333RQ4 AUTOMATIC WASHER
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
Siphon Break Kit WPL 285320 Contact Us For Availability
OIL WPL 350572 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, GR WPL 350938 Contact Us For Availability
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
1
Dispenser, Fabric Softener WPL 63580 Contact Us For Availability
1
Connector Kit, Plastic Drain Hose WPL 285442 Contact Us For Availability
1
Clip, Harness WPL 3349557 Contact Us For Availability
1
Feature Sheet WPL 3955913 Contact Us For Availability
1
Energy Guide WPL 3957355 Contact Us For Availability
1
Installation Instructions WPL 3958075 Contact Us For Availability
1
Wiring Diagram WPL 8546687 Contact Us For Availability
1
Use & Care Guide WPL 8578234 Contact Us For Availability
2
Cover, Gearcase WPL 285202 Contact Us For Availability
2
TOP WPL 8318064 Contact Us For Availability
4
Support & Brake, Tub WPL 8575214 Contact Us For Availability
5
Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability
5
Cabinet WPL 63424 Contact Us For Availability
6
Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability
8
Timer, Block Disconnect (White) WPL 3948614 Contact Us For Availability
9
Retainer, Spring WPL 62677 Contact Us For Availability
9
Spring, Brake WPL 387806 Contact Us For Availability
10
Plug, Terminal (3-Way) (Power Cord) (Use Term WPL 353424 Contact Us For Availability
10
Clip, Harness & Pressure Hose WPL 8055003 Contact Us For Availability
11
Tub WPL 63849 Contact Us For Availability
12
Washer, Agitate Gear WPL 62619 Contact Us For Availability
14
Cord, Power (Includes Item 15) WPL 661661 Contact Us For Availability
14
LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability
14
FOLLOWING PARTS NOT ILLUSTRATED WPL ARI159776A Contact Us For Availability
15
Hinge, Lid (L.H.) WPL 8318088 Contact Us For Availability
15
Strain Relief, Power Cord WPL 8559349 Contact Us For Availability
15
Clip, Anti-Rattle WPL 3355454 Contact Us For Availability
17
Bumper, Lid Hinge WPL 19119 Contact Us For Availability
17
Screw, Ground WPL 3400073 Contact Us For Availability
19
Clamp, Hose WPL 8541668 Contact Us For Availability
19
Base Assembly (Includes Items 6, 7, 8, 9, 16, WPL 3946512 Contact Us For Availability
20
Switch, Main Drive Motor WPL 3952056 Contact Us For Availability
20
Edge Protector WPL 303294 Contact Us For Availability
21
Seal, Thrust Plug WPL 285352 Contact Us For Availability
24
Centerpost Bearing Kit (Includes Items 13, 14 WPL 285203 Contact Us For Availability
24
Clip, Pressure Switch Hose WPL 2219077 Contact Us For Availability
28
Clamp, Hose WPL 8541667 Contact Us For Availability
33
Clip, Capacitor WPL 8318046 Contact Us For Availability
37
Retainer, Harness WPL 8317975 Contact Us For Availability
39
Panel, Console WPL 3956986 Contact Us For Availability
41
(Left Half) WPL ARI159773A Contact Us For Availability
42
(Right Half) WPL ARI159774A Contact Us For Availability
45
Dial, Timer WPL 3957381 Contact Us For Availability
53
Shield, Suds WPL 8539874 Contact Us For Availability
54
Harness, W WPL 3957014 Contact Us For Availability
54
WPL 3957361 WPL 3957361 Contact Us For Availability
54
WPL ARI159775A WPL ARI159775A Contact Us For Availability
× ![]()
