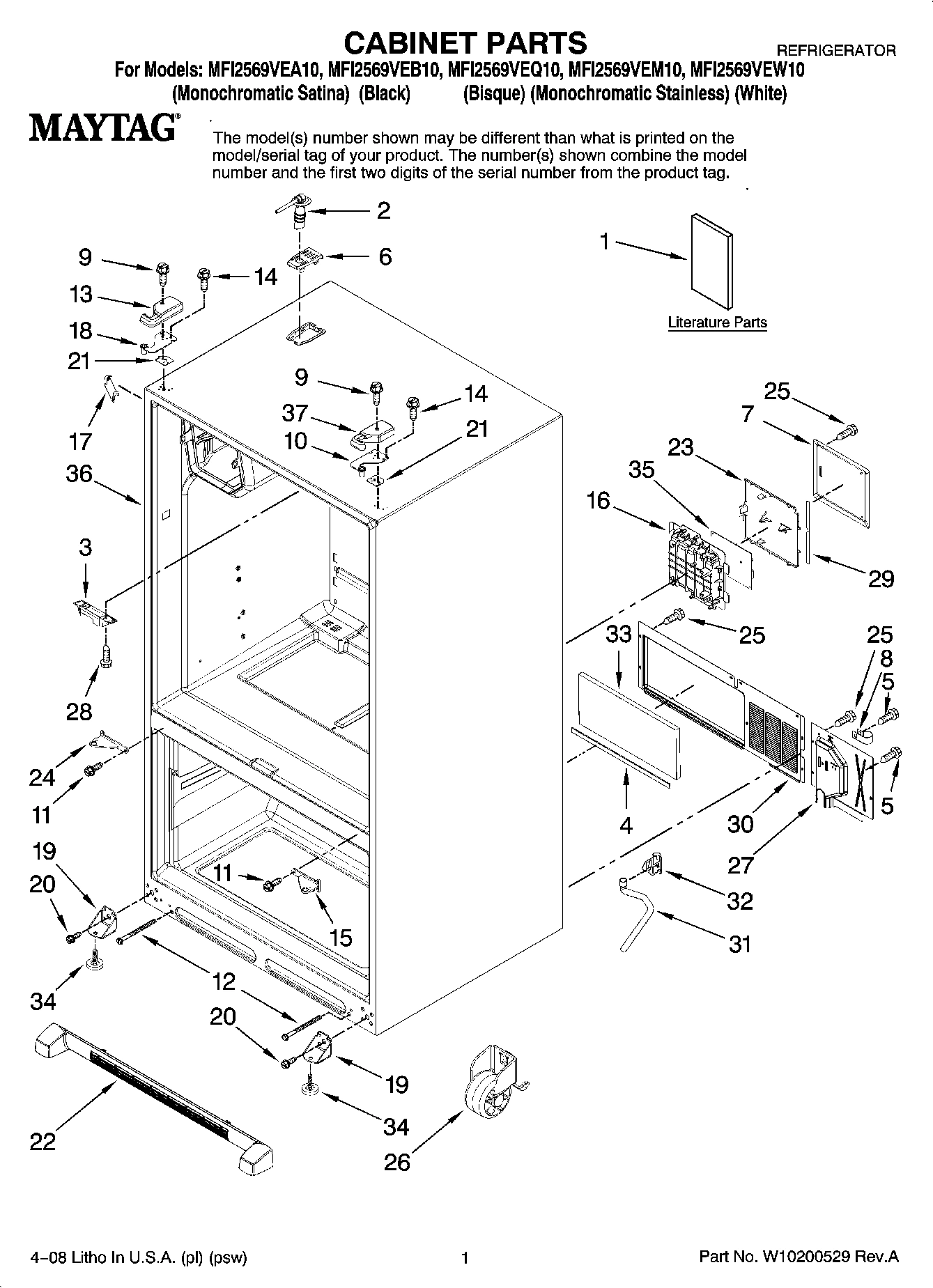

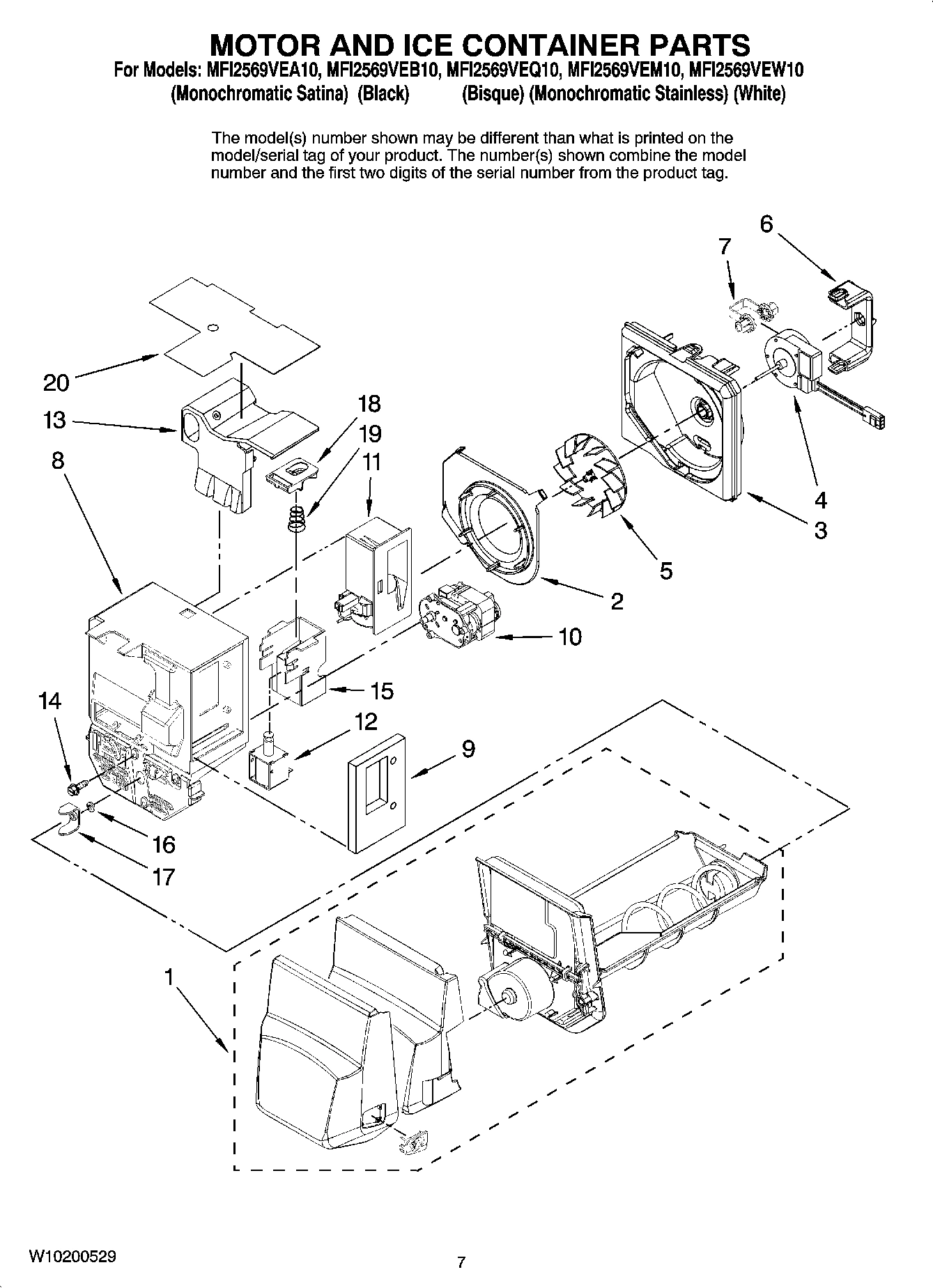

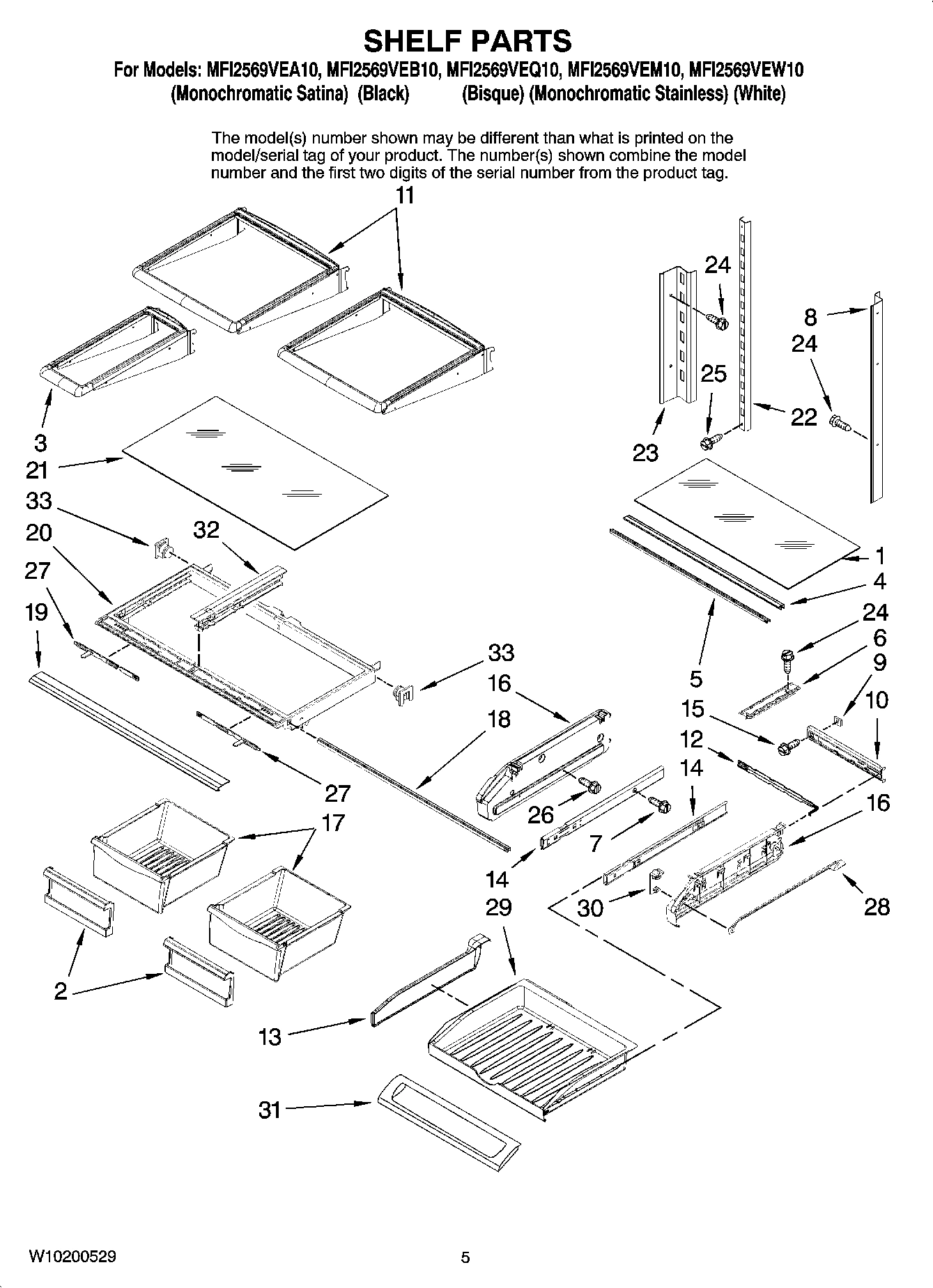

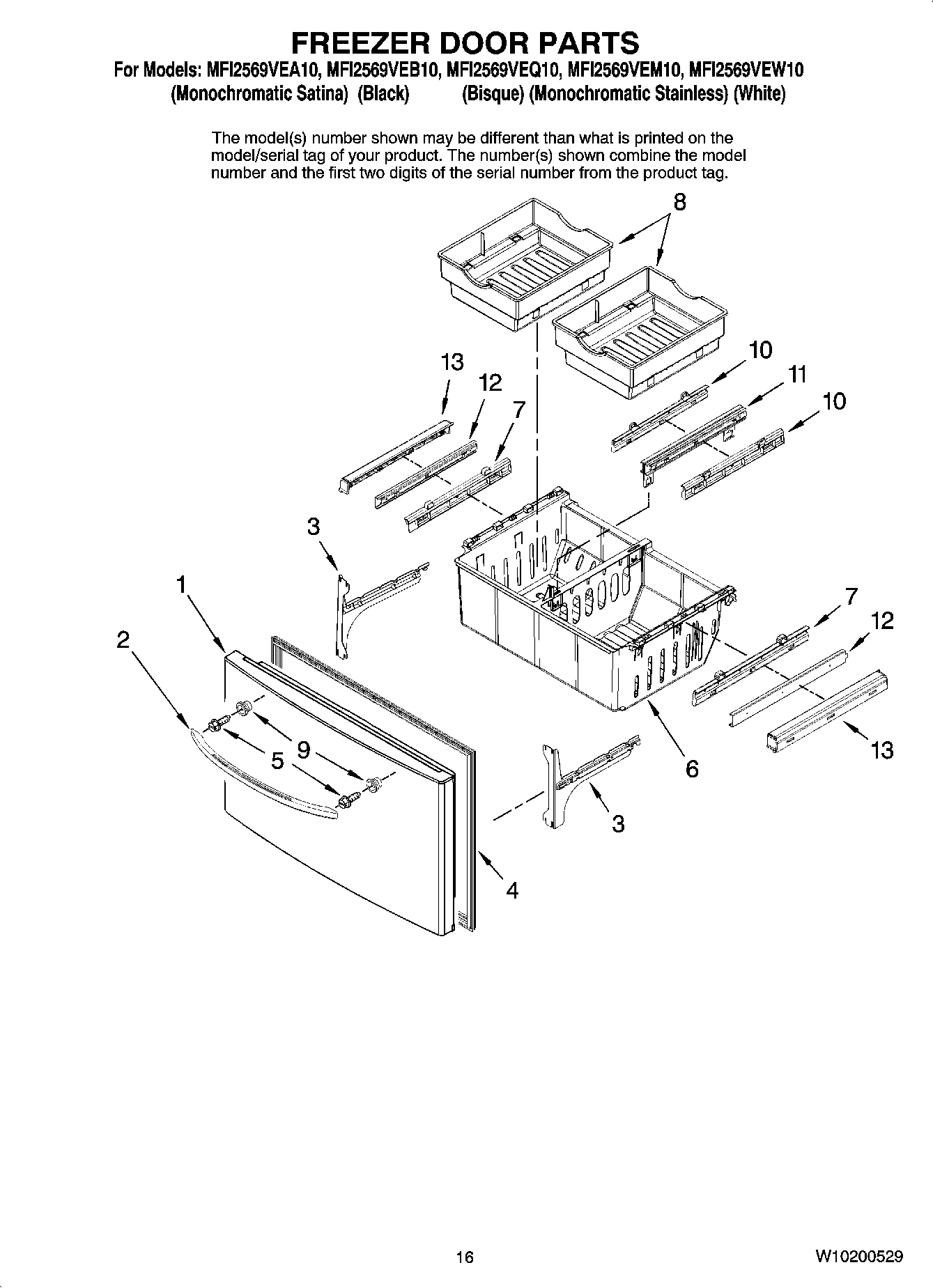

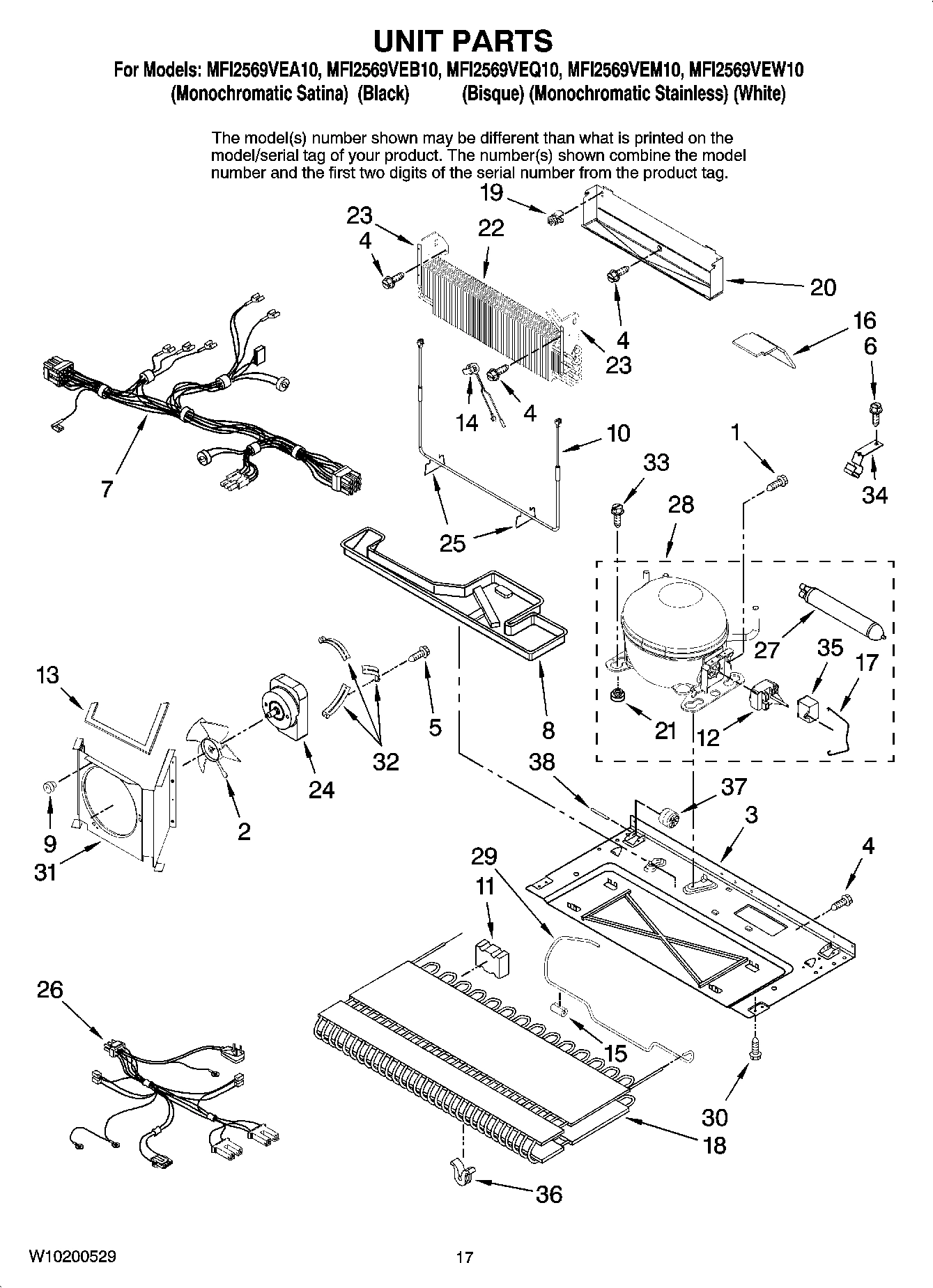

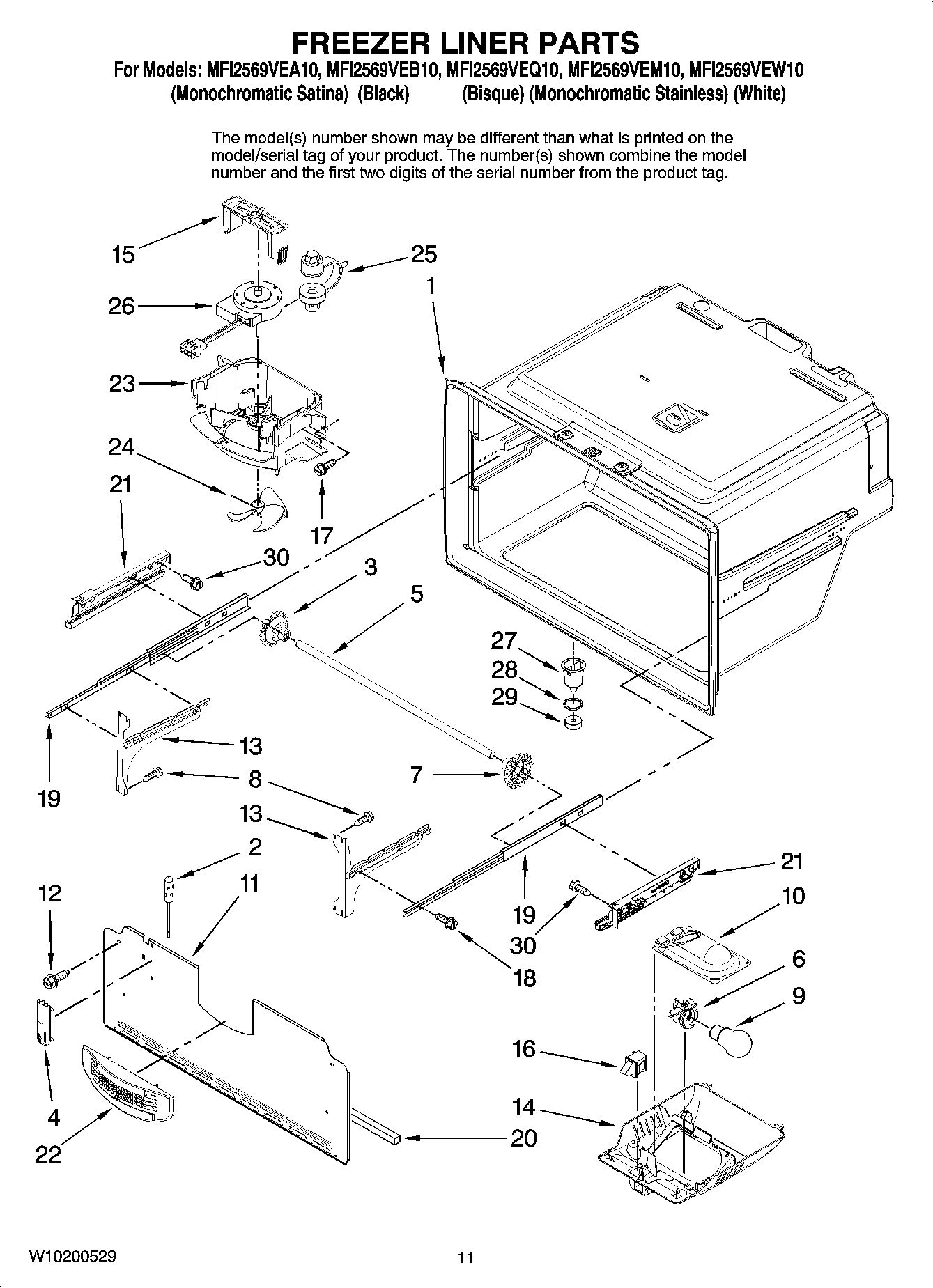

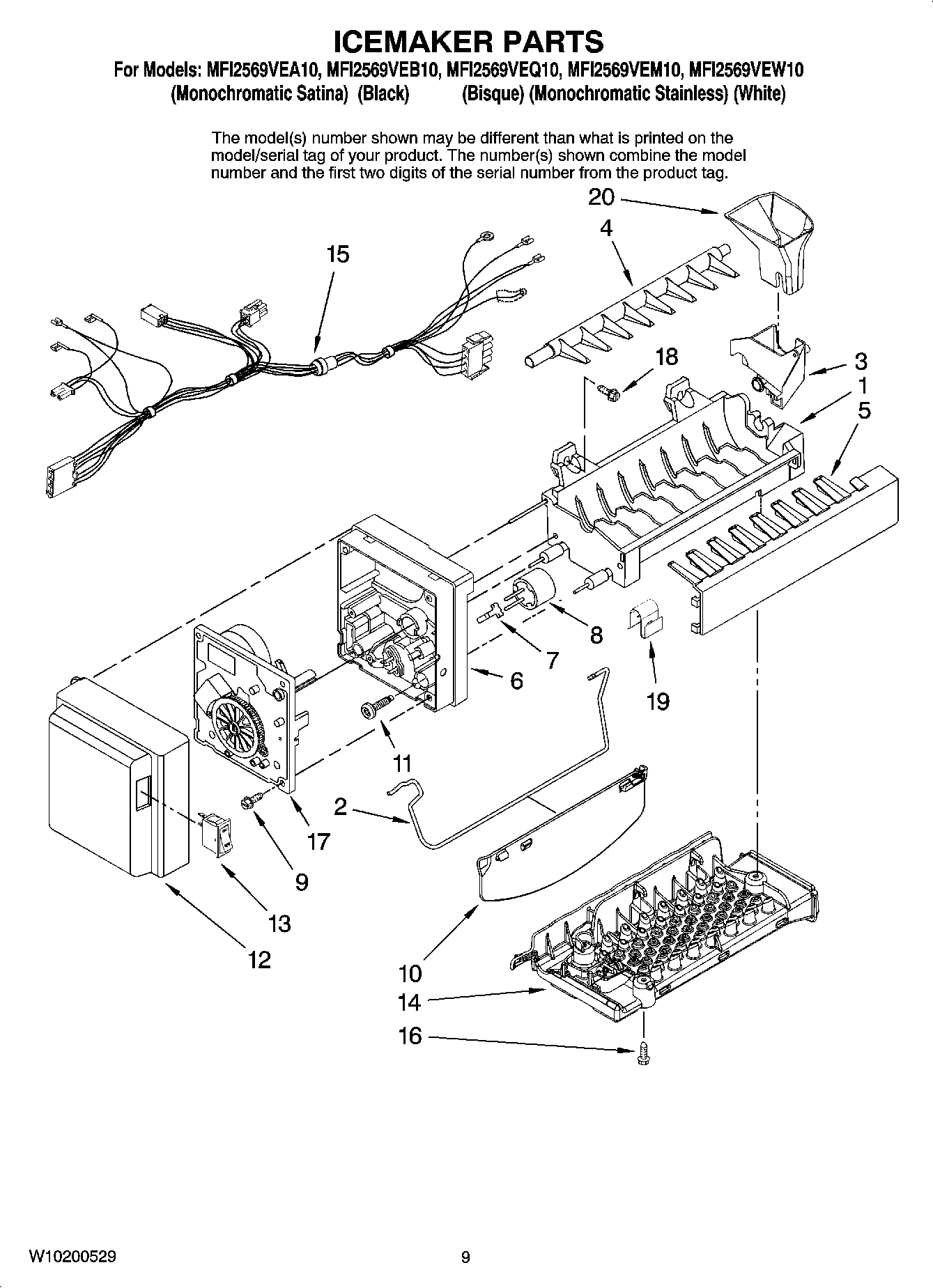

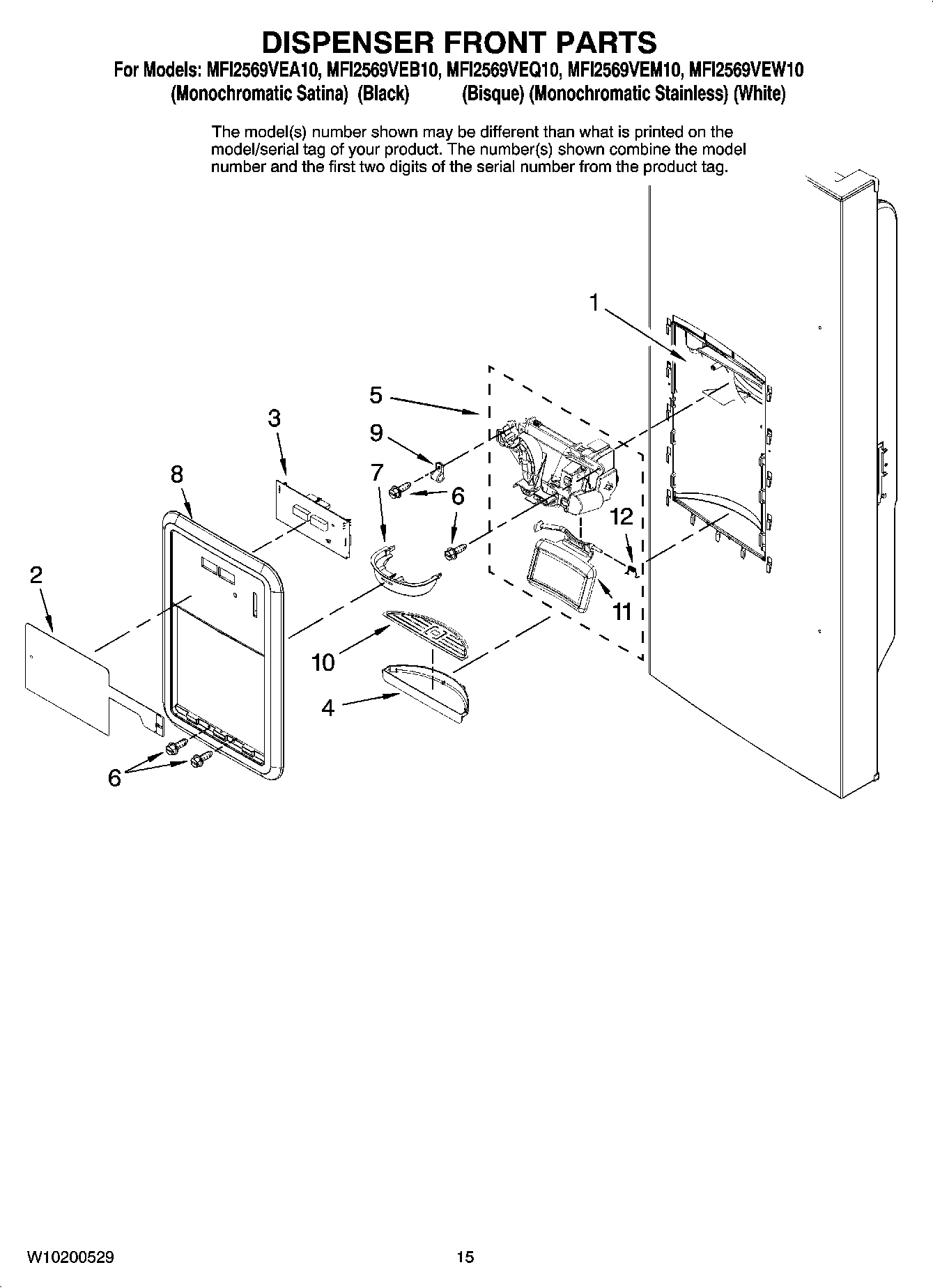

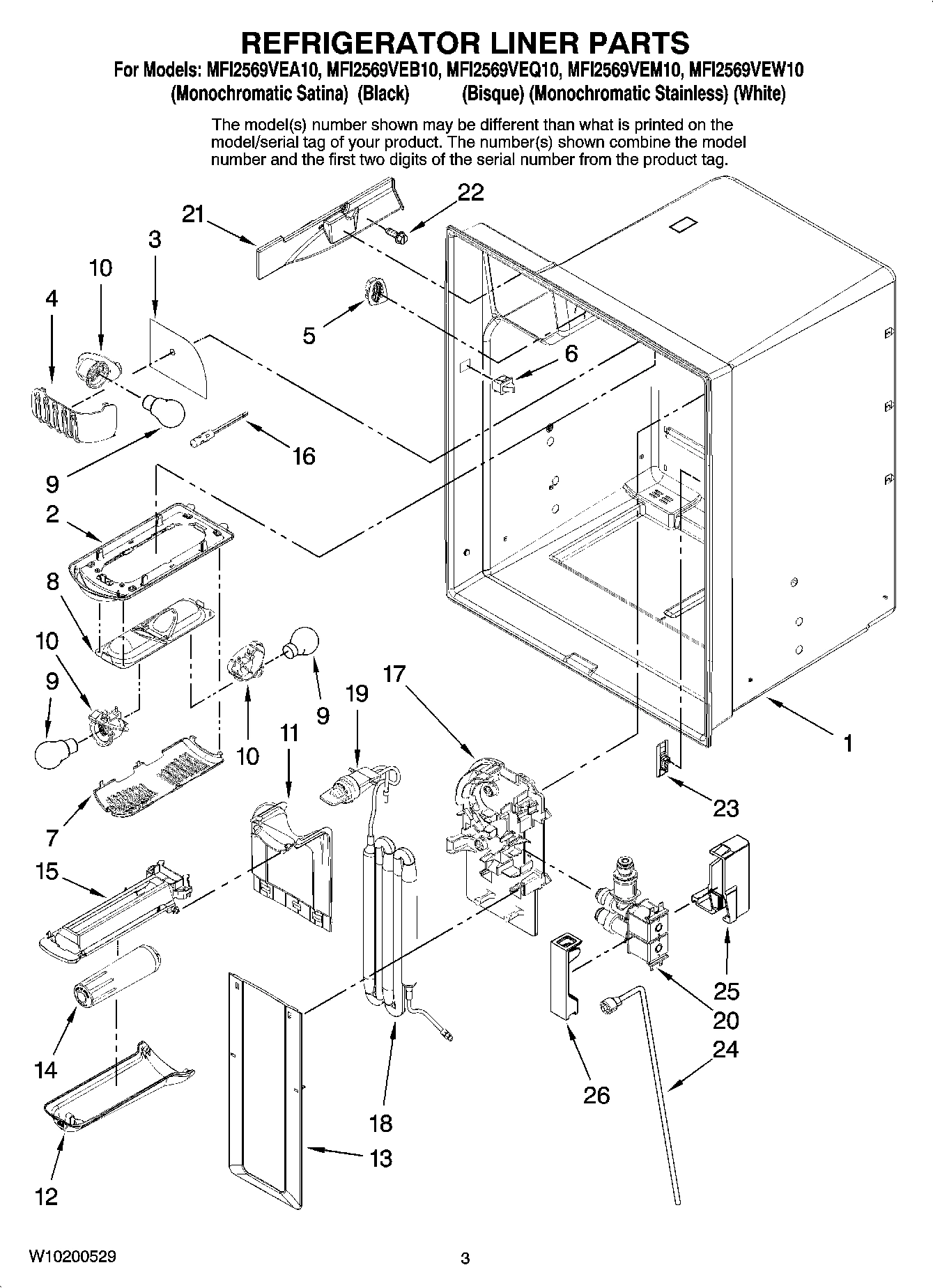

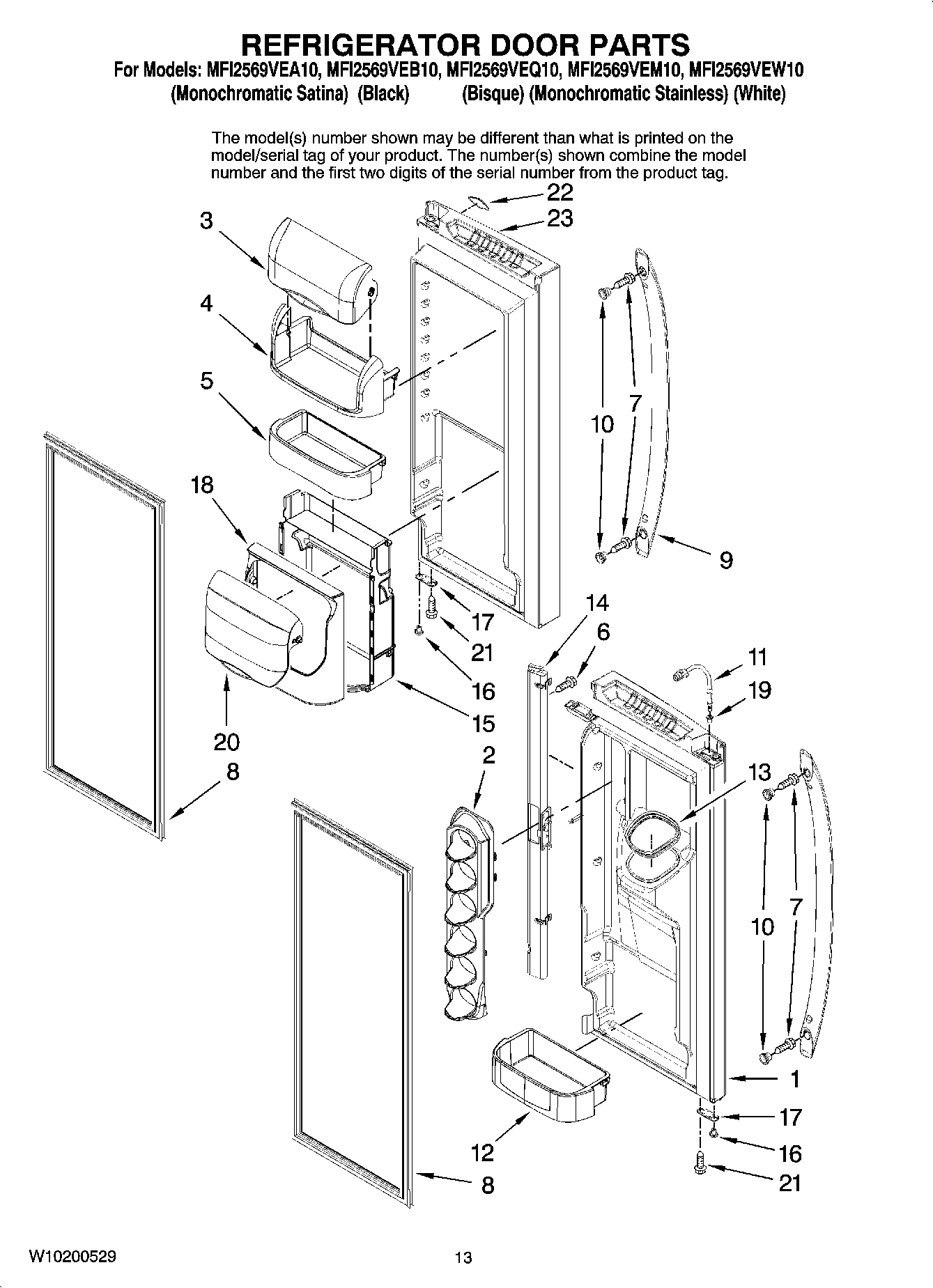

Model Whirlpool MFI2569VEW10 REFRIGERATOR – Common Parts &amp; Diagrams

1

12992301 Whirlpool Refrigerator Screw Backorder WPL 12992301 $14.42

1

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $159.53

1

Freezer Door (Black) WPL W10173929 Contact Us For Availability

1

Freezer Door (Bisque) WPL W10174150 Contact Us For Availability

1

Freezer Door (Satina) WPL W10191120 Contact Us For Availability

1

Freezer Door (Stainless) WPL W10191131 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI5240A36 Contact Us For Availability

1

GLASS, PANTRY WPL 67002761 Contact Us For Availability

2

W10121282 Whirlpool Refrigerator Insert Backorder WPL W10121282 $10.55

2

W10156818 Whirlpool Refrigerator Fan Blade In Stock WPL W10156818 $29.92

2

W11415785 Whirlpool Refrigerator Water Fill T In Stock WPL W11415785 $38.59

2

WP67005923 Whirlpool Refrigerator Front Cover In Stock WPL WP67005923 $35.76

2

WPW10138763 Whirlpool Refrigerator Handle Backorder WPL WPW10138763 $137.18

2

WPW10175514 Whirlpool Refrigerator Shut-Off A Backorder WPL WPW10175514 $49.36

2

Handle, Door (Black) WPL 67007105 Contact Us For Availability

2

Dispenser Keyboard (Bisque) WPL W10164468 Contact Us For Availability

2

Handle, Door (Bisque) WPL 67007106 Contact Us For Availability

2

Handle, Door (White) WPL 67007107 Contact Us For Availability

2

Handle, Door (Antique Pewter) WPL W10191147 Contact Us For Availability

2

Module, Light WPL 67006328 Contact Us For Availability

3

67006294 Whirlpool Control Board Backorder WPL 67006294 $131.76

3

W10121281 Whirlpool Refrigerator Shroud Backorder WPL W10121281 $30.29

3

W10122561 Whirlpool Refrigerator Cup Fill In Stock WPL W10122561 $10.60

3

WPW10330991 Whirlpool Refrigerator Bracket Backorder WPL WPW10330991 $60.65

3

FOIL, LIGHT WPL 67006326 Contact Us For Availability

3

Shelf, Mini (Stationary) WPL W10187852 Contact Us For Availability

3

Basepan WPL 67005889 Contact Us For Availability

3A

WPW10330993 Whirlpool Refrigerator Bracket In Stock WPL WPW10330993 $64.88

4

12921801 Whirlpool Refrigerator Light Cover Backorder WPL 12921801 $11.17

4

W10164981 Whirlpool Refrigerator Drip Tray Backorder WPL W10164981 $41.38

4

W11812285 Whirlpool Support Backorder WPL W11812285 $22.76

4

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $33.29

4

WPW10162697 Whirlpool Refrigerator Motor Backorder WPL WPW10162697 $125.30

4

WPW10436253 Whirlpool Refrigerator Black Free Backorder WPL WPW10436253 $158.75

4

WPW10443321 Whirlpool Door Gasket In Stock WPL WPW10443321 $139.36

4

WPW10714545 Whirlpool Refrigerator Freezer Do In Stock WPL WPW10714545 $102.30

4

Sump, Dispenser (Black) WPL W10164979 Contact Us For Availability

4

Sump, Dispenser (Midnight Grey (Dark)) WPL W10185235 Contact Us For Availability

4

Sump, Dispenser (White) WPL W10142274 Contact Us For Availability

4

Sump, Dispenser (Apollo Grey (Light)) WPL W10164980 Contact Us For Availability

5

W10555984 Whirlpool Refrigerator Grille Backorder WPL W10555984 $15.16

5

WP12227305WD Whirlpool Drawer Support Backorder WPL WP12227305WD $49.48

5

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $30.97

5

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.74

5

WP67004954 Whirlpool Refrigerator Screw Backorder WPL WP67004954 $2.60

6

W10165970 Whirlpool Refrigerator Clip Backorder WPL W10165970 $33.29

6

W10191141 Whirlpool Refrigerator Tube Cover Backorder WPL W10191141 $9.22

6

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $16.36

6

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $42.88

6

WP33001882 Whirlpool Screw Backorder WPL WP33001882 $30.29

6

WP67001719 Whirlpool Refrigerator Track Backorder WPL WP67001719 $2.60

6

BIN, LOWER WPL 67006366 Contact Us For Availability

7

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $9.20

7

67006295 Whirlpool Refrigerator Target Ring Backorder WPL 67006295 $35.91

7

W10166742 Whirlpool Refrigerator Bracket Backorder WPL W10166742 $35.64

7

W10850438 Whirlpool Refrigerator Evaporator M In Stock WPL W10850438 $176.75

7

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.77

7

WP98165 Whirlpool Screw In Stock WPL WP98165 $2.60

7

Grommet, Fan Motor WPL W10151687 Contact Us For Availability

7

Cover, Light WPL 67006318 Contact Us For Availability

8

12806601 Whirlpool Refrigerator Light Housing Backorder WPL 12806601 $50.05

8

W10142272 Whirlpool Refrigerator Cover Backorder WPL W10142272 $109.27

8

W10251965 Whirlpool Refrigerator Ladder Backorder WPL W10251965 $12.41

8

WP12579803 Whirlpool Refrigerator Drain Pan Backorder WPL WP12579803 $176.42

8

WP12924903 Whirlpool Refrigerator Freezer Bin Backorder WPL WP12924903 $78.60

8

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $48.45

8

Facade, Dispenser (Apollo Grey W/Satina Inser WPL W10172895 Contact Us For Availability

9

67002329 Whirlpool Refrigerator Pantry Gasket Backorder WPL 67002329 $11.17

9

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $3.00

9

W11690159 Whirlpool Handle Backorder WPL W11690159 $99.60

9

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.84

9

WP67006113 Whirlpool Stud Bolt In Stock WPL WP67006113 $5.19

9

WP67006341 Whirlpool Refrigerator Gasket In Stock WPL WP67006341 $3.84

9

Grommet (3) WPL 61004743 Contact Us For Availability

12656202 Whirlpool Refrigerator Housing Backorder WPL 12656202 $60.35

67006342 Whirlpool Refrigerator Auger Motor Backorder WPL 67006342 $163.06

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $4.75

WPW10121440 Whirlpool Refrigerator Extension Backorder WPL WPW10121440 $33.29

Grille, Sump WPL W10142275 Contact Us For Availability

Heater, Defrost WPL W10162932 Contact Us For Availability

Adapter, Bin (Inner) WPL W10163002 Contact Us For Availability

12962106 Whirlpool Refrigerator Waterline Doo Backorder WPL 12962106 $90.88

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.96

W10170831 Whirlpool Refrigerator Pad Backorder WPL W10170831 $39.62

W10170832 Whirlpool Refrigerator Pad Backorder WPL W10170832 $40.39

W11402525 Whirlpool Glass Shelf Backorder WPL W11402525 $136.66

WPW10127427 Whirlpool Refrigerator Control In Stock WPL WPW10127427 $115.38

WPW10185233 Whirlpool Refrigerator Pad In Stock WPL WPW10185233 $40.39

WPW10235357 Whirlpool Refrigerator Glide Asse Backorder WPL WPW10235357 $159.08

Cover, Water Tank (Upper) WPL 67006330 Contact Us For Availability

Block, Condenser WPL 67005491 Contact Us For Availability

67006344 Whirlpool Refrigerator Solenoid Backorder WPL 67006344 $102.97

WP12840004 Whirlpool Refrigerator Cantilever Backorder WPL WP12840004 $55.33

WP67003793 Whirlpool Refrigerator Temperature Backorder WPL WP67003793 $31.16

WP67006331 Whirlpool Refrigerator Water Filte In Stock WPL WP67006331 $55.42

WPW10121444 Whirlpool Refrigerator Front Cove Backorder WPL WPW10121444 $33.29

WPW10197428 Whirlpool Start Device In Stock WPL WPW10197428 $44.54

WPW10235367 Whirlpool Refrigerator Glide Backorder WPL WPW10235367 $145.39

67006329 Whirlpool Refrigerator Lower Water T Backorder WPL 67006329 $96.31

W11676504 Whirlpool Insert Assembly Backorder WPL W11676504 $13.26

WP2313326 Whirlpool Refrigerator Switch Backorder WPL WP2313326 $12.45

WP67002759 Whirlpool Refrigerator Divider In Stock WPL WP67002759 $31.31

WP67006368 Whirlpool Refrigerator Retainer Backorder WPL WP67006368 $153.09

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $5.93

WPW10287601 Whirlpool Seal In Stock WPL WPW10287601 $14.93

13A

W10826788 Whirlpool Refrigerator Retainer Backorder WPL W10826788 $36.90

WP12722813AP Whirlpool Refrigerator Mullion R Backorder WPL WP12722813AP $131.18

WP12722813W Whirlpool Refrigerator Mullion Ra Backorder WPL WP12722813W $129.04

WP67006387 Whirlpool Refrigerator Thermostat In Stock WPL WP67006387 $40.92

WPW10121269 Whirlpool Refrigerator Air Baffle Backorder WPL WPW10121269 $33.29

WPW10151713 Whirlpool Refrigerator Mullion Ra Backorder WPL WPW10151713 $136.07

WPW10235370 Whirlpool Refrigerator Glide Backorder WPL WPW10235370 $125.32

Filter, Water WPL ARI5241A48 Contact Us For Availability

67005680 Whirlpool Refrigerator Condenser Gro Backorder WPL 67005680 $11.17

67006325 Whirlpool Filter Base Bracket In Stock WPL 67006325 $48.49

W11256689 Whirlpool Refrigerator Wire Harness Backorder WPL W11256689 $88.27

W11712696 Whirlpool Clip Backorder WPL W11712696 $6.88

12002355 Whirlpool Refrigerator Thermistor Ki In Stock WPL 12002355 $27.89

12820504 Whirlpool Refrigerator Insulation Backorder WPL 12820504 $29.15

WP12028505AP Whirlpool Closing Cam In Stock WPL WP12028505AP $32.03

WP67003638 Whirlpool Closing Cam In Stock WPL WP67003638 $3.84

WP67003639 Whirlpool Refrigerator Closer In Stock WPL WP67003639 $32.15

16A

W10874836 Whirlpool Endcap Assembly Left Hand In Stock WPL W10874836 $19.49

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $32.02

67006324 Whirlpool Refrigerator Bracket Backorder WPL 67006324 $11.72

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $90.00

W11703060 Whirlpool Door Stop Backorder WPL W11703060 $5.59

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $5.26

WP67004515 Whirlpool Crisper Drawer In Stock WPL WP67004515 $75.00

Stop, Door (Bisque) WPL 12968202Q Contact Us For Availability

Clip, Capacitor WPL 2255199 Contact Us For Availability

W11266639 Whirlpool Refrigerator Chiller Backorder WPL W11266639 $162.91

WP12642303WD Whirlpool Refrigerator Drawer Su Backorder WPL WP12642303WD $49.82

WP12956202 Whirlpool Refrigerator Reservoir In Stock WPL WP12956202 $152.53

WP67006131 Whirlpool Refrigerator Condenser Backorder WPL WP67006131 $169.07

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.60

YOKE, SOLENOID WPL 67006347 Contact Us For Availability

12996601 Whirlpool Refrigerator Bushing Clip Backorder WPL 12996601 $7.18

W11658402 Whirlpool Drawer Slide Rail In Stock WPL W11658402 $82.44

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.79

WPW10231345 Whirlpool Refrigerator Shelf Trim Backorder WPL WPW10231345 $54.44

PLUG, BYPASS WPL 12664501 Contact Us For Availability

CLIP, EVAPORATOR WPL 10623002 Contact Us For Availability

67006322 Whirlpool Refrigerator Dual Water Va In Stock WPL 67006322 $127.35

67006564 Whirlpool Refrigerator Screw Backorder WPL 67006564 $2.60

W11451451 Whirlpool Refrigerator Gasket Backorder WPL W11451451 $5.04

W11547653 Whirlpool Refrigerator Drip Tray Backorder WPL W11547653 $33.95

WP67003854 Whirlpool Shelf Frame Backorder WPL WP67003854 $148.89

WP67006312 Whirlpool Chiller Door In Stock WPL WP67006312 $52.21

WPW10121434 Whirlpool Refrigerator Insert Backorder WPL WPW10121434 $10.24

21

WP67006704 Whirlpool Glass Crisper Cover In Stock WPL WP67006704 $138.31

21

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $3.84

21

Cover, Ice Box Harness WPL 67006350 Contact Us For Availability

22

12002730 Whirlpool Refrigerator Evaporator Ki Backorder WPL 12002730 $201.96

22

2324038 Whirlpool Refrigerator Nameplate Backorder WPL 2324038 $35.51

22

LADDER, CENTER WPL 67006358 Contact Us For Availability

12987301 Whirlpool Refrigerator Cover Backorder WPL 12987301 $8.21

W11700329 Whirlpool Evaporator Shroud Backorder WPL W11700329 $22.27

Door, Right (Black) WPL W10160123 Contact Us For Availability

Door, Right (Bisque) WPL W10160126 Contact Us For Availability

Door, Right (White) WPL W10160132 Contact Us For Availability

Door, Right (Satina) WPL W10191132 Contact Us For Availability

Door, Right (Stainless) WPL W10191134 Contact Us For Availability

Ladder, Side WPL 67006354 Contact Us For Availability

Dam (Right Side) WPL W10162951 Contact Us For Availability

23A

Dam (Left Side) WPL W10162962 Contact Us For Availability

24

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $2.60

24

Waterline, Cabinet (W/Nut) WPL 12962204 Contact Us For Availability

24

Motor, Fan WPL 67004432 Contact Us For Availability

W10118193 Whirlpool Refrigerator Cover Backorder WPL W10118193 $33.29

W10709795 Whirlpool Refrigerator Screw Backorder WPL W10709795 $8.11

W11673433 Whirlpool Clip Backorder WPL W11673433 $69.09

W11676465 Whirlpool Grommet Backorder WPL W11676465 $5.59

W11686675 Whirlpool Screw Backorder WPL W11686675 $8.42

26

W10118194 Whirlpool Refrigerator Cover Backorder WPL W10118194 $33.29

26

WP67006415 Whirlpool Refrigerator Screw In Stock WPL WP67006415 $3.84

26

Harness, Unit with Power Cord WPL 13060202 Contact Us For Availability

27

WP67005864 Whirlpool Humidity Control In Stock WPL WP67005864 $3.84

27

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $15.24

28

W10160407 Whirlpool Refrigerator Compressor In Stock WPL W10160407 $328.61

28

WP67003795 Whirlpool Refrigerator Temperature Backorder WPL WP67003795 $3.84

29

WP67003531 Whirlpool Drawer Assembly In Stock WPL WP67003531 $105.39

29

GA WPL 67006429 Contact Us For Availability

29

Tube, Discharge WPL W10134293 Contact Us For Availability

30

W11498983 Whirlpool Refrigerator Knob Backorder WPL W11498983 $11.57

30

SCREW WPL 67006573 Contact Us For Availability

31

W10164397 Whirlpool Refrigerator Drain Tube In Stock WPL W10164397 $9.06

31

W10827015 Whirlpool Refrigerator Pantry Drawe In Stock WPL W10827015 $120.38

31

Shroud WPL W10158508 Contact Us For Availability

32

WP67004953 Whirlpool Refrigerator Bracket Backorder WPL WP67004953 $33.99

32

WPW10326469 Whirlpool Drawer Slide Rail In Stock WPL WPW10326469 $12.50

33

12846902 Whirlpool Refrigerator Screw Backorder WPL 12846902 $9.48

33

WP12603701 Whirlpool Refrigerator Support In Stock WPL WP12603701 $4.48

33

WPL 67003796 WPL 67003796 Contact Us For Availability

34

10547003 Whirlpool Refrigerator Dryer Clip Backorder WPL 10547003 $4.77

35

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $25.41

36

WPW10137529 Whirlpool Refrigerator Grommet Backorder WPL WPW10137529 $3.84

37

67005958 Whirlpool Refrigerator Top Hinge Cov In Stock WPL 67005958 $12.48

37

WP67005149 Whirlpool Roller Backorder WPL WP67005149 $11.17

37

WPW10191117 Whirlpool Refrigerator Cover Backorder WPL WPW10191117 $11.46

38

67006434 Whirlpool Axle Pin Backorder WPL 67006434 $3.84

100

WPW10190981 Whirlpool Refrigerator Icemaker In Stock WPL WPW10190981 $169.98

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.41

285006 Whirlpool Spray In Stock WPL 285006 $46.08

350930 Whirlpool White Spray Paint In Stock WPL 350930 $22.23

350942 Whirlpool Spray Paint Backorder WPL 350942 $52.25

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $10.93

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $45.60

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $30.29

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $10.93

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $10.93

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.84

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $110.98

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $37.34

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $39.24

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $41.04

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $45.28

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $66.85

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $25.50

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $29.93

WPW10324090 Whirlpool Refrigerator Ice Bin In Stock WPL WPW10324090 $234.39

WPL 978029 WPL 978029 Contact Us For Availability

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI5242A36 Contact Us For Availability

Cleaner, Stnls Steel Magic WPL 20000008 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Bla WPL 799340 Contact Us For Availability

WPL 978028 WPL 978028 Contact Us For Availability

WPL ARI5245A12 WPL ARI5245A12 Contact Us For Availability

WPL ARI5246A17 WPL ARI5246A17 Contact Us For Availability

WPL ARI5247A63 WPL ARI5247A63 Contact Us For Availability

WPL ARI5248A40 WPL ARI5248A40 Contact Us For Availability

WPL ARI5249A45 WPL ARI5249A45 Contact Us For Availability

WPL ARI5250A66 WPL ARI5250A66 Contact Us For Availability

WPL ARI5251A63 WPL ARI5251A63 Contact Us For Availability

WPL ARI5252A99 WPL ARI5252A99 Contact Us For Availability
