Model Whirlpool MFF2558KES12 REFRIGERATOR – Common Parts &amp; Diagrams

1

Tech Sheet WPL 12827952 Contact Us For Availability

1

Energy Guide WPL W10123941 Contact Us For Availability

1

Use & Care Guide WPL W10137641 Contact Us For Availability

1

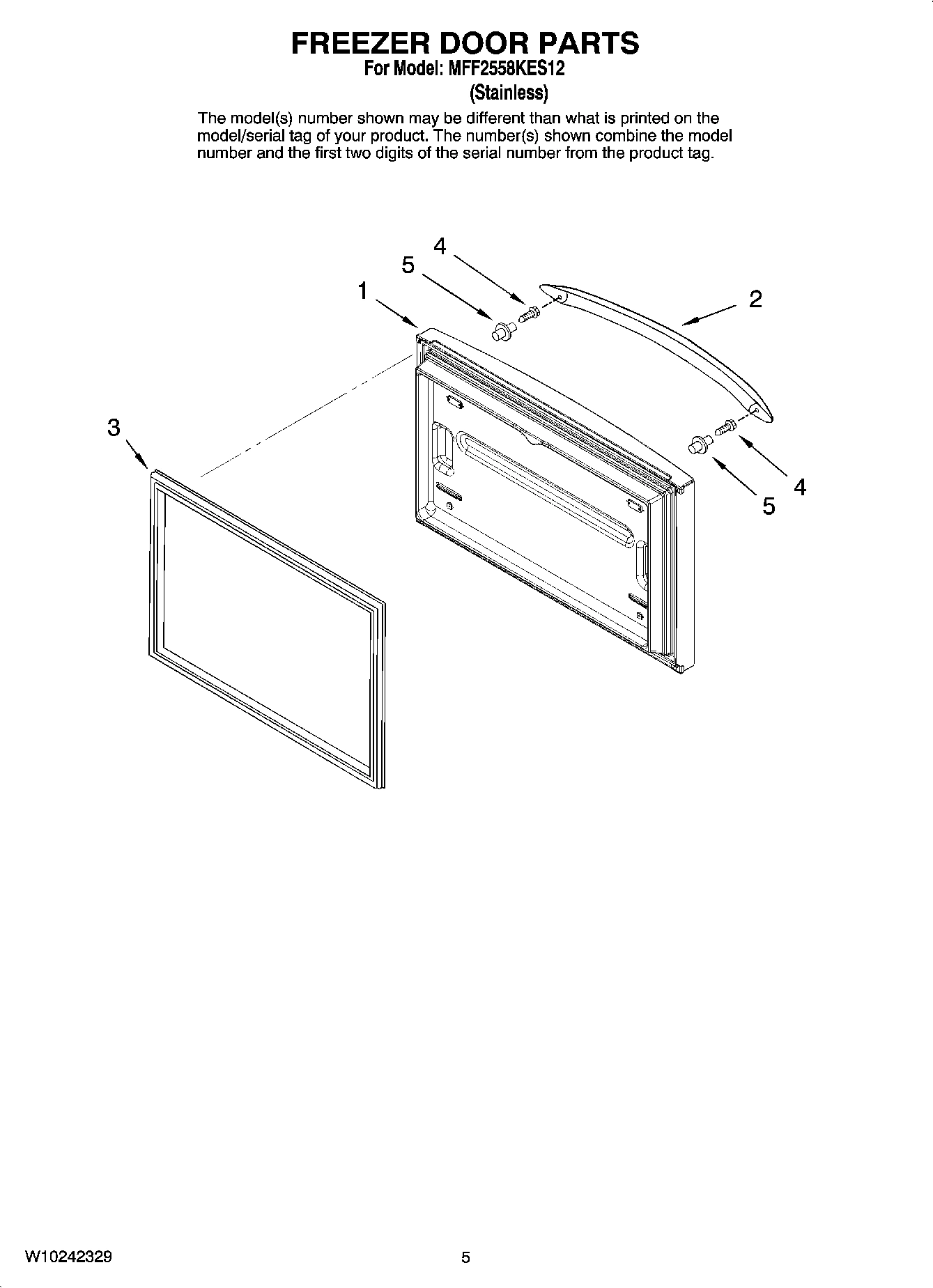

DOOR, FREEZER STAINLESS WPL 13092213SQ Contact Us For Availability

1

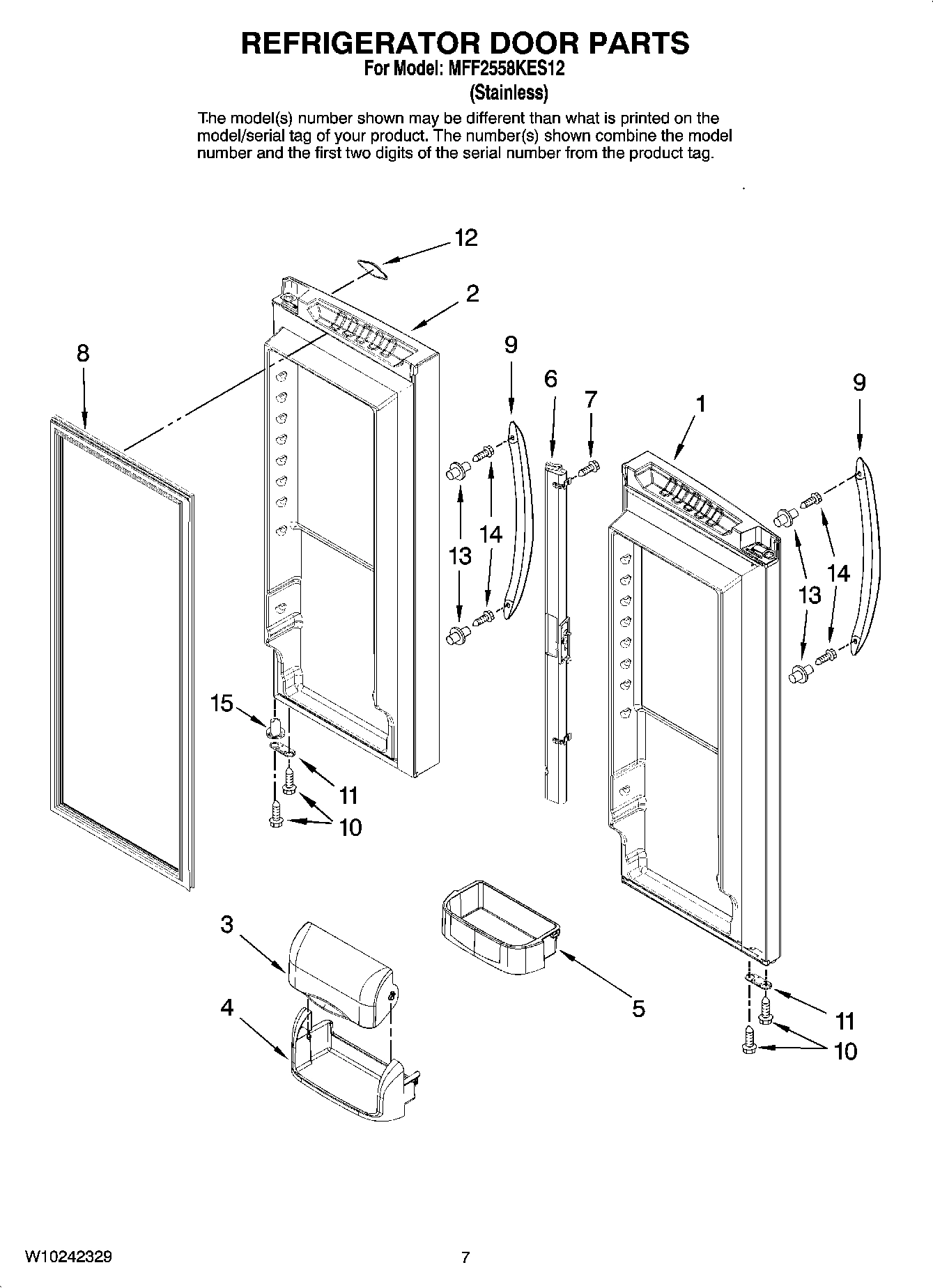

Door, Left (Stainless) WPL 13024038SQ Contact Us For Availability

1

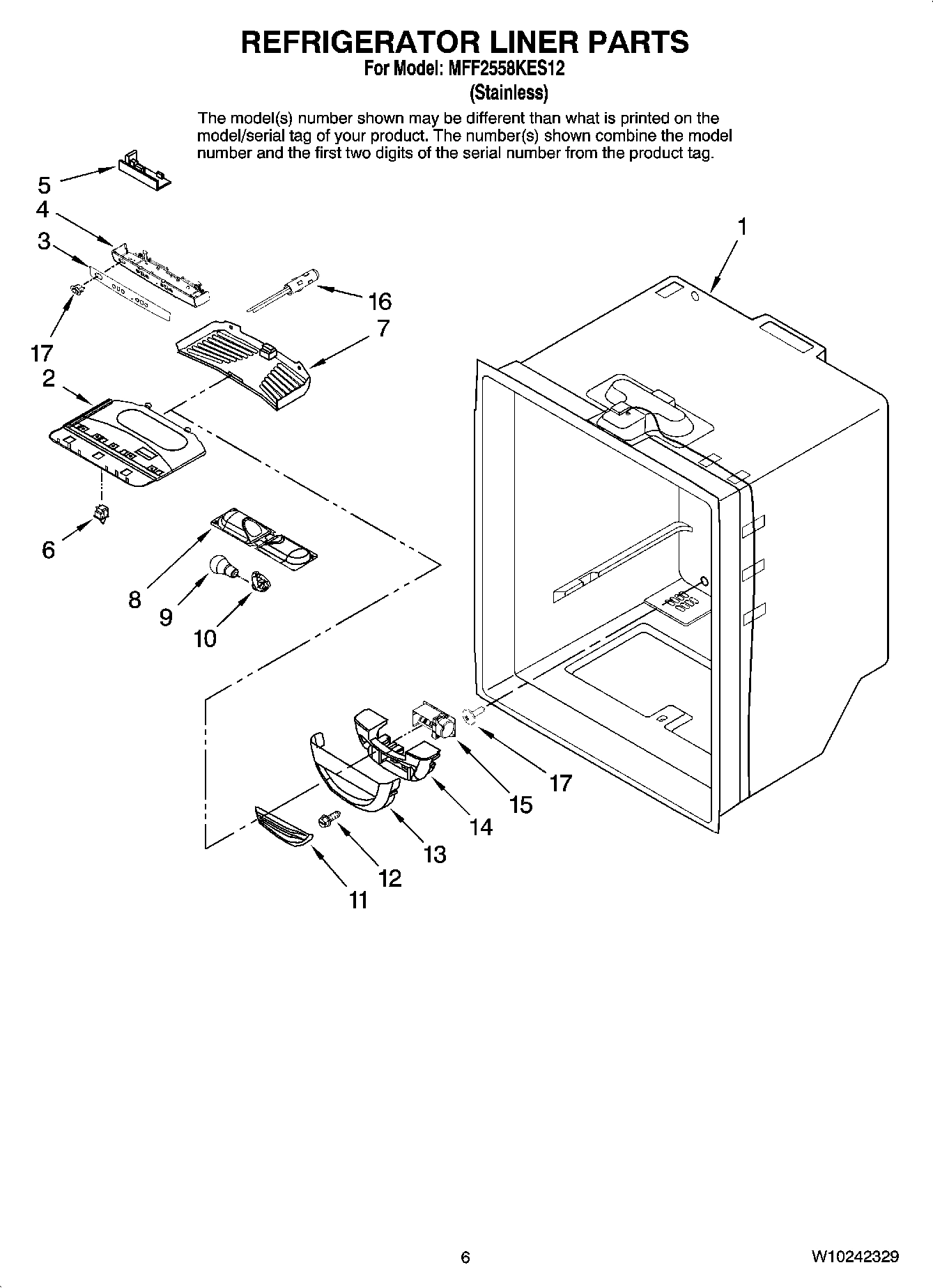

Liner (Not A Seviceable Part) WPL ARI4902A77 Contact Us For Availability

2

W10856123 Whirlpool Refrigerator Gasket Backorder WPL W10856123 $3.84

2

WPB5705307 Whirlpool Refrigerator Tube In Stock WPL WPB5705307 $7.68

2

Door, Right (Stainless) WPL 13024037SQ Contact Us For Availability

2

Cabinet (Not a Servicable Part) WPL ARI4901A44 Contact Us For Availability

3

W11448709 Whirlpool Refrigerator Bracket Backorder WPL W11448709 $12.14

3

WP67003637 Whirlpool Dairy Door Backorder WPL WP67003637 $48.32

3

Cover, Left Hinge (Black) WPL 8208248 Contact Us For Availability

3

Clamp WPL 67003932 Contact Us For Availability

4

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $53.90

4

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.60

4

Basket, Freezer (Upper) WPL 67004987 Contact Us For Availability

4

Gasket WPL B5759649 Contact Us For Availability

4

Cover, Light WPL 67003905 Contact Us For Availability

5

67004040 Whirlpool Refrigerator Bucket Door Backorder WPL 67004040 $59.16

5

WP67003753 Whirlpool Refrigerator Inlet Valve In Stock WPL WP67003753 $64.71

5

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $37.53

5

Bucket, Door (Gallon (2)) WPL 67004641 Contact Us For Availability

5

Roller Assy. (2) WPL 67006118 Contact Us For Availability

6

W11177593 Whirlpool Leveling Feet Backorder WPL W11177593 $7.35

6

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $4.75

6

WP12722803B Whirlpool Door Guide Backorder WPL WP12722803B $144.56

6

WP67004028 Whirlpool Refrigerator Shut-Off Ar In Stock WPL WP67004028 $36.35

7

W11311945 Whirlpool Refrigerator Screw Backorder WPL W11311945 $9.96

7

WP12566606ED Whirlpool Refrigerator Door Hing Backorder WPL WP12566606ED $18.70

7

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.74

7

Harness, Evap. Heater WPL W10119856 Contact Us For Availability

8

71003131 Whirlpool Oven Screw Backorder WPL 71003131 $5.04

8

W10436252 Whirlpool Door Gasket In Stock WPL W10436252 $141.97

8

WP67003924 Whirlpool Refrigerator Cover Backorder WPL WP67003924 $3.84

8

WP67005864 Whirlpool Humidity Control In Stock WPL WP67005864 $3.84

8

WPA3223101 Whirlpool Refrigerator Insert PL Backorder WPL WPA3223101 $3.84

9

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $3.00

9

W11690159 Whirlpool Handle Backorder WPL W11690159 $99.60

9

WP8281196 Whirlpool Screw Backorder WPL WP8281196 $3.84

9

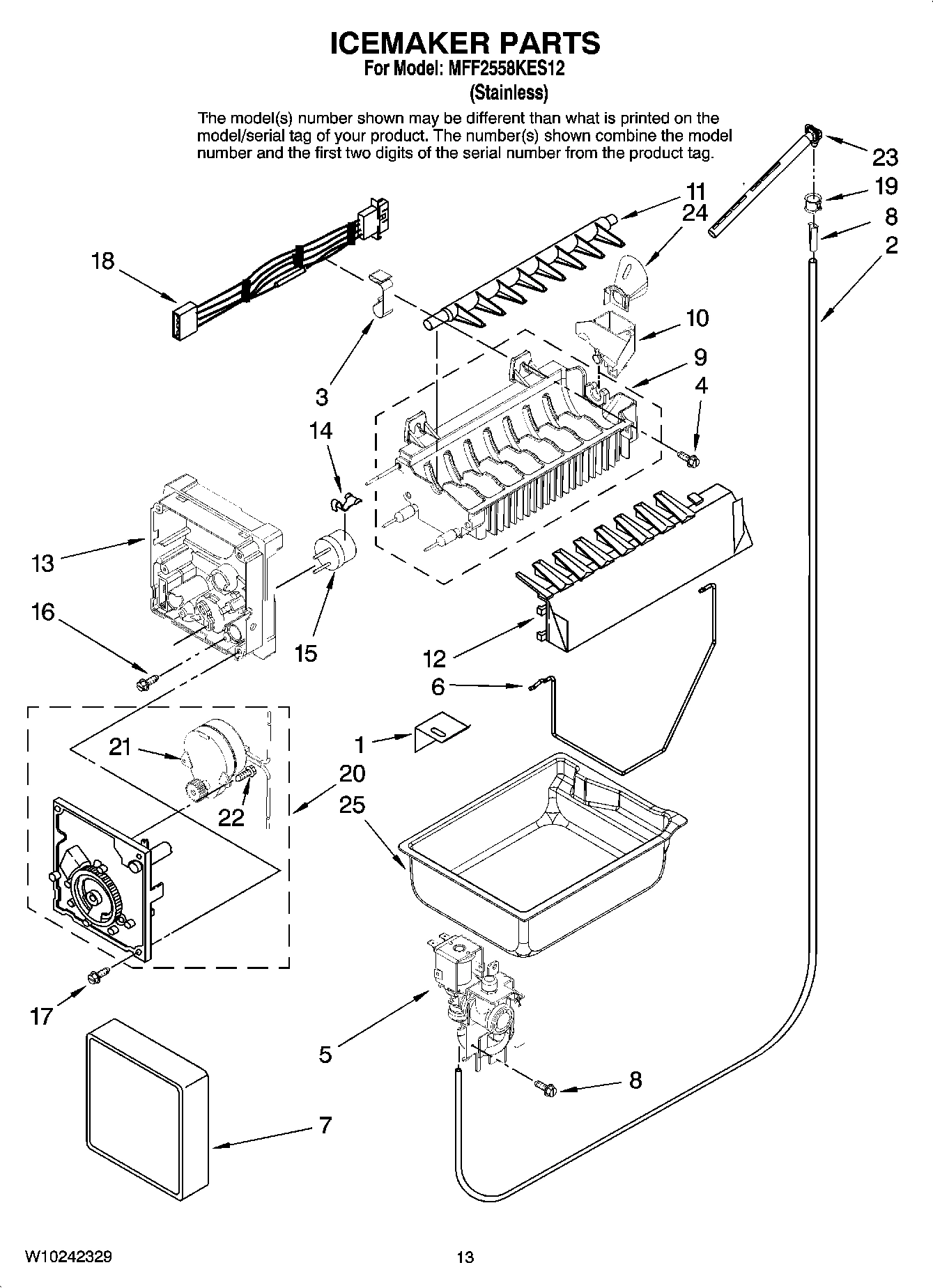

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $159.53

W10122561 Whirlpool Refrigerator Cup Fill In Stock WPL W10122561 $10.60

WP98165 Whirlpool Screw In Stock WPL WP98165 $2.60

Cover, Right Hinge (Black) WPL 12684202B Contact Us For Availability

HOUSING, LIGHT WPL 67001035 Contact Us For Availability

67003900 Whirlpool Refrigerator Insert Damper Backorder WPL 67003900 $3.84

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $5.26

W11727809 Whirlpool Evaporator Cover Backorder WPL W11727809 $37.91

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $2.60

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $33.29

12

2324038 Whirlpool Refrigerator Nameplate Backorder WPL 2324038 $35.51

12

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $30.97

12

WP67003405 Whirlpool Pivot Block In Stock WPL WP67003405 $4.03

12726003 Whirlpool Refrigerator Water Cover Backorder WPL 12726003 $7.43

W10121318 Whirlpool Refrigerator Grommet Backorder WPL W10121318 $31.54

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $42.88

WP67006113 Whirlpool Stud Bolt In Stock WPL WP67006113 $5.19

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.77

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.74

WPW10165425 Whirlpool Bimetal Defrost Thermos In Stock WPL WPW10165425 $35.21

Module, Light WPL 67003906 Contact Us For Availability

CLIP, EVAP MOTOR WPL 13058002 No Longer Available

67005680 Whirlpool Refrigerator Condenser Gro Backorder WPL 67005680 $11.17

67006442 Whirlpool Refrigerator Center Hinge Backorder WPL 67006442 $56.49

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $48.45

WP67003639 Whirlpool Refrigerator Closer In Stock WPL WP67003639 $32.15

12002355 Whirlpool Refrigerator Thermistor Ki In Stock WPL 12002355 $27.89

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.96

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $16.36

WP12566607ED Whirlpool Refrigerator Door Hing Backorder WPL WP12566607ED $34.01

17

67003485 Whirlpool Refrigerator Corner Cover Backorder WPL 67003485 $11.17

17

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.84

17

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $3.84

18

67001067 Whirlpool Refrigerator Drain Tube Cl Backorder WPL 67001067 $4.58

18

W10815413 Whirlpool Refrigerator Funnel Backorder WPL W10815413 $32.00

18

WPD7813010 Whirlpool Refrigerator Wire Harnes In Stock WPL WPD7813010 $30.76

19

WPM0114003 Whirlpool Microwave Speed Clip Cla Backorder WPL WPM0114003 $4.77

19

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $4.90

19

Bracket, Foot (2) WPL 67007174 Contact Us For Availability

20

67006564 Whirlpool Refrigerator Screw Backorder WPL 67006564 $2.60

20

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $90.00

20

W11159728 Whirlpool Refrigerator Gasket In Stock WPL W11159728 $10.49

21

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $49.38

21

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $3.84

21

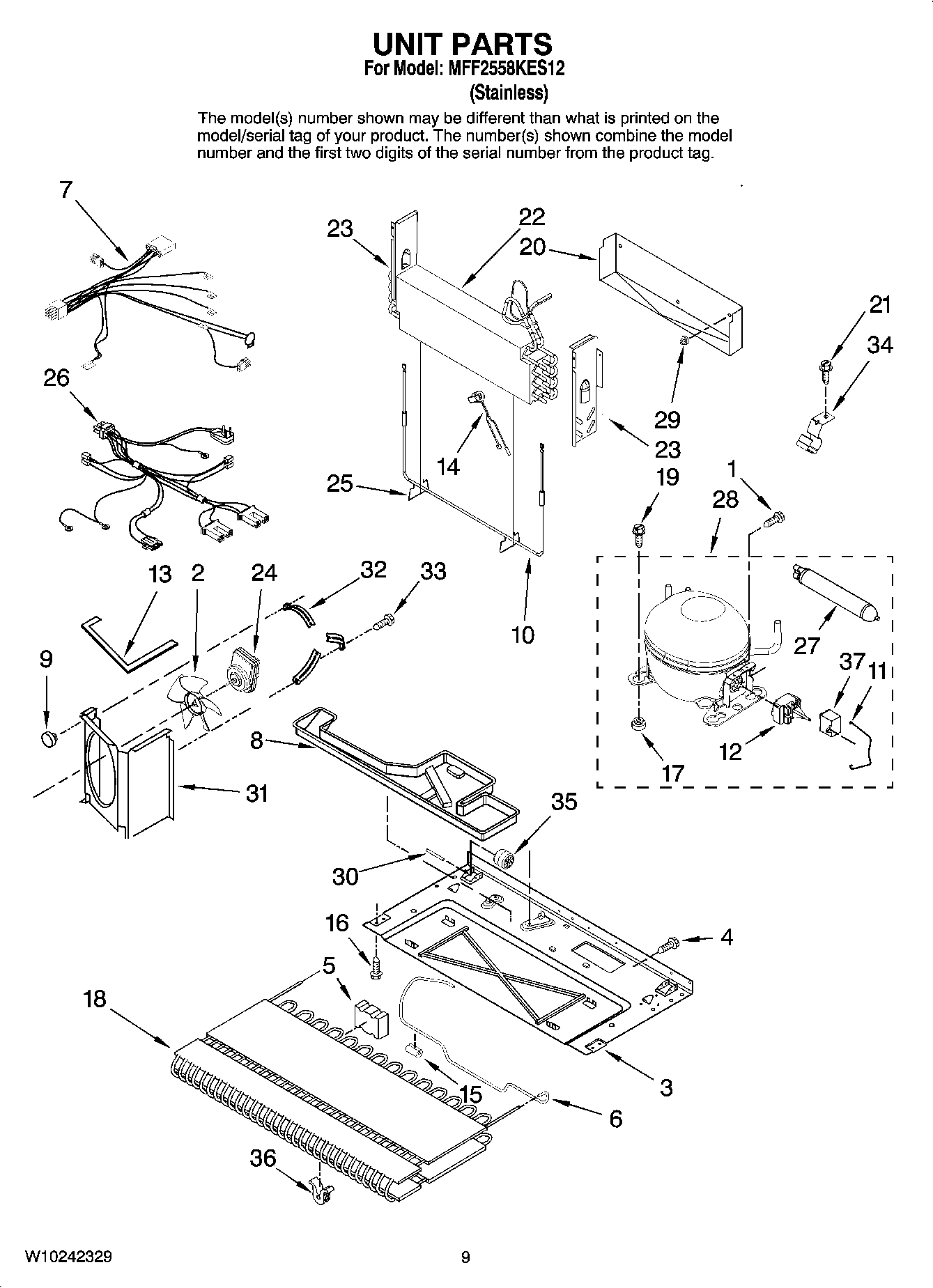

Cover, Unit WPL 67006101 Contact Us For Availability

12002041 Whirlpool Refrigerator Evaporator Re In Stock WPL 12002041 $204.19

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.73

WPW10175909 Whirlpool Grille Assembly In Stock WPL WPW10175909 $31.88

WPW10534153 Whirlpool Refrigerator Black Kick In Stock WPL WPW10534153 $64.01

23

WPW10167023 Whirlpool Refrigerator Shroud Backorder WPL WPW10167023 $39.43

12918001 Whirlpool Refrigerator Funnel Backorder WPL 12918001 $7.98

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $14.17

GLASS, PANTRY WPL 67002761 Contact Us For Availability

TUBE, DRAIN WPL 67001066 Contact Us For Availability

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $2.60

W11673433 Whirlpool Clip Backorder WPL W11673433 $69.09

W11812285 Whirlpool Support Backorder WPL W11812285 $22.76

WP67001255 Whirlpool Ice Bucket Backorder WPL WP67001255 $94.92

WPW10330991 Whirlpool Refrigerator Bracket Backorder WPL WPW10330991 $60.65

WPW10330993 Whirlpool Refrigerator Bracket In Stock WPL WPW10330993 $64.88

26

13060302 Whirlpool Refrigerator Wire Harness Backorder WPL 13060302 $138.71

26

WP12227305WD Whirlpool Drawer Support Backorder WPL WP12227305WD $49.48

26

FIBER, ACOUSTIC WPL 67003796 Contact Us For Availability

WP67001719 Whirlpool Refrigerator Track Backorder WPL WP67001719 $2.60

WPW10280608 Whirlpool Refrigerator Bracket Backorder WPL WPW10280608 $40.58

WPW10280613 Whirlpool Refrigerator Bracket Backorder WPL WPW10280613 $40.58

COVER, WATER VALVE WPL 12479803 Contact Us For Availability

28

67002329 Whirlpool Refrigerator Pantry Gasket Backorder WPL 67002329 $11.17

28

W10833902 Whirlpool Refrigerator Clamp Backorder WPL W10833902 $4.62

28

W11658402 Whirlpool Drawer Slide Rail In Stock WPL W11658402 $82.44

12656202 Whirlpool Refrigerator Housing Backorder WPL 12656202 $60.35

W11176463 Whirlpool Refrigerator Water Tube In Stock WPL W11176463 $48.36

Adapter, Slide (Left) WPL W10128118 Contact Us For Availability

Adapter, Slide (Right) WPL W10128119 Contact Us For Availability

30

67006434 Whirlpool Axle Pin Backorder WPL 67006434 $3.84

30

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $2.85

30

WP67003793 Whirlpool Refrigerator Temperature Backorder WPL WP67003793 $31.16

31

W10874836 Whirlpool Endcap Assembly Left Hand In Stock WPL W10874836 $19.49

31

W11028221 Whirlpool Refrigerator Shaft In Stock WPL W11028221 $11.74

31

SHIM, TOP HINGE WPL 12579702 Contact Us For Availability

32

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $9.20

32

WP7101P126-60 Whirlpool Screw Backorder WPL WP7101P126-60 $2.60

W10918164 Whirlpool Refrigerator Door Hinge Backorder WPL W10918164 $54.13

W11489993 Whirlpool Refrigerator Rail In Stock WPL W11489993 $8.46

W11489994 Whirlpool Refrigerator Rail In Stock WPL W11489994 $8.46

WPW10235370 Whirlpool Refrigerator Glide Backorder WPL WPW10235370 $125.32

34

WP67006415 Whirlpool Refrigerator Screw In Stock WPL WP67006415 $3.84

35

WP67003795 Whirlpool Refrigerator Temperature Backorder WPL WP67003795 $3.84

36

W11498983 Whirlpool Refrigerator Knob Backorder WPL W11498983 $11.57

37

WP67003531 Whirlpool Drawer Assembly In Stock WPL WP67003531 $105.39

38

W10827015 Whirlpool Refrigerator Pantry Drawe In Stock WPL W10827015 $120.38

39

WP67002759 Whirlpool Refrigerator Divider In Stock WPL WP67002759 $31.31

100

D7824706Q Whirlpool Refrigerator Ice Maker As In Stock WPL D7824706Q $64.55

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.41

285006 Whirlpool Spray In Stock WPL 285006 $46.08

350930 Whirlpool White Spray Paint In Stock WPL 350930 $22.23

350942 Whirlpool Spray Paint Backorder WPL 350942 $52.25

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $45.60

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $10.93

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $10.93

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.84

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $37.34

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $39.24

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $41.04

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $45.28

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $66.85

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $25.50

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $29.93

Valve, Access (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE UNCUT) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

CLEANER, 10 OZ. STAINLESS STEEL WPL 31462 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Kit, Evaporator Repair (Aluminum Epoxy) WPL 799833 Contact Us For Availability

WPL ARI4908A87 WPL ARI4908A87 Contact Us For Availability

WPL ARI4909A21 WPL ARI4909A21 Contact Us For Availability

WPL ARI4910A50 WPL ARI4910A50 Contact Us For Availability

WPL ARI4911A78 WPL ARI4911A78 Contact Us For Availability

Harness, Lights (Freezer) WPL 67006095 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI4903A45 Contact Us For Availability
