Model Speed Queen LWN311SP541RW01 Washer – Common Parts & Diagrams

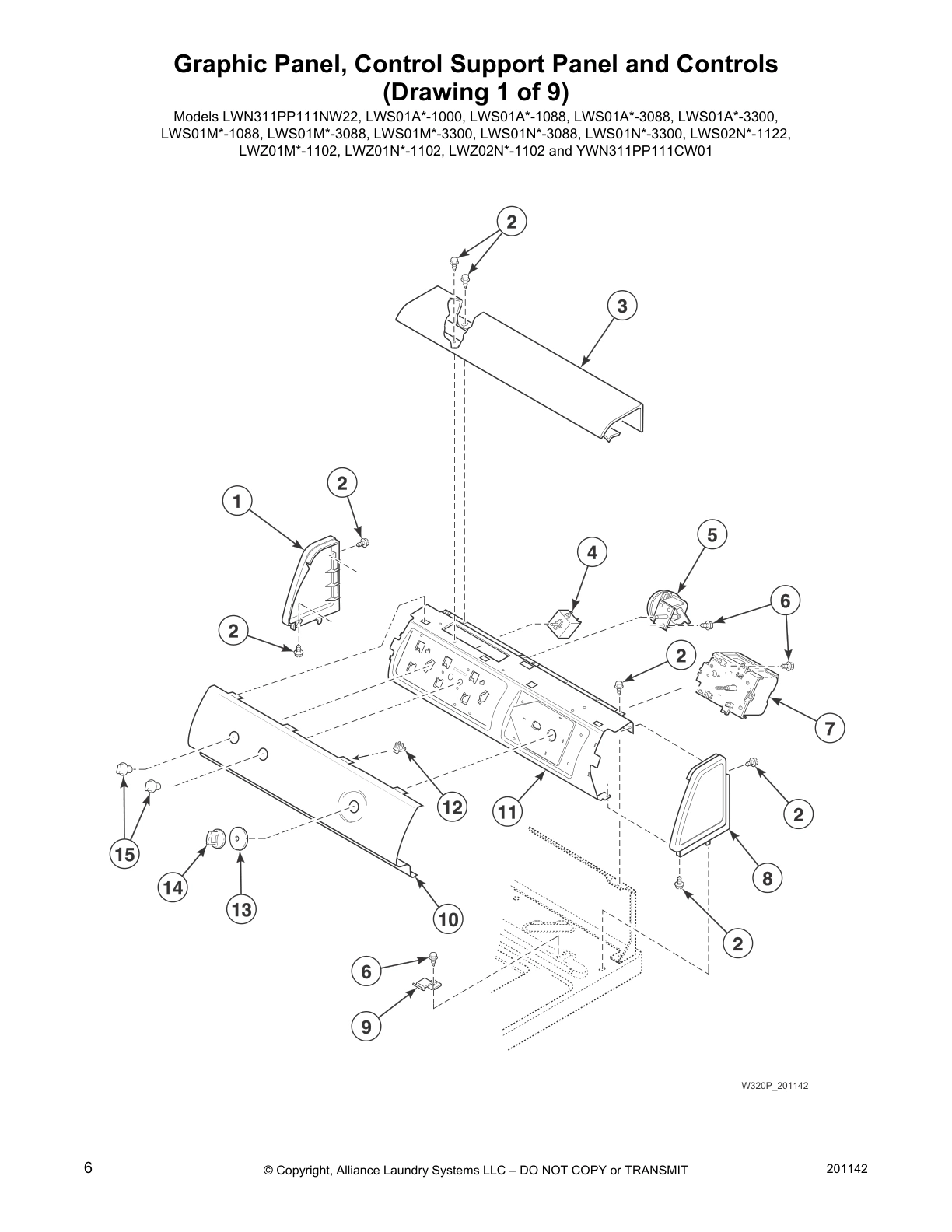

Graphic Panel, Control Support Panel and Controls
(Drawing 1 of 9)

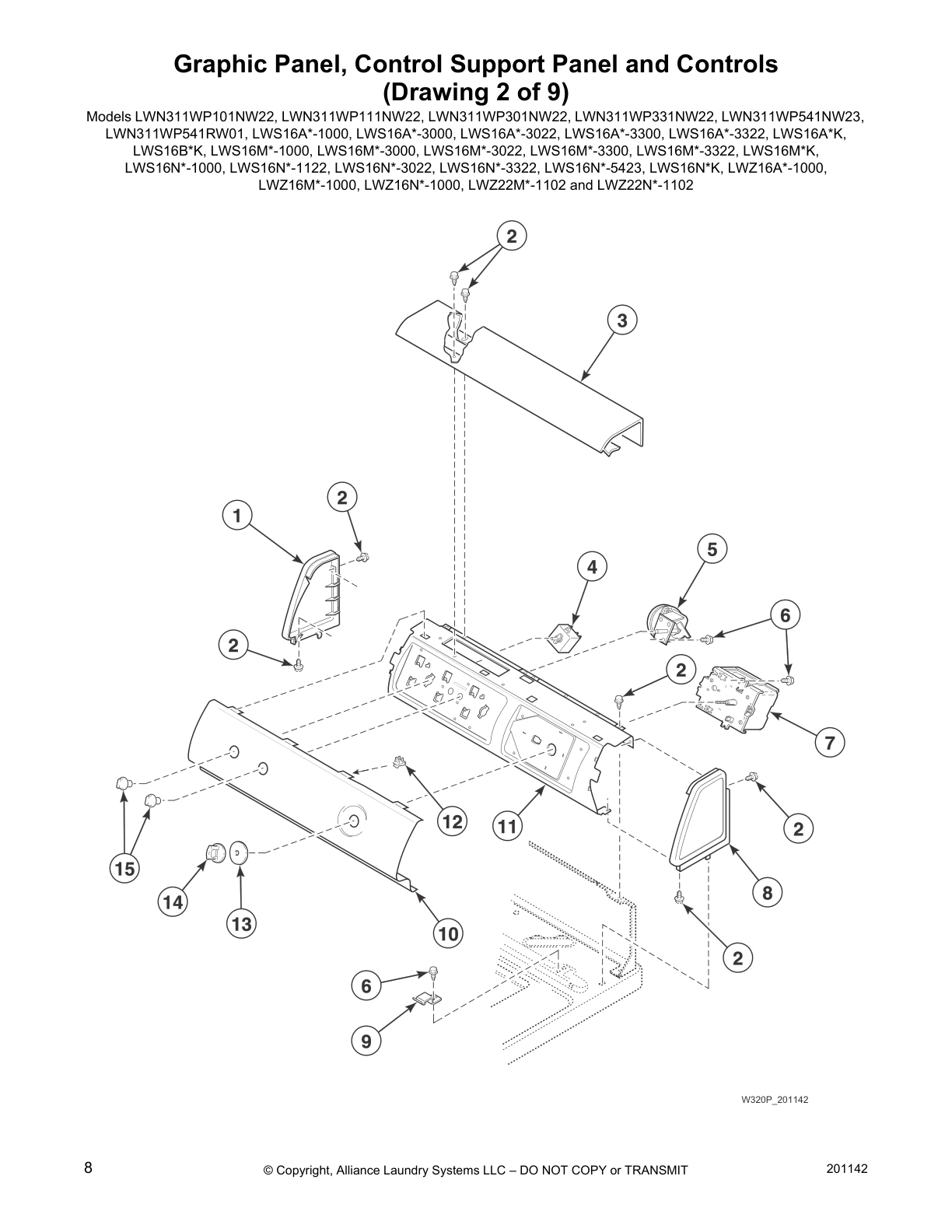

Graphic Panel, Control Support Panel and Controls
(Drawing 2 of 9)
Graphic Panel, Control Support Panel and Controls
(Drawing 3 of 9)
Graphic Panel, Control Support Panel and Controls
(Drawing 4 of 9)
Graphic Panel, Control Support Panel and Controls
(Drawing 5 of 9)
Graphic Panel, Control Support Panel and Controls
(Drawing 6 of 9)
Graphic Panel, Control Support Panel and Controls
(Drawing 7 of 9)
Graphic Panel, Control Support Panel and Controls
(Drawing 8 of 9)
Graphic Panel, Control Support Panel and Controls
(Drawing 9 of 9)
Graphic Panel, Control Support Panel and Temperature Control
Control Support Panel and Controls (Drawing 1 of 2)
Control Support Panel and Controls (Drawing 2 of 2)
Graphic Panel and Control Knobs (Drawing 1 of 2)
Graphic Panel and Control Knobs (Drawing 2 of 2)
Lid Switch Assembly
Top, Lid and Lid Lock
Lid and Hood Back Panel
Top (Drawing 1 of 2)
Top (Drawing 2 of 2)
Fill Hose, Mixing Valve-to-Tub Cover Hose and Mixing Valve
Fill Hose, Mixing Valve-to-Tub Cover Hose and Mixing Valve
Fill Hose and Mixing Valve-to-Tub Cover Hose
Mixing Valve
Motor, Mounting Bracket, Belt, Pump and Idler Assembly
Motor and Mounting Bracket (Drawing 1 of 3)
Belt, Pump and Idler Assembly (Drawing 1 of 4)
Motor and Mounting Bracket (Drawing 2 of 3)
Belt, Pump and Idler Assembly (Drawing 2 of 4)
Belt, Pump and Idler Assembly (Drawing 3 of 4)
Motor and Mounting Bracket (Drawing 3 of 3)
Belt, Pump and Idler Assembly (Drawing 4 of 4)
Idler Lever and Belt Kit
Agitator, Drive Bell, Hub and Lip Seal Kit and Washtub
Agitator, Drive Bell, Hub and Seal Kit and Washtub
Agitator, Fabric Softener Dispenser, Drive Bell,
Hub and Lip Seal Kit and Washtub (Drawing 1 of 2)
Agitator, Fabric Softener Dispenser, Drive Bell,
Hub and Lip Seal Kit and Washtub (Drawing 2 of 2)
Agitator, Fabric Softener Dispenser, Drive Bell,
Hub and Seal Kit and Washtub
Outer Tub, Cover, Bearing and Seal Housing, Pressure Hose
and Counterweight (Drawing 1 of 2)
Outer Tub, Cover, Bearing and Seal Housing, Pressure Hose
and Counterweight (Drawing 2 of 2)
Outer Tub, Cover, Bearing Housing,
Pressure Hose and Counterweight
Electric Drain Pump with Rubber Drain Hose and Siphon Break Kit
Electric Drain Pump with Plastic Drain Hose and Siphon Break Kit
Plastic Drain Hose and Siphon Break Kit
Weldment and Bearing Assembly, Brake and Pulley
Common parts from model Speed Queen LWN311SP541RW01 Washer
× ![]()
