Model Speed Queen LWN311SP541RW01 Washer – Common Parts & Diagrams

Graphic Panel, Control Support Panel and Controls (Drawing 1 of 9)

Graphic Panel, Control Support Panel and Controls (Drawing 2 of 9)

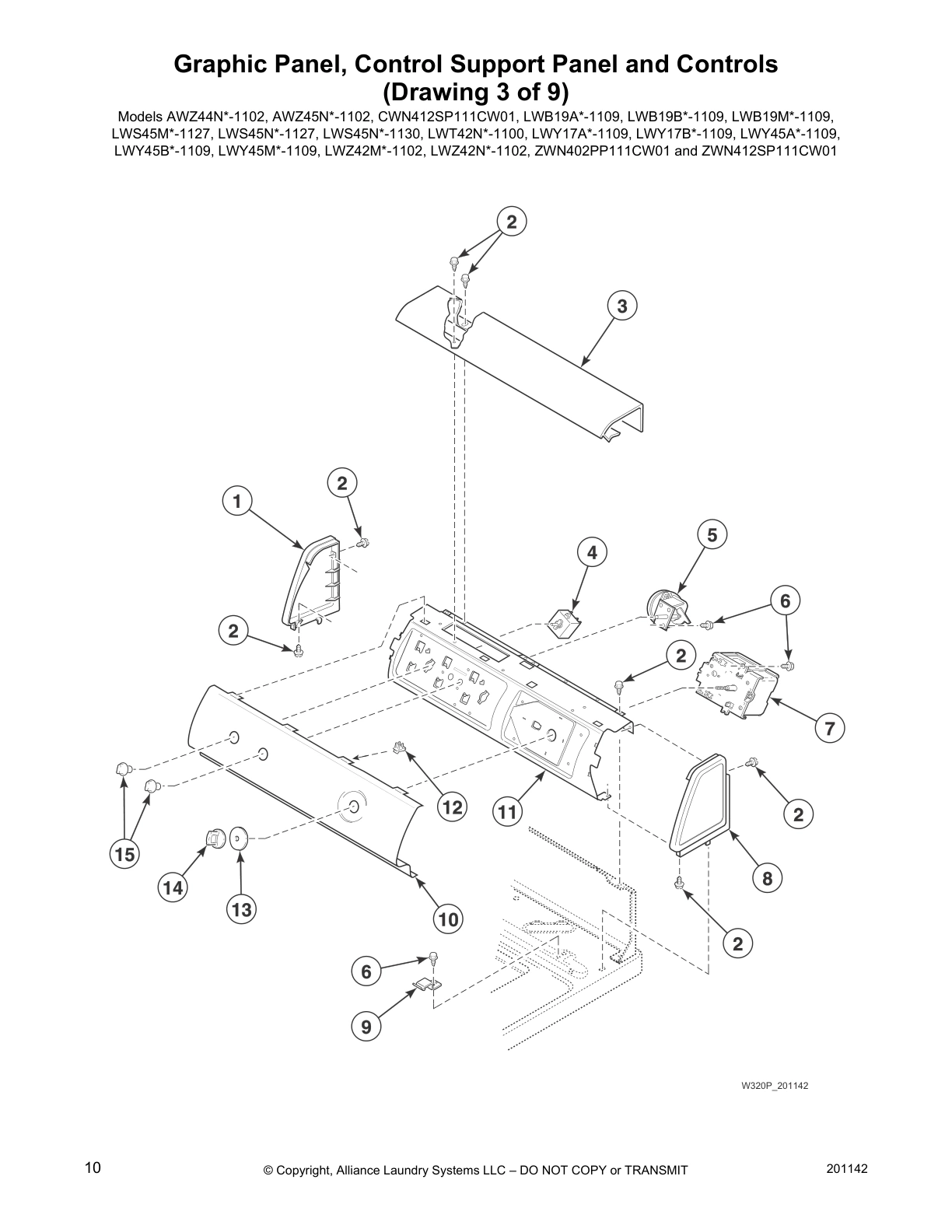

Graphic Panel, Control Support Panel and Controls (Drawing 3 of 9)

Graphic Panel, Control Support Panel and Controls (Drawing 4 of 9)

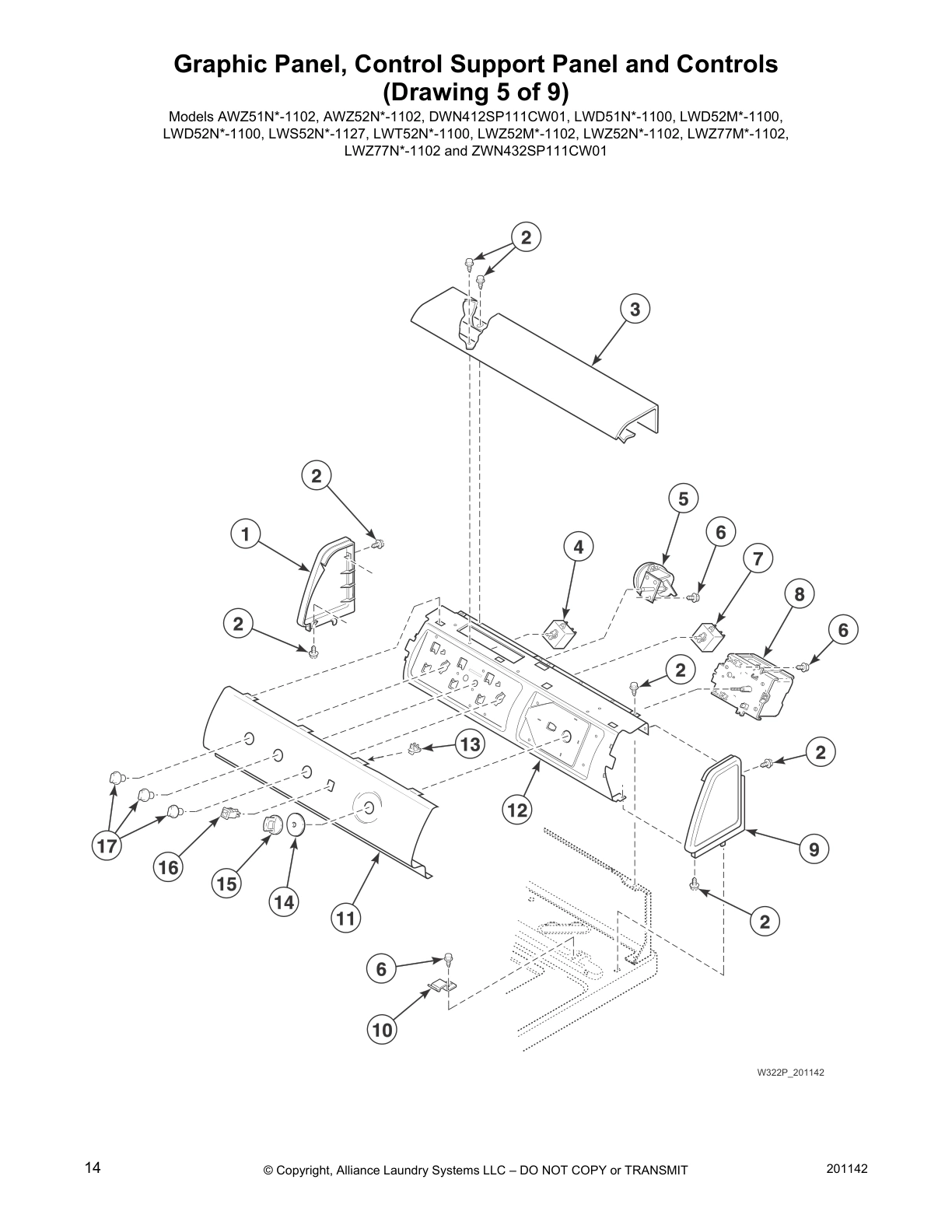

Graphic Panel, Control Support Panel and Controls (Drawing 5 of 9)

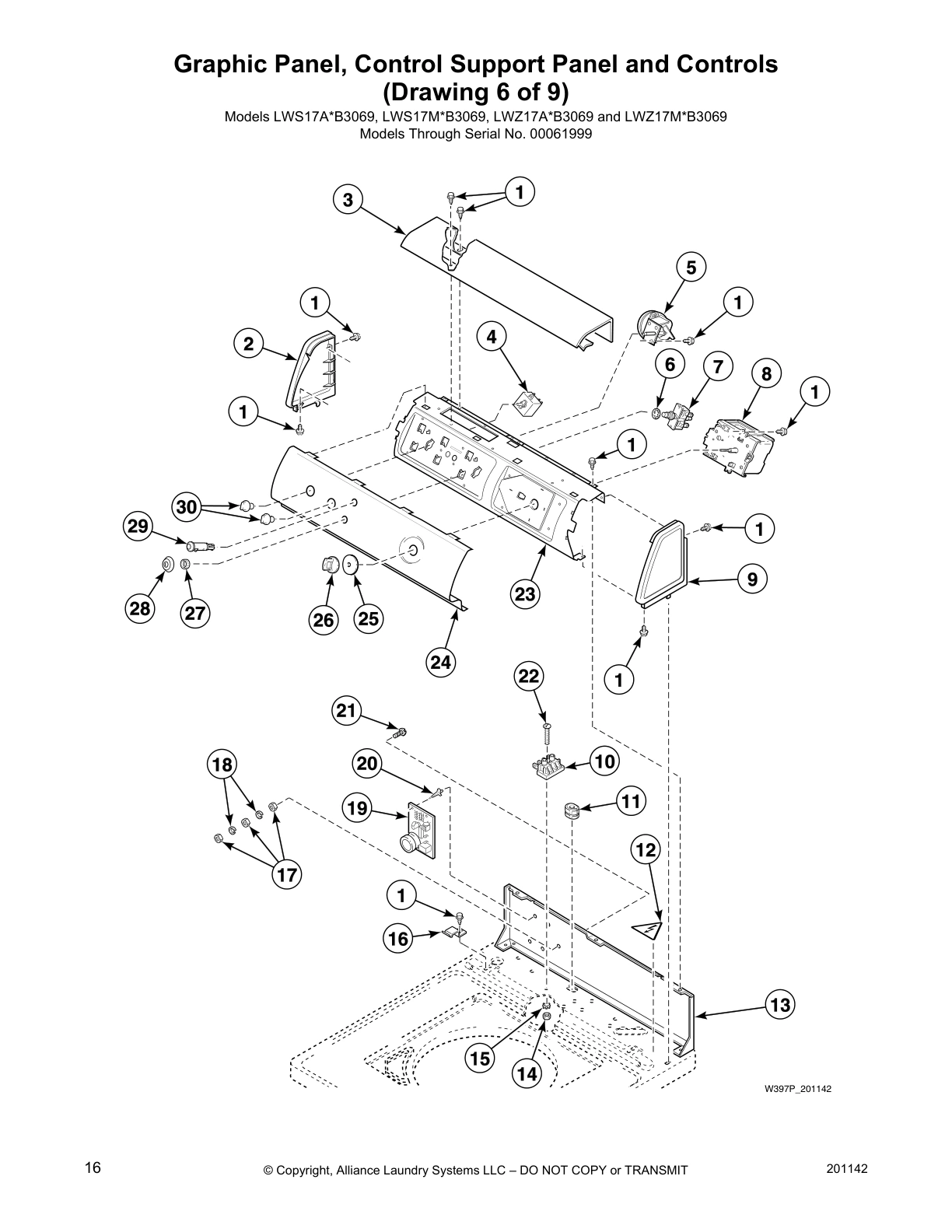

Graphic Panel, Control Support Panel and Controls (Drawing 6 of 9)

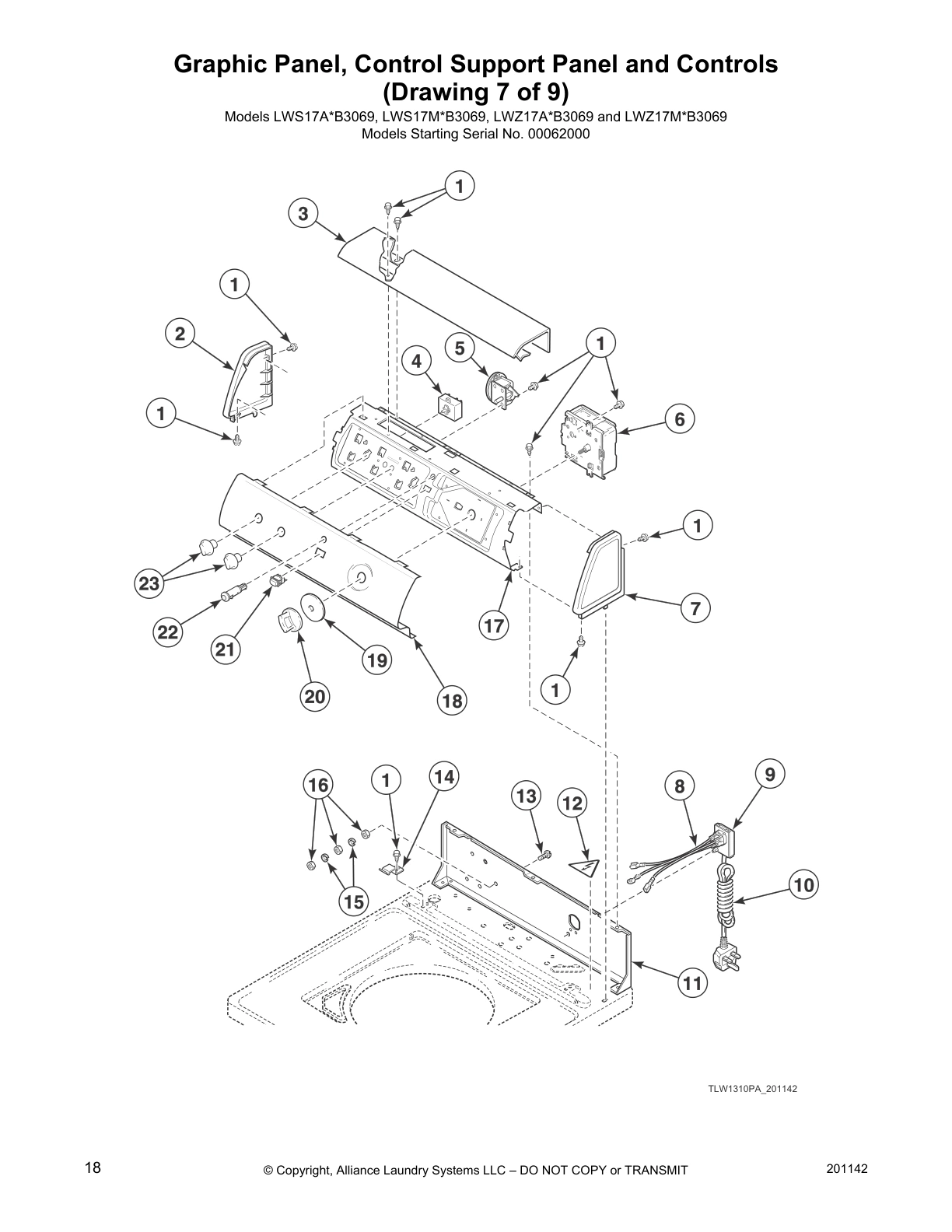

Graphic Panel, Control Support Panel and Controls (Drawing 7 of 9)

Graphic Panel, Control Support Panel and Controls (Drawing 8 of 9)

Graphic Panel, Control Support Panel and Controls (Drawing 9 of 9)

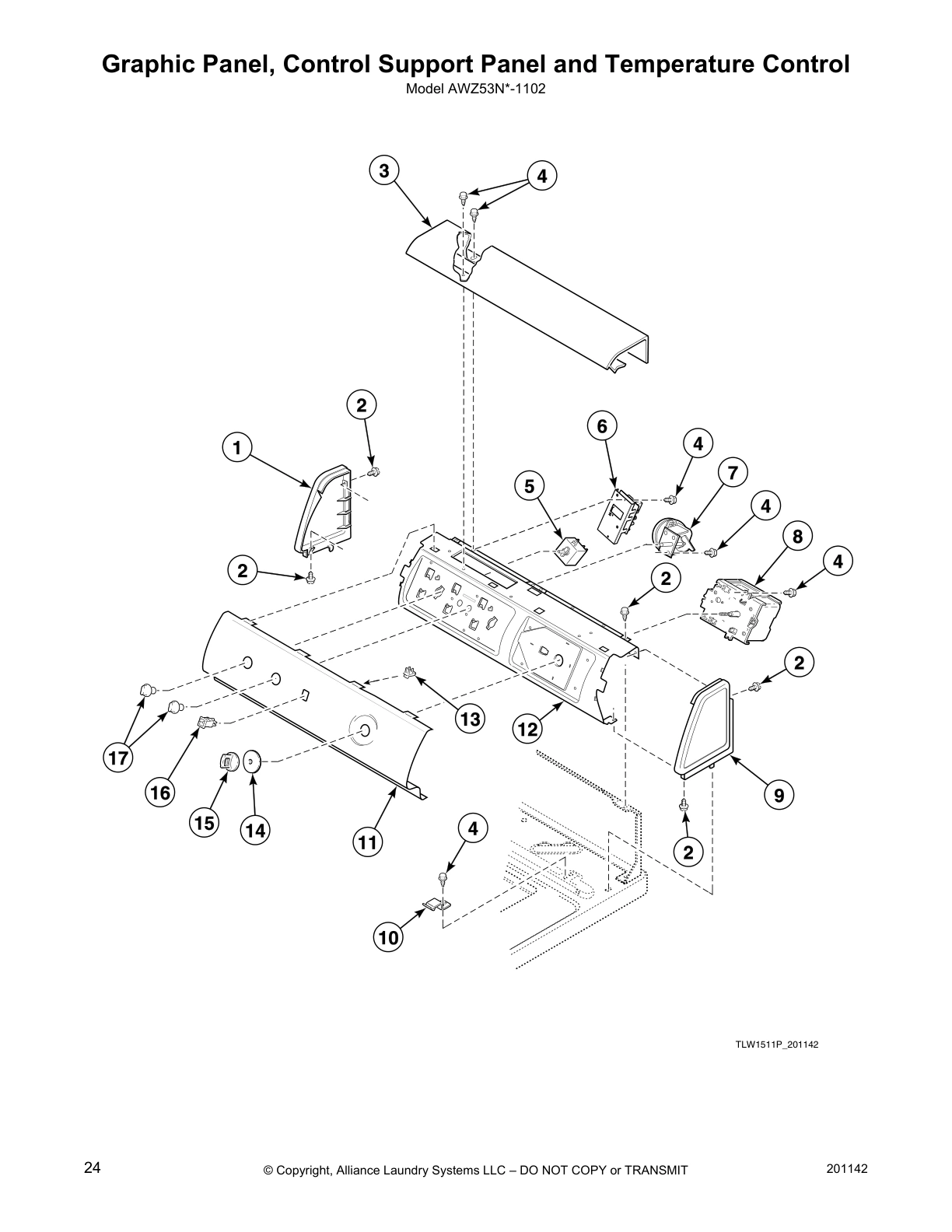

Graphic Panel, Control Support Panel and Temperature Control

Control Support Panel and Controls (Drawing 1 of 2)

Control Support Panel and Controls (Drawing 2 of 2)

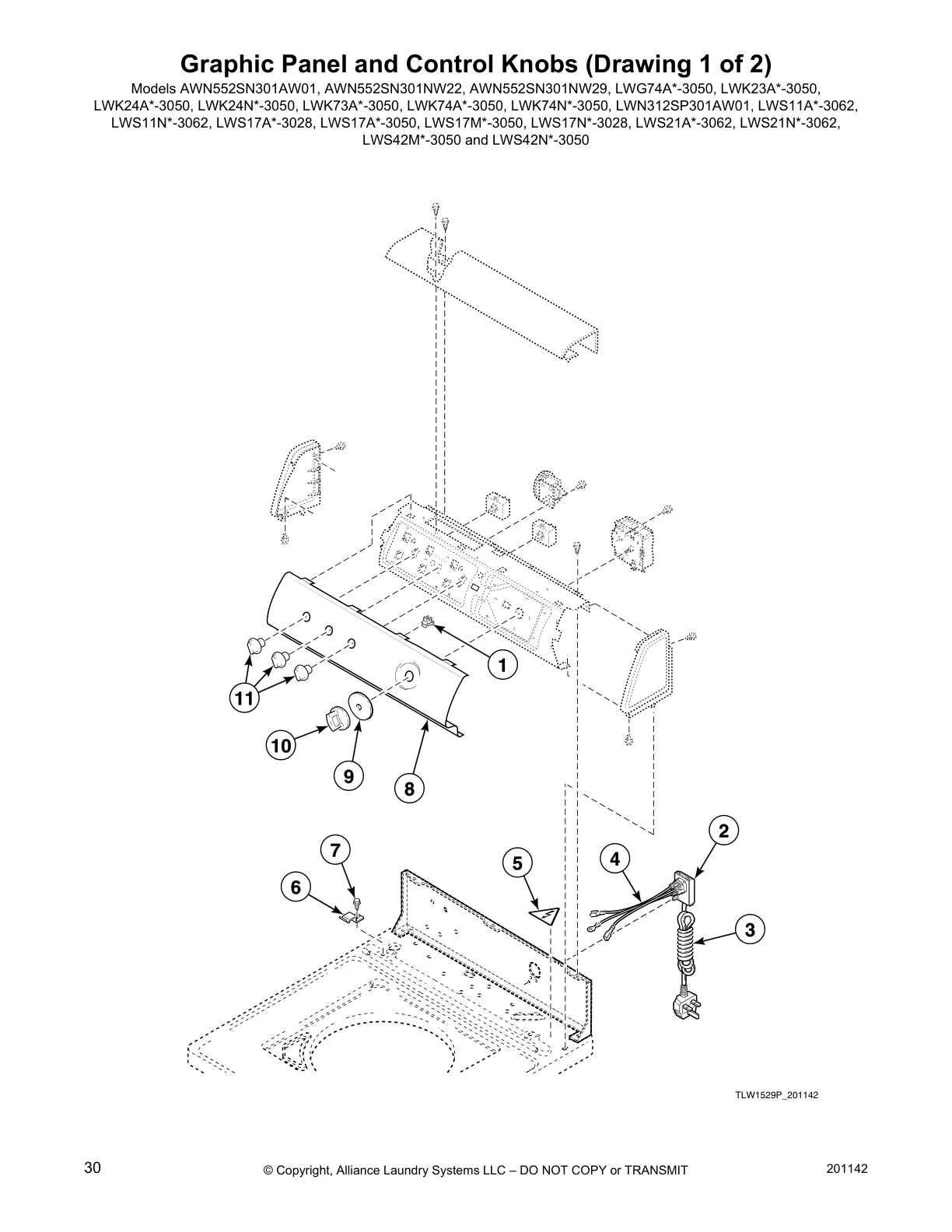

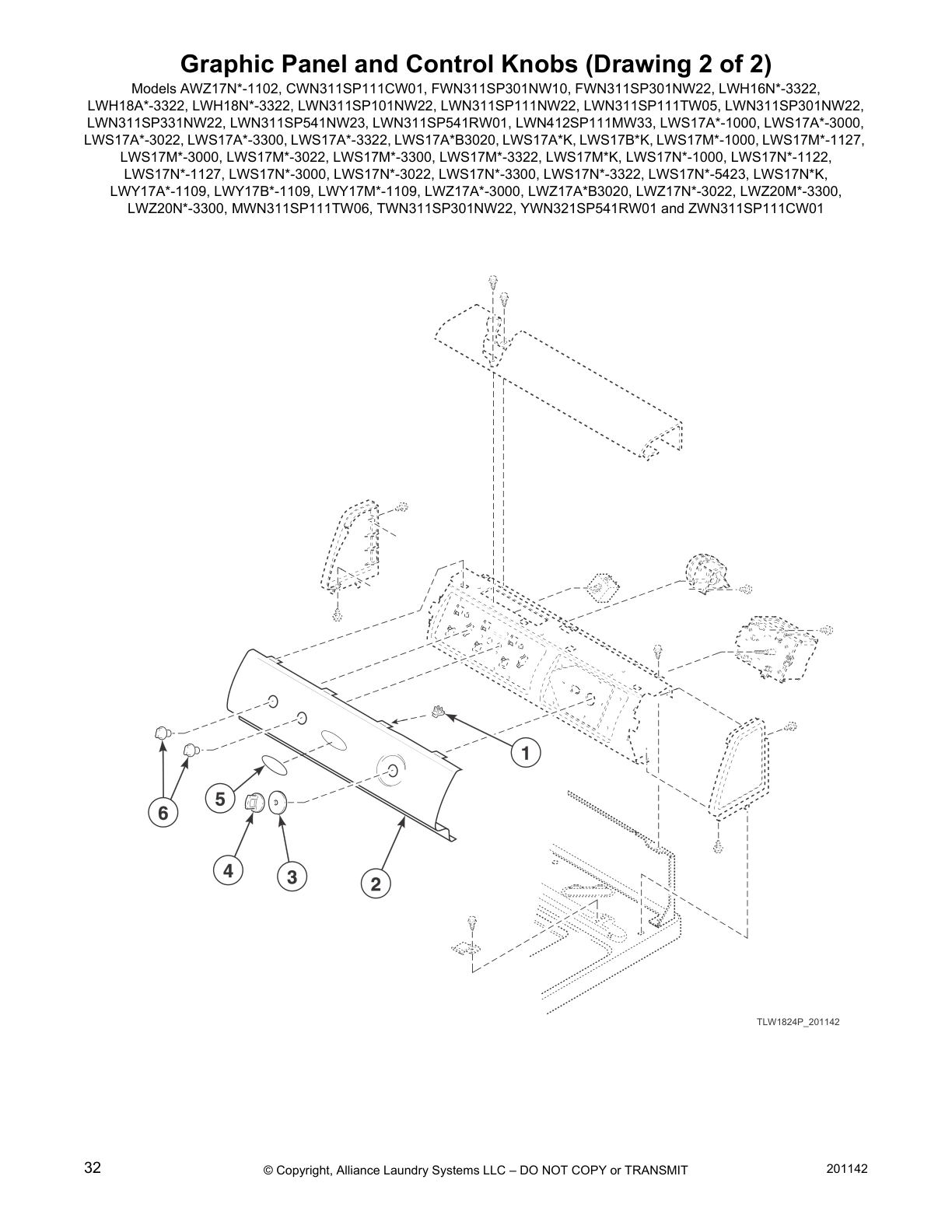

Graphic Panel and Control Knobs (Drawing 1 of 2)

Graphic Panel and Control Knobs (Drawing 2 of 2)

Lid Switch Assembly

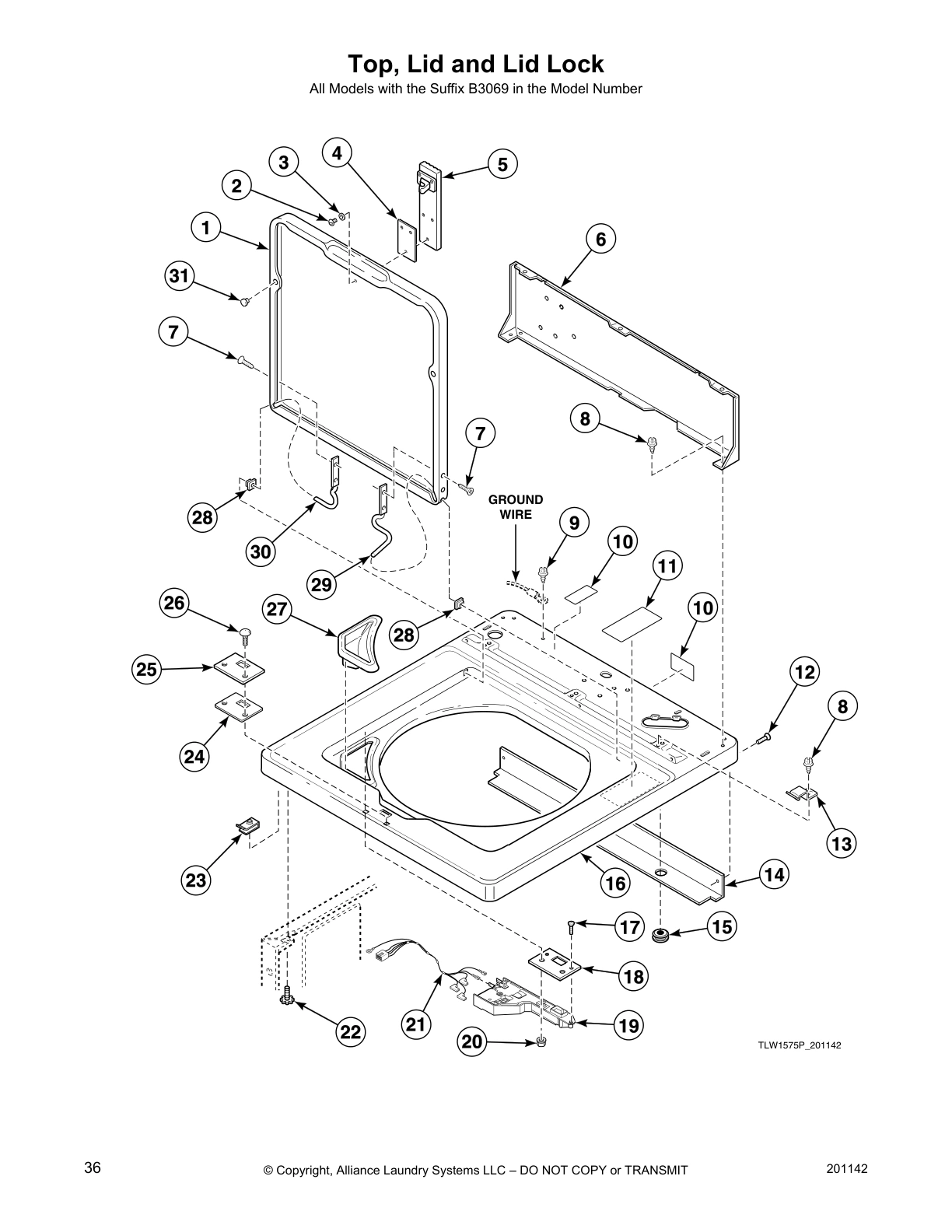

Top, Lid and Lid Lock

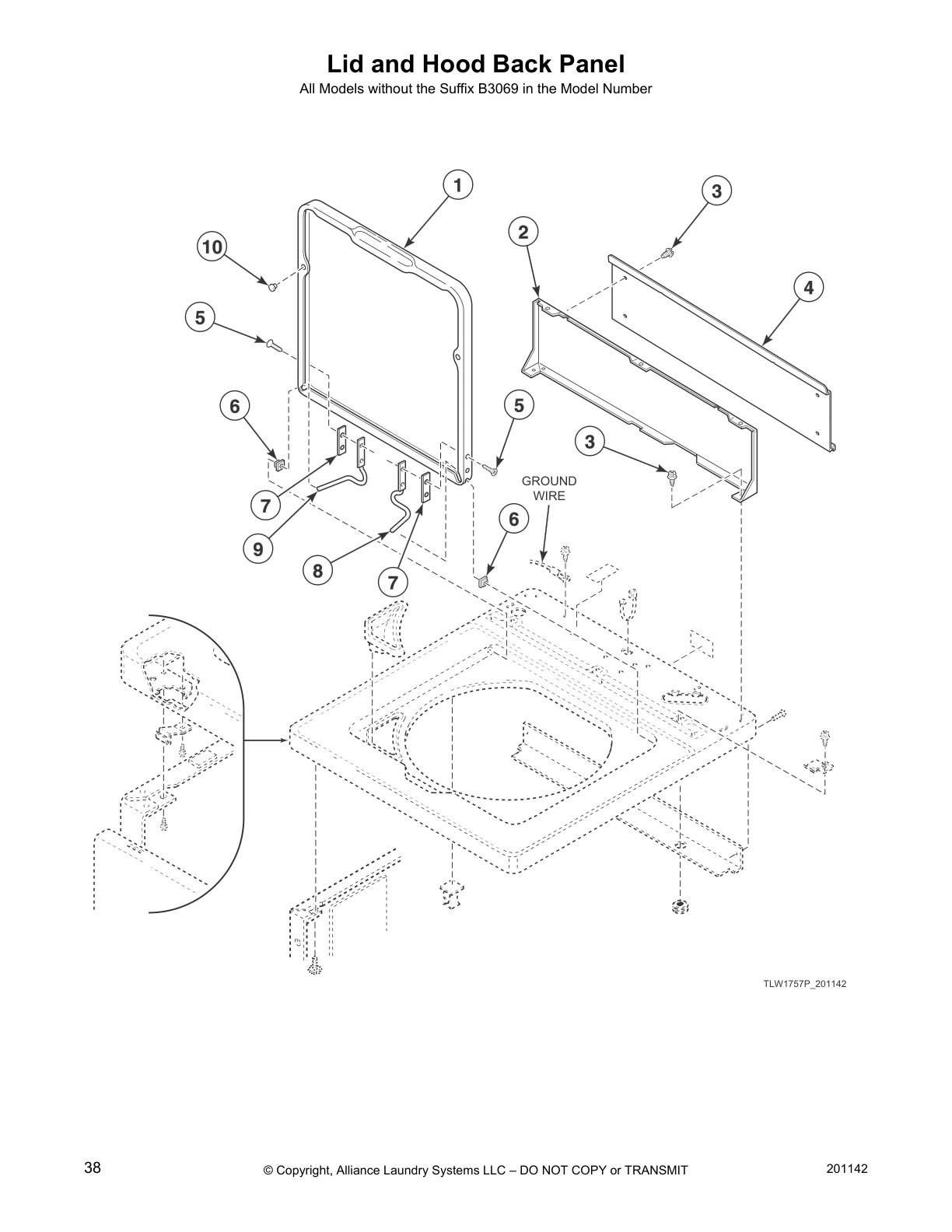

Lid and Hood Back Panel

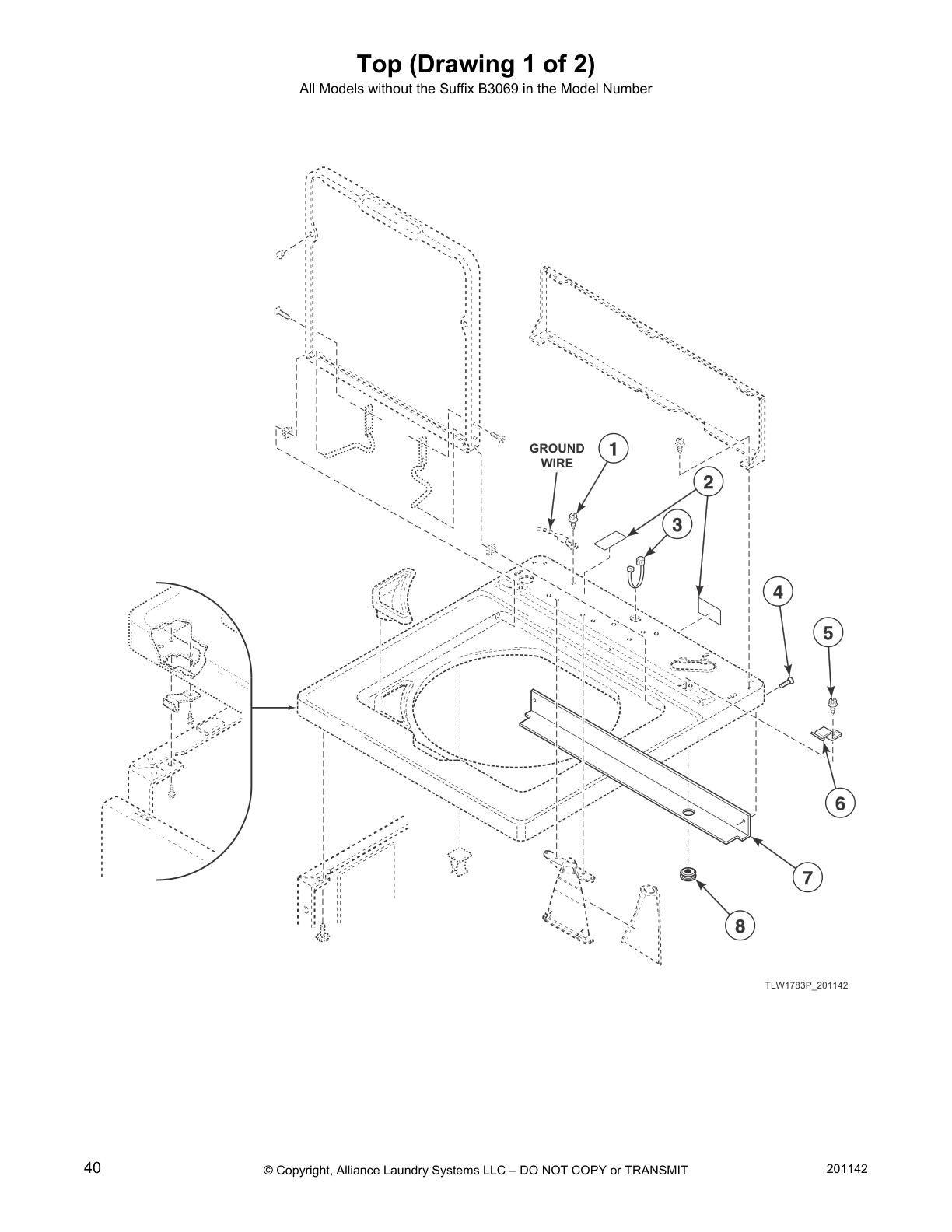

Top (Drawing 1 of 2)

Top (Drawing 2 of 2)

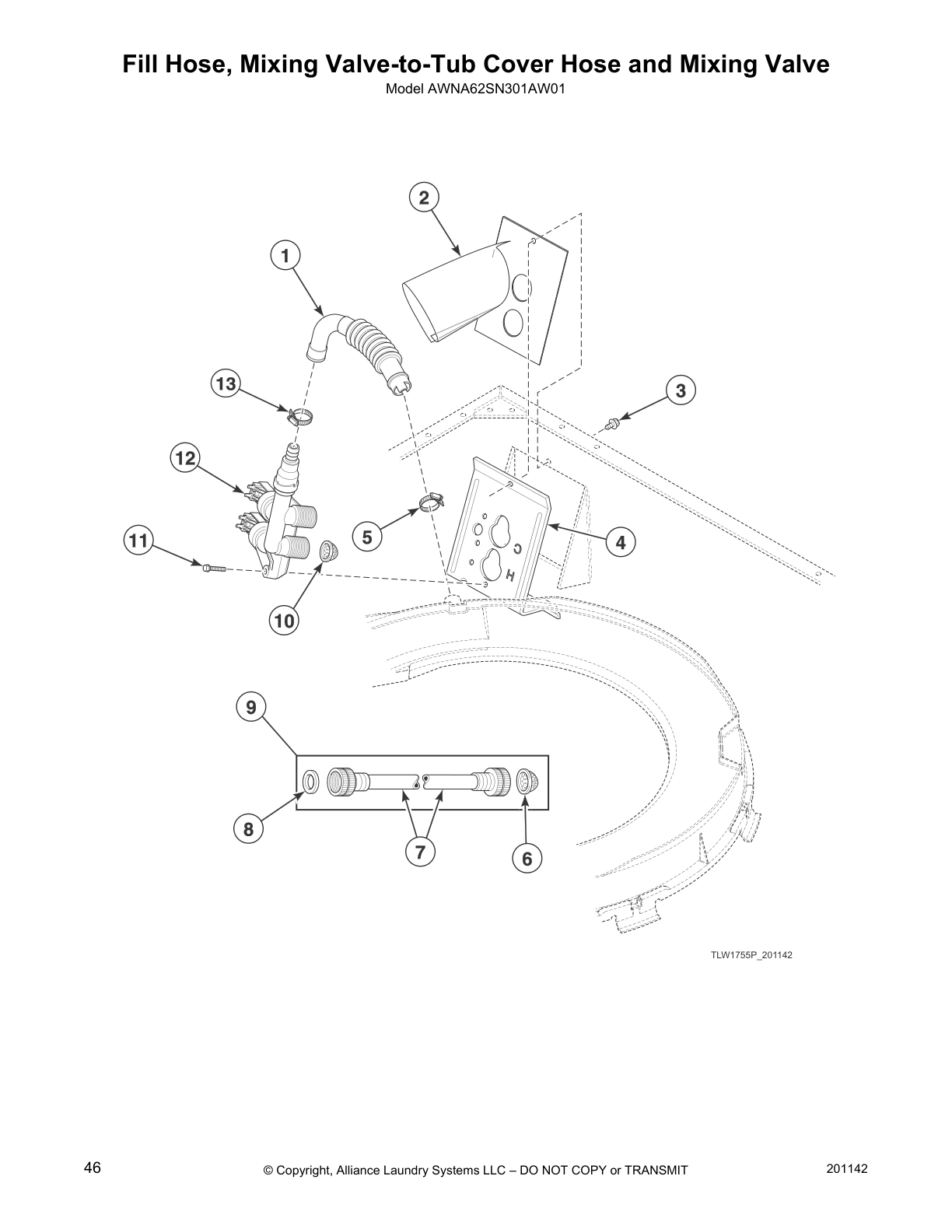

Fill Hose, Mixing Valve-to-Tub Cover Hose and Mixing Valve

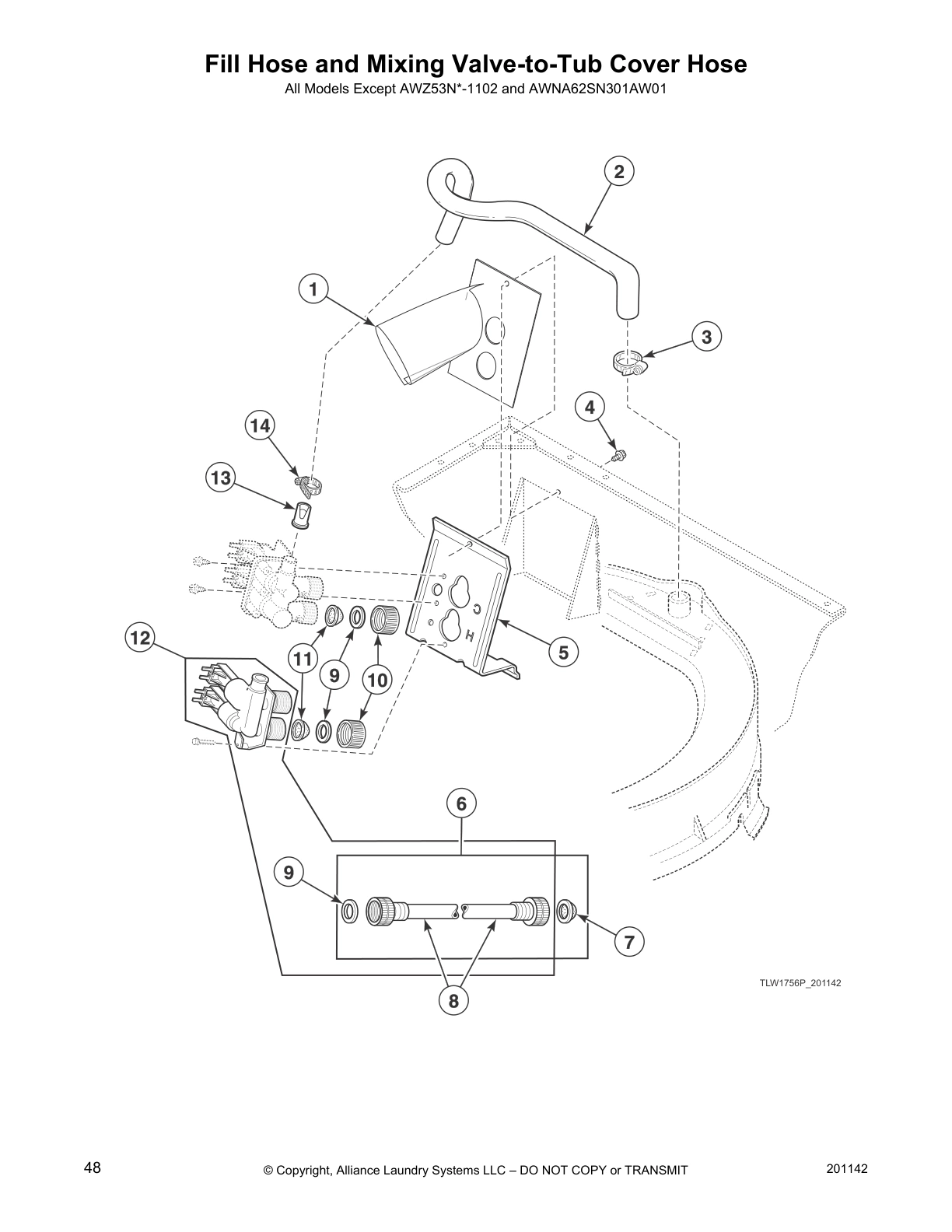

Fill Hose and Mixing Valve-to-Tub Cover Hose

Mixing Valve

Motor, Mounting Bracket, Belt, Pump and Idler Assembly

Motor and Mounting Bracket (Drawing 1 of 3)

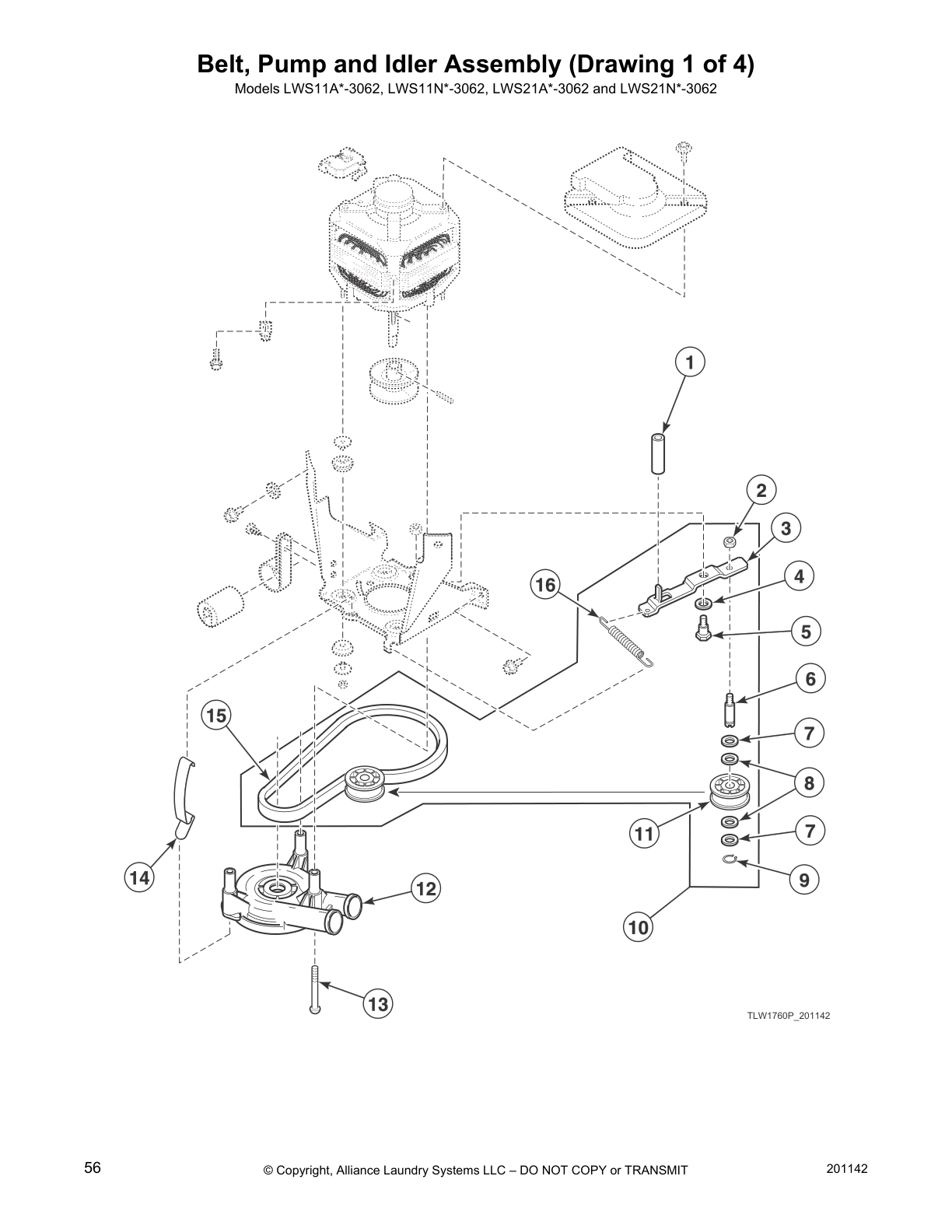

Belt, Pump and Idler Assembly (Drawing 1 of 4)

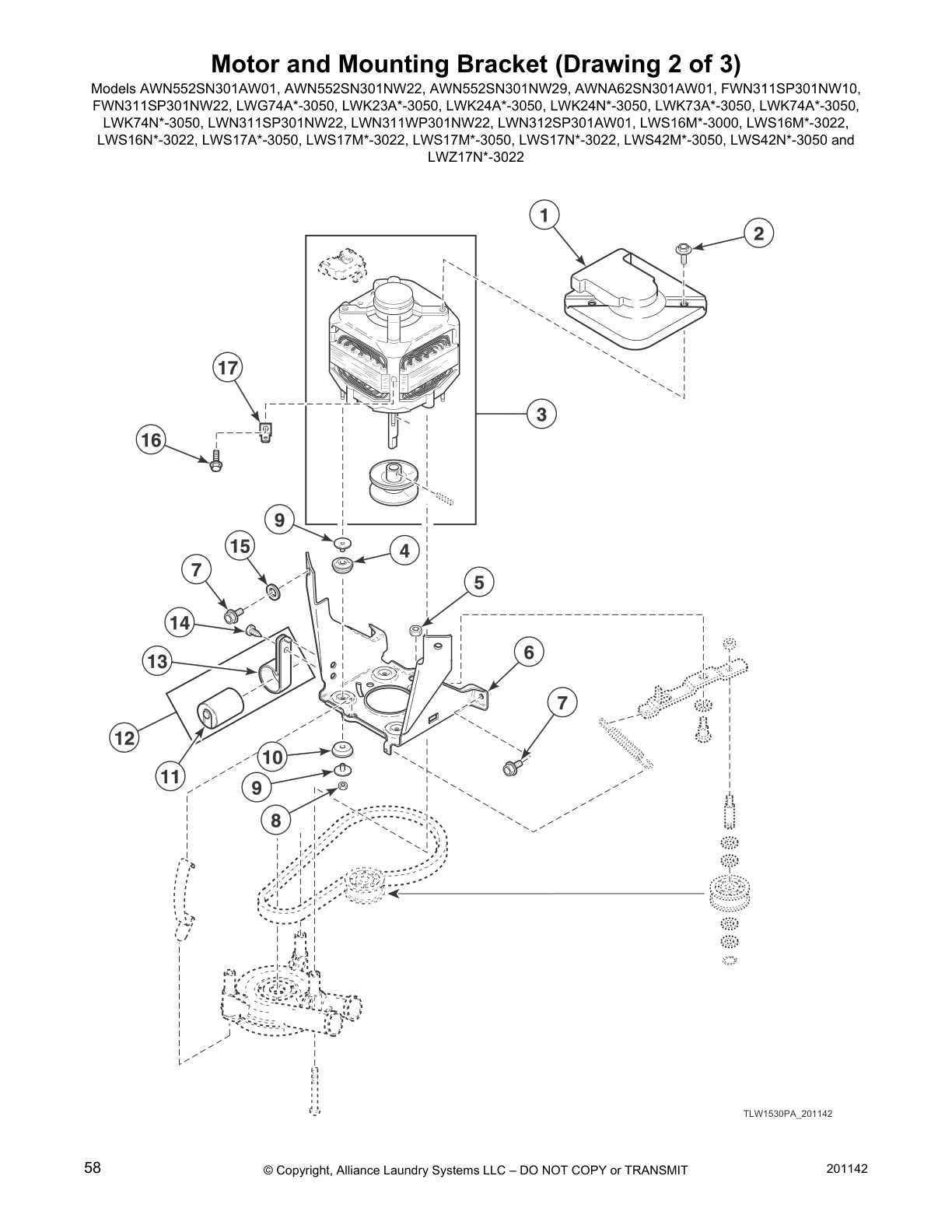

Motor and Mounting Bracket (Drawing 2 of 3)

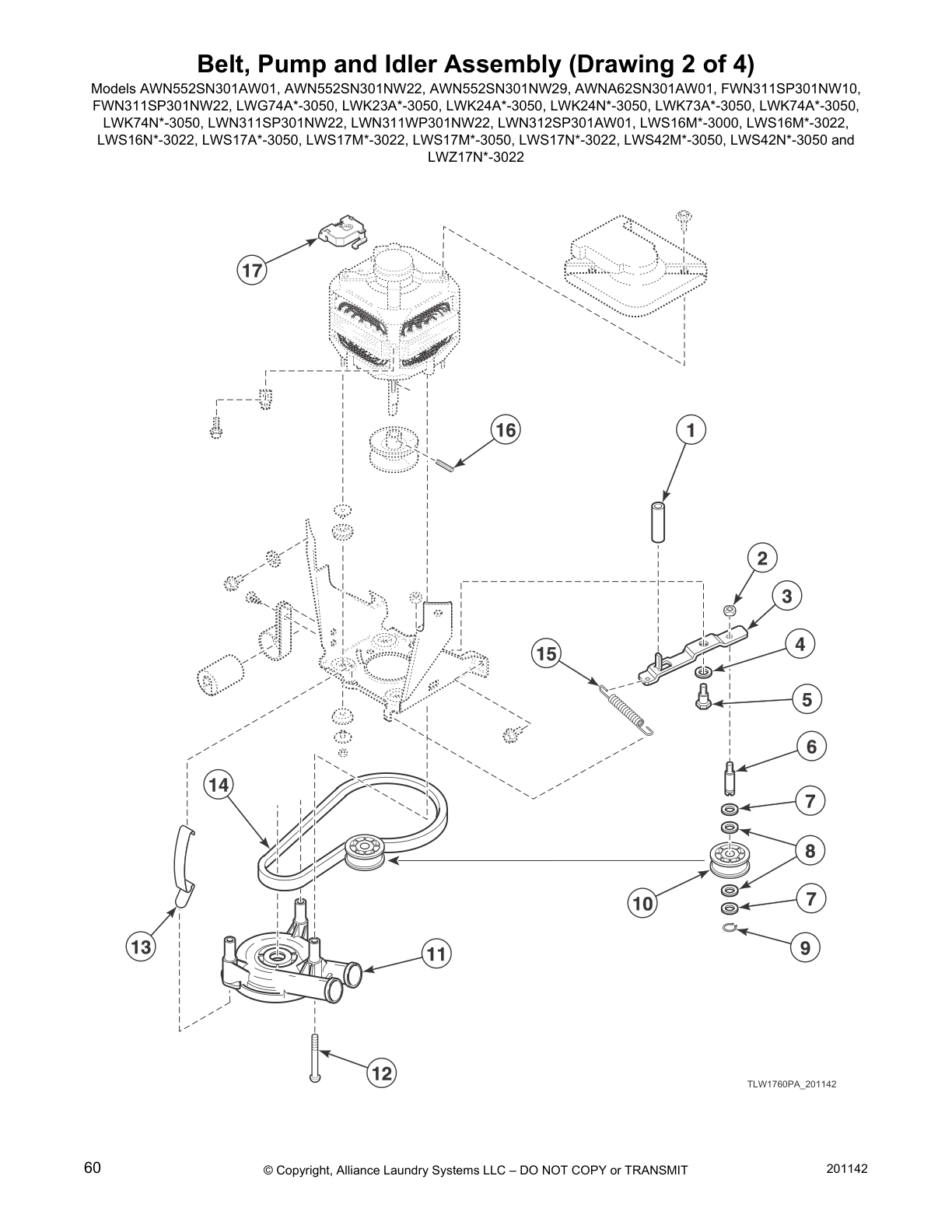

Belt, Pump and Idler Assembly (Drawing 2 of 4)

Belt, Pump and Idler Assembly (Drawing 3 of 4)

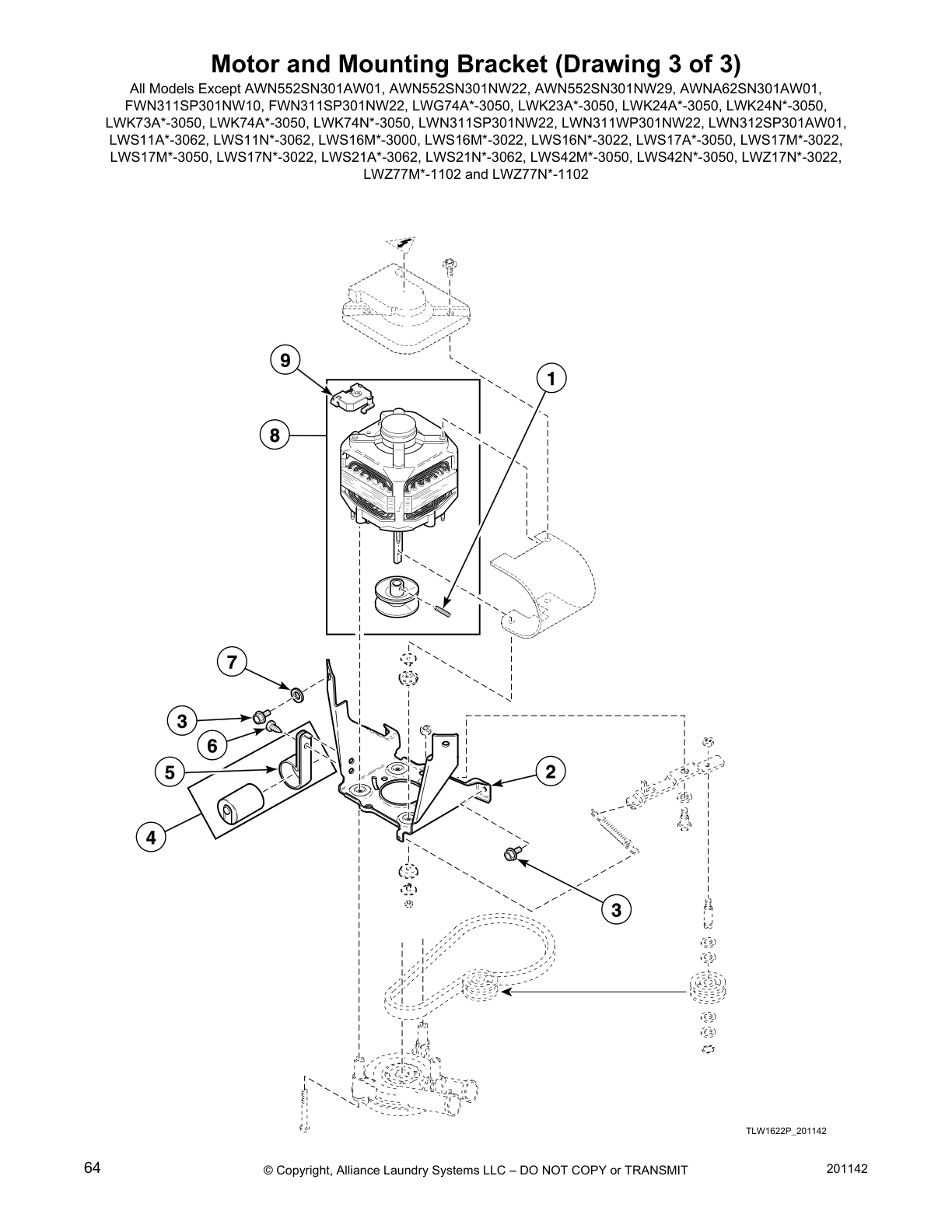

Motor and Mounting Bracket (Drawing 3 of 3)

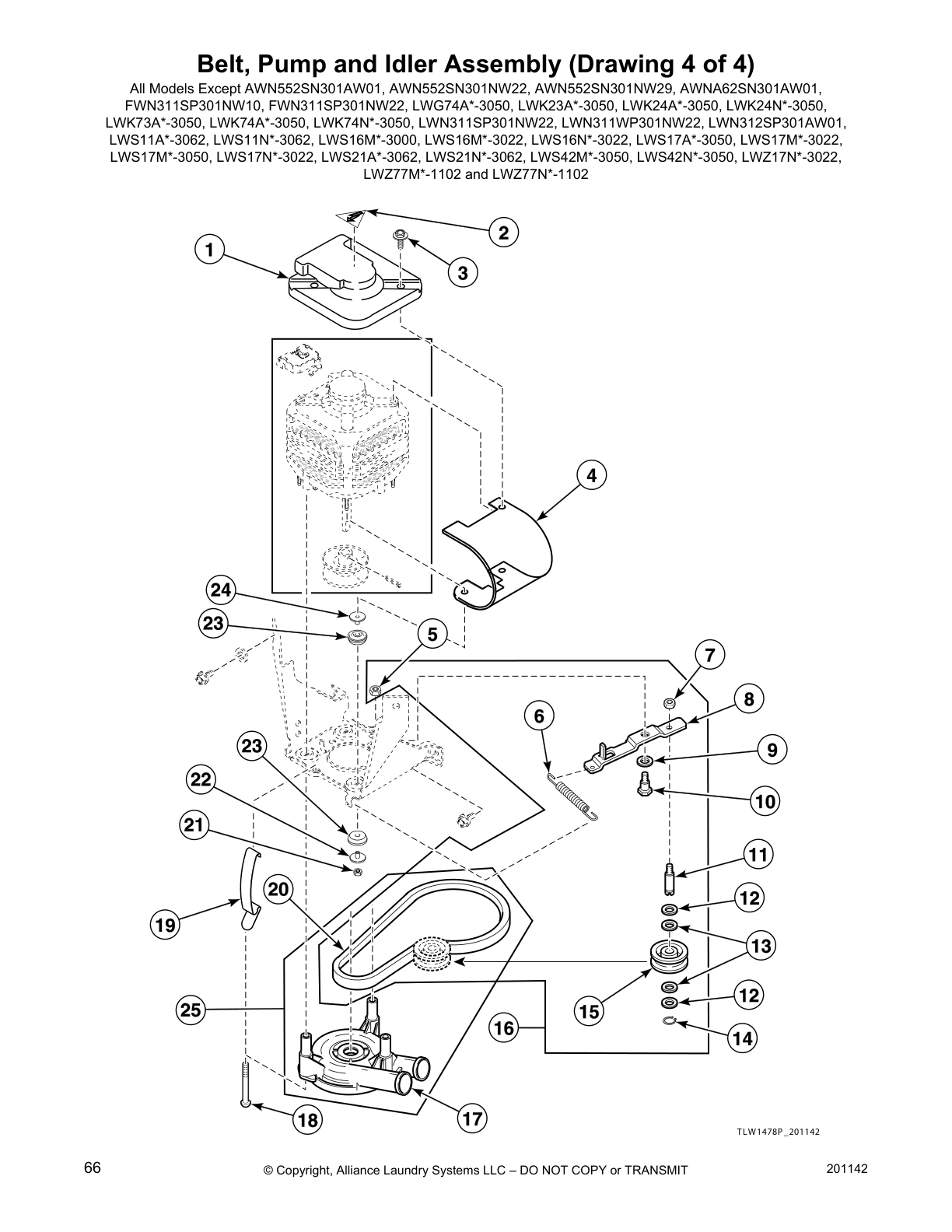

Belt, Pump and Idler Assembly (Drawing 4 of 4)

Idler Lever and Belt Kit

Agitator, Drive Bell, Hub and Lip Seal Kit and Washtub

Agitator, Drive Bell, Hub and Seal Kit and Washtub

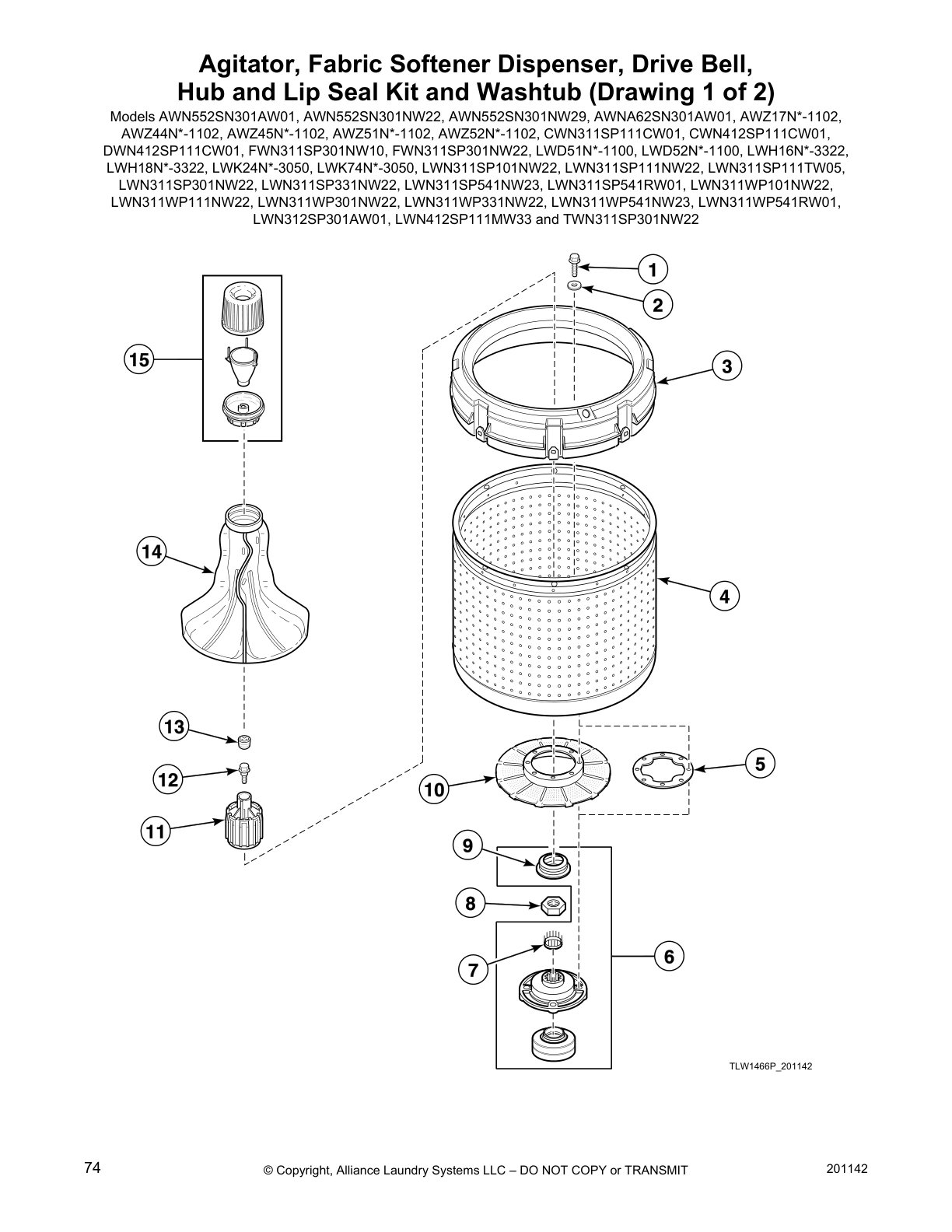

Agitator, Fabric Softener Dispenser, Drive Bell, Hub and Lip Seal Kit and Washtub (Drawing 1 of 2)

Agitator, Fabric Softener Dispenser, Drive Bell, Hub and Lip Seal Kit and Washtub (Drawing 2 of 2)

Agitator, Fabric Softener Dispenser, Drive Bell, Hub and Seal Kit and Washtub

Outer Tub, Cover, Bearing and Seal Housing, Pressure Hose and Counterweight (Drawing 1 of 2)

Outer Tub, Cover, Bearing and Seal Housing, Pressure Hose and Counterweight (Drawing 2 of 2)

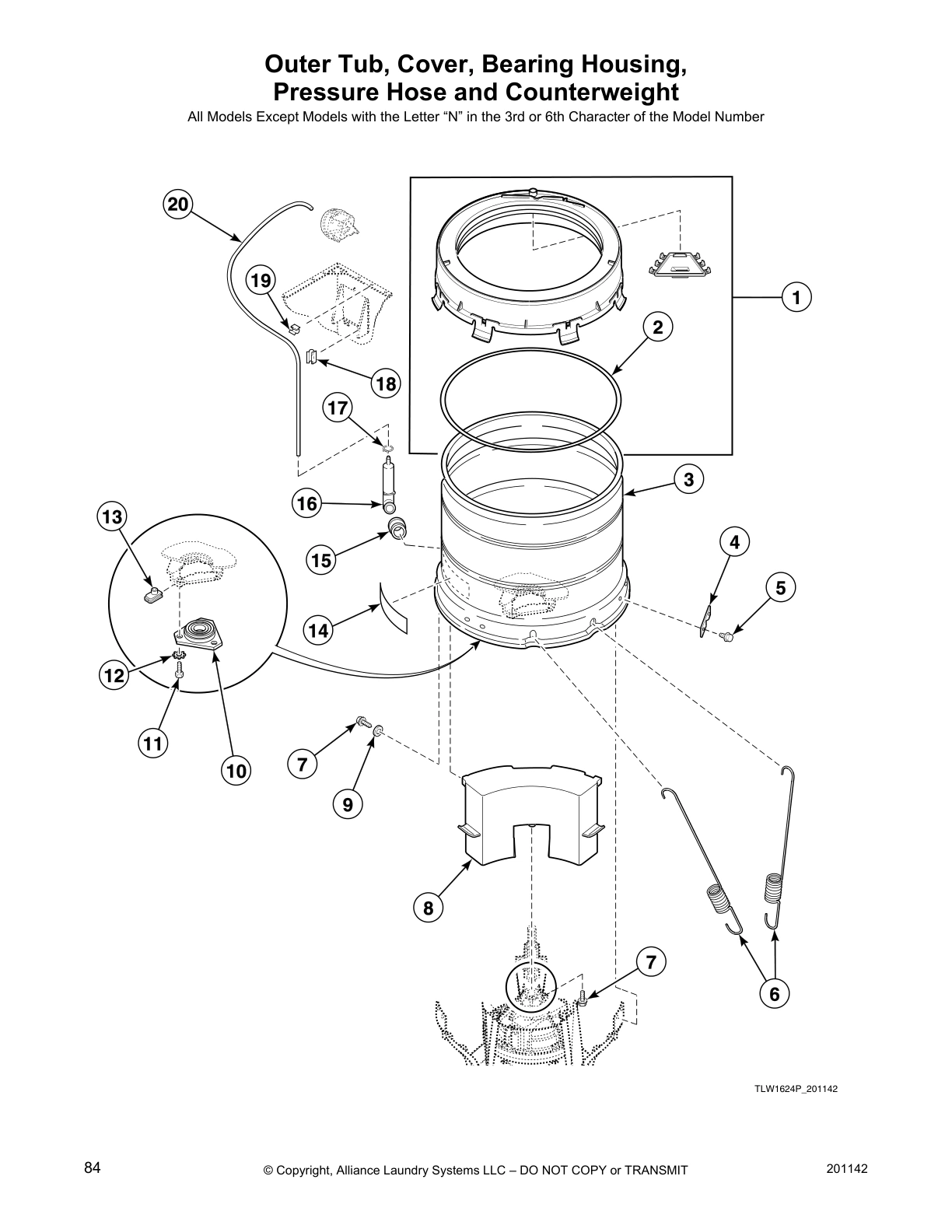

Outer Tub, Cover, Bearing Housing, Pressure Hose and Counterweight

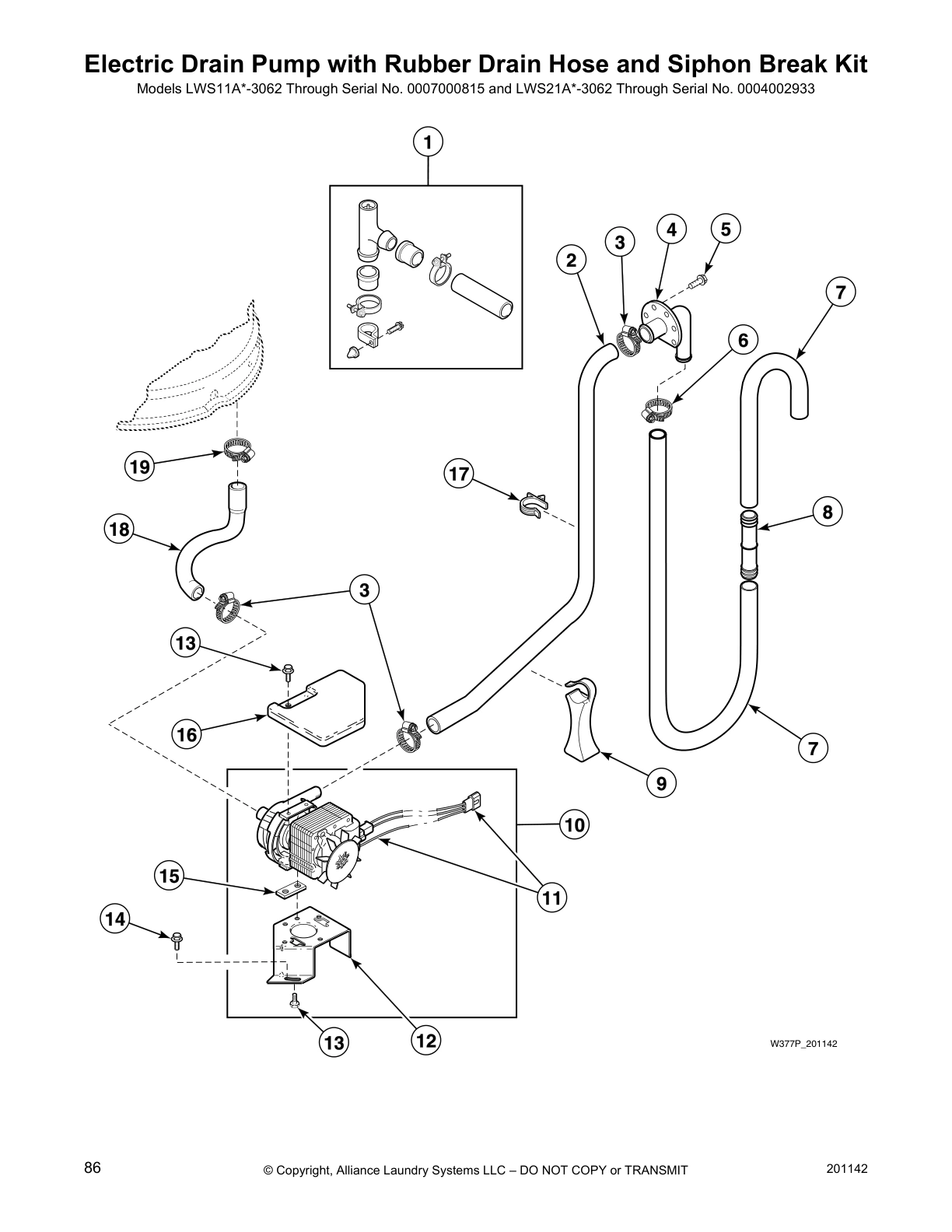

Electric Drain Pump with Rubber Drain Hose and Siphon Break Kit

Electric Drain Pump with Plastic Drain Hose and Siphon Break Kit

Plastic Drain Hose and Siphon Break Kit

Weldment and Bearing Assembly, Brake and Pulley

Common parts from model Speed Queen LWN311SP541RW01 Washer
