Model Speed Queen LTS95A*N3020 Washer – Common Parts & Diagrams
Cabinet Top, Control Panel and Controls
Graphic Panel, Control Support Panel and Controls

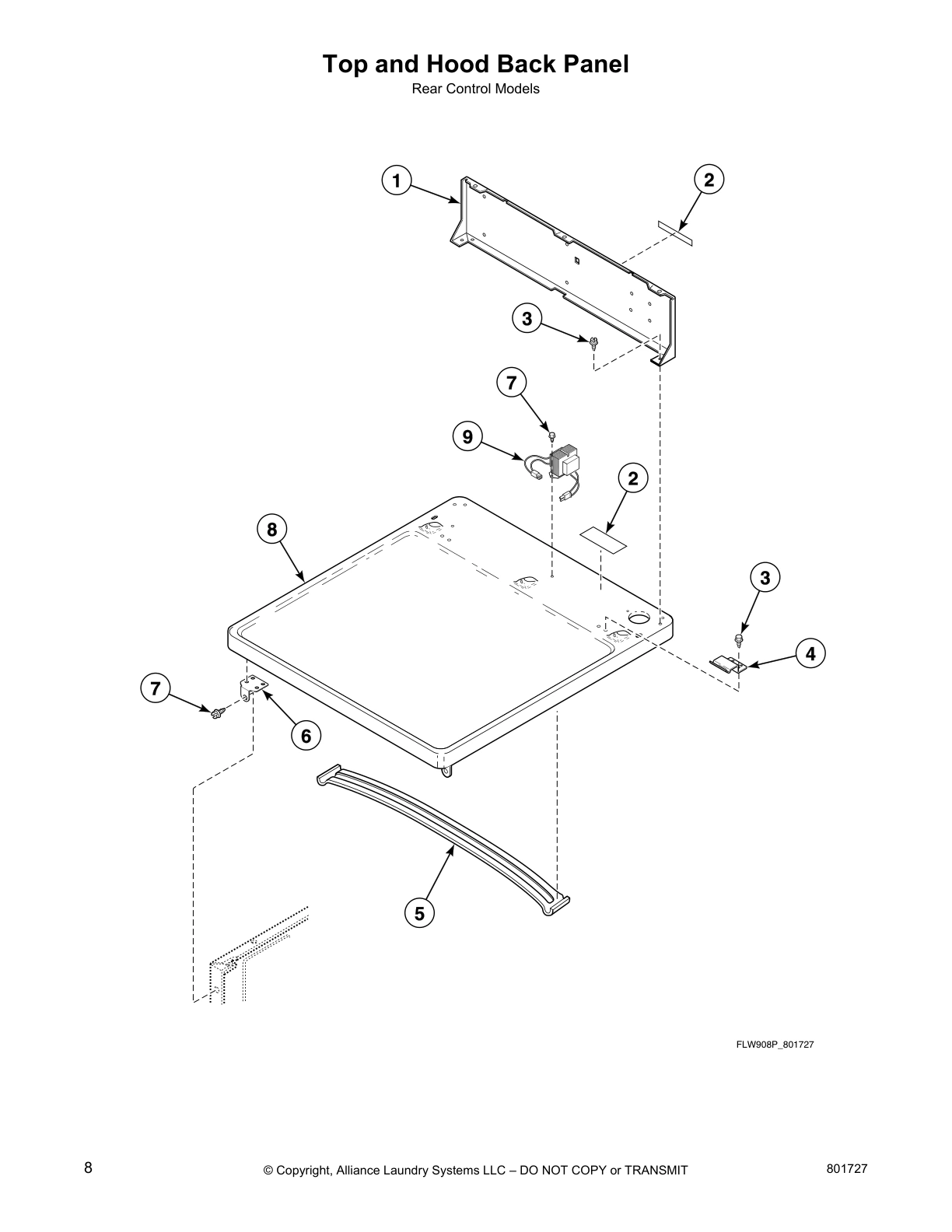

Top and Hood Back Panel

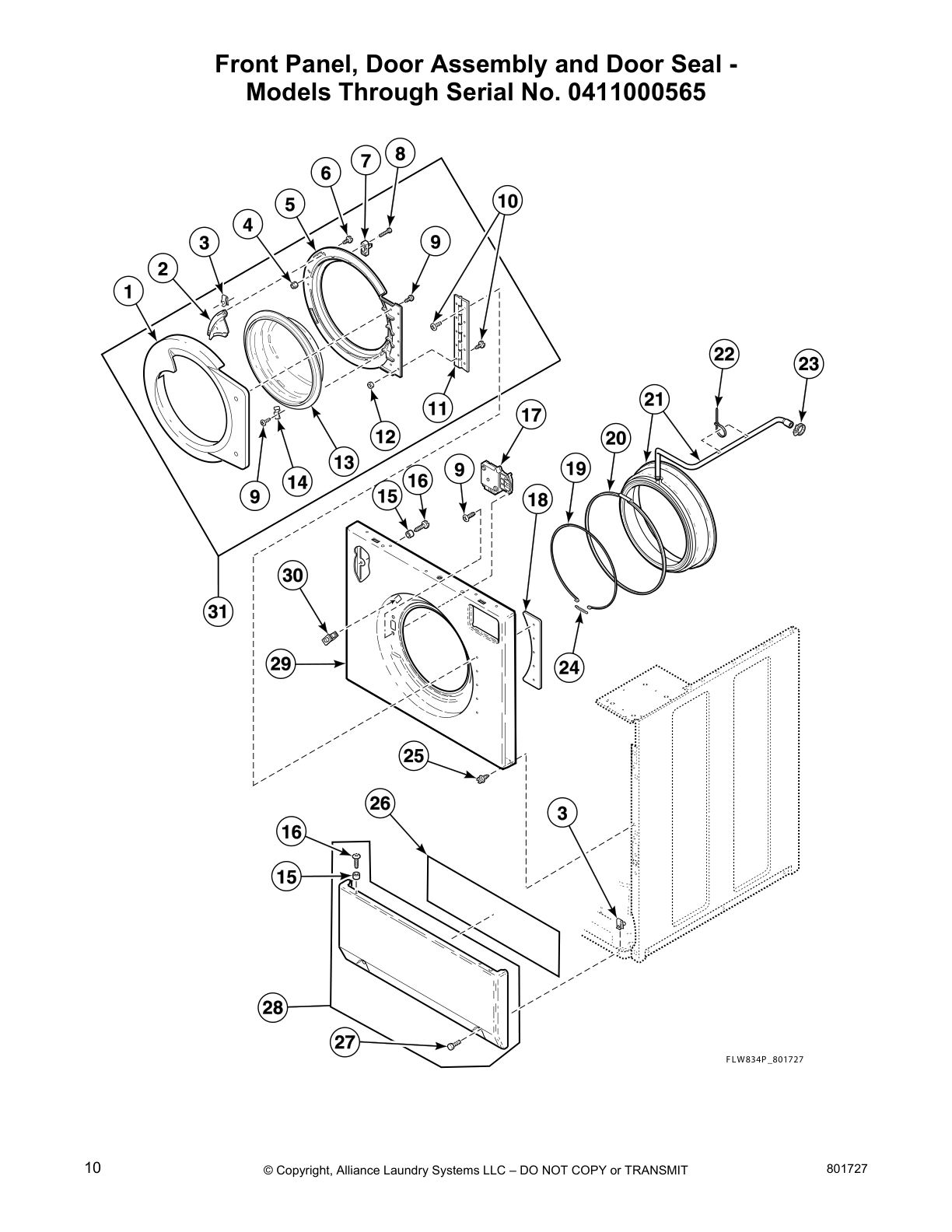

Front Panel, Door Assembly and Door Seal -
Models Through Serial No. 0411000565

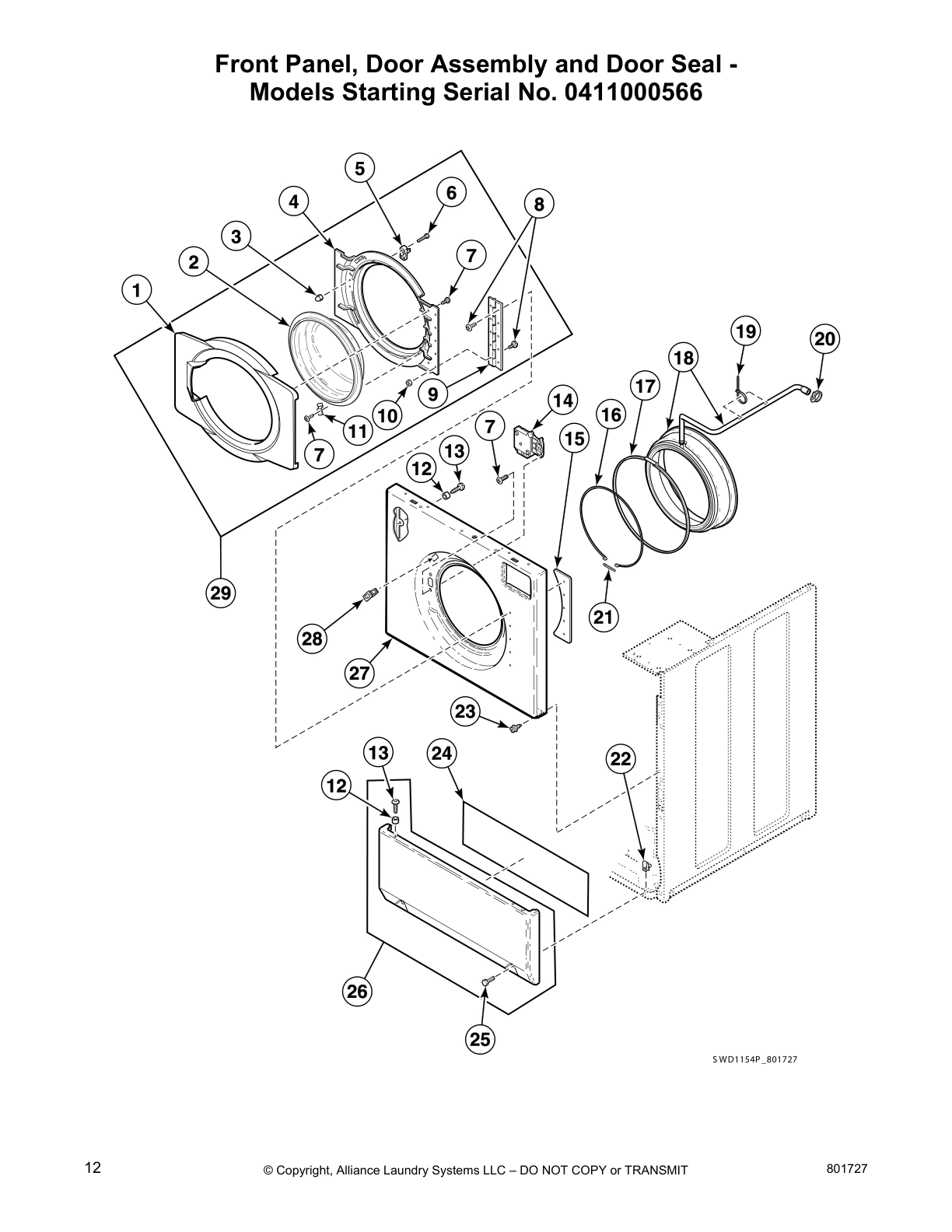

Front Panel, Door Assembly and Door Seal -
Models Starting Serial No. 0411000566

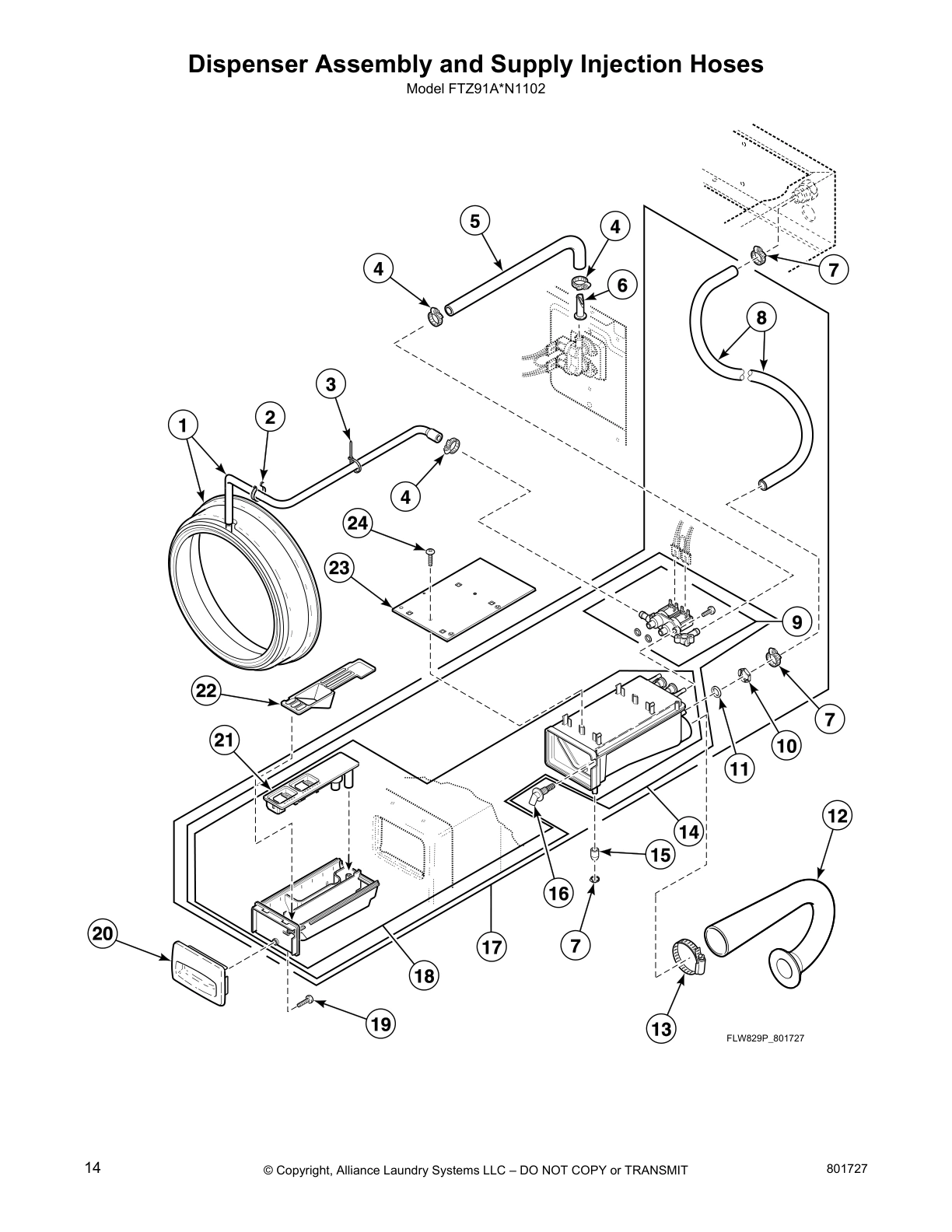

Dispenser Assembly and Supply Injection Hoses

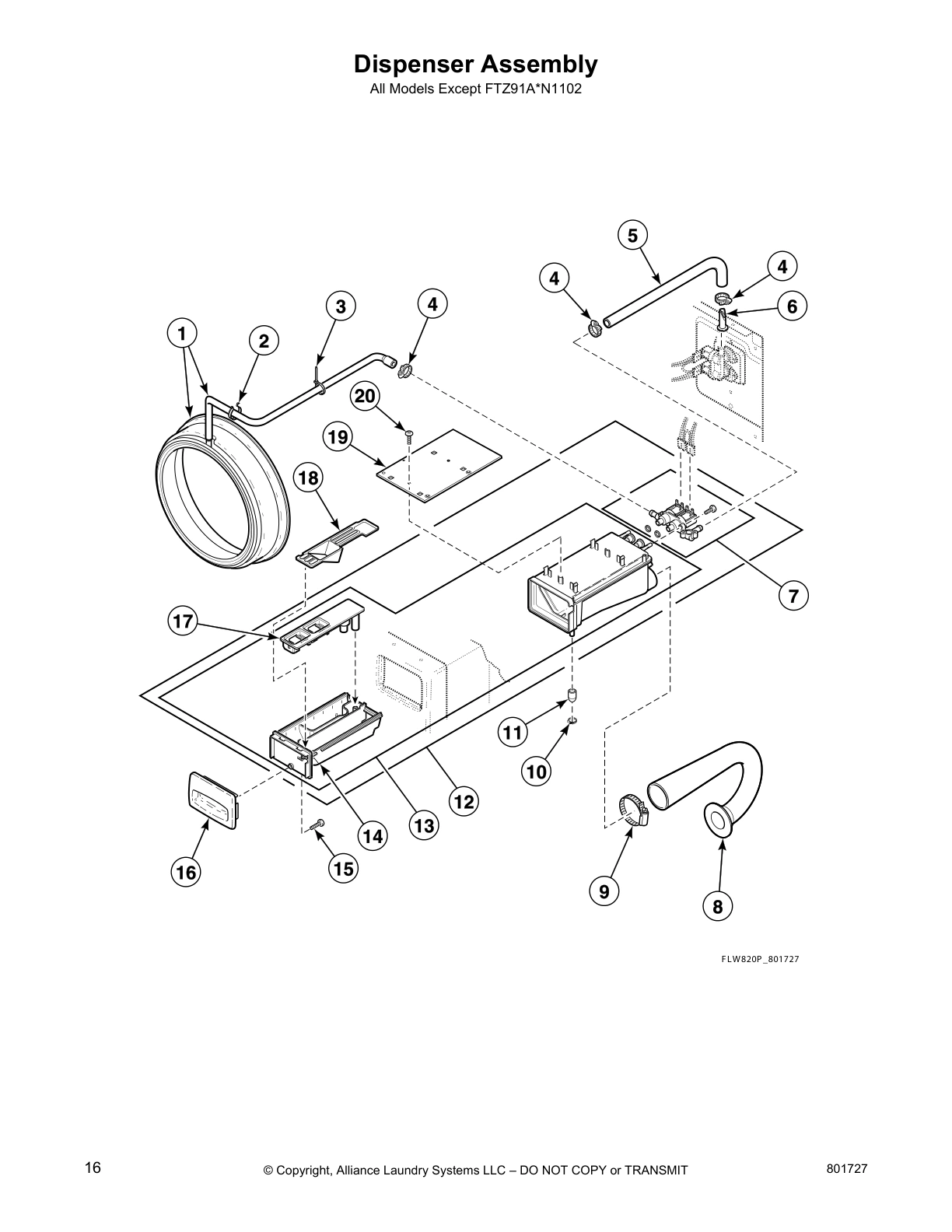

Dispenser Assembly

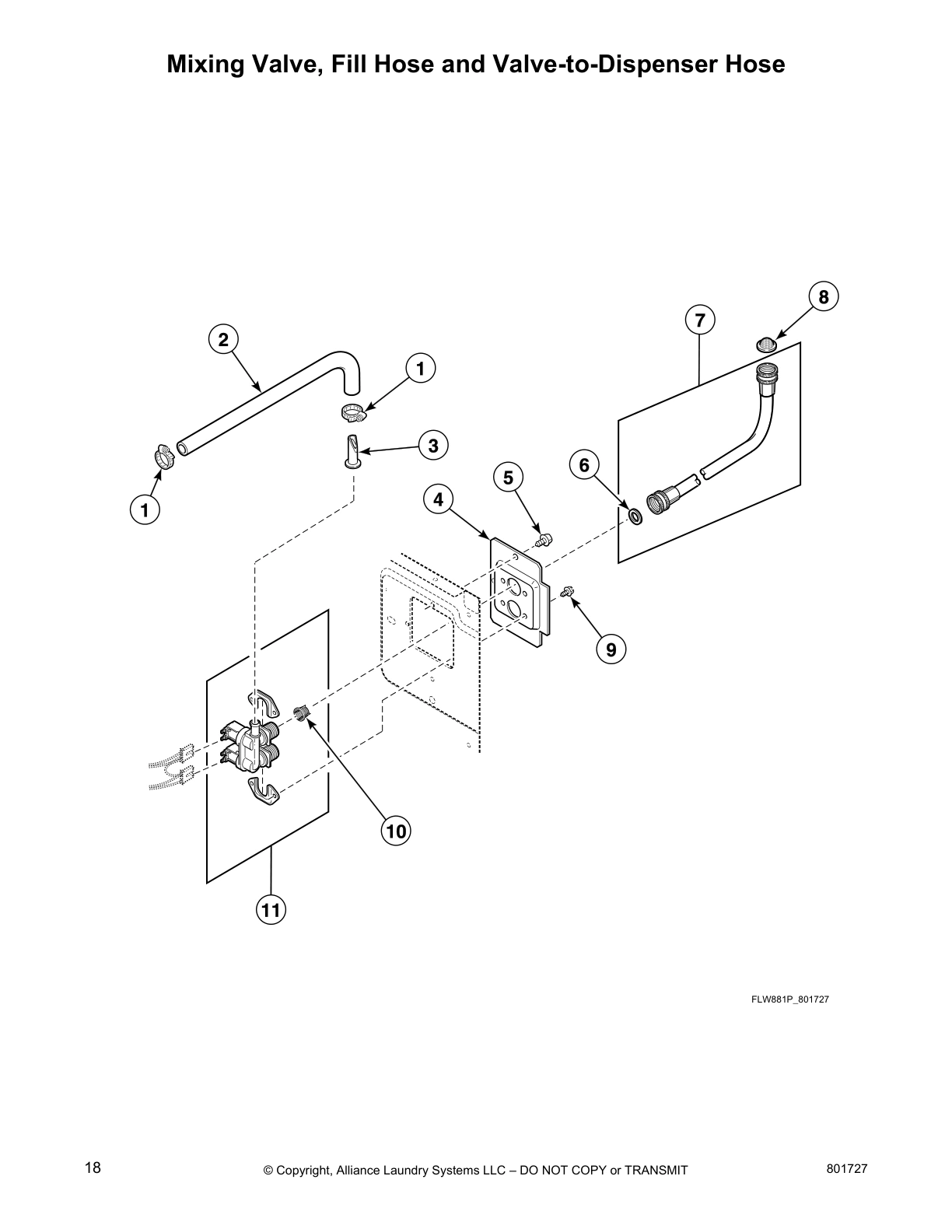

Mixing Valve, Fill Hose and Valve-to-Dispenser Hose

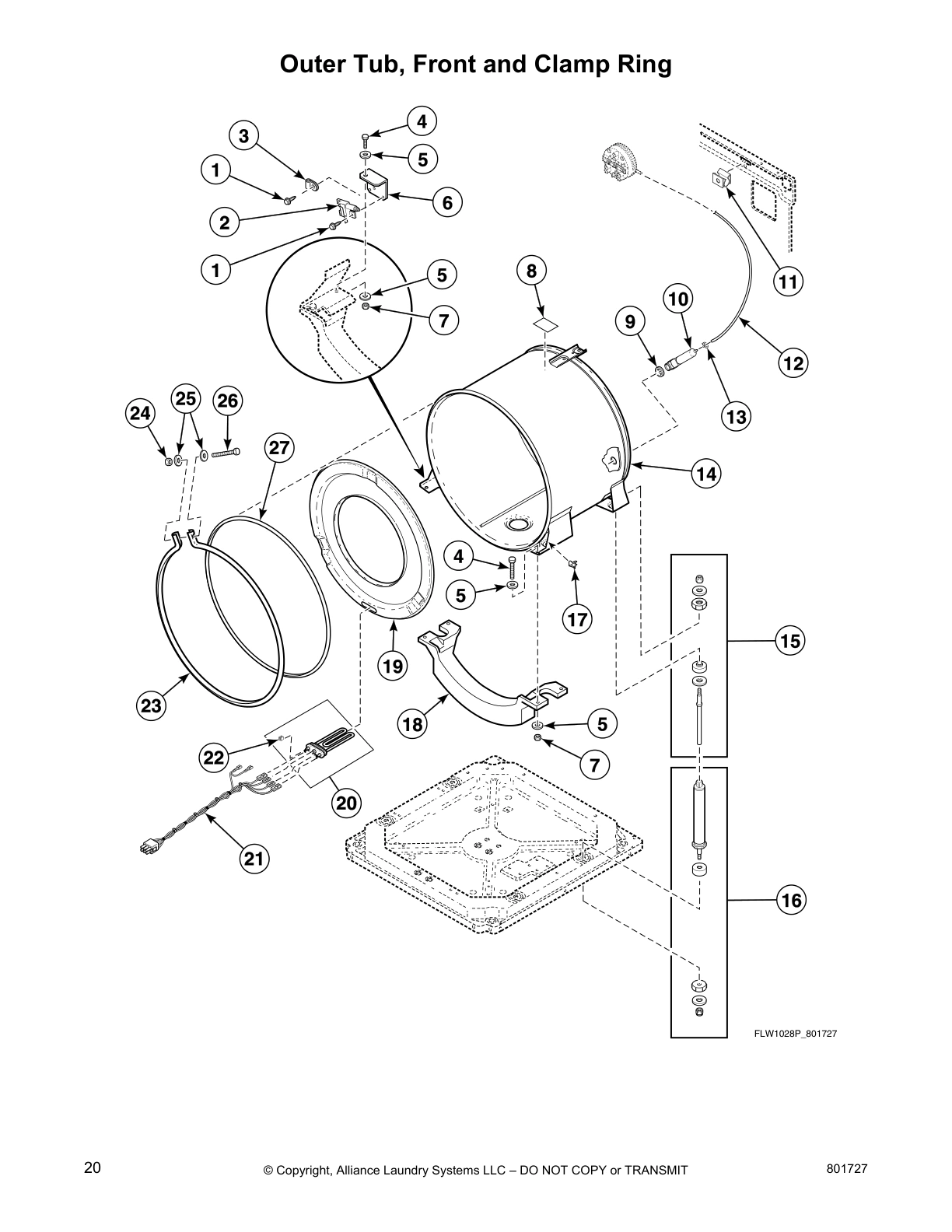

Outer Tub, Front and Clamp Ring

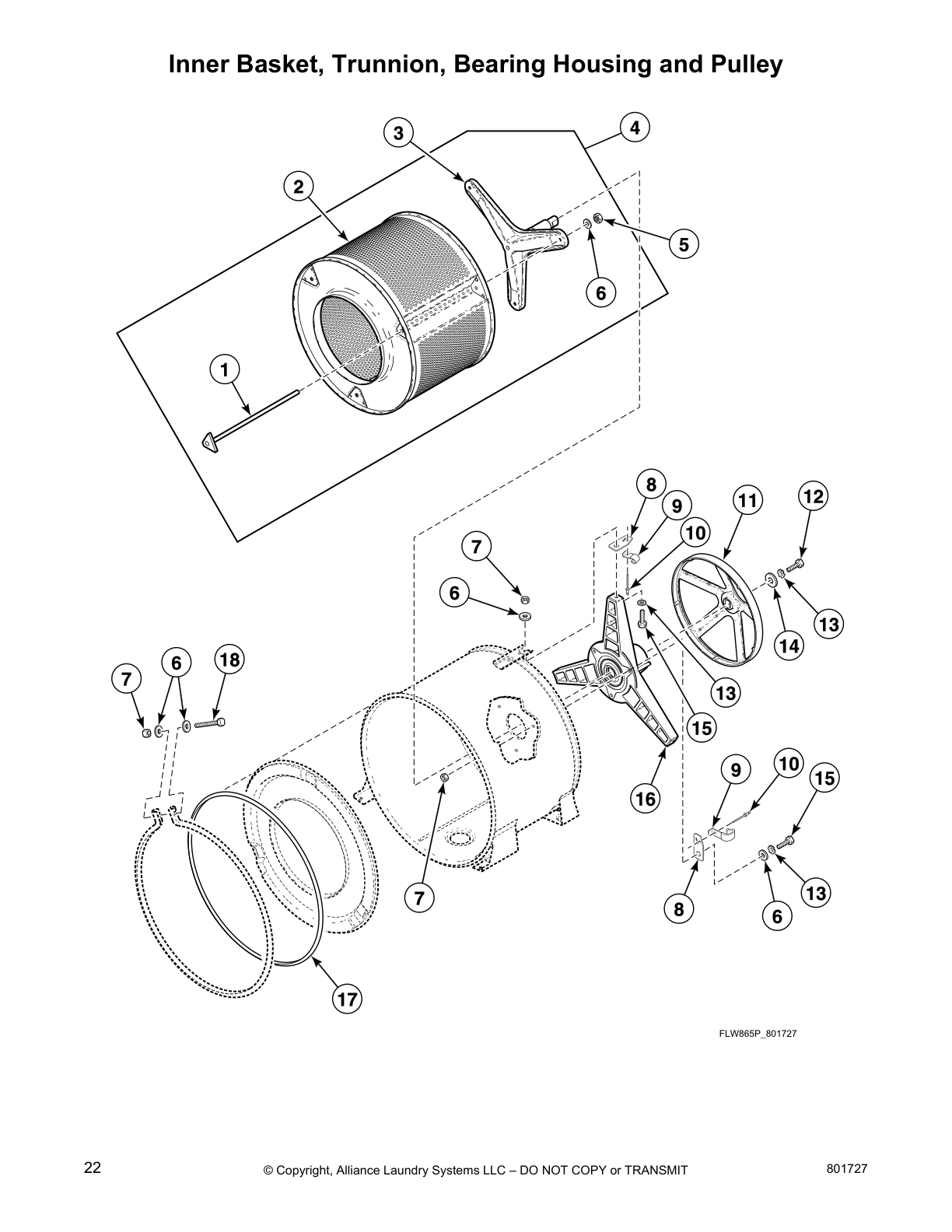

Inner Basket, Trunnion, Bearing Housing and Pulley

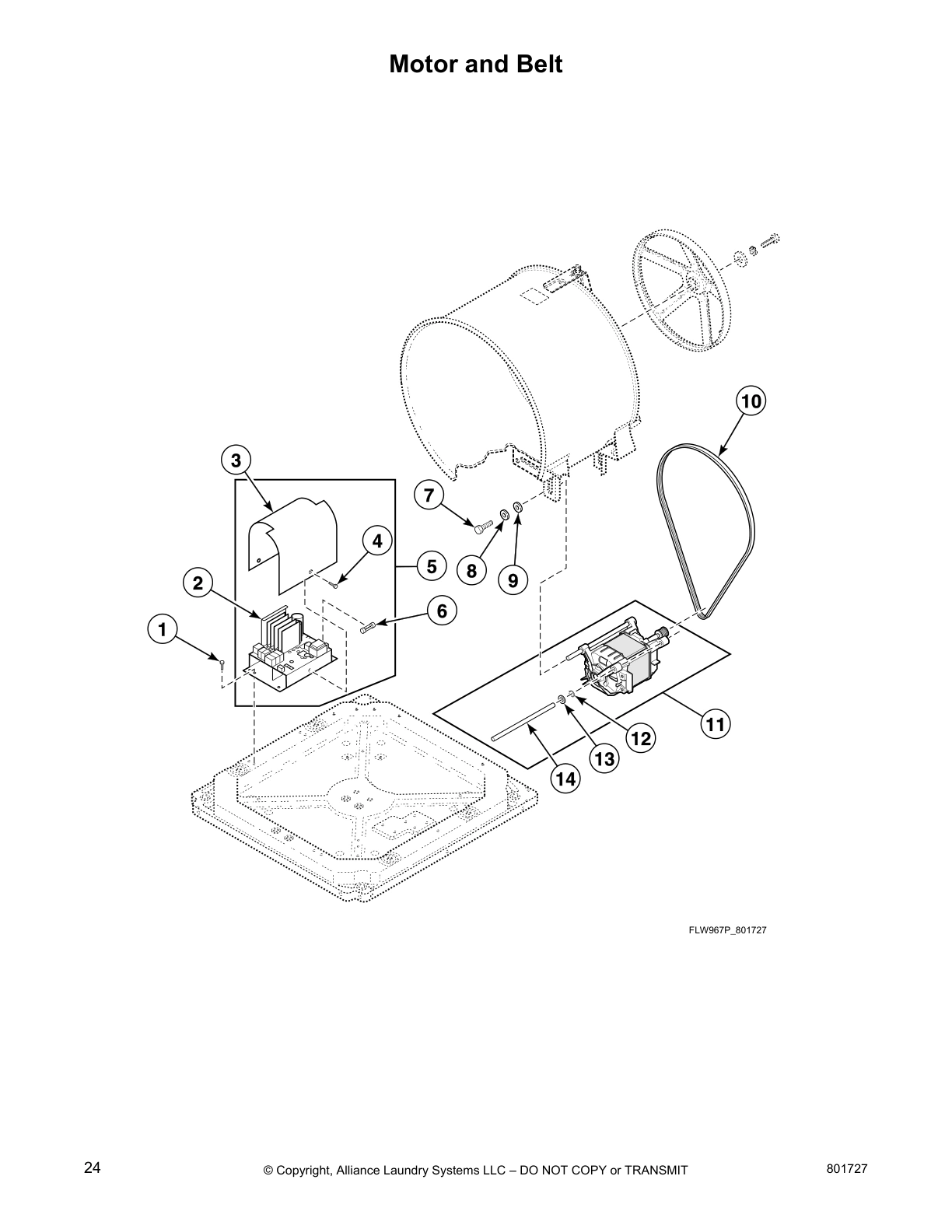

Motor and Belt

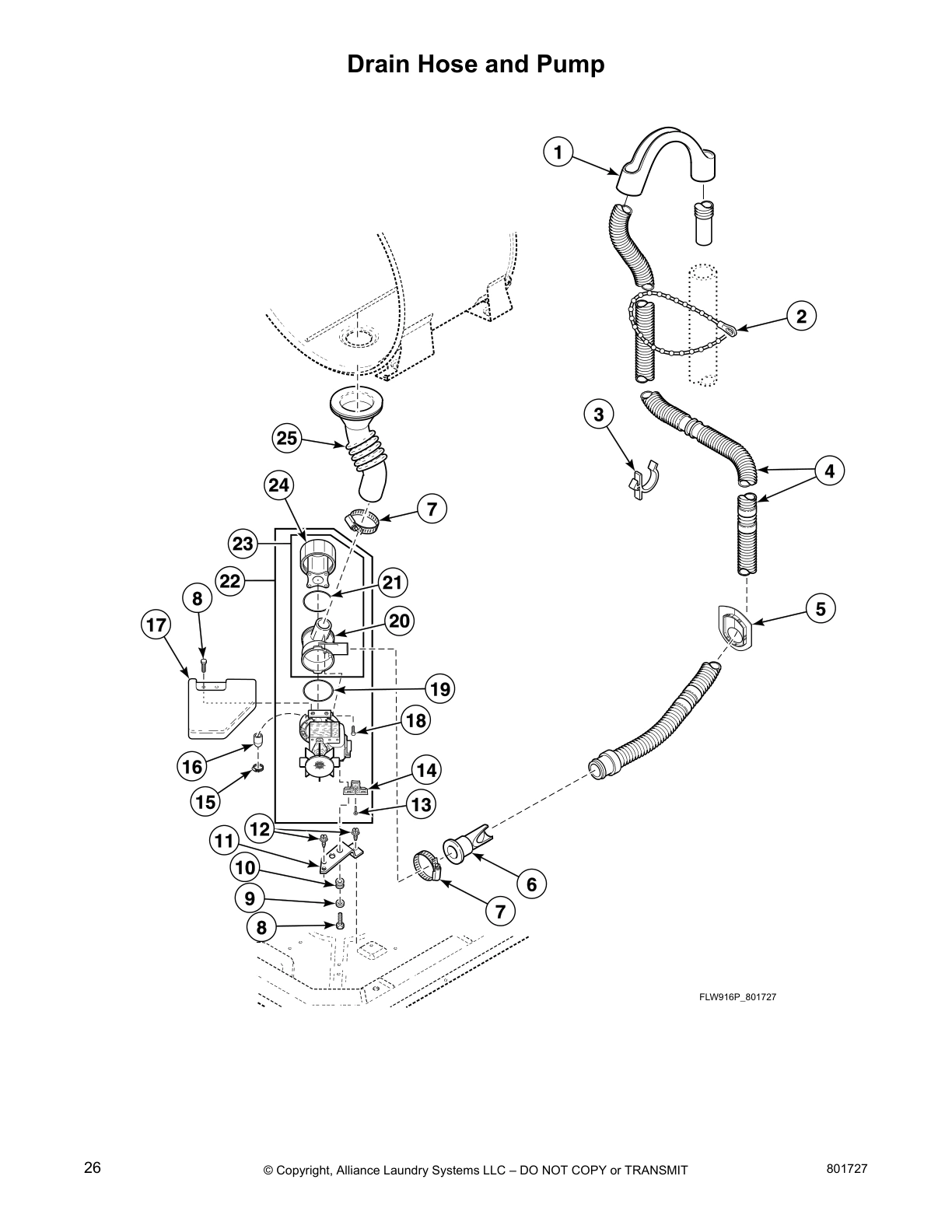

Drain Hose and Pump

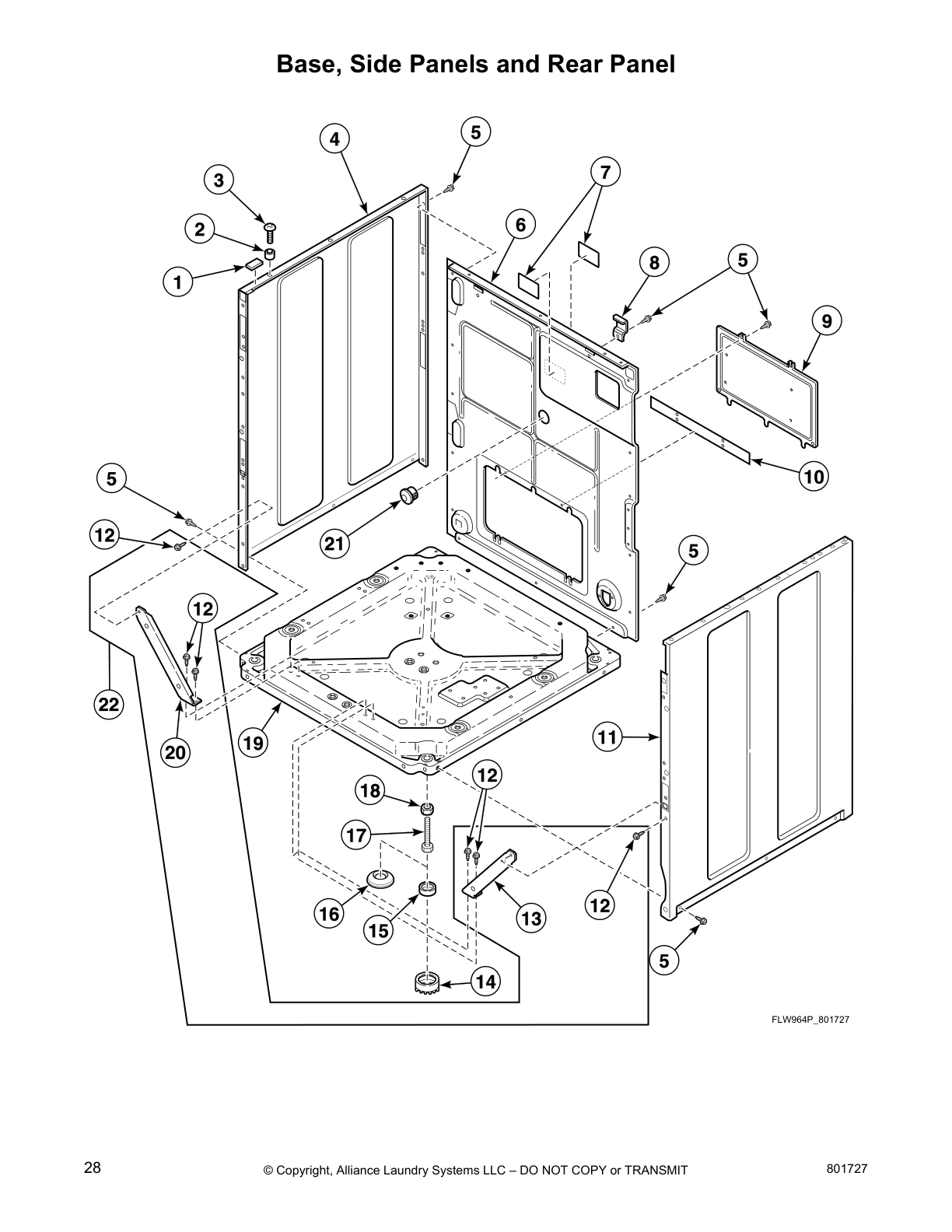

Base, Side Panels and Rear Panel
Junction Box - Model FTZ91A*N1102

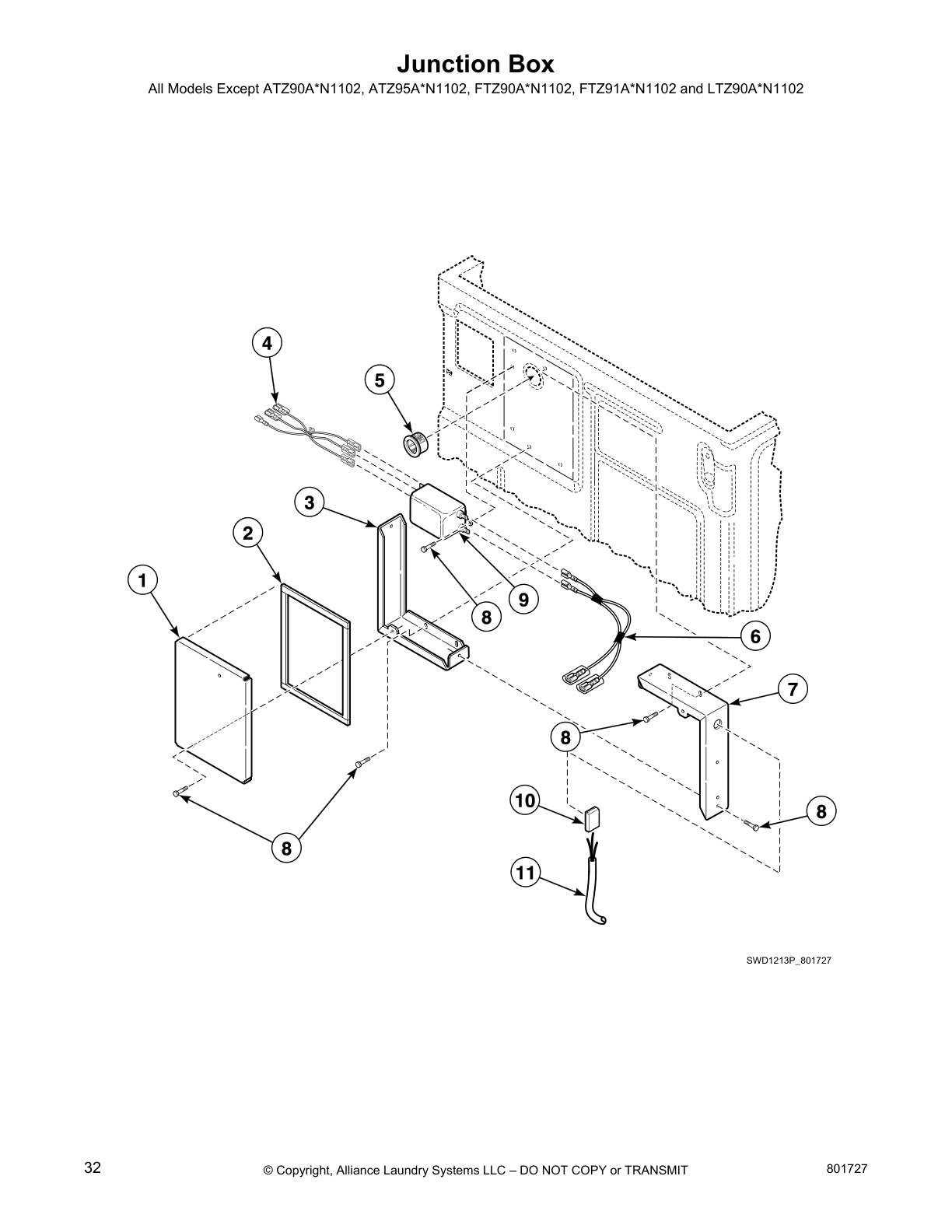

Junction Box

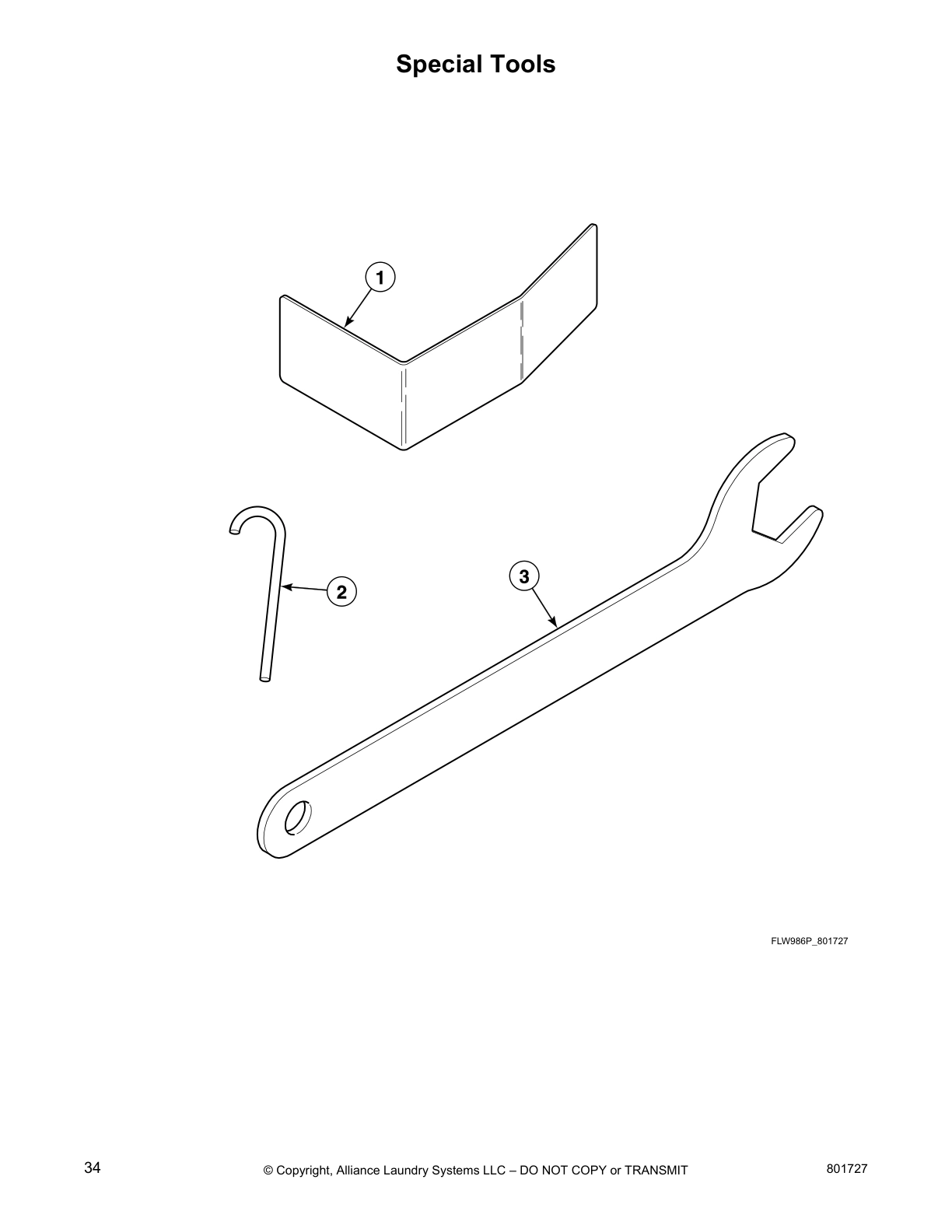

Special Tools

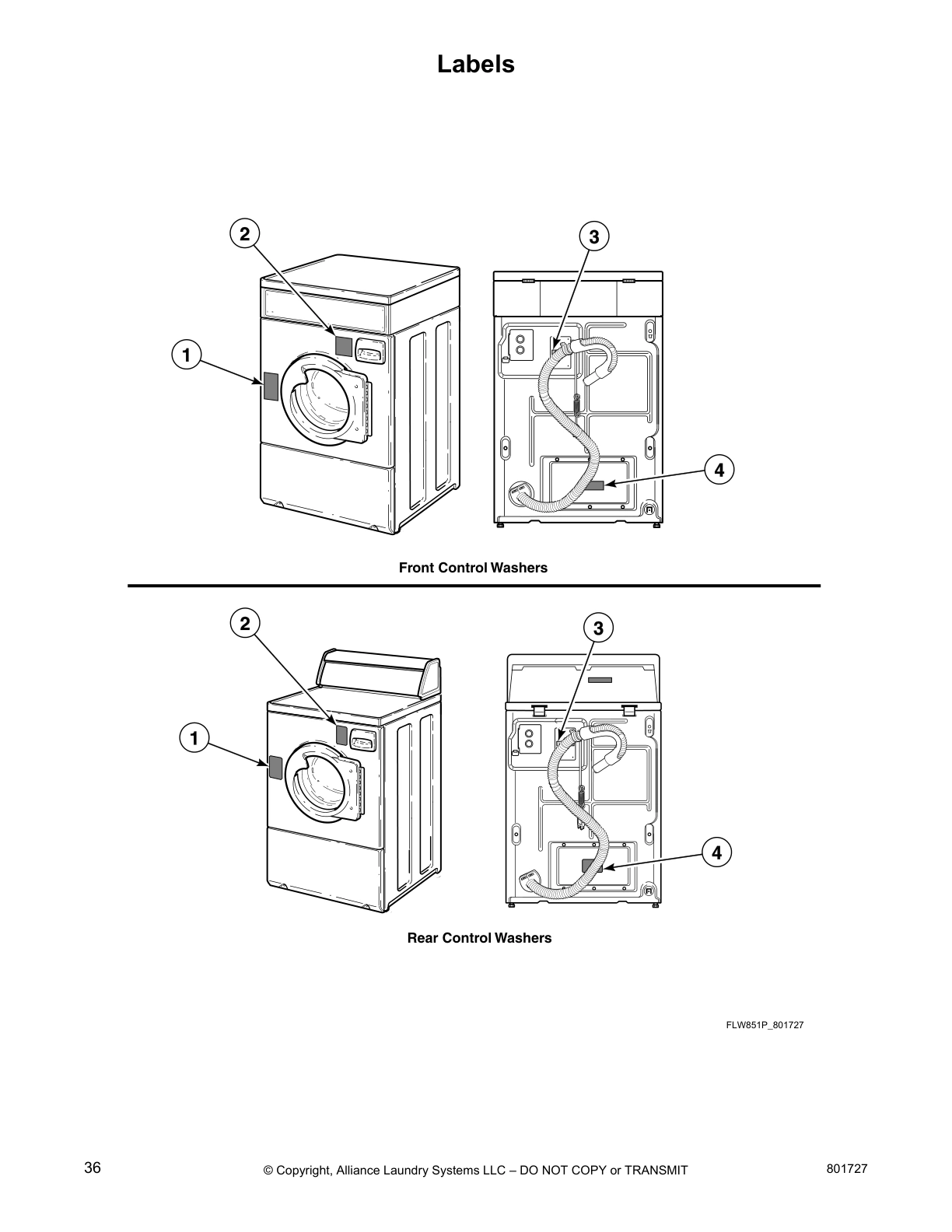

Labels

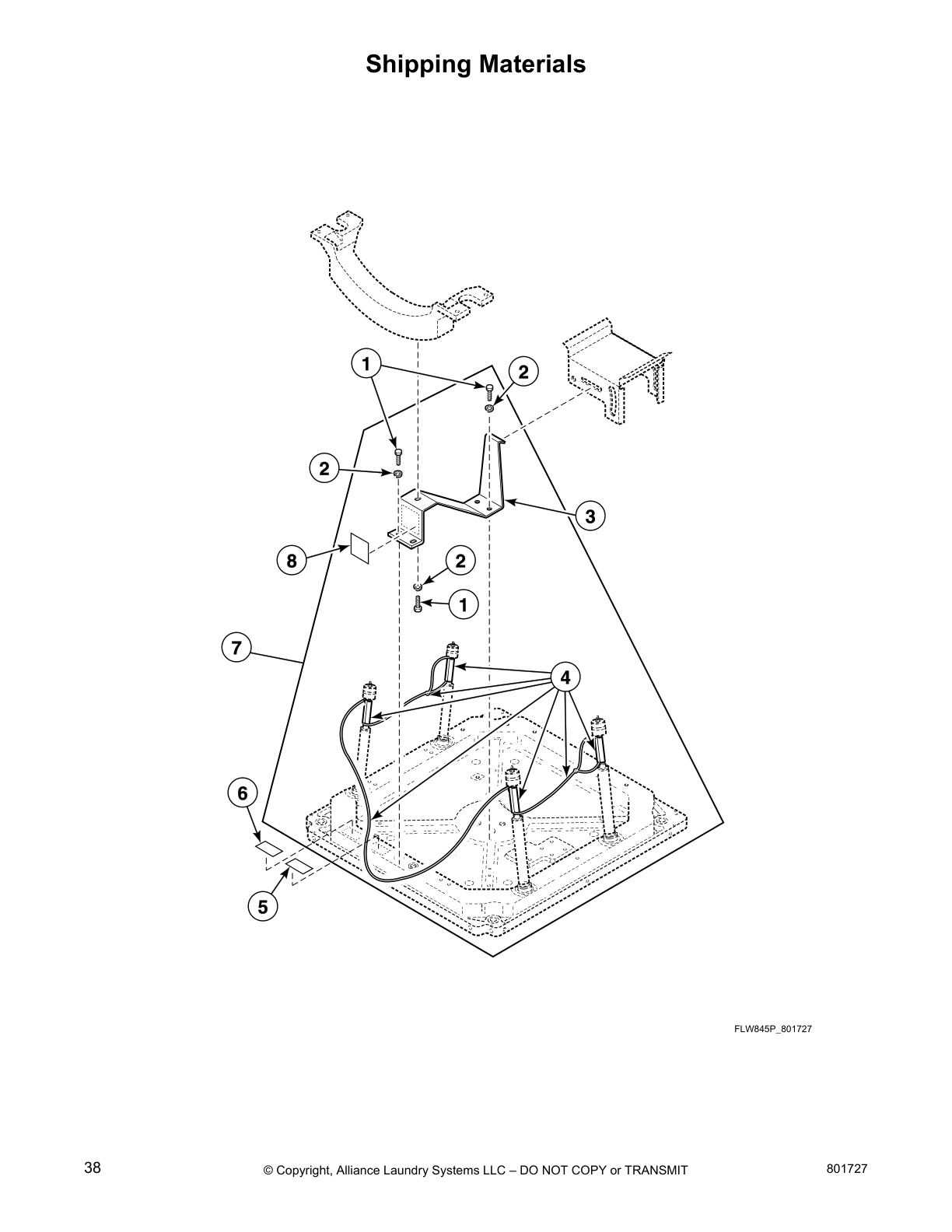

Shipping Materials

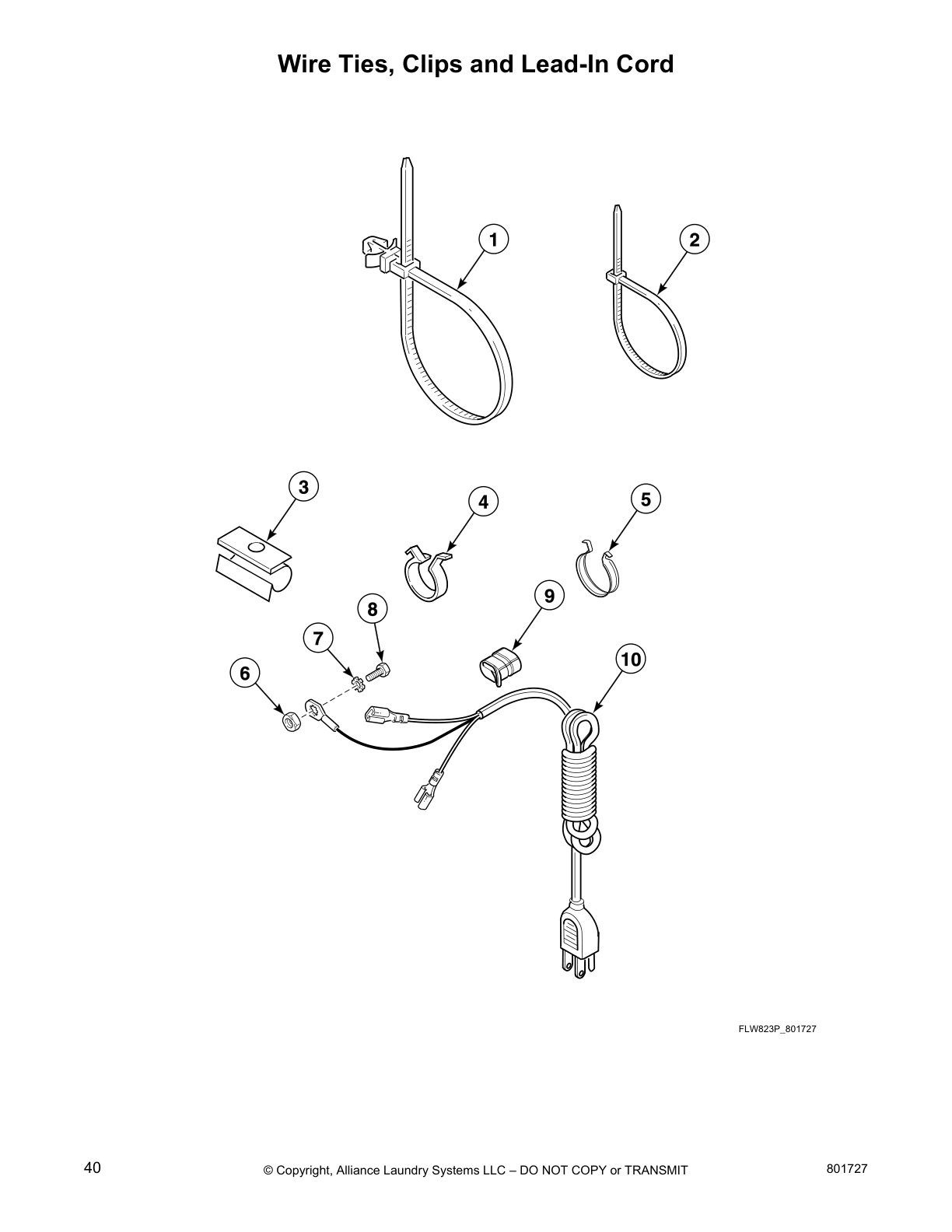

Wire Ties, Clips and Lead-In Cord

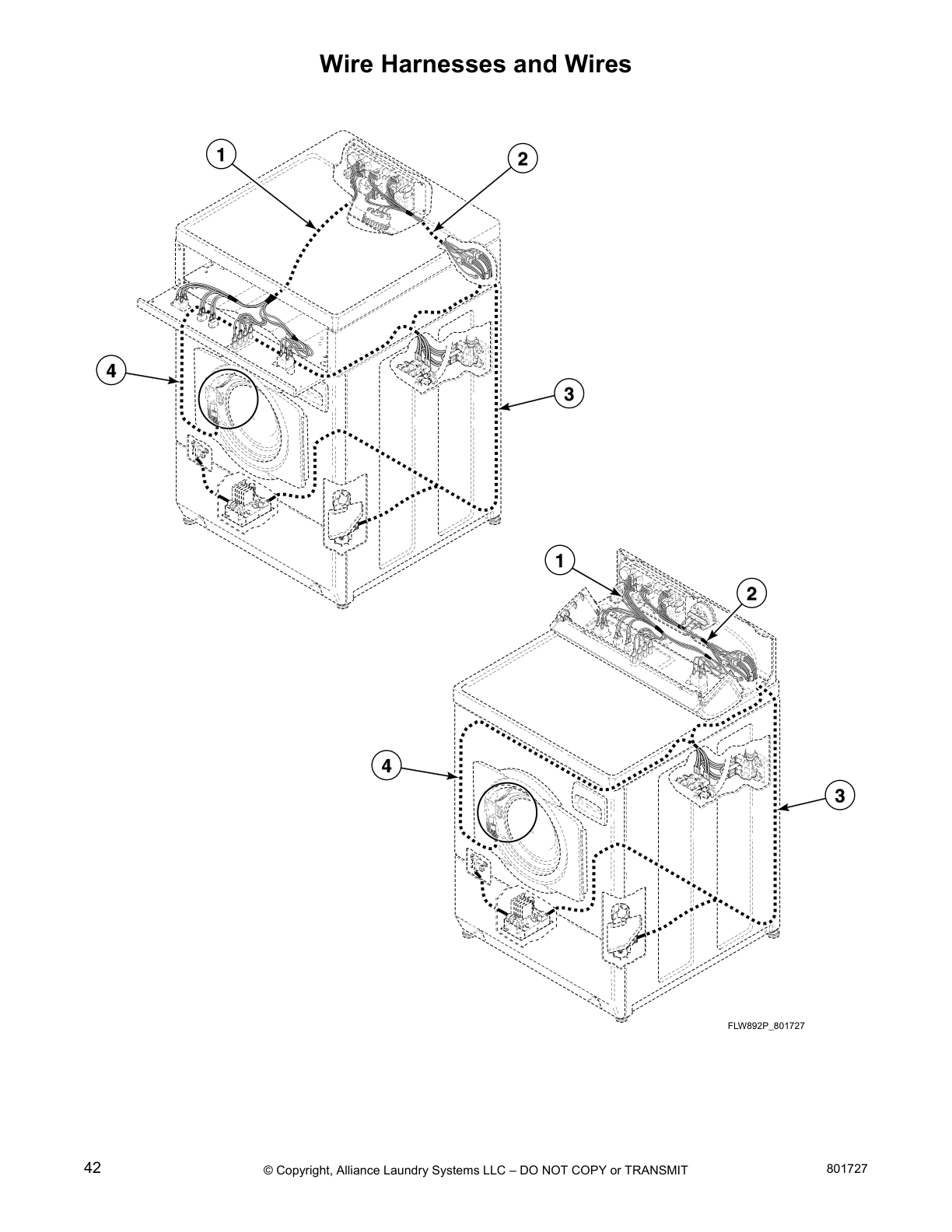

Wire Harnesses and Wires
Common parts from model Speed Queen LTS95A*N3020 Washer
1
Door Seal and Hose Assembly Kit SPQ 801784P Contact Us For Availability
4
Door Hinge SPQ 800211 Contact Us For Availability
4
Sealant SPQ 802434P Contact Us For Availability
5
SPQ 801928WP SPQ 801928WP Contact Us For Availability
10
Door Seal and Hose Assembly Kit SPQ 800232P Contact Us For Availability
15
Dispenser Assembly SPQ 801476P Contact Us For Availability
16
Inner Basket Assembly SPQ 800428P Contact Us For Availability
× ![]()
