Model Speed Queen LTS90A*N1127 Washer – Common Parts & Diagrams
Cabinet Top, Control Panel and Controls
Graphic Panel, Control Support Panel and Controls

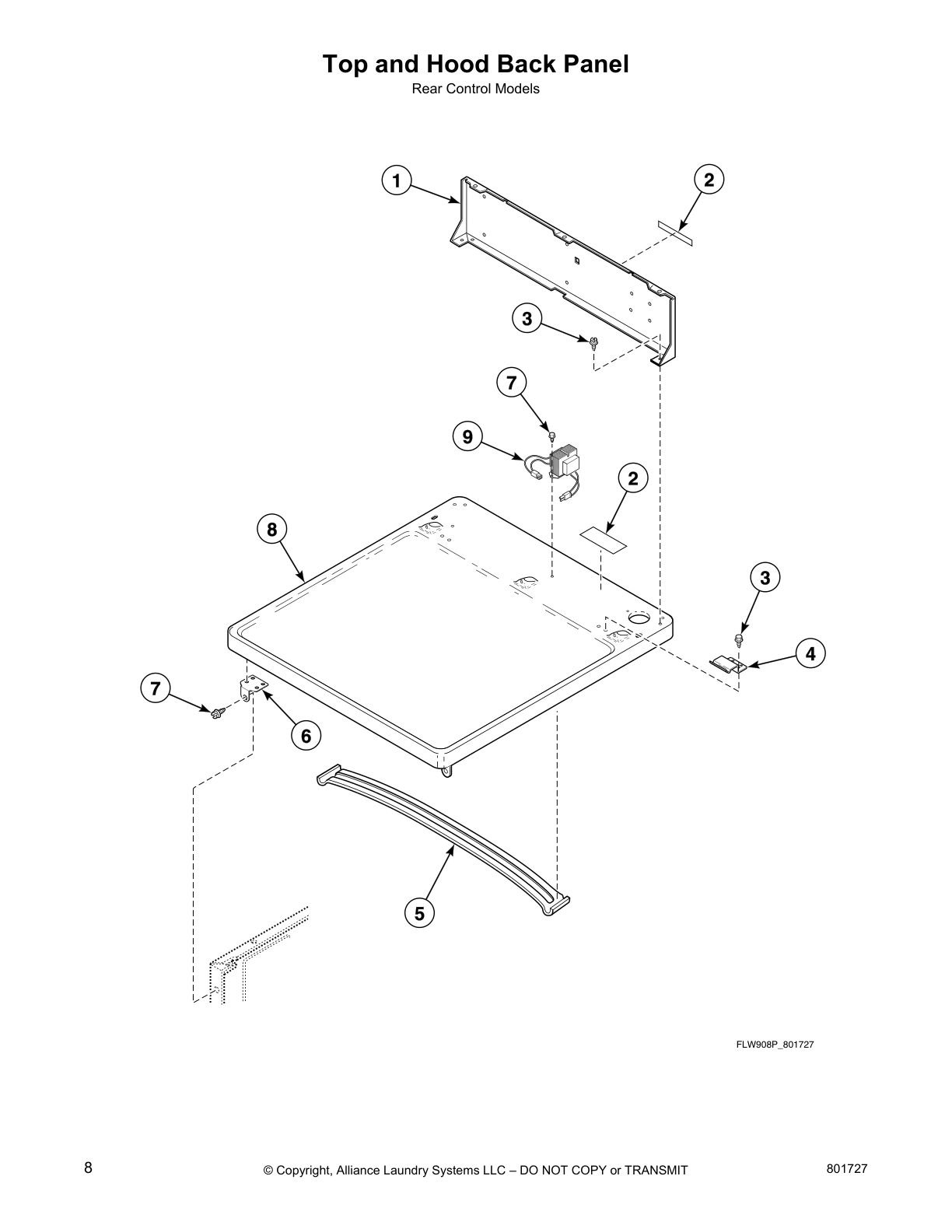

Top and Hood Back Panel
Front Panel, Door Assembly and Door Seal -
Models Through Serial No. 0411000565

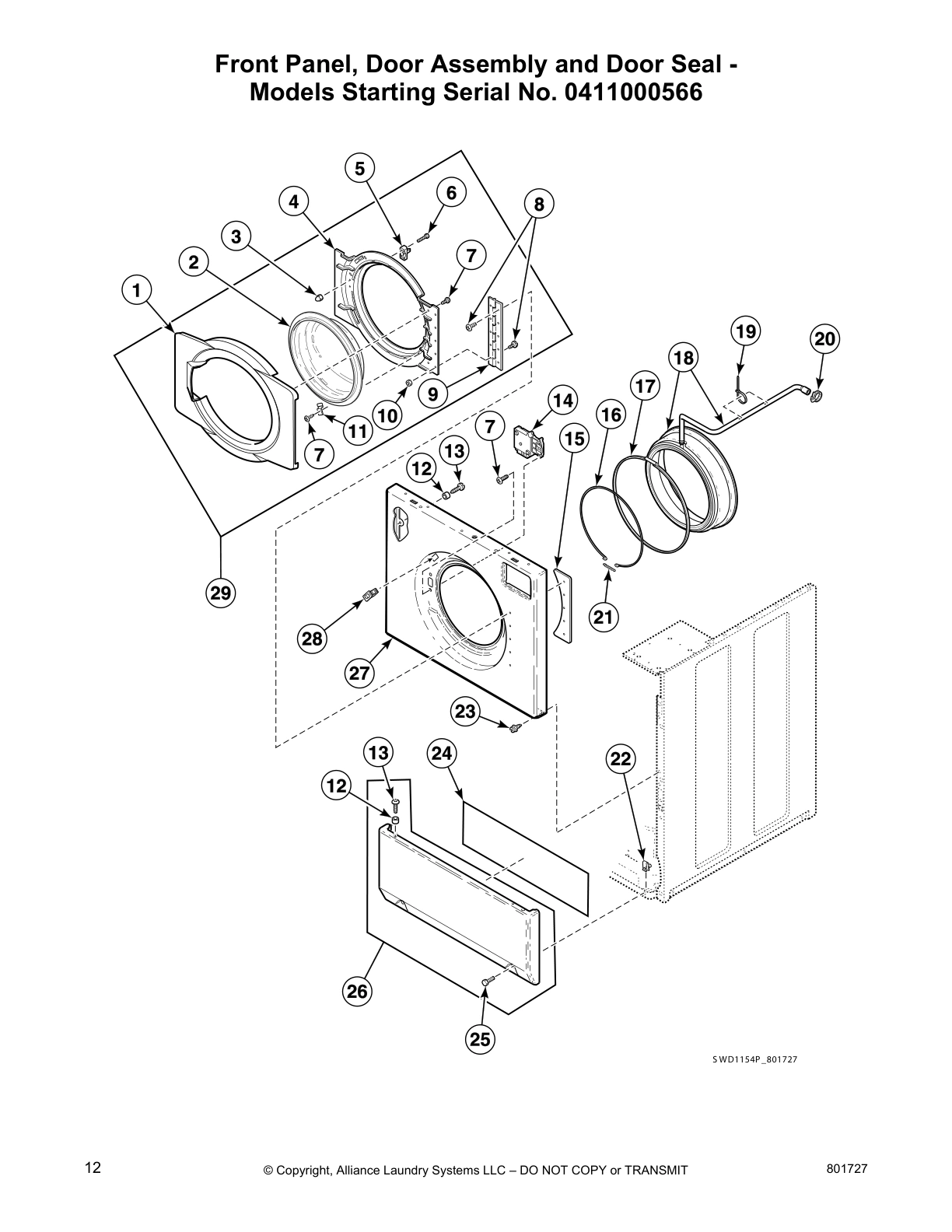

Front Panel, Door Assembly and Door Seal -
Models Starting Serial No. 0411000566

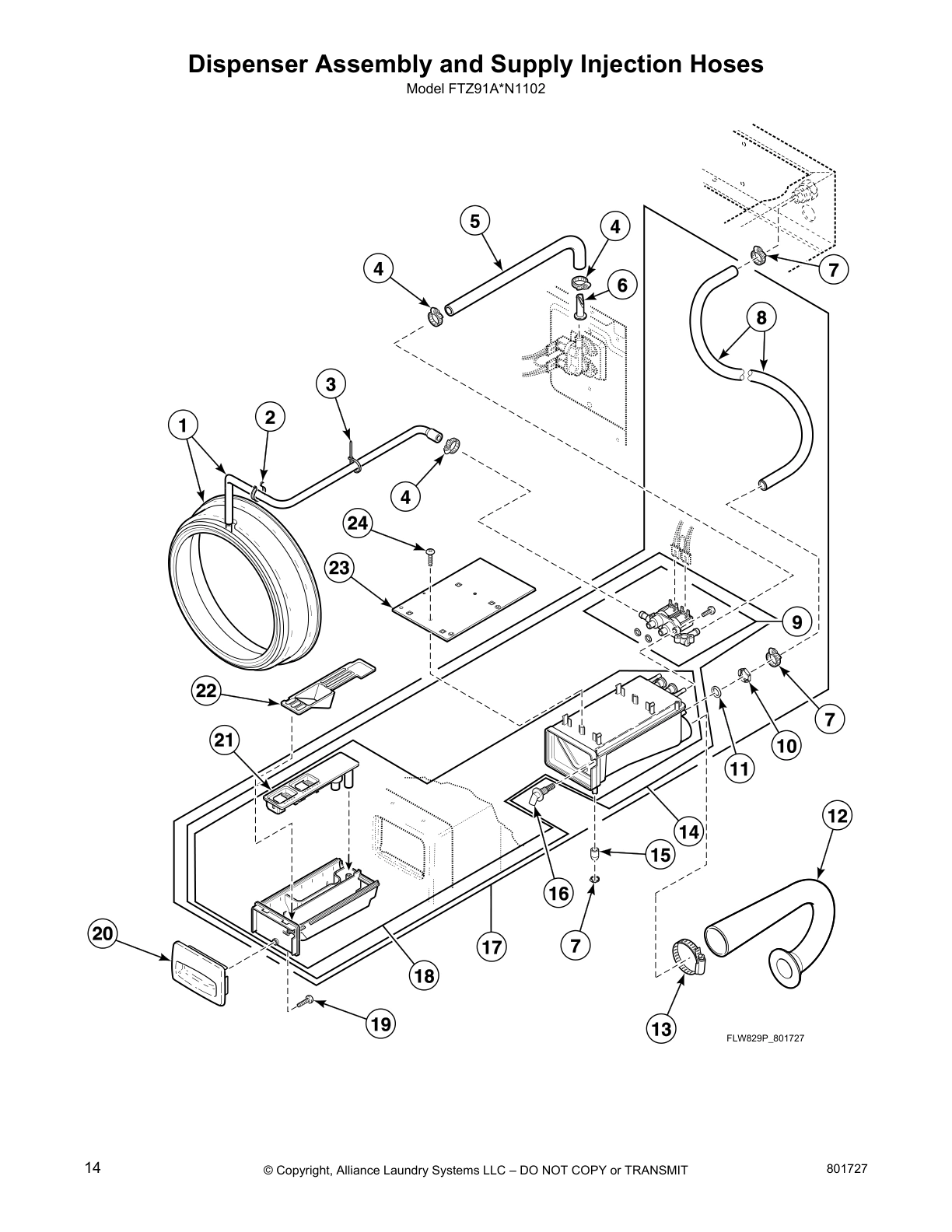

Dispenser Assembly and Supply Injection Hoses
Dispenser Assembly
Mixing Valve, Fill Hose and Valve-to-Dispenser Hose

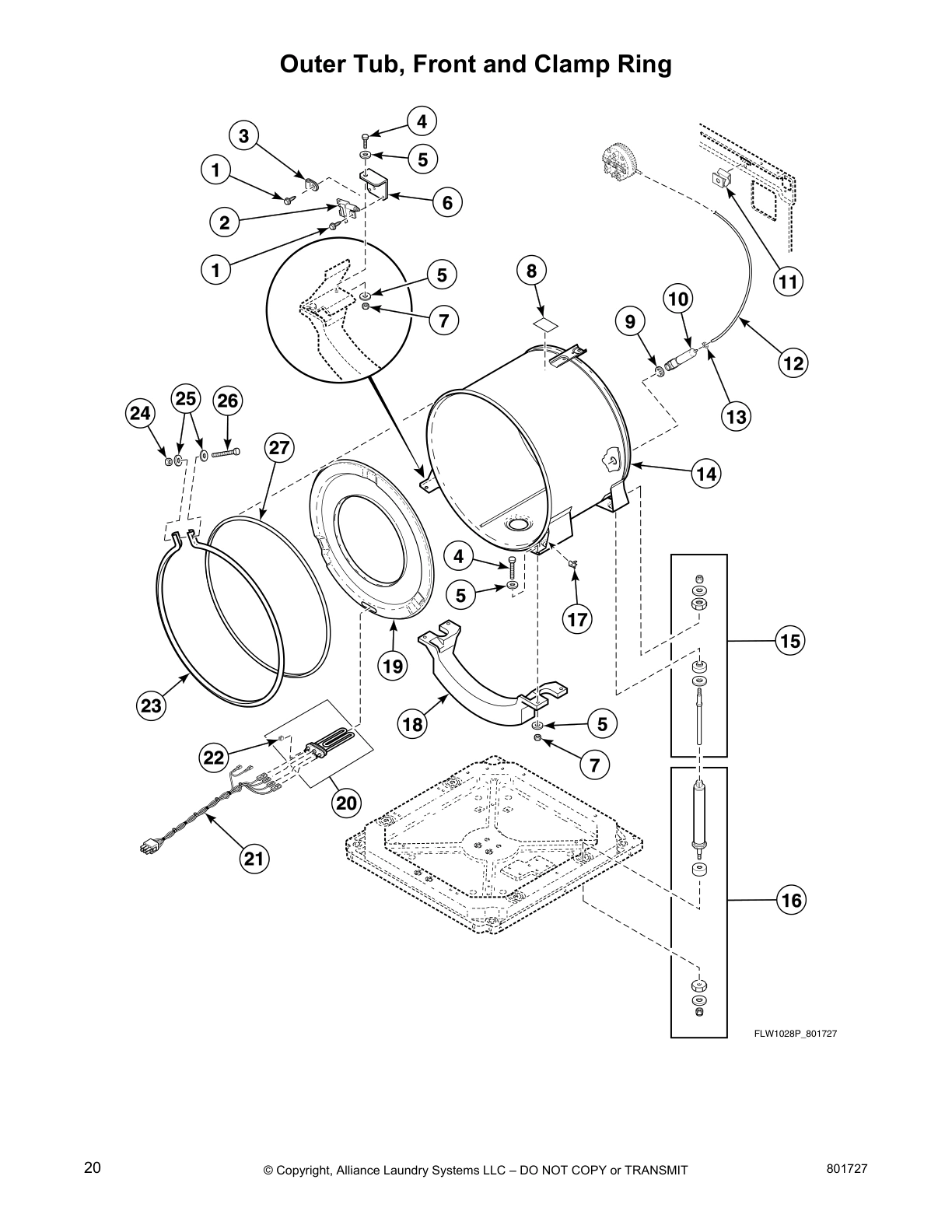

Outer Tub, Front and Clamp Ring
Inner Basket, Trunnion, Bearing Housing and Pulley
Motor and Belt

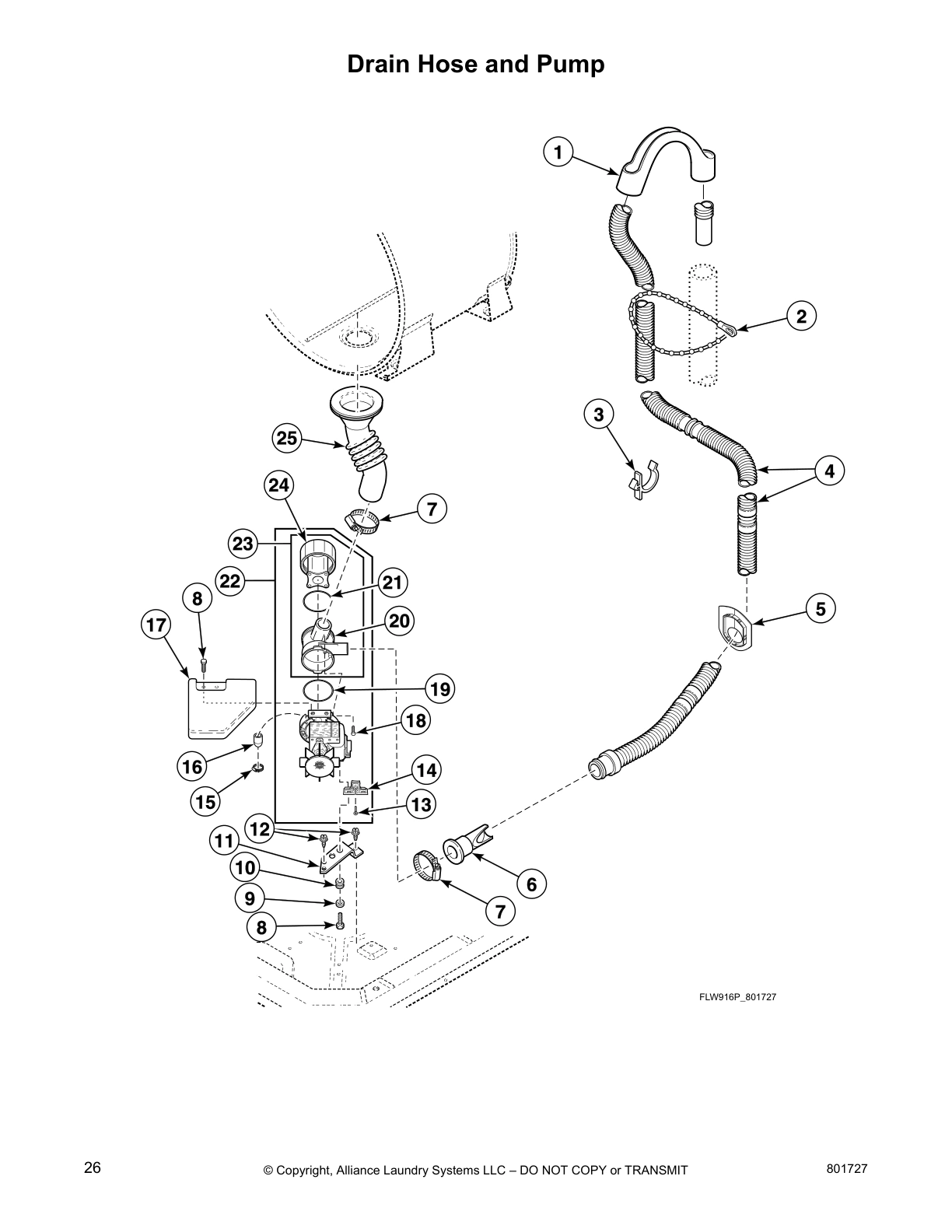

Drain Hose and Pump

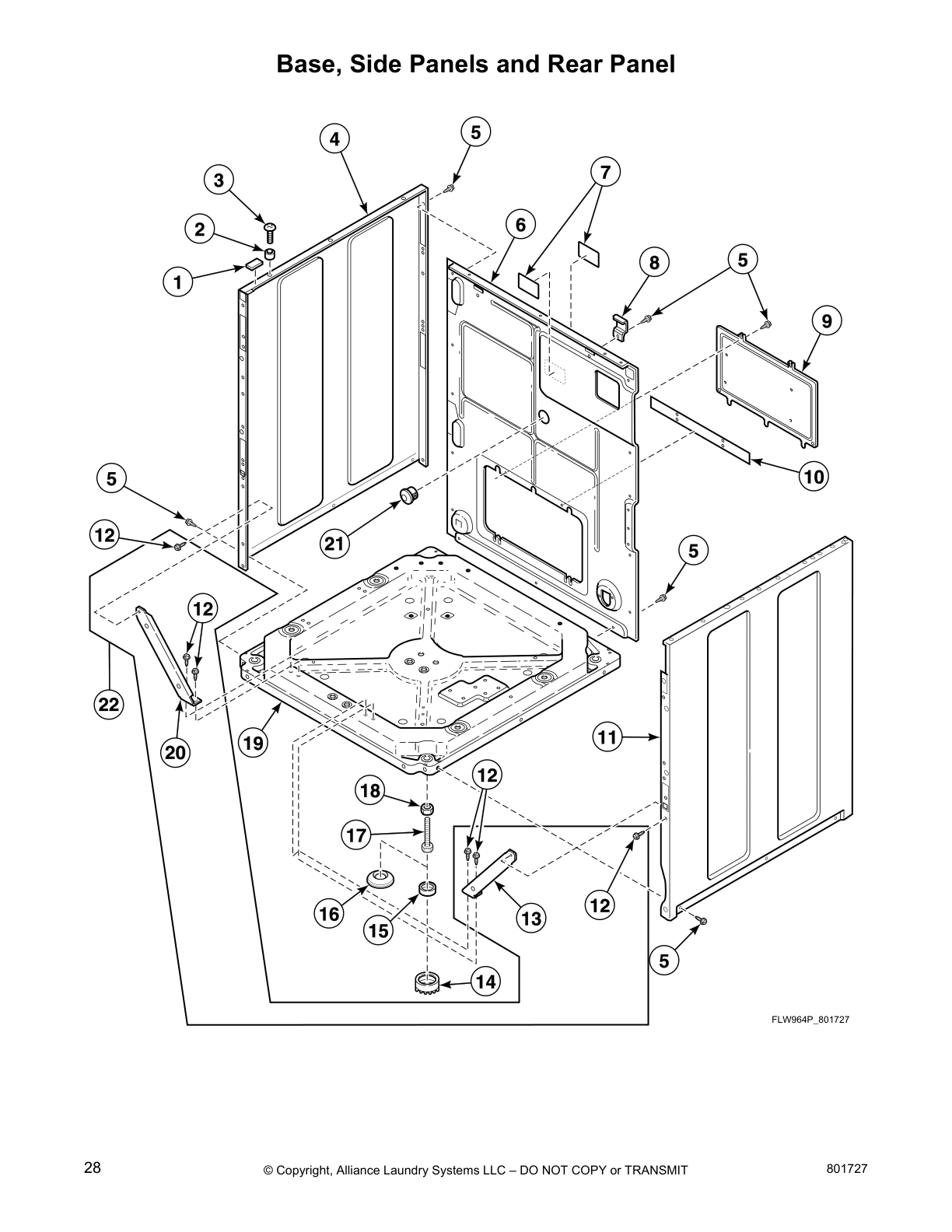

Base, Side Panels and Rear Panel

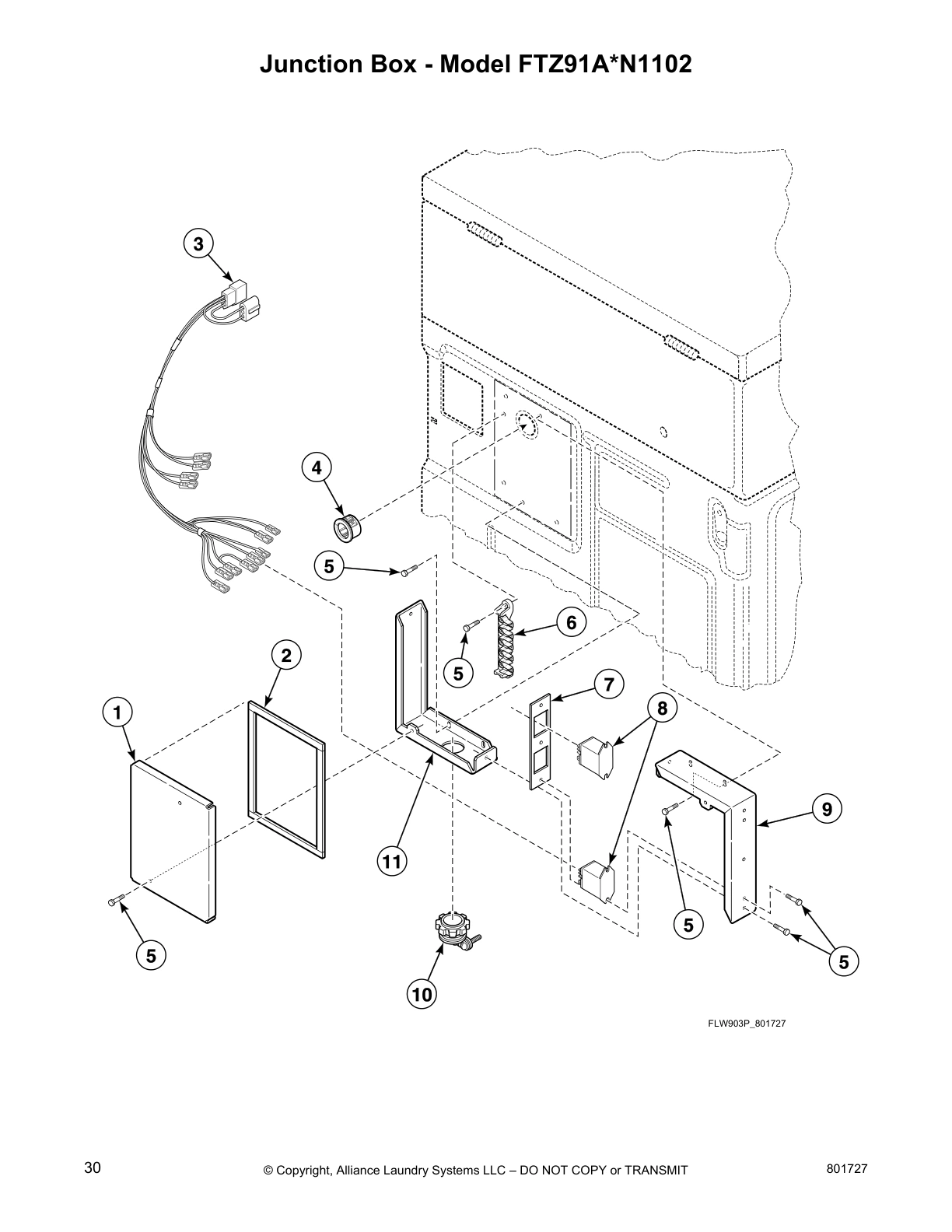

Junction Box - Model FTZ91A*N1102

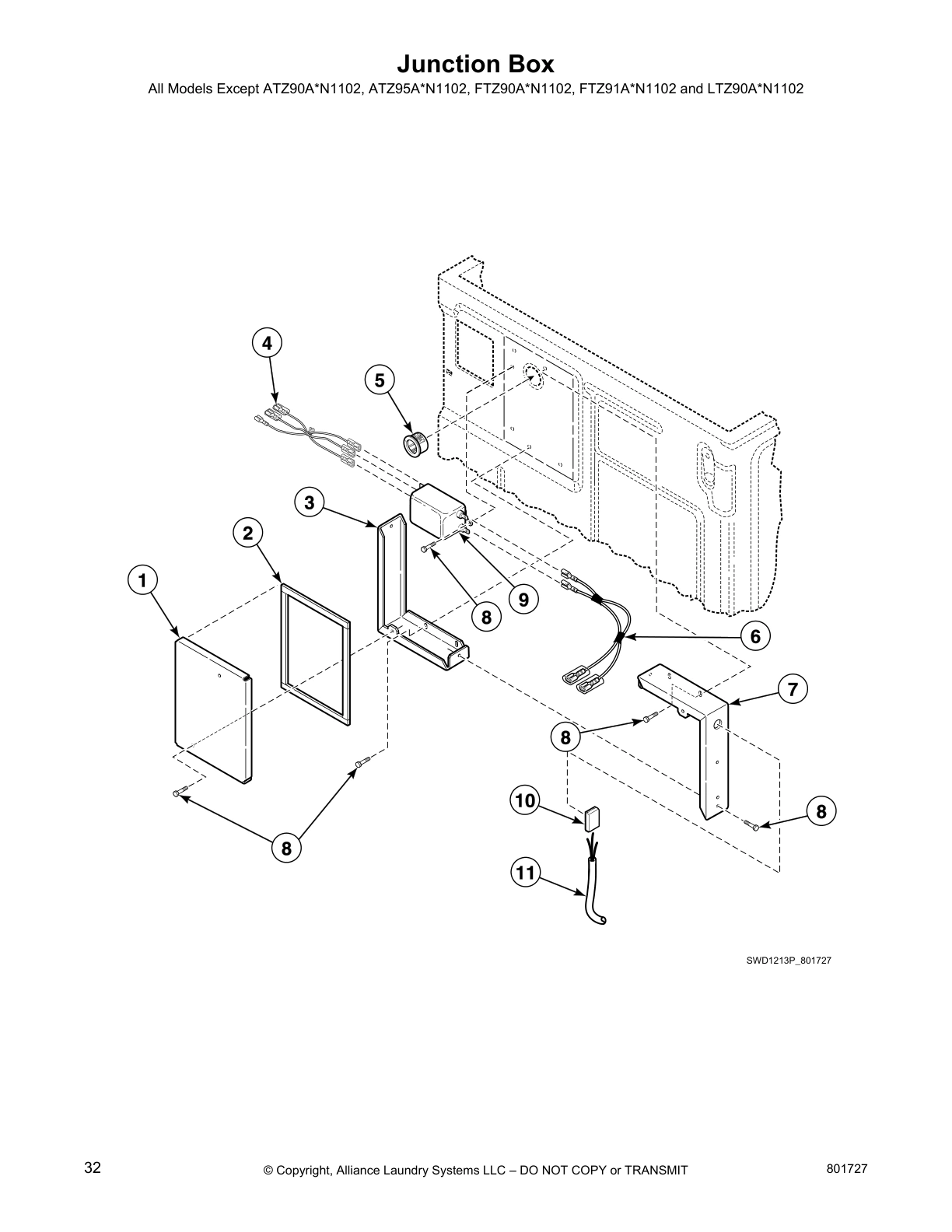

Junction Box
Special Tools

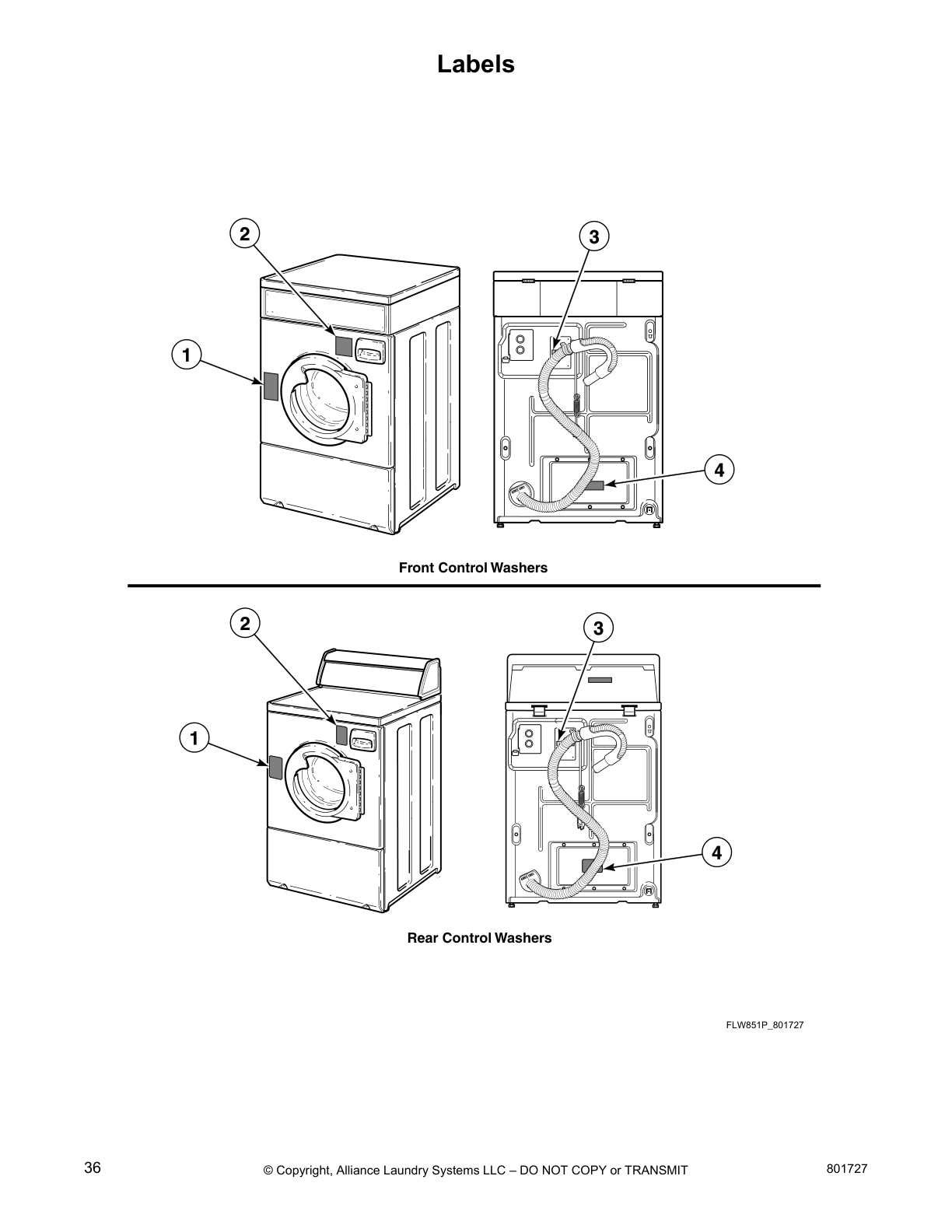

Labels

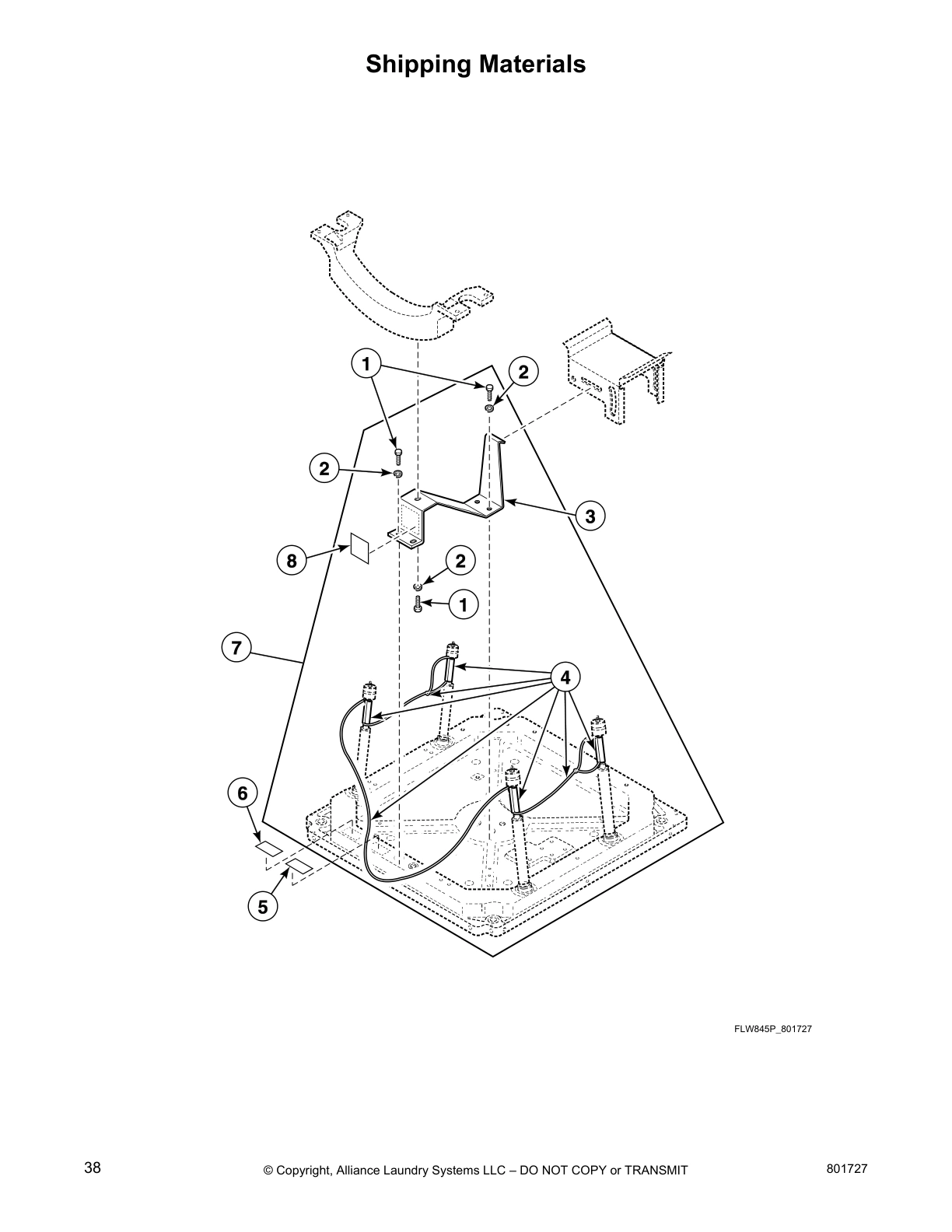

Shipping Materials

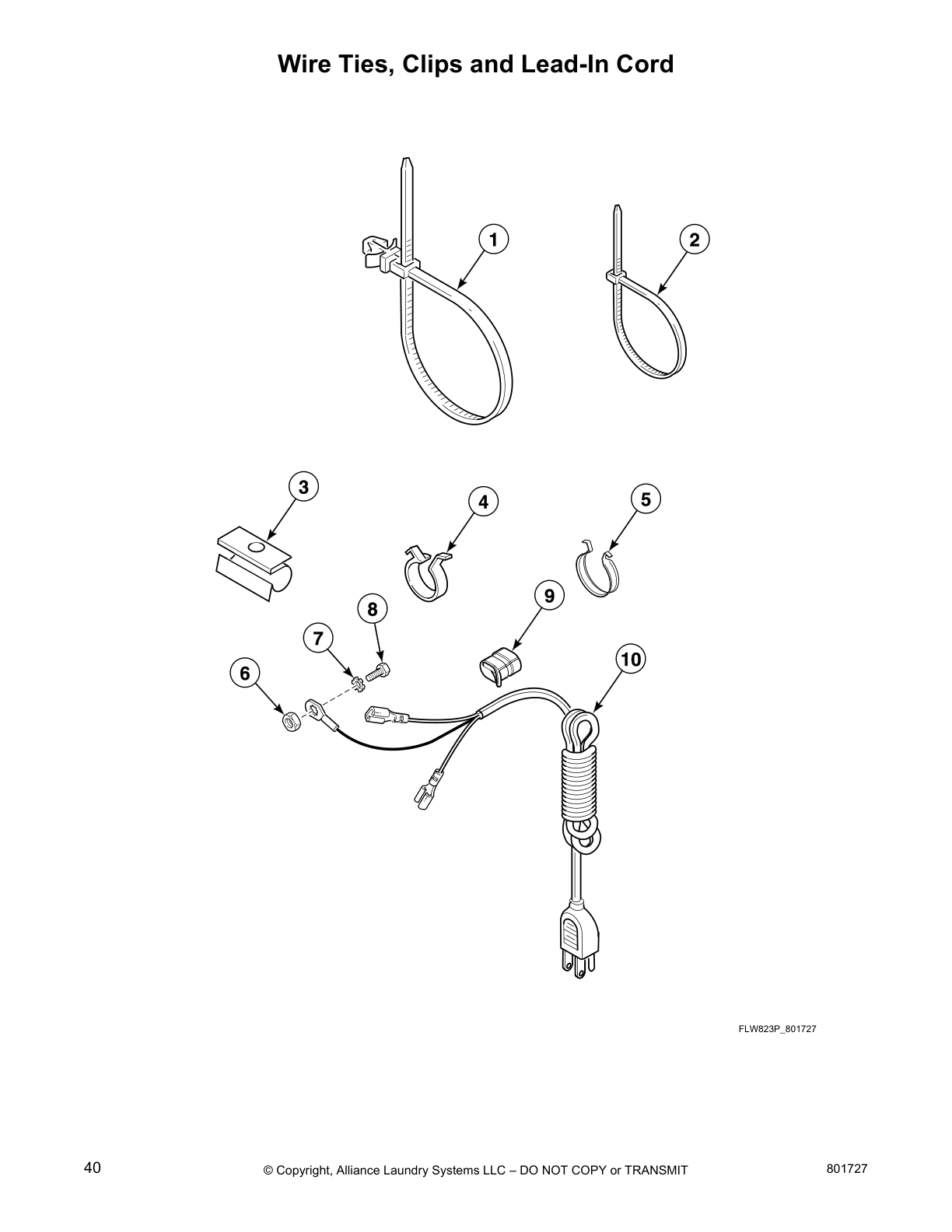

Wire Ties, Clips and Lead-In Cord
Wire Harnesses and Wires
Common parts from model Speed Queen LTS90A*N1127 Washer
1
Door Seal and Hose Assembly Kit SPQ 800232P Contact Us For Availability
4
Sealant SPQ 802434P Contact Us For Availability
4
SPQ 801928WP SPQ 801928WP Contact Us For Availability
13
Dispenser Assembly SPQ 801476P Contact Us For Availability
16
Inner Basket Assembly SPQ 800428P Contact Us For Availability
22
Gasket SPQ 802428 Contact Us For Availability
× ![]()
